A pilot [11C]PBR28 PET/MRI study of neuroinflammation and neurodegeneration in chronic stroke patients

Judith D Schaechter 1,∗, Baileigh G Hightower 1, Minhae Kim 1, Marco L Loggia 1
PMCID: PMC8474408  PMID: 34589819

Abstract

Neuroinflammation occurs in response to acute ischemic stroke, and has been speculated to underlie secondary poststroke pathologies, such as depression, that often develop over time poststroke. However, no study has examined whether neuroinflammation is present in chronic stroke patients (e.g., ​≥ ​1 year poststroke). This study tested whether neuroinflammation is present in chronic stroke patients, and is associated with neurodegeneration, using [11C]PBR28 PET and diffusion MRI.

Eight patients with middle cerebral artery (MCA) ischemic stroke incurred 1–3 years prior and 16 healthy controls underwent [11C]PBR28 PET to measure glial activation and diffusion MRI to measure microstructural integrity by mean diffusivity (MD) and fractional anisotropy (FA) using an integrated PET/MRI scanner. Group differences in [11C]PBR28 binding, MD and FA were analyzed voxelwise across the whole brain excluding the infarct zone defined as voxels containing the infarct in any patient.

Compared to controls, patients showed elevations in [11C]PBR28 binding in several brain regions outside the infarct zone, including regions with presumed direct neuroanatomical connections to the infarct (e.g., ipsilesional internal capsule and thalamus) and those without known direct connections (e.g., contralesional thalamus and cingulate gyrus). Patients also showed widespread elevations in MD, with a subset of these regions having reduced FA. In patients, MD was more elevated in regions with co-localized elevations in [11C]PBR28 binding than in contralateral regions without elevations in [11C]PBR28 binding.

This pilot study supports the presence of extensive glial activation along with widespread loss in microstructural integrity in non-infarcted tissue in a cohort of patients with chronic MCA stroke. The loss in microstructural integrity was greater in regions with co-localized glial activation. It is possible that stroke risk factors (e.g., hypertension) contributed to these tissue changes in patients.

Keywords: TSPO, Activated glia, Microglia, Middle cerebral artery, Ischemia

Highlights

  • •

    Chronic neuroinflammation speculated to underlie secondary poststroke pathologies such as depression.

  • •

    Measured neuroinflammation in chronic stroke patients using [11C]PBR28 PET.

  • •

    First study showing extensive neuroinflammation in non-infarcted tissue in chronic stroke patients.

1. Introduction

Acute ischemic stroke is known to trigger a strong inflammatory response in the infarct core and peri-infarct tissue that involves activation of resident microglia and astrocytes, together referred to as glial activation, and infiltration of peripheral immune cells (Myers et al., 1991a; Rojas et al., 2007; Sette et al., 1993). Over the subsequent weeks poststroke, the neuroinflammatory response in the infarct region wanes (Gulyas et al., 2012; Hughes et al., 2012; Price et al., 2006; Sette et al., 1993), while preclinical stroke studies have shown that glial activation develops in non-infarcted regions connected by white matter to the stroke-damaged tissue (Arlicot et al., 2010; Myers et al., 1991b; Nowicka et al., 2008; Walberer et al., 2014; Walter et al., 2015). In patient case studies, elevated levels of the 18 ​kDa translocator protein (TSPO), a mitochondrial protein upregulated in activated glia and considered a marker of neuroinflammation, have been observed in non-infarcted tissue weeks to months after middle cerebral artery (MCA) ischemic stroke, most frequently in the ipsilesional thalamus (Gerhard et al., 2005; Pappata et al., 2000; Radlinska et al., 2009; Thiel et al., 2010). While neuroinflammation in chronic stroke patients has been speculated to underlie secondary poststroke pathologies such as depression, fatigue and accelerated age-related cognitive decline that often develop over time poststroke (Barritt and Smithard, 2011; Shi et al., 2019; Spalletta et al., 2006), no study has examined neuroinflammation in a cohort of chronic stroke patients (e.g., ≥1 year poststroke).

The primary aim of this pilot study was to test the hypothesis that neuroinflammation is present in chronic stroke patients. To address this aim, using the TSPO radioligand [11C]PBR28 and an integrated PET/MRI scanner, we measured glial activation in patients with MCA stroke incurred 1–3 years prior compared to healthy controls in brain tissue undamaged by the stroke in any patient. Furthermore, as several previous studies in MCA stroke subjects have observed secondary neurodegeneration in the thalamus (Justicia et al., 2008; Kuchcinski et al., 2017; Ogawa et al., 1997; Walberer et al., 2014; Walter et al., 2015), a region that has also been observed to be affected by neuroinflammation after MCA stroke, our secondary aim was to examine whether neurodegeneration (e.g., Wallerian degeneration, secondary neurodegeneration) accompanied neuroinflammation in chronic patients with MCA stroke. To address this aim, microstructural integrity of brain tissue undamaged by stroke was measured by mean diffusivity (MD) and fractional anisotropy (FA) based on diffusion MRI.

2. Materials and methods

2.1. Study design

This study was conducted at the Athinoula A. Martinos Center for Biomedical Imaging, Massachusetts General Hospital. The Institutional Review Board and Radioactive Drug Research Committee approved the protocol. All subjects gave written informed consent.

2.2. Participants

Eight patients completed the study, and 16 healthy controls who participated in other PET/MRI studies (led by investigator MLL) were selected to match the patient group in age, sex, and Ala147Thr TSPO genotype. Inclusion criterion for patients was a unilateral ischemic stroke in the MCA territory 1–3 years prior. Exclusion criteria for patients were significant cognitive deficit measured by NIH Stroke Scale (NIHSS) item 1b and 1c score ≥1 or NIHSS item 9 score ≥2 (Brott et al., 1989); significant pre-stroke disability measured by the modified Rankin Scale score ≥3 (scale 0–5) (Bruno et al., 2011); and significant pre-stroke fatigue measured by verbal rating score >3 (scale 0–10). Exclusion criteria for patients and controls were a PET/MRI contraindication (e.g., certain metallic implants, claustrophobia); neurological disorder (other than chronic stroke in patients); and major kidney or liver disease. Enrolled subjects were subsequently excluded from imaging due to use of a benzodiazepine with high TSPO binding affinity (e.g., diazepam) or systemically-acting immunomodulator (e.g., prednisone) within 2 weeks of scheduled PET/MRI; active infection at time of scheduled PET/MRI; or Thr/Thr genotype in Ala147Thr TSPO gene that predicts low affinity binding of [11C]PBR28 (Owen et al., 2012).

Patients were characterized with regard to motor function using the upper limb subtest of the Fugl-Meyer Stroke Scale (FMSS-UL) that scales from 0 to 60, indicating poor to good motor recovery of the upper limb (Woodbury et al., 2007), and the 10-Meter Walk Test (10MWT) that measures comfortable walking speed (Flansbjer et al., 2005). As a normative reference for the 10MWT, community ambulation requires walking speed ≥0.8 ​m/s (Middleton et al., 2015). Fatigue was characterized using the general fatigue subtest of the Multidimensional Fatigue Inventory (MFI) that scales from 4 to 20, indicating low to high fatigue (Smets et al., 1995). Depression was characterized using the depression subtest of the Hospital Anxiety and Depression Scale (HADS-D) that scales from 0 to 21, indicating low to high depression (Zigmond and Snaith, 1983).

2.3. Image acquisition

Images were acquired using an integrated PET/MRI scanner that consists of a brain avalanche photodiode-based PET scanner operating in the bore of a Siemens 3T Tim Trio MRI and allows for simultaneous acquisition of PET and MRI data (Kolb et al., 2012). [11C]PBR28 scans were acquired 60–90 ​min after intravenous bolus injection of [11C]PBR28 and stored in listmode format. T1-weighted images (repetition time (TR) 2.53 ​s; echo time (TE)1-4 1.63/3.49/5.35/7.21 ​ms; voxel size 1 ​× ​1 ​× ​1 ​mm) were acquired from all subjects. Fluid-attenuated inversion recovery (FLAIR) images (TR 10 ​s; TE 73 ​ms; voxel size 1.3 ​× ​1.0 ​× ​5.0 ​mm) were acquired from patients. Diffusion MRI was performed on 7 of 8 patients and 11 of 16 controls using a twice-refocused echo planar spin-echo sequence (TR 8 ​s; TE 119 ​ms; voxel size 2.5 ​× ​2.5 ​× ​2.5 ​mm; 60 diffusion weightings at b-value 3000 ​s/mm2 and 8 ​at b-value 0 ​s/mm2).

2.4. Image analysis

PET data were reconstructed using the three-dimensional Ordinary Poisson Ordered Subset Expectation Maximization algorithm from prompt and random coincidences, normalization, attenuation, and scatter coincidence sinograms using 32 subsets and 1 iteration. A statistical parametric mapping-based, pseudo-computed tomography methodology was used to conduct MR-based attenuation correction (Izquierdo-Garcia et al., 2014). Standardized uptake value (SUV) images were calculated (i.e., radioactivity concentration divided by injected dose per body weight) from the 60–90 ​min post-administration [11C]PBR28 PET data and processed as we described previously (Albrecht et al., 2018; Loggia et al., 2015). SUV images were spatially normalized to Montreal Neurological Institute (MNI) space using tools in the FMRIB's Software Library (FSL, version 6). SUV images from patients with a left hemisphere stroke (3 of 8 patients) were flipped across the midsagittal plane prior to spatial normalization to lateralize the infarct to the right hemisphere for all patients. Each patient's infarct was labeled on the T1-weighted images, aided by visualizing the infarct on the FLAIR images as needed. This lesion label was used to measure lesion volume and to mask out the infarct during the spatial normalization process (Brett et al., 2001). Spatially normalized SUV images were smoothed with an 8 ​mm full width at half maximum (FWHM) Gaussian kernel.

To account for global differences in [11C]PBR28 binding across individuals, we normalized SUV images by signal in a pseudo-reference region, yielding SUVR images (Albrecht et al., 2018), with the ipsilesional (right) cerebellum serving as the pseudo-reference region. Several prior TSPO PET studies in MCA stroke patients have used the ipsilesional cerebellum as the pseudo-reference region because this region is spared effects of diaschisis (Gerhard et al., 2005; Gulyas et al., 2012; Morris et al., 2018; Price et al., 2006). We assessed the suitability of the ipsilesional cerebellum as the pseudo-reference region for our data, with the criterion begin the absence of a significant (p ​< ​0.05) difference in mean SUV in the right cerebellum of patients compared to controls, with the cerebellum defined by the probabilistic cerebellar label in FSL's MNI Structural Atlas (thresholded at 50, range 0–100). We found no significant between-group difference in right cerebellar SUV after adjusting for TSPO genotype and age, supporting the suitability of the right cerebellum as the pseudo-reference region when the statistical model to assess group differences in SUVR adjusts for TSPO genotype and age.

The diffusion MRI data were processed using software from FMRIB's Diffusion Toolbox (FDT). These data were corrected for eddy currents and head motion, then the diffusion tensor and associated eigensystem were estimated voxelwise using linear least squares regression, from which MD and FA were calculated. MD is the average of the three eigenvalues and quantifies average diffusivity. FA is the fraction of diffusion attributed to anisotropic diffusion, and scales from 0 indicated isotropy to 1 indicating anisotropy (Basser and Pierpaoli, 1996). Increases in intravoxel MD and decreases in intravoxel FA typically reflect loss in tissue microstructural integrity and have been used as indices of neurodegeneration after stroke (e.g., Wallerian degeneration, secondary neurodegeneration) (Herve et al., 2005; Werring et al., 2000). MD and FA images were spatially normalized to MNI space using the same procedure as for the SUV images, then smoothed with a 4 ​mm FWHM Gaussian kernel.

To compare [11C]PBR28 binding, MD and FA in the patients relative to controls in MNI space, we sought to exclude all voxels containing an infarct in any patient. To prepare for this, each patient's lesion label delineated on the T1-weighted images was spatially normalized, then these labels were summed voxelwise to create a cumulative lesion map. The cumulative lesion map was binarized to create a composite lesion map that defined the infarct zone to be excluded in subsequent analyses.

With time after stroke, the size of an infarct typically shrinks, which results in a proportionate increase in size of the ipsilesional lateral ventricle (Egorova et al., 2019). Accordingly, we wished to exclude all lateral ventricle voxels during group comparison of [11C]PBR28 binding, MD and FA in MNI space. In preparation for this, lateral ventricle voxels of each subject were automatically labeled in the T1-weighted images using Freesurfer software, these labels were spatially normalized, summed voxelwise and binarized to create a composite lateral ventricle map.

2.5. Statistical analysis

Statistical differences in demographic variables between patient and control groups were assessed by a two-tailed unpaired t-test for continuous data (i.e., age, body weight, molar activity, injected dose, injected dose/body weight), and two-tailed Fisher's Exact test for nominal data (i.e., sex, TSPO genotype, stroke risk factors). Pearson's correlation coefficient was computed to assess the relationship between [11C]PBR28 binding and lesion volume in patients. The difference in [11C]PBR28 binding between patients median-split by stroke chronicity was assessed using a two-tailed unpaired t-test. Testing was performed using JMP Pro (v15) software with significance level set at 0.05.

Group differences in [11C]PBR28 binding, MD and FA were evaluated voxelwise by a nonparametric permutation test implemented using FSL's randomize tool with 5000 permutations, with significance level set at 0.05 using threshold-free cluster enhancement (TFCE) (Smith and Nichols, 2009). Voxels of the composite lesion and lateral ventricle maps were excluded from analysis. The model assessing group differences in [11C]PBR28 binding included TSPO genotype and age as regressors of no interest. The model assessing group differences in MD and FA included age as a regressor of no interest because increased age among older adults has been associated with changes in diffusion (Reas et al., 2020; Salat et al., 2005; Salminen et al., 2016), and there was a non-significant trend (p ​= ​0.053) for greater age in the patients (n ​= ​7) compared to the controls (n ​= ​11) with diffusion MRI data.

For the purposes of displaying scatterplots of group differences in [11C]PBR28 binding, MD and FA, for correlating [11C]PBR28 binding against lesion volume in patients, and for testing the difference in [11C]PBR28 binding in patients median-split by stroke chronicity, we computed values adjusted for the effect of covariate(s). To do this, the mean imaging metric across all voxels of interest (corrected p ​< ​0.05) was computing for each subject, then these data along with relevant covariate data were entered into a linear regression model in JMP software. Covariates for adjusting [11C]PBR28 binding (SUVR) were TSPO genotype and age, whereas the covariate for adjusting MD and FA was age. This process was repeated for selected regions within the group difference map in [11C]PBR28 binding by intersecting with anatomic labels extracted from FSL's atlases. The selected regions were the right and left thalamus and white matter from the Harvard-Oxford Subcortical Structural Atlas, with each label thresholded at a minimum value of 70 (range 0–100); right precentral gyus from the Harvard-Oxford Cortical Structural Atlas thresholded at a minimum value of 20; right superior longitudinal fasciculus from the Johns Hopkins University (JHU) ICBM-DTI-81 White Matter Tractography Atlas thresholded at a minimum value of 20; and the corpus callosum body and right cerebral peduncle from the JHU ICBM-DTI-81 White Matter Label Atlas.

To further explore our finding of significant group differences in [11C]PBR28 binding and diffusion (see Results), we delineated the spatial overlap between group difference maps (SUVR relative to MD and FA, separately), with the input maps thresholded at corrected p-level < 0.05 and binarized. We then asked if the magnitude of diffusion differed in patients relative to the presence or absence of overlapping group differences in [11C]PBR28 binding. To address this question in such a way that accounts for the normal variability in diffusion across the brain, we constructed symmetric regions-of-interest, with one region-of-interest comprised of voxels with overlapping group differences [11C]PBR28 binding and diffusion and the contralateral region-of-interest comprised of voxels with a group difference in diffusion only. Mean diffusion was calculated for both regions-of-interest for each subject, then these values were entered into a repeated measures mixed model analysis to test for a region-of-interest ​× ​group interaction effect on mean diffusion, with planned post-hoc contrast between diffusion in the two regions-of-interest in patients using the Tukey test. To avoid circularity, the mixed model analyses were not used to test group effects. These statistical analyses were performed using JMP software with significance level set at 0.05.

3. Results

3.1. Subject characteristics

Subject characteristics are shown in Table 1. There was no significant group difference in age, sex or TSPO genotype, reflecting successful selection of controls from an existing dataset. While the dose of [11C]PBR28 was higher in patients than controls, and molar activity was higher in controls than patients, injected dose per body weight was not significantly different between groups, indicating appropriate normalization of brain radioactivity concentration to calculate SUV. Patients had a significantly higher incidence of some stroke risk factors (e.g., hypertension) compared to controls, as might be expected given the high comorbidity of hypertension and stroke. Infarct volume and location within the MCA territory varied across patients (Fig. 1a). The cumulative lesion map shows partial spatial overlap of the infarcts across patients (Fig. 1b).

Table 1.

Subject characteristics.

Patients Controls p-value
Age (y) 62 ± 6 57 ± 7 0.06
Sex (female/total) 1/8 8/16 0.18
TSPO genotype (MAB/total) 2/8 6/16 0.67
Body weight (kg) 83 ± 15 74 ± 19 0.23
Molar activity (GBq/μmol) 51.4 ± 18.8 81.8 ± 31.4 <0.01
Injected dose (mCi) 14.63 ± 0.15 12.69 ± 1.66 <0.01
Injected dose/body weight 0.18 ± 0.04 0.18 ± 0.05 0.96
Stroke Risk Factors
 Hypertension (positive/total) 4/8; 3/7 0/16; 0/11 0.01; 0.04
 Hyperlipidemia (positive/total) 4/8; 3/7 1/16; 1/11 0.03; 0.25
 Diabetes or pre-diabetes (positive/total) 1/8; 1/7 2/16; 1/11 1.00; 1.00
 Coronary artery disease (positive/total) 3/8; 3/7 0/16; 0/11 0.03; 0.04
 Atrial fibrillation (positive/total) 0/8; 0/7 0/16; 0/11 –
Stroke Characteristics and Acute Treatment
 Time interval acute stroke to scan (y) 1.7 ± 0.5 –
 Infarct volume (cm3) 18 ± 17 –
 Hemisphere (right) 5/8 –
 Tissue plasminogen activator (positive/total) 1/8 –
 Intra-arterial therapy (positive/total) 1/8 –
Patient Clinical Characteristics
 FMSS-UL score (scale 0–60) 59 (40–60) –
 10MWT (m/s) 1.4 ± 0.2 –
 MFI score (scale 4–20) 10 (5–15) –
 HADS-D score (scale 0–21) 4 (0–7.5) –
Open in a new tab

Abbreviations: MAB ​= ​mixed affinity binder.

Continuous data given as mean and standard deviation; ordinal data given as median and range; nominal data given as count relative to total.

For stroke risk factors: Values given for all subjects and subset of subjects with diffusion MRI data.

Fig. 1.

Fig. 1

Open in a new tab

Location of stroke in MCA territory in patients. All lesions shown in the right hemisphere in MNI space A. Slice showing largest lesion extent in each of 8 patients. B. Cumulative lesion map in 8 patients. The blue color scale represents the number of patients with a lesion at the voxel location. . (For interpretation of the references to color in this figure legend, the reader is referred to the Web version of this article.)

The clinical data from the patients indicate that, as a group, they had good upper and lower limb motor function, mild depression and moderate fatigue.

3.2. [11C]PBR28 binding in patients compared to controls

Compared to controls, the patients showed significant elevations in [11C]PBR28 binding in a large volume of brain tissue (109 ​cm3 in MNI space) outside the infarct zone, including in regions of the ipsilesional superior corona radiata, ipsilesional supplementary motor area, ipsilesional superior longitudinal fasciculus, ipsilesional internal capsule, contralesional cingulate gyrus, corpus callosum, bilateral thalamus, bilateral midbrain and bilateral pons (Fig. 2; Table 2). There was no region with significantly higher [11C]PBR28 binding in the controls than patients. These findings provide evidence of extensive neuroinflammation in non-infarcted ipsilesional and contralesional regions in chronic stroke patients.

Fig. 2.

Fig. 2

Open in a new tab

Evidence of neuroinflammation in stroke patients. A. Median [11C]PBR28 SUVR in controls (n ​= ​16) and patients (n ​= ​8). B. Brain regions with significant elevations in [11C]PBR28 binding in patients versus controls. C. [11C]PBR28 SUVR, adjusted for TSPO genotype and age, for each subject across all voxels exhibiting a significant group difference (whole region), and in selected regions intersecting the group difference map. Adjusted [11C]PBR28 SUVR data are displayed in box-and-whisker plots, with each box extending from 25th to 75th percentile, whiskers extending from minimum and maximum value, and horizontal line representing the median.

Table 2.

Regions exhibiting significantly higher [11C]PBR28 binding in patients compared to controls.

Cluster size (voxels) Region within Cluster Hemisphere Local Maxima MNI Coordinates (mm)
X Y Z
8864 Superior corona radiata Ipsilesional 18 0 38
Superior longitudinal fasciculus Ipsilesional 38 −16 32
Parietal-occipital white matter Ipsilesional 42 −50 38
Supplementary motor area Ipsilesional 12 −8 48
Corpus callosum, body Ipsilesional & Contralesional 0 2 24
Cingulate gyrus Contralesional −6 −4 34
Precentral gyrus Contralesional −24 −8 52
3507 Posterior limb of internal capsule Ipsilesional 16 −8 2
Thalamus Ipsilesional & Contralesional 12 −10 2
Midbrain Ipsilesional & Contralesional 0 −26 −18
Pons Ipsilesional & Contralesional −2 −32 −38
1375 Parietal-occipital white matter Contralesional −32 −60 22
19 Superior precentral white matter Contralesional −8 −28 66
Open in a new tab

In patients, [11C]PBR28 binding (adjusted for TSPO genotype and age) outside the infarct zone was not significantly correlated with lesion volume (r ​= ​−0.44, p ​= ​0.28). Adjusted [11C]PBR28 binding in the contralesional thalamus, a region with no known direct white matter connections to a stroke in the MCA territory, was not significantly different in patients median-split by stroke chronicity (high chronicity: 1.27 ​± ​0.05; low chronicity: 1.21 ​± ​0.08; p ​= ​0.20).

3.3. Diffusion in patients compared to controls

Compared to controls, the patients showed significant elevations in MD in a large volume of tissue (551 ​cm3 in MNI space) outside the infarct zone, including white matter of the frontal, temporal, parietal and occipital lobes bilaterally, corpus callosum, ipsilesional pallidum, bilateral thalamus, bilateral midbrain and bilateral cerebellum (Fig. 3a). The patients also showed reductions in FA (35 ​cm3 in MNI space) outside the infarct zone, in regions of the corpus callosum body, ipsilesional superior longitudinal fasciculus, ipsilesional precentral gyrus, and contralesional cingulate gyrus (Fig. 3c). There was no region with significantly higher MD or lower FA in the controls than patients. The group differences in diffusion provide evidence of widespread loss in microstructural integrity in chronic stroke patients when indexed by elevations in MD, though more spatially restricted microstructural loss when indexed by reductions in FA.

Fig. 3.

Fig. 3

Open in a new tab

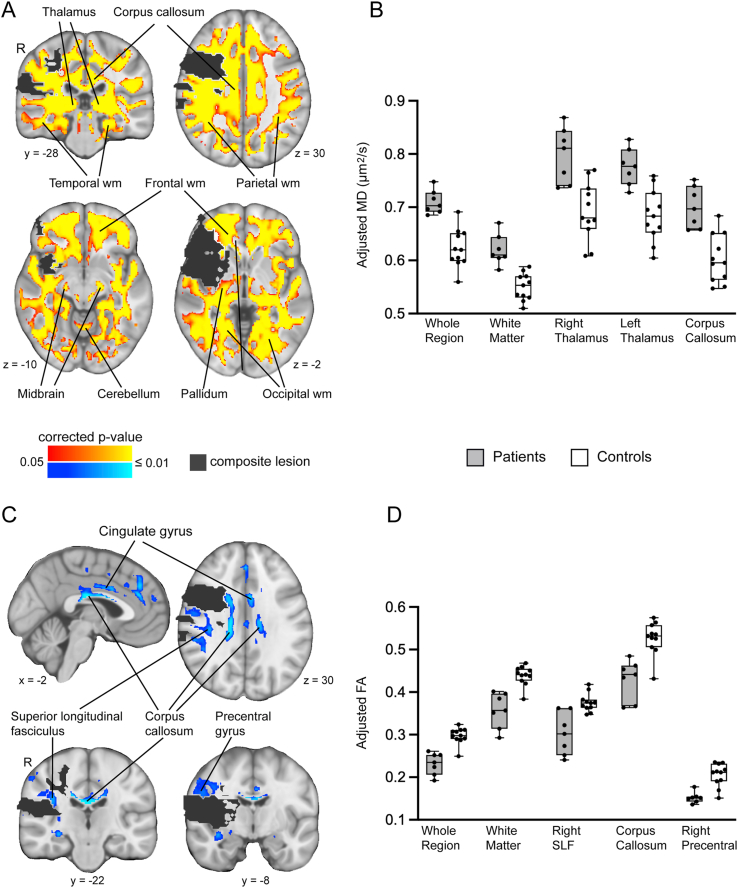

Evidence of neurodegeneration in patients. A. Brain regions with significant elevations in MD in patients relative to controls. wm ​= ​white matter. B. MD, adjusted for age, for each subject across all voxels exhibiting a significant group difference (whole region), and in selected regions intersecting the group difference map. C. Brain regions with significant reductions in FA in patients relative to controls. D. FA, adjusted for age, for each subject across all voxels exhibiting a significant group difference (whole region), and in selected regions intersecting the group difference map. Box-and-whisker plots displayed as in Fig. 2.

3.4. Relationship between group differences [11C]PBR28 binding and diffusion

We next evaluated the spatial overlap between group differences in [11C]PBR28 binding and diffusion. The group difference maps in [11C]PBR28 binding and MD overlapped by 62 ​cm3, with 57% of the volume exhibiting an elevation in [11C]PBR28 binding in patients also exhibiting an elevation in MD. The overlap volume involved regions of the ipsilesional superior longitudinal fasciculus, ipsilesional internal capsule, corpus callosum, bilateral cingulate gyrus, bilateral thalamus (ipsilesional more than contralesional), and bilateral midbrain (Fig. 4a). Of note, a large portion of the volume exhibiting an elevation in [11C]PBR28 binding in the patients that did not overlap with an elevation in MD was located in gray matter regions of the thalamus, midbrain and pons bilaterally and the contralesional pallidum (Fig. 4b). The group difference maps in [11C]PBR28 binding and FA overlapped by 8 ​cm3, with only 8% of the volume exhibiting an elevation in [11C]PBR28 binding in patients also having a reduction in FA. This overlap volume involved regions of the corpus callosum body (anterior more than posterior), ipsilesional superior longitudinal fasciculus, ipsilesional precentral gyurs, and contralesional cingulate gyrus (Fig. 4c). Overall, these findings indicate that a substantial portion of brain tissue showing evidence of neuroinflammation in patients (i.e., elevated [11C]PBR28 binding) co-localized with tissue showing loss in microstructural integrity when indexed by elevated MD, though not when indexed by reduced FA.

Fig. 4.

Fig. 4

Open in a new tab

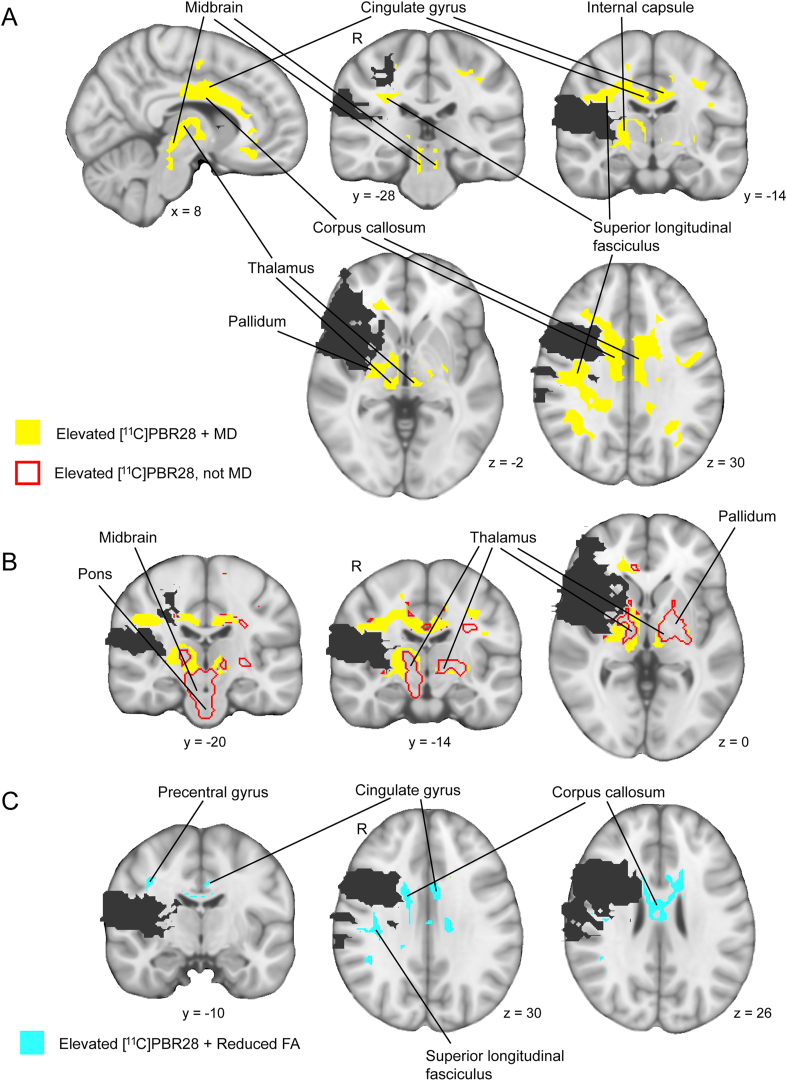

Spatial relationship between brain regions with evidence of group differences in [11C]PBR28 binding and diffusion. A. Brain regions with overlapping elevations in [11C]PBR28 binding and MD in patients (yellow areas). B. Brain regions with an elevation in [11C]PBR28 binding in patients unaccompanied by an elevation in MD (areas outlined in red). C. Brain regions with elevations in [11C]PBR28 binding in patients overlapping reductions in FA in patients (aqua areas). (For interpretation of the references to color in this figure legend, the reader is referred to the Web version of this article.)

We then tested for an interaction between group and region-of-interest (co-localized group differences in [11C]PBR28 binding and diffusion versus group difference in diffusion only) on the magnitude of diffusion (MD and FA, separately). We found a significant interaction between group and region-of-interest on MD (p ​< ​0.01, mixed model repeated measures analysis), with MD significantly higher in the patients but not controls in the region-of-interest with group differences in both [11C]PBR28 binding and MD relative to the region-of-interest with a group difference in MD only (p ​< ​0.001, Tukey testing; Fig. 5). There was no significant interaction effect between group and region-of-interest on FA. These findings provide evidence that loss in microstructural integrity in patients, indexed by elevated MD, was more severe in brain tissue that also exhibited glial activation.

Fig. 5.

Fig. 5

Open in a new tab

Greater elevation in MD in regions with co-localized elevations in [11C]PBR28 binding. Mean MD (±standard deviation) is shown for patients and controls in a region-of-interest with group differences in both [11C]PBR28 binding and MD, and the contralateral region-of-interest with a group difference in MD only. A significant interaction between group and region-of-interest on MD was found (p ​< ​0.01, mixed model repeated measures analysis), with MD greater in patients, and not controls, in the region-of-interest with co-localized group differences in [11C]PBR28 binding and MD compared the region-of-interest with a group difference in MD only (∗p ​< ​0.001, Tukey testing).

4. Discussion

The current PET study is the first to demonstrate elevated TSPO binding in non-infarcted tissue in a cohort of patients with chronic (1–3 years) MCA stroke. To our knowledge, our study is also the first to evaluate neuroinflammation in stroke patients using [11C]PBR28, a second generation TSPO radioligand with 80-fold higher specific binding for activated brain glia than [11C]PK11195 (Kreisl et al., 2010), the prototypical TSPO radioligand used in the great majority of prior TSPO PET studies in stroke patients (Gerhard et al., 2005; Morris et al., 2018; Pappata et al., 2000; Price et al., 2006; Radlinska et al., 2009; Thiel et al., 2010). Our findings provide evidence of extensive glial activation in chronic stroke patients, leading to the possibility that chronic neuroinflammation may play a role in secondary poststroke pathologies such as depression and fatigue (Barritt and Smithard, 2011; Shi et al., 2019; Spalletta et al., 2006).

Previous studies in patients and animal models with subacute MCA stroke have observed glial activation in the ipsilesional thalamus and ipsilesional internal capsule, regions with known neuroanatomical connections to the damaged tissue (Arlicot et al., 2010; Gerhard et al., 2005; Justicia et al., 2008; Pappata et al., 2000; Radlinska et al., 2009; Thiel et al., 2010; Walberer et al., 2014; Walter et al., 2015). Case studies of patients who incurred an MCA stroke several months prior have also observed glial activation in more distal connections of the damaged tissue, including in the midbrain and pons (Gerhard et al., 2005; Walter et al., 2015). Consistent with these prior studies, the patients in the current study showed elevations in [11C]PBR28 binding in the ipsilesional thalamus, ipsilesional internal capsule, midbrain and pons. Our patients exhibited elevations in [11C]PBR28 binding in additional regions with presumed connections to damaged tissue, including the ipsilesional superior longitudinal fasciculus, ipsilesional superior corona radiata and corpus callosum body. Notably, our patients also showed elevated [11C]PBR28 binding in regions with no known direct connections to an infarct in the MCA territory, including the contralesional thalamus and contralesional cingulate gyrus. The favorable properties of [11C]PBR28, including higher signal-to-noise binding and higher brain uptake compared to first-generation TSPO radioligands (Briard et al., 2008; Kreisl et al., 2010), likely contributed to us detecting previously unseen TSPO signal in stroke patients. The spatial distribution of elevated [11C]PBR28 binding we observed in the chronic stroke patients might have resulted from spreading of glial activation after MCA stroke, early on involving regions with proximal neuroanatomical connections to the infarct, later involving more distal connections, and also extending transsynaptically to regions without direct connections to damaged tissue. Transsynaptic spread of glial activation to regions with abnormal functional activity has been proposed in models of Huntington Disease (Topper et al., 1993) and epilepsy (Taniwaki et al., 1996). The glial activation we observed in regions without direct structural connections to the infarct zone may have similarly been due to altered functional activity secondary to stroke.

Patients in the current study also showed widespread elevations in MD, and more spatially restricted reductions in FA. Previous studies in MCA stroke subjects have observed elevations in MD and reductions in FA in regions with neuroanatomical connections to damaged tissue, including in the ipsilesional internal capsule, ipsilesional thalamus, and corpus callosum (Buffon et al., 2005; Gupta et al., 2006; Herve et al., 2005; Jason et al., 2011; Liang et al., 2007; Werring et al., 2000). We found the elevations in MD in the patients to be far more widespread than previous reports, and to involve regions both with and without known neuroanatomical connections to an MCA territory infarct, suggesting that factors in addition to stroke contributed to pervasive loss of tissue microstructure.

The higher incidence of hypertension in our patients compared to controls may have contributed to the widespread loss in tissue microstructure. Hypertension has been associated with elevated MD and reduced FA of brain white matter (Gons et al., 2010; Kennedy and Raz, 2009; McEvoy et al., 2015; Salat et al., 2012). Some studies have shown that increases in blood pressure are associated with widespread elevations in MD and more spatially restricted reductions in FA (Maclullich et al., 2009; Maillard et al., 2012), similar to the spatial pattern of diffusion abnormalities we observed in our patients. The presence of multiple vascular risk factors (e.g., hypertension and diabetes) has been shown to amplify MD elevations and FA reductions compared to individual risk factors (Cox et al., 2019). Our observation of widespread MD elevations and more spatially restricted FA reductions in the patients may reflect combined effects of long term neurodegenerative changes due to stroke risk factors and secondary neurodegenerative changes due to stroke.

Our diffusion MRI protocol acquired the diffusion-weighted images at a high b-value (3000 ​s/mm2), which is higher than a conventional b-value of 700–1000 ​s/mm2. High b-value diffusion MRI (i.e., ≥2000 ​s/mm2) has been shown to improve the sensitivity to detect differences in diffusivity (measured by MD or apparent diffusion coefficient, ADC) in several patient populations compared to conventional b-value diffusion MRI (Baumann et al., 2012; Hyare et al., 2010; Shiraishi et al., 2005; Yoshiura et al., 2003), while not conferring improved sensitivity to differences in FA (Baumann et al., 2012; Hagmann et al., 2010). Biophysical modeling suggests that high b-value diffusion MRI increases the proportion of signal coming from a slow-diffusing compartment, whereas conventional b-value diffusion MRI detects signal mostly from a fast-diffusing compartment (Assaf and Cohen, 2000). The slow-diffusing compartment is highly restricted and thought to represent movement of water within axons or between myelin membranes (Assaf and Cohen, 2000). Taken together, the widespread elevations in MD observed in patients relative to controls revealed using high b-value diffusion MRI may represent diffuse axonal pathology due to longstanding effects of stroke risk factors.

A substantial portion (57%) of brain tissue showing an elevation in [11C]PBR28 binding in patients also showed an elevation in MD. This finding is consistent with prior immunohistochemical studies in animal models of stroke (Justicia et al., 2008; Schroeter et al., 1999) and imaging studies in stroke patients (Thiel et al., 2010) indicating co-localization of neuroinflammation and neurodegenerative changes after stroke. Notably, we also observed that substantial portions of subcortical gray matter (e.g., thalamus, midbrain, pons) that showed elevations in [11C]PBR28 binding in patients did not also show elevations in MD. At face value, this result might represent non-infarcted tissue with neuroinflammation but not neurodegeneration. However, it is also possible that microstructural loss in these subcortical gray matter regions was underestimated due to use of high b-value diffusion MRI that is particularly sensitive to axonal pathology, and less sensitive to gray matter pathology (Assaf et al., 2003). Future studies that utilize multi-shell diffusion MRI analyzed using a non-Gaussian model of water diffusion, an approach demonstrating gray matter neurodegeneration in other studies (Fukutomi et al., 2019; Vogt et al., 2020), may help clarify the extent of co-localized neuroinflammation and neurodegeneration in gray matter in chronic stroke patients.

Patients were found to have a greater elevation in MD in voxels that also exhibited an elevation in [11C]PBR28 binding compared to voxels exhibiting an elevation in MD only. While it is recognized that activated glia can have either neurorestorative or neurodegenerative functions depending on time and location after brain insult (Hu et al., 2015; Skaper et al., 2012), the increase in MD in voxels with a co-localized elevation in [11C]PBR28 binding suggests that glial activation may be associated with net loss in tissue microstructure in chronic stroke patients. This rise in MD might reflect phagocytosis by activated glia to clear debris generated by stroke-induced secondary neurodegeneration. As chronically activated glia may have neurotoxic effects due to constitutive secretion of pro-inflammatory cytokines and other cytotoxic factors (Block et al., 2007), it is also possible that the rise in MD reflects progressive neurodegeneration due to neurotoxic activity of chronic glial activation in the stroke patients.

The current study has some limitations. First, the patient sample size was relatively small, in part because we required a specific stroke territory (MCA) and relatively narrow window of stroke chronicity (1–3 years). While these inclusion criteria increased patient homogeneity and thereby aided data interpretation, the patient cohort was too small to validly test associations between neuroinflammation and clinical characteristics such as fatigue and depression. Future [11C]PBR28 PET studies with a large patient group is warranted in order to understand the clinical significance of neuroinflammation in chronic stroke patients. The patient group happened to have relatively few females (1/8), which while not statistically different from the proportion of females in the control group, might have affected the magnitude of group difference in [11C]PBR28 binding. However, recent studies suggest that TSPO binding availability (Tuisku et al., 2019) and TSPO binding in response to a pro-inflammatory challenge (Murtaj et al., 2019) might be higher in females than males, leading to the possibility that [11C]PBR28 binding in stroke patients relative to controls might be more elevated than observed in this pilot study. A second limitation is that to reduce the burden to patients, we used a semi-quantitative ratio metric of [11C]PBR28 binding (SUVR) rather than quantitative kinetic modeling that relies on repeated arterial blood sampling. While kinetic modeling is considered the gold standard for quantifying TSPO binding, the validity of [11C]PBR28 SUVR as a metric for glial activation is supported by a growing number of studies (Albrecht et al., 2018; Alshelh et al., 2020; Herranz et al., 2016; Van Weehaeghe et al., 2020). Third, while elevated TSPO binding is a well recognized marker of neuroinflammation, it is possible that increased uptake of the radioligand across the blood-brain-barrier contributed to the elevated [11C]PBR28 binding in our patients. However, since neuroinflammation often causes changes in blood-brain-barrier permeability (Albrecht et al., 2016), an increase in [11C]PBR28 brain uptake would not invalidate our conclusion that neuroinflammation is present in patients with chronic MCA stroke. Fourth, while we detected group differences in MD and FA, our use of high b-value diffusion-weighting likely induced some non-Gaussian diffusion effects that were not well accounted for by the diffusion tensor model. And fifth, the patients had a higher incidence of some stroke risk factors than controls, which could have affected the magnitude of group differences in glial activation and diffusion abnormalities. Future studies should consider enrolling as controls persons with a history of transient ischemic attack, a cohort that would be expected to have stroke risk factors at the same frequency as stroke patients.

In conclusion, this pilot study is the first to demonstrate extensive neuroinflammation in a cohort of patients with chronic MCA stroke. Future longitudinal studies will be required to determine whether neuroinflammation in stroke patients plays a causal role in the development of secondary poststroke pathologies such as fatigue, depression and accelerated cognitive decline.

Declarations of interest

None.

Funding

1R21-NS110982-01 (JDS, MLL); DoD-W81XWH-14-1-0543 (MLL); R01-NS094306-01A1 (MLL); and R21-NS087472-01A1 (MLL)

Declaration of competing interest

The authors of this manuscript have no competing interest, including no financial interest or personal relationship, that has influenced the scientific integrity of this research study.

Acknowledgments

The authors thank Grae Arabasz, Shirley Hsu and Regan Butterfield for technical support, and Dr. Jennifer McNab for creating the diffusion sequence used in this study.
