. 2021 Sep 16;6(38):24910–24918. doi: 10.1021/acsomega.1c03789

Rational Design of Hit Compounds Targeting Staphylococcus aureus Threonyl-tRNA Synthetase

Mariia Yu Rybak †, Olga I Gudzera †, Oksana B Gorbatiuk ‡, Mariia O Usenko ‡, Sergiy M Yarmoluk §, Michael A Tukalo †, Galyna P Volynets §,∥,*
PMCID: PMC8482496  PMID: 34604672

Abstract

graphic file with name ao1c03789_0012.jpg

Staphylococcus aureus is one of the most dangerous nosocomial pathogens which cause a wide variety of hospital-acquired infectious diseases. S. aureus is considered as a superbug due to the development of multidrug resistance to all current therapeutic regimens. Therefore, the discovery of antibiotics with novel mechanisms of action to combat staphylococcal infections is of high priority for modern medicinal chemistry. Nowadays, aminoacyl-tRNA synthetases are considered as promising molecular targets for antibiotic development. In the present study, we used for the first time S. aureus threonyl-tRNA synthetase (ThrRS) as a molecular target. Recombinant S. aureus ThrRS was obtained in the soluble form in a sufficient amount for inhibitor screening assay. Using the molecular docking approach, we selected 180 compounds for investigation of inhibitory activity toward ThrRS. Among the tested compounds, we identified five inhibitors from different chemical classes decreasing the activity of ThrRS by more than 70% at a concentration of 100 μM. The most active compound 2,4-dibromo-6-{[4-(4-nitro-phenyl)-thiazol-2-yl]-hydrazonomethyl}-phenol has an IC50 value of 56.5 ± 3.5 μM. These compounds are not cytotoxic toward eukaryotic cells HEK293 (EC50 > 100 μM) and can be useful for further optimization and biological research.

Introduction

Staphylococcus aureus is an opportunistic Gram-positive pathogen that causes a wide range of hospital-acquired human diseases ranging from skin infections and abscesses to much more severe endocarditis, osteomyelitis, pneumonia, meningitis, sepsis, and so forth.1−8 The major problem of staphylococcal infection treatment is the multidrug resistance to all antibiotics currently used in clinic, including methicillin, vancomycin, daptomycin, and linezolid.9−15 Therefore, the development of antistaphylococcal agents with novel mechanisms of action is of urgent need.

Nowadays, aminoacyl-tRNA synthetases are recognized as promising molecular targets for antibiotic development.16−18 Aminoacyl-tRNA synthetases are key enzymes in protein synthesis which ligate amino acids to cognate transfer RNAs being involved in the early stages of translation of the genetic code. Most living cells possess 20 aminoacyl-tRNA synthetases for each of the standard amino acids. These enzymes are divided into two classes, class I and class II, which have different folds of catalytic domain and different preferences for the hydroxyl group of the tRNA.19,20 Aminoacyl-tRNA synthetases possess some structural divergence in prokaryotic and eukaryotic organisms which increases the possibility for development of selective inhibitors toward enzymes from pathogenic microorganisms in comparison with human homologues. Aminoacyl-tRNA synthetases are conservative among bacteria, suggesting that compounds targeting these enzymes may demonstrate a wide range of antibacterial activity. A number of available crystal structures of aminoacyl-tRNA synthetases provide a basis for receptor-based drug design and virtual screening. Aminoacyl-tRNA synthetases are well expressed in the soluble form and can be used for high-throughput screening. Threonyl-tRNA synthetase (ThrRS) is a promising molecular target for malaria treatment.21,22 For example, borrelidin, polyketide macrolide, isolated from Streptomyces species, is a potent inhibitor of ThrRS from Plasmodium falciparum.23,24 Due to high toxicity of this compound, a series of borrelidin derivatives with lower toxicity has been synthesized.22,25,26 The inhibitors of ThrRS from Haemophilus influenza, Escherichia coli, and Burkholderia thailandensis possessing antibacterial activity have been reported among sulfonamide derivatives.27 Recently, the inhibitors of Salmonella enterica ThrRS among quinazolinone derivatives have been identified using fragment-based target hopping assay by Guo et al.28 The most active compound demonstrates an IC50 value of 1.4 μM toward Salmonella enterica ThrRS. It should be noted that this compound revealed antibacterial activity toward Escherichia coli ATCC25922 and S. enterica with an MIC value of 16 μg/mL and toward S. aureus ATCC29213, S. aureus R3708, and Enterococcus faecalis ATCC29212 with an MIC value of 32 μg/mL.28 Furthermore, these authors performed structure-based optimization of quinazolinone-threonine hybrids and discovered the inhibitor of S. enterica ThrRS with an IC50 value of 0.5 μM and MIC values of 16–32 μg/mL toward the tested bacterial strains.29

For the best of our knowledge, none of the small-molecular inhibitors of ThrRS from S. aureus have been reported in scientific literature so far. Therefore, the aim of this study is to obtain recombinant S. aureus ThrRS and identify inhibitors of this enzyme with molecular docking into the available crystal structure of ThrRS.30

Results and Discussion

Cloning and Purification of S. aureus Threonyl-tRNA Synthetase

The gene encoding S. aureus ThrRS (1938 bp) with restriction sites for NcoI and HindIII was synthesized by ATG/biosynthetics GmbH (Merzhausen, Germany). To obtain the required amount of the S. aureus ThrRS gene for ligation, we performed preparative restriction of 5 μg of plasmid DNA pGE-ThrRS(NcoI-HindIII) from the clones of E. coli Top10 cells with NcoI and HindIII. The linear DNA fragment was purified from gel using the NucleoSpin gel extraction kit (Macherey-Nagel) protocol.

The ThrRS gene fragment was ligated with a dephosphorylated vector pET28b linearized with NcoI and HindIII. E. coli cells TOP10 were electroporated with the plasmid pET28b-ThrRS. Plasmid DNA of clones with the correct fragments was prepared with a GeneJET Plasmid Miniprep Kit (Thermo Scientific). Transformation efficiency was analyzed with NcoI and HindIII. All tested plasmids contained a fragment of the expected size.

The most optimal conditions for expression of recombinant S. aureus ThrRS in the soluble fraction are the following: E. coli BL21(DE3)pLysS cells in LB medium, with induction by 0.25 mM isopropyl β-d-1-thiogalactopyranoside (IPTG) for 3 h at 37 °C or E. coli Lemo21(DE3) cells in 2YT medium supplemented with 250 μM l-rhamnose at 30 °C during 16–18 h. The procedure for selection of optimal expression conditions for S. aureus ThrRS is available in Supporting Information (Figures S1–S10).

The protein was purified by DEAE Sepharose anion chromatography using a salt gradient from 25 to 500 mM NaCl (Figures S11, S12). The resulting eluate was concentrated and loaded onto a pre-equilibrated Heparin Sepharose 6 Fast Flow column and then eluted using the KCl gradient (from 0 to 300 mM) (Figure S13). The protein was concentrated to 3.5 mg/mL and stored with 50% glycerol at −80 °C. The total yield of purified ThrRS (>95% purity) is 10 mg from 1 L starting bacterial culture. This protocol of purification was used for obtaining the required amount of recombinant S. aureus ThrRS for compound screening.

Rational Design of S. aureus ThrRS Inhibitors

In order to identify small-molecular inhibitors of S. aureus ThrRS, we have performed molecular docking of OTAVA compound library containing 124,831 compounds.31 According to molecular docking results, we have selected 180 compounds for investigation of their inhibitory activity toward S. aureus ThrRS in an aminoacylation assay. The inhibitory activity for all tested compounds (%) (measured at least in duplicates) is available in Supporting Information (Table S1). Among the tested compounds, we identified active compounds belonging to five chemical classes—the derivatives of 2-(benzothiazol-2-ylsulfanyl)-1-phenyl-ethanone, 2-phenoxy-N-phenyl-acetamide, 4-phenyl-2-propionylamino-thiophene-3-carboxylic acid ethyl ester, 1-phenyl-pyrrolidine-2,5-dione, and N-benzylidene-N′-(4-phenyl-thiazol-2-yl)-hydrazine.

The compound 1-(4-methoxy-phenyl)-2-(6-nitro-benzothiazol-2-ylsulfanyl)-ethanone (compound 1) inhibits S. aureus ThrRS by 88.47% at a concentration of 100 μM. The IC50 value for this compound is 158 ± 72 μM (measured in duplicates). According to molecular docking results, this compound interacts simultaneously with adenine-binding and amino acid-binding regions of ThrRS (Figure 1). The superposition of compound 1 and the threonyl adenylate analogue, extracted from the crystal structure of ThrRS (PDB ID: 1NYQ), in the active site is presented in Figure 2. As it can be seen in Figure 1, 4-methoxy-phenyl interacts with amino acid residues in the adenine-binding site and forms a hydrogen bond with Arg377, the benzothiazol ring interacts with the amino acid residues in the threonyl-binding region, and the nitro group at the C6 position of this heterocycle builds hydrogen bonds with Cys336 and Tyr468.

Figure 1.

Figure 1

Open in a new tab

Chemical structure of 1-(4-methoxy-phenyl)-2-(6-nitro-benzothiazol-2-ylsulfanyl)-ethanone (compound 1) (a). The complex of compound 1 with amino acid residues in the active site of S. aureus ThrRS. The hydrogen bonds are shown by green dashed lines with the distances indicated in Å, the hydrophobic interactions are presented by magenta dashed lines, π-sulfur interactions are shown by yellow dashed lines, and π-cation interactions are indicated with orange dashed lines (b).

Figure 2.

Figure 2

Open in a new tab

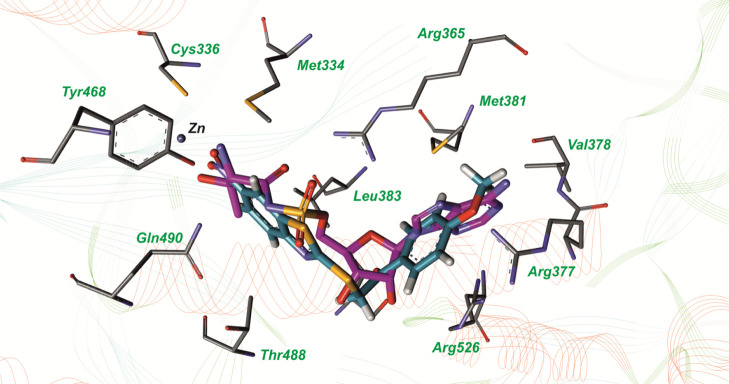

Superposition of the threonyl adenylate analogue, extracted from the crystal structure with the PDB accession code: 1NYQ (carbon atoms are labeled with magenta color) and compound 1 (carbon atoms are labeled with blue color) in the active site of S. aureus threonyl—tRNA synthetase.

In the present study, we tested six derivatives of 2-phenoxy-N-phenyl-acetamide for inhibitory activity toward S. aureus ThrRS. As it can be noticed from Table 1, the most active compound 2-(2-tert-butyl-phenoxy)-N-(2-methyl-5-nitro-phenyl)-acetamide (compound 2) inhibits S. aureus ThrRS by 85.59% at a concentration of 100 μM. According to molecular docking results, tert-butyl of this compound interacts with the amino acid residues in the adenine-binding region of ThrRS, the nitro-phenyl ring interacts with the amino acid residues in the threonyl-binding region, and the nitro group forms the metal-acceptor bond with Zn (Figure 3).

Table 1. Structures and In Vitro Inhibitory Activity of 2-Phenoxy-N-phenyl-acetamide Derivatives toward S. aureus ThrRS.

graphic file with name ao1c03789_0008.jpg

Open in a new tab

Figure 3.

Figure 3

Open in a new tab

Complex of 2-(2-tert-butyl-phenoxy)-N-(2-methyl-5-nitro-phenyl)-acetamide (compound 2) with amino acid residues in the active site of S. aureus ThrRS. The hydrophobic interactions are indicated with magenta dashed lines, π-cation interactions are shown by orange dashed lines, and the metal-acceptor bond is presented by the gray dashed line.

We have made superposition of the most active compounds 1 and 2 in the aminoacyl-adenylate binding site of ThrRS (Figure S14). It was found that these ligands have a similar binding mode. Both compounds 1 and 2 interact simultaneously with adenine- and threonyl-binding regions and form π-cation interactions with the same residues Arg365 and Arg526. Possibly, the formation of hydrogen bonds of the nitro group in compound 1 is more profitable for inhibitory activity than the formation of the metal-acceptor bond of the nitro group in compound 2 with Zn.

In this research, three derivatives of 4-phenyl-2-propionylamino-thiophene-3-carboxylic acid ethyl ester were tested for inhibitory activity toward S. aureus ThrRS. As it can be seen from Table 2, the most active compound—4-(4-chloro-phenyl)-2-[2-(2,6-dimethyl-morpholin-4-yl)-acetylamino]-thiophene-3-carboxylic acid ethyl ester (compound 8), inhibits S. aureus ThrRS by 78.33%. According to molecular docking results, 2,6-dimethyl-morpholine heterocycle of this compound interacts with the amino acid residues in the adenine-binding region of ThrRS and forms a hydrogen bond with Arg377 and 4-chloro-phenyl interacts with the threonyl-binding region (Figure 4).

Table 2. Structures and In Vitro Inhibitory Activity of 4-Phenyl-2-propionylamino-thiophene-3-carboxylic Acid Ethyl Ester Derivatives toward S. aureus ThrRS.

graphic file with name ao1c03789_0009.jpg

Open in a new tab

Figure 4.

Figure 4

Open in a new tab

Complex of 4-(4-chloro-phenyl)-2-[2-(2,6-dimethyl-morpholin-4-yl)-acetylamino]-thiophene-3-carboxylic acid ethyl ester (compound 8) with amino acid residues in the active site of S. aureus ThrRS. The hydrogen bonds are shown by green dashed lines with the distances indicated in Å, the hydrophobic interactions are indicated with magenta dashed lines, π-sulfur interaction is presented by yellow dashed lines, and the halogen bond is shown by blue dashed lines.

Among the investigated compounds, we have found two inhibitors of S. aureus ThrRS belonging to 1-phenyl-pyrrolidine-2,5-dione derivatives (Table 3). The compound 2-[1-(4-iodo-2-methyl-phenyl)-2,5-dioxo-pyrrolidin-3-ylsulfanyl]-nicotinic acid (compound 11) inhibits ThrRS by 78.62% at a concentration of 100 μM. According to molecular docking results, the nicotinic acid moiety of this compound interacts with the adenine-binding region of ThrRS and forms a hydrogen bond with Arg377 and 1-iodo-3-methyl-phenyl is located in the threonyl-binding region (Figure 5).

Table 3. Structures and In Vitro Inhibitory Activity of 1-Phenyl-pyrrolidine-2,5-dione Derivatives toward S. aureus ThrRS.

graphic file with name ao1c03789_0010.jpg

Open in a new tab

Figure 5.

Figure 5

Open in a new tab

Complex of 2-[1-(4-iodo-2-methyl-phenyl)-2,5-dioxo-pyrrolidin-3-ylsulfanyl]-nicotinic acid (compound 11) with amino acid residues in the active site of S. aureus ThrRS. The hydrogen bonds are shown by green dashed lines with the distances indicated in Å, the hydrophobic interactions are presented by magenta dashed lines, π-cation interactions are indicated with orange dashed lines, and the metal-acceptor bond is shown by gray dashed lines.

According to biochemical testing, N-benzylidene-N′-(4-phenyl-thiazol-2-yl)-hydrazine derivatives possess inhibitory activity toward S. aureus ThrRS. It should be noted that earlier, the compounds from this chemical class were reported by us as the inhibitors of M. tuberculosis leucyl-tRNA synthetase and methionyl-tRNA synthetase.32,33 Therefore, the derivatives of N-benzylidene-N′-(4-phenyl-thiazol-2-yl)-hydrazine inhibit both classes of aminoacyl-tRNA synthetases.

As it can be seen from Table 4, among the 13 tested N-benzylidene-N′-(4-phenyl-thiazol-2-yl)-hydrazine derivatives, the most active compound −2,4-dibromo-6-{[4-(4-nitro-phenyl)-thiazol-2-yl]-hydrazonomethyl}-phenol (compound 13) inhibits ThrRS by 72.65%. The IC50 value for this compound is 56.5 ± 3.5 μM (measured in duplicates). Molecular docking results demonstrate that nitro-phenyl interacts with the amino acid residues in the threonyl-binding region of ThrRS and 2,4-dibromophenyl is located in the adenine-binding region of S. aureus ThrRS (Figure 6).

Table 4. Structures and In Vitro Inhibitory Activity of N-Benzylidene-N′-(4-phenyl-thiazol-2-yl)-hydrazine Derivatives toward S. aureus ThrRS.

graphic file with name ao1c03789_0011.jpg

Open in a new tab

Figure 6.

Figure 6

Open in a new tab

Complex of 2,4-dibromo-6-{[4-(4-nitro-phenyl)-thiazol-2-yl]-hydrazonomethyl}-phenol (compound 13) with amino acid residues in the active site of S. aureus ThrRS. The hydrogen bonds are shown by green dashed lines with the distances indicated in Å, the hydrophobic interactions are presented by magenta dashed lines, π-cation interaction is indicated with orange dashed lines, π-sulfur interaction is presented by yellow dashed lines, and the metal-acceptor bond is shown by gray dashed lines.

We have tested five hit compounds for cytotoxicity toward the human cell line HEK293 using standard MTT assay.34 It was found that compounds 1, 2, 8, and 13 are not cytotoxic at a concentration of 100 μM and only compound 11 reveals slight toxicity, decreasing the growth of HEK293 cells by 30% at a concentration of 100 μM (EC50 > 100 μM).

Conclusions

Using the rational design approach, we identified five hit compounds from different chemical classes, inhibiting S. aureus threonyl-tRNA synthetase (ThrRS) by more than 70% at a concentration of 100 μM. The most active compound 2,4-dibromo-6-{[4-(4-nitro-phenyl)-thiazol-2-yl]-hydrazonomethyl}-phenol has an IC50 value of 56.5 ± 3.5 μM. According to the results of molecular docking, the inhibitors interact simultaneously with adenine- and threonyl-binding regions of S. aureus ThrRS. These compounds are not cytotoxic toward the human cell line HEK293 and can be used for further chemical optimization and biological research. It should be noted that the derivatives of N-benzylidene-N′-(4-phenyl-thiazol-2-yl)-hydrazine inhibit both classes of aminoacyl-tRNA synthetases from different microorganisms and can be considered for the development of broad spectrum antibiotics.

Methods

Molecular Docking

Semiflexible molecular docking of the small-molecular compounds into the active site of the S. aureus ThrRS crystal structure (PDB ID: 1NYQ) was performed with the program DOCK 4.0.35−38 The molecules of 5′-O-(N-(l-threonyl)-sulfamoyl)adenosine and water were removed from the crystal structure, but the Zn ion was kept in the active site.

The ligand geometry was calculated using the YFF force field.39 The partial atomic charges for the ligands were assigned with the Kirchhoff method.40 The partial atomic charges for the receptor were set with the Amber force field. The spheres of the active site were predicted using sphgen software from the DOCK package. The spheres which were outside of the aminoacyl-adenylate binding site of ThrRS were deleted manually. The energy grids of the receptor were generated using the grid program from the DOCK package.

The docking of the compound library into the aminoacyl-adenylate binding site of ThrRS was performed using the parameters described earlier.32

After the docking procedure, we have performed complex analysis to select compounds for in vitro screening. At first, compounds were ranged based on score values (less than −40 kcal/mol). Then, the compounds were evaluated for the ability to form hydrogen bonds with amino acid residues in the aminoacyl adenylate binding site of S. aureus ThrRS, such as Tyr468, Met334, Gln490, Asp385, Arg365, Ser522, Thr523, and Val378 using our in-house program y_hbonds, which is based on the analysis of distances and angles between the respective donor and acceptor atoms. Considering these criteria, we have chosen about 12,000 compounds for further visual inspection of receptor–ligand complexes. During visual analysis, we evaluated correctness of torsion angles, stacking interactions, complementarity of ligand and receptor surfaces, and so forth. Taking into account all these parameters, we have selected 180 compounds for investigation of their inhibitory activity toward recombinant S. aureus ThrRS.

Visual analysis of the receptor–ligand complexes was performed using Discovery Studio Visualizer 4.0.41

Cloning of ThrRS

The gene encoding ThrRS with restriction sites for NcoI and HindIII was synthesized by ATG/biosynthetics GmbH (Merzhausen, Germany) based on sequence information of the S. aureus ThrRS gene (GenBank ID: ABD30857.1). The linearized DNA fragment pGE(NcoI-HindIII)-ThrRS-S was ligated to the plasmid vector pET28b (Novagen) which was previously dephosphorylated with phosphatase in 1× reaction buffer (Roche). Ligation was performed with T4 DNA ligase in 1× ligase buffer (Promega) for 2 h at 23 °C. E. coli TOP10 cells (Invitrogen) were transformed by electroporation using a Bio-Rad Gene Pulsar. The screening of positive clones was performed using the GeneJET Plasmid Miniprep Kit (Thermo Scientific). Positive clones were identified using restrictases NcoI and HindIII FastDigest (Thermo Scientific).

ThrRS Expression

The plasmid pET28b-ThrRS was transformed into E. coli BL21(DE3)pLysS and Lemo21(DE3) competent cells. The level of expression was analyzed in LB (Lauria-Broth), TB (Terrific-Broth), phosphate, and 2×YT media with 50 μg/mL kanamycin. The bacterial growth was continued until the OD600 reached around 0.6. The protein synthesis was induced by IPTG in the range of concentration from 0.025 mM to 1 mM at 18, 25, and 37 °C.

Aliquots after 3–4 h and overnight induction were analyzed for solubility according to the protocol of Zerbs et al.42

For ThrRS expression, a modified43 autoinduction protocol44 was also used. E. coli BL21(DE3)pLysS and Lemo21(DE3) cells harboring the plasmid pET28b-ThrRS were incubated at 37 °C overnight in 2 mL of 2×YT medium containing 50 μg/mL kanamycin and 1% glucose. 1:1000 dilutions of the overnight culture were taken for inoculation of 2×YT medium supplemented with 40 μg/mL kanamycin, 25 mM (NH4)2SO4, 50 mM KH2PO4, 50 mM Na2HPO4, 1 mM MgSO4, 0.05% glucose, 0.2% α-lactose, and 0.5% glycerol. The cultures were incubated at 18/30/37 °C for 16–18 h under conditions of intensive aeration.

Purification of S. aureus ThrRS

E. coli cells BL21(DE3)pLysS were grown in the medium LB until the OD600 reached 0.6, and the expression of ThrRS was induced by 0.25 mM IPTG for 3 h at 37 °C. The cells were pelleted by centrifugation (15 min at 6000 g at 4 °C), and the pellets were stored at −80 °C. The bacterial pellet was dissolved in buffer A containing 100 mM Tris-HCl (pH 8.0), 300 mM NaCl, 10 mM DTT, 5 mM PMSF, 4% glycerol, 1 mM MgCl2, 0.01 mg/mL lysozyme, and protease inhibitor cocktail tablet, EDTA-free. The cells were incubated on ice for 30 min and sonicated for 5 min with four sonicated bursts of 25 s followed by interval of 60 s for cooling. The cell pellet was precipitated by centrifugation at 20000g for 25 min at 4 °C. The supernatant was dialyzed in buffer B containing 20 mM Tris-HCl (pH 8.0), 2 mM DTT, 0.1 mM PMSF, and 5 mM MgCl2 for 3 h at 4 °C. Then, the buffer was changed and dialyzed overnight. After dialysis, the lysate was loaded onto a DEAE Sepharose column (Amersham Biosciences) (V = 6.5 mL), washed at a flow rate of 1 mL/min, and eluted with a gradient of NaCl from 25 to 500 mM (2 × 50 mL). Fractions were analyzed by the Bradford method45 and SDS-PAGE. Fractions containing ThrRS were joined and concentrated on an Amicon Ultra-4 at 10 K MWCO spin column (Millipore, Billerica, MA) at 4 °C to remove salt impurities and loaded onto the Heparin Sepharose 6 Fast Flow column (GE Healthcare) (0.5 × 10 cm), washed with buffer B and eluted with a gradient of KCl from 0 to 300 mM (2 × 25 mL). The peak fractions, containing ThrRS, were joined and concentrated on Amicon Ultra-4 (7000 g, 4 °C).

Protein concentrations were determined by the Bradford method.45 The absorption coefficient at λ = 280 nm (ε280 = 73355 M–1 cm–1) and the absorption of 0.1% solution (A280 (1 mg/mL) = 0.985 mg–1 mL) were calculated from the S. aureus ThrRS amino acid sequence using the ExPASy ProtParam tool46 and taken for determination of enzyme concentration.

In Vitro Aminoacylation Assay

The standard aminoacylation assay was performed in the reaction mixture (20 μM) containing 50 mM HEPES-NaOH (pH 7.5), 20 mM MgCl2, 5 mM β-mercaptoethanol, 30 mM KCl, 100 μg/mL BSA, 4 mg/mL of the total E. coli MRE600 tRNA, 27 μM [14C]-L-Thr, and 500 nM recombinant S. aureus ThrRS with appropriate concentrations of the compound (dissolved in DMSO). The reactions were initiated by the addition of 10 mM ATP and incubated for 10 min at 37 °C. The reaction was stopped by the addition of 10% trichloroacetic acid and was loaded on the GF/C filter, washed with 5% trichloroacetic acid, dried, and counted using a scintillation counter. Aliquots were quenched with 10% trichloracetic acid, and the level of tRNA aminoacylation was measured using a scintillation counter [Hidex 600 SL liquid scintillation analyzer (Finland)].

MTT Assay

The toxicity of compounds toward the HEK293 cell was examined using a standard MTT assay.35 The cells were cultivated in Dulbecco’s modified Eagle’s medium supplemented with 10% fetal bovine serum, 100 mg/mL streptomycin, and 100 mg/mL penicillin in humidified air with 5% CO2 at 37 °C. The cells were seeded into 96-well plates at a concentration of 2 × 105 cells/mL and grown for 24 h. Then, the cells were supplemented with compounds in DMSO solution (final DMSO concentration was less than 0.5%) at different concentrations. After 72 h of incubation, the cells were treated with 15 μL of MTT solution (5 mg/mL) for 4 h at 37 °C, 5% CO2. The formazan precipitates were dissolved in 200 μL of DMSO, and the absorbance at λ = 540 nm was measured with spectrofluorometer MR 700 (Dynatech). The cell viability was calculated as a percentage relative to intact control cells.

Acknowledgments

This work was supported by the NAS of the Ukraine grant for young scientists (project no 0120U000079) for 2020–2021.

Supporting Information Available

The Supporting Information is available free of charge at https://pubs.acs.org/doi/10.1021/acsomega.1c03789.

  • Analysis of ThrRS expression in E. coli BL21(DE3)pLysS cells; analysis of expression of the ThrRS soluble fraction with induction by 0.5 or 1 mM IPTG concentrations at 37 °C; analysis of expression of the ThrRS soluble fraction with induction by 0.25, 0.5, or 1 mM IPTG concentrations at 25 °C; analysis of ThrRS expression at 0.1 and 0.25 mM IPTG concentration and in the medium with 3% ethanol after induction for 3 h at 37 °C; expression of the ThrRS soluble fraction with induction by 0.1, 0.25, and 1 mM IPTG concentration and in the medium with 3% ethanol for 3 h at 18 and 25 °C; expression of the ThrRS soluble fraction after overnight induction at 18 and 25 °C; expression of the ThrRS soluble fraction in Lemo21(DE3) E. coli cells in LB medium after 4 h of induction at 30 °C with 0.4 mM IPTG and various concentrations of l-rhamnose; expression of the ThrRS soluble fraction in Lemo21(DE3) E. coli cells in LB medium after overnight induction at 30 °C; expression of S. aureus ThrRS using the autoinduction protocol; SDS-PAGE analysis of soluble and insoluble fractions of E. coli proteins after induction expression of S. aureus ThrRS by autoinduction conditions (10 μL of culture per lane was loaded); elution profile (absorbance at 280 nm versus elution volume) of the anion exchanger DEAE-Sepharose; purification of S. aureus ThrRS using the DEAE-Sepharose column; purification of S. aureus ThrRS using the heparin-Sepharose column; superposition of compound 1 (carbon atoms are labeled with blue color) and compound 2 (carbon atoms are labeled with magenta color) in the active site of S. aureus threonyl-tRNA synthetase; and structures and in vitro inhibitory activity toward S. aureus ThrRS for compounds, selected according to molecular docking results (PDF)

The authors declare no competing financial interest.

Supplementary Material

ao1c03789_si_001.pdf (752.1KB, pdf)
