Kinetics and Monte Carlo simulation of UV disinfection of B. subtilis spores and SARS-CoV-2 in dried saliva droplets

Abstract

Surfaces can be contaminated by droplets produced through coughing or sneezing. In this exploratory work, the UV disinfection results of Bacillus subtilis spores in dried saliva droplets were fitted to a three-parameter kinetic model (R² ≥ 0.97). This model has a disinfection rate constant for single organisms and a smaller one for aggregates found in droplets. The fraction of organisms found in aggregates (β) could account for the effects of different-sized droplets in the experimental work. Since a wide spectrum of droplet sizes can be produced, and some of the rate constants were uncertain, Monte Carlo simulation was used to estimate the UV inactivation performance in dried saliva droplets in a variety of conditions. Using conservative distribution for β, the model was applied to the UV disinfection of SARS-CoV-2 in dried saliva droplets. It was shown that a one-log reduction of SARS-CoV-2 was very likely (p>99.9%) and a two-log reduction was probable (p=75%) at a dose of 60 mJ/cm². Aggregates tend to be variable and limit the log reductions that can be achieved at high UV doses.

Introduction

We are in what is now, hopefully, the final stages of a global COVID-19 pandemic, caused by the severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2). This is the latest in a series of coronavirus outbreaks that also include severe acute respiratory syndrome (SARS-CoV-1) and Middle East respiratory syndrome (MERS)(Noorimotlagh 2020). It is reasonable to expect more outbreaks in the future, and disinfection of these viruses is an important research area.

UV radiation, particularly at a wavelength of 254 nm, has long been understood to be absorbed by the pyrimidine bases, thymine in DNA, and uracil in RNA, causing dimers that slow or halt reproduction (Jagger 1967; Masschelein 2002). When it comes to viruses, Pfaender et al. (2015) showed direct damage of the hepatitis C virus genome, slowing replication after UV treatment. Beck et al. (2016) showed RNA damage of the bacteriophage MS2 after UV treatment at wavelengths of 210 and 290 nm.

Many viruses, including SARS-CoV-2, have been shown to persist on surfaces for several days (Noorimotlagh 2020). Sources of surface contamination included droplets produced by speaking, sneezing, or coughing (Dbouk and Drikakis 2020; Johnson et al. 2011). Faezeh seif et al. (2021) showed that not only were 40 of 76 hospital surface samples (e.g., bed rails and door handles) positive for SAR-CoV-2, they suggest possible selection for strains resistant to traditional disinfectants, such as ethanol and sodium hypochlorite.

The ability of UV to disinfect viral pathogens in dried droplets remains largely absent from the current literature. A recent meta-analysis by Chiappa et al. (2021) reports that just 11% (2 of 18) of the selected studies examined the effects of UV on viruses in dried droplets, with the majority (14 of 18) using liquid suspensions. The two dried droplets studies focused on demonstrating new technologies: a rotating full-room disinfector (Bedell et al. 2016) and a pulsed xenon emitter (Simmons et al. 2021). Though both studies were able to show reductions in coronaviruses, their unique emitters make it difficult to apply these results elsewhere. Ma et al. (2021), after exploring the UV disinfection in liquid suspension of the MHV, Φ6, and coronavirus HCoV 299E, suggested a need for better understanding UV disinfection on surfaces. Overall, UV disinfection of contaminated surfaces remains poorly understood.

Experimental work on dried droplets is challenging due to the small size of the droplets. Johnson et al. (2011) showed that the largest droplets produced by speaking had a mode diameter of just 145 μm, corresponding to a volume of just 0.0016 μL. Lab work with such small volumes is challenging. The ASTM test (2018) E3135 – 18 Standard Practice for Determining Antimicrobial Efficacy of Ultraviolet Germicidal Irradiation Against Microorganisms on Carriers with Simulated Soil suggests using droplets of 1 μL instead. ASTM test (2016) E2721 – 16 Standard Practice for Evaluation of Effectiveness of Decontamination Procedures for Surfaces When Challenged with Droplets Containing Human Pathogenic Viruses aims to produce droplets 15 μm in diameter. However, this is done by atomizing the virus, which is a safety concern if viruses escape before, during, or after the experiment. Significant losses are observed during the aerosolization procedure. In addition, Barancheshme et al. (2021) showed there is wide variability in the UV transmission of human saliva, another source of variability in experiments. These factors make experimental work challenging.

Computer modeling can inform us about UV disinfection of droplets expelled by infected individuals on surfaces without some of the challenges associated with experimental work. Monte Carlo simulation (MCS) is a modelling approach that allows the variables in a model to take on statistical distributions to account for uncertainty or variability. The model is executed many thousands of times, each time taking a random sample of the variables, and the ability to meet some performance objective is tabulated. In this case, MCS can be used to account for the wide distribution of droplet characteristics and uncertainty in the disinfection rate constants. The performance measure in this work is the number of log reductions that can be achieved at a given UV dose.

Experimental studies on dried droplets are rare, and we are aware of no previous work using MSC to characterize their UV disinfection behavior. As such, the objective of this work is to first develop a kinetic model of UV disinfection in dried droplets and then use this model to better characterize disinfection of viruses on surfaces using Monte Carlo simulation.

Methods and model development

Disinfection is typically modelled as a first-order process where the rate of change of the number of surviving organisms is proportional to the dose received. The ratio of surviving organism (N/N_o) is given by:

$$\frac{N}{N_o}=e^{-\mathit{kD}}$$ 1

The dose (D) is the product of the light intensity (mW/cm²) the organism receives and the duration of exposure (s). The parameter k is a disinfection rate constant (cm²/mJ).

Tseng and Li (2007) showed good agreement with the first-order model when disinfecting viruses with UV on surfaces, with R² values of 0.94, 0.96, 0.96, and 0.98 for MS2, ΦX174, Φ6, and T7 viruses, respectively. The lower UV sensitivity of viruses on surfaces when compared to aerosols observed by Tseng and Li (2007) was postulated to involve the presence of aggregates on the surface, which is addressed below.

Aggregates of organisms, often associated with small particles, are a historical problem in UV disinfection (Azimi et al. 2012, 2013; Emerick et al. 2000; Loge 1996). Mathematical models developed to describe this behavior include that of Emerick et al. (2000), which introduced a parameter for the number of particle-associated organisms (N_p). Since they are harder to disinfect, the rate of inactivation of N_p was assumed to be linear with time, rather than exponential.

Other authors have used double-exponential models where the process remains first order, with different exponential rate constants for single organisms and a smaller one for particle-associated aggregates (Azimi et al. 2012; Barbeau et al. 2005). The model used in this work, of the double-exponential type, is adapted from Barbeau et al. (2005) and shown below:

$$\frac{N}{N_o}=\left(1-\beta \right)e^{-k_{S}D}+\beta e^{-k_{A}D}$$ 2

In this model, k_S is the rate constant for single organisms; k_A is the rate constant for aggregates; D is the UV dose; and β is the fraction of the population found in aggregates. The rate constant for aggregates is smaller than that of individual organisms, consistent with the fact that they are harder to disinfect. There is most likely a distribution of rate constants (i.e., more than two), but the current scientific literature precludes us from defining rate constants based on aggregate characteristics. One advantage of this relatively simple model is the small number of parameters that must be estimated. This model can also help identify the aggregate characteristics that control the value of k_A.

Monte Carlo simulation

Monte Carlo simulation can be used to account for variability and uncertainty. In this work, the model is executed 10,000 times, each time taking a random sample of the uncertain variables. Increasing the number of model executions to 15,000 produced results that agreed with 10,000 executions within 1%, suggesting a sufficient number had been used. The results are tabulated to see what fraction of a given log reduction in N/N_o is exceeded at some UV dose. This allows an estimate of UV performance as a disinfectant, even if some of the parameters are uncertain or variable.

The most uncertain parameter in this work is the fraction of the viral population in aggregates (β). Johnson et al. (2011) showed that the diameter of saliva droplets produced by speaking followed a lognormal distribution, so β is also assumed to be lognormal. Since there is a high degree of uncertainty in estimating β, a relatively large standard deviation is assumed for this lognormal distribution: 80% of the mean. Figure 1 shows the distribution of β used in this work. Note that the mean value is about 2%, but values as low as 0.3% and exceeding 7.0% are possible.

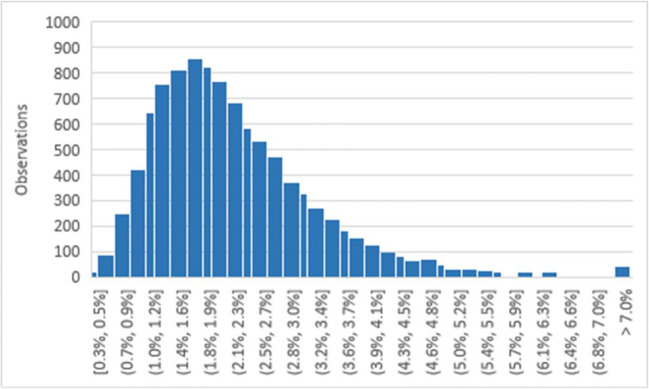

Fig. 1.

Distribution of the fraction of the population found in aggregates (β) used in this work (10,000 simulations)

There is less uncertainty in the single organism disinfection rate constant (k_S) since published values are often available. However, the aggregate rate constant (k_A), as discussed previously, is more uncertain, with few values found in the literature. To account for this uncertainty, k_A is assumed to be normally distributed with a standard deviation of 50% of the mean.

SARS-CoV-2 modelling

One of the advantages of the relatively simple model used here is that only three parameters must be estimated to examine the UV response of other pathogens: k_S, k_A, and β. Based on the recent review of Hessling et al. (2020), the median observed value for k_S for several different coronaviruses is approximately 0.22 cm²/mJ. This is consistent with the observed cluster of values for SARS-CoV-1, MS2, and Φ6 viruses published by Blatchley et al. (2020) (18 cm²/mJ). Taking the average, a value of 0.20 cm²/mJ is used for the k_S of SARS-CoV-2 in this work.

From the model validation work, described below, the values of β were observed to be 2% and 13% for 2-μL and 10-μL droplets, respectively. This suggests β decreases as droplets get smaller. The actual droplets we are interested in are much smaller than 2 μL, on the order of 0.002 μL. Nonetheless, we will conservatively assume a mean value for β of 2% for disinfection of SARS-CoV-2. This ensures there is some safety factor in any disinfection predictions.

Estimating k_A for SARS-CoV-2 is difficult, but there is some previous work on particle-associated bacteria on which we can draw. Azimi et al. (2012) observed a ratio of k_A/k_S of 6%. Kollu and Örmeci (2012) observed an approximate ratio of k_A/k_S of 15%. The ratio of k_A/k_S in the model validation in this work was 12%. Therefore, we assign a median value of k_A/k_S of 10% in this work based on other observations. This gives a value of k_A of 0.020 cm²/mJ for SARS-CoV-2 (10% of k_S). Formulating k_A in this way ensures that it is proportional to the single organism rate constant.

Table 1 shows an overview of the model inputs used for Bacillus subtilis spores and SARS-CoV-2.

Table 1.

Monte Carlo simulation parameters

Test organism	Model parameter	Distribution type	Mean value	Standard deviation (% of mean)
B. subtilis spores	Single organism rate constant (ks)	n/a	0.10 cm2/mJ	n/a
	Aggregate disinfection rate constant (kA)	Normal	0.012 cm2/mJ	0.006 (50%)
	Fraction of particle-associated organisms (β)	Lognormal	2%	1.8% (80%)
SARS-CoV-2	Single organism rate constant (ks)	n/a	0.20 cm2/mJ	n/a
	Aggregate disinfection rate constant (kA)	Normal	0.020 cm2/mJ	0.010 (50%)
	Fraction of particle-associated organisms (β)	Lognormal	2%	1.8% (80%)

See “Methods and model development” section for details of parameter estimation

Results

Model validation

Less hazardous surrogates are often substituted for more dangerous ones in laboratory work. The work of Barancheshme et al. (2021) used relatively difficult to disinfect, but harmless, B. subtilis spores in dried human saliva droplets. Figure 2 shows the results of Barancheshme et al. (2021) on B. subtilis spores fitted to a double-exponential model for 2-μL and 10-μL droplets. Both rate constants (k_S and k_A) have the same values independent of droplet size. The only difference between the figures is the fraction of organisms found in aggregates (β), which decreases with droplet size from 13 to 2%. The two-population, double-exponential model effectively described the UV disinfection of B. subtilis spores in dried human saliva resulting in R² values of 0.98 and 0.97 for 2-μL and 10-μL droplets, respectively. These results suggest that the rate constants are indeed constant, and the effects of droplet size can be approximated by changing the β alone.

Fig. 2.

UV disinfection of B. subtilis spores in human saliva in dried 2-μL (A) and 10-μL (B) droplets fitted to a double-exponential model (k_S = rate constant for single organisms; k_A = rate constant for aggregates; β = fraction of organisms in aggregates)

Monte Carlo simulation of B. subtilis spore UV inactivation

The number of organisms associated with aggregates is both variable and uncertain, since no two coughs are the same. Based on the model validation, this variability is approximated by changing the parameter β. The precise value of k_A is also not known, only approximated, so a normal distribution is used to account for this. Allowing for this uncertainty, Table 2 shows the expected log reduction in B. subtilis spores in dried saliva droplets.

Table 2.

Probability of achieving different log reductions in B. subtilis spores as a function of UV dose (Monte Carlo simulation with 10,000 model executions)

	Dose (mJ/cm2)
Log reduction	20	40	60	80	100	120
>1 log	<0.1%	>99.9%	>99.9%	>99.9%	>99.9%	>99.9%
>2 log	<0.1%	<0.1%	33%	64%	75%	81%
>3 log	<0.1%	<0.1%	<0.1%	<0.1%	1%	4%

The results of the MCS show that there are diminishing returns as UV dose is increased. One-log reduction can be achieved at a dose of 40 mJ/cm². However, doubling this dose to 80 mJ/cm² shows that a two-log reduction will be achieved only 64% of the time. Tripling the dose to 120 mJ/cm² only increases the chances of two-log (or more) reduction to just 81%. The log reductions that can be achieved get more difficult at higher UV doses.

One reason for this is that the rate constant for aggregates, important at higher doses, is an order of magnitude smaller than that of single organisms. Also, aggregates are variable in this model, and it gets more unlikely to achieve complete inactivation at the higher doses where they dominate. For example, some of the time, aggregates will contain such a large fraction of the total population (e.g., >5%) that a high log reduction is difficult to achieve.

Monte Carlo simulation of SARS-CoV-2 inactivation

The single organism rate constant (k_S) for SARS-CoV-2 used in this work is twice that of B. subtilis spores (0.20 vs. 0.10 cm²/mJ). In addition, the aggregate rate constant (k_A) is assumed to be proportional to the single organism disinfection sensitivity (k_S), making both rate constants larger. These higher rate constants make the log reductions that can be achieved with SARS-CoV-2 greater than that of B. subtilis spores (Table 3).

Table 3.

Probability of achieving different log reductions in SARS-CoV-2 as a function of UV dose (Monte Carlo simulation with 10,000 model executions)

	Dose (mJ/cm2)
Log reduction	20	40	60	80	100	120
>1 log	>99.9%	>99.9%	>99.9%	>99.9%	>99.9%	>99.9%
>2 log	<0.1%	55%	75%	84%	89%	91%
>3 log	<0.1%	<0.1%	1%	7%	19%	33%

For example, a one-log reduction in SARS-CoV-2 is very likely (p>99.9%) at a dose of just 20 mJ/cm², but very unlikely for B. subtilis spores (p<0.1%). At 40 mJ/cm², the probability of exceeding a two-log reduction in SARS-CoV-2 is 55%, where it is <0.1% for B. subtilis spores. Overall, this makes B. subtilis spores a conservative surrogate for SARS-CoV-2.

Once again, even for the more UV-sensitive SARS-CoV-2, aggregates tend to limit the ability to achieve high log reductions. Doubling the dose from 60 to 120 mJ/cm² increases the probability of two-log reduction from 75 to 91%, an increase of just 17%. The probability of achieving greater than a three-log reduction never exceeds 33%. This suggests the three-log reductions are likely difficult to achieve in this conservative model. In practical terms, a two-log reduction of SARS-CoV-2 in dried saliva droplets is likely a reasonable target.

According to the model, a one-log reduction is very likely (>99.9%) and a two-log reduction is probable (p=75%) for SARS-CoV-2 at a dose of 60 mJ/cm². This is likely a practical dose to aim for. Figure 3 shows the distribution of log reductions at 60 mJ/cm². Note that both low (<1.4) and high (>3.2) log reductions are observed, illustrating the variable nature of dried droplets in this model.

Fig. 3.

Log reductions of SARS-CoV-2 in dried saliva droplets at a UV dose of 60 mJ/cm² (10,000 model executions)

Model limitations

The assumptions of the model are described in the “Methods and model development” section. Briefly, we assume that UV disinfection of dried saliva is like UV disinfection in other liquids containing aggregates and/or particles. The “Model validation” section shows that the observed disinfection of B. subtilis spores in dried saliva could be described with R² ≥ 0.97. The fraction of organisms in aggregates is estimated using a single parameter β, but the situation is likely much more complex. However, even if β could be determined experimentally, there is no guarantee that a different cough or sneeze would produce the same result. Nonetheless, a better understanding how viruses are distributed in dried droplets could improve this model. The single organism rate constant for SARS-CoV-2, on which so much depends, is approximate and based on the literature and not actual experiments. This also could be improved.

Lastly, the validation work was done using bacterial spores, and this information was extrapolated to viruses. This size discrepancy between viruses and bacteria likely contributes more uncertainty in β and k_A for SARS-CoV-2. However, some uncertainty in these parameters was accounted for in the MCS. In addition, an appropriate single organism rate constant was used for SARS-CoV-2, and k_S describes most of the behavior at low log reductions. High log reductions are uncertain, and this is reflected in the model. Overall, a double-exponential, three-parameter model that can describe UV disinfection in dried saliva droplets is proposed.

Conclusions

In this work, we demonstrated the UV disinfection of B. subtilis spores in dried human saliva could be described by a two-population, double-exponential model (R² ≥ 0.97) where β is the fraction of organisms in aggregates. The value of β was 2% for dried 2-μL droplets and decreased with droplet size. We assume that β is variable and it was assigned a lognormal distribution. Monte Carlo simulation (MCS) of B. subtilis spores and SARS-CoV-2 showed increases in the resistance to UV disinfection and increases in the variability in the results at higher log reductions. This was attributed to the lower disinfection rate constant for aggregates (k_A) and the variable nature of droplets. It was shown, using a conservative estimation of β for very small droplets, that a two-log reduction of SARS-CoV-2 was probable (p=75%) at a dose of 60 mJ/cm². Higher log reductions are more uncertain and difficult to achieve. Future work should investigate the impact of dried droplets characteristics on the kinetic parameters of the double-exponential model.
