Computational study and in vitro alpha-glucosidase inhibitory effects of medicinal plants from a Thai folk remedy

Abstract

The number of patients with type 2 diabetes mellitus (T2DM) has increased worldwide. Although an instant cure was achieved with the standard treatment acabose, unsatisfactory symptoms associated with cardiovascular disease after acabose administration have been reported. Therefore, it is important to explore new treatments. A Thai folk recipe has long been used for T2DM treatment, and it effectively decreases blood glucose. However, the mechanism of this recipe has never been proven. Therefore, the potential anti-T2DM effect of this recipe, which is used in Thai hospitals, was determined to involve alpha-glucosidase (AG) inhibition with a half maximal inhibitory concentration (IC₅₀). In vitro experiments showed that crude Cinnamomum verum extract (IC₅₀ = 0.35 ± 0.12 mg/mL) offered excellent inhibitory activity, followed by extracts from Tinospora crispa (IC₅₀ = 0.69 ± 0.39 mg/mL), Stephania suberosa (IC₅₀ = 1.50 ± 0.17 mg/mL), Andrographis paniculate (IC₅₀ = 1.78 ± 0.35 mg/mL), and Thunbergia laurifolia (IC₅₀ = 4.66 ± 0.27 mg/mL). However, the potencies of these extracts were lower than that of acabose (IC₅₀ = 0.55 ± 0.11 mg/mL). Therefore, this study investigated and developed a formulation of this recipe using computational docking. Among 61 compounds, 7 effectively inhibited AG, including chlorogenic acid (IC₅₀ = 819.07 pM) through 5 hydrogen bonds (HBs) and 2 hydrophobic interactions (HIs); β-sitosterol (IC₅₀ = 4.46 nM, 6 HIs); ergosterol peroxide (IC₅₀ = 4.18 nM, 6 HIs); borapetoside D (IC₅₀ = 508.63 pM, 7 HBs and 2 HIs); borapetoside A (IC₅₀ = 1.09 nM, 2 HBs and 2 His), stephasubimine (IC₅₀ = 285.37 pM, 6 HIs); and stephasubine (IC₅₀ = 1.09 nM, 3 HBs and 4 HIs). These compounds bind with high affinity to different binding pockets, leading to additive effects. Moreover, the pharmacokinetics of six of these seven compounds (except ergosterol peroxide) showed poor absorption in the gastrointestinal tract, which would allow for competitive binding to AG in the small intestine. These results indicate that the development of these 6 compounds into oral antidiabetic agents is promising.

Thai folk remedy, Alpha-glucosidase inhibitory, Computational study.

1. Introduction

Diabetes mellitus (DM) is a chronic disease caused by high glucose levels in the bloodstream. The number of patients who are affected by type 2 diabetes (T2D) is estimated to be approximately 415 million worldwide [1, 2]. The number of patients with diabetes is predicted to reach 642 million in 2040 [3]. All patients diagnosed with T2D have complications, such as nephropathy, retinopathy, and cardiovascular disorders [4]. To date, strategies to control glucose levels in the bloodstream include inhibition of the digestion of carbohydrates, polysaccharides, and disaccharides [5, 6, 7]. The enzyme alpha-glucosidase (AG) plays an important role in starch digestion into glucose. Therefore, glucose levels should be maintained at less than 200 mg/dl when detected any time of the day without fasting [8].

AG is an enzyme that hydrolyzes α(1→4) monosaccharide bonds, leading to glucose absorption and hyperglycemia [9]. This enzyme is secreted in the small intestine [10]. Thus, AG directly increases glucose levels in the bloodstream. To control normal blood glucose levels for diabetes treatment, many studies have shown that the inhibition of AG is a potential therapeutic strategy [6, 11]. However, the limitations of available antidiabetic compounds, such as miglitol, metformin, and acarbose, are serious side effects, including gastrointestinal problems in response to disturbances in microbiota, such as Lactobacillaceae, Ruminococcaceae, and Veillonellaceae [12].

To prevent these side effects, a Thai herbal recipe composed of 36% Andrographis paniculata, 36% Thunbergia laurifolia, 9.3% Tinospora crispa L, 9.3% Stephania suberosa and 9.3% Cinnamomum verum was used in this study to reduce blood sugar. This Thai herbal recipe is used in traditional Thai medicine hospitals, and it originated from Dr. Wirot Bunluepuech, who practices traditional Thai medicine in Nakhon Si Thammarat Province. According to diabetes treatment results from Thai Traditional Medical Hospital, the blood glucose levels of patients were first monitored by fingertip blood sampling. Blood glucose levels gradually decreased after 5 bolus doses of this herbal recipe after breakfast and dinner. After 1 month, the blood glucose levels of the patients decreased from 245 mg/dl to 205 mg/dl. By month 2, the blood glucose levels further decreased to 167 mg/dl. In the third month, the blood glucose levels decreased to 148 mg/dl, and blood glucose remained at this level during the 4th and fifth months. Throughout five months of monitoring, the symptoms of fatigue, frequency of urination at night and thirst gradually decreased until no signs of fatigue were reported and waking at night to urinate no longer occurred.

A. paniculata of the Acanthaceae family is known in Thai as Fah Talai Joan, and the aerial part is used to treat tonsillitis, dysentery, diarrhea and fever [13]. A. paniculata and andrographolide show appreciable AG inhibitory effects [14], including in rats [15], in addition to showing hypoglycemic [16], antibacterial, antiviral [17], anti-inflammatory [18], antimalarial [19], immunostimulatory [20], hepatoprotective [21], antithrombotic [22], and anticancer [23] activities.

The leaves and stems of T. laurifolia of the Acanthaceae family are used as antidotes against several poisonous agents in traditional Thai medicine. The Thai name for this plant is Rang Jert, and the dried root is also used as an anti-inflammatory agent [13]. T. laurifolia leaves have antioxidant, antimicrobial, detoxifying, and antidiabetic activities without toxic effects [24]. Additional biological activities, such as antioxidant, anti-inflammatory, and hepatoprotective effects, have been found from T. laurifolia [25].

T. crispa is a medicinal plant belonging to the botanical family Menispermaceae, and the local name is boraphet. The stems of T. crispa are used to treat fever, as a health tonic, and to increase bile function [13]. It is also used in Malaysia as a remedy for patients with DM [26]. T. crispa has antihyperglycemic effects in animals [27]. The hypoglycemic effects of T. crispa are mediated by an increase in insulin secretion from isolated rat and human islets of Langerhans [27].

S. suberosa is a medicinal plant belonging to the botanical family Menispermaceae, and it is commonly used for the treatment of a variety of aliments under the local name boraphet phungchang. Its stems are used to treat diabetes and anemia, and it is used as a health tonic and longevity agent. Many of the plants from the Stephania genus show biological activities, including antitumor and emetine-type activities [28].

C. verum is a medicinal plant belonging to the Lauraceae botanical family, and its bark is used to treat exhaustion, as a health tonic, and to nourish the mind [13]. C. verum consumption is associated with an attenuation of DM [29]. C. verum effectively lowered fasting blood glucose levels in diet-induced obese hyperglycemic mice [30] and lowered hemoglobin A1C in patients with T2D [31].

The present study used various photochemical methods to analyze and derive the 3D structures of 22 compounds from A. paniculate, 4 from T. laurifolia, 9 from T. crispa L, 11 from S. suberosa and 15 from C. verum and examined the effects of these compounds on blood glucose levels and the inhibition of AG using AutoDock, AutoDock Vina and ArgusLab [32, 33, 34, 35, 36]. Chemical binding was visualized by Discovery Studio [37]. The absorption ability from the gastrointestinal (GI) tract was predicted by calculating the hydrophobicity and hydrophilicity of the compounds using the BOILED-Egg model [38]. Notably, a suitable compound should be absorbed to a lesser extent in the GI tract because AG is released in the small intestine.

Selection of the correct solvent is important to enhance the yield of the selected compounds. The solubility of the solute in the solvent is a key parameter that defines the extraction yield. The capability of the solvent to dissolve the selected compounds may be predicted by the physical properties and chemical parameters of the compound, such as its solubility, dielectric constant, and number of donor and receptor hydrogens [39]. Natural compounds generally exhibit good solubility in highly polar solvents, with Hildebrand solubility parameters between 20 and 30 MPa^1/2 [40]. Therefore, the solvent solubility parameter corresponding to the compound solubility at its maximum curve was considered. Several recent methods can predict the solubility of compounds in solvents and are described below.

• 1)Regular solution theory was used to predict the solubility of compounds in a solvent via a quadratic logarithm [40]. The solubility of a compound in a solvent is plotted as a bell shape. The maximum amount of compound that can be dissolved in the solvent is found at the top of the bell. However, the solubility of some compounds cannot be predicted using this method. The melting temperature (T_m), current temperature (T), heat of fusion (H_f), solid solubility (X_i), and interactions between the solvent and solute (γ_i) parameters were used to calculate the solubility using Eq. (1).

$$\ln {\text{X}}_{\text{i}}=\frac{Hf}{RTm}\left(1-\frac{Tm}{T}\right)-\ln {\text{γ}}_{\text{i}}$$ (1)

• 2)The Car-Parrinello method is a molecular dynamic simulation that is generally used to simulate and calculate the compatibility of compounds and solvents [41]. However, calculations from this method may be incorrect due to the large number of solvents, which leads to interference with quantum chemical calculations.
• 3)The quantitative structure-property relationship (QSPR) method has been employed to predict the aqueous solubility (log S), octanol-water partition coefficient, and energy of molecular orbitals. The solubility of a compound can also be predicted computationally using the mathematical software COSMOquick. The COSMOquick approach uses a QSPR technique to estimate the solubility [42]. In this study, the free energy of fusion (ΔG_fus) was calculated according to the following Eq. (2):

ΔG_fus = ΔH_fus – ΔH_fus (1 – T)/T_m (2)

where ΔH_fus is the enthalpy of fusion, T is room temperature, and T_m is the melting temperature of the compound. These values were efficiently estimated using COSMOquick. Therefore, this method was used to select the extraction solvent for the compounds that would produce high yields.

The purpose of this research was to develop a more effective Thai traditional recipe for reducing blood sugar over a long time through computer simulation and to select the best extraction method to extract for inhibiting AG enzymes, which cause diabetes.

2. Materials and methods

2.1. Materials

The following software were used in the present study: i) AutoDock 1.5.6, ii) Python 3.8.2, iii) MGLTools 1.5.4 iv) Discovery Studio-2017, v) ArgusLab 4.0.1, vi) ChemSketch, vii)Avogadro, viii) OpenBabel, ix) SwissADME: a free web tool to evaluate pharmacokinetics. The following were the system properties with which the study was conducted. Processor: Intel Xeon-E5-2678v3 12C/24T CPU @ 2.50 GHz -3.10 GHz processor, system memory: 32 GB RAM DDR4-2133 RECC, graphics processing: VGA GTX 1070 TI 8G, system type: 64-bit operating system, Windows 10 as Operating System. These requirements were prescribed in the software manual for the compatibility of the above-mentioned software. All solvents for extraction and isolation processes were purchased from Thail Oil Co. Ltd., Thailand. Alpha-glucosidase from Saccharomyces cerevisieae, para–nitrophenyl–alpha–D– glucopyranosidse and acarbose were obtained from Sigma-Aldrich, Germany.

2.2. Crude extract preparation

The medicinal plants in the drug formulas were composed of the following 5 herbs: A. paniculate, T. crispa, S. suberosa, T. laurifolia, and C. verum. Voucher specimens of A. paniculate SM0114161404, T. crispa SM20090318, S. suberosa SM19201921. T. laurifolia SM 20081201, and C. verum SM 03092205 are deposited at the Botanic Garden, Walailak University, Nakhon Si Thammarat, Thailand.

The plants were extracted by infusion with 70% ethanol, sonicated with a 50 KHz ultrasound machine for 30 min, and then filtered. To increase the yield, the ultrasonication step was repeated twice. Finally, the extract was evaporated and dried with a rotary evaporator. The dry extract was weighed and stored at 4 °C prior to further testing.

2.3. AG inhibition test

Stock solutions of Thai herbal recipe extracts, including A. paniculate, T. crispa, S. suberosa, T. laurifolia, and C. verum, were prepared at a concentration of 8 mg/mL in dimethyl sulfoxide (DMSO). AG inhibition was determined for all extracts according to previously reported assays [43]. Briefly, p-nitrophenol (yellow in color), which was released from p-nitrophenyl-alpha-D-glucopyranoside (pNPG), was detected by measuring the absorbance at 405 nm. The samples were prepared at a concentration of 8 mg/mL and consisted of 50 μL of sample solution mixed with 50 μL of phosphate-buffered saline (PBS) containing 2 mg/mL bovine serum albumin, 0.2 mg/mL sodium azide and 50 μL of 1 unit/mL AG. DMSO (5%) and acabose [44] were used as negative and positive controls, respectively. All plates were placed in an incubator under a controlled environment of 37 °C for 2 min. Then, 4 mM pNPG was added to each well. The reaction was monitored with a microplate reader at 405 nm every 5 min for a total of 6 measurements. The percent inhibition of AG was calculated according to Eq. (3). The results are reported as the 50% inhibition of AG activity (IC₅₀).

$$AGinhibitionrate(\%)=\left(1-\frac{O{D}_{sample}-O{D}_{blank}}{O{D}_{control}-O{D}_{blank}}\right)x100$$ (3)

2.4. Molecular docking and chemical visualization

Targeted protein-specified ligand dockings were prepared to verify whether a ligand was a better inhibitor of AG than acabose (PDB 5ZCC), which is the standard diabetes treatment. The inhibition of AG has been studied in the five plants used for the treatment of diabetes. Twenty-one compounds derived from A. paniculate [45, 46, 47, 48, 49], 16 compounds derived from C. verum [50, 51, 52], 11 compounds derived from S. suberosa [53, 54], 9 compounds derived from T. crispa L [55, 56, 57], and 4 compounds derived from T. laurifolia [58, 59] were docked into the AG target site AG with ArgusLab. Docking effects were considered when the binding energy values were less than those of acabose-AG. AutoDock Vina was used to verify the top binding value, and the following parameters were set to calculate the binding energies: the selected box size was x = 62, y = 60, z = 84; the box position was x = 4.016, y = 49.080, z = 82.173; and the exhaustiveness number was set to 20. In addition, AutoDock was used to confirm the binding affinity with the same box settings as those used for AutoDock Vina, and the 50% inhibition constant (IC₅₀) was predicted by Eq. (4)

$$\text{Inhibition}\text{constant}\left({\text{K}}_{\text{i}}\right)=\frac{IC50}{(1+(\left[L\right]/Kd)}$$ (4)

where.

• K_i is the inhibition constant, which was calculated from K_i = exp (ΔG/R×T),

• K_d is the dissociation constant, and

• L is the ligand concentration.

The chemical interactions (hydrogen bonds and hydrophobic interactions) between the best-binding ligand and the target protein pocket site were visualized with Discovery Studio.

2.5. Pharmacokinetics prediction

The pharmacokinetic parameters of the compounds with the best binding were investigated using SwissADME. This tool was used to predict GI absorption and brain access in a representative region of the BOILED-Egg construction. There are 2 BOILED-Egg regions, as follows: the white region of the model indicates that the compounds are absorbed well by the GI tract and the yellow region of the model indicates that the compounds permeate the brain. A blue color indicates that the compound is effluated from the central nervous system (CNS) and vice versa for a red color.

2.6. Solvent considerations for selected compounds

To enhance the extraction yields of specific compounds, COSMOquick was used to screen which solvents were suitable for extraction [60]. Six compounds were evaluated in six different solvents, including water, ethanol, methanol, chloroform, acetone, and tetrahydrofuran (THF). The solvents were characterized according to their physical and chemical parameters, such as their solubility, dielectric constant and donor and acceptor properties. In this study, four parameters were considered for the selected compounds, including ΔH_fus, T (set to room temperature), and the T_m of the compound. Thus, the solubility of the selected compounds in different solvents could be predicted computationally using the COSMOquick mathematical software approach following Eq. (5).

ΔG_fus = ΔH_fus – ΔH_fus (1–T)/T_m (5)

2.7. Statistical analysis

All statistical analyses were conducted using one-way ANOVA. The results were analyzed by the SPSS 18 software with Tukey's comparison test for comparisons between compounds. Differences were considered statistically significant when the p-value was less than 0.05 (∗), 0.01 (∗∗), 0.005 (∗∗∗), and 0.001 (∗∗∗∗). All values are presented as the mean ± standard deviation (SD).

3. Results and discussion

3.1. AG inhibition test

The in vitro AG inhibitory activity assay results showed that the 5 selected Thai herbs inhibited AG. Figure 1 shows that the C. verum extract (CV) (IC₅₀ = 0.35 ± 0.12 mg/mL) possessed the strongest inhibition with the lowest yield extraction (14.4%), followed by the T. crispa extract (TC) (IC₅₀ = 0.69 ± 0.39 mg/mL) with an extraction yield of 9.6%, the S. suberosa extract (SS) (IC₅₀ = 1.5 ± 0.17 mg/mL) with an extraction yield of 8.7%, the A. paniculate extract (AP) (IC₅₀ = 1.78 ± 0.35) with an extraction yield of 10.7% and the T. laurifolia extract (Tl) (IC₅₀ = 4.66 ± 0.27 mg/mL) with an extraction yield of 11.2%. In addition, the improvement of this Thai recipe extracted with chloroform demonstrated that the AG inhibition properties of this recipe were more effective (Table 1) because the main compounds, such as boraptoside A and boraptoside D from T. crispa, can be extracted in chloroform with the highest yields, meaning that the T. crispa chloroform extraction is able to inhibit the enzyme better than the water extraction. However, it was found that the chlorogenic compound from C. verum was good when extracted with water. It was able to inhibit AG enzymes better than the chloroform extraction because chlorogenic compounds are more soluble in water than in chloroform. The extraction of this herbal recipe with chloroform was compared to that extracted with water and alcohol. The recipe extracted in chloroform had a stronger inhibitory effect than those extracted with water and ethanol because the main active compounds that inhibit AG enzymes can be extracted with chloroform in the highest yields when compared to water and alcohol extraction.

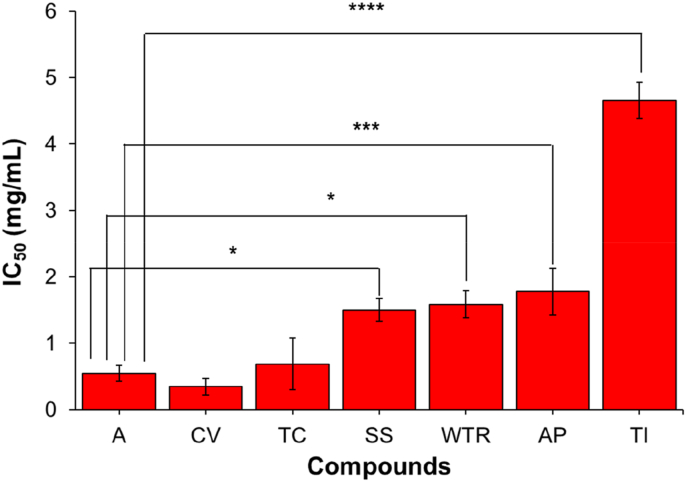

Figure 1.

Comparison of AG inhibitory activity of each Thai herb extract in ethanol and acabose (positive control) in vitro.

Table 1.

Comparison of AG inhibitory activity of the Thai herbal recipe, T. crispa and C. verum extracted in ethanol, water and chloroform.

Sample	IC50 (mg/mL)
Thai recipe extracted in ethanol	15.90 ± 1.51
Thai recipe extracted in water	18.17 ± 1.03
Thai recipe extracted in chloroform	14.99 ± 0.99
T. crispa extracted in ethanol	0.69 ± 0.39
T. crispa extracted in water	1.14 ± 0.11
T. crispa extracted in chloroform	0.66 ± 0.10
C. verum extracted in ethanol	0.35 ± 0.12
C. verum extracted in water	0.05 ± 0.02
C. verum extracted in chloroform	0.68 ± 0.08

3.2. Molecular docking

To develop an herbal extract with the highest inhibitory activity against AG, the binding affinities of the compounds derived from each herb were evaluated. Among the 61 compounds, the top 7 compounds strongly inhibited AG compared to acarbose, as shown in Tables 1, 2, 3, 4, 5, and 6. These top 7 compounds were β-sitosterol, ergosterol peroxide, chlorogenic acid, borapetoside D, borapetoside A, stephasubine, and stephasubimine. The minimum binding energy of β-sitosterol with AG after examination by ArgusLab, AutoDock Vina, and AutoDock was found to be -14.0, -8.2, and -11.4 kcal/mol, respectively. The minimum binding energy of ergosterol peroxide with AG after evaluation with ArgusLab, AutoDock Vina, and AutoDock was found to be -10.1, -9.6, and -11.4 kcal/mol, respectively. The minimum binding energy of chlorogenic acid with AG after evaluation by ArgusLab, AutoDock Vina, and AutoDock was found to be -10.7, -8.1, and -12.4 kcal/mol, respectively. The minimum binding energy of borapetoside D with AG after evaluation by ArgusLab, AutoDock Vina, and AutoDock was found to be -9.7, -8.2, and -12.7 kcal/mol, respectively. The minimum binding energy of borapetoside A with AG after evaluation by ArgusLab, AutoDock Vina, and AutoDock was found to be -9.1, -9.2, and -12.2 kcal/mol, respectively. The minimum binding energy of stephasubine with AG after evaluation by ArgusLab, AutoDock Vina, and AutoDock was found to be -9.1, -9.0, and -12.6 kcal/mol, respectively. Finally, the minimum binding energy of stephasubimine with AG after evaluation by ArgusLab, AutoDock Vina, and AutoDock was found to be -8.3, -9.7, and -13.0 kcal/mol, respectively. Thus, the inhibition constants of β-sitosterol, ergosterol peroxide, borapetoside A, chlorogenic acid, stephasubine, borapetoside D, and stephasubimine were calculated from the minimum binding energies to be 4.46 nM, 4.18 nM, 1.09 nM, 819.07 pM, 560.6 pM, 508.63 pM, and 285.37 pM, respectively. The minimum binding energy of acabose with AG after evaluation by ArgusLab, AutoDock Vina, and AutoDock was -7.6, -8.1, and -9.1 kcal/mol, respectively, and the inhibition constant was determined to be 212.84 nM.

Table 2.

Molecular docking results and predicted IC₅₀ values of AG inhibitory activity of acabose (positive control).

Medicinal plant part	Ligand	Binding energy (kcal/mol)			Anti-diabetes activity IC50
		Arguslab	Autodock Vina	Autodock
	Acabose	-7.58662	-8.1	-9.1	212.84 nM

Table 3.

Molecular docking results and predicted IC₅₀ values of AG inhibitory activity of 21 Andrographis paniculate extracts.

Medicinal plant part	Ligand	Binding energy (kcal/mol)			Anti-diabetes activity IC50
		Arguslab	Autodock Vina	Autodock
Aerial plant	β-sitosterol	-14.0171	-8.2	-11.39	4.46 nM
Aerial plant	2-cis-6-trans-Farnesol	-13.4968	-6.4	7.72	2.18 μM
Aerial plant	Stigmasterol	-12.2568	-8.9	-11.08	7.57 nM
Leaves	Andrograpanin	-11.9754	-7.6	9.36	138.58 nM
Aerial plant	Ergosterol peroxide	-10.7027	-9.6	-11.43	4.18 nM
Leaves	Caffeic acid	-10.451	-6.4	-8.74	393.91 nM
Aerial parts	Andrographolactone	-10.3188	-8.1	-9.65	84.76 nM
Aerial plant	14-Deoxy-11,12-didehydrographolide	-9.7979	-8.0	-9.43	122.97 nM
Aerial plant	14-Deoxyandrographolide	-9.71145	-7.6	-9.59	93.48 nM
Leaves/aerial	Andrographolide	-9.66208	-8.1	-10.98	9.0 nM
Aerial plant	Neoandrographolide	-9.65087	-8.4	-12.02	1.55 nM
Leaves	Paniculide A	-9.36806	-7.1	-9.26	163.48 nM
Aerial plant	5-Hydroxy-7,8-dimethoxyflavanone	-9.30062	-7.2	-9.68	80.6 nM
Leaves/aerial	Andrographoside	-9.19261	-8.5	-12.05	1.47 nM
Whole plant	Dihydroskullcapflavone	-9.08818	-7.2	-10.05	43.26 nM
Whole plant	7-O-Methylwogonin	-8.89015	-7.0	-9.36	138.55 nM
Root	Apigenin-7,4-dimethyl ether	-8.65278	-8.1	-10.25	30.45 nM
Whole plant	5,7,2′,3′-Tetramethoxyflavone	-8.43209	-7.6	-9.78	67.23 nM
Whole plant	5-Hydroxy-7,8,2,5′-tetramethoxyflavone	-8.09755	-7.8	-10.16	35.58 nM
Root	1,2-Dihydroxy-6,8-dimethoxy-xanthone	-8.00743	-7.1	-9.59	92.67 nM
Root	5-hydroxy-7, 2′, 6'trimethoxyflavone	-7.71015	-7.6	-9.85	60.32 nM

Table 4.

Molecular docking results and predicted IC₅₀ values of AG inhibitory activity of 9 Tinospora crispa extracts.

Medicinal plant part	Ligand	Binding energy (kcal/mol)			Anti-diabetes activity IC50
		Arguslab	Autodock Vina	Autodock
Stem	Tyramine	-9.82256	-5.6	-6.86	9.38 μm
Stem	Borapetoside D	-9.69868	-8.2	-12.68	508.63 pM
Stem	Higenamine	-9.55481	-7.9	-9.27	159.03 nM
Stem	Borapetoside A	-9.12845	-9.2	-12.22	1.09 nM
Stem	Borapetoside E	-8.9324	-8.2	-11.7	2.65 nM
Stem	Borapetol B	-8.76361	-8.3	-10.86	11 nM
Stem	Syringin	-8.63661	-6.8	-9.81	64.43 nM
Stem	Salsolinol	-8.253	-6.3	9.31	150.01 nM
Vines	Adenosine	-7.68071	-7.0	-10.24	31.24 nM

Table 5.

Molecular docking results and predicted IC₅₀ values of AG inhibitory activity of 11 Stephania suberosa extracts.

Medicinal plant part	Ligand	Binding energy (kcal/mol)			Anti-diabetes activity IC50
		Arguslab	Autodock Vina	Autodock
Stem	Stephasubine	-9.10172	-9.0	-12.62	560.6 pM
Stem	Tetrahydrostephabine	-8.82366	-7.5	-9.65	84.11 nM
Stem	Tetrahydropalmatine	-8.77644	-7.6	-10.03	44.33 nM
Stem	Discretine	-8.72261	-8.4	-9.58	95.41 nM
Stem	Corytenchine	-8.6583	-7.9	-9.92	53.52 nM
Stem	Capaurimine	-8.60319	-7.8	-9.6	91.76 nM
Stem	Coreximine	-8.48967	-8.4	-9.74	72.19 nM
Stem	8-Oxypseudopalmatine	-8.32913	-7.5	-10.12	38.01 nM
Stem	Stephasubimine	-8.31026	-9.7	-13.02	285.37 pM
Stem	Tetrahydrostephabine	-7.83637	-7.5	-9.65	84.11 nM
Stem	Cepharanthine	-6.44155	-9.3	-11.17	6.48 nM

Table 6.

Molecular docking results and predicted IC₅₀ values of AG inhibitory activity of 4 Thumbergia laurifolia extracts.

Medicinal plant part	Ligand	Binding energy (kcal/mol)			Anti-diabetes activity IC50
		Arguslab	Autodock Vina	Autodock
Leaves and Flowers	Apigenin	-8.96918	-7.9	-10.41	23.37 nM
Leaves and Flowers	Gallic acid	-8.96747	-5.8	-9.12	207.47 nM
Leaves	(E)-2-Hexenyl-β-glucopyranoside	-8.85008	-6.2	-9.25	166.58 nM
Leaves and Flowers	Protocatechuic acid	-6.79875	-5.8	-8.0	1.37 μM

3.3. Visualization of the ligands and receptor

The chemical interactions between each compound and the protein were visualized and represented by H-bonding and hydrophobic interactions. The results revealed that these top selected compounds bind to different pocket sites in AG, which indicated the potential for greater inhibition by a combination of compounds than by the use of a single compound. According to Tables 3, 4, 5, 6, and 7, there were 7 compound-AG complexes, as follows: β-sitosterol-AG, ergosterol peroxide-AG, chlorogenic acid-AG, borapetoside D-AG, borapetoside A-AG, stephasubine-AG, and stephasubimine-AG, each of which displayed a binding energy that was less than that of acabose (positive control).

Table 7.

Molecular docking results and predicted IC₅₀ values of AG inhibitory activity of 16 Cinnamom verum extracts.

Medicinal plant part	Ligand	Binding energy (kcal/mol)			Anti-diabetes activity IC50
		Arguslab	Autodock Vina	Autodock
Bark	Cinnamyl acetate	-11.6707	-6.0	-6.92	8.41 μM
Bark	Cinnamyl alcohol	-11.3348	-5.8	-6.7	12.36 μM
Leaf	(E)-Cinnemaldehyde	-11.2721	-5.8	-6.72	11.87 μM
Bark	P-Cymene	-11.0936	-6.2	-6.68	12.71 μM
Bark	γ–Terpinene	-11.0464	-6.2	-7.2	5.25 μM
Bark	β-Caryophyllene	-9.96724	-6.2	-7.28	4.64 μM
Bark	α-Phellandrene	-9.46863	-6.1	-6.98	7.65 μM
Bark	Linalool	-9.28838	-5.8	-6.84	9.73 μM
Bark	Camphene	-9.26225	-5.2	-6.03	38.18 μM
Bark	α–Pinene	-9.21657	-6.0	-6.23	27.2 μM
Leaf	Eugenol	-9.19535	-5.7	-7.11	6.1 μM
Bark	Benzaldehyde	-9.01411	-4.8	-5.56	84.55 μM
Bark	β-Pinene	-8.9636	-5.1	-6.34	22.49 μM
Bark	Linalyl oxide	-7.9782	-6.1	-6.53	16.4 μM
Bark	Thiazole	-6.27006	-2.9	-4.36	632.21 μM
Bark	Chlorogenic acid	-10.6808	-8.1	-12.4	819.07 pM

Based on the binding energies and different pocket binding sites of the selected compounds with AG, these seven compounds possessed low binding energies to AG that were superior to that of acabose. The chemical binding interactions between these compounds and the targeted protein were visualized by Discovery Studio. To determine the best conformation of each compound for AG inhibition, the binding sites of AG with these 7 compounds were clarified. β-Sitosterol strongly bound to MET385, ILE143, HIS203, PHE282, and TYR388 of AG, as shown in Figure 2. The interactions of β-sitosterol with AG were hydrophobic, as shown in Table 8. Borapetoside A strongly interacted with ASP327, GLN256, TYR388, and VAL405, as shown in Figure 3. Borapetoside A interacted with AG via hydrogen bonding and hydrophobic interactions, as shown in Table 9. Borapetoside D strongly bound to ASP382, ASP327, ARG411, MET285, ASP382, PHE144, GLY384, MET285, and ILE143, as shown in Figure 4. The interactions of borapetoside D with AG occurred via hydrogen bonding and hydrophobic interactions, as shown in Table 10. Chlorogenic acid strongly interacted with VAL269, TYR249, THR253, ASN275, ALA270, and TRP6, as shown in Figure 5. The interactions of chlorogenic acid with AG occurred via hydrogen bonding and hydrophobic interactions, as shown in Table 11. Ergosterol peroxide strongly bound to MET385, PHE163, ILE143, and TYR63, as shown in Figure 6. The interactions of ergosterol peroxide with AG were hydrophobic, as shown in Table 12. Stephasubimine strongly interacted with MET385, PHE163, ILE143, and TYR63, as shown in Figure 7. The interactions of stephasubimine with AG were hydrophobic, as shown in Table 13. Stephasubine strongly bound to ASN258, MET285, ASP327, PHE282, MET385, ARG411, and TRP288, as shown in Figure 8. The interactions of stephasubine with AG occurred via hydrogen bonding and hydrophobic interactions, as shown in Table 14. These 7 selected compounds from 3 herbs are promising compounds to replace acabose. However, these compounds should be studied regarding their extraction from the herbs and their pharmacokinetics after administration.

Figure 2.

3D (left) and 2D (right) visualizations of the interactions between β-sitosterol and AG.

Table 8.

Chemical interaction analyses of the inhibitory activity of β-sitosterol against AG using Discovery Studio.

Receptor (amino acid)	Distance (Å)	Ligand (group)	Receptor (group)	Chemical interaction
MET 385	4.81486	Alkyl	Alkyl	Hydrophobic
ILE 143	5.14935	Alkyl	Alkyl	Hydrophobic
HIS 203	5.39158	Pi-Orbitals	Alkyl	Hydrophobic
PHE 282	5.19065	Pi-Orbitals	Alkyl	Hydrophobic
TYR 388	5.37431	Pi-Orbitals	Alkyl	Hydrophobic
TYR 388	4.80415	Pi-Orbitals	Alkyl	Hydrophobic

Figure 3.

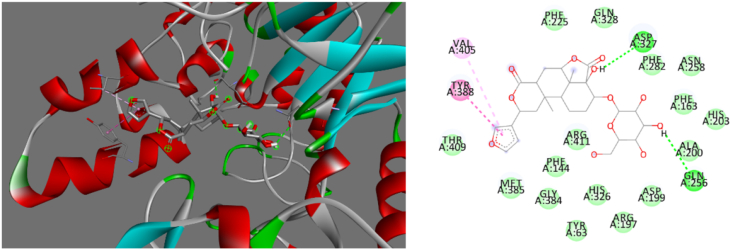

3D (left) and 2D (right) visualizations of the interactions between borapetoside A and AG.

Table 9.

Chemical interaction analyses of the inhibitory activity of borapetoside A against AG using Discovery Studio.

Receptor (amino acid)	Distance (Å)	Ligand (group)	Receptor (group)	Chemical interaction
ASP327	2.30238	H-Donor	H-Acceptor	Hydrogen bond
GLN256	3.04358	H-Donor	H-Acceptor	Hydrogen bond
TYR388	5.29125	Pi-Orbitals	Pi-Orbitals	Hydrophobic
VAL405	5.4311	Pi-Orbitals	Alkyl	Hydrophobic

Figure 4.

3D (left) and 2D (right) visualizations of the interactions between borapetoside D and AG.

Table 10.

Chemical interaction analyses of the inhibitory activity of borapetoside D against AG using Discovery Studio.

Receptor (amino acid)	Distance (Å)	Ligand (group)	Receptor (group)	Chemical interaction
ASP382	2.33377	H-Donor	H-Acceptor	Hydrogen bond
ASP327	3.08067	H-Donor	H-Acceptor	Hydrogen bond
ARG411	3.1259	H-Acceptor	H-Donor	Hydrogen bond
MET285	3.43083	H-Donor	H-Acceptor	Hydrogen bond
ASP382	3.54343	H-Donor	H-Acceptor	Hydrogen bond
PHE144	3.58219	H-Acceptor	H-Donor	Hydrogen bond
GLY384	3.56044	H-Acceptor	H-Donor	Hydrogen bond
MET285	3.82702	Pi-Orbitals	Amide	Hydrophobic
ILE143	4.59271	Alkyl	Alkyl	Hydrophobic

Figure 5.

3D (left) and 2D (right) visualizations of the interactions between chlorogenic acid and AG.

Table 11.

Chemical interaction analyses of the inhibitory activity of chlorogenic acid against AG using Discovery Studio.

Receptor (amino acid)	Distance (Å)	Ligand (group)	Receptor (group)	Chemical interaction
VAL269	2.52232	H-Donor	H-Acceptor	Hydrogen bond
VAL269	2.09319	H-Donor	H-Acceptor	Hydrogen bond
TYR249	2.16522	H-Donor	H-Acceptor	Hydrogen bond
THR253	2.97136	H-Acceptor	H-Donor	Hydrogen bond
ASN275	2.30895	H-Donor	H-Acceptor	Hydrogen bond
ALA270	4.68184	Pi-Orbitals	Amide	Hydrophobic
TRP6	4.76658	Pi-Orbitals	Pi-Orbitals	Hydrophobic

Figure 6.

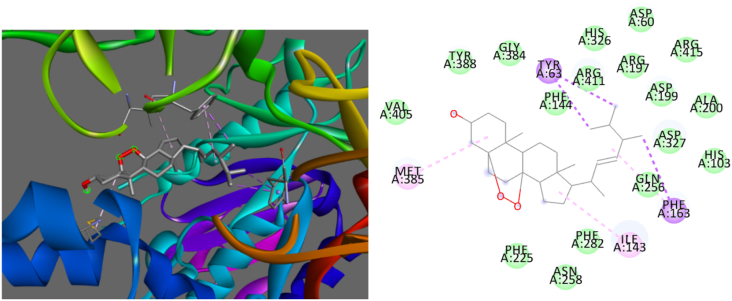

3D (left) and 2D (right) visualizations of the interactions between ergosterol peroxide and AG.

Table 12.

Chemical interaction analyses of the inhibitory activity of ergosterol peroxide against AG using Discovery Studio.

Receptor (amino acid)	Distance (Å)	Ligand (group)	Receptor (group)	Chemical interaction
MET385	4.99848	Alkyl	Alkyl	Hydrophobic
PHE163	5.25594	Alkyl	Pi-Orbitals	Hydrophobic
ILE143	4.69368	Alkyl	Alkyl	Hydrophobic
TYR63	3.78582	C–H	Pi-Orbitals	Hydrophobic
TYR63	3.99026	C–H	Pi-Orbitals	Hydrophobic
PHE163	3.99593	C–H	Pi-Orbitals	Hydrophobic

Figure 7.

3D (left) and 2D (right) visualizations of the interactions between stephasubimine and AG.

Table 13.

Chemical interaction analyses of the inhibitory activity of stephasubimine against AG using Discovery Studio.

Receptor (amino acid)	Distance (Å)	Ligand (group)	Receptor (group)	Chemical interaction
MET385	4.99848	Alkyl	Alkyl	Hydrophobic
PHE163	5.25594	Alkyl	Pi-Orbitals	Hydrophobic
ILE143	4.69368	Alkyl	Alkyl	Hydrophobic
TYR63	3.78582	C–H	Pi-Orbitals	Hydrophobic
TYR63	3.99026	C–H	Pi-Orbitals	Hydrophobic
PHE163	3.99593	C–H	Pi-Orbitals	Hydrophobic

Figure 8.

3D (left) and 2D (right) visualizations of the interactions between stephasubine and AG.

Table 14.

Chemical interaction analyses of the inhibitory activity of stephasubine against AG using Discovery Studio.

Receptor (amino acid)	Distance (Å)	Ligand (group)	Receptor (group)	Chemical interaction
ASN258	3.23635	H-Acceptor	H-Donor	Hydrogen bond
MET285	3.42259	H-Donor	H-Acceptor	Hydrogen bond
ASP327	3.49748	H-Donor	H-Acceptor	Hydrogen bond
PHE282	5.31555	Pi-Orbitals	Pi-Orbitals	Hydrophobic
MET385	4.76705	Alkyl	Alkyl	Hydrophobic
ARG411	3.90756	Alkyl	Alkyl	Hydrophobic
TRP288	5.45615	Pi-Orbitals	Pi-Orbitals	Hydrophobic

3.4. Pharmacokinetics

The seven top-ranking compounds from the docking analyses were analyzed for their absorption, distribution, metabolism and excretion (ADME) properties, as shown in Figure 9. To select the best compounds for inhibition against AG in the human body, this study considered low absorption through the GI tract. The compounds should competitively bind to AG prior to binding carbohydrates to inhibit the conversion of carbohydrates into glucose. Therefore, compounds with a high binding affinity and low absorption in the GI tract were selected as candidates for development into antidiabetic compounds. The dots located outside the yellow and white regions of the BOILED-Egg model were considered. Among the seven compounds, six compounds (β-sitosterol, chlorogenic acid, borapetoside D, borapetoside A, stephasubine, and stephasubimine, but not ergosterol peroxide) exhibited low absorption in the GI tract.

Figure 9.

BOILED-Egg model of selected top-ranking compounds from the docking study.

3.5. Solvent considerations for the selected compounds

The optimum solubilities of the selected compounds were calculated by Eq. (3). As shown in Figure 10, the maximum extraction of β-sitosterol, borapetoside D, and borapetoside A occurred in chloroform. The extraction of chlorogenic acid showed the highest yield with water. A previous study suggested dichloromethane and chloroform for the extraction of stephasubine and stephasubimine [61, 62].

Figure 10.

Correlations between extraction with various solvents and the corresponding yield.

4. Conclusions

Although the studied Thai remedy has been used to treat diabetes for a long time and has shown good results, there is still a lack of scientific proof of the mechanisms of its efficacy. After an in vitro study of the crude herbal extracts, it was found that the inhibitory activities of these crude extracts against AG were lower than that of acabose. Except for the inhibitory activity of the T. crispa and C. verum extracts, the efficacy of the extracts was not different from that of acabose. Therefore, to overcome this limitation, it was necessary to improve the efficacy of this Thai remedy via docking analysis. This study showed that six active compounds, namely, β-sitosterol, chlorogenic acid, borapetoside D, borapetoside A, stephasubine, and stephasubimine, more strongly inhibited AG than acabose and exhibited low bioavailability. Moreover, to enhance the extraction yield of each compound, the choice of solvent must be considered. To enhance the yield of β-sitosterol, the solvent calculations suggested that A. paniculate should be extracted with chloroform. For chlorogenic acid, the suggested solvent for extraction from C. verum was water. For borapetoside D and borapetoside A, the suggested solvent for extraction from T. crispa was chloroform. To provide optimum yields of stephasubine and stephasubimine, the suggested solvent for extraction from S. suberosa was dichloromethane. Thus, it was found that six active compounds derived from three herbs and extracted by different specific solvents were suitable for the development of this recipe and could be more effective than acabose in decreasing glucose levels. According to computer prediction results and confirmed by in vitro experiments, this recipe extracted with chloroform has a stronger inhibitory effect than the water and ethanol extractions because the main active compounds that have the ability to inhibit AG enzymes can be extracted with chloroform in the highest yields when compared to water and alcohol.

Declarations

Author contribution statement

Komgrit Eawsakul: Conceived and designed the experiments; Performed the experiments; Analyzed and interpreted the data; Contributed reagents, materials, analysis tools or data; Wrote the paper.

Pharkphoom Panichayupakaranant: Conceived and designed the experiments; Wrote the paper.

Tassanee Ongtanasup: Analyzed and interpreted the data; Wrote the paper.

Sakan Warinhomhoun: Performed the experiments; Analyzed and interpreted the data.

Kunwadee Noonong: Performed the experiments; Contributed reagents, materials, analysis tools or data.

Kingkan Bunluepuech: Conceived and designed the experiments; Analyzed and interpreted the data; Wrote the paper.

Funding statement

This work was partially supported by the New Strategic Research (P2P) project, Walailak University, Thailand and partially supported by Prince of Songkla University, Thailand (no. TTM580909s).

Data availability statement

Data will be made available on request.

Declaration of interests statement

The authors declare no conflict of interest.

Additional information

No additional information is available for this paper.
