. 2021 Oct 27;11:21199. doi: 10.1038/s41598-021-00509-x

FAN score comprising fibrosis-4 index, albumin–bilirubin score and neutrophil–lymphocyte ratio is a prognostic marker of urothelial carcinoma patients treated with pembrolizumab

Atsunari Kawashima 1,, Yoshiyuki Yamamoto 2, Mototaka Sato 3, Wataru Nakata 4, Yoichi Kakuta 5, Yu Ishizuya 6, Yuichiro Yamaguchi 7, Akinaru Yamamoto 8, Takahiro Yoshida 9, Hitoshi Takayama 10, Tsuyoshi Takada 11, Hitoshi Inoue 12, Yohei Okuda 13, Taigo Kato 1, Koji Hatano 1, Motohide Uemura 1, Norio Nonomura 1, Ryoichi Imamura 1
PMCID: PMC8551158  PMID: 34707147

Abstract

It is important to identify prognostic and predictive markers of metastatic urothelial carcinoma (mUC) treated with immunocheckpoint inhibitors. We sought to establish a prognostic marker for patients with mUC treated with pembrolizumab based on only blood test results. We included 165 patients with mUC in the discovery cohort and 103 with mUC who were treated with pembrolizumab in the validation cohort. Multivariate and Cox regression analyses were used to analyse the data. In the discovery cohort, the fibrosis-4 index (hazard ratio [HR]: 2.13, 95% confidence interval [CI] 1.20–3.76, p = 0.010), albumin–bilirubin score (HR 1.91, 95% CI 1.27–2.88, p = 0.002), and neutrophil–lymphocyte ratio (HR: 1.84, 95% CI 1.22–2.79, p = 0.004) were independent significant prognostic factors. We established a ‘FAN score’ that included these three aforementioned items, which were assigned one point each. We divided patients into the 0–1 point (n = 116) and 2–3 points (n = 49) groups. The FAN score was a significant prognostic marker for cancer-specific survival (CSS) (HR 1.48, 95% CI 1.19–1.83, p < 0.001) along with the Eastern Cooperative Oncology Group Performance Status. The FAN score was also a prognostic factor of progression-free survival (PFS) (HR: 1.25, 95% CI 1.01–1.54, p = 0.036) along with the presence of liver metastasis. In the validation cohort, the FAN score was a significant prognostic factor for CSS (HR: 1.48, 95% CI 1.19–1.85, p = 0.001) and PFS (HR: 1.29, 95% CI 1.02–1.62, p = 0.034). We established the FAN score as a prognostic marker for patients with mUC treated with pembrolizumab.

Subject terms: Tumour immunology, Urological cancer, Cancer

Introduction

Immunotherapy targeting immunocheckpoint molecules (ICI therapy) has been clinically used as a mainly second-line treatment after platinum-based chemotherapy for patients with metastatic and advanced urothelial carcinoma (UC) to improve prognosis13. However, its therapeutic efficacy is limited and severe immune-related adverse events occur in some patients. Thus, it is important to establish a useful and simple biomarker that can easily predict the efficacy and prognosis of ICI therapy to obtain a more effective therapeutic effect47.

Several prognostic models have been reported for ICI therapy for metastatic UC (mUC) including the neutrophil-to-lymphocyte ratio (NLR)811, anaemia10, metastatic sites812, and/or performance status812. However, no prognostic models that use only blood test results have been created.

Recently, several studies have reported attempts to establish a diagnostic and prognostic model based on blood test results in daily clinical practice using machine learning techniques with the artificial intelligence13. However, the rationale is usually unknown because of the black box problem. Therefore, it is still necessary to develop a clear clinical model based on evaluations of biological function by human intelligence.

It well known the presence of liver metastasis to become a poor prognostic factor of mUC patients treated with chemotherapy and ICI therapy commonly. The aforementioned poor prognostic factors of mUC patients are associated with cancer cachexia related to liver dysfunction. So, we supposed that scoring system reflecting liver function could be useful for establishing a prognostic model using blood test.

So, we sought to establish a prognostic marker for patients with mUC treated with pembrolizumab based on only blood test results, including the scoring system reflecting liver function in this study.

Materials and methods

Study design and population

In this study, we aimed to establish a significant prognostic model using only blood tests through two independent cohorts. First, we collected and analysed blood test results of 165 patients with mUC from six institutions as a discovery cohort. After establishing a significant prognostic model in multivariate analysis, we blindly collected clinical data and evaluated its validity in 103 patients with mUC from seven institutions as a validation cohort (Supplemental Fig. 1).

Totally, we retrospectively analysed a database comprising 268 patients treated from April 2016 to December 2020 with pembrolizumab as second-line or later treatment for mUC at Osaka University Graduate School of Medicine and its affiliated hospitals listed in the acknowledgements.

This study was approved by the institutional review board of Osaka University, which provided the necessary institutional data-sharing agreements before initiation of the study (#19083), and the study was conducted in accordance with the Declaration of Helsinki.

Data collection

The patient characteristics including laboratory findings were evaluated at the time of drug administration. Clinical features evaluated were age, sex, the Eastern Cooperative Oncology Group Performance Status (ECOG PS), levels of haemoglobin, serum albumin, serum bilirubin, serum aspartate aminotransferase (AST), serum alanine aminotransferase (ALT), estimated glomerular filtration rate (eGFR)14, and C-reactive protein (CRP), the presence of radical surgery, sites and number of organs involved in metastasis, and counts of leukocytes, monocytes, and platelets. The fibrosis-4 (Fib-4) index is reported as a non-invasive liver fibrosis marker and was calculated using the formula: age (years) × AST (U/L)/(platelet count [103/ μL] × (ALT [U/L]0.5)15. The albumin–bilirubin (ALBI) score has been proposed as a validated index of liver dysfunction and was calculated using the formula: log10 (T-bil [mg/dL] × 17.1) × 0.66 + albumin [mg/dL] × 10(− 0.085)16. The neutrophil–lymphocyte ratio (NLR) was calculated using the formula: neutrophil count/ lymphocyte count. The following cut-off values were defined according to previous reports: Fib-4 > 3.517, ALBI score > − 2.616, and NLR > 5.08.

The proximal efficacy of pembrolizumab was evaluated based on RECIST 1.118. Cancer-specific survival (CSS) time was calculated from the date of initiation of pembrolizumab until death or the date of the patient’s last follow-up visit. Progression-free survival (PFS) was calculated from the date of initiation of pembrolizumab until radiological and clinical disease progression or death. The CSS and PFS rates were calculated using the Kaplan–Meier method.

Establishment of the prognostic prediction model based on the blood test results

The evaluated items in this analysis were haemoglobin level (< 10 g/dL or ≥ 10 g/dL), platelet count (> 32.0 × 104 × /μL or ≤ 32.0 × 104 × /μL), AST level (< 40 U/L or ≥ 40 U/L), ALT level (< 40 U/L or ≥ 40 U/L), serum sodium level (≥ 138 mEq/L or ≤ 137 mEq/L), eGFR (< 60 mL/min/1.73 m2 or ≥ 60 mL/min/1.73 m2), albumin level (≥ 3.5 mg/dL or < 3.5 mg/dL), CRP level (< 1.0 mg/dL or ≥ 1.0 mg/dL), monocyte-lymphocyte ratio (≤ median or > median), platelet-lymphocyte ratio (≤ median or > median), NLR (≥ 5.0 or < 5.0), Fib-4 index (≥ 3.5 or < 3.5), and ALBI score (> − 2.6 or ≤ − 2.6) (Supplemental Table 1).

To establish the prognostic prediction model for CSS, only blood test results were evaluated using Cox regression analysis with stepwise regression backward and forward selection with p < 0.05 as the criterion for model entry or continued inclusion in multivariate analysis.

Statistical analysis

Clinical items in the multivariate analysis were sex (male or female), the primary site (upper urinary tract involvement or others), surgical removal of the primary site (yes or no), previous chemotherapy regimen (cisplatin based or non-cisplatin based), time from the last chemotherapy (< 90 days or ≥ 90 days), ECOG PS (0, 1, or ≥ 2), organs involved in metastasis (only lymph nodes, liver metastasis, or other organs), discontinuation of pembrolizumab due to adverse events (yes or no), presence of anaemia, and presence of renal dysfunction. We used the Cox regression model to calculate the hazard ratios (HRs) in univariate and multivariate analyses. Prognostic factors related to CSS and PFS were analysed using Cox regression analysis, and statistical significance was set as p < 0.05. Statistical analyses were performed using the Statistical Package for the Social Sciences software, version 20.0 (IBM Corp., Armonk, NY, USA).

Ethics approval

This study was approved by the institutional review board of Osaka University, which provided the necessary institutional data-sharing agreements before initiation of the study (#19083), and the study was conducted in accordance with the Declaration of Helsinki.

Consent to participate

Informed consent was obtained from all individual participants included in the study.

Results

Patient characteristics

The clinical characteristics of the 268 patients with mUC enrolled in this study are shown in Table 1. Median patient age was 73 (range, 28–93) years, and primary cancer sites were the bladder (106 patients), upper urinary tract (157 patients), and both (5 patients). The numbers of patients with a high Fib-4 index, ALBI score, and NLR were 22 (8.2%), 134 (50%), and 83 (31%), respectively. Only the rate of surgical removal at the primary site was significantly different between the two cohorts (p < 0.001). The median duration of treatment with pembrolizumab was 3.22 (0.26–35.9 months), and the median follow-up period was 6.69 (0.26–37.0) months.

Table 1.

Clinical characteristics of 268 patients in this study.

Characteristic Total Discovery cohort Validation cohort p
n = 268 n = 165 n = 103
Age, years, range (median) 28–93 (73) 28–93 (73) 30–86 (73) 0.418
Sex, N (%)
Male 193 (72.0) 117 (70.9) 76 (73.8) 0.676
Female 75 (28.0) 48 (29.1) 27 (26.2)
Primary site, N (%)
Bladder 106 (39.6) 61 (37.0) 45 (43.7) 0.136
Upper urinary tract 157 (58.9) 99 (60.0) 58 (56.3)
Both 5 (1.5) 5 (3.0) 0 (0)
Surgical removal of primary site, N (%)
Yes 181 (67.5) 98 (59.4) 83 (80.6) < 0.001
No 87 (32.5) 67 (40.6) 20 (19.4)
Previous chemotherapy regimen, N (%)
Cisplatin based 160 (59.7) 105 (63.6) 55 (53.4) 0.124
Non cisplatin based 108 (40.3) 60 (36.4) 48 (46.6)
Time from last chemotherapy, N (%)
 < 90 days 164 (61.2) 96 (58.2) 68 (66.0) 0.248
 ≥ 90 days 104 (38.8) 69 (41.8) 35 (34.0)
ECOG performance status, N (%)
0 80 (29.9) 58 (35.2) 22 (21.4) 0.050
1 138 (51.5) 80 (48.5) 58 (56.3)
 ≥ 2 50 (18.6) 27 (16.3) 23 (22.3)
Metastatic sites, N (%)
Lymphnodes only 65 (24.3) 43 (26.1) 22 (21.4) 0.673
Other organs 144 (53.7) 86 (52.1) 58 (56.3)
Liver metastasis 59 (22.0) 36 (21.8) 23 (22.3)
eGFR (ml/min/1.73 m2), N (%)
 ≥ 60.0 54 (20.1) 31 (18.8) 23 (22.3) 0.922
30.0 ≤ , < 60.0 173 (64.6) 109 (66.1) 64 (62.1)
 < 30.0 41 (15.3) 25 (15.1) 16 (15.6)
Hb (g/dL), N (%)
 < 10.0 134 (50.0) 97 (58.8) 37 (35.9) 0.388
 ≥ 10.0 134 (50.0) 68 (41.2) 66 (64.1)
Fib-4 index, N (%)
 < 3.5 246 (91.8) 150 (90.9) 96 (93.2) 0.649
 ≥ 3.5 22 (8.2) 15 (9.1) 7 (6.8)
ALBI score, N (%)
 ≤ − 2.6 134 (50.0) 76 (46.1) 58 (56.3) 0.801
 > − 2.6 134 (50.0) 89 (53.9) 45 (43.7)
NLR, N (%)
 < 5.0 185 (69.0) 111 (67.3) 74 (71.8) 0.498
 ≥ 5.0 83 (31.0) 54 (32.7) 29 (28.2)
FAN score, N (%)
Low 188 (70.1) 115 (69.7) 73 (70.9) 0.891
High 80 (29.9) 50 (30.3) 30 (29.1)
Discontinuation due to AEs, N (%)
No 216 (80.6) 138 (83.6) 78 (75.7) 0.515
Yes 52 (19.4) 27 (16.4) 25 (24.3)
Treatment period, months, range (median) 0.26–35.9 (3.22) 0.26–35.9 (3.01) 0.99–34.1 (3.47) 0.977
Follow-up period, months, range (median) 0.26–37.0 (6.69) 0.26–37.0 (6.71) 0.99–36.1 (6.67) 0.821

ECOG: Eastern Cooperative Oncology Group, eGFR: estimated glomerular filtration rate, Fib-4 index: fibrosis-4 index, ALBI score: albumin–bilirubin score, NLR: neutrophil–lymphocyte ratio, FAN: Fib-4 index, ALBI score and NLR, AEs: adverse events.

Treatment results in the two independent cohorts

In the discovery cohort, the median PFS and CSS were 2.60 months (95% confidence interval [CI] 2.32–2.88) and 8.58 months (95% CI 5.62–11.54) (Fig. 1a,b). Complete response (CR), partial response (PR), and stable disease (SD) were achieved in 14 patients (8.5%), 22 patients (13.3%), and 28 patients (17.0%), respectively. The objective response rate (ORR) was 21.8%, and the disease control rate (DCR) was 38.8% (Supplemental Table 2).

Figure 1.

Figure 1

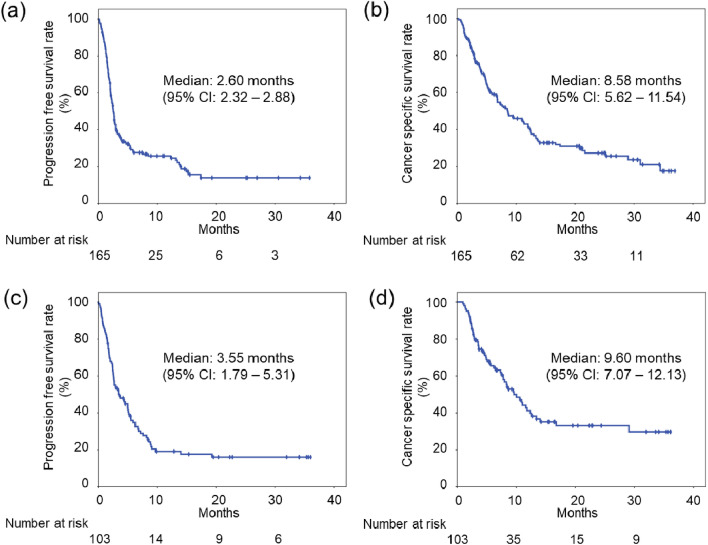

Probability estimates of the prognosis of the study patients with metastatic urothelial carcinoma who were treated with pembrolizumab. Probability estimates of progression-free survival (PFS) (a) and cancer-specific survival (CSS) (b) for the 165 patients in the discovery cohort. Probability estimates of PFS (c) and CSS (d) for the 103 patients in the validation cohort. CI, confidence interval.

In the validation cohort, the median PFS and CSS were 3.55 months (95% CI 1.79–5.31) and 9.60 months (95% CI 7.07–12.13) (Fig. 1c,d). CR, PR, and SD were achieved in four patients (3.9%), 27 patients (26.2%), and 20 patients (19.4%), respectively. The ORR was 30.1%, and the DCR was 49.5% (Supplemental Table 2).

Establishment of the FAN score

Cox regression analysis identified three independent significant prognostic factors for CSS by stepwise backward analysis. The prognosis of patients with a high Fib-4 index (HR: 2.13, 95% CI 1.20–3.76, p = 0.010), high ALBI score (HR: 1.91, 95% CI 1.27–2.88, p = 0.002), and high NLR (HR: 1.84, 95% CI 1.22–2.79, p = 0.004) was significantly poor (Fig. 2a–c, Table 2). Because the HRs of these three prognostic factors were almost the same, we defined the FAN score (Fib-4 index, ALBI score, and NLR) as a prognostic factor by assigning one point to each item and compared the prognosis between the patients grouped by points. Although the prognosis became poorer as the score increased, there was no significant difference between scores of 0 and 1 and scores of 2 and 3 after multiple comparisons (Fig. 2d).

Figure 2.

Figure 2

Probability estimates of the cancer-specific survival rate for the 165 patients in the discovery cohort stratified by three independent prognostic factors (fibrosis-4 [Fib-4] index (a), albumin–bilirubin [ALBI] score (b), and neutrophil-to-lymphocyte ratio [NLR] (c)) and the FAN score, which consisted of these three aforementioned prognostic factors.

Table 2.

Significant prognostic factors for cancer specific survival of metastatic urothelial carcinoma patients treated with pembrolizumab identified by Cox regression analysis with stepwise regression analysis in discovery cohort (n = 165).

Univariate Multivariate
HR 95% CI p-value HR 95%CI p-value
Lower Higher Lower Higher
Fib-4 index (≥ 3.5 vs. < 3.5) 2.08 1.18 3.66 0.011 2.13 1.20 3.76 0.010
ALBI score (> − 2.6 vs. ≤ − 2.6) 2.24 1.51 3.33  < 0.001 1.91 1.27 2.88 0.002
NLR (≥ 5.0 vs. < 5.0) 2.14 1.44 3.19  < 0.001 1.84 1.22 2.79 0.004

Fib-4 index: fibrosis-4 index, ALBI score: albumin–bilirubin score, NLR: neutrophil–lymphocyte ratio, HR: hazard ratio, CI: confidence interval.

Therefore, we classified scores of 0 and 1 as the low-risk group and scores of 2 and 3 as the high-risk group, and then evaluated its usefulness as a prognostic factor. The median PFS durations of the low-risk and high-risk groups were 2.76 months (95% CI 2.24–3.28) and 2.07 months (95% CI 1.89–2.25) (p < 0.001) (Fig. 3a). Moreover, the median CSS durations of the low-risk and high-risk groups were 12.4 months (95% CI 10.6–14.2) and 3.91 months (95% CI 1.9–5.91) (p < 0.001) (Fig. 3b).

Figure 3.

Figure 3

Probability estimates of the prognosis of study patients with metastatic urothelial carcinoma who were treated with pembrolizumab and stratified by the FAN score. Probability estimates of progression-free survival (PFS) (a) and cancer-specific survival (CSS) (b) for the 165 patients stratified by the FAN score in the discovery cohort. Probability estimates of PFS (c) and CSS (d) for the 103 patients stratified by the FAN score in the validation cohort.

Clinical importance of the FAN score in the discovery cohort

About clinical therapeutic response, ORR was 25.9% and 12.2% in low-risk and high-risk group based on the FAN score, respectively. Also, DCR was 48.3% and 16.3% in low-risk and high-risk group based on the FAN score, respectively and DCR was significantly higher in low-risk group base on the FAN score (p < 0.001) (Supplemental Table 3).

Regarding PFS, short time from the last chemotherapy, anaemia, the presence of liver metastasis, and high-risk group based on the FAN score were associated with poor prognosis in univariate analysis (Table 3). In multivariate analysis, the presence of liver metastasis (HR: 1.93; 95% CI 1.13–3.23, p = 0.018) and high-risk group based on the FAN score (HR: 1.25, 95% CI 1.01–1.54, p = 0.036) were significant prognostic factors for predicting an inferior PFS (Table 3).

Table 3.

Univariate and multivariate analysis of predictive factors for PFS in discovery cohort (n = 165).

Univariate Multivariate
HR 95% CI p HR 95%CI p
Lower Higher Lower Higher
Age
 < 73 vs. ≥ 73 1.05 0.74 1.49 0.786 0.96 0.67 1.38 0.814
Sex
Male vs. female 1.39 0.95 2.01 0.088 1.21 0.82 1.79 0.330
Primary site
Upper urinary tract involvement vs. others 1.02 0.71 1.47 0.899
Surgical removal of primary site
No vs. yes 0.75 0.53 1.07 0.113
Previous chemotherapy regimen
Cisplatin vs. non-cisplatin 0.83 0.58 1.20 0.327
Time from last chemotherapy (days)
 ≥ 90 vs. < 90 1.46 1.02 2.09 0.040 1.32 0.91 1.92 0.151
Hb (g/dl)
 ≥ 10.0 vs. < 10.0 1.89 1.33 2.68  < 0.001 1.34 0.89 2.01 0.156
ECOG performance status
0 vs. 1 1.21 0.82 1.80 0.344
0 vs. ≥ 2 1.54 0.93 2.54 0.091
Metastatic sites
Lymphnode vs. other organs 1.15 0.75 1.77 0.524 1.18 0.76 1.83 0.469
Lymphnode vs. liver metastasis 2.28 1.37 3.82 0.002 1.93 1.13 3.23 0.018
eGFR (ml/min/1.73 m2)
 ≥ 60 vs. 30.0 ≤ , < 60.0 0.70 0.45 1.10 0.124
 ≥ 60 vs. < 30 0.88 0.50 1.56 0.665
FAN score
Low risk group vs. high risk group 1.43 1.19 1.72  < 0.001 1.25 1.01 1.54 0.036

Hb: hemoglobin, ECOG: Eastern Cooperative Oncology Group, eGFR: estimated glomerular filtration rate, FAN: Fib-4 index, ALBI score and NLR, HR: hazard ratio, CI: confidence interval.

Regarding CSS, short time from the last chemotherapy, anaemia, poor ECOG PS, the presence of liver metastasis, and high-risk group based on the FAN score were associated with poor prognosis in univariate analysis (Table 4). In multivariate analysis, poor ECOG PS (0 versus [vs.] 1, HR: 2.32; 95% CI 1.44–3.72, p = 0.001; 0 vs. 2, HR: 3.05; 95% CI 1.70–5.47, p < 0.001) and high-risk group based on the FAN score (HR: 1.48, 95% CI 1.19–1.83, p < 0.001) were significant prognostic factors for predicting an inferior CSS (Table 4).

Table 4.

Univariate and multivariate analysis of predictive factors for CSS in discovery cohort (n = 165).

Univariate Multivariate
HR 95% CI p HR 95%CI p
Lower Higher Lower Higher
Age
 < 73 vs. ≥ 73 1.26 0.86 1.84 0.240 1.19 0.79 1.79 0.409
Sex
Male vs. female 1.47 0.98 2.19 0.061 1.28 0.85 1.94 0.238
Primary site
Upper urinary tract involvement vs. others 1.10 0.74 1.63 0.629
Surgical removal of primary site
no vs. yes 0.72 0.49 1.06 0.092
Previous chemotherapy regimen
Cisplatin vs. non-cisplatin 1.05 0.71 1.55 0.805
Time from last chemotherapy (days)
 ≥ 90 vs. < 90 1.57 1.06 2.32 0.025 1.29 0.85 1.96 0.227
Hb (g/dl)
 ≥ 10.0 vs. < 10.0 1.73 1.18 2.53  < 0.001 1.26 0.83 1.91 0.287
ECOG performance status
0 vs. 1 2.28 1.44 3.62  < 0.001 2.32 1.44 3.72 0.001
0 vs. ≥ 2 3.33 1.89 5.85  < 0.001 3.05 1.70 5.47 < 0.001
Metastatic sites
Lymphnode vs. other organs 1.17 0.74 1.85 0.509 1.04 0.65 1.66 0.884
Lymphnode vs. liver metastasis 1.95 1.13 3.38 0.017 1.48 0.84 2.62 0.180
eGFR (ml/min/1.73 m2)
 ≥ 60 vs. 30.0 ≤ , < 60.0 0.78 0.48 1.29 0.665
 ≥ 60 vs. < 30 1.41 0.75 2.62 0.283
FAN score
Low risk group vs. high risk group 1.61 1.32 1.98  < 0.001 1.48 1.19 1.83  < 0.001

Hb: hemoglobin, ECOG: Eastern Cooperative Oncology Group, eGFR: estimated glomerular filtration rate, FAN: Fib-4 index, ALBI score and NLR, HR: hazard ratio, CI: confidence interval.

We examined the usefulness of the FAN score stratified by ECOG PS score. In 80 patients with ECOG PS of 1, the prognosis of high risk group of FAN score was significantly poorer about PFS (p = 0.018) and CSS (p < 0.001) (Supplemental Fig. 2c,d). Also, in 27 patients with ECOG PS of 2, the prognosis of high risk group of FAN score was significantly poorer about PFS (p = 0.049) (Supplemental Fig. 2e).

Validation of the clinical importance of the FAN score in the independent cohort

In the validation cohort, the median PFS durations of the low-risk and high-risk groups were 4.37 months (95% CI 2.94–5.80) and 1.87 months (95% CI 0.46–3.29), respectively (p = 0.014) (Fig. 3c). Moreover, the median CSS durations of the low-risk and high-risk groups were 11.6 months (95% CI 8.08–15.2) and 3.62 months (95% CI 2.21–5.03), respectively (p = 0.010) (Fig. 3d).

Regarding PFS, poor ECOG PS, the presence of liver metastasis, and high-risk group based on the FAN score were associated with poor prognosis in univariate analysis (Table 5). In multivariate analysis, poor ECOG PS (HR: 2.80; 95% CI 1.33–5.86, p = 0.006), the presence of liver metastasis (HR: 2.14; 95% CI 1.01–4.52, p = 0.047), high-risk group based on the FAN score (HR: 1.29, 95% CI 1.02–1.62, p = 0.034) were significant prognostic factors for predicting an inferior PFS (Table 5).

Table 5.

Univariate and multivariate analysis of predictive factors for PFS in validation cohort (n = 103).

Univariate Multivariate
HR 95% CI p HR 95%CI p
Lower Higher Lower Higher
Age
 < 73 vs. ≥ 73 1.43 0.91 2.23 0.119 1.26 0.79 2.00 0.329
Sex
Male vs. female 0.95 0.58 1.55 0.832 0.89 0.53 1.47 0.637
Primary site
Upper urinary tract involvement vs. others 0.73 0.47 1.14 0.164
Surgical removal of primary site
No vs. yes 0.96 0.56 1.65 0.885
Previous chemotherapy regimen
Cisplatin vs. non-cisplatin 0.84 0.54 1.31 0.448
Time from last chemotherapy (days)
 ≥ 90 vs. < 90 1.14 0.72 1.82 0.577
Hb (g/dl)
 ≥ 10.0 vs. < 10.0 1.46 0.94 2.29 0.096
ECOG performance status
0 vs. 1 1.35 0.73 2.50 0.346 1.20 0.62 2.35 0.474
0 vs. ≥ 2 3.63 1.80 7.29  < 0.001 2.80 1.33 5.86 0.006
Metastatic sites
Lymphnode vs. other organs 1.71 0.91 3.23 0.096 1.55 0.79 3.04 0.625
Lymphnode vs. liver metastasis 2.84 1.38 5.83 0.004 2.14 1.01 4.52 0.047
eGFR (ml/min/1.73 m2)
 ≥ 60 vs. 30.0 ≤ , < 60.0 0.97 0.57 1.67 0.923
 ≥ 60 vs. < 30 0.74 0.35 1.56 0.735
FAN score
Low risk group vs. high risk group 1.33 1.06 1.67 0.015 1.29 1.02 1.62 0.034

Hb: hemoglobin, ECOG: Eastern Cooperative Oncology Group, eGFR: estimated glomerular filtration rate, FAN: Fib-4 index, ALBI score and NLR, HR: hazard ratio, CI: confidence interval.

Regarding CSS, poor ECOG PS, the presence of liver metastasis, and high-risk group based on the FAN score were associated with poor prognosis in univariate analysis (Table 5). In multivariate analysis, poor ECOG PS (HR: 3.87; 95% CI 1.46–10.27, p = 0.007), the presence of liver metastasis (HR: 3.60; 95% CI 1.37–9.51, p = 0.010), and high-risk group based on the FAN score (HR: 1.48, 95% CI 1.19–1.85, p = 0.001) were significant prognostic factors for predicting an inferior PFS (Table 6).

Table 6.

Univariate and multivariate analysis of predictive factors for CSS in validation cohort (n = 103).

Univariate Multivariate
HR 95% CI p HR 95%CI p
Lower Higher Lower Higher
Age
 < 73 vs. ≥ 73 1.41 0.84 2.38 0.195 1.32 0.77 2.27 0.308
Sex
Male vs. female 0.83 0.46 1.47 0.516 0.85 0.46 1.56 0.603
Primary site
Upper urinary tract involvement vs. others 0.87 0.52 1.47 0.598
Surgical removal of primary site
No vs. yes 1.36 0.68 2.70 0.382
Previous chemotherapy regimen
Cisplatin vs. non-cisplatin 0.79 0.47 1.34 0.384
Time from last chemotherapy (days)
 ≥ 90 vs. < 90 1.18 0.68 2.04 0.557
Hb (g/dl)
 ≥ 10.0 vs. < 10.0 1.93 1.15 3.25 0.013 1.50 0.86 2.63 0.152
ECOG performance status
0 vs. 1 1.86 0.78 4.45 0.163 1.59 0.64 3.91 0.316
0 vs. ≥ 2 5.66 2.25 14.26  < 0.001 3.87 1.46 10.27 0.007
Metastatic sites
Lymphnode vs. other organs 2.39 1.00 5.68 0.049 1.86 0.77 4.54 0.167
Lymphnode vs. liver metastasis 5.11 2.00 13.03 0.001 3.60 1.37 9.51 0.010
eGFR (ml/min/1.73 m2)
 ≥ 60 vs. 30.0 ≤ , < 60.0 0.69 0.38 1.26 0.227
 ≥ 60 vs. < 30 0.74 0.33 1.68 0.741
FAN score
Low risk group vs. high risk group 1.41 1.08 1.84 0.011 1.48 1.19 1.85 0.001

Hb: hemoglobin, ECOG: Eastern Cooperative Oncology Group, eGFR: estimated glomerular filtration rate, FAN: Fib-4 index, ALBI score and NLR, HR: hazard ratio, CI: confidence interval.

About clinical therapeutic response, ORR was 28.8% and 33.3% in low-risk and high-risk group based on the FAN score, respectively. Also, DCR was 53.5% and 40.0% in low-risk and high-risk group based on the FAN score, respectively and there were no significant differences about ORR (p = 0.644) and DCR (p = 0.279) between low-risk and high-risk group based on FAN score (Supplemental Table 3).

We examined the usefulness of the FAN score stratified by ECOG PS score. In 23 patients with ECOG PS of 2, the prognosis of high risk group of FAN score was significantly poorer about PFS (p = 0.018) and CSS (p < 0.001) (Supplemental Fig. 3e,f).

Although ECOG PS is well established prognostic factor, the FAN score could predict prognosis more accurately in some patient groups.

Discussion

Various prognostic factors of patients with mUC have been reported. They were mainly blood test results related to systemic inflammation811. Additionally, clinical items reflecting cancer-related cachexia have been mainly reported. Further, the presence of liver metastasis has been reported as a poor prognostic factor for patients with mUC treated with either chemotherapy19 or immunotherapy812. Although these previous studies used the same blood test results, the cut-off values of each item were different according to each cohort and their versatility was low. The FAN score established herein was a significant prognostic factor of CSS and PFS in two independent cohorts, and it was based on only blood test results using the previous established cut-off points.

Among the elements comprising our established FAN score, the Fib-4 index was established as a scoring system for predicting liver fibrosis in patients with viral hepatitis and non-alcoholic fatty liver15. A score of ≥ 3.5 is used as a non-invasive indicator of liver cirrhosis17. Median Fib-4 in the discovery cohort in our study was 1.673, and it was significantly lower than cut-off value compared to the other several reports. We adopted to use 3.5 as a cut-off point because it was the value of 90th percentile in the discovery cohort and it could stratify the prognosis. The ALBI score is as useful as the Child–Pugh grade as a liver reserve scoring system for patients with hepatocellular carcinoma (HCC)16. The score is based on the serum albumin and total bilirubin levels, and the cut-off of − 2.6 is widely accepted. Since the median value of ALBI was − 2.56 in the discovery cohort of this study, we adopted − 2.6 as cut-off value, which was established for HCC. The NLR has been often reported as a prognostic factor for various types of cancer, but its cut-off value has not been established. For UC, cut-off values of 3.010,11 and 5.08 have been reported, but in our study, we used 5.0 because this value was used in a previous study with a large number of cases.

In our study, we were able to show that a combination of the aforementioned three items is the most suitable scoring system for CSS and PFS in mUC, even when compared with other items such as the CRP level, which has already been reported11. The fact that the FAN score could be validated in two independent cohorts supports the versatility of this scoring system.

The Fib-4 index and ALBI score used in the present study are not only scoring systems for hepatic function15,17, but they have also recently been reported as prognostic factors for cancer immunotherapy for hepatocellular carcinoma2022, cardiac disease23,24 and coronavirus disease25,26. Additionally, they are presumed to be scores that reflect general conditions related to cachexia. Cancer-related cachexia is thought to be caused by changes in the systemic metabolic environment due to elevated inflammatory cytokines such as IL-6 and TNF27,28 in adipose tissue29,30, tumour cells31, and hepatocytes32; changes in protein synthesis and degradation in skeletal muscle; and insulin resistance33, which together lead to weight loss, anorexia, decreased systemic function, and increased adiposity34.

We could not find a significant correlation between the presence of liver metastasis and the Fib-4 index or ALBI score. The main reason for this may be the low diagnostic accuracy of simple computed tomography used in daily clinical practice for evaluating liver metastasis. In our cohort, it significantly correlated both ALBI score and NLR with cachexia related blood tests such as anaemia (p < 0.001) and CRP level (p < 0.001). Whereas, the Fib-4 index was significantly correlated with sex (p = 0.013) and age (p = 0.028) and it was not significantly correlated with cachexia related blood tests. There were no significant correlations between the Fib-4 index and ALBI score or NLR and these results suggest FAN score can include 3 scoring systems reflecting different liver dysfunctions. In the future, it will be important to elucidate the mechanism of changes in the Fib-4 index and ALBI score related to liver function decline caused by aging and cancer-associated cachexia, and to develop novel treatments to improve the therapeutic effect of ICI therapy.

In the present study, there was almost no difference in the CSS and PFS between the two cohorts. These results were similar to the outcomes of a phase III clinical trial2 and other large cohort studies10. Herein, the median CSS durations of the patients classified in the high-risk group based on the FAN score were 3.9 months and 3.6 months, which were significantly worse than those of the patients classified in the low-risk group. Of course, about 10% of patients in the high-risk group also had long-term survival, so we cannot conclude that physicians should not treat patients with a high FAN score. However, it is necessary to develop biomarkers for each patient group based on this score to provide more appropriate medication to patients in the future.

In the current study, we did not examine the association between the incidence of adverse drug reactions and the FAN score. At the very least, there was no correlation between the FAN score and cases of drug discontinuation due to side effects.

There are several limitations to our study. These include the fact that this was a retrospective analysis, the number of cases was small, and the blood collection items were limited to those used in daily clinical practice.

Conclusions

In conclusion, we created the FAN score consisting of the Fib-4 index, ALBI score, and NLR based on blood test results. Using two independent cohorts, we found that the FAN score was a significant prognostic predictor in patients with mUC treated with pembrolizumab.

Supplementary Information

Supplementary Information. (490.5KB, docx)

Acknowledgements

The authors wish to thank the investigators, their staff, and the affiliated institutions for their important contributions to this study in The Osaka Urothelial Carcinoma Clinical Study Collaboration: Dr. Kazuo Nishimura (Osaka International Cancer Institute); Dr. Osamu Miyake (Toyonaka Municipal Hospital); Dr. Go Tsujimura (Osaka Rosai Hospital); Dr. Tetsuya Takao (Osaka General Medical Center); Dr. Masao Kobayashi (Higashiosaka City Medical Center); Dr. Nobumasa Fujimoto (JCHO Osaka Hospital); Dr. Shingo Takada (Osaka Police Hospital); Dr. Hidefumi Kishikawa (Hyogo Prefectural Nishinomiya Hospital); Dr. Toshichika Iwanishi (Sakai City Medical Center); Dr. Takanori Kinjyo (Ikeda City Hospital); Dr. Yasushi Miyagawa (Sumitomo Hospital).

Author contributions

Conception and design: was contributed by A.K., T.K., K.H. and N.N. Development of methodology: was contributed by A.K., A.Y. All authors contributed to collection and assembly of data. Data analysis and interpretation: was contributed by A.K., T.K., K.H. and M.U. Original Draft writing: was contributed by A.K. and N.N. All authors contributed to review, editing and final approval of manuscript.

Funding

There are no sources of support.

Data availability

Detailed data would remain confidential and was not allowed to be shared in our institutional review board.

Competing interests

The authors declare no competing interests.

Footnotes

Publisher's note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Supplementary Information

The online version contains supplementary material available at 10.1038/s41598-021-00509-x.

References

  • 1.Sharma P, Retz M, Siefker-Radtke A, et al. Nivolumab in metastatic urothelial carcinoma after platinum therapy (CheckMate 275): A multicentre, single-arm, phase 2 trial. Lancet Oncol. 2017;18:312–322. doi: 10.1016/S1470-2045(17)30065-7. [DOI] [PubMed] [Google Scholar]
  • 2.Bellmunt J, de Wit R, Vaughn DJ, et al. Pembrolizumab as second-line therapy for advanced urothelial carcinoma. N. Engl. J. Med. 2017;376:1015–1026. doi: 10.1056/NEJMoa1613683. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 3.Powles T, Park SH, Voog E, et al. Avelumab maintenance therapy for advanced or metastatic urothelial carcinoma. N. Engl. J. Med. 2020;383:1218–1230. doi: 10.1056/NEJMoa2002788. [DOI] [PubMed] [Google Scholar]
  • 4.Balar AV, Castellano D, O'Donnell PH, et al. First-line pembrolizumab in cisplatin-ineligible patients with locally advanced and unresectable or metastatic urothelial cancer (KEYNOTE-052): A multicentre, single-arm, phase 2 study. Lancet Oncol. 2017 doi: 10.1016/S1470-2045(17)30616-2. [DOI] [PubMed] [Google Scholar]
  • 5.Rosenberg JE, Hoffman-Censits J, Powles T, et al. Atezolizumab in patients with locally advanced and metastatic urothelial carcinoma who have progressed following treatment with platinum-based chemotherapy: A single-arm, multicentre, phase 2 trial. Lancet. 2016;387:1909–1920. doi: 10.1016/S0140-6736(16)00561-4. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 6.Galsky MD, Arija JAA, Bamias A, et al. Atezolizumab with or without chemotherapy in metastatic urothelial cancer (IMvigor130): A multicentre, randomised, placebo-controlled phase 3 trial. Lancet. 2020;395:1547–1557. doi: 10.1016/S0140-6736(20)30230-0. [DOI] [PubMed] [Google Scholar]
  • 7.Powles T, van der Heijden MS, Castellano D, et al. Durvalumab alone and durvalumab plus tremelimumab versus chemotherapy in previously untreated patients with unresectable, locally advanced or metastatic urothelial carcinoma (DANUBE): A randomised, open-label, multicentre, phase 3 trial. Lancet Oncol. 2020;21:1574–1588. doi: 10.1016/S1470-2045(20)30541-6. [DOI] [PubMed] [Google Scholar]
  • 8.Khaki AR, Li A, Diamantopoulos LN, et al. A new prognostic model in patients with advanced urothelial carcinoma treated with first-line immune checkpoint inhibitors. Eur. Urol. Oncol. 2021;4:464–472. doi: 10.1016/j.euo.2020.12.006. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 9.Sonpavde G, Manitz J, Gao C, et al. Five-factor prognostic model for survival of post-platinum patients with metastatic urothelial carcinoma receiving PD-L1 inhibitors. J. Urol. 2020;204:1173–1179. doi: 10.1097/JU.0000000000001199. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 10.Kobayashi T, Ito K, Kojima T, et al. Risk stratification for the prognosis of patients with chemoresistant urothelial cancer treated with pembrolizumab. Cancer Sci. 2021;112:760–773. doi: 10.1111/cas.14762. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 11.Yamamoto Y, Yatsuda J, Shimokawa M, et al. Prognostic value of pre-treatment risk stratification and post-treatment neutrophil/lymphocyte ratio change for pembrolizumab in patients with advanced urothelial carcinoma. Int. J. Clin. Oncol. 2021;26:169–177. doi: 10.1007/s10147-020-01784-w. [DOI] [PubMed] [Google Scholar]
  • 12.Etani T, Naiki T, Sugiyama Y, et al. Low geriatric nutritional risk index as a poor prognostic marker for second-line pembrolizumab treatment in patients with metastatic urothelial carcinoma: A retrospective multicenter analysis. Oncology. 2020;98:876–883. doi: 10.1159/000508923. [DOI] [PubMed] [Google Scholar]
  • 13.Kawakami E, Tabata J, Yanaihara N, et al. Application of artificial intelligence for preoperative diagnostic and prognostic prediction in epithelial ovarian cancer based on blood biomarkers. Clin. Cancer Res. 2019;25:3006–3015. doi: 10.1158/1078-0432.CCR-18-3378. [DOI] [PubMed] [Google Scholar]
  • 14.Matsuo S, Imai E, Horio M, et al. Revised equations for estimated GFR from serum creatinine in Japan. Am. J. Kidney Dis. 2009;53:982–992. doi: 10.1053/j.ajkd.2008.12.034. [DOI] [PubMed] [Google Scholar]
  • 15.Sterling RK, Lissen E, Clumeck N, et al. Development of a simple noninvasive index to predict significant fibrosis in patients with HIV/HCV coinfection. Hepatology. 2006;43:1317–1325. doi: 10.1002/hep.21178. [DOI] [PubMed] [Google Scholar]
  • 16.Johnson PJ, Berhane S, Kagebayashi C, et al. Assessment of liver function in patients with hepatocellular carcinoma: A new evidence-based approach-the ALBI grade. J. Clin. Oncol. 2015;33:550–558. doi: 10.1200/JCO.2014.57.9151. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 17.Butt AA, Yan P, Lo Re V, 3rd, et al. Liver fibrosis progression in hepatitis C virus infection after seroconversion. JAMA Intern. Med. 2015;175:178–185. doi: 10.1001/jamainternmed.2014.6502. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 18.Eisenhauer EA, Therasse P, Bogaerts J, et al. New response evaluation criteria in solid tumours: Revised RECIST guideline (version 1.1) Eur. J. Cancer. 2009;45:228–247. doi: 10.1016/j.ejca.2008.10.026. [DOI] [PubMed] [Google Scholar]
  • 19.Sonpavde G, Pond GR, Fougeray R, et al. Time from prior chemotherapy enhances prognostic risk grouping in the second-line setting of advanced urothelial carcinoma: A retrospective analysis of pooled, prospective phase 2 trials. Eur. Urol. 2013;63:717–723. doi: 10.1016/j.eururo.2012.11.042. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 20.Wong JSL, Kwok GGW, Tang V, et al. Ipilimumab and nivolumab/pembrolizumab in advanced hepatocellular carcinoma refractory to prior immune checkpoint inhibitors. J. Immunother. Cancer. 2021 doi: 10.1136/jitc-2020-001945. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 21.Ke MY, Xu T, Fang Y, et al. Liver fibrosis promotes immune escape in hepatocellular carcinoma via GOLM1-mediated PD-L1 upregulation. Cancer Lett. 2021;513:14–25. doi: 10.1016/j.canlet.2021.05.007. [DOI] [PubMed] [Google Scholar]
  • 22.Lee PC, Chao Y, Chen MH, Lan KH, Lee CJ, Lee IC, Chen SC, Hou MC, Huang YH. Predictors of response and survival in immune checkpoint inhibitor-treated unresectable hepatocellular carcinoma. Cancers. 2020 doi: 10.3390/cancers12010182. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 23.Nakashima M, Sakuragi S, Miyoshi T, et al. Fibrosis-4 index reflects right ventricular function and prognosis in heart failure with preserved ejection fraction. ESC Heart Fail. 2021;8:2240–2247. doi: 10.1002/ehf2.13317. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 24.Schonmann Y, Yeshua H, Bentov I, Zelber-Sagi S. Liver fibrosis marker is an independent predictor of cardiovascular morbidity and mortality in the general population. Dig. Liver Dis. 2021;53:79–85. doi: 10.1016/j.dld.2020.10.014. [DOI] [PubMed] [Google Scholar]
  • 25.Li Y, Regan J, Fajnzylber J, et al. Liver fibrosis index FIB-4 is associated with mortality in COVID-19. Hepatol. Commun. 2020 doi: 10.1002/hep4.1650. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 26.Park JG, Kang MK, Lee YR, et al. Fibrosis-4 index as a predictor for mortality in hospitalised patients with COVID-19: A retrospective multicentre cohort study. BMJ Open. 2020;10:e041989. doi: 10.1136/bmjopen-2020-041989. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 27.Padoan A, Plebani M, Basso D. Inflammation and pancreatic cancer: Focus on metabolism, cytokines, and immunity. Int. J. Mol. Sci. 2019 doi: 10.3390/ijms20030676. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 28.Nasr R, Salim Hammoud M, Nassar F, Mukherji D, Shamseddine A, Temraz S. Inflammatory markers and MicroRNAs: The backstage actors influencing prognosis in colorectal cancer patients. Int. J. Mol. Sci. 2018 doi: 10.3390/ijms19071867. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 29.Cypess AM, Lehman S, Williams G, et al. Identification and importance of brown adipose tissue in adult humans. N. Engl. J. Med. 2009;360:1509–1517. doi: 10.1056/NEJMoa0810780. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 30.Han J, Meng Q, Shen L, Wu G. Interleukin-6 induces fat loss in cancer cachexia by promoting white adipose tissue lipolysis and browning. Lipids Health Dis. 2018;17:14. doi: 10.1186/s12944-018-0657-0. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 31.Xia Y, Shen S, Verma IM. NF-kappaB, an active player in human cancers. Cancer Immunol. Res. 2014;2:823–830. doi: 10.1158/2326-6066.CIR-14-0112. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 32.Goncalves DC, Lira FS, Yamashita AS, Carnevali Junior LC, Eder R, Laviano A, Seelaender MCL. Liver lipid metabolism disruption in cancer cachexia is aggravated by cla supplementation -induced inflammation. Clin. Nutr. 2019;38:2219–2230. doi: 10.1016/j.clnu.2018.09.023. [DOI] [PubMed] [Google Scholar]
  • 33.Dev R, Bruera E, Dalal S. Insulin resistance and body composition in cancer patients. Ann. Oncol. 2018;29:ii18–ii26. doi: 10.1093/annonc/mdx815. [DOI] [PubMed] [Google Scholar]
  • 34.Fearon K, Strasser F, Anker SD, et al. Definition and classification of cancer cachexia: An international consensus. Lancet Oncol. 2011;12:489–495. doi: 10.1016/S1470-2045(10)70218-7. [DOI] [PubMed] [Google Scholar]

Associated Data

This section collects any data citations, data availability statements, or supplementary materials included in this article.

Supplementary Materials

Supplementary Information. (490.5KB, docx)

Data Availability Statement

Detailed data would remain confidential and was not allowed to be shared in our institutional review board.


Articles from Scientific Reports are provided here courtesy of Nature Publishing Group

RESOURCES
