Recent advancement in 3-D printing: nanocomposites with added functionality

Abstract

Three-Dimentional (3-D) printing is currently a popular printing technique that is used in many sectors. Potentially, this technology is expected to replace conventional manufacturing in the coming years. It is accelerating in gaining attention due to its design freedom where objects can be produced without imagination boundaries. The review presents a perspective on the application of 3-D printing application based on various fields. However, the ordinary 3-D printed products with a single type of raw often lack robustness leading to broken parts. Improving the mechanical property of a 3-D printed part is crucial for its applications in many fields. One of the promising solutions is to incorporate nanoparticles or fillers into the raw material. The review aims to provide information about the types of additive manufacturing. There are few types of raw materials can be used as foundation template in the printing, enhanced properties of the printed polymer nanocomposites with different types of nanoparticles as additives in the printing. The article reviews the advantages and disadvantages of different materials that are used as raw materials or base materials in 3-D printing. This can be a guideline for the readers to compare and analyse the raw materials prior to a decision on the type of material to be selected. The review prepares an overview for the researchers to choose the types of nanoparticles to be added in the printing of the products depending on the targeted application. With the added functionality of the 3-D polymer nanocomposites, it will help in widespread of the application of 3-D printing technology in various sector.

Introduction

Additive manufacturing or 3-Dimentional (3-D) printing has become popular lately. Most people are not aware that this technology has been invented way long before the 2nd millennium. 3-D printing has begun in the late 1980s whereby the first technique was known as the Rapid Prototyping (RP), or commonly recognized as Stereolithography (SLA) in the current term. The patent of this printing technique owned by an American developer named Charles Hull [1]. SLA printer was the first device to print an object directly from a computer (digital) file. 3-D printing only used in industries but not in the public when it started in 80s. This is due to 3-D printing offered a rapid prototyping of industrial products resulted in quick and accurate processes.

The design by 3-D printing is high in accuracy, it also accomplishes design freedom where there are no barriers to the imagination. Due to this advantage, artists can now produce a physical sculpture which would otherwise be sketched on a paper. With many advantages, there are more industries are shifting from conventional manufacturing to 3-D printing technique to produce their goods. The cost of production can be reduced because a few parts can be printed into one single object compared to conventional manufacturing which only enables printing of several parts separately in addition with no tooling required [2, 3]. Therefore, this favours the manufacturing industries since saving cost could mean gaining more profit. In addition, 3-D can also print parts with complex geometries which is impossible to be produced by the traditional method [4]. This will bring advantages to the manufacturers as it is possible to produce a wide range of industrial goods such as hard tooling product like moulds. Traditionally, moulds are computer numerical control (CNC) milled either undergoing multiple design alterations, or taking weeks and months to achieve the final design. Now, 3-D printing technologies can be used instead, allowing material and waste reduction, while improving the functionality of a mould. The main improvements which can be seen in tooling products are lightweight, improved design, improved ergonomics and reduction in material waste [5]. Due to the popularity of additive manufacturing, 3-D printers are currently used as home use by people who are interested in creating their own prototypes.

The technology is commonly used in automotive, architecture, healthcare, entertainment and goods industry. For example, the printing of spare parts is now possible with improved mechanical properties when using nanomaterial or composites. This can result in a stronger build-in which increases the safety aspect of the mobile in car racing and even space mission. Furthermore, 3-D printing technology can be applied in the medicine field. One of the successful examples is the printing of hearing aids which has a unique structure between different individuals [6, 7]. In addition, people are getting 3-D printed teeth which is customized to each person. Unlike the previous one-size-fits-all teeth which is uncomfortable, the 3-D printed teeth will fit nicely suited to the patients. This technology was also greatly explored in bioprinting of tissues and organs, the printing of animal tissues for drug testing and teaching purpose, skin grafting [8–11]. In combating the COVID-19 pandemic, 3-D printing shown its important role in coping up to produce medical equipment such as face shield, face mask, ventilator parts, nasopharyngeal swab, antibacterial mask and wearable device for patient [12–15, 170]. In addition, 3-D printed food can also be customized to patients suffering from dysphagia phenomenon to make food more visually appealing [16, 17]. There is still a wide application of 3-D printing yet to be explored. 3-D printing is a promising technology to print customized and high-quality products. It is believed to bring positive impacts to various sectors in the future when more fields are utilising this technology.

However, the major drawback of producing 3-D printed goods is the fragility of the printed parts, as most production only focus on building prototypes rather than functional parts, since the printed objects always result in a lack of strength. Therefore, one of the promising solutions is to incorporate nanoparticles or fillers into the polymer to strengthen the printed object. Nanoparticles (NPs) are extremely tiny particles which have the size ranges from 1 to 100 nm [18]. Owing to their small size, nanoparticles have a large surface area to volume ratio which enable them to be explored in various sector. Aside from the application stated in the previous paragraph, researchers are aiming to produce a more functional object by the incorporation of nanoparticles. Most of the published review papers only discuss on the 3-D printing techniques and printing of pure materials. When 3-D printing technology was greatly explored in many sectors, a more functional prototypes are demanded and many researchers have been putting effort to develop composites with improved functionality and performance [19–22]. Therefore, this review provides an overview of the improvement and advancement in 3-D printing product which enhanced with nanoparticles. In Sect. 2, the types of 3-D printer are reviewed as the type of printers considered as a factor that influence the choice of raw materials to be printed, along with the advantages and disadvantages of each printing technique. The base materials that are commonly used in 3-D printing are analysed in Sect. 3 depending on the application accordingly. Last but not the least, the development of nanocomposites in various applications are reviewed in Sect. 4, followed by the discussion on the drawbacks that occurred and the suggestions for future steps of additive manufacturing in Sect. 5.

Types of 3-D printer

Overall, the 3-D printers can be classified based on printing materials and mechanism of printing. The factors that are to be considered in the 3-D printer invention are cost, printing quality, capability of printer, printing speed, expectation of users and practicality. One may keep balance among the factors during the selection of printers, for instance, you can choose Digital Light Processing (DLP) when the printing of raw material is a polymer which is high in resolution and produced in short duration, meanwhile you can select Fused Deposition Modelling (FDM) which is much lower cost compared to FDM. The types of 3-D printers with their respective advantages and disadvantages are summarized in Table 1.

Table 1.

Comparison of various type of 3-D printers

Types of 3-D printer	Mechanism	Objects printed	Precision	Advantages	Disadvantages	Reference
Stereolithography (SLA)	Make use of ultraviolet laser (UV) which emits laser beam that streak the design onto the surface of the resin in a vat. This causes the chain of atoms in the polymer resin to bind	Models, prototypes and patterns	High	Less time-consuming Cheaper Excellent surface finishing Smooth surface	Require structure support for complex parts	[23–25]
Digital light processing (DLP)	Photo-sensitive polymer resin is cured using conventional light sources	Non-functional prototypes, high detail artwork and patterns	High	High resolution Only require a shallow vat of resin compared to SLA Less waste Lower running cost Faster process than SLA Able to print objects that have high strength properties	Costly Require post processing Resins can be brittle depending on the design	[23, 24]
Fused deposition modelling (FDM)	The part is built layer by layer when the melted thermoplastic is deposited to the predetermined locations. After each layer solidifies, the new layer will bond to the former layer. This technique prints object from the bottom to the top	Models and prototyping	Moderate	Lower cost than SLA	Longer processing time for some geometry Material used is limited to thermoplastic	[26, 27]
Selective laser sintering (SLS)	The heat from a laser beam which is produced by high power joins the tiny particles together. The materials used are in granular form and nylon (PA) polymer is the main material used in SLS printer	Automotive and aerospace parts, hearing aids, dental retainers, prosthetics	High	Does not require structure support for complex parts Reduce amount of raw material Lesser production cost Minimal post processing Structures that require high detailing can be printed Less time consuming Parts printed are durable and robust Can be used to print versatile materials such as plastic, glass, ceramic and metal structures	Much longer lead time Printed object requires post processing as internal porosity and rough surface finishing can be seen Cannot print object accurately due to small holes and large flat surfaces	[26, 28, 29]
Selective laser melting (SLM)	Process is covered under the powder bed fusion umbrella. The type of feedstock used are metals	Medical devices, automotive parts, aerospace parts, tooling	High	Large range of metals available Able to realize complex shapes or internal features Reduced lead times due to no need for tooling Production of multiple parts at the same time	Expensive Specialized design and manufacturing skills and knowledge needed Rough surface finish Post-processing required	[23]
Electronic beam melting (EBM)	The parts are built under vacuum condition using an electron beam to fuse the material together. Metal powder is commonly used in EBM 3-D printer	Custom-made skull	High	Fast printing process Powder which are not sintered is recyclable High density due to a full melt of the metal powder Only require fewer supports	Costly machines and materials Limited metal material selection (only chromium-cobalt alloy and titanium) Limited print volume (the maximum is 350 mm diameter and 380 mm height)	[28, 30, 31]
Laminated object manufacturing (LOM)	The thermoplastic is fused together by high temperature and pressure. The object is finally shaped into the required form using computer-controlled blade or laser	Scaled models and concept prototypes	High	Laser can remove excess materials Low cost Material is easy to find Printed part have wood texture Do not require any chemical process No enclosed chamber needed, easier to build larger models	Not suitable for building complex geometries or functional prototypes	[26, 32]
Binder jetting (BJ)	Make use of a binder to connect powder particles when being deposited layer by layer to form a solid object. Metal, sand and ceramic are commonly used	Prototypes, large sand-casting pattern and moulds	Low	Produce full-coloured prototypes and metal parts at a lower cost compared to MJ or SLM Can produce complex metal structures and very large parts Printing is not affected by any thermal effects Can work with a range of materials	Rough details were formed on printed object High porosity leads to parts that have lower mechanical properties Parts are very fragile in and fracturing may occur during post processing	[33, 34]
Material jetting (MJ)	Parts are built using droplets of liquid photosensitive material such as acrylic that is cured into an object layer by layer with UV light	Prototypes	High	Build speed and dimensional accuracy Able to produce multiple parts without affecting the build speed in which the build speed is similar to produce a single part Ideal for making aesthetical prototypes as the surface of the finished products are smooth Full colour and multi-material 3-D printing adding quality to the aesthetic of both prototypes and tooling parts	The most expensive 3-D printing technologies Parts are structurally weak due to the nature of resin	[26, 35]

In additive manufacturing, stereolithography (SLA) being the most popular used 3-D printing technology, is able to provide high accuracy with a smooth surface finish and therefore is it very suitable in producing prototypes. However, this type of printer is considered expensive due to the material used which is a liquid resin that cost $50 to $400 per litter [36]. As an alternative, Fused Deposition Modelling (FDM) may be preferable as it is lower in cost than other 3-D printing technologies and it is even convenient at home usages. However, FDM 3-D printer can only supports thermoplastic materials. Furthermore, Selected Laser Sintering (SLS) is also a good choice as it can build objects with complex geometries. The main advantage of using SLS printer is that no additional supports are required in the printing process which results in lesser material waste and no post processing is required in the printing process like other 3D printing technologies. However, the final object may not have an accurate measurement and the surface finish is slightly rough. The Laminated Object Manufacturing (LOM) is an ideal choice for non-functional prototype and the process is cheap because of the material used is mainly paper. The main disadvantage is that the object printed will have low accuracy and low strength as the surface is not fined due to the wood-like texture. In addition, it also requires additional procedures of post-printing.

Commonly, all the 3-D printers have characteristics which are similar even though they might be different from mechanism, materials and applications. All the 3-D printers consisted of a 3-D modelling application or a scanner followed by a structure designing. Besides that, the design of a structure is needed to be saved in Computer-Aided Design (CAD) form and sliced before sending to the 3-D printer to print the object [26]. The process of additive manufacturing is simplified in Fig. 1. In general, all 3-D printers work similarly. Firstly, a designed 3-D model will be converted into a printable file known as STL file. With a slicing software, the structure will be sliced into hundreds or thousands of layers which is ready to be printed using a 3-D printer. This sliced STL file will then be printed layer by layer manner in the 3-D printer into a prototype or product.

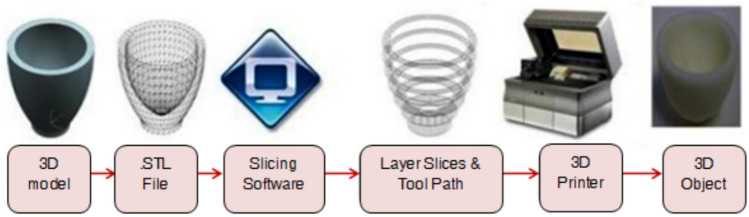

Fig. 1.

Process of 3-D printing from design to printing [23]

Base materials in 3-D printing

There are few types of materials that commonly used most of the printing materials are malleable materials or materials with high permeability and plasticity. The main advantage of using plastic in 3-D printing are low cost and light weight. In the application of 3-D printed nanocomposites, a polymer is preferred to hold the nanoparticles because the dispersed form of nanoparticles requires a later separation which increases the process cost since not all powders can be revived.

Polymer/plastics

Most of the consumer products are made primarily using thermoplastics. Plastics have been used in 3-D printing widely to create consumer products as well as prototypes. Table 2 summarizes the thermoplastic or polymers used in 3-D printing.

Table 2.

Summary of thermoplastic materials used in 3-D printing

Material	Extruded temperature	Bed temperature	Formation	Properties	Advantages	Disadvantages	Application	References
ABS (acrylo-nitrile butadiene styrene)	215–250 °C	80–110 °C	It can be smoothed by sanding or by mixing ABS with acetone	Durable, resistant to corrosion and heat, slightly flexible	Quick solidification Smooth finishing Uneasy to break therefore used in mechanical parts	Non-biodegradable Can decompose through sunlight	Household and consumer goods such as helmet and pipes, toys, sports equipment, automotive parts	[37, 38]
PLA (poly-lactic acid)	170–220 °C	20–55 °C	PLA is made from corn or potatoes starch and is biodegradable	High tensile strength	Not harmful to the environment Pleasant smell during heating Non-toxic High printing speed Less shrinking	Slow cooling process Not heat resistance Needs thicker wall because it is easy to break Prone to clogging the printing nozzle	Low-wear toys, containers, prototype parts, surgical implants and food packaging	[38, 39]
PVA (polyvinyl acetate)	160–170 °C	40 °C	Formed in two steps: polymerizing vinyl acetate followed by hydrolyzed into PVA filament	Water-soluble, possess excellent film formation, good barrier properties and high bonding capabilities	Recyclable Non-toxic Biodegradable	Expensive Require special storage since air moisture can cause deterioration	Supporting material such as rafts and decorative parts	[39, 40]
TPE (thermoplastic elastomers)	180–230 °C	20–55 °C	Flexible and rubber-like textures	Flexible and elastic due to the properties of a soft rubber	Lower melting point Flexible	More difficult to print due to its flexibility Long printing time	Automobile parts, cables, home appliances and wires	[37, 41]
PET (polyethylene terephthalate)	230–255 °C	55–70 °C	PET is a 3D filament made from plastic bottles	Flexible and impact resistant	Easy to print Flexible Hard and shockproof No odour or fumes during printing	Absorbs water from the air	Food containers, tools used for food consumption, phone cases or mechanical parts which require flexibility and impact resistance, jewellery and electronics	[38, 42]
PETG (polyethylene terephthalate glycol-modified)	220–245 °C	70–75 °C	Made of PET filament with glycol-modified	Extremely durable, no odour, high impact resistant, low shrinkage and no brittle	Strong, flexible and recyclable Not brittle No shrinkage Insensitive to moisture from air Does not degrade in water High impact resistant	Operation is complicated Stringing effect will produce thin hairs on the object’s surface	Protective components (e.g.: cell phone cases), mechanical parts and food containers	[38, 43, 44]
PETT (polyethylene cotrimethylene terephthalate)	210–230 °C	45 °C	PETT is a variant of PET, but slightly more rigid than PET	Colourless, water clear, recyclable, strong and flexible	Strong, flexible and biocompatible Does not shrink Insensitive to moisture from the air Non-degradable in water FDA approved Cheap	Uneasy to use Requires fine-tuning of bed and nozzle temperature	Food containers	[45, 46]
HIPS (high impact polystyrene)	220–230 °C	50–60 °C	HIPS is a copolymer that combines polystyrene and rubber	Biodegradable and excellent support material	Can be used as support material Strong Less likely to warp	Requires post-processing to remove supports Curling and adhesion issues	Costumes, models, miniature and prototyping	[42, 47, 48]
Nylon	210–250 °C	60–80 °C	It is a thermoplastic made from petrochemicals	Strong, wear-resistant, light-weight and flexible	Strong, durable and flexible Less brittle than ABS/PLA Will not lose properties even re-melted and re-used	Requires high melting temperature (at least 240ºC) Emits toxic fumes when heated	Machinery and mechanical parts, toolings, gears, dynamic load, toys and consumer products	[38, 42]

In the application of 3-D printing in tissue engineering, the polymers used may be different from what is used in normal 3-D printing uses. Since biocompatibility is an important aspect in the applications in the medical field, the choice of polymer is important. The choices of polymer used in 3-D printing in the medical sector are categorized into the natural polymer, synthetic polymer, bioceramic, metal-based polymer and biocomposite [49].

To produce a natural polymer as the material for 3-D printing, biological materials such as collagen, polysaccharides, gelatin, etc., was used to form a scaffold. One of the biggest advantages of using natural polymer is that the host tissue’s extracellular matrix can be maintained [49] and low possibility of immune rejection reaction [50]. However, natural polymers often lack in mechanical strength hindering their applications that requires load-bearing. In addition, it also degrades in a fast pace that the healing tissues were lacking support. Therefore, the use of synthetic polymer is a better choice to support tissues for their biodegradable, enhanced mechanical properties and increased degradation period. Some of the examples of synthetic polymers are poly(lactic acid) (PLA), poly(lacti-co-glycolic acid) (PLGA) and poly(glycolic acid) (PGA) [51].

Hydroxyapatite (HA) and Beta tri-calcium phosphate (β-TCP) which are categorized under bioceramic materials are also widely used in 3-D printing especially in bone tissue engineering because of its desirable properties such as biocompatibility, physically and chemically stable and antibacterial effect [52, 53]. Despite having numerous advantages, bioceramics often suffer from drawbacks due to high stiffness, fractures and low elasticity [49]. This had hindered its clinical application. Hence, it was suggested that bioceramics can be combined with other raw materials to produce an ideal scaffold.

Metal-based polymers, on the other hand, is useful especially in substituting bone in the human body. It has a strong mechanical strength, able to support tissue ingrowth and corrosion resistant. Titanium (Ti) alloy is suitable in the use of bone, hip, femur, skull, and knee replacement as it is strong and biocompatible. But the use of metal-based polymers may also be complicated due to poor bioactivity on the metal surface, non-biodegradable and possible discharge of toxic due to wear.

Every polymer has its own limitations, biocomposite is the solution to produce an ideal scaffold in medical applications. A biocomposite is meant by incorporating nano-sized or micro-sized to reinforce the material. For example, polycaprolactone (PCL) which is a synthetic polymer is mixed with β-TCP which is a bioceramic polymer and phlorotannins which is a marine algal polyphenol to produce a bone tissue regeneration scaffold. In this scaffold [54]. PCL plays a role as a matrix to support structural stability and offers pore structure. Whereas, β-TCP is responsible for the absorbability and osteoconduction. Phlorotannins were added into the matrix as an antibacterial, antioxidant and antiallergic agent [55]. This scaffold was successfully printed using extrusion-based 3-D printer. The resulting scaffold displayed a rise in cell viability and proliferation.

In the application of water treatment, TiO₂ nanoparticles as catalyst in embedded form are more sustainable because it is reusable and recyclable [56]. This is because nano-sized particles are difficult to separate which results in non-reusability and increase in overall cost. For example, Rosenau and the team had embedded TiO₂ nanoparticles into a cellulose membrane for photocatalytic decomposition of dyes [57].

Metals

Metals are sometimes used in 3-D printing due to their good strength and thermal properties. They can be used to print objects which need to withstand load such as aerospace parts and automobile parts. The summary of metals used in 3-D printing is shown in Table 3.

Table 3.

Summary of metals used in 3-D printing

Material	Technology	Functional/display purpose	Properties	Tensile strength (MPa)	Advantages	Disadvantages	Application	Reference
Stainless steel	FFF/FDM, BJ	Both	High resolution, corrosion resistant, flexible and strong	521–582	High wear resistance Good ductility and weldability Great hardness	Long printing time Expensive Limited printing size	Tools, gears, jewellery, miniatures, molds	[37, 42]
Aluminium	SLM, DMLS	Functional	Light, strong, heat resistant, and corrosion resistant	410–440	Outstanding mechanical and thermal properties Low density Great electrical conductivity	Low hardness	Spare parts, functional components	[58–60]
Titanium	SLM, DMLS	Both	High resolution, heat resistant, biocompatible, and highly durable	1000–1200	Corrosion resistance Low thermal expansion Biocompatible	Expensive	Biomedical implants and tooling, jewellery	[37, 42, 60]
Maraging steel	SLM	Functional	High strength, tough, and good weldability	~ 1135	High strength Good weldability High tensile strength	Expensive	Furnace parts, tooling, aerospace and racing parts	[61, 62]
Cobalt-chrome	SLM, DMLS	Functional	Corrosion and heat resistant, biocompatible, hard wearing, strong, and low conductivity	1050–1450	Wear and corrosion resistance Great hardness Biocompatible High tensile strength Scratch resistance	Difficult to cut	Engine parts, furnace parts, implants	[59, 61]
Tungsten	SLM	Functional	High tensile strength and corrosion resistant	1725	High temperature resistance Chemical resistance Wear resistance Hard and stiff	May break when enough pressure is applied	Magnetic Resonance Imaging (MRI), thermal applications in aerospace, radiation shielding applications in medical	[58, 63, 64]
Nickel	DMLS	Functional	High tensile strength, oxidation and corrosion resistant	1115	Heat resistance up to 1200 °C Can be used in extreme environment Hard and ductile Excellent mechanical properties	May result in dermatitis when sensitized	Gas turbines in aerospace, racing parts, aviation parts	[38, 59, 65]

In comparison to the tensile strength, a mixture of cobalt-chrome metal improves the tensile strength compared to other metals, making it useful to produce engine parts which requires high-stress tolerance. Most of the metals are used for functional applications rather than display applications as most of the display objects can be printed by using plastic materials. As shown in Fig. 3, titanium, maraging steel, cobalt-chrome, tungsten and nickel possesses high tensile strength that are above 1000 MPa. Tensile strength is a direct way to evaluate the mechanical properties of metals. Metals with high tensile strength are able to resist wear and tear under extreme conditions, which is especially useful in the applications of aerospace and automobile. Metal selection in the aerospace field is crucial to reduce fuel consumption, weight reduction and enhance performance [66]. Despite having lower tensile strength, aluminium is still widely used in the automotive and aerospace industry [67]. This is mainly due to its low density which resulted in lighter parts, as well as its inexpensive cost compared to other metals. To eliminate the metallurgical defects in aluminium parts, refine grain size and repair surface defects, wire + arc AM (WAAM) hybrid-AM process can be adopted [68]. Titanium on the other hand is very costly, but it is about twice the strength of aluminium, in addition with low-density property. Tungsten metal which has anti-vibration property, is unique in its application since it can damper the vibration, making it perfect to produce flight blades, ballast weight, missile components and more.

Fig. 3.

SEM image of a solvent casted and b 3D printed PVDF film respectively

Ceramics

Ceramics have excellent properties such as low density, strong, high electrical insulating capability, resistant to corrosion, chemical stability and dimensional stability. Therefore, these properties make them suitable to be applied in a wide range of applications. This includes the chemical industry, biomedical engineering, aerospace and machinery. These properties allow it to be applied in many fields as stated previously. Through traditional method, gel casting and moulding techniques are used to form the shapes. The powder can be added with or without the binders and other additives. To achieve densification, it is compulsory to sinter the green parts at high temperature. Yet, these traditional ceramic forming techniques have limitations due to the long processing time along with the high cost. In addition, it is also impossible to produce structures with interconnected holes and highly complex geometries with moulding technique. Besides, machining of ceramic components is another issue as the cutting tools are subjected to severe wear and defects in the ceramic object due to extreme hardness and brittleness. Therefore, it is difficult to achieve dimensional precision and fine surface finishing. The problems arose through traditional technology could be addressed by the replacement of 3-D printing technology.

The technology can be classified into slurry-based and powder-based methods in accordance to the form of the pre-processed feedstock. For slurry-based ceramic feedstock, the fine ceramic particles are dispersed in a liquid or semi-liquid system. Depending on the viscosity, the liquid is in the form of inks whereas the semi-liquid is in the form of and the solid loading of the system [69]. For this feedstock, Selective Laser (SL), Digital Light Processing (DLP), Two-photon Polymerization (TPP), Inkjet Printing (IJP), Direct Ink Write (DIW) and Binder Jetting (BJ) can be used to print the object [70]. On the other hand, powder-based ceramic feedstock employ powder beds that contain loose ceramic particles as feedstock. Ceramic particles can be bonded by powder fusion using thermal energy from the laser beam or spreading the liquid binders [69]. The types of 3-D printer used for this feedstock are Selective Laser Sintering (SLS) and Selective Laser Melting (SLM).

As mentioned earlier, green parts are created in ceramic 3D printers. The initial process is similar to standard 3-D printing process, which is slicing of designed object in a slicing software until it is ready to undergo 3-D printing. For ceramic 3-D printing, additional treatments are required to treat the green state of the object, since the object is fragile and brittle at this stage. These green parts will go through various stages to reach their final structure which are glazing and firing to form a stronger ceramic end-product. For instance, the bending strength of the ceramic prototype significantly increased from 17 MPa for green state to 220 MPa for the final prototype [71]. The process is illustrated in Fig. 2.

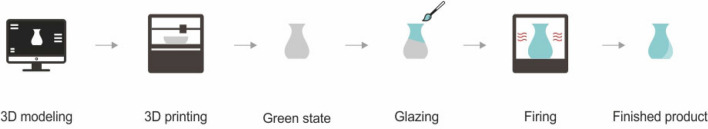

Fig. 2.

The ceramic 3-D printing process [72]

Development of 3-D printed nanocomposites

To commercialize products made with 3-D printing technology, it is not yet possible since 3-D printing has a major drawback in strength ability and functionality. 3-D printed objects are often fragile, restricting its application in various fields. To overcome these limitations, reinforcements can be achieved by merging the matrix and composites to produce a more useful product which are not attainable by using the matrix alone. In this section, the incorporation of nanoparticles into the polymer matrix will be discussed.

Composites

A composite material is a material created with two or more basic materials which own different physical and chemical properties. They display characteristics that are different from each individual component when they are combined. This gives them a better advantage over more traditional thermoplastics used in 3D printing like ABS or PLA. The applications of 3-D printing can be expanded with these additional materials and the properties. They are similar as nanocomposites in terms of mixing two or more different materials together, but they are also different in terms of the size of the particles incorporated. A composite does not matter the size of the particles incorporated or mixed as long as the materials are compatible to be printed. The summary of composites material is shown in Table 4.

Table 4.

Summary of composite material used in 3-D printing

Type of composite	Conductive	Metal/plastic filament	Alumide	Wood/plastic filament	Sandstone
Contents	PLA/ABS and graphene	Bronze/steel/copper/iron and PLA	Polyamide and aluminium powder	Wood fiber sheets and resin	Fine chalk powder and PLA
Added-value	Create conductive 3-D objects Flexible	Object printed have the optical properties of the metal incorporated The printed object is heavier than thermoplastics alone	Objects printed have excellent size accuracy Tough and suitable for long term usage Suitable for post-processing techniques like coating or polishing	Can create wood-like prototypes The shade of brown can be adjusted according to the extrusion temperature	Can create stone-like prototypes
Technology	FDM	FDM	SLS	FDM	BJ
Application	DIY projects, touch sensors such as MIDI machines and gaming pads, and conductive traces in wearable electronic devices	Visual arts	DIY projects, functional prototypes, and manufacturing	Conceptual models, visual arts	Architectural, structural parts, landscape and museum display
Properties	Conductive	Metallic	Strong, heat resistant, and high resolution	Fragile	Unique sandstone appearance
References	[3, 73]	[16, 74]	[17, 75]	[76, 77]	[78, 79]

Besides the above composites material, polylamide (nylon) and polycarbonate (PC) are also an interesting material to be explored. Both are categorized as thermoplastics but with an exceptional function where it can substitute low-strength metals. In some circumstances, thermoplastic polymers are preferred over metals due to their light weight, low cost, does not require lubrication, silence and efficient [80]. Therefore, it is suggested that these thermoplastics can be used to produce a composite material for 3-D printing. For example, nylon when mixed with chopped carbon fibers produces chemical and heat resistance along with high strength properties [80–84]. The tensile strength increased to ~ 6 times higher than non-reinforced polymer [81, 82].

Polycarbonate (PC) on the other hand, is commonly appeared as a transparent plastic. Compared to nylon, this material is more durable and stronger [81]. This material has almost the same internal transmission of light as glass, making it suitable to be used as plastic lenses in eyewear, digital disks, automobile parts, greenhouse etc. This material with excellent heat resistance is also not east to degrade when exposed to high temperature. It is important to note that applications which require high transparency and high impact resistance can consider this material in their usage.

Nanoparticles as additive in composite

The addition of nanoparticles into an additive is known as nano-additive. Nanoparticle is an ultra-small particle with the size between 1 and 100 nm (nm) in diameter. Macro-sized materials often give rise to problem with voids or cracks in the 3-D printed structure, which causes the structure to be fragile and unsuitable for many usages. By integrating the mechanical properties of nanoparticles into the macro structure will provide a new application in various fields, where nanoparticles are able to reduce friction and wear between two surfaces, form an anti-wear film, provide a mending effect to compensate for the loss of mass and reduce surface roughness [78]. Nanoparticles (NPs) can be categorized into carbon-based NPs, metal-based NPs, magnetic-based NPs, ceramic-based NPs, semiconductor-based NPs, polymeric NPs and lipid-based NPs [77]. In the advancement of 3-D printing, carbon-based NPs, semiconductor-based NPs and metal-based NPs are most commonly explored as an additive for the polymer material. Commonly, the synthesis of nanocomposites had problem with inhomogeneity which affects the number of additives that can be incorporated into the matrix.

In general, the incorporation of nanoparticles into the polymer will affect the structure’s porosity, pore size, membrane pore structure, surface charge, surface roughness and mechanical strength [85]. The applications of various types of nanoparticle are demonstrated in Table 5.

Table 5.

Additives in semiconductor-based materials for application of 3-D printing

Type of base material	Composite/mixture	Additive	Role of nanoparticle	Applications	References
Semiconductor-based	SmFeO3	ZnO	Enhance gas-sensing propertiesSensitive against many oxidising or reducing gases	Gas sensor	[74]
		PVDF	Improves dielectric permittivity Increases energy storage performance	Energy storage	[75]
Semiconductor-based magnetic-based and metal-based	TiO2@ZnFe2O4	Palladium (Pd)	Improves degradation efficiency of diclofenac (DCF) pollutant Easy recovery of nanoparticles due to magnetic properties	Water treatment	[79]
Carbon-based	CNTs	Polybutylene terephthalate (PBT)	Enhances the polymer’s mechanical property and electrical conductivity	Electronics	[114]
		Polydimethylsiloxane (PDMS)	Enhances electrical conductivity with higher mechanical stiffness Increases battery’s storage capacity	Electronics	[115]
		PEDOT and PVDF	Forms lighter electrode Improves stability of the lithium battery	Electronics	[116]
		PLA	Multi-walled carbon nanotube (MWNT) promotes cellular elongation Increases the growth of osteoblast	Tissue Engineering	[117]
Ceramic-based	Al2O3	Cellulose acetate (CA)	Improves thermal stability Enhances dielectric properties three times greater than CA film alone	Electronics	[118]
	TiB2 and TiC	Al & Mg	Produces lightweight parts Provides outstanding mechanical properties	Automotive, aerospace, engineering	[119]
	SiC	Hybrid aluminium matrix	Increase the elastic modulus of the matrix	Aerospace, automobile	[120]
	Vinylsilane Modified-Nanosilica	Silicon rubber	The vinylsilane treated nanosilica shows hydrophobic characteristic enabling easy mixing with the polymer Increased in mechanical strength ~ 27 times greater than bare polymer Increased in electrical breakdown strength ~ 14% higher than bare polymer	Electrical	[121]
	Nanosilica	Detrin-graft polymethyl	Provide excellent cationic dye adsorption efficiency Excellent desorption close to 90% on methylene blue dye	Water treatment	[122]
Metal-based	Silver	Hydrogel/sodium alginate/polystyrene	Effective antimicrobial activity against E. coli and S. aereus Can be used in skin grafting, surgical instruments and wound dressing	Biomedical	[123–126]
	Copper	Poly(vinylmethyl ketone)/poly-(vinyl chloride)/polyvinylidenefluoride	Antibacterial and antifungal properties	Biomedical	[127, 128]
	Copper (I) oxide, silver, TiO2	Epoxy	Reduce the flammability of epoxy	Aerospace, construction and automobile	[129]

Carbon-based nanoparticles

Carbonization, grinding, heating and activation are methods that are used to produce nano-sized carbon [86]. Carbon-based NPs are popular and they are widely in the various field due to their exceptional mechanical, thermal, optical, and physical properties. They also possess high boiling and melting point above 3500 °C [86]. Carbon quantum dots, graphene and carbon nanotubes (CNTs) are categorized under carbon-based nanoparticles. This type of nanoparticle is widely explored in research because they have good electrical conductivity, mechanical properties, heat conductivity, stable and low toxicity [87]. A study showed that carbon filler reinforced with nylon achieved a tensile strength of 700 MPa and 68GPa for tensile modulus [83]. In addition, embedding carbon fibers can further strengthen the polycarbonate to expand its applications in 3-D printing. Espalin and the research team had incorporated carbon fibers into the PC polymer to design a composite which has higher mechanical strength [88]. Compared to PC polymer alone, the tensile strength increased by 77%. The SEM result also showed that reduction of porosity happened when carbon fibers was reinforced [88]. Another reinforcement of carbon fibers into Polycarbonate/ Acrylonitrile butadiene styrene (PC/ABS) was reported to have minimum wear rate and high mechanical strength [89].

They are most commonly used in the energy storage field. It is a well-known material to be used in capacitors, batteries and fuel cell components. Since human body consist of carbon, carbon-based NPs are also biocompatible with human cell. Graphene nanoparticles are used in drug delivery to deliver drugs to the targeted cancer cells. Compared to activated carbon, CNTs are ideal in removing both organic and inorganic wastes in water purification due to their hollow structure, high surface area and strong adsorption affinity towards organic wastes such as dye, pesticides, phenols, benzene and carbon [85, 90]. It was also proposed that electrochemical reaction of CNTs can be further improved by doping metal or non-metal to the CNTs [91]. For example, doping iron (Fe) on CNTs improved the degradation efficiency of beta-blocker metoprolol from 74 to 97% due to the triggering of oxidative species [91]. In another research, TiO₂ was doped onto CNTs to improve the reduce the band gap and photocatalytic performance in wastewater treatment since CNTs are able to expand the light response to visible light that would otherwise sensitive to UV alone if using bare TiO₂ [92]. In addition, CNTs are unique because no other material has a mixture of physical, chemical and mechanical properties like CNTs [93]. Compared to metals such as copper and aluminium, CNTs possess both excellent electrical and thermal conductivity, lightweight, with acids and bases resistant [93, 94]. Hence, doping of CNTs will benefit the 3-D printed product in enhancing the removal of contaminants in wastewater treatment application.

Ceramic-based nanoparticles

This type of nanoparticles is chemically inert, possess high heat resistant, low electrical conductivity, resistant to corrosion and high stiffness [95]. Some of the examples are hydroxyapatite (HA), alumina (Al₂O₃), titanium dioxide (TiO₂), silica, silicon carbide and silicon nitrite [96, 97]. They own properties between metal and non-metal. Compared to carbon nanoparticles, they have lower electrical and thermal conductivity, but they are high in stiffness, elastic modulus and resist to corrosion [95]. To describe the addition of ceramic-based nanoparticles as additive, the tensile strength and tensile modulus were reported in Ahuja’s research team as 44.52 MPa and 871.81 MPa respectively when aluminium oxide (Al₂O₃) was reinforced with nylon [98]. Ceramic nanoparticles are produced via wet-chemical process, or commonly known as sol–gel method that involves a sol (chemical solution) and a gel (precursor) to produce an oxide which is a type of ceramic [99]. The excess solvents will be evaporated and the final product is a solid form. They are widely used in photocatalysis, bone tissue engineering, imaging and drug delivery. Titanium dioxide (TiO₂) is most widely applied in photocatalysis due to their outstanding photocatalytic performance, non-toxicity, chemically stable and low cost. Despite their numerous benefits in photocatalysis, the large band gap is the main limitation of TiO₂ nanoparticles disabling it to perform well under natural light source (visible light). In recent research, most studies focus on doping TiO₂ with other elements. For instance, iron-8-hydroxyquinoline-7-carboxylic (Fe-HQLC) as a composite for TiO₂ nanoparticles shifted the absorption towards visible light. It was concluded that phenol was degraded up to 99%, antibiotics ciprofloxacin (CIP) and tetracycline (TC) was degraded to almost 97%. In another report, doping nitrogen (N) with TiO₂ significantly increased the photocatalytic performance under UV and visible light [100]. Undoped TiO₂ only accounts for 87% and 45% degradation on furfural under UV and visible light respectively. When nitrogen was doped with TiO₂, the photocatalytic performance of the photocatalyst reached 97% and 79% under UV and visible light respectively [100].

Commonly, hydroxyapatite, tricalcium phosphate and calcium silicate are applied in bone tissue engineering owing to various advantageous properties including biocompatibility, flexural strength, non-toxicity to cells and enhance cell proliferation [101, 102]. A bone scaffold can be categorized into bioinert scaffold and bioactive scaffold. Alumina (Al₂O₃) and zirconia (ZrO₂) are examples of bioinert scaffold. They are chemically inert and hence will not have tissue reaction. They are also biocompatible, tough and corrosion resistant. In contrast, bioactive scaffolds are able to regenerate damaged or lost tissues. Common bioactive scaffolds that are used in bone tissue engineering are beta-tricalciumphosphate (b-TCP), calcium silicate (CS), hydroxyapatite (HAP) and bioactive glass (BG). In drug delivery applications, hydroxyapatite are widely explored. They are exploited to treat cancer cells as a drug carrier. One of the main features of HAP is it is able to prolong the release of drugs to the target tissue [103]. However, the extension of drug release time can be prolonged further by doping. For example, iron (Fe) has been doped onto HAP showed an enhancement in biocompatibility and longer drug release time [104]. Besides, HAP is also explored in arthroplasty by slowly releasing vancomycin to treat serious infection and a direct way [105].

Metal-based nanoparticles

Metal-based nanoparticles are derived from metal precursors. They are a good heat and electrical conductor [95, 106]. However, they are prone to corrosive damage. By using metal-based nanoparticles as additive in polymer material, it is able to improve the mechanical strength of the desired material. Masood and Song reported the reinforcement of nylon with iron give rise to the tensile strength and tensile modulus by 3.87 MPa and 54.52 MPa respectively [107]. Due to its antimicrobial property, colloidal metal nanoparticles have also received much attention. For example, silver (Ag) NPs have excellent cytotoxicity towards a wide range of bacteria and fungi [108]. Likewise, copper (Cu) NPs coated on cellulose also showed effectiveness in destroying multi-drug resistant pathogen such as A. baumannii [109].

Semiconductor-based nanoparticles

Semiconductor-based nanoparticles are unique because they own properties of metal and non-metal [110]. To modify the physical and chemical properties of a semiconductor nanoparticle, the size is the key factor that results in the unique properties of the nanoparticles [110, 111]. When the size changes, the conductivity and the optical properties will be modified. It is applied in various field such as catalyst, electronics, solar cells, LED, automobile, etc. The widening of band gap in semiconductor nanoparticles enables materials to operate at high temperatures [112]. Overall, the need for excess wires and cooling systems can be eliminated in a system such as fuel combustion. The elimination of excess material will reduce the complexity of the system and weight, in addition with improved thermal stability.

Nanoparticles in improving biological properties

In a study related to cartilage regeneration, Zhang and the team had proposed a scaffold-based technique to replace the traditional surgical process which is complex and requires long recovery time [113]. Scaffold-based technique such as 3-D printing is beneficial because it can reduce doner site complications, shorter recovery time and requires fewer procedures [113]. In this study, PEGDA hydrogels incorporated with nanoparticles containing growth factors was printed into a cartilage model to grow human mesenchymal stem cells (hMSC) via cold atmospheric plasma (CAP) technique. CAP is an effective way to alter materials to create environments favored by cells to enhance cell proliferation and cell attachment [113]. Whereas, the nanoparticle poly(lactic-co-glycolic) (PLGA) was loaded with bovine serum albumin (BSA) or transforming growth factor-β1 (TGF-β1) as the core. The scaffold was then printed using a customized stereolithography (SL) 3-D printer with three-axis motions. The printed cartilage scaffold had shown an increase in compressive strength (5.2 MPa) comparing to human cartilage tissue (0.4–0.8 MPa). CAP treatment in addition with PLGA nanoparticles have shown a synergic effect in promoting cell growth and the printing of PEDGA scaffold. This proposed scaffold could be a suitable candidate to promote cartilage repair in the medical field (Table 5).

Some patients with orthopedic implant face bacterial infections from Staphylococcus aureus and Staphylococcus epidermidis after the surgery. These bacteria will attach on the surface of the implant, grow and form biofilms [130]. Biphasic calcium phosphate (BCP) nanoparticles and rifampicin (RFP) nanoparticles were incorporated into a matrix poly(d,l-lactic-co-glycolic) acid (PLGA) which is biodegradable. The differentiation of osteoblast was contributed by BCP nanoparticles whereas the killing of bacteria was caused by the RPF nanoparticles by steady-release of antibiotic [131]. This nanocomposite could be used in printing implants to avoid bacterial infections in the patient’s body.

The amount of nanoparticles added into the polymer matrix will determine the physical or chemical properties of the printed object, as well as the homogeneity of the printing ink. Through the research of using metal nanoparticles (silver and copper) as additives in resin, it was found that up to 1%wt. of nanoparticles with the size of 25 nm and 55 nm respectively can be well-dispersed in the resin polymer without any sedimentation and agglomeration [132]. The nanocomposite was printed with SLA 3-D printer. By the addition of silver and copper nanoparticles into the polymer resin, the resistance decreased to almost 100% making this nanocomposite to be suitable for electronic applications [132]. In another research, carbon-based nanoparticle, graphene oxide (GO) was incorporated into the photopolymer at 0.2%wt and printed using a SLA 3-D printer. [133]. The strength increased to ~ 62% whereas the elongation to failure increased to ~ 13% compared to solely polymer [133]. The incorporation of 1%wt. GO in photo-curable resin printed with SLA 3-D printer as well showed a significant increase in tensile strength by ~ 674% [134]. To compare the effect of adding different types of carbon-based nanoparticles into epoxy polymer, 0.1%wt. of pristine graphene, single-walled and multi-walled carbon nanotubes were incorporated [135]. It was found that nanocomposite containing graphene has the best enhancement as to stiffness (31%), mechanical strength (40%) and fracture toughness (53%) compared to structure incorporated with other carbon-based nanoparticles [135]. At 0.125%wt, the fracture toughness peak reached 65% [135]. A low composition of CNT (0.04%wt) and graphene (0.08%wt) nanoparticles was demonstrated for the enhancement in electrical conductivity by sevenfolds when incorporated in PBT thermoplastics printed with FDM 3-D printer [136]. According to many researches, SLA is commonly adopted as the choice of printing nanocomposites. In addition, most researches only incorporated a low amount of nanoparticles (≤ 1%wt) to improve the properties of a particular material of interest.

The application of 3-D printed nanocomposites

Nanocomposite involves the addition of nanoparticles with the size of 1 nm to 100 nm into a suitable polymer matrix. According to Zachary and Ghasemi, most nanocomposite researches used a comparatively large amount of nanoparticles (more than 0.1% by weight) to improve the properties of a certain material or structure [137].

Electrical and electronics

In the energy storage application, the manufacture of high dialectical energy devices is highly demanding because they can store more energy compared to those with lower dielectric constants. This is especially important in the application of capacitors, semiconductor device, liquid crystal displays (LCD), and other embedded electronics [138]. One of the advantages of incorporating nano-sized particles into the polymer is that the resulting nanocomposite will have an increment in dielectric strength since the nanoparticles have a large surface area. Besides, nanoparticles can also reduce the size of voids and hence enhancing the strength of the nanocomposites [139].

Roppola and the team members (2016) determined the effect of inducing the generation of silver (Ag) nanoparticles in the polymer matrix with polyethylene glycol diacrylate (PEDGA) as base materials. Upon exposure to the thermal treatment at the last stage of printing at 200 °C, the resistivity increased, indicating that the nanocomposite treated at high temperature is not suitable for producing conductors [19].

In the effort to improve the dielectric property of a nanocomposite material, Yirong and the research team (2018) had conducted a research to explore the impact of adding barium titanate (BaTiO₃) and carbon nanotubes (CNTs) fillers into the poly(vinylidine) fluoride (PVDF) polymer [21]. By adding BaTiO₃, the desirable energy storage ability of the nanocomposite is possible to be applied in field-effect transistor (FETs), capacitors and other embedded electronics. Dielectric materials are electrical insulators that can be polarized by an applied electrical field to store energy [140]. A nanocomposite filament was formed and printed using FDM 3-D printer namely Lulzbot Taz 5 [21]. The printed PVDF has a higher dielectric constant (16.6) than the solvent casted PVDF (15.0) due to the extrusion process of the filament and 3-D printing offers molecular alignment and hence it is able to remove micro-cracks and voids as shown in SEM images in Fig. 3. In addition, the incorporation of CNT filler has also reduced the impact and size of the micro-cracks and voids and has improved the dielectric strength of the nanocomposites [21]. It was also reported through extrusion-based 3-D printing technique, the nanoparticles were well-dispersed in the matrix [21].

Robot has its limitation in locomotion applications, especially wall-climbing and aqueous environment. A gecko-inspired robot was made by Jeong and the research team that can move on ceilings with different orientations which was produced using a selective laser sintering (SLS) type 3-D printer [141]. Besides, the team had incorporated fluorosilane-functionalized silica (SiO₂-F) nanoparticles for water repellent characteristic and locomotion under the aqueous environment [141]. The team hopes to develop a practical robot which could be applied in air and water pollution monitoring with enhanced mobility and functionality.

Medical

A 3-D detoxification device was created by 3-D printing hydrogels with functional polydiacetylene (PDA) nanoparticles by Gou and the team [20]. The objective of the study was to eliminate the risk of nanoparticles accumulation in human liver which may possess a secondary poisoning risk in liver failure patients through intravenous administration. The PDA can work effectively against pore-forming toxins (PFTs) since it is able to attract, capture and sense the toxins. PFTs are a toxin that can damage the cellular membrane due to pathologic infections by animal biting or bacterial infections. Result shows that after using this biomimetic detoxification device, the solutions totally lose its toxicity.

As scaffold is used in bones or tissues regeneration, it must be biodegradable and display no toxicity after decompose [142]. The ideal scaffold should also promote host cells regeneration, control the degradation rate of the scaffold and biocompatible with the host cells.

In research by Magdassi’s research team (2016) to produce 3D printable hydrogels, water-dispersible nanoparticles were incorporated in 2,4,6-trimethylbenzoyl-diphenylphosphine oxide (TPO) to form hydrogels [143]. When the water-soluble photo-initiators with high absorbance in the UV range are absent, the formation of 3-D printed hydrogels are difficult. However, poly(ethylene glycol) diacrylate (PEGDA) hydrogels, the mechanical strength of the printed hydrogels which mechanical strength is six times greater than the normal hydrogel was printed successfully. This indicate that the printed hydrogels are strong enough to withstand their own weight and hence it is suitable for an implant and in situ purposes [143]. The fast polymerization of hydrogel with TPO nanoparticles is because TPO has a better solubility which aided a better dispersion and hence the free monomers are widely available to the newly formed free radicals.

A 3-D printed nanocomposite was produced in another study in orthopedic surgery and drug delivery system [144]. Since implants have to be strong to tolerate stress, nanoparticles are added into the polymer to improve the physical properties as in the mechanical strength of the implants. For this reason, carbon nanotubes (CNTs) and hydroxyapatite (HAp) are added into the poly(methyl-methacrylate) (PMMA) polymer.

The PMMA polymer is a biomaterial for joints or bones, CNTs are light weight, highly elastic, high heat stability, high strength, high electrics and high conductivity making it a good advantage over other nanoparticles. On the other hand, HAp is commonly used as a coating to improve cell diffusion into implants or act as a filler in bones [145]. The presence of CNTs content promotes a better dispersion of HAp nanoparticles based on the characterization using energy dispersive X-ray (EDX) analysis. Besides that, when the content of HAp was increased, a reduction in strength was observed as this leads to stress concentration and agglomeration of particles. 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyl-2H-tetrazolium bromide (MTT) analysis result indicated that the presence of CNT with HAp improved the cell growth comparison to solely HAp and solely CNT in the nanocomposites as shown in Fig. 4. From Fig. 4, plain CNT led to a decrease in cell viability of PMMA matrix [144]. Both particles need to work synergically because CNT is toxic to cells meanwhile HAp particle is able to precipitate on the CNT particles and hence blocking its toxicity [144]. This nanocomposite serves as a good matrix for biomedical applications.

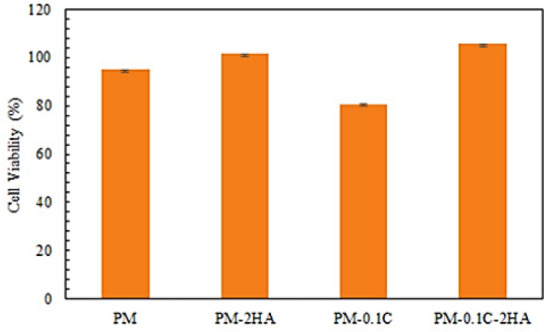

Fig. 4.

Cell viability and microscope images from the MTT test. PM: PMMA. PM-2HA: PMMA with 2 wt% of HAp. PM-0.1C: PMMA with 0.1 wt% of CNT. PM-0.1C-2HA: PMMA with 0.1 wt% CNT and 2 wt% HAp [144]

In a previous bone regeneration study by Rath and the research team [146], SiO₂ nanoparticles were added into the sodium alginate to produce a scaffold [146]. Sodium alginate and gelatine, are natural polymer hydrogel, that is widely used in tissue engineering using 3-D bioprinting because their properties of biodegradability and biocompatibility [146]. However, hydrogel is not suitable to be used in tissue engineering due to the ineffectiveness to hold the structure on their own, lack of regeneration capability and swelling. By incorporating SiO₂ nanoparticles, the free hydroxyl groups on its surface can interact with the sodium alginate-gelatine polymer and chemically crosslink with CaCl₂ solution, which can address the above issues. From the study, the viscosity of the hydrogel ink increased to 2.5 wt% concentration when SiO₂ nanoparticles was added into the hydrogel. In addition, this improved the viscosity and resulted in the printability of the scaffold. In addition, the compressive modulus (MPa) was significantly improved whereby degradation and swelling were inhibited. Furthermore, the cell proliferation and cell attachment of the printed model were enhanced due to micro-porosity. The 3-D printed virtual skull defect was successfully printed by as demonstrated in Fig. 5 using the formulated nanoparticle ink [146]. On the other hand, titanium dioxide nanoparticles (TiO₂) was suggested as a candidate in the bone regeneration field, mainly due to its enhanced bone-forming ability, high tensile strength (~ 110 GPa), resistant to corrosion, biocompatible and able to react with human tissue [147]. In another research, a bone tissue engineering scaffold was formed using single-walled nanotubes (SWNT) as the nanoparticle and poly(propylene fumarate) (PPF) as the polymer [148]. It was realised that SWNT was able to strengthen the weak PPF material as well as producing scaffold that is light-weight and strong. This scaffold was also shown to be highly conductive. This property is beneficial for some applications since some cell functions are stimulated via electric current, thus promoting bone-forming ability [148]. Besides designing scaffolds that are biocompatible, light-weight, strong, non-toxic, Jiji and the team had produced a scaffold made of silver (Ag) nanoparticles and bacterial cellulose-polydopamine (BC-PDA) polymer that exhibit antibacterial effects. The scaffold was evaluated against gram-positive (Staphylococcus aureus) and gram-negative bacteria (Escherichia coli, Pseudomonas aeruginosa and Klebsiella pneumoniae). There are a few parameters that is needed to take into consideration when producing bone regeneration scaffold as in Fig. 6 such as biocompatibility, biological absorbability and mechanical properties are important to support cell growth while maintaining its mechanical strength. Other factors such as angiogenesis, the ability to produce and release oxygen, antimicrobial property, drug loading and release performance are some other important aspects that need to be taken into consideration when designing an applicable scaffold [49, 149].

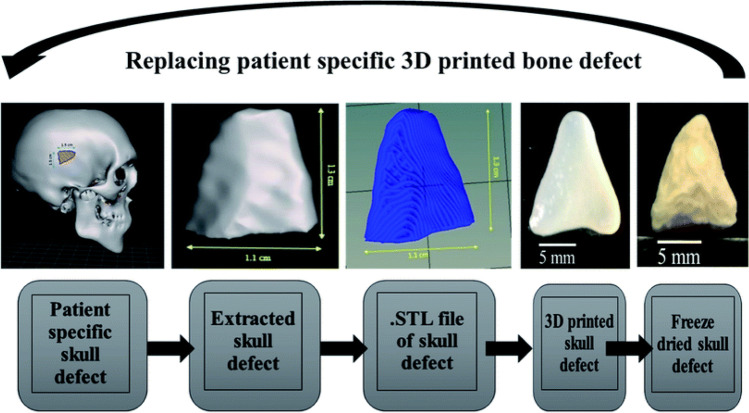

Fig. 5.

Process showing the 3-D printing of patient-specific virtual bone defect [146]

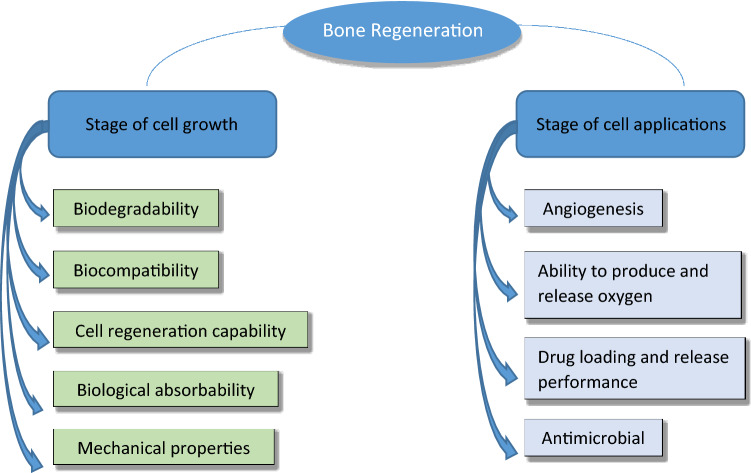

Fig. 6.

Factors to be concerned when designing and building bone regeneration scaffold

Food industry

Prevention of microbial growth at the food manufacturing plant is especially important to prevent spoilage of food. Microbial infection is a major concern because microbes may deposit onto the surface of a polymer belt that is used to transfer food from one station to another, hence causing microbial contamination at the production site. One of the solutions is to utilise polymer belt with antimicrobial function in the production line. Nanocomposites give an advantage to food industry by disinfectant equipment or spare parts such as the polymer belt that is used to transfer and transport the materials. Silver nanoparticles (Ag) were incorporated into the polylactic acid (PLA) polymer to test for its antimicrobial ability [150]. With the idea of incorporating nanoparticles into the polymer belt, it saved the cost and time that spent on a large amount of disinfectant used and labour sue to its antimicrobial ability [150]. The printed polymer belt contained of Ag performed antimicrobial activities which was obviously lower if compared to polymer belt without Ag as shown in Fig. 7 in the antibacterial test by colony count.

Fig. 7.

Comparative antimicrobial result. A Plated on Plain PLA disc for 4 h. B Plated on 2.5 wt% PLA disc for 24 h [150]

Antimicrobial food packaging is also an interesting aspect to study on, since the addition of additives in food packaging can contribute to expanding the shelf-life of a particular food product. Among all the antimicrobial additives, silver (Ag) and titanium dioxide (TiO₂) nanoparticles are the most commonly studies ones since these nanoparticles exhibit strong antibacterial performance against bacteria, fungi and virus [76, 151], which are the most common pathogens in food. For instance, the shelf-life of chicken breast fillet was extended when silver-low density polyethylene (Ag/LDPE) nanocomposite was used as an antibacterial packaging [152]. Silver-polyethylene (Ag/PE) nanocomposite displayed excellent antibacterial activity against meat-spoilage bacteria such as Leuconostoc gelidum subsp. Gasicomitatum and Lactococcus piscium [153]. In the application of rice packaging, silver-titanium dioxide (Ag/TiO₂) was incorporated into the PE polymer which displays excellent antimicrobial activity against Aspergillus flavus [154].

Wastewater treatment

In developing countries, where the human population increases, tourist hotspot and hotspot for manufacturing goods, water pollution is often not handled well and discharged into the water mainstream such as the sea and river. Polluted water affects the quality of life of human and aqueous living organisms. It also causes infections in human such as cholera that is caused by bacterial contamination from the water source. Even though various method such as chlorination, chemical coagulation and chemical absorption had been adopted to remove these bacterial contaminants and chemicals, some chemicals are difficult to remove through these ordinary methods [155].

In the previous study, anatase TiO₂ nanoparticles with the size < 25 nm is used since it is a great photocatalyst to degrade pollutants [156]. Anatase phase TiO₂ nanoparticles were used rather than rutile because supported anatase can produce more hydroxyl radicals compared to rutile phase on the activated carbon [156]. Polyethylene (LDPE) was chosen to be the host material to hold the nanosized TiO₂ as it has a lower density than water so that it can float on the surface of the water. The idea to use a floating material gives accessibility for the TiO₂ to be exposed to ultra-violet (UV) radiation which is contributed from the solar radiation. Furthermore, most of the pollutants floats on the surface of the water which is corresponding to the floating material. With the presence of TiO₂ anatase as photocatalyst, the rate of degradation of the pollutant increased to 8% in two hours due to photocatalysis of TiO₂ under UV radiation, therefore, increasing the formation of hydroxyl radicals and hence the removal of methylene blue (MB). This is proven with the production of cellulose membrane incorporated with TiO₂ for photodegradation of organic dye [56, 57]. TiO₂ as catalyst in embedded form is more sustainable because it is reusable and recyclable. This is proven with the production of cellulose membrane incorporated with TiO₂ for photodegradation of organic dye [56, 57].

It is well-known that silver possess an excellent antimicrobial property especially targeting drug-resistant gram-negative bacteria [157] whereas titania possess outstanding photocatalytic performance [156]. Titania nanoparticles was embedded into the silver matrix to produce 3-D printed micro-device that is applicable to environmental antimicrobial activities [73]. The antimicrobial activity was tested against Staphylococcus aureus by colony-forming unit (CFU) and the photocatalytic performance was tested against a model dye Rhodamine B (RhB) under ultraviolet (UV) irradiation using the printed micro-device. The viability of bacteria decreased from 62 to 22% compared to the uncoated specimen. Meanwhile, the micro-device containing nanoparticles showed an improvement of dye degradation for 6 times higher compared to the one measured without device [73]. This proposed micro-device is suitable in applications that requires both antimicrobial and removal of contaminants.

3-D printed nanocomposites play an important role in various applications. Nanocomposites which comprised of two or more types of materials can produce end product with unique characteristics and added-value functionality. Table 6 summarizes the advantages of nanocomposites that used in various applications.

Table 6.

Summary of 3D-printed nanocomposites used in various research on 3-D printing technology

Polymer	Nanoparticle	Field of application	Method of printing	Advantages	References
PVDF	BaTiO3, CNT	Energy storage	FDM	Improves dielectric property of the nanocomposite	[21, 158]
Nylon 12 (PA 12)	SiO2-F	Robotic, water treatment	SLS	Provide water repellent characteristic Enhances locomotion under the aqueous environment	[141, 159]
PEGDA	PDA	Detoxification device	DOPsL	Able to capture toxins using PDA nanoparticles No accumulation of nanoparticles in human body	[20, 160]
Hydrogels	TPO	Biomedical	SLA	Strong weight scaffold that is suitable for implants	[143, 161]
PMMA	CNTs, HAp	Biomedical	FDM	High mechanical strength Promotes cell growth	[144, 162, 163]
Hydrogel	SiO2	Biomedical	N/A	Enhances bone forming ability High tensile strength Resistant to corrosion Biocompatible to human tissues	[146, 164]
PLA	Ag	Food	N/A	Incorporation of nanoparticles provide antimicrobial to the polymer belt	[150, 165]
LDPE	TiO2	Water treatment	FDM	Able to float on water for sunlight exposure to the nanoparticles	[166, 167]
Ag	TiO2	Water treatment	SLA	Dual functionality of acting as photocatalyst and antimicrobial	[73, 167]

The drawbacks of nanocomposite in 3-D printing

The current selection of materials set certain boundaries for the additive manufacturing. There might be more functionalities needed to explore since new applications are increasing with the developing technologies especially to produce 3-D printed composites. Meanwhile, the production of 3-D printed composites often suffers from problems such as inhomogeneity of solution or mixture, difficulties in controlling viscosity, necking after the printing and etc. Ultrasonication, mechanical stirring, precipitation and melt-mixing are methods used to form composite material [168]. Shrestha [150] reported the drawback of the research is that the Ag nanoparticles will be stuck at the 3-D printer nozzle once the amount is 5 wt% or more. Theoretically, the higher the nanoparticles, the better the performance of the particular functionality. Nevertheless, the percentage of nanoparticles is required to keep at the optimum level to minimize the problem of blocking at the nozzle. The concentration of nanoparticles incorporated must be adjusted to avoid agglomeration formation during the printing process meanwhile the composite able to exhibit its enhanced properties [169]. On top of that, not all the printing techniques are ideal as some of the resolution of printing techniques are not high enough to meet the minimum requirement of the printed objects. There are 3-D printers that are printing at low speed and clogging issues may arise at the nozzle. The nozzle may also experience wear and tear issues after repeating process of printing for few times thus affecting the resolution of the printed object. The best concentration of additive is desired to figure out which compatible with the speed and temperature of the 3-D printers preceding the printing process.

Despite of the limitations mentioned above, researchers have been optimizing the homogeneity of the nanocomposite printing ink by various method. In the report by Chidambaram and the team members, it was suggested that solution blending is the most popular method to blend different compounds together. This method is able to control the homogeneity of the nanocomposite [118]. In the report, 25 wt% of the aluminium oxide (Al₂O₃) nanoparticles were successfully incorporated into the cellulose acetate (CA) polymer. This homogeneity of the incorporated nanoparticles was confirmed through a scanning electron microscope (SEM) and atomic force microscopy (AFM) analysis. The incorporation of Al₂O₃ into the polymer matrix enhances the dielectric properties three times greater than using the CA film alone, along with increased thermal stability [118]. In another research to produce light-weight material for metal-based industry, 30 vol.% of titanium diboride (TiB₂) and titanium carbide (TiC) nanoparticles was successfully incorporated into the aluminium (Al) and magnesium (Mg) matrix through a similar process which is mechanical mixing for a few hours [119]. Besides solution blending, it was also reported in a few researches that solid-state shear milling technique can also enhance the dispersion of nanoparticles in the polymer matrix [170–172]. It is a new technique that involves grinding of additive and polymer below the melting point of the polymer to maintain the solid state of the polymer. High shear will cause fragmentation of the polymer thus promoting uniform dispersion of nanoparticles in the polymer. This method does not involve the use of expensive or dangerous solvents, and also does not change the properties of the polymer since the process is thermally controlled beyond its melting point [172].

There is a study reported that the nozzle abraded on the surface and inside the body of the objects during printing as the nozzle attached to the printing object. The degradation of the nozzle has affected the resolution which may also affect the functionality and the appearance of the object [114]. Since composite requires mixing of different materials, properties such as viscosity will affect the printability of the final object. Some printing methods require higher viscous of printing ink such as the extrusion-based printing. If low viscous printing ink is used in extrusion-based printer, the product will lack in shape [168]. However, high viscous printing ink is also another issue since it may cause clogging at the nozzle. It should also be noted that higher extrusion temperature is required if nanoparticles were incorporated into the polymer since the increment of melt viscosity requires higher extrusion temperature. These factors may be the reasons for some of the manufacturers are still adopting traditional manufacturing. The experimental test on viscosity of printing ink is required prior to the exact printing process. This experiment may be conducted with the change of other factors such as speed of printing, temperature and concentration of the printing mixture/ solution.

Regardless of the ready 3-D printers, the discovery from the engineers are more appreciable in terms of invention of new improved 3-D printer models. The design of the printers not only depends on the ordinary factors but also types of additives to be added such as suitable irradiation, targeted end product as composite or additive embedded materials, temperature to achieve in-situ chemical reaction if the end product is composite, possible of treatment to be done in the 3-D printer just after the printing process as listed in Fig. 8.

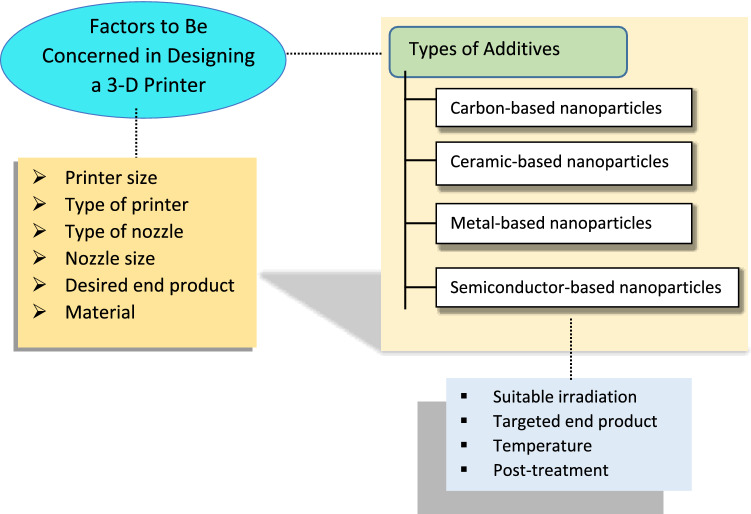

Fig. 8.

Factors to be concerned in designing a 3-D printer

Conclusion

In this review, the advancement of 3-D printing in various fields has been identified. By looking at the unlimited and high potential application of 3-D printing, continuous researches should be permitted and explored especially 3-D printed nanocomposites. The incorporation of nanoparticles has proven to create and build more functional products. The incorporation of nanoparticles has many added-values such as acting as a filler to increase the mechanical properties, improve the dielectric properties and even biological properties of the printed products. This review also provides the information to the manufacturers and researchers to encourage the enhancement of 3-D printing in terms of sustainability and recyclability of the system. Last but not least, study should be carried on to overcome the drawbacks of 3-D printed nanocomposites as discussed. It is believed that the innovation and invention by engineers to design specific 3-D printer for nanocomposites could reduce or avoid the problems crossed the barriers of limitation nowadays. 3-D printing is an important aspect to explore because it will revolutionize the future of development and could generate much income in various sectors. However, current limitations exist such as the lack of operation expertise and the cost of producing 3-D printed goods. We are aiming to have more amazing implementations of 3-D technology in the upcoming years.
