Compensatory functional connectome changes in a rat model of traumatic brain injury

Abstract

Penetrating cortical impact injuries alter neuronal communication beyond the injury epicentre, across regions involved in affective, sensorimotor and cognitive processing. Understanding how traumatic brain injury reorganizes local and brain wide nodal interactions may provide valuable quantitative parameters for monitoring pathological progression and recovery. To this end, we investigated spontaneous fluctuations in the functional MRI signal obtained at 11.1 T in rats sustaining controlled cortical impact and imaged at 2- and 30-days post-injury. Graph theory-based calculations were applied to weighted undirected matrices constructed from 12 879 pairwise correlations between functional MRI signals from 162 regions. Our data indicate that on Days 2 and 30 post-controlled cortical impact there is a significant increase in connectivity strength in nodes located in contralesional cortical, thalamic and basal forebrain areas. Rats imaged on Day 2 post-injury had significantly greater network modularity than controls, with influential nodes (with high eigenvector centrality) contained within the contralesional module and participating less in cross-modular interactions. By Day 30, modularity and cross-modular interactions recover, although a cluster of nodes with low strength and low eigenvector centrality remain in the ipsilateral cortex. Our results suggest that changes in node strength, modularity, eigenvector centrality and participation coefficient track early and late traumatic brain injury effects on brain functional connectivity. We propose that the observed compensatory functional connectivity reorganization in response to controlled cortical impact may be unfavourable to brain wide communication in the early post-injury period.

Yang et al. used functional magnetic resonance imaging and graph theory analysis in a rat model of traumatic brain injury and report changes in network topology that tracked early and late traumatic brain injury effects on functional connectivity. The observed changes emphasize functional magnetic resonance imaging activity patterns unfavourable to communication in the early post-injury period.

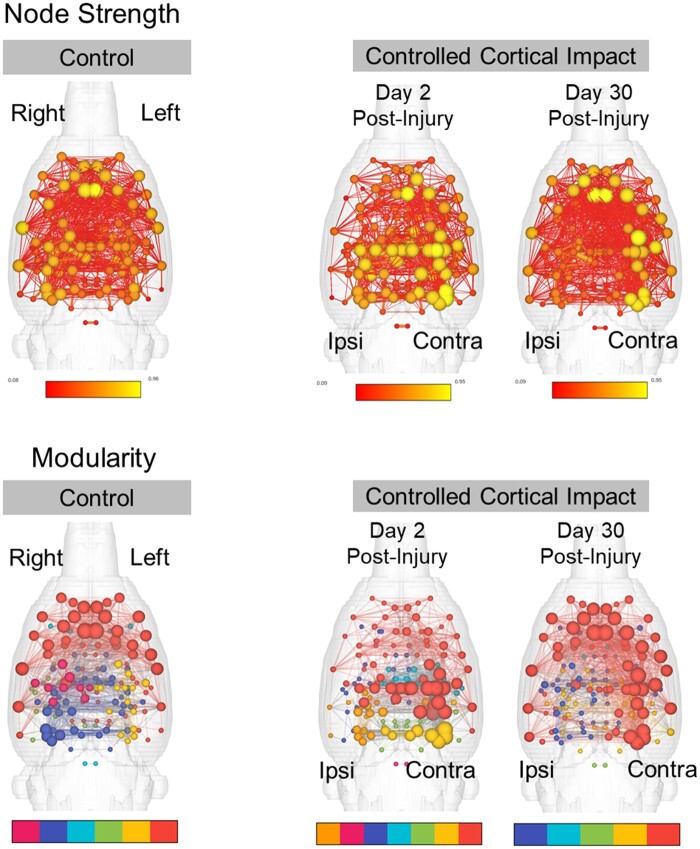

Graphical Abstract

Graphical Abstract.

Introduction

Traumatic brain injury (TBI) is a leading cause of emergency department visits, long-term disability and accidental deaths in the USA.¹ Among different types of moderate-to-severe brain injury, penetrative concussive cortical injury can cause permanent structural and functional deficits in brain areas that regulate cognitive, sensorimotor and affective functions.^2–5 The severity of cognitive impairment and/or neuropsychiatric sequelae of focal cortical injury may be linked to the degree of spatial damage caused at and beyond the TBI epicentre.⁶ Degeneration of axons and dendrites can occur beyond the TBI foci and produce impairments in brain wide communication across cortical and subcortical regions.^6–9

The large-scale neurobiological changes that occur with TBI have been investigated using resting state functional magnetic resonance imaging (fMRI) and graph theory-based analysis of functional connectivity.^10,11 Disruption of functional connectivity between subdivisions of the caudate and putamen and distributed cortical regions, including the anterior cingulate, was observed to be associated with cognitive impairments in a cohort of 42 TBI patients compared to age-matched control participants.¹² Structural connectivity-based network matrices in 52 TBI patients, 21 of which sustained microbleeds, were shown to have a reduction in nodes with high betweenness and eigenvector centrality in caudate and anterior cingulate cortex.¹³ These nodes are highly influential within networks, constituting routes of high traffic or communication between distant regions of the cortex. Cognitive processing was closely linked to the degree of disconnection in network hubs, perhaps because of a reduced number of influential nodes following diffuse axonal injury.¹³ A comprehensive longitudinal blast-related TBI study reported significant modular organizational changes.¹⁴ Functional connectivity can be parcellated into groups or modules with greater rates of within-group connectivity than between-group node interactions. This modular pattern is thought to be a fundamental organizational aspect of neural activity in the brain of various species and may be important in the segregation of functions across distributed networks. The number of between-module connections, as quantified by the participation coefficient, is reduced with blast injury and this has important implications for cognitive function and the binding of multiple sources of sensory, affective and memory information.

The above neuroimaging studies in human subjects emphasize the promise of graph theory measures as functional TBI biomarkers. Comparable methods in animal models of TBI allow investigation of neurobiological mechanisms linked to network metric changes. Repetitive closed head injury disrupts functional connectivity between midbrain, hippocampal and cerebellar regions and produced hyperconnectivity in olfactory regions and other areas of the rat brain,¹⁵ and caused widespread changes in tissue apparent diffusion coefficient values.¹⁶ Niskanen et al.¹⁷ provided evidence of post-concussive functional recovery of BOLD signal responses to forepaw electrical stimulation in primary somatosensory (S1) cortex by Day 56 in a lateral fluid percussive injury rat model. Rats sustaining lateral fluid percussive injury were also shown to have reduced cortical functional connectivity at four months post-injury.¹⁸ In a series of studies using the controlled cortical impact (CCI) model in rats, Harris et al.¹⁹ demonstrated contralesional increases in cortical excitability, c-Fos expression and BOLD signal responses to forepaw electrical stimulation. Interestingly, the S1 cortical hyperexcitability was observed as early as 2 days post-injury using electrophysiological methods but at later time points with fMRI data collected at 7 T.¹⁹ Consistent with these findings, further functional connectomic assessments by Harris et al.²⁰ demonstrated increased network strength and topological reorganization involving interactions between strongly and weakly connected regions.

The objective of this study was to investigate functional connectivity changes in a rat CCI model at 2- and 30-days post-injury. We hypothesized that graph theory assessments on functional connectivity networks offer quantitative parameters that track aspects of pathological progression and functional recovery. We further expect that this analytical approach can help uncover novel effects of focal cortical penetrating TBI and how it reorganizes local and brain wide nodal functional interactions. Our results indicate that at 2 days post-injury cortical regions contralateral to the CCI epicentre show a significant increase in node strength along with a global increase in modularity, with low and high centrality nodes largely distributed in different modules. Participation in cross-modular connectivity was also reduced on Day 2, however, this recovered to control levels by Day 30 post-CCI.

Materials and methods

Subjects

Female and male Sprague–Dawley rats (220–300 g) were obtained from Charles River Laboratories (Raleigh, NC, USA). Rats were housed in sex-matched pairs in a temperature and humidity-controlled vivarium with a 12 h light cycle (lights on at 0700 h) and food and water provided ad libitum. Rats were randomly assigned to one of two experimental conditions: controls (15 male and 8 female rats) and CCI (19 male and 12 female rats). A subgroup of CCI rats were imaged 2 days post-injury (16 male and 7 female rats) and another group (3 male and 5 female rats) at 30 days. All procedures received prior approval from the Institutional Animal Care and Use Committee of the University of Florida and followed all applicable NIH guidelines.

Controlled cortical impact

The CCI procedure was carried out using a Leica Impact One device (Leica Microsystems Inc.). Anaesthetic levels were induced with 4% isoflurane gas mixed in 100% oxygen and maintained under 2% isoflurane for the rest of the procedure. Body temperature was regulated to 37°C using a thermal pad while rats were prepared for surgery on a stereotaxic frame. A parasagittal craniectomy [centre at anteroposterior, −4.0 mm; L, +2.8 mm from lambda] 5 mm in diameter was performed to expose the brain and allow impactor tip access to the cortical surface. The impactor had a 4-mm flat-face tip. CCI at a depth of 1.5 mm at 4 m/s and a dwell time of 240 ms was carried out. All injuries occurred in the right hemisphere. The surgical area was sutured, and recovery was monitored by tail pinch and righting reflexes. Control rats were naïve and received no sham surgical procedures.

Magnetic resonance imaging

MRI was carried out as previously reported.²¹ Images were collected in an 11.1 T MRI scanner (Magnex Scientific Ltd, Oxford, UK) with a Resonance Research Inc. gradient set (RRI BFG-240/120-S6, maximum gradient strength of 1000 mT/m at 325 Amps and a 200 µs risetime; RRI, Billerica, MA) and controlled by a Bruker Paravision 6.01 console (Bruker BioSpin, Billerica, MA). A custom-made 2.5 cm × 3.5 cm quadrature radiofrequency (RF) surface transmit/receive coil tuned to 470.7 MHz (¹H resonance) was used for B1 excitation and signal detection (RF engineering lab, Advanced Magnetic Resonance Imaging and Spectroscopy Facility, Gainesville, FL).

Rats were scanned under a continuous flow of 1.5% isoflurane (delivered at 0.5 L/min mixed with medical grade air containing 70% N₂ and 30% O₂). Respiratory rates were monitored continuously, and body temperature was maintained at 36–37°C using a warm water recirculation system (SA Instruments, Inc., Stony Brook, NY). For each rat, we acquired a 10-min high-resolution T₂-weighted anatomical scan followed by a 10-min functional magnetic resonance imaging (fMRI) scan. A T₂-weighted Turbo Rapid Acquisition with Refocused Echoes (TurboRARE) sequence was acquired with the following parameters: effective echo time (TE) = 41 ms, repetition time (TR) = 4 s, RARE factor = 16, number of averages = 12, field of view of 24 mm × 18 mm and 0.9 mm thick slice, and a data matrix of 256 × 192 and 25 interleaved ascending coronal (axial) slices covering the entire brain from the rostral-most extent of the anterior frontal cortical surface, caudally towards the upper brainstem and cerebellum. Functional images were collected using a single-shot spin-echo echo planar imaging sequence with the following parameters: TE = 15 ms, TR = 2 s, 300 repetitions, field of view = 24 × 18 mm and 0.9 mm thick slice, and a data matrix of 64 × 48 with 25 interleaved ascending coronal slices in the same space as the T₂ anatomical. Respiratory rates, isoflurane concentration, body temperature, lighting and room conditions were kept constant across subjects.

Image pre-processing and atlas registration

The image pre-processing steps applied in this study are illustrated in the schematic in Fig. 1. Anatomical and functional scan masks outlining rat brain boundaries were generated in MATLAB using Three-Dimensional Pulsed Coupled Neural Networks (PCNN3D).²² Resting state processing was carried out using software tools in Analysis of Functional NeuroImages (AFNI),²³ FSL²⁴ and Advanced Normalization Tools (ANTs).²⁵ First, we used 3dDespike in AFNI to remove time series spikes and 3dvolreg for image volume alignment. Pre-processed scans were cropped and a high-pass temporal filter (>0.009 Hz) was used (3dTproject) to remove slow variations (temporal drift) in the fMRI signal. Independent component analysis decomposition was then applied to pre-processed scans to assess noise components in each subjects’ native space prior to spatial smoothing and registration. The resulting components were assessed, and in most cases all components contained noise-related signal along brain edges, in ventricular voxels, and large vessel regions. These components were suppressed using a soft (‘non-aggressive’) regression approach, as implemented in FMRIB Software Library (FSL 6.0.3) using fsl_regfilt.²⁴ A low-pass filter (<0.12 Hz) and spatial smoothing (0.6 mm FWHM) was then applied to the fMRI scans.

Figure 1.

Image processing and analysis workflow used in the present study. Upper left (top to bottom) shows anatomical scan to atlas registration steps. Upper right shows resting state fMRI pre-processing steps and signal extraction based on 1 mm diameter spherical seeds. Bottom panels (left to right) show symmetric matrices of pairwise correlations of fMRI signals from 81 bilateral regions of interest (162 ROI total). Networks are visualized using atlas-based ROI coordinates in a three-dimensional translucent rat brain shell with vertex sizes represented by spheres and weighed by node strength, and edges as lines weighed by correlation coefficients. Schematic of measures of network and nodal integration, segregation, and centrality that were derived from constructed weighted matrices.

Pre-processed anatomical and fMRI scans were aligned to a parcellated rat brain template.²⁶ Anatomical scans were cropped and N4 bias field correction²⁷ was applied to remove B1 RF field inhomogeneities and reduce field of view intensity variations.²⁶ The extracted brain maps were then linearly registered to the rat template using FSL linear registration tool (FLIRT),²⁴ using a correlation ratio search cost, full 180-degree search terms, 12 degrees of freedom and trilinear interpolation. The linear registration output was then nonlinearly warped to the template space using ANTs (antsIntroduction.sh script). The resulting deformation field images were used to generate Jacobian determinant maps to evaluate subject-to-atlas registration quality and quantify the effects of regional structural differences of CCI rats compared to controls. Average log-normalized Jacobian maps are shown in Fig. 2. Anatomical-to-atlas linear and nonlinear transformation matrices were applied to fMRI scans at a later stage.

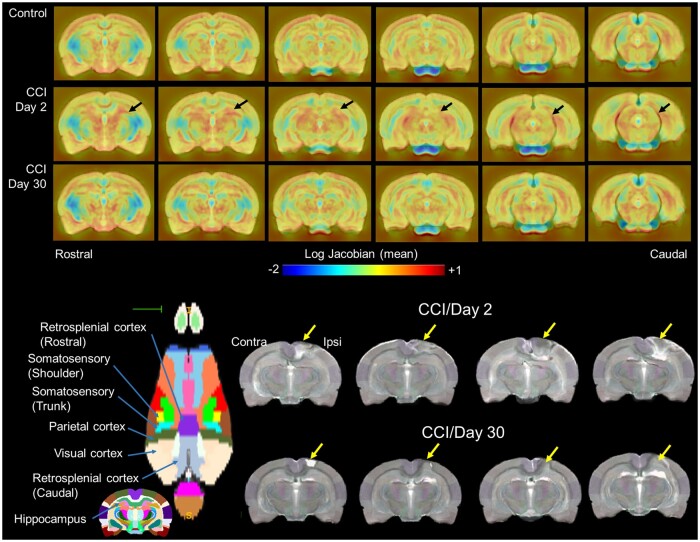

Figure 2.

Nonlinear registration to a reference T₂-weighted scan revealed cortical and subcortical thalamic structural differences in controlled cortical impact (CCI) rats relative to controls. Top row shows log-normalized Jacobian maps scaled between −2 and +1 (blue to red; narrowing and expansive differences, respectively). Jacobian maps represent the average of each experimental group for controls (n = 23), CCI Day 2 (n = 23) Day 30 (n = 8) post-injury. Bottom rows show axial view of cortical parcellation highlighting brain areas impacted by CCI. Also shown are four representative anatomical scan of CCI rats acquired at 2- and 30-days post-injury.

Brain extraction using a mask (see above) was first applied to fMRI scans and the cropped scans were then aligned to their respective higher resolution anatomical scans. Timeseries functional images were split into 300 individual volumes and the first in the series was linearly aligned to the anatomical scan using FLIRT (same parameters as above, except 6 degrees of freedom was used in this step). ANTs (antsRegistrationSyNQuick.sh script) were used to warp the lower resolution functional images to their structural (using a single stage step deformable b-spline syn with a 26-step b-spline distance). Linear and nonlinear warping matrices for fMRI-to-anatomical alignment were applied to individual scans in the time series, then the merged 4-D functional timeseries were moved to the atlas space using the prior anatomical-to-template transformation matrices.

Parcellation-based node placement and resting state signal extraction

We updated a previous set of 144 node parcellations²¹ to include an additional 18 region of interest (ROI) masks covering voxels in the CCI region and the contralateral hemisphere (Fig. 3A). These included 4 ROIs covering the primary visual cortex (Lesion ROI1, 3–5 in Fig. 3A), one in the dorsal hippocampus centred on the dentate gyrus layer (Lesion ROI2), the rostral and caudal retrosplenial cortex (Lesion ROI9 and ROI6, respectively) and the barrel field and trunk regions of the primary somatosensory cortex (Lesion ROI7 and ROI8, respectively). Thus, a total of 162 region of interest (ROI) masks, divided into 81 left and 81 right ROIs, were included in our analyses. Individual ROI masks were generated using a previously published rat brain parcellation.²⁶ ROI seed generation was as previously reported²¹ and coordinates were used for 3D network visualizations in BrainNet viewer in MATLAB.²⁸ The principal eigenvector timeseries vector was extracted from pre-processed fMRI scans with the assistance of ROI mask overlays. This generated 162 individual ROI text files per subject that contained L2-normalized resting state signals as a vector of 300 data points. The timeseries files were used in cross-correlations and in calculations of Pearson r coefficients for every pairwise combinations of ROIs (1dCorrelate in AFNI). The resulting number of pairwise correlations was 12 879 per subject (after removing 162 self-correlations). Correlation coefficients were imported to MATLAB and Fisher’s transform applied to ensure a normal distribution of z-values prior to analyses.

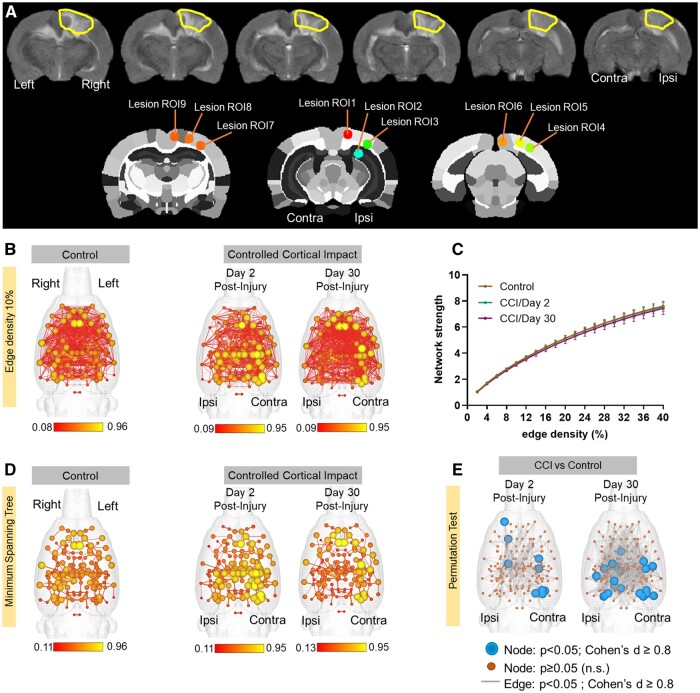

Figure 3.

Nodes in cortical regions contralateral to the controlled cortical impact (CCI) site show a significant increase in connectivity strength at Days 2 and 30 post-injury. (A) A representative T₂ anatomical scans highlighting the extent of cortical injury with CCI in the right hemisphere. Lesion ROIs were generated in CCI regions to capture resting state signals from the injury site and homologous contralateral representations. (B) 3D functional connectome maps at 10% edge density for control and CCI rats imaged 2- and 30-days post-injury. Scale bars are edge weights. (C) Overall graph strength did not different between groups. Data are mean ± standard error at 10% edge density. (D) Minimum spanning tree for same networks in B, illustrating strongest weighted pairwise correlations. (E) Network statistical maps comparing nodal strength and edge weights between CCI Day 2 or Day 30 and controls (randomization test, 10 000 permutations; blue nodes have P < 0.05 and Cohen’s d ≥ 0.08, orange nodes are non-significant, and grey lines P < 0.05).

Analysis of functional network graph properties

Details of network analysis and formal descriptions of graph metrics are published.²¹ Briefly, weighted matrices were analysed with Brain Connectivity Toolbox²⁹ and MATLAB. Global graph metrics were calculated for edge density thresholds ranging from 2 to 40%. Node-specific network measures were calculated at a 10% threshold. Node strength was assessed at the individual node level and globally at the graph level to investigate how CCI affected functional connectivity strength. Node strength is the sum of edge weights per node. The average node strength for all edge connected nodes is the network strength.

A probabilistic approach for community detection was applied to calculate a modularity statistic (Q), which indexes the rate of intra-group connections versus connections due to chance.³⁰ The procedure starts with a random grouping of nodes and iteratively moving nodes into groups which maximize the value of Q. The final number of modules and node assignments to each group (e.g. community affiliation assignments) was taken as the median of 1000 iterations of the modularity maximization procedure.²¹ The number of communities per rat, population size of each community and mean participation coefficient, eigenvector and betweenness centrality of the top four-most populated communities were assessed.

The participation coefficient was used to assess within-module nodes with different levels of participation in connections with nodes in other modules. The calculated participation coefficient (PC) values were classified according to published node cartographic assignments: PC < 0.05 are ultra-peripheral (UP), 0.05 < PC < 0.62 are peripheral (PC) nodes, 0.62 < PC < 0.80 are non-hub connectors and PC > 0.80 are non-hub kinless.³¹ The presence of highly influential nodes and nodes at the intersection between shortest paths was determined through calculations of betweenness and eigenvector centrality. Nodes with high betweenness centrality are present along many shortest paths between any pair of nodes in a network.³² Nodes with high eigenvector scores are connected to other high centrality nodes and are considered highly influential within a network.³³

We next analysed the tendency of assortative versus dissortative mixing of nodes.³⁴ The assortativity index is a Pearson correlation coefficient comparing node strength values between pairs of edge-connected nodes. Positive r-values indicate connectivity between pairs of nodes with similar strengths (e.g. high strength nodes pairs with high and low with low), while negative r-values indicate cross-pairings between low and high strength nodes. We also generated and analysed weighted rich club coefficient curves (Φ_w) at an edge density of 10%.³⁵ Nodes belonging to a rich club subnetwork have an above-chance tendency to tightly connect with each other and share the bulk of connections within the network.^35,36 The approach creates subgraphs containing nodes with strength values at a predetermined degree value, k. For each k-level subgraph, Φ_w is calculated as the ratio of the sum of edge weights that connect nodes of degree k or higher (W_>k) to the total possible number of summed weights³⁶:

$${\mathrm{\Phi }}_w\left(r\right)=\frac{W>k}{{\sum }_{l=1}^{E > r}{w}_1^{\mathrm{rank}}}$$

To assess network integration and efficiency, we analysed the clustering coefficient (CC; an index of the number of connected neighbours of a node),³⁷ characteristic path length (CPL; the lowest average number of edges between node pairs) and the small world coefficient (which is >1 for efficient small world networks).³⁸ Global efficiency was determined as the average inverse of CPL. Edges were randomly swapped 10 times to generate randomized graphs, preserving original degree and strength distributions.^29,39 Small world index was then calculated as the ratio of lambda to gamma coefficients, where lambda is the ratio of real to random network CC, and gamma is the ratio of real to random network CPL.⁴⁰

Functional connectivity network visualizations

Functional connectivity networks were visualized in BrainNet viewer.²⁸ Center coordinates for each ROI were generated based on parcellations on a previously published rat brain template.²⁶ A 3D whole brain surface mesh file of the rat brain template (in *.byu format) was generated using an image binarization command in FSL (fslmaths)²⁴ and mesh construction tools in ITKSNAP.⁴¹ Several 3D brain maps were generated. A first series of connectivity strength maps were produced with the size of nodes (spheres) weighted by node strength and the edges (lines connecting node pairs) weighted by the Pearson coefficient between pairs of nodes (non-thresholded to show all edges at 10% density). Additional maps were generated with node and edge colours representing the module assignment (e.g. community affiliation vector) and node size weighted by eigenvector centrality scores or participation coefficient values.

Statistical analysis

Statistical analyses and data plotting were carried using MATLAB and GraphPad Prism 9. Two-tailed permutation tests (10 000 randomized inter-group data point swaps) were used to compare data from controls to each of the CCI groups.^42,43 Significant differences between groups were considered for P-values < 0.05 and an effect size equal to or greater than 0.8 (large to very large effect size range).⁴⁴ For nodal metrics and pairwise edge comparisons, false discovery rate (FDR) adjustments to P-values were carried out using the Benjamini–Hochberg linear step-up procedure.⁴⁵ We should note, however, that network metrics, particularly across individual spatially distributed nodes, can be highly correlated due to the physical proximity between certain nodes in the brain and because of inherent correlative structure produced by the Pearson r-values used as edge weights. Familywise and even FDR P-value corrections in spatial/anatomical data points that rely on correlated measures (e.g. shared signal components across multiple regional data points) can thus significantly reduce power. Thus, FDR adjusted P-values are reported along with uncorrected permutation test P-values and effect sizes, although the latter two criteria for significance are used here. For global graph metrics, P-values for repeated tests over different edge-density thresholds were adjusted using a Bonferroni–Holm (BH) procedure.^46,47

Data availability

All raw or processed image data sets are available upon request to the corresponding author. Acknowledgement of the funding support for the study leading to the collection of the MRI data and reference to the original published study will be requested.

Results

Structural differences between control and CCI rats

Brain structural differences between control and CCI rats were observed, even after non-linear warping of each anatomical scan to a reference anatomical template. Figure 2 (top) shows group-averaged normalized (log) Jacobian transformation images of control and CCI Day 2 and Day 30 rats. Tissue volumetric stretching (expansion) changes relative to the template are noted in yellow-to-red intensity colours and shrinking (contractions) in light-to-dark blue. On average, the control group shows expansion of the cortical mantle along with modest increases in callosal white matter and underlying subcortical (thalamic) areas. The intensity of the observed structural increases differed in CCI rats, particularly at Day 2 post-injury. CCI Day 2 rats had on average, less cortical expansion and greater subcortical expansion, with some contraction of white matter structure (splenium of the corpus callosum). Structural differences between CCI Day 2 and controls were less intense in CCI Day 30 rats (Fig. 2, top).

Figure 2 (bottom) shows representative anatomical images of four CCI rats on Day 2s and 30, which were registered to the anatomical template. The CCI epicentre sustained significant localized cortical damage across subjects on Day 2, which appeared to expand below the cortex to underlying white matter and ventrally towards ipsilateral dorsal hippocampal and thalamic areas, similar to previously reported in histological assessments.⁴⁸ The structural differences between the control and CCI groups were partly, but not completely, corrected by the symmetric normalization warping. Areas outside the CCI epicentre, including contralateral structures, appeared well aligned to the template and its accompanying parcellation.

Contralesional increases in node strength were observed on Days 2 and 30 post-CCI

Figure 3B shows 3D functional connectome maps of control (n = 23) and CCI groups (Day 2 n = 23 and Day 30 n = 8). Compared to controls, individual nodes on the contralateral hemisphere to the CCI site had greater mean node strength values on both Days 2 and 30. Visualization of this effect is enhanced in minimum spanning tree maps in Fig. 3D. In addition, reductions in node strength were observed at the ipsilateral CCI area on Day 30. When averaged across the entire brain, the local differences in node strength were not significantly different at a network-wide level (Fig. 3C). However, differences between control and CCI groups were supported by two-tailed permutation t-tests (Fig. 3E). In Fig. 3E, blue spheres indicate areas of significant differences in node strength between CCI and control rats (P < 0.05, Cohen’s d ≥ 0.8). These areas of significant differences compared to control group were largely present in contra-lateral cortex on Day 2 but included ipsilateral structures on Day 30 post-CCI. Differences in edges were also investigated between control and CCI groups and these are highlighted as grey connections between nodes in Fig. 3E (P < 0.05, Cohen’s d ≥ 0.8). We observed a higher density of significantly different edge weights between control and CCI 30 than in Day 2 CCI rats.

Node strength values were compared between control and CCI groups at an edge density threshold of 10% (Fig. 4). On Day 2, CCI rats had greater node strength than controls in the contralateral secondary visual cortex (t = −3.0, P = 0.003, FDR = 0.08, d = −0.89), ventral subiculum (t = −2.8, P = 0.006, FDR = 0.07, d = −0.82), globus pallidus (t = −3.0, P = 0.003, FDR = 0.13, d = −0.89), ventroposterolateral thalamic nucleus (t = −3.0, P = 0.004, FDR = 0.06, d = −0.87) and lesion nodes 4 and 5 (t = −3.2, P = 0.002, FDR = 0.16, d = −0.94 and t = −3.0, P = 0.003, FDR = 0.07, d = −0.89, respectively), which correspond to different subregions of the primary visual cortex (Fig. 4A and C). On Day 2, CCI rats had lower node strength than controls in ipsilateral lateral orbital cortex (t = 2.8, P = 0.006, FDR = 0.08, d = 0.82), olfactory tubercle (t = 2.7, P = 0.007, FDR = 0.07, d = 0.80) and laterodorsal thalamic nucleus (t = 2.8, P = 0.005, FDR = 0.08, d = 0.84) (Fig. 4A and C).

Figure 4.

Left hemisphere regions contralateral to the CCI location show increases in node strength at Day 2 post-injury, and ipsilateral nodes reductions in node strength. (A) Node strength differences in several cortical and thalamic regions on Day 2 post-injury. (B) Effect sizes for the differences between control and Day 2 CCI are shown in the bottom graph. (C) Node strength differences in several cortical and thalamic regions on Day 30 post-injury. (D) Effect sizes for the differences between control and Day 30 CCI are shown in the bottom graph. Significant difference between control and CCI Day 2* or Day 30**, P < 0.05 (permutation test) and Cohen’s d ≥ 0.80. Data in bar plots in the top row are mean ± standard error at 10% edge density. BF, barrel field; CA2, hippocampal CA2 area; GP, globus pallidus; L, left; Lorb, lateral orbital cortex; LD, laterodorsal; Les1–5, lesion areas 1–5; OlfTub, olfactory tubercle; preMM, pre-mammillary nucleus; PAG, periaqueductal grey; R, right; SSC1, primary somatosensory cortex; Sh, shoulder; Thal, thalamus; VIS2, secondary visual cortex; VIS1, primary visual cortex; VSUB, ventral subiculum; VPL, ventroposterolateral; VM, ventromedial.

On Day 30, CCI rats had greater node strength than controls in contralateral primary somatosensory cortex barrel field (t = −2.3, P = 0.04, FDR = 0.30, d = −0.97) and shoulder/limb regions (t = −2.7, P = 0.02, FDR = 0.28, d = −1.51), primary visual cortex (t = −2.4, P = 0.03, FDR = 0.26, d = −1.17) and lesion node 5, which correspond to a different subregion of primary visual cortex (t = −2.6, P = 0.02, FDR = 0.27, d = −1.27). Increased node strength was also observed in ipsilateral premammillary nucleus (t = −2.2, P = 0.046, FDR = 0.30, d = −1.03) (Fig. 4B and D). On Day 30, CCI rats had lower node strength than controls in ipsilateral primary visual cortex (t = 3.2, P = 0.007, FDR = 0.43, d = 0.94), hippocampal CA2 (t = 2.6, P = 0.02, FDR = 0.25, d = 0.93), periaqueductal grey (t = 3.5, P = 0.003, FDR = 0.46, d = 0.92), laterodorsal thalamic nucleus (t = 3.2, P = 0.007, FDR = 0.30, d = 0.94), ventromedial thalamic nucleus (t = 2.9, P = 0.01, FDR = 0.34, d = 0.87), ventroposterolateral thalamus (t = 2.8, P = 0.02, FDR = 0.31, d = 0.82) and lesion nodes 1 and 5, which correspond to different subregions of the primary visual cortex (t = 2.8, P = 0.02, FDR = 0.34, d = 0.90; t = 2.3, P = 0.04, FDR = 0.29, d = 0.80) (Fig. 4A and C). In summary, on Day 2 post-injury there are mostly contralateral increases in node strength, whereas both contralateral increases and ipsilateral decreases are observed on Day 30.

Increased modularity and segregation of ‘hub-like’ nodes at 2 days post-injury

In addition to examining the strength of connectivity between individual nodes, we investigated the organization of functional connectivity in control and CCI groups (Fig. 5). We observed a significantly greater modularity index in CCI Day 2 rats versus controls. This increase was significantly different relative to control group for edge density values of 6–40% (t = −2.7 to −4.0, P = 0.009–0.00001, BH = 0.03–0.002, d = −0.79 to −1.17). No differences in modularity were observed between controls and CCI rats imaged 30 days post-injury (Fig. 5A). In addition, no differences between the groups were observed in the size of the largest module (Fig. 5B). However, the total number of detected modules was lower in CCI Day 2 rats compared to the control group (Fig. 5C). This was significant for edge density threshold values of 12% (t = 2.7, P = 0.009, BH = 0.14, d = 0.80), 14% (t = 2.8, P = 0.005, BH = 0.01, d = 0.83), 18% (t = 2.8, P = 0.007, BH = 0.12, d = 0.81), 20% (t = 3.6, P = 0.0005, BH = 0.01, d = 1.06) and 24% (t = 2.9, P = 0.004, BH = 0.08, d = 0.84).

Figure 5.

Controlled cortical impact increased network modularity and node eigenvector centrality. (A) Modularity index at edge densities from 2 to 40%. Modularity index is significantly higher in CCI Day 2 post-injury relative to control rats. (B) Size of the largest detected module at edge densities from 2 to 40%. No differences in the size of the largest module. (C) Number of detected modules at edge densities from 2 to 40%. The mean number of detected modules was lowest for CCI Day 2 post-injury rats. (D) 3D connectome maps of node eigenvector centrality across modules. colour coding represents modular group. (E) Eigenvector centrality (EigC) scores averaged per each module ranked from largest to smallest (1st to 4th) according to number of nodes in each module. No differences between the groups in eigenvector centrality scores across the top four largest modules. (F) Eigenvector centrality scores averaged across nodes in the contralesional and ipsilesional cortex. Compared to control rats, CCI Day 2 rats had higher eigenvector centrality and CCI Day 30 rats lower scores. (G) Betweenness centrality scores averaged across nodes in the contralesional and ipsilesional cortex. No differences in betweenness centrality. (H) Eigenvector centrality per node (x) ranked across all nodes (node x). Eigenvector centrality scores were generally lowest in CCI Day 2 rats compared to controls. (I) Betweenness centrality per node (x) ranked across all nodes (node x). No differences in betweenness centrality were observed. Significant difference between control and CCI Day 2* or Day 30**, P < 0.05 (permutation test) and Cohen’s d ≥ 0.80 (P-values in A and C adjusted using a Bonferroni–Holm procedure). Data in line plots in A–C are mean ± standard error at edge density thresholds from 2 to 40%. Data in bar plots in F–G and line plots in H–I are mean ± standard error at 10% edge density.

Figure 5D shows 3D connectome maps with node sizes scaled by eigenvector centrality scores (edge density 10%). In CCI Day 2 rats, nodes in the contralateral cortex had the highest eigenvector centrality values (light blue) compared to nodes in the same anatomical location in control rats, whereas bilaterally located nodes in frontal cortical and basal forebrain areas (red nodes) had the lowest. In CCI Day 30 rats, nodes in the ipsilateral cortex had the lowest eigenvector centrality values, whereas nodes in frontal cortical and basal forebrain areas were similar to controls. We examined the mean eigenvector centrality values for all nodes contained in each module (Fig. 5E). No differences between control and TBI groups were observed in eigenvector centrality scores across the different modules. We next examined the mean eigenvector and betweenness centrality values for all nodes forming part of the ipsi- and contralateral lesion sites (Figs. 3A and 5F–I). Contralesional nodes had significantly higher eigenvector scores in CCI Day 2 rats compared to controls (t = −2.5, P = 0.02, d = −0.72) (Fig. 5F). CCI Day 30 rats showed a similar but non-significant trend in the contralesional cortex (t = −1.7, P = 0.08, d = −0.74). On Day 30 post-CCI, rats had lower ipsilateral cortex eigenvector scores compared to controls (t = 2.96, P = 0.02, d = 1.01) (Fig. 5F). Eigenvector centrality scores trended lower in CCI Day 2 rats compared to control rats although this did not reach statistical significance. No differences in betweenness centrality were observed between the groups (Fig. 5G and I).

Figure 6A shows 3D connectome maps with node sizes scaled by the participation coefficient value (edge density 10%). In CCI Day 2 rats, nodes in frontal cortical and basal forebrain areas had low participation coefficient values compared to the same nodes in control rats (Fig. 6A, red coloured nodes middle 3D map compared to left 3D map). In CCI Day 30 rats, nodal participation coefficient values resembled those of control rats (red coloured nodes in 3D map on right). We assessed the mean participation coefficient for all nodes contained in each module (Fig. 6B). Compared to controls, nodes in the largest module of CCI Day 2 rats had significantly lower participation in cross-modular connectivity (t = 3.4, P = 0.001, BH = 0.006, d = 0.99). We also determined the mean participation coefficient for all nodes in the ipsi- and contralateral lesion sites (Fig. 6C). Participation coefficient values of contralesional nodes were not different from controls, although a trend towards reduction in CCI Day 2 rats was observed (t = 1.8, P = 0.07, d = 0.53) (Fig. 6C). Nodes in the ipsilateral cortex, however, had lower participation coefficient values in CCI Day 2 rats compared to controls (t = 3.1, P = 0.005, d = 0.90). This difference was not observed on Day 30 post-injury. Nodal classification based on the participation coefficient did not differ between groups (Fig. 6D).

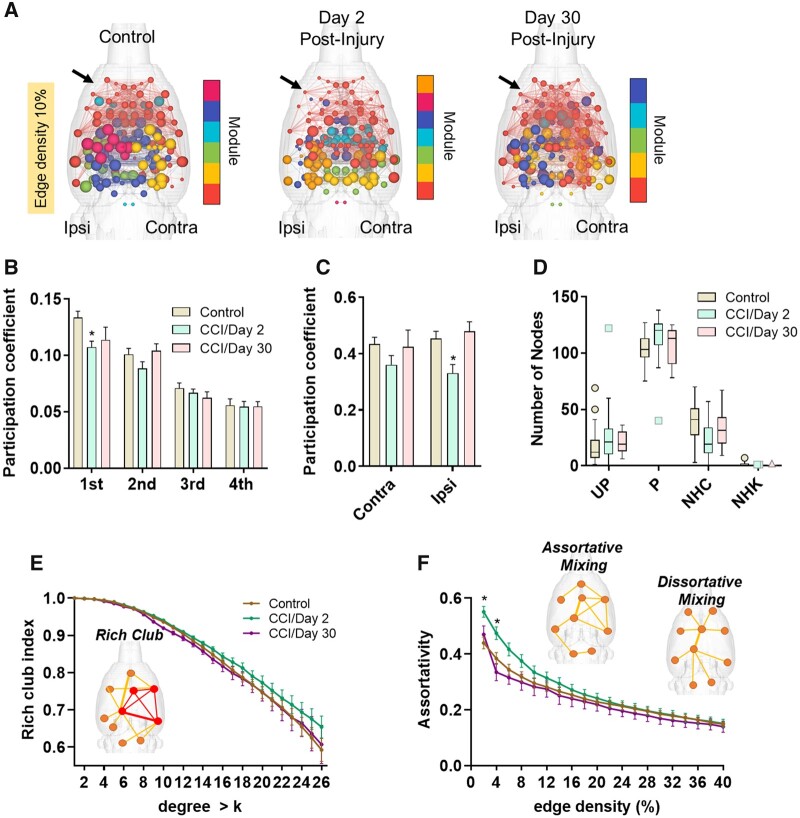

Figure 6.

Controlled cortical impact reduced node participation coefficient. (A) 3D connectome maps showing node participation coefficient across modules. Colour coding represents modular grouping of nodes and node size scaled by participation coefficient. (B) Participation coefficient averaged per each module ranked from largest to smallest (1st to 4th) according to the number of nodes in each module. Participation coefficient in the largest module (1st) is reduced in CCI Day 2 post-injury relative to control rats. (C) Participation coefficient in the ipsilateral cortex is reduced in CCI Day 2 post-injury relative to control rats. (D) Node cartographic classifications, including ultraperipheral (UP), peripheral (P), non-hub connector (NHC) and non-hub kinless (NHK). (E) Rich club index. (F) Assortativity index. Positive assortativity was higher in CCI Day 2 rats compared to controls. Significant difference between control and CCI Day 2* or Day 30**, P < 0.05 (permutation test) and Cohen’s d ≥ 0.80 (P-values in A and C adjusted using a Bonferroni–Holm procedure). Data in bar plots in B–C are mean ± standard error and in data in D is Box–Whisker plots with 95% confidence bands (at 10% edge density).

Finally, differences in rich club organization and the degree of assortative mixing of nodes were both assessed (Fig. 6E and F, respectively). Owing to the observed increase in contralateral node strength in the TBI groups (Fig. 3E) and increased contralateral eigenvector centrality in Day 2 CCI rats (Fig. 5F), we anticipated similar increases in how high strength nodes interact with other high strength versus low strength nodes. Although we did not observe any group differences in the rich club index (Fig. 6E), we observed a significant increase in assortativity index in CCI Day 2 rats compared to controls (Fig. 6F) (2%: t = −3.9, P = 0.0004, BH = 0.007, d = −1.15; 4%: t = −2.9, P = 0.005, BH = 0.10, d = −0.86, 6%: t = −2.4, P = 0.005, BH = 0.35, d = −0.71). No differences between control and CCI groups in the small world index, global CC and average CPL were observed (Fig. 7).

Figure 7.

No differences in small world index, clustering coefficient and mean characteristic path length were observed between control and CCI rats. Left, small world index. Middle, clustering coefficient. Right, characteristic path length. Data are plotted as mean ± standard error at edge densities from 2 to 40%.

Discussion

Our data indicate that focal injury to the rat cortex resulted in increased node strength in the contralesional hemisphere at Days 2 and 30 post-injury. The right-hemispheric regions affected by the CCI injury include large portions of the medial and lateral parietal association cortex, the retrosplenial cortex medially, sections of the primary and secondary motor cortex and trunk somatosensory cortex rostrally and medial and lateral secondary visual cortex caudally. At 30 days post-CCI, we observed significant reductions in node strength in ipsilateral cortex. The brain regions showing node strength differences between CCI and control rats included cortical nodes in or adjacent to the CCI foci (e.g. visual cortical and somatosensory areas) and structures directly ventral and ipsilateral to this region (e.g. thalamic nuclei, hippocampus, PAG) and contralateral homotopic cortical regions.

In addition to node strength, we assessed network modular organization and node centrality. The grouping of nodes into segregated functional units or modules is a salient characteristic of structural and functional brain networks and is highly conserved across various species.^49–55 This graph metric of network segregation has been shown to be disrupted in TBI patients¹⁴ and is responsive to cognitive training.⁵⁶ In this study, we observed that rats imaged 2 days after CCI had increased modularity. The CCI Day 2 rats had populations of nodes with either low or high eigenvector centrality scores that were segregated into different modules. High centrality scores were observed in modules with nodes located at or near the contralesional cortex. Low centrality scores were observed in modules with nodes anatomically more distant from the injury site. This segregated pattern of low and high centrality nodes is consistent with an observed increase in positive assortative mixing of nodes in CCI Day 2 rats. Adding to this segregation of high and low influence nodes was a reduction in node participation in cross-module interactions (reduced participation coefficient) in CCI Day 2 rats. These findings suggest that in early stages post-CCI there is transient network topology involving increased functional specialization of separate pools of high and low influence nodes within highly self-contained modules. This network topology appears unfavourable to neuronal communication and to the ‘binding’ of separate streams of information. By Day 30 post-injury, nodes in the injury epicentre had lower eigenvector centrality scores compared to control rats, perhaps due to ongoing loss of influence of lesioned structures on overall network topology. However, cross module interactions and assortative mixing did not differ from control rats—suggesting partial recovery.

There are a growing number of clinical TBI studies that use graph theory analytical methods to investigate functional network topology. Nakamura et al. were among the first to demonstrate the value of graph theory metrics as potential biomarkers of TBI progression. They imaged 6 subjects over the course of 3- and 6-months post-injury and observed significant reductions in node strength and graph sparsity.⁵⁷ The small cohort of patients had varying lengths of hospitalization, age, gender and location of contusions, but all participants had an initial (e.g. 24 h) Glascow Coma Score of 3–8, in the severe range. Compared to controls and to the 6-month timepoint of recovery, at 3-months of recovery TBI patients had shorter CPL, increased global and local efficiency, and reduced small worldness at a graph sparsity of 50%.⁵⁷ At 6-months post-trauma, mild TBI patients suffering from post-concussion syndrome had reduced modularity compared to controls and this was correlated with symptom severity.⁵⁸ Consistent with the present work in rats, patients exposed to blast-related mild TBI had lower participation coefficient values compared to non-TBI controls that also experienced blasts.¹⁴ Interestingly, reductions in nodal participation in cross-module interactions was most severe within the early timepoint of 90 days post-blast compared to subsequent imaging sessions at 6- and 12-month follow-up.¹⁴ This suggests that cross-modular functional connectivity returns over the course of recovery and the participation coefficient calculation is responsive to these network level changes.

At approximately 8 years after injury, chronic TBI patients had significantly lower connectivity within default mode and frontoparietal control networks (DMN and frontoparietal control network, respectively), and reduced connectivity of these two networks with the dorsal attention network.⁵⁹ At a graph sparsity threshold greater than in the above cited work by Nakamura et al.,⁵⁷ TBI patients had significantly reduced network efficiency.⁵⁹ Decreased local efficiency and degree centrality were also reported in mild TBI follow imaging visits at 3 months post-injury, with regions of the DMN being most affected.⁶⁰ This is consistent with moderate and severe TBI patients 1-year post-injury, which had lower local integration (lower CC) and higher CPL (less efficiency) compared to controls,⁶¹ and with mild TBI patients imaged within 10 days which showed increased node strength and CPL.⁶² These clinical mild TBI studies agree for the most part that functional connectivity networks of patients have high CPLs (low efficiency), increased node strength, lower local integration (low clustering). In addition, communication between large functionally specialized groups of nodes (such as DMN, frontoparietal control network and dorsal attention network) is disrupted in TBI patients. Our data in the rat CCI model can be considered severe early stage TBI, with a limited analysis across the lifespan of young adult rodents. Nonetheless, our results are in general agreement with increased functional specialization, increased strength of connectivity and reduced cross module communication in early TBI, which is partially recovered by 30 days. It should be noted that variations across studies may be due to the variability of brain injury across individuals and differences in short- and long-term TBI effects (e.g. location, extent or magnitude of damage, neurological and neuropsychiatric sequelae, age, etc.). In addition, assumptions in the initial steps in network processing such as the choice threshold (graph sparsity) or whether to threshold or not (use individual graph sparsity) can produce different results across laboratories. In some cases, low thresholds that allow the inclusion of weaker edges (much lower Pearson r values) or edges with negative values can lead to spurious results.

Compared to clinical studies, there have been fewer animal fMRI studies of TBI, particularly studies focused on analysing network interactions following controlled focal or diffuse injury. This might be due to concerns over the inability of fMRI connectivity measurements to disambiguate changes in neurovascular coupling from frank neuronal or synaptic deficits, and valid concerns regarding the confounding effects of anaesthetics and sedatives used for functional imaging of rodents. Apart from these important issues, the experimental use of methods that allow well-controlled site-specific lesions and diffuse injuries offers an opportunity to investigate network metrics as potential functional brain biomarkers of TBI. This is illustrated in a within-subjects imaging study in the CCI rat model by Harris et al.⁵⁹ Rats were imaged in a 7 T MR scanner under continuous medetomidine sedation during baseline conditions (pre-injury), and at 7-, 14- and 28-days post-injury. Their results indicated a significant increase in global node strength, which is consistent with reports of hyperconnectivity in TBI patients.⁶³ Consistent with our present findings, CCI rats had significantly increased node strength in contralesional cortex and reduce strength in ipsilateral cortex. In terms of topological changes over time, they report decreases in CPL, increased efficiency, consistent with initial work in TBI patients by Nakamura et al.⁵⁷ Their data also showed increased global network clustering and transiently reduced modularity index (on Day 7 compared to pre-injury), which is consistent with diffusion MRI based tractography studies in the closed head weight drop model in mice.⁶⁴ We did not observe differences in weighted CC between the groups (in our between-subjects design), but we did observe a similar but non-significant trend towards increased global transitivity and binarized CC in CCI Day 2 rats compared to controls (data not shown). A limitation regarding comparisons between rodent TBI studies and human TBI should be noted. Namely, as noted above there is substantial evidence that in human TBI functional systems such as DMN, FPN and dorsal attention network sustain long-term impairments in connectivity,⁵⁹ while in rat models the damage seems restricted to the type of TBI model used and the impacted region. The functional deficits in DMN, FPN and dorsal attention network implies that in human TBI network-specific deficits may develop overtime whereas in rats recovery is driven by changes in the region originally injured.

Differences between the Harris et al. study⁵⁹ and the present study are perhaps due to the experimental design (e.g. mild to moderate TBI in Harris et al. versus a more severe contusion model used in the present study) and/or methods (alpha-2 agonist sedative-hypnotic versus light general anaesthesia). Also, the independent use of either a within-subjects versus a between-subjects design limits interpretations between studies. Within-subjects design are highly robust in terms of tracking individual, subject-specific changes over time and over the course of disease progression and recovery. However, experience-dependent changes can also confound interpretations when between-subjects control comparisons are not included in the study. This point is in part illustrated in previous imaging work by Orsini et al. ⁶⁵ and Colon-Perez et al.,⁶⁶ which used a combination of both within- and between-subjects comparisons and observed changes over the course of several imaging sessions that were separated by weeks. In Orsini et al.,⁶⁵ while drug treatment was observed to lead to increases in functional connectivity (when comparing pre- to post), these changes were not specific to the drug and were observed with a natural reward given for the same amount of time. In addition, baseline control groups receiving no treatment over the course of the 3 imaging sessions still showed differences when compared to baseline imaging session.⁶⁵ In Colon-Perez et al.,⁶⁶ the inclusion of an untrained group of rats functionally imaged at the same timepoints as aged and young rats that underwent cognitive training was necessary to demonstrate that in fact training increased rich club organization and node strength.⁶⁶ Thus, there are gains in statistical power by including a mixed between/within-subjects multisession imaging design in TBI research in animal models. There have been other significant functional imaging studies in animal models of TBI. These have focused on traditional seed-based functional connectivity but did not examine functional network topology.^15,18,67

The graph-theory results obtained in the rat TBI model used in this study are likely to be related to underlying changes in excitatory–inhibitory neuron balance in deep layer cortical circuits at the site of injury and changes in neurovascular coupling as a result to trauma to cortical vessels. Reductions in node strength at the injury epicentre could involve both vascular and neuronal damage and slow recovery of function. Increased node strength in contralesional cortex may involve increases in underlying synchronous BOLD activity. This increase in node strength and synchronous activity may drive much of the differences in modular organization, cross modular communication and high eigenvector centrality of contralesional nodes between CCI Day 2 compared to control rats. Evidence of cellular and neurophysiological links to stimulus-based BOLD hyperexcitability in contralesional cortex of CCI rats have been previously reported.¹⁹ Hypoexcitability in ipsilateral cortex has been demonstrated for up to 56 days in the FPI rat model.¹⁷ Glutamatergic hyperexcitability involved in TBI-induced epileptiform activity was shown in the CCI injured rat cortex (at 2–4 weeks post-injury) and was observed to spread to adjacent regions, an effect associated with loss of GABAergic control.^48,68 In mice, CCI reduced GABAergic cell counts in the ipsilateral dorsal and medial hilar of the hippocampal dentate gyrus and reduced inhibitory post-synaptic currents were observed as early as 1 week and for as long as 13 weeks.⁶⁹ Under control conditions (non-TBI), transcallosal fibres, which in adults are almost exclusively comprised of glutamatergic projections, exert inhibitory control over contralateral primary sensory receptor fields.^70–73 Ipsilateral reductions in neuronal activity have been observed to widen contralateral neocortical receptive fields, possibly by reducing transcallosal cross-hemispheric inhibitory control.⁷² Contralateral cortical BOLD increases in response to limb stimulation in rats is accompanied by ipsilateral BOLD signal reductions.⁷⁴ These separate lines of evidence suggests that reductions in the influence of neuronal populations in the ipsi-lesioned cortex can remove these transcallosal inhibitory control inputs over the contralateral cortex. The microcircuit mechanism may involve transcallosal glutamatergic projections that synapse onto contralaterally located GABAergic neurons. While most callosal inputs terminate in layer 2/3 pyramidal neurons, these also terminate on soma and dendrites of parvalbumin positive GABA interneurons in deep neocortical layer 6.⁷⁵ These neurons are thought to play a key role in synchronization of thalamocortical loops.⁷⁵ Loss of transcallosal glutamatergic inputs may therefore lead to decrease excitability of GABA cells and result in pyramidal overexcitation of the contralateral cortex. This could partly explain the observed compensatory increases in functional connectivity and reorganization of hub nodes. Spontaneous outputs from these disinhibited pyramidal cells can lead to downstream plasticity related changes in neuronal activity, as observed in peripheral sensory deprivation models.^73,76

We should indicate that although neocortical changes in GABA and glutamatergic excitability can play a role in brain wide changes in functional connectivity in TBI, mechanisms involved in neurovascular coupling are also likely important.^77–79 Loss of synchrony in BOLD could reflect underlying changes in neurovascular coupling, particularly with the occurrence of gliosis and astrocytic changes in the injury epicentre. The neuronal and cerebrovascular/hemodynamic mechanisms contributing to the observed increases in contralesional node strength, and the alterations in modularity and ‘hub’ node organization, warrant future investigations. It is important to point out several limitations of the present work, which will be pursued in future research. First, multimodal imaging, including diffusion MRI, T₂* parametric mapping and cerebral blood flow measurements were not included in the present work and these specific imaging modalities are important to validate results obtained with fMRI. Second, correlations between graph theory metrics and behavioural assessments, such as cognitive tasks or measurements of anxiety like behaviours will be important to include in future studies. Network assessments in TBI animal models opens the door to establishing mechanistic links between graph theory metrics and underlying neuronal, glial and vascular mechanisms, and behaviour. Understanding the mechanisms of these and other reported connectomic changes following TBI can help with therapeutic interventions that use functional connectomic readouts as indices (biomarkers) of recovery or treatment efficacy.

Funding

This study was funded by a National Institute on Neurological Disorders and Stroke grant (UG3 NS106938) to K.K.W. The contents of this manuscript are solely the responsibility of the authors and do not necessarily represent the official views of the funding agencies. This work was performed in the McKnight Brain Institute at the National High Magnetic Field Laboratory’s AMRIS Facility, which is supported by National Science Foundation Cooperative Agreement No. DMR-1644779 and the State of Florida.

Competing interests

The authors have no competing interests to declare.
