Molecular Detection of Alpha Thalassemia: A Review of Prevalent Techniques

Abstract

Alpha thalassemia (α-thalassemia) is an autosomal recessive disorder due to the reduction or absence of α globin chain production. Laboratory diagnosis of α-thalassemia requires molecular analysis for the confirmatory diagnosis. A screening test, comprising complete blood count, blood smear and hemoglobin quantification by high performance liquid chromatography and capillary electrophoresis, may not possibly detect all the thalassemia diseases. This review focused on the molecular techniques used to detect α-thalassemia, and the advantages and disadvantages of each technique were highlighted. Multiplex gap-polymerase chain reaction, single-tube multiplex polymerase chain reaction, multiplex ligation-dependent probe amplification, and loop-mediated isothermal amplification were used to detect common deletion of α-thalassemia. Furthermore, the reverse dot blot analysis and a single tube multiplex polymerase chain reaction could detect non-deletion mutation of the α-globin gene. Sanger sequencing is widely used to detect non-deletion mutations of α-thalassemia. Recently, next-generation sequencing was introduced in the diagnosis of both deletion and point mutations of α-thalassemia. Despite the advantages and disadvantages of different techniques, the routine method employed in the laboratory should be based on the facility, expertise, available equipment, and economic conditions.

Introduction

Red blood cells (RBCs) primarily function to transport oxygen to all parts of the body tissue, with hemoglobin (Hb) being its main component. Adult hemoglobin (Hb A) is a tetrameric protein that consists of two alpha (α) and two beta (β) globin chains, each comprising a pocket containing the haem group for oxygen binding¹. Haem is a ring-like organic compound known as porphyrin, to which an iron atom is attached. Oxygen molecules will bind to the iron atom. Therefore, each Hb will carry four oxygen molecules². The globin genes are located in two separate gene clusters on different chromosomal loci¹. The α-like and β-like genes are located on chromosomes 16 and 11 respectively³, as shown in Figure 1. The genetic defect in these globin genes will lead to either the reduction or absence of α-chain or β-chain production. The α-like gene cluster is close to the telomere of chromosome 16 (16p13.3), which includes an embryonic gene (ζ) and two foetal/adult genes arranged along the chromosome surrounded by widely expressed genes⁴. These globin gene disorders (hemoglobinopathies) are characterized either by the production of abnormal globin chain variants (like sickle cell anaemia), or reduced globin chain synthesis (thalassemia) during hematopoiesis⁵.

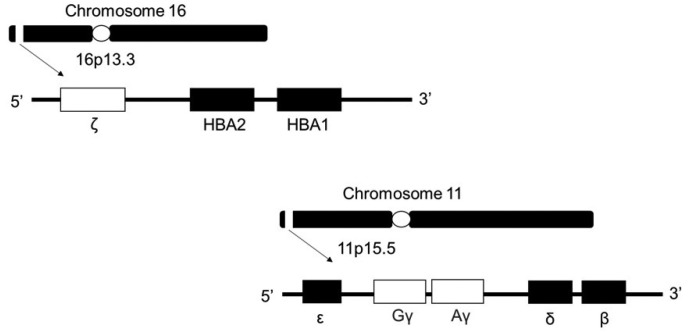

Figure 1.

Schematic diagram of the chromosomal location of α and β gene.

Alpha-thalassemia (α-thalassemia) has a complex genetic inheritance because the disorder involves HBA1 and HBA2 genes⁶. There are four functional α-globin genes in a normal individual⁷ and each individual inherits two α-globin alleles from each parent⁸. Deletion of one or both α-gene from chromosome 16 occurs in 95% of cases, which results in the reduction of α-globin chain expression⁹. Besides, this mutation will decrease the RNA synthesis, processing, or stability, leading to protein synthesis reduction¹⁰. The minority cases occur due to point mutations, resulting in severe clinical presentation¹⁰. In fetus, the defective production of α-chains is reflected by the presence of excess γ-chains, which form γ4 tetramers, which is called Hb Bart’s. In adults, excess β-chains form β4 tetramers, which is known as Hb H¹¹. Figure 2 shows the phenotypic expression and types of α-thalassemia. The severity of α-thalassemia depends on the number of missing alleles that are inherited from the parents. In some rare conditions, large deletions in 16p13.3 will cause the removal of α globin genes, and many other genes located around the related gene cluster will result in ATR16 syndrome, OMIM: 141750. The individual with this syndrome will have α-thalassemia because the α genes are deleted. Therefore, a similar clinical phenotype to α-thalassemia is presented. Besides abnormal development, intellectual disabilities and dysmorphic features are common symptoms of this syndrome^1,12. ATR-X syndrome, OMIM:301040, is another rare syndrome associated with α-thalassemia. This is X linked with a mutated gene of ATRX located on Xq13.3. In normal circumstances, the ATRX protein acts as a transcriptional regulator, influencing the expression of α-globin gene. Therefore, a decrease in the expression of α globin chains causes α-thalassemia. Patients may have presented with severe mental disability, developmental delay, and craniofacial anomalies¹.

Figure 2.

Phenotypic expression and types of α-thalassemia.

More than 300,000 individuals are severely affected by thalassemia throughout the world each year⁴, and specifically, 5% of the world’s population are affected with α-thalassemia¹³. α-thalassemia was reported to be high in the Southeast Asia, the Mediterranean, sub-Saharan Africa, the Middle East, and India. The disease is also widely distributed in the northern European countries and North America due to massive migration of these populations¹⁴. Up to 40% of individuals are carriers of α-thalassemia in the regions of the Mediterranean and the Middle East. Furthermore, Turkey reported a high distribution of this disease with an incidence rate of 0.25%-4.1% ¹⁵.

Diagnosis of α-thalassemia

Pathologic defects on the globin chain are characterized by quantitative or qualitative abnormality. The quantitative defects include α-thalassemia and β-thalassemia, which are due to reduced α-globin production and β-globin production. These types of globin defects’ interaction results in a wide variety of clinical presentation and diseases⁵. Clinically, α-thalassemia is classified into thalassemia minor, intermedia, and major. Patients with thalassemia minor (or thalassemia trait) are usually asymptomatic or present with mild anemia. The individual with thalassemia intermedia represents a highly diverse group of patients with various clinical severities, ranging from mild to severe anemia. Some patients may not require blood transfusion, while others may need blood transfusion frequently. Patients with thalassemia major present with severe anemia in early life require regular blood transfusion and iron chelation¹⁶. In α-thalassemia, the reduced α-globin synthesis causes the accumulation of excess polypeptide (β globin chain) encoded by the unaffected gene. Therefore, imbalance in α-globin chains and β-globin chains cause abnormal maturation of RBCs, resulting in microcytosis¹⁰. The clinical phenotype of α-thalassemia depends on the number of genes affected because a normal individual carries four functional α-genes. Inactivation or deletion of one α-gene results in a silent carrier of α-thalassemia, with insignificant hematological findings. Two affected α-globin genes result in microcytic hypochromic anemia. In diagnostic practice, the annotation α⁺ or α⁰ is used to describe a patient’s genetic defect. In α⁺-thalassemia, there is a deletion or inactivation in one of the α-globin genes (−α/αα or ααND/αα, with ND denoting non-deletion), while α⁰-thalassemia indicates deletion of both α-globin genes in cis (−−/αα).⁵. Three α-globin genes deletion or mutation leads to Hb H disease, resulting in moderate anemia and marked microcytosis. Hb Bart’s hydrops fetalis is the most severe form of α-thalassemia, in which all four α-globin genes are affected and often cause intrauterine death¹⁷. Infants with Hb Bart’s hydrops fetalis have variable amounts of non-functional Hb H (β₄) and Hb Bart’s (γ₄), and functional Hb Portland (ζ₂γ₂) ¹. There will be excess in Hb Bart’s, which results in severe anemia (Hb level 3-8 g/ dL), marked hepatosplenomegaly, and cardiac failure. Maternal complications during pregnancy, such as preeclampsia (hypertension and fluid retention, with or without proteinuria), poly-oligohydramnios (increased or reduced accumulation of amniotic fluid, respectively) hemorrhage, anemia, and sepsis may occur¹⁸.

Clinical presentation of α-thalassemia may vary as it has high variability in the genetic defect. Generally, the Hb level in α-thalassemia varies from normal to severe anemia (Hb 7.5–15.5 g/ dl). Meanwhile, there is a reduction of mean corpuscular volume (MCV < 79 fl), mean corpuscular hemoglobin (MCH < 27 pg), and normal to slight decrease in HbA2 level, depending on the number of functional α-globin genes¹.

Routine Screening of Thalassemia

Screening of α-thalassemia is essential to identify those couples with high risk, especially severe forms of the disease that occur in high-frequency areas. It also helps to prevent severe maternal complications in the case of Hb Bart’s and provides accurate diagnosis in patients with concomitant iron deficiency, or coinherited with Hb S or β-thalassemia¹¹. Diagnosis of α-thalassemia requires a combination of several laboratory tests; complete blood count (CBC), blood smear and Hb quantification by high-performance liquid chromatography (HPLC) and capillary/gel electrophoresis¹⁹. Most α-thalassemia traits are asymptomatic and identified only by chance after routine hematological analyses. However, reduction in Hb level may occur when there is concomitant blood loss, infection, poor nutrition, or other disease that may lead to symptomatic anemia¹.

Complete Blood Count and Blood Smear

In an automated blood cell analyzer for CBC, the sample is aspirated and separated into different fluidic streams, containing different buffer solutions to obtain the specific purpose of analysis. Each parameter is measured under flow cytometry, as a single cell in a fluidic stream passing through a laser beam, and signals are collected from a series of detectors¹⁶. RBC indices, such as MCV, MCH, and mean corpuscular hemoglobin concentration (MCHC) levels are calculated from Hb, hematocrit, and RBC count. In thalassemia screening, MCV levels of less than 80 fL and MCH of less than 27 pg are used as cut-off levels for a positive screening result²⁰. Therefore, MCV and MCH values might also be low due to iron deficiency anemia (IDA) and anemia of chronic disease, as found in the thalassemia trait¹⁶. Therefore, another laboratory method is required to confirm the thalassemia disease.

In thalassemia, RBC morphology showed microcytic, hypochromic, apparent anisocytosis, and poikilocytosis. Microcytic anemia among thalassemia patients is due to impaired globin chain synthesis, which lead to a decrease in Hb synthesis²¹. Interpretation of blood smear based on RBCs morphology solely is not possible to define thalassemia disease as those interpretations can also be detected in IDA¹⁶. A blood smear stained with brilliant cresyl blue shows inclusion bodies in the RBCs, indicating the presence of Hb H²². These red cells are unstable, destroyed prematurely in the spleen and result in moderate to severe hemolysis²³. Hence, HPLC and capillary/ gel electrophoresis (CE) is used to distinguish between thalassemia disease and thalassemia trait by quantifying each Hb level¹⁹.

High-performance Liquid Chromatography (HPLC)

HPLC separates molecules (normal and variant Hbs) with a net positive charge into its component by adsorption onto a negatively charged stationary phase in a column, followed by elution. Retention times (time of solute spends in a column), shape of the curve or peak, and percentage produced vary among different Hbs. The area under each peak is integrated to provide the percentage and retention time²⁴. The main advantages of this technique are its sensitivity, precise method for quantitative analyzes of Hb components, excellent resolution, and reproducibility²². HPLC measures HbA2, Hb F, and Hb variants, which helps to identify normal and abnormal levels of Hb in a blood sample²⁵. HbA2 level plays an important role in β-thalassemia screening program, wherein if the value is more than 4%, the individual is presumed as β-thalassemia carrier²⁶. However, borderline HbA2 level needs further evaluation for silent mutations, α-thalassemia, and the co-existing nutritional deficiency²². Excess β-chains in Hb H disease result in the production of Hb H and reduction in HbA2 level. Therefore, detection of Hb H and Hb Bart’s are important for diagnosis¹⁶. However, even though HPLC is automated and able to distinguish different Hb, it has limitation in detecting and quantifying Hb H and Hb Bart’s percentage¹⁹. It has low sensitivity in detecting Hb constant spring (CS), an α-globin variant¹⁶.

Capillary Electrophoresis (CE)

CE is used to separate Hb fractions and quantify each fraction level²⁷. CE separates and quantifies Hb A₂, Hb E, Hb F, Hb H, Hb Bart’s and some Hb variants. These parameters are required to diagnose α and β-thalassemia, and hemoglobinopathies²⁸. The charged molecules are separated by their electrophoretic mobility in an alkaline buffer and packed cells are hemolyzed with hemolyzing solution after plasma is discarded²⁹. The Hb fractions are detected directly at a wavelength of 415 nm, which is optimal to Hb, in the following order from cathode to anode: Hb C, A2, E, S, D, F, A, Bart’s, J and H²⁷. Advantages of CE include the turn-around time, high throughput, small sample volume requirement, and reasonable cost. The CE system can also quantify Hb H and Hb Bart’s levels, which is a limitation in the HPLC system²⁸. Otherwise, the levels of Hb H, Hb Bart’s, and Hb CS are decreased in stored blood samples, especially at high temperatures as these HbS are unstable¹⁹. The Hb H has a short life span of 12 to 19 days as compared to normal 28 to 37 days. Factors that lead to unstable Hb H are abnormal RBC membrane with increased rigidity and increased inclusion bodies³⁰. This limitation can be overcome by using fresh blood sample. However, molecular analysis is still required to fully understand the clinical phenotype and the definitive diagnosis³¹. Therefore, molecular diagnosis of DNA sequence is the most decisive diagnosis. Currently, there are several molecular techniques to study the molecular basis of the globin gene defects, as detailed below¹⁶.

Molecular Diagnostic Techniques

Molecular genetic testing plays an essential role in the diagnosis of α-thalassemia. Genetic testing conducted during the antenatal period will identify fetuses with severe globin phenotypes¹⁰. DNA analysis has tremendously evolved as compared to that in the past 40 years¹. Recently, known and unknown mutations can be diagnosed by using many different polymerase chain reaction (PCR) based techniques and DNA sequencing²⁷.

Dot Blot Analysis

In dot blot (DB) analysis, amplified DNA is immobilized on a nitrocellulose or nylon membrane. The principle of the dot blot (DB) and reverse dot blot (RDB) techniques is that the allele specific oligonucleotide probes (ASO) as hybridization targets for the amplified DNA molecule that complements the oligoprobe³². This allows direct detection of point mutations or minor deletions that occur in the gene of interest³³. In both blot techniques, the amplified DNA labelled with biotin for colorimetric detection will be hybridized to the probes which are bound to the membrane, RDB¹⁹ or in DB, applied a radioactively labelled probe to DNA samples attached to a membrane in the form of a dot. It uses a non-radioactive material in RDB and washes and hybridizes at the same temperature, whereas DB requires radioactive substances with a different temperature for washing and hybridization. Therefore, the DB analysis can detect one mutation in many samples on a membrane, while in the case of RDB, many mutations can be detected in a sample per membrane³². Furthermore, in both techniques probes of normal sequence and mutant sequences are included to detect the homozygosity or heterozygosity in individuals¹⁹. RDB analysis is widely used to detect the non-deletional mutation, resulting in α-thalassemia, as in a single test different mutations of a sample are identified. The advantages of this technique are that it can distinguish the homozygous and heterozygous states of an individual³⁴, simple, rapid, and reliable. However, its limitations are that it requires a trained and expert personnel to set up the test and sample controls are needed for the identification of new mutations³².

Gap-polymerase Chain Reaction (Gap-PCR)

The Gap-polymerase chain reaction (Gap-PCR) technique is currently used to detect common deletion types of α-thalassemia. The amplification of the α-globin gene cluster for DNA diagnosis is more challenging due to considerable sequence homology within the α-globin gene cluster³⁵. This technique amplifies the DNA sequence by using the primers flanking the deleted region³⁶. Three primers are designed for each deletion to amplify the normal gene and deleted gene sequences³⁷. Gap-PCR is a rapid screening method for the most common seven types of deletion in α-thalassemia¹, which are —^THAI, —^SEA, —^FIL, —^MED, -α.^20.5 ,-α.^3.7 and -α.^{4.2 27}. The main advantage of using Gap-PCR is a quick diagnostic test for α⁰ and α⁺ thalassemia. However, this is time-consuming because its conventional method requires post-PCR work, and thus not suitable for large-scale screening. Therefore, a study was conducted, whereby Gap-PCR was combined with high resolution melting (HRM) to detect α^SEA type deletion. The HRM analysis is a method which use melting temperature (Tm) profiles in the post-PCR to identify the genotypes³⁶. The Tm is temperature when half of the double-stranded DNA has broken down to become a single-stranded DNA. The Tm of the DNA duplex changes is detected during the break down of a double-stranded DNA to single-stranded DNA. Therefore, the differences in the Tm profile enable the identification of different genotypes. The DNA templates are amplified with forward and reverse primers, dNTP mixture, MgCl2, and Taq polymerase. Next, HRM analysis requires a double-stranded DNA-binding fluorescent dyes and additional DNA melting steps. When Tm is attained, the fluorescent dye is released, and there is a decrease in fluorescence signal. Finally, based on the mean and standard deviation of Tm, DNA samples are accurately genotyped in HRM analysis³⁶. Gap-PCR with HRM analysis is suitable for large-scale and prenatal screening as it is cost-effective, sensitive, and a straightforward technique³⁸. The Gap-PCR with HRM analysis is preferred as an alternative technique because it has a simpler work flow without the need to process the PCR product in polyacrylamide gel electrophoresis, and it is suitable for clinical applications³⁹. Prenatal screening with Gap-PCR is achievable by using cell-free fetal DNA (cffDNA) in the maternal plasma. Maternal plasma DNA consists of approximately 3-20% of trophoblastic cell-derived cffDNA. The cffDNA consists of a shorter sequence than maternal DNA. Therefore, an amplification and few steps are required for the identification and is proceeded with PCR and HRM analysis to detect mutation in the fetal DNA⁴⁰.

Single-tube Multiplex Amplification Refractory Mutation System Polymerase Chain Reaction

Single-tube multiplex amplification refractory mutation system (ARMS) PCR can be used for rapid detection of deletion⁴¹ or non-deletion mutations of α-thalassemia⁴². ARMS technique is also known as allele-specific PCR. ARMS is a PCR-based system that differentiates between normal and mutant alleles by selecting primers with a nucleotide at their 3’ end corresponding to either normal or mutant sequence. Amplification of DNA fragments only happens if there is a perfect match with the genomic sequence to which the primer is annealing. In a single tube multiplex PCR, all targeted mutations will be carried out in a tube. Therefore, a unique fragment length is generated for each mutation by using two primers, including forward and reverse primer. The primers will be complementary and specific for the mutant allele. After the amplification of targeted DNA, the product will be analyzed by gel electrophoresis⁴². Single-tube multiplex PCR is used to detect six common and severe non-deletional α-globin gene found among the Southeast Asian populations, including initiation codon (ATG>A-G; HBA2:c.2delT), codon 30 (HBA2:c.91_93delGAG), codon 35 (α2–35, Ser→Pro), codon 59 (HBA2(or HBA1):c.179G>A) (Hb Adana), codon 125 (HBA2:c.377T>C) (Hb Quang Sze) and termination codon (HBA2: c.427T>C) (Hb Constant Spring)⁴². This is a rapid and reliable way to identify common non-deletion mutations among those carrying it⁴². Apart from that, single-tube multiplex PCR was established to detect α^3.7 and α^4.2 in a study⁴². Another study conducted with a similar technique could identify six common single and double gene deletions⁴³. The single gene deletion detected in the study was -α.^3.7 and -α.^4.2, while the double gene deletion identified were —^SEA, —^FIL, —^MED, and -α.^{20.5 43}. This technique is simple, rapid, and reliable for a larger population for epidemiological screening in common deletion⁴¹ and non-deletional α-thalassemia⁴². Previously, the Southern blot technique was used, which was time-consuming, expensive, and labor intensive. Despite being effective for individual screening, the use of Southern blot in large-scale population screening was challenging. PCR method is relatively simple and cost-effective for the detection of α-thalassemia mutations. However, the PCR technique solely requires multi-tube, making it difficult for large epidemiological screening. Therefore, multiplex PCR carried out in a single tube for detecting the mutations was established. This technique is more suitable for large population screening⁴¹. In a recent study, single-tube multiplex PCR was able to detect ααα^{anti 3.7} triplications of α-gene deletion together with other common deletion, making this technique less laborious and less expensive than other methods⁴⁴. However, multiplex ARMS-PCR is less valuable in ethnically diverse populations¹⁰.

Multiplex Ligation-dependent Probe Amplification

The multiplex ligation-dependent probe amplification (MLPA) technique is suitable for rapid and quantitative analysis⁴⁵. MLPA involves annealing of two adjacent oligonucleotides to a segment of genomic DNA followed by quantitative PCR amplification to characterize copy number or other changes in the DNA⁴⁶. MLPA technique requires only thermocycler and CE equipment. This technique starts with the DNA denaturation or hybridization step. After DNA denaturation, the sample is incubated with a mixture of MLPA probes, which consists of two separate oligonucleotides, including right probe oligonucleotides (RPO) and left probe oligonucleotides (LPO). The two probes will be hybridized to the adjacent target sequence. The probes will be ligated during ligation reaction, and only ligated probes will be amplified during the PCR reaction. The number of target sequences in a sample is measured by the probe ligation products. Finally, amplification products are separated by using CE, and the data are analyzed by using a specific software¹⁹. The MLPA is able to detect large common and uncommon deletion, and Hb CS (non-deletional) mutation⁴⁷. This technique can also determine the actual extension of the rearrangements by analyzing with α-globin gene cluster in one experiment⁴⁸. The southern blotting technique was used previously and still used in some laboratories to detect unknown deletions of α-thalassemia. However, this technique is currently replaced with MLPA as MLPA is more sensitive and reliable, and does not require the use of radioactive detection as in the southern blotting method⁴⁹. MLPA produces reliable results even with partially degraded DNA samples, while Gap-PCR cannot amplify old or semi-degraded DNA samples and requires a novel genomic DNA extraction⁴⁸.

Loop-mediated Isothermal Amplification

Loop-mediated isothermal amplification (LAMP) is a novel method for nucleic acid amplification in molecular diagnostics as it is highly sensitive, specific, rapid, accurate, and cost-effective⁵⁰. This technique requires four to six primers for six regions on the targeted gene, and the primer sets are specific to the target areas⁵¹. Therefore, it has a higher amplification product and rapid amplification than the PCR-based method⁵². Target DNA is obtained through genomic DNA extraction, and primers are specifically designed based on the type of mutation sequences to be detected. This technique requires forward inner primer (Forward 1 complementary, F1c and F2), backward inner primer (Back 1 complementary, B1c and B2), two outer primers which are described as a forward outer primer (F3), and backward outer primer (B3), corresponding to the target gene sequence of six different regions. The forward loop primer and backward loop primer are designed to accelerate the amplification reaction. All primers, including two inner primers, and two outers primers F3 and B3, play important roles in the LAMP reaction⁵³. Figure 3 shows the schematic diagram of LAMP reaction at different stages in the process. Based on Figure 3, elongation of the strands by F3 and B3 external primers occurs with the help of DNA polymerase, which leads to the formation of a dumbbell-shaped DNA structure. Then, the structure formed will act as the LAMP initiator, whereby forward inner primer will attach to the DNA structure and initiate the synthesis of the strand as in Figure 3. Next, the releasing strand generates a structure with an external loop, which is the pattern for the backward inner primer polymer. The amplification produces stem-loop DNA structures with numerous repeats of the target and cauliflower-like structures with multiple loops as end products. Furthermore, loop primers also reduce the amplification time, and specific designed oligonucleotides probe to the DNA structure can be applied in hybridization. Therefore, there is no need for heat denaturation after the multiplication. The steps from multiplication to detection can be conducted at the same temperature⁵⁴. The reaction is observed with naked eyes based on turbidity due to the production of magnesium pyrophosphate⁵⁴, as this demonstrates the absence of the target gene, making it ideal for easy monitoring. In recent years, the use of SYBR Green dye has made this step convenient⁵³. In addition, this technique does not require detection by electrophoresis. Instead, it needs a constant temperature water bath or metal bath. The results can be directly observed under an ultraviolet (UV) lamp with the naked eye as compared to traditional PCR, which requires a special PCR instrument⁵¹. Studies found that the LAMP method could detect deletional type of α-thalassemia, including α^SEA, α^THAI, α^3.7, α^4.2, and β-thalassemia mutations⁵¹. PCR technique is a standard method for laboratory-based DNA detection. However, this method requires high set-up, operating expenses, and high precision equipment. Therefore, the LAMP technique was introduced as a potential gene amplification assay with high sensitivity, specificity, simplicity, and it is cost-effective, eliminating the need for highly sophisticated thermocycling equipment⁵⁵. However, the LAMP method is commonly used to detect the deletional type of α-thalassemia, and it is rarely used for genotyping and identifying point mutation⁵². Furthermore, α^4.2 and α^3.7 deletion showed a false-positive result in the LAMP technique in a study. Deletion genes were closely related to wild-type gene sequence before mutation, which was more likely to have false amplification⁵¹. However, this condition was overcome in the pH-sensitive LAMP technique. The LAMP method is coupled with phenol red. This association showed high specificity in detecting abnormal α-globin genes. Moreover, there is no cross-reactivity with α^4.2 and α^3.7 deletion⁵⁰.

Figure 3.

Schematic diagram of LAMP reaction.

DNA Sequencing

DNA sequencing analysis is a gold standard method for the screening of unknown non-deletion mutations⁵⁶. Specifically, Sanger DNA sequencing is the most inclusive method to detect all mutations of non-deletional type of α-thalassemia as this avoids having the necessity to design mutation-specific assays¹⁰. However, HBA gene sequencing by the Sanger method is methodologically complex as the position of HBA1, and HBA2 genes on chromosome 16 are nearly identical for a stretch of over one-kilo bp that includes the 5’ and 3’ flanking regions, coding sequences, and introns. For a selective amplification of both α-globin genes, one needs to use sequences of at least 1000 base pairs 5’ to the structural genes to design specific PCR primers for each of the α-genes. However, this 5’ primer can be combined with a common 3’ primer. Other than that, the sequence of HBA is relatively guanine and cytosine rich¹⁰. Therefore, optimizing standard PCR conditions can efficiently amplify this sequence⁵⁷. Successfully amplified PCR products can be sequenced directly by using the Sanger method¹⁰. In this method, four ddNTPs, dideoxynucleotide phosphates such as ddATP, ddTTP, ddCTP, and ddGTP are labeled with different fluorochrome dyes so that the laser beam can detect them. Each fluorescent-labeled terminated fragment of DNA is recorded, and by using software, the DNA sequence is generated. However, in the Sanger sequencing method, the PCR cycle is repeated several times to have all the positions of the DNA template; hence, unique fluorescence-labeled A, T, C, and G of DNA chains are produced⁵⁸. The obtained sequence can be compared with those in the Database of Human Hemoglobin Variants Thalassemia to determine clinical significance¹⁰.

Advancement in genetic sequencing technology has introduced a new sequencing technique known as next-generation sequencing (NGS). This technology has gained capacity to sequence the entire human genome as the sequencing capacity increases from several hundred to several thousand base pairs in analysis³⁵. Generally, NGS comprises three steps; the first is the library preparation by using random fragmentation of DNA, followed by ligation with custom linkers. Second, by using clonal amplification and PCR, the library is amplified. Third, sequencing is generated by incorporating fluorescent-labeled nucleotides by DNA polymerase or ligation processes¹⁹. Sanger and NGS have similar principles, whereby dye-labeled nucleotides are added to the DNA strand, and the DNA is sequenced based on fluorescence emitted by each base pair. NGS is widely used to diagnose and understand complex diseases through whole-genome sequencing, targeted gene panels, and exome sequencing. Recently, NGS was established for thalassemia screening, whereby target NGS approach was designed to cover the entire globin gene coding regions, key regulatory regions, and modifier genes¹⁹. Therefore, NGS is most probably more accurate than the conventional method. To strengthen this point, a study conducted in China reported that PCR-NGS revealed rare and common mutations that were missed by the conventional method¹⁹. Furthermore, the NGS approach used to screen for thalassemia minimizes the risk of false-negative results and misdiagnoses, as well as the necessity for additional blood sampling and referral testing. As a result, this technique is a generally performed screening procedure in areas with high frequency of thalassemia⁵⁹. The NGS technique is demonstrated as a screening and confirmation method in the high prevalence of α-thalassemia populations⁶⁰. NGS thalassemia kits are commercially available to detect the sequence variants of α and β genes. However, thalassemia screening with NGS is difficult, time-consuming, and expensive due to high homology between the genes in α- and β-clusters. Therefore, the Sanger sequencing method is the best method for detecting point mutation and variants in thalassemia, but it is unable to identify deletion mutations in thalassemia. Simultaneously, NGS can characterize both deletion and non-deletion throughout all globin genes in parallel¹⁰. NGS is more costly as sequencing involves only two genes for thalassemia, which does not justify the cost of the entire procedure for a single patient³⁵. Therefore, the Sanger method is more cost-effective than NGS for thalassemia diagnosis in a single patient.

Briefly, long-read sequencing can detect thalassemia screening after generating long fragments that consist of HBA and HBB genes and further with long molecule sequencing. In this technique, the entire sequence of both alleles will be analysed with bioinformatics tools to identify the changes in sequence. This test is known as accurate and cost-effective for thalassemia carrier screening. Furthermore, this test provides information on either the compound heterozygous is in cis or trans. This technique analyzed the entire gene region; hence, variants including silent α-thalassemia trait, Hb CS trait, and other rare deletion and non-deletional mutations are detectable. Besides, the sequence analyzes the HBA and HBB genes simultaneously. Therefore, it is capable of confirming other minor thalassemia traits⁶¹. The overall summary of the different molecular techniques is presented in Figure 4.

Figure 4.

Different molecular techniques used in the diagnosis of α-thalassemia.

Conclusion

Several laboratory tests in the diagnosis of α-thalassemia exist, which include both hematological and molecular testing. Molecular analysis for globin gene mutation is important for the definitive diagnosis, but hematological and clinical findings may not be helpful in some cases. HPLC and CE quantify the level of Hb and provide useful information in the diagnosis of specific thalassemia disease. However, different molecular techniques are used to detect globin gene mutation in this era, each having its advantages and limitations. PCR and DNA sequencing analyses are the main molecular techniques discussed in this study that can detect deletion and non-deletion α-thalassemia mutations. Molecular techniques, namely Gap-PCR, LAMP, MLPA, and single tube multiplex PCR, are used to detect the common deletion of α-thalassemia mutation. In addition, single-tube multiplex PCR can identify non-deletion mutations as well. On the other hand, DNA sequencing analysis can detect uncommon deletion and non-deletion mutations in the α-globin gene, which is impossible by the PCR technique. Sanger sequencing is a commonly used best technique for thalassemia diagnosis. Still, this method cannot detect deletion mutation in the α-globin gene, which is the common cause of α-thalassemia. Therefore, NGS was recently introduced to detect novel and complex variations of α-thalassemia. NGS is an effective method and it facilitates the screening of thalassemia but involves high costs. The diagnosis of α-thalassemia is complex as the α-globin gene is a highly variable genetic defect. Therefore, the selection of the diagnostic method depends on the equipment, expertise, cost involved, and facility of each diagnostic laboratory.
