. 2021 Oct 16;24(11):103305. doi: 10.1016/j.isci.2021.103305

Prestimulation of CD2 confers resistance to HIV-1 latent infection in blood resting CD4 T cells

Sijia He 1,2, Jia Guo 2, Yajing Fu 1,2, Mark Spear 2, Chaolong Qin 1,5, Shuai Fu 1, Zongqiang Cui 2,6, Wenwen Jin 3, Xuehua Xu 4, Wanjun Chen 3, Hong Shang 1,∗, Yuntao Wu 2,7,∗∗
PMCID: PMC8571718  PMID: 34765923

Summary

HIV-1 infects blood CD4 T cells through the use of CD4 and CXCR4 or CCR5 receptors, which can be targeted through blocking viral binding to CD4/CXCR4/CCR5 or virus-cell fusion. Here we describe a novel mechanism by which HIV-1 nuclear entry can also be blocked through targeting a non-entry receptor, CD2. Cluster of differentiation 2 (CD2) is an adhesion molecule highly expressed on human blood CD4, particularly, memory CD4 T cells. We found that CD2 ligation with its cell-free ligand LFA-3 or anti-CD2 antibodies rendered blood resting CD4 T cells highly resistant to HIV-1 infection. We further demonstrate that mechanistically, CD2 binding initiates competitive signaling leading to cofilin activation and localized actin polymerization around CD2, which spatially inhibits HIV-1-initiated local actin polymerization needed for viral nuclear migration. Our study identifies CD2 as a novel target to block HIV-1 infection of blood resting T cells.

Subject areas: Immune response, Immunology, Virology

Graphical abstract

graphic file with name fx1.jpg

Open in a new tab

Highlights

  • •

    CD2 is highly expressed on human blood CD4 T cells, particularly memory T cells

  • •

    Prestimulation of CD2 rendered resting T cells highly resistant to HIV infection

  • •

    CD2 signaling activates cofilin and actin polymerization blocking HIV nuclear entry

  • •

    CD2 may serve as a novel target to inhibit HIV-1 infection of blood resting T cells

Immune response; Immunology; Virology

Introduction

HIV infects and enters blood CD4 T cells through the use of CD4 (Dalgleish et al., 1984; Klatzmann et al., 1984) and the chemokine coreceptor, CXCR4 (Feng et al., 1996) or CCR5 (Alkhatib et al., 1996; Choe et al., 1996; Cocchi et al., 1995; Combadiere et al., 1996; Deng et al., 1996; Doranz et al., 1996; Dragic et al., 1996). Targeting HIV interaction with these receptors has been extensively explored for therapeutics (Qian et al., 2009). Mechanistically, HIV-1 entry can be blocked through the inhibition of viral attachment to cells, viral binding to CD4 or the chemokine coreceptors, and virus-cell fusion (Qian et al., 2009). Among many of the HIV entry inhibitors discovered, the fusion inhibitor, enfuvirtide (Wild et al., 1993), the CCR5 inhibitor, maraviroc (Dorr et al., 2005), and the anti-CD4 antibody, ibalizumab (Blair, 2020; Boon et al., 2002; Jacobson et al., 2009), have been successfully developed into clinical antiretroviral drugs.

HIV binding to the entry receptors not only mediates viral entry but also triggers signal transduction (Wu and Yoder, 2009). For example, HIV-1 binding to the chemokine coreceptor CXCR4 or CCR5 has been shown to trigger G-protein signaling critical for HIV latent infection of blood resting CD4 T cells (He et al., 2019; Yoder et al., 2008). Mechanistically, it has been suggested that the static cortical actin in blood resting T cells represents a barrier for viral entry and nuclear migration (Wang et al., 2012; Yoder et al., 2008). To overcome this restriction, HIV-1 relies on gp120 binding to CXCR4 or CCR5 to activate actin modulators such as cofilin to promote actin dynamics necessary for viral entry and nuclear migration (He et al., 2019; Spear et al., 2014; Vorster et al., 2011; Yoder et al., 2008). As such, chemotactic stimulation, such as stimulating resting CD4 T cells with the chemokines CCL19/CCL21, has been shown to activate the cofilin pathway and thereby promote HIV latent infection of resting T cells (Cameron et al., 2010). Conversely, blocking HIV-mediated G protein signaling and actin dynamics, using inhibitors such as pertussis toxin or the LIMK and Arp2/3 inhibitors, has also been shown to block HIV infection of blood resting T cells (Spear et al., 2014; Vorster et al., 2011; Yi et al., 2017; Yoder et al., 2008).

Cofilin is a member of the actin-depolymerizing factor/cofilin family of proteins that bind and depolymerize filamentous actin (F-actin) to regulate actin dynamics (Bernstein and Bamburg, 2010; Wu, 2013). In human T cells, cofilin regulates T cell motility for T cell migration and homing to lymphoid and non-lymphoid tissues. Cofilin is also an essential player in T cell activation, during which cofilin is activated by co-stimulatory signaling, including signaling from CD28 and integrins (e.g., LFA-1, α4β7), to promote actin polymerization for the stabilization of immunological synapse (Dustin and Cooper, 2000; Samstag et al., 2013).

Cluster of differentiation 2 (CD2) is also a co-stimulatory molecule abundantly expressed on the surface of blood CD4 T cells (Sanchez-Madrid et al., 1982). During T cell activation, CD2 interacts with adhesion molecules such as CD58/LFA-3 (lymphocyte function-associated antigen-3) to facilitate T cell activation (Bierer et al., 1989; Wang et al., 1999); ligation of CD2 activates cofilin to modulate actin cytoskeleton, enhancing T cell adhesion to antigen-presenting cells for T cell activation (Samstag et al., 1991, 1992, 1994). Given the demonstrated ability of CD2 to activate the cofilin pathway, we investigated potential impacts of CD2 signaling on HIV latent infection of resting CD4 T cells.

Results

Prestimulation of CD2 inhibits HIV-1 latent infection of resting CD4 T cells

To determine the effects of CD2 signaling on HIV infection of blood CD4 T cells, we first quantified CD2 expression on human blood resting CD4 T cells and found that both memory (CD45RO+) and naïve (CD45RO−) T cells expressed CD2, with memory T cells naturally expressing higher levels of surface CD2 (Iglesias-Ussel et al., 2013) (Figure S1). We further tested the effects of prestimulating resting T cells with an anti-CD2 antibody on HIV-1 latent infection. Prestimulation of resting CD4 T cells with an anti-CXCR4 antibody has been shown to trigger cofilin activation that enhances HIV-1 latent infection of resting T cells (Yoder et al., 2008). Surprisingly, when resting T cells were similarly prestimulated with the anti-CD2 antibody, we observed 90%–99% inhibition of HIV-1 latent infection of resting CD4 T cells (Figures 1A–1F); this CD2-mediated inhibition has been tested in a total of eight donors, and we observed strong inhibition in all donors tested. In contrast, prestimulation of CXCR4 enhanced HIV-1 latent infection (Figures 1C and 1F), as previously reported (Yoder et al., 2008).

Figure 1.

Figure 1

Open in a new tab

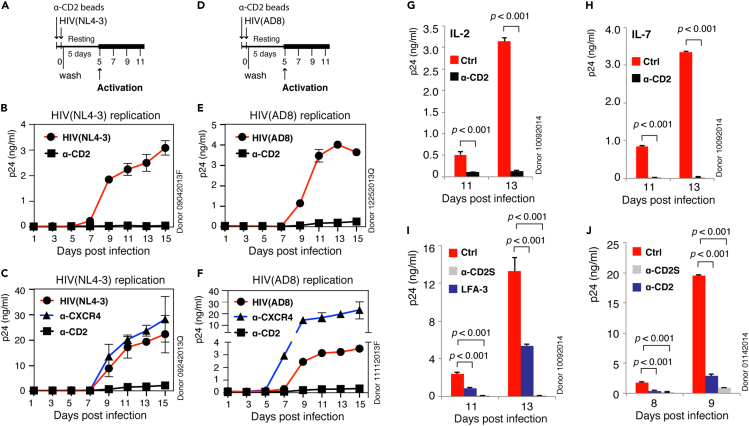

CD2 prestimulation inhibits HIV-1 latent infection of resting CD4 T cells.

(A–C) Resting CD4 T cells were prestimulated with α-CD2 or α-CXCR4 beads and then infected with HIV-1(NL4-3) for 2 h. Cells were washed, cultured for 5 days, and then activated by α-CD3/CD28 beads to induce viral replication, which was measured by p24 release. The experiment was repeated in another two donors, and levels of p24 were quantified in triplicate in each donor.

(D–F) Resting memory CD4 T cells were prestimulated with α-CD2 or α-CXCR4 beads and then infected with HIV-1(AD8) for 2 h. Cells were washed, cultured for 5 days, and then activated by α-CD3/CD28 beads to induce viral replication. Levels of p24 were quantified in triplicate.

(G and H) Resting CD4 T cells were cultured in IL-2 or IL-7 for 3 days, prestimulated with α-CD2 beads, and then infected with HIV-1(NL4-3). Cells were washed, cultured for 5 days, and then activated by α-CD3/CD28 beads to induce viral replication. Levels of p24 were quantified in triplicate.

(I) Resting CD4 T cells were prestimulated with soluble α-CD2 antibody (α-CD2s, 2 μg/mL) or recombinant human LFA-3 (2 μg/mL) for 1 h and then infected with HIV-1(NL4-3). Cells were similarly washed, cultured, and then activated at day 5. The experiment was repeated in two additional donors. Levels of p24 were quantified in triplicate.

(J) Resting CD4 T cells were prestimulated with α-CD2 beads or soluble α-CD2 antibody (α-CD2s, 200 ng/mL) and then similarly infected and activated. The experiment was repeated in two additional donors. Levels of p24 were quantified in triplicate, and data are represented as mean ± SEM.

Statistical significance was determined using two-tailed t test in Prism 7 (Graph Pad). Significance p values are indicated. See also Figures S1–S4.

Memory CD4 T cells are major targets of HIV-1 infection, and early depletion of memory CD4 T cells in the gastrointestinal tract by the CCR5 (R5)-utilizing T-tropic virus is a major cause of chronic immune activation in patients (Brenchley et al., 2004, 2006; Veazey et al., 1998). Thus, we also tested whether CD2 prestimulation can block latent infection of memory CD4 T cells by R5 virus. As shown in Figure 1 (1E and 1F), we also observed strong inhibition of HIV-1 latent infection of memory CD4 T cells by the R5 virus, HIV-1(AD8). Therefore, this anti-CD2-antibody-mediated inhibition of HIV-1 latent infection was observed in both X4 (NL4-3) and R5 (AD8) latent infection of resting and resting memory T cells, respectively. In addition, similar to the enhancement of X4 virus infection by prestimulation of CXCR4 (Figure 1C) (Yoder et al., 2008), CXCR4 prestimulation also enhanced the latent infection of memory CD4 T cells by the R5 virus (Figure 1F), which is in great contrast to the potent inhibition of HIV latent infection of memory T cells by CD2 prestimulation.

It is possible that this CD2-mediated inhibition may result from the inhibition of T cell activation. However, when the T cell activation markers CD25 and CD69 were analyzed, we did not observe inhibition of T cell activation (Figure S2). In addition, when CD2 stimulation was performed immediately following HIV-1 infection (CD2 poststimulation), it failed to inhibit HIV latent infection (Figure S3), suggesting that CD2 prestimulation likely triggered a cellular response that selectively blocks viral early infection steps.

Resting CD4 T cells circulate between the peripheral blood and lymphoid tissues. To further determine whether this CD2-mediated inhibition of HIV-1 early infection steps can be alleviated by lymphatic cytokines, we cultured resting CD4 T cells in IL-2 or IL-7 for 3 days and then latently infected cells with HIV-1. Cells were also similarly prestimulated with the anti-CD2 antibody. Again, we observed similar strong inhibition of HIV-1 latent infection by CD2 prestimulation (Figures 1G and 1H), demonstrating that these cytokines were not capable of overcoming CD2-mediated inhibition; previous studies have suggested that these cytokines are sufficient to permit low levels of HIV replication in resting CD4 T cells (Trinite et al., 2013; Unutmaz et al., 1999), partially overcoming cellular barriers present in resting T cells. Thus, this CD2-mediated block to HIV latent infection is likely different from known viral barriers in resting T cells (Pan et al., 2013).

We further tested whether prestimulation of resting CD4 T cells with the soluble CD2 ligand CD58 (LFA-3) can also block HIV-1 latent infection of resting CD4 T cells. As a control, we prestimulated resting CD4 T cells with a soluble anti-CD2 antibody. Again, we observed that prestimulation of resting CD4 T cells with either soluble LFA-3 or the anti-CD2 antibody blocked HIV-1 latent infection (Figures 1I, 1J, and S4), demonstrating that the anti-HIV activity from CD2 prestimulation did not result from possible peculiarities of the anti-CD2 antibody, but likely from intracellular signaling events initiated from CD2 binding by LFA-3 or the anti-CD2 antibody.

To further identify possible virological processes that are affected by CD2 prestimulation, we performed stepwise mapping of the viral early infection steps. An HIV-1 entry assay showed that CD2 prestimulation led to a partial inhibition of HIV-1 entry (from 3.12% to 1.94%) (Figure 2A). This partial inhibition is somewhat expected, given that CD2 is not a viral entry receptor and antibody-binding to CD2 may not completely block viral entry. The over 90% inhibition of HIV-1 latent infection of resting T cells by CD2 prestimulation, as we observed above (Figure 1), cannot be explained simply by CD2-mediated blockage of viral entry. Thus, we examined viral post-entry steps; when intracellular viral DNA was examined, we found that it was highly diminished (Figures 2B and S5). These results demonstrate that CD2 prestimulation inhibited viral early infection steps, including viral entry and post-entry accumulation of viral DNA in resting CD4 T cells.

Figure 2.

Figure 2

Open in a new tab

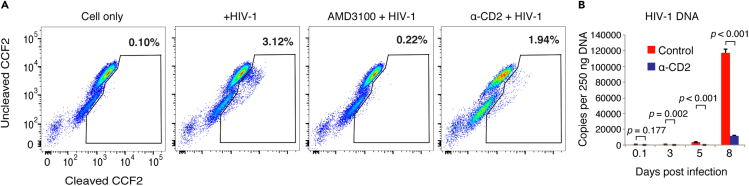

CD2 prestimulation inhibits HIV-1 entry and DNA accumulation in resting CD4 T cells

(A) Resting CD4 T cells were prestimulated or not with α-CD2 beads and infected with a reporter virus, HIV-1(BlaM-Vpr). As a control, cells were also pretreated with AMD3100 and then infected. Viral entry was quantified by flow cytometry analysis of cleaved CCF2. The entry assay was repeated in two donors.

(B) Resting CD4 T cells were prestimulated or not with α-CD2 beads, infected with an equal p24 level of HIV-1(NL4-3) for 2 h, washed, cultured for 5 days, and then activated with α-CD3/CD28 beads. Intracellular HIV late DNA was quantified by real-time PCR at indicated time points using an equal amount of total cellular DNA (250 ng). The experiment was repeated in two more donors, and samples were analyzed in triplicate and data are represented as mean ± SEM.

Statistical significance was determined using two-tailed t test in Prism 7 (Graph Pad). Significance p values are indicated. See also Figure S5.

Prestimulation of CD2 activates the cofilin pathway

Prestimulation of resting CD4 T cells with anti-CXCR4 antibody enhances HIV-1 latent infection of resting CD4 T cells (Yoder et al., 2008); it has been shown that such stimulation leads to the activation of cofilin and localized actin activities, thereby facilitating viral entry and nuclear migration (Wang et al., 2012; Yoder et al., 2008). CD2 stimulation of T cells has also been shown to trigger cofilin activation (Samstag et al., 1991, 1992). However, given that CD2 prestimulation led to an opposite, strong inhibition of HIV-1 latent infection, we felt compelled to investigate the effects of CD2 stimulation on cofilin activation in resting CD4 T cells. As shown in Figure 3A, we observed that stimulation of CD2 with the anti-CD2 antibody triggered cofilin phosphorylation and dephosphorylation within minutes, as measured by immune staining and western blot of p-cofilin (Figure 3B). To confirm the result, we also developed an alternative approach to quantify p-cofilin by intracellular staining and flow cytometry (Figure S6). We observed a transient course of cofilin activation (dephosphorylation) and phosphorylation following CD2 stimulation, consistent with a previous report showing cofilin activation by CD2 stimulation (Samstag et al., 1994). We further examined actin dynamics following CD2 stimulation. For this purpose, resting CD4 T cells were transiently electroporated with a green fluorescent protein-tagged actin reporter construct (pLifeAct-EGFP). Cells were then stimulated with anti-CD2 antibody-coated magnetic beads and monitored with fluorescence microscopy live-cell imaging (Video S1). As summarized in the representative images (Figure 3C), anti-CD2 bead stimulation triggered intracellular actin polymerization around the bead-cell interface, demonstrating that actin polymerization occurred locally around the bound CD2 receptors. For comparison, stimulation of resting CD4 T cells with the CXCR4 ligand SDF-1 also triggered localized actin polymerization at the leading edge of migrating T cells enriched with CXCR4 (Figure 3D) (Guo et al., 2013; Yoder et al., 2008).

Figure 3.

Figure 3

Open in a new tab

CD2 stimulation activates cofilin and actin dynamics in resting CD4 T cells.

(A and B) Resting CD4 T cells were stimulated with α-CD2 antibody for a time course of 60 min and then lysed for western blot detection of cofilin phosphorylation. GAPDH was used as the loading control, and the relative ratio of cofilin phosphorylation is quantified in (B), which shows the normalized p-cofilin intensities on western blots, means ± SD from triplicate.

(C) Resting CD4 T cells were first electroporated with pLifeAct-EGFP and then stimulated with α-CD2 beads. Actin polymerization was immediately monitored by live-cell fluorescence imaging microscopy. Shown are representative images from live cell imaging (supplemental information, Video S1).

(D) Resting memory CD4 T cells were not stimulated or stimulated with SDF-1 (12.5 nM) for 5 min. Cells were fixed, stained with FITC-phalloidin for F-actin, and also stained with DAPI for nuclear DNA. Cells were then analyzed with confocal fluorescence microscopy. For unstimulated resting CD4 T cells, 1 of 24 cells showed spontaneous actin polymerization. Following stimulation, 25 of 29 cells showed polarized actin polymerization.

See also Figure S6 and Video S1.

Video S1. Stimulation with anti-CD2-beads triggers actin polymerization around the bead-CD4 T cell junction, related to Figure 3

Blood resting CD4 T cells were purified, electroporated with pLifeAct-EGFP, and then stimulated with α-CD2 beads. Actin polymerization was monitored by live-cell fluorescence imaging microscopy, which uses the UltraView Vox confocal system (PerkinElmer, Co., contains cell culture chamber, Tokai Hit) with a Nikon Eclipse Ti-E microscope with a 60×, 1.4 NA oil-immersion objective lens. The images were captured with an EM-CCD (Hamamatsu C9100-14). Data were analyzed with Volocity 6.3.0. The green (F-actin) fluorescent field, the white field, and the merged field are shown (from left to right).

Download video file (4MB, mp4)

CD2-initiated actin polymerization spatially competes with HIV-1 gp120-mediated actin polymerization

Given the opposite effects of CXCR4 and CD2 prestimulation on HIV-1 latent infection as demonstrated above (Figure 1) (Wang et al., 2012; Yoder et al., 2008), we speculated that CD2-initiated cofilin and actin polymerization may spatially compete with the HIV-1/CXCR4-initiated cofilin and actin activity that is needed for viral entry and nuclear migration. To test this hypothesis, we first examined the possible effects of CD2 stimulation on the down-regulation of CD4 and CXCR4 but did not observe CD4 or CXCR4 downregulation in response to CD2 stimulation (Figure S7). We then examined possible CD2-CXCR4 interaction during viral entry. We performed a fluorescence resonance energy transfer (FRET) assay using a human CD4 T cell, Jurkat, which expresses both CXCR4 and CD2 (Figure 4A). FRET occurs when specific pairs of chromophores come within approximately 10 nm of each other (Stryer, 1978). As a control, we also examined a surface glycoprotein, the CD3ε chain, which is expressed on Jurkat T cells (Figure 4A); stimulation of CXCR4 with SDF-1 has been shown to trigger CXCR4-CD3ε interaction and their co-clustering on T cells (Kumar et al., 2006). For detecting possible interaction and FRET between CXCR4 and CD2 or between CXCR4 and CD3ε, we used a PE-labeled anti-human CXCR4 antibody (emission peak at 574 nm) and an APC-labeled anti-human CD2 antibody (emission peak at 660 nm) or an APC-labeled anti-human CD3ε antibody. Cells were first labeled at low temperature with the PE-anti-CXCR4 antibody and the APC-anti-CD2 antibody or with the PE-anti-CXCR4 antibody and the APC-anti- CD3ε antibody and then left unstimulated or stimulated with HIV particles. HIV binding to CXCR4 may induce the formation of the CXCR4-CD2 complexes or the CXCR4-CD3ε complexes (Kumar et al., 2006), which can be endocytosed into endosomes for detection. We also used a cold acid wash to remove cell-surface antibodies so that intracellular FRET signals from these complexes were selectively quantified. As shown in Figure 4B, stimulation of Jurkat T cells with HIV-1 particles triggered FRET between CXCR4 and CD3ε, suggesting that, as expected (Kumar et al., 2006), HIV gp120-CXCR4 interaction induced co-clustering of CXCR4 and CD3ε (Figure 4B). However, we did not observe HIV-mediated FRET between CXCR4 and CD2 (Figure 4B), suggesting that CD2 may not co-localize and interact with CXCR4 during HIV binding and entry. CXCR4 and CD2 are likely localized differently on the plasma membrane of CD4 T cells. To further confirm this speculation, we directly observed CD2 and CXCR4 localization during gp120 binding. For this purpose, we transiently transfected fluorescently tagged CD2 and CXCR4 into T cells to monitor receptor dynamics. We stimulated the cells with HIV-1(gp120) virion particles, and again, as shown in Figure 4C, we observed that HIV-1 gp120 binding induced CXCR4 clustering but CD2 was largely excluded from co-localization with CXCR4. Conversely, prestimulation of cells with anti-CD2 beads induced CD2 clustering, but CXCR4 were excluded from co-localization with CD2. Our results are consistent with previous findings that HIV-1 gp120 induces actin-dependent co-clustering of CXCR4 (Barrero-Villar et al., 2009) and CD2 signaling induces actin-dependent clustering of CD2 into distinct plasma membrane microdomains (Kaizuka et al., 2009; Li et al., 1996). However, our data clearly demonstrate that the CXCR4 and CD2 microdomains distributed differently and did not co-localize on the plasma membrane during HIV entry (Figure 4C). Thus, CD2-initiated actin polymerization around CD2 can spatially compete and interfere with HIV-1 gp120-mediated actin polymerization around CXCR4 at the site of viral entry.

Figure 4.

Figure 4

Open in a new tab

Lack of interaction and co-localization between CD2 and CXCR4 on CD4 T cells

(A) Surface expression of CD2, CXCR4, and CD3ε. Jurkat CD4 T cells were stained by anti-CD2, -CXCR4, or CD3ε antibody and then analyzed by flow cytometry.

(B) Cells were also stimulated with HIV-1(NL4-3). FRET signal between CD2 and CXCR4 was quantified by flow cytometry, using FRET between CXCR4 and CD3ε as a control.

(C) Cells were also electroporated with a CD2-GFPSpark vector (green) and a CXCR4-OFPSpark vector (red) and then stimulated with HIV-1(gp160). CD2 and CXC4 colocalization before (top panel) and during HIV-1 infection (middle panel), and following α-CD2 bead prestimulation and HIV-1 infection (bottle panel), was analyzed by confocal microscopy.

See also Figure S7.

Prestimulation of CD2 inhibits HIV nuclear migration

Previous studies have demonstrated that HIV-1-mediated actin dynamics is required for promoting viral nuclear migration in resting CD4 T cells (Yoder et al., 2008). As shown above (Figure 2), CD2 prestimulation only partially inhibited HIV-1 entry into resting CD4 T cells. However, HIV latent infection of resting T cells were highly diminished by CD2 prestimulation (Figure 1), suggesting that the residual viral particles entering cells did not contribute to the productive viral infection process. We speculated that these residual particles are likely blocked from further nuclear entry as a result of CD2-induced actin dynamics, which may inhibit the gp120/CXCR4-initiated local actin dynamics needed for viral nuclear migration (Yoder et al., 2008). To test this hypothesis, we performed cellular fractionation and quantified actin-associated viral DNA in the cytoplasm and viral DNA in the nucleus. The actin cytoskeleton has been shown to be an active site for viral reverse transcription (Bukrinskaya et al., 1998). We quantified viral nuclear DNA using 2-LTR circles as a marker (Bukrinsky et al., 1992; Taddeo et al., 1994; Yoder et al., 2008). As shown in Figure 5A, we observed an increase in actin-associated viral DNA in the cytoplasm even with a lower viral entry in the CD2-prestimulated cells. However, contrary to the actin-associated viral DNA, the nuclear 2-LTR circles were highly diminished in the CD2-prestimulated cells (Figures 5A and S8), suggesting that CD2 prestimulation likely led to the retention of the viral pre-integration complex (PIC) in the cortical actin meshwork; the much higher amounts of viral nuclear DNA found in the CD2 un-stimulated control cells suggest successful viral PIC nuclear translocation for the latent infection of resting T cells.

Figure 5.

Figure 5

Open in a new tab

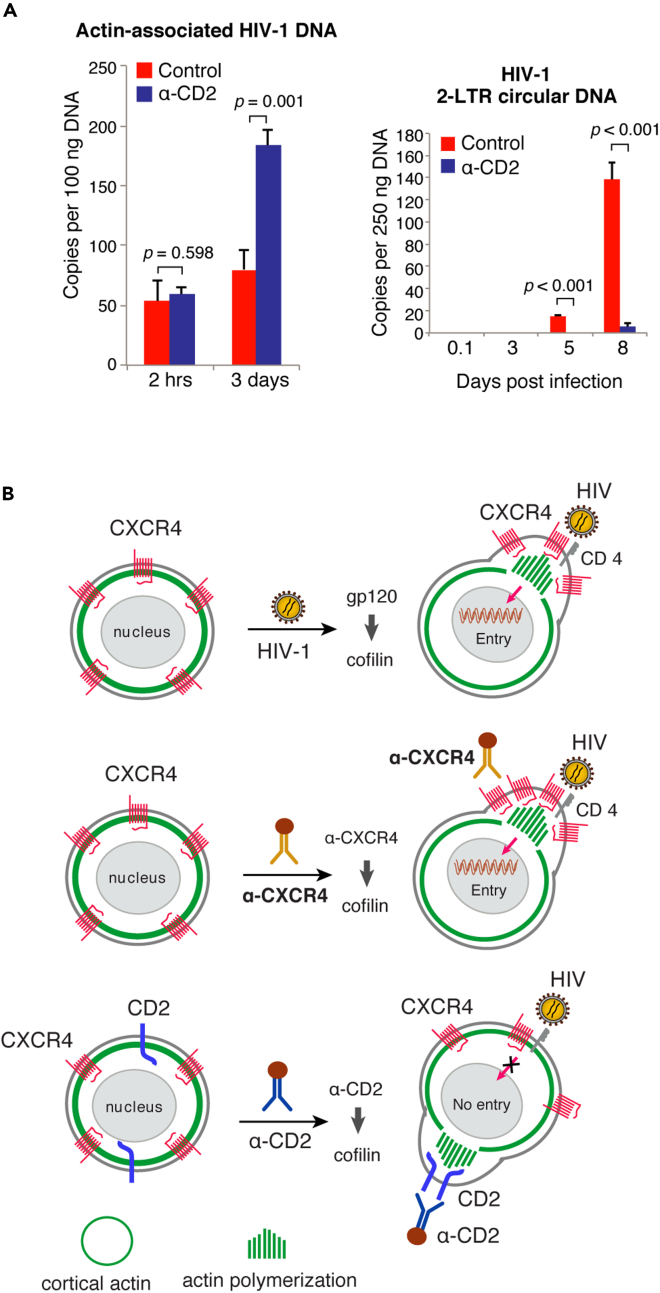

CD2 signaling inhibits HIV-1 nuclear entry

(A) Resting CD4 T cells were prestimulated with α-CD2 beads and infected with HIV-1(gp160). Actin cytoskeleton-associated viral DNA was quantified (left), and viral nuclear 2-LTR circles were also quantified by real-time PCR.

(B) Model of CD2 signaling in blocking HIV-1 latent infection of CD4 T cells. CD2 signaling spatially inhibits viral entry and nuclear migration through triggering cofilin activation and actin polymerization around CD2, which does not spatially co-localize with CXCR4. CD2 signaling may competitively inhibit HIV-1-mediated CXCR4 signaling needed for viral entry and nuclear migration. Samples were analyzed in triplicate, and data are represented as mean ± SEM.

Statistical significance was determined using two-tailed t test in Prism 7 (Graph Pad). Significance p values are indicated. See also Figure S8.

Discussion

In this article, we describe a novel mechanism by which HIV-1 nuclear migration can be blocked through targeting a non-entry receptor, CD2. We demonstrate that prestimulation of resting CD4 T cells with the anti-CD2-antibody triggers localized cofilin activation and actin polymerization around CD2, which clusters into distinctive microdomains on the plasma membrane (Kaizuka et al., 2009; Li et al., 1996); this anti-CD2 antibody-initiated actin polymerization and receptor clustering localize differently from the HIV-1 gp120/CXCR4-mediated receptor clustering at the site of viral entry. Therefore, CD2 signaling may competitively inhibit HIV-1 entry and nuclear migration required for the establishment of viral latency in resting CD4 T cells (Figure 5B). Indeed, our study demonstrated that CD2 prestimulation led to the diminishment of HIV latent infection of resting T cells (Figure 1). Mechanistic studies further demonstrated that there was an approximately 40% reduction in viral entry in CD2 prestimulated cells (Figure 2A). However, the reduction in viral entry cannot be used to simply explain the diminishment of viral latent infection. Thus, additional post-entry inhibition likely exists. Our conclusion of additional blockage at the step of viral post-entry nuclear migration came from multiple results: (1) The post-entry stimulation of resting CD4 T cells with CD2 did not block HIV latent infection (Figure S3), which is in great contrast to the strong inhibition of HIV by CD2 prestimulation (Figure 1), suggesting that CD2-mediated inhibition is likely limited to viral early infection steps such as viral entry and nuclear migration. (2) We directly observed a strong inhibition of the accumulation of 2-LTR circles in CD2 prestimulated cells (Figure 5A); 2-LTR circles are a common marker used to quantify HIV nuclear entry (Bukrinsky et al., 1992; Butler et al., 2001; Sloan and Wainberg, 2011). (3) Consistently, we also observed a transient increase in the actin-associated cytosolic viral DNA in CD2 prestimulated cells, which is in contrast to the decrease of the nuclear 2-LTR circles (Figure 5A). Together, these results suggest that, in CD2 prestimulated cells, HIV DNA is likely blocked from nuclear entry, and temporarily retained in the cortical actin layer, and subsequently degraded.

Our observation of the surprise increase of actin-associated viral DNA in the CD2-prestimulated cells, even with lower viral entry, suggests that the cortical actin barrier is also an active site for viral reverse transcription (Bukrinskaya et al., 1998; Yoder et al., 2008). The accumulation of actin-associated viral DNA, as seen in the CD2-prestimulated cells, resembles that observed in the cofilin knockdown CD4 T cells (Yoder et al., 2008); cofilin knockdown reduces actin depolymerization, leading to an increase in viral DNA synthesis but a decrease in viral nuclear migration (Yoder et al., 2008). These results suggest that viral particles retained in the cortical actin layer are transiently active for reverse transcription but blocked from further nuclear translocation by the absence of active actin treadmilling (Yin et al., 2020). The actin-associated viral DNA also appears to be labile (Zack et al., 1990) and eventually diminished with time in resting T cells (Figure 2). Thus, viral nuclear migration is likely a critical step for maintaining the viral pre-integration complex in resting T cells that is needed for the establishment of viral persistence (Wu and Marsh, 2001).

Our results are consistent with previous studies that underline the importance of HIV-1 gp120-mediated chemokine coreceptor signaling for viral latent infection of resting T cells (Cameron et al., 2010; Yoder et al., 2008). In contrast to CD2 signaling, prestimulation of resting CD4 T cells with anti-CXCR4 antibody, with the chemokines CCL19/CCL21, or with IP-10 (CXCL10) has been shown to promote HIV-1 latent infection of resting CD4 T cells (Cameron et al., 2010; Saleh et al., 2007; Wang et al., 2021). Interestingly, the CCL19/CCL21 receptor, CCR7, has been shown to form a heterodimer with CXCR4 (Hayasaka et al., 2015; Levoye et al., 2009), suggesting that stimulation of CCR7 likely initiates localized actin activity around CXCR4 at the site of viral entry, and thereby may synergize with gp120/CXCR4-initiated actin dynamics to promote viral entry and nuclear migration. In addition, the IP-10 receptor CXCR3 has also been shown to form functional heteromeric complexes with CXCR4 (Watts et al., 2013). IP-10 has been found to activate the cofilin pathway and promote HIV latent infection of resting memory CD4 T cells (Wang et al., 2021), likely by a similar mechanism through synergizing with HIV-mediated CXCR4 signaling (Yoder et al., 2008).

In addition to triggering cofilin activation and actin polymerization, CD2 stimulation may also induce other cellular factors restricting HIV-1 latent infection of resting T cells. However, CD2 stimulation-mediated inhibition of HIV-1 latent infection occurs only before, not after, viral entry (Figures 1 and S3). Given that CD2 post-entry stimulation did not inhibit cycles of viral replication, it is unlikely that CD2 stimulation induces unknown restriction factors blocking HIV latent infection.

Our discovery of the anti-HIV activity of CD2 signaling may offer new therapeutics to prevent HIV latent infection of blood CD4 T cells. Anti-CD4 antibody-mediated blockage of viral entry has been developed and currently approved for the clinical management of HIV infection (Blair, 2020; Boon et al., 2002; Jacobson et al., 2009). Our studies demonstrate that the anti-CD2 antibody can also potently block viral entry and nuclear entry by a different mechanism (Figure 5B). In a mouse model, the CD2 receptor was found to be functionally dispensable for the development and function of T cells; the homozygous CD2 mutant mice are healthy and have an apparently normal complement of lymphocytes (Killeen et al., 1992). These previous studies provide a rationale for targeting CD2 to block HIV-1 infection of blood CD4 T cells.

Limitations of the study

There are several limitations to the present study. First, although prestimulation of CD2 on blood resting CD4 T cells blocks HIV entry and nuclear migration, such inhibition may only be observed in primary resting CD4 T cells but not in transformed T cell lines or activated T cells. It has been shown that the cortical actin in resting T cells represents a unique restriction to HIV latent infection (Yoder et al., 2008). HIV relies on Env-mediated chemokine coreceptor signaling to activate cofilin and actin dynamics facilitating viral nuclear entry (Yoder et al., 2008). This viral requirement for coreceptor signaling can only be observed in blood resting CD4 T cells but not in transformed cell lines (Cocchi et al., 1996; Wu and Yoder, 2009). Thus, it is possible that the competition between HIV-mediated coreceptor signaling and CD2 signaling may occur only in resting T cells but not in transformed cell lines or activated T cells. Second, the inhibitory phenotype of CD2 stimulation is observed in vitro in cell culture conditions and needs to be confirmed in vivo in animal models. Finally, novel small molecule inhibitors of CD2 may need to be developed and tested for inhibiting HIV latent infection of blood CD4 T cells.

STAR★Methods

Key resources table

REAGENT or RESOURCE SOURCE IDENTIFIER
Antibodies
Purified CD2 (clone RPA-2.10) BD Biosciences Cat#555323
Purified CXCR4 (clone 12G5) BD Biosciences Cat#555971
Purified CD3 (clone HIT3α) BD Biosciences Cat#555336
Purified CD28 (clone CD28.2) BD Biosciences Cat#555725
PE-CD25 (clone M-A251) BD Biosciences Cat#555432
PE-CD69 (clone FN50) BD Biosciences Cat#557050
FITC-CD2 (clone RPA-2.10) Biolegend Cat#300206
FITC-CD3ε (clone UCHT1) BD Biosciences Cat#555332
PE-CXCR4 (clone 12G5) BD Biosciences Cat#555974
APC-CD2 antibody (clone RPA-2.10) BD Biosciences Cat# 560642
PE-CXCR4 antibody (clone 12G5) Biolegend Cat# 306506
APC-CD3ε antibody (clone UCHT1) BD Biosciences Cat# 555335
P-cofilin antibody (Rabbit) Cell signaling Cat#3313
Anti-rabbit IgG, HRP-linked Antibody Cell Signaling Cat#7074
Alexa Fluor 488 chicken anti-Rabbit Molecular Probes Invitrogen Cat#A21441
Bacterial and virus strains
HIV-1(NL4-3) NIH HIV Reagent Program ARP-114
HIV-1(AD8) Englund et al., 1995 N/A
Biological samples
Human blood Healthy adult N/A
Chemicals, peptides, and recombinant proteins
Recombinant Human IL-2 PeproTeck Cat#200-02
Recombinant Human IL-7 PeproTeck Cat#200-07
Recombinant Human CD58/LFA-3 R&D Systems Cat#1689-CD
Critical commercial assays
LiveBLAzer™ FRET-B/G Loading Kit with CCF2-AM Invitrogen Cat#K1032
Lipofectamine 2000 Transfection Reagent Invitrogen Cat#11668-019
Dynabeads Pan Mouse IgG Invitrogen Cat#11042
Deposited data
Raw and analyzed data This paper Lab notebook
Experimental models: cell lines
Jurkat CD4 T cell NIH HIV Reagent Program ARP-177
HEK293T cell ATCC CRL-3216
Oligonucleotides
HIV DNA forward primer 5’LTR-U5:5’- AGAT
CCCTCAGACCCTTTTAGTCA-3’		 This paper N/A
HIV DNA reverse primer 3’ gag:
5’- TTCGCTTTCAAGTCCCTGTTC-3’		 This paper N/A
HIV DNA probe FAM-U5/gag:5'-(FAM)- TGT
GGAAAATCTCTAGCAGTGGCGCC-(BHQ)-3’		 This paper N/A
HIV 2-LTR primer MH535:
5’-AACTAGGGAACCCACTGCTTAAG-3’		 This paper N/A
HIV 2-LTR primer MH536:5’-TCCACAGAT
CAAGGATATCTTGTC-3’		 This paper N/A
HIV 2-LTR probe MH603:5'-(FAM)-ACACT
ACTTGAAGCACTCAAGGCAAGC
TTT-(BHQ)-3'		 This paper N/A
Recombinant DNA
pNL4-3 proviral DNA NIH HIV Reagent Program ARP-114
pAD8 proviral DNA Englund et al., 1995 N/A
pCMV4-BlaM-Vpr Dr. Warner C. Greene N/A
pAdVAntage Promega Cat# E1711
pLifeAct-EGFP Addgene 58470
pCMV3-CD2-C-GFPSpark Sino Biological Cat#HG10982-ACG
pCMV3-CXCR4-C-OFPSpark Sino Biological Cat#HG11325-ACR
Software and algorithms
GraphPad Prism GraphPad Software Inc. https://www.graphpad.com
FlowJo Becton Dickinson https://www.flowjo.com
Adobe Photoshop Adobe https://www.adobe.com/products/photoshop.html
Adobe Illustrator Adobe https://www.adobe.com/products/illustrator.html
Open in a new tab

Resource availability

Lead contact

Further information and request for resources and reagents should be directed to and will be fulfilled by the Lead Contact, Yuntao Wu (ywu8@gmu.edu).

Materials availability

This study did not generate new unique reagents

Experimental model and subject details

The study involved the use of human peripheral blood from twenty adult donors. Donor gender identity information was kept confidential per protocols and there is no scientific basis for gender preference in donor selection. Informed consent was obtained from all subjects. All protocols involving human subjects were reviewed and approved by the George Mason University institutional review board or by the Ethics Review Committee of China Medical University.

Method details

Viruses and HIV-1 infection of blood resting CD4 T cells

Blood resting CD4 T cells were purified from peripheral blood of HIV-negative donors by two rounds of negative selection as previously described (Wu and Marsh, 2001; Yoder et al., 2008). Briefly, for the first-round depletion, monoclonal antibodies against human CD14, CD56, and HLA-DR, DP, and DQ (BD Biosciences) were used. For the second-round depletion, monoclonal antibodies against human CD8, CD11b, and CD19 (BD Biosciences) were used. Antibody-bound cells were depleted using Dynabeads Pan Mouse IgG (Thermo Fisher Scientific). For further negative selection of the memory CD4 T cell subsets, monoclonal antibody against CD45RA (0.02 μl per million cells) (BD Biosciences) was added during the second round of depletion. Purified cells were cultured in RPMI-1640 medium supplemented with 10% heat-inactivated fetal bovine serum (Invitrogen, Carlsbad, CA), penicillin (50 U/ml) (Thermo Fisher Scientific), and streptomycin (50 μg/ml) (Thermo Fisher Scientific). Virus stocks of HIV-1(NL4-3) and HIV-1(AD8) (Englund et al., 1995) were prepared by transfection of HEK293T cells with proviral DNA using Lipofectamine 2000 (Thermo Fisher Scientific), as described previously (He et al., 2019; Yoder et al., 2008). Briefly, 3 x 106 HEK293T cells were cultured in 10 cm petri dish overnight, and then transfected with 20 μg of proviral DNA mixed with 60 μl of Lipofectamine 2000. Cells were transfected for 6 hours, washed, and cultured for 48 hours in DMEM medium supplemented with 10% heat-inactivated fetal bovine serum (Invitrogen, Carlsbad, CA), penicillin (50 U/ml) (Thermo Fisher Scientific), and streptomycin (50 μg/ml) (Thermo Fisher Scientific). Viruses in the supernatant were harvested and filtered through a 0.45-μm nitrocellulose membrane. Levels of p24 in the viral supernatant were measured by using an in-house p24 ELISA kit. Single cycle HIV-1(gp160) was prepared as described previously (Yu et al., 2009). Briefly, 3 x 106 HEK293T cells were cultured in 10 cm petri dish overnight, and then transfected with 10 μg of pNL4-3(KFS) DNA and 10 μg of pNLΔψEnV mixed with 60 μl of Lipofectamine 2000. Cells were transfected for 6 hours, washed, and cultured for 48 hours in DMEM medium supplemented with 10% heat-inactivated fetal bovine serum (Invitrogen, Carlsbad, CA), penicillin (50 U/ml) (Thermo Fisher Scientific), and streptomycin (50 μg/ml) (Thermo Fisher Scientific). Viruses in the supernatant were harvested and filtered through a 0.45-μm nitrocellulose membrane. Levels of p24 in the viral supernatant were measured by using an in-house p24 ELISA kit. For infection, CD4 T cells were incubated with viruses for 2 hours, washed twice with medium to remove unbound virus, and then cultured in fresh medium (106 cells per ml) for 5 days. Cells were activated at day 5 with anti-CD3/CD28 conjugated beads at 4 beads per cell as previously described (Wu and Marsh, 2001; Yoder et al., 2008). Culture supernatant was taken daily or every two days after stimulation and used for p24 ELISA.

Conjugation of antibodies to magnetic beads

Monoclonal antibodies against human CD2 (clone RPA-2.10), CXCR4 (clone 12G5), CD3 (clone HIT3α), or CD28 (clone CD28.2) were purchased commercially (BD Biosciences). For conjugation, 10 μg of antibodies was conjugated with 4 x 108 Dynal beads (Thermo Fisher Scientific) for 30 minutes at room temperature. The magnetic beads were washed with PBS-0.5% BSA and resuspended in 1 ml of PBS-0.5%BSA.

Stimulation of resting CD4 T cells

Resting CD4 T cells were stimulated with antibodies or LFA-3 (CD58). For pre-stimulation with the anti-CD2 antibody-conjugated magnetic beads, resting CD4 T cells (106 cells) were mixed with the beads (2 beads per cell), cultured at 37°C overnight, and then infected with HIV-1. For stimulation with soluble anti-CD2 antibody (clone RPA-2.10) (BD Biosciences) or recombinant human CD58 (R&D Systems), resting CD4 T cells (106 cells) were treated at the indicated concentrations for 1 hour and then infected with HIV-1.

Surface staining of receptors on resting CD4 T cells and Jurkat T cells

For measuring surface expression of CD2 on naïve CD4 T cells and resting memory CD4 T cells, resting CD4 T cells (106 cells) were stained with FITC-conjugated anti-human CD2 antibody (clone RPA-2.10) (Biolegend) and PE-Cy5-conjugated anti-Human CD45RO antibody (clone UCHL1) (BD Biosciences). For quantifying T cell activation, CD4 T cells were collected 1 day after anti-CD3/CD28 bead stimulation and then stained with PE-labeled anti-human CD25 antibody (clone M-A251) (BD Biosciences) or PE-labeled anti-human CD69 antibody (clone FN50) (BD Biosciences), respectively. For quantifying CD2, CD3ε, and CXCR4 surface expression on Jurkat T cells, FITC-labeled anti-human CD2 antibody (clone RPA-2.10) (Biolegend), FITC-labeled anti-human CD3ε antibody (clone UCHT1) (BD Biosciences), or PE-labeled anti-human CXCR4 antibody (clone 12G5) (Biolegend), respectively, was used for staining. Surface staining was conducted on ice for 30 minutes in the dark using antibody dosages as recommended by the manufacturers. Cells were washed with cold PBS-0.1% BSA and then analyzed on a FACSCalibur (BD Biosciences).

Viral fusion assay

The BlaM-Vpr-based viral fusion assay was performed as previously described (Cavrois et al., 2002). Briefly, viruses were generated by co-transfection of HEK293T cells with three plasmids: pNL4-3 proviral DNA, pCMV4-BlaM-Vpr (kindly provided by Dr. Warner C. Greene), and pAdVAntage (Promega) (in the ratio of 6:2:1). Supernatant was harvested at 48 hours post co-transfection, concentrated, and then used for infection of resting CD4 T cells. For infection of resting CD4 T cells, 400 ng (p24) of HIV-1 (BlaM-Vpr) was used for 2 million cells. As a control, cells were pretreated with 10 μM AMD3100 for 1 hour and then infected with HIV-1 (BlaM-Vpr) virus for 2 hours. Infected cells were washed with medium and resuspended in 100 μl CCF2-AM loading solution, and inculabted for 1 hour at room temperature at dark. Cells were washed with 200 μl of development medium, resuspended into 200 μl of development media and incubated at room temperature for 16 hours in dark, and then washed and resuspended in 200 μl 1.2% paraformaldehyde for flow cytometry using a Becton Dickinson LSR II (Becton Dickinson).

Cell fractionation

For fractionating actin-associated HIV-1 DNA, infected resting CD4 T cells were washed and then lysed in ice-cold fractionation lysis buffer (10 mM Tris-Cl, pH 7.5, 140 mM NaCl, 5 mM KCl, 10 mM EDTA, 1% NP-40). For fractionation control, a plasmid DNA, pMSCVneo, was added into the lysates. Cell lysates were centrifuged at 1,000 x g for 3 minutes at 4°C to pellet the nucleus. The cytosolic fractions in the supernatants were collected and centrifuged at 14,000 x g for 30 minutes. Pellets were resuspended in NTENT buffer (150 mM NaCl, 10 mM Tris-Cl, pH 7.2, 1 mM EDTA, 1% Triton X-100) and centrifuged again at 14,000 x g for 30 min. Pellets were resuspended in lysis buffer for DNA extraction (Promega Wizard SV Total DNA Kit, Promega).

Real-time PCR quantification of HIV-1 DNA

Quantitative real-time PCR analyses of viral late RT DNA were carried out with the Bio-Rad iQ5 real-time PCR detection system as described previously (Yoder et al., 2008). Briefly, each reaction contained 1 x TaqMan Universal PCR Master Mix (Applied Biosystems), 300 nM each of the primers and 300 nM of the probe. The PCR was carried out at 50°C for 2 minutes, 95°C for 10 minutes, and 40 cycles of 95°C for 15 seconds and 60°C for 60 seconds. The sequences of the primers and probe are: the forward primer 5’LTR-U5 (5’- AGATCCCTCAGACCCTTTTAGTCA-3’), the reverse primer 3’ gag (5’- TTCGCTTTCAAGTCCCTGTTC-3’), and the probe FAM-U5/gag (5'-FAM- TGTGGAAAATCTCTAGCAGTGGCGCC-BHQ-3'). For measuring HIV 2-LTR circular DNA, real-time PCR was conducted with the primers MH535 (5’-AACTAGGGAACCCACTGCTTAAG-3’) and MH536 (5’-TCCACAGATCAAGGATATCTTGTC-3’) and the probe MH603 (5'-FAM- ACACTACTTGAAGCACTCAAGGCAAGCTTT-BHQ-3'), as previously described (Kelly et al., 2008). Briefly, each reaction contained 1 x TaqMan Universal PCR Master Mix (Applied Biosystems), 300 nM each of the primers and 300 nM of the probe. The PCR was carried out at 50°C for 2 minutes, 95°C for 10 minutes, and 40 cycles of 95°C for 15 seconds and 60°C for 60 seconds. The DNA standard used for both late DNA and 2-LTR circle quantification was constructed by using a plasmid containing a complete 2 LTR region (pLTR-2C, cloned by amplification of infected cells with 5’-TGGGTTTTCCAGTCACACCTCAG-3’ and 5’-GATTAACTGCGAATCGTTCTAGC-3’). Measurement was run in triplicate ranging from 1 to 106 copies of pLTR-2C mixed with DNA from uninfected cells.

Confocal fluorescent microscopy

For monitoring actin dynamics after stimulation of resting CD4 T cells with anti-CD2 antibody beads, resting CD4 T cells (5 x 106 cells) were electroporated with 5 μg of pLifeAct-EGFP plasmid using Nucleofactor and Nucleofector Kit R (Lonza). Electroporation was carried out as recommended by the manufacturer. Electroporated cells were cultured and treated with anti-CD2 antibody beads (2 beads per cell) at 48 hours post-electroporation. Actin dynamics were monitored by live-cell fluorescence imaging using the UltraView Vox confocal system (PerkinElmer, Co., contains cell culture chamber, Tokai Hit) equipped with a Nikon Eclipse Ti-E microscope with a 60×, 1.4 NA oil-immersion objective lens. The images were captured with an EM-CCD (Hamamatsu C9100-14). Data were analyzed with Volocity 6.3.0. The white field, the green (F-actin) fluorescent field, and the merged field are shown (from left to right).

For confocal imaging of actin polymerization upon SDF-1 stimulation, resting memory CD4 T cells (106 cells) were pretreated with SDF-1 (12.5 nM) for 15 minutes, fixed, permeabilized for 20 minutes at room temperature, washed twice, and then stained with 5 μl of 0.3 mM FITC-labeled phalloidin (Sigma) for 30 minutes on ice in the dark. Cells were stained with DAPI (4′, 6-diamidino-2-phenylindole) for nuclear DNA. Stained cells were imaged using a Zeiss Laser Scanning Microscope, LSM 510 META, with a 40 NA 1.3 or 60 NA 1.4 oil DIC Plan-Neofluar objective. Samples were excited with a laser line, 488 nm for FITC. Images were simultaneously recorded in two channels: channel one, fluorescent emissions from 505 to 530 nm for FITC (green); channel two, DIC.

For confocal imaging of CD2 and CXCR4 cellular localization, Jurkat CD4 T cells (1 x 106 cells) were electroporated with 500 ng of pCMV3-CD2-C-GFPSpark and 500 ng of pCMV3-CXCR4-C-OFPSpark plasmids (SinoBiological) using Nucleofactor and Nucleofector Kit R (Lonza). At 48 hours post-electroporation, cells were stimulated with 200 ng (p24) of single cycle HIV-1(gp160) viral particles for 30 min at 37°C. Following stimulation, cells were kept on ice for confocal imaging. To visualize the cellular localization of CD2-GFP and CXCR4-OFP, cells were imaged using a Carl Zeiss Laser Scanning Microscope Zen 780 (Carl Zeiss, Thornwood, NY) with a Plan-Apochromat 60x/1.4 Oil DIC M27 objective. Laser lines of 488 nm and 564 nm were used to excite GFP and OFP, respectively. Imaging data were exported using Zen software and further processed using Adobe Photoshop.

Measurement of phospho-cofilin by western blot and intracellular staining

Resting CD4 T cells were treated with anti-CD2 beads (2 beads per cell) from 0 min to 60 minutes, fixed, and stained with Intracellular Protein Staining Kit (Virongy) for p-cofilin staining. Cells were washed twice and stained with 0.5 μl of Alexa Fluor 488 chicken anti-rabbit antibody (Thermo Fisher Scientific) for 30 min at room temperature. After washing, stained cells were analyzed on FACSCalibur (Becton Dickinson). For western blot, anti-CD2 antibody bead-stimulated resting CD4 T cells were lysed in NuPAGE LDS Sample Buffer (Thermo Fisher Scientific). Cell lysates were analyzed by SDS-PAGE, followed by transferring onto nitrocellulose membranes (Thermo Fisher Scientific) that were blocked for 30 min with 5% milk. Blots were incubated with a rabbit anti-phospho-cofilin (ser3) antibody (1:1000 dilution) (Cell Signaling) overnight at 4˚C, washed, and incubated with a horseradish peroxidase (HRP)-conjugated anti-rabbit IgG antibody (1:2000 dilution) (Cell Signaling). Blots were also stripped and reprobed with a goat anti-GAPDH antibody (1:1000 dilution) (Abcam) (4˚C for overnight), followed by incubation with a horseradish peroxidase-conjugated anti-goat antibody (1:2500 dilution) (KPL). For chemiluminescent detection of HRP-conjugated antibodies, the light signals were captured on a cooled CCD camera (Alpha Innotech) using chemiluminescent SuperSignal West Femto Maximum Sensitivity Substrate (Pierce).

Fluorescence resonance energy transfer (FRET) assay

Jurkat CD4 T cells were pre-chilled on ice for 30 min before antibody staining and then incubated with APC-labeled anti-human CD2 antibody (clone RPA-2.10) (BD Biosciences) and PE-labeled anti-human CXCR4 antibody (clone 12G5) (Biolegend) for the detection of FRET between CD2 and CXCR4. For control, cells were incubated with APC-labeled anti-human CD3ε antibody (clone UCHT1) (BD Biosciences) and PE-labeled anti-human CXCR4 antibody (clone 12G5) (Biolegend) for the detection of FRET between CD3ε and CXCR4. Antibody surface staining was conducted on ice for 30 min, followed by washing with cold staining buffer (HBSS with 10 mg/ml BSA and 10 mM HEPES, pH 7.5). The stained cells were then incubated at 37°C with or without 500 ng HIV (NL4-3) viral particles for 30 min to induce FRET signals. Cells were washed with cold staining buffer and then washed with acid-washing buffer (20 mM HCl/HBSS, pH 2.0) on ice for 5-10 min. After washing, the cells were resuspended in cold staining buffer and analyzed immediately for FRET on FACSCalibur (Becton Dickinson).

Quantification and statistical analysis

Sample analyses and inhibition assays were performed in triplicate, and statistical significance was determined using two-tailed T-Test in Prism 7 (Graph Pad). Significance p values are indicated in figure legends.

Acknowledgments

The authors wish to thank the George Mason University Student Health Center and NIH blood bank for blood donations; the NIH AIDS Research and Reference Reagent Program for reagents; Jennifer Guernsey for editorial assistance. This work was supported in part by the George Mason University internal fund; S.H. and Y.F. were supported by the China Medical University Research Fund; W.J. and W.C. were supported by the Intramural Research Program of NIDCR, NIH.

Author contributions

S.H., J.G., Y.F., M.S., C.Q., S.F., and W.J. performed experiments. Z.C. directed the live-cell fluorescence microscopy study. X.X. directed the confocal microscopy study and analyzed data. W.C. directed the T cell activation study. Y.W. and H.S. directed and supervised the HIV-1 infection study. S.H. and Y.W. analyzed the data. Y.W. conceived, directed, and supervised the study and wrote the manuscript.

Declaration of interests

A patent application related to CD2 inhibition of HIV infection has been filed.

Published: November 19, 2021

Footnotes

Supplemental information can be found online at https://doi.org/10.1016/j.isci.2021.103305.

Contributor Information

Hong Shang, Email: hongshang100@hotmail.com.

Yuntao Wu, Email: ywu8@gmu.edu.

Supplemental information

Document S1. Figures S1–S8
mmc1.pdf (274.5KB, pdf)

Data and code availability

The published article includes all data generated or analyzed during this study.

Data reported in this paper will be shared by the lead contact upon request.

This paper does not report original code.

Any additional information required to reanalyze the data reported in this paper is available from the lead contact upon request.

References

  1. Alkhatib G., Combadiere C., Broder C.C., Feng Y., Kennedy P.E., Murphy P.M., Berger E.A. CC CKR5: a RANTES, MIP-1alpha, MIP-1beta receptor as a fusion cofactor for macrophage-tropic HIV-1. Science. 1996;272:1955–1958. doi: 10.1126/science.272.5270.1955. [DOI] [PubMed] [Google Scholar]
  2. Barrero-Villar M., Cabrero J.R., Gordon-Alonso M., Barroso-Gonzalez J., Alvarez-Losada S., Munoz-Fernandez M.A., Sanchez-Madrid F., Valenzuela-Fernandez A. Moesin is required for HIV-1-induced CD4-CXCR4 interaction, F-actin redistribution, membrane fusion and viral infection in lymphocytes. J. Cell Sci. 2009;122:103–113. doi: 10.1242/jcs.035873. [DOI] [PubMed] [Google Scholar]
  3. Bernstein B.W., Bamburg J.R. ADF/cofilin: a functional node in cell biology. Trends Cell Biol. 2010;20:187–195. doi: 10.1016/j.tcb.2010.01.001. [DOI] [PMC free article] [PubMed] [Google Scholar]
  4. Bierer B.E., Sleckman B.P., Ratnofsky S.E., Burakoff S.J. The biologic roles of CD2, CD4, and CD8 in T-cell activation. Annu. Rev. Immunol. 1989;7:579–599. doi: 10.1146/annurev.iy.07.040189.003051. [DOI] [PubMed] [Google Scholar]
  5. Blair H.A. Ibalizumab: a review in multidrug-resistant HIV-1 infection. Drugs. 2020;80:189–196. doi: 10.1007/s40265-020-01258-3. [DOI] [PubMed] [Google Scholar]
  6. Boon L., Holland B., Gordon W., Liu P., Shiau F., Shanahan W., Reimann K.A., Fung M. Development of anti-CD4 MAb hu5A8 for treatment of HIV-1 infection: preclinical assessment in non-human primates. Toxicology. 2002;172:191–203. doi: 10.1016/s0300-483x(02)00002-1. [DOI] [PubMed] [Google Scholar]
  7. Brenchley J.M., Price D.A., Schacker T.W., Asher T.E., Silvestri G., Rao S., Kazzaz Z., Bornstein E., Lambotte O., Altmann D. Microbial translocation is a cause of systemic immune activation in chronic HIV infection. Nat. Med. 2006;12:1365–1371. doi: 10.1038/nm1511. [DOI] [PubMed] [Google Scholar]
  8. Brenchley J.M., Schacker T.W., Ruff L.E., Price D.A., Taylor J.H., Beilman G.J., Nguyen P.L., Khoruts A., Larson M., Haase A.T. CD4+ T cell depletion during all stages of HIV disease occurs predominantly in the gastrointestinal tract. J. Exp. Med. 2004;200:749–759. doi: 10.1084/jem.20040874. [DOI] [PMC free article] [PubMed] [Google Scholar]
  9. Bukrinskaya A., Brichacek B., Mann A., Stevenson M. Establishment of a functional human immunodeficiency virus type 1 (HIV-1) reverse transcription complex involves the cytoskeleton. J. Exp. Med. 1998;188:2113–2125. doi: 10.1084/jem.188.11.2113. [DOI] [PMC free article] [PubMed] [Google Scholar]
  10. Bukrinsky M.I., Sharova N., Dempsey M.P., Stanwick T.L., Bukrinskaya A.G., Haggerty S., Stevenson M. Active nuclear import of human immunodeficiency virus type 1 preintegration complexes. Proc. Natl. Acad. Sci. U S A. 1992;89:6580–6584. doi: 10.1073/pnas.89.14.6580. [DOI] [PMC free article] [PubMed] [Google Scholar]
  11. Butler S.L., Hansen M.S., Bushman F.D. A quantitative assay for HIV DNA integration in vivo. Nat. Med. 2001;7:631–634. doi: 10.1038/87979. [DOI] [PubMed] [Google Scholar]
  12. Cameron P.U., Saleh S., Sallmann G., Solomon A., Wightman F., Evans V.A., Boucher G., Haddad E.K., Sekaly R.P., Harman A.N. Establishment of HIV-1 latency in resting CD4+ T cells depends on chemokine-induced changes in the actin cytoskeleton. Proc. Natl. Acad. Sci. U S A. 2010;107:16934–16939. doi: 10.1073/pnas.1002894107. [DOI] [PMC free article] [PubMed] [Google Scholar]
  13. Cavrois M., De Noronha C., Greene W.C. A sensitive and specific enzyme-based assay detecting HIV-1 virion fusion in primary T lymphocytes. Nat. Biotechnol. 2002;20:1151–1154. doi: 10.1038/nbt745. [DOI] [PubMed] [Google Scholar]
  14. Choe H., Farzan M., Sun Y., Sullivan N., Rollins B., Ponath P.D., Wu L., Mackay C.R., LaRosa G., Newman W. The beta-chemokine receptors CCR3 and CCR5 facilitate infection by primary HIV-1 isolates. Cell. 1996;85:1135–1148. doi: 10.1016/s0092-8674(00)81313-6. [DOI] [PubMed] [Google Scholar]
  15. Cocchi F., DeVico A.L., Garzino-Demo A., Arya S.K., Gallo R.C., Lusso P. Identification of RANTES, MIP-1 alpha, and MIP-1 beta as the major HIV-suppressive factors produced by CD8+ T cells. Science. 1995;270:1811–1815. doi: 10.1126/science.270.5243.1811. [DOI] [PubMed] [Google Scholar]
  16. Cocchi F., DeVico A.L., Garzino-Demo A., Cara A., Gallo R.C., Lusso P. The V3 domain of the HIV-1 gp120 envelope glycoprotein is critical for chemokine-mediated blockade of infection. Nat. Med. 1996;2:1244–1247. doi: 10.1038/nm1196-1244. [DOI] [PubMed] [Google Scholar]
  17. Combadiere C., Ahuja S.K., Tiffany H.L., Murphy P.M. Cloning and functional expression of CC CKR5, a human monocyte CC chemokine receptor selective for MIP-1(alpha), MIP-1(beta), and RANTES. J. Leukoc. Biol. 1996;60:147–152. doi: 10.1002/jlb.60.1.147. [DOI] [PubMed] [Google Scholar]
  18. Dalgleish A.G., Beverley P.C., Clapham P.R., Crawford D.H., Greaves M.F., Weiss R.A. The CD4 (T4) antigen is an essential component of the receptor for the AIDS retrovirus. Nature. 1984;312:763–767. doi: 10.1038/312763a0. [DOI] [PubMed] [Google Scholar]
  19. Deng H., Liu R., Ellmeier W., Choe S., Unutmaz D., Burkhart M., Di Marzio P., Marmon S., Sutton R.E., Hill C.M. Identification of a major co-receptor for primary isolates of HIV-1. Nature. 1996;381:661–666. doi: 10.1038/381661a0. [DOI] [PubMed] [Google Scholar]
  20. Doranz B.J., Rucker J., Yi Y., Smyth R.J., Samson M., Peiper S.C., Parmentier M., Collman R.G., Doms R.W. A dual-tropic primary HIV-1 isolate that uses fusin and the beta-chemokine receptors CKR-5, CKR-3, and CKR-2b as fusion cofactors. Cell. 1996;85:1149–1158. doi: 10.1016/s0092-8674(00)81314-8. [DOI] [PubMed] [Google Scholar]
  21. Dorr P., Westby M., Dobbs S., Griffin P., Irvine B., Macartney M., Mori J., Rickett G., Smith-Burchnell C., Napier C. Maraviroc (UK-427,857), a potent, orally bioavailable, and selective small-molecule inhibitor of chemokine receptor CCR5 with broad-spectrum anti-human immunodeficiency virus type 1 activity. Antimicrob. Agents Chemother. 2005;49:4721–4732. doi: 10.1128/AAC.49.11.4721-4732.2005. [DOI] [PMC free article] [PubMed] [Google Scholar]
  22. Dragic T., Litwin V., Allaway G.P., Martin S.R., Huang Y., Nagashima K.A., Cayanan C., Maddon P.J., Koup R.A., Moore J.P. HIV-1 entry into CD4+ cells is mediated by the chemokine receptor CC-CKR-5. Nature. 1996;381:667–673. doi: 10.1038/381667a0. [DOI] [PubMed] [Google Scholar]
  23. Dustin M.L., Cooper J.A. The immunological synapse and the actin cytoskeleton: molecular hardware for T cell signaling. Nat. Immunol. 2000;1:23–29. doi: 10.1038/76877. [DOI] [PubMed] [Google Scholar]
  24. Englund G., Theodore T.S., Freed E.O., Engleman A., Martin M.A. Integration is required for productive infection of monocyte-derived macrophages by human immunodeficiency virus type 1. J. Virol. 1995;69:3216–3219. doi: 10.1128/jvi.69.5.3216-3219.1995. [DOI] [PMC free article] [PubMed] [Google Scholar]
  25. Feng Y., Broder C.C., Kennedy P.E., Berger E.A. HIV-1 entry cofactor: functional cDNA cloning of a seven-transmembrane, G protein-coupled receptor. Science. 1996;272:872–877. doi: 10.1126/science.272.5263.872. [DOI] [PubMed] [Google Scholar]
  26. Guo J., Xu X., Rasheed T.K., Yoder A., Yu D., Liang H., Yi F., Hawley T., Jin T., Ling B. Genistein interferes with SDF-1- and HIV-mediated actin dynamics and inhibits HIV infection of resting CD4 T cells. Retrovirology. 2013;10:62. doi: 10.1186/1742-4690-10-62. [DOI] [PMC free article] [PubMed] [Google Scholar]
  27. Hayasaka H., Kobayashi D., Yoshimura H., Nakayama E.E., Shioda T., Miyasaka M. The HIV-1 Gp120/CXCR4 axis promotes CCR7 ligand-dependent CD4 T cell migration: CCR7 homo- and CCR7/CXCR4 hetero-oligomer formation as a possible mechanism for up-regulation of functional CCR7. PLoS One. 2015;10:e0117454. doi: 10.1371/journal.pone.0117454. [DOI] [PMC free article] [PubMed] [Google Scholar]
  28. He S., Fu Y., Guo J., Spear M., Yang J., Trinite B., Qin C., Fu S., Jiang Y., Zhang Z. Cofilin hyperactivation in HIV infection and targeting the cofilin pathway using an anti-alpha4beta7 integrin antibody. Sci. Adv. 2019;5:eaat7911. doi: 10.1126/sciadv.aat7911. [DOI] [PMC free article] [PubMed] [Google Scholar]
  29. Iglesias-Ussel M., Vandergeeten C., Marchionni L., Chomont N., Romerio F. High levels of CD2 expression identify HIV-1 latently infected resting memory CD4+ T cells in virally suppressed subjects. J. Virol. 2013;87:9148–9158. doi: 10.1128/JVI.01297-13. [DOI] [PMC free article] [PubMed] [Google Scholar]
  30. Jacobson J.M., Kuritzkes D.R., Godofsky E., DeJesus E., Larson J.A., Weinheimer S.P., Lewis S.T. Safety, pharmacokinetics, and antiretroviral activity of multiple doses of ibalizumab (formerly TNX-355), an anti-CD4 monoclonal antibody, in human immunodeficiency virus type 1-infected adults. Antimicrob. Agents Chemother. 2009;53:450–457. doi: 10.1128/AAC.00942-08. [DOI] [PMC free article] [PubMed] [Google Scholar]
  31. Kaizuka Y., Douglass A.D., Vardhana S., Dustin M.L., Vale R.D. The coreceptor CD2 uses plasma membrane microdomains to transduce signals in T cells. J. Cell Biol. 2009;185:521–534. doi: 10.1083/jcb.200809136. [DOI] [PMC free article] [PubMed] [Google Scholar]
  32. Kelly J., Beddall M.H., Yu D., Iyer S.R., Marsh J.W., Wu Y. Human macrophages support persistent transcription from unintegrated HIV-1 DNA. Virology. 2008;372:300–312. doi: 10.1016/j.virol.2007.11.007. [DOI] [PMC free article] [PubMed] [Google Scholar]
  33. Killeen N., Stuart S.G., Littman D.R. Development and function of T cells in mice with a disrupted CD2 gene. EMBO J. 1992;11:4329–4336. doi: 10.1002/j.1460-2075.1992.tb05532.x. [DOI] [PMC free article] [PubMed] [Google Scholar]
  34. Klatzmann D., Champagne E., Chamaret S., Gruest J., Guetard D., Hercend T., Gluckman J.C., Montagnier L. T-lymphocyte T4 molecule behaves as the receptor for human retrovirus LAV. Nature. 1984;312:767–768. doi: 10.1038/312767a0. [DOI] [PubMed] [Google Scholar]
  35. Kumar A., Humphreys T.D., Kremer K.N., Bramati P.S., Bradfield L., Edgar C.E., Hedin K.E. CXCR4 physically associates with the T cell receptor to signal in T cells. Immunity. 2006;25:213–224. doi: 10.1016/j.immuni.2006.06.015. [DOI] [PubMed] [Google Scholar]
  36. Levoye A., Balabanian K., Baleux F., Bachelerie F., Lagane B. CXCR7 heterodimerizes with CXCR4 and regulates CXCL12-mediated G protein signaling. Blood. 2009;113:6085–6093. doi: 10.1182/blood-2008-12-196618. [DOI] [PubMed] [Google Scholar]
  37. Li J., Smolyar A., Sunder-Plassmann R., Reinherz E.L. Ligand-induced conformational change within the CD2 ectodomain accompanies receptor clustering: implication for molecular lattice formation. J. Mol. Biol. 1996;263:209–226. doi: 10.1006/jmbi.1996.0570. [DOI] [PubMed] [Google Scholar]
  38. Pan X., Baldauf H.M., Keppler O.T., Fackler O.T. Restrictions to HIV-1 replication in resting CD4+ T lymphocytes. Cell Res. 2013;23:876–885. doi: 10.1038/cr.2013.74. [DOI] [PMC free article] [PubMed] [Google Scholar]
  39. Qian K., Morris-Natschke S.L., Lee K.-H. HIV entry inhibitors and their potential in HIV therapy. Med. Res. Rev. 2009;29:369–393. doi: 10.1002/med.20138. [DOI] [PMC free article] [PubMed] [Google Scholar]
  40. Saleh S., Solomon A., Wightman F., Xhilaga M., Cameron P.U., Lewin S.R. CCR7 ligands CCL19 and CCL21 increase permissiveness of resting memory CD4+ T cells to HIV-1 infection: a novel model of HIV-1 latency. Blood. 2007;110:4161–4164. doi: 10.1182/blood-2007-06-097907. [DOI] [PubMed] [Google Scholar]
  41. Samstag Y., Bader A., Meuer S.C. A serine phosphatase is involved in CD2-mediated activation of human T lymphocytes and natural killer cells. J. Immunol. 1991;147:788–794. [PubMed] [Google Scholar]
  42. Samstag Y., Eckerskorn C., Wesselborg S., Henning S., Wallich R., Meuer S.C. Costimulatory signals for human T-cell activation induce nuclear translocation of pp19/cofilin. Proc. Natl. Acad. Sci. U S A. 1994;91:4494–4498. doi: 10.1073/pnas.91.10.4494. [DOI] [PMC free article] [PubMed] [Google Scholar]
  43. Samstag Y., Henning S.W., Bader A., Meuer S.C. Dephosphorylation of pp19: a common second signal for human T cell activation mediated through different accessory molecules. Int. Immunol. 1992;4:1255–1262. doi: 10.1093/intimm/4.11.1255. [DOI] [PubMed] [Google Scholar]
  44. Samstag Y., John I., Wabnitz G.H. Cofilin: a redox sensitive mediator of actin dynamics during T-cell activation and migration. Immunol. Rev. 2013;256:30–47. doi: 10.1111/imr.12115. [DOI] [PMC free article] [PubMed] [Google Scholar]
  45. Sanchez-Madrid F., Krensky A.M., Ware C.F., Robbins E., Strominger J.L., Burakoff S.J., Springer T.A. Three distinct antigens associated with human T-lymphocyte-mediated cytolysis: LFA-1, LFA-2, and LFA-3. Proc. Natl. Acad. Sci. U S A. 1982;79:7489–7493. doi: 10.1073/pnas.79.23.7489. [DOI] [PMC free article] [PubMed] [Google Scholar]
  46. Sloan R.D., Wainberg M.A. The role of unintegrated DNA in HIV infection. Retrovirology. 2011;8:52. doi: 10.1186/1742-4690-8-52. [DOI] [PMC free article] [PubMed] [Google Scholar]
  47. Spear M., Guo J., Turner A., Yu D., Wang W., Meltzer B., He S., Hu X., Shang H., Kuhn J. HIV-1 triggers WAVE2 phosphorylation in primary CD4 T cells and macrophages, mediating Arp2/3-dependent nuclear migration. J. Biol. Chem. 2014;289:6949–6959. doi: 10.1074/jbc.M113.492132. [DOI] [PMC free article] [PubMed] [Google Scholar]
  48. Stryer L. Fluorescence energy transfer as a spectroscopic ruler. Annu. Rev. Biochem. 1978;47:819–846. doi: 10.1146/annurev.bi.47.070178.004131. [DOI] [PubMed] [Google Scholar]
  49. Taddeo B., Haseltine W.A., Farnet C.M. Integrase mutants of human immunodeficiency virus type 1 with a specific defect in integration. J. Virol. 1994;68:8401–8405. doi: 10.1128/jvi.68.12.8401-8405.1994. [DOI] [PMC free article] [PubMed] [Google Scholar]
  50. Trinite B., Ohlson E.C., Voznesensky I., Rana S.P., Chan C.N., Mahajan S., Alster J., Burke S.A., Wodarz D., Levy D.N. An HIV-1 replication pathway utilizing reverse transcription products that fail to integrate. J. Virol. 2013;87:12701–12720. doi: 10.1128/JVI.01939-13. [DOI] [PMC free article] [PubMed] [Google Scholar]
  51. Unutmaz D., KewalRamani V.N., Marmon S., Littman D.R. Cytokine signals are sufficient for HIV-1 infection of resting human T lymphocytes. J. Exp. Med. 1999;189:1735–1746. doi: 10.1084/jem.189.11.1735. [DOI] [PMC free article] [PubMed] [Google Scholar]
  52. Veazey R.S., DeMaria M., Chalifoux L.V., Shvetz D.E., Pauley D.R., Knight H.L., Rosenzweig M., Johnson R.P., Desrosiers R.C., Lackner A.A. Gastrointestinal tract as a major site of CD4+ T cell depletion and viral replication in SIV infection. Science. 1998;280:427–431. doi: 10.1126/science.280.5362.427. [DOI] [PubMed] [Google Scholar]
  53. Vorster P.J., Guo J., Yoder A., Wang W., Zheng Y., Xu X., Yu D., Spear M., Wu Y. LIM kinase 1 modulates cortical actin and CXCR4 cycling and is activated by HIV-1 to initiate viral infection. J. Biol. Chem. 2011;286:12554–12564. doi: 10.1074/jbc.M110.182238. [DOI] [PMC free article] [PubMed] [Google Scholar]
  54. Wang J.H., Smolyar A., Tan K., Liu J.H., Kim M., Sun Z.Y., Wagner G., Reinherz E.L. Structure of a heterophilic adhesion complex between the human CD2 and CD58 (LFA-3) counterreceptors. Cell. 1999;97:791–803. doi: 10.1016/s0092-8674(00)80790-4. [DOI] [PubMed] [Google Scholar]
  55. Wang W., Guo J., Yu D., Vorster P.J., Chen W., Wu Y. A dichotomy in cortical actin and chemotactic actin activity between human memory and naive T cells contributes to their differential susceptibility to HIV-1 infection. J. Biol. Chem. 2012;287:35455–35469. doi: 10.1074/jbc.M112.362400. [DOI] [PMC free article] [PubMed] [Google Scholar]
  56. Wang Z., Yin X., Ma M., Ge H., Lang B., Sun H., He S., Fu Y., Sun Y., Yu X. IP-10 promotes latent HIV infection in resting memory CD4+ T cells via LIMK-cofilin pathway. Front. Immunol. 2021;12:656663. doi: 10.3389/fimmu.2021.656663. [DOI] [PMC free article] [PubMed] [Google Scholar]
  57. Watts A., van Lipzig M., Jaeger W., Seeber R., van Zwam M., Vinet J., van der Lee M., Siderius M., Zaman G., Boddeke H. Identification and profiling of CXCR3–CXCR4 chemokine receptor heteromer complexes. Br. J. Pharmacol. 2013;168:1662–1674. doi: 10.1111/bph.12064. [DOI] [PMC free article] [PubMed] [Google Scholar]
  58. Wild C., Greenwell T., Matthews T. A synthetic peptide from HIV-1 gp41 is a potent inhibitor of virus-mediated cell-cell fusion. AIDS Res. Hum. Retroviruses. 1993;9:1051–1053. doi: 10.1089/aid.1993.9.1051. [DOI] [PubMed] [Google Scholar]
  59. Wu Y. In: Encyclopedia of AIDS. Hope T.J., Stevenson M., Richman D., editors. Springer New York; 2013. Cofilin, trafficking; pp. 1–6. [Google Scholar]
  60. Wu Y., Marsh J.W. Selective transcription and modulation of resting T cell activity by preintegrated HIV DNA. Science. 2001;293:1503–1506. doi: 10.1126/science.1061548. [DOI] [PubMed] [Google Scholar]
  61. Wu Y., Yoder A. Chemokine coreceptor signaling in HIV-1 infection and pathogenesis. Plos Pathog. 2009;5:e1000520. doi: 10.1371/journal.ppat.1000520. [DOI] [PMC free article] [PubMed] [Google Scholar]
  62. Yi F., Guo J., Dabbagh D., Spear M., He S., Kehn-Hall K., Fontenot J., Yin Y., Bibian M., Park C.M. Discovery of novel small molecule inhibitors of LIM domain kinase for inhibiting HIV-1. J. Virol. 2017;91 doi: 10.1128/JVI.02418-16. [DOI] [PMC free article] [PubMed] [Google Scholar]
  63. Yin W., Li W., Li Q., Liu Y., Liu J., Ren M., Ma Y., Zhang Z., Zhang X., Wu Y. Real-time imaging of individual virion-triggered cortical actin dynamics for human immunodeficiency virus entry into resting CD4 T cells. Nanoscale. 2020;12:115–129. doi: 10.1039/c9nr07359k. [DOI] [PubMed] [Google Scholar]
  64. Yoder A., Yu D., Dong L., Iyer S.R., Xu X., Kelly J., Liu J., Wang W., Vorster P.J., Agulto L. HIV envelope-CXCR4 signaling activates cofilin to overcome cortical actin restriction in resting CD4 T cells. Cell. 2008;134:782–792. doi: 10.1016/j.cell.2008.06.036. [DOI] [PMC free article] [PubMed] [Google Scholar]
  65. Yu D., Wang W., Yoder A., Spear M., Wu Y. The HIV envelope but not VSV glycoprotein is capable of mediating HIV latent infection of resting CD4 T cells. PLoS Pathog. 2009;5:e1000633. doi: 10.1371/journal.ppat.1000633. [DOI] [PMC free article] [PubMed] [Google Scholar]
  66. Zack J.A., Arrigo S.J., Weitsman S.R., Go A.S., Haislip A., Chen I.S. HIV-1 entry into quiescent primary lymphocytes: molecular analysis reveals a labile, latent viral structure. Cell. 1990;61:213–222. doi: 10.1016/0092-8674(90)90802-l. [DOI] [PubMed] [Google Scholar]

Associated Data

This section collects any data citations, data availability statements, or supplementary materials included in this article.

Supplementary Materials

Video S1. Stimulation with anti-CD2-beads triggers actin polymerization around the bead-CD4 T cell junction, related to Figure 3

Blood resting CD4 T cells were purified, electroporated with pLifeAct-EGFP, and then stimulated with α-CD2 beads. Actin polymerization was monitored by live-cell fluorescence imaging microscopy, which uses the UltraView Vox confocal system (PerkinElmer, Co., contains cell culture chamber, Tokai Hit) with a Nikon Eclipse Ti-E microscope with a 60×, 1.4 NA oil-immersion objective lens. The images were captured with an EM-CCD (Hamamatsu C9100-14). Data were analyzed with Volocity 6.3.0. The green (F-actin) fluorescent field, the white field, and the merged field are shown (from left to right).

Download video file (4MB, mp4)
Document S1. Figures S1–S8
mmc1.pdf (274.5KB, pdf)

Data Availability Statement

The published article includes all data generated or analyzed during this study.

Data reported in this paper will be shared by the lead contact upon request.

This paper does not report original code.

Any additional information required to reanalyze the data reported in this paper is available from the lead contact upon request.

Articles from iScience are provided here courtesy of Elsevier

RESOURCES
