Cluster magnetic octupole induced out-of-plane spin polarization in antiperovskite antiferromagnet

Abstract

Out-of-plane spin polarization σ_z has attracted increasing interests of researchers recently, due to its potential in high-density and low-power spintronic devices. Noncollinear antiferromagnet (AFM), which has unique 120° triangular spin configuration, has been discovered to possess σ_z. However, the physical origin of σ_z in noncollinear AFM is still not clear, and the external magnetic field-free switching of perpendicular magnetic layer using the corresponding σ_z has not been reported yet. Here, we use the cluster magnetic octupole in antiperovskite AFM Mn₃SnN to demonstrate the generation of σ_z. σ_z is induced by the precession of carrier spins when currents flow through the cluster magnetic octupole, which also relies on the direction of the cluster magnetic octupole in conjunction with the applied current. With the aid of σ_z, current induced spin-orbit torque (SOT) switching of adjacent perpendicular ferromagnet is realized without external magnetic field. Our findings present a new perspective to the generation of out-of-plane spin polarizations via noncollinear AFM spin structure, and provide a potential path to realize ultrafast high-density applications.

One consistent challenge in spintronics is electrical control of the magnetisation. Here, You et al demonstrate switching of magnetisation in a heterostucture composed of Mn3SnN and Permalloy, making use of the out-of-plane spin polarization induced by currents in the antiferromagnetic Mn3SnN.

Introduction

To realize non-volatile magnetic memories with the advantages of high density, high speed, and low power consumption, current-induced spin–orbit torque (SOT) has been investigated due to its potentials in efficient and ultrafast manipulation of the magnetization in magnetic random access memory and logic devices by electrical methods^1–5. For a perpendicularly magnetized ferromagnet (FM), which is preferred for high-density memories, the current-induced SOT switching usually needs an external magnetic field and a high critical current density (especially when the device is miniaturized), if the spin-source materials, such as heavy metals, could only provide a transverse in-plane spin polarization σ_y (along the y-direction) by a longitudinal charge current (along the x-direction)^1,2,6,7. To realize the external magnetic field-free switching of the perpendicular magnetic layer, one effective approach is to use out-of-plane spin polarizations σ_z (along the z-direction), which could also improve the switching efficiency^1,2,8,9. Recently, there have been attempts aiming to obtain σ_z, which derives from the spin–orbit scattering, filtering, and spin precession of ferromagnetic interfaces or low-symmetric interfaces^9–13. Considering practical device applications, using the long-range magnetic order within the bulk of the spin-source layer instead of optimizing the interface of different layers could be more uncomplicated and reliable¹⁴.

Thanks to myriad magnetic and structural transitions, antiperovskite manganese nitrides Mn₃AN (where A = Ga, Sn, Ni, etc., with a perovskite structure yet the cation and anion positions are interchanged), have attracted a revival of interest due to ample physical phenomena, such as negative thermal expansion, piezomagnetic, baromagnetic, and barocaloric effects^14–19. Below their Néel temperature, the noncollinear antiferromagnetic (AFM) Mn₃AN has been discovered to exhibit a large anomalous Hall effect (AHE) due to the nonzero Berry curvature caused by the 120° triangular spin texture in the Kagome (111) plane^20–22, and the spin texture can be viewed as a ferroic ordering of a cluster magnetic octupole^23–25. The 120° triangular spin texture could generate spin currents with out-of-plane spin polarization as well as corresponding spin torques. In Mn₃GaN films, σ_z has been experimentally discovered¹⁴, however, the relatively low Néel temperature (T_N = 345 K) limits its practical device applications. More importantly, the physical origin of σ_z in noncollinear AFM is still not clear, and the external magnetic field-free switching of the perpendicular magnetic layer using σ_z in noncollinear AFM has not been reported yet.

Here, we consider another antiperovskite AFM Mn₃SnN with the crystallographic structure shown in Fig. 1a, which has the highest Néel temperature (T_N = 475 K) in the antiperovskite manganese nitride family^22,26. σ_z is generated by the precession of carrier spins when currents flow through the cluster magnetic octupole, and it is also dependent on the direction of the cluster magnetic octupole moment in conjunction with the applied current. σ_z appears when the current J is parallel to the cluster magnetic octupole moment T, however, for the perpendicular case, σ_z vanishes. The results are consistent with the magnetic symmetry analysis of noncollinear AFM spin texture where the magnetic mirror symmetry is broken²⁷. Then, with the aid of σ_z, deterministic switching of a perpendicular magnet is realized even without an applied magnetic field.

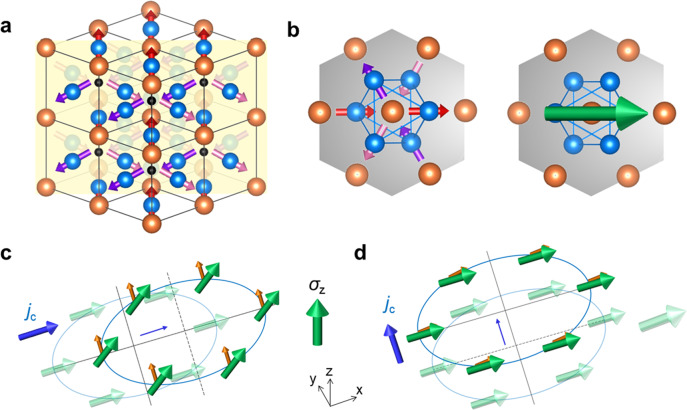

Fig. 1. Generation of σ_z in Mn₃SnN.

a Crystal structure of Mn₃SnN, where the blue, orange, and black spheres represent the Mn, Sn, and N atoms, respectively. Red, purple, and pink arrows denote magnetic moments of Mn atoms, and the yellow plane denotes the (110) plane. b Left, the spin structure of Mn₃SnN on the kagome bilayers, where the gray plane denotes the kagome (111) plane. Right, the ferroic ordering of a cluster magnetic octupole consisting of six spins is viewed from the spin structure. The green arrow denotes the cluster magnetic octupole moment T. c Carrier spins are rotated by the spin-orbit field H_so (brown arrows) when J//T, which induces the spin current with σ_z. d Spin rotation and σ_z vanish when J⊥T. Here, H_so is parallel to the carrier spins.

Results and discussion

Cluster magnetic octupole induced out-of-plane spin polarization

Antiperovskite noncollinear AFM Mn₃SnN has the cubic structure $\mathrm{Pm}\overline{3}\mathrm{m}$ with finite magnetic moments of Mn in the Kagome-like (111) plane below the Néel temperature^20,22,26. When we focus on the Mn atoms, the AFM Γ_4g spin texture (Fig. 1b left) can be viewed as a ferroic ordering of a cluster magnetic octupole^20,22,26, which is composed of six Mn atoms (Fig. 1b right). The generation of AHE, anomalous Nernst effect, and magneto-optical Kerr effect (MOKE) can be viewed as the emergence of the finite magnetization of the cluster magnetic octupole moment, as the case of Mn₃Sn^23–25,28. As demonstrated in Fig. 1c, d, whether σ_z exists is decided by the direction of the cluster magnetic octupole moment T together with the applied current J. Figure 1c illustrates a sketch map of the generation of σ_z where the carrier spins are rotated out of the plane by the spin–orbit field H_so (with the direction perpendicular to the applied current). This is similar to the case of FM (Ga,Mn)As²⁹ and collinear AFM Mn₂Au⁸. When T is (anti)parallel to J, the carrier spins (which are along T) is perpendicular to H_so, a robust σ_z thus appears. On the contrary, when T is perpendicular to J as in Fig. 1d, the current-induced H_so is parallel to the carrier spins, which cannot trigger the spin precession and leads to the absence of σ_z. σ_z can be expressed as

$${\mathit{\sigma }}_z\propto {\mathbf{H}}_{\mathbf{s}\mathbf{o}}\times \mathbf{T}.$$ 1

Apart from σ_z, σ_y can also be produced by the spin Hall effect (SHE) in Mn₃SnN, like the cases of IrMn and Mn₃GaN^14,27,30,31, which can produce SOT on the adjacent FM layer together with σ_z.

Antiperovskite noncollinear AFM Mn₃SnN

The Mn₃SnN films we used here is (110)-oriented, as revealed in Fig. 2a. The out-of-plane X-ray diffraction shows obvious peaks of Mn₃SnN (110) and (220), apart from the peak of the MgO substrate, indicating the quasi-epitaxial growth mode for the present Mn₃SnN films. The out-of-plane lattice constant is calculated to be 3.98 Å from the X-ray diffraction (XRD) pattern. Besides, there is no secondary phase within the sensitivity of XRD measurements, and the epitaxial growth is confirmed from the results of the Φ-scan measurement, as shown in Fig. 2b. The inspection of the Φ-scan shows that the peaks are separated by 180° with twofold symmetry for both the film and the substrate, indicating the crystallographic orientation relationship as MgO(110)[100]//Mn₃SnN(110)[100]. Through the energy dispersive spectrometer and the X-ray photoelectron spectroscopy quantitative analysis, the Mn:Sn:N atomic ratio of our film is 3:0.94:1.03, which is close to the nominal composition of Mn₃SnN. The surface morphology of the filmshows that the whole film is continuous and smooth (Supplementary Fig. S1), with the average surface roughness Ra being 0.199 nm. Figure 2c presents the magnetic property of the 34 nm Mn₃SnN film with an out-of-plane magnetic field at 300 K. At a glance, the curve exhibits a diamagnetic behavior because of the diamagnetic background of the substrate, indicating the antiferromagnetic characteristic of the Mn₃SnN films. After the subtraction of the diamagnetic background (Supplementary Fig. S2), the film shows a small magnetization, which is also discovered in other noncollinear AFM films^21,32,33.

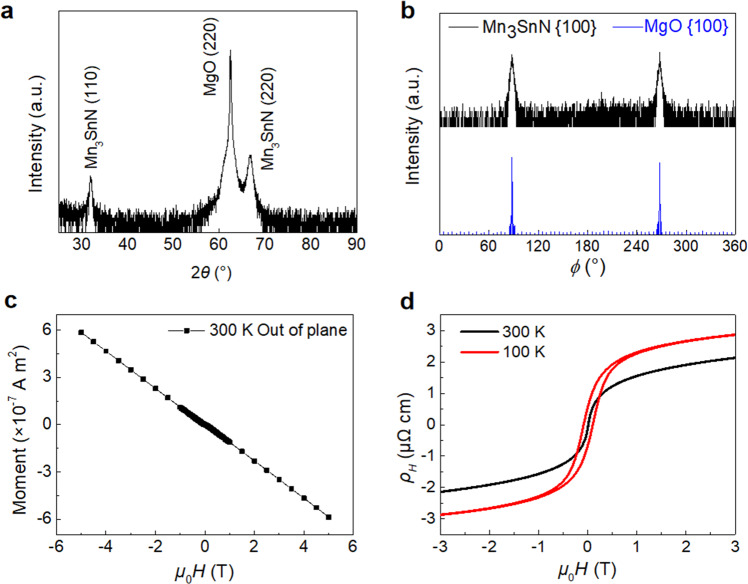

Fig. 2. Basic properties of the Mn₃SnN film.

a XRD patterns of the (110)-oriented Mn₃SnN films deposited on MgO (110) substrate. b Φ scan patterns of the {100} planes from the Mn₃SnN films and the MgO (110) substrate. c Magnetization hysteresis loops of the 34 nm Mn₃SnN (110) film deposited on MgO (110) substrate by an out-of-plane magnetic field at 300 K. d Magnetic field dependence of ρ_H measured with an out-of-plane magnetic field at 300 and 100 K, which exhibits obvious AHE in the film.

In the bulk Mn₃SnN, there may be two noncollinear AFM spin magnetic structures, Γ_5g and Γ_4g. From the symmetric analysis of the Berry curvature, only the Γ_4g rather than the Γ_5g spin configuration could present AHE^21,32,33. Figure 2d presents the magnetic field dependent Hall resistivity ρ_H of the single oriented Mn₃SnN film. The ρ_H curve exhibits obvious AHE at both 300 and 100 K, indicating that the magnetic structure of the film in our experiment is Γ_4g, which is consistent with the theoretical research²⁰.

Spin–torque ferromagnetic resonance measurement

To evaluate the properties of the torques on the FM layer caused by the spin polarizations, we use Mn₃SnN(16 nm)/Py(12 nm) samples via the spin–torque ferromagnetic resonance (ST-FMR) technique³⁴. For the ST-FMR measurement, as shown in Fig. 3a, a microwave (with a high frequency of 2–17 GHz) current flowing through Mn₃SnN induces alternating torques on the Py later and excites the magnetic moment of Py into precession. The process is detected as a resonant DC electrical signal V_mix originated from the anisotropic magnetoresistance (AMR) of Py when the frequency of the microwave current and the in-plane applied magnetic field (with a field angle φ) meet the FMR condition^34–36. When φ is fixed at 45°, the data in Fig. 3b shows the relation of the frequency f and the resonance position H₀, which can be well fitted by the Kittel formula, indicating that the resonance peak originates from the FMR of the Py layer and that the attached Mn₃SnN film has no clear influence on the magnetic properties of Py layer³⁷.

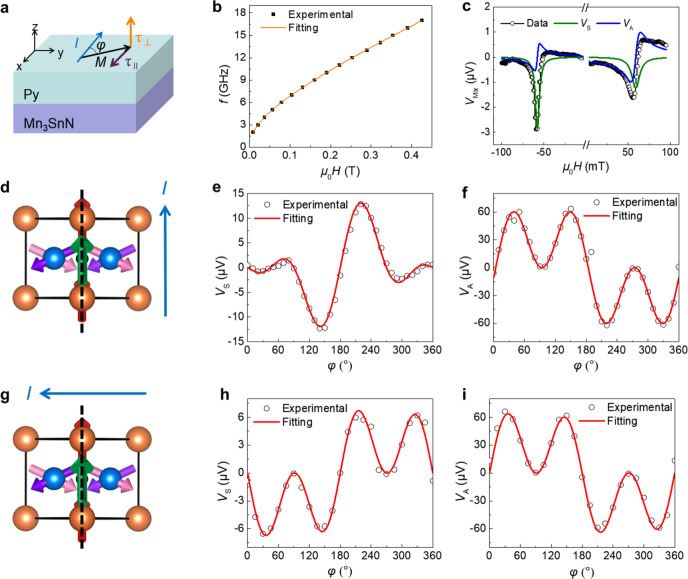

Fig. 3. Current direction-dependent σ_z in (110)-orientated Mn₃SnN device.

a Schematic diagram of the ST-FMR geometry for Mn₃SnN(110)/Py bilayers. τ_|| and τ_⊥ denote the in-plane and out-of-plane torque components. b The relationship of the frequency f and the resonance position H₀, which can be well fitted by the Kittel formula. c ST-FMR signals V_mix of the device bar measured with the frequency of 5 GHz, power of 20 dBm, and φ of 100° when the current channels are along the [001] direction. d Schematic diagram of magnetic structure and current direction. The current is applied parallel to the magnetic mirror plane (represented by the dashed black line). Angular dependence of line shape amplitude of ST-FMR signals for e symmetric and f antisymmetric signal in Mn₃SnN/Py structure. g The schematic diagram for the case when the current direction is perpendicular to the magnetic mirror plane. Angular dependence of line shape amplitude of ST-FMR signals for h symmetric and i antisymmetric signal in the same sample.

The features of the torques can be recognized from the angular dependent line shape of the resonance peaks (see Methods). Both in-plane and out-of-plane torque components can be obtained individually since the symmetric (V_S) and antisymmetric (V_A) signals are proportional to the amplitude of the in-plane τ_|| and out-of-plane τ_⊥ torque components, respectively^14,38,39. Figure 3c shows representative ST-FMR signals V_mix of the device bar measured with the frequency of 5 GHz, power of 20 dBm, and φ of 100°. The microwave current is applied along [001] direction of the (110)-oriented Mn₃SnN film, as shown in Fig. 3d. According to the established analysis of ST-FMR data, a comparison of the ST-FMR signals measured at negative and positive magnetic fields could qualitatively reflect the influences of SOT triggered by σ_z. Unlike the condition of σ_y, the symmetric signals V_S have the same signs, and the antisymmetric signals V_A have evidently different amplitude, presenting obvious evidence for a prominent contribution from SOT triggered by σ_z^1,8,9.

To quantitatively recognize the torque components, we conduct the ST-FMR measurement with different in-plane magnetic field angle φ. According to the spin rectification theory of AMR³⁹, V_S (V_A) depends on the product of the angular-related AMR and τ_|| (τ_⊥). Merely taking into account the conventional SHE or the Rashba–Edelstein effect and Oersted field, the conventional antidamping torque ${\tau }_S\propto \mathit{m}\times \left(m\times {\mathit{\sigma }}_{\mathrm{y}}\right)$ results in a symmetric line-shape with an amplitude of $V_S=S\sin 2\phi \cos \phi$, while the field-like torque τ_A induced by the Oersted field results in an antisymmetric line-shape with an amplitude of $V_A=A\sin 2\phi \cos \phi$, where S and A are constant terms. Hence, V_S and V_A exhibit the same angular dependence for a conventional HM/FM heterostructure^9,14,34. In Fig. 3e, f, however, we find that the angular dependence of V_S and V_A for Mn₃SnN is obviously different from this simple case, which can be fitted by adding additional torque terms with the presence of σ_z: ${\tau }_B\propto \mathit{m}\times {\mathit{\sigma }}_z$, (the in-plane field-like torque induced by σ_z), and ${\tau }_C\propto \mathit{m}\times \left(\mathit{m}\times {\mathit{\sigma }}_z\right)$, (the out-of-plane antidamping torque induced by σ_z)^9,14,34.

As explained above, σ_z in Mn₃SnN is generated by the noncollinear 120° triangular spin structure, and when the cluster magnetic octupole moment T is perpendicular to the applied current J, σ_z cannot be induced. Therefore, σ_z is dependent on the measurement configuration. Specific 2D materials like WTe₂ have been discovered to have σ_z as a result of the broken crystal mirror symmetry (M)^9,40,41. Here, in noncollinear AFM Mn₃SnN, although the crystal symmetry is maintained, σ_z exists due to the broken magnetic mirror symmetry (M’) which contains a time-reversal symmetry T (M’ = M*T), like the case of IrMn^27,42. We then consider the magnetic symmetry of Mn₃SnN. Figure 3g shows another measurement configuration of ST-FMR at the same sample, where the microwave current is applied along $\left[1\overline{1}0\right]$ direction, which is perpendicular to T as well as the magnetic mirror plane. From Fig. 3h, i, we can see that there is no clear σ_z in this way, indicating that σ_z is restricted by the symmetry relationship and related with the spin structure. Indeed, for (110)-orientated Mn₃SnN with Γ_4g magnetic configuration, the (110) plane is the magnetic mirror plane, and the cluster magnetic octupole moment T is also located in the plane. According to the analysis of magnetic asymmetry, when the current is applied along [001]-axis of Mn₃SnN, it is parallel to the magnetic mirror plane, with an angle between the current and T being 35°, so σ_z induced τ_B and τ_C are allowed²⁷. Consequently, σ_z shows up. The generation of the spin torque relative to the charge current density can be parameterized into the spin-torque ratio¹⁴ (See Methods). The antidamping and field-like spin–torque ratios of σ_z, θ_AD,z and θ_FL,z are 0.003 ± 0.001, and 0.053 ± 0.005, respectively. θ_FL,z of Mn₃SnN is larger than that of WTe₂ and MnPd₃ (Supplementary Table S1), reflecting that σ_z mainly contributes to the field-like torque in Mn₃SnN/Py system. The comparatively large field-like torque is most likely due to the spin accumulation at the Mn₃SnN/Py interface, which interacts with the adjacent Py layer, producing an exchange field⁸. On the contrary, when the current is applied perpendicular to the magnetic mirror plane (also T), σ_z disappears accordingly. We find that the mechanism is also applicable to the (001)-oriented Mn₃SnN film (Supplementary Fig. S3) by performing identical ST-FMR measurement of (001)-oriented Mn₃SnN(16 nm)/Py(12 nm) sample at room temperature. Moreover, ST-FMR measurements show that σ_z still exists at 380 K, but the antidamping and field-like spin–torque ratios of σ_z, θ_AD,z, and θ_FL,z, are smaller than their counterparts at room temperature (Supplementary Fig. S4). These results verify that σ_z is closely related to the cluster magnetic octupole and the magnetic asymmetry of Mn₃SnN.

Magnetic field-free SOT switching

Next, using the observed σ_z, let us discuss the SOT switching of a perpendicularly magnetized FM layer deposited on top of the Mn₃SnN film, with the structure of the sample being MgO/Mn₃SnN(12 nm)/(Co(0.4 nm)/Pd(0.8 nm))₃ stack. Figure 4a shows the measurement configuration of the anomalous Hall resistance R_AHE by applying a pulse current I along the [001] direction (x-direction), where σ_z exits. The pulse width is 1 ms, followed by a read current of 0.1 mA. The hysteresis R_AHE loop with an out-of-plane magnetic field in Fig. 4b confirms that perpendicular magnetic anisotropy is present in the Co/Pd multilayer. Figure 4c shows the current-induced field-free SOT magnetization switching of Co/Pd multilayer caused by σ_z, with a hysteretic behavior and a sign change in the absence of applied magnetic field. The current density required to achieve the field-free SOT switching of our Mn₃SnN/(Co/Pd)₃ sample is estimated to be approximately 9 × 10⁶ A cm⁻² (Supplementary Fig. S5). The present current density is comparable to that of traditional field-free switching by wedged structure or exchange bias^43,44. High crystal quality Mn₃SnN films with a highly ordered magnetic configuration or other noncollinear AFM are highly warranted for stronger σ_z, to decrease the current density for the σ_z-induced field-free switching. The corresponding MOKE microscope images of the field-free SOT magnetization switching under the condition (i)–(iii) are shown in Fig. 4g–i. Apparently, the magnetization of Co/Pd multilayer can be switched by the positive and negative currents without an external magnetic field and switching only occurs in the current channel, with the magnetization in the voltage channel maintaining the original state. The MOKE images directly reveal that the resistance change in Fig. 4c is caused by the current induced SOT magnetization switching rather than other effects^8,45,46. The SOT switching does not decline after cycling 10 times (Supplementary Fig. S6), reflecting the robustness of the device. From the R_AHE–I loop, we can see that approximately 60% of the magnetic Co/Pd multilayer volume switches, compared with the saturation AHE resistance obtained in the R_AHE–H loop. Combined with the MOKE figure, we owe this phenomenon to the following reason. For the magnetic field-induced switching, the whole area of the Co/Pd multilayer in the cross pattern switches, including the Hall leads. But for the current-induced switching, only the current path switches while the Hall leads do not switch, as shown in Fig. 4h. Considering how the Hall leads to detect the AHE signal, the current-induced switching yields a smaller AHE voltage than the magnetic field-induced case.

Fig. 4. Current induced SOT switching in Mn₃SnN/(Co/Pd)₃ stacks.

a The schematic diagram of the device used for electrical transport measurements. b The anomalous Hall resistance R_AHE as a function of the out-of-plane external field. c Current-induced field-free SOT switching shown by R_AHE as a function of current magnitudes at zero field with the current along x-direction. Current-induced SOT switching under the application of d −50 mT and e 50 mT magnetic field along x-direction, respectively. f R_AHE as a function of current magnitudes at zero field with the current along y-direction. g–i MOKE images of the stack films, which imprint the out-of-plane magnetization of the Co/Pd multilayer corresponding to the condition of (i) to (iii) in (c).

The in-plane M–H curve of Mn₃SnN/(Co/Pd)₃ shows no exchange bias at room temperature (Supplementary Fig. S7), revealing that the field-free switching is irrelevant to the exchange bias⁸. Figure 4d, e exhibits the measured R_AHE–I loops for negative and positive magnetic fields of 50 mT applied along the [001] direction, respectively. Obviously, the switching polarity is reversed upon reversing the field to the opposite direction, which is consistent with the typical SOT switching of a perpendicularly magnetized FM^1,2,5. When we apply a large magnetic field of 500 mT along the [001] direction, which is larger than the anisotropy field of the Co/Pd multilayer (Supplementary Fig. S8), there is no switching signals, showing that the variation of anomalous Hall resistance is not triggered by the thermal effects caused by the pulse currents^1,2,17,47. To confirm whether the σ_z generated by the noncollinear antiferromagnetic configuration in Mn₃SnN is responsible for the observed field-free switching, we apply the current along the $\left[1\overline{1}0\right]$ direction (y-direction), where no σ_z exists according to the results of ST-FMR measurement. As shown in Fig. 4f, the measured R_AHE–I curve does not show obvious hysteretic behavior, revealing that σ_z is the main reason for the field-free switching of the magnetic moments of Co/Pd multilayer. The direction-related field-free SOT switching here also illustrates that the weak magnetization of the film does not have an obvious influence on the switching measurement (Supplementary Table S2).

In conclusion, we have demonstrated the origin of out-of-plane spin polarization σ_z in noncollinear AFM Mn₃SnN at room temperature. σ_z is induced by the precession of carrier spins when currents flow through the cluster magnetic octupole, which also relies on the direction of the cluster magnetic octupole in conjunction with the applied current. The field-free SOT switching of a perpendicularly magnetized FM is then realized in Mn₃SnN/(Co/Pd)₃ stacks with the aid of σ_z. In addition to Mn₃SnN, the out-of-plane spin polarization is expected to exist in other noncollinear AFM systems with 120° triangular spin texture and can be used to switch the magnetic moments of FM efficiently without an external magnetic field. Our findings enrich the current comprehension of spin–current physics and provide potential chances to use σ_z in the next generation of SOT-based spintronics devices.

Methods

Sample preparation

The (110)-oriented Mn₃SnN films we used here were deposited on MgO (110) substrates by magnetron sputtering. The optimized growth temperature was 400 °C. The base pressure was 3 × 10⁵ Pa and the process gas (with 13% N₂ of Ar) pressure was 0.5 Pa with the growth rate being 0.08 nm/s. Considering the different sputtering yields of Mn and Sn elements as well as the fact that the compound of Mn and Sn was stable only in the presence of excess Mn, an Mn₈₁Sn₁₉ target was used for the film growth⁴⁸. Py or perpendicularly magnetized Co/Pd multilayer was then deposited on Mn₃SnN by magnetron sputtering at room temperature.

Sample characterization

XRD and XRR of the Mn3SnN films were measured using Cu Kα1 radiation with λ = 1.5406 Å. The surface roughness was characterized by an atomic force microscope (AFM). Magnetic properties were measured by a superconducting quantum interference device magnetometry with a field of up to 5 Tesla. The magnetotransport measurements were conducted using a physical property measurement system. The magnetization reversal images were obtained using MOKE.

Device fabrication

To measure the SOTs in Mn₃SnN/Py sample using ST-FMR technology, the thin films were patterned into microstrips devices along different crystallographic directions with the size of 30 µm × 20 µm by standard photolithography and Ar-ion milling techniques. Top electrodes of Ti (10 nm)/Pd (50 nm) were then deposited by e-beam evaporation. ST-FMR measurements were conducted by injecting currents into the device with a frequency from 2 to 17 GHz. A magnetic field H was applied in the sample plane and at an angle φ to the current direction. To conduct the SOT switching experiment, Mn₃SnN/(Co/Pd)₃ samples were patterned into crossbar devices with the channel width being 5 µm. The current pulses had a constant duration of 3 s but varying amplitude. The current pulse width is 1 ms, followed by a read current of 0.1 mA.

ST-FMR analysis

The relation of the frequency f and the resonance position H₀ is fitted by the Kittel formula, which is expressed as $f=\frac{\gamma }{2\pi }{\left[H_0\left(H_0+M_{\mathrm{eff}}\right)\right]}^{1/2}$, where M_eff and γ represent the effective magnetization and the gyromagnetic ratio, respectively. Using the line-shape fitting equation

$$V_{\mathrm{mix}}\left(H\right)=V_S\frac{\mathrm{\Delta }{H}^2}{\mathrm{\Delta }{H}^2+{\left(H-H_0\right)}^2}+V_A\frac{\mathrm{\Delta }H\left(H-H_0\right)}{\mathrm{\Delta }{H}^2+{\left(H-H_0\right)}^2},$$ 2

both in-plane (the first term) and out-of-plane (the second term) torque components can be obtained individually. The symmetric (V_S) and antisymmetric (V_A) amplitude of the Lorentzian line shape are proportional to the amplitude of the in-plane τ_|| and out-of-plane τ_⊥ torque components, respectively, with the following relationship:

$$V_S=-\frac{I_{\mathrm{rf}}}{2}\left(\frac{dR}{d\phi }\right)\frac{1}{\alpha \left(2{\mu }_0{H}_0+{\mu }_0{M}_{\mathrm{eff}}\right)}{\tau }_{\parallel }$$ 3

$$V_A=-\frac{I_{\mathrm{rf}}}{2}\left(\frac{dR}{d\phi }\right)\frac{\sqrt{1+M_{\mathrm{eff}}/H_0}}{\alpha \left(2{\mu }_0{H}_0+{\mu }_0{M}_{\mathrm{eff}}\right)}{\tau }_{\perp }$$ 4

where, ΔH is the width of the resonance peak, I_rf is the microwave current, R is the resistance as a function of the in-plane magnetic field angle φ due to the AMR of Py, and α is the Gilbert damping coefficient. According to the spin rectification theory of AMR, V_S (V_A) depends on the product of the angular-related AMR and τ_|| (τ_⊥). Taking into account the presence of σ_z, V_S, and V_A can be calculated as

$$V_S=S\sin 2\phi \cos \phi +B\sin 2\phi$$ 5

$$V_A=A\sin 2\phi \cos \phi +C\sin 2\phi$$ 6

where S, B, A, and C are constant terms. When we leave out the AMR rectification (sin2φ), the angular dependencies of the in-plane and perpendicular torque amplitudes are

$${\tau }_{\parallel }\left(\phi \right)={\tau }_S\cos \phi +{\tau }_B$$ 7

$${\tau }_{\perp }\left(\phi \right)={\tau }_A\cos \phi +{\tau }_C$$ 8

where τ_S, τ_B, τ_A, and τ_C are values independent of φ, where τ_S represents the contribution from the antidamping torque induced by σ_y; τ_A represents the contribution from the torque of the current-induced Oersted field; τ_B represents the field-like torque induced by σ_z; τ_C represents the antidamping torque induced by σ_z, respectively. The spin torque ratios are calculated as follows:

$${\theta }_{\mathrm{AD},z}=\frac{{\tau }_C}{{\tau }_A}\frac{e{\mu }_0{M}_S{t}_{\mathrm{Py}}{t}_{{\mathrm{Mn}}_3\mathrm{SnN}}}{\hslash }$$ 9

$${\theta }_{\mathrm{FL},z}=\frac{{\tau }_B}{{\tau }_A}\frac{e{\mu }_0{M}_S{t}_{\mathrm{Py}}{t}_{{\mathrm{Mn}}_3\mathrm{SnN}}}{\hslash }$$ 10

where e is the electron charge, M_S is the saturation magnetization of Py (which can be replaced by the effective magnetization determined by ST-FMR), t_Py is the thickness of Py, $t_{{\mathrm{Mn}}_3\mathrm{SnN}}$ is the thickness of Mn₃SnN, and ħ is the reduced Planck’s constant^{9,14,27,34,36,39}.
