Percutaneous Spinal Cord Stimulation Lead Placement Under Deep Sedation and General Anesthesia

Abstract

Introduction

Spinal cord stimulation (SCS) is a commonly utilized therapy for the treatment of neuropathic pain conditions. The Neurostimulation Appropriateness Consensus Committee (NACC) has recommended that the placement of percutaneous SCS leads be performed in an awake patient capable of providing feedback. It is not currently known how commonly this recommendation is adhered to by physicians in clinical practice. This article presents the findings of a survey designed to answer this important question.

Methods

We conducted a survey of the active membership of the American Society of Regional Anesthesia and Pain Medicine (ASRA) and the Spine Intervention Society (SIS) regarding practice patterns with SCS therapy. We analyzed the percent of respondents who indicated that they use deep sedation and general anesthesia during SCS placement as well as any reported complications.

Results

Many practitioners frequently utilize deep sedation as well as general anesthesia when performing SCS implants. Our findings demonstrate that 77% of physicians reported that they utilize deep sedation for permanent SCS implants at times, and 45% of physicians reported the use of general anesthesia for 10 kHz implants. Additionally, 94% of physicians reported that they have never had a complication related to the use of general anesthesia for a spinal cord stimulator placement.

Conclusions

This survey provides initial data on SCS practices among a large cohort of clinicians who utilize SCS. SCS lead placement under deep sedation and general anesthesia appears to be common practice for many physicians who perform implants. This survey should stimulate further research on this topic, given that the current safety guidelines and the rate of physicians reporting the use of deep sedation and general anesthesia for spinal cord stimulator placement remain at odds.

Key Summary Points

The Neurostimulation Appropriateness Consensus Committee (NACC) safety guidelines for the reduction of severe neurological injury recommend that the placement of percutaneous spinal cord stimulation (SCS) leads be performed in an awake and conversant patient.

SCS implants have traditionally been performed with paresthesia mapping, which requires an awake and cooperative patient who will serve as a good monitor and alert the clinician in the case of needle or lead advancement into a nerve or the spinal cord.

The advent of anatomic lead placement without the need for paresthesia overlap and the increasing availability of intraoperative neuromonitoring allows for the option of elective deep sedation and general anesthesia for placement of percutaneous SCS leads.

There are risks and benefits when placing SCS leads in both awake patients and patients under deep sedation and general anesthesia.

This survey provides initial data on the practice parameters of physicians who utilize SCS therapy including the use of deep sedation and general anesthesia when performing SCS implants, as well as complications associated with the use of anesthesia.

Introduction

Spinal cord stimulation (SCS) is an increasingly utilized therapy that is effective for the treatment of refractory chronic neuropathic pain conditions [1]. The primary indication for SCS therapy is for the treatment of post-laminectomy syndrome as well as complex regional pain syndrome (CRPS) [2]. However, recent advances have broadened the scope of SCS therapy for a variety of other neuropathic pain conditions [3–9]. SCS provides pain relief by modulation of the pain pathway using electrical current through electrode leads. SCS is considered to be a safe therapy for chronic pain conditions with a low incidence of serious adverse events [3, 10].

SCS implants have traditionally been performed with paresthesia mapping, which requires an awake and cooperative patient. The rate of neurological injury after SCS placement has been shown to be very low, but a recent database analysis has placed this rate as high as 2.3% [11]. The Neurostimulation Appropriateness Consensus Committee (NACC) safety guidelines for the reduction of severe neurological injury have recommended that the placement of percutaneous SCS leads be performed in an awake and conversant patient [12]. These guidelines assume that a responsive patient will serve as a good monitor and alert the clinician in case of needle or lead advancement into a nerve or the spinal cord. In addition, it would also alert a clinician if lead placement creates nerve or spinal cord compression. However, the guidelines do acknowledge that there may be circumstances in which the benefit of deep sedation or general anesthesia during percutaneous lead placement outweighs the risks. These circumstances may include a patient with a difficult airway likely to obstruct, high-dose opioid usage with difficulty in sedation, severe anxiety, movement disorders, or patient agitation with varying levels of sedation [13–17]. The guidelines state that when the risk-to-benefit ratio favors deep sedation or general anesthesia, then intraoperative neurophysiological monitoring (IONM) recommendations for paddle lead placement under deep sedation or general anesthesia should be considered [12]. Since a cooperative patient is required to assess the paresthesia generation and dermatomal overlap, the guidelines and procedural requirements are in alignment and easy to adhere to. However, with the advent of anatomic placement without the need for paresthesia overlap, as in 10 kHz stimulation, and the increasing availability of IONM, the option of elective deep sedation and general anesthesia for placement of percutaneous SCS leads is increasingly viable. In these circumstances, the goals of the procedure and NACC recommendations no longer align. Although placing SCS leads in a responsive patient would be the best practice, this is often not feasible or predictable when performing this procedure under monitored anesthesia care (MAC) in the prone position.

We designed a survey to evaluate the practice parameters of physicians who utilize SCS therapy, including questions regarding the use of deep sedation and general anesthesia when performing SCS implants as well as complications associated with the use of anesthesia. We chose this subset of the survey as a separate article, as we felt it critical to report the percentage of physicians who are utilizing deep sedation and general anesthesia for SCS lead placement, which contrasts the current NACC recommendations.

Methods

A survey related to various aspects of SCS practice was submitted and approved by the Institutional Review Board at Beth Israel Deaconess Medical Center. The survey was designed by the authors based upon perceived clinical importance and interest in the SCS community. The survey was then approved by the boards of the American Society of Regional Anesthesia and Pain Medicine (ASRA) and the Spine Intervention Society (SIS). This survey was sent as an email with a SurveyMonkey link to practitioners with active membership in these societies. The prospective recipients were invited for the survey by an email requesting their anonymous participation in a survey by clicking on a link. The recipients were informed that the survey concerned the practice parameters of pain physicians who perform spinal cord stimulator trials or implants. The recipients were asked to not complete the survey if they had already done so, since a significant number of recipients may have been member of both societies. The survey could not be sent to a dedicated neuromodulation society because of logistical issues.

Given the disparate aspects of SCS therapy that the queries pertained to, important clinical aspects were grouped together and will be submitted for publication separately. Here we present our results for technical aspects of SCS lead insertion. The three questions related to this were as follows:

1. For permanent implants, do you use deep sedation (nonresponsive)? N = 175

2. For 10 kHz spinal cord stimulator implantation do you ever use general anesthesia? N = 165

3. Have you ever had a spinal cord stimulator complication related to the use of general anesthesia (such as nerve injury)? N = 186

Results

The results for the three questions are presented below. Survey responses were received between March 20, 2020, and June 26, 2020. The survey was delivered to 2967 members of SIS, with 1259 opening the email, and 3169 members of ASRA, with 1477 opening the email. A total of 175 responded to question 1, 165 responded to question 2, and 186 responded to question 3. The proportion and confidence interval for those who responded to the questions above is presented in Table 1.

Table 1.

Survey results along with the proportion and confidence intervals for those who responded

	Never (95% CI)	Sometimes (95% CI)	Often (95% CI)	Always (95% CI)
Deep sedation, N = 175	23.4 (17.3–30.4) 41	28.6 (22–35.9) 50	32.6 (25.7–40.1) 57	15.4(10.4–21.7) 27
10 kHz, N = 165	55.2 (47.2–62.9) 91	21.2(15.2–28.3) 35	14.6 (9.6–20.9) 24	9.1 (5.2–14.6) 15

	0 (95%CI)	1 (95%CI)	2 (95%CI)	3 (95%CI)	> 5 (95%CI)
Complication nerve injury, N = 186	94.1 (89.7–97) 175	3.8 (1.5–7.6) 7	1.1 (0.1–3.8) 2	0.5 (0.01–0.3) 1	0.5 (0.01–0.3) 1

Results from question 1 demonstrate that 32.6% of physicians often utilize deep sedation for permanent SCS placement, while 15.4% of physicians always utilize deep sedation for permanent SCS placement. Overall, 77% of physicians report that they utilize deep sedation for permanent SCS implants. These results demonstrate that a majority of responding physicians are utilizing deep sedation for SCS placement at times. (Fig. 1).

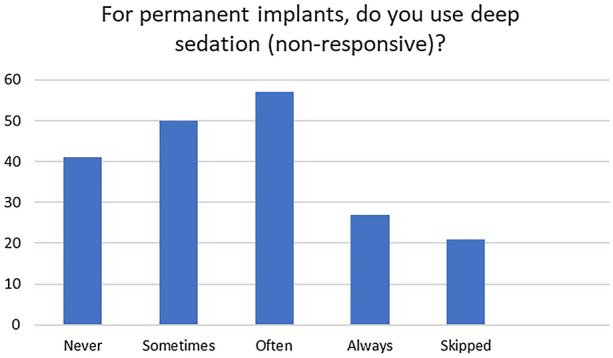

Fig. 1.

Number of responding physicians who utilize deep sedation for permanent SCS implants

Results from question 2 demonstrate that 45% of physicians report the use of general anesthesia for 10 kHz implants. Ten-kilohertz SCS is paresthesia-free and is routinely placed anatomically without the need for paresthesia testing for placement. These results suggest that nearly half of implanting physicians utilize general anesthesia for 10 kHz implantation (Fig. 2).

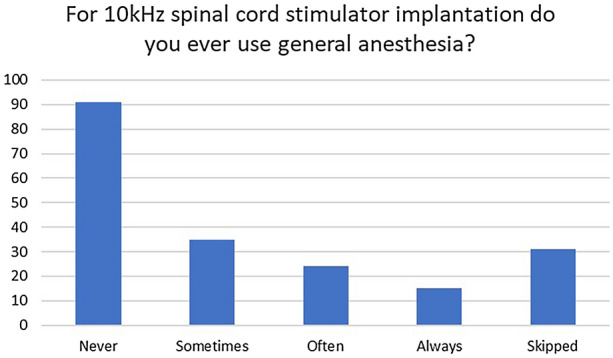

Fig. 2.

Number of responding physicians who utilize general anesthesia for permanent 10 kHz SCS implants

Regarding complications, roughly 6% of physicians reported a complication related to the use of general anesthesia for SCS placement (Table 1). A review of individualized responses for complications related to the use of general anesthesia revealed the following information, summarized in Table 2.

Table 2.

Review of individualized responses for complications related to the use of general anesthesia (GA)

	No. of SCS complications related to the use of GA	SCS trials performed per year	SCS implants performed per year
Physician 1	1	11–20	5–10
Physician 2	1	11–20	< 5
Physician 3	1	11–20	11–20
Physician 4	1	5–10	5–10
Physician 5	1	21–50	21–50
Physician 6	1	11–20	11–20
Physician 7	1	11–20	11–20
Physician 8	2	> 50	> 50
Physician 9	2	5–10	Question skipped
Physician 10	3	11–20	11–20
Physician 11	> 5	> 50	> 50

Discussion

SCS has become a more commonly utilized therapy for intractable neuropathic pain conditions. Current safety guidelines recommend that implantation of percutaneous leads be performed in an awake and cooperative patient for confirmation of adequate placement as well as avoiding neurological injury [12]. Though there may be enhanced safety when the patient is awake, there are disadvantages to awake placement of SCS leads, including patient discomfort, variable levels of sedation used by providers, patient agitation and movement during the procedure, reliability of patient response, increased stress to the surgical team, and increased operative time [13–17]. Upon review of the survey results, it is apparent that physicians are commonly performing SCS lead placement under deep sedation and general anesthesia. Our results demonstrate that up to 77% of reporting physicians utilize deep sedation when implanting SCS devices and up to 45% use general anesthesia when implanting anatomically placed 10 kHz systems, and this likely represents the limitations of performing the procedure in awake patient under light sedation.

Below we will discuss the known incidence of neurological complication related to SCS placement and discuss the advantages and disadvantages of performing SCS implants under deep sedation or general anesthesia. We also provide a rationale for the choices that physicians may make for determining an anesthetic and operative plan in these patients.

Incidence and Causes of Neurological Complications Related to SCS Lead Insertion

The true incidence of neurological complications related to SCS is unknown. Two large studies by Cameron and Mekhail et al. did not report any spinal cord injuries related to SCS placement [18, 19], but one must keep in mind that injuries may not be reported, and hence the true incidence is unknown. Petraglia et al. recently reported an overall risk of spinal cord injury within 30 days after percutaneous lead insertion of 2.35%. However, this study was conducted by reviewing spinal cord injury codes used in the 30-day surgical period and could have overestimated the overall risk, as the codes used were not confirmed for accuracy [11]. In contrast to the low reported incidence of spinal cord injury in other studies in relation to SCS procedure, the American Society of Anesthesiologists (ASA) closed claims analysis of injuries relating to cervical procedures from 2005 to 2008 reported 20 cases of direct needle trauma to the spinal cord, and direct trauma accounted for 31% of all cases [20].

The causes of neurological injury during the SCS procedure may relate to direct injury to the spinal cord during needle insertion, compression of the spinal cord due to mass effect, or epidural hematoma or abscess. Among these complications, the most devastating is inadvertent needle/lead placement into the spinal cord during epidural localization. Thus it is essential to review the target anatomy, proceed cautiously with epidural placement, and optimize visualization with fluoroscopy (including contralateral views if necessary) to decrease these risks. This may happen due to poor needle control, ineffective use of fluoroscopy, or other factors such as patient movement. The best protection against direct neurological injury during spinal cord stimulator lead insertion is a review of the target anatomy, great degree of care in epidural localization, and appropriate use of fluoroscopy to clearly visualize the dorsal epidural space such as the contralateral oblique view, especially with cervical lead placement [21]. If these safeguards fail, an awake patient may be the last line of defense against neurological injury. In the ASA claims, 67% of patients with a neurological injury were deeply sedated, demonstrating that deep levels of sedation may be a risk factor, as a sedated patient cannot alert the provider of possible neurological compromise [20]. On the other hand, performing SCS in a lightly sedated and anxious patient who is prone to sudden movements may also carry very high risk, and careful analysis of the risks and benefits may show that deep sedation and an immobile patient would be a safer scenario in some cases.

IONM is a valuable option to replace the paresthesia mapping that is done in an awake patient. With the use of IONM, physicians can evaluate myotomal coverage and use this as a surrogate for dermatomal coverage [22]. However, given that the lead is already placed, this technique would not protect against inadvertent needle injury or erroneous lead placement. Thus, the purpose of IONM is primarily to allow paresthesia mapping but cannot serve as a tool to detect cord injury at the time of placement.

To summarize, although SCS is a very safe procedure, the true incidence of serious procedure-related neurological complications and contributing factors is unknown. While there is some evidence that deep sedation may increase the risk of complications, it is extrapolated from other databases. Given that light sedation may often not be adequate to perform a SCS procedure, our study demonstrates that 77% of physicians use deep sedation for SCS and 45% use general anesthesia for 10 kHz SCS placement, and of these, 6% had experienced a spinal cord stimulator complication related to the use of general anesthesia. Individualized responses have been provided in Table 2. However, we did not collect details on specific complications, and it is unclear whether these are anesthetic complications related to providing general anesthesia in the prone position, or procedural complications such as neurological injury. Additionally, while 6% of the responders noted a complication, the actual overall risk of injury is unknown, as we do not know the total SCS case numbers for all physician responders. Similar to the studies by Cameron and Mekhail et al. [18, 19], the risk of neurological injury related to SCS placement is likely very low. Given the small sample size, the significance of this number is unclear.

With this background we will analyze the pros and cons of various approaches.

Light Sedation in a Cooperative Patient

Traditionally, percutaneous SCS leads are inserted under light sedation, and paresthesia mapping is performed unless anatomic placement is planned. The leads are then tunneled and the implantable pulse generator (IPG) implanted. This can be performed via two commonly used methods. One technique utilizes an incision first under generous local anesthesia up to the desired depth, followed by lead insertion into the epidural space. Alternatively, the physician can first place the leads in the desired location followed by an incision, and then the leads are withdrawn into the incision.

The advantage of light sedation is that the leads can be placed and the patient may serve as their own monitor, paresthesia mapping can be performed, and the sedation may be deepened after the leads have been implanted. However, this approach has a very real disadvantage in that it is often not feasible. Patients must often be deeply sedated prior to lead insertion because of several factors such as anxiety, inability to remain still, pain despite adequate local anesthesia, discomfort of lying in the prone position, and claustrophobia, to name a few. This is especially relevant in cervical lead placement when immobility and true midline neck alignment are important. This approach is always tentative, and levels of sedation may fluctuate during the procedure. Additionally, light sedation may be used for lead placement, but deepening afterwards may at times create an unpredictable and unsafe anesthetic. ASA closed claims data show significant risk of respiratory depression and unpredictability in depth of anesthetic with MAC cases. Risk of death and brain damage in MAC cases was similar to that in cases with general anesthesia [23]. Risk of complications with prone MAC cases may be even higher because of airway inaccessibility (Table 3).

Table 3.

Summary of the advantages and disadvantages of utilizing light sedation

Advantages	Disadvantages
Allows for good paresthesia testing Patient can serve as a monitor Less possibility of respiratory compromise Avoids general anesthesia	Fluctuating levels of sedation Patient discomfort May required deeper levels of sedation due to patient discomfort Inadvertent patient movement Disinhibition

Thus, the very real advantage of light sedation is often lost in practical application. Consistent with these observations, only 23% of the recipients always avoided deep sedation with an unresponsive patient for permanent implantation. In terms of what one can do in one’s own practice, avoiding deep sedation is a good practice to minimize the risk of neurological complications and is consistent with NACC guidelines. However, this is only adhered to by a quarter of this cohort. As previously discussed, in many clinical scenarios the NACC guidelines may not be feasible and the use of deep sedation may be required, which has been demonstrated and is consistent with the majority of surveyed physicians.

Deep Sedation with an Unresponsive Patient

Deep sedation for SCS lead insertion essentially provides general anesthesia conditions in a patient with an unprotected airway. The main reason this is commonly used is that it is very often needed to accomplish the goals of the procedure while still being able to test for paresthesia coverage. Even though it allows for paresthesia mapping, the testing in this state is often time-consuming and less than optimal. One must keep in mind that deep sedation with an uncontrolled airway in prone position is often not the safest option, and as noted before, MAC has been associated with significant and serious complications including death and brain damage [23]. The finding that the majority of responders utilize deep sedation at times despite the disadvantages points to the fact that this is a realistic alternative when paresthesia mapping may be done with the patient serving as a guide. In terms of one’s own practice, having a patient undergo deep sedation is not consistent with the recommendations of NACC but is consistent with the practices of this cohort. One must carefully decide, case by case and in consort with the anesthesiologist, as to how to proceed with the case, weighing the feasibility of light sedation (Table 4).

Table 4.

Summary of the advantages and disadvantages of utilizing deep sedation

Advantages	Disadvantages
Allows for surgery to be done while keeping the possibility of paresthesia mapping in a patient who can tolerate lighter levels of sedation Avoids general anesthesia Patient may still be able to alert of impending neurotrauma	May be a challenging anesthetic Fluctuating levels of sedation Uncontrolled airway Respiratory Depression May need to pack the wound and flip the patient intraoperative Unreliable paresthesia testing Increased operative time—patient waking for testing Disinhibition Inadvertent movement

General Anesthesia

We asked whether physicians performed general anesthesia for SCS lead placement only for 10 kHz stimulation, since the placement is anatomic and does not require paresthesia mapping. The finding that 45% of responders chose to use utilize general anesthesia at times points to the fact that there are very real drawbacks to MAC and awake placement of SCS leads [23]. Studies have shown that utilizing anatomic placement of leads allows for a smoother procedural experience for the surgeon and a faster procedural time [24–26]. Potential advantages would include less operating room time, decreased staff requirements, and possibly a decreased rate of surgical site infections [27]. The drawbacks of general anesthesia are the inability to detect and avoid neurological injury when the needle or leads enter or compress neural tissue, as the patient is no longer able to serve as a warning. Having an alert and oriented patient allows for quick identification of potential neural compromise with interpretation of pain or paresthesias [12, 28]. In terms of one’s own practice, each physician must carefully consider the advantages and disadvantages of general anesthesia, and the decision may be made case by case. Although not recommended by NACC guidelines, 25% of physicians are often or always performing general anesthesia for 10 kHz SCS lead placement, and NACC guidelines appear to differ from the community standard of care (Table 5).

Table 5.

Summary of the advantages and disadvantages of utilizing general anesthesia

Advantages	Disadvantages
Patient comfort Faster Still surgical field Controlled airway Safer anesthetic in patients difficult to sedate	Patient cannot alert and serve as a monitor of neurological compromise Traditional paresthesia testing not available

Furthermore, the availability of IONM extends the possibility of general anesthesia for all SCS placements and negates the need for an alert and cooperative patient. This is especially true in view of the expanding indications for SCS [29] and/or the need to combine different techniques to obtain good pain control [30].

Limitations

This study presents the anesthetic choices of a large cohort of physicians practicing SCS therapy and is a first report of this type. There are several limitations that we would also like to address. This survey was submitted to members of SIS and ASRA through internal email registries to collect practice patterns for percutaneous cylindrical SCS leads. These are overwhelmingly non-surgical societies, and the data obtained would thus pertain to cylindrical percutaneous spinal cord stimulator leads. It is possible that surgical subspecialists implanting paddle leads with membership in these societies could have inadvertently participated in this survey; if so, this number would be exceedingly low. Additionally, these societies are not primarily neuromodulation societies, and have membership from varied disciplines. Not all members of these societies perform neuromodulation, and there may be overlapping membership between societies. Thus, the true responder rates of physicians who perform neuromodulation is ultimately not known. However, we did not adjust for any overlap in the membership, leading to a possible lower number of total recipients and higher response rate, since the magnitude of overlap was not known. Additionally, this may explain why our responder rate was low for this survey.

Since this is a descriptive survey that is looking for objective practice patterns of physicians who utilize neuromodulation, we believe that individuals more likely to respond to this survey are those who utilize this therapy in their practice and are unlikely to skew the results. Ultimately, we believe this survey provides valuable information to interventional physicians looking at the practice patterns of their peers. This survey also provides evidence that deep sedation and general anesthesia for permanent SCS placement is common practice amongst interventional pain physicians and their peers.

Conclusion

SCS has typically been performed with an awake patient utilizing paresthesia mapping. NACC recommends that lead placement be performed in a responsive patient. This survey demonstrates that SCS is commonly being performed under deep sedation and general anesthesia. Our findings demonstrate that 77% of physicians reported that they utilize deep sedation for permanent SCS implants, with 45% of physicians reporting the use of general anesthesia for 10 kHz implants. This may reflect the fact that it is often not feasible to do these cases under light sedation, and general anesthesia offers some advantages. The true rate and causes of neurological complications and the contribution of deep sedation to this during SCS placement is unknown; similarly, the true rate of complications related to providing MAC in the prone position is also unknown. This survey should stimulate further research on this topic and potentially serve as a foundation to revisit the current safety guidelines, as a significant proportion of physicians who perform implantation appear to be utilizing deep sedation and general anesthesia for percutaneous SCS placement.
