Crystal structure of 2-oxo-1,2-diphenylethyl diisopropylcarbamate

Viktor Martens ^a, Helmar Görls ^b, Wolfgang Imhof ^a,^*

PMCID: PMC8587984 PMID: 34868642

The title compound, C₂₁H₂₅NO₃, crystallizes as a racemic twin in the chiral space group P2₁. Both R- and S-enantiomers are connected into infinite helical chains by weak C—H⋯O hydrogen bonds between the phenyl ring of the benzoyl group and the carbamate carbonyl group.

Keywords: crystal structure, urethanes, carbamates, C—H⋯O hydrogen bonds

Abstract

The title compound, C₂₁H₂₅NO₃, crystallized as a racemic twin in the Sohnke space group P2₁. In the molecular structure of the title compound, both enantiomers show a highly similar conformation with the urethane function and the benzoyl group showing an almost perpendicular arrangement [the dihedral angle is 72.46 (8)° in the S-enantiomer and 76.21 (8)° in the R-enantiomer]. In the crystal structure, molecules of both enantiomers show infinite helical arrangements parallel to the b axis formed by weak C—H⋯O hydrogen bonds between the phenyl ring of the benzoyl group and the carbamate carbonyl group. In case of the R-enantiomer, this helix is additionally stabilized by a bifurcated hydrogen bond between the carbonyl function of the benzoyl group towards both phenyl groups of the molecule.

Chemical context

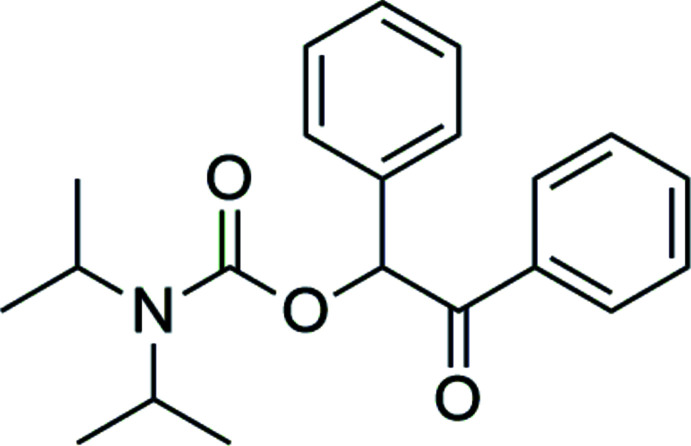

Phenacyl and desyl compounds may act as photoremovable protecting groups (PPGs) and have been a subject of interest for many years (Givens et al., 2012 ▸; Kammari et al., 2007 ▸; Klán et al., 2013 ▸; Sheehan & Umezawa, 1973 ▸). In addition to the protection of carboxylic acids, they have also been shown to act as suitable groups for the protection and deprotection of amines (Speckmeier et al., 2018 ▸). Besides several carbamate compounds, Lange and co-workers also synthesized the title compound via a Cu^I-catalysed stereospecific coupling reaction using α-stannylated benzyl carbamates (Lange et al., 2008 ▸). We chose a different procedure to synthesize the title compound, according to a synthetic route that has already been reported by Speckmeier et al. (2018 ▸). Recently, we reported on the crystal structure of the highly related achiral derivative 2-oxo-2-phenylethyl diisopropylcarbamate (Martens et al., 2021 ▸).

Structural commentary

The carbamate functional moieties (S-enantiomer: N1A/C3A/O3A/O2A; R-enantiomer: N1B/C3B/O3B/O2B) are essentially planar with the largest deviation for the respective planes being observed for C3A and C3B (in both cases 0.01 Å). The same is true for the benzoyl groups (S-enantiomer: C1A/O1A/C10A–C15A; R-enantiomer: C1B/O1B/C10B–C15B). In case of the S-enantiomer, the carbamate and the benzoyl planes subtend a dihedral angle of 77.46 (8)° whereas for the R-enantiomer an angle of 76.21 (8)° is observed (Fig. 1 ▸). These angles show a higher deviation from a perpendicular arrangement than was observed for 2-oxo-2-phenylethyl diisopropylcarbamate (Martens et al., 2021 ▸), most probably caused by the enhanced steric requirements of the phenyl substituent at C2A or C2B, respectively. All other bond lengths and angles are of expected values with C3A—N1A [1.354 (7) Å], C3A—O2A [1.360 (7) Å], C3B—N1B [1.350 (7) Å] and C3B—O2B [1.363 (6) Å] being slightly shorter than a typical C—O or C—N single bond due to the partial double-bond character of the respective bonds in a carbamate.

Molecular structures of both enantiomers of the title compound with displacement ellipsoids drawn at the 50% probability level (R left; S right).

Supramolecular features

In the crystal structure, molecules of both enantiomers show infinite helical arrangements parallel to the b axis formed by weak C—H⋯O hydrogen bonds (Desiraju & Steiner, 2001 ▸; Figs. 2 ▸ and 3 ▸) between the phenyl ring of the benzoyl group and the carbamate carbonyl group (S-enantiomer: C12A—H12A⋯O3A, R-enantiomer: C14B—H14B⋯O3B; Table 1 ▸). In each of the helices, only one enantiomer is present. Nevertheless, the helices do not act as mirror images because the arrangement of the molecules relative to each other is different. In the case of the R-enantiomer (Fig. 3 ▸), the supramolecular helix is additionally stabilized by a bifurcated hydrogen bond between the carbonyl function of the benzoyl group towards both phenyl groups of the molecule (C11B—H12B⋯O1B and C12B—H12B⋯O1B; Table 1 ▸).

Crystal structure of the S-enantiomer of the title compound showing the helical arrangement of molecules parallel to the b axis built up by C—H⋯O hydrogen bonds.

Crystal structure of the R-enantiomer of the title compound showing the helical arrangement of molecules parallel to the b axis built up by C—H⋯O hydrogen bonds.

Table 1. Hydrogen-bond geometry (Å, °).

D—H⋯A	D—H	H⋯A	D⋯A	D—H⋯A
C12A—H12A⋯O3A ⁱ	0.95	2.36	3.309 (2)	174
C14B—H14B⋯O3B ⁱⁱ	0.95	2.58	3.288 (2)	132
C11B—H11B⋯O1B ⁱⁱⁱ	0.95	2.69	3.553 (2)	152
C21B—H21B⋯O1B ⁱⁱⁱ	0.95	2.62	3.522 (2)	158

Open in a new tab

Symmetry codes: (i) -x+2, y+{\script{1\over 2}}, -z; (ii) -x+1, y+{\script{1\over 2}}, -z+1; (iii) x, y-1, z.

Database survey

In the Cambridge Structural Database (CSD; ConQuest Version 2020.3.0; Groom et al., 2016 ▸) there is only one carbamate reported with a CH₂—C(O)—Ph group attached to the carbamate oxygen atom (NIWQUI; Jiang et al., 2019 ▸). This compound shows a diethylamino group and a p-chlorophenyl substituent instead of the diisopropylamino group and the non-substituted phenyl group as in the title compound. Contrary to the title compound, the carbamate plane and the benzoyl plane are almost coplanar. The carbonyl oxygen atoms show numerous short contacts towards different C—H groups of neighbouring molecules, leading to a dense three-dimensional network. In addition, we recently reported a structure, in which there also is a CH₂—C(O)—Ph group instead of the CH(Ph)—C(O)—Ph unit in the title compound (Martens et al., 2021 ▸). In this structure, a layered arrangement is realized by all three oxygen atoms acting as hydrogen-bond acceptor sites. Moreover, there is one structure reported in the literature that is identical to the title compound with the exception of one bromine substituent at the 4-position of the phenyl ring attached to the C1=O1 carbonyl group (DOKMAS; Lange et al., 2008 ▸). In the latter case, the enantiopure S-enantiomer was crystallized. The supramolecular structure of this compound shows the same bifurcated hydrogen bond as is observed for the R-enantiomer of the title compound. On the other hand, the analogue of O3 is not engaged in a C—H⋯O interaction but shows a short oxygen–bromine contact (3.139 Å). These two interactions lead to a double-strand arrangement of molecules parallel to the a axis.

Synthesis and crystallization

Diisopropylamine (0.05 mol, 5.05 g) and one equivalent of caesium carbonate (0.05 mol, 16.55 g) were placed in a Schlenk tube and dissolved in anhydrous DMSO (150 ml). The tube was sealed with a septum, and two balloons filled with CO₂ were bubbled through the reaction mixture within one h while stirring. After the addition of CO₂, 1.1 equivalents of 2-bromo-1,2-diphenylethan-1-one (0.055 mol, 15.13 g) dissolved in a small amount of DMSO were added in one portion. The consumption of the 2-bromo-1,2-diphenylethan-1-one was monitored by TLC, and after 30 min the reaction mixture was poured onto ice to quench the reaction. After extraction with dichloromethane (3 × 40 ml), the combined organic phases were washed with brine, separated and dried over Na₂SO₄. The solvent was removed in vacuo and the crude product was recrystallized from n-hexane/ethylacetate (4:1, v/v) to afford the title compound (16.12 g; 95%) as a colourless crystalline solid. M.p. 485 K; ¹H NMR (500 MHz, CDCl₃) [ppm]: δ = 7.96 (dd, 2H), 7.50–7.47 (m, 3H), 7.39–7.32 (m, 5H), 6.88 (s, 1H), 4.05 (s, 1H), 3.86 (s, 1H), 1.28 (d, 12H); ¹³C NMR (126 MHz, CDCl₃) [ppm]: δ = 195.4 (C=O), 154.8 (NC=O), 135.2, 134.5, 133.3, 129.0, 129.0, 128.9, 128.7, 128.7 (C_Ph), 77.7 (C benzylic), 46.8, 45.9 [(H₃C)₂CH–], 21.6, 21.4 [(H₃C)₂CH–].

Refinement

Crystal data, data collection and structure refinement details are summarized in Table 2 ▸. All hydrogen atoms were placed in idealized positions (C—H = 0.95–0.98 Å) and refined using a riding model with isotropic displacement parameters calculated as U _iso(H) = 1.2(C) for methine and hydrogen atoms of the phenyl group or 1.5×U _eq(C) for methyl groups. The crystal studied was refined as a two-component twin with fractions of 29% vs 71%.

Table 2. Experimental details.

Crystal data
Chemical formula	C₂₁H₂₅NO₃
M _r	339.42
Crystal system, space group	Monoclinic, P2₁
Temperature (K)	133
a, b, c (Å)	15.7976 (5), 5.9184 (3), 19.5340 (8)
β (°)	90.310 (2)
V (Å³)	1826.33 (13)
Z	4
Radiation type	Mo Kα
μ (mm⁻¹)	0.08
Crystal size (mm)	0.11 × 0.10 × 0.09

Data collection
Diffractometer	Nonius KappaCCD
Absorption correction	Multi-scan (SADABS; Krause et al., 2015 ▸)
T _min, T _max	0.659, 0.746
No. of measured, independent and observed [I > 2σ(I)] reflections	18477, 8221, 7092
R _int	0.051
(sin θ/λ)_max (Å⁻¹)	0.649

Refinement
R[F ² > 2σ(F ²)], wR(F ²), S	0.069, 0.140, 1.09
No. of reflections	8221
No. of parameters	460
No. of restraints	1
H-atom treatment	H-atom parameters constrained
Δρ_max, Δρ_min (e Å⁻³)	0.27, −0.25
Absolute structure	Twinning involves inversion, so Flack parameter cannot be determined

Open in a new tab

Computer programs: COLLECT (Nonius 1998 ▸), DENZO (Otwinowski & Minor, 1997 ▸), SHELXT (Sheldrick, 2015a ▸), SHELXL (Sheldrick, 2015b ▸), ORTEP-3 for Windows (Farrugia, 2012 ▸) and Mercury (Macrae et al., 2020 ▸).

Supplementary Material

Crystal structure: contains datablock(s) I. DOI: 10.1107/S2056989021010367/wm5618sup1.cif

e-77-01091-sup1.cif^{(636.5KB, cif)}

Structure factors: contains datablock(s) I. DOI: 10.1107/S2056989021010367/wm5618Isup2.hkl

e-77-01091-Isup2.hkl^{(652.7KB, hkl)}

Click here for additional data file.^{(6.5KB, cml)}

Supporting information file. DOI: 10.1107/S2056989021010367/wm5618Isup3.cml

CCDC reference: 2114278

Additional supporting information: crystallographic information; 3D view; checkCIF report

supplementary crystallographic information

Crystal data

C₂₁H₂₅NO₃	F(000) = 728
M_r = 339.42	D_x = 1.234 Mg m⁻³
Monoclinic, P2₁	Mo Kα radiation, λ = 0.71073 Å
a = 15.7976 (5) Å	Cell parameters from 18477 reflections
b = 5.9184 (3) Å	θ = 1.7–27.5°
c = 19.5340 (8) Å	µ = 0.08 mm⁻¹
β = 90.310 (2)°	T = 133 K
V = 1826.33 (13) Å³	Prism, colourless
Z = 4	0.11 × 0.10 × 0.09 mm

Open in a new tab

Data collection

Nonius KappaCCD diffractometer	7092 reflections with I > 2σ(I)
phi + ω – scans	R_int = 0.051
Absorption correction: multi-scan (SADABS; Krause et al., 2015)	θ_max = 27.5°, θ_min = 1.7°
T_min = 0.659, T_max = 0.746	h = −20→20
18477 measured reflections	k = −7→7
8221 independent reflections	l = −25→25

Open in a new tab

Refinement

Refinement on F²	Secondary atom site location: difference Fourier map
Least-squares matrix: full	Hydrogen site location: inferred from neighbouring sites
R[F² > 2σ(F²)] = 0.069	H-atom parameters constrained
wR(F²) = 0.140	w = 1/[σ²(F_o²) + 2.2197P] where P = (F_o² + 2F_c²)/3
S = 1.09	(Δ/σ)_max < 0.001
8221 reflections	Δρ_max = 0.27 e Å⁻³
460 parameters	Δρ_min = −0.25 e Å⁻³
1 restraint	Absolute structure: Twinning involves inversion, so Flack parameter cannot be determined
Primary atom site location: structure-invariant direct methods

Open in a new tab

Special details

Geometry. All esds (except the esd in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell esds are taken into account individually in the estimation of esds in distances, angles and torsion angles; correlations between esds in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell esds is used for estimating esds involving l.s. planes.

Refinement. Refined as a two-component inversion twin.

Open in a new tab

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å²)
