A fresh look at coronary microembolization

Abstract

Mechanical stress from haemodynamic perturbations or interventional manipulation of epicardial coronary atherosclerotic plaques with inflammatory destabilization can release particulate debris, thrombotic material and soluble substances into the coronary circulation. The physical material obstructs the coronary microcirculation, whereas the soluble substances induce endothelial dysfunction and facilitate vasoconstriction. Coronary microvascular obstruction and dysfunction result in patchy microinfarcts accompanied by an inflammatory reaction, both of which contribute to progressive myocardial contractile dysfunction. In clinical studies, the benefit of protection devices to retrieve atherothrombotic debris during percutaneous coronary interventions has been modest, and the treatment of microembolization has mostly relied on antiplatelet and vasodilator agents. The past 25 years have witnessed a relative proportional increase in non-ST-segment elevation myocardial infarction in the presentation of acute coronary syndromes. An associated increase in the incidence of plaque erosion rather than rupture has also been recognized as a key mechanism in the past decade. We propose that coronary microembolization is a decisive link between plaque erosion at the culprit lesion and the manifestation of non-ST-segment elevation myocardial infarction. In this Review, we characterize the features and mechanisms of coronary microembolization and discuss the clinical trials of drugs and devices for prevention and treatment.

In this Review, Kleinbongard and Heusch characterize the features and mechanisms of coronary microembolization and discuss the clinical trials of drugs and devices for the prevention and treatment of this phenomenon.

Key points

• Coronary microembolization results from spontaneous or interventional erosion or rupture of an epicardial coronary atherosclerotic plaque.

• Atherothrombotic plaque debris causes physical obstruction of coronary microvessels and results in microinfarcts with an inflammatory response.

• The surviving myocardium around the patchy microinfarcts has reduced contractile function as a result of inflammatory signal transduction leading to myofibrillar oxidation.

• Atherosclerotic plaque erosion or rupture releases soluble substances that induce coronary microvascular endothelial dysfunction, vasoconstriction, platelet aggregation and coagulation.

• Routine use of interventional protection devices does not improve patient outcomes but these devices are indicated in cases of high atherothrombotic plaque burden.

• Plaque stabilization with statins and canakinumab prevents coronary microembolization, whereas platelet inhibitors, vasodilators and interleukin antagonists attenuate coronary microvascular impairment.

Introduction

Interest in coronary microembolization and its sequelae has fluctuated over time. In the 1980s, several investigators (notably Davies and Falk), performed autopsy studies in patients with coronary artery disease who had died suddenly. Together with the rupture or fissure of epicardial coronary atherosclerotic plaques^1–3, obstruction of the coronary microcirculation by microemboli was frequently identified. These microemboli predominantly consisted of platelet aggregates, fibrin, hyalin and atherosclerotic plaque material, including cholesterol^1–6. In the same decade, the development of platelet aggregation in the stenotic coronary arteries of dogs was characterized by Folts and Willerson. They identified endothelial dysfunction involving serotonin, thrombin and thromboxane A₂ as mediators and causing cyclic flow variations with embolization of platelet aggregates into the microcirculation^7–10.

With the increasing use of elective and primary percutaneous coronary intervention (PCI), interest in coronary microembolization was renewed in the early 2000s prompted by the question of what happened to plaque material that was released during PCI^11,12. The use of protection devices during PCI enabled particulate plaque debris, thrombotic material and soluble factors to be retrieved from native and graft coronary vessels¹³. However, the clinical benefit of protection devices was modest at best, and interest in coronary microembolization understandably subsided.

During the past decade, several investigators (notably Libby) have emphasized an increasing incidence of plaque erosion rather than rupture as the key underlying event of acute coronary syndromes, particularly as a consequence of increasing statin use^14–17. The increasing incidence of plaque erosion has been associated with a quantitative shift from ST-segment elevation myocardial infarction (STEMI) to non-ST-segment elevation myocardial infarction (NSTEMI) over the past 25 years^15,16,18. Coronary microemboli are more frequently found at autopsy in patients with plaque erosion who have died suddenly than in those with plaque rupture¹⁹. The fact that not all patients with NSTEMI need routine intervention but do require intensified antithrombotic treatment^20,21 places the spotlight on the obstruction and dysfunction of the coronary microcirculation. Indeed, the treatment of coronary microembolization is likely to be more important in the outcome of patients with acute coronary syndromes than during elective PCI. In this Review, we characterize the features and mechanisms of coronary microembolization and discuss clinical trials of drugs and devices for prevention and treatment.

Experimental coronary microembolization

Animal models

Intracoronary injection of inert particles (such as talcum, lycopodium spores or plastic microspheres of various diameters) in anaesthetized dogs has been used since the early twentieth century to study the effects of a fairly standardized, partial coronary obstruction on cardiac rhythm and contractile function, including cardiogenic shock^22–29. Intracoronary injection of inert polystyrene microspheres is the current standard method of inducing a regional acute coronary syndrome^30,31 and, with repetitive microembolization, heart failure^32,33 in animal models (for example, dogs^34–36, pigs^37–40, sheep⁴¹, mice⁴² and rats⁴³). The advantage of using polystyrene microspheres is that the diameter (usually around 40 µm) and the number of injected spheres can be standardized and adjusted to coronary inflow. The disadvantage of this method is the inert nature of these microspheres³⁶, which cause physical obstruction of the coronary microcirculation but have no prothrombotic, pro-inflammatory or vasoconstrictor potential.

An alternative but somewhat less standardized approach is the intracoronary infusion of exogenously (ex vivo) generated homologous or autologous thrombotic material that, although not inert, still does not include atherosclerotic debris and soluble factors released from an atherosclerotic culprit lesion. This method has been used in rats⁴⁴ and pigs⁴⁵.

A model of severe epicardial coronary stenosis with endothelial dysfunction, developed by Folts et al.⁷, causes the spontaneous formation of platelet aggregates in the stenotic segment with progressive inflow reduction, followed by sudden restoration of blood flow when the platelet aggregate is dislodged from the stenotic segment and embolized into the coronary microcirculation. This model has been used in dogs^8,9,46 and pigs⁴⁷ and is characterized by cyclic coronary flow variations, which enable prothrombotic and vasoconstrictor factors, such as thrombin⁸, serotonin and thromboxane A₂ (ref.⁹), to be studied.

Blood flow and cardiac function

In anaesthetized dogs, intracoronary injection of inert microparticles results in an immediate decrease in coronary blood flow^24,48, followed by reactive hyperaemia^28,35,37,48 and then a return to normal blood flow^24,48 (Fig. 1). Regional myocardial contractile function, as measured by sonomicrometry, in the perfusion territory of the embolized coronary artery decreases immediately, then partially recovers over minutes but does not return to baseline function⁴⁸. The response of global left ventricular (LV) function depends on the number and size of embolizing particles and the size of the affected coronary perfusion territory. The response can range from transient and subtle LV dysfunction⁴⁸ to protracted and severe cardiogenic shock⁴⁹. With repetitive coronary microembolization, baseline coronary blood flow can still be normal or even above normal but coronary reserve in response to adenosine is markedly reduced⁴⁸. Both the slightly increased baseline flow (reflecting reactive hyperaemia) and, more importantly, the reduced maximal blood flow secondary to physical obstruction of the coronary microvasculature contribute to reduced coronary reserve⁴⁸. The reduction in regional contractile function with repetitive coronary microembolization is cumulative (Fig. 1), and repetitive coronary microembolization has become a standard method to induce LV dysfunction and heart failure^32,33. The dissociation between profound contractile dysfunction and normal or even slightly elevated coronary blood flow (that is, a perfusion–contraction mismatch pattern), is a salient feature of microembolized myocardium^36,50.

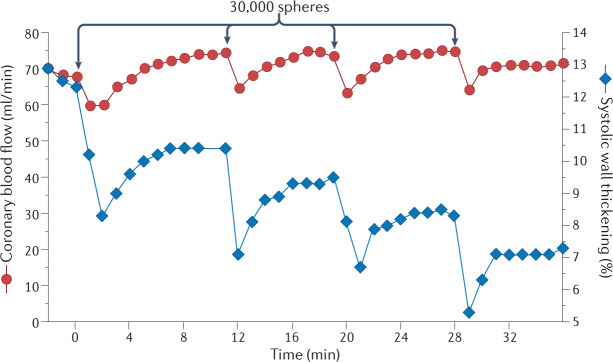

Fig. 1. Repetitive intracoronary infusion of polystyrene microspheres in a dog.

The arrows along the top indicate infusion of 30,000 polystyrene microspheres of 42 µm in diameter. Coronary blood flow (red) is immediately reduced after infusion, recovers quickly and displays some reactive hyperaemia (exceeds baseline flow). Systolic myocardial wall thickening (blue) is also immediately reduced and recovers quickly but not back to baseline. After four infusions of microspheres, coronary blood flow is normal but systolic wall thickening has a cumulative deficit. Adapted with permission from ref.⁴⁸, APS.

Morphological sequelae

Coronary arterioles are functional end arteries, and their physical obstruction causes microinfarction (Fig. 2). The size of the microinfarcted area corresponds to the site of vascular obstruction which, in turn, is determined by the diameter of the embolizing particles³⁴. On haematoxylin and eosin staining, the microinfarction from coronary microembolization appears as typical necrosis in dogs^34,36, pigs⁵¹, mice⁴² and rats^43,44. There is also evidence for apoptosis in the microinfarcted area shown by terminal deoxynucleotidyl transferase dUTP nick end labelling (TUNEL)^{30,38,52–55} and increased expression of caspase 3, caspase 9 and Bax 2 (also known as apoptosis regulator BAX)^52,53,55,56. However, the contribution of apoptosis to cell death from microinfarction is minor compared with that from necrosis. The microinfarct resulting from physical obstruction of a microvessel by inert microspheres is characterized by a profound inflammatory response leading to pyroptotic cell death^57,58. Morphologically, oedema and neutrophil and macrophage infiltration occur around the microinfarct site in dogs^36,59, pigs^51,60, mice⁴² and rats⁴³. The inflammatory response is also characterized by the increased expression of cytokines, such as tumour necrosis factor (TNF) in macrophages⁵¹ and cardiomyocytes⁶¹, as well as of interleukins^43,56 and inducible nitric oxide synthase (iNOS)⁵⁶ at the mRNA and protein levels. In rats, the activation of extracellular signal-regulated kinase 1 (ERK1) and ERK2 seems to be involved in initiating the inflammatory response⁶². Inflammation around microinfarcts in pigs is associated with increased insulin-like growth factor 1 (IGF1) mRNA expression in infiltrating monocytes⁶³, which is a potential start signal for an angiogenic response and for the promotion of collateral growth, as seen in a long-term model of coronary microembolization in dogs⁶⁴. CT and MRI in pig models of coronary microembolization demonstrated not only a decrease in regional and global contractile function but also patchy perfusion defects, oedema and microinfarcts^60,65–67.

Fig. 2. Microinfarction after coronary microembolization in a dog.

a | Haematoxylin and eosin-stained microinfarct with surrounding infiltration (enlarged insert) distal to an embolizing microsphere. b | Phase-contrast microscopy of the microinfarct for improved demarcation. c | Terminal deoxynucleotidyl transferase dUTP nick end labelling (TUNEL) staining of a few apoptotic cardiomyocytes within a microinfarct (phalloidin staining). d | In situ hybridization of tumour necrosis factor mRNA in the viable myocardium surrounding a microinfarct. Parts a and b adapted with permission from ref.³⁶, APS. Parts c and d adapted with permission from ref.⁶¹, Elsevier.

Signal transduction of contractile dysfunction

Regional contractile function in microembolized myocardium follows a typical time course, with a decrease immediately after microembolization, followed by a partial recovery and then a subsequent deterioration over several hours, with a nadir at 6–12 h after the procedure^{36,38,61,68,69}. A nadir in global LV function is also seen at around 12 h after microembolization⁴³. The magnitude of contractile dysfunction exceeds that of acute ischaemia, reflecting the contribution of loss of viable contractile cardiomyocytes from microinfarction and, more importantly, contractile impairment in viable myocardium from the effect of negative inotropic inflammatory mediators (Fig. 3). With the intracoronary injection of microspheres in anaesthetized pigs, the total surface area of microperfusion defects was more closely correlated with LV contractile dysfunction than with the total volume of microperfusion defects on electron-beam CT³⁹. This finding supports the notion that interaction with the surrounding myocardium and inflammation are more important for contractile dysfunction than the loss of viable tissue³⁹.

Fig. 3. Coronary microembolization and its consequences.

a | Rupture or erosion of an atherosclerotic plaque in an epicardial coronary artery releases particulate atherothrombotic debris and soluble substances into the coronary microcirculation. Debris causes physical obstruction of coronary microvessels, whereas soluble substances cause endothelial dysfunction, vasoconstriction and platelet aggregation. b | Microinfarcts occur in the myocardium accompanied by an inflammatory reaction, which impairs contractile function in adjacent surviving cardiomyocytes through signal transduction involving nitric oxide (NO), tumour necrosis factor (TNF), sphingosine, reactive oxygen species (ROS) and, ultimately, myofibrillar oxidation. Ab, antibody; l-NAME, N_G-nitro-l-arginine methyl ester; NOE, N-oleoylethanolamine.

The increased expression of TNF in macrophages and cardiomyocytes is central among the inflammatory mediators to exert negative inotropic effects on the microembolized myocardium^43,51,61. Therefore, antibodies to TNF abrogate the progressive contractile dysfunction between 1 and 8 h after microembolization in anaesthetized dogs⁶¹. In anaesthetized pigs, nitric oxide is formed upstream of increased TNF expression and sphingosine is synthesized downstream of increased TNF expression³⁸. As such, inhibition of nitric oxide formation by N_G-nitro-l-arginine methyl ester (l-NAME) or inhibition of sphingosine formation by N-oleoylethanolamine (NOE) abrogates progressive contractile dysfunction between 1 and 8 h after microembolization³⁸. The ultimate effect of such inflammatory signal transduction is apparently the increased formation of reactive oxygen species (ROS), oxidative modification of contractile myofibrils⁶⁹ and reduced Ca²⁺ responsiveness of the contractile machinery⁷⁰. The causal role of ROS is supported by the prevention of myofibrillar oxidation and progressive contractile dysfunction by high-dose vitamin C⁶⁹. In chronically instrumented dogs, regional contractile dysfunction has its nadir 4–12 h after coronary microembolization but recovers almost completely over 1 week⁶⁸. Recovery is accelerated by intravenous methylprednisolone, further supporting the causal role of inflammation in the observed regional contractile dysfunction⁶⁸. Although the causal role of inflammatory mediators in contractile dysfunction from coronary microembolization is obvious, we do not currently know the exact biochemical, cellular and subcellular source of each participating mediator nor the full sequence of signalling steps.

Several drugs attenuate contractile dysfunction but where and how they interact with signal transduction is unclear. Some of these drugs, including metoprolol⁵², nobiletin⁵⁴, resveratrol⁵⁵, breviscapine⁷¹, puerarin⁷², nicorandil⁷³ and glycyrrhizin⁵⁶ reduce markers of apoptosis (reduced caspase 3 activation and expression of p53 and Bax, reduced TUNEL staining) and activate classical cardioprotection pathways⁷⁴ such as phosphoinositide 3-kinase (PI3K), protein kinase B (Akt) and glycogen synthase kinase 3β (GSK3β)^54,71,72. Some of these drugs, including pyrrolidine dithiocarbamate⁴⁴, glycyrrhizin⁵⁶ and breviscapine⁷¹, also attenuate the expression of inflammatory cytokines^44,56,71 or ROS⁵⁴. In chronically instrumented pigs with coronary microembolization, long-term treatment with the angiotensin II receptor antagonist irbesartan improved both perfusion and contractile dysfunction⁷⁵. Pretreatment with trimetazidine in anaesthetized pigs with coronary microembolization attenuated apoptosis (reduced activation of caspase 3 and caspase 9, reduced TUNEL staining) and global LV dysfunction (as shown on echocardiography) 12 h after coronary microembolization⁵³.

Cardioprotection

Cardioprotection in its strictest sense refers to the reduction of infarct size that results from sustained and severe myocardial ischaemia and subsequent reperfusion by mechanical or pharmacological interventions⁷⁴. Whereas microembolization induces patchy microinfarcts, the increased expression of TNF not only causes progressive contractile dysfunction⁶¹ but is also cardioprotective. In anaesthetized pigs, TNF expression was increased 6 h after coronary microembolization, and the infarct that resulted from 90 min of severe coronary hypoperfusion and 2 h of reperfusion was then reduced in size; this cardioprotection was abrogated by TNF antibodies⁷⁶. While coronary microembolization per se apparently exerts cardioprotection under specific circumstances, it does not interfere with cardioprotection produced by ischaemic preconditioning or postconditioning. Conversely, in anaesthetized pigs, the immediate increase in coronary venous adenosine concentration associated with coronary microembolization did not result in infarct size reduction with the 90 min of severe myocardial ischaemia and 120 min of reperfusion that followed 10 min after microembolization⁷⁷. In addition, coronary microembolization did not interfere with cardioprotection from a true ischaemic preconditioning protocol (one 10-min cycle of severe ischaemia and 15 min of reperfusion), which was associated with a substantial increase in interstitial adenosine before 90 min of sustained ischaemia followed by 120 min of reperfusion, although coronary microembolization slightly increased infarct size⁷⁸. These findings contrast with the delayed cardioprotection associated with increased TNF expression described above⁷⁶. Collectively, these data suggest that coronary microembolization per se might induce some delayed protection but neither contributes to nor interferes with cardioprotection from pre-infarction angina. Almost the same is true for ischaemic postconditioning. The microinfarcts from coronary microembolization at early reperfusion following 90 min of severe myocardial ischaemia increased infarct size after 2 h of reperfusion in anaesthetized pigs⁷⁹. However, microembolization did not prevent infarct size reduction by an ischaemic postconditioning protocol (six cycles of 20 s of coronary occlusion and 20 s of reperfusion)⁷⁹. Therefore, coronary microembolization, which is possibly associated with manipulation of the culprit lesion when applying an ischaemic postconditioning protocol, does not abrogate protection from postconditioning. Cardioprotective conditioning procedures are therefore still effective and could blunt deleterious infarct expansion from coronary microembolization.

Coronary no-reflow

Coronary no-reflow is the manifestation of coronary microvascular injury from sustained and severe myocardial ischaemia and reperfusion^80–83. No-reflow results from a number of pathomechanisms, including interstitial, endothelial and cardiomyocyte oedema, impaired vasomotion, leukocyte adherence and infiltration, stasis of blood elements, and capillary destruction and rupture⁸³. No-reflow can occur after sustained coronary occlusion and reperfusion in a previous virgin coronary vascular territory; therefore, it does not require physical obstruction by atherothrombotic material or the action of soluble factors released from upstream atherosclerotic lesions. Nevertheless, there are typical leukocyte–platelet aggregates^84–87 and erythrocyte aggregates⁸⁸ that obstruct the capillaries in the myocardium with no-reflow. Additionally, in a realistic clinical scenario of acute plaque rupture or erosion, there will be physical obstruction by atherothrombotic debris and microvascular dysfunction from prothrombotic, pro-inflammatory and vasoconstrictor soluble substances^31,82,83. Coronary microembolization with sodium laurate in rats induced microthrombi together with endothelial and cardiomyocyte injury, which were all attenuated by pretreatment with prostaglandin E₁ (ref.⁸⁹).

Heart failure

Progressive LV dysfunction following coronary microembolization with glass beads (400–600 µm diameter) in chronically instrumented dogs was first used as a preclinical heart failure model by Franciosa et al.³². Sabbah et al. then refined this dog model by using polystyrene microspheres (70–110 µm diameter) and a protocol of sequential microembolizations to establish stable heart failure³³ characterized by patchy myocardial fibrosis and LV hypertrophy³³, apoptosis (demonstrated by DNA fragmentation and electron microscopy)⁹⁰ and neurohumoural activation^33,91,92. With more limited coronary microembolization, heart failure (neurohumoural activation and volume expansion) with preserved ejection fraction could also be established⁹². This model with characteristic features of LV dysfunction and neurohumoural activation was repeated in sheep⁹³. Sabbah et al. used coronary microembolization-induced heart failure in dogs to study the effects of several drugs. Metoprolol not only improved LV function^91,94 but also attenuated apoptosis⁹⁵ and endoplasmic reticulum stress⁹⁴ and increased the expression of excitation–contraction coupling proteins⁹⁴. Metoprolol and enalapril also prevented progressive LV dilatation in this model⁹¹. In a similar model of heart failure, in which microspheres of 45 µm diameter were used to induce coronary embolization in pigs, intracoronary cardiosphere-derived cell infusion reduced infarct size and collagen volume, increased myocyte number and capillary density, and improved regional and global LV function⁹⁶.

Animal experiments on coronary microembolization have strengths and limitations (Box 1). Collectively, however, these models are imperfect surrogates for the human clinical situation of acute or chronic coronary syndromes, with or without PCI.

Box 1 Animal models of coronary microembolization.

All models

Strengths

• Controlled setting

• Defined number and size of microemboli

• Systematic post-mortem morphology and biochemistry

Limitations

• Non-human species

• Young age

• No underlying atherosclerosis

• Inert embolic material, except for autologous thrombi^44,45

Rodent

Strengths

• Inexpensive

• Transgenic strains

Limitations

• Cardiac anatomy different from that of humans

• High heart rate

• Anaesthesia

Dog

Strengths

• Human-like anatomy and heart rate

• Human-like model of chronic coronary syndromes

• Possibly without anaesthesia

Limitation

• Expensive

Pig

Strengths

• Human-like anatomy and heart rate

• Human-like model of myocardial infarction

Limitation

• Expensive

Clinical coronary microembolization

The clinical presentation of coronary microembolization is unspecific, ranging from lack of symptoms and retrospective detection by chance to symptoms of an acute coronary syndrome. Coronary microembolization occurs spontaneously and as a result of cardiac, mostly coronary, interventions. Spontaneous coronary microembolization, typically symptomatic as an acute coronary syndrome, can be ascertained only at autopsy after sudden cardiac death^3–6,97. Increases in levels of biomarkers, such as creatine kinase or troponin (particularly with high-sensitivity assays), above the normal range reflect myocardial injury but are unspecific and fairly common in the general population⁹⁸. Such elevations in biomarkers become more frequent with increasing age and with the presence of other risk factors for atherosclerosis and are indicative of poor prognosis^98,99. The true contribution of coronary microembolization to an increase in biomarker levels cannot be distinguished from other causes, such as alternative forms of myocardial ischaemia, myocarditis, stroke, trauma and excessive exercise. Coronary microembolization is therefore more unequivocally identified in cardiac (notably coronary) interventions. Massive and often disastrous coronary embolization can arise from aortic or mitral valve endocarditis or iatrogenic valve interventions, atrial fibrillation or peripheral thrombosis through a patent foramen ovale. However, a coronary embolus is rarely the cause of an acute coronary syndrome and is seen in no more than 3% of patients undergoing catheterization for acute myocardial infarction (MI)¹⁰⁰.

In the early reperfusion era, 80% of patients with acute MI who had undergone balloon angioplasty or thrombolysis and died within 3 weeks of the procedure had coronary emboli at autopsy¹⁰¹. The emboli consisted of atherothrombotic material within the primary infarction, extending the infarction, inducing new infarction or involving non-infarcted myocardium¹⁰¹. Microvascular obstruction/no-reflow is frequently seen on MRI in patients with reperfused acute STEMI, and microvascular obstruction is a determinant of patient prognosis, independent from and in addition to infarct size^102–104. However, MRI visualizes microvascular obstruction only in the infarcted tissue and not in the non-infarcted area at risk. MRI is usually performed within 1 week of reperfusion, and microvascular obstruction is typically identified at this point. However, the duration of microvascular obstruction and its distinction from scarring or angiogenesis on later MRI scans is unclear. Importantly, the contribution of coronary microembolization compared with other causes of microvascular obstruction, such as endothelial and interstitial oedema, vasoconstriction, leukocyte adherence, capillary destruction or haemorrhage, is impossible to quantify^83,105. We will therefore address only the clinical scenarios for which clear evidence for coronary microembolization exists.

To date, the recognition of coronary microembolization in patients with spontaneous acute coronary syndrome has not resulted in a protocol for risk stratification and management other than according to established guidelines^21,106. Coronary microembolization remains the conceptual ‘missing link’ between the culprit plaque lesion in the epicardial coronary artery (diagnosed by intravascular imaging) and the clinical presentation of NSTEMI with an increased level of troponin but without ST-segment elevation, with the consequent lack of an urgent need for PCI in many instances and an indication for proactive antiplatelet and anti-inflammatory treatment. In a sense, iatrogenically induced coronary microembolization during a coronary intervention can be viewed as a human model of a minor acute coronary syndrome and might facilitate its mechanistic understanding.

Spontaneous coronary microembolization

Spontaneous coronary microembolization in the absence of PCI can be seen only at autopsy. In a systematic search for microthrombi in patients with heart disease, mostly of ischaemic origin, microthrombi rich in platelets and fibrin were seen in the coronary microcirculation, and platelet-rich microthrombi were more common in younger patients (aged <45 years) who had suffered sudden cardiac death than in older patients⁴. The combination of epicardial plaque rupture or fissure together with microvascular atherothrombotic embolization in patients with ischaemic heart disease who had suffered sudden cardiac death was subsequently established through autopsy studies. The microemboli consisted of atherosclerotic plaque material, including cholesterol¹, platelet aggregates, platelet–leukocyte aggregates^3,5,6, hyalin³ and fibrin^5,6, and caused microinfarcts with an inflammatory response^3,5,97. These microinfarcts with inflammation were reminiscent of those seen in animal experiments with embolization induced by inert microspheres (discussed above). Subsequently, Schwartz et al. demonstrated that plaque erosion caused coronary microembolization more frequently than plaque rupture, microemboli were unrelated to stenosis severity of the culprit coronary artery and emboli were mostly seen in microvessels of <120 µm in diameter¹⁹.

Periprocedural coronary microembolization

Biomarkers

Transient increases in serum levels of creatine kinase, creatine kinase-MB (CK-MB), and troponin I or troponin T after PCI are characteristic of periprocedural myocardial injury^107,108. Preferably, high-sensitivity cardiac troponin assays are used^98,99. According to the Fourth Universal Definition of Myocardial Infarction¹⁰⁹, an increase in cardiac troponin levels (measured by high-sensitivity assay) to above the 99^th percentile upper reference limit in patients with normal baseline values or an increase by >20% in patients with elevated baseline values is defined as procedural myocardial injury (PMI). Major PMI and type 4a MI are defined by increases in cardiac troponin levels to above the fivefold 99^th percentile upper reference limit and only such an increase carries an adverse prognosis for clinical outcome¹¹⁰. However, the assessment of PMI from an elevation in troponin levels cannot distinguish between injury from side-branch occlusion and injury from distal coronary microembolization during PCI. The magnitude of biomarker release depends on the clinical situation of the patient¹¹⁰ (greater in patients with diabetes mellitus¹¹¹ or chronic kidney disease¹¹²), the nature of the vessel undergoing PCI (greater in saphenous vein grafts (SVGs) than in native coronary arteries)^113,114 and the type of procedure (greater with rotablation than simple stenting)¹¹⁵. The difference between elective and primary PCI in terms of resultant coronary microembolization is simply the iatrogenic versus spontaneous nature of its origin in the culprit lesion.

Imaging

Distal embolization can initially be visualized by angiography as an abrupt filling defect in a peripheral coronary branch^116,117. Imaging during PCI can identify the origin of the embolizing material in the epicardial coronary vascular wall by intravascular ultrasonography (IVUS)¹¹⁸ or optical coherence tomography (OCT)¹¹⁹. IVUS has greater penetration into the vascular wall than OCT and allows the different plaque components (that is, calcified, fatty, fibrotic and necrotic) to be distinguished by radiofrequency-based virtual histology. OCT has greater spatial resolution than IVUS and permits more detailed visualization of the endothelial layer and fibrous plaque cap^14,16. Therefore, OCT is particularly well suited to distinguishing between plaque rupture (a thin fibrous cap with rupture) and plaque erosion (a thick fibrous cap without rupture), both of which can result in coronary microembolization¹⁷. Plaque volume on IVUS correlates with TNF release into the aspirate from an SVG during PCI¹²⁰, and the volume of the plaque necrotic core in native coronary arteries correlates with the release of creatine kinase and troponin into the systemic circulation following PCI¹¹⁸. Showers of microemboli during elective PCI of native coronary arteries in patients with stable angina were visualized by intracoronary Doppler and correlated with the postprocedural elevation in serum troponin levels¹²¹ (Fig. 4). In patients with diabetes undergoing elective PCI, the Doppler-derived amount of microembolization correlated with the incidence of major adverse cardiovascular events (MACE) at 2-year follow-up¹²². A typical finding indicating coronary microembolization, also reported in experimental studies using intracoronary injection of microspheres^48,123, is an increase in baseline coronary blood flow and a reduction in coronary reserve immediately after PCI^124,125. The reduction in coronary reserve correlated with postprocedural serum creatine kinase and troponin levels¹²⁵.

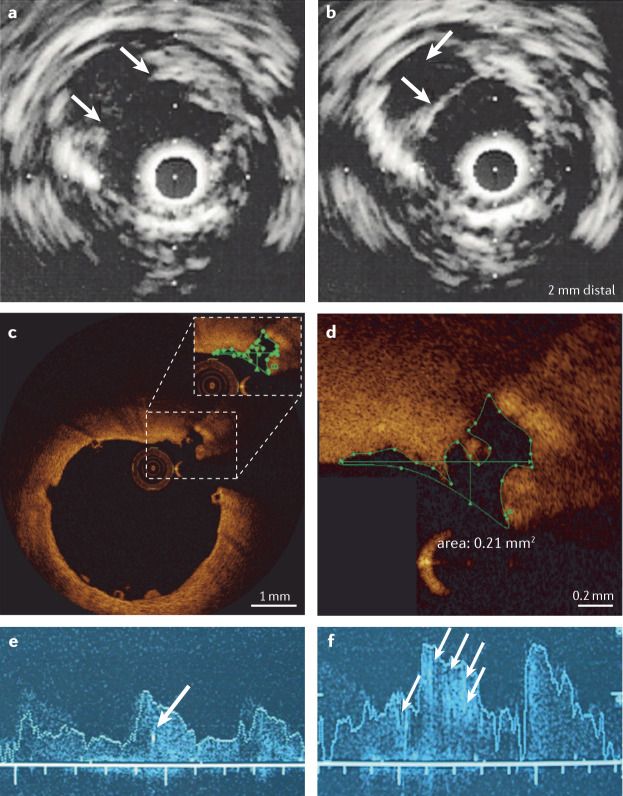

Fig. 4. Imaging of plaque rupture and coronary microembolization.

a | Intravascular ultrasonography of a ruptured epicardial coronary atherosclerotic plaque after percutaneous coronary intervention (PCI). Arrows point to the ruptured cap and to the plaque, the debris from which is emptied into the coronary microcirculation. b | In the same vessel 2 mm distally, the thin cap is still intact but the plaque is empty. c | Optical coherence tomography of a thin and ruptured fibrous cap overlying an atherosclerotic plaque following PCI. d | Section of the same image at higher magnification. e | Intracoronary Doppler imaging of coronary blood flow velocity with high-intensity signals at baseline (arrow). f | After PCI, blood flow velocity is increased and more high-intensity signals (arrows) reflect showers of microemboli. Parts a and b adapted with permission from ref.²³³, Deutscher Aerzte-Verlag GmbH. Parts c and d adapted with permission from ref.²³⁴, EuroIntervention. Parts e and f adapted with permission from ref.¹²², Springer Nature Limited.

As in animal experiments with intracoronary injection of microspheres^60,65–67, local myocardial lesions resulting from microembolization in patients undergoing PCI can be visualized on postprocedural MRI^126–129. Quantification of patchy areas with delayed gadolinium contrast hyperenhancement correlated with postprocedural serum troponin levels¹²⁶ and a reduction in plaque volume on IVUS¹²⁷. Areas with delayed hyperenhancement also had decreased local perfusion reserve, reflecting coronary microvascular obstruction¹²⁸. The amount of postprocedural hyperenhancement on MRI between 24 h and 6 days after PCI or coronary artery bypass graft surgery correlated with clinical outcome during a 3-year follow-up period¹²⁹. A disadvantage of MRI is that it cannot be used to distinguish between myocardial injury from coronary microembolization and other types of local injury such as side-branch occlusion.

Interventional prevention and treatment

In patients undergoing elective PCI, remote ischaemic preconditioning by one or more cycles of blood pressure cuff inflation and deflation on the arm reduced biomarker-defined PMI^130–132 and the incidence of adverse events in several¹³³ but not all¹³⁴ studies. These studies differ from the experimental models discussed earlier in which local ischaemic preconditioning did not attenuate coronary microembolization. Whether remote ischaemic preconditioning stabilized the plaque or attenuated the myocardial injury from distal embolization is unclear. Possibly, remote ischaemic preconditioning induces the release of systemically circulating anti-inflammatory and cardioprotective substances, whereas local preconditioning does not^135,136. Reduced microvascular obstruction by remote ischaemic preconditioning in patients undergoing PCI for acute MI has also been reported^137–140 but whether this benefit resulted from attenuated coronary microembolization or is a secondary effect of reduced infarct size is unknown⁸³.

Direct stenting reduced coronary microvascular resistance and tended to decrease postprocedural troponin release in patients with stable angina¹⁴¹. In patients with acute MI, this procedure improved thrombolysis in myocardial infarction (TIMI) flow¹⁴² and reduced microvascular obstruction and infarct size on MRI in a subanalysis of a larger trial¹⁴³. The most likely mechanism for this reduction in microvascular obstruction is through the prevention of coronary microembolization from the culprit lesion.

The recognition of periprocedural coronary microembolization as a complication of PCI has stimulated the development of protection devices — filters or occlusion/aspiration systems to capture atherothrombotic debris, soluble substances or both that are released from the culprit lesion during PCI. The use of distal protection devices during elective PCI in native coronary arteries or SVGs was established as safe and feasible^{114,144–146} (Fig. 5). In the SAFER trial¹⁴⁷ of patients undergoing PCI of SVGs under distal protection by an occlusion/aspiration device, TIMI flow was improved, the incidence of no-reflow was reduced, and the primary composite clinical end point of death, MI, emergency bypass and target-vessel revascularization after 30 days was reduced. In the FIRE trial¹⁴⁸, no significant difference in procedural outcome or the primary composite end point of death, MI or target-vessel revascularization was seen in patients undergoing PCI of SVGs under protection with a filter device as compared with a balloon occlusion/aspiration device. Similarly, no significant difference in procedural and clinical end points was evident in the AMEthyst trial¹⁴⁹ in patients undergoing PCI of SVGs under protection with a novel filter device (AVE Interceptor; Medtronic) as compared with a balloon occlusion/aspiration device. In the PROXIMAL trial¹⁵⁰, no significant difference was seen in postprocedural creatine kinase level or in the primary clinical end point of death, MI and target-vessel revascularization between a proximal and a distal balloon occlusion/aspiration device in patients undergoing PCI of SVGs. Finally, in the CANARY trial¹⁵¹, patients undergoing PCI of native coronary arteries under protection from a filter device had no benefit in terms of postprocedural troponin or creatine kinase levels. Therefore, evidence for the use of a protection device exists only in PCI of SVGs and essentially comes only from the results of the SAFER trial.

Fig. 5. Angiography of PCI with a protection device and morphology of captured debris.

a | Angiography of a saphenous vein graft (sternal wires from earlier coronary artery bypass graft surgery), with a stent balloon and a distal filter device. b | A photograph of the device with the captured debris. c | Haematoxylin and eosin-stained histology of particulate debris from the aspirate with amorphic lipid substance (ALS), a foam cell (FC), cholesterol crystals (arrows) and a thrombus (T). Parts a and b courtesy of Michael Haude (Rheinlandklinikum Neuss, Germany). Part c adapted with permission from ref.²³⁵, Springer Nature Limited.

Several small, randomized, controlled clinical trials in patients with STEMI undergoing primary PCI have demonstrated the benefits of manual or device-based thrombus aspiration in terms of attenuated coronary microvascular and myocardial injury and clinical outcome^152–167 (Table 1). In the large TOTAL trial¹⁶⁸ of patients with STEMI, investigators reported better ST-segment resolution and less distal embolization on angiography from PCI with manual thrombus aspiration versus primary PCI alone. However, clinical outcome (cardiovascular death, re-infarction, cardiogenic shock or NYHA class IV heart failure) was not significantly improved, and a safety signal for stroke was reported with the use of thrombus aspiration¹⁶⁸. Patients with STEMI who presented late (≥12 and ≤48 h) after symptom onset also did not derive a benefit from thrombus aspiration¹⁶⁹. Therefore, in the 2018 European Society of Cardiology guidelines for the management of acute MI, routine use of thrombus aspiration is not recommended but can be considered in cases of large thrombus burden¹⁰⁶. By contrast, in patients with STEMI and culprit lesions that are particularly vulnerable to rupture (defined on IVUS), the combination of thrombus aspiration with a distal filter could be protective for the coronary microcirculation and improve clinical outcome¹⁷⁰. In the TATORT-NSTEMI trial¹⁷¹, patients with NSTEMI and thrombus-containing culprit lesions had no better TIMI flow or reduced enzymatic infarct size with thrombus aspiration than with standard PCI, but a reduction in the primary composite end point of all-cause death, re-infarction and new heart failure with thrombus aspiration was reported. No guideline recommendation exists for the use of thrombus aspiration in patients undergoing PCI for NSTEMI but the positive clinical outcome data from the TATORT-NSTEMI trial¹⁷¹ suggest a greater potential for thrombus aspiration in NSTEMI than STEMI, indicating that coronary microembolization could have a greater role in NSTEMI than in STEMI.

Table 1.

Coronary microvascular, myocardial and clinical outcomes in studies of manual or device-based thrombus aspiration

Study reference	Study name (identifiera)	Clinical scenario	Intervention	n (placebo/intervention	Coronary microvascular end points	Myocardial end points	Clinical outcomes
Burzotta et al. (2005)152	REMEDIA	STEMI	Manual aspiration	49/50	↑ MBGb	↑ ST-segment resolutionb	= MACCE
Stone et al. (2005)153	EMERALD	STEMI	Distal occlusion/aspiration	249/252	NA	= ST-segment resolutionb = Infarct size on CTb	= MACCE
Silva-Orrego et al. (2006)154	DEAR-MI (NCT00257153)	STEMI	Aspiration device	74/74	↑ MBG ↓ No-reflow on angiography ↓ Distal embolization on angiography	↑ ST-segment resolution ↓ CK-MB level	= MACE
Cura et al. (2007)155	PREMIAR	STEMI	Distal filter	70/70	= MBG	= ST-segment resolutionb	= MACE
Muramatsu et al. (2007)156	ASPARAGUS	STEMI	Distal occlusion/aspiration	168/173	= TIMI flowb = MBGb ↓ Composite of slow flow, no-reflow and distal embolization on angiography	= ST-segment resolution = CK-MB level	= MACE
Kelbaek et al. (2008)157	DEDICATION (NCT00192868)	STEMI	Distal filter	314/312	NA	= ST-segment resolutionb = CK-MB level = Troponin T level	= MACCE
Svilaas et al. (2008)158	TAPAS (ISRCTN16716833)	STEMI	Manual aspiration	536/535	↑ MBGb	↑ ST-segment resolution	= MACE
Tahk et al. (2008)159	NA	STEMI	Distal occlusion/aspiration	56/60	↑ TIMI flowb	= CK-MB level	= MACE
Haeck et al. (2009)160	PREPARE (ISRCTN71104460)	STEMI	Proximal occlusion/aspiration	143/141	= TIMI flow = MBG = Distal embolization on angiography	= ST-segment resolutionb = CK-MB level	= MACCE
Sardella et al. (2009)161	EXPIRA	STEMI	Aspiration device	87/88	↑ MBGb ↓ MVO (subgroup)	↑ ST-segment resolutionb = Infarct size on MRI (subgroup)	= MACE
Dudek et al. (2010)162	PIHRATE (NCT00377650)	STEMI	Aspiration device	96/100	= TIMI flow ↑ MBG	↑ ST-segment resolutionb	= MACE
Migliorini et al. (2010)163	JETSTENT (NCT00275990)	STEMI	Distal jet-aspiration	245/256	= TIMI flow = MBG	↑ ST-segment resolutionb = Infarct size on SPECTb	↓ MACE
Ciszewski et al. (2011)164	NA	STEMI	Aspiration device	70/67	= TIMI flow = MBG	↑ Myocardial salvage indexb = CK-MB level	= In-hospital mortality
De Carlo et al. (2012)165	MUSTELA (NCT01472718)	STEMI	Manual or distal jet-aspiration	104/104	↑ TIMI flow ↑ MBG ↓ MVO	↑ ST-segment resolutionb = Infarct size on MRIb	= MACE
Stone et al. (2012)166	INFUSE-AMI (NCT00976521)	STEMI	Manual aspiration	223/229	= TIMI flow = MBG	= ST-segment resolution = Infarct size on MRI	= MACCE
Fröbert et al. (2013)167	TASTE (NCT01093404)	STEMI	Manual aspiration	3,623/3,621	NA	NA	= Mortalityb = MACCE
Jolly et al. (2015)168	TOTAL (NCT01149044)	STEMI	Manual aspiration	5,030/5,033	= TIMI flow = No-reflow on angiography ↓ Distal embolization on angiography	↑ ST-segment resolution	= MACEb Safety signal for stroke
Desch et al. (2016)169	(NCT01379248)	STEMI with late (≥12 h and ≤48 h) presentation	Manual aspiration	55/56	= TIMI flow = MBG = MVOb	= Infarct size on MRI = Troponin T level (high-sensitivity assay)	= MACCE
Hibi et al. (2018)170	VAMPIRE3 (NCT01460966)	STEMI or NSTEMI and hypo-echoic plaque with deep ultrasound attenuation (length >5 mm)	Aspiration plus distal filter	96/98	↑ TIMI flow ↓ No-reflow on angiographyb	= CK-MB level	↓ In-hospital MACCE
Feistritzer et al. (2020)171	TATORT (NCT01612312)	NSTEMI with thrombus-containing culprit lesion	Aspiration device	217/215	= TIMI flow = MBG	= Troponin T level (high-sensitivity assay)	↓ MACEb

↑, significant increase; ↓, significant decrease; =, no significant change; CK-MB, creatine kinase-MB; ISRCTN, International Standard Randomized Controlled Trials Number; MACCE, major adverse cardiac and cerebrovascular events; MACE, major adverse cardiac events; MBG, myocardial blush grade; MVO, microvascular obstruction; NA, not applicable; NCT, national clinical trial; NSTEMI, non-ST-segment elevation myocardial infarction; STEMI, ST-segment elevation myocardial infarction; TIMI, thrombolysis in myocardial infarction. ^aIf available. ^bPrimary study end points.

Analysis of coronary aspirates

Filter and aspiration devices are used not only to protect the coronary microcirculation during PCI but also to retrieve particulate debris and soluble factors for analysis¹⁷². Debris consists of plaque material, including foam cells¹¹⁴ and cholesterol crystals¹⁷³, and thrombus material rich in platelets and fibrin^146,174,175. The aspirate from stented native coronary arteries contains less particulate debris¹¹³ and the retrieved embolic material in native coronary arteries is smaller in volume and particle size^174,175 than that from SVGs (plaque volume 135 ± 16 versus 176 ± 19 mm³; particulate debris 66 ± 10 versus 146 ± 23 mg)¹¹³. In other studies, patients with diabetes¹¹¹ or chronic kidney disease¹¹² had more particulate debris (and more calcium for the latter group of patients¹¹²) in the aspirate from their stented SVGs than patients without these conditions. The coronary aspirate from native coronary arteries and SVGs can also contain microparticles derived from platelets and the endothelium, with no significant difference in their concentration between native coronary arteries and SVGs¹⁷⁶. In patients undergoing PCI for STEMI, increased numbers (as compared with peripheral arterial blood) of neutrophil–platelet aggregates were retrieved by thrombus aspiration¹⁷⁷. Notably, thrombi also contained high levels of neutrophil extracellular traps (NETs), which correlated with infarct size as determined by CK-MB levels and MRI¹⁷⁷. Again, in patients undergoing PCI for STEMI, increased levels of double-stranded DNA (as a surrogate for NETs) and IL-6 were retrieved by thromboaspiration from the culprit site and correlated with coronary microvascular obstruction on MRI 4 ± 2 days later¹⁷⁸.

Soluble substances in the aspirate from stented native coronary arteries or SVGs have been determined biochemically or by functional bioassays. An increased release of tissue factor^113,173,179, endothelin^113,179, serotonin^179,180, thromboxane^113,180 and TNF^113,120,180 has been reported from the aspirate of stented coronary arteries and SVGs. The level of endothelin was greater in aspirate from native coronary arteries than from SVGs, with no significant differences in the other soluble substances between the two types of vessel¹¹³. Aspiration from ruptured atherosclerotic plaque retrieved from patients undergoing primary PCI also had increased concentrations of IL-6 and serum amyloid¹⁸¹. In functional bioassays using rat isolated mesenteric arteries, the aspirate from stented SVGs induced profound vasoconstriction^180,182, which was mediated by serotonin and thromboxane and facilitated by the endothelial dysfunction caused by TNF^180,182. Accordingly, blockade of 5-HT (serotonin) and thromboxane receptors abrogated the intense vasoconstriction, as did more unspecific vasodilatation by verapamil and less so by nitroprusside¹⁸⁰. In patients with severely stenotic SVGs, the release of TNF into SVG aspirate correlated with a reduction in plaque volume (measured by IVUS) and with the development of restenosis (measured by angiography) after 6 months¹²⁰ and a correlation between TNF release and restenosis was also seen in patients with diabetes¹¹¹.

In the OPTICO-ACS trial¹⁸³, 170 consecutive patients undergoing PCI for an acute coronary syndrome had an increased concentration of CD8⁺ lymphocytes and cytotoxic effector molecules (granzyme A, granulysin and perforin) and a lower concentration of TNF in the aspirate distal to the culprit lesion when characterized by OCT as plaque erosion than when characterized as plaque rupture.

Collectively, these data from analyses of coronary aspirate support the notion that active prothrombotic, pro-inflammatory and vasoconstrictor substances are a major cause of microvascular and myocardial injury from microembolization. The exact cellular (vascular and inflammatory cells within the atherosclerotic plaque, intravascular cells in the thrombotic material) and biochemical sources of these substances are still unclear. Given that the myocardial perfusion territory of a vessel with physical obstruction by atherosclerotic debris can probably not be rescued from infarction, greater attention should be directed to the pathogenetic soluble factors and their pharmacological antagonism.

Prevention and treatment

Herrmann et al. were the first to report that patients who were statin naive undergoing elective PCI had greater increases in postprocedural serum creatine kinase levels than patients treated with statins¹⁸⁴, and this finding was subsequently confirmed¹⁸⁵. Whether long-term statin treatment improved plaque stability¹⁸⁶ and prevented coronary microembolization or instead attenuated myocardial injury from coronary microembolization was unclear. Indeed, acute pretreatment with statins of patients who were statin naive before elective PCI also decreased postprocedural serum creatine kinase and troponin elevations^187,188. Attenuation of intercellular adhesion molecule 1 (ICAM1) and E-selectin concentrations in the plasma reflected reduced endothelial inflammation but, again, whether this finding reflected proximal coronary plaque stabilization or reduced distal microvascular and myocardial injury was uncertain¹⁸⁹. In any event, acute pretreatment with statins just before PCI also reduced the rate of postprocedural MACE¹⁹⁰. The observation of reduced release of serum creatine kinase and troponin and a reduced incidence of MACE with statin reload a few hours before elective PCI^191,192 supports the notion that statins also attenuate distal microvascular and myocardial injury. Less coronary microvascular and myocardial injury was also seen in mouse isolated hearts with ischaemia–reperfusion^193,194 and in anaesthetized pigs with coronary occlusion and reperfusion¹⁹⁵.

Antiplatelet and antithrombotic agents are routinely used before any cardiac catheterization and PCI procedure and are standard and guideline-recommended treatments for any acute coronary syndrome^196,197. Therefore, evaluating the effect of antiplatelet agents on periprocedural coronary microembolization is impossible. However, in the ARMYDA-2 trial¹⁹⁸, an increased loading dose of clopidogrel (600 mg) attenuated the increases in serum CK-MB, troponin I and myoglobin levels more than the standard dose (300 mg). Antiplatelet agents not only reduce intravascular formation and embolization of platelet aggregates but also have direct cardioprotective effects to attenuate myocardial injury^199–201. However, not all antiplatelet agents are equal. In the ISAR-REACT 5 trial²⁰², the regimen with prasugrel was superior to that with ticagrelor in reducing the composite end point of death, MI or stroke in patients with acute coronary syndromes after 1 year. The reasons for the difference between the two platelet inhibitors in their effects on coronary microembolization are not understood²⁰². The INFUSE-AMI trial¹⁶⁶ demonstrated that intracoronary abciximab (a glycoprotein IIb/IIIa inhibitor) reduced microvascular obstruction and infarct size in patients undergoing primary PCI for MI. Routine administration of glycoprotein IIb/IIIa inhibitors resulted in better TIMI flow, reduced ischaemic events and reduced mortality in patients with reperfused STEMI in a large meta-analysis of 8,585 patients²⁰³. However, most of the trials included in this analysis were conducted before the era of prasugrel and ticagrelor. By contrast, fibrinolysis with intracoronary infusion of alteplase did not attenuate microvascular obstruction in patients with STEMI undergoing PCI within 6 h of symptom onset²⁰⁴. Therefore, whether intracoronary fibrinolysis confers additional benefit to PCI and antiplatelet agents in the attenuation of coronary microvascular obstruction is still unclear and under investigation¹⁰⁵.

The use of coronary vasodilators, including adenosine, nitroprusside and verapamil, in the attenuation of coronary microvascular obstruction has not been convincing. The effects of adenosine on microvascular obstruction per se^205,206 and on clinical benefit^31,105,207 are ambiguous. The ex vivo vasoconstrictor effects of coronary aspirate from SVGs, when analysed in isolated rat mesenteric arteries, were attenuated to a greater extent by verapamil than by nitroprusside, whereas adenosine had a negligible effect¹⁸⁰. Verapamil also improved TIMI flow to a greater extent than nitroglycerin in patients undergoing PCI of degenerated SVGs²⁰⁸.

Anti-inflammatory interventions to prevent and treat coronary microembolization warrant further study. The CANTOS trial²⁰⁹ addressed the pathogenetic role of IL-1β in patients with previous MI and increased plasma C-reactive protein (CRP) concentrations. A reduced rate of cardiovascular events, including unstable angina requiring urgent revascularization, was reported with subcutaneous administration of the human monoclonal IL-1β-neutralizing antibody canakinumab²⁰⁹. Mechanistically, canakinumab might blunt the IL-1β-associated increase in NETs and levels of tissue factor found in patients with MI and increased plasma CRP concentration²¹⁰. Patients who received canakinumab in the CANTOS trial had a reduced cardiovascular event rate associated with reductions in plasma IL-6 concentrations²¹¹. Long-term antagonism of IL-1β and IL-6 could stabilize epicardial atherosclerotic plaques and prevent their eventual rupture or erosion. In the more acute situation of an interventional procedure for a stable or acute coronary syndrome, in which coronary microembolization can occur and anti-inflammatory action in the coronary microcirculation might be important, the benefit of interleukin receptor antagonists and other anti-inflammatory drugs is less clear²¹². Indeed, the monoclonal IL-1β receptor antagonist anakinra given subcutaneously to patients within 48 h of PCI for NSTEMI reduced plasma CRP levels but did not provide clinical benefit²¹³. By contrast, the IL-6 receptor antagonist tocilizumab given intravenously in patients undergoing PCI for NSTEMI reduced plasma concentrations of both CRP and troponin T (measured by high-sensitivity assay)²¹⁴. In addition, reduced myocardial injury was seen in patients who were resuscitated after cardiac arrest²¹⁵. Notably, in patients with STEMI, intravenous tocilizumab during PCI reduced microvascular obstruction and improved the salvage index on MRI 3–7 days after the procedure, supporting the notion that inflammatory microembolization is a contributing factor in microvascular obstruction²¹⁶. However, the protection by tocilizumab was significant but small in magnitude, and no outcome data for tocilizumab in patients with NSTEMI or STEMI are yet available. In the SELECT-ACS trial²¹⁷, preprocedural infusion of inclacumab (a monoclonal antibody to the endothelial adhesion molecule P-selectin) reduced circulating P-selectin and troponin I concentrations in patients with NSTEMI undergoing angiography and ad hoc PCI. Colchicine given orally to patients with acute coronary syndrome within hours to days of PCI^218–223 reduced plasma CRP and interleukin concentrations in some^218,219 but not all^220,221,223 studies. Similarly, colchicine reduced biomarkers of myocardial injury in some^218,223 but not all²²² studies. Therefore, the clinical benefit of periprocedural anti-inflammatory treatment with PCI is still uncertain but these agents warrant further investigation. The prevention and treatment of coronary microembolization are summarized in Box 2.

Box 2 Prevention and treatment of coronary microembolization.

Plaque stabilization

• Canakinumab

• Statins

• Tocilizumab

Platelet inhibition

• Aspirin

• P2Y₁₂ inhibitors

Vasodilatation

• Nitroprusside

• Verapamil

Anti-inflammation

• Canakinumab

• Colchicine

• Statins

• Tocilizumab

Coronary microembolization in COVID-19

Coronavirus disease 2019 (COVID-19) is characterized by endothelial infection by severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2), with consequent endothelial injury²²⁴ and systematic thromboinflammation^224,225 involving cytokine release, increased platelet activation and platelet–leukocyte aggregation²²⁶. The theory that IL-6 has a pathogenetic role in COVID-19 is supported by the finding that the IL-6 receptor antagonist tocilizumab (with aspirin or a P2Y₁₂ inhibitor) blunted platelet activation after ex vivo exposure of platelets and leukocytes from healthy volunteers to COVID-19 plasma²²⁶. These data support the notion that inhibition of IL-6 not only stabilizes atherosclerotic plaques but also attenuates the downstream effects of platelet aggregation and inflammation. Thromboembolization, particularly in patients with pre-existing endothelial dysfunction, is a typical complication of COVID-19 and could also affect the coronary circulation, even in the absence of pre-existing coronary artery disease. Indeed, human coronary endothelial cells are particularly sensitive to SARS-CoV-2 infection²²⁷. Thrombi rich in fibrin, platelets and leukocytes in the coronary microcirculation were seen at autopsy in 10–20% of patients who had died from COVID-19 (refs^228,229). In a pathology analysis, intracoronary microthrombi, which were particularly rich in fibrin and complement, were seen in 35% of patients who had died from COVID-19 and had evidence of myocardial necrosis, irrespective of whether or not they had pre-existing coronary artery disease²³⁰. In patients with STEMI with or without COVID-19, thromboaspiration retrieved thrombi containing fibrin, leukocytes and NETs²³¹. In patients with COVID-19, no plaque fragments were observed and a greater density of NETs was present in the aspirate than in patients without COVID-19 (ref.²³¹).

Conclusions

The secular trends in a shift from plaque rupture to plaque erosion as the trigger event¹⁷ and from STEMI to NSTEMI in clinical presentation¹⁸ suggest the increasing pathophysiological importance of distal embolization in the coronary circulation. Indeed, coronary microemboli are more frequently seen at autopsy after plaque erosion than after plaque rupture¹⁹. There is certainly no stoichiometric one-to-one relationship between plaque erosion, coronary microembolization and NSTEMI. Nevertheless, the observed association advocates for greater awareness of coronary microembolization in the assessment and treatment of these patients. Prevention of spontaneous coronary microembolization entails the use of all anti-atherosclerotic medications. Statins and inhibitors of platelet aggregation are effective for the prevention of coronary microembolization and to treat its consequences. Studies of protection devices to prevent procedural coronary microembolization have been largely disappointing, and their use is limited to situations of large atherothrombotic plaque burden in SVGs.

Future therapies should target the interaction between inflammation and platelet aggregation²³² at the epicardial culprit lesion and in the coronary microcirculation. Further analyses of coronary aspirate or transcoronary gradients from patients with acute coronary syndromes¹⁸³ could uncover more detail on the pathophysiological mechanisms of coronary microembolization and help to develop targeted therapies.

Author contributions

P.K. and G.H. researched data for the article and discussed its content. G.H. wrote the manuscript, and both authors reviewed and edited it before submission.

Competing interests

The authors declare no competing interests.
