A Copper(I) Complex with Two Unpaired Electrons, Synthesised by Oxidation of a Copper(II) Complex with Two Redox‐Active Ligands

Marco Werr 1, Elisabeth Kaifer 1, Markus Enders 1, Andika Asyuda 2, Michael Zharnikov 2, Hans‐Jörg Himmel 1,✉
PMCID: PMC8596453  PMID: 34423532

Abstract

Two homoleptic copper(II) complexes [Cu(L1)2] and [Cu(L2)2] with anionic redox‐active ligands were synthesised, one with urea azine (L1) and the other with thio‐urea azine (L2) ligands. One‐electron oxidation of the complexes initiates an unprecedented redox‐induced electron transfer process, leading to monocationic copper(I) complexes [Cu(L1)2]+ and [Cu(L2)2]+ with two oxidised ligands. While [Cu(L1)2]+ is best described as a CuI complex with two neutral radical ligands that couple antiferromagnetically, [Cu(L2)2]+ is a CuI complex with two clearly different ligand units in the solid state and with a magnetic susceptibility close to a diamagnetic compound. Further one‐electron oxidation of the complex with L1 ligands results in a dication [Cu(L1)2]2+, best described as a CuI complex with a twofold oxidised, monocationic ligand and a neutral radical ligand. The stability in at least three redox states, the accumulation of spin density at the ligands and the facile ligand‐metal electron transfer make these complexes highly attractive for a variety of applications; here the catalytic aerobic oxidation of alcohols to aldehydes is tested.

Keywords: alcohol oxidation, copper, radicals, redox-induced electron transfer, urea azines

Oxidation‐induced reduction: The oxidation of mononuclear CuII complexes with novel unsymmetric redox‐active urea azine or thio‐urea azine ligands leads to metal reduction and formation of complexes with intriguing electronic structures. The stability in several redox states is the basis for their first application in catalytic aerobic alcohol oxidation.

graphic file with name ANIE-60-23451-g006.jpg

Introduction

The integration of redox‐active ligands in molecular coordination compounds leads to intriguing electronic structures and opens up new possibilities for applications in catalysis and materials science.[ 1 , 2 , 3 , 4 , 5 ] Intramolecular ligand‐metal electron transfer (IET) processes in these complexes could be used for the activation of substrates in catalytic cycles, with the redox‐active ligand acting as electron reservoir; moreover, radical ligands generated by IET generally induce a special ligand‐centered reactivity.[ 6 , 7 , 8 ] In redox‐induced intramolecular electron transfer (RIET) processes, the metal is reduced in an overall oxidation or oxidised in an overall reduction of a coordination compound. The first examples for RIET were reported by Miller et al. for dinuclear cobalt complexes with bridging tetraoxolene ligands.[ 9 , 10 , 11 ] With relevance to this work, our group recently reported examples of RIET processes for copper and cobalt complexes with redox‐active guanidine ligands.[ 12 , 13 ]

Copper complexes with redox‐active ligands were intensively studied.[ 14 , 15 , 16 , 17 ] A variety of stable CuII complexes with radical ligands was reported, and phenoxyl radical complexes of salen‐type ligands were established as mixed‐valent galactose oxidase models.[ 18 , 19 , 20 , 21 , 22 , 23 , 24 , 25 , 26 ] The mononuclear complex CuII(SQ)2 (SQ denotes an o‐imino‐semiquinonato ligand) features two radical ligands. Oxidative addition of bromine leads to a bis(o‐iminobenzoquinone) complex; [27] the two radical ligands provide the required electrons. Desage‐El Murr, Fensterbank et al. reported trifluoromethylation of CuII(SQ)2 [28] and application of the resulting unstable complex as a source of CF3 radicals. [29] Stoichiometric reactions with aryl boronic acids gave N‐arylation products. [30]

We already studied the redox and coordination chemistry of neutral redox‐active urea azine ligands.[ 31 , 32 , 33 ] CuII complexes with a neutral, peralkylated urea azine ligand were found to be stable in the solid state, but amenable to IET induced demetallation and decomposition in solution (Scheme 1 a). [33] To avoid decomposition, we decided to strengthen the metal‐ligand bonding by using anionic urea azine ligands, generated by deprotonation of urea azines with partially alkylated substituents and N‐H groups. In this context we note that Panda, Lahiri et al. reported ruthenium complexes of the twice‐deprotonated, symmetric thio‐urea azine 2,2′‐azobis(benzothiazole) (abbt) and found valence tautomerism (VT) between [{Ru2.5(acac)2}2(μ‐abbt.−)] and [{RuIII(acac)2}2(μ‐abbt2−)]. [34]

Scheme 1.

Scheme 1

Open in a new tab

a) Demetallation of a complex with urea azine ligand initiated by intramolecular electron transfer (IET) from the ligand to the metal (X=Cl, Br). b) Synthesis of asymmetric azines HL1 and HL2.

Here we report the redox chemistry of the first mononuclear CuII complexes with two monoanionic, deprotonated urea azine or thio‐urea azine ligands, L1 and L2 (Scheme 1 b). The formation of complexes with bridging redox‐active ligands is avoided by use of asymmetric urea azines or thio‐urea azines with only one N‐H function. The one‐electron oxidation of the initially formed neutral CuII complexes is accompanied by a RIET process to give unprecedented monocationic CuI complexes with oxidised ligands. Further one‐electron oxidation is again ligand‐centered, leading to a stable dicationic CuI complex.

Results and Discussion

The synthesis of new HL1 and HL2 (protonated versions of the ligands) is sketched in Scheme 1 b, following previously established synthetic strategies by our group.[ 31 , 32 ] Both molecules are built of the same aliphatic guanidinyl group attached to a different aromatic guanidinyl (HL1) or thio‐guanidinyl (HL2) group. In crystals of HL1, grown by layering a 1,2‐difluorobenzene solution with n‐pentane, dimeric units are formed, in which two molecules are bound by two N‐H⋅⋅⋅N hydrogen bonds (see Supporting Information). B3LYP/def2‐TZVP calculations predict a significant binding energy (ΔE including zero‐point energy corrections) of 85 kJ mol−1 for the dimer. The unit cell contains four different, almost planar molecules. With average values of 1.424 and 1.295 Å, the central N−N single and imino C=N double bond lengths are similar to those in other neutral urea azines.[ 31 , 32 , 33 , 35 ]

The redox activity of the protonated ligands was studied by cyclic voltammetry (see Supporting Information). The curve recorded for HL1 contains a relatively sharp oxidation/reduction wave at −0.442 V/−0.545 V and a broad one at 0.102 V/−0.127 V. Similarly, for HL2 a relatively sharp oxidation/reduction wave at −0.235 V/−0.366 V and a broad one at 0.508 V/0.278 V was observed. The underlying two one‐electron processes involve a change in the hydrogen bonding or even proton transfer, since hydrogen bonding is strengthened upon oxidation of the hydrogen‐bond donor component. The deprotonated versions of the two ligands could adopt three different redox states (anionic, radical neutral or cationic, see Lewis structures in Scheme 2 a).

Scheme 2.

Scheme 2

Open in a new tab

a) Possible redox states of the new ligands. b) Synthesis of [Cu(L1)2] and [Cu(L2)2] (X=NMe (L1) or S (L2)).

The two homoleptic CuII complexes [Cu(L1)2] and [Cu(L2)2] were obtained by reaction of CuII acetate with HL1 and HL2, respectively, in the presence of KO t Bu (Scheme 2 b). [Cu(L1)2] is more sensitive to dioxygen than [Cu(L2)2]. Structural characterisation in the solid state by SCXRD (Table 1 and Figure 1) found a copper coordination mode in between tetrahedral and square planar with dihedral angles between the two CuN2 planes of 51.5° for [Cu(L1)2] and 54.0° for [Cu(L2)2]. As discussed previously, this special structure is due to σ‐ and π‐contributions of the metal‐guanidine bonding. [17] Due to the asymmetric design of the azine ligands, cis‐ or trans‐type ligand conformations are possible; [Cu(L1)2] crystallises in the cis‐type and [Cu(L2)2] in the trans‐type form. The bond parameters (e.g. average Cu‐N distance of 1.962 Å in [Cu(L1)2] and 1.965 Å in [Cu(L2)2], and central N−N ligand bond length of 1.426(2) Å in [Cu(L1)2] and 1.420(2) Å in [Cu(L2)2]) are similar for both complexes, indicating CuII with two monoanionic ligands. We also prepared the zinc complex [Zn(L1)2]. Here, the dihedral angle between the two ZnN2 planes is 79.4°, being closer to the 90° expected for tetrahedral coordination, and the N−N bond length measures 1.432(1) Å.

Table 1.

Structure parameters (bond lengths in Å, angles in °) for all complexes in the solid state from SCXRD. [36]

 

[Zn(L1)2]

[Cu(L1)2]

[Cu(L2)2]

[Cu(L1)2](SbF6)

[Cu(L2)2](SbF6)

a

1.387(1)

1.381(2)/1.381(2)

1.765(3)

1.376(5)

1.758(3)/1.746(3)

b

1.365(1)

1.371(2)/1.369(2)

1.365(3)

1.343(5)

1.367(4)/1.351(4)

c

1.307(1)

1.305(2)/1.307(2)

1.304(3)

1.340(5)

1.310(4)/1.327(4)

d

1.432(1)

1.426(2)/1.426(2)

1.420(2)

1.369(4)

1.405(4)/1.371(4)

e

1.307(1)

1.313(2)/1.313(2)

1.326(3)

1.341(5)

1.340(4)/1.362(4)

f

1.376(1)

1.362(2)/1.359(2)

1.365(3)

1.342(5)

1.345(4)/1.338(4)

g

1.381(1)

1.381(2)/1.381(2)

1.351(3)

1.368(5)

1.342(4)/1.336(5)

h

1.958(1)

1.924(2)/1.942(2)

1.944(2)

1.933(3)

1.909(3)/1.922(3)

i

2.052(1)

2.007(2)/1.976(2)

1.985(2)

2.095(3)

1.962(3)/1.986(3)

∡ ML2 [a]

79.4°

51.5°

54.0°

65.4°

60.9°

 

[Cu(L1)2](PF6)2

a

1.348(12)/1.361(11)

graphic file with name ANIE-60-23451-g009.jpg

b

1.348(12)/1.345(12)

c

1.372(12)/1.355(12)

d

1.348(10)/1.369(10)

e

1.376(12)/1.379(12)

f

1.346(12)/1.325(13)

g

1.332(12)/1.337(12)

h

1.910(8)/1.917(8)

i

1.974(8)/1.981(8)

∡ ML2 [a]

54°
Open in a new tab

[a] ML2 denotes the smallest dihedral angle between the two MN2 planes.

Figure 1.

Figure 1

Open in a new tab

Illustration of the solid‐state structures of [Cu(L1)2] (a), [Cu(L2)2] (b) and [Zn(L1)2] (c) from two perspectives. Displacement ellipsoids are drawn at the 50 % probability level. Hydrogen atoms are omitted. Colour code: N‐blue, C‐grey, S‐yellow, Cu‐red, Zn‐silver.

The UV/Vis spectra of the two neutral complexes (Figure 2 and Supporting Information) are dominated by strong absorptions in the UV region (338 nm, 243 nm for [Cu(L1)2] and 324 nm, 229 nm for [Cu(L2)2]). Only weak bands appear in the visible region (≈450 nm and ≈650 nm for both complexes), being responsible for their green colour. In addition, weak, broad bands around 1900 nm were tentatively assigned to ligand→metal charge transfer excitations. By contrast, the optical spectra for [Zn(L1)2] (see Supporting Information) showed strong absorption bands only in the UV region (at 337, 284, and 235 nm). In summary, the electron spectra give no hint for the presence of oxidised ligands, in line with the description as CuII complexes with anionic ligands.

Figure 2.

Figure 2

Open in a new tab

a) UV/Vis spectra of [Cu(L1)2], [Cu(L1)2]+ and [Cu(L1)2]2+ in CH2Cl2. b) Zoom into the visible and near‐IR regions. c) Simulation of the electron spectrum of the free radical L1. from TD‐DFT (B3LYP+D3/def2‐TZVP) calculations.

Four one‐electron redox processes were found in the cyclic voltammograms of both complexes (Figure 3). The redox potentials are significantly higher (less negative) for [Cu(L2)2] than for [Cu(L1)2]. The redox process with the lowest potential (E 1/2=−1.40 V for the redox couple [Cu(L1)2]/[Cu(L1)2]− and −1.29 V for [Cu(L2)2]/[Cu(L2)2]−) is assigned to a metal‐centered process (CuII→CuI). The potential is too low for a ligand‐centered redox event. The low potential of the CuII/CuI redox couple for both neutral complexes is in line with the description as CuII complexes. Then, the second redox process at −0.71 V for [Cu(L1)2]+/[Cu(L1)2] and −0.44 V for [Cu(L2)2]+/[Cu(L2)2] belongs to a ligand‐centered redox event ((L1/L2)−→(L1/L2).0). Two further quasi‐reversible, one‐electron redox events were observed at E 1/2=−0.27 and +0.09 V for [Cu(L1)2] and at −0.03 and +0.31 V for [Cu(L2)2]. Hence the CV data indicate stability of the complexes in several redox states. However, for [Cu(L2)2] the waves broaden with increasing scan speed, especially in direction of reduction, arguing for some redox‐induced structural and/or electronic changes.

Figure 3.

Figure 3

Open in a new tab

Cyclic voltammograms for [Cu(L1)2] and [Cu(L2)2] in CH2Cl2 (100 mV s−1 scan rate, 0.1 M nBu4NPF6 as supporting electrolyte, potentials given vs. Fc+/Fc).

Chemical oxidation of the two complexes with one equivalent of FcPF6 or AgSbF6 (Figure 4 a) leads cleanly to the deep‐purple salts [Cu(L1)2](PF6/SbF6) and [Cu(L2)2](PF6/SbF6) (83 % and 75 % isolated yield, respectively). Figure 4 b sketches the Lewis structures representing possible descriptions of the charge distributions in [Cu(L1)2]+ and [Cu(L2)2]+. Structure A+ is a CuII complex with neutral radical and monoanionic ligands. Of course, the unpaired electron could also be delocalised over both ligand units. Structures B+ and C+ are CuI complexes. In B+ , both ligand units are neutral radicals; for C+ a closed‐shell singlet state results with one monocationic and one monoanionic ligand unit. It will be shown in the following that none of the structures alone fits to the analytic data. Structures B+ and C+ both contribute to an adequate description of the electronic structure of the monocationic complexes, but the weighting of the two structures is very different for [Cu(L1)2]+ and [Cu(L2)2]+. In both cases, oxidation leads to a CuI complex; overall oxidation induces copper reduction (CuII→CuI) in a redox‐induced electron transfer (RIET) process.

Figure 4.

Figure 4

Open in a new tab

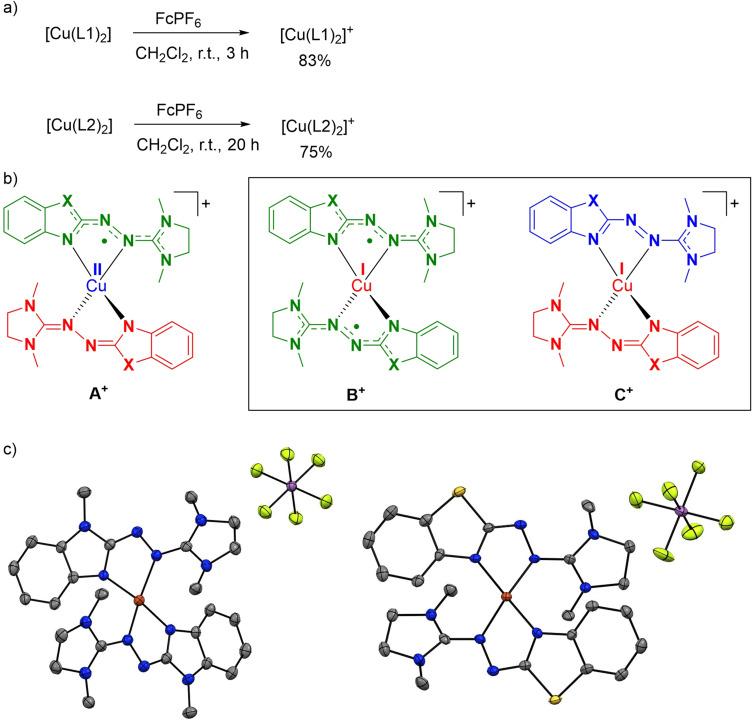

a) One‐electron oxidation of the neutral complexes. b) Possible descriptions of the electronic distribution in [Cu(L1)2]+ and [Cu(L2)2]+. Structures B+ and C+ describe best the electronic structures. c) Illustration of the solid‐state structures of [Cu(L1)2](SbF6) (left) and [Cu(L2)2](SbF6) (right). Displacement ellipsoids are drawn at the 50 % probability level. Hydrogen atoms are omitted. Colour code: N‐blue, C‐grey, S‐yellow, Cu‐red, Sb‐mauve, F‐green.

SCXRD of both complexes with SbF6 − counter‐ions (crystals obtained by layering saturated 1,2‐difluorobenzene solutions with n‐pentane, Figure 4 c and Table 1), showed that the two ligands are equal in [Cu(L1)2]+, but significantly different in [Cu(L2)2]+. In both cases, the central N−N bond is shortened upon oxidation, from 1.426(2) Å in [Cu(L1)2] to 1.369(4) Å in [Cu(L1)2]+, and from 1.420(2) Å in [Cu(L2)2] to 1.405(4)/1.371(4) Å in [Cu(L2)2]+. By contrast, the two imino N=C bonds in the neutral complexes (1.305(2)/1.307(2)/1.313(2)/1.313(2) Å and 1.304(3)/1.326(3) Å in [Cu(L1)2] and [Cu(L2)2], respectively), are elongated (to 1.340(5)/1.341(5) Å and 1.310(4)/1.327(4)/1.340(4)/1.362(4) Å in [Cu(L1)2]+ and [Cu(L2)2]+, respectively). The average Cu−N bond length and the dihedral angle increase upon oxidation of [Cu(L1)2], clearly signalling formation of a CuI complex with two neutral radical ligands (B+ in Figure 4 b). In the case of [Cu(L2)2]+, the differences in the ligand structures are far too large to be explained by crystal packing effects, pointing to different ligand redox states. With 1.405(4) and 1.371(4) Å, the N−N bond lengths are both shorter than in neutral [Cu(L2)2] (1.420(2) Å). The Cu−N bond distances vary (1.909(3)/1.922(3) Å resp. 1.962(3)/1.986(3) Å) and oxidation leads to an increase of the dihedral angle at the copper atom (from 54.0° in [Cu(L2)2] to 60.9° in [Cu(L2)2]+), pointing again to CuI. The structure indicates a significant contribution of C+ . Structure A+ cannot be completely discarded at this point of the discussion, but is not in line with the results of the other analytic data (see below).

The UV/Vis spectra of [Cu(L1)2]+ and [Cu(L2)2]+ show intense absorptions in the vis region, but at different wavelengths, viz. 505 and 555 nm (shoulder) for [Cu(L1)2]+ and 485 and 720 nm (shoulder) for [Cu(L2)2]+ (Figure 2 a and Supporting Information), pointing to the presence of oxidised ligands. The simulated electron spectrum for the isolated neutral radical L1. based on TD‐DFT calculations (B3LYP+D3/def2‐TZVP, Figure 2 c) closely matches the experimental spectrum of [Cu(L1)2]+ in the visible region, supporting description B+ for [Cu(L1)2]+. The differences in the electron spectra of the two complexes point to different ligand redox states, in line with a significant contribution from C+ in the case of [Cu(L2)2]+.

Background‐corrected Cu 2p X‐ray photoelectron (XP) spectra of the complexes [Cu(L1)2]PF6 and [Cu(L2)2]PF6 are shown in Figure 5; complementary C 1s, N 1s, and S 2p XP data are presented in Supporting Information. Note that the wide scan spectra of both complexes (not shown) exhibit a pronounced F 1s peak, manifesting the expected presence of fluorine in the counter ions. The Cu 2p XP spectra in Figure 5 exhibit the Cu 2p3/2 and Cu 2p1/2 components at binding energies of 932.8 eV and 952.6 eV for complex [Cu(L1)2]PF6 and 932.6 and 952.8 eV for [Cu(L2)2]PF6. These energies are characteristic of copper in the oxidation state +1, [37] corresponding to the electronic configuration 3d10. [38] The Cu 2p3/2 and Cu 2p1/2 components represent well‐defined singular peaks, with no traces of the analogous components characteristic of copper in the oxidation state +2, expected at a binding energy of 934.3–934.7 eV for Cu 2p3/2 (3d9 configuration). [39] The spectrum of the latter species is also characterized by the intense satellite structure in the post‐peak region,[ 39 , 40 ] fully absent in the spectra presented in Figure 5. Hence the XPS data clearly show that [Cu(L1)2]+ and [Cu(L2)2]+ are CuI complexes.

Figure 5.

Figure 5

Open in a new tab

Background‐corrected Cu 2p XP spectra of [Cu(L1)2]PF6 and [Cu(L2)2]PF6 (open circles). The Cu 2p3/2 and Cu 2p1/2 components are tentatively fitted by symmetric Voigt peaks (solid red and blue lines, respectively).

Magnetometric (SQUID) measurements on a solid powder sample of [Cu(L1)2](SbF6) confirmed the presence of two unpaired electrons (Figure 6), in accordance with B+ (Figure 4 b). A curve typical of a weakly antiferromagnetically coupled two‐spin system was obtained, and an isotropic J value of −3.5 cm−1 (spin Hamiltonian H=−J S1 S2) and a g factor of 1.9947 followed from a Bleaney–Bowers curve fit. The magnetometric measurements on [Cu(L2)2]SbF6 gave different results. Here the χT value is small, arguing for structure B+ with an extremely strong antiferromagnetic coupling between the two ligand‐centered unpaired electrons or (more likely) a dominating contribution from the closed‐shell structure C+ in the solid state, the latter being in line with the presence of two different ligands in the XRD structure.

Figure 6.

Figure 6

Open in a new tab

Plot of the magnetometric (SQUID) data for [Cu(L1)2](SbF6) (black filled circles) and [Cu(L2)2](PF6) (blue open circles), measured at 50 mT. The dashed red curve results from a Bleaney–Bowers fit for [Cu(L1)2]SbF6.

Paramagnetic NMR spectroscopy has been established as a powerful tool for the analysis of paramagnetic molecules in solution;[ 41 , 42 ] we applied this technique previously for complexes with guanidine ligands.[ 43 , 44 , 45 ] Figure 7 shows the 1H NMR spectra for [Cu(L1)2]+ and [Cu(L2)2]+ at various temperatures (see 13C NMR spectra in the Supporting Information). The signal dispersion is much larger for [Cu(L1)2]+, indicating more spin density on the ligands. Seven signals are observed at high temperature corresponding to four aromatic, two methyl and one methylene hydrogen signal. The latter corresponds to four inequivalent H atoms which are in a fast chemical exchange (diastereotopic H atoms of each CH2 group and inequivalence of the two CH2 groups due to restricted rotation around the C=N double bond). At lower temperatures, this signal splits into two and then into four signals. The equivalence of the hydrogen atoms of the ethylene bridge stems from two dynamic processes. One process interconverts the carbon atoms by a rotation around the N=C double bond; a second dynamic process exchanges the diastereotopic H atoms of each CH2 moiety (see Supporting information).

Figure 7.

Figure 7

Open in a new tab

Paramagnetic 1H NMR spectra of a) [Cu(L1)2]PF6 and b) [Cu(L2)2]PF6 at various temperatures in CD2Cl2 (399.89 MHz).

The 1H NMR spectrum of [Cu(L2)2]+ could be assigned similar to that of [Cu(L1)2]+, but the smaller signal dispersion indicates less spin density on the ligands. The aromatic protons give rise to the two downfield shifted signals at δ=18.12 and 11.54 ppm as well as to the two upfield shifted signals at δ=−16.23 and −24.84 ppm. Also, the NCH3 groups at the aliphatic guanidinyl moiety are chemically equivalent in the NMR spectrum and likely belong to the downfield shifted signal at δ=21.80 ppm. In difference to the spectra of [Cu(L1)2]+, the CH2 protons give rise to two signals at room temperature, however 2D NOESY experiments show that they are in a chemical exchange.

The temperature‐dependence of the NMR signals deviates for both complexes from the Curie behaviour (1/T dependence) which is expected for the Fermi contact shift for non‐coupled systems; the signals for both complexes tend to shift into the diamagnetic region with decreasing temperature. It was not possible to fit adequately the NMR data of [Cu(L1)2]+ (see Supporting Information) with the standard formula for a magnetically‐coupled system with two spin centers SA=Sb=1/2. [46] The data at low and high temperatures seem to follow different functions. On the other hand, fits of the temperature‐dependence of the NMR signals of [Cu(L2)2]+ were satisfactory, but only with extraordinary large hyperfine coupling constants A and extremely large antiferromagnetic coupling constant J as fit parameters (see Supporting Information). The NMR data are in line with a mixture of two different descriptions of the charge distribution, with a larger contribution of C+ to the electronic structure in the case of [Cu(L2)2]+.

In summary, all results, especially SCXRD, UV/Vis and XP spectroscopy, and also EPR spectroscopy (main signal contribution with g factor near the free‐electron value, only weak copper hyperfine structure visible due to small amount of copper‐centered spin density (see Supporting Information)) indicate that [Cu(L1)2]+ and [Cu(L2)2]+ are both CuI complexes with two oxidised ligand units. For [Cu(L1)2]+, the electronic structure is best described by B+ in Figure 4 b (being in pleasing agreement with the SCXRD and SQUID results), but the difficulties in fitting the temperature‐dependence of the NMR signals argues for a (temperature‐dependent) contribution of C+ or alternatively to a sensitivity of the electronic structure to the discussed dynamic effects in solution. In the case of [Cu(L2)2]+, the inequivalence of the two ligand units in the solid‐state structure and the low χT value clearly point to a larger contribution from structure C+ with respect to [Cu(L1)2]+. However, the NMR data show some paramagnetic character, in line with a significant contribution from structure B+ . A conversion from B+ to C+ could be described as a ligand disproportionation. Interestingly, Chaudhuri, Wieghardt et al. reported a Zn complex with two redox‐active ligands for which the presence of two isomers related by such a ligand disproportionation was indeed evidenced. [47] The green diamagnetic form of this complex is thermodynamically more stable than the red paramagnetic isomer. The authors demonstrate that isomerisation from the red, paramagnetic form to the green, diamagnetic isomer could be initiated by redox cycling or changes in the solvent or experimental conditions. In the case of [Cu(L2)2]+, the electronic structure certainly differs in solution and in the solid state. However, we have no indication for the co‐existence of two isomers (one being closer to structure C+ and the other one closer to B+ ) or the possibility to initiate isomerisation by change of solvent or reaction conditions.

The RIET process could be roughly rationalized as follows. The +II oxidation state of the copper atom in neutral [Cu(L1)2] and [Cu(L2)2] is certainly favoured by a significant ionic contribution to bonding between the anionic ligands and CuII. Ligand‐centered one‐electron oxidation generating a neutral radical ligand decreases this ionic contribution, thereby destabilising CuII with respect to CuI. In the case of [Cu(L1)2]+, an electron is transferred from the second ligand to copper, leading eventually to a CuI complex with two neutral radical ligands (structure B+ ). For [Cu(L2)2]+, the electron needed for copper reduction stems in part from the neutral radical ligand. It should be noted that CuI complexes with two radical ligand units like [Cu(L1)2]+ are extremely rare and almost exclusively restricted to a few complexes with two verdazyl radical ligands.[ 48 , 49 , 50 , 51 , 52 , 53 ] Interestingly, the singlet‐triplet energy difference in these systems could be tuned and strongly depends on the coordination mode.

Further one‐electron oxidation of [Cu(L1)2](SbF6) with a second equivalent of AgSbF6 produced the salt of the dicationic complex, [Cu(L1)2](SbF6)2 in 58 % isolated yield (Figure 8 a). This complex could either be described as a CuII complex with two neutral radical ligands (A2+ ), summing up to three unpaired electrons, as a CuI complex with a cationic ligand and a neutral radical ligand (B2+ ) or a CuII complex with one anionic ligand and one cationic ligand (C2+ ), resulting in one unpaired electron for the latter two (Figure 8 b). Obviously, the electronic structure could also be in between these three descriptions. XRD of crystals of [Cu(L1)2](PF6)2, obtained from gas‐phase diffusion of n‐pentane into a saturated acetone solution (Table 1 and Figure 8 c), showed that the two ligand units are slightly different. The N−N bonds of the ligands measure 1.348(10) and 1.369(10) Å.

Figure 8.

Figure 8

Open in a new tab

a) Two‐electron oxidation of [Cu(L1)2]. b) Possible electronic structures of [Cu(L1)2]2+. Structure B2+ in the box describes best the electronic structure. c) Illustration of the solid‐state structure of [Cu(L1)2](PF6)2 (without co‐crystallised acetone). Displacement ellipsoids are drawn at the 50 % probability level. Hydrogen atoms are omitted. Colour code: N‐blue, C‐grey, Cu‐red, P‐orange, F‐green.

In the UV/Vis spectrum of [Cu(L1)2]2+ (see Figure 2), strong absorptions appear in the visible region (at 568 nm (sh) and 471 nm), being close to the absorptions in the monocationic complex [Cu(L1)2]+ (555 nm (sh) and 505 nm). In addition, a quite strong band appears in the NIR region near 1200 nm, tentatively assigned to a metal→ligand charge‐transfer transition. These bands strongly argue for a neutral radical ligand unit, as present in B2+ .

Magnetometric (SQUID) measurements on a solid powder sample of [Cu(L1)2](SbF6)2 (see Supporting Information) show that with increasing temperature the χT value approaches the expectation value for one unpaired electron (0.375 cm3 K mol−1). It drops down at very low temperatures (ca. 25 K), most likely due to intermolecular antiferromagnetic coupling. Hence these data strongly support structure B2+ . They are clearly not compatible with A2+ .

EPR spectra in CH2Cl2 (see Supporting Information) at room‐temperature show a single signal with a g value of 2.004, compatible with a ligand‐centered radical but not with a copper‐centered radical (in the latter case the g value should be higher). Hence, all results indicate that B2+ describes the electronic structure most adequately. Structure B2+ directly follows from ligand‐centered one‐electron oxidation of [Cu(L1)2]+ (CuI complex with two neutral radical ligands).

Finally, we tested the catalytic performance of the new complexes in the aerobic alcohol oxidation to aldehydes. Benzyl alcohol (BzOH) and cinnamyl alcohol (CinnOH) were used as model substrates. The best results with BzOH (Table 2) were obtained with 5 mol % of the catalyst and 2 equiv. of Cs2CO3 (93 % conversion for [Cu(L1)2] as catalyst in C7D8, and 99 % for [Cu(L2)2] as catalyst in CD2Cl2). By contrast, [Zn(L1)2] was only poorly active (entry 15). Oxidation of CinnOH under the optimized conditions yielded 72 % conversion. On the other hand, the oxidation of the primary alcohol nOctOH failed (entry 14). Signals due to the urea 1,3‐dimethyl‐2‐imidazolidinone were observed in the NMR spectra after 22 h reaction time, and traces of hydrazone in the reactions with [Cu(L2)2] as catalyst. The slow catalyst deactivation by decomposition with increasing reaction time explains the reduced conversion with a lower catalyst loading of 1 mol % (entry 2). In this respect, the new catalysts behave similar to previously reported catalysts.[ 19 , 20 , 24 , 25 , 54 ] Additional experiments (see Supporting Information) indicate that the catalytic activity (conversion/time) of the two complexes is comparable within the first 5 h of reaction. Interestingly, a higher conversion is eventually achieved with [Cu(L2)2], although L1 is a better electron‐donor than L2 (Table 2). Complex [Cu(L1)2] is more rapidly oxidised by dioxygen and seems to decompose more rapidly in high oxidation states. Moreover, “overoxidation” of this complex (removal of three electrons) due to the lower redox potentials for all three one‐electron oxidation steps (see CV curves in Figure 3) possibly leads to an increased loss of the catalyst. Further analysis of the catalytic mechanism is the subject of ongoing research in our laboratory.

Table 2.

Summary of the results of the catalytic experiments. Inline graphic

Entry

Catalyst

Cat. mol %

Base

Base eq

Solvent

Substrate

Conversion/%

1

[Cu(L1)2]

5

Cs2CO3

2

CD2Cl2

BzOH

87

2

[Cu(L1)2]

1

Cs2CO3

2

CD2Cl2

BzOH

62

3

[Cu(L1)2]

5

Cs2CO3

2

Tol‐d8

BzOH

93

4

[Cu(L1)2]

5

Cs2CO3

2

CD3CN

BzOH

80

5

[Cu(L1)2]

5

Cs2CO3

1

CD2Cl2

BzOH

65

6

[Cu(L1)2]

5

Cs2CO3

0.1

CD2Cl2

BzOH

29

7

[Cu(L1)2]

5

no Base

0

CD2Cl2

BzOH

29

8

[Cu(L1)2]

5

KOH

2

CD2Cl2

BzOH

10

9

[Cu(L2)2]

5

Cs2CO3

2

CD2Cl2

BzOH

99

10

[Cu(L2)2]

2

Cs2CO3

2

CD2Cl2

BzOH

98

11

[Cu(L2)2]

1

Cs2CO3

2

CD2Cl2

BzOH

54

12

[Cu(L2)2]

5

Cs2CO3

2

Tol‐d8

BzOH

93

13

[Cu(L2)2]

5

Cs2CO3

2

CD2Cl2

CinnOH

72

14

[Cu(L2)2]

5

Cs2CO3

2

CD2Cl2

nOctOH

2

15

[Zn(L1)2]

5

Cs2CO3

2

Tol‐d8

BzOH

17
Open in a new tab

*NMR conversion determined from substrate/product ratio.

Conclusion

New homoleptic CuII complexes [Cu(L1)2] and [Cu(L2)2] with monoanionic, redox‐active and asymmetric ligands (urea azines (L1) or thio‐urea azines (L2)) were synthesised. The ligand design relied on previously established procedures by our group for the directed synthesis of asymmetric redox‐active urea azines and related thio‐urea azines. Only by virtue of their asymmetric structure, these ligands could be used after deprotonation as chelating, anionic redox‐active ligands for mononuclear complexes. In chemical redox reactions, the monocationic complexes [Cu(L1)2]+ and [Cu(L2)2]+ as well as the dicationic complex [Cu(L1)2]2+ were synthesised and fully characterized. Fortunately, the electronic structure elucidation, relying on a variety of different analytical methods, is facilitated by structural characterisation in three different redox states, being extremely rare in the field of complexes with redox‐active ligands.

One‐electron oxidation of [Cu(L1)2] and [Cu(L2)2] is accompanied by an unprecedented RIET process leading to metal reduction (CuII—CuI) upon overall one‐electron oxidation. In [Cu(L1)2]+, the CuI center is coordinated by two equivalent, neutral radical ligands, that couple antiferromagnetically. In [Cu(L2)2]+, the CuI atom is coordinated by two different ligands, resulting in a complex with a magnetic susceptibility close to a diamagnetic compound. Hence slight variations within the ligand design lead to significant changes in the electronic structure and properties.

The dication [Cu(L1)2]2+ was synthesised by two‐electron oxidation of [Cu(L1)2]. In the solid‐state structure, the two ligand units are different, and a detailed analysis indicates that the electronic structure is best described in terms of a CuI complex with one twofold‐oxidised monocationic ligand unit and one singly‐oxidised neutral radical ligand.

Their exceptional stability in several redox states makes complexes of redox‐active asymmetric azine ligands highly interesting for applications. Within a representative test reaction, their use for the catalytic aerobic oxidation of alcohols to aldehydes was demonstrated. In ongoing work, we explore further catalysis with copper, and also zinc and cobalt complexes of these novel ligand platforms.
