Elevated peripheral blood neutrophil-to-lymphocyte ratio is associated with an immunosuppressive tumour microenvironment and decreased benefit of PD-1 antibody in advanced gastric cancer

Abstract

Background

Due to its limited efficacy and potential toxicity, anti-PD-1 monoclonal antibody is not suitable for all advanced gastric cancer (AGC) patients and predictive biomarkers identifying patients who can benefit from it are urgently needed. This study aimed to evaluate the predictive and prognostic value of inflammatory markers in the context of the systemic inflammatory status and tumour microenvironment.

Methods

The study included 58 patients from a prospective study investigating the safety and efficacy of toripalimab in chemorefractory AGC patients. Patient characteristics, treatment outcomes, and haematological parameters were analysed. Immune-cell infiltration and gene expression in tumour tissue were examined using transcriptome sequencing.

Results

In this cohort, the median follow-up time was 4.5 months, the median progression-free survival was 1.9 months, and the median overall survival (OS) was 4.8 months. The objective response rate was 12.1% and th disease control rate (DCR) was 39.7%. Both the baseline blood neutrophil-to-lymphocyte ratio (bNLR) with a cut-point of 2.7 and the early elevated dynamic change of the bNLR (dNLR) with a cut-point of 1.5 were prognostic factors of survival. Patients in the high bNLR or dNLR group had remarkably poor DCR (25.8% vs 59.1%, P = 0.023; 15.8% vs 54.6%, P = 0.008). In multivariate analysis, bNLR and tumour mutational burden were independent prognostic factors of OS. Tumour RNA-seq analysis revealed enriched neutrophil infiltration and a higher tumour NLR in the bNLR-high group. Corresponding tumour gene-expression profiles were associated with neutrophil recruitment and inflammatory cytokine aggregation.

Conclusions

Our study demonstrated the potential clinical utility of NLR as a biomarker for patient selection and clinical management in predicting the prognosis of AGC patients as well as response to anti-PD-1 therapy. In addition, high bNLR reflected the imbalance of tumour-tissue-infiltrating neutrophils and lymphocytes, and was associated with an immunosuppressive and pro-tumour microenvironment.

Introduction

Gastric cancer (GC) is the fifth most common cancer worldwide, with a particularly high incidence in Eastern Asia [1]. Despite significant improvements in survival over the past several decades due to the development of chemotherapy and molecular targeted therapies, the prognosis of advanced gastric cancer (AGC) has remained poor. Recent breakthroughs from immune checkpoint inhibitors (ICIs) have paved the way to a new era of cancer therapy. Anti-programmed death 1 (anti-PD-1) monoclonal antibody was approved as a standard option for patients who failed to respond to second-line or more systematic treatment worldwide [2, 3]. However, because of the limited efficacy and potential severe toxicities of ICIs, immunotherapy cannot be used to treat all AGC patients. Therefore, identifying predictive biomarkers to identify AGC patients who are likely to benefit from anti-PD-1 antibody is critical.

The USA Food and Drug Administration approved pembrolizumab for chemorefractory patients with programmed death ligand 1 (PD-L1)-positive AGC and mismatch repair deficiency or high tumour mutational burden (TMB) (≥10 mutations/Mb) [4–6]. EBV positivity [7] as well as circulating tumour DNA and immune-related gene signatures have also been reported as possible biomarkers for ICI efficacy [8]. Increasing attention has been given to blood inflammatory markers including neutrophil count, neutrophil-to-lymphocyte ratio (NLR), and platelet-to-lymphocyte ratio (PLR) [9–12]. Previous studies showed that both baseline NLR and derived NLR have a predictive value for outcome in advanced melanoma patients treated with nivolumab [9]. Advanced non-small cell lung cancer (NSCLC) patients treated with PD-1/PD-L1 inhibitors who had lower baseline NLR had better response and longer survival than those who had higher baseline NLR [10, 13, 14]. However, uncertainty exists around blood inflammatory biomarker associations with GC immunotherapy outcome.

This study was designed to comprehensively evaluate the predictive and prognostic value of blood inflammatory biomarkers based on the analysis of clinicopathological characteristics, treatment outcomes, haematological parameters, and tumour transcriptome evaluation by RNA sequencing (RNA-seq) data. In this study, we characterized gene-expression patterns in tumours using RNA-seq and compared different tumour microenvironment (TME) characteristics in different NLR groups to further explore the association between NLR and the TME. The aim of these analyses was to evaluate the strength and validity of evidence on the association between NLR and the prognosis of AGC patients treated with anti-PD-1 antibody.

Patients and methods

Patients

We retrospectively analysed the data of 58 patients in cohort 1 from a prospective, multi-centre phase Ib/II study (ClinicalTrials.gov identifier: NCT 02915432) [15] investigating the safety and efficacy of the anti-PD-1 antibody toripalimab in chemorefractory AGC or gastro-oesophageal junction adenocarcinoma and the predictive survival benefit of TMB and PD-L1. Toripalimab was given at 3 mg/kg once every 2 weeks. The following data were collected: age, sex, Eastern Cooperative Oncology Group Performance Status (ECOG PS), body mass index (BMI), previous treatment, objective response rate (ORR), disease control rate (DCR), progression-free survival (PFS), overall survival (OS), adverse events (AEs), tumour PD-L1 expression, and TMB. This study was approved by the Institutional Review Board and Ethics Committee of Sun Yat-sen University Cancer Center (approval number: B2020-152–01) and was conducted in accordance with the Helsinki Declaration and the international standards of good clinical practice.

Haematological parameters

Blood-test results, including white blood cell (WBC) count, absolute lymphocyte count (ALC), absolute neutrophil count (ANC), absolute monocyte count (AMC), and platelet (PLT) count, were recorded at baseline and 2 weeks after the first administration of toripalimab. Blood NLR (bNLR) was calculated as ANC/ALC, PLR as PLT/ALC, and lymphocyte-to-monocyte ratio (LMR) as ALC/AMC. Dynamic change of bNLR (dNLR) was calculated as bNLR at 2 weeks/bNLR baseline. The cut-off points for NLR, PLR, and LMR were determined by the Youden’s index using receiver-operating characteristic (ROC) analysis.

Tumour evaluation

Tumour response assessments according to Response Evaluation Criteria in Solid Tumors version 1.1 were performed every 8 weeks during the first year of treatment and then every 12 weeks until disease progression or therapy discontinuation. AEs were graded according to the National Cancer Institute Common Terminology Criteria version 4.0.

PD-L1 expression was detected by immunohistochemistry (IHC) staining with the anti-human PD-L1 monoclonal antibody SP142. PD-L1-positive status was defined as membrane staining in ≥1% of tumour cells or the presence of PD-L1 staining of any intensity in tumour-infiltrating immune cells (ICs). TMB was detected by whole-exome sequencing on tumour biopsies and determined by analysing somatic mutations per mega-base (Mb). As previously reported, a cut-off of the top 20% of the TMB (12 mutations/Mb) was selected for defining a tumour as TMB-high (TMB-H). Patients with a TMB of <12 mutations/Mb were defined as TMB-low (TMB-L) [15].

Tumour-tissue transcriptome sequencing

Tumour-tissue transcriptional profiling was performed to characterize the molecular phenotypes using RNA-seq. The raw reads were processed and aligned to the UCSC hg 38 reference genome using STAR and then quantified by RSEM [16, 17]. Gene expression is presented as transcripts per million values. Gene set enrichment analysis (GSEA) within the HALLMARK gene set database was performed with GSEA v4.0.3 for Windows (https://www.gsea-msigdb.org/gsea/downloads.jsp). Immune-related genes and their functional classifications were obtained from Thorsson et al. [18]. Neutrophil-related genes were described in a previous study [19]. The R package microenvironment cell population-counter (MCP-counter) [20] was used to estimate the abundance of tumour-infiltrating leukocytes. Tumour NLR (tNLR) was calculated as neutrophils/(T-cells + B-cells).

RNA-seq data of melanoma, glioblastoma, and urothelial cancer patients who received ICIs from four published studies [21–24] were collected and analysed for validation purposes. The median value of tNLR was used as the cut-off point, and patients were divided into the tNLR-high group and the tNLR-low group using this cut-off value.

Statistical analysis

Patient characteristics were summarized using descriptive statistics. OS was calculated from the date of the first treatment to either death or the last follow-up date; PFS was calculated from the date of the first treatment to the date of disease progression, death, or last follow-up. The cut-off points were determined by Youden’s index using ROC analysis. Comparisons of clinicopathological characteristics in different bNLR groups were performed using Pearson’s chi-square test. Univariate analyses and multivariate analyses of variables for OS and PFS were performed using a Cox’s proportional hazards model. Comparisons of ORR, DCR, and AEs were performed by Pearson’s chi-square test. The concordance index (C-index) was used to estimate the predictive capacity. A two-tailed Student’s t-test was used to analyse the differences between tNLR groups. A value of P < 0.05 was considered significant. Statistical analyses were performed using IBM-SPSS version 23.0, GraphPad Prism 8 software, or R software version 3.6.1.

Results

Patient characteristics and treatment outcomes

A total of 58 stage chemorefractory AGC patients were included in this study between December 2016 and September 2017. The baseline patient characteristics are summarized in Table 1. The median age of patients was 60 years (range, 52–66 years) and 70.7% of patients were male. Forty-five (77.6%) patients had previously received at least two lines of systemic treatments. Among the 55 samples with valid PD-L1 IHC staining results, 8 tumours were PD-L1-positive. TMB results were available for 54 patients and 12 tumours were defined as TMB-H. The median follow-up time was 4.5 months, the median PFS of the overall patient group was 1.9 months, and the median OS was 4.8 months. The ORR was 12.1% (7/58) and the DCR was 39.7% (23/58), including 7 patients with partial response (PR) and 16 with stable disease (SD). Forty-five (77.6%) patients experienced at least one treatment-related AE (TRAE) of any grade and 13 (22.4%) patients experienced at least one grade 3 or higher TRAE. Fifteen (25.9%) patients experienced immune-related AEs (irAEs).

Table 1.

Baseline characteristics and haematological parameters of 58 AGC patients in this study

Characteristic	Median (range) or number of cases (%)
Age (years)	60 (52–66)
Sex (male/female)	41 (70.7)/17 (29.3)
ECOG performance status
0	20 (34.5)
1	38 (65.5)
BMI
≥25	9 (15.5)
<25	49 (84.5)
Prior lines
1L	13 (22.4)
2L+	45 (77.6)
PD-L1a
Positive	8 (13.8)
Negative	47 (81.0)
NA	3 (5.2)
TMB
≥12 mutations/Mb	12 (20.7)
<12 mutations/Mb	42 (72.4)
NA	4 (6.9)
ANC (109/L)	4.4 (1.7–8.4)
ALC (109/L)	1.3 (0.5–2.5)
NLR
>2.7	31 (53.5)
≤2.7	22 (37.9)
NA	5 (8.6)
PLR
>267	11 (19.0)
≤267	42 (72.4)
NA	5 (8.6)
LMR
>2.8	21 (36.2)
≤2.8	32 (55.2)
NA	5 (8.6)

ECOG, Eastern Cooperative Oncology Group; BMI, body mass index; TMB, tumour mutational burden; NA, not available; ANC, absolute neutrophil count; ALC, absolute lymphocyte count; NLR, neutrophil-to-lymphocyte ratio; PLR, platelet-to-lymphocyte ratio; LMR, lymphocyte-to-monocyte ratio.

^aPositive defined as ≥1% of tumour cells or immune cells showing IHC staining for PD-L1 using SP142 antibody .

Relation between bNLR and treatment outcomes

Fifty-three patients had detailed baseline blood-test data, including ALC, ANC, and AMC levels. We defined the best cut-off points as 2.7 for bNLR, 267 for PLR, and 2.8 for LMR according to ROC analysis. Univariate analysis showed that bNLR, TMB, ANC, PLR, LMR, and TMB had statistically significant impacts on OS, but bNLR was the only prognostic factor for PFS (Figure 1A–D). Multivariate analysis showed that bNLR was an independent prognostic factor for both PFS and OS, while only TMB significantly impacted OS (Table 2). There was no significant difference in ORR between the bNLR-low group and bNLR-high group (13.6% vs 6.5%, P = 0.638). The bNLR-low group had a significantly higher DCR than the bNLR-high group (59.1% vs 25.8%, P = 0.023) (Table 3). There were no significant differences in clinicopathological characteristics between the bNLR-low group and the bNLR-high group (Table 4).

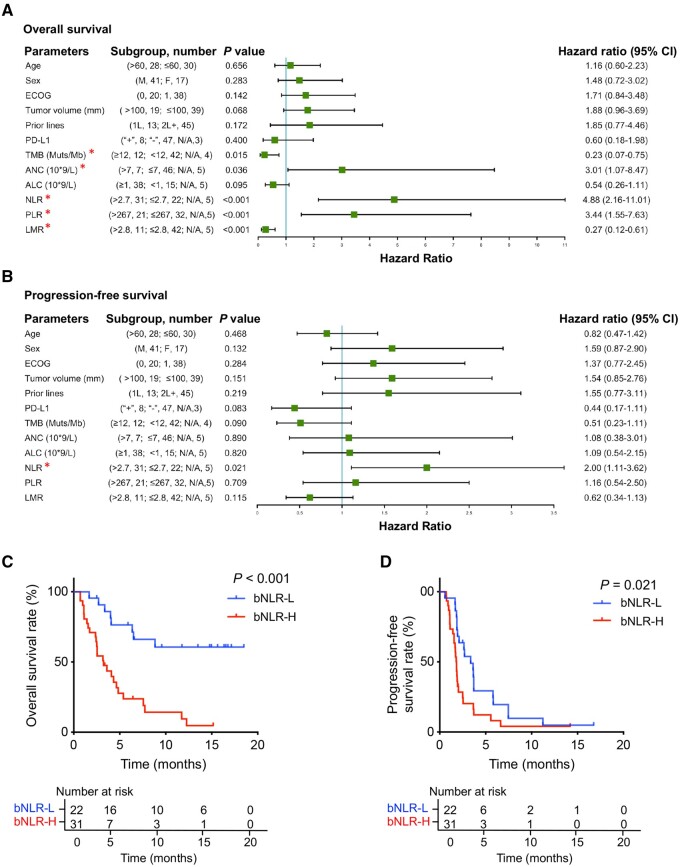

Figure 1.

Risk factors and survival curves of advanced gastric cancer patients treated with the anti-PD-1 monoclonal antibody toripalimab. (A) and (B) Forest plot of univariate analysis for risk factors associated with overall survival (OS) and progression-free survival (PFS). (C) and (D) OS and PFS in patients stratified by the baseline neutrophil-to-lymphocyte ratio (bNLR) level: bNLR-L (≤2.7) and bNLR-H (>2.7). *P < 0.05.

Table 2.

Multivariate analyses of factors associated with overall survival and progression-free survival

Parameter	Overall survival		Progression-free survival
	Hazard ratio (95% CI)	P-value	Hazard ratio (95% CI)	P-value
TMB	0.17 (0.47–0.59)	0.005*	0.53 (0.23–1.19)	0.124
PD-L1	–	–	0.54 (0.21–1.42)	0.214
ANC	2.89 (0.86–9.62)	0.085	–	–
NLR	11.41 (1.98–65.76)	0.006*	2.14 (1.17–3.90)	0.013*
PLR	2.22 (0.82–6.05)	0.119	–	–
LMR	2.14 (0.39–11.69)	0.380	–	–

TMB, tumour mutational burden; ANC, absolute neutrophil count; NLR, neutrophil-to-lymphocyte ratio; PLR, platelet-to-lymphocyte ratio; LMR, lymphocyte-to-monocyte ratio; CI, confidence interval.

^* P < 0.05.

Table 3.

Comparison of clinical efficacy in different NLR groups

Group	n a	PR, n	SD, n	ORR, n (%)	DCR, n (%)
bNLR
≤2.7	22	3	10	3 (13.6)	13 (59.1)
>2.7	31	2	6	2 (6.5)	8 (25.8)
P-valueb				0.638	0.023*
dNLR
≤1.5	33	4	14	4 (12.1)	18 (54.6)
>1.5	19	1	2	1 (5.3)	3 (15.8)
P-value				0.641	0.008*
bNLR, dNLR
≤2.7, ≤1.5	13	2	9	2 (15.4)	11 (84.6)
>2.7, ≤1.5	20	2	5	2 (10.0)	7 (35.0)
≤2.7, >1.5	8	1	1	1 (12.5)	3 (25.0)
>2.7, >1.5	11	0	1	0 (0)	1 (9.1)
P-value				0.685	0.001*

PR, partial response; SD, stable disease; ORR, objective response rate; DCR, disease control rate; bNLR, baseline blood neutrophil-to-lymphocyte ratio; dNLR, dynamic change of blood NLR.

^aPatients with detailed bNLR data (n = 53) and detailed dNLR data (n = 52) were included in the analyses.

^aPearson’s Chi-square test, *P < 0.05.

Table 4.

Baseline characteristics of 53 AGC patients according to different bNLR levels^a

Characteristic	bNLR-high (>2.7)	bNLR-low (≤2.7)	P-valuec
Age (years)
<60	14 (45.2)	12 (54.5)	0.501
≥60	17 (54.8)	10 (45.5)
Sex
Male	21 (67.7)	17 (77.3)	0.448
Female	10 (32.3)	5 (22.7)
ECOG performance status
0	9 (29.0)	7 (31.8)	0.828
1	22 (71.0)	15 (68.2)
BMI
≥25	11 (35.5)	8 (36.4)	0.948
<25	20 (64.5)	14 (63.6)
Prior lines
1L	7 (22.6)	3 (13.6)	0.412
2L+	24 (77.4)	19 (86.4)
PD-L1b
Positive	3 (9.7)	3 (13.6)	0.689
Negative	27 (87.1)	19 (86.4)
NA	1 (3.2)
TMB
≥12 mutations/Mb	7 (22.6)	4 (18.2)	0.780
<12 mutations/Mb	23 (74.2)	16 (72.7)
NA	1 (3.2)	2 (9.1)

The values are presented as the number of cases following the percentage in parentheses.

ECOG, Eastern Cooperative Oncology Group; BMI, body mass index; TMB, tumour mutational burden; NA, not available; NLR, neutrophil-to-lymphocyte ratio.

^aPatients with detailed bNLR data (n = 53) were included in the analyses.

^bPositive is defined as ≥1% of tumour cells or immune cells showing IHC staining for PD-L1 with SP142 antibody.

^cPearson’s Chi-square test.

Relation between dNLR and treatment outcomes

Significant survival differences were observed between patients with elevated dNLR and those without elevated dNLR after the first dose of toripalimab. There were 52 patients with detailed dNLR data. According to the ROC analysis, the best cut-off value of dNLR was 1.5. We divided the patients into the dNLR-high (>1.5) group (n = 19) and the dNLR-low (≤1.5) group (n = 33). The dNLR-low group had longer median PFS (2 vs 1.7 months, P = 0.021) and median OS (6.4 vs 2.6 months, P = 0.002) than the dNLR-high group (Figure 2A and B). No difference in ORR was observed between the groups (12.1% vs 5.3%, P = 0.641). The dNLR-low group had a significantly higher DCR (54.4% vs 15.8%, P = 0.008) (Table 3). In the evaluation of patients according to both baseline bNLR and dNLR, patients with a bNLR^Low/dNLR^Low status had the highest DCR (84.6%), while those with bNLR^High/dNLR^High status had the lowest DCR (9.1%) (Table 3). Similar results were observed in the survival analysis. Patients with bNLR^Low/dNLR^Low status had a significantly better survival outcome than those with bNLR^High/dNLR^High status (median OS: 14.3 vs 1.1 months, P < 0.001; median PFS: 3.6 vs 1.1 months, P = 0.004) (Figure 2C and D).

Figure 2.

Survival curves of advanced gastric cancer patients treated with toripalimab. (A) and (B) OS and PFS of patients stratified by the early dynamic change of NLR (dNLR) after the first dose of toripalimab. We defined dNLR-L as dNLR ≤1.5 and dNLR-H as dNLR >1.5. (C) and (D) OS and PFS of patients stratified according to the combination of bNLR (bNLR-L ≤2.7, bNLR-H >2.7) and dNLR (dNLR-L ≤1.5, dNLR-H >1.5). (E) and (F) OS and PFS of patients stratified according to the combination of NLR and TMB. One point was assigned for a negative factor (TMB <12 mutations/Mb or NLR >2.7). Patients were scored and classified into the high-risk group (2 points); intermediate-risk group (1 point); or low-risk group (0 points).

Relation between NLR and AEs

The impacts of baseline bNLR level on TRAEs and irAEs are presented in Table 5. No significant differences in the rates of TRAEs and irAEs were found between the bNLR-high group and the bNLR-low group. Interestingly, the dNLR-high group had a lower rate of TRAEs than the dNLR-low group (57.9% vs 87.9%, P = 0.031). In the evaluation of patients according to both bNLR and dNLR, patients with bNLR^Low/dNLR^Low status had the highest rate of TRAEs while those with bNLR^High/dNLR^High status had the lowest rate of TRAEs (92.3% vs 63.6%, respectively).

Table 5.

Treatment-related adverse events (TRAEs) and immune-related adverse events (irAEs) in different NLR groups

Group	TRAEs	TRAEs grade ≥3	irAEs
bNLR
≤2.7	17 (77.3)	4 (18.2)	7 (31.2)
>2.7	23 (74.2)	8 (25.8)	7 (22.6)
P-value	0.797	0.740	0.452
dNLR
≤1.5	28 (87.9)	7 (21.2)	10 (30.3)
>1.5	11 (57.9)	5 (26.3)	4 (21.1)
P-value	0.031*	0.471	0.534
Combination of bNLR and dNLR
≤2.7, ≤1.5	12 (92.3)	3 (23.1)	5 (38.5)
>2.7, ≤1.5	15 (75.0)	4 (20.0)	5 (25.0)
≤2.7, >1.5	6 (75.0)	1 (12.5)	2 (25.0)
>2.7, >1.5	7 (63.6)	4 (36.4)	2 (18.2)
P-value	0.422	0.686	0.757

The values are presented as the number of cases following the percentage in parentheses.

TRAEs, treatment-related adverse events; irAEs, immune-related adverse events; bNLR, baseline blood neutrophil-to-lymphocyte ratio; dNLR, dynamic change of blood NLR.

^* P < 0.05.

Combination of bNLR and TMB for prognostic prediction

In our study, baseline bNLR and TMB were independent prognostic factors for OS benefit from anti-PD-1 antibody treatment. We developed a combination scoring system in which one point was assigned for each negative prognostic factor (TMB <12 mutations/Mb or bNLR >2.7) in each patient. Fifty patients with both TMB and bNLR data were included and they were classified into three groups based on the combination score: the high-risk group (2 points, n = 23), the intermediate-risk group (1 point, n = 23), and the low-risk group (0 points, n = 4). The median OS of the patients in the high-, intermediate-, and low-risk groups was 2.5, 6.4, and 14.9 months, respectively [hazard ratio (HR): 4.87, 95% confidence interval (CI) 2.441–9.719, P < 0.001], whereas the median PFS was 1.7, 2.5, and 3.9 months, respectively (HR: 1.97, 95% CI 1.174–3.295, P = 0.010) (Figure 2E and F). The C-index value of the combined score for OS was 0.727 (95% CI 0.657–0.798), while the C-index values of bNLR and TMB were 0.676 (95% CI 0.607–0.746) and 0.606 (95% CI 0.539–0.673), respectively.

Tumour RNA-seq analysis in different bNLR groups

In our study, 51.7% (30/58) of patients had baseline tumour samples that were available for transcriptome sequencing. Using the cut-off value of 2.7 of baseline bNLR, the 30 patients were divided into the bNLR-high group (>2.7, n = 17) and the bNLR-low group (≤2.7, n = 13). MCP-counter was applied to compare the tumour-infiltrating ICs between the two groups. In the bNLR-high group, neutrophils were the most significantly enriched cells in tumour tissues (Supplementary Table 1) and tNLR was significantly increased (average MCP NLR, 0.83 vs 0.55, P = 0.050). We did not observe any lymphocyte depletion. Next, we analysed the immune-related differentially expressed genes (DEGs) and neutrophil-related DEGs, and found that the biomarkers related to neutrophil recruitment and tumour-associated neutrophil (TAN) plasticity were significantly enriched in the bNLR-high group compared with the bNLR-low group (Figure 3A). The top three significantly different immune-related genes in the NLR-high group were IL-1β, ICAM1, and VEGFA (Figure 3B). The full gene lists are shown in Supplementary Table 2 and Table 3. Finally, we conducted GSEA to investigate the biological pathways enriched in the bNLR-high group. The top-scoring gene sets (FDR < 0.1) were inflammatory response signalling, IL-2/STAT5 signalling, and IL-6/JAK/STAT3 signalling (Figure 3C).

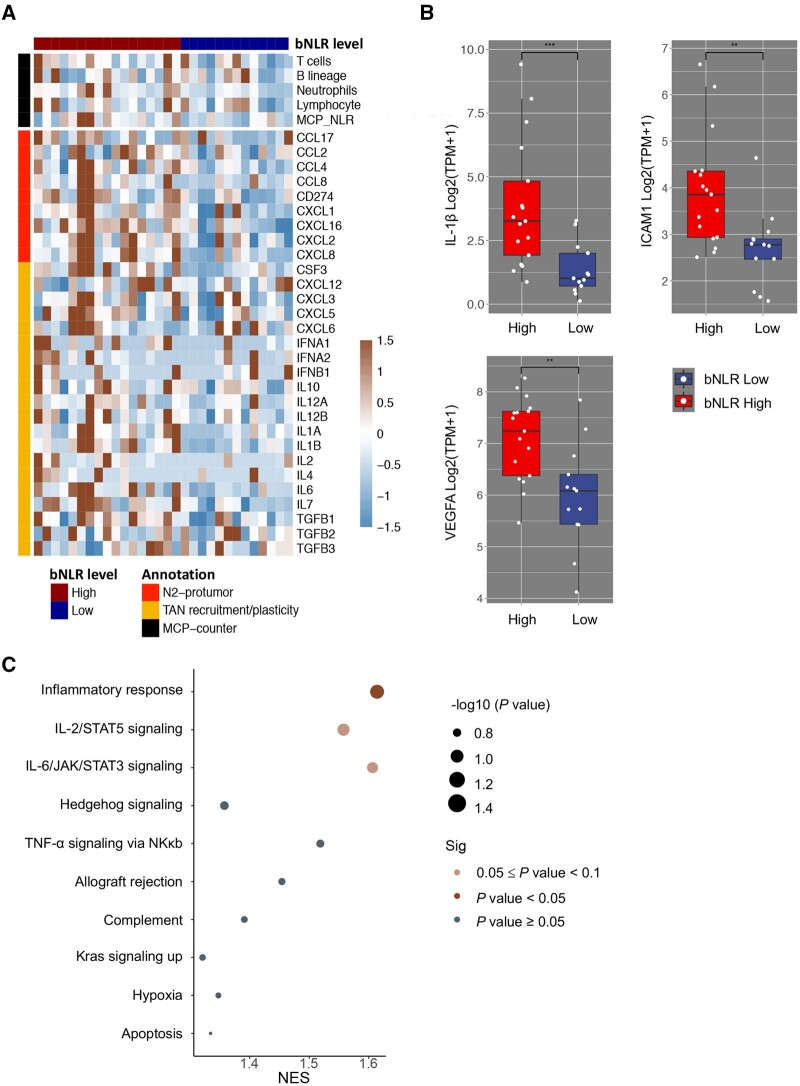

Figure 3.

RNA-seq analysis of tumour tissue in different NLR groups. (A) Heat map of tumour infiltrated neutrophil and lymphocyte densities (black colour) and differential expression of neutrophil-associated genes (red and yellow colour) between the bNLR-high group (>2.7) and the bNLR-low group (≤2.7). (B) The top three significantly different immune-related genes in the bNLR-high group were IL-1β, ICAM1, and VEGFA genes. The full gene lists are shown in Supplementary Table 2. (C) Representative enriched signalling pathways of the bNLR-high group. Enrichment analysis was performed using the HALLMARK gene set database. *P < 0.05; **P < 0.01; ***P < 0.001.

Validated analysis of tumour NLR in different cancer cohorts from published studies

The results of this study indicate that elevated bNLR was related to poor survival of GC patients receiving anti-PD-1 antibody treatment and indirectly reflected the neutrophil–lymphocyte imbalance in tumour tissue. We further collected and analysed four published independent gene-expression datasets of melanoma, glioblastoma, and urothelial cancer patients who received ICI treatment. We used the MCP-counter to estimate the abundance of tumour-infiltrating leukocytes and defined the median tNLR value as the cut-off point. A significant increase in OS benefit was observed in the tNLR-low group in each cohort (Figure 4A–D).

Figure 4.

Tissue NLR (tNLR) and prognosis in four cohorts of cancer patients. Patients were divided into the tNLR-high and tNLR-low groups using the median tNLR value as the cut-off point. The OS of patients treated with ICI treatment is stratified according to tNLR in: (A) and (B) the melanoma cohort; (C) the glioblastoma cohort; and (D) the urothelial cancer cohort.

Discussion

As ICIs have become a promising option for the treatment of AGC patients, there has been increasing recognition that simple predictive biomarkers for the selection of patients who might benefit from ICIs are needed. In recent years, blood inflammatory markers have been explored as potential biomarkers, because they might reflect the inflammatory response to cancer. WBC count and C-reactive protein are the most commonly used biochemical parameters to evaluate the systemic inflammatory response. Platelets are also involved in the systemic inflammatory response, as thrombocytopenia is a common phenomenon in cancer patients [25]. In addition, NLR, PLR, and LMR have been strongly associated with prognosis in several types of cancer [26–28]. Our study demonstrated the predictive and prognostic value of bNLR, dNLR, and tNLR based on the analysis of clinicopathological characteristics, haematological parameters, and tumour RNA-seq data from a prospective clinical trial that investigated the safety and efficacy of anti-PD-1 monotherapy in chemorefractory AGC patients. Furthermore, we explored different TME characteristics in different bNLR groups by comparing their tumour-gene-expression profiles.

In this study, in addition to the high baseline bNLR, an elevated dNLR at 2 weeks after one dose of toripalimab was also significantly associated with poor prognosis and low response. According to the ROC analysis, the best cut-off value of dNLR was 1.5. The dNLR-low patient group (≤1.5) had longer median PFS and median OS than the dNLR-high group. No difference in ORR was observed between the two groups, but the dNLR-low group had a significantly higher DCR. Upon evaluation of patients based on a combination of baseline bNLR and dNLR, patients with a bNLR^Low/dNLR^Low status had the highest DCR, while those with bNLR^High/dNLR^High status had the lowest DCR. Similar results were observed in the survival analysis. The patients with a bNLR^Low/dNLR^Low status had significantly improved survival outcomes than those with a bNLR^High/dNLR^High status.

These findings support the idea that baseline bNLR and dynamic monitoring of bNLR may help clinicians to identify patients who benefit from ICIs. However, the optimal cut-off point of NLR still needs to be defined, since various findings have been reported for different types of cancer. In our study, we defined 2.7 as the cut-off value for baseline bNLR and 1.5 as the cut-off value for dNLR by analysing the ROC curve. Ota et al. [29] reported that a baseline NLR of >3 was associated with poor survival for AGC patients with nivolumab monotherapy. In melanoma and NSCLC, the most common cut-off value is an NLR of ≥5 [9]. In a meta-analysis that included 10 studies with 2,952 cases of GC, the selected cut-off values ranged from 1.44 to 5.0, based on the ROC curve, median value, or reported studies [30]. The results suggested that an elevated NLR could predict poor OS regardless of the sample size and cut-off values. Despite the uncertainty of baseline NLR values, our study demonstrated that the early dynamic change of NLR after ICI therapy could be regarded as an effective predictor of immunotherapy outcome.

In our phase Ib/II study, TMB-H (>12 mutations/Mb) was recognized as a prognostic factor for OS [15]. We combined the baseline bNLR with TMB to classify patients into different risk groups. The median OS in the high-risk group and low-risk group were 2.5 and 14.9 months, respectively. The combination of markers demonstrated a higher C-index for OS than either bNLR or TMB alone. These results may explain the limitations of a single tumour-associated biomarker in predicting the prognosis of immunotherapies, even in patients with high TMB. Indeed, systemic inflammatory status may play an important role in the response to ICI treatments. Our findings support using the combination of bNLR and TMB for identifying candidates likely to receive the most or least benefit from ICI treatment.

In the tumour tissue of bNLR-high patients, we observed enriched neutrophils and monocytic lineage cell infiltration as well as a higher tNLR. These results revealed that bNLR, as a systemic inflammatory marker, was related to the tumour inflammatory status, which was mostly manifested by TAN infiltration and inflammatory cytokine aggregation. We also showed that a higher tNLR was significantly associated with poor prognosis in four independent cohorts of melanoma, glioblastoma, and urothelial cancer patients treated with ICIs. Gene-expression profiling of corresponding tumour tissue further provided some evidence on the mechanisms underlying the association between inflammation and immunotherapy responses. Cytokines and chemokines related to neutrophil recruitment or TAN functional plasticity were highly enriched and angiogenesis-associated genes (VEGFA, ICAM1, and MMP9 genes) and cytokine molecules (CXCL1, IL-8, and IL-1β) were significantly overexpressed. Previous studies showed that these neutrophil-derived molecules are essential for tumour angiogenesis [31]. GSEA displayed gene enrichment in the inflammatory response as well as in IL-2/STAT5 and IL-6/JAK/STAT3 signalling. A previous study reported that activation of the STAT3 signalling increased immunosuppressive cytokine and mediator expression [32]. These results show that cancer progression and inflammatory conditions share common regulatory pathways and molecules, such as pro-inflammatory cytokines and pro-angiogenic factors. Adding to these findings, our study provided evidence that peripheral bNLR is an indicator of more permissive TME and impaired antitumour immunity, and this further suggests that adding neutrophil antagonist or angiogenesis inhibitors might be a feasible strategy for the bNLR-H group to benefit from ICI treatments.

NLR has not been widely used for clinical application as an immunotherapy prognostic and and/or predictive marker. NLR can be affected by acute infection and severe treatment-related factors such as chemotherapy or the use of granulocyte colony stimulating factors. Although bNLR has been reported as a simplified surrogate predictive marker for patients treated with ICIs in several types of cancer, the biological basis for this effect remains to be determined. Previous studies provided some possible explanations for these findings. For instance, elevated bNLR was attributed to neutrophilia or lymphopenia. In addition, neutrophilia is an active, intra-tumoural source of many cytokines and chemokines that play important roles in tumour development and the immunosuppressive network [33]. The lymphocyte-depleted environment also contributed to poor response to ICIs [34, 35]. Kargl et al. [36] reported that CD8+ T-cells and neutrophils were inversely associated in NSCLC tumour tissues, and their ratio could predict the outcome of anti-PD-1 monotherapy.

There are several limitations to our study. First, the number of patients is small and a validation cohort in larger prospective studies is needed. Second, we assessed tumour-tissue immune-cell infiltrations by RNA-seq analysis and this accuracy is lower than that of directly detecting ICs. Whether bNLR remains predictive for ICI-based combined therapy still needs more evidence from future studies.

Conclusions

Our study has demonstrated the potential clinical utility of baseline bNLR and dNLR as easy-to-use biomarkers to predict the response and prognosis of chemorefractory AGC patients who received anti-PD-1 antibody therapy. These findings might be useful to improve patient selection and clinical management. In addition, the gene-expression profiling of tumour tissue revealed that high bNLR reflected the imbalance of tumour-tissue-infiltrating neutrophils and lymphocytes, and was associated with an immunosuppressive and pro-tumour microenvironment .

Supplementary Data

Supplementary data is available at Gastroenterology Report online.

Authors’ Contributions

(i) Conception and design: F.H.W., S.Q.Y., D.Y.R., and Y.X.C.; (ii) administrative support: F.H.W. and S.Q.Y.; (iii) provision of study materials or patients: F.H.W., S.Q.Y., and R.H.X.; (iv) collection and assembly of data: D.Y.R., X.L.W., and Y.N.W.; (v) data analysis and interpretation: Y.X.C. and Z.X.W.; (vi) manuscript writing: all authors; (vii) final approval of the manuscript: all authors. D.Y.R. and Y.X.C. contributed equally to this study.

Funding

This study was supported by the CAMS Innovation Fund for Medical Sciences (CIFMS) [2019-I2M-5–036] and the Science and Technology Program of Guangdong [2019B020227002 ].
