Minimally invasive and robotic approaches to mitral valve surgery: Transthoracic aortic crossclamping is optimal

Transthoracic aortic clamp application for minimally invasive mitral valve surgery.

Central Message.

Compared with the complexities and cost of using the endoballoon, the transthoracic clamp is easy to teach, simple to apply, remains stable in position, is reusable, and has an economic benefit.

See Commentaries on pages 89 and 90.

“The value of an idea lies in the using of it.”

—Thomas Edison

Throughout the history of cardiac surgery, external clamping of the ascending aorta has been essential to the conduct of both intracardiac and epicardial operations. Endothelial, hemodynamic, and humoral effects of external aortic clamping and unclamping have been studied extensively.1, 2, 3 As transmural forces on the internal aorta are more than 8 times the systemic blood pressure when applied, clamp design and application are important to distribute these forces to minimize endothelial injury. Dr Michael DeBakey designed perhaps the best clamp jaws to distribute these forces, and they still provide adequate tissue grip stability. While some cardiac procedures can be performed safely without aortic occlusion, either employing circulatory arrest, ventricular fibrillation, or beating-heart methods, these techniques generally are not applicable to the majority of cardiac operations.

In the mid-1990s, Cohn and colleagues⁴ and Cosgrove and colleagues,⁵ among others, began to perform the first minimally invasive aortic and mitral valve operations through either an upper hemi-sternotomy or parasternal incision using traditional aortic crossclamps. During this period, it was our vision that the best approach for minimally invasive mitral valve surgery would be through a minithoracotomy using hypothermic cardioplegia. Previous right thoracotomy mitral reoperations had shown us that this approach provides excellent visualization and instrument access.⁶

In 1996, a group of innovative surgeons from Stanford developed and applied the catheter-based Heartport endoballoon occlusion device (Edwards Lifesciences Inc, Irvine, Calif) to replace mitral valves and perform coronary surgery through a tiny “working port” or “port-access.”7, 8, 9 In the United States, a clinical trial using the endoballoon was begun at Stanford and New York Universities, and access to this device was limited to their trial. At that time, we considered that endoballoon occlusion method was complex and not proven to be safe or effective, and there was a considerable expense added to each procedure.

We then reflected on Dr DeBakey's genius, and it became obvious that a thin long clamp would be ideal for minimally invasive mitral surgery to achieve optimal and stable aortic occlusion. We consulted the Scanlan International, Inc, group of instrument engineers, and they took this idea to develop a long sliding-rod clamp with DeBakey-type jaws (Figure 1). This became the Chitwood–DeBakey Transthoracic Clamp, which has been a mainstay in our minimally invasive approach to mitral valve repairs and replacements since 1996.10, 11, 12, 13, 14 We have used this specific clamp in nearly 3000 videoscopic and robot-assisted operations done at our institution or during training at other centers (Figure 4). Several flexible-arm aortic clamps also are manufactured and are very effective for use in minimally invasive mitral operations (eg, the Cygnet-Flexible and Cosgrove-Flex clamps). No matter which clamp is selected, we believe that transthoracic aortic clamping is optimal for performing either direct vision or videoscopic minimally invasive as well as robot-assisted mitral valve surgery.

Figure 1.

Transthoracic aortic clamp: The posterior “arm” of the clamp is immobile and should be passed posterior to the aorta in the transverse sinus. During application, the sliding rod shaft mechanism activates the anterior “arm.” Courtesy of Scanlan International, Inc.

Figure 4.

In this illustration, the transthoracic crossclamp has been deployed through the transverse sinus to occlude the ascending aorta (Asc. Aorta). To avoid injury to either the right (Rt.) pulmonary artery or left (Lft.) atrial appendage, both must be visualized before inserting the clamp. Moreover, enough room should be left between the clamp and the cardioplegia catheter to avoid compromising cardioplegia administration. In this view, the aorta has been rotated ventrally away from the superior vena cava (SVC) to demonstrate the contents of the transverse sinus. In actuality, the clamp arm trajectory should pass just in front of the SVC, near the junction with the right atrium (Rt. atrium). ©2021 Society of Thoracic Surgeons. All rights reserved. With permission of the Society of Thoracic Surgeons.

Endoballoon Aortic Occlusion

The evolving use of aortic endoballoon occlusion for direct vision, videoscopic, and robot-assisted minimally invasive mitral valve surgery has subtended 2 distinct eras. There was the early investigation and adoption period and a later one that incorporated an improved device and a more refined approach. Most importantly, these 2 eras can be compared by their distinct differences in clinical results. The early experience with port-access “Heartport” mitral valve surgery was not encouraging. One initial report described an operative mortality of 9.8%, with a stroke rate of 7.8%. Moreover, 3.9% of patients had an intraoperative aortic dissection.¹⁵ At the same meeting, we reported our first 31 videoscopic minimally invasive mitral operations using the newly developed transthoracic clamp with no strokes or aortic major complications.¹¹ Despite these early concerns, over time, increased experience and improvements in the device have made endoballoon use comparable in both safety and outcomes with the transthoracic clamp.

There are several major advantages of using the endoballoon versus transthoracic clamping during minimally invasive mitral valve operations. With the endoballoon, the size and number of incisions can be reduced. There is less chance of intercostal bleeding, as no incision is needed as with insertion of the transthoracic clamp. Also, there is a central catheter lumen for cardioplegia delivery, obviating the need to place an aortic root cannula and reducing intrathoracic clutter, which is paramount for totally endoscopic procedures. In reoperative mitral surgery, the endoballoon does not require dissection to expose the ascending aorta, which is necessary for external aortic clamping.

With advances in endoballoon technology and intraoperative techniques, a number of reports have shown comparable safety and outcomes when applied during with videoscopic and robot-assisted operations.^16,17 As an example, in 2014 Ward and colleagues¹⁸ reported that in 105 of 108 patients (97.2%), endoballoon aortic occlusion was used during totally endoscopic minimally invasive mitral repairs. There were no hospital mortalities, aortic injuries, vascular complications, or wound infections, with 2 strokes reported as the only complications.¹⁸ Recently, this group also showed that by adding albumen bound fluorescein dye to the saline used for balloon expansion, surgeons now can monitor continuously intra-aortic position to prevent device migration.¹⁹ This has eased the burden of continuous echo monitoring.

Transthoracic Aortic CrossClamping

For direct vision, videoscopic, or robot-assisted mitral operations, the clamp should be inserted through the right second or third intercostal space (Figure 2). For robot-assisted operations, it is important to place the clamp in the mid-to posterior axillary line to avoid conflicts with the left instrument arm. Thereafter, it should be passed closely in front of the superior vena cava at pericardial junction. With left atrial retractor elevation, caval impingement by the clamp can impair venous return to the pump, and we avoid this risk by placing a right internal jugular venous drainage cannula. To avert injury during clamp transverse sinus passage, it is paramount to the visualize the right pulmonary artery and left atrial appendage before deployment (Figures 3 and 4). At the same time, care must be taken to avoid crowding the ascending aorta cardioplegia catheter.

Figure 2.

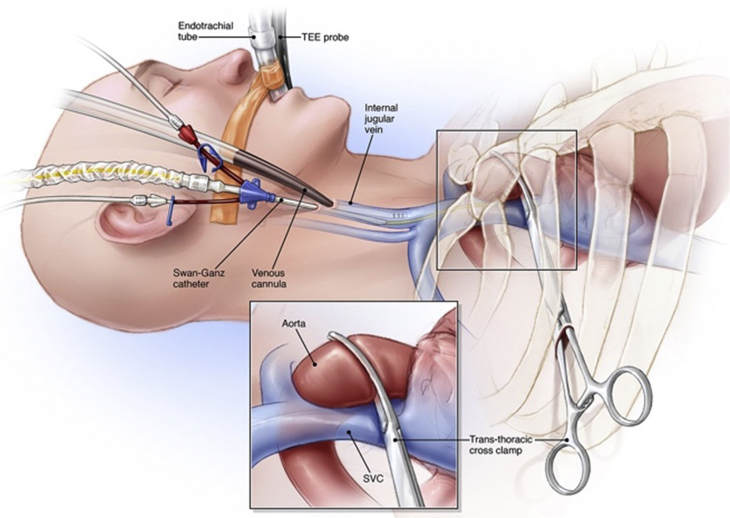

Transthoracic aortic clamp application: The transthoracic aortic clamp is passed through the second or third intercostal space in the mid to posterior axillary line just in front of the superior vena cava (SVC) and then advanced in a trajectory toward the transverse sinus. A jugular venous cannula is placed for venous drainage to compensate for any caval obstruction with left atrial retraction. TEE, Transesophageal echo probe. ©2021 Society of Thoracic Surgeons. All rights reserved. With permission of the Society of Thoracic Surgeons.

Figure 3.

Transverse sinus anatomy. The deployed transthoracic clamp (TT-XCL) has been passed into the transverse sinus while visualizing both the right (RPA) and main pulmonary arteries (MPA) as well as the left atrial appendage. In this photograph, the clamp has been rotated counterclockwise away from the superior vena cava (SVC) to demonstrate the transverse sinus anatomy. CP, Cardioplegia catheter; Asc Aorta, ascending aorta; Rt. Atrium, right atrium. Photograph by the author, W.R.C.

A major advantage of the clamp is that application is easy and reproducible. As mentioned, endoballoon migration is possible, causing innominate artery obstruction. The clamp technique offers stable aortic occlusion with no potential for intraoperative migration, obviating the need for constant monitoring. In addition, because of stable aortic occlusion, bilateral radial artery pressure monitoring is not necessary. Lastly, in patients with small femoral arteries, introduction of the endoballoon through the central lumen of perfusion cannula can prevent adequate arterial inflow. In this circumstance, the contralateral femoral artery must be used to introduce the endoballoon. This is not a problem when using the clamp.

Transthoracic Aortic Clamp Versus Endoballoon Occlusion: Which is Better?

The goal for any mitral valve operation is to achieve a successful repair or replacement with minimal morbidity and mortality. Using either external aortic clamping or endoluminal occlusion, minimally invasive mitral valve surgery has been established as a safe and durable approach at experienced centers. More patients are being operated using minimally invasive methods. Recent American College of Cardiology/American Heart Association guidelines have expanded indications for mitral valve repairs in patients with asymptomatic severe mitral regurgitation and have preserved left ventricular function. This is if they have surgery at a center where there is a >95% chance of a repair with an expected operative mortality of <1%.²⁰

As mentioned, the development of the transthoracic clamp paralleled closely the emergence of the endoballoon occlusion device. In the early years, there was great skepticism regarding safety and long-term outcomes of any type of minimally invasive mitral valve surgery. However, over the past 2 decades, these operations have been proven to be safe and with comparable outcomes to sternotomy-based operations. Multiple individual center reports and meta-analyses have shown that both transthoracic clamp and endoballoon aortic occlusion have similar safety records with a low incidence of major morbidity and mortality.21, 22, 23, 24, 25 In addition, there appears to be only minor differences in operative clamp and bypass times between these devices. According to the Society of Thoracic Surgeons (STS) Research Center, approximately 70% of minimally invasive mitral operations in the United States, whether robot-assisted or otherwise, are currently being done with the transthoracic crossclamp and 28% with the endoballoon (STS Research Center). Thus, the preponderance of evidence suggests that both approaches are equivalent in terms of complications, including strokes and mortality. Nevertheless, some reports have shown a slight tendency to have more retrograde dissections with the endoballoon technique.^13,22 The Cleveland Clinic group²⁶ and Murphy and colleagues,¹⁷ among others, have shown definitively that preoperative computed tomography scanning is important to reduce of strokes and possibly aortic dissections using either technique.

We believe that the transthoracic clamp offers many advantages over endoballoon aortic occlusion. External aortic clamping has been historically inherent in nearly all cardiac operations. Transthoracic clamp deployment is easily taught and adopted without a steep learning curve. When surgeons are beginning videoscopic or robot-assisted mitral valve surgery, it seems prudent to use the clamp. It is very difficult learn and apply 2 separate technology platforms at the same time. Economic considerations are important today. The price of each transthoracic crossclamp is $2000 and can be reused multiple times over many years compared with the endoballoon, costing an average of $5000.00 per operation. To put this in perspective, endoballoon costs for 100 operations would be $500,000.00.

Taking all the available evidence into consideration, the transthoracic clamp and endoballoon offer similar safety profiles in terms of major complications. There are advantages and disadvantages to each technique; however, we believe that the simplicity and economy of the transthoracic clamp makes usage superior to the endoballoon in the current era of minimally invasive mitral valve surgery.

Conflict of Interest Statement

Dr Chitwood is the inventor of the transthoracic aortic crossclamp and receives minor royalties. Dr Bates reported no conflicts of interest.
