Electrochemical determination of Saccharomyces cerevisiae sp using glassy carbon electrodes modified with oxidized multi-walled carbon nanotubes dispersed in water –Nafion®

Abstract

The electrochemical behavior of Saccharomyces cerevisiae sp was studied using a glassy carbon electrode (GCE) modified with Nafion-dispersed oxidized multi-walled carbon nanotubes (OMWCNT). The morphology was studied using scanning electron microscopy (SEM), showing that the yeast sticks to the carbon nanotube surface instead of the glassy carbon surface. The redox couple Fe(CN)₆⁴⁻/Fe(CN)₆³⁻ was used to determine the electroactive area and the heterogeneous transfer constant, which increased 80.5% and 108% respectively by the presence of nanotubes. The studies of the pH effect showed that the anodic potential decreases at alkaline pH and that the highest current intensity occurs at a pH value of 7.00. Studies of the scan rate effect have shown that yeast oxidation is an irreversible mixed control process in which two electrons participate. The relationship between yeast concentration and the anodic current density was studied using different electrochemical techniques obtaining the best analytical parameters through chronoamperometry. The linear range was between 3.36 and 6.52 g L⁻¹, the limit of detection (LOD) and the limit of quantification (LOQ) were 0.98 g L⁻¹ and 3.36 g L⁻¹ respectively, and the sensibility obtained was 0.086 μA L g⁻¹ mm⁻². These results show that the multi-walled carbon nanotubes in water and Nafion® allow obtaining an anodic signal corresponding to the yeast, which facilitates its quantification through electrochemical methodologies, favoring the reduction of analysis times and costs compared with other techniques.

Graphical abstract

Highlights

• •Saccharomyces cerevisiae participate in different bioprocesses, and your determination is necessary.
• •The electroanalytical techniques can help for the rapid and inexpensive determination of S. cerevisiae.
• •The affinity of the carbon nanotubes with yeast facilitates their electrochemical determination.

1. Introduction

Yeast is a unicellular eukaryote belonging to the Fungi kingdom. Yeast reproduced by budding can be classified into Basidiomycetes (Filobasidiella, Rhodotorula) and Ascomycetes (Saccharomyces, Candida). They also have structural characteristics similar to the eukaryotes of plants and animals. There are more than 1500 species of yeast, 80% of which have biotechnological applications. Saccharomyces cerevisiae is a yeast best known precisely for its wide use in different bioprocesses. Saccharomyces cerevisiae belongs to the Ascomycetes family. It has an ellipsoid shape with an external diameter of 5–10 mm. This microorganism is attractive in biotechnology and the food industry since it is not pathogenic, resists high concentrations of ethanol, butanol, and is the most studied eukaryotic cell, so it has served to understand the biology of this type of cell. Saccharomyces cerevisiae has many applications, much of them enhanced by the development of genetic and metabolic engineering (Hartwell, 1974; Legras et al., 2007; Shen et al., 2021; Turker, 2014; Zhong et al., 2021).

The new area in which the behavior of this yeast is a study object is electrochemistry. The electrochemical tools applied to the study of S. cerevisiae range from its use as a biological recognition element or as a test microorganism for evaluating the interaction of different materials with biological systems to the study of cellular inhibitors and the development of methodologies for its detection through electrochemical techniques (D. Wang et al., 2003). Likewise, several works have tried to understand the cell-electrode interaction.

One of the most extended uses of S. cerevisiae in electrochemistry is in the design of electrochemical biosensors. For example, Barlíková et al. (1991) developed a biosensor with S. cerevisiae and glucose oxidase for detecting sucrose, the linear range reached 13 × 10⁻³ mol L⁻¹. Filipović et al. (Filipović et al., 2002) developed a cyanide biosensor in fruit spirits using S. cerevisiae. The results were compared by ISE – potentiometry, finding an average recovery of 97.8 ± 6.8%. Campanella et al. (Campanella et al., 1996) developed biosensors with immobilized yeast for toxicity studies of organic compounds or drugs in aqueous environmental matrices. Lehmann et al. (Lehmann et al., 2000) developed a biosensor with immobilized S. cerevisiae cells on a capillary to quantify Cu²⁺ ions in a range between 0.5 and 2 mM CuSO₄. Garjonyte et al. (Garjonyte et al., 2006) applied layers of yeast on a carbon paste electrode for developing a biosensor for lactic acid determination in milk and dairy products. The linear range was up to 1 mM. Akylmaz et al. (Akyilmaz et al., 2007) used S. cerevisiae to design a biosensor for L-lysine determination. The linear range was between 1 and 10 μM.

Other researchers link electrochemistry with yeast. Corton et al. (Corton et al., 2001) found a direct electrochemical methodology for identifying microbial species, between them, S. cerevisiae, using a gold working electrode and CV directly on cell culture samples without pretreatment. Zhao et al. (Zhao et al., 2008) used platinum microelectrodes for studying the inhibition of S. cerevisiae by acetic acid. Posseckardt et al. (Posseckardt et al., 2018) developed a methodology for the viability of cell quantification by electrochemical impedance microscopy using platinum screen-printing electrodes (SPE), finding an increment of the measurements in living cells. Valiūnienė et al. (Valiūnienė et al., 2020) developed a methodology for differentiating active and inactive cells of S. cerevisiae by electrochemical impedance microscopy. The charge transfer resistance of active cells was 1.5 times lower than inactivated yeast cells.

Regarding the electrochemical behavior of yeast, we can highlight the researches of Matsunaga et al. (T Matsunaga et al., 1979; Matsunaga and Namba, 1984). The electroactive character of S. cerevisiae was studied using a graphite electrode. The microorganism was irreversibly oxidized between 0.75 V–0.80 V (versus SCE Reference electrode). The authors suggested that oxidation involves two electrons and that the reaction is possible due to the coenzyme A bound to the internal part of the cell wall. Ci, YX et al. (Ci et al., 1997) used graphite electrodes and the cyclic voltammetry technique to show that the relationship between the peak current and the time of fermentation of yeast is similar to the cell growth curve. Han et al. (2000) studied the yeast behavior on glassy carbon electrodes (GCE) modified with tetracycline. The authors agreed with Matsunaga et al. that two electrons are involved in the oxidation reaction, but they attribute it to the cytochrome oxidase. Recently, Villalonga et al. (Villalonga et al., 2019) determined the total content of Brettanomyces bruxellensis and S. cerevisiae in wine, using graphite SPE modified with superparamagnetic Fe₃O₄ @ SiO₂ core-shell nanoparticles.

Hubenova et al. (Rawson et al., 2012) had investigated the interaction electrode - cell. They determined that there is a direct exchange of electrons from the yeast to the electrode. The electrode cannot make direct contact with redox centers of the yeast then the authors have proposed that the electrochemical signal can be attributable to a soluble electroactive substance excreted from inside the cell or that is united to the external cell wall.

However, we do not know the interaction of the microorganism with carbonaceous nanomaterials, for example, carbon nanotubes, or if a direct response on electrodes modified with these materials is possible. We don't know if the scan rate or pH factors affect the yeast electrochemical response or the behavior of the microorganism with other electroanalytical techniques. In this sense, this work studies the electrochemical response of S. cerevisiae on OMWCNT and Nafion® as modifying agents of GCE without electrochemical mediators. We developed a determination methodology to evaluate the possibility of using such sensors for S. cerevisiae determination.

2. Materials and methods

2.1. Materials, chemicals, and culture media

The commercial Saccharomyces cerevisiae sp yeast strain used in this study was from a local store. Yeast suspensions at different concentrations were prepared from a stock suspension of 50 g L⁻¹. All suspensions were prepared in a phosphate buffer solution (PBS) pH 7.00 and incubated at 37 °C for 15 min. Phosphate-buffered saline (PBS) concentration was 0.01 mol L⁻¹ from monobasic sodium phosphate (NaH₂PO₄, Sigma) and dibasic sodium phosphate (Na₂HPO₄, Sigma); potassium chloride (KCl, Merck) 0.10 mol L⁻¹ was used as a supporting electrolyte. For pH modifications, we used phosphoric acid (H₃PO₄) 0.10 mol L⁻¹ or sodium hydroxide (NaOH, Sigma) 0.10 mol L⁻¹. Potassium hexacyanoferrate (III) trihydrate solution (K₃[Fe(CN)₆].3H₂O, Sigma), at a concentration of 1 × 10⁻³ mol L⁻¹ in KCl 0.10 mol L⁻¹ was used to evaluate the electroactive area, heterogeneous transfer constant, and general behavior of the electrode.

The electrochemical experiments were performed in a three-electrode cell using an AUTOLAB PGSTAT 101 potentiostat (Utrecht, the Netherlands) with NOVA 1.11 software. The working electrode was a glassy carbon electrode (GCE), the reference electrode was an Ag/AgCl/KCl (3.0 M), and the auxiliary electrode was a platinum wire (all purchased in CH Instruments Inc, Texas, USA). Commercial multi-walled carbon nanotubes (MWCNTs, Nano-Lab, Waltham, Massachusetts, USA) were oxidized in a microwave-assisted acid medium for 15 min according to the method proposed by Blandón et al. (Blandón-Naranjo et al., 2018). Sodium hydroxide (NaOH, Sigma) 2.0 mol L⁻¹ and Nafion® perfluorinated resin (Sigma-Aldrich, Missouri, USA) solution 5% weight in water were used as stabilizers and surface modifiers.

2.2. Glassy carbon electrode modification and characterization

1.5 mg of oxidized multi-walled carbon nanotubes were dispersed first in 50 μL of NaOH 2.0 mol L⁻¹, followed by vortex agitation. Then, 50 μL of Nafion was added and followed by vortex agitation. Finally, 900 μL of distilled water was added with vortex agitation and ultrasonic bath for 30 min. The oxidized nanotubes stabilized with Nafion were named OMWCNT-N.

The electrodes were polished for 3 min with 1.0, 0.3, and 0.05 μm alumina and rinsed with abundant distilled water before the measurements and modification of the GCE. Subsequently, the GCE was placed in ethanol and sonicated to remove adsorbed particles. Posteriorly the electrodes were cycled (20 scans) in PBS using CV at a scan rate of 100 mV s⁻¹ in a potential window of 0–1.0 V. Finally, 12 drops of 2.50 μL of the dispersion of the nanotubes were deposited upon the electrode's surface. The electrodes were dried at room temperature after each drop deposition and were cycled (CV, 20 scans) in PBS at a scan rate of 100 mV s⁻¹ in a potential window of 0–1.0 V.

Morphological and surface characterization of GCE, GCE/OMWCNT-N without and submerged in a 2.50 g L⁻¹ yeast concentration were performed by scanning electron microscopy (SEM) (thermionic) JEOL-JSM 6490LV equipped with a secondary electron detector (SEI) and backscatter (BES) using different augments. For the electrochemical characterization of the electrodes, cyclic voltammograms were recorded in potassium ferricyanide (K₃[Fe (CN)₆]) 1 × 10⁻³ mol L⁻¹ in 0.10 mol L⁻¹ KCl, at different scan rates (5, 20, 40, 80, 100, and 200 mV s¹), and both, the electroactive area and the heterogeneous transfer constant were calculated.

2.3. Electrochemical measurements and determination of yeast

The pH effect on the anodic potential and current density (current/electroactive area) of S. cerevisiae sp yeast was studied throughout an unifactorial experimental design, taking as a factor the pH with six levels (pH: 4.30, 4.94, 6.14, 7.08, 8.13, and 10.2). The peak potential and the anodic current were the response variables. The experimental unit was the dispersion of S. cerevisiae sp in PBS at a concentration of 5.56 g L⁻¹. The studies were carried out by CV, in a potential window of 0.0 V–1.0 V and a scan rate of 100 mV s⁻¹. The studies of scan rate effect had the same conditions except the scan rates used.

The yeast concentration effect was observed by different electroanalytical techniques. The studies by CV were carried out at a potential window of 0–1 volt (V), a scan rate of 100 mV s⁻¹. The measurements by square wave voltammetry (SWV) were in a range of 0.4–0.8 V, deposition time of 120 s, amplitude 70 mV, step 10 mV, and frequency of 50 Hz. Differential pulse voltammetry (DPV) measurements were in a potential window of 0–1 V, deposition time of 20 s, the amplitude of 20 mV. Chronoamperometry studies were at a potential of 0.85 V for 1200 s. Initially, the electrochemical cell contained PBS pH 7.00, and successive additions of 50 μL of the 50 g L⁻¹ yeast stock were made every 120 s.

The detection and quantification limits respectively were calculated as LD = (3 * SD Blank)/m and LQ = (10 * SD Blank)/m according to the methodology proposed by D. C. Harris (2007), where SD is the standard deviation of the blank, and m the slope of the calibration curve. Statistical analyses were performed using Statgraphics® Centurion XVI.

3. Results and discussion

3.1. Characterization of modified electrodes

Fig. 1A and Fig. 1D show SEM micrographs of glassy carbon electrode surface without modifying and modified with OMWCNT-N, respectively. Fig. 1D shows clusters of nanotubes that are distributed on the surface of the electrode, and the typical structure of the nanotubes can be observed.

Fig. 1.

SEM micrographs of (A) GCE before submerging in 2.5 g L⁻¹ yeast suspension (B) and (C) GCE after submerging in 2.5 g L⁻¹ yeast suspension at 2000x and 10000 respectively. (D) GCE/OMWCNT-N before submerging in 2.5 g L⁻¹ yeast suspension (E) and (F) GCE/OMWCNT-N after submerging in 2.5 g L⁻¹ yeast suspension at 2000x and 10000 respectively.

Micrographs of GCE (Fig. 1B and C) after submerged in a 2.50 g L⁻¹ yeast suspension show that the microorganism does not adhere to the glassy carbon surface. Attached to the surface, only can be observed the potassium chloride crystals, reactive used as supporting electrolyte.

Micrographs of the GCE/OMWCNT-N after submerged in the 2.50 g L⁻¹ yeast suspension show sites without covering, and others covered with carbon nanotubes in witch Saccharomyces cerevisiae sp cells are attached (Fig. 1E). An augment of the image (Fig. 1F) shows that the microorganism cells are attached to the carbon nanotubes instead of the glassy carbon surface. This phenomenon was present across the entire surface of the sensor. It indicates that the yeast has a higher affinity to the nanomaterial, and it has sense if we consider the low capability of absorption of the glassy carbon (Sharma, 2018).

Fig. 2 shows the cyclic voltammetry studies conducted in the K₃[Fe(CN)₆].₃H₂O solution as a redox reference system.

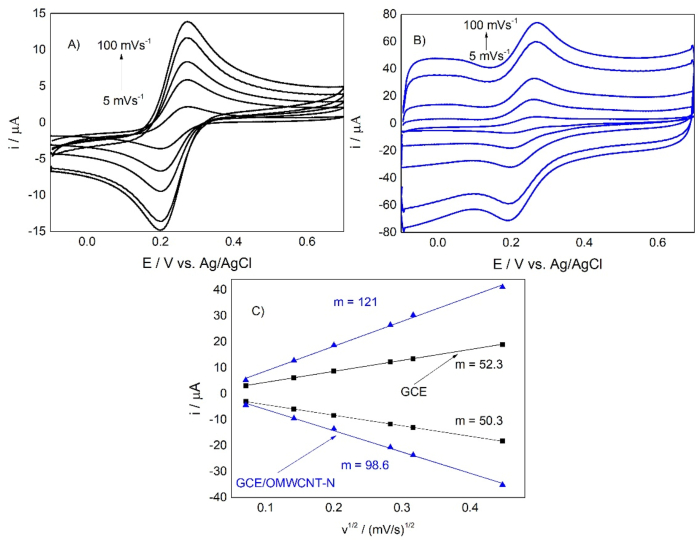

Fig. 2.

Comparison of CVs for the (A) GCE and (B) GCE/OMWCNT-N. (C) Graph of current vs. the square root of the scan rate (i vs v^1/2) for GCE (black rectangle) and GCE/OMWCNT-N (blue triangle). Cyclic voltammograms were obtained at different scan rates starting from 5, 20, 40, 80, and 100 mV s⁻¹. (For interpretation of the references to colour in this figure legend, the reader is referred to the Web version of this article.)

Fig. 2A and B shows that the presence of OMWCNT-N increases both the anodic and cathodic current peaks and that the difference between the oxidation and reduction of potential decreases, indicating a higher electron transfer rate. According to Cheng et al. (2008), these facts are related to the presence of the nanotubes, which increase the number of active sites on which the accumulation of the electroactive compound can occur, also increasing the heterogeneous transfer constant.

Fig. 2C shows the expected typical behavior of a diffusion-controlled system according to the Randles – Sevcik equation, with a linear relationship between the current and the square root of the scan rate. The electroactive area was determined using the slope of the graph of the peak current vs. the square root of the scan rate, considering the number of electrons (n) is equal to 1, the (K₃[Fe(CN)₆]) concentration 1 × 10⁻³ mol L⁻¹, and the diffusion coefficient (D) 7.60 × 10⁻⁶ cm² s⁻¹. The presence of the nanotubes increases the area up to 120.7% compared to the GCE unmodified. The reported results of Table 1 are adjusted to a normal distribution according to the Shapiro – Wilk test (p = 0.14). The Grubbs test shows that there are no atypical values at a 95% confidence level, indicating good reproducibility of the electroactive areas of the modified electrodes.

Table 1.

GCE and GCE/OMWCNT-N electrode parameters.

Electrode	EA (mm2)	k (x10−3 cm s−1)
GCE	8.20 ± 0.40	2.26 ± 0.92
GCE/OMWCNT-N	18.1 ± 1.00	2.82 ± 0.01

With the difference between the anodic and cathodic potentials obtained in the CV experiments, we calculated the heterogeneous transfer constant (⁰k), considering α = 0.5 (assuming that the ratio between the anodic and cathodic peak currents i_pa/i_pc is close to 1) according to the methodology proposed by Nicholson (1965). The heterogeneous transfer constant increased by 24.8% in the GCE/OMWCNT-N.

The increases in both the electroactive area and the heterogeneous transfer constant can be attributed to the characteristics of OMWCNT. The nanotubes improve the availability of active zones where the reaction can occur, and the charge transfer process will be accomplished (Kumar and Vicente-Beckett, 2012). Nafion® is also a conductive ion exchange membrane, chemically inert, with excellent thermal stability, biocompatible, which also favors charge transport and its polar side chains facilitate the enveloping and dispersion of nanotubes (Guo et al., 2011; Lian et al., 2011; Peng et al., 2017; Wang et al., 2003).

3.2. Electrochemical response of Saccharomyces cerevisiae on GCE/OMWCNT-N

3.2.1. Effect of pH

Fig. 3 shows the effect of pH on anodic potential and current density. Fig. 3A shows the incidence of pH on the peak potential. There is no reaction at pH values less than 3.01 (data not shown), but as the pH increases, the electrochemical reaction starts, and the peak potential decreases. This result agrees with Matsunaga and Namba (1984), in which a similar study was conducted but using an electrochemical mediator. The relationship between the peak potential and pH shows a linear trend with a Pearson correlation coefficient r of −0.98. Also, ANOVA analysis shows that the factor “pH” has a significant influence on the peak potential (p = 0.00). The results adjusted to a normal distribution, according to the Shapiro – Wilk test (p = 0.16). The slope of the equation (0.029) that relates the potential and pH suggests the intervention of protons (Gonçalves et al., 2021) and two electrons in the electrode processes (Gowda and Nandibewoor, 2013).

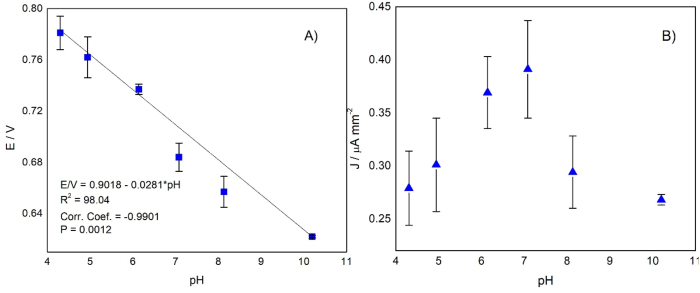

Fig. 3.

The effect of pH on (A) the anodic potential (B) on the current density of S. cerevisiae sp. All measurements were made in PBS 0.01 mol L⁻¹ with KCl 0.1 mol L⁻¹, at a scan rate of 100 mV s⁻¹.

Fig. 3B shows the behavior of the current density as a function of the pH. The figure shows that the current density increases at pH between 4.30 and 7.08 and decreases when the pH is above 7.08. However, according to an ANOVA analysis, pH has no significant influence on the current density (p = 0.66). The results adjusted to a normal distribution, according to the Shapiro – Wilk test (p = 0.15). The highest current density was at pH 7.08 then this value was chosen as the working pH for the studies of scan rates and concentration yeast effects.

The pH of the medium affects the gradient around the yeast's cell membrane, the ATPase activity, and the intracellular pH influencing energy generation and cellular growth (Carmelo et al., 1996; Orij et al., 2009). Orij et al. (2009) did find that external pH values between 7.00 and 7.20 do not affect the internal pH, but that an external pH higher than the internal (7.20) increases the latter, decreasing cell growth. Therefore, there is an affection for cellular metabolism. These facts explain the decline in the current density observed in Fig. 3B.

3.2.2. Effect of scan rate

The nanotubes modification effect was performed at 2.50 g L⁻¹ of yeast suspensions at 100 mV s⁻¹ on GCE/OMWCNT-N and GCE without modification. The voltammetric studies on 5.00 g L⁻¹ yeast suspensions served to analyze the scan rate effect. All measurements used a potential window between 0.0 V and 1.0 V and pH 7.00. The peak potential (E) vs. logarithm of the scan rate plot served to evaluate the irreversibility of the process. Graphs of current density vs. square root of the scan rate and vs. scan rate allowed verifying if the process was diffusion- or adsorption-controlled. Through the Laviron methodology, the number of electrons involved in the reaction was calculated (Laviron, 1979).

Fig. 4 shows the voltammetric behavior of Saccharomyces cerevisiae sp on GCE, GCE/OMWCNT-N, and at different scan rates.

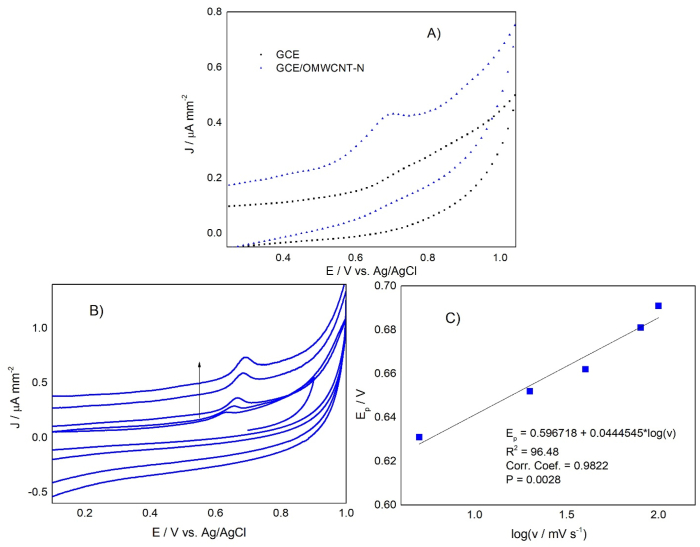

Fig. 4.

(A) Electrochemical response of yeast on GCE (black rectangle) and GCE/OMWCNT-N (blue triangle) at 100 mV s⁻¹ (B) Effect of the scan rate on the yeast anodic current at 5.0, 20, 40, 80, and 100 mV s⁻¹. (C) Anodic potential versus the logarithm of the scan rate. (For interpretation of the references to colour in this figure legend, the reader is referred to the Web version of this article.)

Fig. 4A shows an acute anodic peak, located approximately at 0.70 V, absent on GCE without modification, which is related to the high affinity of the microorganism for the nanotubes instead of the glassy carbon surface, a fact evidenced in the SEM images, and indicate that the yeast joins to the electrode through the nanotubes. The nanotubes facilitate direct electron transfer (Saifuddin et al., 2013), and it explains why, without nanotubes, the electrochemical response of yeast is not observable. The process is irreversible since a peak in the cathodic sense was not observed in the potential window studied. This last fact agrees with Matsunaga & Namba's (Matsunaga and Namba, 1984) study.

Fig. 4B indicates a dependence of the current intensity and the peak potential with the scan rate. When the scan rate increases, the current intensity increases, and the potential moves toward more positive values. This phenomenon is common in quasi–reversible and irreversible processes whose kinetics reaction is slow, and the equilibria are not reached rapidly, compared to the voltage of the scan rate. So the current takes more time to respond to the applied voltage, and the potential of the maximum current depends on the scan rate (Sandford et al., 2019). Further, Hulbert and Shain (Hulbert and Shain, 1970) explained that the dependence of the potential with the scan rate is due to the quick arrival of electroactive species to the electrode surface. It causes repulsion between them, and the number of electroactive species increases, requiring more energy for its reaction. Fig. 4C shows a linear relationship between the peak potential and the logarithm of the scan rate (R² = 96.5). That behavior corresponds to an electrochemical reaction of the EC type (electrochemical reaction followed by an irreversible chemical reaction) (Chandra et al., 2008; Gowda and Nandibewoor, 2013). This behavior is similar to the adenine amino acid present in the structure of the CoA on multi-walled carbon nanotubes – ionic liquid composite film modified carbon paste electrode presented by Arvand et al. (2012). The yeast behavior is also similar to the electrochemical response of tryptophan amino acid. Ufnalska et al. (2020) proposed that the electrochemical signal of yeast is due to tryptophan residues presented in peptides involved in yeast reproduction. Other authors also showed the relationship between cell growth in fermentation processes and tryptophan (Álvarez-Fernández et al., 2019; Dei Cas et al., 2021; Fernández-Cruz et al., 2017).

As the process is irreversible, the Ep can be expressed according to Laviron's expression (1), from which the product between the electronic transfer coefficient (α) and the number of electrons participating in the process (n) can be calculated (Buddanavar and Nandibewoor, 2015).

$${\mathit{E}}_{\mathit{p}}={\mathit{E}}^0+\left(\frac{2.303\mathit{RT}}{\mathit{\alpha }\mathit{nF}}\right)\cdot \mathit{log}\left(\frac{\mathit{RT}{\mathit{k}}^0}{\mathit{\alpha }\mathit{nF}}\right)+\left(\frac{2.303\mathit{RT}}{\mathit{\alpha }\mathit{nF}}\right)\cdot \mathit{log}\left(\mathit{v}\right)$$ (1)

where α is the electronic transfer coefficient, k⁰ the heterogeneous transfer constant of the reaction, n is the number of electrons transferred, ν the scan rate, E^o’ is the formal redox potential, T = 298 K, R = 8.314 J K⁻¹ mol⁻¹, and F = 96480 C mol⁻¹. Using these values in the expression E_p = (2.303RT/αnF) *log (ν), and considering the slope of Fig. 4C, the product αn was 1.33.

Alternatively, according to Laviron (Laviron, 1974, 1979), equation (2) expressed the peak width in an irreversible process.

$${\mathit{P}}_{\mathit{width}}=\left(\frac{62.5}{\left(1-\mathit{\alpha }\right)\mathit{n}}\right)\left[\mathit{mV}\right]$$ (2)

From equation (2), and using a peak width of 105 mV obtained from the cyclic voltammogram at a scan rate of 100 mV s⁻¹, we obtain that αn = n – 0.625 mV. Replacing the value for αn = 1.33 determined previously, we found that n = 1.93 ≈ 2 electrons. The same calculation was made for different scan rates in the range of 5.0 mV s⁻¹ to 100 mV s⁻¹, obtaining similar results (2.21, 2.21, 2.02, 2.04, and 1.93 electrons for 5, 20, 40, 80, and 100 mV s⁻¹ respectively). This result agrees with the report by Han et al. (2000).

Fig. 5 shows a linear relationship between the current vs. scan rate, the square root of the scan rate in the range between 5.0 mV s⁻¹ to 100 mV s⁻¹, and log(i) vs. log(v).

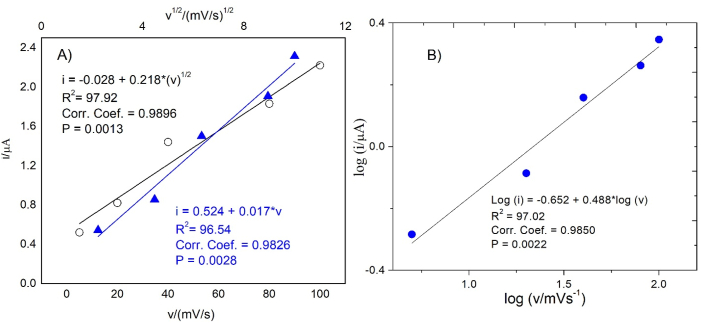

Fig. 5.

(A) Effect of the square root of the scan rate (white circles) and scan rate (blue triangles) in the anodic current of yeast S. cerevisiae sp. (B) log (i) vs. log (v). (For interpretation of the references to colour in this figure legend, the reader is referred to the Web version of this article.)

The linearity exhibited by the relationship between the current vs. the square root of scan rate and the slope (0.489) of the graph log (i) vs. log (v) indicates a diffusional control. The graph current vs. the scan rate is also linear, so the electrochemical response of S. cerevisiae can also be modeled by an adsorption-governed process. For this type of behavior, when there is no significant difference between both types of control, the process has a mixed control (Geng et al., 2016; Goyal et al., 2006). Matsunaga and Namba (1984) reported the diffusive component but didn't mention adsorptive effects. In this study, SEM micrographs of Fig. 1E and F, in which we can see incrusted cells yeast in the matrix of nanotubes, corroborated the adsorptive component.

3.3. Effect of concentration in the anodic current of Saccharomyces cerevisiae by different electroanalytical techniques

Fig. 6 shows the calibration curves of current density vs yeast concentration obtained through different electroanalytical techniques, using GCE/OMWCNT-N as the working electrode. The inserts in Fig. 6 present the electrochemical responses.

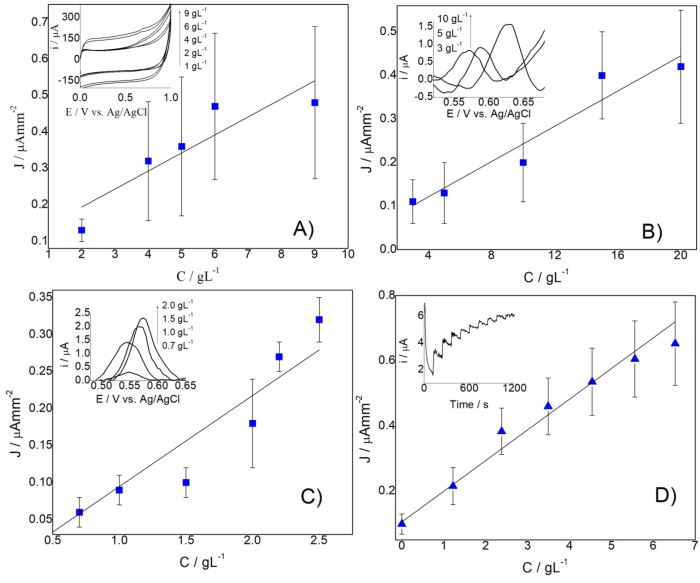

Fig. 6.

Calibration curves for Saccharomyces cerevisiae sp using the GCE/OMWCNT- N and different electroanalytical techniques (A) CV, (B) SWV, (C) DPV, and (D) Chronoamperometry.

Cyclic voltammetry (CV), square wave voltammetry (SWV), differential pulse voltammetry (DPV), and chronoamperometry analysis were made to identify the suitable electroanalytical technique for the determination of Saccharomyces cerevisiae sp. Table 2 shows the found analytical parameters.

Table 2.

Summary of analytical parameters.

Technique	Sensitivity/ $\frac{\left(\mu A\ast L\right)}{\left(g\ast m{m}^2\right)}$	LOD/(g L−1)	LOQ/(g L−1)	R	Linear range/(g L−1)
CV	0.05	1.82	6.06	0.90	6.06–9.00
SWV	0.02	2.03	6.75	0.97	6.75–15.0
DPV	0.12	0.15	0.49	0.95	0.49–2.50
CA	0.09	0.98	3.36	0.99	3.36–6.52

The curve obtained by CV (Fig. 6A) has high dispersion, high detection limit, the sensitivity is low, and there is no linear relationship (r « 0.95), thus the technique is inappropriate for electrochemical quantification. It is logical since the CV is a technique used for physicochemical studies instead of analytical purposes. Although the curve obtained by SWV (Fig. 6B) exhibited linearity, it has a lower sensitivity and higher LOD and LOQ compared to other techniques. SWV is not recommended for irreversible reactions (Mirceski et al., 2018) what explains these facts. Fig. 6C corresponds to curves obtained by DPV presenting good sensitivity, LOD, and LOQ, but the linear relationship and the linear range are minor compared to the obtained by CA. CA (Fig. 6D) turned out the most suitable technique for the quantification of S. cerevisiae sp. The CA has higher reproducibility, higher linearity, acceptable analytical parameters, and the number of electrodes used is minor in relationship with the other techniques, a fact that reduces cost and analysis time.

4. Conclusions

Glassy carbon electrodes modified with OMWCNT-N dispersed in water and Nafion® promote the electrochemical oxidation of yeast Saccharomyces cerevisiae sp. The modification realized with the OMWCNT-N facilities both the electroactive area and heterogeneous transfer constant increase. The studies showed that the electrochemical anodic potential of Saccharomyces cerevisiae sp depends on pH. Furthermore, the irreversibility of the process was confirmed and is consistent with an Electrochemical-Chemical (EC)-type mechanism and a mixed control of diffusion-adsorption, in which two electrons participate. This work allowed us to establish that the Saccharomyces cerevisiae sp determination can be carried out through chronoamperometry, getting acceptable analytical parameters, and using the fewer electrodes possible.
