. 2021 Oct 13;12:143–152. doi: 10.1016/j.bioactmat.2021.10.012

Platinum–copper alloy nanoparticles armored with chloride ion transporter to promote electro-driven tumor inhibition

Tong Chen a, Gaorong Han a, Xiang Li a,b,∗
PMCID: PMC8897047  PMID: 35310378

Abstract

The induction of oxidative species, driven by oscillating electric field (E), has recently emerged as an effective approach for tumor inhibition, so-called electrodynamic therapy (EDT). While it offers a series of advantages attracting considerable attention, the fundamental mechanism and improvement strategies for EDT approach are being endeavored extensively with the aid of new material explorations. An interesting phenomenon observed in early studies is that the on-site concentration of chloride ion is highly favored for the induction of oxidative species and the efficacy of tumor inhibition. Following this discovery ignored previously, here for the first time, fine Pt/Cu alloy nanoparticles (PtCu3 NPs) are integrated with chloride ion transporter (CIT) for EDT-based combinational therapy. In this system, while PtCu3 NPs induce oxidative species under an electric field, it also effectively transforms endogenous H2O2 into •OH and consumes intracellular glutathione (GSH). More importantly, with the aid of CIT, PtCu3-PEG@CIT NPs promote the intracellular concentration of chloride ion (Cl−) by transporting extracellular Cl−, facilitating the generation of oxidative species considerably. Meanwhile, CIT delivered intracellularly increases lysosomal pH, leading to the disruption of cellular autophagy and weakening the treatment resistance. In consequence, significant tumor inhibition is enabled both in vitro and in vivo, due to the combination of unique characteristics offered by PtCu3-PEG@CIT.

Keywords: Electrodynamic therapy, Chloride ion transporter, Alloy nanoparticles

Graphical abstract

For this first time, fine Pt/Cu alloy nanoparticles are synthesized and integrated with chloride ion transporter (CIT) for EDT-based combinational therapy. This new platform presents unique characteristics including the promoted induction of oxidative species under an electric field, GSH depletion and autophagy disruption, resulting in considerable tumor inhibition both in vitro and in vivo.

Image 1

Open in a new tab

Highlights

  • •

    PtCu3-PEG NPs present the effective ROS generation under electric field and CDT activity.

  • •PtCu3-PEG NPs could consume GSH, inhibiting ROS clearance to enhance EDT and CDT.

  • •PtCu3-PEG@CIT NPs promote intercellular chloride ion concentration, facilitating the ROS generation under electric field.

  • •CIT disrupts autophagy, weakening tumor cell resistance to ROS induced by PtCu3-PEG NPs.

1. Introduction

The induction of reactive oxidative species (ROS), driven by oscillating electric field, has recently emerged as an effective approach for tumor inhibition, namely electrodynamic therapy (EDT) [[1], [2], [3], [4]]. Noble metal nanoparticles such as Pt nanoparticles have attracted wide attention due to its unique optical, magnetic, catalytic and other properties [5,6]. EDT is enabled by the unique ROS generation of platinum nanoparticles under electric field [1]. Compared with other ROS-based treatment methods, EDT presents various distinct advantages, such as the feasibility in remote control by electric field, independence with H2O2 and O2, low side effects and so on. The proposed mechanism by simulation suggests that the H2O molecules and Cl− ions favorably absorb at the (111) surface of Pt. With the agitation of electric field, Faraday cage effect appears on Pt nanoparticles (Pt NPs). The H–O bond breaks in the presence of Cl− ions, and •OH with high cytotoxicity forms. This implies that Cl− ions play important roles in driving the water dissociation owing to the catalytic reactions of Pt nanoparticles. The promoted intracellular concentration of chloride ion may remarkably favor the ROS generation and thus the tumor inhibition during EDT.

In general, the intracellular concentration of chloride ion is 5–40 mM, lower than that outside cells (∼120 mM) [7]. Therefore, one potential strategy to increase the intracellular Cl− concentration is to transport Cl− from the outer to the inner cells utilizing chloride ion transporter (CIT) [8]. Prodigiosin is one of small-molecule natural anion transporters [9,10], which can recept and transport HCl [11]. The effectiveness of prodigiosin has inspired the development of diverse artificial transporters [12]. The most common chloride transporter is mono-squaramide [13], which can promote Cl− and Na+ influx into cells. In addition, lysosomal pH is also related to the chloride content [14]. When the lysosomal chloride content is maintained at 80 mM, the lysosomal pH remains under 5.0 [15]. The reduction of lysosomal chloride content can cause the increase of lysosomal pH, and thus the activity of lysosomal is disrupted, leading to autophagy disruption [15]. In principle, autophagy is a cell self-feeding process, which protects cell from various therapeutics [16]. Recently, autophagy has been extensively studied for tumor therapy and other medical purposes such as COVID-19 treatment [17]. Therefore, in addition to its favorable role in the ROS induction, the cellular influx of Cl− may also facilitate the tumor inhibition of EDT via the induction of autophagy disruption.

In addition to endeavoring to promote the on-site ROS induction, a common approach to facilitate cancer inhibition is to suppress the phenomenon of ROS scavenging by intracellular antioxidant system, i.e. glutathione (GSH) [18]. In fact, the depletion of GSH has been extensively adopted and combined with ROS-based therapies, and some strategies have been proposed. For instance, l-buthioninesulfoximine (BSO) can inhibit cellular GSH synthesis [19,20]. Meanwhile, the redox reactions based on metal ions, such as Mn4+ [21,22], Fe3+ [23,24], Cu2+ [25,26] and so on [27], have been utilized to convert the intracellular GSH to glutathione disulfde (GSSG) and to enable GSH depletion. Nonetheless, the integration of GSH depletion factors, such as drug molecules or metal oxides, at the surface of Pt nanoparticles can remarkably weaken the ROS induction and thus the EDT efficacy following the current knowledge for EDT phenomenon. A feasible approach to integrate the functionality of GSH depletion with current EDT agents, while maintaining its expected ROS induction, is of high demand, but remains challenging.

PtCu3 alloy nanoparticles have recently been reported as the platform for sonodynamic therapy (SDT) [28]. This ‘milestone’ study revealed that the underlying mechanism of SDT induced by PtCu3 nanoparticles is attributed to the oxidized Cu ions of PtCu3-PEG. However, here in our study, the similar PtCu3 nanoparticles, but with different functional mechanism and focus, was synthesized and combined with CIT molecules (PtCu3-PEG@CIT NPs) as a potential platform enabling CIT amplified EDT (Fig. 1). In this system, the cubic PtCu3 NPs modified with PEG (PtCu3-PEG NPs) not only generate ROS under the electric field, but also play multiple roles as a Fenton-like reaction agent that can catalyze H2O2 to •OH and an agent that depletes intracellular GSH. More importantly, CIT loaded and delivered by PtCu3-PEG@CIT NPs effectively increases intracellular chloride ion concentration and lysosomal pH, resulting in promoted ROS induction, clear autophagy disruption and the weakened therapeutic resistance of tumor cells. PtCu3-PEG@CIT NPs enable significant effect in tumor inhibition under the oscillating electric field. This study appears to offer a distinctive concept in enhancing the antitumor efficacy of EDT following the current mechanistic understanding of this technology in cancer therapy.

Fig. 1.

Fig. 1

Open in a new tab

Schematic illustration of functional characteristics of PtCu3-PEG@CIT nanoparticles for EDT-based combinational therapy with promoted efficacy.

2. Materials and methods

2.1. Chemical and reagents

Platinum acetylacetonate (Pt(acac)2), oleylamine (OAM), cetyltrimethyl ammonium bromide (CTAB), copper acetylacetonate (Cu(acac)2), N-2-hydroxyethylpiperazine-N′-2-ethanesulfonic acid (HEPES), zinc trifluoromethanesulfonate, N-Methyl-d-glucamine (NMDG) and d-glucose were obtained from Aladdin Industrial Co., Ltd. 3,4-Diethoxy-3-cyclobutene-1,2-dione were obtained from TCI Chemical Industry Co., Ltd. Methoxy polyethylene glycol mercapto (mPEG-SH, Mw = 5000), N,N-Dimethylformamide (DMF) and 4-(trifluoromethyl) aniline were obtained from Macklin Industrial Co., Ltd. Toluene, methanol, sodium chloride (NaCl), alcium chloride (CaCl2), magnesium chloride (MgCl2), potassium chloride (KCl) were obtained from Sinopharm Chemical Reagent Co., Ltd. Anti-rabbit LC3, anti-mouse p62 and mouse β-actin antibodies was obtained from Beyotime Biotechnology Co., Ltd. SBFI AM (Na+ Indicator), MQAE (Cl− indicator) were purchased from Sigma-Aldrich. Fluorescein-tetramethyl rhodamine-tagged dextran were obtained from Thermo Fisher Scientific Co., Ltd.

2.2. Synthesis PtCu3-PEG@CIT

PtCu3 NPs were synthesized by solvothermal process following the previous work with some improvement [29]. Briefly, 34.6 mg Cu(acac)2 and 10.35 mg Pt(acac)2 were put in 10 mL oleylamine. 175 mg CTAB was also put in 10 mL oleylamine. The CTAB solution was put into the above solution. Finally, the mix solution was transferred into reaction still and heated at 170 °C for 48 h. The PtCu3 NPs was dispersed in acetone and centrifugated. The obtained PtCu3 NPs were dispersed into 5 mL ethanol. Then, 50 μL HCl solution (10 M) were put into it. Then, reaction was sonicated for 0.5 h to remove oleylamine ligand on surface of PtCu3 NPs. Then, oleylamine-free PtCu3 NPs. were centrifugated and washed with acetone. 10 mg PtCu3 NPs and 100 mg mPEG-SH were dispersed in 10 mL water and magnetically stirred for 24 h. Finally, the PtCu3-PEG NPs were obtained by centrifugation.

CIT was synthesized following the method [13]. 0.5 g 3,4-Diethoxy-3-cyclobutene-1,2-dione and 210 mg zinc trifluoromethanesulfonate were dissolved in 19:1 toluene: DMF (5 mL). Next, 783 μL 4-(trifluoromethyl) aniline was put into above solution. The solution was heated overnight at 100 °C. After cooling, precipitates were filtered off and washed with methanol until filtrate appeared colorless. The resulting solid was dried in high vacuum for 24 h and CIT was obtained as a pale yellow solid.

Typically, PtCu3-PEG and CIT were stirred for 12 h (CIT/PtCu3 (w/w) = 0.8, 0.4, 0.2, 0.08, 0.04). Particularly, CIT was dissolve with DMSO, then diluted for 1000 times to add to the PtCu3-PEG solution. Subsequently, the PtCu3-PEG@CIT nanocomposite was centrifugated and washed to remove the unattached CIT. UV–vis spectroscopy was utilized to measure absorption spectra of PtCu3-PEG@CIT NPs with the characteristic peak at 360 nm. According to the standard curve, the CIT loading amount on the PtCu3-PEG NPs could be obtained. The loading capacity and the loading efficacy could be calculated by the following equation:

Loading capacity = (the quantity of CIT in PtCu3-PEG / the quantity of PtCu3-PEG) × 100%
Loading efficacy = (the quantity of CIT in PtCu3-PEG)/ the quantity of added-CIT) × 100%

2.3. Fenton reaction activity studies

3,3′,5,5′-Tetramethylbenzidine (TMB) was used to evaluate Fenton reaction activity of PtCu3-PEG NPs by the chromogenic reaction (λ = 652 nm). PBS (pH = 6) and 100 mM H2O2 was used. The steady-state kinetic catalytic activities of 100 μg/mL PtCu3-PEG NPs were investigated by measuring absorbance variation at 652 nm upon addition of varied H2O2 concentration (10, 20, 30, 40 mM).

2.4. Depletion of GSH

10 mg PtCu3-PEG NPs was put into 10 mL GSH solution (1 mM). After different times, 500 μL solution was taken out and centrifuged to remove PtCu3-PEG NPs. And the supernatant was diluted six times. Next, 50 μL 5, 5′-dithiobis-(2-nitrobenzoic acid) (DTNB) (10 mM) was added. The absorbance spectra of the above solution were investigated by UV–vis spectroscopy.

2.5. Electro-catalytic activity studies

A common ROS probe, methylene blue (MB) was utilized to investigate electro-catalytic properties of PtCu3-PEG NPs. 50 μL MB (1 mM) and different amount PtCu3-PEG NPs was put into 2 mL PBS. The experiment equipment and parameters of electric field were the same as our previous work [2]. After different times, 50 μL solution was taken out and diluted four times and UV–vis spectroscopy was used to investigate absorption spectra of MB. The MB degradations abilities of PtCu3-PEG NPs with different concentrations were studied. In addition, the MB degradation abilities of PtCu3-PEG NPs with different chloride ion (0.05, 0.1, 0.25, 0.5, 1, 2 M) were studied.

2.6. In vitro studies

All the cell viabilities were evaluated by CCK-8 assay after incubated for 24 h. 1 × 104 7702 cells were plated in 96-well plate for 12 h. Then, different concentrations of PtCu3-PEG NPs were added into cells.

4T1 breast tumor cells were used for the in vitro studies. For CDT treatment, medium (pH = 6) containing PtCu3-PEG NPs at varied concentrations of 3, 6, 12, 25, 50 μg/mL for PtCu3 containing 100 μM H2O2 were added into 4T1 cells. For EDT, 1 × 105 4T1 cells were seeded in 24-well plate and co-cultured with PtCu3-PEG NPs or PtCu3-PEG@CIT NPs at varied concentrations of 0, 3, 6, 12, 25, 50 μg/mL for PtCu3 and 0, 0.6, 1.2, 2.4, 5, 10 μM for CIT for 4 h. Then, electric field (square wave, 10 mHz, 5 mA) was imposed to the cells for 3 min. For combined treatment, PtCu3-PEG NPs at varied concentrations of 3, 6, 12, 25, 50 μg/mL for PtCu3 containing 100 μM H2O2 were co-cultured with cells for 4 h, and exposed to E (square wave, 10 mHz, 5 mA) for 3 min.

For CDT and CIT enhanced EDT, 4T1 cells were co-cultured with PtCu3-PEG@CIT at varied concentrations of 0, 3, 6, 12, 25, 50 μg/mL for PtCu3, and 0, 0.6, 1.2, 2.4, 5, 10 μM for CIT containing 100 μM of H2O2 for 4 h, followed by exposing to the same E for the same time.

2.7. Sodium and chloride depletion study

HEPES-buffered solutions were prepared with the following compositions: 10 mM HEPES (pH 7.4), 10 mM d-glucose, 1 mM CaCl2, 5 mM KCl, 120 mM NaCl, 1 mM MgCl2, 25 mM NaHCO3. To prepare Na+–free or Cl−–free HEPES-buffered solutions, Na+ or Cl− ions in buffer solutions were replaced with equimolar concentrations of respective NMDG.

4T1 Cells were co-cultured with 0–20 μM of CIT and PtCu3-PEG@CIT (0–100 μg/mL for PtCu3, 0–20 20 μM for CIT) in HEPES solutions, Na+–free or Cl−–free HEPES solutions.

2.8. Intracellular ROS generation

4T1 cells were applied to different operations including PBS, E (10 mHz, 5 mA, 3 min), PtCu3-PEG (50 μg/mL for PtCu3), PtCu3-PEG + H2O2 (100 μM), PtCu3-PEG + E, PtCu3-PEG@CIT + E (50 μg/mL for PtCu3, 10 μM for CIT), PtCu3-PEG + H2O2 + E and PtCu3-PEG@CIT + H2O2 + E and stained with 20 μM DCFH-DA and 1 μg/mL DAPI. The fluorescence images were obtained by fluorescence microscope.

2.9. Intracellular GSH content

The 4T1 cells were co-cultured with PtCu3-PEG NPs at varied concentrations. Then, 200 μL lysis buffer was put into cells. After 10 min, the cells were collected and centrifugated. 50 μL DTNB solution (0.4 mM) was added into the supernate. After 30 min, the microplate reader was utilized to investigate absorbance of mixture at 412 nm.

2.10. Measurement of intracellular Cl− concentrations

4T1 cells were co-cultured with PtCu3-PEG@CIT (100 μg/mL for PtCu3, 20 μM for CIT) for 0, 2, 4, 6 h or PtCu3-PEG@CIT at varied concentrations (0, 12, 25, 50, 100 μg/mL for PtCu3, 0, 2.4, 5, 10, 20 μM for CIT) for 6 h. Then, 10 mM MQAE was put into the cells and co-cultured for 30 min. The MQAE fluorescence was imaged by fluorescence microscope.

2.11. Measurement of intracellular Na + concentrations

4T1 cells were co-cultured with PtCu3-PEG@CIT (100 μg/mL for PtCu3, 20 μM for CIT) for 0, 2, 4, 6 h or PtCu3-PEG@CIT at varied concentrations (0, 12, 25, 50, 100 μg/mL for PtCu3, 0, 2.4, 5, 10, 20 μM for CIT) for 6 h. Then, 10 μM SBFI-AM containing 0.04% Pluronic F-127 was added into the cells and co-cultured for 30 min. The SBFI-AM fluorescence was imaged by a fluorescence microscope.

2.12. Western blot assay

The different samples were co-cultured with 4T1 cells for 4 h and exposed to square-wave AC treatment (10 mHz, 5 mA, 3 min). After 12 h, 200 μL lysis buffer was put into cells and the solution was centrifuged. Then, the SDS buffer was put into the supernatant and boiled for 5 min. Next, 12% SDS-PAGE was used to separate the samples. After transferring to the PVDF membrane, the samples were co-cultured with anti-LC3 and anti-Actin antibody overnight at 4 °C. Subsequently, the samples were co-cultured with a secondary antibody for 1 h. Finally, Bio-Rad chemoluminescence imaging system was used to measure the bands.

2.13. Measurement of lysosomal pH

4T1 cells were treated with 1 mg/mL of fluorescein tetramethylrhodamine-tagged dextran (average Mr, 70 K) for 12 h and then incubated with PBS, CIT (20 μM), PtCu3-PEG (100 μg/mL for PtCu3), PtCu3-PEG@CIT (100 μg/mL for PtCu3, 20 μM for CIT) in culture media. Then, the 4% formaldehyde was utilized to fix the cells. The cells were imaged by using fluorescence microscope. The excitation of fluorescein is 488 nm and the excitation of tetramethylrhodamine is 543 nm. Emission was collected in 500–550 nm bands for fluorescein and 590–700 nm bands for tetramethylrhodamine).

2.14. In vivo studies

Female BALB/c mice (4 weeks old, 16–18 g) were purchased from Shanghai Laboratory Animal Center, and were used in accordance with the protocols approved by Ethics Committee of Sir Run Shaw Hospital. 4T1 cells was injected to the mice, the examinations were carried out when the tumors reached ∼500 mm3. The animal experiments were grouped as follows: (1) control; (2) E; (3) CIT (0.8 mM, 100 μL); (4) PtCu3-PEG (4 mg/mL, 100 μL); (5) PtCu3-PEG@CIT (4 mg/mL for PtCu3, 0.8 mM for CIT, 100 μL); (6) PtCu3-PEG (4 mg/mL, 100 μL) + E (square wave, 10 mHz, 5 mA, 10 min); (7) PtCu3-PEG@CIT (4 mg/mL for PtCu3, 0.8 mM for CIT, 100 μL) + E (square wave, 10 mHz, 5 mA, 10 min).

2.15. Statistical analysis

The data were analyzed by Student's-tests with a setting significance of p < 0.05 (*), p < 0.01 (**) and p < 0.001 (***).

3. Results and discussion

PtCu3 nanoparticles were produced via a typical solvothermal method following the study reported previously [28], and modified with polyethylene glycol (PEG) before the loading of CIT molecules (PtCu3-PEG@CIT NPs) (Fig. 2a). Representative transmission electron microscopy (TEM) image indicates PtCu3 NPs show excellent dispersion with a size of ∼10 nm (Fig. 2b). The high-resolution TEM (HRTEM) image presents PtCu3 nanoparticles are highly crystallographic. The lattice spacings are 0.21 nm, 0.19 nm and 0.13 nm, respectively, agreeing well with the {111}, {200} and {220} facet of PtCu3 NPs (Fig. 2c, d and f). The examination using X-ray energy-dispersive spectrometer (EDS) confirms Pt and Cu elements appear in the PtCu3 nanoparticles, as expected (Figs. 2e and S1). After the surface modification with PEG, the hydrodynamic diameter of PtCu3-PEG is ∼91.3 nm (Fig. 2g), and the particles may remain stable in various media (water, PBS and RPMI-1640 cell culture medium) with similar hydrodynamic sizes (Fig. S2), and the PEG surface modification did not induce clear changes to the microstructure of the particles (Fig. S3).

Fig. 2.

Fig. 2

Open in a new tab

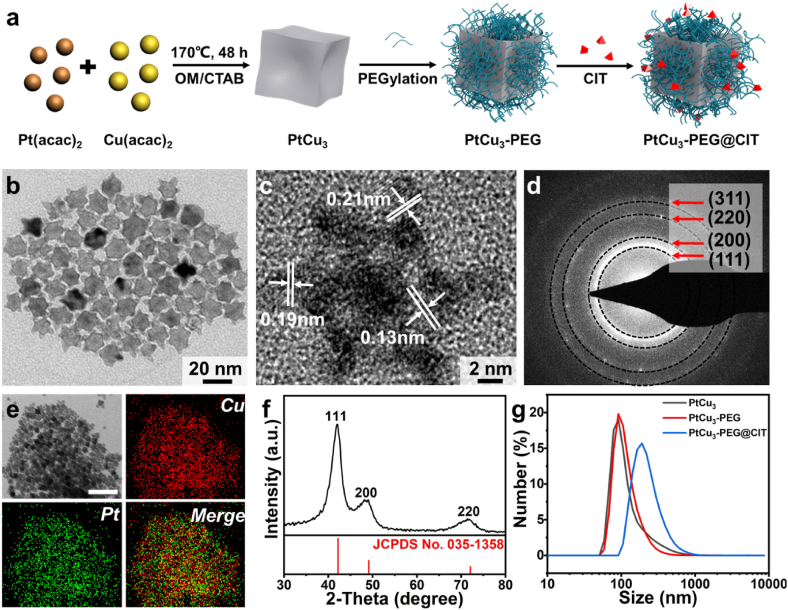

Formation and representation of PtCu3-PEG@CIT nanoparticles. (a) Schematic illustration of the synthetic process of PtCu3-PEG@CIT nanoparticles. (b) TEM image of PtCu3 nanoparticles. (c) HRTEM image of PtCu3 nanoparticles. (d) SAED image of PtCu3 NPs. (e) EDS mapping image of PtCu3 nanoparticles (scale bar = 50 nm). (f) XRD pattern of PtCu3 NPs. (g) Size of PtCu3, PtCu3-PEG and PtCu3-PEG@CIT NPs (in water) examined by DLS.

Subsequently, the assessment using TMB [30,31] was conducted to investigate the generation of •OH by PtCu3-PEG NPs. TMB transforms into the oxidized TMB under the action of •OH, showing characteristic absorption peaks at 652 nm. An apparent absorption peak was observed when adding PtCu3-PEG into TMB-H2O2 solution (pH = 6) (Fig. 3a). The absorbance of TMB at 652 nm was monitored in time-scan mode using UV–vis absorption spectroscopy in a reaction solution containing PtCu3-PEG, TMB and H2O2 with a varied concentration (10, 20, 30, 40 mM). The characteristic absorbance increases with elevated concentration of H2O2, indicating increased content of •OH generated (Fig. 3b). This phenomenon indicates that PtCu3-PEG NPs may serve as a Fenton-like agent for •OH induction in the acidic tumor microenvironment containing H2O2. However, glutathione (GSH) is highly expressed in tumor cells, suppressing the efficacy of ROS-based therapies. The functionality of PtCu3-PEG NPs in GSH depletion was explored by the assay using DTNB [32]. When PtCu3-PEG NPs were incubated with solution containing 1 mM GSH. The characteristic absorption at 412 nm decreased with the prolonged immersion time, indicating that PtCu3-PEG NPs may effectively consume GSH, as expected (Fig. 3c).

Fig. 3.

Fig. 3

Open in a new tab

Fenton reaction activity, electro-catalytic activity of PtCu3-PEG and fabrication of PtCu3-PEG@CIT. (a) UV–vis absorption spectrum of TMB as catalyzed by PtCu3-PEG NPs with 100 mM H2O2 under the reaction buffer (pH = 6). (b) UV–vis absorbance at 652 nm of TMB treated with PtCu3-PEG NPs at varied H2O2 concentrations (10, 20, 30, 40 × 10−3 M). (c) GSH depleting abilities of PtCu3-PEG NPs. (d) MB degradation properties by PtCu3-PEG NPs under E. (e) MB degradation properties by PtCu3-PEG NPs at varied concentrations under E (f) MB degradation properties by PtCu3-PEG NPs at varied chloride concentrations under E. (g) The zeta potential of PtCu3, PtCu3-PEG and PtCu3-PEG@CIT NPs. (h) The UV–vis absorption spectrum of PtCu3-PEG@CIT at varied mass ratios of PtCu3-PEG and CIT. (i) The loading capacity and loading efficiency of CIT on PtCu3-PEG NPs at different mass ratio of PtCu3-PEG and CIT.

To reveal the ROS induction of PtCu3-PEG NPs under electric field, methylene blue (MB) was used as a trapping agent of ROS [33,34] and investigated by UV–vis absorption spectroscopy. The electric field was applied by a set of device containing a signal generator and a power amplifier reported previously. An alternating electric field (0.1 mHz AC) was used to avoid the dramatic pH variation nearby electrodes. The absorption at 664 nm of MB of PtCu3-PEG NPs under E (10 mHz, 10 mA) showed the most intense decrease comparing to that of other sample groups (Figs. 3d and S4). With the increased concentration of PtCu3-PEG nanoparticles, the MB degradation accelerated (Figs. 3e and S5). The phenomena indicate PtCu3-PEG NPs can effectively induce ROS under the oscillating electric field. In addition, the MB degradation by nanoparticles was studied with the solutions containing different concentrations of chloride ion. The MB degradation was accelerated with the increase of chloride ion concentration (Figs. 3f and S6).

In addition, the raw material ratio of Pt(acac)2 and Cu(acac)2 was varied to synthesize PtCu and Pt3Cu nanoparticles, as comparison. The dispersibility and homogeneity of both PtCu and Pt3Cu particles are poor (Fig. S7). Although the properties of GSH depletion were not weakened, the Fenton reaction abilities of both samples are clearly weakened comparing to PtCu3 particles. More importantly, EDT ability of both samples are significantly quenched (Figs. S8–10).

To investigate the influence of the oxidation to the properties of nanoparticles, the Fenton reaction, GSH depletion and EDT abilities of the freshly synthesized nanoparticles and the synthesized nanoparticles exposed to air for 5 days were examined (Figs. S11–13). The Fenton reaction abilities of the PtCu3-PEG exposed to the air for 5 days are lower than the freshly synthesized PtCu3-PEG. However, the GSH depletion abilities of the PtCu3-PEG exposed to the air for 5 days were not weakened. In addition, the freshly synthesized PtCu3-PEG and PtCu3-PEG show the similar EDT abilities. Therefore, the oxidation of the nanoparticles can weaken the Fenton reaction abilities but not the GSH depletion and EDT abilities. It is best to use the PtCu3-PEG timely and avoided it exposed to the air for long time.

CIT, synthesized following the previous report [35], was verified by NMR spectra (Figs. S14–16). The zeta potentials of PtCu3, PtCu3-PEG and PtCu3-PEG@CIT NPs were measured to be −11.76 mV, −18.9 mV and −10.24 mV (Fig. 3g), implying that CIT was successfully loaded on PtCu3-PEG NPs via electrostatic interaction. As a result, the hydrodynamic diameter of PtCu3-PEG@CIT turned to be ∼190 nm (Fig. 2g). It is noteworthy that, after the loading of CIT, the microstructure of particles did not present visible variation (Fig. S17). To investigate the CIT loading efficacy, the loading procedure was carried out with different mass ratios of PtCu3-PEG and CIT (CIT/PtCu3 (w/w) = 0.8, 0.4, 0.2, 0.08 and 0.04). Notably, the absorption peak of CIT increased with the increased mass ratios of CIT and PtCu3-PEG (Fig. 3h). The standard curve of CIT was shown in Fig. S18. According to the UV–vis absorption spectra, the loading capacity and loading efficiency of CIT on PtCu3-PEG NPs were quantified (Fig. 3i). When the CIT/PtCu3 ratio was set at 0.2 (w/w), the CIT loading capacity and efficiency reached ∼8%wt and 45%, respectively.

In the in vitro assessment, normal human liver cells (7702 cells) were used to examine the cytotoxicity of as-prepared PtCu3-PEG NPs. No clear negative effect was observed (Fig. 4a). In addition, no clear negative effect was induced by PtCu3-PEG NPs to normal alpha mouse liver cells (AML-12 cells) (Fig. S19). The cell viability assay of 4T1 cells treated with H2O2 only, E only and H2O2 plus E group was examined, and no clear negative effects were observed (Fig. S20). When adding extra H2O2 (100 μM), a decreased viability of 4T1 cells appeared due to the induction of toxic •OH, and the acidic condition may further enhance the inhibition effect to cell viability (Fig. 4b, S21). It is noteworthy that, when the supply of electric field during the cell culture, the cell viability was further reduced, which can be attributed to the additional ROS production by EDT phenomenon.

Fig. 4.

Fig. 4

Open in a new tab

In vitro study. (a) 7702 cell viability after cultured with PtCu3-PEG. (b) 4T1 cell viability after cultured with PtCu3-PEG NPs with H2O2 and with or with electric field. (c) 4T1 cell viability after cultured with PtCu3-PEG and PtCu3-PEG@CIT under E. (d) 4T1 cell viability after cultured with PtCu3-PEG@CIT with H2O2 and E. (e) DCFH-DA fluorescence images to exhibit the intracellular ROS content under different condition (scale bar = 100 μm).

Subsequently, the in vitro antitumor properties of PtCu3-PEG particles before and after the integration of CIT molecules was examined and compared. 4T1 cells were co-cultured with PtCu3-PEG solutions at varied concentrations of 3, 6, 12, 25, 50 μg/mL, and exposed to the treatment of AC electric field (5 mA, 10 mHz) for 3 min. As shown in Fig. 4c, the cell viabilities decreased with the increased nanoparticles dose, as expected. With prolonged treatment of electric field (5 min), an enhanced suppression effect to 4T1 cells was observed (Fig. S22). After the integration of CIT(0–50 μg/mL for PtCu3 and 0–10 μM for CIT), a further reduction in cell viability occurred in the cell group using PtCu3-PEG@CIT, implying the favoring role of CIT played in EDT. In addition, the cell viability of 4T1 cells, treated with PtCu3-PEG@CIT (12 μg/mL for PtCu3) under electric field, reduced with the increase electric current and conduction time (Fig. S23). It was also observed that the addition of extra H2O2 or the increased content of CIT may increase cell damage under the same condition of applied electric field (Fig. 4d). The induction of intracellular ROS after cell culture with different operations was exhibited by DCFH-DA (Figs. 4e and S24). The sample groups after single treatments, PtCu3-PEG NPs, electric field (E) and H2O2, did not present visible fluorescence. The groups of PtCu3-PEG NPs plus H2O2, PtCu3-PEG NPs and PtCu3-PEG@CIT NPs under the electric field showed weak green fluorescence. In addition, cells cultured with PtCu3-PEG NPs plus H2O2 under the electric field and PtCu3-PEG@CIT NPs under the electric field presented the enhanced fluorescence. Notably, PtCu3-PEG@CIT NPs plus H2O2 under the electric field treatment induced the most intense green fluorescence in 4T1 cells, reflecting the highest content of ROS generated in this sample group.

To reveal the fundamental mechanism of the phenomena observed, the GSH levels in cells were investigated by DTNB. The intracellular GSH levels reduced remarkably with the increase of PtCu3-PEG content, indicating that PtCu3-PEG may effectively consume the intracellular GSH (Fig. 5a). In principle, GSH is one of antioxidant for ROS clearance to protect cells from the damage by ROS. Therefore, GSH depletion could increase the intracellular ROS and induce more agitated cell damage in the ROS-based therapeutic approaches.

Fig. 5.

Fig. 5

Open in a new tab

Mechanism of enhanced tumor therapy by PtCu3-PEG@CIT NPs. (a) Relative intracellular GSH in 4T1 cells at varied concentration of PtCu3-PEG NPs. (b) Intracellular chloride ion concentration of cells after incubated with PtCu3-PEG @CIT NPs for 0, 2, 4, 6 h using MQAE as probe (scale bar = 100 μm). (c) Intracellular sodium ion concentration of cells after incubated with PtCu3-PEG @CIT NPs for 0, 2, 4, 6 h using SBFI-AM as probe (scale bar = 100 μm). (d and e) Western blot graph (d) and the quantitative ratio (e) of LC3 II and p62 expression level to β-actin. (f and g) Western blot graph (f) and the quantitative ratio (g) of LC3 II and p62 expression level to β-actin. (h) Fluorescent images of cells pretreated with fluorescein-tetramethylrhodamine-tagged dextran and then cultured with PBS, CIT, PtCu3-PEG and PtCu3-PEG@CIT for 12 h (scale bar = 50 μm). (i) Schematic illustration of PtCu3-PEG@CIT NPs for CIT amplified EDT with GSH depletion. *p < 0.05, **p < 0.01 and ***p < 0.001 analyzed by student's t-test.

In addition, the Cl− levels in cells were examined by the Cl−-quenching fluorescent probe MQAE [36]. As shown in Fig. 5b, S25 and S26, the time- and concentration-dependent increase of intracellular Cl− levels were observed after the cell incubation with PtCu3-PEG@CIT. Meanwhile, the intracellular Na+ content was examined by the sodium fluorescent probe (SBFI-AM) [37]. The time- and concentration-dependent increase of intracellular Na+ levels occurred, well corresponding to the variation of intracellular Cl− content (Fig. 5c, S27 and S28). The findings indicate that CIT molecules function as a chloride ion transporter in conjunction with channel-mediated sodium cation co-transport. In addition, the intracellular Cl− and Na+ levels at different time points were quantified by Image J. The quantified fluorescence intensity of MQAE and SBFI-AM verifies the finding above (Fig. S29). In addition, 4T1 cells were incubated with CIT and PtCu3-PEG@CIT in HEPES-buffered solutions, Cl−-free solutions, or Na+-free solutions. The cell viability of CIT and PtCu3-PEG@CIT had no decrease in both the Cl−-free and Na+-free media (Figs. S30 and S31).

Autophagy is a cellular self-feeding process, protecting cells from cellular stresses and diverse therapeutics [38]. During the autophagy process, LC3 I protein on autophagosome membrane would convert to LC3 Ⅱ, and examination of p62 expression has been extensively used to evaluate autophagy [39,40]. Briefly, autophagy could increase LC3-II and suppressed p62. In this study, LC3 II protein and p62 protein expression levels were investigated by Western blot assay. It could be observed that LC3 II protein content was enhanced, and p62 protein was remarkably suppressed after co-cultured with PtCu3-PEG NPs under E(Fig. 5d and e). In addition, the LC3 levels of 4T1 cells after different treatments were examined by immunofluorescence (Fig. S32). Bright green fluorescence can only be observed in the groups of PtCu3-PEG under the electric field, rather than the groups of PtCu3-PEG or E. In addition, the autophagy levels of 4T1 cells with different treatments were also examined by autophagy detection kit (Dansylcadaverine, MDC), a type of eosinophilic stain that can stain the acidic vesicles including autophagosome within the cells (Fig. S33). In the groups of PtCu3-PEG plus E, the increased bright green regions were observed comparing to other groups. The findings indicate that the EDT process could also induce autophagy of tumor cells via the production and effect of ROS. This reflects that the EDT process could induce clear cellular autophagy. In addition, the LC3 II protein and p62 protein levels were investigated after cell incubation with CIT and PtCu3-PEG@CIT. Both cell groups presented higher expression of both LC3 II protein and p62 protein comparing to untreated cells (Ctrl) (Fig. 5f and g). The findings imply that the intracellular delivery of CIT molecules could disrupt autophagy behavior. However, LC3 I still converted to LC3 II, as the disrupted autophagy by CIT follows downstream pathway. In general, the autophagy process includes four steps, phagophore formation, autophagosome formation, autolysosome formation by fusion with lysosomes and degradation. LC3 I converted to LC3 II during autophagosome formation process. However, CIT may disrupt the function lysosome, after LC3 I converting to LC3 II, by varying the chloride ion concentration. Therefore, the LC3 II levels still increased even though CIT could disrupt autophagy. The 4T1 cells, pretreated with fluorescein-tetramethylrhodamine-tagged dextran (a lysosomal pH indicator) [41], were co-cultured with control, CIT, PtCu3-PEG and PtCu3-PEG@CIT (Fig. 5h). The fluorescein is dependent to pH, and it shows green fluorescence at a high pH. The tetramethylrhodamine is independent to pH, showing red fluorescence. Treatments with CIT and PtCu3-PEG@CIT lead to intense green fluorescence, indicating the increase of lysosomal pH. Therefore, it is clear that in this study CIT could disrupt autophagy by disrupting the function of lysosome.

Overall, in this study, PtCu3-PEG@CIT NPs may effectively induce ROS following both EDT and CDT processes. The intracellular GSH can be depleted by the particles, maintaining the high content of ROS produced. More importantly, the CIT integrated could increase intracellular chloride ion concentration, which in turn amplifies the ROS generation by the particles under the electric field. Meanwhile, the increased intracellular Cl− concentration leads to autophagy disruption by increasing the lysosomal pH, weakening the cellular resistance to ROS. Therefore, due to the combined characteristics offered by PtCu3-PEG@CIT NPs, the significant inhibition effect to tumor cells is enabled. (Fig. 5i).

In the in vivo biosafety assessment, mice bearing 4T1 tumors were intravenously (i.v.) injected with PtCu3-PEG@CIT NPs. The organs and tumor were harvested after 24 h. The accumulated amount of Pt in the tumors was 1.5% of the injection dose (Fig. S34), which is higher than a variety of nanoparticles reported previously (∼0.7%) [42]. This accumulation of Pt at the tumor site indicates the effective tumor accumulation of nanoparticles via EPR. Quantitative biodistribution data confirmed that PtCu3-PEG NPs could accumulate in tumors site after 24 h. In addition, the half-life time in the blood-circulation examination was ∼2.48 h (Fig. S35).

4T1 tumor-beared female Balb/c mice were utilized for the in vivo antitumoral examination, following the treatment protocol illustrated in Fig. 6a. The experimental groups included PBS (Ctrl) (Group 1), electric field only (E) (Group 2), CIT (Group 3), PtCu3-PEG NPs (Group 4), PtCu3-PEG@CIT NPs (Group 5), PtCu3-PEG NPs + E (Group 6) and PtCu3-PEG@CIT NPs + E (Group 7). The injected 100 μl PtCu3-PEG@CIT NPs contained 4 mg/mL for PtCu3 and 0.8 mM for CIT. The applied electric field (E) was maintained as set at a square-wave AC (5 mA, 10 mHz, 10 min).

Fig. 6.

Fig. 6

Open in a new tab

In vivo study. (a) Schematic illustration of treatment process in vivo. (b) Average body weights of mice after different treatments. (c) Normalized tumor volume of different groups compared to the initial tumor volume. (d) The tumor weights harvested at the end of experiment. (e) Microscopic H&E images. (f) Immunofluorescence TUNEL images. (g) Immunofluorescence Ki67 images of stained tumor slices of different groups. (*p < 0.05, **p < 0.01 and ***p < 0.001 analyzed by student's t-test).

The mice body weight presents no clear variations during treatments, indicating negligible system toxicity of nanoparticles (Fig. 6b). The tumor size was recorded every 2 days. The tumor volume was calculated by width2 × length/2 and normalized to the initial size (Fig. 6c). Compared to the Ctrl, E (Group 2) did not exhibit apparent suppression to tumors. The CIT alone (Group 3), PtCu3-PEG injection only (Group 4) as well as PtCu3-PEG@CIT injection only (Group 5) exhibited weak suppression to tumors. It is noteworthy that, comparing to the previous study using PtCu3 nanoparticles for CDT-enhanced sonodynamic therapy [16], the tumor suppression of PtCu3-PEG injection only was lower in this study, which may be attributed to larger initial tumor size (∼500 mm3). The tumor progress in PtCu3-PEG + E (Group 6) was partially suppressed. In addition, tumor progress in Group 7 presented the most significant tumor suppression in all groups. At the end of experiment, all the tumors were harvested and weighted (Fig. 6d). As expected, the tumor from Group 7 (PtCu3-PEG@CIT + E) were remarkably smaller than the other groups.

Additionally, hematoxylin and eosin (H&E) staining, TdT-mediated dUTP Nick-End Labeling (TUNEL) staining and immunohistochemistry Ki-67 staining of tumor section evidenced that tumor in Group 7 presented more intense apoptosis and reduced cell proliferation (Fig. 6e–g and S36). The blood routine indices of mice injected with PtCu3-PEG@CIT exhibited no significant changes compared to the control (Fig. S37), and no morphological variations in H&E staining images of different organs were observed (Fig. S38), implying the particles do not induce clear long-term toxicity.

The in vivo ROS content was examined by the DCFH-DA assay (Fig. S39). It was found that PtCu3-PEG, PtCu3-PEG@CIT and PtCu3-PEG + E could improve ROS levels, while the highest ROS level was induced in the group of PtCu3-PEG@CIT + E. In order to reveal the efficacy of CIT in tumor inhibition, the tumors of different treatment groups were collected at 24 h post treatment for the assessments of chloride ion concentration, lysosomal pH and LC3 levels staining (Fig. S40). It was found that tumors in Group 3, 5, 7 presented more cytosolic chloride concentrations, increased lysosomal pH and higher LC3 levels, reflecting the in vivo efficacy of CIT and PtCu3-PEG@CIT. The higher LC3 levels is attributed that CIT disrupts the autophagy by increasing the lysosomal pH, and thus inhibits the degradation of LC3 II.

In addition, the in vivo anti-tumor effect of Ctrl, CIT + E, PtCu3-PEG + CIT and PtCu3-PEG + CIT + E were investigated (Fig. S41). Compared to the Ctrl group, CIT + E and PtCu3-PEG + CIT did not exhibit clear suppression to tumors, while PtCu3-PEG + CIT + E presented the tendency to grow continually. However, PtCu3-PEG@CIT + E in Fig. 6c presents the most significant tumor suppression. Therefore, it turns out that PtCu3-PEG@CIT + E shows promoted tumor inhibition than PtCu3-PEG + CIT + E.

4. Conclusions

In this study, we have designed and constructed an electric-driven combinational therapeutic platform based on fine platinum-copper alloy nanoparticles integrated with CIT molecules (PtCu3-PEG@CIT NPs). The particles showed several unique characteristics: (a) intrinsic ROS generation properties as an electrosensitizer; (b) the induction of •OH at tumor microenvironment; (c) GSH depletion; (d) increased intracellular chloride ion concentration to promote electric-driven ROS generation; (e) lysosome disruption to suppress autophagy by increase lysosomal pH. Due to the effective integration of diverse functionalities, PtCu3-PEG@CIT NPs exhibit excellent anti-tumor property in vitro and in vivo, to tumors with relatively large initial sizes (∼500 mm3) under the oscillating electric field. This study appears to offer a distinctive concept in enhancing the antitumor efficacy of EDT following the current mechanism understanding of this technology in cancer treatment.
