Crystal structure of tris­(4,7-diphenyl-1,10-phenanthroline-κ² N,N′)cobalt(III) tris­(hexa­fluoro­phosphate) monohydrate

The title compound acts as a potential photosensitizer in photodynamic therapy against tumoral cells. It co-crystallizes with one solvent mol­ecule of water. In the crystal, inter­molecular π–π stacking inter­actions, C—H⋯π, C—H⋯F, and O—H⋯F and inter­actions are present.

Abstract

The title compound, [Co(C₇₂H₄₈N₆)](PF₆)₃·H₂O, crystallizes with one tripositive complex mol­ecule, three hexa­fluoro­phosphate anions and one solvent mol­ecule of water in the asymmetric unit. The N₆ coordination set around the central Co^III atom defines a distorted octa­hedral environment. Four fluorine atoms of one hexa­fluoro­phosphate anion are disordered over two sets of positions with site-occupancy factors of 0.697 (5) and 0.303 (5). In the crystal, inter­molecular π–π stacking inter­actions, C—H⋯π, C—H⋯F and O—H⋯F and inter­actions are present.

Chemical context

Over the years, metal complexes with polypyridyl ligands have been investigated as photosensitizers in photodynamic therapy (PDT) against cancer. Ru^II remains undoubtedly the most studied metal for this purpose due to its tunable photophysical properties (Caspar et al., 2006 ▸; Howerton et al., 2012 ▸; Heinemann et al., 2017 ▸; Monro et al., 2019 ▸; McFarland et al., 2020 ▸).

Inspired by the exciting results reported with Ru^II, we were motivated to develop new metal-based complexes with similar structures. Among the transition metals, cobalt is commonly known for its potential to coordinate with chelate ligands like amino-acid compounds (Otter & Hartshorn, 2004 ▸) and polypyridyl derivative ligands. The resulting compounds were used in different fields of research. A series of Co^III complexes based on substituted 3-(pyridine-2-yl)-triazine ligands (Wang et al., 2004 ▸), or bis­(1,10-phenanthroline), bis­(2,2′-bi­pyridine) and derivatized imidazole-phenanthroline ligands were developed (Nagababu et al., 2008 ▸). These compounds were found to cleave calf thymus DNA (Zhang et al., 2001 ▸).

Cobalt complexes are not only used for biological purposes. For example, a series of substituted polypyridine ligands, acting in a bidentate or tridentate manner, coordinating to Co^II were investigated as electron-transfer mediators in dye-sensitized solar cells (Sapp et al., 2002 ▸). Tris(2,2′-bipyrid­yl)-based ligands were also used to design redox stable Co^II/III complexes for redox flow batteries (Yang et al., 2018 ▸).

Encouraged by these results, our team aimed at developing new cobalt complexes. Here we report on the synthesis and crystal structure of [tris­(4,7-diphenyl-1,10-phenanthroline) cobalt(III)] tris (hexa­fluoro­phosphate) monohydrate, [Co^III(C₇₂H₄₈N₆)]³⁺(PF₆ ⁻)₃·H₂O.

Structural commentary

The shape of the cobalt complex in the title compound is pseudo­octa­hedral (Fig. 1 ▸). The cobalt(III) atom is coordinated by six nitro­gen atoms from three dip ligands (dip = 4,7-diphenyl-1,10-phenanthroline). The Co—N bond lengths are in the range 1.934 (3)–1.954 (3) Å (Table 1 ▸) and correlate well with literature values observed for Co^III species. Indeed, the average Co—N bond length is 2.128 Å in Co^I cations (three hits in the Cambridge Structural Database (CSD; Groom et al., 2016 ▸), 2.115 Å in Co^II cations (106 hits), and 1.952 Å in Co^III cations (28 hits) in reported Co(phen)₃ ⁿ⁺ (phen = phenanthroline) species. The bond angles between the axially bound ligand atoms are in the range 175.62 (13)–176.52 (13)° while the equatorial bond angles fall in the range 83.36 (12)–94.01 (13)°. The phenanthroline moieties (14 non-hydrogen atoms) of the dip ligands are almost planar according to the r.m.s. deviations calculated as 0.026 (N1^N2 moiety), 0.057 (N5^N6) and 0.106 (N3^N4) Å. As expected, the dihedral angles between the mean planes of the dip ligands are relatively close to 90° being 78.97 (5), 81.30 (4) and 86.09 (5)°. The phenyl rings substituting each phenanthroline ligand in para positions to the nitro­gen atoms exhibit an inter­mediate orientation (45–60°) relative to the mean plane of the phenanthroline ring. The dihedral angles between the mean planes are 65.91 (13) and 46.44 (13)° within the N1^N2 ligand, 50.37 (12) and 60.35 (14)° within the N3^N4 ligand, and 54.66 (14) and 42.35 (14)° within the N5^N6 ligand.

Figure 1.

The mol­ecular structure of the tris­(4,7-diphenyl-1,10-phenanthroline)cobalt(III) cation of the title compound with displacement ellipsoids drawn at the 30% probability level. Hydrogen atoms are omitted for clarity.

Table 1. Selected geometric parameters (Å, °).

Co1—N1	1.950 (3)	Co1—N4	1.942 (3)
Co1—N2	1.954 (3)	Co1—N5	1.941 (3)
Co1—N3	1.934 (3)	Co1—N6	1.940 (3)
Cg1⋯Cg2i	3.707 (3)
N1—Co1—N2	83.72 (13)	N5—Co1—N1	88.67 (13)
N3—Co1—N1	175.62 (13)	N5—Co1—N2	93.26 (12)
N3—Co1—N2	92.66 (13)	N5—Co1—N4	176.52 (13)
N3—Co1—N4	84.01 (13)	N6—Co1—N1	93.44 (13)
N3—Co1—N5	94.01 (13)	N6—Co1—N2	175.65 (13)
N3—Co1—N6	90.31 (13)	N6—Co1—N4	93.77 (13)
N4—Co1—N1	93.48 (13)	N6—Co1—N5	83.36 (12)
N4—Co1—N2	89.70 (13)

Symmetry code: (i) .

Supra­molecular features

In the crystal, the complex cationic species inter­act with each other through π–π stacking inter­actions, forming chains extending perpendicular to the the b axis [Cg1⋯Cg2(1 + x,  − y,  + z) centroid-to-centroid distance of 3.707 (3) Å with Cg1 being the centroid of atoms C19–C24 and Cg2 the centroid of atoms C67–C72; Fig. 2 ▸, Table 2 ▸] and C—H⋯π inter­actions, forming layers parallel to the bc plane (Fig. 3 ▸, Table 2 ▸). Weak C—H⋯F and classical O—H⋯F inter­molecular hydrogen bonds link the anionic hexa­fluoro­phosphate species (acceptors) to the tricationic mol­ecules and to the solvent water mol­ecules (donors). These inter­actions form chains along the a axis (Fig. 4 ▸). The most significant inter­actions for which C⋯F < 3.35 Å and C—H⋯F > 125°, and O⋯F < 3.00 Å and O–H⋯F > 125° are complied in Table 2 ▸.

Figure 2.

A view of the crystal packing showing π–π stacking inter­actions forming chains extending perpendicular to the b axis.

Table 2. Hydrogen-bond geometry (Å, °).

Cg1, Cg2, Cg3 and Cg4 are the centroids of atoms C19–C24, C67–C72, C37–C42 and N5/C49–C53, respectively.

D—H⋯A	D—H	H⋯A	D⋯A	D—H⋯A
C9—H9⋯F7ii	0.95	2.46	3.300 (5)	148
C10—H10⋯F9ii	0.95	2.33	3.173 (5)	148
C25—H25⋯F1	0.95	2.45	3.204 (5)	136
C42—H42⋯F15B iii	0.95	2.36	3.096 (7)	134
C48—H48⋯F7	0.95	2.39	3.328 (6)	172
C49—H49⋯F18A ii	0.95	2.13	2.850 (9)	132
C58—H58⋯F12	0.95	2.26	2.963 (5)	130
O1—H1A⋯F17A	0.87 (1)	2.25 (7)	2.965 (17)	139 (9)
O1—H1A⋯F17B	0.87 (1)	2.19 (8)	2.817 (10)	128 (8)
O1—H1B⋯F11	0.87 (1)	2.28 (7)	2.977 (7)	137 (8)
C17—H17⋯Cg3iv	0.95	2.80	3.525 (6)	134
C46—H46⋯Cg4iii	0.95	2.72	3.670 (6)	177
C63—H63⋯Cg5v	0.95	2.59	3.466 (5)	154

Symmetry codes: (ii) ; (iii) ; (iv) ; (v) .

Figure 3.

A view of the crystal packing along the a axis. The C—H⋯π hydrogen bonds are shown as dashed lines.

Figure 4.

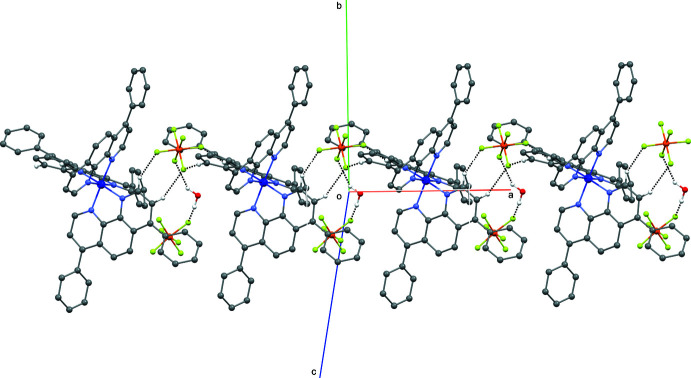

A view of the crystal packing showing C—H⋯F and O—H⋯F inter­molecular hydrogen bonds forming chains along the a axis. For clarity, only the major occupancy component of the disordered PF₆ ⁻ anion is shown.

Database survey

A search of the CSD (version 5.43, last updated November 2021; Groom et al., 2016 ▸) for similar M(dip)₃ ⁿ⁺ compounds gave three hits: two compounds with Ru^II as the central metal cation (n = 2; CSD refcodes LAKCIN: Alatrash & Macdonnell, 2020 ▸; DOWREM: Goldstein et al., 1986 ▸) and one compound with Ni^II (n = 2; refcode EYAHUI: Hadadzadeh et al., 2011 ▸).

Synthesis and crystallization

[Tris(4,7-diphenyl-1,10-phenanthroline)cobalt(III)] tris(hexa­fluoro­phosphate) was obtained following the proc­edure previously described (McLaurin et al., 2009 ▸). The experimental protocol used for the synthesis has two steps: Firstly, the synthesis of the [bis­(4,7-diphenyl-1,10-phenanthroline)cobalt(III) dichloride] chloride was carried out by the reaction of (4,7-diphenyl-1,10-phenanthroline) with cobalt(II) dichlor­ide in methanol at reflux. The obtained compound was oxidized with chlorine gas made in situ to convert Co^II to Co^III. Finally, the substitution of the dichloride group for the bidentate ligand (4,7-diphenyl-1,10-phenanthroline) was performed in ethyl­ene glycol at reflux. After cooling to room temperature, ammonium hexa­fluoro­phosphate was added to obtain a dark-brown precipitate. The final complex was then isolated by filtration, washed with water and diethyl ether and dried under vacuum. Slow diffusion between methanol and diethyl ether of the aceto­nitrile solution of the obtained powder gave orange needles of the title compound suitable for X-ray diffraction.

Refinement

Crystal data, data collection and structure refinement details are summarized in Table 3 ▸. The C—H hydrogen atoms were positioned geometrically with C—H = 0.95 Å and refined with U _iso(H) = 1.2U _eq(C). The O—H hydrogen atoms were located in a difference-Fourier map, but their positional and isotropic displacement parameters were restrained with the SHELXL DFIX command and with U _iso(H) = 1.5U _eq(O), respectively. Four fluorine atoms of one hexa­fluoro­phosphate anion (P3 as the central atom) are disordered over two sets of positions with refined site-occupancy factors of 0.697 (5) and 0.303 (5). The corresponding P—F bond lengths and F—P—F bond angles were restrained with the DFIX and DANG commands while the displacement parameters were restrained with the SIMU command.

Table 3. Experimental details.

Crystal data
Chemical formula	[Co(C24H16N2)3](PF6)3·H2O
M r	1509.02
Crystal system, space group	Monoclinic, P21/c
Temperature (K)	160
a, b, c (Å)	11.23448 (10), 25.0698 (2), 23.3956 (2)
β (°)	96.9903 (8)
V (Å3)	6540.29 (10)
Z	4
Radiation type	Cu Kα
μ (mm−1)	3.66
Crystal size (mm)	0.18 × 0.12 × 0.02
Data collection
Diffractometer	XtaLAB Synergy, Dualflex, Pilatus 200K
Absorption correction	Analytical [(CrysAlis PRO; Rigaku OD (2019 ▸) based on expressions derived by Clark & Reid, 1995 ▸]
T min, T max	0.595, 0.929
No. of measured, independent and observed [I > 2σ(I)] reflections	71503, 13335, 11500
R int	0.040
(sin θ/λ)max (Å−1)	0.625
Refinement
R[F 2 > 2σ(F 2)], wR(F 2), S	0.080, 0.243, 1.04
No. of reflections	13335
No. of parameters	953
No. of restraints	272
H-atom treatment	H atoms treated by a mixture of independent and constrained refinement
Δρmax, Δρmin (e Å−3)	1.88, −1.05

Computer programs: CrysAlis PRO (Rigaku OD, 2019 ▸), SHELXT (Sheldrick, 2015a ▸), SHELXL (Sheldrick, 2015b ▸), OLEX2 (Dolomanov et al., 2009 ▸) and publCIF (Westrip, 2010 ▸).

Supplementary Material

CCDC reference: 2149884

Additional supporting information: crystallographic information; 3D view; checkCIF report
