Echocardiographic left ventricular stroke work index: An integrated noninvasive measure of shock severity

Jacob C Jentzer; Brandon M Wiley; Nandan S Anavekar

doi:10.1371/journal.pone.0262053

. 2022 Mar 9;17(3):e0262053. doi: 10.1371/journal.pone.0262053

Echocardiographic left ventricular stroke work index: An integrated noninvasive measure of shock severity

Jacob C Jentzer ^1,^2,^*, Brandon M Wiley ¹, Nandan S Anavekar ¹

Editor: Daniel A Morris³

PMCID: PMC8906587 PMID: 35263333

Abstract

Background

Echocardiographic findings vary with shock severity, as defined by the Society for Cardiovascular Angiography and Intervention (SCAI) shock stage. Left ventricular stroke work index (LVSWI) measured by transthoracic echocardiography (TTE) can predict mortality in the cardiac intensive care unit (CICU). We sought to determine whether LVSWI could refine mortality risk stratification by the SCAI shock classification in the CICU.

Methods

We included consecutive CICU patients from 2007 to 2015 with TTE data available to calculate the LVSWI, specifically the mean arterial pressure, stroke volume index and medial mitral E/e’ ratio. In-hospital mortality as a function of LVSWI was evaluated across the SCAI shock stages using logistic regression, before and after multivariable adjustment.

Results

We included 3635 unique CICU patients, with a mean age of 68.1 ± 14.5 years (36.5% females); 61.1% of patients had an acute coronary syndrome. The LVSWI progressively decreased with increasing shock severity, as defined by increasing SCAI shock stage. A total of 203 (5.6%) patients died during hospitalization, with higher in-hospital mortality among patients with lower LVSWI (adjusted OR 0.66 per 10 J/m2 higher) or higher SCAI shock stage (adjusted OR 1.24 per each higher stage). A LVSWI <33 J/m2 was associated with higher adjusted in-hospital mortality, particularly among patients with shock (SCAI stages C, D and E).

Conclusions

The LVSWI by TTE noninvasively characterizes the severity of shock, including both systolic and diastolic parameters, and can identify low-risk and high-risk patients at each level of clinical shock severity.

Introduction

Cardiogenic shock is a leading cause of morbidity and mortality in the cardiac intensive care unit (CICU) [1–3]. The presentation of cardiogenic shock (CS) varies across a continuum of severity as defined by the Society for Cardiovascular Angiography and Intervention (SCAI) shock stages classification [4,5]. Clinical studies have consistently demonstrated an association between higher shock severity, as represented by increasing SCAI shock stage A (At risk) to E (Extremis), and higher mortality in patients with CS, as well as CICU patients [6–15]. Therefore, accurate classification of CS severity is imperative in order to guide therapeutic interventions and optimize clinical outcomes [5].

Impaired cardiac hemodynamics characterize the pathophysiology of CS, making accurate evaluation of these parameters fundamental to the clinical assessment of patients presenting with CS [16]. Abnormal cardiac hemodynamic indices, measured either invasively with a pulmonary artery catheter or noninvasively using Doppler echocardiography, are associated with mortality risk in CS patients and CICU patients [10,14,15,17–21]. While several derived hemodynamic parameters such as cardiac power output (CPO) have been proposed to predict outcomes and guide therapy in patients with CS, no established hemodynamic marker exists for quantifying the severity of myocardial impairment across the spectrum of shock severity [10,16,18–22].

The left ventricular stroke work index (LVSWI) is a beat-by-beat assessment of myocardial systolic and diastolic function that integrates systemic hemodynamics to produce a comprehensive measure of cardiac performance [17,23]. The LVSWI can be calculated using Doppler echocardiography (ECHO-LVSWI) based on the stroke volume index (SVI) and ratio of mitral valve E velocity to medial mitral annulus e’ velocity (E/e’ ratio, used to estimate left ventricular filling pressures), and has been found to be strongly associated with mortality in CICU patients [17,23]. In a prior analysis, we demonstrated that patients with a low SVI or high E/e’ ratio had higher in-hospital mortality across the SCAI shock stages, making it likely that ECHO-LVSWI would be associated with mortality as well [10]. The ECHO-LVSWI appeared to decrease as the SCAI shock stage increased, suggesting a strong correlation with shock severity that might implicate ECHO-LVSWI as an integrated marker of hemodynamic compromise combining both systolic and diastolic left ventricular function [10].

Given the equipoise that exists regarding the ideal cardiac hemodynamics indices for defining CS severity, we hypothesized that ECHO-LVSWI, as an integrated measurement reflecting overall myocardial performance, may better characterize CS severity when evaluated early during the clinical course. Therefore, we sought to evaluate the association of ECHO-LVSWI with in-hospital mortality across SCAI shock stages and to determine whether early assessment of this hemodynamic variable could augment risk-stratification.

Methods

Study population

This study was approved by the Institutional Review Board of Mayo Clinic as posing minimal risk to patients and was performed under a waiver of informed consent. We retrospectively analyzed the index CICU admission of consecutive unique adult patients aged ≥18 years admitted to the CICU at Mayo Clinic Hospital St. Mary’s Campus between January 1, 2007 and December 31, 2015 who had a transthoracic echocardiogram (TTE) performed within 1 day before or after CICU admission [3,6–11,24–28]. We excluded patients who did not have available data to calculate the ECHO-LVSWI (i.e. MAP, SVI and E/e’ ratio).

Data sources

We recorded demographic, vital sign, laboratory, clinical and outcome data, as well as procedures and therapies performed during the CICU and hospital stay [3,6–11,24–28]. The admission value of all vital signs, clinical measurements and laboratory values was defined as either the first value recorded after CICU admission or the value recorded closest to CICU admission. Admission diagnoses were defined as all International Classification of Diseases (ICD)-9 diagnostic codes within 1 day before or after CICU admission [3]. The Acute Physiology and Chronic Health Evaluation (APACHE)-III score, APACHE-IV predicted hospital mortality and Sequential Organ Failure Assessment score were automatically calculated with data from the first 24 hours of CICU admission using previously-validated electronic algorithms [3,24–26]. The Charlson Comorbidity Index and individual comorbidities were extracted from the medical record using a previously-validated electronic algorithm [3,6–11,17,24–28].

Echocardiographic data

The Mayo Clinic Echocardiography Database was queried and data extracted from the TTE performed closest to CICU admission, including vital signs at the time of TTE (S1 Table) [10,17]. One best LVEF value for each patient was determined using a hierarchical approach: volumetric LVEF calculated using Simpson’s biplane method was preferred, followed by monoplane volumetric approach, followed by linear methods and finally by visual estimation if these other methods were unavailable; the specific method used to measure the LVEF for each individual patient could not be determined [10,17]. We classified LVEF as mildly, moderately and severely reduced using gender-specific cut-offs as per current guidelines [29]. The mitral E/e’ ratio was used to estimate left ventricular end-diastolic pressure as LVEDP = 4.9 + 0.62 * mitral E/e’ ratio for calculation of ECHO-LVSWI using the formula ECHO-LVSWI = 0.0136 * stroke volume index (SVI) * (mean arterial pressure–LVEDP), as described by Choi, et al. (S2 Table) [17,23]. As per our prior study, we used the medial e’ velocity to calculate ECHO-LVSWI (Fig 1); ECHO-LVSWI values were very similar when using either the lateral e’ velocity or mean e’ velocity (Pearson r correlation coefficients >0.99) [17]. Among patients with data for both medial and septal e’ velocities, there were no significant differences between the AUC values for discrimination of in-hospital mortality with ECHO-LVSWI calculated using the medial (0.756), lateral (0.751) or mean (0.754) e’ velocities (all p >0.05 by De Long test; S1 Fig). Per Mayo Clinic Echocardiography Laboratory policy, mitral E velocities were not reported for patients with E-A fusion. Right atrial pressure was either recorded at the time of TTE (if measured invasively) or estimated based on inferior vena cava size and collapsibility [30].

Fig 1 — Calculation of the ECHO-LVSWI (left) and an example using TTE data from a patient with cardiogenic shock (right). The stroke volume index (SVI) is calculated using the left ventricular outflow tract (LVOT) velocity-time integral (VTI) by spectral Doppler, indexed to the body surface area. The LVEDP is estimated using the ratio of the peak mitral early diastolic (E) wave velocity by spectral Doppler to the peak mitral early diastolic (e’) wave velocity by tissue Doppler via the formula LVEDP = 4.9 + 0.62 * mitral E/e’ ratio [17,23]. We used the medial/septal mitral e’ velocity for this analysis, although our data suggest that either the lateral or mean e’ velocity could be substituted. The mean arterial pressure (MAP) was determined either invasively or noninvasively and estimated as (systolic blood pressure + 2 * diastolic blood pressure) / 3. We used the formula ECHO-LVSWI = 0.0136 * SVI * (MAP–LVEDP) [17,23].

Definition of SCAI shock stages

We defined hemodynamic instability (including the need for inotropes), hypoperfusion (including the need for vasopressors), deterioration and refractory shock using data from CICU admission through the first 24 hours in the CICU (S3 Table) [6–11]. We mapped the five SCAI shock stages with increasing severity (A through E) using combinations of these variables, using an algorithm based on our prior analyses (S4 Table) [4,6–11]. Due to the small number of included patients in SCAI shock stage E, we grouped patients with SCAI shock stages D and E together for this analysis [7,10].

Statistical analysis

In-hospital mortality was determined using electronic review of health records. Variables of interest were compared across the SCAI shock stages, and relevant analyses repeated in each SCAI shock stage. Categorical variables are reported as number (percentage) and the Pearson chi-squared test was used to compare groups; trends across the SCAI shock stages were determined using logistic regression. Continuous variables are reported as mean ± standard deviation and Student’s t test was used to compare groups; trends across the SCAI shock stages were determined using linear regression. Classification and regression tree (CART) analysis was used to identify 4 risk groups using ECHO-LVSWI and SCAI shock stage. Discrimination of in-hospital mortality was assessed using area under the receiver-operator characteristic curve (AUC) values, which were compared using the De Long test. Logistic regression was used to determine odds ratio (OR) and 95% confidence interval (CI) values for prediction of in-hospital mortality, before and after multivariable adjustment. Multivariable regression was performed using stepwise backward variable selection to minimize the value of the Akaike Information Criterion (AIC, a measure reflecting deviation from ideal model performance in the population). ECHO-LVSWI was analyzed as a continuous variable, dichotomized by the optimal cut-off, and according to prespecified categories. Candidate variables included demographics, comorbidities, admission diagnoses, severity of illness scores (including SCAI shock stage), LVEF and procedures and therapies. Statistical analyses were performed using JMP Pro version 14.1.0 (SAS Institute, Cary, NC).

Results

Study population

Out of a database of 10,004 unique CICU patients, we excluded 6,369 patients: 317 patients without an echocardiogram, 1,299 whose echocardiogram was not a TTE, 2,482 patients whose TTE was more than one day before or after CICU admission, and 2,271 patients whose TTE did not have data available to calculate the ECHO-LVSWI (Fig 2). The remaining 3,635 patients comprising the final study population had a mean age of 68.1 ± 14.5 years (36.5% females). Admission diagnoses included acute coronary syndrome in 61.1%, heart failure in 43.6%, cardiac arrest in 11.3%, cardiogenic shock in 9.4% and sepsis in 4.9%. The distribution of SCAI shock stages was: A, 50.8%; B, 27.9%; C, 15.6%; D, 5.3%; E, 0.4%.

Fig 2 — CICU, cardiac intensive care unit; LVSWI, left ventricular stroke work index; SCAI, Society for cardiovascular Angiography and Intervention; TTE, transthoracic echocardiogram.

Echocardiographic findings

TTE was performed on the day of CICU admission in 42.9%. The mean LVEF was 48.3 ± 15.6%, and 51.8% patients had at least mildly reduced LVEF. The mean SVI was 40.7 ± 10.9 ml/m2, the mean E/e’ ratio was 15.9 ± 9.1, and the mean MAP at the time of the TTE was 82.9 ± 14.0 mmHg. The mean ECHO-LVSWI was 37.9 ± 13.8 J/m2, with a distribution as follows (in J/m2): ≥50, 17.7%; 40–49, 23.2%; 30–39, 30.3%; 20–29, 20.1%; <20, 8.6%. Baseline characteristics varied substantially as a function of SCAI shock stage (Table 1), as did echocardiographic findings (Table 2). The ECHO-LVSWI decreased with increasing SCAI shock stage (Fig 3), with a distribution shifted toward lower values of ECHO-LVSWI (Fig 3); no patient in SCAI shock stage E had a LVSWI ≥40 J/m2.

Table 1. Baseline characteristics, comorbidities, admission diagnoses and therapies of patients according to SCAI shock stages.

Data reported as mean ± standard deviation for continuous variables and number (percent) for categorical variables. P value is for linear regression (continuous variables) or logistic regression (categorical variables) across SCAI shock stages.

Variable	Stage A (n = 1845)	Stage B (n = 1014)	Stage C (n = 567)	Stage D/E (n = 209)	P value
*Demographics and outcomes*
Age	67.6±14.2	67.3±15.0	71.2±14.4	68.7±14.1	<0.001
Female gender	579 (31.4%)	418 (41.2%)	234 (41.3%)	73 (34.9%)	<0.001
White race	1722 (93.3%)	939 (92.6%)	520 (91.7%)	192 (91.9%)	0.16
CICU length of stay	2.1±5.6	2.5±2.4	2.5±2.3	5.0±4.2	<0.001
Hospital length of stay	5.4±8.8	7.0±7.5	6.9±7.6	11.5±11.6	<0.001
CICU mortality	20 (1.1%)	27 (2.7%)	30 (5.3%)	54 (25.8%)	<0.001
Hospital mortality	41 (2.2%)	49 (4.8%)	48 (8.5%)	65 (31.1%)	<0.001
*Comorbidities*
Charlson Comorbidity Index	1.9±2.4	2.2±2.5	2.6±2.7	2.9±2.8	<0.001
History of MI	356 (19.3%)	197 (19.5%)	120 (21.2%)	43 (20.6%)	0.38
History of HF	207 (11.2%)	157 (15.5%)	88 (15.5%)	55 (26.3%)	<0.001
History of CKD	254 (13.8%)	166 (16.4%)	118 (20.8%)	55 (26.3%)	<0.001
Prior dialysis	41 (2.2%)	40 (3.9%)	52 (9.2%)	29 (13.9%)	<0.001
*Admission diagnoses*
ACS	1202 (66.2%)	564 (56.0%)	325 (58.2%)	103 (49.8%)	<0.001
HF	629 (34.6%)	511 (50.7%)	273 (48.9%)	153 (73.9%)	<0.001
Cardiac arrest	132 (7.3%)	110 (10.9)	80 (14.3%)	83 (40.1%)	<0.001
VF arrest	85 (4.7%)	69 (6.8%)	40 (7.2%)	41 (19.8%)	<0.001
Respiratory failure	191 (10.5%)	219 (21.8%)	114 (20.4%)	141 (68.1%)	<0.001
Sepsis	32 (1.8%)	63 (6.3%)	35 (6.3%)	47 (22.7%)	<0.001
*Therapies and procedures*
Any vasoactive infusions	164 (8.9%)	213 (21.0%)	55 (9.7%)	195 (93.3%)	<0.001
Vasopressors	139 (7.5%)	192 (18.9%)	48 (8.5%)	181 (86.6%)	<0.001
Inotropes	52 (2.8%)	61 (6.0%)	13 (2.3%)	62 (29.7%)	<0.001
# vasoactives	0.1±0.5	0.3±0.8	0.1±0.5	2.0±1.2	<0.001
Peak VIS	1.0±7.3	3.5±12.9	1.5±8.1	34.9±58.8	<0.001
Peak NEE (mcg/kg/min)	0.01±0.08	0.03±0.13	0.01±0.08	0.33±0.59	<0.001
Invasive ventilator	99 (5.4%)	138 (13.6%)	90 (15.9%)	135 (64.6%)	<0.001
Noninvasive ventilator	187 (10.1%)	171 (16.9%)	85 (15.0%)	66 (31.6%)	<0.001
Dialysis in CICU	26 (1.4%)	32 (3.2%)	16 (2.8%)	33 (15.8%)	<0.001
CRRT	1 (0.1%)	8 (0.8%)	5 (0.9%)	24 (11.5%)	<0.001
IABP in CICU	98 (5.3%)	116 (11.4%)	30 (5.3%)	57 (27.3%)	<0.001
PAC in CICU	38 (2.1%)	57 (5.6%)	12 (2.1%)	51 (24.4%)	<0.001
Coronary angiogram	1333 (72.2%)	632 (62.3%)	337 (59.4%)	117 (56.0%)	<0.001
PCI	955 (51.8%)	409 (40.3%)	194 (34.2%)	61 (29.2%)	<0.001
RBC transfusion	102 (5.5%)	110 (10.8%)	60 (10.6%)	70 (33.5%)	<0.001
In-hospital CPR	22 (1.2%)	21 (2.1%)	12 (2.1%)	27 (12.9%)	<0.001
*Severity of illness*
APACHE-III score	50.4±17.7	59.8±20.2	66.8±23.1	96.0±31.0	<0.001
APACHE-IV predicted death (%)	9.1±10.5	15.0±15.8	19.8±19.6	46.5±28.9	<0.001
Day 1 SOFA score	2.1±1.8	3.1±2.6	3.9±2.7	9.3±3.9	<0.001
Non-cardiovascular SOFA	1.1±1.6	1.9±2.3	2.9±2.6	6.5±3.3	<0.001
Non-cardiovascular organ failure	201 (10.9%)	212 (20.9%)	252 (44.4%)	168 (80.4%)	<0.001
SIRS on admission	293 (15.9%)	430 (42.4%)	231 (40.7%)	139 (66.5%)	<0.001
Admission Braden score	18.6±2.8	17.6±3.2	17.4±3.3	14.3±3.5	<0.001
CardShock score	1.6±1.1	1.7±1.2	2.5±1.5	3.5±1.7	<0.001

Open in a new tab

Abbreviations: ACS, acute coronary syndrome; APACHE, Acute Physiology and Chronic Health Evaluation; CICU, cardiac intensive care unit; CKD, chronic kidney disease; CPR, cardiopulmonary resuscitation; HF, heart failure; IABP, intra-aortic balloon pump; MI, myocardial infarction; NEE, norepinephrine-equivalent dose; PAC, pulmonary artery catheter; PCI, percutaneous coronary intervention; RBC, red blood cell; SOFA, Sequential Organ Failure Assessment; VIS, Vasoactive-Inotropic Score.

* Admission diagnoses are not mutually-exclusive and sum to greater than 100%.

Table 2. Echocardiographic findings of patients according to SCAI shock stages.

Variable	n with data	Stage A (n = 1845)	Stage B (n = 1014)	Stage C (n = 567)	Stage D/E (n = 209)	P value
*Vital signs at TTE*
TTE on day of admission	3635	780 (42.3%)	440 (43.4%)	241 (42.5%)	98 (46.9%)	0.34
Systolic BP (mmHg)	3635	122.5±20.3	114.2±20.8	117.6±21.1	105.0±19.6	<0.001
Diastolic BP (mmHg)	3635	67.1±12.8	64.5±14.6	63.9±13.8	59.0±13.4	<0.001
Mean BP (mmHg)	3635	85.6±13.0	81.0±14.6	81.8±13.8	74.3±13.5	<0.001
Pulse pressure (mmHg)	3635	55.4±18.8	49.8±18.2	53.7±19.6	46.0±17.2	<0.001
Heart rate (BPM)	3519	68.8±12.9	79.2±18.6	75 (16.6%)	79.9±19.0	<0.001
Shock index	3519	0.58±0.15	0.72±0.22	0.66±0.21	0.79±0.26	<0.001
Atrial fibrillation	3478	114 (6.5%)	159 (17.8%)	83 (14.3%)	48 (18.5%)	<0.001
*LV systolic function*
LVEDD	3492	51.2±7.2	51.7±8.0	50.9±7.9	52.7±10.1	0.09
LVESD	3023	35.9±8.7	38.3±10.6	36.8±10.1	41.0±12.7	<0.001
Fractional shortening (%)	3019	30.1±8.9	26.9±10.5	28.2±10.5	23.5±11.2	<0.001
LVEF (%)	3608	50.8±13.9	46.4±16.4	47.4±16.3	40.0±17.2	<0.001
LVSD by ASE criteria	3608	810 (45.2%)	531 (56.4%)	322 (54.0%)	206 (74.1%)	<0.001
Mild LVSD		356 (19.9%)	186 (19.8%)	112 (18.8%)	54 (19.4%)
Moderate LVSD		303 (16.9%)	174 (18.5%)	111 (18.6%)	71 (25.5%)
Severe LVSD		151 (8.4%)	171 (18.2%)	99 (16.6%)	81 (29.1%)
Wall motion score index	2432	1.7±0.4	1.8±0.5	1.8±0.5	2.0±0.5	<0.001
Lateral mitral s’ (cm/s)	2676	7.5±2.3	7.3±2.6	7.2±2.5	7.2±3.1	0.02
*Systemic hemodynamics*
LVOT peak velocity (m/s)	3632	1.0±0.2	1.0±0.2	1.0±02	1.0±0.2	<0.001
LVOT VTI (cm)	3635	21.2±4.5	19.3±5.1	19. 6±5.0	17.0±4.9	<0.001
SV (ml)	3635	85.4±21.4	76.0±23.3	76.3±23.0	66.6±22.3	<0.001
SVI (ml/m ² )	3635	43.1±9.8	38.9±11.5	39.7±11.1	34.0±11.1	<0.001
*LVSW (gmin)**	3635	83.6±28.4	68.4±26.7	69.3±27.6	52.6±23.4	<0.001
*LVSWI (gmin/m** ² )	3635	42.0±13.2	34.8±12.8	35.9±13.3	26.7±11.4	<0.001
*LVSWI <33 gmin/m** ²	3635	464 (25.2%)	517 (51.0%)	229 (40.4%)	163 (78.0%)	<0.001
MCF	3201	0.45±0.15	0.40±0.16	0.41±0.16	0.34±0.14	<0.001
CO (L/min)	3602	5.7±1.4	5.8±1.7	5.5±1.7	5.1±1.8	<0.001
CI (L/min/m ² )	3602	2.9±0.7	3.0±0.8	2.9±0.8	2.6±0.9	<0.001
CPO (W)	3602	1.1±0.3	1.0±0.4	1.0±0.4	0.8±0.3	<0.001
CPI (W/m ² )	3602	0.5±0.2	0.5±0.2	0.5±0.2	0.4±0.2	<0.001
*SVR (dynes/cm** ⁵ )	3275	1157±350	1072±568	1143±421	1107±476	0.04
*SVR index (dynes/cm** ⁵ *m ² )	3275	2260±657	2065±1122	2163±756	2158±940	0.001
*LV diastolic function*
Mitral E velocity (cm/s)	3635	0.8±0.3	0.9±0.3	0.9±0.3	0.8±0.3	<0.001
Mitral E/A ratio	3031	1.1±0.6	1.3±0.7	1.2±0.7	1.3±0.8	<0.001
Mitral e’ velocity (cm/s)	3635	6.1±2.2	6.2±2.4	5.7±2.3	5.1±2.1	<0.001
Mitral E/e’ ratio	3635	14.9±8.3	16.1±9.2	17.3±9.6	18.8±11.0	<0.001
Mitral E DT (ms)	3207	202.1±54.8	182.2±51.4	192.6±54.6	177,9±51.9	<0.001
*RV function*
Estimated RAP (mmHg)	3302	7.8±4.2	9.7±5.0	9.8±5.0	13.1±5.3	<0.001
Pressure-adjusted heart rate	3198	6.5±4.2	10.0±6.7	9.5±6.1	14.3±7.2	<0.001
Peak TR velocity (m/s)	2896	2.7±0.5	2.7±0.5	2.8±0.5	2.7±0.6	0.52
Estimated RVSP (mmHg)	2876	38.5±13.8	50.9±13.7	41.4±13.0	43.7±14.2	<0.001
Tricuspid s’ (cm/s)	2848	11.9±3.2	11.4±3.5	11.6±3.5	10.2±4.2	<0.001
Global RV dysfunction	2073	401 (41.3%)	305 (58.1%)	214 (59.4%)	169 (78.2%)	<0.001
Mild/mild-moderate		245 (25.2%)	160 (30.5%)	110 (30.6%)	68 (31.5%)
Moderate/severe		156 (16.05)	145 (27.6%)	104 (28.9%)	101 (46.8%)

Open in a new tab

Abbreviations: BP, blood pressure; CO, cardiac output; CI, cardiac index, CPO, cardiac power output; DT, deceleration time; LVEF, left ventricular ejection fraction; LVOT, left ventricular outflow tract; LVSW, left ventricular stroke work; LVSWI, left ventricular stroke work index; MCF, myocardial contraction fraction; RAP, right atrial pressure; RVSP, right ventricular systolic pressure; SV, stroke volume; SVI, stroke volume index; SVR, systemic vascular resistance; TR, tricuspid regurgitation; TTE, transthoracic echocardiogram; VTI, velocity-time integral.

Fig 3 — Mean ECHO-LVSWI (left) and distribution of ECHO-LVSWI (right) as a function of SCAI shock stage.

In-hospital mortality–unadjusted analyses

A total of 203 (5.6%) patients died during hospitalization. The ECHO-LVSWI was lower among inpatient deaths compared to hospital survivors (27.0 versus 38.6 J/m2, p <0.001). ECHO-LVSWI was strongly and inversely associated with in-hospital mortality (unadjusted OR 0.453 per 10 J/m2 higher ECHO-LVSWI, 95% CI 0.396–0.518, p <0.001). The optimal ECHO-LVSWI cut-off for prediction of in-hospital death was 33.0 J/m2, and patients with ECHO-LVSWI <33.0 J/m2 had higher in-hospital mortality (10.9% versus 2.3%, unadjusted OR 5.112, 95% CI 3.709–7.046, p <0.001), accounting for 73.9% of in-hospital deaths. The association between ECHO-LVSWI and in-hospital mortality was weaker for patients with a heart rate >90 beats/minute (unadjusted OR 0.585 per 10 J/m2 higher ECHO-LVSWI, 95% CI 0.442–0.776, AUC 0.645) compared with patients who had a slower heart rate (unadjusted OR 0.461 per 10 J/m2 higher ECHO-LVSWI, 95% CI 0.392–0.543, AUC 0.740). LVSWI had a higher AUC value (S2 Fig) than LVEF (AUC 0.662, p <0.001), cardiac index (AUC 0.604, p <0.001) and SVI (AUC 0.702, p = 0.06). When patients were grouped by quartiles of these variables, ECHO-LVSWI produced the greatest separation between high-risk and low-risk patients (S3 and S4 Figs and Table 3). At the optimal cut-off, LVSWI had the highest combined sensitivity and specificity (Table 4).

Table 3. Unadjusted odds ratio (OR) and 95% confidence interval values for quartiles of selected echocardiographic for prediction of in-hospital mortality using univariable logistic regression, with Quartile 4 as referent.

Median and interquartile range values defining the quartiles are as follows: ECHO LVSWI, 37.0 (21.0, 46.1) J/m2; CI, 2.8 (2.4, 3.3) L/min/m2; LVEF, 51 (36, 61) %; SVI, 41 (33, 47) ml/m2.

Quartile	LVEF	CI	SVI	LVSWI
1	3.91 (2.52–6.05)	2.62 (1.74–3.95)	7.21 (4.31–12.05)	15.83 (7.68–32.64)
2	1.99 (1.23–3.20)	1.12 (0.70–1.80)	3.48 (2.04–5.93)	6.97 (3.29–14.74)
3	1.17 (0.69–1.98)	1.25 (0.79–1.98)	2.04 (1.13–3.68)	3.84 (1.75–8.41)
4 (referent)	1.0	1.0	1.0	1.0

Open in a new tab

Table 4. Optimal cut-off (maximum value of Youden’s J index = sensitivity + specificity– 1) with the associated sensitivity, specificity and overall accuracy for selected echocardiographic variables for prediction of in-hospital mortality using univariable logistic regression.

Quartile	LVEF (%)	CI (L/min/m2)	SVI (ml/m2)	LVSWI (J/m2)
Optimal cut-off	45%	2.50 L/min/m2	36 ml/m2	33.0
Sensitivity	65.7%	48.2%	66.5%	73.9%
Specificity	60.6%	71.4%	67.2%	64.2%
Overall accuracy	60.9%	70.1%	67.2%	64.7%

Open in a new tab

In-hospital mortality increased with lower ECHO-LVSWI and higher SCAI shock stage (Fig 4), and patients with ECHO-LVSWI <33.0 J/m2 had higher in-hospital mortality in each SCAI shock stage (all p <0.05; Fig 4). Patients in each lower SCAI shock stage who had ECHO-LVSWI <33.0 J/m2 had similar in-hospital mortality as patients in the next higher SCAI shock stage with ECHO-LVSWI ≥33.0 J/m² (all p >0.1). Patients in SCAI shock stage D/E with ECHO-LVSWI <33.0 J/m² had the highest in-hospital mortality. ECHO-LVSWI was inversely associated with in-hospital mortality risk in each SCAI shock stage (Fig 5, all p <0.01). Echo-LVSWI alone had an AUC of 0.747 for discrimination of in-hospital mortality, which was equivalent to that for the SCAI shock stages (0.753, p = 0.78 by De Long test). The combination of ECHO-LVSWI and SCAI shock stage had an AUC of 0.803 for discrimination of in-hospital mortality, which was higher than either ECHO-LVSWI or SCAI shock stage alone (p <0.001). CART analysis separated patients into 4 risk groups based on ECHO-LVSWI (using the cut-off of 33.1 J/m²) and SCAI shock stage A/B/C versus D/E (Fig 6). In-hospital mortality increased from 2.0% among patients in SCAI shock stage A/B/C with ECHO-LVSWI ≥33.1 J/m² to 35.0% among patients in SCAI shock stage D/E with ECHO-LVSWI <33.1 J/m² (Fig 6).

Fig 5 — Forest plots showing unadjusted (left) and adjusted (right) odds ratio (OR) values for ECHO-LVSWI (per each 10 J/m² higher) overall and in each SCAI shock stage.

In-hospital mortality–multivariable analysis

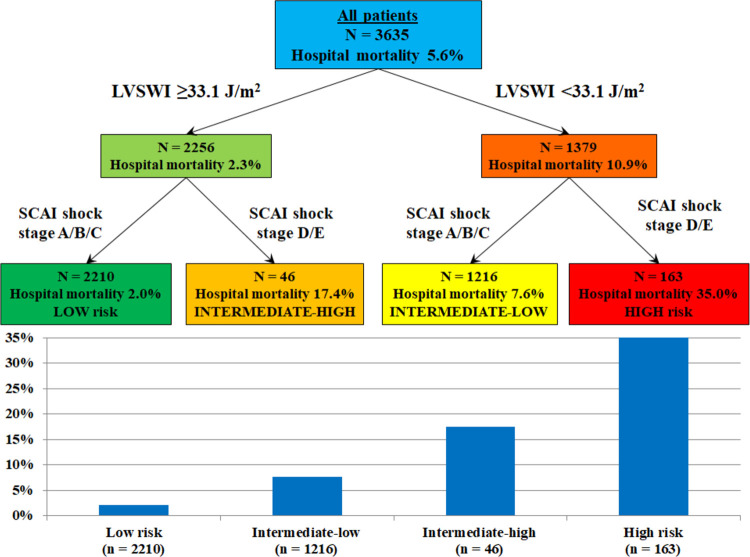

The final multivariable model had an AUC of 0.93 for discrimination of in-hospital mortality (Table 5). After adjustment, ECHO-LVSWI remained strongly and inversely associated with in-hospital mortality (adjusted OR 0.664 per 10 J/m2 higher ECHO-LVSWI, 95% CI 0.564–0.782, p <0.001); ECHO-LVSWI had the second highest log worth in the model, after cardiac arrest. Patients with ECHO-LVSWI <33.0 J/m2 had higher adjusted in-hospital mortality (adjusted OR 2.232, 95% CI 1.507–3.305, p <0.001). When compared with patients who had ECHO-LVSWI <20 J/m2, patients in each higher ECHO-LVSWI group had lower adjusted in-hospital mortality (all p <0.05). When compared with patients who had ECHO-LVSWI ≥50 J/m2, patients in each lower ECHO-LVSWI group had higher adjusted in-hospital mortality (all p <0.05). When multivariable regression was repeated separately for each SCAI shock stage, a higher ECHO-LVSWI was associated with lower in-hospital mortality in each SCAI shock stage (all p <0.05 except SCAI shock stage B, p = 0.13; Fig 5). Patients with ECHO-LVSWI <33.0 J/m2 had higher adjusted in-hospital mortality in SCAI shock stage C (p <0.001) and D/E (p <0.05), but not in SCAI shock stage A (p = 0.17) or B (p = 0.81).

Table 5. Predictors of in-hospital mortality using multivariable logistic regression with stepwise backward variable selection to minimize the AIC value.

Variable	Adjusted OR	95% CI	P value
Demographics & comorbidities
Age (per 10 years)	1.300	1.116–1.514	0.0008
Female sex	0.713	0.492–1.034	0.0741
Charlson Comorbidity Index (per point)	1.127	1.056–1.202	0.0003
History of diabetes mellitus	0.652	0.436–0.975	0.04
Year of admission (per year)	0.904	0.843–0.970	0.005
Admission diagnoses
Respiratory failure	2.525	1.661–3.836	<0.0001
Sepsis	2.106	1.294–3.429	0.0027
Severity of illness
APACHE score (per 10 points)	1.223	1.096–1.364	0.0003
Day 1 SOFA score (per point)	0.890	0.813–0.974	0.01
Admission Braden Skin Score (per point)	0.900	0.844–0.960	0.0013
Shock severity
SCAI shock stage (per stage)	1.243	1.024–1.508	0.03
Inodilators in first 24 hours	1.864	1.054–3.296	0.03
Procedures and therapies
Angiogram without PCI vs. no angiogram	0.726	0.473–1.112	0.14
PCI vs. no angiogram	0.424	0.267–0.673	0.0003
PCI vs. angiogram without PCI	0.583	0.348–0.980	0.04
pVAD or ECMO	6.021	1.621–22.365	0.0073
Dialysis	2.005	0.826–4.866	0.12
CRRT	3.272	1.001–10.698	0.05
Cardiac arrest
VF CA vs. no CA	3.036	1.795–5.135	<0.0001
Non-VF CA vs. no CA	6.878	4.112–11.505	<0.0001
VF CA vs. non-VF CA	2.266	1.246–4.121	0.007
IHCA	3.372	1.740–6.534	0.02
*LVSWI (per 10 J/m2)*	0.664	0.564–0.782	<0.0001

Open in a new tab

Data are displayed as adjusted odds ratio (OR) and 95% confidence interval (CI) values. The final model C-statistic value was 0.927 for discrimination of in-hospital mortality. Candidate variables which were not selected for the model included APACHE-IV predicted hospital mortality; race; invasive and noninvasive ventilator use; history of myocardial infarction, heart failure, chronic kidney disease, dialysis and stroke; peak VIS and NEE in first 24 hours; use of vasopressors in first 24 hours; IABP and PAC use; blood transfusion; CardShock score; LVEF; and admission diagnosis of heart failure or acute coronary syndrome.

Discussion

The ECHO-LVSWI is a noninvasive measure of cardiac function that integrates relevant systolic, diastolic and systemic parameters to quantify the degree of hemodynamic compromise in CICU patients with or at risk for CS. The ECHO-LVSWI assessed early in the clinical course is a powerful echocardiographic predictor of in-hospital mortality among CICU patients, even after adjusting for standard measures of shock severity and overall illness severity. The ECHO-LVSWI was inversely associated with in-hospital mortality risk, and patients at the extremes of ECHO-LVSWI (<20 J/m2 and ≥50 J/m2) had substantially different mortality than patients with intermediate values (with an optimal cut-off ~33 J/m2).

When evaluated with respect to the SCAI stages of shock, ECHO-LVSWI demonstrated clear incremental value for risk stratification. As expected, ECHO-LVSWI valves progressively declined as the severity of shock worsened from SCAI shock stage C to D to E, reflecting worsening myocardial performance and systemic hemodynamics. Calculation of LVSWI using the mean invasive hemodynamic values reported by Thayer, et al. likewise demonstrates a drop in LVSWI as SCAI shock stage increases, supporting the validity of this finding [14]. What is more notable is that our analysis demonstrated that within each SCAI shock stage, decreasing ECHO-LVSWI values were associated with higher in-hospital mortality. Patients clinically classified into less severe SCAI shock stages who had paradoxically low ECHO-LVSWI had in-hospital mortality similar to patients in the next higher SCAI shock stage who had preserved ECHO-LVSWI. This finding suggests that ECHO-LVSWI can reclassify patients into higher-risk and lower-risk subgroups within the SCAI shock stage schema. ECHO-LVSWI permits the identification of clinically relevant myocardial dysfunction that might escape detection by the clinical exam or basic echocardiography. Performed early in the CICU stay, ECHO-LVSWI functioned as well as the SCAI shock stages schema for discrimination of in-hospital mortality, and incrementally improved mortality risk-stratification by the SCAI shock stages. The incremental risk-stratification provided by ECHO-LVSWI on top of the SCAI shock stages strengthens the argument that noninvasive hemodynamics should be routinely incorporated into shock severity assessment. The performance of a limited transthoracic echocardiogram or point-of-care ultrasound without the integration of Doppler derived hemodynamics may be inadequate for optimal risk stratification for CICU patients with or at risk of CS.

This analysis must be contrasted with our recent studies to highlight its incremental value [10,17]. We previously examined several other echocardiographic variables in CICU patients across the SCAI shock stages, finding that a SVI <35 ml/m2 and a medial mitral E/e’ ratio >15 were independently associated with higher in-hospital mortality, while LVEF <40%, cardiac index <1.8 L/min/m2 and cardiac power output (CPO) were not [10]. Insofar as the ECHO-LVSWI is calculated using the SVI and mitral E/e’ ratio, the results of the present study demonstrating the predictive value of ECHO-LVSWI are not surprising. We have demonstrated that ECHO-LVSWI has higher discrimination for in-hospital mortality than LVEF, SVI and CI when analyzed as continuous variables, providing risk stratification by separating high-risk and low-risk CICU patients. While our prior study did demonstrate that ECHO-LVSWI decreased across the SCAI shock stages, the present study is the first to examine the association between ECHO-LVSWI and outcomes as a function of shock severity [10]. In a larger analysis of unselected CICU patients, we previously reported the strong inverse association between ECHO-LVSWI and in-hospital mortality; however, this prior study did not account for SCAI shock stage [17].

By integrating the concepts demonstrated in these prior analyses, this study expands on the utility of echocardiographic ECHO-LVSWI for mortality risk-stratification in CICU patients across the spectrum of shock severity. Indeed, the ECHO-LVSWI has the highest discrimination value for in-hospital mortality of any of the echocardiographic variables we have examined, and was a more important predictor of in-hospital mortality than SCAI shock stage on multivariable regression and CART analysis [10,17]. In-hospital mortality was low among patients with preserved ECHO-LVSWI, even in the presence of severe (SCAI stage D/E) shock. Likewise, patients with low ECHO-LVSWI (especially <20 J/m2) had high in-hospital mortality, even in the absence of hemodynamic instability or shock during the first 24 hours after CICU admission. Therefore, the ECHO-LVSWI provided incremental refinement of prognosis at each SCAI shock stage, allowing identification of higher-risk and lower-risk subgroups that might require different approaches to management. The measurement of ECHO-LVSWI by TTE may be used to enhance prognostication and facilitate care in CICU patients by assessing the underlying degree of hemodynamic compromise beyond clinical assessment alone.

The search for an optimal variable to define cardiac performance and hemodynamic compromise in CS is ongoing, with several candidate variables identified. Several authors have proposed the CPO, derived from the MAP and cardiac output, as the preferred hemodynamic parameter for both prognosticating and guiding clinical care in CS patients [18–22]. This is logical as the MAP and cardiac output are relevant determinants of organ perfusion which can be manipulated with therapeutic interventions. However, when measured noninvasively using echocardiography, CPO is not as strongly associated with mortality as beat-by-beat parameters such as SVI or ECHO-LVSWI; this could relate to the confounding effect of heart rate, which may compensate for low SV in some patients with circulatory failure and contribute to measurement error [10,17,31]. Recent multicenter analyses did not demonstrate substantial variation in invasively-measured CI or CPO across SCAI shock stage, and neither CI nor CPO was associated with mortality [14,15]. This suggests that, while it remains a logical target for titrating therapy in CS patients, CPO may not be the ideal hemodynamic parameter for predicting outcomes in this population.

ECHO-LVSWI may prove to be a superior non-invasive parameter because it integrates diastolic function assessment, providing deeper insights into overall myocardial function that translates into improved mortality risk stratification. Another echocardiographic measure of cardiac performance is the myocardial contraction fraction (MCF), which indexes the SV to the myocardial volume to quantify how efficiently the myocardium is pumping [32]. MCF has theoretical advantages over the LVEF as a measure of LV systolic function, and like ECHO-LVSWI the MCF uses forward SV to quantify cardiac function. No prior studies have examined MCF in the context of shock severity, and expectedly we observed a decrease in the MCF as SCAI shock stage increased. ECHO-LVSWI was a stronger echocardiographic predictor of in-hospital mortality than MCF in this cohort, presumably resulting from its added prognostic value resulting from inclusion of diastolic function (represented by the mitral E/e’ ratio) [17].

Limitations of ECHO-LVSWI

Controversy surrounds the ideal method to calculate the E/e’ ratio for estimation of left ventricular filling pressures, with different authors and guidelines using medial, lateral or mean e’ velocities in different settings [33–35]. Our institution has preferentially used the medial e’ velocity based on data showing superiority of the E/e’ ratio using the medial e’ for estimation of left ventricular filling pressures, and this is reflected in the data availability within our cohort [36]. However, using either the medial or lateral e’ appears to have limitations under certain circumstances, and the use of the average or mean e’ has been advocated [33–35]. In our analysis, we found that ECHO-LVSWI was minimally affected by using the medial, lateral, or mean e’ velocity to estimate LVEDP, suggesting that this variable is minimally affected by the methodology used to calculate it and either lateral or mean e’ velocity could be substituted. Furthermore, the presence of an elevated heart rate can produce fusion of the mitral E and A waves that poses a challenge to accurate assessment of the E/e’ ratio during stress, as is typical of patients with shock; notably, the ECHO-LVSWI had lower discrimination for patients with an elevated heart rate or greater shock severity [33,34].

We calculated ECHO-LVSWI automatically using data extracted from formal TTE reports in the medical record, as opposed to manual review of the primary TTE images. Calculating the ECHO-LVSWI by hand at bedside is time-consuming and prone to errors, including the potential for intra- and intra-observer variability, measurement inaccuracy and arithmetic errors during hand calculation. Accordingly, the time demand necessary to manually calculate the ECHO-LVSWI and the extent to which the inter- and intra-observer variability of manually calculated ECHO-LVSWI might influence its observed association with mortality remain uncertain. Therefore, it would be better to use an online calculator or ideally the ECHO-LVSWI could be calculated by the echocardiography imaging package or reporting software automatically. To facilitate use of ECHO-LVSWI, we have created an online calculator that can be used at the bedside (S1 File). Until automatic calculation of ECHO-LVSWI is incorporated into Doppler hemodynamic packages of bedside ultrasound machines or echocardiographic reporting software, we suggest that ECHO-LVSWI be calculated primarily using data obtained from a formal TTE to mitigate against these issues. Further research is necessary to determine when the potentially laborious calculation of ECHO-LVSWI is necessary, as opposed to the less-predictive but simpler SVI itself.

Limitations of this study

This retrospective observational analysis cannot be used to determine cause-and-effect relationships, and the presence of residual confounding cannot be excluded as a mediator of the association between ECHO-LVSWI and outcomes. Only a relative minority of the entire CICU population had a TTE within one day of CICU admission containing complete data to calculate the ECHO-LVSWI, leading to potential selection bias and a lower-risk cohort than in our prior studies [3,6–11,17,24–28]. While this is typical of retrospective echocardiographic studies in critical care settings, we could not determine whether patient characteristics could have influenced which echocardiographic images were obtained and the quality of the data leading to further bias [10,17]. Without invasive hemodynamic data, we cannot be assured that the TTE accurately estimated the ECHO-LVSWI; we could not exclude the presence of poor Doppler signal alignment or other issues that could have affected the accuracy of our TTE measurements. Finally, we could not determine was vasoactive drugs patients were receiving at the time of TTE, which could have influenced the observed ECHO-LVSWI and its association with outcomes.

Conclusions

ECHO-LVSWI was strongly and inversely associated with the risk of in-hospital mortality in CICU patients across the spectrum of cardiogenic shock severity, providing justification for its routine measurement in this population. At each SCAI shock stage, patients with a lower ECHO-LVSWI had higher in-hospital mortality, allowing ECHO-LVSWI to provide incremental risk stratification beyond the clinical assessment of shock severity. A lower ECHO-LVSWI identified high-risk patients in the group without overt shock, while a higher ECHO-LVSWI identified patients with hemodynamic instability or hypoperfusion who were at lower risk of adverse outcomes. Indeed, the presence of a low ECHO-LVSWI could reclassify patients at each SCAI shock into higher-risk subgroups with similar mortality to patients classified into a more severe SCAI shock stage. Our study emphasizes that hemodynamics (as assessed using Doppler TTE) can improve mortality risk stratification beyond the clinical definition of the SCAI shock stages. Future prospective studies are needed to better understand the association between ECHO-LVSWI and outcomes in CS patients, and to determine whether interventions designed to improve the ECHO-LVSWI will translate into lower mortality in CICU patients.

Supporting information

S1 Fig

Receiver-operator characteristic (ROC) curves demonstrating discrimination of in-hospital mortality by ECHO-LVSWI calculated using the medial (red), lateral (green) or mean (blue) e’ velocity to estimate LVDEP for patients (n = 2896) with available data for both medial and lateral e’ velocity. P values for comparison of AUC values were all >0.05 by De Long test.

(TIF)

Click here for additional data file.^{(547.7KB, tif)}

S2 Fig

Receiver-operator characteristic (ROC) curves demonstrating discrimination of in-hospital mortality by ECHO-LVSWI (red), cardiac index (CI, green), LVEF (blue) and stroke volume index (SVI, orange). ECHO-LVSWI had a higher AUC value by the De Long test when compared with CI (p <0.0001), LVEF (p = 0.0002), or SVI (p = 0.06).

(TIF)

Click here for additional data file.^{(702.2KB, tif)}

S3 Fig

Observed in-hospital mortality in patients grouped by quartiles of ECHO-LVSWI (red), CI (green), LVEF (blue) and SVI (orange). Median and interquartile range values defining the quartiles are as follows: ECHO LVSWI, 37.0 (21.0, 46.1) J/m2; CI, 2.8 (2.4, 3.3) L/min/m2; LVEF, 51 (36, 61) %; SVI, 41 (33, 47) ml/m2.

(TIF)

Click here for additional data file.^{(252.9KB, tif)}

S1 Table. Measured and derived echocardiographic variables of interest.

(DOCX)

Click here for additional data file.^{(27.2KB, docx)}

S2 Table. Formulas used to calculate echocardiographic hemodynamic parameters, using data from the time of the echocardiogram.

(DOCX)

Click here for additional data file.^{(27.8KB, docx)}

S3 Table. Study definitions of hypotension, tachycardia, hypoperfusion, deterioration and refractory shock, as defined by Jentzer, et al. J Am Coll Cardiol 2019.

(DOCX)

Click here for additional data file.^{(27.5KB, docx)}

S4 Table. Study definitions of Society for Cardiovascular Angiography and Intervention shock stages, as defined by Jentzer, et al. J Am Coll Cardiol 2019.

(DOCX)

Click here for additional data file.^{(27.1KB, docx)}

S1 File. Automatic ECHO-LVSWI calculator based on 2-D and Doppler echocardiographic measurements.

(XLSX)

Click here for additional data file.^{(13.7KB, xlsx)}

Data Availability

All relevant data are within the paper and its Supporting Information files.

Funding Statement

The author(s) received no specific funding for this work.

References

1.Jentzer JC, Ahmed AM, Vallabhajosyula S, Burstein B, Tabi M, Barsness GW, et al. Shock in the cardiac intensive care unit: Changes in epidemiology and prognosis over time. Am Heart J. 2021;232:94–104. doi: 10.1016/j.ahj.2020.10.054 [DOI] [PubMed] [Google Scholar]
2.Jentzer JC, van Diepen S, Barsness GW, Katz JN, Wiley BM, Bennett CE, et al. Changes in comorbidities, diagnoses, therapies and outcomes in a contemporary cardiac intensive care unit population. Am Heart J. 2019;215:12–19. doi: 10.1016/j.ahj.2019.05.012 [DOI] [PubMed] [Google Scholar]
3.Jentzer JC, van Diepen S, Murphree DH, Ismail AS, Keegan MT, Morrow DA, et al. Admission diagnosis and mortality risk prediction in a contemporary cardiac intensive care unit population. Am Heart J. 2020;224:57–64. doi: 10.1016/j.ahj.2020.02.018 [DOI] [PubMed] [Google Scholar]
4.Baran DA, Grines CL, Bailey S, Burkhoff D, Hall SA, Henry TD, et al. SCAI clinical expert consensus statement on the classification of cardiogenic shock: This document was endorsed by the American College of Cardiology (ACC), the American Heart Association (AHA), the Society of Critical Care Medicine (SCCM), and the Society of Thoracic Surgeons (STS) in April 2019. Catheter Cardiovasc Interv. 2019;94:29–37. doi: 10.1002/ccd.28329 [DOI] [PubMed] [Google Scholar]
5.Jentzer JC. Understanding Cardiogenic Shock Severity and Mortality Risk Assessment. Circ Heart Fail. 2020;13:e007568. doi: 10.1161/CIRCHEARTFAILURE.120.007568 [DOI] [PubMed] [Google Scholar]
6.Jentzer JC, van Diepen S, Barsness GW, Henry TD, Menon V, Rihal CS, et al. Cardiogenic Shock Classification to Predict Mortality in the Cardiac Intensive Care Unit. J Am Coll Cardiol. 2019;74:2117–2128. doi: 10.1016/j.jacc.2019.07.077 [DOI] [PubMed] [Google Scholar]
7.Jentzer JC, Baran DA, van Diepen S, Barsness GW, Henry TD, Naidu SS, et al. Admission Society for Cardiovascular Angiography and Intervention shock stage stratifies post-discharge mortality risk in cardiac intensive care unit patients. Am Heart J. 2020;219:37–46. doi: 10.1016/j.ahj.2019.10.012 [DOI] [PubMed] [Google Scholar]
8.Jentzer JC, Henry TD, Barsness GW, Menon V, Baran DA and Van Diepen S. Influence of cardiac arrest and SCAI shock stage on cardiac intensive care unit mortality. Catheter Cardiovasc Interv. 2020;96:1350–1359. doi: 10.1002/ccd.28854 [DOI] [PubMed] [Google Scholar]
9.Jentzer JC, Lawler PR, van Diepen S, Henry TD, Menon V, Baran DA, et al. Systemic Inflammatory Response Syndrome Is Associated With Increased Mortality Across the Spectrum of Shock Severity in Cardiac Intensive Care Patients. Circ Cardiovasc Qual Outcomes. 2020;13:e006956. doi: 10.1161/CIRCOUTCOMES.120.006956 [DOI] [PubMed] [Google Scholar]
10.Jentzer JC, Wiley BM, Anavekar NS, Pislaru SV, Mankad SV, Bennett CE, et al. Noninvasive Hemodynamic Assessment of Shock Severity and Mortality Risk Prediction in the Cardiac Intensive Care Unit. JACC Cardiovasc Imaging. 2020. doi: 10.1016/j.jcmg.2020.05.038 [DOI] [PubMed] [Google Scholar]
11.Padkins M, Breen T, Anavekar N, van Diepen S, Henry TD, Baran DA, et al. Age and shock severity predict mortality in cardiac intensive care unit patients with and without heart failure. ESC Heart Fail. 2020. doi: 10.1002/ehf2.12995 [DOI] [PMC free article] [PubMed] [Google Scholar]
12.Schrage B, Dabboura S, Yan I, Hilal R, Neumann JT, Sorensen NA, Gossling A, et al. Application of the SCAI classification in a cohort of patients with cardiogenic shock. Catheter Cardiovasc Interv. 2020. [DOI] [PubMed] [Google Scholar]
13.Baran DA, Long A, Badiye AP and Stelling K. Prospective validation of the SCAI shock classification: Single center analysis. Catheter Cardiovasc Interv. 2020. doi: 10.1002/ccd.29319 [DOI] [PMC free article] [PubMed] [Google Scholar]
14.Thayer KL, Zweck E, Ayouty M, Garan AR, Hernandez-Montfort J, Mahr C, et al. Invasive Hemodynamic Assessment and Classification of In-Hospital Mortality Risk Among Patients With Cardiogenic Shock. Circ Heart Fail. 2020;13:e007099. doi: 10.1161/CIRCHEARTFAILURE.120.007099 [DOI] [PMC free article] [PubMed] [Google Scholar]
15.Garan AR, Kanwar M, Thayer KL, Whitehead E, Zweck E, Hernandez-Montfort J, et al. Complete Hemodynamic Profiling With Pulmonary Artery Catheters in Cardiogenic Shock Is Associated With Lower In-Hospital Mortality. JACC Heart Fail. 2020;8:903–913. doi: 10.1016/j.jchf.2020.08.012 [DOI] [PubMed] [Google Scholar]
16.van Diepen S, Katz JN, Albert NM, Henry TD, Jacobs AK, Kapur NK, et al. Contemporary Management of Cardiogenic Shock: A Scientific Statement From the American Heart Association. Circulation. 2017;136:e232–e268. doi: 10.1161/CIR.0000000000000525 [DOI] [PubMed] [Google Scholar]
17.Jentzer JC, Anavekar NS, Burstein BJ, Borlaug BA and Oh JK. Noninvasive Echocardiographic Left Ventricular Stroke Work Index Predicts Mortality in Cardiac Intensive Care Unit Patients. Circ Cardiovasc Imaging. 2020;13:e011642. doi: 10.1161/CIRCIMAGING.120.011642 [DOI] [PubMed] [Google Scholar]
18.Basir MB, Kapur NK, Patel K, Salam MA, Schreiber T, Kaki A, et al. Improved Outcomes Associated with the use of Shock Protocols: Updates from the National Cardiogenic Shock Initiative. Catheter Cardiovasc Interv. 2019;93:1173–1183. doi: 10.1002/ccd.28307 [DOI] [PubMed] [Google Scholar]
19.Mendoza DD, Cooper HA and Panza JA. Cardiac power output predicts mortality across a broad spectrum of patients with acute cardiac disease. Am Heart J. 2007;153:366–70. doi: 10.1016/j.ahj.2006.11.014 [DOI] [PubMed] [Google Scholar]
20.Fincke R, Hochman JS, Lowe AM, Menon V, Slater JN, Webb JG, et al. Cardiac power is the strongest hemodynamic correlate of mortality in cardiogenic shock: a report from the SHOCK trial registry. J Am Coll Cardiol. 2004;44:340–8. doi: 10.1016/j.jacc.2004.03.060 [DOI] [PubMed] [Google Scholar]
21.Sionis A, Rivas-Lasarte M, Mebazaa A, Tarvasmaki T, Sans-Rosello J, Tolppanen H, et al. Current Use and Impact on 30- Day Mortality of Pulmonary Artery Catheter in Cardiogenic Shock Patients: Results From the CardShock Study. J Intensive Care Med. 2020;35:1426–1433. doi: 10.1177/0885066619828959 [DOI] [PubMed] [Google Scholar]
22.Tehrani BN, Truesdell AG, Sherwood MW, Desai S, Tran HA, Epps KC, et al. Standardized Team-Based Care for Cardiogenic Shock. J Am Coll Cardiol. 2019;73:1659–1669. doi: 10.1016/j.jacc.2018.12.084 [DOI] [PubMed] [Google Scholar]
23.Choi JO, Lee SC, Choi SH, Kim SM, Choi JH, Park JR, et al. Noninvasive assessment of left ventricular stroke work index in patients with severe mitral regurgitation: correlation with invasive measurement and exercise capacity. Echocardiography. 2010;27:1161–9. doi: 10.1111/j.1540-8175.2010.01222.x [DOI] [PubMed] [Google Scholar]
24.Jentzer JC, Bennett C, Wiley BM, Murphree DH, Keegan MT, Gajic O, et al. Predictive Value of the Sequential Organ Failure Assessment Score for Mortality in a Contemporary Cardiac Intensive Care Unit Population. J Am Heart Assoc. 2018;7. [DOI] [PMC free article] [PubMed] [Google Scholar]
25.Jentzer JC, Murphree DH, Wiley B, Bennett C, Goldfarb M, Keegan MT, et al. Comparison of Mortality Risk Prediction Among Patients >/ = 70 Versus <70 Years of Age in a Cardiac Intensive Care Unit. Am J Cardiol. 2018;122:1773–1778. doi: 10.1016/j.amjcard.2018.08.011 [DOI] [PubMed] [Google Scholar]
26.Bennett CE, Wright RS, Jentzer J, Gajic O, Murphree DH, Murphy JG, et al. Severity of illness assessment with application of the APACHE IV predicted mortality and outcome trends analysis in an academic cardiac intensive care unit. J Crit Care. 2019;50:242–246. doi: 10.1016/j.jcrc.2018.12.012 [DOI] [PMC free article] [PubMed] [Google Scholar]
27.Jentzer JC, Wiley B, Bennett C, Murphree DH, Keegan MT, Gajic O, et al. Early noncardiovascular organ failure and mortality in the cardiac intensive care unit. Clin Cardiol. 2020. doi: 10.1002/clc.23339 [DOI] [PMC free article] [PubMed] [Google Scholar]
28.Jentzer JC, Wiley B, Bennett C, Murphree DH, Keegan MT, Kashani KB, et al. Temporal Trends and Clinical Outcomes Associated with Vasopressor and Inotrope Use in The Cardiac Intensive Care Unit. Shock. 2020;53:452–459. doi: 10.1097/SHK.0000000000001390 [DOI] [PubMed] [Google Scholar]
29.Lang RM, Badano LP, Mor-Avi V, Afilalo J, Armstrong A, Ernande L, et al. Recommendations for cardiac chamber quantification by echocardiography in adults: an update from the American Society of Echocardiography and the European Association of Cardiovascular Imaging. J Am Soc Echocardiogr. 2015;28:1–39 e14. doi: 10.1016/j.echo.2014.10.003 [DOI] [PubMed] [Google Scholar]
30.Rudski LG, Lai WW, Afilalo J, Hua L, Handschumacher MD, Chandrasekaran K, et al. Guidelines for the echocardiographic assessment of the right heart in adults: a report from the American Society of Echocardiography endorsed by the European Association of Echocardiography, a registered branch of the European Society of Cardiology, and the Canadian Society of Echocardiography. J Am Soc Echocardiogr. 2010;23:685–713; quiz 786–8. doi: 10.1016/j.echo.2010.05.010 [DOI] [PubMed] [Google Scholar]
31.Mele D, Pestelli G, Molin DD, Trevisan F, Smarrazzo V, Luisi GA, et al. Echocardiographic Evaluation of Left Ventricular Output in Patients with Heart Failure: A Per-Beat or Per-Minute Approach? J Am Soc Echocardiogr. 2020;33:135–147 e3. doi: 10.1016/j.echo.2019.09.009 [DOI] [PubMed] [Google Scholar]
32.Matthews SD, Rubin J, Cohen LP and Maurer MS. Myocardial Contraction Fraction: A Volumetric Measure of Myocardial Shortening Analogous to Strain. J Am Coll Cardiol. 2018;71:255–256. doi: 10.1016/j.jacc.2017.09.1157 [DOI] [PubMed] [Google Scholar]
33.Mitter SS, Shah SJ and Thomas JD. A Test in Context: E/A and E/e’ to Assess Diastolic Dysfunction and LV Filling Pressure. J Am Coll Cardiol. 2017;69:1451–1464. doi: 10.1016/j.jacc.2016.12.037 [DOI] [PubMed] [Google Scholar]
34.Sharifov OF and Gupta H. What Is the Evidence That the Tissue Doppler Index E/e’ Reflects Left Ventricular Filling Pressure Changes After Exercise or Pharmacological Intervention for Evaluating Diastolic Function? A Systematic Review. J Am Heart Assoc. 2017;6. doi: 10.1161/JAHA.116.004766 [DOI] [PMC free article] [PubMed] [Google Scholar]
35.Nauta JF, Hummel YM, van der Meer P, Lam CSP, Voors AA and van Melle JP. Correlation with invasive left ventricular filling pressures and prognostic relevance of the echocardiographic diastolic parameters used in the 2016 ESC heart failure guidelines and in the 2016 ASE/EACVI recommendations: a systematic review in patients with heart failure with preserved ejection fraction. Eur J Heart Fail. 2018;20:1303–1311. doi: 10.1002/ejhf.1220 [DOI] [PubMed] [Google Scholar]
36.Ommen SR, Nishimura RA, Appleton CP, Miller FA, Oh JK, Redfield MM et al. Clinical utility of Doppler echocardiography and tissue Doppler imaging in the estimation of left ventricular filling pressures: A comparative simultaneous Doppler-catheterization study. Circulation. 2000;102:1788–94. doi: 10.1161/01.cir.102.15.1788 [DOI] [PubMed] [Google Scholar]

PLoS One. doi: 10.1371/journal.pone.0262053.r001

Decision Letter 0

Daniel A Morris

6 Oct 2021

PONE-D-21-26906Echocardiographic left ventricular stroke work index: An integrated noninvasive measure of shock severityPLOS ONE

Dear Dr. Jentzer,

Thank you for submitting your manuscript to PLOS ONE. After careful consideration, we feel that it has merit but does not fully meet PLOS ONE’s publication criteria as it currently stands. Therefore, we invite you to submit a revised version of the manuscript that addresses the points raised during the review process.

When you're ready to submit your revision, log on to https://www.editorialmanager.com/pone/ and select the 'Submissions Needing Revision' folder to locate your manuscript file.

Please include the following items when submitting your revised manuscript:

A rebuttal letter that responds to each point raised by the academic editor and reviewer(s). You should upload this letter as a separate file labeled 'Response to Reviewers'.
A marked-up copy of your manuscript that highlights changes made to the original version. You should upload this as a separate file labeled 'Revised Manuscript with Track Changes'.
An unmarked version of your revised paper without tracked changes. You should upload this as a separate file labeled 'Manuscript'.

If you would like to make changes to your financial disclosure, please include your updated statement in your cover letter. Guidelines for resubmitting your figure files are available below the reviewer comments at the end of this letter.

If applicable, we recommend that you deposit your laboratory protocols in protocols.io to enhance the reproducibility of your results. Protocols.io assigns your protocol its own identifier (DOI) so that it can be cited independently in the future. For instructions see: https://journals.plos.org/plosone/s/submission-guidelines#loc-laboratory-protocols. Additionally, PLOS ONE offers an option for publishing peer-reviewed Lab Protocol articles, which describe protocols hosted on protocols.io. Read more information on sharing protocols at https://plos.org/protocols?utm_medium=editorial-email&utm_source=authorletters&utm_campaign=protocols.

We look forward to receiving your revised manuscript.

Kind regards,

Daniel A. Morris, M.D

Academic Editor

PLOS ONE

Journal Requirements:

When submitting your revision, we need you to address these additional requirements.

1. Please ensure that your manuscript meets PLOS ONE's style requirements, including those for file naming. The PLOS ONE style templates can be found at

https://journals.plos.org/plosone/s/file?id=wjVg/PLOSOne_formatting_sample_main_body.pdf and

https://journals.plos.org/plosone/s/file?id=ba62/PLOSOne_formatting_sample_title_authors_affiliations.pdf

2. Please include captions for your Supporting Information files at the end of your manuscript, and update any in-text citations to match accordingly. Please see our Supporting Information guidelines for more information: http://journals.plos.org/plosone/s/supporting-information.

Additional Editor Comments:

Thank you very much for submitting this excellent and large study to PlosOne. While the clinical relevance of the study is high, some pending `major limitations should be addressed in order to get adequate clinical applicability of the LVSWI.

Pending Limitations and Comments:

1) Concerns stated by the reviewers:

- The revisers have addressed important issues from this study, which should be mandatorily addressed in the revised version.

2) Uncertainty about the methodology of mitral E/e`:

- The mitral E/e ratio is an excellent parameter to estimate LV filling pressures, but however, its feasibility decreases significantly when the HR is > 90/min, which is a hallmark of patients in shock and/or with inotropic therapy. Hence, the authors should comprehensively discuss this issue and show how many patients had a fusion of E and A waves in both in the mitral inflow and in tissue Doppler velocities (i.e., e` and a´).

- Please describe with detail what type of mitral E/e ratio has been used in the study (i.e., average, septal, oder lateral mitral E/e` ratio).

3) Uncertainty of the clinical applicability of the LVSWI in patients with HR > 90/min:

- As it has been stated above, the low feasibility of the mitral E/e` in patients with tachycardia (a common and pathophysiological response in patients with shock) obligates to analyze alternative parameters when the mitral E/e` cannot be measured because of fusion of the E and A and e` and a´ waves. Hence, in order to increase the clinical relevance and applicability of the findings from this large and excellent study, the authors should further analyze and show the prognostic relevance of alternative echocardiographic parameters such as SVi, CI, and LVEF.

4) Lack of incremental value analyses concerning LVSWI:

- The authors should show the OR for intra-hospital mortality and the rate of intra-hospital mortality of the following parameters:

- LVSWI ≥ 33

- LVSWI < 33

- LVSWI < 20

- LVSWI < 10

- SVi ≥ 35

- SVi < 35

- SVi < 20

- SVi < 10

- CI ≥ 2,2

- CI < 2,2

- CI < 1,5

- CI < 1

- LVEF ≥ 50

- LVEF < 50

- LVEF < 40

- LVEF < 30

5) Incomplete description of main parameters in the main manuscript:

- Hemodynamic and echocardiographic variables were insufficiently described. Hence, the excellent supplemental tables 2 to 4 and supplemental figure 1 should be mandatorily included in the main manuscript.

Reviewers' comments:

Please use the space provided to explain your answers to the questions above. You may also include additional comments for the author, including concerns about dual publication, research ethics, or publication ethics. (Please upload your review as an attachment if it exceeds 20,000 characters)

Reviewer #1:

This is an interesting article.

1-It would be ok if authors´ provide a figure(s) showing an example on how the left ventricular stroke work index (LVSWI) is measured by TTE.

2-Authors´mentioned that they used the medial (septal) e´velocity. This should be clarified and justified, particularly because e´septal is lower than e´lateral and thus the results may vary using either one or the other for calculations. The proper way is measuring both e´and average.

3- A point or limitation that I think may be mentioned is whether calculating the LVSWI is time-consuming enough to be performed in real time or not and also mentioning the possibilities of wrong calculations given the inherent error of each measurement. Who should best perform this calculations? a cardiologist? and intensivist? Who performed this calculations in your study?

Reviewer #2:

In a study entitled “Echocardiographic left ventricular stroke work index: An integrated noninvasive measure of shock severity” Jentzer et al. in a retrospective analysis investigated a large group of patients admitted to CICU with cardiogenic shock. Authors found, that left ventricular stroke work index (LVSWI) derived noninvasively from echocardiography, can identify low-risk and high-risk patients at each level of clinical shock severity. LVSWI is a complex parameter combining systolic and diastolic function assessment.

The study is novel and interesting and has a practical aspect. The study is well written and is worth to be published.

Reviewer #3:

The authors sought to evaluate the association of ECHO LVSWI with in-hospital mortality across SCAI shock stages and to determine whether early assessment of this hemodynamic variable could increase risk-stratification. This is a retrospective study that took place over an 8-year period between 2007 and 2015 and included 3,635 patients. The methodology is particularly rigorous and the results are very well presented. These results will undoubtedly have to be confirmed on prospective data and therapeutic solutions proposed in the context of subsequent work. No particular comment given the quality of the work done.

**********

While revising your submission, please upload your figure files to the Preflight Analysis and Conversion Engine (PACE) digital diagnostic tool, https://pacev2.apexcovantage.com/. PACE helps ensure that figures meet PLOS requirements. To use PACE, you must first register as a user. Registration is free. Then, login and navigate to the UPLOAD tab, where you will find detailed instructions on how to use the tool. If you encounter any issues or have any questions when using PACE, please email PLOS at figures@plos.org. Please note that Supporting Information files do not need this step.

PLoS One. 2022 Mar 9;17(3):e0262053. doi: 10.1371/journal.pone.0262053.r002

Author response to Decision Letter 0

25 Oct 2021

To:

Daniel A. Morris, M.D

Academic Editor, PLOS ONE

Re: PONE-D-21-26906, Echocardiographic left ventricular stroke work index: An integrated noninvasive measure of shock severity

Dear Dr. Morris,

We thank you for considering this revised manuscript for publication in PLoS One. We have addressed the comments of the Reviewers to the best of out ability, including several further analyses to satisfy their concerns. We recognize that the additive nature of this analysis building on our prior work may raise questions regarding its originality, but we believe that by synthesizing two previously-reported concepts, we have created a novel analysis that adds meaningfully to these prior works and stands on its own. We hope that the Reviewers and Editors will agree that this revised manuscript is substantially improved and that we have adequately justified the methodology reported. We hope that this revised manuscript is satisfactory for publication. Thank you for this opportunity.

Sincerely,

Jacob C. Jentzer, on behalf of the authors

---------------------------------------------------------------------------------------------------------------------

Additional Editor Comments:

Pending Limitations and Comments:

1) Concerns stated by the reviewers:

- The revisers have addressed important issues from this study, which should be mandatorily addressed in the revised version.

Authors’ Response: We have addressed the other Reviewer comments to the best of our ability. Please see detailed responses below.

2) Uncertainty about the methodology of mitral E/e`:

- Please describe with detail what type of mitral E/e ratio has been used in the study (i.e., average, septal, oder lateral mitral E/e` ratio).

Authors’ Response: We appreciate these insightful comments regarding the limitations of the E/e’ ratio, which used the medial e’ in this case. We have added an entire paragraph regarding the challenges related to the use of E/e’ ratio as a valid estimate of LV filling pressures. To the Reviewer’s specific question regarding the effects of elevated HR on the performance of the ECHO-LVSWI for prediction of in-hospital mortality, we have performed additional secondary analyses. As the Reviewer has suspected, the LVSWI does not perform as well for mortality risk prediction in patients with HR >90. Regarding the question of E-A fusion, it is Mayo Clinic Echocardiography Laboratory policy not to report E velocities in patients with E-A fusion.

Manuscript excerpt:

Methods

“As per our prior study, we used the medial e’ velocity to calculate ECHO-LVSWI (Supplemental Figure 1); ECHO-LVSWI values were very similar when using either the lateral e’ velocity or mean e’ velocity (Pearson r correlation coefficients >0.99). Among patients with data for both medial and septal e’ velocities, there were no significant differences between the AUC values for discrimination of in-hospital mortality with ECHO-LVSWI calculated using the medial (0.756), lateral (0.751) or mean (0.754) e’ velocities (all p >0.05 by De Long test; Supplemental Figure 3). Per Mayo Clinic Echocardiography Laboratory policy, mitral E velocities were not reported for patients with E-A fusion.”

Results

“The association between ECHO-LVSWI and in-hospital mortality was weaker for patients with a heart rate >90 beats/minute (unadjusted OR 0.585 per 10 J/m2 higher ECHO-LVSWI, 95% CI 0.442-0.776, AUC 0.645) compared with patients who had a slower heart rate (unadjusted OR 0.461 per 10 J/m2 higher ECHO-LVSWI, 95% CI 0.392-0.543, AUC 0.740).”

Discussion

“Controversy surrounds the ideal method to calculate the E/e’ ratio for estimation of left ventricular filling pressures, with different authors and guidelines using medial, lateral or mean e’ velocities in different settings. Our institution has preferentially used the medial e’ velocity based on data showing superiority of the E/e’ ratio using the medial e’ for estimation of left ventricular filling pressures, and this is reflected in the data availability within our cohort. However, using either the medial or lateral e’ appears to have limitations under certain circumstances, and the use of the average or mean e’ has been advocated. In our analysis, we found that ECHO-LVSWI was minimally affected by using the medial, lateral, or mean e’ velocity to estimate LVEDP, suggesting that this variable is minimally affected by the methodology used to calculate it and either lateral or mean e’ velocity could be substituted. Furthermore, the presence of an elevated heart rate can produce fusion of the mitral E and A waves that poses a challenge to accurate assessment of the E/e’ ratio during stress, as is typical of patients with shock; notably, the ECHO-LVSWI had lower discrimination for patients with an elevated heart rate or greater shock severity.”

3) Uncertainty of the clinical applicability of the LVSWI in patients with HR > 90/min:

Authors’ Response: We understand these comments and appreciate the concerns raised. We have highlighted the limitations of using ECHO-LVSWI in patients with elevated heart rate, as described above. The SVI, CI and LVEF were examined (albeit using single cut-offs rather than continuous analysis) in our prior manuscript examining echocardiographic variables across SCAI stages. As this analysis builds on the prior analysis, we are concerned that adding these data would be unnecessarily replicative. Regarding comparisons of ECHO-LVSWI to SVI, CI and LVEF, the AUC value for ECHO-LVSWI is higher than all of these other variables (p = 0.06 for SVI and p <0.05 for all others), see ROC curves below. For this reason, while we understand the desire to explore these other variables, we have done this in a prior analysis and believe that additional analysis of these variables is outside the scope of this manuscript.

Manuscript excerpt:

Results

“LVSWI had a higher AUC value (Supplemental Figure X) than LVEF (AUC 0.662, p <0.001), cardiac index (AUC 0.604, p <0.001) and SVI (AUC 0.702, p = 0.06).”

4) Lack of incremental value analyses concerning LVSWI:

- The authors should show the OR for intra-hospital mortality and the rate of intra-hospital mortality of the following parameters:

- LVSWI ≥ 33

- LVSWI < 33

- LVSWI < 20

- LVSWI < 10

- SVi ≥ 35

- SVi < 35

- SVi < 20

- SVi < 10

- CI ≥ 2,2

- CI < 2,2

- CI < 1,5

- CI < 1

- LVEF ≥ 50

- LVEF < 50

- LVEF < 40

- LVEF < 30

Authors’ Response: We respect the desire for additional data regarding echocardiographic hemodynamic alternatives to LVSWI for mortality risk stratification. As discussed above, this is to some extent outside the scope of this analysis and overlapping with our prior studies. Some of the cut-offs above were infrequently present in our cohort (i.e. CI <1, SVI <10, LVSWI <10) so instead of using these fixed cut-offs we have added a figure using quartiles of the variables in question to allow greater comparability between the variables (see below). This simple approach allows us to demonstrate the shape of these relationships and the spread between high-risk and low-risk patients identified using each of these variables in the same figure. This figure clearly shows how patients in the lowest LVSWI quartile have higher risk, and those in the highest LVSWI quartile have lower risk, when compared with quartiles of the other variables—this is the essence of risk stratification and nicely demonstrates the superiority of LVSWI. This is borne out by the OR values for each quartile versus the highest quartile (quartile 4), as shown below.

Manuscript excerpt:

Results

“When patients were grouped by quartiles of these variables, ECHO-LVSWI produced the greatest separation between high-risk and low-risk patients (Supplemental Figure Y and Supplemental Table 5).”

Quartile OR for LVEF OR for CI OR for SVI OR for LVSWI

1 3.91 (2.52-6.05) 2.62 (1.74-3.95) 7.21 (4.31-12.05) 15.83 (7.68-32.64)

2 1.99 (1.23-3.20) 1.12 (0.70-1.80) 3.48 (2.04-5.93) 6.97 (3.29-14.74)

3 1.17 (0.69-1.98) 1.25 (0.79-1.98) 2.04 (1.13-3.68) 3.84 (1.75-8.41)

4 (referent) 1.0 1.0 1.0 1.0

5) Incomplete description of main parameters in the main manuscript:

Authors’ Response: We appreciate this comment. We have included the prior Supplemental Figure 1 as a main figure, as well as additional details about how ECHO-LVSWI is calculated. However, as the Tables are shared between this manuscript and other prior manuscripts using these same methods, we are uncertain whether it is appropriate to include them in the main document and will defer to the Editor’s final assessment in this regard.

Methods

“The mitral E/e’ ratio was used to estimate left ventricular end-diastolic pressure as LVEDP = 4.9 + 0.62 * mitral E/e’ ratio for calculation of ECHO-LVSWI using the formula ECHO-LVSWI = 0.0136 * stroke volume index (SVI) * (mean arterial pressure – LVEDP), as described by Choi, et al. (Supplemental Table 2).”

Reviewers' comments:

Authors’ Response: Regarding the question of dual publication, we have been transparent about the similarities and differences between this analysis and our previously published studies. This cohort includes a different group of patients, albeit overlapping partially with these prior analyses. The focus of this study is different insofar as we are exploring the interaction between the ECHO-LVSWI and the SCAI shock stages to evaluate how this integrated echocardiographic marker of cardiac systolic and diastolic performance complements a clinical assessment of shock severity for risk stratification. We believe that this analysis is a logical outgrowth from combining the concepts of the two prior studies yet has enough new and additive scientific data to stand on its own as a novel work. Finally, we believe that a study such as this one that includes a different patient group, has a different hypothesis, and performs distinct analyses is novel despite similarities to prior works, and should not be interpreted as a breach of research or publication ethics.

Reviewer #1:

This is an interesting article.

1-It would be ok if authors´ provide a figure(s) showing an example on how the left ventricular stroke work index (LVSWI) is measured by TTE.

Authors’ Response: We have added a Supplemental Figure 1 demonstrating this methodology, as shown below.

Authors’ Response: We understand the Reviewer’s comment here. We used septal e’ in this analysis for a number of reasons. The septal/medial e’ was measured more consistently at our institution during the time period as evidenced by the greater availability of data for medial e’ velocities (lateral e’ velocities were missing for 739 patients); notably, this time period does predate contemporary guidelines and the measurements taken reflect the clinical practice at the time. This stems from prior research from our institution showing that “The correlations with the medial annulus TDI were consistently equivalent or better than the lateral annulus or the combinations of the medial and lateral annulus” for LV filling pressures, as described in Ommen, et al. Circulation 2000;102:1788-94. This was also the methodology we used in our prior published work on LVSWI (Jentzer, Circ Imaging 2020). Notably, the paper by Choi, et al. describing the echocardiographic estimation of LVSWI did not specify whether medial or lateral (or mean) e’ was used to estimate LVDEP. We have included a discussion of this important nuance. In addition, we re-calculated the LVSWI using either the lateral or mean/average E/e’ (in addition to medial/septal) and found that the correlations between these variables were >0.99 suggesting that the calculation of LVSWI was robust to the small differences arising from different methods of measuring E/e’. When we compared the AUC values for hospital mortality using these three methods of calculating LVSWI in patients with data for both e’ measurements, we found nearly identical AUC values that did not differ by the De Long test (see figure below); the LVSWI calculation using the medial e’ was borderline superior to that using the lateral e’ (p = 0.06). We feel that this justifies our use of medial/septal e’ velocity despite the other relevant considerations.

Methods

Discussion

Authors’ Response: We thank the Reviewer for these questions. The ECHO-LVSWI calculations for this analysis were performed retrospectively using data from the database via an equation in the statical software package. We agree that hand calculation of ECHO-LVSWI at bedside is perhaps a bit onerous and prone to errors. If this could be incorporated into an app / online calculator or even better the echocardiographic calculation package that would be preferred.

Manuscript excerpt:

Discussion

“Calculating the ECHO-LVSWI by hand at bedside is tedious and prone to errors, so it would be better to use an online calculator or ideally the ECHO-LVSWI could be calculated by the echocardiography imaging package or reporting software automatically.”

Reviewer #2:

The study is novel and interesting and has a practical aspect. The study is well written and is worth to be published.

Authors’ Response: We thank the Reviewer for these constructive comments and appreciate the time taken to review our manuscript.

Reviewer #3:

Authors’ Response: We thank the Reviewer for these constructive comments and appreciate the time taken to review our manuscript. We have emphasized the importance of prospective confirmation of our findings in the Conclusion.

Manuscript excerpt:

Conclusion

“Future prospective studies are needed to better understand the association between ECHO-LVSWI and outcomes in CS patients, and to determine whether interventions designed to improve the ECHO-LVSWI will translate into lower mortality in CICU patients.”

Attachment

Submitted filename: Jentzer LVSWI SCAI stage Response to Reviewers.docx

Click here for additional data file.^{(372.2KB, docx)}

PLoS One. doi: 10.1371/journal.pone.0262053.r003

Decision Letter 1

Daniel A Morris

24 Nov 2021

PONE-D-21-26906R1Echocardiographic left ventricular stroke work index: An integrated noninvasive measure of shock severityPLOS ONE

Dear Dr. Jentzer,

Thank you for submitting your manuscript to PLOS ONE. After careful consideration, we feel that it has great merit but does not fully meet yet PLOS ONE’s publication criteria as it currently stands. Therefore, we invite you to submit a revised version of the manuscript that addresses the points raised during the review process.

Please include the following items when submitting your revised manuscript:

A rebuttal letter that responds to each point raised by the academic editor . You should upload this letter as a separate file labeled 'Response to Reviewers'.
A marked-up copy of your manuscript that highlights changes made to the original version. You should upload this as a separate file labeled 'Revised Manuscript with Track Changes'.
An unmarked version of your revised paper without tracked changes. You should upload this as a separate file labeled 'Manuscript'.

We look forward to receiving your revised manuscript.

Kind regards,

Daniel A. Morris, M.D

Academic Editor

PLOS ONE

Editor Comments:

I would like to congratulate again to the authors for this excellent large study as well as for the effort to address all suggestions of the editors and reviewers. The manuscript is almost ready for publication, there are only some minor pending limitations that should be mandatorily addressed to get the final version of this interesting study/manuscript.

Pending Limitations and Comments:

1) The time-consuming and the potential high inter- or intra-observer variability of the LVSWI:

- The time-consuming to calculate the LVSWI is a serious issue that should be comprehensively addressed and discussed.

- The potential high inter- or intra-observer variability of the LVSWI is another potential issue of this index.

- Accordingly, the authors should analyze in at least 20 patients the time-consuming of the LVSWI as well as the inter- und/or intra-observer variability of this index (i.e., the absolute inter- und/or intra-observer mean differences of the LVSWI in at least 20 patients).

- In addition, please provide fundaments and discuss why we should measure or use the LSWI instead LVEF, SVi, or CI. By the way, please discuss in which scenario we should add the LSWI to conventional systolic parameters (for instance, in those with septic shock and HR < 90 beats/min…?).

2) The potential incremental value of the LSWI over conventional LV systolic parameters:

- The supplemental figures X and Y and the supplemental table 5 are excellent and thus, it should be included in the main manuscript. By the way, please provide cutoff of the Youden index and the sensitivity and specificity of the cutoffs of the LVSWI, CI, LVEF, and SVi. In addition, please provide the values of the quartiles of the LVSWI, LVEF, CI, and SVi from the supplemental table 5.

PLoS One. 2022 Mar 9;17(3):e0262053. doi: 10.1371/journal.pone.0262053.r004

Author response to Decision Letter 1

26 Nov 2021

Re: PONE-D-21-26906R1

“Echocardiographic left ventricular stroke work index: An integrated noninvasive measure of shock severity”

To:

Daniel A. Morris, M.D

Academic Editor

PLOS ONE

Dear Dr. Morris,

Thank you for considering this revised manuscript for publication in PLOS ONE. We have addressed the comments and requests to the best of our ability. We can clearly see the enthusiasm for a more extensive comparison of a variety of echocardiographic variables, but we want to emphasize that this study was designed with a rather limited scope—namely, to examine the ECHO-LVSWI in the context of the SCAI Shock classification. As such, extensive analyses of other echocardiographic variables outside of the structure of the SCAI Shock classification are not in line with our study hypothesis, and in some cases may impinge on our previously published works or distract from our main message. Therefore, in a few cases we have respectfully asked not to make the suggested changes even though we have tried to accommodate the suggested edits as much as possible. In addition, we have generated an online ECHO-LVSWI calculator to address concerns related to calculation time and arithmetic errors as a useful aid to clinicians who are interested in applying this variable. However, we are not able to hand-calculate ECHO-LVSWI from the primary echocardiographic images or using new patients based on the limits of our IRB approval. We hope that the Editor will understand these limitations and appreciate the efforts that we have made to address the remaining concerns and to ensure that this manuscript is a useful addition to the scientific literature. We appreciate your consideration.

Sincerely,

Jacob C. Jentzer, on behalf of the authors

Editor Comments:

Pending Limitations and Comments:

1) The time-consuming and the potential high inter- or intra-observer variability of the LVSWI:

- The time-consuming to calculate the LVSWI is a serious issue that should be comprehensively addressed and discussed.

- The potential high inter- or intra-observer variability of the LVSWI is another potential issue of this index.

Authors’ Response: We agree that the ECHO-LVSWI has important limitations in current practice related to the challenges in measuring and calculating ECHO-LVSWI at bedside. We have added a subheading “Limitations of ECHO-LVSWI” and amended the prior discussion to emphasize these points.

Manuscript excerpt:

“Calculating the ECHO-LVSWI by hand at bedside is time-consuming and prone to errors, including the potential for intra- and intra-observer variability, measurement inaccuracy and arithmetic errors during hand calculation. Therefore, it would be better to use an online calculator or ideally the ECHO-LVSWI could be calculated by the echocardiography imaging package or reporting software automatically. To facilitate use of ECHO-LVSWI, we have created an online calculator that can be used at the bedside (Supplemental X). Until automatic calculation of ECHO-LVSWI is incorporated into Doppler hemodynamic packages of bedside ultrasound machines or echocardiographic reporting software, we suggest that ECHO-LVSWI be calculated primarily using data obtained from a formal TTE to mitigate against these issues.”

Authors’ Response: We understand this request, but such an analysis extends beyond our IRB which covers only retrospective data gathering and analysis from the medical record, and not reviewing the echocardiographic images directly or collecting new patients prospectively. In this study, we calculated ECHO-LVSWI using data from formal TTE reports, and we advocate for using this approach in clinical practice at the current time. However, to try and assist providers in calculating the ECHO-LVSWI we have created formulas in an Excel spreadsheet as an online calculator, and this will help to facilitate the process and mitigate against arithmetic errors for end users. Using this calculator allows quick and accurate determination of ECHO-LVSWI and other hemodynamic calculations once the necessary data are measured (9 variables). We feel that providing this calculator for readers will be an important contribution, as we collaborate with imaging device companies to incorporate ECHO-LVSWI calculations into bedside ultrasound packages.

Manuscript excerpt:

“Calculating the ECHO-LVSWI by hand at bedside is time-consuming and prone to errors, including the potential for intra- and intra-observer variability, measurement inaccuracy and arithmetic errors during hand calculation. Therefore, it would be better to use an online calculator or ideally the ECHO-LVSWI could be calculated by the echocardiography imaging package or reporting software automatically. To facilitate use of ECHO-LVSWI, we have created an online calculator that can be used at the bedside (Supplemental File). Until automatic calculation of ECHO-LVSWI is incorporated into Doppler hemodynamic packages of bedside ultrasound machines or echocardiographic reporting software, we suggest that ECHO-LVSWI be calculated primarily using data obtained from a formal TTE to mitigate against these issues.”

Authors’ Response: Our prior work has demonstrated that the LVEF and CI are inferior to SVI, which we have again shown using ROC analysis in this study (Supplemental Figure 3 as well as Supplemental Figure 4). We have likewise shown that LVSWI is superior to SVI, although this difference is of marginal significance (p = 0.06). We added these data to the prior revision. In addition, we have emphasized this point in the Discussion. At this time, it is premature to state that we know definitively which specific clinical scenarios call for use of ECHO-LVSWI as opposed to a different measurement, and our study was not designed to specifically answer this question. While we certainly understand the request to highlight the clinical value of the ECHO-LVSWI in this way, we do not want to make statements that are not supported by our analyses. This study was designed to establish the relevance of ECHO-LVSWI in the context of the SCAI shock classification for mortality risk stratification. Further research is clearly needed to extend the clinical utility of ECHO-LVSWI beyond risk stratification and into clinical decision-making.

Manuscript excerpt:

Results

“LVSWI had a higher AUC value (Supplemental Figure 3) than LVEF (AUC 0.662, p <0.001), cardiac index (AUC 0.604, p <0.001) and SVI (AUC 0.702, p = 0.06). When patients were grouped by quartiles of these variables, ECHO-LVSWI produced the greatest separation between high-risk and low-risk patients (Supplemental Figure 4 and Supplemental Table 5).”

Discussion

“We have demonstrated that ECHO-LVSWI has higher discrimination for in-hospital mortality than LVEF, SVI and CI when analyzed as continuous variables, providing risk stratification by separating high-risk and low-risk CICU patients.”

“ECHO-LVSWI may prove to be a superior non-invasive parameter because it integrates diastolic function assessment, providing deeper insights into overall myocardial function that translates into improved mortality risk stratification.”

“Further research is necessary to determine when the potentially laborious calculation of ECHO-LVSWI is necessary, as opposed to the less-predictive but simpler SVI itself.”

2) The potential incremental value of the LSWI over conventional LV systolic parameters:

Authors’ Response: We perceive the Reviewer’s strong interest in these comparisons between echocardiographic variables, yet we want to emphasize that this study was not designed to simply validate the ECHO-LVSWI in comparison to other TTE variables, but rather to examine the ECHO-LVSWI in the context of shock severity defined by SCAI shock stage (and not as a standalone risk stratification tool). Our prior work has examined LVSWI as a standalone risk stratification tool and has explored LVEF, SVI and CI in the context of SCAI shock stage. We worry that these specific figures and tables might distract from the primary message. As such, we feel that these supplemental figures (which are not related to SCAI shock stage) are tangential to the main hypothesis and respectfully request that they remain supplemental for this reason; if the Editor feels strongly, we can include them as main figures. As requested, we have added the median and IQR values (which define the quartiles) to the figure legends and have added a Supplemental Table 6 with the requested diagnostic performance of the echocardiographic variables.

Manuscript excerpt:

Results

“At the optimal cut-off, LVSWI had the highest combined sensitivity and specificity (Supplemental Table 6).”

Attachment

Submitted filename: Jentzer LVSWI SCAI stage Response to Reviewers 11-26-21.docx

Click here for additional data file.^{(18.7KB, docx)}

PLoS One. doi: 10.1371/journal.pone.0262053.r005

Decision Letter 2

Daniel A Morris

1 Dec 2021

PONE-D-21-26906R2Echocardiographic left ventricular stroke work index: An integrated noninvasive measure of shock severityPLOS ONE

Dear Dr. Jentzer,

Please include the following items when submitting your revised manuscript:

A rebuttal letter that responds to each point raised by the academic editor and reviewer(s). You should upload this letter as a separate file labeled 'Response to Reviewers'.
A marked-up copy of your manuscript that highlights changes made to the original version. You should upload this as a separate file labeled 'Revised Manuscript with Track Changes'.
An unmarked version of your revised paper without tracked changes. You should upload this as a separate file labeled 'Manuscript'.

We look forward to receiving your revised manuscript.

Kind regards,

Daniel A. Morris, M.D

Academic Editor

PLOS ONE

Additional Editor Comments:

Thank you very much again for the efforts to address the pending limitations from this study. While the revised version has improved, it remains some limitations that should be mandatorily addressed to get priority for publishing this study in PlosOne.

Pending Limitations:

1) Please highlight in the limitations section that “the echocardiographic data was merely obtained from medical records. Accordingly, it remains uncertain what would be the time-consuming and the inter- and intra-observer variability of the LVSWI”.

2) The following figures and tables should be completed and mandatorily incorporated into the main manuscript to improve the presentation of this study:

- Supplemental Figures 1a and 1b.

- Supplemental Table 5 (please add the values of the quartiles in this table).

- Supplemental Table 6 (please delete the file “Youden’s J index @ cut-off” in this table).

PLoS One. 2022 Mar 9;17(3):e0262053. doi: 10.1371/journal.pone.0262053.r006

Author response to Decision Letter 2

1 Dec 2021

Re: PONE-D-21-26906R2

“Echocardiographic left ventricular stroke work index: An integrated noninvasive measure of shock severity”

To:

Daniel A. Morris, M.D

Academic Editor

PLOS ONE

Dear Dr. Morris,

Thank you for considering this revised manuscript for publication in PLOS ONE. We have addressed all the comments and requests as instructed. We hope that you will find this revised manuscript to be acceptable for publication.

Sincerely,

Jacob C. Jentzer, on behalf of the authors

---------------------------------------------------------------------------------------------------------

Additional Editor Comments:

Pending Limitations:

Authors’ Response: This suggested addition has been made, although we have used our own wording.

Manuscript excerpt:

Discussion

“We calculated ECHO-LVSWI automatically using data extracted from formal TTE reports in the medical record, as opposed to manual review of the primary TTE images. Calculating the ECHO-LVSWI by hand at bedside is time-consuming and prone to errors, including the potential for intra- and intra-observer variability, measurement inaccuracy and arithmetic errors during hand calculation. Accordingly, the time demand necessary to manually calculate the ECHO-LVSWI and the extent to which the inter- and intra-observer variability of manually calculated ECHO-LVSWI might influence its observed association with mortality remain uncertain.”

2) The following figures and tables should be completed and mandatorily incorporated into the main manuscript to improve the presentation of this study:

- Supplemental Figures 1a and 1b.

- Supplemental Table 5 (please add the values of the quartiles in this table).

- Supplemental Table 6 (please delete the file “Youden’s J index @ cut-off” in this table).

Authors’ Response: These suggested additions have been made, and the tables and figures have been renumbered.

Attachment

Submitted filename: Jentzer LVSWI SCAI stage Response to Reviewers 12-1-21.docx

Click here for additional data file.^{(15.1KB, docx)}

PLoS One. doi: 10.1371/journal.pone.0262053.r007

Decision Letter 3

Daniel A Morris

16 Dec 2021

Echocardiographic left ventricular stroke work index: An integrated noninvasive measure of shock severity

PONE-D-21-26906R3

Dear Dr, Jentzer,

We’re pleased to inform you that your manuscript has been judged scientifically suitable for publication and will be formally accepted for publication once it meets all outstanding technical requirements.

Within one week, you’ll receive an e-mail detailing the required amendments. When these have been addressed, you’ll receive a formal acceptance letter and your manuscript will be scheduled for publication.

An invoice for payment will follow shortly after the formal acceptance. To ensure an efficient process, please log into Editorial Manager at http://www.editorialmanager.com/pone/, click the 'Update My Information' link at the top of the page, and double check that your user information is up-to-date. If you have any billing related questions, please contact our Author Billing department directly at authorbilling@plos.org.

If your institution or institutions have a press office, please notify them about your upcoming paper to help maximize its impact. If they’ll be preparing press materials, please inform our press team as soon as possible -- no later than 48 hours after receiving the formal acceptance. Your manuscript will remain under strict press embargo until 2 pm Eastern Time on the date of publication. For more information, please contact onepress@plos.org.

Kind regards,

Daniel A. Morris, M.D

Academic Editor

PLOS ONE

PLoS One. doi: 10.1371/journal.pone.0262053.r008

Acceptance letter

Daniel A Morris

1 Mar 2022

PONE-D-21-26906R3

Echocardiographic left ventricular stroke work index: An integrated noninvasive measure of shock severity

Dear Dr. Jentzer:

I'm pleased to inform you that your manuscript has been deemed suitable for publication in PLOS ONE. Congratulations! Your manuscript is now with our production department.

If your institution or institutions have a press office, please let them know about your upcoming paper now to help maximize its impact. If they'll be preparing press materials, please inform our press team within the next 48 hours. Your manuscript will remain under strict press embargo until 2 pm Eastern Time on the date of publication. For more information please contact onepress@plos.org.

If we can help with anything else, please email us at plosone@plos.org.

Thank you for submitting your work to PLOS ONE and supporting open access.

Kind regards,

PLOS ONE Editorial Office Staff

on behalf of

Dr. Daniel A. Morris

Academic Editor

PLOS ONE

Associated Data

This section collects any data citations, data availability statements, or supplementary materials included in this article.

Supplementary Materials

S1 Fig

(TIF)

Click here for additional data file.^{(547.7KB, tif)}

S2 Fig

(TIF)

Click here for additional data file.^{(702.2KB, tif)}

S3 Fig

(TIF)

Click here for additional data file.^{(252.9KB, tif)}

S1 Table. Measured and derived echocardiographic variables of interest.

(DOCX)

Click here for additional data file.^{(27.2KB, docx)}

S2 Table. Formulas used to calculate echocardiographic hemodynamic parameters, using data from the time of the echocardiogram.

(DOCX)

Click here for additional data file.^{(27.8KB, docx)}

S3 Table. Study definitions of hypotension, tachycardia, hypoperfusion, deterioration and refractory shock, as defined by Jentzer, et al. J Am Coll Cardiol 2019.

(DOCX)

Click here for additional data file.^{(27.5KB, docx)}

S4 Table. Study definitions of Society for Cardiovascular Angiography and Intervention shock stages, as defined by Jentzer, et al. J Am Coll Cardiol 2019.

(DOCX)

Click here for additional data file.^{(27.1KB, docx)}

S1 File. Automatic ECHO-LVSWI calculator based on 2-D and Doppler echocardiographic measurements.

(XLSX)

Click here for additional data file.^{(13.7KB, xlsx)}

Attachment

Submitted filename: Jentzer LVSWI SCAI stage Response to Reviewers.docx

Click here for additional data file.^{(372.2KB, docx)}

Attachment

Submitted filename: Jentzer LVSWI SCAI stage Response to Reviewers 11-26-21.docx

Click here for additional data file.^{(18.7KB, docx)}

Attachment

Submitted filename: Jentzer LVSWI SCAI stage Response to Reviewers 12-1-21.docx

Click here for additional data file.^{(15.1KB, docx)}

Data Availability Statement

All relevant data are within the paper and its Supporting Information files.

[pone.0262053.ref001] 1.Jentzer JC, Ahmed AM, Vallabhajosyula S, Burstein B, Tabi M, Barsness GW, et al. Shock in the cardiac intensive care unit: Changes in epidemiology and prognosis over time. Am Heart J. 2021;232:94–104. doi: 10.1016/j.ahj.2020.10.054 [DOI] [PubMed] [Google Scholar]

[pone.0262053.ref002] 2.Jentzer JC, van Diepen S, Barsness GW, Katz JN, Wiley BM, Bennett CE, et al. Changes in comorbidities, diagnoses, therapies and outcomes in a contemporary cardiac intensive care unit population. Am Heart J. 2019;215:12–19. doi: 10.1016/j.ahj.2019.05.012 [DOI] [PubMed] [Google Scholar]

[pone.0262053.ref003] 3.Jentzer JC, van Diepen S, Murphree DH, Ismail AS, Keegan MT, Morrow DA, et al. Admission diagnosis and mortality risk prediction in a contemporary cardiac intensive care unit population. Am Heart J. 2020;224:57–64. doi: 10.1016/j.ahj.2020.02.018 [DOI] [PubMed] [Google Scholar]

[pone.0262053.ref004] 4.Baran DA, Grines CL, Bailey S, Burkhoff D, Hall SA, Henry TD, et al. SCAI clinical expert consensus statement on the classification of cardiogenic shock: This document was endorsed by the American College of Cardiology (ACC), the American Heart Association (AHA), the Society of Critical Care Medicine (SCCM), and the Society of Thoracic Surgeons (STS) in April 2019. Catheter Cardiovasc Interv. 2019;94:29–37. doi: 10.1002/ccd.28329 [DOI] [PubMed] [Google Scholar]

[pone.0262053.ref005] 5.Jentzer JC. Understanding Cardiogenic Shock Severity and Mortality Risk Assessment. Circ Heart Fail. 2020;13:e007568. doi: 10.1161/CIRCHEARTFAILURE.120.007568 [DOI] [PubMed] [Google Scholar]

[pone.0262053.ref006] 6.Jentzer JC, van Diepen S, Barsness GW, Henry TD, Menon V, Rihal CS, et al. Cardiogenic Shock Classification to Predict Mortality in the Cardiac Intensive Care Unit. J Am Coll Cardiol. 2019;74:2117–2128. doi: 10.1016/j.jacc.2019.07.077 [DOI] [PubMed] [Google Scholar]

[pone.0262053.ref007] 7.Jentzer JC, Baran DA, van Diepen S, Barsness GW, Henry TD, Naidu SS, et al. Admission Society for Cardiovascular Angiography and Intervention shock stage stratifies post-discharge mortality risk in cardiac intensive care unit patients. Am Heart J. 2020;219:37–46. doi: 10.1016/j.ahj.2019.10.012 [DOI] [PubMed] [Google Scholar]

[pone.0262053.ref008] 8.Jentzer JC, Henry TD, Barsness GW, Menon V, Baran DA and Van Diepen S. Influence of cardiac arrest and SCAI shock stage on cardiac intensive care unit mortality. Catheter Cardiovasc Interv. 2020;96:1350–1359. doi: 10.1002/ccd.28854 [DOI] [PubMed] [Google Scholar]

[pone.0262053.ref009] 9.Jentzer JC, Lawler PR, van Diepen S, Henry TD, Menon V, Baran DA, et al. Systemic Inflammatory Response Syndrome Is Associated With Increased Mortality Across the Spectrum of Shock Severity in Cardiac Intensive Care Patients. Circ Cardiovasc Qual Outcomes. 2020;13:e006956. doi: 10.1161/CIRCOUTCOMES.120.006956 [DOI] [PubMed] [Google Scholar]

[pone.0262053.ref010] 10.Jentzer JC, Wiley BM, Anavekar NS, Pislaru SV, Mankad SV, Bennett CE, et al. Noninvasive Hemodynamic Assessment of Shock Severity and Mortality Risk Prediction in the Cardiac Intensive Care Unit. JACC Cardiovasc Imaging. 2020. doi: 10.1016/j.jcmg.2020.05.038 [DOI] [PubMed] [Google Scholar]

[pone.0262053.ref011] 11.Padkins M, Breen T, Anavekar N, van Diepen S, Henry TD, Baran DA, et al. Age and shock severity predict mortality in cardiac intensive care unit patients with and without heart failure. ESC Heart Fail. 2020. doi: 10.1002/ehf2.12995 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0262053.ref012] 12.Schrage B, Dabboura S, Yan I, Hilal R, Neumann JT, Sorensen NA, Gossling A, et al. Application of the SCAI classification in a cohort of patients with cardiogenic shock. Catheter Cardiovasc Interv. 2020. [DOI] [PubMed] [Google Scholar]

[pone.0262053.ref013] 13.Baran DA, Long A, Badiye AP and Stelling K. Prospective validation of the SCAI shock classification: Single center analysis. Catheter Cardiovasc Interv. 2020. doi: 10.1002/ccd.29319 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0262053.ref014] 14.Thayer KL, Zweck E, Ayouty M, Garan AR, Hernandez-Montfort J, Mahr C, et al. Invasive Hemodynamic Assessment and Classification of In-Hospital Mortality Risk Among Patients With Cardiogenic Shock. Circ Heart Fail. 2020;13:e007099. doi: 10.1161/CIRCHEARTFAILURE.120.007099 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0262053.ref015] 15.Garan AR, Kanwar M, Thayer KL, Whitehead E, Zweck E, Hernandez-Montfort J, et al. Complete Hemodynamic Profiling With Pulmonary Artery Catheters in Cardiogenic Shock Is Associated With Lower In-Hospital Mortality. JACC Heart Fail. 2020;8:903–913. doi: 10.1016/j.jchf.2020.08.012 [DOI] [PubMed] [Google Scholar]

[pone.0262053.ref016] 16.van Diepen S, Katz JN, Albert NM, Henry TD, Jacobs AK, Kapur NK, et al. Contemporary Management of Cardiogenic Shock: A Scientific Statement From the American Heart Association. Circulation. 2017;136:e232–e268. doi: 10.1161/CIR.0000000000000525 [DOI] [PubMed] [Google Scholar]

[pone.0262053.ref017] 17.Jentzer JC, Anavekar NS, Burstein BJ, Borlaug BA and Oh JK. Noninvasive Echocardiographic Left Ventricular Stroke Work Index Predicts Mortality in Cardiac Intensive Care Unit Patients. Circ Cardiovasc Imaging. 2020;13:e011642. doi: 10.1161/CIRCIMAGING.120.011642 [DOI] [PubMed] [Google Scholar]

[pone.0262053.ref018] 18.Basir MB, Kapur NK, Patel K, Salam MA, Schreiber T, Kaki A, et al. Improved Outcomes Associated with the use of Shock Protocols: Updates from the National Cardiogenic Shock Initiative. Catheter Cardiovasc Interv. 2019;93:1173–1183. doi: 10.1002/ccd.28307 [DOI] [PubMed] [Google Scholar]

[pone.0262053.ref019] 19.Mendoza DD, Cooper HA and Panza JA. Cardiac power output predicts mortality across a broad spectrum of patients with acute cardiac disease. Am Heart J. 2007;153:366–70. doi: 10.1016/j.ahj.2006.11.014 [DOI] [PubMed] [Google Scholar]

[pone.0262053.ref020] 20.Fincke R, Hochman JS, Lowe AM, Menon V, Slater JN, Webb JG, et al. Cardiac power is the strongest hemodynamic correlate of mortality in cardiogenic shock: a report from the SHOCK trial registry. J Am Coll Cardiol. 2004;44:340–8. doi: 10.1016/j.jacc.2004.03.060 [DOI] [PubMed] [Google Scholar]

[pone.0262053.ref021] 21.Sionis A, Rivas-Lasarte M, Mebazaa A, Tarvasmaki T, Sans-Rosello J, Tolppanen H, et al. Current Use and Impact on 30- Day Mortality of Pulmonary Artery Catheter in Cardiogenic Shock Patients: Results From the CardShock Study. J Intensive Care Med. 2020;35:1426–1433. doi: 10.1177/0885066619828959 [DOI] [PubMed] [Google Scholar]

[pone.0262053.ref022] 22.Tehrani BN, Truesdell AG, Sherwood MW, Desai S, Tran HA, Epps KC, et al. Standardized Team-Based Care for Cardiogenic Shock. J Am Coll Cardiol. 2019;73:1659–1669. doi: 10.1016/j.jacc.2018.12.084 [DOI] [PubMed] [Google Scholar]

[pone.0262053.ref023] 23.Choi JO, Lee SC, Choi SH, Kim SM, Choi JH, Park JR, et al. Noninvasive assessment of left ventricular stroke work index in patients with severe mitral regurgitation: correlation with invasive measurement and exercise capacity. Echocardiography. 2010;27:1161–9. doi: 10.1111/j.1540-8175.2010.01222.x [DOI] [PubMed] [Google Scholar]

[pone.0262053.ref024] 24.Jentzer JC, Bennett C, Wiley BM, Murphree DH, Keegan MT, Gajic O, et al. Predictive Value of the Sequential Organ Failure Assessment Score for Mortality in a Contemporary Cardiac Intensive Care Unit Population. J Am Heart Assoc. 2018;7. [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0262053.ref025] 25.Jentzer JC, Murphree DH, Wiley B, Bennett C, Goldfarb M, Keegan MT, et al. Comparison of Mortality Risk Prediction Among Patients >/ = 70 Versus <70 Years of Age in a Cardiac Intensive Care Unit. Am J Cardiol. 2018;122:1773–1778. doi: 10.1016/j.amjcard.2018.08.011 [DOI] [PubMed] [Google Scholar]

[pone.0262053.ref026] 26.Bennett CE, Wright RS, Jentzer J, Gajic O, Murphree DH, Murphy JG, et al. Severity of illness assessment with application of the APACHE IV predicted mortality and outcome trends analysis in an academic cardiac intensive care unit. J Crit Care. 2019;50:242–246. doi: 10.1016/j.jcrc.2018.12.012 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0262053.ref027] 27.Jentzer JC, Wiley B, Bennett C, Murphree DH, Keegan MT, Gajic O, et al. Early noncardiovascular organ failure and mortality in the cardiac intensive care unit. Clin Cardiol. 2020. doi: 10.1002/clc.23339 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0262053.ref028] 28.Jentzer JC, Wiley B, Bennett C, Murphree DH, Keegan MT, Kashani KB, et al. Temporal Trends and Clinical Outcomes Associated with Vasopressor and Inotrope Use in The Cardiac Intensive Care Unit. Shock. 2020;53:452–459. doi: 10.1097/SHK.0000000000001390 [DOI] [PubMed] [Google Scholar]

[pone.0262053.ref029] 29.Lang RM, Badano LP, Mor-Avi V, Afilalo J, Armstrong A, Ernande L, et al. Recommendations for cardiac chamber quantification by echocardiography in adults: an update from the American Society of Echocardiography and the European Association of Cardiovascular Imaging. J Am Soc Echocardiogr. 2015;28:1–39 e14. doi: 10.1016/j.echo.2014.10.003 [DOI] [PubMed] [Google Scholar]

[pone.0262053.ref030] 30.Rudski LG, Lai WW, Afilalo J, Hua L, Handschumacher MD, Chandrasekaran K, et al. Guidelines for the echocardiographic assessment of the right heart in adults: a report from the American Society of Echocardiography endorsed by the European Association of Echocardiography, a registered branch of the European Society of Cardiology, and the Canadian Society of Echocardiography. J Am Soc Echocardiogr. 2010;23:685–713; quiz 786–8. doi: 10.1016/j.echo.2010.05.010 [DOI] [PubMed] [Google Scholar]

[pone.0262053.ref031] 31.Mele D, Pestelli G, Molin DD, Trevisan F, Smarrazzo V, Luisi GA, et al. Echocardiographic Evaluation of Left Ventricular Output in Patients with Heart Failure: A Per-Beat or Per-Minute Approach? J Am Soc Echocardiogr. 2020;33:135–147 e3. doi: 10.1016/j.echo.2019.09.009 [DOI] [PubMed] [Google Scholar]

[pone.0262053.ref032] 32.Matthews SD, Rubin J, Cohen LP and Maurer MS. Myocardial Contraction Fraction: A Volumetric Measure of Myocardial Shortening Analogous to Strain. J Am Coll Cardiol. 2018;71:255–256. doi: 10.1016/j.jacc.2017.09.1157 [DOI] [PubMed] [Google Scholar]

[pone.0262053.ref033] 33.Mitter SS, Shah SJ and Thomas JD. A Test in Context: E/A and E/e’ to Assess Diastolic Dysfunction and LV Filling Pressure. J Am Coll Cardiol. 2017;69:1451–1464. doi: 10.1016/j.jacc.2016.12.037 [DOI] [PubMed] [Google Scholar]

[pone.0262053.ref034] 34.Sharifov OF and Gupta H. What Is the Evidence That the Tissue Doppler Index E/e’ Reflects Left Ventricular Filling Pressure Changes After Exercise or Pharmacological Intervention for Evaluating Diastolic Function? A Systematic Review. J Am Heart Assoc. 2017;6. doi: 10.1161/JAHA.116.004766 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pone.0262053.ref035] 35.Nauta JF, Hummel YM, van der Meer P, Lam CSP, Voors AA and van Melle JP. Correlation with invasive left ventricular filling pressures and prognostic relevance of the echocardiographic diastolic parameters used in the 2016 ESC heart failure guidelines and in the 2016 ASE/EACVI recommendations: a systematic review in patients with heart failure with preserved ejection fraction. Eur J Heart Fail. 2018;20:1303–1311. doi: 10.1002/ejhf.1220 [DOI] [PubMed] [Google Scholar]

[pone.0262053.ref036] 36.Ommen SR, Nishimura RA, Appleton CP, Miller FA, Oh JK, Redfield MM et al. Clinical utility of Doppler echocardiography and tissue Doppler imaging in the estimation of left ventricular filling pressures: A comparative simultaneous Doppler-catheterization study. Circulation. 2000;102:1788–94. doi: 10.1161/01.cir.102.15.1788 [DOI] [PubMed] [Google Scholar]

PERMALINK

Echocardiographic left ventricular stroke work index: An integrated noninvasive measure of shock severity

Jacob C Jentzer

Brandon M Wiley

Nandan S Anavekar

Roles

Abstract

Background

Methods

Results

Conclusions

Introduction

Methods

Study population

Data sources

Echocardiographic data

Fig 1.

Definition of SCAI shock stages

Statistical analysis

Results

Study population

Fig 2. Flow diagram showing study inclusion and exclusion criteria.

Echocardiographic findings

Table 1. Baseline characteristics, comorbidities, admission diagnoses and therapies of patients according to SCAI shock stages.

Table 2. Echocardiographic findings of patients according to SCAI shock stages.

Fig 3.

In-hospital mortality–unadjusted analyses

Table 3. Unadjusted odds ratio (OR) and 95% confidence interval values for quartiles of selected echocardiographic for prediction of in-hospital mortality using univariable logistic regression, with Quartile 4 as referent.

Table 4. Optimal cut-off (maximum value of Youden’s J index = sensitivity + specificity– 1) with the associated sensitivity, specificity and overall accuracy for selected echocardiographic variables for prediction of in-hospital mortality using univariable logistic regression.

Fig 4.

Fig 5.

Fig 6. Classification and regression tree (CART) analysis using ECHO-LVSWI and SCAI shock stage for stratification of in-hospital mortality risk.

In-hospital mortality–multivariable analysis

Table 5. Predictors of in-hospital mortality using multivariable logistic regression with stepwise backward variable selection to minimize the AIC value.

Discussion

Limitations of ECHO-LVSWI

Limitations of this study

Conclusions

Supporting information

Data Availability

Funding Statement

References

Decision Letter 0

Daniel A Morris

Roles

Author response to Decision Letter 0

Decision Letter 1

Daniel A Morris

Roles

Author response to Decision Letter 1

Decision Letter 2

Daniel A Morris

Roles

Author response to Decision Letter 2

Decision Letter 3

Daniel A Morris

Roles

Acceptance letter

Daniel A Morris

Roles

Associated Data

Supplementary Materials

Data Availability Statement

ACTIONS

PERMALINK

RESOURCES

Similar articles

Cited by other articles

Links to NCBI Databases
