The transcription factor HLH-26 controls probiotic-mediated protection against intestinal infection through up-regulation of the Wnt/BAR-1 pathway

Yu Sang; Jie Ren; Alejandro Aballay

doi:10.1371/journal.pbio.3001581

. 2022 Mar 9;20(3):e3001581. doi: 10.1371/journal.pbio.3001581

The transcription factor HLH-26 controls probiotic-mediated protection against intestinal infection through up-regulation of the Wnt/BAR-1 pathway

Yu Sang ¹, Jie Ren ¹, Alejandro Aballay ^1,^*

Editor: Ken Cadwell²

PMCID: PMC8936500 PMID: 35263319

Abstract

Probiotics play a critical role in the control of host intestinal microbial balance, protecting the host from gastrointestinal pathogens, modulating the host immune response, and decreasing host susceptibility to infection. To understand the mechanism underlying the protective effect of probiotics against infections through immune regulation, we examined protection against Salmonella enterica infection following exposure to nonpathogenic Enterococcus faecium in the nematode Caenorhabditis elegans. We found that the transcription factor HLH-26, a REF-1 family member of basic helix–loop–helix transcription factors, was required in the intestine for E. faecium–mediated protection of C. elegans against a lethal S. enterica infection. In addition, we uncovered that defense response genes controlled by the canonical Wnt/BAR-1 pathway were activated upon exposure to E. faecium in an HLH-26–dependent manner. Our findings highlight a role for REF-1/HLH-26 in the control of the Wnt/BAR-1 pathway in probiotic-mediated protection against gut infection.

Microbial colonization of the Caenorhabditis elegans intestine by the probiotic bacterium Enterococcus faecium protects against lethal bacterial infection by activating a pathway controlled by the REF-1 family member HLH-26 and the Wnt/BAR-1 pathway that are conserved across species.

Introduction

The human gut microbiota plays a crucial role in maintaining physiological homeostasis, and increasing evidence indicates that its imbalance has a major impact on health and disease [1]. The impact of the gut microbiota on intestinal homeostasis appears to be so broad that it is believed that the therapeutic and prophylactic effects of some probiotics for a variety of gut-related disorders might be, at least in part, mediated through modification of the microbiota or its function [2]. Probiotic microorganisms exert their effects in a variety of ways, including pathogen defense, host function modulation, and gut barrier integrity, which may ultimately directly or indirectly act against infecting microorganisms [3,4]. Following the administration of probiotics and activation of Toll-like receptors, intestinal epithelial cells or immune cells induce the production of different cytokines and diverse antimicrobial peptides, strengthening the immune system [5]. However, the myriad of mechanisms by which probiotics may modulate immune function to better control microbial infections remain unclear.

Canonical Wnt signaling, also known as β-catenin–dependent signaling, is highly conserved across species where it contributes to cell cycle control, cytoskeleton reorganization during phagocytosis and cell migration, autophagy, apoptosis, and a variety of inflammation-related events [6–8]. In the off state of the pathway, the β-catenin destruction complex facilitates the phosphorylation of β-catenin by GSK3β, which induces ubiquitination of β-catenin and subsequent proteasomal degradation. When Wnt ligand binds to a Frizzled family receptor, the destruction complex is inhibited, freeing β-catenin from degradation. Accumulation of the cytoplasmic pool of β-catenin induces its translocation into the nucleus where it binds with T-cell factor transcription factor at the Wnt response element DNA sequence and activates the transcription of target genes [7].

To provide insights into new mechanisms underlying responses to probiotics that modulate immune function and regulate pathogen defense, we used the nematode Caenorhabditis elegans, which possesses conserved signaling pathways that are involved in the regulation of host–microbe interactions [9–12].

We found that HLH-26, a REF-1 family member of basic helix–loop–helix transcription factors, is required for the protection that a short prophylactic exposure to a nonpathogenic strain of Enterococcus faecium confers against a lethal Salmonella enterica infection in C. elegans. Furthermore, we demonstrated that the Wnt/BAR-1 pathway acts downstream of HLH-26 following exposure to E. faecium. The mRNA levels of cwn-2 (encoding the Wnt legend CWN-2), bar-1 (encoding the β-catenin homolog BAR-1), mig-1 (encoding the Frizzled family receptor MIG-1), and downstream effectors as well as the protein level of BAR-1 increased after E. faecium treatment in an hlh-26–dependent manner. Our findings characterize the REF-1–like transcription factor HLH-26 as a key regulator of the Wnt pathway in probiotic-mediated protection against a lethal gut infection.

Results

hlh-26 is required for probiotic protection against S. enterica infection

To explore host mechanisms activated by probiotic exposure that may confer protection against bacterial infections, we first studied 399 genes that are up-regulated and down-regulated in C. elegans exposed to E. faecium compared with heat-killed Escherichia coli [13]. Using WormNet (http://www.functionalnet.org/wormnet/) [14], we found that out of the 399 genes that are differentially expressed in C. elegans exposed to E. faecium compared with heat-killed E. coli, 266 are coexpressed. This set of 266 coexpressed genes corresponds to 125 coexpressed gene groups, which share the same transcription factor binding site and similar expression patterns (S1 Table). To identify potential transcription factors involved in the control of the 125 coexpressed gene groups, we used Regulatory Sequence Analysis Tools (http://rsat.sb-roscoff.fr) [15] to predict common binding motifs for the top 30 coexpressed groups that together represent 79% of all coexpressed genes. This analysis identified 158 common motifs (S2 Table), and the subsequent alignment of those motifs with the reported motifs of 292 C. elegans transcription factors (TFs) [16] revealed 28 candidate TFs (S3 Table). Overall, 82 out of the 399 differentially expressed genes are predicted to be regulated by those 28 TFs, and 63 genes are up-regulated while 19 genes are down-regulated (S3 Table). The 5 top TFs are predicted to control 43 genes, 31 up-regulated and 12 down-regulated, of the original 399 differentially expressed genes (S3 Table).

To address whether the TFs potentially activated by E. faecium exposure played a role in protecting C. elegans from a lethal gut infection, we used a short prophylactic exposure to live E. faecium, which is sufficient to protect C. elegans against S. enterica infection [17]. We also tested whether heat-killed E. faecium may also confer protection against S. enterica infection and found that the protection was not as strong as that of live E. faecium (S1 Fig), indicating that live probiotic is required for full protection. Thus, using live probiotic treatment followed by a 1-day pathogen exposure assay (Fig 1A and 1B), we studied the 5 top-ranked matching TFs (Table 1) and found that the survival of hlh-26(ok1453) and ref-1(ok288) animals fed E. faecium before infection decreased (Fig 1C and 1D). In contrast, no changes were observed in the survival of ces-2(gk1020), ztf-11(ok646), or atf-6(ok551) animals fed E. faecium before infection (Fig 1E–1G). We found that the survival of hlh-26(ok1453);ref-1(ok288) animals was not different than that of hlh-26(ok1453) animals fed E. faecium before infection, indicating that hlh-26 and ref-1 are part of the same pathway (S2 Fig). Because of the specificity of the binding motif (S3 Table) and strong protective phenotype, we decided to focus on HLH-26.

Fig 1 — (A) Schematic of the treatment–1-day infection assay. Worms were treated on E. *faecium* lawns for 1 day before infection with S. *enterica* for 1 day. Worms were then transferred onto E. *coli* OP50 plates for the remainder of the assay, and survival was scored. (B) Survival curve from a treatment–1-day infection assay showing that E. *faecium* inhibits S. *enterica* pathogenesis. Survival curve showing E. *faecium*–mediated protection in (C) *hlh-26(ok1453)*, (D) *ref-1(ok288)*, (E) *ces-2(gk1020)*, (F) *ztf-11(ok646)*, and (G) *atf-6(ok551)*. Survival curves are representative assays of 3 independent experiments. *n =* 60 to 90. The data underlying all the graphs shown in the figure can be found in S1 Data. Ec, E. *coli* OP50; Ef, E. *faecium*; Se, S. *enterica*; WT, wild-type.

Table 1. Top-ranked candidate TFs.

Gene Name	Sequence	Expression location	Binding motifs
hlh-26	C17C3.8	unknown	RACACGTGY RCACGTGTY
ref-1	T01E8.2	intestine	SCACGTGK MCACGTGS
ces-2	ZK909.4	excretory duct cell	RTTACGYAAY RTTRCGTAAY
ztf-11	F52F12.6	g1 and head neurons	VAAGTTTN NAAACTTB
atf-6	F45E6.2	intestine; muscle cell; pharyngeal gland cell; rectum; and vulva	NYKACGTDD HHACGTMRN

Open in a new tab

TF, transcription factor.

Because the genes we used to predict potential transcription factors required for protection against infection were differentially expressed under E. faecium compared with heat-killed E. coli exposure, we tested whether HLH-26 was also required for protection against S. enterica infection when animals were preexposed to E. faecium or heat-killed E. coli (S3 Fig). We found that unlike exposure to E. faecium, exposure to heat-killed E. coli did not confer protection against S. enterica infection (S3 Fig). As expected, the survival of hlh-26(ok1453) animals did not improve as much as that of wild-type animals pretreated with E. faecium (S3 Fig).

To confirm the protective role of HLH-26, we also followed the probiotic pretreatment with a continuous infection assay (Fig 2A). C. elegans survival during continuous S. enterica infection was improved in animals pretreated with E. faecium as compared with animals fed E. coli (Fig 2B). Survival during S. enterica infection of hlh-26(ok1453) animals was also shorter than that of wild-type animals pretreated with E. faecium (Fig 2C). We further found that exposure to E. faecium for only 8 h was sufficient for protection against S. enterica infection and that hlh-26 was required for protection under these conditions (Fig 2D and 2E). Viable S. enterica colony-forming units (CFUs) recovered from lysed animals revealed an approximately 10-fold increase of S. enterica colonization in hlh-26(ok1453) animals compared to wild-type animals after 1 day of infection (Fig 2F). Moreover, HLH-26 protein level increased and HLH-26 accumulated in nuclei of animals treated with E. faecium (Fig 2G and 2H).

Because SagA is an E. faecium–secreted peptidoglycan hydrolase previously shown to control the protection of C. elegans against S. enterica [17], we tested whether HLH-26 was also required for protection against S. enterica infection triggered by SagA. We found that the survival after S. enterica infection of hlh-26(ok1453) animals was also shorter than that of wild-type animals pretreated with E. coli BL21 expressing SagA (S4 Fig). Just like exposure to E. faecium (Fig 2G and 2H), exposure to E. coli BL21 expressing SagA increased HLH-26 expression and nuclear accumulation (S4D and S4E Fig). Taken together, these results indicate that HLH-26 is required for E. faecium–mediated protection against S. enterica infection.

HLH-26 may specifically function in protection against S. enterica infection elicited by probiotic exposure, or it may be required for survival against the pathogen. To distinguish between these possibilities, we compared the survival of hlh-26(ok1453) animals and wild-type animals exposed to E. faecium or S. enterica. HLH-26 did not seem to be required for C. elegans survival in the presence of either E. faecium or S. enterica (S5 Fig).

We used quantitative reverse transcription PCR (qRT-PCR) to validate the coexpressed groups that were predicted to be regulated by HLH-26. We focused on 3 groups sharing conserved DNA binding motifs for HLH-26 (S3 Table) that together represented a total of 70 genes (S1 Table, groups 2, 3, and 4). Ten genes randomly selected using 4 conditions were verified: wild-type animals exposed to heat-killed E. coli, wild-type animals exposed to E. faecium, hlh-26(ok1453) animals exposed to heat-killed E. coli, and hlh-26(ok1453) animals exposed to E. faecium. The expression of 7 of 10 genes activated by E. faecium was found to be hlh-26 dependent (S6 Fig). Because hlh-26 mutation seemed to prevent E. faecium activation but not the basal expression of those genes, other transcription factors might be required for their expression. These results indicated that part of E. faecium–induced genes were transcriptionally regulated by HLH-26.

HLH-26 functions in the intestine to protect against S. enterica infection upon probiotic exposure

To identify the specific tissues in which hlh-26 is required for protection against S. enterica infection, we generated animals expressing GFP under the control of the hlh-26 promoter. Fluorescence imaging of hlh-26p::gfp animals revealed high expression of GFP in the intestinal cells of the animals (Fig 3A), indicating that HLH-26 might function in the intestine. The intestinal function of HLH-26 in protection against S. enterica infection was also suggested using strain MGH171, which allows intestine-specific RNAi interference (RNAi). We found that hlh-26 RNAi in the intestine significantly decreased the E. faecium–mediated protection against S. enterica infection (Fig 3B and 3C). Consistent with the intestinal expression of HLH-26, we did not observe changes in E. faecium–mediated protection between control animals and animals in which hlh-26 was inhibited by RNAi in either the germline or the nervous system (S7 Fig). Further substantiating the notion that HLH-26 functions in the intestine, HLH-26 expression under the regulation of the intestine-specific promoter Pvha-6 also fully rescued the mutant phenotype of hlh-26(ok1453) animals (Fig 3D–3G).

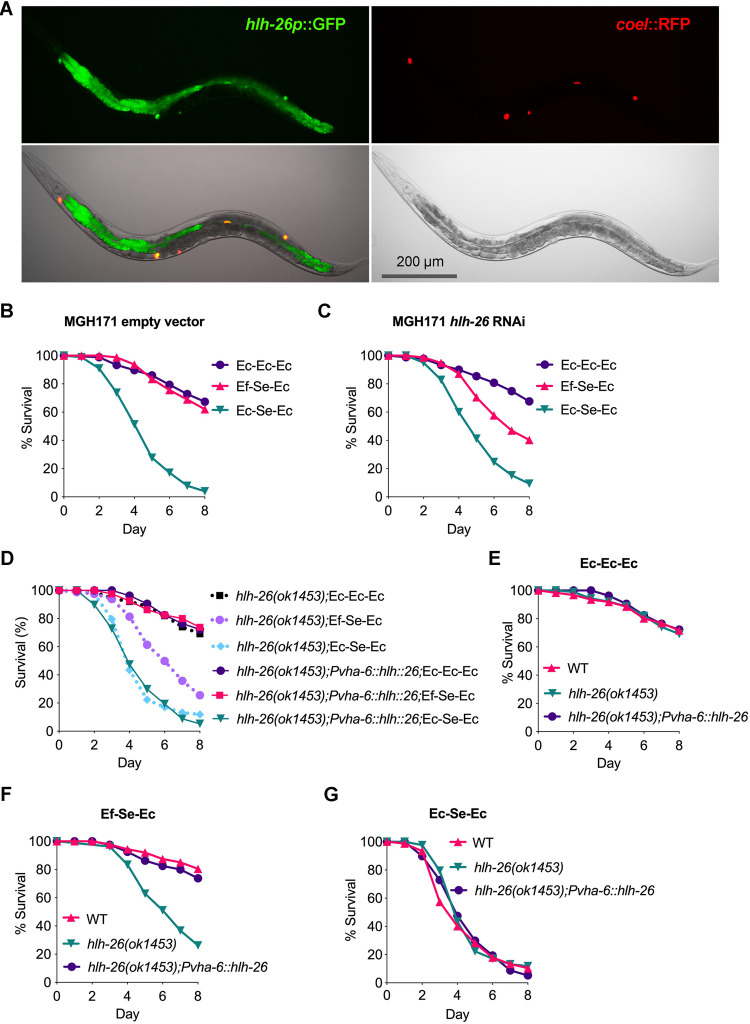

Fig 3 — (A) *hlh-26p*::*gfp* expression in young adult transgenic worms assessed by fluorescence microscopy (25×). *coel*::*rfp* was used as the coinjection marker. Survival curves assaying E. *faecium*–mediated protection in the intestine-specific RNAi strain MGH171 feeding on HT115 expressing (B) empty vector or (C) *hlh-26* RNAi animals. (D) Comparison of E. *faecium*–mediated protection between *hlh-26(ok1453)* animals and *hlh-26(ok1453); Pvha-6*::*hlh-26* rescue animals. *hlh-26(ok1453)*; Ec-Ec-Ec versus *hlh-26(ok1453); Pvha-6*::*hlh-26*;Ec-Ec-Ec, P = NS; *hlh-26(ok1453)*; Ef-Se-Ec versus *hlh-26(ok1453);Pvha-6*::*hlh-26*; Ef-Se-Ec, P < 0.0001; *hlh-26(ok1453)*; Ec-Se-Ec versus *hlh-26(ok1453);Pvha-6*::*hlh-26*;Ec-Se-Ec, P = NS. (E) WT, *hlh-26(ok1453)*, and *hlh-26(ok1453); Pvha-6*::*hlh-26* animals were grown with E. *coli-E*. *coli-E*. *coli* treatment and scored for survival. WT animals versus *hlh-26(ok1453)*, P = NS; *hlh-26(ok1453); Pvha-6*::*hlh-26*, P = NS. (F) WT, *hlh-26(ok1453)*, and *hlh-26(ok1453); Pvha-6*::*hlh-26* animals were grown with E. *faecium-S*. *enterica-E*. *coli* treatment and scored for survival. WT animals versus *hlh-26(ok1453)*, P = NS; *hlh-26(ok1453); Pvha-6*::*hlh-26*, P < 0.0001. *hlh-26(ok1453)* animals versus *hlh-26(ok1453); Pvha-6*::*hlh26*, P < 0.0001. (G) WT, *hlh-26(ok1453)*, and *hlh-26(ok1453); Pvha-6*::*hlh-26* animals were grown with E. *coli-S*. *enterica-E*. *coli* treatment and scored for survival. WT animals versus *hlh-26(ok1453)*, P = NS; *hlh-26(ok1453); Pvha-6*::*hlh-26*, P = NS. The data underlying all the graphs shown in the figure can be found in S1 Data. NS, nonsignificant; RNAi, RNAi interference; WT, wild-type.

HLH-26 is required for induction of immune genes in response to E. faecium exposure

To understand the mechanism by which HLH-26 regulated protection against S. enterica infection after exposure to E. faecium, we used RNA sequencing (RNAseq) to focus on transcriptional changes induced by E. faecium in hlh-26(ok1453) compared with wild-type animals. Of the 3,261 differentially regulated genes, 2,089 genes were up-regulated while 1,172 genes were down-regulated (S4 Table). Of the 3,261 differentially regulated genes, 543 share HLH-26 binding motifs (S4 Table). Further analysis of those 543 genes indicates that 183 are down-regulated in hlh-26(ok1453) animals, while 360 are up-regulated in hlh-26(ok1453) animals exposed to E. faecium (S4 Table), suggesting that HLH-26 may act as both repressor and activator of gene expression. To identify related gene groups directly or indirectly transcriptionally controlled by HLH-26 following E. faecium exposure, we performed an unbiased gene enrichment analysis using the database for annotation, visualization, and integrated discovery (DAVID; http://david.abcc.ncifcrf.gov/) [18]. The 10 gene ontology (GO) clusters with the highest DAVID enrichment score are shown in Fig 4A and S5 Table. For the up-regulated gene set, the highest scoring ontology clusters were metabolic process and protein phosphorylation. Other up-regulated clusters included genes associated with transport, ion transport, proteolysis, and signal transduction, among others. For the subset of down-regulated genes that responded to E. faecium exposure without hlh-26, transcription regulation cluster was the most highly enriched, followed by immune response cluster. Other down-regulated clusters included genes associated with oxidation–reduction process, chemical stimulus sensing, and nucleosome, among others. As expected, a similar enrichment was also observed using a WormBase enrichment analysis tool (https://wormbase.org/tools/enrichment/tea/tea.cgi) [19,20] that is specific for C. elegans gene data analyses (S8 Fig). Metabolic process and protein modification were the 2 most enriched up-regulated clusters. Transcription and immune genes were also highly enriched among the 1,172 HLH-26 down-regulated genes (S8 Fig). Of the 31 down-regulated immune genes, only 4 (ilys-2, spp-2, cnc-2, and clec-165) are predicted to be direct targets of HLH-26 (S6 Table), suggesting that the control of immune genes by HLH-26 is primarily indirect.

Fig 4 — (A) GO analysis of up-regulated and down-regulated genes in *hlh-26(ok1453)* animals grown on E. *faecium*. (B) qRT-PCR validation of selected innate immune genes that were down-regulated in *hlh-26(ok1453)* mutants (*N =* 3 biological replicates). Values are expressed as the fold difference compared with wild-type worms fed on E. *coli* ± SD by one-way ANOVA with Tukey’s multiple comparisons test, *P < 0.05, **P < 0.01, ***P < 0.001. (C) Fluorescence micrographs of control or *hlh-26* RNAi animals expressing GFP under the *ilys-3* promoter (*ilys-3p*::*gfp*) after an 8-h exposure to E. *faecium* or E. *coli*. (D) Quantification of the animals shown in (C), *n =* 8. The “n” represents the number of animals in each experiment. N = 3 biological replicates. The data underlying all the graphs shown in the figure can be found in S1 Data. GO, gene ontology; ns, nonsignificant; qRT-PCR, quantitative reverse transcription PCR; RNAi, RNAi interference; WT, wild-type.

Because individual samples were used for RNAseq, which can provide false candidate genes, we verified by qRT-PCR the hlh-26-dependent regulation of 10 genes involved in immune response (S6 Table) under 4 conditions: wild-type animals exposed to E. coli, wild-type animals exposed to E. faecium, hlh-26(ok1453) animals exposed to E. coli, and hlh-26(ok1453) animals exposed to E. faecium. Ten tested genes were up-regulated upon exposure to E. faecium in an hlh-26–dependent manner (Fig 4B). Because HLH-26 also affected the basal expression of C04G6.5 and cnc-11 (Fig 4B), it is unclear to what extent the reduced expression of these 2 genes in hlh-26(ok1453) animals exposed to E. faecium is due to the role of HLH-26 on their expression under control conditions or in the presence of E. faecium. The reporter strain CB6710 [21], which expresses GFP under the ilys-3 promoter, was also induced upon E. faecium exposure, and the induction was blocked by hlh-26 RNAi (Fig 4C and 4D). In general, there was a positive correlation between RNAseq and qRT-PCR expression values, and immune genes were activated following exposure to E. faecium in an hlh-26–dependent manner.

The canonical Wnt/BAR-1 pathway is required for E. faecium–activated protection

To identify potential immune pathways that might play a role in E. faecium–mediated protection against S. enterica infection, we performed a gene enrichment analysis using the hlh-26–regulated genes with changes in expression upon exposure to E. faecium. Using WormExp (https://wormexp.zoologie.uni-kiel.de/wormexp/), which is a web-based application for gene set enrichment analysis specific for C. elegans, we found that several hlh-26–regulated genes were also controlled by several other pathways (S7 Table). We then studied E. faecium–mediated protection against S. enterica infection of C. elegans mutants by examining genes corresponding to the 5 top-ranked pathways as well as 2 immune-related pathways. We found no major roles for the alg-3/alg-4, rsd-2, lin-28, WAGO 22G-RNA, hlh-30, or dbl-1 pathways (S9 Fig). However, bar-1 was required for E. faecium–mediated protection against S. enterica infection (Fig 5A), suggesting that E. faecium might enhance defense against bacterial infections through activation of canonical Wnt/BAR-1 signaling.

Because bar-1(ga80) animals were susceptible to bacterial pathogens and even to live E. coli (Fig 5A and 5B), we reasoned that animals with a compromised healthspan or susceptible to bacterial infections in general might also be incapable of mounting a protective response against S. enterica by pretreatment with E. faecium. However, we found that while fshr-1(ok778) animals, which are deficient in an intestinal G protein–coupled receptor required for innate immunity, were susceptible to S. enterica infection, they were not deficient in E. faecium–mediated protection against S. enterica infection (Fig 5C and 5D, S10 Fig). These results suggested that BAR-1 was required in E. faecium–mediated protection and that the Wnt/BAR-1 pathway might play a critical role in this process. Because BAR-1 showed the highest expression in the posterior intestine, we tested if the intestinal specific RNAi against bar-1 would reduce the survival of E. faecium–treated animals. We found that bar-1 RNAi in the intestine significantly decreased the E. faecium–mediated protection against S. enterica infection (Fig 5E and 5F).

To further confirm that Wnt/BAR-1 signaling played an important role during probiotic protection against S. enterica infection, we studied cwn-2, which encodes a Wnt ligand. Survival during S. enterica infection of cwn-2(ok895) animals pretreated with E. faecium was lower than that of wild-type animals (Fig 5G and 5H), while CWN-2 did not seem to be required for C. elegans survival in the presence of S. enterica (S11 Fig), indicating that the Wnt/BAR-1 pathway was required for E. faecium protection against S. enterica. We found that bar-1, cwn-2, and mig-1, which encodes the Wnt and receptor Frizzled, were activated by E. faecium exposure in an HLH-26–dependent manner (Fig 6A). HLH-26 is also required for basal expression of cwn-2 (Fig 6A). The expression level of pop-1, which encodes a Wnt effector that together with BAR-1 regulates gene expression, was not affected by E. faecium exposure or the absence of hlh-26 (Fig 6A). However, we cannot rule out an effect on the posttranslational activation of POP-1. We further studied Wnt/BAR-1 downstream target genes [22–24] that overlapped with genes that were down-regulated in hlh-26 animals exposed to E. faecium (S8 Table). As shown in Fig 6B, bli-1, his-11, oac-30, R02E4.1, oac-54, and fbxa-116 in Fig 4B, which are Wnt/BAR-1 downstream targets [22,24], were activated upon exposure to E. faecium in an hlh-26–dependent manner.

Fig 6 — (A) qRT-PCR validation of Wnt component genes (*N =* 3 biological replicates). Values are expressed as the fold difference compared with wild-type worms fed on E. *coli* ± SD by one-way ANOVA with Tukey’s multiple comparisons test, *P < 0.05, **P < 0.01, ***P < 0.001. (B) qRT-PCR validation of overlapping genes from Wnt targets and *hlh-26*–down-regulated genes (N = 3 biological replicates). Values are expressed as the fold difference compared with wild-type worms fed on E. *coli* ± SD by one-way ANOVA with Tukey’s multiple comparisons test, *P < 0.05, **P < 0.01, ***P < 0.001. (C) Fluorescence micrographs of control or *hlh-26* RNAi animals expressing GFP fused to BAR-1 (BAR-1::GFP) after a 24-h exposure to E. *faecium* or E. *coli*. (D) Quantification of the animals shown in (C), N = 3 biological replicates. *P < 0.05, **P < 0.01, ***P < 0.001. (E) Dot-plot representation of green fluorescence intensity versus TOF of vector or *hlh-26* RNAi animals exposed to E. *faecium* or E. *coli* (*n =* 300). (F) Frequency distribution of the green fluorescence of vector or *hlh-26* RNAi animals exposed to E. *faecium* or E. *coli*. Three independent experiments were performed. E. *coli* vector versus E. *coli hlh-26* RNAi, P = NS; E. *coli* vector versus E. *faecium* vector, P < 0.001; E. *faecium* vector versus E. *faecium hlh-26* RNAi, P < 0.001. (G) Comparation of E. *faecium*–mediated protection between *hlh-26(ok1453)* animals and *hlh-26(ok1453); Pvha-6*::*bar-1* rescue animals. *hlh-26(ok1453)*; Ec-Ec-Ec versus *hlh-26(ok1453); Pvha-6*::*bar-1*;Ec-Ec-Ec, P = NS; *hlh-26(ok1453)*; Ef-Se-Ec versus *hlh-26(ok1453); Pvha-6*::*bar-1*; Ef-Se-Ec, P < 0.0001; *hlh-26(ok1453)*; Ec-Se-Ec versus *hlh-26(ok1453); Pvha-6*::*bar-1*; Ec-Se-Ec, P = NS. (H) WT, *hlh-26(ok1453)*, and *hlh-26(ok1453); Pvha-6*::*bar-1* animals were grown with Ec-Ec-Ec treatment and scored for survival. WT animals versus *hlh-26(ok1453)*, P = NS; *hlh-26(ok1453); Pvha-6*::*bar-1*, P = NS. (I) WT, *hlh-26(ok1453)*, and *hlh-26(ok1453); Pvha-6*::*bar-1* animals were grown with Ef-Se-Ec treatment and scored for survival. WT animals versus *hlh-26(ok1453)*, P = NS; *hlh-26(ok1453);Pvha-6*::*bar-1*, P < 0.0001. *hlh-26(ok1453)* animals versus *hlh-26(ok1453); Pvha-6*::*bar-1*, P < 0.0001. (J) WT, *hlh-26(ok1453)*, and *hlh-26(ok1453); Pvha-6*::*bar-1* animals were grown with Ec-Se-Ec treatment and scored for survival. WT animals versus *hlh-26(ok1453)*, P = NS; *hlh-26(ok1453); Pvha-6*::*bar-1*, P = NS. The data underlying all the graphs shown in the figure can be found in S1 Data. ns, nonsignificant; qRT-PCR, quantitative reverse transcription PCR; RNAi, RNAi interference; TOF, time of flight; WT, wild-type.

The Wnt pathway controls the expression of specific target genes through the effector protein β-catenin BAR-1, which is stabilized by the binding of Wnt to the receptor Frizzled [25,26]. To address whether E. faecium exposure results in higher levels of BAR-1 in an HLH-26–dependent manner, we detected BAR-1 protein levels using a strain expressing BAR-1::GFP [27]. We found that the BAR-1::GFP signal increased with E. faecium exposure and that RNAi inhibition of hlh-26 resulted in a significant reduction of fluorescence (Fig 6C and 6D). Large particle flow cytometry confirmed the increase in the BAR-1::GFP signal upon exposure to E. faecium in an hlh-26–dependent manner (Fig 6E and 6F).

To confirm that BAR-1 acted downstream of HLH-26 during E. faecium–mediated protection, we tested whether BAR-1 overexpression could rescue the reduced protection phenotype of hlh-26(ok1453) animals. Overexpressed BAR-1 under the regulation of the intestine-specific promoter Pvha-6 in hlh-26(ok1453) animals rescued the decreased protection phenotype of hlh-26(ok1453) animals (Fig 6G–6J). We also found that HLH-26 overexpression in the intestine is sufficient to promote bar-1 expression (S12 Fig). Together, these results showed that hlh-26 was required for probiotic protection against S. enterica infection by regulating the canonical Wnt/BAR-1 pathway.

Discussion

Probiotics exert beneficial effects on host health through different mechanisms of action, such as the production of antimicrobial substances, competition with pathogens, and immunomodulation [12]. However, the mechanisms by which probiotics modulate immune function to protect the host against pathogen infections in the intestine remain obscure. In this study, we uncovered a role for HLH-26 in the protection against infection caused by exposure to the probiotic E. faecium. We provided evidence indicating that HLH-26–dependent immune genes were activated upon exposure to E. faecium to defend against S. enterica infection. We also established that the canonical Wnt/BAR-1 pathway, which is transcriptionally regulated by HLH-26, was required in E. faecium–mediated protection against S. enterica infection (Fig 7).

Fig 7 — HLH-26 protection against S. *enterica* infection is partly due to activation of the canonical Wnt/BAR-1 pathway. The binding of Wnt to its receptors leads to β-catenin stabilization and translocation to the nucleus, coactivating target gene transcription. Expression of Wnt/BAR-1 target genes enhances antimicrobial peptide production, which inhibits pathogen infection. AMPs, antimicrobial peptides.

Both HLH-26 and REF-1 were found to be required for E. faecium–mediated protection against S. enterica infection (Fig 1C and 1D). This finding is consistent with the CACGTG E-box binding capability of HLH-26 and REF-1 [28], and the presence of the CACGTG E-box in several genes up-regulated by E. faecium exposure (S2 Table). We also tested HLH-30, another REF-1 family member that can also bind to the CACGTG E-box and functions in the defense response [29]. However, HLH-30 was not required for E. faecium–mediated protection against S. enterica infection, potentially because different TFs exhibit different binding abilities to E-box and E-box-like sequences. Indeed, HLH-30 favors a flanking T, while HLH-26 favors an A or G and REF-1 disfavors a T, indicating that flanking nucleotides may play an important role in the functional TF divergence [28]. Other unidentified REF-1 family members may also act in regulating immune function by binding to the promoter of probiotic-responding genes. C. elegans has 934 annotated TFs [16], and we identified transcription factors by alignment of conserved binding motifs to the reported motifs of 292 C. elegans TFs. The discovery of a conserved binding motif for more TFs indicates that more TFs involved in regulating immune function in response to probiotics remain to be identified.

The Wnt signaling pathway is one of the most widely used and essential extracellular signaling mechanisms in metazoans, and components of this pathway are conserved from hydra to humans [22]. Besides regulating multiple processes that are crucial for embryogenesis and adult tissue homeostasis [30], Wnt signaling also functions in the immune response by orchestrating phagocytosis, antimicrobial defense, and inflammatory cytokine responses [31–33]. BAR-1 encodes a C. elegans homolog of β-catenin that is critical for conferring resistance to S. aureus [9]. Mutation of bar-1 abrogates the induction of some E. faecium- and E. faecalis-activated genes [13]. Because BAR-1 plays a critical role in the response to E. faecium and HLH-26 controls the expression of differentially expressed Wnt genes upon E. faecium exposure, it is reasonable to postulate that both HLH-26 and BAR-1 function in the same pathway that activates immune genes in response to E. faecium. Treatment with E. faecium increased the protein level of β-catenin BAR-1, and knockdown of hlh-26 resulted in a significant reduction of BAR-1 (Fig 6C–6F). In addition, the mRNA level of Wnt/BAR-1 and downstream targets increased upon exposure to E. faecium in an hlh-26–dependent manner (Fig 6B). In summary, we identified a new mechanism by which probiotics might modulate immune function and regulate defense against pathogen infection. We found that HLH-26 was required for protection against S. enterica infection induced by exposure to the probiotic E. faecium. We further established that the canonical Wnt/BAR-1 pathway, which was regulated by HLH-26, was also required in E. faecium–mediated protection against S. enterica infection. Our results highlight a critical role for HLH-26/Wnt/BAR-1 in the control of probiotic-mediated immune activation and the antimicrobial response.

Materials and methods

Bacterial strains

The following bacterial strains were used: E coli OP50, E. coli HT115(DE3), E. faecium NCTC 7171, S. enterica serovar Typhimurium 14028s. E. faecium was grown in brain–heart infusion (BHI) medium at 37°C, and the cultures of other bacteria were grown in Luria–Bertani (LB) broth at 37°C.

C. elegans strains and growth conditions

All C. elegans strains were maintained on nematode growth medium (NGM) and fed E. coli strain OP50. The C. elegans strains wild-type N2 Bristol, RB1337 hlh-26(ok1453), PS3931 ref-1(ok288), VC1689 ces-2(gk1020), RB824 ztf-11(ok646), RB772 atf-6(ok551), RB911 fshr-1(ok778), EW15 bar-1(ga80), WM300 (alg-4(ok1041) III; alg-3(tm1155) IV), NL3307 rsd-2(pk3307), MT1524 lin-28(n719), SX922 prg-1(n4357), VC3044 dbl-1(ok3749), and JIN1375 hlh-30(tm1978) used in the treatment–infection assays were obtained from the Caenorhabditis Genetics Center (University of Minnesota, Minneapolis, MN). The germline-specific RNAi strain DCL569 (mkcSi13 II;rde-1(mkc36) V), neuron-specific RNAi strain TU3401 (sid-1(pk3321) V;uIs69 V), and gut-specific RNAi strain MGH171 (sid-1(qt9) V;alxIs9) were obtained from the Caenorhabditis Genetics Center. EW25 (unc-30(e191)IV; gaIs45 [pDE218(bar-1::bar-1::gfp); unc-30+]) was a gift from David Eisenmann [27]. Detailed strain information is listed in S9 Table.

Treatment infection assay

Synchronized young adult worms were washed 3 times in M9 buffer and transferred to E. faecium lawns grown on 2% agar BHI plates for colonization for 1 day at 25°C. The worms were then washed and transferred to S. enterica lawns grown on slow-killing (SK) plates (modified NGM agar plates (0.35% instead of 0.25% peptone)) for infection for another day at 25°C. Finally, the worms were washed and transferred to lawns of OP50 grown on NGM plates (Day 1). They were maintained on OP50-NGM plates at 25°C, and survival was scored. E. coli OP50 grown on NGM plates were used as a control for E. faecium treatment or S. enterica infection. For protection and infection assays using transgenic strains with HLH-26 or BAR-1 intestinal specific rescue, non-roller animals with GFP signals in the intestine were picked after synchronization.

Continuous infection assay

Synchronized young adult worms were washed and transferred to E. faecium lawns grown on 2% agar BHI plates for 1 day of colonization. Then, the worms were washed and transferred to lawns of S. enterica grown on SK plates (Day 0). Worms were maintained on S. enterica-SK plates at 25°C, and survival was scored.

CFU measurements

To quantify intestinal bacterial loads, 6 animals were rinsed using drops of S buffer and allowed to crawl free of bacteria on a sterile plate. These animals were transferred into 100 μL of PBS plus 0.01% Triton X-100 and ground individually. Serial dilutions of worm homogenate were seeded on Salmonella-Shigella agar (BD BBL) plates, and plates were incubated at 37°C overnight. Single colonies were counted the next day and represented as the number of bacterial cells or CFU per animal.

Generation of transgenic C. elegans

The hlh-26 DNA was amplified from genomic DNA of Bristol N2 C. elegans adult worms as template using the primers presented in S10 Table. The hlh-26 promoter sequence (2,363 bp) was amplified with primers hlh-26_-2.3k_SaLI F and hlh-26_+1 BamHI R (S10 Table). The amplified hlh-26 promoter sequence was cloned into plasmid pPD95.75_GFP between the Sal I and BamH I sites to generate the clone pPD95.75_hlh-26p_gfp. Young adult hermaphrodite wild-type animals were transformed by microinjection of the plasmids into the gonads. A mixture containing the pPD95.75_hlh-26p_GFP plasmids (25 ng/μL) and coel::rfp (25 ng/μL) as a transformation marker was injected into the animal. Successful transformation was determined by identification of the selection marker as red dots. For HLH-26 gut-specific rescue, hlh-26 encoding sequence was amplified with primers hlh-26_ATG_SaLI F and hlh-26_TAA_SmaI R (S10 Table). The amplified hlh-26 DNA was cloned under the vha-6 promoter in plasmid pPD95.77_Pvha-6_SL2 between the Sal I and Sma I sites to generate the expression clone pPD95.77_Pvha-6_hlh-26_SL2. The construct was purified and sequenced. Young adult hermaphrodite hlh-26(ok1453) animals were transformed by microinjection of plasmids into the gonads. A mixture containing the pPD95.77_Pvha-6_hlh-26_SL2 plasmids (25 ng/μL) and pRF4_ rol-6(su1006) (25 ng/μL) as a transformation marker was injected into the worm. Successful transformation was determined by identification of the selection marker as a dominant roller. pPD95.77_Pvha-6_bar-1_SL2 was constructed and injected in the same manner. bar-1 encoding sequence was amplified with primers bar-1_ATG_SaLI F and bar-1_TAA_SmaI R (S10 Table). At least 3 independent lines carrying extra chromosomal arrays were obtained for each construct.

SagA treatment

Briefly, log phage E. coli BL21 (DE3) cultures with empty vector or expressing SagA grown in LB broth containing ampicillin (100 μg/ml) at 37°C overnight were harvested, 1:10 concentrated, and plated onto NGM plates containing 100 mg/ml ampicillin and 3 mM isopropyl-β-D-thiogalactoside (IPTG) (RNAi plates). SagA-expressing bacteria were allowed to grow and express SagA overnight at 15°C. Synchronized young adults were transferred to SagA-expressing bacterial lawns and incubated 1 day at 25°C. The worms were then washed and transferred to S. enterica lawns grown on SK plates (modified NGM agar plates (0.35% instead of 0.25% peptone)) for infection for another day at 25°C. Finally, the animals were washed and transferred to lawns of OP50 grown on NGM plates (Day 1). They were maintained on OP50-NGM plates at 25°C, and survival was scored. E. coli OP50 grown on NGM plates was also used as a control for SagA treatment or S. enterica infection.

RNAi and E. faecium treatment

RNAi was used to generate loss-of-function RNAi phenotypes by feeding nematodes the E. coli strain HT115 (DE3) expressing double-stranded RNA (dsRNA) homologous to a target gene [34]. Briefly, E. coli HT115 (DE3) with appropriate vectors was grown in LB broth containing ampicillin (100 μg/ml) and tetracycline (12.5 μg/ml) at 37°C overnight and plated onto NGM plates containing 100 mg/ml ampicillin and 3 mM IPTG (RNAi plates). RNAi-expressing bacteria were allowed to grow overnight at 37°C. Gravid adults were transferred to RNAi-expressing bacterial lawns and allowed to lay eggs for 2 h. The gravid adults were removed, the eggs were allowed to develop at 20°C into young adults, and then exposed to E. faecium. RNAi targeting unc-22 was included as a positive control to account for the RNAi efficiency. The RNAi clone was from the Ahringer RNAi library (Open BioSource), and it was sequenced using universal GeneWiz M13 primers.

RNA sequencing and analyses

Approximately 100 gravid animals were placed on 10-cm NGM plates (seeded with E. coli OP50) for 3 h to obtain a synchronized population, which developed and grew to the L4 larval stage at 20°C. Synchronized L4 worms were washed 3 times in M9 buffer and transferred to E. faecium lawns grown on 2% agar BHI plates for colonization for 8 h at 25°C [13]. Animals were washed off the plates with M9, frozen in QIAzol using ethanol/dry ice, and stored at −80°C prior to RNA extraction. Total RNA was extracted using the RNeasy Plus Universal Kit (Qiagen, the Netherlands). Residual genomic DNA was removed using TURBO DNase (Life Technologies, Carlsbad, CA). A total of 6 μg of total RNA was reverse-transcribed with random primers using the High-Capacity cDNA Reverse Transcription Kit (Applied Biosystems, Foster City, CA).

Library construction and RNA sequencing on the BGISEQ-500 platform was performed according to [35,36], and paired-end reads of 100 bp were obtained for subsequent data analysis. The RNA sequence data were analyzed using a workflow constructed for Galaxy (https://usegalaxy.org) [37–39]. The RNA reads were aligned to the C. elegans genome (WS230) using the aligner STAR. Counts were normalized for sequencing depth and RNA composition across all samples. Differential gene expression analysis was then performed using normalized samples. Genes exhibiting at least a 2-fold change were considered differentially expressed. The differentially expressed genes were subjected to SimpleMine tools from WormBase (https://www.wormbase.org/tools/mine/simplemine.cgi) to obtain information such as the WormBase ID and gene names, which were employed for further analyses. GO analysis was performed using the WormBase IDs in the DAVID Bioinformatics Database (https://david.ncifcrf.gov) [40] and a C. elegans data enrichment analysis tool (https://wormbase.org/tools/enrichment/tea/tea.cgi).

RNA isolation and quantitative reverse transcription PCR (qRT-PCR)

Animals were synchronized, and total RNA extraction was performed following the above-described protocol. qRT-PCR was conducted using the Applied Biosystems One-Step Realtime PCR protocol with SYBR Green fluorescence (Applied Biosystems) on an Applied Biosystems 7900HT real-time PCR machine in 96-well plate format. The reactions were analyzed as outlined by the manufacturer (Applied Biosystems). The relative fold changes of the transcripts were calculated using the comparative CT(2^−ΔΔCT) method and normalized to pan-actin (act-1, -3, -4). The cycle thresholds of the amplification were determined using StepOnePlus Real-Time PCR System Software v2.3 (Applied Biosystems). All samples were run in triplicate. The primer sequences are presented in S10 Table.

Fluorescence imaging

Fluorescence imaging was conducted according to [41,42] with slight modifications. Briefly, animals were anesthetized using an M9 salt solution containing 50 mM sodium azide and mounted onto 2% agar pads. The animals were then visualized using a Leica M165 FC fluorescence stereomicroscope. Fluorescence was quantified using Fiji-ImageJ (https://imagej.net/Fiji/Downloads).

COPAS biosorter GFP analysis

Expression levels of the transgenic reporter BAR-1::GFP were analyzed using the COPAS Biosort instrument (Union Biometrica). Synchronized young adult EW25 (BAR-1::GFP) animals on hlh-26 RNAi or control plates were exposed to E. faecium or E. coli for 24 h and washed in M9 buffer before analysis.

Statistical analysis

The two-tailed Student t test for independent samples was used to analyze the data. To compare the means of more than 2 groups, one-way ANOVA with a post hoc analysis was performed. All experiments were repeated at least 3 times, and error bars represent the standard deviation, unless otherwise indicated. The data were judged to be statistically significant when P < 0.05. “n” represents the number of animals in each experiment. “NS” indicates nonsignificant, and the asterisk “*” indicates a significant difference; *P < 0.05, **P < 0.01, ***P < 0.001. The Kaplan–Meier method was used to calculate the survival fractions, and the statistical significance between survival curves was determined using the log-rank test. All experiments were performed at least 3 times. Raw data and statistical data analysis were listed in S1 Data.

Supporting information

S1 Fig. Protection effect from both live and heat-killed E. faecium against S. enterica pathogenesis.

Survival curve from a treatment–1-day infection assay showing that both live and heat-killed E. faecium inhibits S. enterica pathogenesis. Animals were treated on live or heat-killed E. faecium for 1 day before infection with S. enterica for 1 day. Animals were then transferred onto E. coli OP50 plates for the rest of the assay, and survival was scored. The data underlying all the graphs shown in the figure can be found in S1 Data.

(TIF)

Click here for additional data file.^{(207.1KB, tif)}

S2 Fig. E. faecium protection in hlh-26(ok1453);ref-1(ok288) mutant.

(A) Survival curve assaying E. faecium–mediated protection of hlh-26(ok1453);ref-1(ok288) double mutant. Survival curves are representative assays of 3 independent experiments. n = 60 to 90. (B) Survival curves of ref-1(ok288), hlh-26(ok1453), and hlh-26(ok1453);ref-1(ok288) animals grown on E. faecium for 1 day, infected with S. enterica for 1 day, and transferred to E. coli. ref-1(ok288) animals versus hlh-26(ok1453), P < 0.0001; ref-1(ok288) animals versus hlh-26(ok1453);ref-1(ok288) animals, P < 0.0001. hlh-26(ok1453) animals versus hlh-26(ok1453);ref-1(ok288) animals, P = NS. The data underlying all the graphs shown in the figure can be found in S1 Data. Ec, E. coli OP50; Ef, E. faecium; NS, nonsignificant; Se, S. enterica.

(TIF)

Click here for additional data file.^{(334.8KB, tif)}

S3 Fig. Heat-killed E. coli does not protect against S. enterica infection.

(A) Schematic of the E. faecium treatment and 1-day infection assay. Animals were grown on E. faecium lawns for 1 day before infection with S. enterica for 1 day. Animals were then transferred onto E. coli OP50 plates for the remainder of the assay, and survival was scored. Control animals were fed heat-killed E. coli OP50 throughout the assay. Survival curves assaying E. faecium–mediated protection in (B) wild-type and (C) hlh-26(ok1453) animals. The data underlying all the graphs shown in the figure can be found in S1 Data. Ec, E. coli OP50; Ef, E. faecium; Se, S. enterica; WT, wild-type.

(TIF)

Click here for additional data file.^{(558.9KB, tif)}

S4 Fig. hlh-26 is required for SagA-mediated protection.

(A) Schematic of the E. faecium treatment and 1-day infection assay. Animals were pretreated with E. coli BL21 harboring empty vector or expressing SagA followed by S. enterica infection. Animals were then transferred onto E. coli OP50 plates for the remainder of the assay, and survival was scored. Survival curves assaying SagA-mediated protection in (B) wild-type and (C) hlh-26(ok1453) animals. (D) Fluorescence micrographs of animals expressing GFP fused to HLH-26 (HLH-26::GFP) after 24-h fed on E. coli BL21 harboring empty vector or expressing SagA. (E) Quantification of the animals shown in (D), N = 3 biological replicates. ***P < 0.001. The data underlying all the graphs shown in the figure can be found in S1 Data. Ec, E. coli OP50; EcSagA, E. coli BL21 expressing SagA; EcVector, E. coli BL21 harboring empty vector; Se, S. enterica.

(TIF)

Click here for additional data file.^{(1.2MB, tif)}

S5 Fig. Survival curve of C. elegans on E. faecium or S. enterica.

(A) WT and hlh-26(ok1453) animals were grown on E. faecium and scored for survival. WT animals versus hlh-26(ok1453), P = NS. (B) WT and hlh-26(ok1453) animals were grown on S. enterica and scored for survival. WT animals versus hlh-26(ok1453), P = NS. The data underlying all the graphs shown in the figure can be found in S1 Data. NS, nonsignificant; WT, wild-type.

(TIF)

Click here for additional data file.^{(294.6KB, tif)}

S6 Fig. mRNA levels of coexpressed genes.

qRT-PCR validation of selected coexpressed genes from which the upstream regulator hlh-26 was predicted. Values are expressed as the fold difference compared with wild-type worms fed on heat-killed E. coli ± SD by one-way ANOVA with Tukey’s multiple comparisons test, *P < 0.05, **P < 0.01, ***P < 0.001. The data underlying all the graphs shown in the figure can be found in S1 Data. ns, nonsignificant; qRT-PCR, quantitative reverse transcription PCR; WT, wild-type.

(TIF)

Click here for additional data file.^{(583.6KB, tif)}

S7 Fig. E. faecium protection in C. elegans with hlh-26 tissue-specific RNAi.

Survival curves assaying E. faecium–mediated protection in the germline-specific RNAi strain DCL569 fed on HT115 expressing (A) empty vector or (B) hlh-26 RNAi animals. Survival curves assaying E. faecium–mediated protection in the neuron-specific RNAi strain Tu3401 fed on HT115 expressing (A) empty vector or (B) hlh-26 RNAi animals. The data underlying all the graphs shown in the figure can be found in S1 Data. RNAi, RNAi interference.

(TIF)

Click here for additional data file.^{(662.4KB, tif)}

S8 Fig. Enrichment analysis of HLH-26–regulated genes.

(A) Enrichment analysis of up-regulated genes. (B) Enrichment analysis of down-regulated genes. The data underlying all the graphs shown in the figure can be found in S1 Data.

(TIF)

Click here for additional data file.^{(211KB, tif)}

S9 Fig. E. faecium protection in C. elegans mutants.

Survival curve assaying E. faecium–mediated protection in (A) alg-4(ok1041); alg-3(tm1155), (B) rsd-2(pk3307), (C) lin-28(n719), (D) prg-1(n4357), (E) dbl-1(ok3749), and (F) hlh-30(tm1978). Survival curves are representative assays of 3 independent experiments. n = 60 to 90. The data underlying all the graphs shown in the figure can be found in S1 Data. Ec, E. coli OP50; Ef, E. faecium; Se, S. enterica.

(TIF)

Click here for additional data file.^{(589.4KB, tif)}

S10 Fig. Survival curve on S. enterica.

WT, bar-1(ga80), and fshr-1(ok778) animals were grown on modified NGM agar (0.35% peptone instead of 0.25% peptone) for infection with S. enterica and scored for survival. WT animals versus bar-1(ga80), P < 0.0001; fshr-1(ok778), P < 0.0001. fshr-1(ok778) animals versus bar-1(ga80), P < 0.0001. The data underlying all the graphs shown in the figure can be found in S1 Data. NGM, nematode growth medium; WT, wild-type.

(TIF)

Click here for additional data file.^{(215.9KB, tif)}

S11 Fig. Survival curve of cwn-2(ok895) animals on S. enterica.

WT and cwn-2(ok895) animals were grown on S. enterica and scored for survival. WT animals versus cwn-2(ok895), P = NS. The data underlying all the graphs shown in the figure can be found in S1 Data. NS, nonsignificant; WT, wild-type.

(TIF)

Click here for additional data file.^{(158KB, tif)}

S12 Fig. mRNA levels of bar-1 in hlh-26(ok1453) animals and hlh-26(ok1453) animals expressing HLH-26 in the intestine.

mRNA levels of bar-1 in wild-type, hlh-26(ok1453) animals, and hlh-26(ok1453) animals overexpressing HLH-26 fed on E. coli or exposed to E. faecium were detected using qRT-PCR. Values are expressed as the fold difference compared with wild-type animals fed on E. coli ± SD by one-way ANOVA with Tukey’s multiple comparisons test, **P < 0.01, ***P < 0.001. The data underlying all the graphs shown in the figure can be found in S1 Data. qRT-PCR, quantitative reverse transcription PCR; WT, wild-type.

(TIF)

Click here for additional data file.^{(233.3KB, tif)}

S1 Data. Raw data and statistical data analysis.

(XLSX)

Click here for additional data file.^{(123.6KB, xlsx)}

S1 Table. E. faecium–regulated genes that are coexpressed.

(XLSX)

Click here for additional data file.^{(33.9KB, xlsx)}

S2 Table. Common binding motifs for the 30 top ranked coexpressed groups.

(XLSX)

Click here for additional data file.^{(1.6MB, xlsx)}

S3 Table. Genes potentially regulated by top 5 TFs.

(XLSX)

Click here for additional data file.^{(533.3KB, xlsx)}

S4 Table. Sequence.

(XLSX)

Click here for additional data file.^{(1.6MB, xlsx)}

S5 Table. Term.

(XLSX)

Click here for additional data file.^{(11.2KB, xlsx)}

S6 Table. Down-regulated immune genes in hlh-26(ok1453) compared with wild-type animals exposed to E. faecium.

(XLSX)

Click here for additional data file.^{(9.9KB, xlsx)}

S7 Table. Gene enrichment analysis of HLH-26–regulated genes.

(XLSX)

Click here for additional data file.^{(12.6KB, xlsx)}

S8 Table. Representation factors for down-regulated genes in hlh-26(ok1453) animals (n = 1,172).

(XLSX)

Click here for additional data file.^{(9.6KB, xlsx)}

S9 Table. Strains.

(XLSX)

Click here for additional data file.^{(10.1KB, xlsx)}

S10 Table. Primers.

(XLSX)

Click here for additional data file.^{(11.4KB, xlsx)}

Acknowledgments

We thank David M. Eisenmann (University of Maryland, Baltimore, MD 21250) for providing BAR-1::GFP strain, Howard Hang (Scripps, La Jolla, CA 92037) for pET21a-sagA plasmid, and Michael McClelland (University of California, Irvine, CA 92697) for providing the Salmonella enterica serovar Typhimurium 14028s strain.

Abbreviations

BHI: brain–heart infusion
CFU: colony-forming unit
DAVID: database for annotation, visualization, and integrated discovery
dsRNA: double-stranded RNA
GO: gene ontology
IPTG: isopropyl-β-D-thiogalactoside
LB: Luria–Bertani
NGM: nematode growth medium
qRT-PCR: quantitative reverse transcription PCR
RNAi: RNAi interference
RNAseq: RNA sequencing
SK: slow-killing
TF: transcription factor

Data Availability

All data generated or analyzed during this study are included in the manuscript and supporting files. The accession number for the RNA seq data reported in this paper is Gene Expression Omnibus (GEO: GSE178099).

Funding Statement

This work was supported by National Institutes of Health grants GM070977 (AA) and AI156900 (AA). The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript.

References

1.Gentile CL, Weir TL. The gut microbiota at the intersection of diet and human health. Science. 2018;362(6416):776–80. Epub 2018/11/18. doi: 10.1126/science.aau5812 . [DOI] [PubMed] [Google Scholar]
2.Sanders ME, Merenstein DJ, Reid G, Gibson GR, Rastall RA. Probiotics and prebiotics in intestinal health and disease: from biology to the clinic. Nat Rev Gastroenterol Hepatol. 2019;16(10):605–16. Epub 2019/07/13. doi: 10.1038/s41575-019-0173-3 . [DOI] [PubMed] [Google Scholar]
3.Gibson GR, Hutkins R, Sanders ME, Prescott SL, Reimer RA, Salminen SJ, et al. Expert consensus document: The International Scientific Association for Probiotics and Prebiotics (ISAPP) consensus statement on the definition and scope of prebiotics. Nat Rev Gastroenterol Hepatol. 2017;14(8):491–502. Epub 2017/06/15. doi: 10.1038/nrgastro.2017.75 . [DOI] [PubMed] [Google Scholar]
4.Libertucci J, Young VB. The role of the microbiota in infectious diseases. Nat Microbiol. 2019;4(1):35–45. Epub 2018/12/14. doi: 10.1038/s41564-018-0278-4 . [DOI] [PubMed] [Google Scholar]
5.Maldonado Galdeano C, Cazorla SI, Lemme Dumit JM, Velez E, Perdigon G. Beneficial Effects of Probiotic Consumption on the Immune System. Ann Nutr Metab. 2019;74(2):115–24. Epub 2019/01/24. doi: 10.1159/000496426 . [DOI] [PubMed] [Google Scholar]
6.Nusse R, Clevers H. Wnt/beta-Catenin Signaling, Disease, and Emerging Therapeutic Modalities. Cell. 2017;169(6):985–99. Epub 2017/06/03. doi: 10.1016/j.cell.2017.05.016 . [DOI] [PubMed] [Google Scholar]
7.Eisenmann DM. Wnt signaling. WormBook. 2005:1–17. Epub 2007/12/01. doi: 10.1895/wormbook.1.7.1 ; PubMed Central PMCID: PMC4781570. [DOI] [PMC free article] [PubMed] [Google Scholar]
8.Rogan MR, Patterson LL, Wang JY, McBride JW. Bacterial Manipulation of Wnt Signaling: A Host-Pathogen Tug-of-Wnt. Front Immunol. 2019;10:2390. Epub 2019/11/05. doi: 10.3389/fimmu.2019.02390 ; PubMed Central PMCID: PMC6811524. [DOI] [PMC free article] [PubMed] [Google Scholar]
9.Irazoqui JE, Ng A, Xavier RJ, Ausubel FM. Role for beta-catenin and HOX transcription factors in Caenorhabditis elegans and mammalian host epithelial-pathogen interactions. Proc Natl Acad Sci U S A. 2008;105(45):17469–74. Epub 2008/11/05. doi: 10.1073/pnas.0809527105 ; PubMed Central PMCID: PMC2582251. [DOI] [PMC free article] [PubMed] [Google Scholar]
10.Irazoqui JE, Urbach JM, Ausubel FM. Evolution of host innate defence: insights from Caenorhabditis elegans and primitive invertebrates. Nat Rev Immunol. 2010;10(1):47–58. Epub 2009/12/24. doi: 10.1038/nri2689 ; PubMed Central PMCID: PMC2965059. [DOI] [PMC free article] [PubMed] [Google Scholar]
11.Zugasti O, Ewbank JJ. Neuroimmune regulation of antimicrobial peptide expression by a noncanonical TGF-beta signaling pathway in Caenorhabditis elegans epidermis. Nat Immunol. 2009;10(3):249–56. Epub 2009/02/10. doi: 10.1038/ni.1700 . [DOI] [PubMed] [Google Scholar]
12.Roselli M, Schifano E, Guantario B, Zinno P, Uccelletti D, Devirgiliis C. Caenorhabditis Elegans and Probiotics Interactions from a Prolongevity Perspective. Int J Mol Sci. 2019;20(20). Epub 2019/10/30. doi: 10.3390/ijms20205020 ; PubMed Central PMCID: PMC6834311. [DOI] [PMC free article] [PubMed] [Google Scholar]
13.Yuen GJ, Ausubel FM. Both live and dead Enterococci activate Caenorhabditis elegans host defense via immune and stress pathways. Virulence. 2018;9(1):683–99. Epub 2018/02/14. doi: 10.1080/21505594.2018.1438025 ; PubMed Central PMCID: PMC5955442. [DOI] [PMC free article] [PubMed] [Google Scholar]
14.Borgwardt K. Predicting phenotypic effects of gene perturbations in C. elegans using an integrated network model. Bioessays. 2008;30(8):707–10. Epub 2008/07/12. doi: 10.1002/bies.20783 . [DOI] [PubMed] [Google Scholar]
15.van Helden J, Andre B, Collado-Vides J. Extracting regulatory sites from the upstream region of yeast genes by computational analysis of oligonucleotide frequencies. J Mol Biol. 1998;281(5):827–42. Epub 1998/08/28. doi: 10.1006/jmbi.1998.1947 [DOI] [PubMed] [Google Scholar]
16.Narasimhan K, Lambert SA, Yang AW, Riddell J, Mnaimneh S, Zheng H, et al. Mapping and analysis of Caenorhabditis elegans transcription factor sequence specificities. Elife. 2015;4. Epub 2015/04/24. doi: 10.7554/eLife.06967 ; PubMed Central PMCID: PMC4434323. [DOI] [PMC free article] [PubMed] [Google Scholar]
17.Rangan KJ, Pedicord VA, Wang YC, Kim B, Lu Y, Shaham S, et al. A secreted bacterial peptidoglycan hydrolase enhances tolerance to enteric pathogens. Science. 2016;353(6306):1434–7. Epub 2016/10/07. doi: 10.1126/science.aaf3552 ; PubMed Central PMCID: PMC5158264. [DOI] [PMC free article] [PubMed] [Google Scholar]
18.Huang da W, Sherman BT, Lempicki RA. Systematic and integrative analysis of large gene lists using DAVID bioinformatics resources. Nat Protoc. 2009;4(1):44–57. Epub 2009/01/10. doi: 10.1038/nprot.2008.211 . [DOI] [PubMed] [Google Scholar]
19.Angeles-Albores D RY NL, Chan J, Sternberg PW. Tissue enrichment analysis for C. elegans genomics. BMC Bioinformatics. 2016;17(1):366. Epub 2016/09/14. doi: 10.1186/s12859-016-1229-9 ; PubMed Central PMCID: PMC5020436. [DOI] [PMC free article] [PubMed] [Google Scholar]
20.David Angeles-Albores RYNL, Chan J, Sternberg PW. Two new functions in the WormBase Enrichment Suite. MicroPubl Biol. 2018;17:1–10. doi: 10.17912/W25Q2N [DOI] [PMC free article] [PubMed] [Google Scholar]
21.Gravato-Nobre MJ, Vaz F, Filipe S, Chalmers R, Hodgkin J. The Invertebrate Lysozyme Effector ILYS-3 Is Systemically Activated in Response to Danger Signals and Confers Antimicrobial Protection in C. elegans. PLoS Pathog. 2016;12(8):e1005826. Epub 2016/08/16. doi: 10.1371/journal.ppat.1005826 ; PubMed Central PMCID: PMC4985157. [DOI] [PMC free article] [PubMed] [Google Scholar]
22.Jackson BM, Abete-Luzi P, Krause MW, Eisenmann DM. Use of an activated beta-catenin to identify Wnt pathway target genes in caenorhabditis elegans, including a subset of collagen genes expressed in late larval development. G3 (Bethesda). 2014;4(4):733–47. Epub 2014/02/27. doi: 10.1534/g3.113.009522 ; PubMed Central PMCID: PMC4059243. [DOI] [PMC free article] [PubMed] [Google Scholar]
23.van der Bent ML, Sterken MG, Volkers RJ, Riksen JA, Schmid T, Hajnal A, et al. Loss-of-function of beta-catenin bar-1 slows development and activates the Wnt pathway in Caenorhabditis elegans. Sci Rep. 2014;4:4926. Epub 2014/05/14. doi: 10.1038/srep04926 ; PubMed Central PMCID: PMC4019968. [DOI] [PMC free article] [PubMed] [Google Scholar]
24.Gorrepati L, Krause MW, Chen W, Brodigan TM, Correa-Mendez M, Eisenmann DM. Identification of Wnt Pathway Target Genes Regulating the Division and Differentiation of Larval Seam Cells and Vulval Precursor Cells in Caenorhabditis elegans. G3 (Bethesda). 2015;5(8):1551–66. Epub 2015/06/07. doi: 10.1534/g3.115.017715 ; PubMed Central PMCID: PMC4528312. [DOI] [PMC free article] [PubMed] [Google Scholar]
25.Clevers H, Nusse R. Wnt/beta-catenin signaling and disease. Cell. 2012;149(6):1192–205. Epub 2012/06/12. doi: 10.1016/j.cell.2012.05.012 . [DOI] [PubMed] [Google Scholar]
26.Angers S, Moon RT. Proximal events in Wnt signal transduction. Nat Rev Mol Cell Biol. 2009;10(7):468–77. Epub 2009/06/19. doi: 10.1038/nrm2717 . [DOI] [PubMed] [Google Scholar]
27.Eisenmann DM, Maloof JN, Simske JS, Kenyon C, Kim SK. The beta-catenin homolog BAR-1 and LET-60 Ras coordinately regulate the Hox gene lin-39 during Caenorhabditis elegans vulval development. Development. 1998;125(18):3667–80. Epub 1998/08/26. doi: 10.1242/dev.125.18.3667 [DOI] [PubMed] [Google Scholar]
28.Grove CA, De Masi F, Barrasa MI, Newburger DE, Alkema MJ, Bulyk ML, et al. A multiparameter network reveals extensive divergence between C. elegans bHLH transcription factors. Cell. 2009;138(2):314–27. Epub 2009/07/28. doi: 10.1016/j.cell.2009.04.058 ; PubMed Central PMCID: PMC2774807. [DOI] [PMC free article] [PubMed] [Google Scholar]
29.Visvikis O, Ihuegbu N, Labed SA, Luhachack LG, Alves AF, Wollenberg AC, et al. Innate host defense requires TFEB-mediated transcription of cytoprotective and antimicrobial genes. Immunity. 2014;40(6):896–909. Epub 2014/06/03. doi: 10.1016/j.immuni.2014.05.002 ; PubMed Central PMCID: PMC4104614. [DOI] [PMC free article] [PubMed] [Google Scholar]
30.Steinhart Z, Angers S. Wnt signaling in development and tissue homeostasis. Development. 2018;145(11). Epub 2018/06/10. doi: 10.1242/dev.146589 . [DOI] [PubMed] [Google Scholar]
31.Zhao W, Sun Z, Wang S, Li Z, Zheng L. Wnt1 Participates in Inflammation Induced by Lipopolysaccharide Through Upregulating Scavenger Receptor A and NF-kB. Inflammation. 2015;38(4):1700–6. Epub 2015/03/10. doi: 10.1007/s10753-015-0147-8 ; PubMed Central PMCID: PMC4495710. [DOI] [PMC free article] [PubMed] [Google Scholar]
32.Maiti G, Naskar D, Sen M. The Wingless homolog Wnt5a stimulates phagocytosis but not bacterial killing. Proc Natl Acad Sci U S A. 2012;109(41):16600–5. Epub 2012/09/27. doi: 10.1073/pnas.1207789109 ; PubMed Central PMCID: PMC3478623. [DOI] [PMC free article] [PubMed] [Google Scholar]
33.Chen K, Fu Q, Li D, Wu Y, Sun S, Zhang X. Wnt3a suppresses Pseudomonas aeruginosa-induced inflammation and promotes bacterial killing in macrophages. Mol Med Rep. 2016;13(3):2439–46. Epub 2016/02/06. doi: 10.3892/mmr.2016.4869 ; PubMed Central PMCID: PMC4768980. [DOI] [PMC free article] [PubMed] [Google Scholar]
34.Lehner B, Tischler J, Fraser AG. RNAi screens in Caenorhabditis elegans in a 96-well liquid format and their application to the systematic identification of genetic interactions. Nat Protoc. 2006;1(3):1617–20. Epub 2007/04/05. doi: 10.1038/nprot.2006.245 . [DOI] [PubMed] [Google Scholar]
35.Yao L, Wang J, Li B, Meng Y, Ma X, Si E, et al. Transcriptome sequencing and comparative analysis of differentially-expressed isoforms in the roots of Halogeton glomeratus under salt stress. Gene. 2018;646:159–68. Epub 2018/01/03. doi: 10.1016/j.gene.2017.12.058 . [DOI] [PubMed] [Google Scholar]
36.Zhu FY, Chen MX, Ye NH, Qiao WM, Gao B, Law WK, et al. Comparative performance of the BGISEQ-500 and Illumina HiSeq4000 sequencing platforms for transcriptome analysis in plants. Plant Methods. 2018;14:69. Epub 2018/08/21. doi: 10.1186/s13007-018-0337-0 ; PubMed Central PMCID: PMC6088413. [DOI] [PMC free article] [PubMed] [Google Scholar]
37.Afgan E, Baker D, Batut B, van den Beek M, Bouvier D, Cech M, et al. The Galaxy platform for accessible, reproducible and collaborative biomedical analyses: 2018 update. Nucleic Acids Res. 2018;46(W1):W537–W44. Epub 2018/05/24. doi: 10.1093/nar/gky379 ; PubMed Central PMCID: PMC6030816. [DOI] [PMC free article] [PubMed] [Google Scholar]
38.Afgan E, Baker D, van den Beek M, Blankenberg D, Bouvier D, Cech M, et al. The Galaxy platform for accessible, reproducible and collaborative biomedical analyses: 2016 update. Nucleic Acids Res. 2016;44(W1):W3–W10. Epub 2016/05/04. doi: 10.1093/nar/gkw343 ; PubMed Central PMCID: PMC4987906. [DOI] [PMC free article] [PubMed] [Google Scholar]
39.Amrit FRG, Ghazi A. Transcriptomic Analysis of C. elegans RNA Sequencing Data Through the Tuxedo Suite on the Galaxy Project. J Vis Exp. 2017;(122). Epub 2017/04/28. doi: 10.3791/55473 PubMed Central PMCID: PMC5564484. [DOI] [PMC free article] [PubMed] [Google Scholar]
40.Dennis G Jr., Sherman BT, Hosack DA Yang J, Gao W, Lane HC, et al. DAVID: Database for Annotation, Visualization, and Integrated Discovery. Genome Biol. 2003;4(5):P3. Epub 2003/05/08. . [PubMed] [Google Scholar]
41.Singh J, Aballay A. Intestinal infection regulates behavior and learning via neuroendocrine signaling. Elife. 2019;8. Epub 2019/11/02. doi: 10.7554/eLife.50033 ; PubMed Central PMCID: PMC6884406. [DOI] [PMC free article] [PubMed] [Google Scholar]
42.Sun J, Liu Y, Aballay A. Organismal regulation of XBP-1-mediated unfolded protein response during development and immune activation. EMBO Rep. 2012;13(9):855–60. Epub 2012/07/14. doi: 10.1038/embor.2012.100 ; PubMed Central PMCID: PMC3432796. [DOI] [PMC free article] [PubMed] [Google Scholar]

PLoS Biol. doi: 10.1371/journal.pbio.3001581.r001

Decision Letter 0

Ines Alvarez-Garcia

5 Aug 2021

Dear Dr. Aballay,

Your manuscript has now been evaluated by the PLOS Biology editorial staff and I am writing to let you know that we would like to send your submission out for external peer review.

However, before we can send your manuscript to reviewers, we need you to complete your submission by providing the metadata that is required for full assessment. To this end, please login to Editorial Manager where you will find the paper in the 'Submissions Needing Revisions' folder on your homepage. Please click 'Revise Submission' from the Action Links and complete all additional questions in the submission questionnaire.

Please re-submit your manuscript within two working days, i.e. by Aug 07 2021 11:59PM.

During resubmission, you will be invited to opt-in to posting your pre-review manuscript as a bioRxiv preprint. Visit http://journals.plos.org/plosbiology/s/preprints for full details. If you consent to posting your current manuscript as a preprint, please upload a single Preprint PDF when you re-submit.

Once your full submission is complete, your paper will undergo a series of checks in preparation for peer review. Once your manuscript has passed all checks it will be sent out for review.

Given the disruptions resulting from the ongoing COVID-19 pandemic, please expect delays in the editorial process. We apologise in advance for any inconvenience caused and will do our best to minimize impact as far as possible.

Feel free to email us at plosbiology@plos.org if you have any queries relating to your submission.

Kind regards,

Ines Alvarez-Garcia

Senior Editor

PLOS Biology

ialvarez-garcia@plos.org

PLoS Biol. doi: 10.1371/journal.pbio.3001581.r002

Decision Letter 1

Ines Alvarez-Garcia

23 Sep 2021

Dear Alejandro,

Thank you for submitting your manuscript entitled "The REF-1 family transcription factor HLH-26 controls the Wnt/BAR-1 in probiotic-mediated protection against gut infection" for consideration as a Research Article at PLOS Biology. Thank you also for your patience as we completed our editorial process, and please accept my apologies for the delay in providing you with our decision. Your manuscript has been evaluated by the PLOS Biology editors, an Academic Editor with relevant expertise, and by two independent reviewers.

You will see that the reviewers appreciate the interest of the conclusions, but also raise several concerns that would need to be addressed in order for us to consider the manuscript further for publication. Reviewer 1 asks for a better description of how the candidate transcription factors were selected, clarification of several points and suggests some refocusing of the manuscript. Reviewer 2 thinks you need to show if HLH-30 is activated in response to the proteolytic activity of SagA and also to perform an experiment to explore the relevance of the innate immune genes for the protection against S. enterica, among other issues.

In light of the reviews (attached below), we will not be able to accept the current version of the manuscript, but we would welcome re-submission of a revised version that takes into account the reviewers' comments. We cannot make any decision about publication until we have seen the revised manuscript and your response to the reviewers' comments. Your revised manuscript is also likely to be sent for further evaluation by the reviewers.

We expect to receive your revised manuscript within 3 months.

Please email us (plosbiology@plos.org) if you have any questions or concerns, or would like to request an extension. At this stage, your manuscript remains formally under active consideration at our journal; please notify us by email if you do not intend to submit a revision so that we may end consideration of the manuscript at PLOS Biology.

**IMPORTANT - SUBMITTING YOUR REVISION**

Your revisions should address the specific points made by each reviewer. Please submit the following files along with your revised manuscript:

1. A 'Response to Reviewers' file - this should detail your responses to the editorial requests, present a point-by-point response to all of the reviewers' comments, and indicate the changes made to the manuscript.

*NOTE: In your point by point response to the reviewers, please provide the full context of each review. Do not selectively quote paragraphs or sentences to reply to. The entire set of reviewer comments should be present in full and each specific point should be responded to individually, point by point.

You should also cite any additional relevant literature that has been published since the original submission and mention any additional citations in your response.

2. In addition to a clean copy of the manuscript, please also upload a 'track-changes' version of your manuscript that specifies the edits made. This should be uploaded as a "Related" file type.

3. Resubmission Checklist

When you are ready to resubmit your revised manuscript, please refer to this resubmission checklist: https://plos.io/Biology_Checklist

To submit a revised version of your manuscript, please go to https://www.editorialmanager.com/pbiology/ and log in as an Author. Click the link labelled 'Submissions Needing Revision' where you will find your submission record.

Please make sure to read the following important policies and guidelines while preparing your revision and fulfil the editorial requests:

a) *Published Peer Review*

Please note while forming your response, if your article is accepted, you may have the opportunity to make the peer review history publicly available. The record will include editor decision letters (with reviews) and your responses to reviewer comments. If eligible, we will contact you to opt in or out. Please see here for more details:

https://blogs.plos.org/plos/2019/05/plos-journals-now-open-for-published-peer-review/

b) *PLOS Data Policy*

Please note that as a condition of publication PLOS' data policy (http://journals.plos.org/plosbiology/s/data-availability) requires that you make available all data used to draw the conclusions arrived at in your manuscript. If you have not already done so, you must include any data used in your manuscript either in appropriate repositories, within the body of the manuscript, or as supporting information (N.B. this includes any numerical values that were used to generate graphs, histograms etc.). For an example see here: http://www.plosbiology.org/article/info%3Adoi%2F10.1371%2Fjournal.pbio.1001908#s5

c) *Blot and Gel Data Policy*

Please provide the original, uncropped and minimally adjusted images supporting all blot and gel results reported in an article's figures or Supporting Information files. We will require these files before a manuscript can be accepted so please prepare them now, if you have not already uploaded them. Please carefully read our guidelines for how to prepare and upload this data: https://journals.plos.org/plosbiology/s/figures#loc-blot-and-gel-reporting-requirements

d) *Protocols deposition*

To enhance the reproducibility of your results, we recommend that if applicable you deposit your laboratory protocols in protocols.io, where a protocol can be assigned its own identifier (DOI) such that it can be cited independently in the future. For instructions see: https://journals.plos.org/plosbiology/s/submission-guidelines#loc-materials-and-methods

Thank you again for your submission to our journal. We hope that our editorial process has been constructive thus far, and we welcome your feedback at any time. Please don't hesitate to contact us if you have any questions or comments.

Sincerely,

Ines

Ines Alvarez-Garcia, PhD

Senior Editor

PLOS Biology

ialvarez-garcia@plos.org

----------------------------------------------

Reviewers’ comments

Rev. 1:

Summary

In this study, the authors demonstrated that pretreatment with the probiotic species E. faecium protects C. elegans against S. enterica infection. Through a meta-analysis on the gene expression dataset and transcription factors (TFs), the authors identified 28 TFs that are potentially contribute to such protection. The authors then tested the top 5 candidate TFs and found that the E. faecium mediated protection is dependent on the REF-1 family transcription factor HLH-26. The authors next characterized that HLH-26 is expressed in the intestine and the E. faecium mediated protection is dependent on the intestinal expression of HLH-26. To further describe the HLH-26-dependent E. faecium mediated protection, the authors conducted an RNAseq analysis and identified 3261 differentiated expressed genes by comparing the transcription profiles between hlh-26 mutant worms and wt worms grown on E. faecium. The authors found that many hlh-26-regulated genes were also controlled by many other pathways. To identify which pathways regulates the E. faecium mediated protection, the authors tested the key factors (mutant) in the candidate pathways on their functions in E. faecium mediated protection, and found only bar-1(β-catenin in Wnt signaling) is critical in the E. faecium mediated protection. Next, the authors confirmed that the expression of not only bar-1 but also other Wnt signaling components (cwn-2 and mlg-1), as well as downstream effectors, are all hlh-26 dependent. Finally, the authors validated that the function of bar-1 in E. faecium mediated protection is also hlh-26 dependent. Together, the authors propose a function for the uncharacterized REF-1-family transcription factor HLH-26 in probiotic E. faecium mediated protection against pathogenic S. enterica infection in C. elegans, and that Wnt signaling is a critical component of the HLH-26 immunity program.

I think this manuscript would be suitable for publication PLOS Biology after addressing the several concerns listed below:

Major points

1. It is unclear how the initial analysis was done to get the final number of 28 candidate TFs.

The identification of the initial 399 genes needs to be described. In S1 table, the 399 genes are from a previous publication (Yuen and Ausubel, 2018), but this literature was not cited in the text, only cited within the supplemental table 1.

Within these 399 genes, 244 genes were upregulated, and 155 genes were downregulated (Yuen and Ausubel 2018). It is unclear whether the authors did the co-expression category analysis differently on the up or down regulated genes. It is also unclear if the 30 (out of 125) top ranked co-expressed groups the authors picked to analyze include both up and down regulated genes or just up or down regulated genes. Moreover, the authors may need to specify what algorithm/criteria was used to rank the 125 groups and why the criteria were chosen.

For the motif analysis, it is unclear how many of the 158 motifs are for each of the 30 co-expressed groups, and how many of the motifs are shared between different groups.

Finally, it is unclear how many (and which) of the original 399 differentially expressed genes are (or predicted to be) regulated by the 28 TFs, especially the 5 top TFs tested, and how many of them are up or down regulated by these TFs.

Include full list of genes upregulated and downregulated upon exposure to E faecium in WT and hlh-26 mutant C. elegans with their respective p values. This means that 4 tables need to be added to Suppl information.

As you present these data, also discuss the immunity genes that are downregulated in C elegans exposed to E faecium.

2. According to the figure caption, Fig 1 B-G are one representative dataset of 3 independent experiments, please provide the survival data of the other 2 independent experiments as a supplemental file, include the statistical analysis of these survival assays (harzard ratio, median survival rate, p-values between conditions, etc.) and how many animals in each survival test. Please provide the results of these for all survival tests throughout the manuscript as well. A detailed experimental procedures and analysis of the survival assays is also missing in the material and method section, the author should provide it since the majority of the data is based on this assay. I would also suggest the author to provide the raw data of these experiments in a separated file.

3. Fig 2 A-C seems relatively not as important to be shown as main figure panels, because it simply addresses that the heat killed E. coli has no protection to Se infection, just like live E. coli in Fig 1. I would suggest moving it to a supplemental figure. However, on the other hand, It is very interesting to show if heat killed Efm protect against Se infection or not, and if the protection is from the Efm secreted metabolites or Efm intracellular materials.

Also, explicitly describe why in the transcriptomics analyses the authors use heat-killed E coli instead of heat killed E faecium as control. Later discuss heat-stable versus active metabolism as the E. faecium mediators of the probiotic response in C elegans.

4. It would be interesting to know how many of the 3261 differentially regulated genes share conserved DNA binding motif with HLH-26 to see how many of the genes are likely directly regulated by HLH-26, and what these genes are, and if they are up or down regulated. This information would help to demonstrate if the HLH-26 act as an activator or a repressor, and whether upregulation of immunity is a truly enriched component of the response. Also, it would be good to know how many of these 3261 genes overlap with the previous 399 genes, and how many of them overlap with the 70 genes that are predicted to be regulated by HLH-26. This analysis would narrow down the number of the genes and focus the study on HLH-26 directly regulated genes. Furthermore, the author should check the GO cluster of the overlapping genes and the predicted direct HLH-26 regulated genes (specially to check if the immune cluster also show up as highly enriched cluster).

For the differentially expressed genes that are predicted to be directly regulated by HLH-26 and overlap with the previous 70 genes, the authors may want to verify how many of them are HLH-26 dependent by qRT-PCR on the 4 conditions and to test if they functionally contribute to Efm protection against Se infection through RNAi followed by survival tests (if the genes are up-regulated genes). The result of these test are likely to provide an actual mechanism of probiotic-mediated immunity against S. enterica, the lack of which is currently my major concern.

5. Because the analysis on "hlh-26-regulated" genes are not narrowed down to the hlh-26 directly regulated genes as suggested in the last comment, it is not surprise that several other pathways also seem to control the "hlh-26-regulated" genes, and it is not surprise that most of those pathways show no role in the Efm protection (S5 Fig). I would suggest the authors analyze the validated hlh-26 dependent and "directly" regulated genes that contribute to the Efm protection (by RNAi as suggested in last comment), and to check the enriched pathways and the regulation of those genes.

6. The authors reasoned the survival of bar-1 animals decreasing on E. coli lawns as "susceptible to bacterial infections in general". The authors need to rephrase this since the reduction in survival could be due to Wnt/BAR-1 being required for C. elegans healthspan in general, and not specifically to susceptibility to bacterial infection.

7. How is E. faecium treatment performed in combination with RNAi? The authors controlled for heat-killed E coli not acting as a probiotic; however, does live E coli boost S. enterica resistance?

Please test and present these data.

8. In Fig 5 C-E, the authors try to make comparisons between bar-1 and fshr-1 to address the point that even the bar-1 and fshr-1 both reduce the survival to the same extent without Se infection, bar-1 contribute to the Efm protection against Se infection. The authors would want to include formal statistical analyses to support this claim (instead of a graphical representation).

9. Why do the authors modify the conditions to compare bar-1 to fshr-1-deficient worms? Please perform and present fshr-1 experiments in the same conditions than Fig. 1A and 1E. Is BAR-1::GFP a rescue construct? Is BAR-1 overexpression sufficient to activate the immune genes upregulated in Fig. 4B? Is BAR-1 predicted to bind to the promoters of those genes?

10. In Fig 3A-C, the authors implicate the intestinal function in HLH-26 mediated Efm protection. It is valid to test if the intestinal specific RNAi (MGH171 line) against bar-1 would reduce the survival of Efm treated worms. This condition may also reduce the general detrimental effects of bar-1 since the KD of bar-1 is restricted to intestine.

11. Present higher-resolution images of hlh-26P::GFP. Current Fig. 3A is confusing because it shows punctate GFP signal, instead of soluble (and hence homogeneous) cytoplasmic expression. As the authors are aware, soluble GFP generated from a promoter fusion is not expected to be trafficked to organelles.

12. Figure 3D shows rescue but not enhancement of pathogen resistance in animals overexpressing HLH-26. Discuss which would be the bottleneck to enhanced pathogen resistance in this context. Also, is HLH-26 overexpression in the intestine sufficient to promote bar-1 expression (perform qRTPCR of bar-1 in this line)

13. Could rollers ingest less S. enterica? Please perform survival experiment presented in Fig 1A but comparing WT N2 worms to N2 animals carrying pRF4 rol-6(su1006) alone.

14. The authors may need to present images of vha-6:::HLH-26::GFP worms (without SL2) to define whether HLH-26 is enriched in the intestinal nuclei of C elegans exposed to E faecium alone, S enterica alone, or E faecium followed by S enterica exposure.

15. Describe which is the N (independent biological replicates) in Figures 4C & D. Additionally, please check all figure legends to make sure N/n are described in a consistent manner. For example, n=number of animals and N=number of biological replicates.

16. The following expression may be inaccurate: "Downregulated genes in hlh-26(ok1453) animals included immune response genes". The data presented in Table S6 show that the analyzed genes were less expressed in hlh-26 than in WT worms, but we do not know if they were further downregulated or not as induced in the hlh-26 KO. In addition to the fold change, the authors may want to present the raw data for all 4 conditions (wild-type animals exposed to E. coli, wild-type animals exposed to E. faecium, hlh-26 animals exposed to E. coli, and hlh-26 animals exposed to E. faecium) for all genes listed in Table S6.

Similarly, "…that overlapped with genes that were downregulated in hlh-26 animals (S8 Table)." The genes referred to here may not actually be downregulated; instead, they may be less upregulated. Raw data are needed all around for all datasetsto avoid these confusions.

17. In Fig 6A, the authors show that the activation of bar-1, cwn-2 and mig-1 in Efm is hlh-26 dependent. It would be informative to show if these 3 genes are in the list of up-regulated genes in the RNAseq, and in addition, to show if they share the binding motifs of HLH-26.

18. In Fig 6C, the authors show the increasing BAR-1::GFP signal through Efm treatment in a hlh-26 dependent manner. It would be informative if the authors can show zoom in images with higher resolution to show the nuclear localization of BAR-1, since the activation of Wnt canonical signaling should induce the nuclear localization of BAR-1/β-catenin. The author may also show the cellular localization of the POP-1/TCF as the transcription factor regulated by Wnt signaling.

19. The authors state: "We provided evidence indicating that HLH-26-dependent immune genes were activated upon exposure to E. faecium to defend against S. enterica infection"

However, by the end of this manuscript it is still unclear which is the mechanism by which HLH-26 mediates E. faecium enhanced resistance against S. enterica.

Which of the defense effector genes upregulated in Fig. 4B contribute to E. faecium-enhanced resistance to S. enterica but not to resistance to single S. enterica infection? Meaning, which of those or other genes mediate probiotic-enhanced immunity in C. elegans?

So far, the authors present correlations between expression of genes downstream of HLH-26 and enhanced immunity; however, the only molecular players demonstrated to mediate the enhanced immunity are HLH-26 and BAR-1, and BAR-1 is a known mediator of the immune response in C. elegans and other organisms. Further, X et al already showed that bar-1-deficient C. elegans are compromised in their ability to mount a response to E. faecium exposure.

If the authors would shift the focus of their manuscript to presenting a function for a yet uncharacterized C. elegans transcription factor, then they may want to introduce the notion that HLH-26 seems to be a nematode-specific transcription factor. Hence, considering that the introduction focuses on the impact of probiotics on human health, the authors may want to elaborate on which lessons HLH-26 teach us that may be translatable to other organisms.

Minor points

1. Please add the line and page numbers to the manuscript and address the points by referring to the line and page numbers.

2. The author should specify the E. coli strains used in each experiment (e.g. OP50, HT115).

3. Fig 4B showed the qPCR data using bar graph. Box plot would be the better choice. Please go through all other figures/supplemental figures as well to change the bar graph to box plots.

4. In material and method, under statistical analysis, "ns" indicates non-significant. However, in all the Figure legends, non-significant is written as "NS". Check to make sure it is consistent.

5. Part of the conclusion of section 1 "and that HLH-26 was required for E. faecium-activated protection against S. enterica infection." Is demonstrated by experiments shown earlier in the section but not by the experiments showing that 7/10 e faecium-induced genes are hlh-26 dependent. Thus, decouple the conclusion from the QRT results and make it a general section conclusion or move this half of the conclusion upwards.

6. Because you are not looking at the protein, and much less its activity, using a promoter fusion, replace "…foci of HLH-26 activity" for "tissues in which hlh-26 is expressed"

7. In a similar note, the following is an overstatement: "The intestinal function of HLH-26 in protection against S. enterica infection was confirmed using strain MGH171, which allows intestine-specific RNAi." Because, although unlikely for a transcription factor, formally a an mRNA can be produced in the intestine, which will be abrogated by intestinal RNAi, whereas the protein may be exported and exert its critical function in a different tissue. In te absence of a protein function he authors need to continue using expressions as "suggest" or "is in line" instead of confirms.

8. Word missing here" Because BAR-1 plays a critical role in the response to ? and…"

9. Acknowledgment has a typo

10. The authors state: "The primer sequences are available upon request and are presented in S10

11. Table.". Please list all primers in table S10.

12. The authors state: "The animals were then visualized for bacterial load using a Leica M165 FC fluorescence stereomicroscope" However, no bacterial load experiments are presented here.

Rev. 2:

In this study, Sang and colleagues set out to identify mechanisms underlying E. faecium-mediated protection against Salmonella enterica infection using the model C. elegans. Through analyses of co-expressed genes during E. faecium exposure and predicted common binding motifs, the authors identified a requirement for hlh-26 in E. faecium-mediated protection against S. enterica infection. The authors further characterized the role of HLH-26 in this process through the use of transcriptional reporters, tissue-specific knockdown/rescue, mRNAseq, and gene enrichment analyses. They nicely showed that HLH-26 functions in the intestine to control this response and functions with the Wnt/BAR-1 pathway in this context. This manuscript logically follows the authors' previous publications on the regulation of intestinal immunity in C. elegans, and presents conclusions that are supported by the data presented.

Overall, I believe that the authors' have provided sufficient evidence that HLH-26 and the Wnt/BAR-1 pathway are involved in E. faecium-mediated protection in this S. enterica infection model. I have a few questions for the authors consideration:

1. Is HLH-30 activated in response to the proteolytic activity of SagA, a secreted protease from E. faecium, which was previously shown to control the protection of C. elegans against S. enterica (PMID: 27708039)? I think experiments to address this question should be included both to add mechanistic insight to the story, and also to reconcile the proposed mechanisms with what is already known about E. faecium-mediated protection against bacteria infection.

2. I am confused about the rationale for the experiments comparing the protection between heat-killed E. coli and live E. faecium. Is examining killed E. faecium on the protection against S. enterica a better experiment? In other words, do heat-killed E. faecium also provide resistance against S. enterica?

3. The authors demonstrate that hlh-26(ok1453) have reduced protection in the Efm-Se-Ec infection model. However, Figs. 2C, 2F, and 2H illustrate that the protection is not fully hlh-26-dependent and other factors may be important in E. faecium protection. Do ref-1;hlh-26 double mutants have complete abrogation of protection?

4. The title for Figure 2 does not properly represent the data shown.

5. Although the authors conclude that select innate immune genes are dependent on hlh-26 (Fig. 4B), the relevance of these innate immune genes in the protection against S. enterica is unclear. The authors could additionally show the difference in S. enterica CFUs between wild-type N2 and hlh-26(ok1453) after prophylaxis with E. faecium to demonstrate that these innate immune genes may be involved in the eradication of S. enterica. This experiment may not yield clean results, but perhaps is worth trying.

PLoS Biol. 2022 Mar 9;20(3):e3001581. doi: 10.1371/journal.pbio.3001581.r003

Author response to Decision Letter 1

7 Jan 2022

Attachment

Submitted filename: Response.pdf

Click here for additional data file.^{(209.3KB, pdf)}

PLoS Biol. doi: 10.1371/journal.pbio.3001581.r004

Decision Letter 2

Ines Alvarez-Garcia

7 Feb 2022

Dear Dr Aballay,

Thank you for submitting your revised Research Article entitled "The REF-1 family transcription factor HLH-26 controls the Wnt/BAR-1 in probiotic-mediated protection against gut infection" for publication in PLOS Biology. I have now obtained advice from the original reviewers and have discussed their comments with the Academic Editor.

Based on the reviews (attached below), we will probably accept this manuscript for publication, provided you satisfactorily address the remaining points raised by Reviewer 1. Please also make sure to address the following data and other policy-related requests.

In addition, we would like to make a suggestion to improve the title:

"The transcription factor HLH-26 controls probiotic-mediated protection against Salmonella infection through upregulation of the Wnt/BAR-1 pathway"

As you address these items, please take this last chance to review your reference list to ensure that it is complete and correct. If you have cited papers that have been retracted, please include the rationale for doing so in the manuscript text, or remove these references and replace them with relevant current references. Any changes to the reference list should be mentioned in the cover letter that accompanies your revised manuscript.

We expect to receive your revised manuscript within two weeks.

To submit your revision, please go to https://www.editorialmanager.com/pbiology/ and log in as an Author. Click the link labelled 'Submissions Needing Revision' to find your submission record. Your revised submission must include the following:

- a cover letter that should detail your responses to any editorial requests, if applicable, and whether changes have been made to the reference list

- a Response to Reviewers file that provides a detailed response to the reviewers' comments (if applicable)

- a track-changes file indicating any changes that you have made to the manuscript.

NOTE: If Supporting Information files are included with your article, note that these are not copyedited and will be published as they are submitted. Please ensure that these files are legible and of high quality (at least 300 dpi) in an easily accessible file format. For this reason, please be aware that any references listed in an SI file will not be indexed. For more information, see our Supporting Information guidelines:

https://journals.plos.org/plosbiology/s/supporting-information

*Published Peer Review History*

Please note that you may have the opportunity to make the peer review history publicly available. The record will include editor decision letters (with reviews) and your responses to reviewer comments. If eligible, we will contact you to opt in or out. Please see here for more details:

https://blogs.plos.org/plos/2019/05/plos-journals-now-open-for-published-peer-review/

*Early Version*

Please note that an uncorrected proof of your manuscript will be published online ahead of the final version, unless you opted out when submitting your manuscript. If, for any reason, you do not want an earlier version of your manuscript published online, uncheck the box. Should you, your institution's press office or the journal office choose to press release your paper, you will automatically be opted out of early publication. We ask that you notify us as soon as possible if you or your institution is planning to press release the article.

*Protocols deposition*

To enhance the reproducibility of your results, we recommend that if applicable you deposit your laboratory protocols in protocols.io, where a protocol can be assigned its own identifier (DOI) such that it can be cited independently in the future. Additionally, PLOS ONE offers an option for publishing peer-reviewed Lab Protocol articles, which describe protocols hosted on protocols.io. Read more information on sharing protocols at https://plos.org/protocols?utm_medium=editorial-email&utm_source=authorletters&utm_campaign=protocols

Please do not hesitate to contact me should you have any questions.

Sincerely,

Ines

Ines Alvarez-Garcia, PhD

Senior Editor,

ialvarez-garcia@plos.org,

PLOS Biology

------------------------------------------------------------------------

DATA POLICY:

Many thanks for submitting the S1 Data file containing the data underlying all the graphs shown in the figures. However, we are missing the data from the following figures (if the data is already included in the manuscript, please indicate clearly where in the corresponding figure legends):

Fig. 3D (missing data from triple mutants); Fig. 4A, B; Fig. 5B, D, H; Fig. 6A, B, E, F, G (missing data from triple mutants); Fig. S2B; Fig. S6; Fig. S8A, B and Fig. S12

Please also ensure that figure legends in your manuscript include information on WHERE THE UNDERLYING DATA CAN BE FOUND.

In addition, you should make the RNA seq data deposited in Gene Expression Omnibus (GEO: GSE1780992) available at this stage, before the manuscript can enter production.

Please ensure that your Data Statement in the submission system accurately describes where your data can be found.

------------------------------------------------------------------

Reviewers' comments

Rev. 1:

The authors have satisfactorily addressed most of my concerns. Before publication, it would be necessary to address the remaining concerns listed below:

1) Explicitly state in the main text that the RNAseq data comes from a SINGLE replicate; therefore, several false negatives and false positives are expected.

2) Need to revise conclusions for hlh-26-dependent induction of some of the tested genes. For example, contrary to the conclusion, C04G6.5 in Fig. 4 is induced in the hlh-26 mutant to a similar extent as in the WT worms. The difference is that the max level induction is lower because hlh-26 affects the basal expression of this gene; however, the delta of expression Efaecium to Ecoli is still large in the absence of hlh-26. Therefore, it cannot be said that hlh-26 is required for C04G6.5 induction. What the data says is that HLH-26 is required for C04G6.5 basal expression and may subtly contribute to C04G6.5 induction. The same is the case for other genes including cwn-2 & R02E4.1 (Fig. 6) and C54D10.3 (Suppl. Fig. 6).

3) In response to the previous comment "Is BAR-1 overexpression sufficient to activate the immune genes upregulated in Fig. 4B? ", the authors responded: "… The immune genes listed in Fig. 4B are not predicted to have BAR-1 binding sites nor are they up-regulated by BAR-1 overexpression (Jackson et al. G3 (Bethesda). 2014;4(4):733-47)."

However, the fact that BAR-1 is not sufficient to activate the immune genes is not discussed in the manuscript. As a central player in the proposed model, BAR-1's insufficiency needs to be discussed.

Similarly, the previous comment on POP-1 was not fully addressed. POP-1 nuclear localization is controlled via its phosphorylation status. Therefore, even if pop-1 is not transcriptionally regulated, the localization of the POP-1 protein would be informative of its ON-OFF status. The authors need to at least discuss this point.

4) To reach a broader readership, replace N2 with WT in text and all figures

5) Describe exactly the number of base pairs cloned upstream of the ATG to generate the promoter fusion constructs and the primer sequences used. Do the same for the protein fusions; provide coordinates and primers used to make the constructs.

6) In Supplementary tables depicting GFP quantification, authors need to indicate the number of animals used to calculate the median/mean shown in the tables and disclose whether the depicted values and mean or medians. As of now, there is a single value per biological replicate.

7) Include the TF/s that bind to each gene in Table S3 worksheets named "28 TF controlled genes" & "5YF controlled genes".

Typos or similar

1. Across the manuscript, please change all qPCR instances for qRTPCR (because what is being measured is mRNAs)

2. Legend Fig.3A: the construct is referred to as HLH-26::GFP, but the image shows hlh-26P::GFP.

3. Title Fig 4: HLH-26 loss of function regulates an innate immune transcriptional program.

4. Lines 250-252: : "We tested verified by qRT-PCR the hlh-26-dependent regulation of ten genes involved in immune response (S6 Table) under four conditions: wild-type animals exposed to E. coli, wild type animals exposed to E. faecium, hlh-26(ok1453) animals exposed to E. coli, and hlh-26(ok1453) animals exposed to E. faecium.

5. Legend Fig. 5: Delete the Euro sign in "..expressing € empty.."

Rev. 2:

The authors have addressed my concerns from my initial review of the manuscript.

PLoS Biol. 2022 Mar 9;20(3):e3001581. doi: 10.1371/journal.pbio.3001581.r005

Author response to Decision Letter 2

14 Feb 2022

Attachment

Submitted filename: Response to reviewers.pdf

Click here for additional data file.^{(129.6KB, pdf)}

PLoS Biol. doi: 10.1371/journal.pbio.3001581.r006

Decision Letter 3

Ines Alvarez-Garcia

23 Feb 2022

Dear Dr Aballay,

On behalf of my colleagues and the Academic Editor, Ken Cadwell, I am pleased to say that we can in principle accept your Research Article entitled "The transcription factor HLH-26 controls probiotic-mediated protection against intestinal infection through upregulation of the Wnt/BAR-1 pathway" for publication in PLOS Biology, provided you address any remaining formatting and reporting issues. These will be detailed in an email that will follow this letter and that you will usually receive within 2-3 business days, during which time no action is required from you. Please note that we will not be able to formally accept your manuscript and schedule it for publication until you have any requested changes.

Please take a minute to log into Editorial Manager at http://www.editorialmanager.com/pbiology/, click the "Update My Information" link at the top of the page, and update your user information to ensure an efficient production process.

PRESS

We frequently collaborate with press offices. If your institution or institutions have a press office, please notify them about your upcoming paper at this point, to enable them to help maximise its impact. If the press office is planning to promote your findings, we would be grateful if they could coordinate with biologypress@plos.org. If you have not yet opted out of the early version process, we ask that you notify us immediately of any press plans so that we may do so on your behalf.

We also ask that you take this opportunity to read our Embargo Policy regarding the discussion, promotion and media coverage of work that is yet to be published by PLOS. As your manuscript is not yet published, it is bound by the conditions of our Embargo Policy. Please be aware that this policy is in place both to ensure that any press coverage of your article is fully substantiated and to provide a direct link between such coverage and the published work. For full details of our Embargo Policy, please visit http://www.plos.org/about/media-inquiries/embargo-policy/.

Thank you again for choosing PLOS Biology for publication and supporting Open Access publishing. We look forward to publishing your study.

Sincerely,

Ines

Ines Alvarez-Garcia, PhD

Senior Editor

PLOS Biology

ialvarez-garcia@plos.org

Associated Data

This section collects any data citations, data availability statements, or supplementary materials included in this article.

Supplementary Materials

S1 Fig. Protection effect from both live and heat-killed E. faecium against S. enterica pathogenesis.

(TIF)

Click here for additional data file.^{(207.1KB, tif)}

S2 Fig. E. faecium protection in hlh-26(ok1453);ref-1(ok288) mutant.

(TIF)

Click here for additional data file.^{(334.8KB, tif)}

S3 Fig. Heat-killed E. coli does not protect against S. enterica infection.

(TIF)

Click here for additional data file.^{(558.9KB, tif)}

S4 Fig. hlh-26 is required for SagA-mediated protection.

(TIF)

Click here for additional data file.^{(1.2MB, tif)}

S5 Fig. Survival curve of C. elegans on E. faecium or S. enterica.

(TIF)

Click here for additional data file.^{(294.6KB, tif)}

S6 Fig. mRNA levels of coexpressed genes.

(TIF)

Click here for additional data file.^{(583.6KB, tif)}

S7 Fig. E. faecium protection in C. elegans with hlh-26 tissue-specific RNAi.

(TIF)

Click here for additional data file.^{(662.4KB, tif)}

S8 Fig. Enrichment analysis of HLH-26–regulated genes.

(A) Enrichment analysis of up-regulated genes. (B) Enrichment analysis of down-regulated genes. The data underlying all the graphs shown in the figure can be found in S1 Data.

(TIF)

Click here for additional data file.^{(211KB, tif)}

S9 Fig. E. faecium protection in C. elegans mutants.

(TIF)

Click here for additional data file.^{(589.4KB, tif)}

S10 Fig. Survival curve on S. enterica.

(TIF)

Click here for additional data file.^{(215.9KB, tif)}

S11 Fig. Survival curve of cwn-2(ok895) animals on S. enterica.

(TIF)

Click here for additional data file.^{(158KB, tif)}

S12 Fig. mRNA levels of bar-1 in hlh-26(ok1453) animals and hlh-26(ok1453) animals expressing HLH-26 in the intestine.

(TIF)

Click here for additional data file.^{(233.3KB, tif)}

S1 Data. Raw data and statistical data analysis.

(XLSX)

Click here for additional data file.^{(123.6KB, xlsx)}

S1 Table. E. faecium–regulated genes that are coexpressed.

(XLSX)

Click here for additional data file.^{(33.9KB, xlsx)}

S2 Table. Common binding motifs for the 30 top ranked coexpressed groups.

(XLSX)

Click here for additional data file.^{(1.6MB, xlsx)}

S3 Table. Genes potentially regulated by top 5 TFs.

(XLSX)

Click here for additional data file.^{(533.3KB, xlsx)}

S4 Table. Sequence.

(XLSX)

Click here for additional data file.^{(1.6MB, xlsx)}

S5 Table. Term.

(XLSX)

Click here for additional data file.^{(11.2KB, xlsx)}

S6 Table. Down-regulated immune genes in hlh-26(ok1453) compared with wild-type animals exposed to E. faecium.

(XLSX)

Click here for additional data file.^{(9.9KB, xlsx)}

S7 Table. Gene enrichment analysis of HLH-26–regulated genes.

(XLSX)

Click here for additional data file.^{(12.6KB, xlsx)}

S8 Table. Representation factors for down-regulated genes in hlh-26(ok1453) animals (n = 1,172).

(XLSX)

Click here for additional data file.^{(9.6KB, xlsx)}

S9 Table. Strains.

(XLSX)

Click here for additional data file.^{(10.1KB, xlsx)}

S10 Table. Primers.

(XLSX)

Click here for additional data file.^{(11.4KB, xlsx)}

Attachment

Submitted filename: Response.pdf

Click here for additional data file.^{(209.3KB, pdf)}

Attachment

Submitted filename: Response to reviewers.pdf

Click here for additional data file.^{(129.6KB, pdf)}

Data Availability Statement

[pbio.3001581.ref001] 1.Gentile CL, Weir TL. The gut microbiota at the intersection of diet and human health. Science. 2018;362(6416):776–80. Epub 2018/11/18. doi: 10.1126/science.aau5812 . [DOI] [PubMed] [Google Scholar]

[pbio.3001581.ref002] 2.Sanders ME, Merenstein DJ, Reid G, Gibson GR, Rastall RA. Probiotics and prebiotics in intestinal health and disease: from biology to the clinic. Nat Rev Gastroenterol Hepatol. 2019;16(10):605–16. Epub 2019/07/13. doi: 10.1038/s41575-019-0173-3 . [DOI] [PubMed] [Google Scholar]

[pbio.3001581.ref003] 3.Gibson GR, Hutkins R, Sanders ME, Prescott SL, Reimer RA, Salminen SJ, et al. Expert consensus document: The International Scientific Association for Probiotics and Prebiotics (ISAPP) consensus statement on the definition and scope of prebiotics. Nat Rev Gastroenterol Hepatol. 2017;14(8):491–502. Epub 2017/06/15. doi: 10.1038/nrgastro.2017.75 . [DOI] [PubMed] [Google Scholar]

[pbio.3001581.ref004] 4.Libertucci J, Young VB. The role of the microbiota in infectious diseases. Nat Microbiol. 2019;4(1):35–45. Epub 2018/12/14. doi: 10.1038/s41564-018-0278-4 . [DOI] [PubMed] [Google Scholar]

[pbio.3001581.ref005] 5.Maldonado Galdeano C, Cazorla SI, Lemme Dumit JM, Velez E, Perdigon G. Beneficial Effects of Probiotic Consumption on the Immune System. Ann Nutr Metab. 2019;74(2):115–24. Epub 2019/01/24. doi: 10.1159/000496426 . [DOI] [PubMed] [Google Scholar]

[pbio.3001581.ref006] 6.Nusse R, Clevers H. Wnt/beta-Catenin Signaling, Disease, and Emerging Therapeutic Modalities. Cell. 2017;169(6):985–99. Epub 2017/06/03. doi: 10.1016/j.cell.2017.05.016 . [DOI] [PubMed] [Google Scholar]

[pbio.3001581.ref007] 7.Eisenmann DM. Wnt signaling. WormBook. 2005:1–17. Epub 2007/12/01. doi: 10.1895/wormbook.1.7.1 ; PubMed Central PMCID: PMC4781570. [DOI] [PMC free article] [PubMed] [Google Scholar]

[pbio.3001581.ref008] 8.Rogan MR, Patterson LL, Wang JY, McBride JW. Bacterial Manipulation of Wnt Signaling: A Host-Pathogen Tug-of-Wnt. Front Immunol. 2019;10:2390. Epub 2019/11/05. doi: 10.3389/fimmu.2019.02390 ; PubMed Central PMCID: PMC6811524. [DOI] [PMC free article] [PubMed] [Google Scholar]

[pbio.3001581.ref009] 9.Irazoqui JE, Ng A, Xavier RJ, Ausubel FM. Role for beta-catenin and HOX transcription factors in Caenorhabditis elegans and mammalian host epithelial-pathogen interactions. Proc Natl Acad Sci U S A. 2008;105(45):17469–74. Epub 2008/11/05. doi: 10.1073/pnas.0809527105 ; PubMed Central PMCID: PMC2582251. [DOI] [PMC free article] [PubMed] [Google Scholar]

[pbio.3001581.ref010] 10.Irazoqui JE, Urbach JM, Ausubel FM. Evolution of host innate defence: insights from Caenorhabditis elegans and primitive invertebrates. Nat Rev Immunol. 2010;10(1):47–58. Epub 2009/12/24. doi: 10.1038/nri2689 ; PubMed Central PMCID: PMC2965059. [DOI] [PMC free article] [PubMed] [Google Scholar]

[pbio.3001581.ref011] 11.Zugasti O, Ewbank JJ. Neuroimmune regulation of antimicrobial peptide expression by a noncanonical TGF-beta signaling pathway in Caenorhabditis elegans epidermis. Nat Immunol. 2009;10(3):249–56. Epub 2009/02/10. doi: 10.1038/ni.1700 . [DOI] [PubMed] [Google Scholar]

[pbio.3001581.ref012] 12.Roselli M, Schifano E, Guantario B, Zinno P, Uccelletti D, Devirgiliis C. Caenorhabditis Elegans and Probiotics Interactions from a Prolongevity Perspective. Int J Mol Sci. 2019;20(20). Epub 2019/10/30. doi: 10.3390/ijms20205020 ; PubMed Central PMCID: PMC6834311. [DOI] [PMC free article] [PubMed] [Google Scholar]

[pbio.3001581.ref013] 13.Yuen GJ, Ausubel FM. Both live and dead Enterococci activate Caenorhabditis elegans host defense via immune and stress pathways. Virulence. 2018;9(1):683–99. Epub 2018/02/14. doi: 10.1080/21505594.2018.1438025 ; PubMed Central PMCID: PMC5955442. [DOI] [PMC free article] [PubMed] [Google Scholar]

[pbio.3001581.ref014] 14.Borgwardt K. Predicting phenotypic effects of gene perturbations in C. elegans using an integrated network model. Bioessays. 2008;30(8):707–10. Epub 2008/07/12. doi: 10.1002/bies.20783 . [DOI] [PubMed] [Google Scholar]

[pbio.3001581.ref015] 15.van Helden J, Andre B, Collado-Vides J. Extracting regulatory sites from the upstream region of yeast genes by computational analysis of oligonucleotide frequencies. J Mol Biol. 1998;281(5):827–42. Epub 1998/08/28. doi: 10.1006/jmbi.1998.1947 [DOI] [PubMed] [Google Scholar]

[pbio.3001581.ref016] 16.Narasimhan K, Lambert SA, Yang AW, Riddell J, Mnaimneh S, Zheng H, et al. Mapping and analysis of Caenorhabditis elegans transcription factor sequence specificities. Elife. 2015;4. Epub 2015/04/24. doi: 10.7554/eLife.06967 ; PubMed Central PMCID: PMC4434323. [DOI] [PMC free article] [PubMed] [Google Scholar]

[pbio.3001581.ref017] 17.Rangan KJ, Pedicord VA, Wang YC, Kim B, Lu Y, Shaham S, et al. A secreted bacterial peptidoglycan hydrolase enhances tolerance to enteric pathogens. Science. 2016;353(6306):1434–7. Epub 2016/10/07. doi: 10.1126/science.aaf3552 ; PubMed Central PMCID: PMC5158264. [DOI] [PMC free article] [PubMed] [Google Scholar]

[pbio.3001581.ref018] 18.Huang da W, Sherman BT, Lempicki RA. Systematic and integrative analysis of large gene lists using DAVID bioinformatics resources. Nat Protoc. 2009;4(1):44–57. Epub 2009/01/10. doi: 10.1038/nprot.2008.211 . [DOI] [PubMed] [Google Scholar]

[pbio.3001581.ref019] 19.Angeles-Albores D RY NL, Chan J, Sternberg PW. Tissue enrichment analysis for C. elegans genomics. BMC Bioinformatics. 2016;17(1):366. Epub 2016/09/14. doi: 10.1186/s12859-016-1229-9 ; PubMed Central PMCID: PMC5020436. [DOI] [PMC free article] [PubMed] [Google Scholar]

[pbio.3001581.ref020] 20.David Angeles-Albores RYNL, Chan J, Sternberg PW. Two new functions in the WormBase Enrichment Suite. MicroPubl Biol. 2018;17:1–10. doi: 10.17912/W25Q2N [DOI] [PMC free article] [PubMed] [Google Scholar]

[pbio.3001581.ref021] 21.Gravato-Nobre MJ, Vaz F, Filipe S, Chalmers R, Hodgkin J. The Invertebrate Lysozyme Effector ILYS-3 Is Systemically Activated in Response to Danger Signals and Confers Antimicrobial Protection in C. elegans. PLoS Pathog. 2016;12(8):e1005826. Epub 2016/08/16. doi: 10.1371/journal.ppat.1005826 ; PubMed Central PMCID: PMC4985157. [DOI] [PMC free article] [PubMed] [Google Scholar]

[pbio.3001581.ref022] 22.Jackson BM, Abete-Luzi P, Krause MW, Eisenmann DM. Use of an activated beta-catenin to identify Wnt pathway target genes in caenorhabditis elegans, including a subset of collagen genes expressed in late larval development. G3 (Bethesda). 2014;4(4):733–47. Epub 2014/02/27. doi: 10.1534/g3.113.009522 ; PubMed Central PMCID: PMC4059243. [DOI] [PMC free article] [PubMed] [Google Scholar]

[pbio.3001581.ref023] 23.van der Bent ML, Sterken MG, Volkers RJ, Riksen JA, Schmid T, Hajnal A, et al. Loss-of-function of beta-catenin bar-1 slows development and activates the Wnt pathway in Caenorhabditis elegans. Sci Rep. 2014;4:4926. Epub 2014/05/14. doi: 10.1038/srep04926 ; PubMed Central PMCID: PMC4019968. [DOI] [PMC free article] [PubMed] [Google Scholar]

[pbio.3001581.ref024] 24.Gorrepati L, Krause MW, Chen W, Brodigan TM, Correa-Mendez M, Eisenmann DM. Identification of Wnt Pathway Target Genes Regulating the Division and Differentiation of Larval Seam Cells and Vulval Precursor Cells in Caenorhabditis elegans. G3 (Bethesda). 2015;5(8):1551–66. Epub 2015/06/07. doi: 10.1534/g3.115.017715 ; PubMed Central PMCID: PMC4528312. [DOI] [PMC free article] [PubMed] [Google Scholar]

[pbio.3001581.ref025] 25.Clevers H, Nusse R. Wnt/beta-catenin signaling and disease. Cell. 2012;149(6):1192–205. Epub 2012/06/12. doi: 10.1016/j.cell.2012.05.012 . [DOI] [PubMed] [Google Scholar]

[pbio.3001581.ref026] 26.Angers S, Moon RT. Proximal events in Wnt signal transduction. Nat Rev Mol Cell Biol. 2009;10(7):468–77. Epub 2009/06/19. doi: 10.1038/nrm2717 . [DOI] [PubMed] [Google Scholar]

[pbio.3001581.ref027] 27.Eisenmann DM, Maloof JN, Simske JS, Kenyon C, Kim SK. The beta-catenin homolog BAR-1 and LET-60 Ras coordinately regulate the Hox gene lin-39 during Caenorhabditis elegans vulval development. Development. 1998;125(18):3667–80. Epub 1998/08/26. doi: 10.1242/dev.125.18.3667 [DOI] [PubMed] [Google Scholar]

[pbio.3001581.ref028] 28.Grove CA, De Masi F, Barrasa MI, Newburger DE, Alkema MJ, Bulyk ML, et al. A multiparameter network reveals extensive divergence between C. elegans bHLH transcription factors. Cell. 2009;138(2):314–27. Epub 2009/07/28. doi: 10.1016/j.cell.2009.04.058 ; PubMed Central PMCID: PMC2774807. [DOI] [PMC free article] [PubMed] [Google Scholar]

[pbio.3001581.ref029] 29.Visvikis O, Ihuegbu N, Labed SA, Luhachack LG, Alves AF, Wollenberg AC, et al. Innate host defense requires TFEB-mediated transcription of cytoprotective and antimicrobial genes. Immunity. 2014;40(6):896–909. Epub 2014/06/03. doi: 10.1016/j.immuni.2014.05.002 ; PubMed Central PMCID: PMC4104614. [DOI] [PMC free article] [PubMed] [Google Scholar]

[pbio.3001581.ref030] 30.Steinhart Z, Angers S. Wnt signaling in development and tissue homeostasis. Development. 2018;145(11). Epub 2018/06/10. doi: 10.1242/dev.146589 . [DOI] [PubMed] [Google Scholar]

[pbio.3001581.ref031] 31.Zhao W, Sun Z, Wang S, Li Z, Zheng L. Wnt1 Participates in Inflammation Induced by Lipopolysaccharide Through Upregulating Scavenger Receptor A and NF-kB. Inflammation. 2015;38(4):1700–6. Epub 2015/03/10. doi: 10.1007/s10753-015-0147-8 ; PubMed Central PMCID: PMC4495710. [DOI] [PMC free article] [PubMed] [Google Scholar]

[pbio.3001581.ref032] 32.Maiti G, Naskar D, Sen M. The Wingless homolog Wnt5a stimulates phagocytosis but not bacterial killing. Proc Natl Acad Sci U S A. 2012;109(41):16600–5. Epub 2012/09/27. doi: 10.1073/pnas.1207789109 ; PubMed Central PMCID: PMC3478623. [DOI] [PMC free article] [PubMed] [Google Scholar]

[pbio.3001581.ref033] 33.Chen K, Fu Q, Li D, Wu Y, Sun S, Zhang X. Wnt3a suppresses Pseudomonas aeruginosa-induced inflammation and promotes bacterial killing in macrophages. Mol Med Rep. 2016;13(3):2439–46. Epub 2016/02/06. doi: 10.3892/mmr.2016.4869 ; PubMed Central PMCID: PMC4768980. [DOI] [PMC free article] [PubMed] [Google Scholar]

[pbio.3001581.ref034] 34.Lehner B, Tischler J, Fraser AG. RNAi screens in Caenorhabditis elegans in a 96-well liquid format and their application to the systematic identification of genetic interactions. Nat Protoc. 2006;1(3):1617–20. Epub 2007/04/05. doi: 10.1038/nprot.2006.245 . [DOI] [PubMed] [Google Scholar]

[pbio.3001581.ref035] 35.Yao L, Wang J, Li B, Meng Y, Ma X, Si E, et al. Transcriptome sequencing and comparative analysis of differentially-expressed isoforms in the roots of Halogeton glomeratus under salt stress. Gene. 2018;646:159–68. Epub 2018/01/03. doi: 10.1016/j.gene.2017.12.058 . [DOI] [PubMed] [Google Scholar]

[pbio.3001581.ref036] 36.Zhu FY, Chen MX, Ye NH, Qiao WM, Gao B, Law WK, et al. Comparative performance of the BGISEQ-500 and Illumina HiSeq4000 sequencing platforms for transcriptome analysis in plants. Plant Methods. 2018;14:69. Epub 2018/08/21. doi: 10.1186/s13007-018-0337-0 ; PubMed Central PMCID: PMC6088413. [DOI] [PMC free article] [PubMed] [Google Scholar]

[pbio.3001581.ref037] 37.Afgan E, Baker D, Batut B, van den Beek M, Bouvier D, Cech M, et al. The Galaxy platform for accessible, reproducible and collaborative biomedical analyses: 2018 update. Nucleic Acids Res. 2018;46(W1):W537–W44. Epub 2018/05/24. doi: 10.1093/nar/gky379 ; PubMed Central PMCID: PMC6030816. [DOI] [PMC free article] [PubMed] [Google Scholar]

[pbio.3001581.ref038] 38.Afgan E, Baker D, van den Beek M, Blankenberg D, Bouvier D, Cech M, et al. The Galaxy platform for accessible, reproducible and collaborative biomedical analyses: 2016 update. Nucleic Acids Res. 2016;44(W1):W3–W10. Epub 2016/05/04. doi: 10.1093/nar/gkw343 ; PubMed Central PMCID: PMC4987906. [DOI] [PMC free article] [PubMed] [Google Scholar]

[pbio.3001581.ref039] 39.Amrit FRG, Ghazi A. Transcriptomic Analysis of C. elegans RNA Sequencing Data Through the Tuxedo Suite on the Galaxy Project. J Vis Exp. 2017;(122). Epub 2017/04/28. doi: 10.3791/55473 PubMed Central PMCID: PMC5564484. [DOI] [PMC free article] [PubMed] [Google Scholar]

[pbio.3001581.ref040] 40.Dennis G Jr., Sherman BT, Hosack DA Yang J, Gao W, Lane HC, et al. DAVID: Database for Annotation, Visualization, and Integrated Discovery. Genome Biol. 2003;4(5):P3. Epub 2003/05/08. . [PubMed] [Google Scholar]

[pbio.3001581.ref041] 41.Singh J, Aballay A. Intestinal infection regulates behavior and learning via neuroendocrine signaling. Elife. 2019;8. Epub 2019/11/02. doi: 10.7554/eLife.50033 ; PubMed Central PMCID: PMC6884406. [DOI] [PMC free article] [PubMed] [Google Scholar]

[pbio.3001581.ref042] 42.Sun J, Liu Y, Aballay A. Organismal regulation of XBP-1-mediated unfolded protein response during development and immune activation. EMBO Rep. 2012;13(9):855–60. Epub 2012/07/14. doi: 10.1038/embor.2012.100 ; PubMed Central PMCID: PMC3432796. [DOI] [PMC free article] [PubMed] [Google Scholar]

PERMALINK

The transcription factor HLH-26 controls probiotic-mediated protection against intestinal infection through up-regulation of the Wnt/BAR-1 pathway

Yu Sang

Jie Ren

Alejandro Aballay

Roles

Abstract

Introduction

Results

hlh-26 is required for probiotic protection against S. enterica infection

Fig 1. E. faecium protection in wild-type and mutant C. elegans.

Table 1. Top-ranked candidate TFs.

Fig 2. hlh-26 is required for probiotic E. faecium–mediated protection against S. enterica infection.

HLH-26 functions in the intestine to protect against S. enterica infection upon probiotic exposure

Fig 3. HLH-26 is expressed in the intestine.

HLH-26 is required for induction of immune genes in response to E. faecium exposure

Fig 4. HLH-26 regulates an innate immune transcriptional program.

The canonical Wnt/BAR-1 pathway is required for E. faecium–activated protection

Fig 5. Bar-1 is required in E. faecium protection against S. enterica infection.

Fig 6. HLH-26 is required for probiotic protection against S. enterica infection by regulating the canonical Wnt/BAR-1 pathway.

Discussion

Fig 7. Transcription factor HLH-26 mediates probiotic protection via Wnt/BAR-1 Signaling.

Materials and methods

Bacterial strains

C. elegans strains and growth conditions

Treatment infection assay

Continuous infection assay

CFU measurements

Generation of transgenic C. elegans

SagA treatment

RNAi and E. faecium treatment

RNA sequencing and analyses

RNA isolation and quantitative reverse transcription PCR (qRT-PCR)

Fluorescence imaging

COPAS biosorter GFP analysis

Statistical analysis

Supporting information

Acknowledgments

Abbreviations

Data Availability

Funding Statement

References

Decision Letter 0

Ines Alvarez-Garcia

Roles

Decision Letter 1

Ines Alvarez-Garcia

Roles

Author response to Decision Letter 1

Decision Letter 2

Ines Alvarez-Garcia

Roles

Author response to Decision Letter 2

Decision Letter 3

Ines Alvarez-Garcia

Roles

Associated Data

Supplementary Materials

Data Availability Statement

ACTIONS

PERMALINK

RESOURCES

Similar articles

Cited by other articles

Links to NCBI Databases
