. 2022 Apr 2:1–15. Online ahead of print. doi: 10.1007/s12652-022-03826-9

Stability in distribution for uncertain delay differential equations based on new Lipschitz condition

Yin Gao 1, Lifen Jia 2,
PMCID: PMC8976426  PMID: 35401853

Abstract

Stability in distribution for uncertain delay differential equations based on the strong Lipschitz condition only involving the current state has been successfully investigated. In reality, the uncertain delay differential equation is not only relate to the current state, but also relate to the past state, so it is very hard to obtain the strong Lipschitz condition. In this paper, the new Lipschitz condition concerning the current state and the past state is provided, if the uncertain delay differential equation satisfies the strong Lipschitz condition, it must satisfy the new Lipschitz condition, conversely, it may not be established. By means of the new Lipschitz condition, a sufficient theorem for the uncertain delay differential equation being stable in distribution is proved. Meanwhile, a class of uncertain delay differential equation is certified to be stable in distribution without any limited condition. Besides, the effectiveness of the above sufficient theorem is verified by two numerical examples.

Keywords: Liu process, Uncertain process, Stability in distribution, Uncertain delay differential equations

Introduction

Delay differential equations have been successfully applied in the feedback mechanism systems, such as the SIS epidemic system (Liu 2015a), the competitive diffusive system (Lin 2018), and the hepatitis B virus infection system (Guo and Cai 2012). The feedback mechanism systems are affected by the “noise”, such as the biologically motivated signal transmission system (Xu et al. 2009), the optimal control system (Ma and Liu 2017), and the financial system (Shen et al. 2014). If the “noise” are modelled by Wiener processes, stochastic delay differential equations (Hereinafter called SDDEs for short) involving the Wiener processes are employed to model the feedback mechanism systems, where the Wiener processes stand for a series of random variables under the framework of probability theory. A prerequisite of probability theory is that the distribution is close enough to the real frequency. In some cases, this prerequisite can not be satisfied, for example, Liu (2015b) pointed out evolutions of some undetermined phenomena do not behave like randomness, Tang and Yang (2021) presented that stochastic chemical reaction involving the Wiener process is unsuitable, Lio and Liu (2021) introduced that stochastic COVID-19 spread model involving the Wiener process is unreasonable.

In addition to probability theory, Liu processes under the framework of uncertainty theory (Liu 2015b) were applied to describe the “noise”. Liu processes indexed by a series of uncertain variables were designed by Liu (2008). By means of the Liu process, uncertain differential equations (Hereinafter called UDEs for short) were suggested by Liu (2008). After that, Liu (2009), Sheng and Gao (2016), and Sheng and Wang (2014) investigated the stability of UDEs, Yao and Chen (2013), Yang and Shen (2015), and Yang and Ralescu (2015) used different numerical methods to obtain the numerical solutions of UDEs. Moreover, the UDEs have been extensively used in the spread of COVID-19 (Lio and Liu 2021), the pharmacokinetics (Liu and Yang 2021), the finance (Zhu 2014), and the insurance (Liu and Yang 2020). Besides, the different styles of UDEs were explored, including the UDEs with jump (Yao 2012), the multi-dimensional UDEs (Yao 2014), the high-order UDEs (Yao 2016), the UDEs with a delay time (Hereinafter called UDDEs for short) (Barbacioru 2010), the UDEs with partial information (Liu and Zhang 2020), and the UDEs with multifactor (Li et al. 2015).

The stability of systems plays a significant role in modelling the real world. In other words, if the system is not stable, even though the difference between the given initial value and the precise initial value is small, the difference between the results becomes larger. At present, many styles of stability for UDDEs were investigated containing the stability in measure (Wang and Ning 2017), the almost sure stability (Wang and Ning 2019), and the stability in distribution (Jia and Sheng 2019). The above stability in distribution for UDDEs was studied based on the strong Lipschitz condition only concerning the current state, which was difficult to be obtained due to the fact that the UDDEs include both the current and the past states. Therefore, the new Lipscitz conditions involving the current and the past states are proposed to solve this issue in this paper. In fact, the new Lipschitz condition is weaker than the strong Lipschitz condition. In other words, if the UDDEs satisfy the strong Lipschitz condition, it must satisfy the new Lipschitz condition, conversely, it may not be established. Based on the new Lipschitz condition, a sufficient theorem for UDDEs being stable in distribution is verified. Meanwhile, a class of UDDEs is proved to be stable in distribution without any limited condition. Moreover, two numerical examples are provided to verify the effectiveness of the above sufficient theorem. If we can not obtain the new Lipschitz condition, we can not judge the stability in distribution for UDDEs. In the future, we can consider the stability in p-th moment based on the new Lipschitz condition and the p-th moment exponential stability for UDDEs.

The rest of this paper is structured as follows. Section 2 introduces the related work. Section 3 gives an overview of UDDEs. Section 4 presents a sufficient theroem of stability in distribution based on new Lipschitz condition for UDDEs. Section 5 proves a class of UDDEs being stable in distribution without any limited condition. Section 6 provides two numerical examples to verify the effectiveness of the above sufficient theorem. Section 7 discusses some results of this article.

Related work

Uncertainty theory was founded by Liu (2015b), which has been investigated by many scholars. Uncertain process in uncertainty theory stands for a sequence of uncertain variables indexed by time. Liu process as a class of uncertain process satisfies the conditions that almost all sample paths are Lipschitz continuous, and has stationary and independent increments, every increment is a normal uncertain variable with expected value 0 and variance t2.

Differential equations involving the Liu process were called uncertain differential equations(UDEs) (2008), the existence and uniqueness theorem of solution for UDEs was proved by Chen and Liu (2010) and Gao (2012). Later, the concept of stability in measure was provided by Liu (2009), and the corresponding theorems of stability in measure was verified by Yao et al. (2013). Moreover, the stability in mean (Yao et al. 2015), the stability in p-th moment (Sheng and Wang 2014), the stability in inverse distribution (Yang et al. 2017a), the almost sure stability (Liu et al. 2014), and the exponential stability (Sheng and Gao 2016) of UDEs were successfully explored. In order to obtain the numerical solution of UDEs, many numerical methods are proposed including the 99-method (Yao and Chen 2013), the Runge–Kutta method (Yang and Shen 2015; Yang and D 2015), the Milne method (Gao 2016), and the Hamming method (Zhang et al. 2017).

As a special UDEs, the UDEs with jumps have been investigated by many scholars, for example, the existence and uniqueness theorem of solutions was considered by Yao (2015), the stability in measure (Yao 2015), the almost sure stability (Ji and Ke 2016), the stability in mean (Gao 2019), the stability in p-th moment (Ma et al. 2017b), and the p-th moment exponential stability (Liu et al. 2020) were presented. Except for the above UDEs with jumps, the existence and uniqueness theorem (Ji and Zhou 2015), the stability in measure (Su et al. 2016), the stability in p-th moment (Shi et al. 2020), the stability in mean (Sheng and Shi 2019) for multi-dimensional UDEs were successfully explored. Besides, the stability analysis of nonlinear uncertain fractional differential equations with Caputo derivative was presented by Lu et al. (2021), and the stability in mean for uncertain delay differential equations based on new Lipschitz conditions was investigated by Gao and Jia (2021).

In some special cases, the systems were affected by many factors, multifactor uncertain differential equations were proposed by Li et al. (2015), the almost sure stability (Sheng et al. 2017), the stability in mean (Zhang et al. 2016), the stability in measure (Zhang et al. 2016), and the stability in distribution (Ma et al. 2017a) for multifactor uncertain differential equations were investigated. Additionally, many scholars studied the stability analysis for uncertain spring vibration equations (Jia et al. 2021), uncertain wave equations (Gao et al. 2019), and uncertain heat equations (Liu and Zhang 2020).

Preliminaries

For the purpose of modelling the dynamics of uncertain phenomena, Liu (2009) designed a Liu process to cope with the environmental noise perturbations.

Definition 1

Liu (2015b) An uncertain process Ct is said to be a Liu process if:

  • C0=0 and almost all sample paths are Lipschitz continuous.

  • Ct has stationary and independent increments.

  • Every increment Cs+t-Cs is a normal uncertain variable with expected value 0 and variance t2, whose uncertain distribution is
    Λ(x)=1+exp-πx3t,xR.

Based on the Liu process, Barbacioru (2010) defined the following UDDEs.

Definition 2

Barbacioru (2010) Assume that f1 and f2 are two real-valued functions, Ct stands for the Liu process, then the following equation

dUt=f1(t,Ut,Ut-τ)dt+f2(t,Ut,Ut-τ)dCt 1

is termed as an UDDE, where Ct and the positive number τ stand for the Liu process and a time delay, respectively.

Moreover, Yao and Chen (2013) proved the following existence and uniqueness theorem.

Theorem 1

Yao and Chen (2013) The UDDE (1) with initial states has a unique solution if the coefficients

|f1(t,u,v)|+|f2(t,u,v)|L(1+|u|+|v|),u,v,t0

and

|f1(t,u1,v)-f1(t,u2,v)|+|f2(t,u1,v)-f2(t,u2,v)|L|u1-u2|,u1,u2,v,t0

for some positive constant L.

Theorem 2

Yao and Chen (2013) Let M denotes the uncertain measure defined in Liu’s book Liu (2015b), Ut be the solution of the uncertain differential equation

dUt=f1(t,Ut)dt+f2(t,Ut)dCt, 2

and Utα stands for the α-path of Ut, 0<α<1, it is obtained by solving the following equation

dUtα=f1(t,Utα)dt+|f2(t,Utα)|Λ-1(α)dt, 3

where Λ-1(α) be the inverse distribution function of normal uncertain variables, i.e.,

Λ-1(α)=3πlnα1-α,

then

M{UtUtα,t}=α,M{Ut>Utα,t}=1-α. 4

Besides, Wang and Ning (2017) defined the stability in measure, the stability in mean, and the stability in p-th moment, and gave the corresponding sufficient theorem based on the strong Lipschitz condition, Jia and Sheng (2019) introduced the definition of the stability in distribution, and provided a sufficient theorem based on the strong Lipschitz condition.

Definition 3

Wang and Ning (2017) The UDDE (1) is said to be stable in measure if for any two solutions Ut and Vt with different initial states, we have

limsups[-τ,0]|Us-Vs|0M{|Ut-Vt|>ϵ}=0,t>0 5

for any given number ϵ>0.

Theorem 3

Wang and Ning (2017) Assume the UDDE (1) has a unique solution for each given initial state. Then it is stable in measure if the coefficients f1(t,u,v) and f2(t,u,v) satisfy the strong Lipschitz condition

|f1(t,u1,v)-f1(t,u2,v)||f2(t,u1,v)-f2(t,u2,v)|Lt|u1-u2|,u1,u2,v,t>0

where Lt is a bounded function satisfying

0+Ltdt<+.

Definition 4

Wang and Ning (2017) The UDDE (1) is said to be stable in mean if for any two solutions Ut and Vt with different initial states, we have

limsups[-τ,0]|Us-Vs|0E[|Ut-Vt|]=0,t>0. 6

Theorem 4

Wang and Ning (2017) Assume the UDDE (1) has a unique solution for each given initial state. Then it is stable in mean if the coefficients f1(t,u,v) and f2(t,u,v) satisfy the strong Lipschitz condition

|f1(t,u1,v)-f1(t,u2,v)|Ft|u1-u2|,|f2(t,u1,v)-f2(t,u2,v)|Gt|u1-u2|,u1,u2,v,t>0,

where Ft and Gt are two bounded functions satisfying

0+Ftdt<+,0+Gtdt<π3.

Definition 5

Wang and Ning (2017) The UDDE (1) is said to be stable in p-th moment (0<p<+) if for any two solutions Ut and Vt with different initial states, we have

limsups[-τ,0]|Us-Vs|0E[(|Ut-Vt|)p]=0,t>0. 7

Theorem 5

Wang and Ning (2017) Assume the UDDE (1) has a unique solution for each given initial state. Then it is stable in p-th moments (0<p<+) if the coefficients f1(t,u,v) and f2(t,u,v) satisfy the strong Lipschitz condition

|f1(t,u1,v)-f1(t,u2,v)|Ft|u1-u2|,|f2(t,u1,v)-f2(t,u2,v)|Gt|u1-u2|,u1,u2,v,t>0

where Ft and Gt are two bounded functions satisfying

0+Ftdt<+,0+Gtdt<π3p.

Theorem 6

Wang and Ning (2017) For any two real numbers p1 and p2 (0<p1<p2<+), if the UDDE (1) is stable in p2-th moment, then it is stable in p1-th moment.

Theorem 7

Wang and Ning (2017) If the UDDE (1) is stable in mean, then it is stable in measure.

Theorem 8

Wang and Ning (2017) If the UDDE (1) is stable in p-th moment (0<p<+), then it is stable in measure.

Definition 6

Wang and Ning (2019) Suppose that Ut and Vt are two solutions of the UDDE (1) with different initial states uj and vj for any j[-τ,0], respectively. Uncertain delay differential equation is said to be stable almost surely if

MγΓlimsupj[-τ,0]|uj-vj|0|Ut(γ)-Vt(γ)|=0=1.

Theorem 9

Wang and Ning (2019) Suppose that the UDDE (1) has a unique solution for each given initial state, then the UDDE (1) is stable almost surely if the coefficients f1(t,u,v) and f2(t,u,v) satisfy

|f1(t,u1,v)-f1(t,u2,v)|+|f2(t,u1,v)-f2(t,u2,v)|Lt|u1-u2|,u1,u2,v,t0,

where Lt0 and

0+Ltdt<+.

Definition 7

Jia and Sheng (2019) Assume that Ut and Vt are the solutions of the UDDE (1) for different prescribed initial states Us and Vs (s[-τ,0]), respectively. If the following condition holds,

limsups[-τ,0]|Us-Vs|0|Θt(x)-Ψt(x)|=0,t>0, 8

where Θt(·) and Ψt(·) stand for the distribution functions of Ut and Vt, respectively, x, then the UDDE (1) is stable in distribution.

Theorem 10

Jia and Sheng (2019) Assume the coefficients of the UDDE (1) with a unique solution for each prescribed initial state satisfy the strong Lipschitz condition

|f1(t,u1,v)-f1(t,u2,v)|+|f2(t,u1,v)-f2(t,u2,v)|Ht|u1-u2|,u1,u2,v,t>0

where Ht is a positive function satisfying

0+Htdt<+,

then the UDDE (1) is stable in distribution.

A sufficient theorem

In this section, a sufficient theorem of stability in distribution for UDDEs based on new Lipschitz condition is explored. Firstly, we introduce two important theorems as below, which play a significant role in proving the sufficient theorem.

Theorem 11

Yang et al. (2017b) Let η,η1,η2, be a series of uncertain variables, their corresponding regular uncertainty distributions be Φ,Φ1,Φ2,, respectively. Then {ηn} converges in inverse distribution to η if and only if it converges in distribution to η.

Theorem 12

Gronwall (1919) Set I denotes [c1,+), [c1,c2] or [c1,c2) with c1<c2. Let ϱ and σ defined on I are two real-valued non-negative continuous functions, ρ is integrable on every closed and bounded subinterval of I. If the following inequality

σ(s)ρ(s)+csϱ(u)σ(u)du,sI

holds and ρ is non-decreasing, then we have

σ(s)ρ(s)expcsϱ(u)du,sI.

Theorem 13

If the coefficients of the UDDE (1) with a unique solution for each prescribed initial state satisfy the new Lipschitz condition

|f1(t,u1,v1)-f1(t,u2,v2)|B1t|u1-u2|+B2t|v1-v2||f2(t,u1,v1)-f2(t,u2,v2)|B3t|u1-u2|+B4t|v1-v2| 9

ui,vi,i=1,2,t>0, where the functions Bjt satisfies the conditions

0+Bjtdt<+,j=1,2,3,4,

then the UDDE (1) is stable in distribution.

Proof

For the different prescribed initial states us (s[-τ,0]) and vs (s[-τ,0]), we assume that Ut and Vt are the corresponding solutions of the UDDE (1). According to the Theorem 2, the corresponding inverse uncertainty distributions Θt-1(α) and Ψt-1(α) of Ut and Vt satisfy the following equations

dΘt-1(α)=f1(t,Θt-1(α),Θt-τ-1(α))dt+|f2(t,Θt-1(α),Θt-τ-1(α))|Λ-1(α)dt,dΨt-1(α)=f1(t,Ψt-1(α),Ψt-τ-1(α))dt+|f2(t,Ψt-1(α),Ψt-τ-1(α))|Λ-1(α)dt,

respectively, where

Λ-1(α)=3πlnα1-α.

For all α(0,1), we obtain

Θt-1(α)=U0+0tf1(s,Θs-1(α),Θs-τ-1(α))ds+0t|f2(s,Θs-1(α),Θs-τ-1(α))|Λ-1(α)ds,Ψt-1(α)=V0+0tf1(s,Ψs-1(α),Ψs-τ-1(α))ds+0t|f2(s,Ψs-1(α),Ψs-τ-1(α))|Λ-1(α)ds.

Apply the new Lipschitz condition (9), we have

|Θt-1(α)-Ψt-1(α)|=U0+0tf1(s,Θs-1(α),Θs-τ-1(α))ds+0t|f2(s,Θs-1(α),Θs-τ-1(α))|Λ-1(α)ds-V0+0tf1(s,Ψs-1(α),Ψs-τ-1(α))ds+0t|f2(s,Ψs-1(α),Ψs-τ-1(α))|Λ-1(α)ds|U0-V0|+0tf1(s,Θs-1(α),Θs-τ-1(α))-f1(s,Ψs-1(α),Ψs-τ-1(α))ds|+Λ-1(α)0tf2(s,Θs-1(α),Θs-τ-1(α))-f2(s,Ψs-1(α),Ψs-τ-1(α))ds||U0-V0|+0tf1(s,Θs-1(α),Θs-τ-1(α))-f1(s,Ψs-1(α),Ψs-τ-1(α))ds+Λ-1(α)0tf2(s,Θs-1(α),Θs-τ-1(α))-f2(s,Ψs-1(α),Ψs-τ-1(α))ds|U0-V0|+0tB1s|Θs-1(α)-Ψs-1(α)|+B2s|Θs-τ-1(α)-Ψs-τ-1(α)|ds+Λ-1(α)0tB3s|Θs-1(α)-Ψs-1(α)|+B4s|Θs-τ-1(α)-Ψs-τ-1(α)|ds.

Meanwhile, we set u=s-τ, and obtain

0tB2s|Θs-τ-1(α)-Ψs-τ-1(α)|ds=-τt-τB2(u+τ)|Θu-1(α)-Ψu-1(α)|du=-τ0B2(u+τ)|Θu-1(α)-Ψu-1(α)|du+0t-τB2(u+τ)|Θu-1(α)-Ψu-1(α)|du=-τ0B2(u+τ)|Uu-Vu|du+0t-τB2(u+τ)|Θu-1(α)-Ψu-1(α)|du
sups[-τ,0]{|Us-Vs|}-τ0B2(u+τ)du+0t-τB2(u+τ)|Θu-1(α)-Ψu-1(α)|dusups[-τ,0]{|Us-Vs|}0τB2udu+0tB2(u+τ)|Θu-1(α)-Ψu-1(α)|du.

Similarly, we have

0tB4s|Θs-τ-1(α)-Ψs-τ-1(α)|dssups[-τ,0]{|Us-Vs|}0τB4udu+0tB4(u+τ)|Θu-1(α)-Ψu-1(α)|du.

Set N1=0τB2udu and N2=0τB4udu, we have

|Θt-1(α)-Ψt-1(α)||U0-V0|+(N1+N2|Λ-1(α)|)supu[-τ,0]{|Θu-1(α)-Ψu-1(α)|}+0t(B1s+B2(s+τ))|Θs-1(α)-Ψs-1(α)|ds+|Λ-1(α)|0t(B3s+B4(s+τ))|Θs-1(α)-Ψs-1(α)|ds1+(N1+N2|Λ-1(α)|)sups[-τ,0]{|Us-Vs|}+0t(B1s+B2(s+τ))+|Λ-1(α)|(B3s+B4(s+τ))|Θs-1(α)-Ψs-1(α)|ds. 10

The above Eq. (10) satisfies the Theorem 12, then we have

|Θt-1(α)-Ψt-1(α)|1+(N1+N2|Λ-1(α)|)sups[-τ,0]{|Us-Vs|}·exp0tB1s+B2(s+τ)+|Λ-1(α)|(B3s+B4(s+τ))dsexp(N1+N2|Λ-1(α)|)sups[-τ,0]{|Us-Vs|}·exp0+(B1s+B2(s+τ))ds+|Λ-1(α)|0+(B3s+B4(s+τ))dssups[-τ,0]{|Us-Vs|}exp(N1+N2|Λ-1(α)|)+0+(B1s+B2s)ds+|Λ-1(α)|0+(B3s+B4s)ds
sups[-τ,0]{|Us-Vs|}exp0+(B1s+2B2s)ds+|Λ-1(α)|0+(B3s+2B4s)ds.

Since

0+B1tdt<+,0+B2tdt<+,0+B3tdt<+,0+B4tdt<+,

there exists a real number M>0 such that

exp0+(B1s+2B2s)ds+|Λ-1(α)|0+(B3s+2B4s)ds<M.

Assume that δ=ϵ/M, then we have

|Θt-1(α)-Ψt-1(α)|sups[-τ,0]{|Us-Us|}·exp0+(B1s+2B2s)ds+|Λ-1(α)|0+(B3s+2B4s)ds<δM=ϵ

for any t0 and ϵ>0 provided

sups[-τ,0]{|Us-Vs|}<δ.

Thus, we have

limsups[-τ,0]{|Us-Vs|}0|Θt-1(α)-Ψt-1(α)|=0,α(0,1).

According to the Theorem 11, we have

limsups[-τ,0]{|Us-Vs|}0|Θt(y)-Ψt(y)|=0,t>0,y.

Therefore, the UDDE (1) is stable in distribution based on the new Lipschitz condition (9).

Remark 41

If the UDDEs satisfy the strong Lipschitz condition of Theorem 10, we set B2t=0 and B4t=0, it must satisfy the new Lipschitz condition in Theorem 13. In contrast, it is obvious that it may not be established, the Example 1 can be employed to illustrate this point.

Example 1

Consider the UDDE

dUt=2t1+t4Ut+exp(-t2)Ut-0.4dt+t1+t4Ut+2exp(-t2)Ut-0.4dCt. 11

Firstly, we set

f1(t,u,v)=2t1+t4u+exp(-t2)v,f2(t,u,v)=t1+t4u+2exp(-t2)v.

If we want to use the Theorem 10, we can easily find that it does not follow the strong Lipschitz condition, and if we use the Theorem 13, we obtain that the following equations hold,

0+B1tdt=0+2t1+t4dt=π2<+,0+B2tdt=0+exp(-t2)dt=π2<+,0+B3tdt=0+t1+t4dt=π4<+,0+B4tdt=0+exp(-t2)dt=π4<+.

According to the Theorem 13, the UDDE (11) is stable in distribution.

Corollary 41

If the coefficients of the UDDE (1) with a unique solution for each prescribed initial state satisfy the new Lipschitz condition

|f1(t,u1,v1)-f1(t,u2,v2)|+|f2(t,u1,v1)-f2(t,u2,v2)|D1t|u1-u2|+D2t|v1-v2| 12

ui,vi,i=1,2,t>0, where the functions Djt satisfy the conditions

0+Djtdt<+,j=1,2,

then the UDDE (1) is stable in distribution.

Proof

By using the condition (12), we obtain

|f1(t,u1,v1)-f1(t,u2,v2)|D1t|u1-u2|+D2t|v1-v2|,|f2(t,u1,v1)-f2(t,u2,v2)|D1t|u1-u2|+D2t|v1-v2|.

According to the Theorem 13, we set

B1t=D1t,B2t=D2t,B3t=D1t,B4t=D2t,

then the UDDE (1) based on the new Lipschitz condition (12) is stable in distribution.

Remark 42

In fact, Theorem 13 and Corollary 41 have a equivalence relation. If the new Lipschitz condition of Theorem 13 holds, we set B1t=D1t,B2t=D2t,B3t=D1t,B4t=D2t, then the Lipschitz condition of Corollary 41 holds. Conversely, if the new Lipschitz condition of Corollary 41 holds, we set D1t=B1t+B3t,D2t=B2t+B4t, then the new Lipschitz condition of Theorem 13 holds.

Corollary 42

Assume the UDDE

dUt=(b1tUt+b2tUt-τ+b3t)dt+(b4tUt+b5tUt-τ+b6t)dCt 13

satisfying

0+b1tdt<+,0+b2tdt<+,0+b4tdt<+,0+b5tdt<+, 14

then the UDDE (13) is stable in distribution.

Proof

We set f1(t,u,v)=b1tu+b2tv+b3t and f2(t,u,v)=b4tu+b5tv+b6t, then we have

B1t=b1t,B2t=b2t,B3t=b4t,B4t=b5t.

By use of the condition (14) and Theorem 13, we obtain that the UDDE (13) is stable in distribution.

Example 2

Consider the UDDE

dUt=exp(-t)Ut+11+t2Ut-1dt+12texp(-t)Ut+π23texp(-t2)Ut-1dCt. 15

Then, we have

0+b1tdt=0+exp(-t)dt=1<+,
0+b2tdt=0+11+t2dt=π2<+,0+b4tdt=0+12texp(-t)dt=12<π3,0+b5tdt=0+π23texp(-t2)dt=π43<+.

By using the Corollary 42, the UDDE (15) is stable in distribution.

Stability in distribution for a special UDDEs

In this section, a class of UDDEs being stable in distribution are investigated.

Theorem 14

Consider the UDDEs

dUt=KtUt-τdt+adCt, 16

where Kt and a are the real-valued function and the constant number, respectively, t[0,T], then the UDDE (16) is stable in distribution.

Proof

For the different prescribed initial states nθ and mθ, θ[-τ,0], the corresponding solutions are Ut and Vt. According to the Theorem 2, we have

dΘt-1(α)=KtΘt-τ-1(α)dt+aΛ-1(α)dt,dΨt-1(α)=KtΨt-τ-1(α)dt+aΛ-1(α)dt,

and

Θt-1(α)=U0+0tKsΘs-τ-1(α)ds+aΛ-1(α)t,Ψt-1(α)=Y0+0tKsΨs-τ-1(α)dt+aΛ-1(α)t.

Thus,

|Θt-1(α)-Ψt-1(α)||nt-mt|,t[-τ,0]|n0-m0|+0t|Ks||ns-τ-ms-τ|ds,t(0,τ]|Θτ-1(α)-Ψτ-1(α)|+τt|Ks||Φs-τ-1(α)-Ψs-τ-1(α)|ds,t(τ,2τ]

Then,

limsups[-τ,0]{|Us-Vs|}0|Θt-1(α)-Ψt-1(α)|=0,α(0,1).

According to the Theorem 11, we have

limsups[-τ,0]{|Us-Vs|}0|Θt(y)-Ψt(y)|=0,t>0,y.

Remark 51

The Theorem 14 is different from the Theorems 7 and 13. Example 3 shows that it is stable in distribution, but it becomes invalid by using the Theorems 7 and 13.

Example 3

Consider the UDDE

dUt=t2Ut-1dt+dCt,t[0,1000]. 17

According to the Theorem 14, the UDDE (17) is stable in distribution. Due to the fact that

0+t2dt=+,

so the Theorems 7 and 13 are invalid for this example.

Numerical experiments

The stability is a significant issue for systems to model the real world. In other words, if the system is not stable, even though the difference between the given initial value and the precise initial value is small, the difference between the results becomes larger. This section devotes to illustrating the effectiveness of the Theorem 13.

Example 4

The UDDE (15) has been proved that it is stable in distribution, and has a following α-path obtained by the Theorem 2,

dUtα=exp(-t)Utα+11+t2Ut-1αdt+12texp(-t)Utα+π23texp(-t2)Ut-1αΛ-1(α)dt. 18

According to the Eq. (18), the algorithm to calculate Ut is design as below.

  • Step 0: Set ti=iT/M,i=1,2,,M, where M are two large numbers.

  • Step 1: Set i=0.

  • Step 2: Set i=i+1.

  • Step 3: Set Uti+1α=Utiα+exp(-ti)Utiα+11+ti2Uti-1α+12tiexp(-ti)Utiα+π23tiexp(-ti2)Uti-1αΛ-1(α)}(ti+1-ti).

In the Figs. 1 and 2, Tables 1 and 2, we found that, when the difference between two initial values is enough small, the difference between the corresponding values Ut is sufficiently close together after a period of time. Therefore, it is verified that the UDDE (15) is stable in distribution.

Fig. 1.

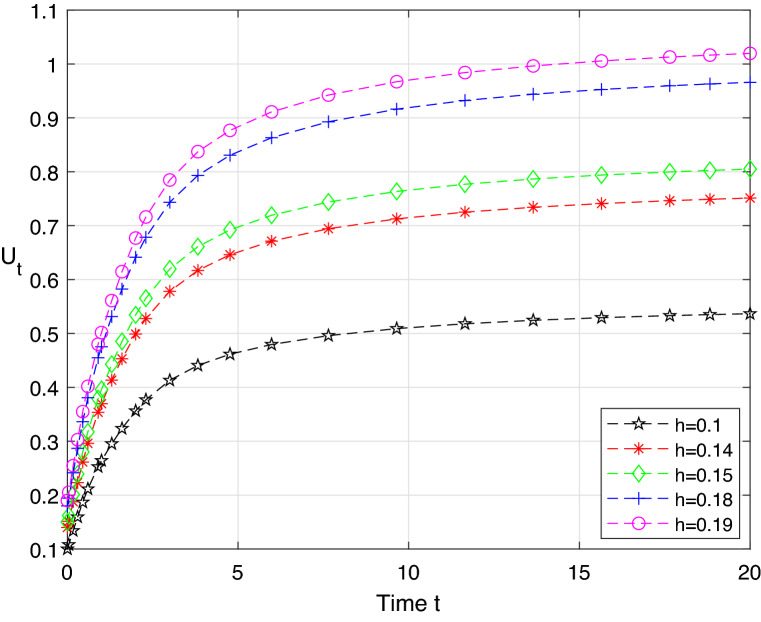

Fig. 1

Relations of Ut and h in the UDDE (15)

Fig. 2.

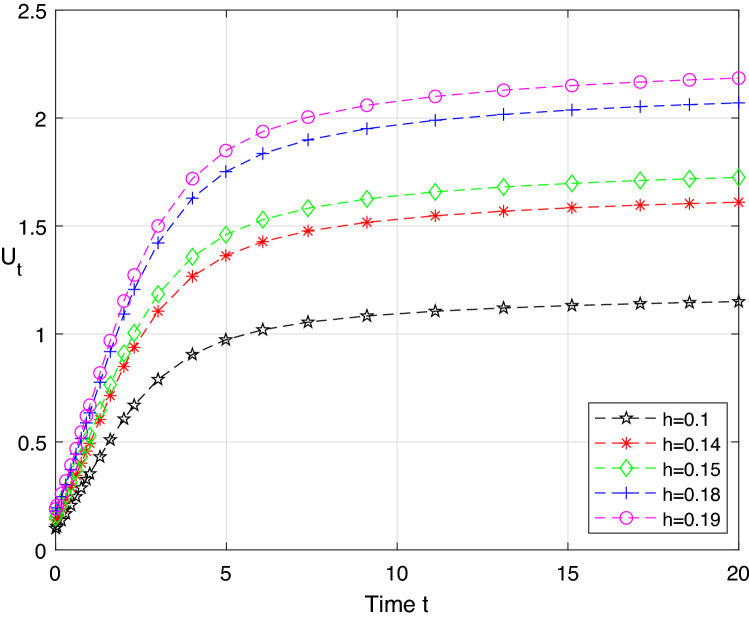

Fig. 2

Relations of Ut and h in the UDDE (15)

Table 1.

Data of Fig. 1

h=0.1
t 0.17 0.3 0.45 0.6 0.9 1
Ut 0.1341 0.1594 0.1868 0.2115 0.2527 0.2641
t 1.3 1.6 2 2.3 3 3.8228
Ut 0.2953 0.3235 0.3563 0.3769 0.4131 0.4407
h=0.14
t 0.17 0.3 0.45 0.6 0.9 1
Ut 0.1877 0.2232 0.2615 0.2962 0.3537 0.3697
t 1.3 1.6 2 2.3 3 3.8228
Ut 0.4134 0.4529 0.4989 0.5277 0.5783 0.6170
h=0.15
t 0.17 0.3 0.45 0.6 0.9 1
Ut 0.2011 0.2391 0.2802 0.3173 0.3790 0.3961
t 1.3 1.6 2 2.3 3 3.8228
Ut 0.4429 0.4853 0.5345 0.5654 0.6196 0.6611
h=0.18
t 0.17 0.3 0.45 0.6 0.9 1
Ut 0.2414 0.2870 0.3362 0.3808 0.4548 0.4753
t 1.3 1.6 2 2.3 3 3.8228
Ut 0.5315 0.5824 0.6414 0.6785 0.7435 0.7933
h=0.19
t 0.17 0.3 0.45 0.6 0.9 1
Ut 0.2548 0.3029 0.3549 0.4019 0.4801 0.5017
t 1.3 1.6 2 2.3 3 3.8228
Ut 0.5610 0.6147 0.6770 0.7162 0.7848 0.8374

Table 2.

Data of Fig. 2

h=0.1
t 0.17 0.3 0.45 0.6 0.75 0.9
Ut 0.1368 0.1681 0.2067 0.2467 0.2870 0.3268
t 1 1.3 1.6 2 2.3 3
Ut 0.3526 0.4314 0.5103 0.6068 0.6701 0.7898
h=0.14
t 0.17 0.3 0.45 0.6 0.75 0.9
Ut 0.1915 0.2354 0.2893 0.3453 0.4018 0.4575
t 1 1.3 1.6 2 2.3 3
Ut 0.4937 0.6039 0.7144 0.8495 0.9382 1.1057
h=0.15
t 0.17 0.3 0.45 0.6 0.75 0.9
Ut 0.2052 0.2522 0.31 0.37 0.4305 0.4902
t 1 1.3 1.6 2 2.3 3
Ut 0.5289 0.6471 0.7654 0.9102 1.0052 1.1847
h=0.18
t 0.17 0.3 0.45 0.6 0.75 0.9
Ut 0.2462 0.3026 0.372 0.444 0.5166 0.5882
t 1 1.3 1.6 2 2.3 3
Ut 0.6347 0.7765 0.9185 1.0922 1.2062 1.4217
h=0.19
t 0.17 0.3 0.45 0.6 0.75 0.9
Ut 0.2599 0.3194 0.3927 0.4687 0.5453 0.6209
t 1 1.3 1.6 2 2.3 3
Ut 0.67 0.8196 0.9695 1.1529 1.2732 1.5007

Example 5

The well-known delay Logistic model

dPt=rPt1-Pt-τNdt, 19

was introduced to model population by Hutchinson 1948, where Pt is the number of population at time t, r is a constant of proportionality, and N is the carrying capacity, which means Ps<N,s>0. Assume that this ecological system suffers from infectious diseases, then we set that r is exponential decrease with t, and have

dPt=rexp(-rt)Pt1-Pt-τNdt. 20

In real world, there must be many uncertain factors for population growth, such as man-made and natural disasters, so we add an uncertain term in the above Logistic model to write as

dPt=exp(-rt)rPt1-Pt-τNdt+exp(-at)PtdCt 21

with constant a>0. Next, we analyze the stability in distribution of system (21).

Let

f1(t,u,v)=rexp(-rt)u1-vN,f2(t,u,v)=exp(-at)u,

then, we obtain

|f1(t,u1,v1)-f1(t,u2,v2)|=rexp(-rt)u11-v1N-u21-v2Nrexp(-rt)|u1-u2|+1N|u1(v1-v2)+(u1-u2)v2|2rexp(-rt)|u1-u2|+rexp(-rt)|v1-v2|,

and

|f2(t,u1,v1)-f2(t,u2,v2)|=exp(-at)·|u1-u2|.

Due to the fact that

0+rexp(-rt)dt=1,0+exp(-at)dt=1a.

According to the Theorem 13, the system (21) is stable in distribution. Next, we verify the above conclusion by numerical experiments. The following α-path of the system (21) can be obtained by the Theorem 2,

dPtα=exp(-rt)rPtα1-Pt-ταNdt+exp(-at)PtαΛ-1(α)dt. 22

According to the Eq. (22), the algorithm to calculate Ut is design as below.

  • Step 0: Set ti=iT/N,i=1,2,,N, where N are two large numbers.

  • Step 1: Set i=0.

  • Step 2: Set i=i+1.

  • Step 3: Set Pti+1α=Ptiα+exp(-rti)rPtiα1-Pti-ταN+exp(-ati)PtiαΛ-1(α)}(ti+1-ti).

In the Fig. 3 and Table 3, we assume that N=100,r=0.1,a=0.4,τ=0.1,α=0.3, then, we found that, when the difference among the initial values is enough small, the number of population Pt is also sufficiently close together after a period of time. In the Fig. 4and Tab.4, we assume that N=1000,r=0.7,a=0.2,τ=0.7,α=0.65, then the conclusion is the same as the Fig. 3. Therefore, the system (21) is confirmed that it is stable in distribution obtained from the Figs. 3 and 4.

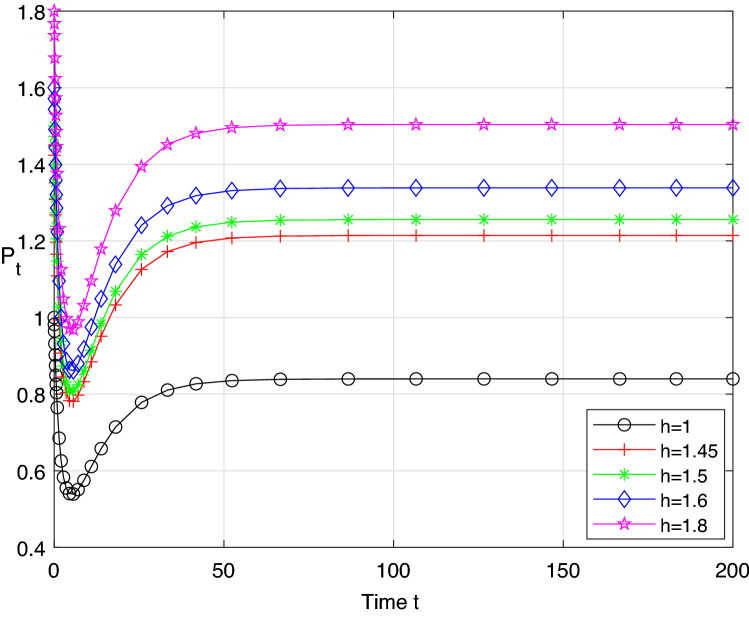

Fig. 3.

Fig. 3

Relations of Pt and h in the system (21)

Table 3.

Data of Fig. 3

h=1
t 0.1 0.2 0.3 0.4 0.5 0.6
Ut 0.9647 0.9322 0.9023 0.8747 0.8493 0.8257
t 0.7 0.9 1.4385 2.0411 2.7355 3.545
Ut 0.8039 0.7651 0.6851 0.6259 0.5831 0.555
h=1.45
t 0.1 0.2 0.3 0.4 0.5 0.6
Ut 1.3987 1.3516 1.3082 1.2681 1.2312 1.197
t 0.7 0.9 1.4382 2.0402 2.7341 3.543
Ut 1.1654 1.109 0.993 0.9071 0.8449 0.8041
h=1.5
t 0.1 0.2 0.3 0.4 0.5 0.6
Ut 1.447 1.3982 1.3533 1.3118 1.2736 1.2382
t 0.7 0.9 1.4381 2.0401 2.734 3.5428
Ut 1.2055 1.1472 1.0272 0.9383 0.874 0.8317
h=1.6
t 0.1 0.2 0.3 0.4 0.5 0.6
Ut 1.5434 1.4914 1.4434 1.3992 1.3584 1.3207
t 0.7 0.9 1.438 2.04 2.7337 3.5423
Ut 1.2858 1.2236 1.0956 1.0007 0.9321 0.887
h=1.8
t 0.1 0.2 0.3 0.4 0.5 0.6
Ut 1.7363 1.6777 1.6238 1.574 1.5281 1.4857
t 0.7 0.9 1.4378 2.0396 2.7331 3.5414
Ut 1.4464 1.3763 1.2323 1.1255 1.0483 0.9975

Fig. 4.

Fig. 4

Relations of Pt and h in the system (21)

Table 4.

Data of Fig. 4

h=0.35
t 0.3 0.6 0.7 0.9 1 1.3
Ut 0.4671 0.598 0.6442 0.7396 0.7887 0.9399
t 1.4 1.7 2.1 2.9289 4.0324 5.8398
Ut 0.9913 1.1473 1.3566 1.7813 2.304 3.0299
h=0.45
t 0.3 0.6 0.7 0.9 1 1.3
Ut 0.6006 0.7689 0.8282 0.9509 1.014 1.2083
t 1.4 1.7 2.1 2.929 4.0328 5.8416
Ut 1.2744 1.4749 1.744 2.29 2.9621 3.8956
h=0.5
t 0.3 0.6 0.7 0.9 1 1.3
Ut 0.6673 0.8543 0.9202 1.0566 1.1266 1.3425
t 1.4 1.7 2.1 2.929 4.033 5.8425
Ut 1.416 1.6387 1.9377 2.5443 3.291 4.3285
h=0.65
t 0.3 0.6 0.7 0.9 1 1.3
Ut 0.8675 1.1105 1.1962 1.3734 1.4645 1.7451
t 1.4 1.7 2.1 2.9292 4.0336 5.8452
Ut 1.8406 2.1301 2.5186 3.3071 4.2778 5.6271
h=0.8
t 0.3 0.6 0.7 0.9 1 1.3
Ut 1.0676 1.3667 1.4722 1.6903 1.8023 2.1476
t 1.4 1.7 2.1 2.9293 4.0343 5.8479
Ut 2.2651 2.6213 3.0994 4.0696 5.2642 6.9258

Conclusions

The stability in distribution for UDDEs has been investigated by means of the strong Lipschitz condition, but it was difficult to obtain the strong Lipschitz condition. In this paper, the new Lipschitz condition concerning the current and the past states was proposed. Based on the new Lipschitz condition, a sufficient theorem of stability in distribution for the UDDEs was proved. Without any limited condition, a class of UDDEs being stable in distribution was successfully proved. Through the Figs. 1,  2,  3 and 4, Tables 1, 2, 3 and 4, the difference between the given initial value and the precise initial value is small enough, the difference between the results becomes smaller. In other words, the effectiveness of the above sufficient theorem was verified. If the new Lipschitz condition can not be obtained, we can not judge the stability in distribution for the UDDEs. In the future, we can consider the stability in p-th moment based on the new Lipschitz condition and the p-th moment exponential stability for the UDDEs.

Funding

The work was supported by the Beijing Municipal Education Commission Foundation of China (No. KM202110038001), the Young Academic Innovation Team of Capital University of Economics and Business (No. QNTD202002), and the special fund of basic scientific research business fees of Beijing Municipal University of Capital University of Economics and Business (No. XRZ2020016).

Footnotes

Publisher's Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Contributor Information

Yin Gao, Email: gaoyin@ruc.edu.cn, https://github.com/gaoyin666/StabilityInDistributionUDDE.

Lifen Jia, Email: jialifen@cueb.edu.cn.

References

  1. Barbacioru IC. Uncertainty functional differential equations for finance. Surv Math Appl. 2010;5:275–284. [Google Scholar]
  2. Chen X, Liu B. Existence and uniqueness theorem for uncertain differential equations. Fuzzy Optim Decis Making. 2010;9(1):69–81. [Google Scholar]
  3. Gao R. Milne method for solving uncertain differential equations. Appl Math Comput. 2016;274:774–785. [Google Scholar]
  4. Gao R. Stability in mean for uncertain differential equation with jumps. Appl Math Comput. 2019;346:15–22. [Google Scholar]
  5. Gao R, Ma N, Sun G. Stability of solution for uncertain wave equation. Appl Math Comput. 2019;356:469–478. [Google Scholar]
  6. Gao Y. Existence and uniqueness theorem on uncertain differential equations with local Lipschitz condition. J Uncertain Syst. 2012;6(3):223–232. [Google Scholar]
  7. Gao Y, Jia L. Stability in mean for uncertain delay differential equations based on new Lipschitz conditions. Appl Math Comput. 2021;399(23–24):126050. doi: 10.1007/s12652-022-03826-9. [DOI] [PMC free article] [PubMed] [Google Scholar]
  8. Gronwall T. Note on the derivatives with respect to a parameter of the solutions of a system of differential equations. Ann Math. 1919;20(4):292–296. [Google Scholar]
  9. Guo B, Cai L. A note for the global stability of a delay differential equation of hepatitis b virus infection. Math Biosci Eng. 2012;8(3):689–694. doi: 10.3934/mbe.2011.8.689. [DOI] [PubMed] [Google Scholar]
  10. Hutchinson G. Circular causal systems in ecology. Ann NY Acad Sci. 1948;50:221–246. doi: 10.1111/j.1749-6632.1948.tb39854.x. [DOI] [PubMed] [Google Scholar]
  11. Ji X, Ke H. Almost sure stability for uncertain differential equation with jumps. Soft Comput. 2016;20(2):547–553. [Google Scholar]
  12. Ji X, Zhou J. Multi-dimensional uncertain differential equation: existence and uniqueness of solution. Fuzzy Optim Decis Making. 2015;14(4):477–491. [Google Scholar]
  13. Jia L, Dan R, Chen W. Stability analysis of uncertain spring vibration equations. Eng Optim. 2021;53(1):71–85. [Google Scholar]
  14. Jia L, Sheng Y. Stability in distribution for uncertain delay differential equation. Appl Math Comput. 2019;343(4):49–56. [Google Scholar]
  15. Li S, Peng J, Bo Z. Multifactor uncertain differential equation. J Uncertain Anal Appl. 2015;3:7. [Google Scholar]
  16. Lin G. Minimal wave speed of competitive diffusive systems with time delays. Appl Math Lett. 2018;76:164–169. [Google Scholar]
  17. Lio W, Liu B. Initial value estimation of uncertain differential equations and zero-day of covid-19 spread in china. Fuzzy Optim Decis Making. 2021;20:177–188. [Google Scholar]
  18. Liu B. Fuzzy process, hybrid process and uncertain process. J Uncertain Syst. 2008;2(1):3–16. [Google Scholar]
  19. Liu B. Some research problems in uncertainty theory. J Uncertain Syst. 2009;3(1):3–10. [Google Scholar]
  20. Liu B. Convergence of an sis epidemic model with a constant delay. Appl Math Lett. 2015;49:113–118. [Google Scholar]
  21. Liu B. Uncertainty theory. 4. Berlin: Springer-Verlag; 2015. [Google Scholar]
  22. Liu Z, Yang X. Uncertain insurance risk process with single premium and multiple classes of claims. J Ambient Intell Human Comput. 2020 doi: 10.1007/s12652-020-02486-x. [DOI] [Google Scholar]
  23. Liu Z, Yang X. A linear uncertain pharmacokinetic model driven by liu process. Appl Math Model. 2021;89:1881–1899. [Google Scholar]
  24. Liu J, Zhang Y. The stability analysis for uncertain heat equations based on p-th moment. Soft Comput. 2020;24:2833–2839. [Google Scholar]
  25. Liu H, Ke H, Fei W. Almost sure stability for uncertain differential equation. Fuzzy Optim Decis Making. 2014;13:463–473. [Google Scholar]
  26. Liu S, Liu L, Wang N, Zhang J. The pth moment exponential stability of uncertain differential equation with jumps. J Intell Fuzzy Syst. 2020;39(3):4419–4425. [Google Scholar]
  27. Lu Z, Zhu Y, Lu Q. Stability analysis of nonlinear uncertain differential equations with caputo derivative. Fractals. 2021;29(3):2150057. [Google Scholar]
  28. Ma H, Liu B. Optimal control problem for risk-sensitive mean-field stochastic delay differential equation with partial information. Asian J Control. 2017;19(6):2097–2115. [Google Scholar]
  29. Ma W, Liu L, Gao R, Zhang X, Zhang X. Stability in distribution for multifactor uncertain differential equation. J Ambient Intell Humaniz Comput. 2017;8:707–716. [Google Scholar]
  30. Ma W, Liu L, Zhang X. Stability in p-th moment for uncertain differential equation with jumps. J Intell Fuzzy Syst. 2017;33(3):1375–1384. [Google Scholar]
  31. Shen Y, Meng Q, Shi P. Maximum principle for mean-field jump-diffusion stochastic delay differential equations and its application to finance. Automatica. 2014;50(6):1565–1579. [Google Scholar]
  32. Sheng Y, Gao J. Exponential stability of uncertain differential equation. Soft Comput. 2016;20:3673–3678. [Google Scholar]
  33. Sheng Y, Shi G. Stability in mean of multi-dimensional uncertain differential equation. Appl Math Comput. 2019;353:178–188. [Google Scholar]
  34. Sheng Y, Shi G, Cui Q. Almost sure stability for multifactor uncertain differential equation. J Intell Fuzzy Syst. 2017;32(3):2187–2194. [Google Scholar]
  35. Sheng Y, Wang C. Stability in p-th moment for uncertain differential equation. J Intell Fuzzy Syst. 2014;26(3):1263–1271. [Google Scholar]
  36. Shi G, Li X, Jia L. Stability in p-th moment of multi-dimensional uncertain differential equation. J Intell Fuzzy Syst. 2020;38(4):5267–5277. [Google Scholar]
  37. Su T, Wu H, Zhou J. Stability of multi-dimensional uncertain differential equation. Soft Comput. 2016;20:4991–4998. [Google Scholar]
  38. Tang H, Yang X. Uncertain chemical reaction equation. Appl Math Comput. 2021;411:126479. [Google Scholar]
  39. Wang X, Ning Y. Stability of uncertain delay differential equations. J Intell Fuzzy Syst. 2017;32:2655–2664. [Google Scholar]
  40. Wang X, Ning Y. A new stability analysis of uncertain delay differential equations. Math Probl Eng. 2019;2019:1257386. [Google Scholar]
  41. Xu M, Wu F, Leung H. A biologically motivated signal transmission approach based on stochastic delay differential equation. Chaos. 2009;19:033135. doi: 10.1063/1.3227642. [DOI] [PubMed] [Google Scholar]
  42. Yang X, Ralescu Dan A. Adams method for solving uncertain differential equations. Appl Math Comput. 2015;270:993–1003. [Google Scholar]
  43. Yang X, Ni Y, Yansheng Z. Stability in inverse distribution for uncertain differential equations. J Intell Fuzzy Syst. 2017;32(3):2051–2059. [Google Scholar]
  44. Yang X, Ni Y, Zhang Y (2017) Stability in inverse distribution for uncertain differential equation. J Intell Fuzzy Syst 32:2051–2059
  45. Yang X, Shen Y. Runge-kutta method for solving uncertain differential equations. J Uncertain Anal Appl. 2015;3:17. [Google Scholar]
  46. Yao K. Uncertain calculus with renewal process. Fuzzy Optimiz Decision Making. 2012;11(3):285–297. [Google Scholar]
  47. Yao K. Multi-dimensional uncertain calculus with liu process. J Uncertain Syst. 2014;8(4):244–254. [Google Scholar]
  48. Yao K. Uncertain differential equation with jumps. Soft Comput. 2015;19(7):2063–2069. [Google Scholar]
  49. Yao K. Uncertain differential equations. Springer, Berlin: Springer uncertainty research; 2016. [Google Scholar]
  50. Yao K, Chen X. A numerical method for solving uncertain differential equations. J Intell Fuzzy Syst. 2013;25(3):825–832. [Google Scholar]
  51. Yao K, Gao J, Gao Y. Some stability theorems of uncertain differential equation. Fuzzy Optim Decis Making. 2013;12:3–13. [Google Scholar]
  52. Yao K, Ke H, Yuhong S. Stability in mean for uncertain differential equation. Fuzzy Optim Decis Making. 2015;14:365–379. [Google Scholar]
  53. Zhang Y, Gao J, Huang Z. Hamming method for solving uncertain differential equations. Appl Math Comput. 2017;313:331–341. [Google Scholar]
  54. Zhang Z, Gao R, Yang X. The stability of multifactor uncertain differential equation. J Intell Fuzzy Syst. 2016;30(6):3281–3290. [Google Scholar]
  55. Zhu Y. Uncertain fractional differential equations and an interest rate model. Math Methods Appl Sci. 2014;38(15):3359–3368. [Google Scholar]

Articles from Journal of Ambient Intelligence and Humanized Computing are provided here courtesy of Nature Publishing Group

RESOURCES
