Deployed Deep Learning Kidney Segmentation for Polycystic Kidney Disease MRI

Abstract

This study develops, validates, and deploys deep learning for automated total kidney volume (TKV) measurement (a marker of disease severity) on T2-weighted MRI studies of autosomal dominant polycystic kidney disease (ADPKD). The model was based on the U-Net architecture with an EfficientNet encoder, developed using 213 abdominal MRI studies in 129 patients with ADPKD. Patients were randomly divided into 70% training, 15% validation, and 15% test sets for model development. Model performance was assessed using Dice similarity coefficient (DSC) and Bland-Altman analysis. External validation in 20 patients from outside institutions demonstrated a DSC of 0.98 (IQR, 0.97–0.99) and a Bland-Altman difference of 2.6% (95% CI: 1.0%, 4.1%). Prospective validation in 53 patients demonstrated a DSC of 0.97 (IQR, 0.94–0.98) and a Bland-Altman difference of 3.6% (95% CI: 2.0%, 5.2%). Last, the efficiency of model-assisted annotation was evaluated on the first 50% of prospective cases (n = 28), with a 51% mean reduction in contouring time (P < .001), from 1724 seconds (95% CI: 1373, 2075) to 723 seconds (95% CI: 555, 892). In conclusion, our deployed artificial intelligence pipeline accurately performs automated segmentation for TKV estimation of polycystic kidneys and reduces expert contouring time.

Keywords: Convolutional Neural Network (CNN), Segmentation, Kidney

ClinicalTrials.gov identification no.: NCT00792155

Supplemental material is available for this article.

© RSNA, 2022

Summary

A deep learning model was developed and deployed to automatically segment kidneys in autosomal dominant polycystic kidney disease MRI studies for determining total kidney volume, a metric of disease severity.

Key Points

• ■ Model performance on validation MRI studies (53 prospective, 20 external institution) demonstrated a Dice similarity coefficient greater than 0.97 (quartile Q1 > 0.94) and Bland-Altman mean percentage difference in total kidney volume (model vs manual reference) less than 3.6% (95% CI: 2.0%, 5.2%).

• ■ Model deployment into the clinical pipeline was accomplished by pushing new MRI studies to a clinical server within the picture archiving and communication system firewall that runs inference on axial T2-weighted sequences and outputs results formatted for radiologist label refinement and final reporting.

• ■ Prospective assessment in 53 patients showed a 51% reduction in radiologist time for model-assisted segmentation compared with segmenting without the model (P < .001).

Introduction

Autosomal dominant polycystic kidney disease (ADPKD) is the most common inherited renal disease, affecting 12.5 million people worldwide and comprising 5%–10% of end-stage renal disease (1). Total kidney volume (TKV) indexed to patient height (htTKV) (2,3) is an important imaging biomarker for assessing ADPKD severity (4,5). The Mayo classification prognosticates the time to requiring dialysis for patients with ADPKD with typical diffuse cystic kidney disease (Mayo class A) using htTKV at a single time point, adjusted for age and estimated kidney growth rate (6,7). Tolvaptan can slow the rate of progression of chronic kidney disease in patients at risk for rapid progression on the basis of age, creatinine level, and htTKV (8). The importance of htTKV for determining tolvaptan therapy eligibility and for following patients taking tolvaptan has resulted in increased demand for MRI measurements of TKV. As TKV increases only 2%–5% per year (9), a highly reproducible, operator-independent method for measuring kidney volumes is needed.

In this study, we developed, validated, and deployed a segmentation model using a U-Net architecture with an EfficientNet encoder for accurate polycystic kidney segmentation at MRI. Furthermore, we evaluated the efficiency improvement of model-assisted annotation.

Material and Methods

Patient Datasets

This Health Insurance Portability and Accountability Act–compliant study was approved by the institutional review board. Individuals enrolled in the Rogosin Institute ADPKD Repository study provided signed informed consent. Existing axial MRI studies (n = 213 in 129 patients) were utilized for model development and retrospective validation. MRI studies in another 20 patients with ADPKD, performed at other institutions, were utilized for external validation. MRI studies performed beginning June 1, 2021, (n = 53) were included in a prospective assessment of the clinical implementation. This study was registered on ClinicalTrials.gov with identification number NCT00792155.

MRI Protocol

All participants used for model training and prospective evaluation underwent a standardized imaging protocol at 1.5 T using a body phased‐array coil, including axial T2‐weighted single-shot fast spin-echo and steady-state free precession (SSFP) images (details described in Appendix E1 [supplement]). Participants used for external validation all underwent axial T2-weighted imaging with various MRI machines (Table E1 [supplement]).

Code, Model, and Data Availability

All code was developed in the Python programming language (version 3.8.5) using the PyTorch deep learning framework (version 1.7.1) (10). The training code, inference code, and model weights for this project are publicly available on our code repository (https://github.com/aksg87/adpkd-segmentation-pytorch) (11). Data availability is discussed at the end of the article.

Data Preparation

De-identified Digital Imaging and Communications in Medicine (DICOM) axial T2-weighted and SSFP MRI studies were converted into NIfTI (Neuroimaging Informatics Technology Initiative) file format using the NiBabel package in Python (https://nipy.org/nibabel/) (12). Segmentation masks were saved in NIfTI format within ITK-SNAP. Normalization was applied to each scan by linearly scaling 16-bit grayscale values to [0, 1] (single-precision floating point), on the basis of the minimum and maximum grayscale value.

TKV Reference Standard

The reference standard TKV was obtained using ITK-SNAP (13) to manually segment kidneys by a radiology fellow (A.G.) and radiology attending physician (M.R.P.) with a combined 25 years of experience imaging ADPKD. All annotations were performed without interpolation with attention to detail for accuracy at the polycystic kidney boundary. Annotation voxels were summed to derive TKV.

Data Stratification

Patients (n = 129 with 213 studies) were split on the basis of patient ID for model development into 70% training, 15% validation, and 15% holdout test sets, with a stratified random split controlling for the statistical distribution of TKV. The training, validation, and test sets contained 154 MRI studies (5570 DICOM images), 28 MRI studies (1312 DICOM images), and 31 MRI studies (1050 DICOM images), respectively. No patient was represented in more than one split. The dataset split was fixed prior to model training to prevent data leakage. Cross-validation (k-fold) was not performed because of limited computing resources and our inclusion of prospective and external validation.

Model Development, Data Augmentation, and Training Procedure

MRI studies and ADPKD kidney segmentations were used to train models for the objective of kidney segmentation (Fig 1). ADPKD kidney segmentation was formulated as a two-dimensional problem, such that each slice in an MRI study provided a single sample. To generate a three-dimensional segmentation, inference was performed on all slices in a volume and then combined. The model architecture was based on the encoder-decoder U-Net (14), with EfficientNet comprising the encoder component (15); EfficientNet has shown top performance on various image segmentation tasks (16). Further details on the model architecture are shown in Table E2 and Figure E1 (supplement).

Figure 1:

Schematic summarizes project infrastructure on deep learning server. Training is highlighted with a light pink background. Deployment and inference are highlighted with a light blue background.

Training data were augmented using affine transformations (17). Model checkpoints were saved on the basis of improving performance on the validation set that was based on the metric, predicted-TKV error. Upon the completion of training, the single best model checkpoint was evaluated against the internal holdout test dataset. Further details on model development, data augmentation, and training procedure are discussed in Appendix E1 (supplement).

Model Deployment into the Clinical Routine and Prospective Validation

The model was deployed on a clinical Linux server within the picture archiving and communication system (PACS) firewall (Fig 1). Remote connection to the server for the purposes of annotation and validation was achieved using XFCE (18), an open-source desktop environment. The single best model checkpoint was utilized after training and fixed throughout external and prospective validation. To summarize the data flow, first, new MRI studies were pushed to the Linux server by a radiologist via our clinical PACS. Then, inference was triggered upon the arrival of new axial T2-weighted images. Next, model predictions were saved as NIfTI files, fully editable (using ITK-SNAP 3.8.0 running on the Linux server) by a radiologist to correct any errors, and time savings of model-assisted annotation versus manual annotation were recorded for the first consecutive 50% of prospective cases. The possibility of bias from repeated annotation of the same scan was minimized by having a minimum 1-week interval between manual and model-assisted annotation.

Statistical Analysis

Comparison between the manual reference standard (ground truth) and the model was performed using Dice similarity coefficient (DSC) defined as

where A and B represent the ground truth and model-derived segmentations, respectively (19). Mean absolute error and Bland-Altman analysis were used to assess agreement in TKV calculation. The significance of time savings of model-assisted annotation was assessed with the (paired) Student t test.

Results

Table 1 shows baseline characteristics of the patients with ADPKD used for model development (n = 129), outside external test cohort (n = 20), and internal prospective test cohort (n = 53).

Table 1:

Characteristics of Development and Validation Data

Figure 2 shows Bland-Altman plots for agreement in TKV calculations and DSC by TKV plots for external and prospective internal validation. Model performance was validated on external data with a median DSC of 0.98 (IQR, 0.97–0.99) and mean percentage difference in TKV of 2.6% (95% CI: 1.0%, 4.1%). Additional validation was performed on prospective internal data with a median DSC of 0.97 (IQR, 0.94–0.98) and mean percentage difference in TKV of 3.6% (95% CI: 2.0%, 5.2%) (Fig 2, Table 2). Model performance on the internal test set is shown in Figure E3 (supplement).

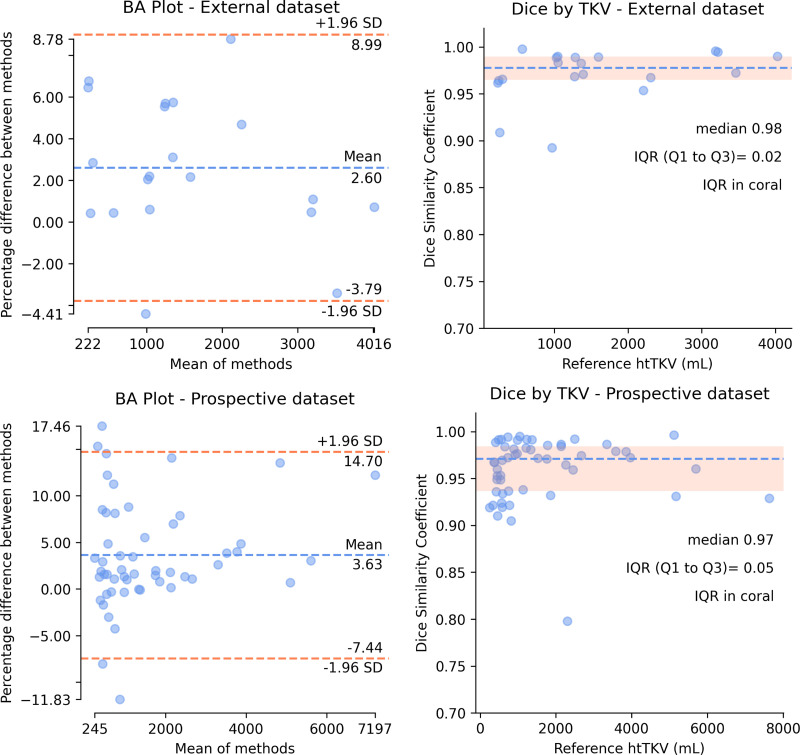

Figure 2:

External dataset (top) and prospective dataset (bottom) validation with Bland-Altman agreement analysis and Dice similarity coefficient by htTKV. BA = Bland-Altman, htTKV = TKV indexed to patient height, TKV = total kidney volume.

Table 2:

Internal Validation Set and Test Set Results and Dataset Characteristics

Multiple visualizations were evaluated to assess performance. Model predictions and the reference standard were visualized with three-dimensional overlapping surface renderings (Fig 3). Predictions were also visualized as two-dimensional images (Figs E2, E4 [supplement]).

Figure 3:

Prospective dataset (top row) and external dataset (bottom row) example surface renderings of ground truth reference (red) and model prediction (blue) volumes with 50% opacity. Overlapping concordant predictions are visualized in shades of purple. Yellow mannequin illustrates orientation of the surface renderings.

Time savings analysis in prospective patients revealed that manual contouring (starting with no segmentations) required a mean of 1724 seconds (95% CI: 1373, 2075), compared with 723 seconds (95% CI: 555, 892) for model-assisted contouring, a 51% reduction in time for model-assisted contouring (P < .001).

Failure analysis was conducted to evaluate the largest model errors. Examples of the most significant prospective errors and the corresponding radiologist corrections are shown in Figure 4, which include a fluid-filled stomach partially labeled as left cystic kidney, the urinary bladder labeled as cystic kidney, and mischaracterization of cysts at the border of liver and right kidney, among other examples.

Figure 4:

Examples of the most significant prospective model inference errors and the corresponding radiologist corrections. Inference label is red, radiologist additions are green, and radiologist subtractions are indicated by blue arrows. (A) Fluid-filled stomach partially labeled as left cystic kidney. (B) Urinary bladder labeled as cystic kidney. (C) Liver cyst labeled as kidney. (D) Renal cyst at liver border missed by inference. (E) Complex hemorrhagic left renal cyst incompletely labeled. (F) Collapsed descending colon labeled as left kidney. (G) Renal cyst at liver border missed by inference. (H) Left elbow medial epicondyle fat labeled as left kidney in a patient imaged with arms in the field of view.

Discussion

Imaging patients with ADPKD demands accurate, reproducible kidney volume measurements for calculating htTKV. These data from 173 patients with ADPKD (129 development, 20 external validation, and 53 acquired after deployment) demonstrate a deep learning segmentation model with exceptional multi-institutional and postdeployment prospective performance. The prospective and external validation demonstrated excellent DSC greater than 0.97 and a low Bland-Altman mean percentage difference in TKV less than 3.6%. Moreover, model-assisted segmentation required 51% less time compared with manual contouring without model assistance.

Conventionally, planimetry tracing (2) and stereologic methods (22) are used to measure TKV at MRI. These methods comprise a two-step process in which an initial organ contour is drawn, followed by tedious slice-by-slice correction of contour errors. Additionally, the manual ellipsoid method of calculating TKV has attempted to simplify kidney measurement using only three orthogonal measurements but is far less accurate and less reproducible (7,19). Operator exhaustion from the tedious contouring task may naturally lead to human error, particularly given the precision required at contour borders. Alternatively, in model-assisted annotation as deployed in this study, we modify the contouring task significantly and reduce operator fatigue. We believe this may enable radiologists to produce more accurate contours of kidneys in ADPKD.

As established in many studies, deep learning excels at computer vision tasks (20–22), but deep learning studies often lack prospective validation and often fail to impact radiologic clinical routines. In contrast, our study includes external and postdeployment prospective validation and incorporates recommendations from the Checklist for AI in Medical Imaging (or, CLAIM) guidelines (23). While our model architecture is novel, by applying an EfficientNet encoder to ADPKD kidney segmentation, our study’s primary contribution is demonstrating clinical impact from model-assisted annotation in a real-world health care setting. Prior studies, such as those of Kline et al (24) and Sharma et al (25), have published impressive results on similar tasks; however, they do not show our external multi-institute validation and time savings when deployed into the clinical routine. Furthermore, our code repository, model weights, and select experiments are available for other researchers (11).

While our model had a robust performance, our failure analysis demonstrated notable errors during select clinical scenarios (ie, fluid-filled stomach, distended urinary bladder, hemorrhagic renal cysts, and hepatic cysts at the border of liver and right kidney). Despite these edge cases, our model-assisted annotation saves substantial radiologist time, as at baseline, the radiologist performs manual contouring at our institution. Furthermore, model performance is likely to improve with retraining our model on radiologist-corrected annotations and via ensemble learning methods. Last, our study evaluates model performance at a single time point, and ultimately assessing kidney growth over time remains an important clinical end point. We plan to address this limitation with direct assessment of automated ADPKD kidney growth tracking in the near future.
