Doping of Sn-based two-dimensional perovskite semiconductor for high-performance field-effect transistors and thermoelectric devices

Summary

Doping is an important technique for semiconductor materials and devices, yet effective and controllable doping of organic-inorganic halide perovskites is still a challenge. Here, we demonstrate a facile way to dope two-dimensional Sn-based perovskite (PEA)₂SnI₄ by incorporating SnI₄ in the precursor solutions. It is observed that Sn⁴⁺ produces p-doping effect on the perovskite, which increases the electrical conductivity by 10⁵ times. The dopant SnI₄ is also found to improve the film morphology of (PEA)₂SnI₄, leading to reduced trap states. This doping technique allows us to improve the room temperature mobility of (PEA)₂SnI₄ field-effect transistors from 0.25 to 0.68 cm² V⁻¹ s⁻¹ thanks to reduced trapping effects in the doped devices. Moreover, the doping technique enables the characterization and improvement of the thermoelectric performance of (PEA)₂SnI₄ films, which show a high power factor of 3.92 μW m⁻¹ K⁻² at doping ratio of 5 mol %.

Graphical abstract

Highlights

• •The p-doping effect of Sn⁴⁺ on (PEA)₂SnI₄ is demonstrated and confirmed.
• •Proper Sn⁴⁺ doping can improve the mobilities of (PEA)₂SnI₄ FETs.
• •Thermoelectric performance of (PEA)₂SnI₄ is characterized and enhanced by Sn⁴⁺ doping.

Inorganic materials; Materials science; Materials chemistry; Devices

Introduction

Organic-inorganic hybrid perovskite (OIHP) semiconductors have been extensively studied in the field of solar cells, light-emitting diodes, and photodetectors due to their excellent optoelectronic properties, such as large light-absorption coefficients, weakly bound excitons, long charge-carrier diffusion length, and tunable bandgap (García de Arquer et al., 2017; Liu et al., 2020; Ni et al., 2020; Wang et al., 2019b; Zhao et al., 2020). The low effective mass and intrinsically high carrier mobility of perovskite semiconductors also make them especially attractive as the semiconductor layers in field-effect transistors (FETs) (Senanayak et al., 2020; She et al., 2020; Wang et al., 2019a).

Among the various perovskite semiconductors, Sn-based two-dimensional (2D) layered perovskites have been the subject of interest for their promising applications in high-mobility FETs (Kagan et al., 1999; Matsushima et al., 2016; Zhu et al., 2020b). Compared to their three-dimensional (3D) analogs, 2D perovskite possesses good environmental stability because the bulky hydrophobic organic cationic chains between inorganic octahedral cages can prevent moisture and oxygen from intruding into the materials (Liu et al., 2021). Meanwhile, the ion migration causing the gate-field screening effect, which is believed to be a bottleneck for 3D perovskite FETs (Senanayak et al., 2017; Zeidell et al., 2018), is minimized in 2D perovskite since bulky organic chains can effectively inhibit the ion migration along the out-of-plane direction (Lin et al., 2017; Matsushima et al., 2016; Tsai et al., 2016). More interestingly, the organic ligands in 2D perovskites can be structurally engineered, which provides a paradigm for tuning the properties of perovskites through structure engineering (Gao and Dou, 2021; Gao et al., 2019a, 2019b; Liang et al., 2021). For example, Dou et al. demonstrated that the introduction of bulky conjugated organic ligands can enhance the stability as well as the carrier mobility of Sn-based 2D perovskites relative to short aliphatic chains (Gao et al., 2019b; Liang et al., 2021). As the most heavily studied Sn-based 2D perovskite, (C₆H₅C₂H₄NH₃)₂SnI₄ ((PEA)₂SnI₄) has attracted a lot of interest since the first report of (PEA)₂SnI₄ FETs with mobility of 0.6 cm² V⁻¹ s⁻¹ by Kagan et al., in 1999 (Kagan et al., 1999), and hole mobility as high as 15 cm² V⁻¹ s⁻¹ was reported in carefully designed (PEA)₂SnI₄ FETs (Matsushima et al., 2016), indicating the great potential of this semiconductor for flexible, printable, large-area and low-cost thin-film transistors.

As well known, doping is an essential technique for semiconductors and devices since it can provide efficient adjustment to the electrical properties of semiconductors in terms of carrier concentration and mobility. As a typical example of doping, silicon doping takes the form of atomic substitution by thermal diffusion or ion implantation and now is an indispensable technique in the modern microelectronics industry. Doping has also been intensively studied in organic semiconductor counterparts due to the great potential benefits that can be brought by the technique (Guo et al., 2021; Jacobs and Moule, 2017; Sakai et al., 2021; Wei et al., 2021; Yamashita et al., 2019). Being an emerging semiconductor, (PEA)₂SnI₄ provides new opportunities and platforms for studying doping physics and techniques, which will not only help enhance the performance of (PEA)₂SnI₄ FETs but also expand its applications in other optoelectronic devices.

Previously, Qin et al. reported the substitutional doping of (PEA)₂SnI₄ by Pb²⁺, which leads to improved environmental stability of (PEA)₂SnI₄ FETs but depressed hole transport owing to the larger effective mass of Pb and higher contact resistance in the devices (Qin et al., 2021). Reo et al. considered doping of (PEA)₂SnI₄ thin films with Cu⁺ by adding copper iodide (CuI) in the precursor solution (Reo et al., 2021). It turns out that the hole transport in (PEA)₂SnI₄ FETs gets enhanced with the incorporation of CuI. However, further density functional theory (DFT) calculations and X-ray diffraction (XRD) measurements reveal that the Cu⁺ is likely distributed at grain boundaries instead of replacing the Sn²⁺ within the perovskite lattices, and the improved FET performance is more likely attributed to the outstanding hole-transport property of CuI rather than doping (Reo et al., 2021). These studies indicate doping can be a powerful technique to tune or enhance the performance of (PEA)₂SnI₄ devices, but presently effective doping strategies for (PEA)₂SnI₄ remain to be established.

Herein, we report effective p-doping of (PEA)₂SnI₄ 2D layered perovskite with Sn⁴⁺ through substituting part of the SnI₂ with SnI₄ in the precursor solution. The doping effect of Sn⁴⁺ was confirmed by electrical and spectroscopy characterizations. In addition to the doping effect, the incorporation of SnI₄ was revealed to improve the film morphology of (PEA)₂SnI₄. This doping strategy was then used to fabricate bottom-gate bottom-contact (BGBC) (PEA)₂SnI₄ FETs, which leads to an increase of average mobility from 0.25 cm² V⁻¹ s⁻¹ for pristine devices to 0.68 cm² V⁻¹ s⁻¹ for devices doped with 5 mol % SnI₄. The effect of doping on charge injection and charge transport processes in the FET devices are also investigated and clarified. Moreover, the doping technique allows us to characterize the thermoelectric (TE) performance of (PEA)₂SnI₄, and Seebeck coefficients varying between 387 and 660 μV K⁻¹ were observed, with the maximum power factor reaching 3.92 μW m⁻¹ K⁻², which demonstrates the promising usage of 2D perovskite semiconductors for high-performance TE devices. It is notable that a similar doping strategy was reported in (4Tm)₂FASn₂I₇ for high-performance TE devices during the preparation of this manuscript (Hsu et al., 2021), which together with this study highlights the great potential of the SnI₄-doping technique to be used in 2D Sn-based perovskite for low-cost and high-performance devices.

Results and discussion

Doping of (PEA)₂SnI₄ films by SnI₄

Figure 1A illustrates the structure of (PEA)₂SnI₄, in which the corner-sharing [SnI₆]⁴⁻ octahedra are alternated by a bilayer of PEA⁺ organic cations. Previously, it was reported that Sn²⁺ in Sn-based perovskites are easily oxidized to Sn⁴⁺, which are metastable and can thermodynamically evolve to the Sn²⁺, releasing two holes in the valence band and leading to the p-doping of the perovskite, i.e., Sn⁴⁺ → Sn²⁺ + 2h⁺ (Hsu et al., 2021; Ricciarelli et al., 2020; Stoumpos et al., 2013). These results motivate us to intentionally incorporate Sn⁴⁺ into (PEA)₂SnI₄ for controllable p-doping. For such purpose, Sn⁴⁺ was introduced by mixing phenethylammonium iodide (PEAI), SnI₂ and SnI₄ with mol ratio of 2:1−x:x (0 < x < 1) in a mixture of dimethylformamide (DMF) and N-Methyl-2-pyrrolidone (NMP) with volume ratio of 3:1, where x represents the doping ratio of SnI₄.

Figure 1.

Confirmation of the doping effect of SnI₄ on (PEA)₂SnI₄

(A) Schematic diagram showing the structure of (PEA)₂SnI₄ and the SnI₄ doping mechanism.

(B) Current-voltage curves of perovskite films with different SnI₄ ratios.

(C) Electrical conductivities as a function of doping ratio calculated from (B).

(D) The relative conductivity changes (σ/σ₀) of pristine, 5 mol % and 20 mol % SnI₄-doped films with time when they were stored in Ar glove box.

The measured electrical conductivities (σ) of (PEA)₂SnI₄ films doped with different doping ratios are shown in Figure 1C (see Figure S1 for more information), with the current-voltage curves shown in Figure 1B. The electrical conductivity of the pristine film is 2.6 × 10⁻⁶ S cm⁻¹, and it is enhanced as the doping ratio increases, reaching a maximum value of 2.1 × 10⁻¹ S cm⁻¹ at the doping ratio of 30 mol %, which is direct evidence showing the doping effect of SnI₄ on (PEA)₂SnI₄ perovskite. It should be mentioned that extra I⁻ was also introduced into the films together with Sn⁴⁺, and I⁻ was reported to greatly improve the charge transport property of (PEA)₂SnI₄ by compensating the iodine vacancies (V_I), which behave as trap states (Reo et al., 2021). So, it might be argued that I⁻ may also contribute to the enhancement of conductivity in the doped (PEA)₂SnI₄ films. However, the dramatic increase of conductivity about five orders of magnitude in doped films suggests that it should be Sn⁴⁺ (doping effect) rather than I⁻ (trap passivation effect) that plays a dominant role. We then investigated the stability of the doped (PEA)₂SnI₄ films, with the results of relative conductivity changes (σ/σ₀) shown in Figure 1D, where σ₀ is the initial conductivity. It is seen that compared to the pristine (PEA)₂SnI₄ films, which are prone to be oxidized (Sn²⁺ → Sn⁴⁺) and experience conductivity increase even though they are stored in an Ar-filled glove box (Zhu et al., 2020b), the doped (PEA)₂SnI₄ films show better stability of the conductivity.

Structural and spectroscopic characterizations on doped (PEA)₂SnI₄ films

To further understand the doping effect of SnI₄ on (PEA)₂SnI₄ films, X-ray photoelectron spectroscopy (XPS) was used to identify the composition of Sn element in the perovskite films. Figure 2A demonstrates the XPS spectra of Sn 3d for pristine and 20 mol % SnI₄-doped (PEA)₂SnI₄ films. We find that the Sn⁴⁺ content of the doped (PEA)₂SnI₄ films is increased from 28 atomic % (at %) (for pristine ones) to 42 at % (for 20 mol%-doped ones), indicating the incorporation of Sn⁴⁺ during the film formation. Furthermore, UV photoelectron spectroscopy (UPS) measurements were performed to study the effects of doping on energy levels of perovskite films (Figure 2B). The Fermi level (E_F), valence band maximum (VBM), and conduction band minimum (CBM) for pristine films and films doped with 1 mol % and 5 mol % SnI₄ are shown in Figure 2C. The optical bandgap (E_g) for all the films were measured to be about 1.97 eV through absorption spectra (see more details in the Figure S2), which is consistent with the previously reported values (Zhang et al., 2021). One important result of UPS measurements is that the Fermi level moves closer to the VBM as the doping ratio increases, indicating the increased concentration of holes upon SnI₄ doping. We also note that the shifting of Fermi level becomes almost saturated when the doping ratio is higher than 5 mol %, which is in line with the saturation of electrical conductivity above this doping ratio as shown in Figure 1C.

Figure 2.

Characterizations of the doping effect of SnI₄ on (PEA)₂SnI₄

(A) XPS results of Sn 3d for pristine and 20 mol % SnI₄-doped (PEA)₂SnI₄ films. The fitting results of the peaks are illustrated in the figure, which show the ratio changes of SnI₄ upon doping.

(B) UPS results of pristine, 1, 5, and 10 mol % SnI₄-doped perovskite films.

(C–F) (C) Energy level structures of pristine, 1, 5, and 10 mol % SnI₄-doped perovskite films. SEM images of (D) pristine (PEA)₂SnI₄ films, (E) 1 mol %, and (F) 5 mol % SnI₄-doped (PEA)₂SnI₄ films (scale bar: 2 μm).

(G–I) (G) XRD patterns, (H) steady-state PL, and (I) time-resolved PL of (PEA)₂SnI₄ thin films with different doping ratios.

Furthermore, we inspected the influence of SnI₄ on the morphology and structure of (PEA)₂SnI₄ films. From scanning electron microscopy (SEM) images of the perovskite films, it is seen that the domain is enlarged upon the SnI₄ doping (Figures 2D–2F), which is an indication of fewer domain boundaries and trap states. The corresponding atomic force microscopy (AFM) images also exhibit more uniform surface morphology with reduced roughness as doping ratio increases (Figure S3). To further understand the effect of SnI₄ on film structure, we used X-ray diffraction (XRD) to probe the film crystallinity. As shown in Figure 2G, XRD patterns of pristine and doped (PEA)₂SnI₄ films show similar diffraction peaks, which are assigned to the strong (0 0 l) (l = 2, 4, 6, 8, 10, 12, 14) diffractions at 5.5°, 10.9°, 16.4°, 21.9°, 27.4°, 33.0°, and 38.7°, respectively, indicating a layered structure of the films (Reo et al., 2021; Zhu et al., 2020a). However, the full width at half maximum (FWHM) of (0 0 2) peaks are found to be 0.197°, 0.183°, and 0.182° for pristine, 1 mol %, and 5 mol % SnI₄-doped films, respectively. This decreased FWHM implies a larger crystallite size in doped films, which is in accordance with the SEM results.

In addition, we measured the steady-state and time-resolved photoluminescence (PL) spectra of (PEA)₂SnI₄ films prepared with and without SnI₄ dopants. From the steady-state PL spectra (Figure 2H), it is evident that the quenching of the perovskite emission signal is reduced in doped films, suggesting there are fewer traps causing non-radiative recombination. The time-resolved PL data (Figure 2I) are found to fit well to the biexponential decay equation:

$$I\left(t\right)=A_1\exp \left(-\frac{t}{{\tau }_1}\right)+A_2\exp \left(-\frac{t}{{\tau }_2}\right)$$ (Equation 1)

where A₁ and A₂ are relative amplitudes, τ₁ and τ₂ are carrier lifetimes for fast and slow decay, respectively, and I(t) is the PL intensity (Bi et al., 2016). The carrier lifetimes of τ₁ (τ₂) for the pristine films and films doped with 1 mol % and 5 mol % SnI₄ are 0.40 ns (1.46 ns), 0.50 ns (1.74 ns), and 0.72 ns (2.10 ns), respectively. The longer PL lifetime of doped (PEA)₂SnI₄ films further demonstrates that the addition of SnI₄ can reduce the trap density in the films, consistent with the results of steady-state PL. Such reduction of trap density in the SnI₄-doped films is not unexpected since both the filling of trap states by dopants and improved crystallinity and morphology of the doped films can lower the trap density.

Doping of (PEA)₂SnI₄ films for FETs

Encouraged by the prominent doping effect of SnI₄ on (PEA)₂SnI₄ films and the accompanied improvement of film quality, we sought to lever these benefits to enhance the device performance of (PEA)₂SnI₄ FETs. Figure 3A shows the BGBC device structure used in this study. Si⁺⁺/SiO₂ (300 nm) were used as substrates, and photolithography-defined Cr/Au (2 nm/30 nm) were used as source/drain electrodes. Perovskite precursors were spin-coated on the substrates at 4000 rpm for 30 s and then annealed at 100°C for 10 min in a glove box. The devices with pristine (PEA)₂SnI₄ films as active layers show typical p-type FET behaviors due to the low formation energy of tin vacancies which can lead to self-doping effect (see Figure 3B) (Euvrard et al., 2021; Takahashi et al., 2011). The transfer plots (square root of current) for mobility calculations are shown in Figure S5A. The saturation mobility (μ) of 0.25 ± 0.08 cm² V⁻¹ s⁻¹, threshold voltage (V_TH) of −21 ± 1.6 V, and on/off ratio (I_on/I_off) of 10⁴ (channel length L = 160 μm, channel width W = 1000 μm) were obtained in the devices, as shown in Figure 3C. These performance merits are similar to those reported in previous studies (Qin et al., 2021; Zhang et al., 2019; Zhu et al., 2020b).

Figure 3.

Fabrication and characterization of (PEA)₂SnI₄ FETs

(A) Device configuration of (PEA)₂SnI₄ BGBC FET.

(B) Transfer curves (V_DS = −40 V) of FETs with different doping ratios.

(C–E) (C) Mobilities, threshold voltages, and on/off ratios extracted from transfer characteristics. Output curves of the (D) pristine and (E) 5 mol % SnI₄-doped devices.

(F–H) (F) The L-dependent total resistance (R_TW) of pristine and 5 mol % SnI₄-doped FETs. Temperature-dependent FETs transfer characteristics of (G) pristine FETs and (H) 5 mol % SnI₄-doped FETs from 80 K to 300 K.

(I) Temperature-dependent mobility extracted from the transfer curves of pristine and 5 mol % SnI₄-doped FETs.

By doping the films with SnI₄ in the doping range of 1–5 mol %, we observed a significant enhancement of the device current, indicating the improvement of device performance. However, the current begins to decay when the doping ratio is higher than 10 mol % (Figures 3B and S4). The variation of performance parameters as a function of doping ratio is presented in Figure 3C, which shows the devices exhibit μ of 0.68 ± 0.16 cm² V⁻¹ s⁻¹, V_TH of 10 ± 5.6 V, and I_on/I_off of 10⁵ at the optimized doping ratio of 5 mol %. In addition, the doping-ratio-dependent carrier concentration (p) (see Figure S6) calculated from the formula σ = pqμ, where q is the unit charge, exhibits a much higher σ upon doping with 1 mol % SnI₄ and a saturation trend with higher doping ratios. The output curves of the pristine and 5 mol % SnI₄-doped devices are shown in Figures 3D and 3E, respectively, and output curves of 1 mol % and 10 mol % SnI₄-doped devices are shown in Figures S5B and S5C. Thus, we can see that the currents of output curves increase in FETs with higher doping ratios. One thing notable is the increased hysteresis in the doped device, which is probably attributed to the extra I⁻ brought by SnI₄ in the films, causing enhanced ion migration. In spite of the slightly increased hysteresis, these results still show that doping (PEA)₂SnI₄ films with SnI₄ is a promising way to achieve high-performance FETs.

Following that, we conducted investigations to deeply understand how the doping affects the performance of (PEA)₂SnI₄ FETs. First, we examined the influence of doping on contact resistance (R_CW) in the devices through the transmission line method (TLM) (Bhargava and Singh, 2014; Minari et al., 2006; Xu et al., 2010). As shown in Figure 3F, the contact resistance for pristine devices is 9.6 × 10⁴ Ω cm, and it is reduced to 1.2 × 10⁴ Ω cm for the 5 mol % SnI₄-doped devices. The average total resistance (R_TW) of pristine and 5 mol % SnI₄-doped FETs with L = 160 μm are 4.6 × 10⁵ Ω cm and 5.7 × 10⁴ Ω cm, respectively, by which the average channel resistance (R_ChW = R_TW – R_CW) are obtained to be 3.6 × 10⁵ Ω cm and 4.5 × 10⁴ Ω cm, respectively. Interestingly, the ratio of R_CW of FETs before and after doping is about 8.0, which is similar to that of R_ChW, indicating that doping has similar effects on R_CW and R_ChW. The reduction of contact resistance and channel resistance are expected when doping of the semiconductor layer occurs in FETs (Hu et al., 2018a, 2018b; Kim et al., 2016, 2019).

Additionally, we inspected the charge transport in the pristine and doped devices by performing temperature-dependent measurements on their electrical characteristics (L = 80 μm, W = 2000 μm). It should be noted that the transfer curves of pristine and 5 mol % SnI₄-doped FETs change after vacuuming, as shown in Figure S7. With the temperature increasing from 80 K to 300 K, the pristine device exhibits reduced I_on (at V_G = −40 V) and increased hysteresis (see Figure 3G). The cooling process from 300 K to 80 K also shows the same trend (see Figure S8). This increase of hysteresis is possibly attributed to the enhanced ion migration in the high-temperature regime although 2D perovskites have been reported to show inhibited ion migration compared to their 3D analogs (Liu et al., 2021). The extracted mobility and its temperature dependence are presented in Figure 3I, which illustrates an increase of μ with decreasing temperature. In general, the temperature dependence of charge-carrier mobility is closely related to the charge scattering mechanism in the semiconductors and can be expressed as $\mu \propto T^{-\gamma }$ (Biewald et al., 2019; Wright et al., 2016), where γ reflects the magnitude of charge scattering, with larger γ representing stronger scattering in the perovskite (Buizza et al., 2021; Herz, 2017; Senanayak et al., 2017). The pristine device shows a γ value of 1.47 between 200 and 280 K, which seems to indicate the charge transport in this regime is dominated by acoustic phonon scattering (Biewald et al., 2019; Wright et al., 2016; Yi et al., 2016). Nevertheless, the influence of ion migration cannot be fully excluded in this regime (Yi et al., 2016). At lower temperatures, the mobility becomes almost independent on temperature, with γ being 0.04. The transition of the μ-T relationship at T = 200 K is suspected to be caused by the phase transition of (PEA)₂SnI₄ films, as discussed in the following. The weak temperature dependence of mobility was frequently reported in polycrystalline FETs, which was accounted by the combined effect of charge-carrier trapping at grain boundaries and phonon scattering in the grains (Katoh, 1994). This explanation may be applicable to the (PEA)₂SnI₄ films because of their polycrystalline nature but remains to be further investigated.

By comparison, the 5 mol % SnI₄-doped devices present larger hysteresis (Figure 3H), which is probably due to the extra I⁻ brought by the SnI₄ adding, as mentioned earlier. Interestingly, the mobility of the doped device shows a larger γ value of 3.23 in the range of 200–280 K. This large γ value is comparable to the ones observed in MAPbI₃ FETs reported by Sirringhaus et al., which was believed to be accounted by ion migration (Senanayak et al., 2017). Thus, the larger γ in this regime suggests the more severe ion migration of the doped films, consistent with the more significant hysteresis shown earlier. In addition, an abrupt step change of mobility was seen at T = 200 K, which was reported to reflect the phase change of perovskite by Duan et al. (Yi et al., 2016). However, direct evidence showing the phase change of (PEA)₂SnI₄ films remains for further investigations, which is beyond the scope of this work. At T < 200 K, the μ keeps increasing as the T lowers, with γ being 0.64. Ion migration effect is not likely to account for this mobility increase because it is effectively suppressed at such low temperatures (Senanayak et al., 2017); however, the dominant mechanisms governing charge transport in this regime are not fully clear yet.

Doping of (PEA)₂SnI₄ films for TE devices

Although the investigation of OIHP-based TE devices is still in its infancy and lags much behind that of traditional inorganic and organic TE devices, their advantages of cost-effectiveness as well as inherently ultralow thermal conductivity (κ) and high Seebeck coefficient (S) make OIHPs promising TE materials (Filippetti et al., 2016; Haque et al., 2020b; Shukla et al., 2020). Two-dimensional OIHPs possess even lower κ than their 3D counterparts (Giri et al., 2020), partly because the large acoustic mismatch between the organic and inorganic layers in 2D OIHPs was found to suppress the acoustic phonon transport (Guo et al., 2018). These electronic and thermal properties of 2D OIHPs are beneficial for achieving a high TE figure of merit (ZT) = S²σT/κ, where σ is the electrical conductivity and T is the absolute temperature. However, similar to organic semiconductors, the inherent carrier concentration and electrical conductivity in 2D OIHPs is rather low, which not only poses challenges for the characterization of their TE performance but also hinders the achievement of large power factor (PF, PF = S²σ) values (Cohen et al., 2017; Haque et al., 2020b; Mitzi et al., 1995). Here, with the doping technique shown earlier, we are allowed to evaluate the TE performance of (PEA)₂SnI₄ films by enhancing their σ values.

Figure 4A shows the schematic diagram of our setup for TE characterizations, which can provide information about S by measurements of temperature differences (ΔT) and the corresponding thermal voltages (ΔV) of the samples (see more information in the Method Details) (Wei et al., 2021). As shown in Figure 4B, ΔV becomes smaller with the increasing doping ratio at the same ΔT, indicating lower S (= ΔV/ΔT) at a higher doping ratio. Figure 4C shows the variation of TE parameters of (PEA)₂SnI₄ films with the doping ratio ranging from 1 mol % to 20 mol %. The average S extracted from Figure 4B reduced from 660 μV K⁻¹ to 387 μV K⁻¹, and the σ measured by the four-point probe method increased from 0.06 S cm⁻¹ to 0.20 S cm⁻¹. The TE characterizations of pristine devices were not conducted due to their low electrical conductivities. The highest PF value we have achieved is about 3.92 μW m⁻¹ K⁻² at the doping ratio of 5 mol %. A summary of previously reported PF values as a function of electrical conductivities for 3D and 2D OIHP semiconductors at room temperature (RT), including MAPbX₃ (X denotes the halide ions) (Haque et al., 2019; Long et al., 2019; Mettan et al., 2015; Tang et al., 2020; Wu et al., 2018; Xie et al., 2021; Xiong et al., 2019; Ye et al., 2017), MASnI₃ (Hao et al., 2014; Haque et al., 2020a), (PEA)₂MA₂Sn₃I₁₀ (Yang et al., 2021), and (4Tm)₂FASn₂I₇ (Hsu et al., 2021), is shown in Figure 4D. It is seen that the PF value we have achieved in (PEA)₂SnI₄ by SnI₄ doping is among the highest ones (Hsu et al., 2021; Yang et al., 2021). It is also notable that Sn-based OIHPs, which generally have higher σ than Pb-based OIHPs, exhibit higher PF values, suggesting that Sn-based OIHPs are very attractive for high-performance TE devices.

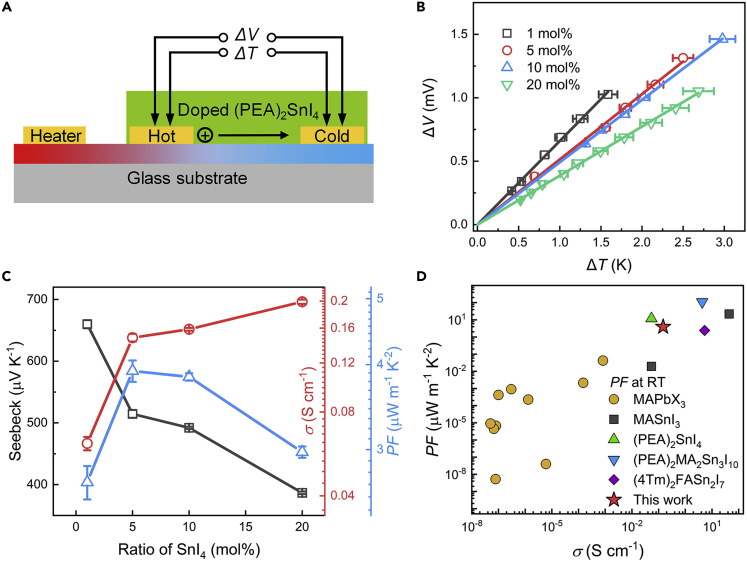

Figure 4.

Thermoelectrical characterizations of doped (PEA)₂SnI₄ films

(A) The schematic diagram of the thermoelectric measurements.

(B) The dependence of thermal voltages on temperature differences for SnI₄-doped (PEA)₂SnI₄ films.

(C) Seebeck coefficients, electrical conductivities, and power factors of (PEA)₂SnI₄ films with different doping ratios.

(D) A summary of the PF values versus corresponding electrical conductivities of 3D and 2D OIHP semiconductors at room temperature (X denotes the halide ions).

Conclusion

In conclusion, we have reported an effective doping technique by utilizing SnI₄ as a dopant for p-doping (PEA)₂SnI₄. The doping effect of Sn⁴⁺ was confirmed, and its influence on the electrical properties of (PEA)₂SnI₄ was revealed by electrical and spectroscopic characterizations. In addition to the doping effect, the incorporation of SnI₄ was found to improve the film morphology of (PEA)₂SnI₄ films. By adopting the doping technique, we were able to enhance the device performance of (PEA)₂SnI₄ FETs dramatically, with mobility increased from 0.25 cm² V⁻¹ s⁻¹ for pristine devices to 0.68 cm² V⁻¹ s⁻¹ for 5 mol % SnI₄-doped devices. Such performance enhancement can be attributed to the reduced contact resistance and charge trapping/scattering in the doped devices. Furthermore, we used the doping technique for improving the TE performance of (PEA)₂SnI₄, which shows a maximum of 3.92 μW m⁻¹ K⁻² at a doping ratio of 5 mol %. Such a high PF value demonstrates the great potential of 2D Sn-based perovskite for TE applications. Overall, our work provides a viable doping technique for (PEA)₂SnI₄ and, more importantly, shows their promising applications in enhancing the performance of devices.

Limitations of the study

In this work, we have doped the Sn-based 2D perovskite (PEA)₂SnI₄ using SnI₄ as a dopant. This strategy leads to significantly improved electrical conductivity and increased crystallite size. The FET and TE devices exhibited much improved mobilities and power factors after doping with SnI₄, respectively. However, the charge scattering mechanisms in FETs at low temperatures are still unclear and require further investigations.
