. 2022 Mar 31;78(Pt 4):458–462. doi: 10.1107/S2056989022003346

Crystal structure of (E)-3-({6-[2-(4-chloro­phen­yl)ethen­yl]-3-oxo-2,3-di­hydro­pyridazin-4-yl}meth­yl)pyridin-1-ium chloride dihydrate

Said Daoui a, Emine Berrin Çınar b,*, Necmi Dege b, Noureddine Benchat a, Eiad Saif c,*, Khalid Karrouchi d
PMCID: PMC8983968  PMID: 35492268

Three intra­mol­ecular hydrogen bonds are observed in the title compound. In the crystal, mol­ecules are connected by C—H⋯Cl and N—H⋯O hydrogen bonds.

Keywords: crystal structure, pyridazine, pyridazinone derivative, hydrogen bonding, Hirshfeld surfaces

Abstract

In the title compound, C18H15ClN3O+·Cl−·2H2O, three intra­mol­ecular hydrogen bonds are observed, N—H⋯O, O—H⋯Cl and O—H⋯O. In the crystal, mol­ecules are connected by C—H⋯Cl and N—H⋯O hydrogen bonds. Strong C—H⋯Cl, N—H⋯O, O—H⋯Cl and O—H⋯O hydrogen-bonding inter­actions are implied by the Hirshfeld surface analysis, which indicate that H⋯H contacts make the largest contribution to the overall crystal packing at 33.0%.

Chemical context

Pyridazine derivatives are an important class of heterocyclic chemicals that exhibit a wide range of biological actions. For example, their biological activity and anti­microbial properties have been researched extensively (Neumann et al., 2018 ▸). As a result, the pyridazine ring can be found in a range of commercial medicinal compounds, including Cadralazine and Hydralazine, Minaprine, Pipofezine and others (Abu-Hashem et al., 2020 ▸). Pyridazine derivatives can be found also in the backbones of several organic light-emitting diodes (OLEDs) (Liu et al., 2017 ▸), organic solar cells (OSCs) (Knall et al., 2021 ▸), chemosensors (Peng et al., 2020 ▸), tri­fluoro­acetic acid (TFA) sensors (Li et al., 2018 ▸), bioconjugates (Bahou et al., 2021 ▸), low carbon steel corrosion inhibitors (Khadiria et al., 2016 ▸), and several other materials. They have also been used as starting materials in organic synthesis (Llona-Minguez et al., 2017 ▸), acyl­ating agents (Kung et al., 2002 ▸), precursors for N-heterocyclic carbenes (NHCs) (Liu et al., 2012 ▸) and metallocarbene precursors. An overview of aryl­glyoxal monohydrates-based one-pot multi-component synthesis of potentially biologically active pyridazines is given by Mousavi (2022 ▸). graphic file with name e-78-00458-scheme1.jpg

Structural commentary

A perspective view of the title mol­ecule is shown in Fig. 1 ▸. The pyridazine and pyridine rings subtend a dihedral angle of 57.27 (5)°. The other two rings, pyridazine and chloro­benzene, are almost planar, making an angle of 8.54 (11)°. The lengths of the C=C [1.349 (3) Å], C=N [1.313 (2) Å], N—N [1.351 (2) Å] and C=O [1.237 (2) Å] bonds are comparable with values published for other pyridazinones (see the Database survey section). Three intra­mol­ecular hydrogen bonds are observed, N2—H2C⋯O2, O2—H2A⋯Cl2 and O2—H2B⋯O3 (Table 1 ▸).

Figure 1.

Figure 1

Open in a new tab

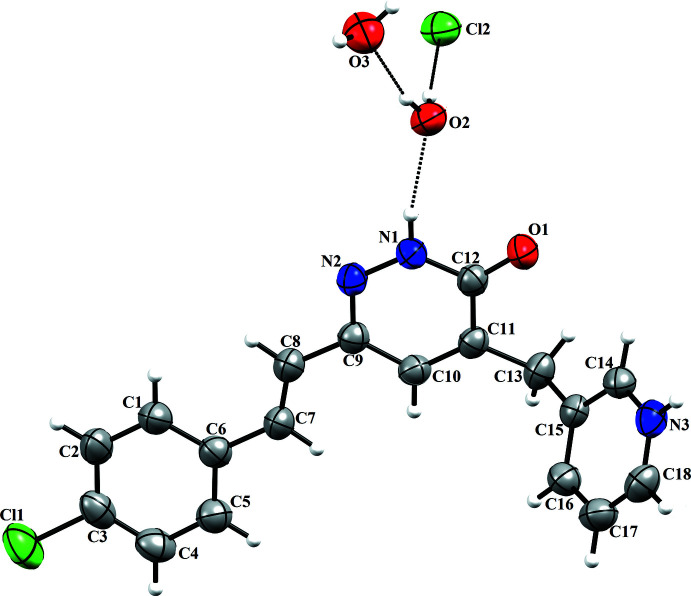

Perspective view and atom labelling of the mol­ecule. Displacement ellipsoids are drawn at the 50% probability level.

Table 1. Hydrogen-bond geometry (Å, °).

D—H⋯A D—H H⋯A D⋯A D—H⋯A
C10—H10⋯Cl2i 0.93 2.72 3.6387 (19) 168
C18—H18⋯Cl2ii 0.93 2.94 3.622 (2) 132
N3—H3⋯O2iii 0.80 (3) 2.35 (3) 2.965 (2) 135 (2)
N3—H3⋯O1iii 0.80 (3) 2.25 (3) 2.855 (2) 133 (3)
N2—H2C⋯O2 0.86 (2) 1.97 (2) 2.801 (2) 161 (2)
O2—H2A⋯Cl2 0.83 (2) 2.35 (2) 3.170 (2) 175 (3)
O2—H2B⋯O3 0.84 (2) 1.92 (2) 2.739 (3) 167 (3)
Open in a new tab

Symmetry codes: (i) Inline graphic ; (ii) Inline graphic ; (iii) Inline graphic .

Supra­molecular features

The water mol­ecules and chloride anions are located in channels between the organic cations and are connected by O—H⋯O and O—H⋯Cl hydrogen bonds (Table 1 ▸) into chains, which are further connected via N—H⋯O and C—H⋯Cl hydrogen bonds into a three-dimensional supra­molecular architecture. Fig. 2 ▸ a shows a view of the hydrogen bonds along the b-axis direction. π–π inter­actions are present (Fig. 2 ▸ b) between the pyridazine rings [centroid–centroid distance = 3.4902 (12) Å], and also between the pyridine and benzene rings [3.7293 (13) and 3.8488 (13) Å], forming sheets.

Figure 2.

Figure 2

Open in a new tab

(a)View along the b axis of the unit cell showing the mol­ecular sheets. (b) π–π inter­actions.

Database survey

There are no direct precedents for the structure of the title compound in the crystallographic literature. A search of the Cambridge Structural Database (ConQuest version 2021.3.0; Groom et al., 2016 ▸) for the 2,3-di­hydro­pyridazin-4-yl moiety gave various hits, four of them for similar pyridazine compounds but with different substituents on the pyridazine ring: 5-(2-chloro­benz­yl)-6-methyl-3(2H)pyridazinone (ZAYJIS; Moreau et al., 1995 ▸), 2-{4-[(5-chloro- 1-benzo­furan-2-yl)meth­yl]-3-methyl-6- oxo-1,6-di­hydro­pyridazin-1-yl}acetate (XULSEE; Boukharsa et al., 2015 ▸) , 4-[3-(tri­fluoro­meth­yl)phen­yl]-5,6,7,8-tetra­hydro­cinnolin-3(2H)-one (GISZAK; Wang et al., 2008 ▸) and 5-(2-Chloro­benz­yl)-2-(2-hy­droxy­eth­yl)-6-methyl­pyridazin-3(2H)-one (IJEMOZ; Abourichaa et al., 2003 ▸). In ZAYJIS, the lengths of the C=C [1.343 (3) Å], C=N [1.301 (4) Å], N—N [1.357 (3) Å] and C=O [1.255 (3) Å] bonds in the pyridazinone ring are very similar to those in the title compound. In XULSEE, te Cl—C1 bond length is 1.742 (2) Å while in the pyridazine ring, the N1—N2 bond length is 1.365 (2) Å and O2=C2 is 1.228 (2) Å. In GISZAK, the N1—N2 bond is 1.343 (5) Å whereas the C8=O1 bond is 1.246 (5) Å. In IJEMOZ, the pyridazinone ring has a similar value for the N4—N5 bond of 1.367 (2) Å.

Hirshfeld surface analysis

To investigate the effect of the mol­ecular inter­actions on the crystal packing, the Hirshfeld surface (Fig. 3 ▸) and fingerprint plots of the organic cation were analysed (Turner et al., 2017 ▸). In Fig. 4 ▸ a, the circular depressions (deep red) on the Hirshfeld surface imply strong hydrogen-bonding inter­actions of types C—H⋯Cl, N—H⋯O, O—H⋯Cl and O—H⋯O. In the shape-index map (Fig. 4 ▸ b), the π–π inter­actions are indicated by the red and blue triangles. Fig. 4 ▸ c and Fig. 4 ▸ d show d i and d e surfaces and Fig. 4 ▸ e and 4f the curvedness and fragment path surfaces. Fig. 5 ▸ a shows the overall two-dimensional fingerprint plot. The fingerprint plot delineated into H⋯H contacts (33.0% contribution, Fig. 5 ▸ b) has a point with the tip at d e + d i = 2.05 Å. The pair of wings in the fingerprint plot defined into H⋯C/C⋯H contacts (19.3 percent contribution to the HS), Fig.5c, has a pair of thin edges at d e + d i ∼2.99 Å while the pair of wings for the H⋯Cl/Cl⋯H contacts (15.9% contribution, Fig. 5 ▸ d) are seen as two spikes with the points at d e + d i = 2.97 Å and d e + d i = 2.41 Å. The fingerprint plot for H⋯O/O⋯H contacts (11.5% contribution, Fig. 5 ▸ e) has two spikes with the tips at d e + d i = 2.11 Å and d e + d i = 1.83 Å. As seen in Fig. 5 ▸ f the C⋯C contacts (7.4%) have an arrow-shaped distribution of points with tips at d e + d i = 3.37 Å. The contributions of the N⋯H/H⋯N contacts to the Hirshfeld surface (5.8%) are less important (Fig. 5 ▸ g). Fig. 6 ▸ shows a pie chart of all inter­actions with their percentage contributions.

Figure 3.

Figure 3

Open in a new tab

Inter­molecular inter­actions with d norm surface.

Figure 4.

Figure 4

Open in a new tab

Graphical depictions of the mol­ecular Hirshfeld surfaces; (a) d norm, (b)shape-index, (c) d i, (d) d e,(e) curvedness and (f) fragment-path.

Figure 5.

Figure 5

Open in a new tab

Fingerprint plots of the inter­actions involving the organic cation. (a) All contributions and decomposed into the main contributions: (b) H⋯H, (c) H⋯C/C⋯H, (d) H⋯Cl/Cl⋯H, (e) H⋯O/O⋯H, (f) C⋯C and (g) N⋯H/H⋯N inter­actions

Figure 6.

Figure 6

Open in a new tab

All inter­actions with percentage contributions.

Synthesis and crystallization

The title compound was synthesized according to a previously published procedure (Daoui et al., 2019 ▸, 2021 ▸). To a solution of (E)-6-(4-chloro­styr­yl)-4,5-di­hydro­pyridazin-3(2H)-one (0.23 g, 1 mmol) and nicotinaldehyde (0.107 g, 1 mmol) in 30 ml of ethanol, sodium ethano­ate (0.23 g, 2.8 mmol) was added. The mixture was refluxed for 3 h. The reaction mixture was cooled, diluted with cold water and acidified with concentrated hydro­chloric acid. The precipitate was filtered, washed with water, dried and recrystallized from ethanol. White single crystals were obtained by slow evaporation at room temperature, yield 86%; m.p. 453 K; FT–IR (KBr): ν 3322 (NH), 1651 (C=O), 1584 cm−1 (C=N); 1H NMR (300 MHz, DMSO-d 6) δ 13.20 (s, 1H, H-pyrid­yl) , 8.98 (d, J = 1.8 Hz, 1H, H-pyrid­yl), 8.83 (d, J = 5.6 Hz, 1H, H-pyrid­yl), 8.57 (dt, J = 8.1, 1.8 Hz, 1H, H-pyrid­yl), 8.05 (s, 1H, H-pyridazinone) 8.02 (dd, J = 8.1, 5.6 Hz, 1H, H-pyrid­yl), 7.65 (d, J = 8.4 Hz, 2H, H1, H-Ar), 7.45 (d, J = 8.4 Hz, 2H, H 4, H-Ar), 7.36 (d, J = 16.7 Hz, 1H, CH=CH), 7.08 (,d J = 16.7 Hz, 1H, CH=CH), 4.09 ppm (s, 2H, CH2); 13C NMR (75 MHz, DMSO-d 6) δ 160.43, 145.98, 143.89, 141.87, 140.05, 139.25, 137.97, 134.90, 132.84,130.85, 128.82, 128.62, 128.54, 126.80, 125.08, 32.33 ppm. ESI-MS: m/z = 324.08 [M+H]+.

Refinement details

Crystal data, data collection and structure refinement details are summarized in Table 2 ▸. All C-bound H atoms were placed in calculated positions (C—H = 0.93–0.98 Å) and thereafter treated as riding. A torsional parameter was refined for the methyl group. The positions of N- and O-bound H atoms were refined freely (distances are in Table 1 ▸). For all H atoms, U iso(H) = 1.2 U eq(C,N,O).

Table 2. Experimental details.

Crystal data
Chemical formula C18H15ClN3O+·Cl−·2H2O
M r 396.26
Crystal system, space group Monoclinic, I2/a
Temperature (K) 296
a, b, c (Å) 19.6562 (14), 7.5587 (3), 26.4903 (16)
β (°) 109.762 (5)
V (Å3) 3704.0 (4)
Z 8
Radiation type Mo Kα
μ (mm−1) 0.37
Crystal size (mm) 0.68 × 0.41 × 0.16

Data collection
Diffractometer Stoe IPDS 2
Absorption correction Numerical (X-RED32; Stoe & Cie, 2002 ▸)
T min, T max 0.818, 0.961
No. of measured, independent and observed [I > 2σ(I)] reflections 13762, 5273, 3083
R int 0.064
(sin θ/λ)max (Å−1) 0.702

Refinement
R[F 2 > 2σ(F 2)], wR(F 2), S 0.050, 0.142, 0.98
No. of reflections 5273
No. of parameters 265
No. of restraints 2
H-atom treatment H atoms treated by a mixture of independent and constrained refinement
Δρmax, Δρmin (e Å−3) 0.26, −0.43
Open in a new tab

Computer programs: X-AREA and X-RED32 (Stoe & Cie, 2002 ▸), SHELXT2018/3 (Sheldrick, 2015a ▸), OLEX2 (Dolomanov et al., 2009 ▸) and Mercury (Macrae et al., 2020 ▸), WinGX (Farrugia, 2012 ▸), SHELXL2018/3 (Sheldrick, 2015b ▸), PLATON (Spek, 2020 ▸) and publCIF (Westrip, 2010 ▸).

Supplementary Material

Crystal structure: contains datablock(s) I. DOI: 10.1107/S2056989022003346/jq2014sup1.cif

e-78-00458-sup1.cif (470.6KB, cif)

Structure factors: contains datablock(s) I. DOI: 10.1107/S2056989022003346/jq2014Isup2.hkl

e-78-00458-Isup2.hkl (420KB, hkl)
Click here for additional data file. (6.9KB, cml)

Supporting information file. DOI: 10.1107/S2056989022003346/jq2014Isup3.cml

CCDC reference: 2161716

Additional supporting information: crystallographic information; 3D view; checkCIF report
