Peroxidasin Deficiency Re-programs Macrophages Toward Pro-fibrolysis Function and Promotes Collagen Resolution in Liver

Abstract

Background & Aims

During liver fibrosis, tissue repair mechanisms replace necrotic tissue with highly stabilized extracellular matrix proteins. Extracellular matrix stabilization influences the speed of tissue recovery. Here, we studied the expression and function of peroxidasin (PXDN), a peroxidase that uses hydrogen peroxide to cross-link collagen IV during liver fibrosis progression and regression.

Methods

Mouse models of liver fibrosis and cirrhosis patients were analyzed for the expression of PXDN in liver and serum. Pxdn^-/- and Pxdn^+/+ mice were either treated with carbon tetrachloride for 6 weeks to generate toxin-induced fibrosis or fed with a choline-deficient L-amino acid-defined high-fat diet for 16 weeks to create nonalcoholic fatty liver disease fibrosis. Liver histology, quantitative real-time polymerase chain reaction, collagen content, flowcytometry and immunostaining of immune cells, RNA-sequencing, and liver function tests were analyzed. In vivo imaging of liver reactive oxygen species (ROS) was performed using a redox-active iron complex, Fe-PyC3A.

Results

In human and mouse cirrhotic tissue, PXDN is expressed by stellate cells and is secreted into fibrotic areas. In patients with nonalcoholic fatty liver disease, serum levels of PXDN increased significantly. In both mouse models of liver fibrosis, PXDN deficiency resulted in elevated monocyte and pro-fibrolysis macrophage recruitment into fibrotic bands and caused decreased accumulation of cross-linked collagens. In Pxdn^-/- mice, collagen fibers were loosely organized, an atypical phenotype that is reversible upon macrophage depletion. Elevated ROS in Pxdn^-/- livers was observed, which can result in activation of hypoxic signaling cascades and may affect signaling pathways involved in macrophage polarization such as TNF-a via NF-kB. Fibrosis resolution in Pxdn^-/- mice was associated with significant decrease in collagen content and improved liver function.

Conclusion

PXDN deficiency is associated with increased ROS levels and a hypoxic liver microenvironment that can regulate recruitment and programming of pro-resolution macrophages. Our data implicate the importance of the liver microenvironment in macrophage programming during liver fibrosis and suggest a novel pathway that is involved in the resolution of scar tissue.

Graphical abstract

Summary.

Peroxidasin deficiency results in mild-hypoxic liver microenvironment and causes recruitment of monocytes and pro-fibrolysis macrophages in early stages of liver fibrosis. These events accelerate the resolution of fibrosis and organ healing.

Liver fibrosis is a byproduct of dysregulated wound healing in response to chronic hepatic injury.¹ It is characterized by excessive extracellular matrix (ECM) deposition resulting in dense scarring that impairs normal liver structure and physiology over time. Cirrhosis, the end-stage of liver fibrosis, is the ninth leading cause of death in the United States and imposes a substantial health crisis globally. This burden has increased worldwide since 1990.²

Although the consequences of cirrhosis and end-stage liver failure have been well-characterized, the mechanism of scar formation in response to injury is less well understood.³ Inflammatory signaling is central to the process of acute hepatic injury and influences the wound healing response.⁴ Degenerating hepatocytes release pro-inflammatory damage response signals that chemotactically recruit immune cells and stimulate activation of quiescent hepatic stellate cells (HSCs).¹ Activated HSCs have been implicated as the primary producer of ECM during liver wound healing. They secrete chemotactic signals to recruit circulating monocytes and tissue-resident macrophages, known as Kupffer cells, to the site of injury.⁵ Kupffer cells are located inside in the space of Disse alongside HSCs and patrol the sinusoids. Signals sent from activated stellate cells and injured hepatocytes activate macrophages and trigger their innate immune response.⁶ Activated resident macrophages and HSCs secrete cytokines and growth factors, such as CCL2, to recruit monocytes from bone marrow.⁷ In the hepatic microenvironment, recruited monocytes mature into macrophages following local reprogramming to either deteriorate immune system responses and drive fibrosis,^7,8 or resolve the deposited ECM and maintain tissue integrity.⁹

Activated macrophages are thought to play a critical role in mediating the acute inflammatory process of hepatic injury and subsequent fibrotic response.¹⁰ Historically, macrophages have been classified as pro-inflammatory M1 (CD11c⁺) or pro-healing M2 (CD206⁺) populations. However, in recent years, it has become clear that there is greater complexity among macrophages, and they have to be characterized based on their origins, activation signals, and functions.^11,12 Notably, M2 macrophages have been shown to promote normal tissue repair by suppressing inflammation, promoting ECM degradation, and deactivating myofibroblasts, thus having an anti-fibrotic impact.¹³ Conversely, M1 macrophages are thought to drive aberrant HSC activation, resulting in excessive scar formation.¹⁴ Tissue redox states are thought to influence the dynamic of M1/M2 macrophage phenotypes.^15,16

In this study, we investigated peroxidasin (PXDN), a heme-containing peroxidase that is highly conserved in the animal kingdom and catalyzes the oxidation of various substrates in the presence of H2O2. Pxdn participates in ECM formation by cross-linking collagen type IV formation of sulfilimine bonds.¹⁷ PXDN is mainly expressed in endothelial cells, epithelial cells, and fibroblasts.^18,19 In both humans and rodents, genetic mutation in the Pxdn gene interrupts cross-linking of collagen IV and leads to anterior segment dysgenesis of the eyes, congenital cataracts, corneal opacity, and glaucoma.20, 21, 22 PXDN is present in the endoplasmic reticulum of human primary pulmonary, dermal, and kidney fibroblasts, and expression of this protein is increased during transforming growth factor-β1 (TGF-b)-induced myofibroblast activation.^18,23,24 PXDN expression and function in healthy and diseased liver have not been reported yet and, given this context, we sought to characterize PXDN expression in healthy liver and in response to injury and scar formation.

Results

PXDN Expression is Upregulated During Liver Fibrosis and PXDN Deficiency Induces Stronger Activation of Stellate Cells Without Affecting Collagen Production

PXDN expression in myofibroblasts is upregulated during dermal, cardiac, and kidney fibrosis.^18,25,26 Based on the single-cell RNA sequencing data set published by Ramachandran et al, PXDN is exclusively expressed in the endothelia and fibroblasts of normal and cirrhotic liver.¹⁹ To better study the expression pattern of PXDN during liver fibrosis, we performed immunofluorescent staining on human healthy and cirrhotic livers for PXDN and smooth muscle actin (SMA or ACTA2, a marker of activated HSCs). In healthy liver, we observed PDXN staining in myofibroblasts (ACTA2-positive cells) surrounding normal appearing vasculature (Figure 1, A). Conversely, in cirrhotic liver, PDXN staining was prominent in proximity to HSCs in bands of fibrosis surrounding the regenerative nodules, as assessed by co-staining for ACTA2 (Figure 1, A). We also investigated serum levels of PXDN in healthy and cirrhotic patients. Subjects were considered cirrhotic based on their pathology report and fibrosis score (F3-4) reported by an expert pathologist. Information about age, gender, and etiology of cirrhosis patients is listed in Table 1. Serum PXDN was significantly higher in cirrhosis patients compared with healthy controls (27.1 ± 16.77 vs 2.01 ± 1.5 ng/mL; P < .001) (Figure 1, B). To determine whether HSCs produce PXDN, we activated primary human HSCs with TGF-b in vitro and measured ACTA2 and PXDN mRNA and protein expression before and after HSCs activation. In response to TGF-b, HSCs lose their vitamin A-storing oil droplets, stained by oil red, and upregulate Acta2 and Pxdn (Figure 1, C-D). In addition, we observed an increase in the level of secreted PXDN in the conditioned medium collected from activated HSCs in vitro (Figure 1, E).

Figure 1.

PXDN is upregulated in human and mouse cirrhotic liver tissue.A, Co-immunostaining of PXDN with smooth muscle actin (ACTA2) and DAPI in healthy human liver and cirrhotic patient. Higher magnification shows intra and extra-cellular expression of PXDN in fibrotic area in cirrhotic liver. Scale bars = 250 mm on 10× pictures of normal and cirrhotic livers and 100 mm on magnified (20×) picture of cirrhotic liver (in dotted red box). B, PXDN serum analysis of 10 healthy individuals and 20 cirrhotic patients (mean ± standard deviation, Student t test, ∗∗∗∗P < .0001). C, Human primary stellate activation after TGF-b treatment is visualized with Oil Red O staining and co-immunostaining of PXDN with smooth muscle actin (ACTA2) and DAPI. Scale bars = 250 mm. D, mRNA expression of Acta2 and Pxdn after TGF-b (20 ng/mL) induction (n = 4, mean ± standard deviation, Multiple t-test, ∗P < .05, ∗∗P < .01). E, PXDN protein content in the medium after stellate cells activation with TGF-b (20 ng/mL) (n = 4, mean ± standard deviation, Student t test, ∗∗P < .01). F, To induce liver cirrhosis in experimental animal model, mice received CCl4, 3× per week via oral gavage for 6 weeks. Vehicle control animals received olive oil via gavage (G, H) Acta2, Col1a1 mRNA, and protein expression during the development of liver cirrhosis in CCl4 mouse model. Scale bars = 250 mm. (n = 4, mean ± standard deviation, Multiple t test, ∗∗P < .01).

Table 1.

Age, Gender, Etiology, and PXDN Serum Level of Patients With Cirrhosis

	Healthy	Cirrhosis	P-value
Number of values	10	20
Gender
Male	6 (60%)	11 (55%)	.2
Female	4 (40%)	9 (45%)
Age, y
Average	34 ± 6	58 ± 10	< .0001
Minimum	25	39
Maximum	40	76
Etiology
NASH	NA	9
ALD	NA	11
PXDN level, ng/mL
Minimum	0.5	11
Maximum	6	85
Range	5	74
Mean	2	27	< .0001
Standard deviation	1	17

ALD, Alcoholic liver disease; NA, not applicable; NAFLD, nonalcoholic fatty liver disease; NASH, nonalcoholic steatohepatitis; PXDN, peroxidasin.

Next, we used a carbon tetrachloride (CCl4) hepatic injury model in mice to induce liver fibrosis. In this model, repeated injections of CCl4 for 6 weeks (3× per week) led to robust hepatotoxicity, inflammation, HSC activation, and ECM deposition. The vehicle control group received olive oil for 6 weeks (3× per week). We examined livers in early (3 weeks) and late stages (6 weeks) of liver fibrosis in these mice (Figure 1, E). Expression of Acta2, Col1a1, and Pxdn peaked at 3 weeks post CCl4 injection, whereas at 6 weeks, fibrosis is well-established, and expression of these genes was reduced to baseline levels (Figure 1, F-H). In mouse cirrhotic liver tissue, PXDN was also present in fibrotic regions of liver and co-localized with ACTA2 (Figure 1, H). Taken together, our data show that activated HSCs produce and secrete PXDN, with increased PXDN expression in injured and cirrhotic livers in regions of active tissue fibrosis.

Next, we investigated whether PXDN contributes to scar formation in injured mouse livers. We measured fibrosis development in Pxdn deficient (Pxdn^-/-) mice compared with their Pxdn^+/+ (Pxdn^+/+) littermates after repeated administration of CCl4 for 3 or 6 weeks. Sirius red (SR) staining of collagen revealed that collagen proportional area as well as total liver collagen content, measured by hydroxyproline assay, were not significantly different between Pxdn^-/- and Pxdn^+/+ mice at both timepoints (Figure 2, A-C). mRNA expression of collagen types I, III, and IV did not change at both time points between Pxdn^-/- and Pxdn^+/+ livers (Figure 2, D-F). In summary, PXDN deficiency does not affect collagen expression and deposition during murine liver fibrosis.

Figure 2.

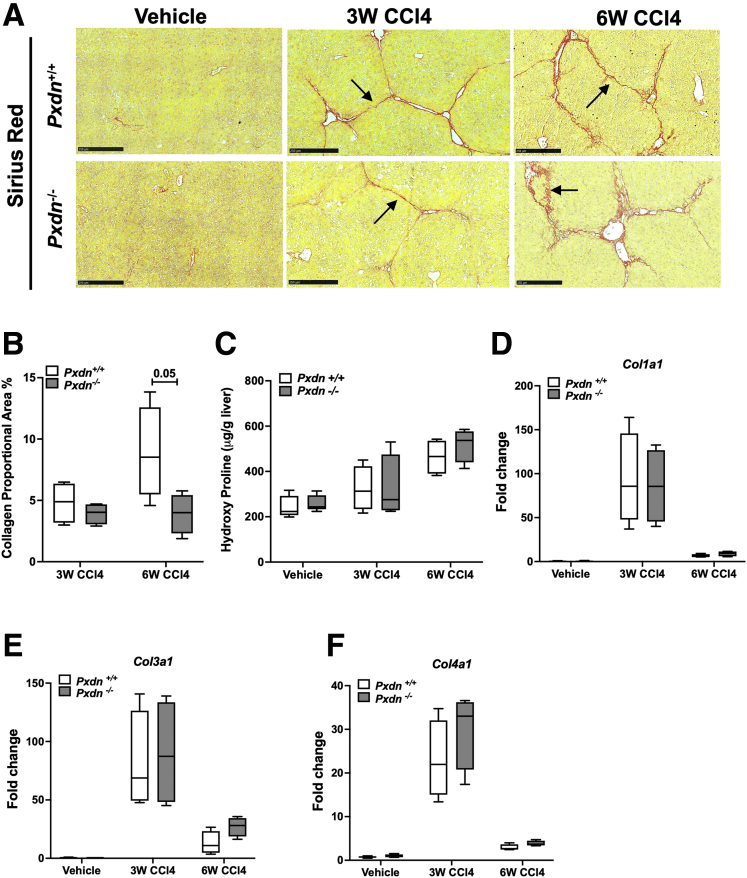

Collagen expression and deposition in Pxdn^-/-mice.A, SR staining of collagen fibers. Black arrows show fibrotic bands after 3 and 6 weeks of CCl4 administration. Scale bar = 250 mm. B, Collagen proportional area (%) is the quantification of SR staining. C, Total liver collagen content is assessed by measuring hydroxyproline amino acid in the tissue and normalized to liver weight. D-F, mRNA expression analysis of Col1a1, Col3a1, and Col4a1.

PXDN Deficiency is Associated With Abnormal Collagen Fiber Formation

Although collagen quantity changed little in the absence of PXDN, the morphology of collagen fiber was altered in Pxdn^-/- mice. Fibrotic bands in Pxdn^-/- mice had wider septae (∼2-fold increase at 3 weeks and ∼3-fold increase at 6 weeks of CCl4 administration), and collagen fibrils were loosely organized into a single fiber bundle (Figure 3, A-B). The main constituent of fibrotic tissue in liver fibrosis is fibril-forming collagens, such as collagen type 1 (COL1).²⁷ Immunofluorescent staining of COL1 suggests that improper organization of COL1 fibers contributes to disorganized fiber bundles in Pxdn^-/- liver (Figure 3, C). In addition, high-resolution scanning electron microscopy (SEM) of liver tissue showed the parallel arrangement of fibrils with the typical banded pattern of collagen fibers in Pxdn^+/+ cirrhotic livers are absent in Pxdn^-/- livers (Figure 3, D).

Figure 3.

Morphology of fibrotic septae is significantly altered in Pxdn^-/-injured livers, with reduced accumulation of highly crosslinked, stable collagens in vivo.A, SR staining of collagen fibers. Black arrows mark the width of each fiber band. Scale bar = 50 mm. B, Width of collagen fibers increases during progression of liver fibrosis in Pxdn^-/- mice (n = 4 mice, mean ± standard deviation, 2-way analysis of variance, ∗∗P < .01). C, Immunostaining of Collagen I in Pxdn^-/- and Pxdn^+/+ livers after 6 weeks of CCl4 injection. Scale bars = 250 mm on 20× pictures and 100 mm on magnified (40×) pictures (in dotted red box). D, Scanning electron microscopy of Pxdn^+/+ and Pxdn^-/- fibrotic tissue. Typical banded pattern of collagen fibers in Pxdn^+/+ livers (red arrow) is missing from Pxdn^-/- livers. E, Fibrotic matrix stability was measured in Pxdn^-/- and Pxdn^+/+ livers after 6 weeks gavage with either vehicle or CCl4 via serial collagen extraction and hydroxyproline quantification in each fraction (salt-soluble, acid-soluble, pepsin-soluble, and insoluble collagen) (n = 3 mice, mean ± standard deviation, 1-way analysis of variance, ∗P < .05).

Alteration in collagen fiber formation can reduce the ECM stabilization and change the milieu of fibrotic tissue.²⁸ To examine ECM stabilization, we compared the percentage of collagen with the different levels of stability in Pxdn^-/- and Pxdn^+/+ livers after 6 weeks of CCl4 administration. At the advanced stage of liver fibrosis (6 weeks post CCl4), the proportion of newly synthesized collagens did not change in Pxdn^-/- mice; however, moderately cross-linked collagens (pepsin-soluble fraction) increased significantly from 52% in the Pxdn^+/+ group to 76% in the Pxdn^-/- group. Concurrently, the fraction of highly cross-linked collagen decreased from 48% in the Pxdn^+/+ group to 21% in the Pxdn^-/- group (Figure 3, E). These data suggest that PXDN deficiency is associated with altered collagen fiber stabilization during liver fibrosis.

PXDN has been reported to mediate collagen type IV cross-linking through the formation of sulfilimine bonds.²⁹ Collagen IV is not one of the major collagens contributing to fibrotic scar formation in the liver, but due to the established role of PXDN in collagen cross-linking, we examined whether the deficiency of PXDN during liver fibrosis could result in collagen bundle formation. By quantification of sulfilimine cross-links, we observed that Pxdn^-/- mice possess fewer collagen IV sulfilimine cross-links in healthy liver compared with their Pxdn^+/+ littermates. However, we did not detect any difference in collagen IV sulfilimine cross-linking between Pxdn^-/- fibrotic and healthy livers (Figure 4, A-C). Therefore, we concluded that reduced collagen IV cross-links is not the cause of loose formation of collagen bundles in Pxdn^-/-.

Figure 4.

Collagen IV cross-linking in Pxdn^-/-and Pxdn^+/+livers before and after CCl4 injury. Sulfilimine cross-link content in Pxdn^+/+ and Pxdn^-/- livers in healthy (Vehicle controls) and after CCl4 injury. A, Western blot after SDS-PAGE under non-reducing conditions of purified NC1 hexamers from Pxdn^+/+ and Pxdn^-/- mice. Under denaturing conditions, collagen type IV hexamers dissociate into singly cross-linked dimeric (D1), doubly cross-linked dimeric (D2), and un-cross-linked monomeric (M) subunits. B&C, Number of sulfilimine cross-links per hexamer was quantified using densitometry of D1, D2, and M subunits for Pxdn^+/+ and Pxdn^-/- mice. Individual data points (n = 2 mice) are displayed with mean ± standard deviation.

PXDN Deficiency is Associated With Increased Macrophages Recruitment Into Liver

Hematoxylin and eosin (H&E)-stained liver tissue sections showed robust inflammatory infiltration in the livers of Pxdn^-/- and Pxdn^+/+ mice at 3 and 6 weeks after repeated CCl4 injection (Figure 5). Due to the known role of macrophages in mediating immune response to liver injury, we further analyzed the changes in macrophage cell populations by multicolor flow cytometry. Gating strategy and differential expression of cell surface markers in each population are shown in Figure 6. Total population of monocytes (CD45⁺CD11b⁺) increased over the course of disease progression and was significantly higher in Pxdn^-/- mice after 3 weeks of CCl4 injection compared with Pxdn^+/+ mice shown by CD11b immunostaining (Figure 7, A) and flow cytometry (47.3 ± 3.7 vs 34.2 ± 4.3; P < .01) (Figure 7, B). Hepatic macrophages (CD45⁺ F4/80⁺) are a heterogeneous cell population that includes both liver-resident and bone marrow-derived macrophages. Total hepatic macrophages were significantly increased in Pxdn^-/- livers in vehicle controls (without injury) (16.9 ± 2.4 vs 12 ± 3.17; P < .05), after 3 weeks of CCl4 injection (37.3 ± 2.3 vs 23.3 ± 1; P < .01), and after 6 weeks of CC4 injection (44.5 ± 2.6 vs 39.0 ± 0.9; P < .05) compared with Pxdn^+/+ livers (Figure 7, C-D).

Figure 5.

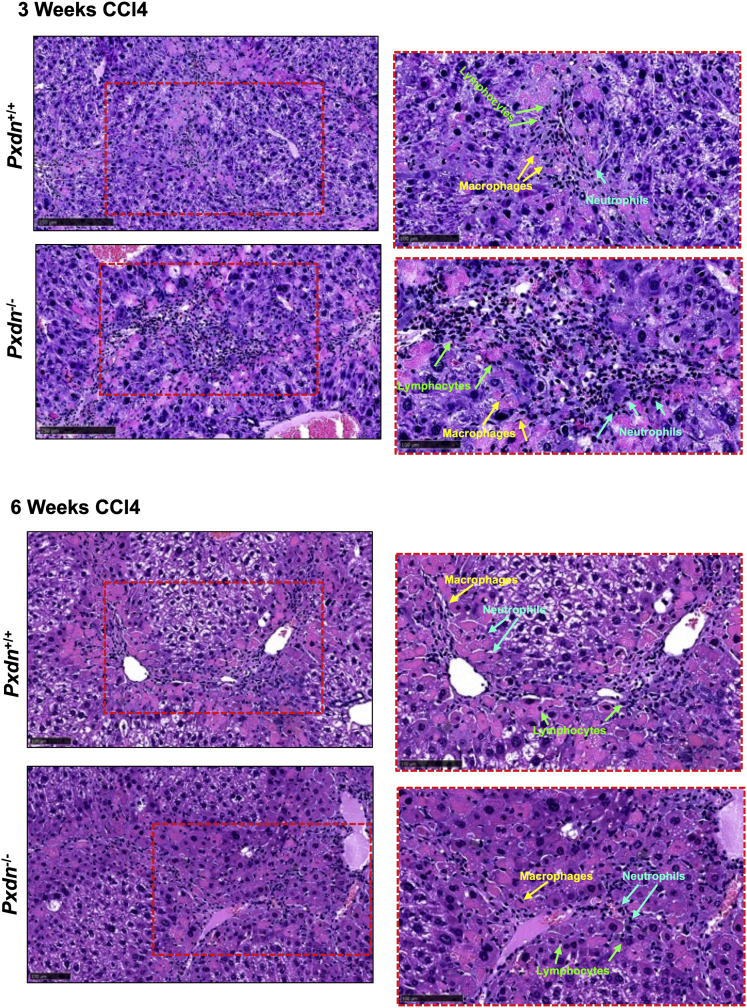

Increase in immune cell infiltration after liver injury. Histologic examination of liver injury in Pxdn^-/- and Pxdn^+/+ livers by H&E staining 6 weeks after CCl4 administration shows a significant increase in immune cell infiltration into liver. Representative images from tissue sections with 100-mm scale bar (left side) and 50-mm scale bar (right side).

Figure 6.

Gating strategy for flow cytometric analysis of liver macrophages. Liver macrophages are identified as CD45⁺F4/80⁺ cells and were gated out of singlet live cells (Zombie^- cells). Gated macrophages then analyzed by their expression of CCR2, CD206, CD11c, and Ly6C. In addition, total monocyte population were analyzed based on their CD11b expression. Up to 500K cells were analyzed in each sample.

Figure 7.

Macrophage characterization in Pxdn^-/-livers without and after CCl4 injury.A, CD11b immunostaining of liver collected from mice without (vehicle control) or after 3 weeks and 6 weeks of CCl4. B, Flowcytometry analysis of monocyte population (CD45⁺CD11b⁺). C, F4/80 immunostaining. D, Flowcytometry analysis of total macrophage population (CD45⁺F4/80⁺). E, Immunohistostaining of CD206 as a marker for pro-resolution macrophages. F, Flowcytometry analysis of F4/80⁺CD206⁺ cells (M2 macrophages). Flowcytometry analysis of M1 macrophages (F4/80⁺CD11C⁺) (G) and CCR2⁺ migratory macrophages (H). I & J, Flowcytometry analysis of Ly6C positive macrophages (both low and high expressing) All images have scale bar = 100 mm. (n = 4 mice, mean ± standard deviation, Multiple t test, ∗∗P < .01).

Classically activated (M1) macrophages primarily have pro-inflammatory and pro-fibrogenesis properties,³⁰ whereas alternatively activated (M2) macrophages are anti-inflammatory and promote tissue repair.³¹ In healthy liver, there is a balance between M1 and M2 macrophages. Classically activated M1 macrophages are proinflammatory (CD45⁺F4/80⁺CD11c⁺) and promote tissue injury and recruitment of macrophages as well as other immune cells to the site of injury. Alternatively activated M2 macrophages (CD45⁺F4/80⁺CD206⁺) are known as healing macrophages and remodel/resolve ECM components and facilitate tissue repair.³² We detected an increase in the percentage of M2 macrophages after 6 weeks of CCl4 injection in Pxdn^-/- mice compared with Pxdn^+/+ mice (Figure 7, E-F) (27.2 ± 4.1 vs 19.1 ± 1.3; P < .05). The percentage of M1 macrophages remained similar at all time points (Figure 7, G).

Following injury, CCR2⁺ monocytes are recruited from peripheral blood to injured liver to direct the initiation and resolution of inflammation that is essential for tissue repair. In our study, we detected a significant increase in the percentage of CCR2⁺ macrophages in the Pxdn^-/- mice after 3 weeks of CCl4 (54 ± 8.4 vs 34.7 ± 3.1; P < .01) (Figure 7, H). However, we did not detect a significant difference between Ly6C^low monocytes and Ly6C^high monocytes in Pxdn^-/- mice vs Pxdn^+/+ mice during liver fibrosis progression (Figure 7, I-J). Taken together, we observed that in the early stage of the disease (3 weeks of CCl4), the population of macrophages is elevated in the Pxdn^-/- livers, and at the later stage (6 weeks of CCl4), these macrophages take on a restorative phenotype (M2 or CD206⁺) and recruit CCR2⁺ macrophages from bone marrow.

Macrophages Participate in Fibrolysis From Early Stage of Fibrosis in Pxdn^-/- Mice

Macrophages are the main sources of matrix metalloproteases (MMPs), which degrade ECM.³³ In particular, MMP8 (collagenase 2) and MMP13 (collagenase 3) are expressed by macrophages and neutrophils,³³ and their overexpression has been associated with significantly reduced liver fibrosis and enhanced hepatocyte proliferation.34, 35, 36 Co-staining of collagen fibers (with SR staining) and macrophages (F4/80 immunohistochemistry [IHC]) in livers of CCl4 mice showed F4/80⁺ cells are located in regions of fibrotic tissue in Pxdn^-/- mice at both 3 and 6 weeks after repeated CCl4 injection (Figure 8, A). MMP8 and MMP13 protein expression was assessed by IHC and revealed that both MMP8 and MMP13 expression are more abundant in Pxdn^-/- livers 6 weeks post CCl4 injection compared with Pxdn^+/+ livers (Figure 8, B). In addition, SEM images show a higher presence of immune cells in the fibrotic bands of Pxdn^-/- livers at 6 weeks post CCl4 (Figure 8, C).

Figure 8.

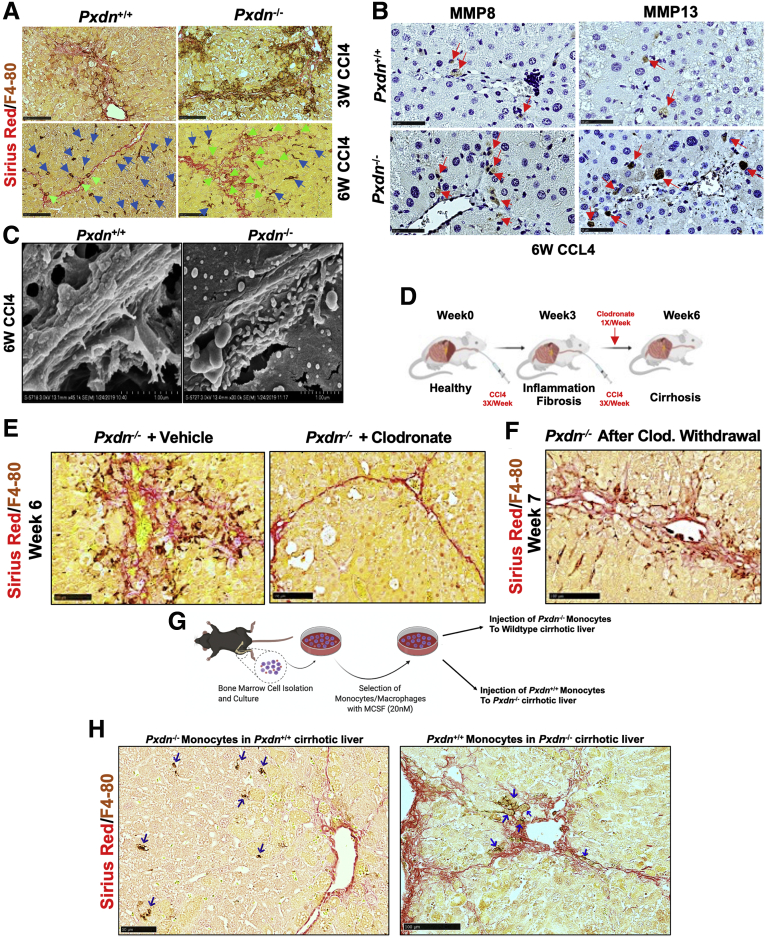

Fibrolytic activity of macrophage in Pxdn^-/-livers during fibrosis progression.A, Co-staining of macrophages (F4/80 immunohistochemistry) and collagen fibers (SR staining) at 3 weeks and 6 weeks of CCl4 injection in Pxdn^-/- and Pxdn^+/+ livers. Macrophages that are directly associated with fibrotic bands are marked green arrows. B, IHC of MMP8 and MMP13 in Pxdn^-/- livers after 6 weeks of CCl4 injection. Green arrows indicate positive cells for MMP8 and MMP13. C, Scanning electron microscope shows an increase in the presence of immune cells next to the fibrotic bands in Pxdn^-/- livers. D, Schematic representation of procedure used to deplete liver macrophages with Clodronate-containing liposomes that induce macrophage “suicide program.” E, Co-staining of macrophages (F4/80 IHC) and collagen fiber (SR staining) shows complete depletion of macrophages in the livers that received clodronate. F, Co-staining of macrophages (F4/80 IHC) and collagen fiber (SR staining) 24 hours after chlodronate withdrawal. G, Schematic representation of procedure of monocytes transplantation into the mouse liver with opposite genetic background. H, Co-staining of macrophages (F4/80 IHC) and collagen fibers (SR staining) 24 hours after transplantation. Pxdn^-/- monocytes that were injected to the wild-type backgrounds are found in the liver parenchyma, whereas the Pxdn^+/+ monocytes that were injected to the Pxdn^-/- liver microenvironment are found in the fibrotic tissue (SR positive area). Homing macrophages are shown with blue arrows.

To further investigate the role of macrophages in fibrolysis reaction during liver injury in Pxdn^-/- mice in vivo, we used a liposome mediated macrophage “suicide” approach to deplete macrophages.^37,38 Pxdn^-/- mice were injured with CCl4 and then intravenously injected with 100 μL of clodronate-loaded liposome suspension (25 μg/gr mouse) once a week, starting after 3 weeks of CCL4 (Figure 8, D). Control Pxdn^-/- CCl4 mice were injected with 100 μL control liposomes with the same schedule. Co-staining of macrophages (F4/80⁺ cells) and collagen fibers showed that macrophages are significantly depleted from the liver after clodronate injection, and this depletion is associated with a reversion of the phenotype of disorganized collagen fibers seen in Pxdn^-/- mice after 6 weeks of CCl4 injection (Figure 8, E). To induce recruitment of monocytes to the liver, we continued the injection of CCl4 for an additional week while clodronate was withdrawn. The goal of this experiment was to investigate whether recruited monocytes from bone marrow are able to differentiate and display the specific fibrolytic phenotype that was seen in Pxdn^-/- resident macrophages prior to depletion. We observed that macrophage population, shown with IHC of F4/80 marker, is replenished, and these macrophages are in close proximity and associated with collagen fibrils, as shown by SR staining (Figure 8, F). These data indicate that recruited monocytes differentiate to macrophages and acquire the unique fibrolytic phenotype seen in resident macrophages in Pxdn^-/- livers.

During liver injury, bone marrow monocytes are recruited to the site of injury to boost macrophage population in liver.^39,40 Previous studies suggest that monocyte origin may not be the key determinant of macrophage identity, but rather the liver microenvironment ultimately determines the phenotype of the recruited cells.⁴¹ To test whether Pxdn^-/- liver microenvironment can affect differentiation of Pxdn^+/+ macrophage during liver injury, we sought to investigate the spatial distribution of monocytes isolated from Pxdn^-/- and Pxdn^+/+ mice after intrahepatic transplantation into their opposite genotype. To establish cirrhosis, Pxdn^-/- and Pxdn^+/+ mice were treated with CCl4 3 times weekly for 6 weeks. Bone marrow from the femur and tibia of healthy Pxdn^-/- and Pxdn^+/+ mice was used as a source of monocytes for this experiment. Monocytes were harvested by flushing with Dulbecco’s Modified Eagle’s Medium (DMEM) supplemented with 1% fetal bovine serum (FBS). Cell suspension was supplemented with 20 nM macrophage-colony stimulating factor (M-CSF) and cultured on ultra-low attachment surfaces to avoid adhesion-triggered differentiation of monocytes for 24 hours. Liver resident macrophages were depleted with clodronate containing liposomes 24 hours prior to intrahepatic injection of primary monocytes. 10⁶ primary monocytes were injected into the left lobe of liver. Mice were scarified 24 hours post-injection and liver tissue was collected for further analysis (Figure 8, G). Co-staining of macrophage marker (F4/80) and collagen (SR) revealed that when Pxdn^-/- monocytes are injected into the Pxdn^+/+ cirrhotic liver, they reside in the liver parenchyma and are not in the vicinity of fibrotic area. Conversely, Pxdn^+/+ monocytes that were injected into Pxdn^-/- microenvironment are found near fibrotic bands (Figure 8, H). These data show the important role of the Pxdn^-/- liver microenvironment in programming of recruited (injected) macrophages during fibrosis progression.

PXDN Deficiency Accelerates Fibrosis Regression and Improves Liver Function

Decrease in collagen crosslinking and matrix stabilization accelerate the fibrolysis and reversal of liver fibrosis in Pxdn^-/- mice.²⁸ To investigate whether fibrosis regression in Pxdn^-/- liver is faster, we used a model of recovery from CCl4-induced fibrosis where CCl4 is injected for 6 weeks and then withdrawn for 4 weeks (Figure 9, A). After the 10 weeks, liver, spleen, and blood were collected for further analysis. Four weeks after discontinuation of CCl4, Pxdn^-/- liver had glossy surface and bright red color, whereas Pxdn^+/+ liver still showed the fibrotic gross phenotype and liver color was pale (Figure 9, B). Serum aminotransferase level ratio (alanine transaminase [ALT]/aspartate transaminase [AST]), a measure of liver cell injury, was significantly lower in Pxdn^-/- mice after 4 weeks of discontinuation of CCl4 compared with the ALT/AST ratio in the Pxdn^+/+ group, which remained high (0.2 ± 0.09 vs 0.7 ± 0.3; P < .05) (Figure 9, C). As expected, hydroxyproline was elevated in both Pxdn^-/- and Pxdn^+/+ livers during fibrosis progression and decreased after withdrawal of CCl4, but during regression, Pxdn^-/- mice showed significant reduction in hydroxyproline measurement compared with Pxdn^+/+ controls (211.6 ± 22.7 vs 352.2 ± 56.9; P < .05) (Figure 9, D). Collagen staining revealed typical sign of fibrosis remodeling in Pxdn^+/+ controls after 4 weeks of CCl4 withdrawal with widening and splitting of fibrotic septa (Figure 9, E). These features were markedly accelerated in Pxdn^-/- mice. The fibrotic septa were thinner than in Pxdn^+/+ controls, and in some areas, were hardly visible (3.9 ± 1.9 vs 10.5 ± 3.2 μm; P < .05) (Figure 9, F). Taken together, because of loose collagen structures and more accessibility of poorly crosslinked collagens in Pxdn^-/- livers, collagen removal occurs faster during fibrosis recovery in Pxdn^-/- mice.

Figure 9.

Pxdn^-/-mice have accelerated regression of hepatic fibrosis and improved liver function.A, Mice received CCl4 via oral gavage 3 times per week and then the liver was allowed to recover by withdrawing CCl4 for 4 weeks. B, Livers from Pxdn^+/+ and Pxdn^-/- mice after CCl4 withdrawal. C, ALT/AST after CCl4 injection and withdrawal in Pxdn^-/- and Pxdn^+/+ mice (n = 6, mean ± standard deviation, 2-way analysis of variance, ∗∗P < .01). D, Collagen content measured by hydroxy proline (n = 6, mean ± standard deviation, 2-way analysis of variance, ∗∗P < .01). SR of collagen (E) and measurement of fibrotic septae width (F) in Pxdn^-/- and Pxdn^+/+ 4 weeks after CCl4 withdrawal (n = 6, mean ± standard deviation, Student t test, ∗∗P < .01).

PXDN Expression Increases With Severity of Fibrosis in Murine Nonalcoholic Fatty Liver Disease

To investigate PXDN in another animal model, we chose a dietary mouse model of nonalcoholic fatty liver disease (NAFLD), known as the choline-deficient, L-amino acid-defined, high-fat diet (CDAHFD). This model recapitulates histological abnormalities similar to those observed in human NAFLD.⁴² In the CDAHFD mouse model, the first sign of fibrosis appears by 6 weeks, and mice exhibit hepatic bridging fibrosis by 10 weeks. Continuation of CDAHFD results in cirrhosis and hepatocellular carcinoma (HCC) at 16 weeks. CDAHFD withdrawal results in regression of fibrosis and resolution of scar tissue. In our study, we fed 8-week-old male C57BL/6J mice with CDAHFD for 8, 10, and 16 weeks. In a separate group, CDAHFD was removed after 10 weeks and replaced with normal chow to allow spontaneous recovery of liver for 4 weeks (Figure 10, A). Histopathological assessments and collagen staining on liver sections showed severe inflammation, steatosis, and mild fibrosis at 8 weeks, and severe fibrosis along with markedly high inflammation at 10 and 16 weeks in mice fed with CDAHFD (Figure 10, A). Gene expression of both Acta2 and Col1a1 increases over time and decreases after removal of CDAHFD (Figure 10, B). Interestingly, Pxdn mRNA and protein expression shows a similar pattern to Acta2 and Col1a1 (Figure 10, B-C).

Figure 10.

PXDN is upregulated during mouse NAFLD.A, SR stained liver sections from mice with or without CDAHFD and after withdrawal of CDAHFD. All images have scale bar = 250 mm. B, mRNA expression of collagen (Col1a1), Acta2, and Pxdn. C, Western blot analysis of PXDN protein expression in mouse. The graph shows the quantification of PXDN protein expression normalized to ACTIN (n = 2, mean ± standard deviation). D, Photos of Pxdn^+/+ and Pxdn^-/- livers 16 weeks post CDAHFD. Blue arrows indicate HCC nodules in Pxdn^+/+ liver. E & F, Liver and spleen weights normalized to body weight in early (4 weeks), mid (8 weeks) and late (16 weeks) -stage NAFLD (n = 4, mean ± standard deviation, Multiple t test, ∗P < .05 and ∗∗P < .01). G, Livers from Pxdn^+/+ and Pxdn^-/- mice after 16 weeks of CDAHFD were analyzed by H&E, SR staining, and IHC of ACTA2. Blue stars indicate cross-section of HCC nodules. All images have scale bar = 100 mm. (n = 4, mean ± standard deviation, Multiple t test, ∗P < .05 and ∗∗P < .01). H, Co-staining of macrophages (F4/80 IHC) and collagen fiber (SR staining) of livers after 16 weeks after CDAHFD in Pxdn^-/- livers. Macrophages that are directly associated with fibrotic bands are marked with green arrows, and macrophages that are outside the fibrotic area are marked with blue arrows. Scale bar = 250 mm. I, Macrophage characterization in Pxdn^-/- and Pxdn^+/+ livers during NAFLD progression with flow cytometry (n = 4, mean ± standard deviation, Multiple t test, ∗P < .05, ∗∗P < .01).

To investigate the role of PXDN in liver fibrosis progression, we fed Pxdn^-/- and Pxdn^+/+ mice with CDAHFD for 16 weeks. CDAHFD resulted in HCC tumors in wild-type animals, whereas none of the Pxdn^-/- livers had HCC tumors (Figure 10, D). Liver/body weight ratio was not different between Pxdn deficient and Pxdn^+/+ animals (Figure 10, E); however, spleen/body weight ratio was significantly lower in Pxdn^-/- mice compared with controls (Figure 10, F). Splenomegaly is defined as enlargement of the spleen measured by weight or size. The increase in the weight/size of the spleen is due to obstruction of blood flow in hepatic or portal veins. In liver cirrhosis, scar tissue can cause the blockage of blood flow through the liver, thus causing blood to back up in the portal vein, resulting in increased pressure or portal hypertension.⁴³ Histological analysis and quantification of fat deposition showed no difference between Pxdn^+/+ and Pxdn^-/- mice livers; however, quantification of SR staining for collagen revealed significantly lower collagen proportional area in Pxdn^-/- livers compared with Pxdn^+/+ mice in mid (8 weeks), and late (16 weeks) stages of NAFLD (Figure 10, G). In addition, we observed a reduction in immunohistochemical staining of stellate cell marker ACTA2 in Pxdn^-/- mice (Figure 10, G). To study the macrophage spatial distribution, we co-stained liver sections collected after 16 weeks of CDAHFD for collagen fibers (SR) and the macrophage marker F4/80. We observed that in Pxdn^-/- liver, macrophages are in the vicinity of collagen fibers (Figure 10, H), a phenotype we previously observed in CCl4-induced liver injury (Figure 8, A). We further analyzed the changes in macrophage cell populations during the early (4 weeks), mid (8 weeks), and late (16 weeks) stages of NAFLD by multicolor flow cytometry using the gating strategy and differential expression of cell surface markers described previously (Figure 6). Total population of hepatic macrophages (CD45⁺ F4/80⁺) was significantly increased in Pxdn^-/- livers at late-stage fibrosis (23.2 ± 4.5 vs 18.2 ± 4; P < .05) compared with their Pxdn^+/+ littermates (Figure 10, I). M1 macrophages (CD45⁺F4/80⁺CD11c⁺) were significantly higher in the early and mid stages of fibrosis in Pxdn^-/- livers, whereas M2 macrophages (CD45⁺F4/80⁺CD206⁺) showed significant increase in mid-stage fibrosis.

In Pxdn^-/- livers, migratory CCR2⁺ macrophages were significantly higher in mid-stage, whereas they stayed constant at the later time point. Interestingly, recruitment of Ly6C⁺ cells increased in late-stage of fibrosis in Pxdn^-/- mice (Figure 10, I). Both Ly6C^high and Ly6C^low macrophages were higher in Pxdn^-/- livers. Ly6C^high monocytes are initially recruited to the site of injury and then differentiate into Ly6C^low monocytes-derived macrophages.⁴⁴ Taken together, consistent with previous data from CCl4-induced liver injury, recruitment of monocytes and macrophages to Pxdn^-/- livers is significantly higher during NAFLD, and pro-fibrolysis macrophages are actively involved in the scar tissue resolution from the early stages of fibrosis.

To investigate whether NAFLD regression in Pxdn^-/- liver is faster, animals were fed with CDAHFD for 16 weeks and then diet was replaced with normal chow for 2 more weeks. After the 18 weeks, liver, spleen, and blood were collected for further analysis. Two weeks after diet withdrawal, Pxdn^-/- livers showed glossy surface and bright red color, whereas Pxdn^+/+ livers still showed the fibrotic gross phenotype and contained HCC nodules (Figure 11, A). Histological analysis showed that fat deposition quickly resolved after CDAHFD removal in both groups; however, Pxdn^-/- livers showed a lower amount of fat compared with their Pxdn^+/+ littermates (Figure 11, B). Collagen staining with SR showed quicker collagen resolution in Pxdn^-/- livers. In addition, lower ACTA2 staining revealed faster deactivation of stellate cells in Pxdn^-/- mice. Fat content, collagen proportional area, and ACTA2 expression were quantified and showed significant decrease in Pxdn^-/- livers compared with Pxdn^+/+ livers after CDAHFD withdrawal (Figure 11, C). ALT level was slightly lower in Pxdn^-/- mice as well (Figure 11, D). These results confirm that Pxdn^-/- liver has a higher speed of resolution when the insult is withdrawn.

Figure 11.

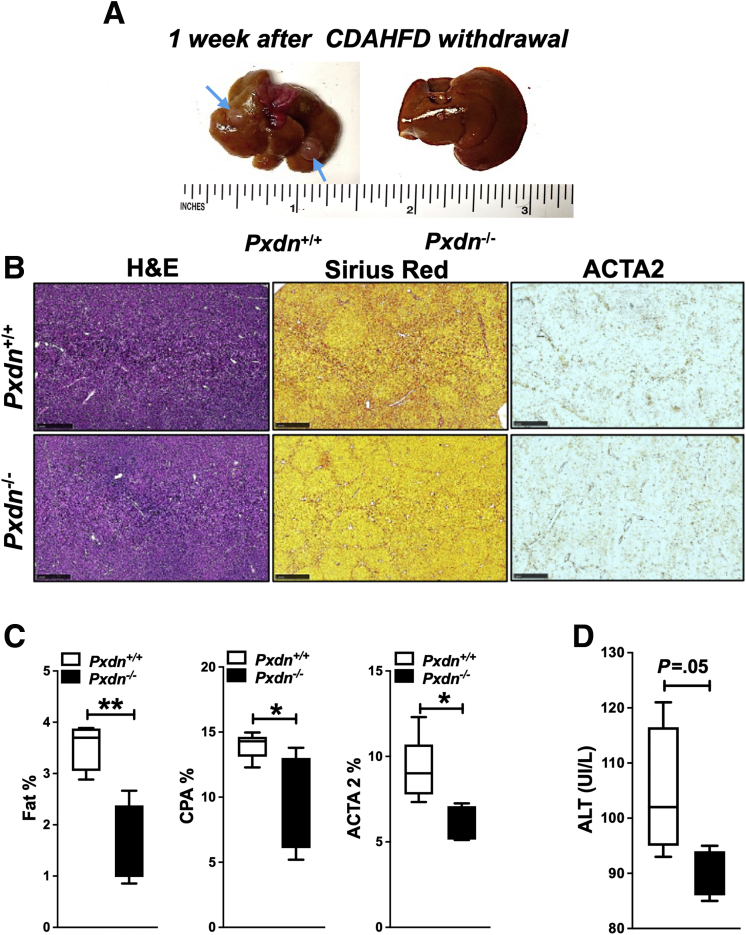

Pxdn^-/-mice have accelerated regression of hepatic fibrosis after high fat diet removal.A, Photos of Pxdn^+/+ and Pxdn^-/- livers 2 weeks after CDAHFD withdrawal. Blue arrows indicate HCC nodules in Pxdn^+/+ liver. B & C, Histological analysis of Pxdn^+/+ and Pxdn^-/- livers, 2 weeks post CDAHFD withdrawal by H&E, SR staining, and IHC of ACTA2. All images have scale bar =100 mm (n = 4, mean ± standard deviation, Multiple t test, ∗P < .05, ∗∗P < .01). D, ALT level decreases slightly faster in Pxdn^-/- mice.

Liver and Serum PXDN Protein Level Increases in Patients With NAFLD

To study the expression pattern of PXDN during NAFLD progression in humans, we stained PXDN in liver biopsy specimens from patients with fibrosis and NAFLD. The stages of NAFLD-associated fibrosis were determined using collagen staining (SR staining) and scored by an expert pathologist. NAFLD specimens were scored based on METAVIR system from F0 to F4 as follows: F0, absence of fibrosis; F1, perisinusoidal or periportal fibrosis; F2, combined perisinusoidal and portal/periportal fibrosis; F3, bridging fibrosis; and F4, cirrhosis. In F1 to F4 livers, PXDN expression was detected in fibrotic area and increased with increasing severity of fibrosis (Figure 12, A). PXDN was also measured in serum from 92 patients with varying stages of NAFLD (F0 = 12, F1 = 24, F2 = 17, F3 = 22, F4 = 17) and 10 healthy individuals (Table 2). Serum levels of PXDN were significantly increased in patients with NAFLD compared with healthy individuals. PXDN level increased in patients with all stages of NAFLD compared with the healthy individuals. (Figure 12, B). The information about age, gender, and the stage of patients with NAFLD are listed in Table 2.

Figure 12.

PXDN expression in human NAFLD increases with the severity of the disease in liver tissue and serum.A, Collagen staining with SR (Scale bar = 500 mm) and immunohistochemical staining of PXDN (Scale bar = 250 mm) on human liver biopsies. B, Serum level of PXDN (ng/mL) in human patients with NAFLD (F0-F4 fibrosis) and healthy controls. (mean ± stand deviation, 1-way analysis of variance, ∗∗∗∗P < .0001).

Table 2.

Age, Gender, Stage and PXDN Serum Level in Patients With NAFLD

NAFLD stage	F0	F1	F2	F3	F4
Number of values	20	20	18	18	17
Male	3	4	7	6	12
Female	17	16	11	12	6
Mean age, y	51 ± 12	59 ± 12	56 ± 10	66 ± 7	60 ± 10
Minimum	25	33	33	54	43
Maximum	68	76	72	78	73
PXDN level, ng/mL
Minimum	9	9	8	8	10
Maximum	20	32	33	31	36
Range	11	23	25	23	26
Mean	15	17	15	16	18
Standard deviation	3	6	6	7	7

NAFLD, Nonalcoholic fatty liver disease; PXDN, peroxidasin.

Activated HSCs Program the Macrophage Recruitment and Function

Among several cell types present in liver, HSCs play a central role in initiation and continuation of immune response to liver injury. Activation of HSCs caused by liver injury is now well-established as a central driver of fibrosis in experimental and human liver injury.⁴⁵ Therefore, we aimed to investigate the connection between signals and factors secreted from stellate cells and programming of recruited bone marrow monocytes. We evaluated the ability of monocytes to differentiate into macrophages in vitro after culturing them in conditioned medium collected from activated HSCs.

Primary stellate cells were isolated from healthy liver of Pxdn^+/+ and Pxdn^-/- mice and activated with TGF-b 24 hours after isolation. Seventy-two hours after HSC activation, the supernatant medium was collected from both conditions, and stellate cells were collected for their gene expression analysis (Figure 13, A). As evidenced by quantitative real-time polymerase chain reaction (qPCR) and immunofluorescent staining, TGF-b treatment induced HSC activation with increased expression of smooth muscle actin (Acta2) (Figure 13, B). mRNA expression analysis revealed upregulation of other markers of activated HSCs, such as Col1a1, Col3a1, Tgf-b, Ctgf, Lox, IL-6, and Ccl2, and downregulation of IL-10 after treatment with TGF-b compared with untreated stellate cells from both Pxdn^+/+ and Pxdn^-/- (Figure 13, C). Interleukin (IL)-10 is an anti-inflammatory cytokine that plays a crucial role in preventing inflammatory response to tissue injury. Downregulation of IL-10 increases response to tissue injury and boosts the resolution of associated tissue damage.⁴⁶

Figure 13.

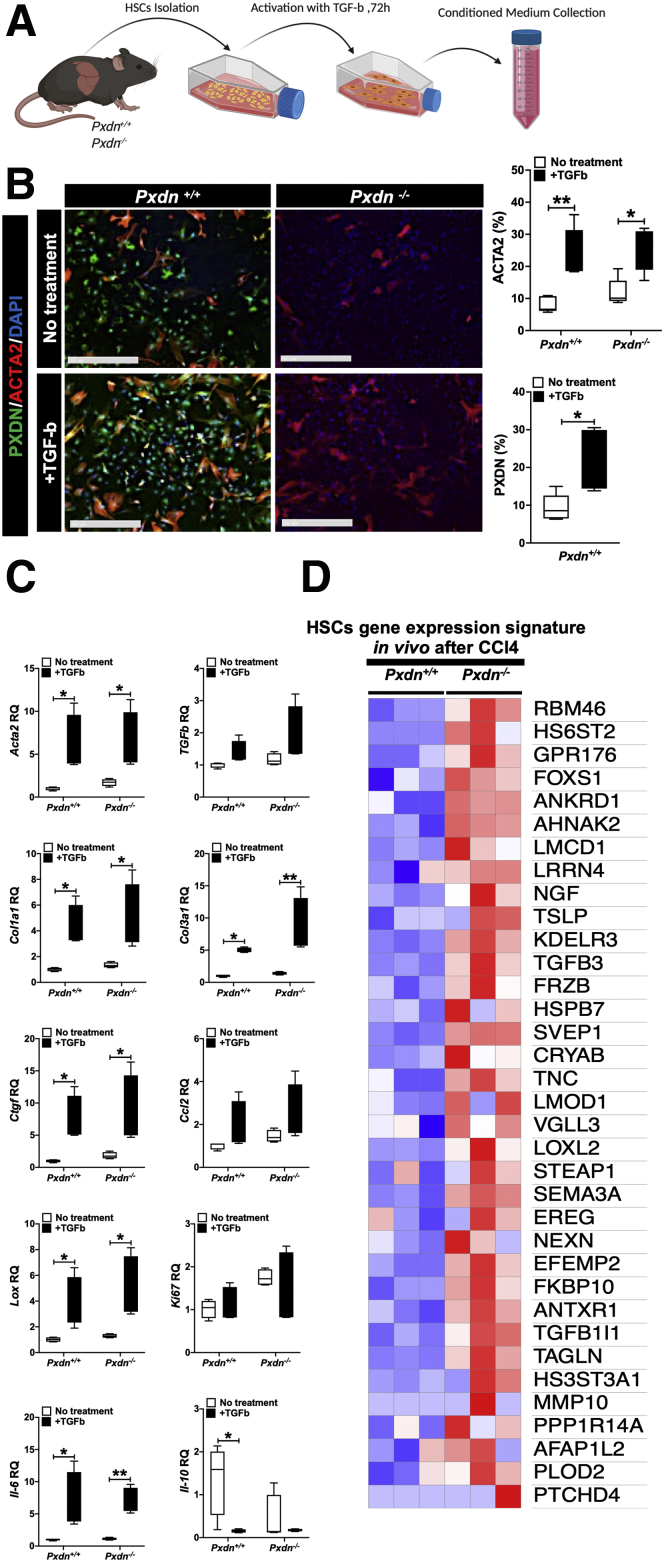

Activated HSCs isolated from Pxdn^-/-livers have a different mRNA expression profile.A, HSCs were isolated from Pxdn^+/+and Pxdn^-/- livers and treated with TGF-b for 72 hours to activate HSCs. After 72 hours, conditioned medium was collected, and HSCs were obtained for RNA and protein analysis. B, Immunofluorescent staining of PXDN and ACTA2 in HSCs before and after activation with TGF-b. Scale bar = 250 mm. C, mRNA expression analysis of quiescent and activated HSCs in vitro shows a significant increase in the expression of critical genes after activation (n = 4, mean ± standard deviation, Multiple t test, ∗P < .05 and ∗∗P < .01). D, Genome-wide gene expression analysis of HSCs gene signature in activated HSCs isolated from Pxdn^+/+ and Pxdn^-/- livers 6 weeks post CCl4 administration shows differentially expressed genes in Pxdn^-/- HSCs.

To analyze the gene expression of HSCs in vivo, we mapped genome-wide RNA sequencing data collected from CCl4-injured Pxdn^+/+ and Pxdn^-/- livers to the previously published “Activated stellate cell gene signature” by Zhang et al.⁴⁷ Differential gene expression analysis showed that in vivo activated Pxdn^-/- HSCs upregulate genes involved in ECM production (eg, HS6ST2, GPR176, TGFb3), inflammatory response (eg, LMCD1, LRRN4, TSLP, TGFb3), and cell differentiation (eg, RBM46, FOXS1, ANKRD1 and AHNAK2, KDELR3, FRZB) compared with Pxdn^+/+ controls (Figure 13, D). These data suggest important involvement of Pxdn^-/- HSCs in increased immune cell recruitment and altered matrix remodeling.

We next co-cultured monocytes with conditioned medium from activated HSCs to investigate the migratory and fibrolytic characteristics of differentiated macrophages when exposed to proteins secreted from activated Pxdn^+/+ and Pxdn^-/- HSCs. We cultured primary monocytes, isolated from tibia and fibula of Pxdn^+/+ adult mice, in the conditioned media collected from Pxdn^+/+ and Pxdn^-/- activated HSCs for 7 days. One percent FBS and low concentration of M-CSF (20 nM) were supplemented to the conditioned media to support monocyte survival. Mock medium, DMEM supplemented with 1% FBS and M-CSF (20 nM), was used as a control (Figure 14, A). After the first 24 hours of in vitro culture, primary monocytes exhibited a round shape with limited spreading on plastic culture plate. After culturing primary monocytes in media conditioned by activated HSCs, their maturation to macrophages and ability to respond to lipopolysaccharides was measured by gene expression analysis. In comparison with monocytes cultured in conditioned medium from Pxdn^+/+ HSCs, monocytes cultured in conditioned medium from Pxdn^-/- HSCs had greater mRNA expression of Cd11b, Ccr2, Ccl2, and Il-6 compared with monocytes cultured in conditioned medium from Pxdn^+/+ HSCs and control group.

Figure 14.

Co-culture of primary monocytes with Pxdn^-/-HSCs in vitro can program monocyte differentiation into macrophages.A, Schematic overview of monocyte isolation and culture in Pxdn^+/+ and Pxdn^-/- HSCs conditioned medium. B, mRNA expression analysis of Cd11b, Ccr2, Ccl2, Il-6, and Il-10 of primary monocytes cultured in Pxdn^+/+ and Pxdn^-/- HSCs conditioned medium. Control monocytes were cultured in basic DMEM supplemented with MCSF (20 nM). C, Flow cytometry analysis F4/80 and CCR2 expression on monocytes cultured in Pxdn^+/+ and Pxdn^-/- HSCs conditioned medium. D, Immunofluorescent staining of F4/80 in monocyte cultured in Pxdn^+/+ and Pxdn^-/- HSCs conditioned medium. Scale bar = 250 mm. D & E, Phagocytosis capacity of macrophages was evaluated by their ability to engulf complex branched carbohydrates such as Dextran conjugated to FITC. Scale bar = 250 mm. D & F, Fibrolysis capacity of differentiated macrophages from monocytes cocultured with HSCs, was evaluated by their expression of matrix degrading enzyme, MMP8 (n = 4, mean ± standard deviation, 1-way analysis of variance, ∗P < .05 and ∗∗P < .01).

IL-10 expression was significantly upregulated compared with the control group (Figure 14, B). Flow cytometry analysis showed that the expression of liver-specific macrophage marker F4/80 increases significantly in monocytes differentiated to macrophages in conditioned medium from Pxdn^-/- HSCs compared with the monocytes cultured in Pxdn^+/+ HSCs conditioned medium (91.8 ± 1.9 vs 74.5 ± 4.3; P < .01) and control group (91.8 ± 1.9 vs 51.3 ± 14.3; P < .01) (Figure 14, C).

In addition, CCR2 expression was notably increased on the cell surface of monocytes differentiated in conditioned medium from Pxdn^-/- HSCs compared with the monocytes cultured in Pxdn^+/+ HSCs conditioned medium (88.4 ± 8.1 vs 52.5 ± 4.5) and control group (88.4 ± 8.1 vs 12.8 ± 7.5; P < .01) (Figure 14, C). This is consistent with the higher mobility potential of these macrophages in vivo (Figure 7, H). Elevated expression of F4/80 in macrophages differentiated in conditioned medium from Pxdn^-/- HSCs were also assessed by immunocytofluorescent staining (Figure 14, D).

Macrophage phagocytic and fibrolytic functions enable wound healing and clearance of fibrotic bands in vivo.⁴⁸ Phagocytic capacity of differentiated macrophages was tested by their ability to engulf fluorescein isothiocyanate (FITC)-conjugated Dextran in vitro.⁴⁹ We observed that Pxdn^+/+ monocytes that were differentiated to macrophages in conditioned medium from Pxdn^-/- HSCs exhibited the highest phagocytotic ability compared with monocytes cultured in conditioned medium from Pxdn^+/+ HSCs and control groups (Figure 14, D-E). Fibrolytic ability of differentiated macrophages was tested with immunofluorescent staining of MMP8 (collagenase 2). A significant increase in MMP8 enzyme was observed in the monocytes that were cultured in Pxdn^-/- HSCs conditioned medium when compared with monocytes cultured in Pxdn^+/+ HSCs conditioned medium (13 ± 3.1 vs 2.7 ± 1.5; P < .01) (Figure 14, D, F).

Taken together, these data suggest that Pxdn-deficient mice have more resident and infiltrating immune cells to help with the resolution of fibrosis from early stage of fibrosis. Immune cells, particularly macrophages, actively secrete pro-healing MMPs and accelerate the process of tissue restoration. The liver microenvironment, particularly HSCs, plays an important role in programming the recruiting monocyte toward pro-healing and pro-fibrolysis characteristics.

Mechanism Underlying the Activation of Pro-healing Immune Cells in Pxdn-deficient Livers

PXDN belongs to a family of heme-containing peroxidases that catalyze oxidation of various substrates, mainly utilizing the reactive oxygen species (ROS) hydrogen peroxide (H2O2) in the formation of hypohalous acids - HOBr in the case of PXDN.⁵⁰

We previously reported that the redox-active Fe complex Fe-PyC3A serves as a ROS-activated magnetic resonance imaging (MRI) contrast agent that is sensitive to changes in redox state of the tissue microenvironment and inflammation in vivo.⁵¹ In the 2+ oxidation state, Fe²⁺-PyC3A has very low relaxivity and produces negligible MRI signal change when administered to an animal. However, in the presence of ROS, Fe²⁺-PyC3A is instantaneously converted to Fe³⁺-PyC3A, which has an order of magnitude higher relaxivity than the 2+ form and is readily detectable by MRI. We used this contrast-enhanced MRI technique to compare the ROS level in healthy Pxdn^+/+ vs. Pxdn^-/- livers. T1-weighted MR images were acquired in healthy Pxdn^+/+ and Pxdn^-/- mice before and immediately after intravenous injection of Fe^2+-PyC3A. Figure 15, A shows axial images before (left) and after (middle) Fe^2+-PyC3A administration. In the Pxdn^+/+ mice, the MRI liver signal is unchanged after contrast agent injection, whereas in Pxdn^-/- mice there is a clear increase in liver signal after Fe^2+-PyC3A injection. The right panel is a color overlay that quantifies this change in liver-to-muscle contrast to noise ratio (DCNR) after contrast agent administration on a pixel-wise basis. Figure 15, B shows that DCNR is significantly higher in Pxdn^-/- livers compared with Pxdn^+/+ livers and indicate that there is more ROS in healthy Pxdn^-/- livers.

Figure 15.

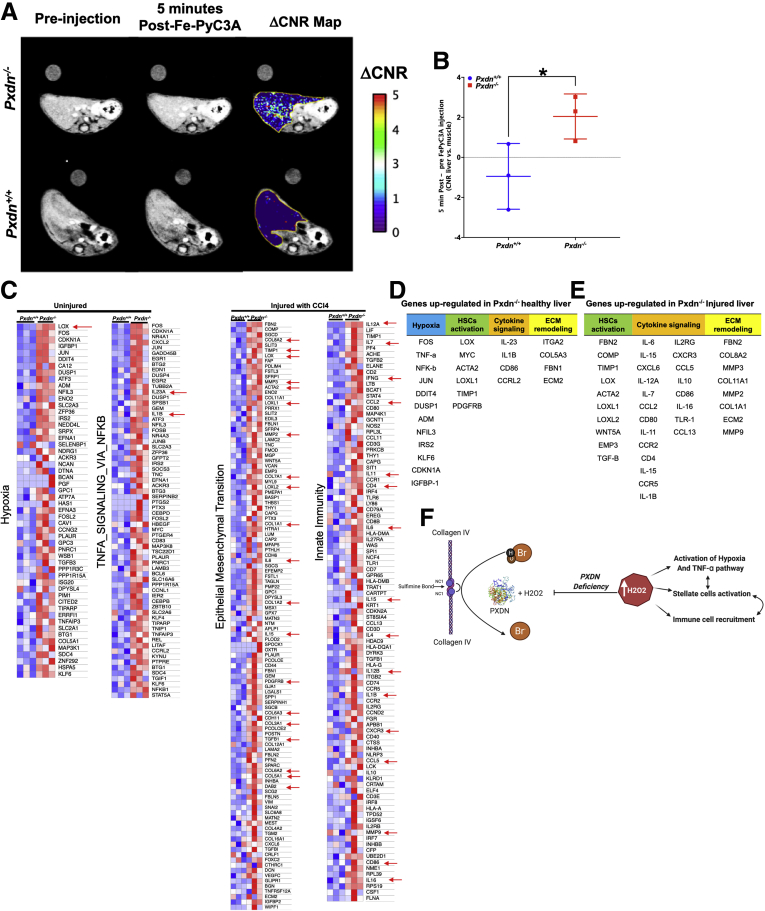

Hypoxic condition caused by Pxdn deficiency results in increase of immune cell recruitment during liver injury.A, Representative axial MR images showing the livers of healthy Pxdn^+/+ and Pxdn^-/- before (left) and 5 minutes after (middle) injection of ROS-specific MRI contrast agent Fe²⁺-PyC3A, and the pixelwise change (middle image – left image) in liver-to-muscle contrast to noise ratio DCNR overlaid (right image) shows a strong increase in liver MRI signal in the Pxdn^-/- mice but not in the Pxdn^+/+ animals. B, Quantification of MRI data shows significantly higher DCNR (n = 3, mean ± standard deviation, Student t test, ∗P < .05) in Pxdn^-/- animals compared with Pxdn^+/+ mice. C, Genome-wide expression analysis, heat maps showed gene expression changes in Pxdn^+/+ and Pxdn^-/- vehicle controls (without injury) and CCl4 (injured) livers (n = 3). Red arrows indicate cytokines that attract immune cells to the site of injury. Red and blue colors in the heat map indicate up- and down-regulation of gene expression, respectively. D & E, Top up-regulated genes in Pxdn^-/- livers (healthy and injured) are categorized into 4 different categories: hypoxia, HSCs activation, cytokine signaling, and ECM remodeling. F, Schematic representation of the proposed mechanism of Pxdn deficiency on liver fibrosis. Pxdn deficiency results in accumulation of H2O2 of which subsequently contributes to activation of hypoxia and TNF-a pathway, stellate cell activation, and immune cell recruitment to the liver.

To further investigate whether Pxdn^-/- livers differ from Pxdn^+/+ livers in response to injury, we looked at differentially expressed genes in Pxdn^+/+ and Pxdn^-/- CCl4-injured (after 6 weeks of CCl4 administration) and uninjured livers. Once the overexpressed genes were established, a Gene Ontology (GO) Enrichment Analysis was performed to find the pathways enriched in Pxdn^−/− vs. Pxdn^+/+ mice. GO Enrichment Analysis revealed that the expression of genes involved in hypoxia and TNFA_SIGNALING_VIA_NFKB pathways were up-regulated in Pxdn^−/− uninjured livers compared with uninjured Pxdn^+/+ livers (Figure 15, C). In CCl4-injured livers, EMT and allograft rejection pathways were upregulated pathways in Pxdn^−/− injured livers compared with Pxdn^+/+ injured livers (Figure 15, C). Analysis of RNA-sequencing data indicated that, in uninjured livers, the expression of many genes was strongly increased in Pxdn^−/− livers compared with uninjured Pxdn^+/+ livers. Specifically, 4 major gene programs were activated: Hypoxia (FOS, TNF-a, NF-kB, JUN, DDIT4, DUSP1, ADM, NFIL3, IRS2, KLF6, CDKN1A, IGFBP-1), HSC activation (lysyl oxidase [LOX], MYC, ACTA2, LOXL1, tissue inhibitors of metalloproteinases [TIMP]1, PDGFRB), Cytokine signaling (IL-23, IL1B, CD86, CCRL2), and ECM remodeling (ITGA2, COL5A3, FBN1, ECM2) (Figure 15, D). After 6 weeks of CCl4 administration, 3 major gene programs were up-regulated in Pxdn^−/− livers: HSC activation (FBN2, COMP, TIMP1, LOX, ACTA2, LOXL1, LOXL2, WNT5A, EMP3, TGF-b), Cytokine signaling (IL-6, IL2RG, IL-15, CXCR3, CXCL6, CCL5, IL-12A, IL10, IL-7, CD86, CCL2, IL-16, CD80, TLR-1, IL-11, CCL13, CCR2, CD4, IL-15, CCR5, IL-1B), and ECM remodeling (FBN2, COL8A2, MMP3, COL11A1, MMP2, COL1A1, ECM2, MMP9) (Figure 15, E).

Together, GO analysis identified significant upregulation of genes in hypoxia and TNF-a signaling pathways already existing in Pxdn^−/− healthy livers. Six weeks after CCl4 injury, upregulation of genes involved in the innate immune response, leukocyte activation, and chemotaxis was observed (Figure 15, E). We speculate that in the absence of PXDN, even without injury, liver tissue redox state changes and results in the activation of hypoxia related genes. This can directly activate TNF-a signaling pathways in the liver and, as a result, increase the recruitment of immune cells such as macrophages and monocytes in the early stage of liver fibrosis (Figure 15, F).

Discussion

The balance between ECM deposition and degradation influences the speed of liver fibrosis progression and regression.¹ Liver fibrosis results from a chronic response to persistent injuries, and is characterized by hepatocyte death, recruitment of immune cells, and activation of ECM-producing stellate cells. Regression of fibrosis is characterized by digestion of ECM, apoptosis of ECM-secreting cells, hepatocyte regeneration, and consequent improvement in organ function. Although the mechanisms that promote collagen synthesis and deposition by stellate cells have been extensively studied, the mechanisms regulating collagen degradation and resolution of fibrosis have been less well-characterized. Strategies to promote resolution of fibrosis include the induction of apoptosis by myofibroblasts, inhibition of collagen cross-linking, and triggering degrading and clearance of ECM.⁵² In this study, we identified a hepatic microenvironment with moderately elevated levels of ROS, in which hepatic macrophages digest collagen fibers and inhibit formation of dense fibrotic tissue in the early stages of liver fibrosis. Here, the elevation of ROS levels is associated with deficiency of PXDN, a highly conserved member of the heme-containing peroxidase family, which catalyzes the oxidation of various substrates in the presence of H2O2 and plays a vital role in the inhibition of ROS formation and oxidative stress.¹⁷ Oxidative stress can significantly impact redox-sensitive molecules and act as a second messenger to trigger intracellular signaling pathways.⁵³ In addition, PXDN contributes to basement membrane assembly via its role in creating sulfilimine bonds in the Col IV network during ECM formation and in ECM-mediated signaling and cell growth pathways.^54,55

In this study, we showed that in human cirrhotic livers, PXDN is upregulated in stellate cells (ACTA2-expressing cells) and in fibrotic bands. In vitro studies showed that activated HSCs produce and secrete PXDN into the fibrotic microenvironment. In addition, serum levels of PXDN increase significantly in patients with end-stage liver fibrosis. Secretion of PXDN from myofibroblasts occurs in other organs such as heart and kidney and is TGF-b dependent.^18,56 Elevation of PXDN in serum has been reported in patients with peripheral artery disease and is tightly associated with kidney function of patients with peripheral artery disease.⁵⁷ PXDN is a very conserved protein among the animal kingdom, and its expression is tightly regulated.⁵⁸ It is considered as an ECM-associated molecule, and in mice, unlike abundant proteins in fibrotic tissues like collagen, Pxdn had a moderate upregulation during liver fibrosis.

Mutation causing PXDN loss of function in both human and mice results in congenital cataract-microcornea with corneal opacity, glaucoma, buphthalmos, and extensive corneal opacification.^20,21 We did not detect abnormal liver histology or function in Pxdn^-/- mice; however, Pxdn deficiency in the model of CCl4-induced liver injury resulted in abnormal fibrotic septae formation. The divergent phenotype of fibrotic bands in Pxdn^-/- mice compared with Pxdn^+/+ mice started from 3 weeks of CCl4 injection and continued to progress further until the late stage of fibrosis.

Initially, we examined the possibility of PXDN activity in collagen IV cross-linking in liver fibrosis, but surprisingly, collagen IV monomer numbers did not change in the Pxdn^-/- fibrotic liver compared with Pxdn^-/- healthy controls. Collagen IV is found in the perisinusoidal basement membrane, and its content increased 16-fold in cirrhotic liver, but progression of F1 to F3–F4 stages of liver fibrosis requires a progressive accumulation of fibrillar collagens (type I and III).⁵⁹ Our observation is similar to previous studies in which lysyl oxidase (LOX) enzyme was experimentally inhibited by b-aminopropionitrile.²⁸ As a result, the accumulation of cross-linked collagen was decreased, and fibrotic septa showed widening comparable to changes observed during fibrosis resolution in the current study.²⁸ Due to the chicken-wire phenotype of fibrosis produced in the CDAHFD model, loose formation of collagen bundles was difficult to see in the CDAHFD model of nonalcoholic steatohepatitis in Pxdn^-/- liver. Nevertheless, we were able to see the presence of macrophages in the fibrotic tissue at the cirrhosis stage in Pxdn^-/- livers. In both liver injury models in Pxdn^-/- mice, we observed greater infiltration of macrophages into the liver.

Total hepatic macrophages, consisting of liver resident Kupffer cells and monocyte-derived macrophages, contribute to maintaining homeostasis of the liver as well as the progression of acute or chronic liver injury. During fibrosis, Kupffer cells recruit monocytes and other inflammatory cells and activate stellate cells to produce ECM. On the other hand, macrophages also release MMPs, which promote fibrotic ECM degradation, and factors that dampen the inflammatory response and promote resolution of fibrosis and liver regeneration. We aimed to examine total macrophage populations in 2 different stages of CCl4-induced liver fibrosis: (1) peak of inflammation and early stage of fibrosis (3 weeks of CCl4 injection), and (2) advanced fibrosis (6 weeks of CCl4 injection). We also examined total macrophage populations in 3 stages of NAFLD: early (4 weeks), mid (8 weeks), and late (16 weeks) post CDAHFD.

In general, total macrophage populations boost during the peak of inflammation due to an increase in their proliferation and recruitment of monocytes from bone marrow.^7,60,61 In our animal models, we detected an increase in the number of macrophages (CD45⁺F4/80⁺) in Pxdn^-/- livers at the peak of inflammation and late stage liver fibrosis compared with the Pxdn^+/+ controls. Moreover, macrophages in Pxdn^-/- fibrotic livers demonstrated a different phenotype in which they were found inside the fibrotic bands and in close proximity to collagen fibers. As the disease continues, this close proximity became more evident, with concomitant disorganized and loosely connected fibrotic tissue. This phenotype has been reported during the resolution or regression phase in liver injury animal models^28,62 and in human cirrhotic patients. Notably, we detected it from early stage CCl4-induced fibrosis in Pxdn^-/- livers. Detailed characterization of this unique macrophage population found in Pxdn^-/- livers revealed that they express higher levels of CD206 (Mannose Receptor) at the late stages of fibrosis and have higher phagocytosis and fibrolytic capacities. CD206⁺ macrophages are the major source of matrix degrading enzymes, MMPs, and their involvement during fibrosis can interrupt the formation of fibrotic band and progression of fibrosis to irreversible cirrhosis.

Contribution of monocytes (CD45⁺CD11b⁺) is another important factor to consider, where we found notable increase in the number of monocytes in Pxdn^-/- livers in the peak of inflammation. In addition, we detected a significant increase in the number of CCR2-expressing macrophages in Pxdn^-/- livers during fibrosis progression in both animal models. However, we observed increase infiltration of circulating Ly6C⁺ monocytes only in the NAFLD animal model. The impact of Ly6C⁺ monocytes in the induction and resolution of liver fibrosis has been evaluated with conflicting results, and their function can vary between different animal models.⁶³

Liver tissue microenvironment, including soluble mediators and cytokines secreted by activated HSCs and other immune cells, can influence the phenotypes of macrophages, and determine their involvement in deterioration of liver injury or restoration of liver functions.^64,65 HSCs play a major role in orchestrating the inflammatory response to injury. In humans, activated HSCs induced infiltration of migratory macrophages (CD163⁺) via the CCL2/CCR2 pathway.⁶⁶ CCL2 is chemokine for CCR2 migratory monocytes, and CCR2 and/or CCR5 antagonism has led to decreased inflammatory monocytes in the liver in a variety of disease models.⁶⁷ In our study, we investigated the possibility of stellate cell-initiated pathways of recruitment and maturation of macrophages by in vitro co-culture of bone marrow-derived primary monocytes and Pxdn^-/- stellate cells. In this experiment, we found greater expression of CD11b and CCR2 markers in matured macrophages co-cultured with Pxdn^-/- stellate cells. In addition, in vitro data confirmed the higher phagocytic activity of macrophages co-cultured with Pxdn^-/- stellate cells.

To investigate the underlying mechanism of higher macrophage recruitment in Pxdn^-/- liver, we studied the effect of Pxdn deficiency on the redox state of liver tissue as the formation and accumulation of ROS can affect polarization of macrophages.¹⁵ PXDN is an oxidase enzyme that uses H2O2 to form sulfilimine bonds and cross-link collagen IV.⁶⁸ Using redox-active iron complex Fe-PyC3A as an MRI contrast agent, we detected higher content of ROS in Pxdn^-/- livers. This high content was not necessary toxic but was associated with upregulation of hypoxia-related molecular pathways and increased expression of ECM regulatory proteins and immunomodulatory cytokines in healthy and injured Pxdn^-/- livers. The activation of redox-sensitive transcription factors, such as NF-κB, is necessary for the induction of inflammatory gene expression and recruitment of immune cells. Genome-wide expression analysis showed that the TNF-a pathway via the NF-kB pathway is upregulated in Pxdn^-/- livers. This supports the hypothesis that the liver microenvironment plays an important role in programming recruited monocytes and macrophages.

In conclusion, our findings provide new evidence that recruited monocytes from bone marrow are programmed by the liver microenvironment during liver injury. We report a novel microenvironment where macrophages undergo maturation faster and acquire pro-resolution characteristics from the early stages of liver fibrosis. Our data will help further understanding of hepatic immune homeostasis and has implications for the development of novel immunotherapeutic strategies for chronic liver diseases.

Methods

Animals

All animal experiments were approved by the Massachusetts General Hospital Institutional Animal Care and Use Committee (IACUC). Animals were maintained on a 12-hour light/dark cycle at 25 °C and fed a standard diet. C57BL/6J mice were purchased from Charles River Laboratories (Wilmington, MA). Pxdn^-/- mice were kindly provided by Dr Gautam Bhave from Vanderbilt University Medical Center (Nashville, TN). To induce liver injury by toxin and cause fibrosis and cirrhosis, mice were given 3 times per week of 20% to 40% CCl4 via oral gavage (Sigma-Aldrich, St. Louis, MO) according to our established protocols.⁶⁹ To create NAFLD animal model, 8-week-old male C57BL/6J mice were purchased from Charles River Laboratories (Wilmington, MA) and housed in a specific pathogen-free environment according to our IACUC protocol. After 1 week of acclimation, mice were fed on either normal chow (Prolab Isopro 3000; Scotts Distributing #8670) or L-amino acid diet with 60 kcal% fat with 0.1% methionine without added choline (CDAHFD); Research Diets A06071302) for 16 weeks. In both models, the well-being of animals was observed daily, and with any sign of distress or pain, mice were euthanized immediately.

RNA Extraction and qPCR

RNA was isolated from liver tissue using TRIzol (Life Technologies, Grand Island, NY) according to the manufacturer’s instructions and then treated with DNAse I (Promega, Madison, WI). Total RNA (1 μg) from each sample was used to synthesize complementary DNA by single-strand reverse transcription (SuperScript III First-Strand Synthesis SuperMix; Life Technologies). Primer and probe sequences for qPCR were purchased from Applied Biosystems Inc.

Genome-wide Gene Expression Profiling and Data Analysis

Total RNA was isolated as described above. Genome-wide gene expression profiling was performed using high-throughput Illumina HiSeq sequencing in High-Output mode with Single-end 75-bp 20 million reads per sample (Illumina, San Diego, CA). Scanned data were normalized using a cubic spline algorithm, summarized into official gene symbol, and mapped to human orthologous genes using the mapping table provided by the Jackson laboratory (www.informatics.jax.org). Genes were rank-ordered according to differential expression between the experimental conditions. Over- or under-representation of each gene signature on the rank-ordered gene list was evaluated based on random permutation test. False discovery rate <0.25 was regarded as statistically significant. All data analysis was performed using GenePattern analysis toolkit (www.genepattern.org) and R statistical computing language (www.rproject.org).

Single-cell Suspension and Flow Cytometry

Mice were anesthetized using 100 mg/kg of ketamine and 10 mg/kg of xylazine intraperitoneally, followed by terminal cardiac puncture. Animals received humane care per criteria outlined in the Guide for the Care and Use of Laboratory Animals by the National Academy of Sciences (National Institutes of Health publication 86-23, revised 1985) and in accordance with the Massachusetts General Hospital IACUC guidelines. The entire left lobe of liver was cut into small pieces and further digested with collagenase type XI (0.25 mg/ml in Hanks’ Balanced Salt Solution [HBSS], Sigma) and deoxyribonuclease 1 (20 units/ml, Roche Diagnostics) at 37 °C for 25 to 35 minutes with gentle agitation, followed by collagenase neutralization with cold phosphate-buffered saline (PBS) containing 10% FBS (Gibco-Invitrogen). Digested tissue was then centrifuged at 50g for 3 minutes to pellet hepatocytes. The supernatant containing the nonparenchymal cells was harvested and filtered through a 70-μm cell strainer to remove cell debris. Purified cells were suspended in 4 mL of 80% isotonic Percoll, and 1 layer of 40% Percoll was added on the top, followed by centrifugation at 3000 RPM for 30 minutes at room temperature with minimum break speed. The cells were aspirated from the Percoll interface and harvested by centrifugation and washed twice with PBS containing 10% FBS. Isolated cells were incubated in FC block (anti-mouse CD16/32) (1:1000, BioLegend) for 10 minutes. Next, cells were stained with fluorochrome conjugated antibodies listed in Table 3 for 30 minutes followed by 3× wash in PBS containing 10% FBS. Then cells were stained with Zombie Aqua Fixable Viability for 10 minutes. After wash with PBS, cells were fixed in paraformaldehyde 2% and run on the LSRII flow cytometer (BD Biosciences, San Jose, CA). Data were acquired using BD FACSDIVA software (BD Biosciences). The gating strategies are described in Figure 6. FACS data were analyzed using FlowJo, version 10.1 (Ashland, OR).

Table 3.

Antibody Panels for Flow Cytometric Analysis of Liver Monocyte and Macrophages

Conjugated antibody	Clone	Cat#
Alexa Fluor 488 anti-mouse CD11c	N418	117311
PE/Cy7 anti-mouse CD206 (MMR)	C068C2	141719
APC anti-mouse Ly-6C	HK1.4	128015
Brilliant Violet 650 anti-mouse/human CD11b	M1/70	101239
PerCP/Cyanine5.5 anti-mouse CD45	30-F11	103132
Alexa Fluor 700 anti-mouse F4/80	BM8	123129
Brilliant Violet 785 anti-mouse CD192 (CCR2)	SA203G11	150621

Tissue Processing and Immunostaining

Formalin-fixed paraffin-embedded tissues samples were sectioned with 5-μm thicknesses and stained with H&E, SR, and immunostaining for alpha-smooth muscle actin (α-SMA, ACTA2) (1:100, Sigma-Aldrich St. Louis, MO) and collagen, Type 1, alpha 1 (COL1A1) (1:200, Abcam, Cambridge, UK), Pxdn (provided by Dr Gutam, 1:200), and CD11b (1:100, Novus Biologicals, Centennial, CO), CD206 (1:100, Novus Biologicals) according to standard protocols, as reported previously.⁷⁰ For tissue analysis using the SEM, formalin-fixed and paraffin-embedded sections were incubated in osmium tetroxide (0.5%; Electron Microscopy Sciences, 19152) before serial dehydration in ethanol. Samples were then dried using a critical point drier and imaged using field emission SEM (Hitachi S-4700).

Image Acquisition and Analysis

Fluorescent images were captured with a Nikon Eclipse microscope equipped with an Insight CMOS 5.1 digital camera. IHC, SR, and H&E slides were scanned using NanoZoomer-SQ Digital slide scanner (Hamamatsu Inc). The collagen proportional area was morphometrically quantified on SR-stained sections with image processing software (Image J, National Institutes of Health).

Collagen Stabilization Assay

To characterize and quantify the stability of the collagenous ECM, we performed stepwise collagen solubilization from livers using neutral salt (freshly secreted collagens and procollagens), acetic acid (more mature collagens), and acid pepsin (fibrillar, moderately cross-linked collagens) based on published protocols.^28,71 Briefly, 100 to 150 mg (0.10–0.15 gr) of snap frozen liver (4 samples per group, each pooled from pieces of 2–3 individual livers) was homogenized in 2 mL of neutral salt buffer (Tris Buffer) (0.5M NaCl, 0.05M Tris, pH 7.5, with Complete protease inhibitor [Roche]) and incubated at 4 °C overnight on a rotary shaker. After centrifugation at 24,000g for 30 minutes, the supernatant was collected for hydroxyproline determination. The resulting pellet was extracted with 20 mL 0.5M acetic acid and incubated at 4 °C overnight on a rotary shaker. After centrifugation at 24.000g for 30 minutes, the supernatant was collected for hydroxyproline determination. To isolate pepsin soluble collagen, the resulted pellet was digested by pepsin (2 mg/mL in 0.5M acetic acid, fraction) at 4 °C overnight on a rotary shaker. After centrifugation at 24,000g for 30 minutes, the supernatant was collected for hydroxyproline (HYP) determination. The remaining insoluble fraction represents mature, highly cross-linked collagen. Collagen content solubilized in each extraction step, and the remaining insoluble collagen was quantified biochemically via HYP determination after completing acidic hydrolysis in 6N hydrochloric acid and expressed as the percentage of HYP recovered in all fractions.

Primary Mouse HSCs Isolation

Mouse livers were perfused with 10 mL of PBS and the 10 mL of collagenase type XI (0.25 mg/mL in HBSS [Sigma]) through the portal vein of euthanized adult (8–12 weeks) mice. The whole liver was then excised, cut into small pieces, and digested in 15 mL collagenase solution at 37°C for 30 minutes. Collagenase was inactivated by adding 10 mL cold HBSS containing 10% FBS. Collagenase was removed by 2 minutes of centrifugation at 1200g following 3× washing steps with cold HBSS followed by passing through a 70-μm nylon mesh. Next, primary mouse HSCs were purified from the total single cells. The pellet was resuspended in 10 mL of 35% Percoll (GE Healthcare, Pittsburgh, PA) with an overlay of 1 mL PBS. After centrifugation at 1130 g for 30 minutes (with no acceleration and no break speed), HSCs in the interphase layer between the PBS and Percoll were collected and washed with DMEM supplemented with 15% FBS. Cells were seeded in a 6-cm petri dish in pre-warmed DMEM (high glucose 4.5 g/L) (Gibco Thermofisher, Waltham, MA) supplemented with heat-inactivated 10% FBS (Sigma-Aldrich, St. Louis, MO), 1% penicillin/streptomycin (100 U/mL penicillin, 100 ug/mL streptomycin, Corning, NY), and sodium pyruvate (GibcoThermofisher). Isolated primary mouse HSCs were maintained at 37 °C, 5% CO2 in a humidified incubator.

Primary Monocyte Isolation From Bone Marrow

Bone marrow primary monocytes were isolated by flushing femurs and tibias of 8- to 10-week-old C57Bl/6 mice (Charles River Laboratories) with DMEM supplemented with 10% FBS, +1% penicillin/streptomycin, and 1% sodium pyruvate). Aggregates were mechanically dissociated by pipetting, and debris was removed by passaging the suspension through a 70-μm nylon mesh (Corning). Cells were washed twice with complete medium and seeded on 6-well ultra-low attachment surface plates (Corning) Cells were supplemented with 20 ng/mL rmM-CSF (R&D Systems, Minneapolis, MN) and cultured in a humidified incubator at 37 °C and 5% CO₂.

FITC-dextran Uptake Assay

To measure macrophage phagocytic ability, the FITC-dextran uptake assay was performed up by incubating cells with FITC-dextran. Briefly, macrophages were cultured on 24-well plates at a concentration of 5 × 10⁴ cells/well. FITC-dextran was added into each well at a final concentration of 0.5 mg/mL, and the culture plates was incubated at 37 °C for 10 minutes. After incubation, wells were washed with PBS extensively to remove excess FITC-dextran. Cells then were fixed with paraformaldehyde 4% for 10 minutes. Cells were washed and nuclei were stained with DAPI.

Serum Marker Analysis

A cardiac terminal blood withdrawal was performed at the time of sacrifice. Blood was allowed to clot for 2 hours at room temperature before centrifugation at 2000 rpm for 10 minutes at 4 °C. Serum was isolated and stored at −80^oC. Biochemical markers of liver injury were measured, including alkaline phosphatase, ALT, AST, total bilirubin, and albumin (DRI-CHEM 4000 Analyzer, Heska, Switzerland).

In vivo MRI and Image Analysis

Animals were anesthetized with 1% to 2% isoflurane with body temperature maintained at 37 °C. The tail vein was cannulated for intravenous delivery of contrast agent while the animal was positioned in the scanner in a custom-designed cradle. Imaging was performed at 4.7 T using a small-bore animal scanner (Bruker, Billerica, MA). Baseline axial and coronal 2D Fast Low Angle Shot images were acquired before and continuously for 30 minutes after injection of 0.2 mmol/kg Fe-PyC3A intravenously. Two-dimensional Fast Low Angle Shot image acquisition parameters were echo time/repetition time = 2.93/152 ms, flip angle = 60°, field of view = 33 × 33 mm, matrix = 140 × 140, and slice thickness = 1.0 mm. Data analysis included the calculation of CNR of the liver region of interest vs back muscle region of interest (ie, $CNR=\frac{S_{pancreas}-S_{Muscle}}{Stde{v}_{noise}}$). The differential (postinjection – preinjection) was further calculated and represented as delta CNR (dCNR).

Statistical Analysis

Results are expressed as the mean ± standard deviation. One-way analysis of variance followed by post-hoc Tukey tests with 2-tailed distribution were performed to analyze data among groups of 3 or more. The Student t test compared data between control and 1 experimental group. All statistical analyses were performed using either GraphPad Prism software (GraphPad Software, La Jolla, CA) or Intercooled Stata software, version 12.0 (StataCorp, College Station, TX).
