Deep thrombosis characterization using photoacoustic imaging with intravascular light delivery

Abstract

Venous thromboembolism (VTE) is a condition in which blood clots form within the deep veins of the leg or pelvis to cause deep vein thrombosis. The optimal treatment of VTE is determined by thrombus properties such as the age, size, and chemical composition of the blood clots. The thrombus properties can be readily evaluated by using photoacoustic computed tomography (PACT), a hybrid imaging modality that combines the rich contrast of optical imaging and deep penetration of ultrasound imaging. With inherent sensitivity to endogenous chromophores such as hemoglobin, multispectral PACT can provide composition information and oxygenation level in the clots. However, conventional PACT of clots relies on external light illumination, which provides limited penetration depth due to strong optical scattering of intervening tissue. In our study, this depth limitation is overcome by using intravascular light delivery with a thin optical fiber. To demonstrate in vitro blood clot characterization, clots with different acuteness and oxygenation levels were placed underneath ten-centimeter-thick chicken breast tissue and imaged using multiple wavelengths. Acoustic frequency analysis was performed on the received PA channel signals, and oxygenation level was estimated using multispectral linear spectral unmixing. The results show that, with intravascular light delivery, clot oxygenation level can be accurately measured, and the clot age can thus be estimated. In addition, we found that retracted and unretracted clots had different acoustic frequency spectrum. While unretracted clots had stronger high frequency components, retracted clots had much higher low frequency components due to densely packed red blood cells. The PACT characterization of the clots was consistent with the histology results and mechanical tests.

Introduction

Venous thromboembolism (VTE) is one of the leading causes of death worldwide and accounts for significant morbidity and mortality [1]. Deep vein thrombosis (DVT) may cause life-threatening pulmonary embolism (PE) when clots can break free and the debris enters lung arteries, resulting in sudden death [2]. VTE has affected 300,000–600,000 patients every year and one-third of DVT cases have turned into PE [3]. The age of the clot affects the level of pulmonary embolism risk and DVT treatment method. Clinically, it has been reported that low recanalization rates and higher number of retrieval attempts are associated with fibrin-rich clots [4–8]. It is hypothesized that the mechanical properties of the clots result in different resistance of clots to the thrombolytic treatment: the retracted or fibrin-rich clots are stiffer and denser than the unretracted or erythrocytes-rich clots, and therefore has lower thrombolysis efficiency [6, 9].

Thrombolysis treatment is usually associated with anticoagulation therapy to avoid the risk of recurrence and bleeding during continuous therapy. Thus, a diagnostic method is needed for determining the properties of the clots [10–13]. In addition, the optimal treatment of VTE is determined by thrombus factors such as the age, size, and chemical composition of the blood clots. Currently, ultrasound (US) imaging is widely used due to its non-invasiveness, low cost and high spatial–temporal resolution. To assess the venous thrombosis, the most common tests are B-mode or Doppler US imaging. However, B-mode US imaging may suffer from low sensitivity for deep vein detection while Doppler US imaging relies on the blood flow [14–16]. Besides, neither B-mode nor Doppler US imaging can quantitatively measure the mechanical information of clots, and thus cannot characterize the clot stage and provide effective guidance for treatment [17]. Quantitative US shear wave elasticity (SWE) imaging has recently been proposed as an alternative method for clot characterization [17–21]. Yet, most of the SWE methods have not considered the tissue inhomogeneity, in which the boundary conditions may affect the shear wave transmission and reflection and lead to inaccurate measurement [18, 22].

Photoacoustic computed tomography (PACT), a hybrid imaging modality that combines the rich contrast of optical absorption and deep penetration of ultrasound detection, have been widely used for disease diagnosis and surgical guidance [23–31]. PACT’s capability of deep-tissue functional imaging can be readily used for thrombus factor estimation. When the photons from a pulsed laser are diffused in tissue and absorbed by either endogenous or exogenous chromophores, the absorbed optical energy is completely or partially converted to heat, resulting in transient temperature rise that leads to thermoelastic expansion and pressure rise. The pressure propagates in the tissue as ultrasound waves, which can be detected outside the tissue by an ultrasound transducer array to form a tomographic image of the optical absorption. The spatial resolution of the system depends on the central frequency, bandwidth, and aperture size of the transducer array, and the imaging frame rate is determined by the pulse repetition rate of the laser [32, 33]. In PACT, a target with a smaller dimension or a higher stiffness (i.e., higher speed of sound) has a shorter PA signal duration, corresponding to higher frequency components [34]. Due to PACT’s inherent sensitivity toward endogenous chromophores such as hemoglobin, multispectral PACT can provide composition information and oxygenation level in blood clots, which can potentially be used for characterizing clot’s type and age. As the acoustic frequency spectrum of the PA signal is related to the object size or stiffness, the structural or mechanical information of clots can be extracted from the frequency spectrum of the PA signal [34]. Das et al. have demonstrated the feasibility of PA clot imaging as well as sonothrombolysis treatment monitoring in clear medium [35, 36]. However, there has been no clot characterization using PA imaging in deep tissue, limited by the external light illumination in conventional PACT. There is only a few reported works on US-guided intravenous sonothrombolysis [8, 9, 37]. As deep veins are typically several centimeters away from the skin surface, external light illumination provides limited imaging depth due to strong optical scattering of tissue.

In this work, we have overcome the imaging depth problem of the conventional PACT by using internal light delivery, as demonstrated previously [38]. Blood clots with different oxygenation levels were imaged underneath ten-centimeter-thick chicken breast tissue. PA channel data was used for structural analysis of the clots, and the reconstructed PA images were used for clot oxygenation level estimation. The PACT results were then compared with the measurements from uniaxial tensile tests and Hematoxylin and Eosin (H&E) histology analysis. The results have showed a strong correlation between the PA characterization of the blood clots and their mechanical stiffness, demonstrating the potential of our approach to provide imaging guidance of thrombosis treatment.

Methods

PACT system

The PACT system is based on a commercial ultrasound scanner (Vantage 256, Verasonics, Kirkland, Washington) with a linear array transducer (L7-4, Philips ATL, Atlanta, Georgia) (Fig. 1a). The linear array transducer has 128 elements, a central frequency of 5 MHz, and a 60% bandwidth. Laser pulses at 700 nm and 800 nm with a pulse energy of 13 mJ and 11 mJ were delivered through a multimode fiber (FT1500UMT, Thorlabs, Newton, New Jersey) with a numerical aperture of 0.39 and core diameter of 1.5 mm. The distal end of the fiber was fused with a lab-made catheter, which consisted of an air-filled cavity and a plano-concave lens (Edmund, Barrington, New Jersey) (Fig. 1b). The lens had an aperture size of 3 mm and a back focal length of − 6.56 mm. The optical beam profile with and without the catheter was simulated using Zemax, and the cavity dimension was optimized based on the simulation results. The catheter has two functions: (1) With water as the surrounding medium, it provides a larger refractive index mismatch at the distal end of the fiber, and thus delivers beams with high divergence to cover a large area of the clot; (2) It separates the blood or clot debris from the fiber surface to avoid any contamination and generation of “hot spots” that can potentially damage the fiber.

Fig. 1.

PACT of blood clot with intravascular light illumination. a Deep tissue clot characterization with photoacoustic computed tomography. A Tygon tube containing clot and catheter was immersed in water. A layer of ten-centimeter-thick chicken tissue was placed between the Tygon tube and the transducer. b Interior design of the catheter. The distance between catheter and clot L was 5 mm. The length of cavity d was designed based on simulation results. c Picture of clot formed in borosilicate and flint Pasteur pipets. Only CaCl₂ was added for coagulation. Serum appears in borosilicate pipets, indicating the clot retraction. d Absorption spectra of oxygenated (HbO₂) and deoxygenated (HbR) hemoglobin

Blood clot preparation

The blood clots were prepared based on a similar protocol from our previous work [39]. Bovine blood (Lampire, Pipesville, Pennsylvania) was mixed with 2.75% W/V CaCl₂ solution (Fisher Scientific, Hampton, New Hampshire) with a volume ratio of 10:1 for coagulation. To change the oxygen saturation of hemoglobin (sO₂), additional NaHCO₃ (37 mg/ml of blood) or Na₂S₂O₄ (2.5 mg/ml of blood) was added to the blood-CaCl₂ solution, followed by 5-min oxygen or carbon dioxide perfusion [40, 41]. After mixing, the blood was transferred to either borosilicate or flint Pasteur pipets (Fisher Scientific, Hampton, New Hampshire) and immersed in a 37 °C water bath for 3 h. After clot formation, the tubes were stored at 4 °C for 72 h to induce clot retraction. Figure 1c shows a comparison between borosilicate (retracted) and flint (unretracted) clot [42].

PA imaging and data analysis

For PA imaging, the clot was extracted from the Pasteur pipets, rinsed with PBS, and placed around 5 mm away from the catheter inside a PBS-filled Tygon tube (4.76 mm ID). To demonstrate the deep tissue clot characterization with our PACT system, around ten-centimeter-thick chicken tissue was placed between the transducer and the Tygon tube (Fig. 1a). For each clot, 300 frames of two-dimensional PA data were acquired at each optical wavelength, and the images were reconstructed with both delay-and-sum (DAS) and delay-multiply-and-sum (DMAS) algorithms [43, 44]. While DAS preserves the linear dependence of the PA signals on the optical absorption, it often suffers from the strong limited-view reconstruction artifacts. DMAS is able to suppress the reconstruction artifacts, but it is a nonlinear process and cannot be used for sO₂ estimation. Therefore, we combined the DAS and DMAS in our data processing. We used the DMAS image as a binary mask to reduce the artifacts in the DAS image. The masked DAS images after 300-frame-averaging were then used for sO₂ estimation using the linear spectral unmixing method based on the absorption spectra of oxy- and deoxy-hemoglobin (Fig. 1d) [45–47]. We also investigated the acoustic frequency spectrum of the clot. To minimize the impact of the catheter signals, channel data from the transducer elements directly above the clot were extracted and processed with Fourier transform.

Histology examination of the clots

As the frequency components of the PA signal depend on the object size and stiffness, we compared our frequency spectrum with the histology results. Hematoxylin and Eosin (H&E) staining was conducted on all the clot samples imaged by PACT. After clot formation and retraction, the samples were fixed in 10% neutralized buffered formalin. The formalin fixed clot samples were cut into 5-μm-thick slices and stained with H&E. The slides were scanned using an EVOS compound light microscope (EVOS®FL Auto Imaging System, Life Technologies Corporation, Carlsbad, CA, USA) and images were stored digitally. The ImageJ software (National Institutes of Health, Bethesda, MD, USA) and a custom processing algorithm (MATLAB R2018b, MathWorks, MA, USA) were used for the quantitative analysis with color-based segmentation. The retraction of the clot was estimated from the area percentage of the erythrocytes region in the clot histology images and was related to PA frequency spectrum analysis.

Measurement of the clot stiffness

Stiffness of the blood clots was tested with BioTester 5000 (CellScale, Waterloo, Ontario, Canada). Two rakes with five tungsten tines each were used at the two ends of the cylindrical clot in the longitudinal directions. Each group of the five tines were equally distributed along a sample dimension of 4.5 mm during the test. For each group of clots, three samples were tested with an average initial length of 6 mm. The samples were then subject to loading under 10%, 25% and 40% strain conditions for three loops, corresponding to a displacement of 600 μm, 1500 μm and 2400 μm, respectively. The force–displacement curve was recorded. Curve fitting was applied based on the linear phase of the force–displacement and the Young’s modulus was estimated as follows,

$$E=\frac{\sigma }{\epsilon }=\frac{F/A}{\mathrm{\Delta }l/l}$$

in which ε is the strain in the sample and σ is the stress. σ was acquired from the applied force F and the cross-section area A of the sample. l is the initial length of the clot and Δl is the displacement under the applied force.

Results

PACT of the blood clots in deep tissue

The fraction power on the plano-concave lens at different air cavity lengths d is shown in Fig. 2a. Limited by the radius of the lens (1.5 mm), air cavity with length longer than 7 mm results in a power loss of more than 10%. The simulated internal illumination beam profiles with and without the plano-concave lens are shown in Fig. 2b. We extracted the beam profile 5 mm from the distal end of the catheter, i.e., L = 5 mm. The length of the air cavity d was varied from 1 to 7 mm in the simulation to achieve an optimized beam size. Without the concave lens, the beam slowly diverged (FWHM radius = 0.5 mm with d = 7 mm). With the concave lens, the beam diverged faster and can cover a larger region of the clot (FWHM radius = 1 mm with d = 7 mm). The clots were imaged with multispectral PA imaging at 700 and 800 nm. Internal illumination was provided by placing the catheter around 5 mm from the clot surface. Images reconstructed with DAS have strong streak artifacts due to the limited detection angle (Fig. 2c). Images reconstructed with DMAS have reduced artifacts and improved contrast (Fig. 2d). As clots had high optical scattering and absorption coefficients with densely packed red blood cells (RBCs), a penetration depth of 5 mm into the clot can be achieved from the reconstructed images. The B-mode US image (Fig. 2e) shows the Tygon tube was placed underneath ten-centimeter-thick chicken breast tissue. The merged US and PA image is shown in Fig. 2f, highlighting the deep imaging depth achieved by the internal light illumination.

Fig. 2.

PA imaging of blood clot in tissue phantom. a Simulated beam fraction power with different air cavity length d. b Simulated beam profile with different air cavity length d. Without lens and air cavity, a narrower beam profile is observed. c PA image reconstructed with delay-and-sum (DAS) algorithm. Dotted lines indicate the Tygon tube boundaries. d PA image reconstructed with delay-multiply-and-sum (DMAS) algorithm. e US image indicates the thickness of chicken breast tissue and depth of the Tygon tube. f Overlayed PA and US images

Estimating the clot oxygenation level

The sO₂ of the clot should be affected by the initial oxygenation level of blood. sO₂ was estimated with DMAS-masked PA images acquired at 700 and 800 nm. Optical fluence was compensated for based on the measured pulse energy during the experiment. We did not observe any difference in sO₂ between flint and borosilicate clots made from the native blood without either NaHCO₃ or Na₂S₂O₄ (Fig. 3a, d). NaHCO₃ increased the blood pH and shifted the oxyhemoglobin dissociation curve to the left, therefore increased sO₂ with O₂ infusion (Fig. 3b, e). Na₂S₂O₄ chemically reduced the oxygenated hemoglobin to deoxygenated hemoglobin by reacting with oxygen and water to form soluble acidic products. Therefore, clots formed from blood with Na₂S₂O₄ had much lower sO₂ levels (Fig. 3c, f).

Fig. 3.

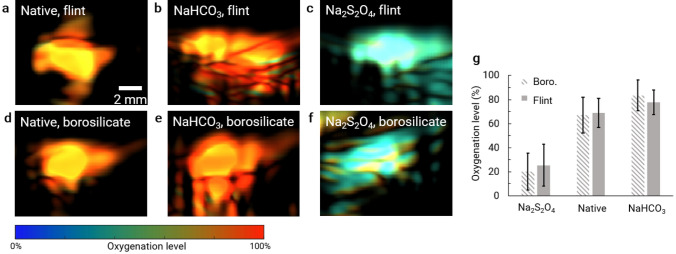

PACT of oxygenation saturation of hemoglobin (sO₂) of clot samples. a–c sO₂ of clots stored in flint Pasteur pipets with a CaCl₂ only (or native), b CaCl₂ and NaHCO₃, and c CaCl₂ and Na₂S₂O₄ added to blood. d–f sO₂ of clots stored in borosilicate Pasteur pipets with a CaCl₂ only, b CaCl₂ and NaHCO₃, c CaCl₂ and Na₂S₂O₄ added to blood. g Averaged sO₂ of clot samples. Error bars indicate the sO₂ variation within the clots

Analyzing the acoustic frequency spectrum of the clots

While the reconstructed PA images and sO₂ estimation can provide the general morphological and functional information of the clots, the internal structure of the clots is related to the acoustic frequency spectrum of PA channel data. Smaller or stiffer targets generate PA signals with higher frequency components, and vice versa. The previous studies have shown that the container material affects the retraction of the blood clot [34]. We found that clots prepared with flint and borosilicate glass had relatively homogenous internal structure (Fig. 4a, d). While borosilicate glass led to retracted clots, flint glass favored the formation of less retracted or unretracted clots. The clot retraction was reflected by the packing density of RBCs in histology. The densely packed RBCs formed relatively large internal structures (Fig. 4b, c) and manifested as low frequency components in the PA frequency spectrum (Fig. 4g). The loosely packed RBCs formed relatively small internal structures and produced high frequency components in the PA frequency spectrum. Moreover, we estimated the occupation percentage of the clot signals in the histology images. We found that an occupation percentage of > 90% corresponded to low frequency components of < 2 MHz, 80–90% to medium frequency components of 2–4 MHz, and < 80% to high frequency components of > 4 MHz (Fig. 4h).

Fig. 4.

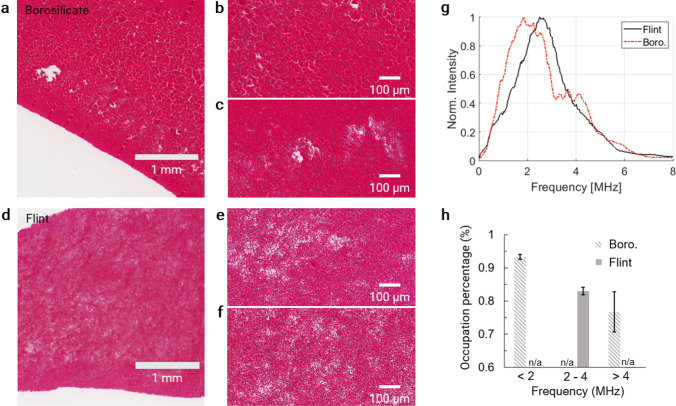

Histology and frequency spectrum analysis of blood clots with CaCl₂ only. a–c Histology results of blood with CaCl₂ in borosilicate Pasteur pipets. Retracted clot was expected. d–f Histology results of blood with CaCl₂ in flint Pasteur pipets. Unretracted clot was expected. g Frequency spectrum of PA channel data acquired at 800 nm. h Red blood cell occupation percentage as an indicator for clot retraction. Structural features that potentially associate with the frequency spectrum were identified, relevant regions were extracted from a, d, and the percentage of red blood cell pixels was calculated. The occupation percentage by red blood cells was associated with low (< 2 MHz), medium (2–4 MHz), and high (> 4 MHz) frequency bands

We also investigated the impact of NaHCO₃ or Na₂S₂O₄ on the internal structures of the clots. As the blood pH affects the fibrin conversion from fibrinogens, low pH environment favors the formation of retracted clot and high pH environment favors less retracted clot [48]. In addition, borosilicate glass has negative surface charges and can initiate fast fibrin formation adjacent to the surface [48, 49]. NaHCO₃ has been shown to improve the hydrophilicity of the surface and subsequently improve the adsorption of protein [50]. Both pH and surface material’s effect on clot retractiveness have been studied separately, but no study has done on the combined effect. Therefore, it is challenging to accurately attribute the structures of the clots to specific factors. Nevertheless, we observed inhomogeneous structures formed inside the clots when either NaHCO₃ or Na₂S₂O₄ was mixed with blood (Figs. 5, 6). All three types of RBC packing density were observed in clots from both borosilicate and flint Pasteur pipets: high (Figs. 5a, d, 6a, d), medium (Figs. 5b, 5e, 6b, e), and low (Figs. 5c, f, 6c).

Fig. 5.

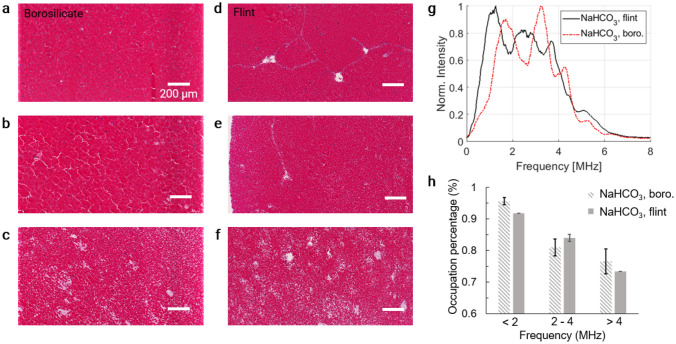

Histology and frequency spectrum analysis of blood clots with CaCl₂ and NaHCO₃. a–c Histology results of clots in borosilicate Pasteur pipets. d–f Histology results of clots in flint Pasteur pipets. g Frequency spectrum of PA channel data acquired at 800 nm. h Red blood cell occupation percentage as an indicator for clot retraction

Fig. 6.

Histology and frequency spectrum analysis of blood clots with CaCl₂ and Na₂S₂O₄. a–c Histology results of clots in borosilicate Pasteur pipets. d–e Histology results of clots in flint Pasteur pipets. f Frequency spectrum of PA channel data acquired at 800 nm. g Red blood cell occupation percentage as an indicator for clot retraction

For clots from blood with NaHCO₃, the PA frequency spectrum had a wide range with strong low, medium, and high frequency components, for both types of glass used (Fig. 5g). After examining the histology, we found that the RBCs were more densely packed near the clot edges, which were in close contact with the Pasteur pipets. The regions with low RBC density were mainly located in deeper regions of the clots. Therefore, we believe the heterogeneous structure of NaHCO₃ clot may be attributed to the increased hydrophilicity of the pipet surface and increased pH. For clots from blood with Na₂S₂O₄, the PA frequency spectrum was also wider than that without NaHCO₃ or Na₂S₂O₄, but narrower than that with NaHCO₃ (Fig. 6f), which was possibly because the amount of chemical was lower, and the surface hydrophilicity was not significantly changed. While the mechanism of the complex clot structures is out of the scope of this work, the structural information was consistent between the histology results and the PA frequency analysis. The occupation percentage of the RBCs is summarized in Figs. 5h and 6g.

Measuring the Young’s modulus of the clots

Figure 7b shows the measured Young’s modulus for each group of the clot samples. The Young’s modulus for the clot ranged from 5 to 15 kPa, which is comparable with previously reported works [51]. For the clots formed in the borosilicate glass, the Young’s modulus showed a 129% (NaHCO₃), 76% (no chemical) and 51% (Na₂S₂O₄) increase compared with that in the flint glass. Therefore, the clots from the borosilicate glass were clearly more retracted and stiffer compared with those in the flint glass. With the flint glass, the clots from blood with NaHCO₃ showed a 36% drop in Young’s modulus compared with normal samples, while the clots from blood with Na₂S₂O₄ showed a 23% increase. Similarly, with the borosilicate glass, the NaHCO₃ samples presented a 17% decrease and the Na₂S₂O₄ samples presented a 6% increase in Young’s modulus compared with normal samples. The results indicate that our deoxygenation process with Na₂S₂O₄ may increase the Young’s modulus during the in vitro clot preparation, while our oxygenation process with NaHCO₃ may decrease the Young’s modulus.

Fig. 7.

Tensile test of the blood clots. a Tensile test setup. Two rakes with five tungsten tines each were used at the ends of the cylindrical clot in the longitudinal directions. b Young’s modulus of the clot samples estimated from the tensile test

Discussion

In this paper, we have demonstrated that PA imaging is capable of structural and functional characterization of blood clots in deep tissue. We used PACT for clots imaging, sO₂ estimation, and frequency-based analysis. The results were compared with histology analysis and the Young’s modulus measurements. The sO₂ and the retraction of the clots could be modified by adding chemicals and altering the material for clotting surfaces. We found that retracted clots with RBC-rich structure were associated with low-frequency PA signals and was likely due to the relatively homogeneous bulk structures formed by densely packed RBCs. Similarly, unretracted clots with low RBC density had stronger high-frequency components due to the presence of relatively small RBC clutters. In addition, we found that retraction of the clots was related to fibrin concentration. Therefore, we conclude that the low-frequency PA signals were associated with the Young’s modulus and thus stiffness of the clot.

Similar to US imaging, PA imaging in deep tissues suffers from frequency dependent acoustic attenuation. High frequency signals get more attenuation compared to low frequency signals, leading to less accurate structural characterization based on frequency analysis. For this study specifically, we consider the frequency components below 2 MHz correspond to the presence of retracted structures, and frequency components above 4 MHz correspond to unretracted structures. As the imaging depth changes, the correlation between the frequency components and the clot structures needs to be updated. Nevertheless, we expect this correlation follows a similar pattern that low frequency components indicate retracted structures, and high frequency components indicate unretracted structures.

We also assumed homogeneous fluence distribution within the clots, which is not accurate as clots are highly absorbing and scattering. The assumption, however, does not significantly affect the sO₂ estimation, as the 700 and 800 nm light share similar fluence distribution within the clot. By contrast, the heterogeneous fluence distribution should have a great impact on the frequency-based structure analysis, as the fluence decreases quickly with propagation depth and the frequency spectrum is dominated by the PA signals from the clot surface [52].

The blood clots in this work were prepared with the whole blood, and no centrifuge was applied to separate different blood components [7, 53]. Therefore, the effect of the RBC concentration on clot structure and stiffness was not discussed quantitatively. Limited by the resolution of the optical microscopy, it is challenging to distinguish fibrin matrix and RBCs [53]. As a result, in the H&E histology analysis, only the RBCs regions were measured without considering the fibrin content, and thus we could not identify the clot samples as erythrocytes-rich or fibrin-rich. Yet, our results showed high consistency in the stiffness measurement, the H&E histology analysis, and the PA imaging results, demonstrating the potential of using PA imaging for clot characterization.

Our current PA characterization of clots was based on the hemoglobin signals. Additional optical wavelengths can be incorporated for imaging fibrin and other chromophores. To further establish the relationship between the PA imaging and the properties of clots, clots with different ages and RBC concentrations can be used. To demonstrate the clinical applications, clot samples from DVT patients will be used for future studies. Our previous work on a carbon black laser-generated focused ultrasound (LGFU) transducer has shown effective in vitro sonothrombolysis involving microbubble contrast agent. Our intravascular catheter can be readily combined with the LGFU transducer to provide more efficient treatment and achieve real-time monitoring by providing the clot composition, oxygenation, and structural information [54]. All in all, we expect that PA imaging can provide accurate clot characterization in deep tissues, and thus improve the thrombolysis treatment [39].
