Scalable fabrication, compartmentalization and applications of living microtissues

Abstract

Living microtissues are used in a multitude of applications as they more closely resemble native tissue physiology, as compared to 2D cultures. Microtissues are typically composed of a combination of cells and materials in varying combinations, which are dictated by the applications’ design requirements. Their applications range wide, from fundamental biological research such as differentiation studies to industrial applications such as cruelty-free meat production. However, their translation to industrial and clinical settings has been hindered due to the lack of scalability of microtissue production techniques. Continuous microfluidic processes provide an opportunity to overcome this limitation as they offer higher throughput production rates as compared to traditional batch techniques, while maintaining reproducible control over microtissue composition and size. In this review, we provide a comprehensive overview of the current approaches to engineer microtissues with a focus on the advantages of, and need for, the use of continuous processes to produce microtissues in large quantities. Finally, an outlook is provided that outlines the required developments to enable large-scale microtissue fabrication using continuous processes.

Highlights

• •This review provides an overview of techniques used to create microtissues, and their applications in research and industry.
• •Batch production methods are compared to continuous production methods in terms of throughput and translatability.
• •Continuous production methods are ideal for many applications related to clinical translation and industrial valorization.
• •Optimization of continuous production methods is required to advance translation of microtissues to clinical/industrial use.

1. Introduction

The engineering of living tissues has widespread societal implications including fundamental biological research, animal-free cosmetical and pharmacological screenings, cell-based therapies, and cruelty-free meat production. To endow engineered tissues with improved functions such as mechanical performance or biological responsiveness to physiological stimuli, researchers have pioneered increasingly complex design strategies over the years. Traditionally, engineered tissues were designed in a top-down approach, by seeding cells onto scaffolds or by encapsulating cells in hydrogels. Although great progress has been made with the engineering of top-down designed tissues, these approaches generally lack spatial and temporal control thereby, limiting their ability to mimic the intricate microarchitecture and associated functions of native tissues.

Bottom-up tissue designs have been developed to provide biological and material inspired solutions to mimic the function of tissues at the microscale by offering additional spatial control. These building blocks are dubbed microtissues and are typically created in a size below the critical diffusion limit of nutrients, growth factors, and waste products. By creating non-homogenous assemblies of microtissues, more complex assemblies can be engineered, which include highly tailorable spatially controlled microenvironmental cues that can steer cell fate and tissue organization in a temporally predictable manner. Indeed, as native tissues are inherently non-homogenous, (complex) microtissues represent a prime candidate to recapitulate the body's complexity.

Unleashing the clinical and industrial potential of microtissues is currently hindered by the limited scalability of microtissues’ production process. Target applications such as pharmacological screenings, cruelty-free meat production, and cell-based therapeutical strategies require large amounts of microtissues in order to be of clinical or industrial use. Hence, the present review provides a comprehensive overview of the scalable fabrication, compartmentalization, and applications of living microtissues. Specifically, we advocate for the need of scalability of production processes when considering specific areas of application, and argue for the transition to continuous microfluidic processes to realize large-scale applications. Finally, we address the challenges and limitations that currently hinder the translation of state-of-the-art continuous microfluidic processes and aim to provide an insightful perspective on the developments needed to move towards translatable, scalable, microtissue fabrication strategies.

2. Building microtissues and traditional fabrication methods

2.1. From cells to microtissues

The fabrication of microtissues with well-defined microarchitectural features acts as a corner-stone for modular tissue engineering. Microtissues can be composed of specialized cells and materials, depending on the application, and can be mixed in various combinations, for example cell-material, multi-cell or cell-multi-material. By controlling the cell's microenvironment, cell-cell, cell-material contact and/or aggregation can be steered and adapted to achieve the desired microtissue [1]. The formation of microtissues can be generalized into three main stages; 1) the selection of modular elementary units such as cells, micromaterials or a combination of both; 2) microtissue formation through physical confinement of these base units in order to promote the desired cell aggregation/alignment; 3) microtissue maturation through cell-cell interaction, cell-biomaterial interaction and/or self-organization of cells (e.g., organoid formation by stem cells) (Fig. 1). Carefully choosing the conditions of microtissue formation is of imperative importance: the functionality of many specialized cell types depends on cellular organization and inherent physical cues to faithfully recreate native functions of the microtissue, such as the alignment seen in native muscle fiber, which plays an essential role in maximizing its contractile function [2,3]. This is historically achieved using batch processes such as microwell/microchannel seeding [[4], [5], [6], [7], [8]], hanging drops [[9], [10], [11], [12], [13]], micropatterning [[14], [15], [16]], and cell-sheet engineering [[17], [18], [19]]. All of these batch process-based techniques allow for the fabrication of specialized multi-dimensional microtissue building blocks composed of cells and/or micromaterials such as spheroids, cell fibers, cell sheets, and matured organoids [20]. From these microtissue building blocks, high degrees of complexity can be achieved by assembling cell aggregates/fibers/sheets to macroscale 3D complex constructs such as hierarchically organized structures, woven tissues, and microporous annealed particle scaffolds (MAPs) [21]. In this section, we will overview current batch-processing methods of fabrication of biomaterial-free and biomaterial-based microtissues for tissue engineering.

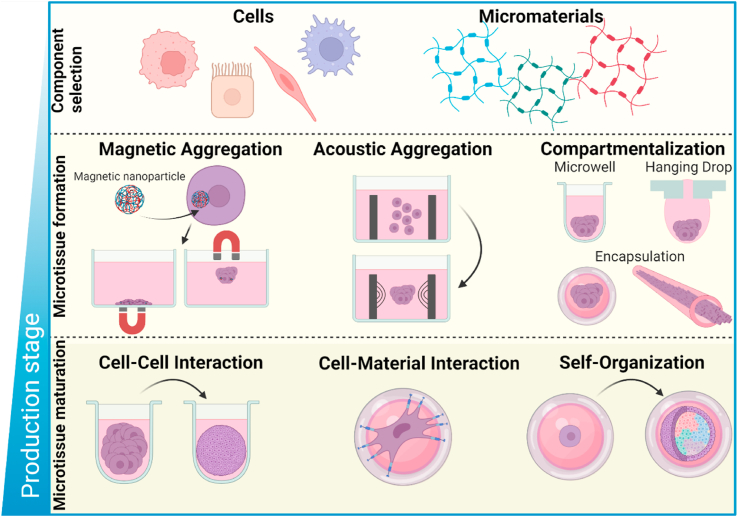

Fig. 1.

Schematic overview of microtissue production. Formation of microtissues can be generalized into three separate stages. First, cells and/or materials are mixed in varying combinations, forming the basis of the microtissue. Second, microtissues are formed by physically confining cells and/or materials through, for example, magnetic aggregation [22,23], acoustic aggregation [24] or compartmentalization [12,[25], [26], [27]]. Encapsulation is a specific form of compartmentalization where cells are confined within a micromaterial such as a microgel or microfiber. Third, microtissues are matured through cell and/or material interactions. Examples include cell-cell interaction to form spheroids, cell-material interaction to differentiate cells or self-organization of (stem) cells into organoids.

2.2. Fabricating microtissues – cell spheroids

The functionality of many specialized cell types depends on faithfully emulating microtissue-specific native 3D microenvironments. Consequently, cell spheroids have played an essential role in our comprehension of tissue development and homeostasis as they represent a basic and essential tools to understand cell-cell interdependence regarding biological variables such as viability, migration, and differentiation. Cell spheroids typically refer to rounded 3D cell aggregates, which can be composed of a single cell type or a mixture of multiple cell types [28]. Batch processes such as suspension cultures have been widely used to produce cell spheroids. Although these methods often associate with poorly controlled aggregate size and shape inhomogeneity, cell spheroid production in suspension cultures can be optimized by incorporating complementary rotation and spinning methods [[29], [30], [31]]. In contrast, aqueous compartmentalization techniques such as hanging-drop offer more control over the size distribution and yield of individual aggregates, with the added benefit that no specialized equipment or reagents are required [32]. As an example, Frey et al. developed a versatile and reconfigurable hanging drop microfluidic platform for aggregate production that could be used for screening studies [33]. However, this technique only offers very limited throughput as compared to other 3D culturing platforms. Alternatively, microwells, micropatterned gels, U-shaped chips, or microporous membranes have emerged as a valid batch-process technique to produce cell spheroids [34]. These platforms represent a minimal and simplistic approach, that offers accurate control over spheroid size and shape, substantially increased throughputs, and predictable spatial placement of spheroids. Specifically, cell-seeded microwell arrays have emerged as promising 3D substrates for the production of reproducible cell aggregates in amounts that are readily suitable for the screening of a limited amounts of drugs [25,35,36] and performing of in vivo studies using small animal models [7,37]. However, as these conventional batch techniques produce hundreds to thousands of cell spheroids per batch, translation to the industrial/clinical setting has been challenging [38].

Biomaterial-based approaches have also been used to batch produce spheroids as cell-laden hydrogel microcarriers. The development of techniques such as molding [39], two-phase emulsions [40], photolithography, and electrospraying [41,42] have demonstrated consistent spheroid production with easy retrievability, culture, and assembly into complex tissue structures that associated with improved biological functions such as cell adhesion, proliferation, and differentiation [43]. Of note, these approaches also associate with the risk for compromised bioactivity of genes, enzymes, and cell viability due to the use of organic solvents (electrospraying, two-phase emulsions) [44,45] or UV light (photolithography) [46].

Most recently, droplet-based microfluidic systems have been explored to produce microtissues with greater complexity and structural organization at higher throughputs. Microfluidic approaches hold great promise to replicate specialized human tissues in a miniaturized scale, with strict spatiotemporal control over the formation of encapsulated 3D-cell spheroids. To form spheroids, cells are perfused into tailored microfluidic chips, which create specialized microenvironments where cells are physically confined and undergo cell-cell interactions to form compact multicellular structures. In short, these systems allow for the production of microaggregates in a continuous manner in a manner that offers control over chemical concentration gradients, pressure of flow-induced signaling, and pressure and shear stress of encapsulated cells [47,48]. These microfluidic systems can have multiple geometries for the production and culture of encapsulated spheroids in liquid droplets, core-shell microgels, or solid microgels. Although the throughput of microfluidic systems is still insufficient to be considered for all industrial applications, potential solutions such as parallelized microfluidic droplet generators have been developed [49].

2.3. Fabricating microtissues – cell fibers

Cell fibers have received attention as an effective method to create 3D constructs with hierarchical structures [50]. Cell fibers can offer mechanical properties that are desirable to emulate characteristics of native tissues such as skeletal muscle tissue, blood capillaries, and nerve fibers [51,52]. Their surface-to-volume and strength-to-weight ratio provided by their microfibrous nature are frequently leveraged to build-up large scale tissues. These can be used for diverse applications such as living stitches [53,54], extrusion based additive manufacturing [55,56] and weaving [57,58]. Additionally, they may be potentially be used for tissue screening, due to the possibility to tailor cell response through strict control over the fiber's mechanical features [59,60].

A key advantage of microfibers is that they can be endowed with surface patterns in a facile and versatile manner. Indeed, attachment, proliferation, and function of cells can be steered, in addition to chemical modifications such as RGD motifs, via external topographies such as grooves. An elegant example is provided by the work of Kang et al., in which cortical neurons were externally cultured on either grooved or smooth calcium alginate microfibers fabricated by microfluidic spinning. On microgrooved fibers, neurons aligned along the ridges of the grooved surface, while on smooth surfaces neuron cells migrated to the edges and formed networks covering the alginate fibers [61,62]. In another study, scaffold-free engineered microfibers for tendon replacement grafts were created using fibroblast seeded microchannels. The microfibers were subsequently conditioned with uniaxial tensile loads in order to emulate the typical loads applied to tendon tissue [63]. These examples of surface patterning show that specific modulation of cell behavior and fiber thicknesses can be induced by introducing microtopographical changes to micromaterials in an non-invasive and non-chemical manner.

Microfibers are also explored for the production of cell-laden fibers via cell encapsulation, which has been leveraged to provide biomechanical cues to guide growth, migration, and alignment of cells. For example, Hwang et al. demonstrated that microfiber diameter can heavily influence cell orientation. Cell alignment between 10 μm and 242 μm fibers were compared, and more heterogenous orientation of cells in the larger fibers were observed [64]. In addition, fibers can adopt multiple geometries, such as solid [65], core-shell [66,67] and Janus [68,69] conformations to further guide cell behavior.

2.4. Fabricating microtissues – cell sheets

Cell sheets are engineered 2D layers of cells that can be cultured on top of a surface that supports cell growth and possesses adhesive/detaching features. Cell sheets consist of cells, ECM, growth factors, and important surface adhesion moieties that bind to the substrate. Initially, cell sheets were retrieved from monolayered cultured surfaces using proteolytic enzymes that compromised the functionality of cultured cells and cell sheet integrity. This challenge was addressed by the introduction of thermo-responsive polymer surfaces, which were typically based on Poly(N-isopropylacrylamide) (PIPAAm). This polymer surface offers thermally dictated hydrophilic/hydrophobic properties, which enables the harvesting of confluent cell layers via a simple decrease in temperature. In recent years, various alternative biomaterial systems have been reported, which include systems sensitive to ionic strength [70], photonic exposure [71], electric stimulation [72], ultrasonic vibrations [73], magnetic field manipulation [22,23], as well as biochemical treatment through non-proteolytic non-enzymatic incubation [74].

Harvested cell sheets are highly adhesive owing to their strong cell-cell junctions and deposited ECM composed of adhesion proteins such as integrins. As trypsin only degrades the carboxyl side of lysine or arginine, this matrix is only partially degraded and its integrity remains unaffected. This feature enables cell sheets to readily bind to native tissue and can provide a protective barrier from exogenous agents. Multiple studies have used cell sheets with great success to treat a plethora of different tissues, such as esophagus [75], intestinal/bowel [76,77], cornea [78,79], cardiac tissue [80,81], hepatic tissue [82], and skin [83].

Several studies have focused on the generation of cell sheets as functional units to build up complex tissue structures. Williams et al., for example, used PIPAAm and fibronectin-PDMS grooved stamps to produce and stack hMSCs sheets. This thermo-responsive layer-by-layer approach aimed to mimic physiological vascular tissue organization [84]. In parallel, Okano and collaborators developed a double polymeric hydrolayer surface of hydrophilic poly-acrylamide (PAAm) and PIPAAm aiming to improve cell-sheet detachment. They demonstrated that PAAm could facilitate the hydration and provide water molecules to PIPAAm, which accelerated cell sheet detachment [85]. Another creative example of a novel approach for cell sheet fabrication is given by Zhang and collaborators. In this specific study, the authors managed to label dental-pulp stem cells with Fe₃O₄ magnetic nanoparticles that were coated with nanoscale graphene oxide in order to organize cell orientation by magnetic fields to form multilayered cell sheets with different patterns [86]. Additionally, the graphene oxide coating provided growth-factor binding features that was used to bind BMP-2, which endowed the cells with a higher osteogenic potential.

Although promising, current cell sheet engineering technologies have inherent limitations to produce complex material-free microtissues, which associate with limited thicknesses (∼60 μm per sheet maximum) [87] and a labor intensive process. Additionally, current techniques display limitations on the vertical integration and combination of distinct tissue structures in layer-by-layer approach [88].

The application of all abovementioned batch techniques, including cell sheets, into the industrial/clinical setting has thus been primarily hampered by the lack of high-throughput production processes; current batch production methods are inefficient due to their highly demanding manual and artisanal labor, poor capability for on-the-fly tuning, and limited temporal and quality control during their production process. These challenges naturally affect the translational application of all batch process to a clinical/industrial setting and highlight the need for the adoption of continuous processes for microtissue fabrication. In contrast with batch techniques, continuous microfluidics offer production features that can omit these drawbacks of batch produced microtissues [89].

3. Continuous methods for scalable production of compartmentalized microtissues

In order to allow for clinical and industrial integration of microtissues, requirements such as a high-throughput production process [115] and minimal batch-to-batch variation [116] have to be met. However, aforementioned conventional batch processes such as low-adherent culture plates [[117], [118], [119], [120]], micropatterning [121,122], microwells [[4], [5], [6], [7], [8]], and hanging-drop techniques [[9], [10], [11], [12], [13]] do not comply with these requirements (Table 1, Fig. 2). Traditional techniques such as cell aggregation in spinner flasks typically produce free-floating microtissues, which leads microtissues to fuse with each other inside large bioreactors used for culture and thus associates with a polydispersity in final microtissue size (Fig. 2) [[123], [124], [125]]. Alternatively, batch-compartmentalization of microtissues using methods such as hanging drop and microwell culture effectively prevents microtissue fusion, but lacks the throughput required for clinical translation. In contrast, microfluidic compartmentalization of microtissues offers a continuous production process that can be elevated to reach high throughput microtissue production [89]. Additionally, the continuous nature of this production process minimizes batch-to-batch variation [126] and, importantly, the encapsulation of cells within micromaterial compartments allows microtissues to be grown in industrial-scale bioreactors by preventing microtissue fusion (Fig. 2). Taken together, these advantages make continuous methods an attractive technique for the clinical and industrial translation of microtissues.

Table 1.

Comparison of non-continuous and continuous production platforms utilizing compartmentalization for microtissue fabrication.

	Technique	Throughput	Dispersity	Microtissue size	Key material limitation	References
Non-continuous	Microwells	Limited due to 2D nature	Monodisperse	∼50–300 μm Ø	Surface tension; Hydrophilicity of substrate	[[4], [5], [6], [7]]
	Hanging-drop		Monodisperse	∼200 μm Ø	Surface tension; Hydrophilicity of substrate	[[9], [10], [11], [12], [13]]
	Micropatterning		Not applicable	–	Hydrophilicity of substrate	[[14], [15], [16],[90], [91], [92], [93]]
	Cell sheets			∼5–600 μm thickness	Hydrophilicity of substrate	[[17], [18], [19]]
	Molding			–	Hydrophilicity of substrate	[39,92]
	Photolithography			–	Often depends on UV crosslinking	[41,46]
Continuous	Droplet microfluidics	∼10−4 to 10−1 ml/min	Monodisperse	∼5–800 μm Ø	Surfactant use; Viscosity;	[27,48,[94], [95], [96], [97], [98], [99], [100], [101]]
	Vibrating jet	∼10−1 to 100 ml/min	Monodisperse	∼20–300 μm Ø	Viscosity; need for rapid crosslinking	[102,103]
	Jet cutting	∼10–105 ml/min	Monodisperse	∼150 μm–1000 μm Ø	Viscosity	[104,105]
	Inkjet printing	∼10−3 to 10−1 ml/min	Monodisperse	∼30–80 μm Ø	Viscosity	[[106], [107], [108]]
	Air-induced spraying	∼10−1 to 10 ml/min	Polydisperse	∼5–1000 μm Ø	Viscosity	[[109], [110], [111]]
	Electrospraying	∼103 to 10 ml/min	Polydisperse	∼5–1000 μm Ø	Organic solvents	[[112], [113], [114]]

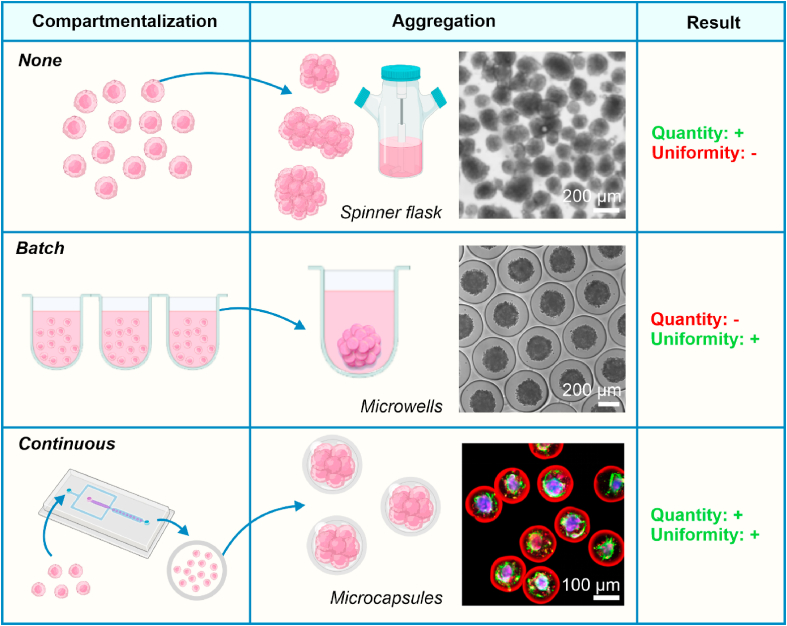

Fig. 2.

Microencapsulation is required to translate microtissues to industrial/clinical scale applications. To expand cells into larger quantities and/or more complex modalities, encapsulation using continuous microfluidics provides an ideal balance between scalability and uniformity. Traditional methods to produce microtissues rely on the culture of cells without compartmentalization (e.g., in spinner flasks) or with batch compartmentalization (e.g., in microwells), leading to low uniformity due to fusion and low throughput, respectively. By compartmentalizing cells in microcapsules using high-throughput microfluidics, microtissues can be produced in large quantities while maintaining microtissue uniformity. Moreover, microtissues produced in this manner can still be cultured in large bioreactors due to the physical barrier provided by the (semi-permeable) microcapsule, preventing microtissue fusion. Figures adapted with permission from [124,137,138].

Microfluidic production of microtissues typically involves two critical steps: (1) dispersion of a liquid cell-laden particle precursor solution into discrete droplets; and (2) solidification of droplets through in situ crosslinking or precipitation. Droplets can be formed via patterning [[90], [91], [92], [93]], molding on/in solid substrates [92], emulsification in an (immiscible) liquid [[127], [128], [129], [130], [131], [132]], or atomization in a gas [102,103,[133], [134], [135], [136]]. Here, emulsification (i.e., liquid-liquid) and atomization (i.e., liquid-air) are continuous droplet formation processes compatible with microfluidics with inherently high throughputs and therefore suitable for scalable production of microtissues.

3.1. Microfluidic micromaterials for microtissue building blocks

In microfluidics, droplet emulsions are typically produced by flowing two immiscible fluids (i.e., a (cell-laden) water-phase and an oil-phase) in a coaxial [127,128], T-junction [129,130], or flow focusing [131,132] configuration, which can be stabilized with surfactants [139]. The discrete aqueous droplets within the emulsion can be solidified into cell-laden micromaterials via a wide range of mechanisms including ionic- [27,140,141], enzymatic- [138], photo- [[142], [143], [144]], or thermal-crosslinking [145]. A wide variety of materials can be chosen, with the key material limitation being viscosity (Table 1). These cell-laden micromaterials can be cultured as individual living microtissues, but can also be assembled into clinically sized, modular, living microtissues.

The most intuitive form of microfluidically produced micromaterials is solid microspheres, where a polymer precursor solution is emulsified into droplets that are fully solidified [[146], [147], [148]]. The introduction of cells into the precursor solution results in either single-cell-laden solid microgels [144,147,149], or multiple-cell-laden solid microgels [[146], [147], [148]], which can in turn be used as building blocks for bottom-up engineered tissues. However, these solid microgel systems hinder cell-cell contact of encapsulated cells, which is known to be an important factor in the benefits of 3D cell culture [150]. Building on the principles utilized in creating solid microspheres, it is possible to create hollow, compartmentalized microgels by using, for example, multi-emulsions [151]. By introduction of cells in the hollow compartment of core-shell microgels, cells are encapsulated in a manner in which cell-cell contact is enabled, which allows for the formation of cellular aggregates and more complex organoids [138,152]. Janus particles are a specific type of compartmentalized structure, typified by a more complex anisotropic morphology and a multicompartmental, but not necessarily core-shell, structure [153]. Their anisotropic properties are often manifested in a chemical or physical manner, but also allow for encapsulation of multiple cell types within a single micromaterial without direct cell-cell contact. Although the aforementioned microfluidically formed microtissue building blocks are all most commonly spherically shaped, non-spherical microparticles can also be produced continuously using microfluidics. Confinement of microfluidic channels allow for the production of disc- or rod-shape microparticles [154], while produced droplets can also be further processed in non-spherical microparticles by arrested coalescence, asymmetric polymer solidification or evaporation-driven clustering [155]. Since non-spherical microwells are known to allow for microtissue polarization [156], these continuously produced non-spherical particles could similarly allow the formation of complex, polarized microtissues, but in a higher-throughput format.

3.2. Microfluidic production methods for micromaterials

Continuous microfluidic production methods operate in either the dripping regime (Weber number (We) < 8) or jetting regime (We > 8). Techniques in the jetting regime can be further categorized based on the breakup of the jet from a Rayleigh induced breakup regime (Weber gas (We_g) < 0.4) to a wind induced breakup regime (Fig. 3a and b). The throughput as well as monodispersity of the capsules produced using continuous production methods are closely related to these regimes as illustrated by the time it takes to fill the various types of bioreactors on the right y-axis of Fig. 3b. Finally, the desired microtissue size also has an influence on the throughput of various continuous microcapsule production methods (Fig. 3c).

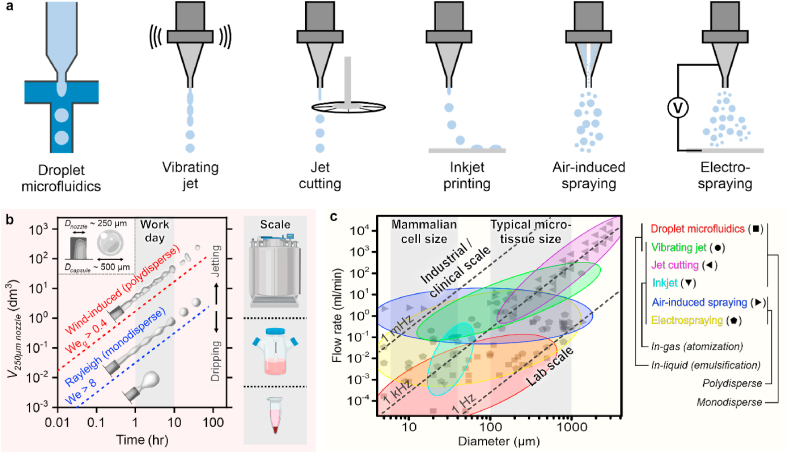

Fig. 3.

Continuous microcapsule production methods and their potential for translation to clinical/industrial settings. a. Schematic representation of various continuous production methods to produce (cell-laden) microcapsules. b. Typical throughputs of continuous production techniques calculated for varying regimes including from dripping; Weber number (We) < 8 to jetting (We > 8) into and from Rayleigh induced break up (gas Weber number (We_g) < 0.4) to wind-induced breakup (We_g > 0.4). A capsule size of 500 μm is chosen for the calculations as a representative example. On the right y-axis, container sizes are indicated to illustrate the required time to fill a specific volume ranging from lab scale (Eppendorf tube) to industrial scale (bioreactor). c. Overview of various continuous production methods and their throughputs (flow rate) as a function of droplet size. Typical mammalian cell size and microtissue sizes are indicated to outline methods of interest. The indicated production regimes are based on data points obtained from the following references: droplet microfluidics [27,[95], [96], [97], [98], [99], [100], [101],104], vibrating jet [102], jet cutting [105,106], inkjet [107,108,176], air-induced spraying [106,[109], [110], [111], [112]], and electrospraying [106,113,114,177]. Figure adapted with permission from [178].

The most common method for continuous droplet formation for production of the aforementioned cell-laden micromaterials is through the use of microfluidic channels within glass [[157], [158], [159]] or transparent elastomers such as polydimethylsiloxane (PDMS) [[160], [161], [162], [163]], which are operated in the dripping regime. These systems have been shown to be successful for the fabrication of microtissues. However, while production in the dripping regime allows for excellent control of monodisperse microparticle formation, their low production rates (<1 ml/min) [164] are inhibitive for clinical and industrial translation (Fig. 3b). Hence, innovations such as parallelization are required in order to achieve commercially relevant throughputs [49,165,166]. Moreover, disadvantages of the single-use and enclosed nature of these systems limits their scalability for the production of microtissues. These disadvantages include the need for advanced lithographic infrastructure to produce the microfluidic systems and their association with significant wastage of (e.g., clogged) microfluidic devices. As an alternative, reusable off-the-shelf microfluidic devices that are manufactured using standard cutting and abrasion methods have been explored to allow widespread adaptation of these water-in-oil systems [142].

Jetting and spraying technologies allow for higher throughputs (up to 100 ml/min) [102], which makes them more suitable for scalable production of cell-laden microcapsules (Fig. 3b) [164]. However, unassisted techniques such as air-induced spraying and electrospraying only offer poor control over resolution and produce polydisperse microparticle populations (Fig. 3b) [167,168]. Therefore, efforts have been made in order to achieve monodisperse microparticles in the jetting regime by for instance jet-cutting [104,105] or by applying microvibrations using piezoelectric elements in liquid-liquid with vibrating jet technology [[169], [170], [171]] and liquid-air configurations with both inkjet [[106], [107], [108]] and vibrating jet technology (Fig. 3a,c) [102,103,172]. Similarly, electrospraying has been utilized by applying (submerged) electromagnetic fields for both liquid-liquid [173,174] and liquid-air configurations (Fig. 3a,c) [[134], [135], [136]].

In contrast to liquid-liquid, liquid-air systems such as sprays or droplets that fly in the air do neither require the use of a potentially sample contaminating immiscible phase (e.g., oil) or surfactants (e.g., amphiphiles) to form droplets while allowing for considerably higher production rates. However, the produced droplets only remain separated until they collide onto their receiving collector, or coalesce in-flight, which necessitates their in-flight stabilization using, for example, extremely rapid (milliseconds) crosslinking mechanisms. In practice, atomization is therefore almost exclusively combined with ionic crosslinking strategies such as alginate with divalent cations [102,103], rapid heating (i.e., spray drying) or cooling (i.e., spray freeze drying) strategies, which is in contrast with lower throughput systems which beside ionic crosslinking materials can utilize materials with slower crosslinking mechanisms such as enzymatic and photo crosslinking [142]. Yet, materials that rely on slower (seconds to minutes) solidification mechanisms such as silk fibroin can still be utilized by leveraging, for example, alginate as a sacrificial structural template in the form of an alginate shell or interpenetrating alginate network [175]. Several complex micromaterial structures have been produced using in-air microfluidics, such as (cell-laden) solid microgels, core-shell microgels, Janus micromaterials and microfiber structures [102,103]. It is important to note that cell-laden micromaterials can be combined with non-cell-laden micromaterials, allowing interesting opportunities to add further functional and/or spatial complexity to influence microtissue formation [21]. In this fashion, a wide array of materials can be processed to yield cell-laden micromaterials of controlled shape and size for complex microtissue formation with high quality and high quantity, allowing for clinical and industrial translation of cell-laden micromaterials. Microfluidic platforms can also be integrated with x-y controlled motors (e.g., inkjet droplet printing), which can be leveraged to engineer hierarchical tissues in an automated fashion [94], or be utilized as handheld printers, for example, for in situ bioprinting [102].

4. Applications of microtissues

Microtissues have numerous applications in various commercial domains (Fig. 4). Firstly, they can be used as single units to study the fundamentals of microtissue formation, maturation, and homeostasis. Using continuous fabrication processes, microtissues can be tuned on the fly to create large libraries for screening experiments. Second, by combining bottom-up engineered microtissues with top-down production processes, next generation tissues or living implants can be engineered in a modular, hierarchical, and spatially controlled manner. Finally, in recent years, cellular agriculture and engineered meat have garnered a significant amount of attention. The evident ever-growing demand of these applications has highlighted the need for large-scale microtissue production using facile, tunable, and scalable techniques. As applications are a key determinant in the design of microtissues and dictate the criteria for their composition as well as their production methods, this chapter will outline several applications and their associated requirements.

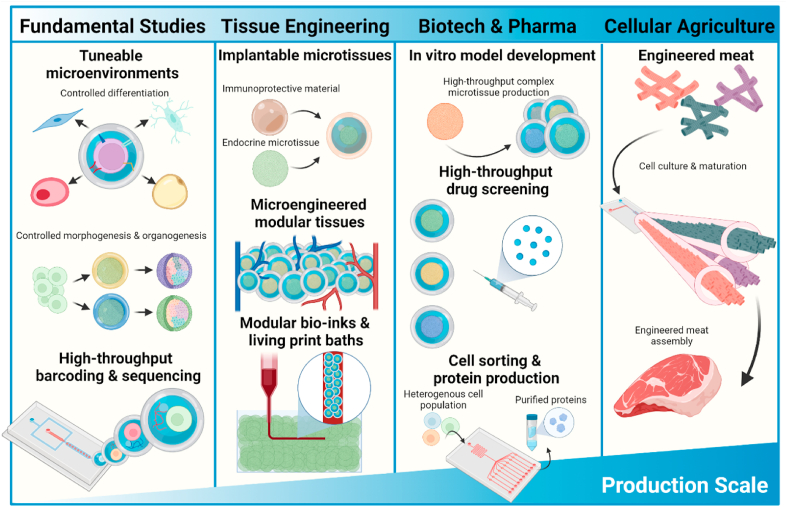

Fig. 4.

Schematic representation of applications of microtissues across various production scales. Applications of complex microtissue range across a wide variety of scales. From building controllable environments for fundamental studies to implantable tissue constructs, high-throughput drug screening platforms and engineered meat. Each application has different requirements for microtissue formation, culture and complexity.

4.1. Fundamental cell studies: high-resolution 3D microenvironments

It is well-known that cells interact intimately with their microenvironment in a reciprocal manner [179]. Microenvironments dynamically dictate cell fate and play an important role in the onset, development, and treatment of diseases such as cancer [180,181]. Indeed, 3D culture systems have repeatedly been demonstrated to more accurately emulate in vivo behavior as compared to the historically dominant 2D culture systems [182]. Moreover, 3D culture systems assembled of a combination of cells and materials allow for a tunable environment with spatially organized microenvironmental cues [183]. The interplay between cells and their microenvironment has been widely explored in vitro and has also been shown to be of importance in vivo in directing regeneration, underlining the importance of the microenvironment for tissue morphogenesis and homeostasis [[184], [185], [186]]. By encapsulating cells in microgels, it becomes possible to precisely tune the cellular microenvironment while minimizing or even avoiding heterogenous cell response due to mass-transport limitations or hindered oxygen diffusion that commonly associate with conventional macro-sized 3D in vitro cultures and 3D cellular spheroids [187,188]. To achieve microenvironments that can steer cell fate or maturation, it is important to develop or adapt tunable materials that can be utilized to control cell-cell interaction and cell-material contact (e.g., material stiffness, topography, and degradation) in a spatial and temporal manner in microtissues.

A typical example of a microenvironmental cue to modulate (stem) cell responses is mechanotransduction through the use of cell-adhesive molecules (CAMs). Microenvironments are endowed with CAMs to enable the stem cell microniche to control, for example, proliferation and differentiation [189]. The physiological microenvironment's dynamic nature strongly regulates how these factors are presented to cells, and is thus important to design temporally controllable microenvironments in vitro [190]. Discrete inducible on-cell crosslinking (DOCKING) has recently been showcased as an example of such a temporally tunable microenvironment. By directly tethering cells to non-adhesive materials, it allowed the transduction of mechanical cues from non-adhesive materials to cells, enabling stem cell programming using material stiffness. Moreover, by modulating the material's stiffness in a temporal manner, the dynamic nature of the natural microenvironment of the cell can be emulated. Using technologies such as DOCKING, it will become possible to study stem-cells and their response to tailored mechanical cues, to steer differentiation and to engineer larger tissues with highly optimized cellular microniches [149]. Another approach to study and direct stem cell fate was reported by Kolb et al. Aggregates of cell lines that could express specific tagged proteins were encapsulated into microgels. The expressed proteins were subsequently chemically captured in the outer layer of the microgel where they could affect the response of cells cultured on the outside of the microgels. In this manner, they were able to create libraries of microniches to screen stem cell fate in response to specific proteins [191].

To gain a better understanding of developmental processes such as organogenesis and morphogenesis, a certain degree of complexity in microtissues is often required. Whether using scaffold-free approaches [192] or compartmentalization using the described techniques, continuous microfluidic techniques enable straightforward creation of large amounts of microtissues, which are necessary for such high throughput screens. To study the mechanisms underlying these processes, sequencing technologies are typically employed. Traditional sequencing technologies struggle to screen single cell populations and identify population distributions in an accurate, high throughput manner and require multiple platforms and techniques to isolate and process cells separately. A recent example of the potential of microgels in cell screening was shown by Lan et al. who leveraged single cell encapsulation to create barcoded, single-cell microgels allowing for high-throughput single cell genome sequencing [193]. By constraining single cells in microgels, cells and genomes were kept separated. The microgel environment additionally served as a microreactor, automating a large part of the process, resulting in less variability due to handling/user bias. By providing a variety of cues to the cells, platforms like these could enable researchers to better understand the cellular mechanisms required for the formation of more complex tissues. An example of this approach was showcased by Klein et al. who screened the heterogenous onset of differentiation by embryonal stem cells in response to withdrawal of leukemia inhibitory factor (LIF). In their work, the use of high-throughput droplet microfluidics was critical to reach the processing scale required to identify small subpopulations. Besides the effects of soluble factors, shape and mechanical properties are known to play important roles in microtissue development [[194], [195], [196]]. In principle, microfluidic compartmentalization allows for the creation of tunable microenvironments that serve as culture vessels for single cells as well as microreactors for downstream processing.

4.2. Tissue engineering: injectable and interconnected microtissues

Owing to their attractive feature of self-assembling and fusing in a bottom-up manner to form complex tissues in a straightforward and scalable manner, the use of microtissues have become commonplace in bioengineering in recent years. Moreover, compartmentalization of microtissues provides an increased degree of modularity and hierarchical structure, control over tissue formation as well a protective layer to shield microtissues from their environment, which may be desirable when assembling them into larger constructs, or for in vivo applications. Individual as well as connected microgel building blocks have found a variety of promising uses in the field of bioengineering, which ranges from minimally invasive therapies to printable bioinks to embedded printing baths.

Microtissues have been used as injectables in cell-based therapies for years, but typically suffer from low retention and post-injection viability. Encapsulation of cells in hydrogels has been used as a tool to address these challenges, but the use of bulk hydrogels also imposes limitations in the diffusion of oxygen and nutrients owing to their typically large size [197]. Compartmentalizing microtissues in micron-sized hydrogels resolves this limitation and has been explored extensively as injectable cell-based therapeuticals. Feng et al. encapsulated bone mesenchymal stem cells in gelatin-hyaluronic acid microgels, which led to improved chondrogenesis as well as post-injection viability and cartilage restoration. Moreover, the stem cells were able to migrate to the shells of the microgels, allowing for in-situ annealing of microtissues through cell-cell contact. This effect prevented unwanted vascularization as well as hypertrophic differentiation, which led to improved in situ cartilage formation [198]. Encapsulation can also play an important role in regulating the immune response post-injection by acting as an immunoprotective semi-permeable shield. This strategy is of particular interest for organs with an endocrine function, such as the pancreas [26] or the adrenal gland [199] under pathological conditions that associate with autoimmune destruction of native tissues. Weaver et al. utilized this approach to inject encapsulated pancreatic islets from an allogeneic source, showing improved implant survival, integration, and retrievability compared to unencapsulated islets, while maintaining the ability to restore normoglycemia in diabetic mice [200]. In addition, immunoprotective biomaterials may further enable the use of allogeneic or xenogeneic cell for a wider set of clinical applications.

In recent years, a new class of microgel based scaffolds termed microporous annealed particle scaffolds (MAPs) has garnered attention. These consist of microgels that are annealed either before or after injection, leading to improved tissue integration compared to traditional nanoporous hydrogels owing to the microporous nature of the construct, which allows for increased cell infiltration [21]. Some examples of the potential of MAPs in regenerative medicine include their use as scaffolds for delivery of cells with improved retention [201], accelerated wound closure [21], improved cartilage regeneration [202] and delivery of therapeutics [203]. Although not widely explored, these scaffolds can also be combined with encapsulated microtissues to engineer large tissues. An example of the potential of this approach was published by Yang et al. who built larger tissues from cell-laden microgels in a bottom up manner [204]. Stem cells were encapsulated in millimetric collagenous microgels using a microfluidic system, which were subsequently allowed to anneal in a mold to form MAPs. Over time, cell-cell contact led to annealing, and cell-ECM interactions also caused the collagen microgels to shrink. Moreover, porous space was found in between the annealed microtissues, allowing for improved media diffusion compared to nanoporous constructs. Although centimeter sized constructs were engineered, the microtissue building blocks in this work were relatively large (>800 μm post shrinkage), which associates with a poor resolution and may still cause oxygenation and nutritional difficulties over long-term culture periods or during implantation.

To improve implant survival, pre-vascularization of engineered tissues is a commonly used approach. Owing to the shear thinning properties of dense microgel and/or microtissue suspensions, it is possible to utilize microtissues as print baths for embedded printing [205,206]. Integration of microtissues with top-down approaches such as 3D printing enables an added degree of spatial organization, allowing for large, highly organized 3D tissues with micro-scale modularity and resolution. Moreover, printing vascular-like channels and pre-vascularizing engineered tissues can improve implant performance and survival. The concept of integrating microtissues with 3D printing has been showcased. For example, Skylar-Scott et al. [206] used spheroids as a print bad and Hinton et al. [207] used microgels as a printing bath. Both of these methods could profit from the benefits of microfluidics, by compartmentalizing microtissues for higher-throughput culture as well as protection during printing to facilitate living modular print baths. Finally, microtissues can also be used as bio-inks instead of baths [208,209]. Combining both ink and bath approaches provides an unprecedented degree of freedom in designing engineered tissues. These printed constructs could then be stabilized through aforementioned approaches such as microgel annealing or tissue fusion. However, to translate such approaches to clinical scales, it is necessary to also scale-up the production throughputs of cell-laden microgels. To this end, Di Carlo et al. created a scalable platform to generate annealable microgels with production rates of ∼25 mL per hour [210]. However, these microgels were not cell-laden, and inclusion of cells would impose additional restrictions on the production method. Ideally, small building blocks (<200 μm) should be used to generate high-resolution bottom-up engineered tissues. Although it is possible to engineer larger microtissue building blocks, additional strategies would be required to circumvent issues related to oxygenation and nutritional limitations within the microtissue, examples include vascularization and oxygen releasing compounds, both of which have been reviewed extensively elsewhere [[211], [212], [213]]. These engineered building blocks can additionally allow for increased control over the hierarchical structure and properties of an engineered tissue, as their modular assembly leads to varying properties (e.g., mechanical properties) over different scales of resolution, which is something that is more difficult to achieve with traditional engineered tissues constructed from nanoporous bulk hydrogels. However, in microfluidic production methods, microgel size is typically inversely related to production speed (Fig. 3c), emphasizing the need for scalable production platforms to engineer high resolution microtissue building blocks. In short, new techniques and protocols to produce cell-laden micromaterials in ultra-high throughput are needed to create clinically-sized, personalized, modular tissues to realize straightforward clinical translation.

4.3. Biotechnology/pharma industry: high-throughput screening of 3D microenvironments

Biotech and biopharma have historically relied on widespread and intensive use of animal testing to develop and verify the safety and efficacy of new pharmaceutical products such as vaccines or drugs. With many governments striving for a reduction in animal testing an abundance of in vitro alternatives have been developed in recent years. A main requirement for such alternatives is that they accurately emulate human physiology. In vitro drug testing has seen significant advances that have enabled the replacement of specific traditional 2D cell culture models with more advanced 3D models, most notably spheroids and organoids, due to the presence of a more physiologically relevant microenvironment. As previously reviewed by Astashkina et al. the microenvironment plays an important role in achieving and maintaining the native phenotype of microtissues, which is required to obtain relevant information from drug toxicity tests [214].

Besides physiological relevance, compatibility of the in vitro model with high-throughput screening methods plays a key role when designing microtissues for drug screening. Production methods need to reliably produce homogenous 3D models with little to no batch-to-batch variation, as variance in size or cellular composition can have detrimental effects on the initial drug response as well as technical reproducibility of results (e.g., size is a limiting factor for optical readouts). Moreover, high throughput screening processes are ideally automized, to reduce variability and error caused by handling and, most importantly, to cost-effectively accelerate the process of identifying promising drugs to be further evaluated.

Compartmentalization using continuous production methods can have an impact on the biopharma and drug screening sector in a variety of ways. First, the throughput rates of microtissue production can lead to accelerated drug screening, as a larger amount/libraries of microtissues can be generated in a substantially shorter timeframe. Second, the cellular composition of microtissues can be controlled in terms of differentiation and maturation through modulating the cell's microenvironment through, for example, choice of microgel material. This allows for increased control over 3D model complexity as opposed to hanging drop or microwell formats, where soluble factors are generally the only method used to control the 3D model. Compartmentalization can thus offer the opportunity to create more (patho)physiologically relevant microenvironments. Third, the microenvironment protects microtissues allowing, for example, for displacement of microtissues using robotics or dispensing systems without incurring microtissue damage thus reducing data bias [215]. Finally, through chemical modification, microgels can be functionalized with biochemical sensors (e.g., biomarkers) allowing for rapid assays without the need for multi-step protocols to analyze microtissues after adding drug compounds [216].

Besides the development of tissue models for drug testing, the bioprocessing field might also benefit from the use of compartmentalization and continuous microfluidic production methods. Mammalian cell lines are used for directed evolution to produce recombinant proteins that are applied in, for example, drug development or as biocatalysts, as other organisms or expression systems (e.g., bacteria) may lack the required environment for some proteins to function properly [217,218]. Two of the major steps in the development of recombinant proteins are selection of the cell lines to produce a population with high expression of the desired protein and downstream protein purification [219]. Microencapsulation of cells could enable higher-throughput screening methods to select desirable clones in heterogenous populations. By including specific protein-immobilizing moieties onto micromaterials, produced proteins could directly be captured inside the microcarrier. In this manner, proteins are concentrated in local small volumes and more easily purified and extracted [220]. Moreover, using in-line fluorescence sorting methods, the high-producing populations could directly be identified and extracted to isolate monoclonal high-producing populations. Finally, cell-cell contact and microenvironmental cues have been implicated as important factors in faster population growth and cloning efficiency. These are issues that can readily be addressed by compartmentalizing cells inside micromaterials to create microtissues and improve directed evolution in the biotech industry [221].

4.4. Cellular agriculture: engineered cruelty-free meat

With global attention focused on improving animal welfare and the environmental impact of the meat industry, cellular agriculture has emerged as a rapidly growing biotechnology field. A well-known example is the lab-grown hamburger presented by the research group of Mark Post in 2013. Fresh muscle was extracted from a cow, and the cells from this piece of tissue were grown in the lab for several weeks to expand the cells. Subsequently, the cells were matured in a ring-like mold to form mature muscle fibers. A large amount of these fibers was then used to combine into an 85 g hamburger [222]. In a more recent example by Furuhashi et al. a pillar based mold was used in conjunction with cells suspended in hydrogels to mature millimeter thick bovine myocytes. This method has scalable modules which theoretically enables the culture of regularly sized steaks [223].

Although the concept of a cultured meat has been shown, the process is still far from optimal. The major roadblock for advancing cellular agriculture is acquiring large quantities of cells in a cost-efficient manner. Traditional cell-culture methods are labor intensive, time consuming, and often demand separate platforms for culture and maturation of cells. Moreover, to engineer a larger diversity of meats, texture and cell types become an important factor as well. The main components typically present in meat are skeletal muscle and fat tissue, which both require different culture and maturation protocols to develop or maintain their respective physiological phenotypes. The amount in which these components and the extracellular matrix they deposit are present in meat greatly determine its texture. A high amount of fat, for example, leads to a more ‘juicy’ texture. These tissues should thus ideally be cultured separately, in large quantities, while maintaining the ability to easily assemble them into diverse combinations when enough cellular material is produced [224].

Microfluidics and cell compartmentalization may allow for the improvement of several steps in cellular agriculture. For example, cells could be compartmentalized and grown in large fibers, such as the meter-long cell laden microfibers prepared by Onoe et al., which enable a less labor-intensive manner of culturing a large amount of cells. Moreover, by culturing cells as fibers, alignment and maturation of tissues may also be achieved, aiding tissue texturization. These microfibers, in this case core-shell alginate fibers, can be removed at the end of the culture process before assembling the cell fibers into desired shapes [57]. By utilizing several types of cell fibers, texture and diversity can be realized to more closely resemble different types of real meat.

The use of microfluidic encapsulation and compartmentalization has the potential to streamline the process of meat culture. By utilizing edible materials to microfluidically engineer culture and maturation platforms for cells, engineering meat could perhaps become a one-step process in the future. However, microfabrication technologies need to be optimized to facilitate a process that is clean, ultra-high-throughput, and highly cytocompatible [225,226]. By choosing edible, FDA approved, human food-grade materials, micromaterials themselves could also provide benefits such as improved texture [226].

5. Future perspectives

The use of continuous microfluidics for the creation of microtissues has surged in recent years. With the introduction of new materials, microfluidic architectures, and new sources of cellular material, increasingly complex microtissues are being developed, which closely resemble their native counterparts. In laboratory settings, an increased use of iPSCs and associated differentiation protocols is anticipated, leading to microtissues that could be used to gain a better understanding of embryogenesis or morphogenesis.

Using patient-derived cells such as iPSCs to create microtissues also allows for the creation of patient-derived libraries to enable personalized drug testing. However, such biopharmaceutical drug screening libraries require the culture of a large amount of cells as well as large-scale microtissue culture. Compartmentalization could accelerate this process by allowing for culture as well microtissue formation in a one-step protocol, as opposed to, for example, microwell culture. To reach the pharmaceutical industry, it is crucial that microfluidic processes achieve higher-throughputs than currently available. Moreover, new processes should be tunable but also clean and automated to streamline the resultant microtissues for downstream utilization, without the need for additional steps, for example, extensive washing steps.

Besides cell-source, innovations in the materials used to compartmentalize and mature microtissues are also required. The compartmentalization of microtissues in microgels with tunable physical, chemical, and architectural properties in a spatiotemporal manner will allow researchers to study which factors play decisive roles in developmental and pathophysiological processes [227]. The development of highly controllable modular microtissue building blocks through continuous production methods will concurrently enable a next generation of tissue engineered constructs, where the nano, micro, and macroenvironments are uncoupled and can be controlled separately, for example, from material functionalization (nanoscale), to controlling microtissue size through compartmentalization (microscale), to bulk properties through the assembly of microtissues into MAPs (macroscale) [144]. This next generation of tissue engineered constructs also includes an inherent porous structure, which can be leveraged to guide and speed up complex biological processes such as vascularization or innervation inside engineered tissues [228]. To this end, scalable production methods should also aim to produce materials with varying aspect ratios, as anisotropic architectures are found in a variety of native tissues and may contribute to improve the fidelity of engineered tissues for both in vitro and in vivo applications [[229], [230], [231]].

With the development of more complex microtissues also comes a need for new media formulations to satisfy the needs of the microtissues that typically contain multiple cell types. Moreover, to scale microtissue formation, media formulations also need to become cheaper and, for applications such as cellular agriculture for lab-grown meat, ideally chemically-defined and animal-product free, for example, avoiding the typically used component fetal bovine serum (FBS).

Finally, it is important to consider the type and degree of complexity that is required for each specific application. Fundamental microtissue formation studies may require systems with highly versatile temporal and/or spatial control, while translational applications are likely to benefit from more limited but more readily translational biomaterial formulations. Similarly, microfluidic production platforms allow for a variety of adaptations based on the requirements of the application. Applications such as tissue engineering as well as lab-grown meat may benefit from the coupling of microfluidic systems to 3D printing platforms to enable one-step bottom-up engineering of high-resolution hierarchical tissues, whereas applications such as drug screening libraries would benefit most from a production process that allows for on-the fly formulation tuning.

In conclusion, continuous microfluidics and compartmentalization have great potential in the scalable production of microtissue formation. However, cleaner, faster, and more scalable microfluidic processes need to be developed to allow for the translation of microtissues towards clinical and industrial applications. Simultaneously, downstream processes need to be expanded to allow for handling and processing of large amounts of microtissues.
