. 2019 Sep 19;9(51):29721–29725. doi: 10.1039/c9ra06120g

Oxidative cyanation of N-aryltetrahydroisoquinoline induced by visible light for the synthesis of α-aminonitrile using potassium thiocyanate as a “CN” agent†

Bing Yi 1,✉, Ning Yan 1, Niannian Yi 1,✉, Yanjun Xie 1, Xiaoyong Wen 1, Chak-Tong Au 1, Donghui Lan 1
PMCID: PMC9071963  PMID: 35531501

Abstract

A novel method for the synthesis of α-aminonitrile through visible-light-induced oxidative cyanation of N-aryltetrahydroisoquinoline with potassium thiocyanate has been developed. The process does not require the use of a photocatalyst, transition metal reagent, strong oxidizing agent, or toxic cyano-containing compound, which makes the reaction simple and green.

A novel method for the synthesis of α-aminonitrile, through visible-light-induced oxidative cyanation of N-aryltetrahydroisoquinoline with potassium thiocyanate, has been developed.graphic file with name c9ra06120g-ga.jpg

α-Aminonitriles are versatile intermediates which can be readily converted into a range of multifunctional organics,1 such as α-aminocarbonyl compounds, α-amino acids, 1,2-diamines and many others. Moreover, many nitrile-containing compounds have been widely used as drugs for treating various diseases.2 For example, amphetaminil3 is a stimulant that can be employed to treat obesity and narcolepsy; others like Saxagliptin,4 NVP-DPP728 (ref. 5) and Vildagliptin6 are potent reversible inhibitors of dipeptidyl peptidase-4 (DPP-4), and can be applied as novel antidiabetic drugs. Therefore, the development of novel, efficient and clean methods for the synthesis of α-aminonitriles has attracted wide attention.

Traditionally, α-aminonitriles are synthesized through the Strecker reaction.7 Another momentous strategy for synthesis of α-aminonitriles is oxidative cyanation of tertiary amines with the involvement of transition metal reagents (such as Ru,8 Au,9 Cu,10 Fe,11 Co,12 V,13 Mo,14etc.) and non-metallic reagents (such as PhI(OAc)2,15 tropylium salt,16 AIBN,17 TBAI,18 AcOH,19 PIFA,20 TBHP,21 thiourea,22 DDQ,23 TBPB,24aetc.). Among the reported cyanidation of tertiary amines, the cyano sources mainly includes (i) metal-cyanides such as NaCN,8a–8c,10c KCN,16 K3[Fe(CN)6],25 KSCN,21etc., (ii) organic cyanides such as trimethylcyanosilane,9a,10e,11a–11c,11f malononitrile,10a,15,23 ethyl cyanoformate,11d,8e,11d,12 benzoyl cyanide,11e phenylacetonitrile,18a cyanoacetic acid,18b tetrabutylammonium cyanide,19 cyanobenziodoxolones,24 AIBN,26etc., and (iii) combined cyano source such as the combination of 1,2-dichloroethane and trimethylsilyl azide.10b (Scheme 1). However, most of these methods require transition metal reagents, strong oxidizing agents, and cyano sources that are highly toxic and difficult to obtain. Therefore, it is necessary to find a cyanide source that is easily available and of low toxicity for the cyanidation of tertiary amines.

Scheme 1. Cyano sources for cyanidation reactions of tertiary amine.

Scheme 1

Open in a new tab

In organic synthesis, thiocyanate has received extensive attention due to its low toxicity, low cost and easy availability.27 Using the thiocyano group of thiocyanate, thiocyanation of organic molecules can be achieved by nucleophilic substitution or through a free radical pathway.28 More importantly, thiocyanate can be utilized as a clean and safe source of cyano group.21,29 However, these methods have the following disadvantages: using a transition metal catalyst, or a strong oxidizing agent, or heating. The utilization of light energy in organic synthesis is highly commendable because it is sustainable, clean, environmentally benign, as well as widely and easily available. In recent years, great progresses have been made in the formation of carbon–carbon bond that is induced by visible light,30 among which the oxidative cyanation of tertiary amine is a good example.31 However, to the best of our awareness, the cyanidation of tertiary amine with thiocyanate induced by visible light has not been documented yet. Herein, we report the visible-light-induced oxidative cyanation reaction of tertiary amines with potassium thiocyanate.

We began our investigation with the use of N-phenyltetrahydroisoquinoline (1a) and potassium thiocyanate (2a) as the model reaction (Table 1). First, the reaction was carried out in absolute ethanol illuminated by the compact fluorescent lamps (CFL) of 30 W at room temperature under air atmosphere. Fortunately, the desired product 2-phenyl-1,2,3,4-tetrahydroisoquinoline-1-carbonitrile (3a) was obtained in 50% yield after 24 h (entry 1). Then, we explored the effects of oxidants such as O2, TBHP, H2O2, K2S2O8, DDQ, and PhI(OAc)2 on the reaction (entries 2–7). Among them, O2 showed the best result (entry 2). The light source also had an important influence on this reaction. When the compact fluorescent lamps was replaced by a red LEDs, the yield of the reaction significantly reduced from 55% to 6% (entry 8). When green LEDs was chosen as the light source, the yield of the reaction was increased to 68% (entry 9). Besides, we investigated the effect of other visible light sources on the reaction, and purple LEDs was proved to be the best choice, up to 83% yield (entries 10 and 11). Based on the above experimental results, it is deduced that the shorter the visible-light wavelength, the higher is the reaction efficiency. In addition, we investigated the effect of solvents such as CH3OH, DMSO, PhMe, and CH3CN on the reaction (entries 12–15). Among them, CH3CN was the most suitable, giving 3a in 92% yield. When KSCN was replaced with NH4SCN, the yield of the corresponding product was 71% (entry 16). It is worth noting that the reaction did not proceed in the absence of either light or oxidant (entries 17 and 18).

Optimization of cyanidation of N-phenyltetrahydroisoquinoline (1a) with potassium thiocyanate (2a)a.

graphic file with name c9ra06120g-u1.jpg
Entry Oxidant Light Solvent Yieldb (%)
1 Air 30 W CFL C2H5OH 50
2 O2 30 W CFL C2H5OH 55
3 TBHP 30 W CFL C2H5OH 25
4 H2O2 30 W CFL C2H5OH 17
5 K2S2O8 30 W CFL C2H5OH 19
6 DDQ 30 W CFL C2H5OH 3
7 PhI(OAc)2 30 W CFL C2H5OH 5
8 O2 30 W red LEDs C2H5OH 6
9 O2 30 W green LEDs C2H5OH 68
10 O2 30 W blue LEDs C2H5OH 74
11 O2 30 W purple LEDs C2H5OH 83
12 O2 30 W purple LEDs CH3OH 11
13 O2 30 W purple LEDs DMSO 8
14 O2 30 W purple LEDs PhMe 11
15 O2 30 W purple LEDs CH3CN 92
16c O2 30 W purple LEDs CH3CN 71
17 — 30 W purple LEDs C2H5OH 0
18 O2 — C2H5OH 0
Open in a new tab
a

Reaction conditions: 1a (0.2 mmol), 2a (0.1 mmol), oxidant (1.5 equiv.), solvent (1.5 mL), rt, 24 h.

b

Isolated yields based on 2a.

c

NH4SCN was used instead of KSCN.

With the optimized conditions, we explored the substrate scope of this visible-light-induced cyanation reaction between N-aryltetrahydroisoquinoline (1) and potassium thiocyanate (2a) (Scheme 2). The N-aryltetrahydroisoquinolines with either an electron-withdrawing or electron-donating group reacted well with potassium thiocyanate to afford the desired products in moderate to good yields. Specifically, when the benzene ring attached to the nitrogen atom had an electron donating group (Me, Et, and Ph) at the para position, the desired products were in 79%, 86% and 62% yields, respectively (3b–d). In the cases of having an electron-withdrawing group (F, Cl, Br, CN, CF3, and OCF3) attached to the benzene ring at para position, the desired products were obtained in moderate to good yields, and the highest one was up to 88% (3e–j). Besides, ortho- and meta-substituted N-aryltetrahydroisoquinolines also exhibited high reactivity, and the target products were obtained in moderate yields (3k–n).

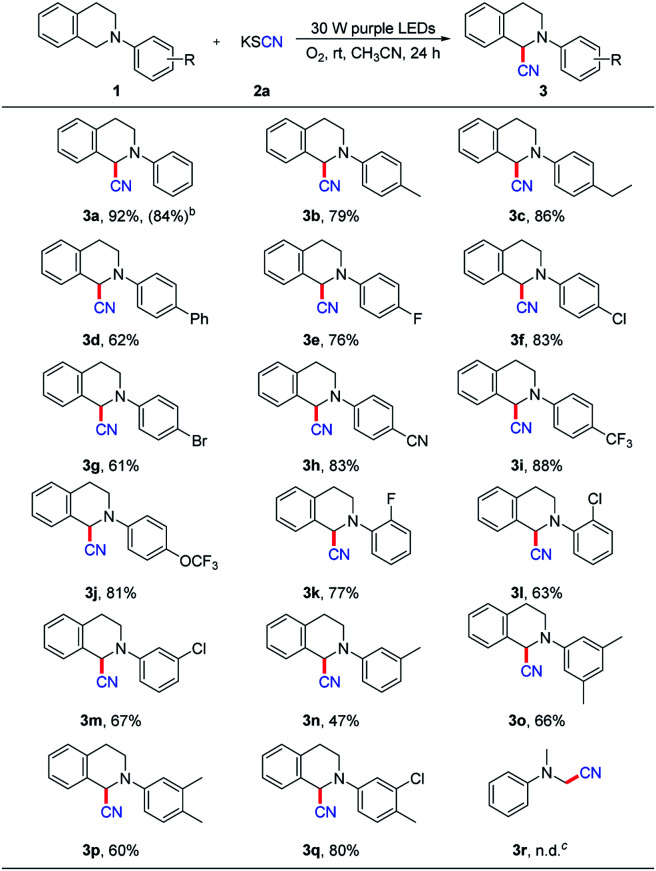

Scheme 2. Substrate scope for cyanation of N-aryltetrahydroisoquinolines (1) with potassium thiocyanate (2a)a. aConditions: 1 (0.2 mmol), 2a (0.1 mmol), CH3CN (1.5 mL), 24 h, isolated yields of column chromatography based on 2a. bThe yield was based on 1 mmol of KSCN. cNo product was detected by GC-MS.

Scheme 2

Open in a new tab

What's more, the substrates with two identical or different substituents on the phenyl ring were also suitable for this reaction, and the yields of the products vary from 60% to 80% (3o–q). Regrettably, dialkyl substituted aromatic amine (such as N,N-dimethylaniline) was not suitable for this reaction (3r).

To gain reasonable insight into the reaction mechanism, we conducted the following control experiments (Scheme 3). When 2,2,6,6-tetramethyl-1-piperidinyloxy (TEMPO) and 2,6-di-tert-butyl-4-methylphenol (BHT), both are radical quenchers, was added to the reaction under the standard conditions, the product 3a was obtained in 3% and 9% yield, respectively, detected by GC. The results reveal that the reaction may proceed with the participation of free radicals.

Scheme 3. Control experiments.

Scheme 3

Open in a new tab

Based on our experimental results and those of previous reports,19,21,32,33 a mechanism for this visible-light-induced oxidative cyanation reaction is proposed as illustrated in Scheme 4. Initially, substrate 1 is transformed into cationic radical I in the presence of visible light and oxygen, and anionic superoxide radical O2˙− is generated simultaneously. Then, cationic radical I reacts with O2˙− to generate radical II which loses an electron to form intermediate V. Under the action of HOO−, thiocyanate is converted to cyano anion which then reacts with intermediate V to generate the desired product 3. At the same time, the intermediate II is combined with HOO˙ to form III, and the latter III is dehydrated to form a by-product IV.

Scheme 4. Possible mechanism.

Scheme 4

Open in a new tab

Conclusion

In summary, we have developed a novel method for the synthesis of α-aminonitrile using N-aryltetrahydroisoquinoline and potassium thiocyanate as raw materials. The product α-aminonitriles can be obtained in moderate to good yields under the illumination of 30 W purple LEDs at room temperature for 24 h in the oxygen atmosphere. The process does not involve any photocatalysts, transition metal reagents, strong oxidizing agents, and cyano-containing compounds that are highly toxic and difficult to obtain. This reaction provides a simple, green, and efficient method for the synthesis of α-aminonitriles. Further studies on reaction mechanism and synthetic applications are currently underway.

Conflicts of interest

There are no conflicts to declare.

Supplementary Material

RA-009-C9RA06120G-s001

Acknowledgments

This work was supported by the National Natural Science Foundation of China (No. 21772035), and the Provincial Natural Science Foundation of Hunan (No. 2019JJ50104).

†

Electronic supplementary information (ESI) available. See DOI: 10.1039/c9ra06120g

Notes and references

  1. (a) Anbarasan P. Schareina T. Beller M. Chem. Soc. Rev. 2011;40:5049. doi: 10.1039/C1CS15004A. [DOI] [PubMed] [Google Scholar]; (b) Ping Y.-Y. Ding Q.-P. Peng Y.-Y. ACS Catal. 2016;6:5989. doi: 10.1021/acscatal.6b01632. [DOI] [Google Scholar]; (c) Enders D. Shilvock J. P. Chem. Soc. Rev. 2000;29:359. doi: 10.1039/A908290E. [DOI] [Google Scholar]; (d) Otto N. Opatz T. Chem.–Eur. J. 2014;20:13064. doi: 10.1002/chem.201403956. [DOI] [PubMed] [Google Scholar]; (e) Kinthada L. K. Kinthada S. R. Kinthada A. Kinthada K. N. Kinthada A. J. Org. Chem. 2017;82:8548. doi: 10.1021/acs.joc.7b01232. [DOI] [PubMed] [Google Scholar]; (f) Kinthada L. K. Ghosh S. Babu K. N. Sharique M. Biswas S. Kinthada A. Org. Biomol. Chem. 2014;12:8152. doi: 10.1039/C4OB01264J. [DOI] [PubMed] [Google Scholar]; (g) Kinthada L. K. Ghosh S. De S. Bhunia S. Dey D. Kinthada A. Org. Biomol. Chem. 2013;11:6984. doi: 10.1039/C3OB41482E. [DOI] [PubMed] [Google Scholar]
  2. (a) Fleming F. F. Yao L. Ravikumar P. C. Funk L. Shook B. C. J. Med. Chem. 2010;53:7902. doi: 10.1021/jm100762r. [DOI] [PMC free article] [PubMed] [Google Scholar]; (b) Kuhn B. Hennig M. Mattei P. Curr. Top. Med. Chem. 2007;7:609. doi: 10.2174/156802607780091064. [DOI] [PubMed] [Google Scholar]; (c) Qiao L. Baumann C. A. Crysler C. S. Ninan N. S. Abad M. C. Spurlino J. C. DesJarlais R. L. Kervinen J. Neeper M. P. Bayoumy S. S. Williams R. Deckman I. C. Dasgupta M. Reed R. L. Huebert N. D. Tomczuk B. E. Moriarty K. J. Bioorg. Med. Chem. Lett. 2006;16:123. doi: 10.1016/j.bmcl.2005.09.037. [DOI] [PubMed] [Google Scholar]
  3. (a) Klosa J. J. Prakt. Chem. 1963;20:283. doi: 10.1002/prac.19630200511. [DOI] [Google Scholar]; (b) Beardsley P. M. Balster R. L. Harris L. S. Drug Alcohol Depend. 1986;18:149. doi: 10.1016/0376-8716(86)90047-5. [DOI] [PubMed] [Google Scholar]
  4. (a) Savage S. A. Jones G. S. Kolotuchin S. Ramrattan S. A. Vu T. Waltermire R. E. Org. Process Res. Dev. 2009;13:1169. doi: 10.1021/op900226j. [DOI] [Google Scholar]; (b) Jones G. S. Savage S. A. Ivy S. Benitez P. L. Ramirez A. J. J. Org. Chem. 2011;76:10332. doi: 10.1021/jo202052a. [DOI] [PubMed] [Google Scholar]; (c) Augeri D. J. Robl J. A. Betebenner D. A. Magnin D. R. Khanna A. Robertson J. G. Wang A. Simpkins L. M. Taunk P. Huang Q. Han S.-P. Abboa-Offei B. Cap M. Xin L. Tao L. Tozzo E. Welzel G. E. Egan D. M. Marcinkeviciene J. Chang S. Y. Biller S. A. Kirby M. S. Parker R. A. Hamann L. G. J. Med. Chem. 2005;48:5025. doi: 10.1021/jm050261p. [DOI] [PubMed] [Google Scholar]
  5. Hughes T. E. Mone M. D. Russell M. E. Weldon S. C. Villhauer E. B. Biochemistry. 1999;38:11597. doi: 10.1021/bi990852f. [DOI] [PubMed] [Google Scholar]
  6. Ahren B. Landin-Olsson M. Jansson P. A. Svensson M. Holmes D. Schweizer A. J. Clin. Endocrinol. Metab. 2004;89:2078. doi: 10.1210/jc.2003-031907. [DOI] [PubMed] [Google Scholar]
  7. (a) Groeger H. Chem. Rev. 2003;103:2795. doi: 10.1021/cr020038p. [DOI] [PubMed] [Google Scholar]; (b) Friestad G. K. Mathies A. K. Tetrahedron. 2007;63:2541. doi: 10.1016/j.tet.2006.11.076. [DOI] [PMC free article] [PubMed] [Google Scholar]; (c) Pan S. C. List B. Chem.–Asian J. 2008;3:430. doi: 10.1002/asia.200700327. [DOI] [PubMed] [Google Scholar]; (d) Merino P. Marques-Lopez E. Tejero T. Herrera R. P. Tetrahedron. 2009;65:1219. doi: 10.1016/j.tet.2008.11.020. [DOI] [Google Scholar]; (e) Martens J. ChemCatChem. 2010;2:379. doi: 10.1002/cctc.200900301. [DOI] [Google Scholar]; (f) Wang J. Liu X. Feng X. Chem. Rev. 2011;111:6947. doi: 10.1021/cr200057t. [DOI] [PubMed] [Google Scholar]
  8. (a) Terai H. Komiya N. Nakae T. J. Am. Chem. Soc. 2003;125:15312. doi: 10.1021/ja0390303. [DOI] [PubMed] [Google Scholar]; (b) Murahashi S. I. Komiya N. Terai H. Angew. Chem., Int. Ed. 2005;44:6931. doi: 10.1002/anie.200501496. [DOI] [PubMed] [Google Scholar]; (c) Murahashi S. Nakae T. Terai H. Komiya N. J. Am. Chem. Soc. 2008;130:11005. doi: 10.1021/ja8017362. [DOI] [PubMed] [Google Scholar]; (d) Verma S. Jain S. L. Sain B. Catal. Lett. 2011;141:882. doi: 10.1007/s10562-011-0582-6. [DOI] [Google Scholar]; (e) Harsha K. Reddy V. Satish G. Reddy V. P. Kumara B. S. P. A. Nageswar Y. V. D. RSC Adv. 2012;2:11084. doi: 10.1039/C2RA21630B. [DOI] [Google Scholar]
  9. (a) Zhang Y. Peng H. Zhang M. Cheng Y.-X. Zhu C.-J. Chem. Commun. 2011;47:2354. doi: 10.1039/C0CC03844J. [DOI] [PubMed] [Google Scholar]; (b) Yang W. Wei L. Yi F. Cai M.-Z. Tetrahedron. 2016;72:4059. doi: 10.1016/j.tet.2016.05.037. [DOI] [Google Scholar]
  10. (a) Li Z. Li C.-J. Eur. J. Org. Chem. 2005;2005:3173. doi: 10.1002/ejoc.200500226. [DOI] [Google Scholar]; (b) Zhang G. Ma Y.-X. Cheng G.-B. Liu D.-B. Wang R. Org. Lett. 2014;16:656. doi: 10.1021/ol500045p. [DOI] [PubMed] [Google Scholar]; (c) Boess E. Schmitz C. Klussmann M. J. Am. Chem. Soc. 2012;134:5317. doi: 10.1021/ja211697s. [DOI] [PubMed] [Google Scholar]; (d) Yang W.-S. Wei L. Yi F.-Y. Cai M.-Z. Tetrahedron. 2016;72:4059. doi: 10.1016/j.tet.2016.05.037. [DOI] [Google Scholar]; (e) Liu Y. Wang C. Xue D. Xiao M. Li C.-Q. Xiao J.-L. Chem.–Eur. J. 2017;23:3051. doi: 10.1002/chem.201604749. [DOI] [PubMed] [Google Scholar]
  11. (a) Han W. Ofial A. R. Chem. Commun. 2009;0:5024. doi: 10.1039/B910548D. [DOI] [PubMed] [Google Scholar]; (b) Liu P. Liu Y.-G. Wong E. L. M. Xiang S. Che C. M. Chem. Sci. 2011;2:2187. doi: 10.1039/C1SC00234A. [DOI] [Google Scholar]; (c) Wagner A. Han W. Mayer P. Ofial A. R. Adv. Synth. Catal. 2013;355:3058. doi: 10.1002/adsc.201300441. [DOI] [Google Scholar]; (d) Patil M. Kapdi A. R. Kumar A. V. RSC Adv. 2015;5:54505. doi: 10.1039/C5RA10552H. [DOI] [Google Scholar]; (e) Zhang L. Gu X. Lu P. Wang Y.-G. Tetrahedron. 2016;72:2359. doi: 10.1016/j.tet.2016.03.061. [DOI] [Google Scholar]; (f) Huang M. Deng Q. Gao Q. Shi J. Zhang X.-H. Xiong Y. Asian J. Org. Chem. 2018;7:404. doi: 10.1002/ajoc.201700524. [DOI] [Google Scholar]
  12. Patil M. R. Dedhia N. P. Kapdi A. R. Kumar A. V. J. Org. Chem. 2018;83:4477. doi: 10.1021/acs.joc.8b00203. [DOI] [PubMed] [Google Scholar]
  13. Singhal S. Jain S. L. Sain B. Chem. Commun. 2009:2371. doi: 10.1039/B820402K. [DOI] [PubMed] [Google Scholar]
  14. Alagiri K. Prabhu K. R. Org. Biomol. Chem. 2012;10:835. doi: 10.1039/C1OB06466E. [DOI] [PubMed] [Google Scholar]
  15. Shu X.-Z. Xia X.-F. Yang Y.-F. Ji K.-G. Liu X.-Y. Liang Y.-M. J. Org. Chem. 2009;74:7464. doi: 10.1021/jo901583r. [DOI] [PubMed] [Google Scholar]
  16. Allen J. M. Lambert T.-H. J. Am. Chem. Soc. 2011;133:1260. doi: 10.1021/ja109617y. [DOI] [PubMed] [Google Scholar]
  17. Liu L. Wang Z. Fu X. Yan C.-H. Org. Lett. 2012;14:5692. doi: 10.1021/ol302708r. [DOI] [PubMed] [Google Scholar]
  18. (a) Zhang C. Liu C. Shao Y. Bao X.-G. Wan X.-B. Chem.–Eur. J. 2013;19:17917. doi: 10.1002/chem.201303296. [DOI] [PubMed] [Google Scholar]; (b) Wang H.-X. Shao Y. Zheng H. Wang H.-H. Cheng J. Wan X.-B. Chem.–Eur. J. 2015;21:18333. doi: 10.1002/chem.201502733. [DOI] [PubMed] [Google Scholar]
  19. Ued H. Yoshida K. Tokuyama H. Org. Lett. 2014;16:4194. doi: 10.1021/ol5018883. [DOI] [PubMed] [Google Scholar]
  20. Shen H. Zhang X.-H. Liu Q. Pan J. Hu W. Xiong Y. Zhu X.-M. Tetrahedron Lett. 2015;56:5628. doi: 10.1016/j.tetlet.2015.08.058. [DOI] [Google Scholar]
  21. Wagner A. Ofial A. R. J. Org. Chem. 2015;80:2848. doi: 10.1021/jo502846c. [DOI] [PubMed] [Google Scholar]
  22. Zhang Z. Gu K. Bao Z. Xing H.-B. Yang Q.-W. Ren Q.-L. Tetrahedron. 2017;73:3118. doi: 10.1016/j.tet.2017.04.033. [DOI] [Google Scholar]
  23. Liu Q. Yu S.-C. Hu L.-Z. Hussain M. I. Zhang X.-H. Xiong Y. Tetrahedron. 2018;74:7209. doi: 10.1016/j.tet.2018.10.058. [DOI] [Google Scholar]
  24. (a) Sun M.-X. Wang F.-Y. Xu B.-H. Ma X.-Q. Zhang S.-J. Org. Biomol. Chem. 2018;16:1971. doi: 10.1039/C8OB00173A. [DOI] [PubMed] [Google Scholar]; (b) Zhdankin V. V. Kuehl C. J. Krasutsky A. P. Bolz J. T. Mismash B. Woodward J. K. Simonsen A. J. Tetrahedron Lett. 1995;36:7975. doi: 10.1016/0040-4039(95)01720-3. [DOI] [Google Scholar]
  25. Nauth A. M. Otto N. Opatz T. Adv. Synth. Catal. 2015;357:3424. doi: 10.1002/adsc.201500698. [DOI] [Google Scholar]
  26. Liu P.-Y. Zhang C. Zhao S.-C. Yu F. Li F. He Y.-P. J. Org. Chem. 2017;82:12786. doi: 10.1021/acs.joc.7b02021. [DOI] [PubMed] [Google Scholar]
  27. Castanheiro T. Suffert J. Donnard M. Gulea M. Chem. Soc. Rev. 2016;45:494. doi: 10.1039/C5CS00532A. [DOI] [PubMed] [Google Scholar]
  28. (a) Chen B. Guo S. Guo X. Zhang G. Yu Y. Org. Lett. 2015;17:4698. doi: 10.1021/acs.orglett.5b02152. [DOI] [PubMed] [Google Scholar]; (b) Yang H. Duan X. H. Zhao J.-F. Guo L.-N. Org. Lett. 2015;17:1998. doi: 10.1021/acs.orglett.5b00754. [DOI] [PubMed] [Google Scholar]; (c) Fan W. Yang Q. Xu F. Li P. J. Org. Chem. 2014;79:10588. doi: 10.1021/jo5015799. [DOI] [PubMed] [Google Scholar]; (d) Mitra S. Ghosh M. Mishra S. Hajra A. J. Org. Chem. 2015;80:8275. doi: 10.1021/acs.joc.5b01369. [DOI] [PubMed] [Google Scholar]; (e) Yadav A. K. Yadav L. D. S. Tetrahedron Lett. 2015;56:6696. doi: 10.1016/j.tetlet.2015.10.048. [DOI] [Google Scholar]; (f) Guo L.-N. Gu Y.-R. Yang H. Hu J. Org. Biomol. Chem. 2016;14:3098. doi: 10.1039/C6OB00221H. [DOI] [PubMed] [Google Scholar]
  29. (a) Zhang G.-Y. Yu J.-T. Hu M.-L. Cheng J. J. Org. Chem. 2013;78:2710. doi: 10.1021/jo3025829. [DOI] [PubMed] [Google Scholar]; (b) Huang Y.-B. Yu Y. Zhu Z.-Z. Zhu C.-L. Cen J.-H. Li X.-W. Wu W.-Q. Jiang H.-F. J. Org. Chem. 2017;82:7621. doi: 10.1021/acs.joc.7b00836. [DOI] [PubMed] [Google Scholar]; (c) Guo W. Tan W. Zhao M.-M. Zheng L.-Y. Tao K.-L. Chen D.-L. Fan X.-L. J. Org. Chem. 2018;83:6580. doi: 10.1021/acs.joc.8b00887. [DOI] [PubMed] [Google Scholar]; (d) Sardarian A. R. Inaloo I. D. Modarresi-Alam A. R. Kleinpeter E. Schilde U. J. Org. Chem. 2019;84:1748. doi: 10.1021/acs.joc.8b02191. [DOI] [PubMed] [Google Scholar]
  30. (a) Romero N. A. Nicewicz D. A. Chem. Rev. 2016;116:10075. doi: 10.1021/acs.chemrev.6b00057. [DOI] [PubMed] [Google Scholar]; (b) Goddard J. P. Ollivier C. Fensterbank L. Acc. Chem. Res. 2016;49:1924. doi: 10.1021/acs.accounts.6b00288. [DOI] [PubMed] [Google Scholar]; (c) Shaw M. H. Twilton J. MacMillan D. W. C. J. Org. Chem. 2016;81:6898. doi: 10.1021/acs.joc.6b01449. [DOI] [PMC free article] [PubMed] [Google Scholar]; (d) Revathi L. Ravindar L. Fang W.-Y. Rakesh K. P. Qin H.-L. Adv. Synth. Catal. 2018;360:4652. doi: 10.1002/adsc.201800736. [DOI] [Google Scholar]; (e) Wang C.-S. Dixneuf P. H. Soule J. F. Chem. Rev. 2018;118:7532. doi: 10.1021/acs.chemrev.8b00077. [DOI] [PubMed] [Google Scholar]; (f) Chen Y.-Y. Lu L.-Q. Yu D.-G. Zhu C.-J. Xiao W.-J. Sci. China: Chem. 2019;62:24. doi: 10.1007/s11426-018-9399-2. [DOI] [Google Scholar]
  31. (a) Pan Y. Wang S. Kee C. W. Dubuisson E. Yang Y.-Y. Loh K. P. Tan C. H. Green Chem. 2011;13:3341–3344. doi: 10.1039/C1GC15865A. [DOI] [Google Scholar]; (b) Rueping M. Zhu S. Koenigs R. M. Chem. Commun. 2011;47:12709. doi: 10.1039/C1CC15643H. [DOI] [PubMed] [Google Scholar]; (c) Hari D. P. König B. Org. Lett. 2011;13:3852. doi: 10.1021/ol201376v. [DOI] [PubMed] [Google Scholar]; (d) To W. Tong G. Lu W. Ma C.-S. Liu J. Chow A. L. F. Che C.-M. Angew. Chem., Int. Ed. 2012;51:2654. doi: 10.1002/anie.201108080. [DOI] [PubMed] [Google Scholar]; (e) Rueping M. Zoller J. Fabry D. C. Poscharny K. Koenigs R. M. Weirich T. E. Mayer J. Chem.–Eur. J. 2012;18:3478. doi: 10.1002/chem.201103242. [DOI] [PubMed] [Google Scholar]; (f) Ushakov D. B. Gilmore K. Kopetzki D. McQuade D. T. Seeberger P. H. Angew. Chem., Int. Ed. 2014;53:557. doi: 10.1002/anie.201307778. [DOI] [PubMed] [Google Scholar]; (g) Pacheco J. C. O. Lipp A. Nauth A. M. Acke F. Dietz J. P. Opatz T. Chem.–Eur. J. 2016;22:5409. doi: 10.1002/chem.201504845. [DOI] [PubMed] [Google Scholar]; (h) Nauth A. M. Lipp A. Lipp B. Opatz T. Eur. J. Org. Chem. 2017;2017:2099. doi: 10.1002/ejoc.201601394. [DOI] [Google Scholar]; (i) Nauth A. M. Pacheco J. C. O. Pusch S. Pusch S. Opatz T. Eur. J. Org. Chem. 2017;2017:6966. doi: 10.1002/ejoc.201701320. [DOI] [Google Scholar]; (j) Ide T. Shimizu K. Egami H. Hamashima Y. Tetrahedron Lett. 2018;59:3258. doi: 10.1016/j.tetlet.2018.07.030. [DOI] [Google Scholar]; (k) Nauth A. M. Schechtel E. Dören R. Tremel W. Opatz T. J. Am. Chem. Soc. 2018;140:14169. doi: 10.1021/jacs.8b07539. [DOI] [PubMed] [Google Scholar]; (l) Yilmaz O. Oderinde M. S. Emmert M. H. J. Org. Chem. 2018;83:11089. doi: 10.1021/acs.joc.8b01700. [DOI] [PubMed] [Google Scholar]
  32. (a) Wilson I. R. Harris G. M. J. Am. Chem. Soc. 1960;82:4515. doi: 10.1021/ja01502a017. [DOI] [Google Scholar]; (b) Wilson I. R. Harris G. M. J. Am. Chem. Soc. 1961;83:286. doi: 10.1021/ja01463a007. [DOI] [Google Scholar]; (c) Christy A. A. Egeberg P. K. Talanta. 2000;51:1049. doi: 10.1016/S0039-9140(00)00298-8. [DOI] [PubMed] [Google Scholar]; (d) Figlar J. N. Stanbury D. M. Inorg. Chem. 2000;39:5089. doi: 10.1021/ic000561r. [DOI] [PubMed] [Google Scholar]; (e) Collado A. L. Diaz M. Ind. Eng. Chem. Res. 2009;48:9902. doi: 10.1021/ie9006485. [DOI] [Google Scholar]
  33. (a) Bartling H. Eisenhofer A. Konig B. Gschwind R. M. J. Am. Chem. Soc. 2016;138:11860. doi: 10.1021/jacs.6b06658. [DOI] [PubMed] [Google Scholar]; (b) Wang X.-J. Li Q.-Y. Ma Z. Zhang W.-Q. Xu J.-L. Wei W. Lu H. Zhao X.-S. Chem. Commun. 2016;52:11284. doi: 10.1039/C6CC04997D. [DOI] [PubMed] [Google Scholar]; (c) Ji W.-Q. Li P.-H. Yang S.-A. Wang L. Chem. Commun. 2017;53:8482. doi: 10.1039/C7CC03693K. [DOI] [PubMed] [Google Scholar]
