A new classification system for the anatomical variations of the human circle of Willis: A systematic review

Abstract

The circle of Willis (CoW) is an anastomotic arterial network located on the base of the brain. Studies have shown that it demonstrates considerable anatomical variation in humans. This systematic review aimed to identify and catalogue the described anatomical variations of the CoW in humans to create a new, comprehensive variation classification system. An electronic literature search of five databases identified 5899 studies. A two‐phase screening process was performed, and studies underwent quality assessment. A total of 42 studies were included in the review. Data were extracted and circles were reconstructed digitally using graphics software. The classification system contains 82 CoW variations in five continuous groups. Group one contains 24 circles with one or more hypoplastic segments only. Group two contains 11 circles with one or more absent segments only. Group three contains 6 circles with hypoplastic and absent segments only. Group four contains 26 circles with one or more accessory segments. Group five contains 15 circles with other types of anatomical variation. Within each group, circles were subcategorised according to the number or type of segments affected. An original coding system was created to simplify the description of anatomical variations of the CoW. The new classification system provides a comprehensive ontology of the described anatomical variations of the CoW in humans. When used with the coding system, it allows the description and categorisation of recorded and unrecorded variants identified in past and future studies. It is applicable to current clinical practice and the anatomical community, including human anatomy education and research.

The classification system provides a comprehensive ontology of the described anatomical variations of the circle of Willis in humans. Group one contains 24 circles with one or more hypoplastic segments only. Group two contains 11 circles with one or more absent segments only. Group three contains six circles with hypoplastic and absent segments only. Group four contains 26 circles with one or more accessory segments. Group five contains 15 circles with other types of anatomical variation.

1. INTRODUCTION

The circle of Willis (CoW) is an anastomotic arterial network located on the base of the brain. It functions to prevent cerebral and cerebellar ischaemia by maintaining tissue perfusion given an impaired or decreased blood flow through one or more of its component vessels (Hartkamp et al., 1999; Kapoor et al., 2008).

The CoW is divided into two sections. The anterior communicating artery (AComA) and A1 segments of the anterior cerebral arteries (A1) form the anterior half of the circle (Gray, 2016; Moore et al., 2014). The posterior communicating arteries (PComA) and P1 segments of the posterior cerebral arteries (P1) form the posterior half of the circle (Gray, 2016; Moore et al., 2014). The arteries create a symmetrical polygonal‐shaped connection between the internal carotid and vertebrobasilar systems.

Four criteria are classically used to define ‘normal’ (non‐variant) anatomy of the CoW: (1) all segments (AComA, A1s, PComAs and P1s) are present (De Silva et al., 2011; Eftekhar et al., 2006; Kapoor et al., 2008; Klimek‐Piotrowska et al., 2015; Vasović et al., 2013), (2) all segments arise from their natural origins (De Silva et al., 2011; Kapoor et al., 2008; Klimek‐Piotrowska et al., 2015), (3) no accessory arteries are present (De Silva et al., 2011; Kapoor et al., 2008; Klimek‐Piotrowska et al., 2015; Vasović et al., 2013), and (4) all segments have an external diameter of >1 mm (De Silva et al., 2011; Kapoor et al., 2008; Klimek‐Piotrowska et al., 2013, 2015; Vasović et al., 2013).

The prevalence of anatomical variation of the CoW in the neurologically healthy human population is estimated to be 68.22 ± 14.32% (Jones et al., 2020). For this review, anatomical variation was defined using two criteria: (1) the variation is embryologically derived, and (2) the variation does not demonstrate the potential to directly progress to a pathological consequence. Commonly recorded variation types include hypoplasia (Cilliers et al., 2018; De Silva et al., 2011; Eftekhar et al., 2006), absence (Hafez et al., 2007; Klimek‐Piotrowska et al., 2013; Li et al., 2020), and duplication (Iqbal, 2013; Klimek‐Piotrowska et al., 2015). The most common variant segment is the posterior communicating artery (Eftekhar et al., 2006; Hindenes et al., 2020; Klimek‐Piotrowska et al., 2015).

An awareness of the anatomical variations of the CoW is important for clinical practice (Jones et al., 2020; Raikos & Smith, 2015). Circle variation is associated with an increased risk of a number of cerebrovascular diseases (Henry et al., 2015; Oumer et al., 2021; Ryan et al., 2015; Stojanović et al., 2019), and affects patient response to therapeutic intervention (Leng et al., 2016; Wufuer et al., 2017). It has implications for preoperative planning and is important in selecting the most appropriate method of cerebral protection (Papantchev et al., 2013). Anatomical variation influences a range of intraoperative factors which determine patient outcome and increases the risk of misinterpretation and surgical error. Despite this, there is lack of consensus in the literature on a system that comprehensively documents and classifies such variations.

Three classification systems are commonly used to categorise anatomical variations of the CoW in humans. The Riggs classification system (Riggs & Rupp, 1963) contains 21 variations. Circle order in this classification has no relation to anatomy, only segment hypoplasia is included, and complete anatomical descriptions are not provided. No single diagram of the included circles is available. In contrast, the Lazorthes classification system (Lazorthes et al., 1979) contains 22 variations. Here, only segment hypoplasia is included, and circle order has no relation to anatomy. The illustration of segment hypoplasia is inconsistent, creating ambiguity regarding the anatomy of variation numbers five, seven, eight, 13 and 17 (Lazorthes et al., 1979). Finally, the Krabbe‐Hartkamp classification system (Krabbe‐Hartkamp et al., 1998) contains 18 variations. Complete circle anatomy is not shown, and artery hypoplasia and absence are not differentiated.

Four studies (De Silva et al., 2011; Eftekhar et al., 2006; Klimek‐Piotrowska et al., 2015; Vasović et al., 2013) assert that Riggs (Riggs & Rupp, 1963) and Lazorthes (Lazorthes et al., 1979) describe, and include in their classification systems, a variant circle with a hypoplastic AComA, a unilateral hypoplastic A1 and an ipsilateral hypoplastic PComA. However, both classification systems (Lazorthes et al., 1979; Riggs & Rupp, 1963) contain a circle with a unilateral hypoplastic A1 and an ipsilateral hypoplastic PComA without a hypoplastic AComA. As such, Riggs (Riggs & Rupp, 1963) and Lazorthes (Lazorthes et al., 1979) classification systems have been incorrectly used throughout the literature. Interestingly, no study in this review, nor those aforementioned, has recorded a circle with a hypoplastic AComA, a unilateral hypoplastic A1 and an ipsilateral hypoplastic PComA. In view of this lack of consensus in the literature, a recent review (Jones et al., 2020) on the prevalence of anatomical variation of the CoW recommended the development of a new, comprehensive classification system.

This article, therefore, presents a systematic review of published empirical research on anatomical variation of the CoW in humans, performed with the following aims: (1) to identify and catalogue the described anatomical variations of the CoW in humans, and (2) to characterise the described variants to produce a new, comprehensive classification system.

2. METHODS

The review was conducted according to the recommendations set out in the Preferred Reporting Items for Systematic Reviews and Meta‐Analyses (PRISMA) statement (Shamseer et al., 2015).

A systematic search of the published peer‐reviewed literature was conducted on the Ovid Medline (1946 to May 27, 2020), Ovid Embase (1974 to May 27, 2020), Web of Science Core Collection (all years 1900–2020), Scopus and The Cochrane Library databases on 27 May 2020. The search strategy was made up of two sections. The first section contained alternative terms for ‘circle of Willis’ and its component arteries. The second section contained synonyms of the term ‘variation’ used in anatomical description. The strategy was adapted to each database to increase search sensitivity (Table 1). No limitations on language or publication format were applied.

TABLE 1.

The search strategies

Database	Search strategy
Ovid Medline (1946 to May 27, 2020)	(exp “Circle of Willis”/OR circle of Willis OR cerebral arterial circle OR circulus arteriosus cerebri OR circulus arteriosus Willis* OR circulus Willis* OR Willis* circle OR Willis* polygon OR exp Anterior Cerebral Artery/OR anterior cerebral arter* OR arteria cerebri anterior OR exp PCA/OR posterior cerebral arter* OR arteria cerebri posterior OR anterior communicating arter* OR arteria communicans anterior OR posterior communicating arter* OR arteria communicans posterior) AND (exp Anatomic Variation/OR varia* OR anomal* OR abnormal* OR atypical OR incomplete OR unusual)
Ovid Embase (1974 to May 27, 2020)	(exp brain circulus arteriosus/OR circle of Willis OR cerebral arterial circle OR circulus arteriosus cerebri OR circulus arteriosus Willis* OR circulus Willis* OR Willis* polygon OR Willis* circle OR exp anterior cerebral artery/ OR anterior cerebral arter* OR arteria cerebri anterior OR exp PCA/OR posterior cerebral arter* OR arteria cerebri posterior OR exp anterior communicating artery/ OR anterior communicating arter* OR arteria communicans anterior OR exp posterior communicating artery/OR posterior communicating arter* OR arteria communicans posterior) AND (exp anatomic variation/OR varia* OR anomal* OR abnormal* OR atypical OR incomplete OR unusual)
Web of Science Core Collection (all years 1900–2020)	(TS = (“circle of Willis” OR “cerebral arterial circle” OR “circulus arteriosus cerebri” OR “circulus arteriosus Willis*” OR “circulus Willis*” OR “Willis* polygon” OR “Willis* circle” OR “anterior cerebral arter*” OR “arteria cerebri anterior” OR “posterior cerebral arter*” OR “arteria cerebri posterior” OR “anterior communicating arter*” OR “arteria communicans anterior” OR “posterior communicating arter*”)) AND (TS = (“varia*” OR “abnormal*” OR “anomal*” OR “atypical” OR “incomplete” OR “unusual”))
Scopus	(TITLE‐ABS‐KEY(“circle of Willis” OR “cerebral arterial circle” OR “circulus arteriosus cerebri” OR “circulus arteriosus Willis*” OR “circulus Willis*” OR “Willis* polygon” OR “Willis* circle” OR “anterior cerebral arter*” OR “arteria cerebri anterior” OR “posterior cerebral arter*” OR “arteria cerebri posterior” OR “anterior communicating arter*” OR “arteria communicans anterior” OR “posterior communicating arter*” OR “arteria communicans posterior”)) AND (TITLE‐ABS‐KEY(“varia*” OR “abnormal*” OR “anomal*” OR “atypical” OR “incomplete” OR “unusual”))
The Cochrane Library	(exp Circle of Willis/ OR circle of Willis OR cerebral arterial circle OR circulus arteriosus Willis* OR circulus Willis* OR Willis* circle OR exp Anterior Cerebral Artery/OR anterior cerebral arter* OR arteria cerebri anterior OR exp PCA/OR posterior cerebral arter* OR anterior communicating arter* OR posterior communicating arter*) AND (exp Anatomic Variation/OR varia* OR anomal* OR abnormal* OR atypical OR incomplete OR unusual)

2.1. Screening process

Following deduplication, studies underwent a two‐phase screening process against inclusion and exclusion criteria (Table 2). In phase one, titles and abstracts were screened against criteria In1, In5, and Ex1‐5. Criteria In2, 3, 4 and 6 were not applied as titles and abstracts provided insufficient evidence to inform decisions on their fulfilment. For studies meeting all inclusion criteria and no exclusion criteria, full texts were sought, and English translations obtained when freely available.

TABLE 2.

The inclusion and exclusion criteria

Inclusion criteria

Exclusion criteria

‐In1. The title or abstract mention an anatomical variation of the CoW ‐In2. The anatomy of the CoW is described or illustrated in its entirety ‐In3. Any intracerebral arterial variation is exclusive to the AComA, A1s, PComAs and/or P1s ‐In4. The anatomical descriptions and/or illustrations are clear and specific ‐In5. The study is primary research ‐In6. The study is available in the English language

‐Ex1. The study exclusively: Ex1a. Identifies a variant anatomical course of one or more arteries of the CoW Ex1b. Investigates the haemodynamics of one or more arteries of a variant CoW Ex1c. Investigates the calibre of one or more arteries of the CoW ‐Ex2. A foetal study population without a non‐foetal human control ‐Ex3. A non‐human study population without a non‐foetal human control ‐Ex4. The study uses cerebral vascular models ‐Ex5. The study is published as a conference abstract

In phase two, full texts were screened against all inclusion and exclusion criteria. To meet criterion In2, studies were required to describe or illustrate the anatomy of the AComA, A1 segments, PComAs and P1 segments of the variant circle. To meet criterion In4, studies were required to describe or illustrate the type of variation identified. Angiographic studies which did not differentiate between artery hypoplasia and absence were excluded. This included the Krabbe‐Hartkamp classification (Krabbe‐Hartkamp et al., 1998). Studies meeting one or more exclusion criteria were removed, while studies with one or more circles meeting all inclusion criteria were included in the review. Two independent reviewers screened two random samples of 15 studies using the inclusion and exclusion criteria. No difference to the original study selection was found.

2.2. Data extraction

Data were extracted on the background of the study (first author and publication year), its characteristics (location, design, population, modality, and definition of hypoplasia), and its description of variant circles (variant segment(s), variation type(s), position of the variation, and the number of different variant circles).

2.3. Quality assessment

A bespoke quality assessment tool was created, adapting the modified Anatomical Quality Assessment Tool (Henry et al., 2017) and Critical Appraisal Skills Programme Checklist for Case‐Control and Cohort Studies (Critical Appraisal Skills Programme, 2018a, 2018b) criteria. Case‐control, cohort and cross‐sectional studies underwent quality assessment. Case studies and case series were not assessed as the tool was incompatible with the study types. The quality assessment tool is shown in Table S1.

Seven study domains were scored: clearly defined and focused aim(s), appropriate study design, representative population characteristics, reproducible methodology, clarity of descriptive anatomy, accuracy in reporting of results, and acknowledgement of limitations. A quality threshold score was subjectively determined. Studies scoring ≥14 out of 25 were considered high quality, while studies scoring <14 out of 25 were considered low quality. Studies were not excluded from the review on the basis of quality score.

2.4. Data synthesis

The circles were reconstructed digitally using Paint 3D (Microsoft Corporation, 6.2003.4017.0). A1 and P1 segments were drawn using the 4‐point curve tool at 11 px (pixel). The AComA and PComAs were drawn using the 2‐point line tool at 7 px. Internal carotid and middle cerebral arteries, drawn using the 2‐point line tool at 18 px, were included for anatomical completeness. Artery hypoplasia was shown by line width conversion to 1 px.

The left‐right orientation of variant segments is rarely reported within the literature. For standardisation, the most anterior variation was drawn on the right side of the circle.

The circles were grouped according to variation type. Within each group, circles were subcategorised according to the number or type of variant segment. A coding system was created to simplify anatomical description of the circles.

3. RESULTS

A summary of the study selection process is shown in Figure 1. The search identified 14,437 studies. After removal of 8538 duplicates, 5899 studies underwent title and abstract screening, of which 5375 did not meet the assessed criteria. Of the resulting 524 studies, 29 full texts were unobtainable. The remaining 495 studies underwent full‐text screening. A total of 42 studies were included in the review.

FIGURE 1.

A flow diagram summarising the study selection process

3.1. Study characteristics and results

A summary of the study characteristics and results is shown in Table 3. Studies were published between 1903 and 2020. Five different study designs were used: cross‐sectional (n = 19), case report (n = 17), case‐control (n = 2), case series (n = 2) and prospective cohort (n = 2). The study locations spanned Asia (n = 15), Europe (n = 14), North America (n = 9), Africa (n = 3) and South America (n = 1). A range of investigative modalities were used: cadaveric dissection (n = 22), computed tomography angiography (n = 4), digital subtraction angiography (n = 3) and magnetic resonance angiography with or without 3D time‐of‐flight capability (n = 15). Three studies used two investigative modalities and one study used cerebral cast angiography.

TABLE 3.

A table showing the characteristics and results of studies included in the review

Study code	Study	Study location	Study design (study population [n])	Study modality	Definition of artery hypoplasia	Distinct variants (n)	Quality assessment score (n/25)
S1	Al‐Hussain et al. (2001)	Jordan	CSS (50)	CD	<1 mm	4	11
S2	Benson et al. (1986)	Canada	CR (1)	CD	N/A	1	N/A
S3	Cilliers et al. (2018)	South Africa	CSS (59)	CD	<1 mm	10	15
S4	De Silva et al. (2011)	Sri Lanka	CSS (225)	CD	<1 mm	15	18
S5	Ding et al. (2019)	China	CR (1)	CD	N/A	1	N/A
S6	Drummond et al. (2006)	USA	CR (1)	TOF MRA	N/A	1	N/A
S7	Drummond et al. (2012)	USA	CR (1)	TOF MRA	N/A	1	N/A
S8	Eftekhar et al. (2006)	Iran	CSS (102) a	CD	<1 mm	10	15
S9	Giglio et al. (2010)	Italy	CR (1)	MRA	N/A	1	N/A
S10	Gurdal et al. (2004)	Turkey	CR (2)	CD	N/A	2	N/A
S11	Hafez et al. (2007)	Egypt	CSS (130)	3D TOF MRA and CD	<1 mm	7	11
S12	Hashemi et al. (2013)	Iran	CSS (200)	CD	<1 mm	9	12
S13	He et al. (2016)	China	PCS (102)	CTA	<1 mm	1	15
S14	Howe (1903)	USA	CR (1)	CD	N/A	1	N/A
S15	Howie (1959)	USA	CCS (256)	CD	N/A	10	4
S16	Ibrahim et al. (2017)	Sudan	CCS (146)	3D TOF MRA	N/A	5	10
S17	Iqbal (2013)	India	CSS (50)	CD	<1 mm (AComA and PComA <0.5 mm)	5	13
S18	Jensen et al. (2017)	USA	CR (1)	DSA	N/A	1	N/A
S19	Karatas et al. (2016)	Turkey	CSS (100)	CD	N/A	2	14
S20	Klimek‐Piotrowska et al. (2013)	Poland	CSS (250)	CTA	N/A	3	14
S21	Klimek‐Piotrowska et al. (2015)	Poland	CSS (100)	CD	<1 mm	30	17
S22	Li et al. (2020)	China	CSS (819)	3D TOF MRA and DSA	<1 mm	7	16
S23	Loh and Sharma (2010)	Singapore	CR (1)	TOF MRA	N/A	1	N/A
S24	Malamateniou et al. (2009)	UK	CSS (103)	3D TOF MRA	N/A	3	18
S25	Manninen et al. (2009)	Finland	CSS (92)	Cerebral cast angiography	N/A	1	19
S26	Matsuda et al. (2017)	Japan	CR (1)	MRA	N/A	1	N/A
S27	McCullough (1962)	USA	CS (77)	CD	N/A	4	N/A
S28	Ozturk et al. (2008)	Turkey	CR (1)	CD	N/A	1	N/A
S29	Papantchev et al. (2007)	Bulgaria	CSS (112)	CD	<1 mm	3	12
S30	Papantchev et al. (2013)	Bulgaria	CSS (500)	CD and CTA	<1 mm	6	16
S31	Riggs and Rupp (1963)	USA	CSS (994)	CD	N/A	20	7
S32	Sabau et al. (2012)	Romania	CR (1)	3D TOF MRA	N/A	1	N/A
S33	Saikia et al. (2014)	India	CSS (70)	TOF MRA	<1 mm	2	14
S34	Saphir (1935)	USA	CR (3)	CD	N/A	3	N/A
S35	Sonobe et al. (2019)	Japan	CR (1)	MRA	N/A	1	N/A
S36	Sonobe et al. (2020)	Japan	CR (1)	MRA	N/A	1	N/A
S37	Stefani et al. (2013)	Brazil	CSS (30)	MRA	N/A	4	14
S38	Tripathi et al. (2003)	India	CR (1)	DSA	N/A	1	N/A
S39	Uchino et al. (2015)	Japan	CR (2)	3D TOF MRA	N/A	2	N/A
S40	Urbanski et al. (2008)	Germany	PCS (99)	CTA	N/A	4	12
S41	Vasović et al. (2010)	Serbia	CS (4)	CD	N/A	2	N/A
S42	Vasović et al. (2013)	Serbia	CSS (333)	CD	<1 mm	11	11

Abbreviations: CCS, case‐control study; CD, cadaveric dissection; CR, case report; CS, case series; CSS, cross‐sectional study; CTA, computed tomography angiography; DSA, digital subtraction angiography; ICoA, intermediate communicating artery; MRA, magnetic resonance angiography; N/A, not available; P1c, P1 segment of carotid origin; PCS, prospective cohort study; TOF, time‐of‐flight.

^a Results of only 92 out of 102 participants were recorded.

Artery hypoplasia was defined as a diameter <1 mm in 13 studies. 28 studies did not provide a definition, of which 17 identified a circle with one or more hypoplastic arteries. One study defined AComA and PComA hypoplasia as a diameter <0.5 mm. Of the 199 extracted variants, 117 were duplicates. A total of 82 distinct variations of the CoW were recorded.

3.2. Quality assessment results

Excluding case reports and case series, 23 studies underwent quality assessment. Cross‐sectional, case‐control and prospective cohort studies were reviewed using the quality assessment tool. Thirteen studies were considered high quality, scoring ≥14 out of 25. Ten studies were considered low quality, scoring <14 out of 25. Individual quality assessment scores are shown in Table 3.

3.3. Variation coding system

A coding system was created to simplify anatomical description of variations of the CoW. Symbols, used to abbreviate anatomical descriptors, were inserted into relevant sections of an original formula to generate a descriptive code. The symbols are listed in Table 4.

TABLE 4.

A table showing the anatomical descriptors and their symbols

Descriptor	Symbol
Section one (anatomical relationship)
Bilateral	B
Ipsilateral	I
Contralateral	C
Section two (artery)
Anterior communicating artery	ACOMA
Anterior cerebral artery	ACA
A1 segment	A1
A2 segment	A2
A1/A2 junction	A1/A2
Posterior communicating artery	PCOMA
Posterior cerebral artery	PCA
P1 segment	P1
P2 segment	P2
Intermediate communicating artery	ICOA
P1 segment of carotid origin	P1C
Section three (variation type)
Absent	A
Azygous	Az
Duplicated	D
Elongated	E
Fenestrated	F
Hypoplastic	H
Plexiform	P
Triplicated	T
Triplicated (medial)	Tm
Triplicated (lateral)	Tl
Trident‐shaped	Ts
V‐shaped	Vs
X‐shaped	Xs

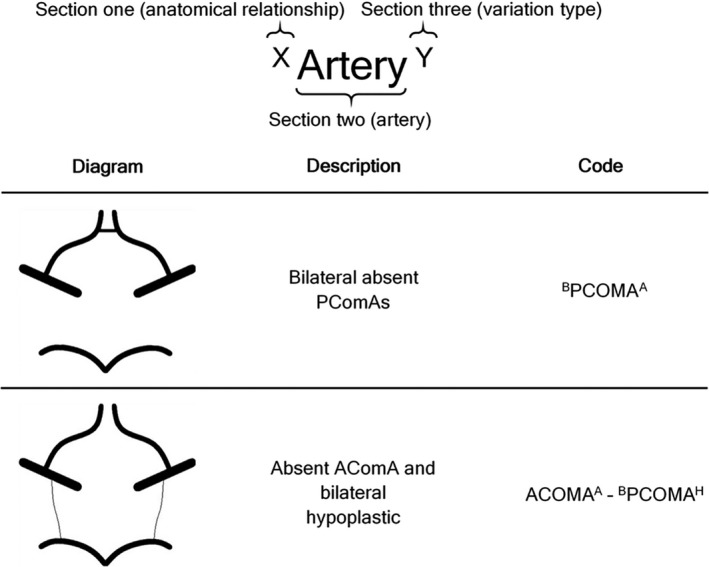

The coding formula and two examples are shown in Figure 2. Each unit of the code is made up of three sections and describes the anatomy of one artery in a variant circle. Section one represents the anatomical relationship of the variant artery within the circle. This section was not required when describing the AComA or single unilateral variations. Section two identifies the variant artery and section three represents the type of anatomical variation present. Section one and three were written in superscript for ease of identification.

FIGURE 2.

The coding formula and two examples

Units were connected by hyphenation to describe the anatomy of a circle with multiple variations. In this case, units were ordered according to the anterior‐to‐posterior location of the coded arteries.

3.4. Classification system

The 82 distinct anatomical variations of the CoW extracted from the included studies fall into five continuous groups, which form the core of the new classification system as described below. As a comparison, Figure 3 shows the classically described anatomy of the CoW.

FIGURE 3.

A labelled diagram showing the normal anatomy of the CoW

Group one contains 24 circles with one or more hypoplastic segments only (Figure 4; Table 5). Circles with one (n = 4), two (n = 10), three (n = 8), five (n = 1) and six (n = 1) hypoplastic segments are included. No circle with four hypoplastic segments was recorded.

FIGURE 4.

Group one of the classification system containing circles with one or more hypoplastic segments only

TABLE 5.

A table of the circles in group one of the classification system

Circle number	Description of the variant circle	Variation code	Study code(s)
One hypoplastic segment
1	Hypoplastic AComA	ACOMAH	S3, S4, S12, S21, S30, S31, S42
2	Unilateral hypoplastic A1	A1H	S3, S4, S12, S15, S19, S22, S29, S30, S31, S40
3	Unilateral hypoplastic PComA	PCOMAH	S2, S3, S4, S8, S12, S16, S21, S22, S29, S31, S37, S42
4	Unilateral hypoplastic P1	P1H	S3, S4, S8, S15, S21, S22, S30, S31, S37, S42
Two hypoplastic segments
5	Hypoplastic AComA and unilateral hypoplastic PComA	ACOMAH—PCOMAH	S3, S4, S8, S12, S21, S29, S30, S31, S42
6	Hypoplastic AComA and unilateral hypoplastic P1	ACOMAH—P1H	S4, S8, S31, S42
7	Unilateral hypoplastic A1 and ipsilateral hypoplastic PComA	A1H—IPCOMAH	S3, S31
8	Unilateral hypoplastic A1 and contralateral hypoplastic PComA	A1H—CPCOMAH	S4, S31
9	Unilateral hypoplastic A1 and ipsilateral hypoplastic P1	A1H—IP1H	S4, S8, S15, S21, S31
10	Unilateral hypoplastic A1 and contralateral hypoplastic P1	A1H—CP1H	S30, S31
11	Bilateral hypoplastic PComAs	BPCOMAH	S3, S4, S8, S12, S16, S21, S31, S34, S37, S42
12	Unilateral hypoplastic PComA and contralateral hypoplastic P1	PCOMAH—CP1H	S4, S8, S21, S31, S42
13	Bilateral hypoplastic P1s	BP1H	S4, S15, S31, S37, S42
14	Unilateral hypoplastic P1 and P2	P1H—IP1H	S15
Three hypoplastic segments
15	Hypoplastic AComA and bilateral hypoplastic PComAs	ACOMAH—BPCOMAH	S3, S4, S8, S12, S17, S19, S21, S31, S42
16	Hypoplastic AComA, unilateral hypoplastic PComA and contralateral hypoplastic P1	ACOMAH—PCOMAH—CP1H	S8, S31, S42
17	Hypoplastic AComA and bilateral hypoplastic P1s	ACOMAH—BP1H	S4, S31
18	Unilateral hypoplastic A1 and bilateral hypoplastic PComAs	A1H—BPCOMAH	S1, S4, S31
19	Unilateral hypoplastic A1, ipsilateral hypoplastic PComA and contralateral hypoplastic P1	A1H—IPCOMAH—CP1H	S31
20	Unilateral hypoplastic A1, contralateral hypoplastic PComA and ipsilateral hypoplastic P1	A1H—CPCOMAH—IP1H	S3, S31
21	Unilateral hypoplastic A1 and bilateral hypoplastic P1s	A1H—BP1H	S4, S15, S24, S31
22	Bilateral hypoplastic PComAs and unilateral hypoplastic P1	BPCOMAH—P1H	S3
Five hypoplastic segments
23	Hypoplastic AComA, bilateral hypoplastic PComAs and unilateral hypoplastic P1 and P2	ACOMAH—BPCOMAH—P1H—IP2H	S8
Six hypoplastic segments
24	Hypoplastic AComA, bilateral hypoplastic A1s and A2s and unilateral hypoplastic PComA	ACOMAH—BA1H—BA2H—PCOMAH	S27

Group two contains 11 circles with one or more absent segments only (Figure 5; Table 6). Circles with one (n = 4), two (n = 3), three (n = 3) and four (n = 1) absent segments were recorded.

FIGURE 5.

Group two of the classification system containing circles with one or more absent segments only

TABLE 6.

A table of the circles in group two of the classification system

Circle number	Description of the variant circle	Variation code	Study code(s)
One absent segment
25	Absent AComA	ACOMAA	S11, S20, S22
26	Unilateral absent A1	A1A	S22, S27, S33
27	Unilateral absent PComA	PCOMAA	S1, S11, S12, S16, S21, S27, S30
28	Unilateral absent P1	P1A	S9, S12, S22
Two absent segments
29	Absent AComA and unilateral absent PComA	ACOMAA—PCOMAA	S7
30	Unilateral absent A1 and ipsilateral absent PComA	A1A—IPCOMAA	S40
31	Bilateral absent PComAs	BPCOMAA	S1, S12, S16, S20, S21, S22, S24, S27, S40
Three absent segments
32	Absent AComA and bilateral absent PComAs	ACOMAA—BPCOMAA	S11, S20, S25
33	Unilateral absent A1 and bilateral absent PComAs	A1A—BPCOMAA	S36
34	Unilateral absent A1 and bilateral absent P1s	A1A—BP1A	S24
Four absent segments
35	Bilateral absent PComAs and unilateral absent P1 and P2	BPCOMAA—P1A—IP2A	S21

Group three contains six circles with hypoplastic and absent segments only (Figure 6; Table 7). Three circles with one hypoplastic and one absent segment were recorded. Circle 39 had one hypoplastic and two absent segments. Circles 40 and 41 had one absent and two hypoplastic segments.

FIGURE 6.

Group three of the classification system containing circles with hypoplastic and absent segments only

TABLE 7.

A table of the circles in group three of the classification system

Circle number	Description of the variant circle	Variation code	Study code(s)
Two variant segments
36	Unilateral absent A1 and contralateral hypoplastic P1	A1A—CP1H	S13
37	Unilateral hypoplastic PComA and contralateral absent PComA	PCOMAH—CPCOMAA	S16, S21, S34
38	Unilateral absent PComA and contralateral hypoplastic P1	PCOMAA—CP1H	S11, S34
Three variant segments
39	Hypoplastic AComA and bilateral absent PComAs	ACOMAH—BPCOMAA	S6
40	Absent AComA and bilateral hypoplastic PComAs	ACOMAA—BPCOMAH	S14
41	Unilateral absent A1 and bilateral hypoplastic P1s	A1A—BP1H	S35, S40

Group four contains 26 circles with accessory segments (Figure 7; Table 8). Circles with one or more accessory AComA (n = 11), anterior cerebral artery (ACA) (n = 8), A1 (n = 3), P1 (n = 3), posterior cerebral artery (PCA) (n = 2) and PComA (n = 1) were recorded. Circles 48, 49 and 61 showed a hypoplastic accessory segment, and circles 66 and 67 showed duplication of multiple segments.

FIGURE 7.

Group four of the classification system containing circles with one or more accessory segments

TABLE 8.

A table of the circles in group four of the classification system

Circle number	Description of the variant circle	Variation code	Study code(s)
Accessory AComA
42	Duplicated AComA	ACOMAD	S21
43	Duplicated AComA and unilateral hypoplastic PComA	ACOMAD—PCOMAH	S21
44	Duplicated AComA and bilateral hypoplastic PComAs	ACOMAD—BPCOMAH	S21
45	Duplicated AComA, unilateral hypoplastic PComA and contralateral absent PComA	ACOMAD—PCOMAH—CPCOMAA	S21
46	Duplicated AComA and unilateral absent PComA	ACOMAD—PCOMAA	S11, S21
47	Duplicated AComA and bilateral absent PComAs	ACOMAD—BPCOMAA	S21
48	Duplicated AComA (one AComA hypoplastic)	ACOMAD(1H)	S5, S17
49	Duplicated AComA (one AComA hypoplastic) and unilateral hypoplastic PComA	ACOMAD(1H)—PCOMAH	S17
50	Duplicated AComA (one AComA plexiform) and unilateral hypoplastic PComA	ACOMAD(1P)—PCOMAH	S21
51	Triplicated AComA	ACOMAT	S17
Accessory ACA
52	Medial triplicated ACA	ACATm	S17, S21
53	Medial triplicated ACA and unilateral hypoplastic A1	ACATm—A1H	S21
54	Medial triplicated ACA and unilateral hypoplastic PComA	ACATm—PCOMAH	S21
55	Medial triplicated ACA and bilateral hypoplastic PComAs	ACATm—BPCOMAH	S42
56	Medial triplicated ACA and unilateral absent PComA	ACATm—PCOMAA	S21
57	Lateral triplicated ACA	ACATl	S21
58	Lateral triplicated ACA, hypoplastic AComA and ipsilateral hypoplastic PComA	ACATl—ACOMAH—IPCOMAH	S21
Accessory A1
59	Unilateral duplicated A1	A1D	S15, S21
60	Unilateral duplicated A1 and ipsilateral hypoplastic P1	A1D—IP1H	S15
Accessory PComA
61	Triplicated PComA (one PComA hypoplastic), contralateral hypoplastic PComA and ipsilateral hypoplastic P1	PCOMAT(1H)—CPCOMAH—IP1H	S1
Accessory P1
62	Unilateral duplicated P1	P1D	S15
63	Unilateral absent A1 and contralateral duplicated P1 origin	A1A—CP1D	S26
Accessory PCA
64	Unilateral duplicated PCA with ICoA	PCAD	S41
65	Unilateral duplicated PCA with hypoplastic P1c and ICoA	PCAD—P1CH—ICOAH	S41
Multiple accessory segments
66	Lateral triplicated ACA and duplicated AComA	ACATl—ACOMAD	S21
67	Unilateral duplicated A1 and ipsilateral duplicated P1	A1D—IP1D	S15

Group five contains 15 circles with other types of anatomical variation (Figure 8; Table 9). Circles with a variant AComA (n = 3), variant ACA union (n = 4), segment fenestration (n = 6) and segment elongation (n = 2) were recorded. The description of circle 70 as ‘trident‐shaped AComA’ is original to this review.

FIGURE 8.

Group five of the classification system containing circles with other types of anatomical variation

TABLE 9.

A table of the circles in group five of the classification system

Circle number	Description of the variant circle	Variation code	Study code(s)
Variant AComA structure
68	V‐shaped AComA and unilateral hypoplastic PComA	ACOMAVs—PCOMAH	S21
69	V‐shaped AComA and bilateral hypoplastic PComAs	ACOMAVs—BPCOMAH	S21
70	Trident‐shaped AComA	ACOMATs	S10
Variant ACA union
71	Azygous ACA and unilateral absent P1	ACAAz—P1A	S23
72	Azygous ACA and bilateral absent P1s	ACAAz—BP1A	S11
73	X‐shaped ACA union and bilateral hypoplastic PComAs	ACAXs—BPCOMAH	S28
74	X‐shaped ACA union, unilateral hypoplastic A1, ipsilateral absent PComA and contralateral hypoplastic P1	ACAXs—A1H—IPCOMAA—CP1H	S11
Segment fenestration
75	V‐shaped AComA and fenestrated A1/A2 junction	ACOMAVs—A1/A2F	S10
76	Absent AComA, unilateral absent A1, ipsilateral absent A2, contralateral fenestrated A1/A2 junction, contralateral absent PComA and ipsilateral absent P1	ACOMAA—A1A—IA2A—CA1/A2F—CPCOMAA—IP1A	S32
77	Unilateral fenestrated A1 and ipsilateral absent PComA	A1F—IPCOMAA	S33
78	Unilateral fenestrated PComA	PCOMAF	S38
79	Unilateral fenestrated P1	P1F	S18
80	Unilateral fenestrated A1 and ipsilateral fenestrated A2	A1F—IA2F	S21
Segment elongation
81	Elongated PComA and contralateral absent PComA	PCOMAE—CPCOMAA	S39
82	Unilateral hypoplastic A1, ipsilateral absent PComA and contralateral elongated PComA	A1H—IPCOMAA—CPCOMAE	S39

4. DISCUSSION

The new classification system we have proposed in Section 3.4 has several advantages. Containing more distinct variations and types (groups) of variation than previously established systems, it demonstrates a greater potential for the categorisation of circles identified in future studies. Grouping of circles allows users to select a variation type, while group subcategorisation allows users to methodically identify and categorise specific structures. The grouping of circles according to anatomy is not a feature of previously established systems, and it allows original circles to be categorised alongside similar variants. Overall, the new classification system provides a more comprehensive summary of the anatomical variations of the CoW in humans, increasing the simplicity, flexibility, and efficiency of cataloguing, and improving the accuracy of CoW ontology.

Circles included in the classification system are shown in three formats. The figures provide an accessible, visual guide to the classification system, and their standardised design creates illustrative consistency between the groups. The circles were reconstructed digitally to reduce the risk of misinterpretation. The tables provide a complete, standardised anatomical description of each circle, and should be reviewed in combination with the relevant figure. The coding system provides a simple, abbreviated description of the anatomy of each variation.

The coding system allows the description of recorded circles from past and future studies, and its design permits future description of novel variations. It has a capacity for new symbols, enabling the description of circles from future studies identifying exceptional anatomical findings. Use of the coding system reduces the need for complicated and error‐prone written descriptions.

4.1. Clinical application

Circle variation has implications for clinical practice. It is associated with an increased risk of ischaemic stroke (Oumer et al., 2021; van Seeters et al., 2015), aneurysm rupture (Lazzaro et al., 2012; Stojanović et al., 2019), white matter disease (Chuang et al., 2011; Ryan et al., 2015) and migraine (Henry et al., 2015). It is also associated with an increased risk of vasospasm post‐subarachnoid haemorrhage (Jacquens et al., 2020). The classification system may therefore be used to identify patients at risk of disease and employ targeted preventative therapies. In addition, a good collateral circulation predicts favourable outcomes in patients with acute ischaemic stroke receiving reperfusion therapies (Leng et al., 2016; Wufuer et al., 2017). With anatomy being a factor in determining patient outcome, the classification system may have a role in guiding therapeutic decision‐making.

Circle variation has implications for preoperative planning. Variation predisposes one‐sixth of patients to cerebral ischaemia during carotid artery closure (Manninen et al., 2009) and may impair the protective effects of unilateral selective cerebral perfusion (Papantchev et al., 2013). In such cases, protective effects may be maintained through the use of bilateral selective cerebral perfusion (Papantchev et al., 2013). An awareness of circle variation is therefore fundamental in selecting the most appropriate method of cerebral protection. Recognition of the classification system, particularly groups two and three, in the preoperative stage may reduce the risk of cerebral ischaemia and prevent neurological sequelae. Yet function is not determined by anatomy alone. With physiological manipulation, only 1 in 15 patients may need shunting during carotid endarterectomy (Musicki et al., 2017). Adequate cerebral cross‐perfusion may therefore be maintained when both anatomical and physiological factors are considered.

Circle variation has intraoperative implications. Unusual anatomy is the leading patient‐related factor contributing to technical error in surgery (Regenbogen et al., 2007), and intraoperative vessel damage is a common factor in successful litigation claims (Markides et al., 2008). Variation, particularly hypoplasia and duplication, may affect surgical approach, surgical difficulty, aneurysm exposure, accuracy of endovascular coil or aneurysm clip placement, and postoperative complications. An awareness of circle variation, and the classification system, is therefore important in reducing surgical error, and improving patient safety and clinical outcome.

It is important that healthcare professionals use a common language. Unsystematic, and often extensive, descriptions are used to report the anatomy of variant circles. This increases the risk of misinterpretation and interventional error. As such, the coding system may be used in clinical practice. It provides healthcare professionals with a simple method for describing the anatomy of circles identified in patients. It is of relevance to neurosurgery, radiology, and interventional neuroradiology. A standardised description would reduce the risk of error, improving patient outcomes. It would also enable direct communication of circle anatomy between healthcare professionals, hospitals, trusts, and healthcare systems.

4.2. Educational application

The classification system may be used in postgraduate anatomical education. A significant proportion of surgical and radiology training curricula include anatomical variation, yet over half do not suggest specific variation classification systems for trainees to use (Raikos & Smith, 2015). With 21.4% of experienced clinicians encountering anatomical variation daily (Raikos & Smith, 2015), an understanding of variation in humans is important for patient presentation, examination, investigation, and surgical management. The classification system is the most comprehensive summary of anatomical variation of the CoW in humans. As such, it may function as a learning and reference tool.

It may also be used in undergraduate anatomical education. Early exposure to human variation in medical courses is recommended, and students should have the opportunity to discuss the significance of variation with experienced tutors (Willan & Humpherson, 1999). The classification system provides students undertaking theoretical and practical learning with a concise, visual summary of variation of an important anatomical structure. It may be used within problem‐based learning to stimulate discussion surrounding the clinical significance of anatomical variation in humans.

4.3. Future directions

Group one (22 out of 24) and three (4 out of 6) circles were most recorded in studies conducted in North America. Group two (8 out of 11), four (18 out of 26) and five (7 out of 15) circles were most recorded in studies conducted in Europe. However, conclusions on geographical location and type of variation are limited. It is suggested that further cross‐sectional cadaveric and angiographic studies are performed to identify possible associations between sex, ethnicity, and geographical location and type of variation. Studies should be performed in a variety of geographical locations using large, diverse population groups. The results may be used to expand the classification system.

CoW variation is associated with an increase in aneurysm rupture (Lazzaro et al., 2012; Stojanović et al., 2019). It is suggested that future studies investigate the association between variation type, as described in the classification system, and the risk of aneurysm rupture. Identification of anatomical risk factors may assist in the selection of patients for preventative treatment.

While use of the coding system is encouraged, a regular systematic search of the literature should be performed to update the classification system. This would ensure that a single, up‐to‐date collection of the recorded variations is available. This may be the responsibility of an anatomical organisation.

4.4. Limitations

Criteria In2 and In3 may have excluded studies that used non‐description to represent normal anatomy. A complete description or illustration of the circle was necessary as it could not be assumed that unreported arteries were of normal anatomy.

The searching and initial appraisal of studies were performed by a single investigator, introducing the potential for observer bias. However, a representative sample of studies was screened by two independent reviewers, with no difference to the original study selection found.

Some circles included in the classification system are described to have hypoplastic segments despite the original study not providing a definition for the variation type. These circles were included on account of the consistency in the use of a diameter of <1 mm as a definition of artery hypoplasia within the literature.

5. CONCLUSION

The new classification system provides a comprehensive ontology of the described anatomical variations of the CoW in humans. When used with the coding system, it allows the description and categorisation of recorded and unrecorded variants identified in past and future studies. It is applicable to current clinical practice and the anatomical community, including human anatomy education and research.

CONFLICT OF INTEREST

No conflicts of interest.

AUTHOR CONTRIBUTIONS

The systematic review was designed by J.R.A. and K.A.S. The project was conceptualised by K.A.S and P.J.B. Figures were designed by J.R.A. The study samples were independently reviewed by M.A and H.N.M. Manuscript was written by J.R.A. All authors read and critically revised the manuscript.

Supporting information

Table S1

Ayre, J.R. , Bazira, P.J. , Abumattar, M. , Makwana, H.N. & Sanders, K.A. (2022) A new classification system for the anatomical variations of the human circle of Willis: A systematic review. Journal of Anatomy, 240, 1187–1204. Available from: 10.1111/joa.13616

DATA AVAILABILITY STATEMENT

The data that support the findings of this study are available from the corresponding author upon reasonable request.
