Different Fuel-Adopted Combustion Syntheses of Nano-Structured NiCrFeO₄: A Highly Recyclable and Versatile Catalyst for Reduction of Nitroarenes at Room Temperature and Photocatalytic Degradation of Various Organic Dyes in Unitary and Ternary Solutions

Abstract

As industrialization progresses, there is a large release of hazardous pollutants into the environment. These pollutants, which contain nitro compounds and organic dyes, are extremely dangerous due to their toxic and carcinogenic nature. An efficient, environmentally benign, and economical catalyst to degrade environmental pollutants or convert them into useful products has been of sustained interest in recent years. In this context, we report a simple and inexpensive combustion fabrication of NiCrFeO₄ using different fuels such as glycine, polyvinyl alcohol (PVA), and urea, showing tremendous catalytic and photocatalytic functionalities. Rietveld refinement and X-ray diffraction studies confirmed the formation of single-phase ferrites, with crystallite sizes ranging from 3.9 to 43.31 nm. The values of optical band gap, obtained from the diffused reflectance spectroscopy technique, lie in the visible region range (1.50–1.60 eV), and hence, all the synthesized ferrites can act as good photocatalysts in the presence of visible light. All the NCF nanocatalysts were utilized for the reduction of nitroarenes and photocatalytic degradation of various cationic (RhB and MB) and anionic (MO) dyes and their mixture. NCFP displayed excellent activity for the reduction and oxidation reactions owing to its large surface area and low optical band gap. Furthermore, the photo-oxidative degradation by NCFP was also enhanced due to its low recombination of charge carriers as confirmed by the photoluminescence (PL) spectroscopy. NCFP efficiently reduces nitrobenzene to aminobenzene with 95% yield using sodium borohydride as the reducing agent in methanol medium at RT in 10 min. The results of photocatalytic activity have shown that the degradation efficiency of NCFP follows the order RhB > MB > MO in their unitary solution. Furthermore, in the case of the mixture of dyes, NCFP showed enhanced photocatalytic degradation for cationic dyes (RhB and MB) compared to that of anionic dye (MO). From the performance point of view, this catalyst can be useful in industrial application because of its high stability, greater catalytic efficiency, and cost-effectiveness.

1. Introduction

In the past several years, magnetic nano-ferrites have been mostly investigated because of their enormous features, which are superior in contrast to their corresponding bulk counterparts,^1,2 like super-paramagnetism, high surface area, large surface to volume ratio, being smoothly separable under external magnetic field, and strong adsorption ability. One of the most interesting and important properties of nano-sized magnetic ferrites is catalysis, which is turning out to be a tactical field because it expresses a new route to face the challenges of energy and sustainability. Green and environment-friendly procedures of synthesis and conditions for reaction have played a crucial role toward the purpose of transforming hazardous processes to proficient ones. Such processes reduce the usage of harmful reagents and solvents, hard reaction conditions, and also complex as well as time-consuming separation of catalysts from reaction mixtures.^3,4 Magnetic nano-ferrites have been proven to be in demand for carrying various tedious organic reactions.⁵⁻⁷ By altering the size, chemical composition, morphology, or oxidation state of the metals used in the ferrite catalyst, enhancement and control over the reaction can be achieved by nano-catalysis. Among the different heterogeneous catalysts, ferrites have been regarded as promising applicants for the efficient degradation/removal of a range of organic pollutants because of their extraordinary physical and chemical properties.^8,9 Additionally, ferrites possess high activity, good absorption of light, smooth transfer of mass, easy methodologies for preparation, and comfortable recyclability by applying an external magnet owing to their characteristic magnetic behavior.¹⁰⁻¹² The catalytic efficiency of spinel nano-ferrites strongly depends upon the method of preparation, annealing temperature, distribution of cations between tetrahedral and octahedral sites, and structural parameters like particle size, surface area, and presence of active surface sites. The redox potential and nature of the metal cation also have an influence on the catalytic performance of nano-ferrites.¹³ A variety of expensive metal nanoparticles such as Au, Ag, Pt, Pd, metal oxides, and nanocomposites have been employed as catalysts, as they are very effective in removal or degradation of pollutants, but a green and inexpensive approach employing nano-ferrites as catalysts in such processes is facile and of wide applicability.¹⁴⁻¹⁷ Various organic dyes and nitro compounds and their breakdown products have a carcinogenic effect on the humans as well as the biosphere.¹⁸ So before discharging these dangerous pollutants in the environment, their removal or transformation into some useful products is very important for humans and environment. The transformation of toxic dyes into H₂O and CO₂ can be done by photocatalytic degradation. Reduction of carcinogenic nitroarenes to their corresponding amines is a useful conversion from the industrial and academic point of view, as the aromatic amines are starting materials for a number of biological and pharmaceutical compounds.¹⁹ In the catalytic reduction of nitroarenes, reducing agents such as sodium borohydride and hydrazine hydrate have been recently used, but using sodium borohydride as a reducing agent has proven to be mild and safe without the formation of harmful byproducts.

NiFe₂O₄ has been found to be an excellent candidate in the treatment of organic pollutants. It is a soft magnetic material with an inverse spinel structure in which Ni²⁺ mostly reside at octahedral (B) and Fe³⁺ at tetrahedral [A] and octahedral (B) sites.²⁰ The distribution of metal cations among tetrahedral [A] and octahedral (B) sites greatly affects the structural, magnetic, and catalytic properties of ferrites,²¹ as the catalytic activity mainly depends on the type of metal ion present at the catalytically active octahedral (B) site because octahedral sites of the ferrite sublattice are mainly exposed on the surface.²² The chromium ion which has an antiferromagnetic nature affects the magnetic properties when introduced in the nickel ferrite lattice.²³ Ganure et. al.²⁴ reported a decrease in saturation magnetization in NiFe_2–xCr_xO₄ (x = 0.1, 0.2, 0.3, and 0.4) as the Cr³⁺ ion concentration increases. The best catalytic activity was found with x = 0.4 for the synthesis of bis-(4-hydroxycoumarin) methane derivatives. Similarly, there is a linear decrease in the saturation magnetization with increase in chromium content in the nickel ferrite lattice as reported by Singhal and Chandra,²⁵ whereas coercivity increases slowly up to x = 0.8 but a large increase has been observed in samples x = 1 and 1.2. Ni- and Cu-doped nano-ferrites have been found to be excellent catalysts for the reduction of nitroarenes and photo-oxidative degradation of dyes. The CuFe₂O₄ nanoparticles showed tremendous catalytic performance with high recyclability using NaBH₄ as a reducing agent.^26,27 The catalytic activity of CuFe₂O₄ was enhanced using graphene as a support which was attributed to the synergistic effect of copper ferrite and graphene. The magnetically separable NiFe₂O₄@Cu displayed excellent activity as a catalyst for reduction of nitroarenes to their corresponding amines. NiFe₂O₄@Cu exhibited enhanced catalytic performance as compared to pure NiFe₂O₄ due to its larger surface area.²⁸ Cu/SiO₂@NiFe₂O₄, SiO₂@NiFe₂O₄, and NiFe₂O₄ nanocomposites were utilized as catalysts for reductive transformation of nitroarenes to amino arenes. A finely dispersed Cu ion in Cu/SiO₂@NiFe₂O₄ is responsible for its enhanced catalytic activity.²⁹ Fe_3–xCr_xO₄ (x = 0.00, 0.18, 0.33, 0.47, and 0.67) was employed as a heterogeneous catalyst for Fenton-like degradation of organic dyes. It was observed that the surface area and degradation efficiency increase with the increment of the Cr³⁺ion.³⁰ Ni²⁺-doped Ni_xCu_1–xFe₂O₄ (x = 0–0.5) displayed good photocatalytic activity for degradation of rhodamine-B (RhB), and it was found that x = 0.4 is the best among all the synthesized ferrites due to the high separation of electron and holes.³¹ Sn(II) inserted on a hydroxyl apatite-encapsulated (NiFe₂O₄@HAp-Sn²⁺) nanocatalyst and NiFe₂O₄@SiO₂ as a catalyst in the presence of H₂O₂ have also been found to be good candidates for the photo degradation of RhB.^32,33 Liu et. al.³⁴ reported oxalic acid-assisted photodegradation of RhB using NiFe₂O₄ where the complete degradation was achieved in 60 min. The photocatalytic degradation of the mixture of dyes has been carried out by a number of co-workers. CoFe₂O₄-reduced graphene oxide nanocomposites with different weight ratios were utilized for the photodegradation of various organic dyes and their mixture. The ratio 75CF-25RGO showed the highest photocatalytic performance toward the degradation of dyes and their mixture due to facile separation of charge carriers and synergistic effect of CF and RGO.³⁵ Photocatalytic degradation of various dyes and their mixture has also been reported by employing ZnFe₂O₄/ZnO nanocomposites as photocatalysts. The enhanced degrading capability of a nanocomposite as compared to pristine ZnFe₂O₄ has been explained on the basis of suppression of recombination of photo-induced charge carriers.³⁶

To the best of our knowledge, there is no report on the synthesis of nano-sized chromium-doped nickel ferrite NiCrFeO₄ via a combustion method using different fuels. In view of this, we report a facile and simple fabrication of chromium-doped nickel ferrite NiCrFeO₄ by a combustion method using different fuels such as glycine, urea, and polyvinyl alcohol (PVA). Moreover, we are reporting for the first time the catalytic activity of the NiCrFeO₄ for both reduction of nitroarenes and photo-oxidative degradation of organic dyes in their unitary as well as ternary solutions. Catalytic activity of the materials was studied for the reduction of nitroarenes to the corresponding amines because the aromatic amines are the starting materials for various biological and pharmaceutical active compounds. It is well known that there are many kinds of organic dyes in industrial wastewater, and they may cause long-term ill effects on environment and human health. In real practice, it is common to find wastewater that contains more than one kind of dyes. It is hence meaningful to investigate the photocatalytic efficiency of prepared nano-catalysts in the treatment of wastewater that contains different dyes. Therefore, in the present study, RhB dye was chosen as a model pollutant, and under the same conditions, methylene blue (MB), methyl orange (MO), and their mixture were targeted and degraded. Hence, the present work aims to study the comparative effect of prepared ferrites on the photo-oxidative degradation of dyes and reduction of nitroarenes to amines. The comparative catalytic efficiency of the prepared ferrites was investigated based on the surface area, photoluminescence (PL) spectroscopy, and optical band gap. The simple method of preparation and multifunctional character of a NiCrFeO₄ nanocatalyst makes it a versatile catalyst in the field of reduction of nitroarenes and photocatalysis, which can be useful for treating environmental issues.

2. Experimental Section

2.1. Materials and Reagents

The materials and reagents used are ferric nitrate nonahydrate (Fe(NO₃)₃·9H₂O), nickel nitrate hexahydrate (Ni(NO₃)₂·6H₂O), chromium nitrate nonahydrate (Cr(NO₃)₃·9H₂O), glycine (NH₂CH₂COOH), urea (NH₂CONH₂), PVA (C₂H₄O), sodium borohydride (NaBH₄), methanol (CH₃OH), RhB (C₂₈H₃₁N₂O₃Cl), MB (C₁₆H₁₈ClN₃S), MO (C₁₄H₁₄N₃NaO₃S), and hydrogen peroxide (H₂O₂, 27% w/w). All the chemicals used in the reactions were purchased from the Alfa Aesar and were of analytical grade and utilized as obtained without any further purification.

2.2. Fabrication of Nickel Chromium Ferrite Nanoparticles

In the present work, nickel chromium ferrite nanoparticles were fabricated by the solution combustion method which is preferred for its simplicity, short time requirement for reaction, and low calcination temperature. These features have enabled ferrite nanoparticles to have a fine particle size, diminished impurities, and enhanced physical properties.^37,38 In this method, the metal nitrates were used as an oxidant and source of required cations. Fuel is generally a source of carbon and hydrogen, yielding gaseous products like CO₂ and H₂O. In addition to this, fuel also works as a complexing agent providing a homogenous distribution of metal cations in the solution. The stoichiometry of the mixture of metal nitrates and different fuels was calculated based on the total oxidizing and reducing valencies of oxidizer (O), that is, metal nitrates and fuel (F), respectively, so that the value of equivalence ratio that Φ_e (O/F) becomes unity and maximum heat is evolved.³⁹ Therefore, in order to synthesize NiCrFeO₄, the various reactants were taken in molar proportion 1:1:1:x of Ni(NO₃)₂, Fe(NO₃)₃, Cr(NO₃)₃, and fuel where x = 4.44, 6.66, and 4 for glycine, urea, and PVA, respectively. The solutions of weighed metal nitrates and fuel were individually stirred constantly for about 30 min by utilizing a magnetic stirrer, and then both the solutions transferred into the beaker and stirred for 60 min to form homogenous solution for combustion. The well-stirred homogenous solution was then put on a hot plate and heated at a temperature of about 100–120 °C to form a gel. The gel was further heated in an oven at 250 °C for combustion reaction, which yields a voluminous and fluffy mass in the beaker. The as-prepared ferrites were annealed in a muffle furnace at 500 °C for 6 h, and finally the annealed ferrites were grounded to fine powder in the agate mortar and pestle. The powders were named as NCFG, NCFU, and NCFP, respectively, for the nanoparticles synthesized by using glycine, urea, and PVA as a fuel. Scheme 1 shows the schematic diagram for the synthesis of the NCFG, NCFP, and NCFU nanoparticles.

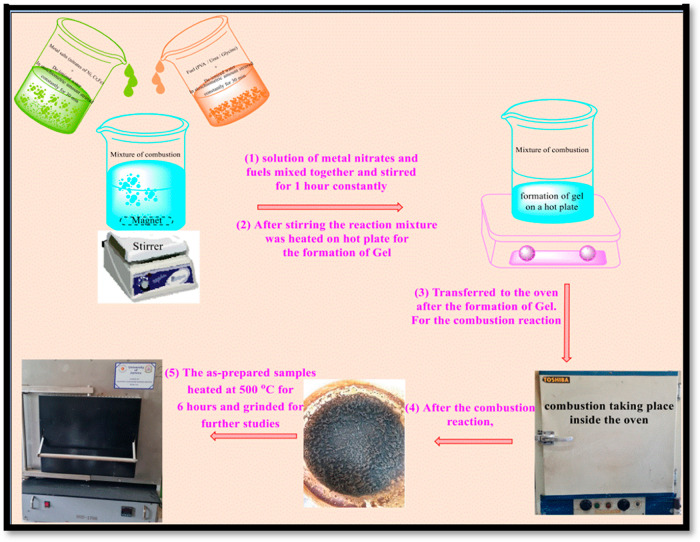

Scheme 1. General Scheme for the Synthesis of NCFG, NCFP, and NCFU Nanocatalysts.

2.3. Physical Measurements

The thermal analysis of the prepared nano-catalysts was conducted on PerkinElmer thermal analyzer (STA-6000). For the structural characterization of the prepared samples, powder X-ray diffraction (XRD) was done on an X-ray diffractometer (Rigaku Smart Lab 9 kW rotating X-ray diffractometer) in the 2θ range of 10–100°. High-resolution transmission electron microscopy (HRTEM) for determining the particle size was performed using Technai G2 20. For the morphology and elemental analysis, field emission scanning electron microscopy (FESEM) and energy-dispersive X-ray (EDX) were performed using Zeiss GeminiSEM. For the purpose of specific surface area, the N₂ adsorption method was used by employing the BET (BELSORP MINIX) instrument after preheating the samples at 100 °C for 5 h. The PL emission spectra were recorded at room temperature by utilizing a fluorescence spectrophotometer (Hitachi, F-4700) equipped with a xenon lamp as a source of excitation. To determine the magnetic behavior of the samples room temperature, M versus H curves were recorded using a vibrating sample magnetometer (Lake Shore 7410-series VSM). For the determination of the optical band gap of the nano-ferrites, diffused reflectance spectroscopy (DRS) spectra and the time-dependent spectra of degradation of different dyes were taken by UV–visible spectroscopy by utilizing a UV–vis–NIR spectrophotometer (PerkinElmer, model LAMBDA 1050⁺). ¹HNMR (400 MHz) and ¹³CNMR (100 MHz) were recorded in CDCl₃, MeOD, and DMSO on a Bruker Advance III spectrometer using TMS as a standard.

2.4. Catalytic Activity Measurement

In order to demonstrate the capability of the prepared NCF nanoparticles as heterogeneous catalysts, the catalytic performance of all the prepared nano-ferrites was studied for both photo-oxidation and reduction reactions. By keeping the environmental issues in mind, the reduction and photo degradation of toxic, carcinogenic, hazardous nitroarenes, and organic dyes have been taken as model reactions.

2.4.1. Procedure for the Catalytic Reduction of Nitroarenes

A solution containing nitroarene (1 mmol) in methanol (5 mL) was prepared in a round bottom flask (50 mL). To the abovementioned solution, a catalyst 0.05 mmol (12 mg) was added, and the mixture was then stirred for 2 min. Thereafter, NaBH₄ (8 mmol) was added to the reaction mixture when a vigorous reaction took place. The reaction mixture was continued to be stirred at room temperature and the reaction progress was checked by TLC (eluent; EtOAc/hexane: 3:10). After the completion of reaction, the reaction mixture was supplied with 5 mL of deionized water and again stirred for 10 min. Then, the mixture was extracted with ethyl acetate (3 × 10 mL) followed by drying over anhydrous sodium sulphate. The crude product was obtained and dried after evaporating the solvent. Furthermore, the crude product was purified by using column chromatography over silica gel 100–200 mesh size (eluent; EtOAc/hexane: 3:10) to yield the pure amino arenes. Elucidation of structures of the obtained product was confirmed by ¹HNMR and ¹³CNMR. To check the recyclability of the ferrites, the separated catalyst was then washed with de-ionized water and ethanol several times to withdraw any organic and inorganic impurities and finally dried in an oven.

2.4.2. Photo-Oxidative Degradation of Organic Dyes and Their Mixtures

Various organic dyes were chosen for the photo-oxidative degradation which was performed under visible light irradiation (250 W mercury vapor lamp), and the distance between the light source and the dye solution was 15 cm. For typical photo-oxidative reaction, aqueous solution of different dyes like RhB, MB, and MO (15 mg/L) was prepared in de-ionized water and 100 mg of the catalyst was added in 100 mL of aqueous solution of dye in a 400 ml beaker. For degradation of a mixture of MO, MB, and RhB, 100 mL solution was taken containing equal volume of each dye. To achieve the adsorption–desorption equilibrium, the reaction solution was stirred in dark for about 1 h. Before exposing the solution to the visible light, 1 mL of H₂O₂ was added and stirring was continued thereafter. The sample solution (3 mL) was withdrawn at set time intervals and immediately centrifuged for regular time intervals to remove the catalyst completely, and any changes in the dye concentration was examined by a UV–visible spectrophotometer. At the end of the degradation reaction, the catalyst was washed 3–4 times with ethanol and water and dried in an oven for further use in recycling reactions to check the recyclability and stability of the catalyst.

3. Results and Discussion

3.1. Thermogravimetric and Differential Thermal Analysis

Thermogravimetric analysis (TGA) and differential thermal analysis (DTA) of NCFG, NCFP, and NCFU catalysts were carried out in order to study their thermal stability. The experiments were done under a N₂ atmosphere with the heating rate of 10 °C/min, and the corresponding TGA and DTA curves are shown in Figure 1. From Figure 1a, it can be clearly seen that the thermal decomposition of the NCFP precursor gel takes place in three steps, while one endothermic and two exothermic peaks are shown by the DTA curve. The first step of decomposition occurs in the temperature range of 30–160 °C, in which 30% of weight is lost, while no significant peak is present in the DTA curve for this range. This weight loss may be due to the decomposition of hydroxyl groups of PVA and weakly attached water. The second step occurred as shown in the TGA curve within the temperature range of 160–270 °C with weight loss of almost 25%, accompanied by a small endothermic at 270 °C and an exothermic peak at the temperature 190 °C in DTA. This may be due to the loss of organic impurities and start of redox reaction between the metal nitrates and the fuel PVA. In the third step, combustion reaction between the metal nitrates (carrying oxidizing valency) and PVA (carrying reducing valency) takes place in the temperature range of 270–400 °C with an exothermic peak at 300 °C, while weight loss in this step is about 15%. Above 400 °C, the weight loss is quite negligible showing that the major weight loss occurs below 400 °C and a total of 70% weight is lost during the combustion reaction in the case of PVA.

Figure 1.

TGA and DTA curves for (a) NCFP, (b) NCFU, and (C) NCFG nanocatalysts.

The TGA curve for precursor gel NCFU (Figure 1b) shows the two steps of weight loss which is accompanied by one endothermic and two exothermic peaks in the DTA curve. The total loss of weight is about 80% up to 400 °C. Weight loss in the first stage occurs in the temperature range 30–190 °C with one endothermic peak around 125 °C and one exothermic peak around 163 °C, which may be due to the complete evaporation of water molecules and start of combustion reaction between the metal nitrates and urea fuel. About 22% of weight is lost during the first stage of decomposition. As shown in Figure 1b, the second stage of weight loss occurs in the temperature range of 190–400 °C accompanied by a strong exothermic peak around 220 °C, which corresponds to the decomposition of reactant molecules and occurrence of combustion reaction between metal nitrates and urea with the evolution of water, CO₂, ammonia, N₂, and oxides of nitrogen, while the residual organic impurities decompose at a temperature around 400 °C.^40,41 Weight loss associated with this stage is about 58%. Above the temperature of 400 °C, the weight remains almost constant, implying the formation of the desired crystalline phase.

The thermal decomposition of precursor gel NCFG (Figure 1c) is taking place in two steps along with one endothermic and one exothermic peak in the DTA curve. Weight loss in the first step corresponds to the temperature range of 30–180 °C with one endothermic peak in DTA around 170 °C. The 12% weight loss in this step can be due to the evaporation of water, organic impurities, and start of a combustion reaction between the metal nitrates and glycine. The second step of weight loss occurs in temperature range of 180–250 °C along with an exothermic peak in the DTA at 190 °C. The percent of weight loss associated with this exothermic peak is 75%, which may be due to occurrence of combustion reaction because of interaction of glycine and metal nitrates in the gel with the evolution of water, CO₂ and N₂. The total weight loss in the decomposition process is about 87% and no significant weight loss can be seen above the temperature 210 °C, that is, weight after 210 °C remains almost constant, a clear indication of the formation of a crystalline spinel structure. Thus, it can be seen from thermal treatment that decomposition of a precursor gel of sample NCFP starts first, then decomposition of a precursor gel of sample NCFU occurs, and finally, the decomposition of precursor gel of sample NCFG occurs.

The possible reactions taking place during combustion of different fuels with metal nitrates are as follows

3.2. Phase and Structural Determination: XRD and Rietveld Refinement

In order to determine the effect of fuels used on the crystal structure of the samples, XRD analysis was performed on each sample after heat treatment. Figure S1 shows typical X-ray diffractograms of NiCrFeO₄ ferrites synthesized using glycine, urea, and PVA as fuels. The diffraction maxima corresponding to the reflection planes (111), (220), (311), (222), (400), (422), (511), and (440) with no characteristic impurity peaks were observed which correspond to spinel cubic structure with the Fd3̅m space group. Moreover, the Rietveld refinement was done on XRD data to obtain complete information regarding the crystal structure of the samples prepared using different fuels using GSAS/EXPGUI program^42,43 by implementing significant structural information from the literature in the space group Fd3̅m. Figure 2 displays the plots of Rietveld refinement for the synthesized samples. It can be seen that the observed and calculated diffraction patterns are in good agreement which is confirmed by the linearity of difference in measured and calculated XRD patterns. The various Rietveld refined structural parameters for the samples like goodness of fit (χ²), reliability factors (R_wp and R_p), and oxygen positional parameter (O) are given in Table 1. The values of χ² are reliable to assign crystal structure to the prepared phases without any impurity. XRD data further allow us to examine the effect of different fuels on structural parameters such as crystallite size (D) and lattice constant (a) for the NCF nanoparticles. The values of the lattice constant obtained from Rietveld refinement for the samples NCFG, NCFU, and NCFP are tabulated in Table 1. The variation in the values of the lattice constant may be justified on the basis of the fact that the different fuels lead to the formation of phases having different cationic distribution between tetrahedral and octahedral sites of the spinel structure and hence the volume (V) of the prepared samples changed according to values of lattice constant, as given in Table 1. By applying the classical Debye–Scherrer equation, the crystallite size of prepared samples was calculated from the line broadening of the most intense (311) peak⁴⁴

1

where D is the crystallite size of nanoparticles, λ denotes the wavelength of radiation used (1.54 Å), θ is the angle of diffraction, and β is full width at half maxima. Since the Braggs peak width is an integration of sample and instrument-dependent effects, thus the value of β can be calculated using the following formula⁴⁵

2

Figure 2.

Rietveld refinement plots of NCF nanocatalysts.

Table 1. Structural Parameters Obtained from the Rietveld Refinement of the XRD Pattern for NiFeCrO₄ Samples Calcined at 500 °C^a.

sample	NCFG	NCFP	NCFU
a (Å)	8.2879(2)	8.3072(9)	8.3022(1)
O	0.2526(5)	0.2520(5)	0.2536(2)
V (Å3)	569.29(2)	573.28(11)	572.24(1)
D (nm)	43.31	3.90	30.13
Rwp	0.2391	0.1444	0.1711
Rp	0.1628	0.1095	0.1147
χ2	3.802	1.590	2.106

^aThe atomic sites are: Ni/Fe 8a [0.125, 0.125, 0.125]; Ni/Fe/Cr 16d [0.5, 0.5, 0.5]; O 32e in the space group Fd3̅m.

The values of crystallite size calculated using eq 1 are summarized in Table 1. It can be depicted from Table 1 that the crystallite size is dependent on the nature of fuel used. The difference in crystallite size can be credited to the different decomposition temperature of fuels. It is well known that the greater the decomposition temperature of fuel, the higher will be the nucleation and growth of the particles, and therefore the larger is the crystallite size and vice versa.⁴⁶

3.3. Morphology, Shape, and Purity of the Nanocatalysts

To examine the role of different fuels on the morphology, particle size, and crystallinity of the prepared samples, FESEM and HRTEM studies were conducted. The typical FESEM micrographs of the NCFG, NCFP, and NCFU are given in Figure 3. The FESEM images show the presence of small voids and pores in all the samples. This may be attributed to the release of a large number of gases like carbon dioxide, water, and nitrogen during the combustion reaction. The NCFG sample has a sponge-like structure with high agglomeration, which consists of very fine crystallites. A dense microstructure for NCFU has been observed with little pores on the surface. Moreover, all the crystallites are connected very well with each other, which may be attributed to the crystalline formation of phase. A porous-like structure of sample NCFP was observed with irregular shape and such porous morphology can offer a high surface area. For the purpose of HRTEM, all the nanocatalysts were dispersed in ethanol and sonicated for 1 h to get the clear dispersion. The HRTEM images (Figure 4) clearly displayed the spherical shape of the particles with visible boundaries. The average particle size for NCFP obtained from HRTEM is of the order of 5.5 and 35.4 nm for NCFU and 80.2 for NCFG nanoparticles. The variation in the particle size could be due to the difference in decomposition temperature of the fuels. In the case of NCFP, the particle size is 5.5 nm, which is slightly bigger than the crystallite size (3.9 nm), clearly indicating that the extent of agglomeration is quite low. The NCFG particle size is almost double the crystallite size, indicating that the growth of the particle is quite good. Selected area electron diffraction (SAED) patterns (Figure 4) display high crystallinity with a set of strong diffraction rings, which are well aligned with the XRD peaks. The major peaks in the XRD were also seen in the SAED pattern’s diffraction rings (220), (311), (400), (422), and (440), as shown in Figure 4b,d,f. The elemental composition was detected using the EDX technique for all the samples. All the peaks in the EDX spectra are Ni, Fe, Cr, and O with no extra peak of any other element. The typical EDX spectra are shown in Figure S2.

Figure 3.

FESEM micrographs for (a) NCFG, (b) NCFP, and (c) NCFU.

Figure 4.

High-resolution TEM images and SAED patterns of NCFG (a,b), NCFP (c,d), and NCFU (e,f).

3.4. BET Surface Area

To study the impact of fuel on morphologies obtained over the specific surface area of samples having the same composition is quite very interesting. It is reported in the literature that the more the specific surface area, the more would be its catalytic efficiency.⁴⁷ Thus, the information regarding the specific surface area, appearance, that is, meso/macro or microporous and nature of the nano-scale pores is necessary in defining the surface-dependent properties of the nanoscale ferrite materials. Therefore, to determine the detailed role that the surface area plays in all the samples in the catalytic activity, the technique coined by Brunauer, Emmett, and Teller, mostly known as the BET surface area analysis, was utilized. For the analysis, all the samples NCFG, NCFP, and NCFU were preheated at 100 °C for 5 h before N₂ adsorption. The adsorption/desorption isotherms of N₂ for the nano-ferrites are displayed in Figure S3. The adsorption–desorption isotherms of N₂ at 77 K for NCFP and NCFU lead to the type IV isotherm hysteresis, demonstrating the mesoporous nature of both the samples, according to the classification of the IUPAC,⁴⁸ while no hysteresis was shown by the sample NCFG. The type IV shows the monolayer adsorption at low pressure and multilayer adsorption at high pressure.^49,50 The values of specific surface area, total pore volume, and mean pore diameter obtained from BET adsorption isotherm are given in Table 2. It can be concluded from Table 2 that the specific surface area among the three ferrite nanocatalysts follows the order NCFP > NCFU > NCFG. The largest surface area of NCFP could be due to its small crystallite and grain size as already confirmed by XRD and HR-TEM measurements. On the basis of mean pore diameter, all the ferrite nanoparticles may be classified as meso or micro pores, that is, NCFP and NCFU have the mean pore diameter in the range 2–50 nm and hence can be classified as mesopores,⁵¹ whereas NCFG with the diameter <2 nm is classified as a micropore material.

Table 2. Specific Surface Area, Total Pore Volume, and Mean Pore Diameter for NCFG, NCFU, and NCFP Nanoparticles.

s. no.	sample	specific surface area (m2/g)	total pore volume (cm3/g)	mean pore diameter (nm)
01	NCFG	1.16	0.0004	1.4027
02	NCFP	90.6	0.1407	6.2118
03	NCFU	24.9	0.0761	12.251

3.5. Optical Properties

The optical band gap is a necessary factor for establishing the potential functions of a material as an efficient photocatalyst in the visible light. UV–vis DRS was employed because of its efficiency for examining the optical properties and predicting the band gap of a material. In spinel ferrites, the band structure suggests energy which is involved to excite an electron from the O 2p orbital, that is, valence band, to Fe 3d, that is, conduction band and the required energy for such an electronic transition is directly proportional to the band gap of ferrite material.⁵² The inset of Figure 5 displays the DRS spectra taken in the range of 250–1100 nm at room temperature for the purpose of band gap determination.

Figure 5.

Tauc plot of (F(R)hν)² vs hν of NCF nanocatalysts (inset shows the DRS spectra of NCF nanoparticles).

The most widely used Kubelka–Munk theory is utilized to analyze the DRS spectra. The Kubelka–Munk function F(R) is in direct proportion to the absorption coefficient as

3

where F(R) is the Kubelka–Munk function, α is the absorption coefficient, and R is the reflectance.

The correlation between E_g and α is called as the Tauc plot, in which E_g is the band gap of the nanoparticle.^53,54 Thus from eq 3, the Tauc relation becomes as follows

4

where h is the Planck’s constant, ν is the photon energy frequency, A is the proportionality constant, and E_g is the optical band gap. Here, n is the nature of electronic transition occurring in the material. It has different theoretical values for different transitions, that is, 2 for indirect allowed and 1/2 for direct allowed transition. It is evident from the literature that spinel ferrites are a class of materials which have a direct band gap,⁵⁵ and hence, in the present case, the value of n is taken to be 1/2. A graph between (F(R)hν)² versus hν (Figure 5) known as the Tauc plot is plotted, and the unique values of the band gap is calculated by extrapolating (F(R)hν)² = 0. The acquired values of band gap are tabulated in Table 3. It can be seen that there is a significant decrease in the band gap values from NCFG to NCFP. Generally, the band gap of a material is governed by two important factors: “quantum confinement effect” and “surface and inter-surface effects”. The value of the band gap increases with decrease in crystallite size, obeying the quantum confinement effect, and a blue shift (increase) is observed, while inverse is the case in the surface and inter-surface effect, which induces a red shift (decrease) in the band gap with decreasing crystallite size.⁵⁶ The variation in the values of the band gap of our samples may be attributed to the dominance of the surface and inter-surface effect over the quantum confinement effect; thus, the band gap induces a red shift (decrease) with a decrease in the crystallite size as reported earlier.⁵⁷ Similar results of the band gap with a crystallite size can also be seen from the literature.⁵⁸⁻⁶⁰ It is quite noticeable that the calculated values of the band gap of all the prepared nanosamples lie in the visible range, which is a clear indication that the samples can act as good photocatalysts in visible light.⁶¹

Table 3. Values of Various Magnetic Parameters and Optical Band Gap of NCFP, NCFU, and NCFG.

ferrite nanoparticles	saturation magnetization (Ms)(emu/g)	remanence (Mr)(emu/g)	coercivity (Hc) (Oe)	squareness ratio (S = Mr/Ms)	band gap (eV)	magnetic anisotropic constant K (erg/cm3)
NCFG	5.02	0.91	376.5	0.180	1.60	1928.6
NCFP	2.69	0.11	108.6	0.004	1.50	298.1
NCFU	3.56	0.91	299.2	0.255	1.56	1086.9

3.6. Magnetic Properties

It is quite interesting to view the impact of fuel on magnetic properties of the prepared nano-ferrites. To determine the magnetic behavior of all the NiCrFeO₄ nanoparticles, vibrating sample magnetometer (VSM) measurements with an applied magnetic field of ±20 kOe were done at room temperature. Typical room temperature hysteresis loops for the nano-ferrites synthesized by using different fuels are shown in Figure 6. It can be observed that magnetization of all the nano-ferrites does not show saturation in magnetization even at maximum applied magnetic field of ±20 kOe. Such non-saturating behavior displayed by the ferrite materials may be due to the presence of two characteristics: (i) antiferromagnetic and/or (ii) superparamagnetic, as suggested by Desai et al.⁶² The magnetization M_s values were predicted from the plot between M_s and 1/H in the high field region. The different magnetic parameters like saturation magnetization (M_s), coercivity (H_c), remanence (M_r), and squareness ratio (S = M_r/M_s) are summarized in Table 3. The difference in magnetic parameters is attributed to the nature of fuel used. It can be concluded from Table 3 that the maximum value of saturation magnetization (5.02 emu/g) is observed for the NCFG sample, while the NCFP sample shows a minimum value of 2.69 emu/g. It is well established that the particle size of ferrites has a significant effect on the saturation magnetization and coercivity, and the larger the particle size, the higher will be its saturation magnetization.⁶³ The bigger crystallite size and high crystallinity of NCFG in comparison to NCFU and NCFP samples as can be seen from the powder XRD data (Table 1) therefore leads to higher saturation magnetization of NCFG. The lower M_s value of small-sized NCFP nano-ferrite may be due to disordered spins that are present on the surface, which inhibits the core spin from aligning in the direction of the field.⁶⁴ An increase in the coercivity is found from NCFP to NCFU to NCFG, which follows the same trend as of saturation magnetization. This variation in coercivity is related to particle size. Such a variation in coercivity with particle size is clear evidence that particles are in a single domain region.^65,66 The increase in coercivity with particle size can also be explained by a magnetic anisotropic constant (K), that is, greater the value of K, larger is the coercivity. The value of K can be calculated by using relation⁶⁷

5

where K is the anisotropic constant, M_s is saturation magnetization, and H_c is coercivity. The calculated values of K are summarized in Table 3. The squareness ratio (S) is used to establish whether the inter grain exchange exists or not. Stoner and Wohlfarth have reported S = 0.5 for randomly oriented non-interacting particles, while S < 0.5 for particles that interact by magnetostatic interactions.⁶⁸ In the present investigation, S is less than 0.5 for all the samples, indicating that interactions are magnetostatic. It is quite notable that the nanosized and single-domain ferromagnetic powder could be superparamagnetic with a squareness ratio (S) = 0.⁶⁹ In the present case, the small coercivity and almost zero squareness ratio value of NCFP depicts the superparamagnetic character of the sample due to its small particle size and uniform shape, which is in good conformity with the results published in the literature.^70,71

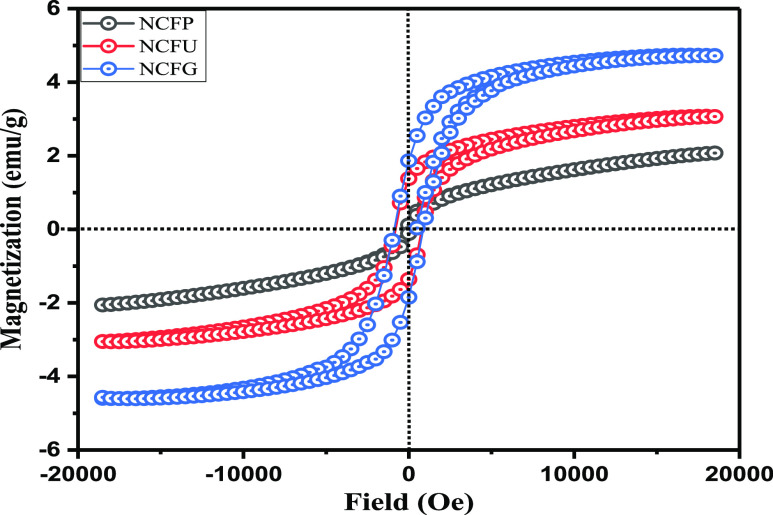

Figure 6.

Room temperature hysteresis loops for NCF nanocatalysts.

3.7. Catalytic and Photocatalytic Properties

3.7.1. Catalytic Reduction of Nitroarenes

For the evaluation of catalytic activity of the prepared nanocatalysts, that is, NCFG, NCFP, and NCFU, reduction of nitrobenzene was chosen as model reaction using sodium borohydride as a reducing agent. Before optimizing the various reaction parameters, the control experiments were carried out, one in the presence of a catalyst and other in the absence of a catalyst. It was observed that reaction without a catalyst did not proceed at all, which indicates the necessity of a catalyst for the reduction to occur. Moreover, sodium borohydride itself cannot reduce the nitroarenes without any other additives.⁷² To obtain the maximum yield of the desired product, optimization of the reduction reaction was performed with 1 mmol of nitrobenzene. Prior to the process of optimization, we investigated various conditions including type of solvent, the amount of catalyst, and amount of sodium borohydride.

3.7.1.1. Optimization of Various Reaction Components

Optimization of the type of solvent: primarily, the model reaction was examined in various solvents such as MeOH, EtOH, CH₃CN, CH₃CN/H₂O, H₂O/EtOH, and H₂O. Among them, MeOH yielded the best results. The effect of various solvents on the reduction of nitroarenes is given in Table 4.

Table 4. Effect of Different Solvents on the Reduction of Nitroarenes^a Catalyzed by the NCFP Nanocatalyst.

s. no.	solvent	time (min)	yieldb (%)
1	ethanol	10	40
2	EtOH + H2O (1:1)	10	60
3	MeOH	10	95
4	ACN	10	20
5	ACN + H2O (3:0.3)	10	50
6	H2O	10	no reaction

^aReaction conditions: nitrobenzene (1 mmol), NaBH₄ (8 mmol), nanocatalyst (12 mg, 0.05 mmol), MeOH (5 mL) at RT.

^bIsolated yield: refers to yield after column chromatography (eluent: EtoAc/hexane 3:10).

Optimization of sodium borohydride: to investigate the effect of NaBH₄ on reaction conditions, different amounts of sodium borohydride were checked (2–10 mmol). Starting with 2 mmol of NaBH₄, there was a presence of the reactant in the reaction mixture. As the amount of NaBH₄ reached 8 mmol, the presence of a reactant disappears and the same result is obtained with 10 mmol, which indicates that 8 mmol of NaBH₄ was enough to carry out the reaction at room temperature. The effect of NaBH₄ can be seen in Table 5. Thus, the optimum value of sodium borohydride for carrying out reaction efficiently is 8 mmol, and hence, the same amount was used for all the reactions.

Table 5. Effect of Concentration of NaBH₄ on the Reduction of Nitroarenes^a Catalyzed by NCFP Nano-Ferrites.

s. no.	NaBH4 (mmol)	time (min)	yield (%)b
1	2	10	20
2	4	10	50
3	6	10	70
4	8	10	95
5	10	10	95

^aReaction conditions: nitrobenzene (1 mmol), nanocatalyst (12 mg, 0.05 mmol), in (MeOH 5 mL) at RT.

^bIsolated yield: refers to yield after column chromatography (eluent: EtoAc/hexane 3:10).

Optimization of a nanocatalyst: to find out the optimum amount of a catalyst required for the reduction of nitroarenes, the amount of a catalyst was optimized for the model reaction. The catalyst NCFP was used for optimization because of its higher surface area and smaller crystallite size. In this case, various amounts (0.02–0.15 mmol) were tested to obtain a maximum yield. 0.05 mmol of the catalyst was found to give excellent yield, and further increase in the catalyst did not increase the yield considerably. Therefore, the optimized value of the catalyst is 0.05 mmol or 12 mg. Table 6 depicts the effect of different amounts of the catalyst on the model reaction.

Table 6. Effect of Different Amounts of the Catalyst on the Reduction of Nitroarenes^a Catalyzed by the NCFP Nanocatalyst.

s. no.	catalyst	concentration (mmol)	yield (%)b
1	NCFP	0.02	60
2	NCFP	0.05	95
3	NCFP	0.1	95
4	NCFP	0.15	95

^aReaction conditions: nitrobenzene (1 mmol), NaBH₄ (8 mmol), nanocatalyst, MeOH (5 mL) at RT.

^bIsolated yield: refers to yield after column chromatography (eluent: EtoAc/hexane 3:10).

In summary, these observations showed that the best result for the reduction of nitrobenzene was obtained under conditions of ArNO₂ (1 mmol), NaBH₄ (8 mmol), and catalyst (12 mg or 0.05 mmol) in MeOH (5 mL) at RT (Scheme 2).

Scheme 2. General Reaction for Reduction of Nitroarenes to Aminoarenes.

3.7.1.2. Extent of Catalytic Activity on Different Nitroarenes

Different nitro analogues were also used for the purpose of reduction in order to investigate the catalytic activity of prepared nano-ferrites. In all the nitro substrates, reaction conditions were kept the same as that of the model reaction and progress of the reaction was monitored by the TLC (eluent; EtOAc/hexane: 3/10). All the structures of amino arenes were elucidated by ¹HNMR and ¹³CNMR, and data are given in Supporting Information Section S1. (1–9). Observed data of reduction of various nitro analogues are given in Table 7.

Table 7. Substrate Scope for the Reduction of Nitroarenes^a to the Corresponding Aminoarenes Using NaBH₄ Catalysed by the NCFP Nanocatalyst.

^aReaction conditions: nitrobenzene (1 mmol), nanocatalyst (12 mg, 0.05 mmol), NaBH₄ (8 mmol) in (MeOH 5 ml) at RT.

^bIsolated yield: refers to yield after column chromatography (eluent; EtOAc/hexane 3:10).

3.7.1.3. Comparative Effect of NCFG, NCFP, and NCFU on the Catalytic Reduction of Nitroarenes

The reduction of nitroarenes with optimized conditions was checked for all the nano-ferrites prepared using different fuels. Here, in catalytic activity, a noticeable change has been observed. It was found that among the three catalysts, NCFP was giving the best yield of 95% in 10 min, which may be due to its high surface area. With NCFG as a catalyst, the yield is about 30% in 10 min. The low yield of the reaction product is mainly due to its very low surface area. While an increase in the yield was noticed with NCFU as catalyst but less than the NCFP giving 50% in 10 min as its surface area is intermediate between the two. Comparison of different NCF nanocatalysts is shown in Table 8. Our results of reduction of nitroarenes catalyzed by a NCFP nanocatalyst were found to be much better than those reported earlier (Table 9).

Table 8. Comparison of Different Ferrites as Catalysts for the Reduction of Nitrobenzene^a to Aniline.

s. no.	catalyst	reaction time	yield (%)b
1	NCFP	10	95
2	NCFU	10	50
3	NCFG	10	30

^aReaction conditions: nitrobenzene (1 mmol), NaBH₄ (8 mmol), nanocatalysts (12 mg, 0.05 mmol), MeOH (5 mL) at RT.

^bIsolated yield: refers to yield after column chromatography (eluent: EtoAc/hexane 3:10).

Table 9. Comparison of Catalytic Activity of NCFP Nanocatalysts with Some Recent Published Work.

3.7.1.4. Potential Mechanism for Reduction of Nitroarenes

It is well established from the literature that spinel ferrites offer more fascinating catalytic activity in comparison to single component metallic oxides.⁷³ Mainly, catalytic activity depends upon the composition of a nanocatalyst. As reported earlier, for spinel ferrites, the catalytic performance depends on a number of factors like particle size, morphology of the nanocatalyst, surface area, redox nature of metal ions, and their distribution between tetrahedral (A) and octahedral (B) sites of cubic spinel crystal lattice. The metal ions which are present in the octahedral site play an important role in catalysis. This can be attributed to the well-known fact that octahedral sites are found to be exposed on the surface. In addition to this, metal ions present at octahedral sites are located at larger distances from which they can freely interact with the reactant molecules.⁷⁴ In the NCF nanoparticles, the Ni²⁺ ions preferably occupy the octahedral sites, which enhances the catalytic activity for the NCF ferrites.⁷⁵ NaBH₄ dissolves in methanol and ionizes, generating BH₄^– ions. These BH₄^– ions diffuse toward the catalyst and get adsorbed onto the NCFP nanocatalyst surface, which results in the formation of a metal–hydride (M–H) complex. Moreover, adsorption of nitro aromatic compounds onto the surface of the catalyst also takes place with reversible adsorption and desorption. Then, the hydride transfer from the M–H complex to nitroarenes takes place.^72,76 The hydride transfer was possible due to the presence of metal ions in the octahedral sites, wherein an electron transfer takes place between the ions present at the octahedral site. The nitroarenes reduces to their corresponding amino arenes, followed by desorption of the final product from the catalyst surface. The surface of catalyst turns out to be free for further reaction. Figure 7 shows the pictorial representation of a possible mechanism.

Figure 7.

Pictorial representation of the mechanism of reduction of nitrobenzene to aniline.

3.7.2. Photo-Oxidative Degradation of Dye

The major type of pollutants present in the waste water from textile industries is the dye pollutants. Therefore, to investigate the photocatalytic behavior of the prepared nano-ferrites photo-oxidative degradation of model dye RhB is carried out under visible light.

3.7.2.1. Control Experiments

Different components used in the photo-oxidative degradation of RhB are hydrogen peroxide (H₂O₂), ferrite catalyst (NCFP), and a source of visible light. Before optimizing the reaction conditions, various sets of control experiments were done to visualize the role of different components on the photo-degradation of RhB. Reactions were done to study the individual effect of hydrogen peroxide (H₂O₂), NCF nanoparticles, and visible light on degradation of RhB. Figure 8a displays the various sets of experiments in the presence of dye + light only, dye + light + H₂O₂, NCFP + dye + light, and NCFP + dye + light + H₂O₂. It can be depicted from Figure 8a that degradation efficiency is very less (1.2%), when the reaction was performed with dye + visible light only. The degradation of RhB increases slightly when the reaction was carried out in the presence of only NCFP catalyst/H₂O₂ only, that is, 4.66 and 5.04%, respectively. This negligible degradation of RhB observed with H₂O₂ only is due to the limited oxidation capability of H₂O₂ (E^o = 1.76 V/SHE).^77,78 Degradation efficiency increased and reached a value of 92%, when the reaction was carried with dye + NCFP + H₂O₂ in the absence of visible light. It should be pointed out here that the degradation of RhB even in the presence of a NCFP catalyst is not enhanced unless the H₂O₂ is added in the reaction mixture. Usually in Fenton or Fenton-like reactions, the Fe²⁺ is oxidized by the H₂O₂ and the strongest oxidant, that is, OH^• radicals are formed as an intermediate product, which can oxidize most of the organic pollutants in the water.⁷⁹ This 92% degradation of RhB in dark conditions clearly demonstrates that the NCFP nanocatalyst is an efficient heterogenous catalyst for Fenton or Fenton-like reactions. Further, under the illumination of visible light, the degradation efficiency improved to a maximum value of 99%, which could be due to the synergistic effect of photocatalysis and heterogeneous Fenton-like catalysis. Since the maximum efficiency of degradation was obtained under the illumination of visible light, all the components were optimized under the visible light-assisted degradation of RhB.

Figure 8.

(a) Control experiments for the degradation of RhB dye, optimization of various reaction parameters: (b) catalyst dosage, (c) H₂O₂, and (d) initial dye concentration toward maximum degradation of RhB.

3.7.2.2. Optimization of Various Components

To obtain the optimal amount of different components like initial dye concentration, catalyst loading, and H₂O₂ dosage toward maximum degradation efficiency, optimization of these components was done for the photo-oxidative degradation of RhB dye using NCFP nanoferrite as a catalyst.

Catalyst loading: to determine the best and optimum amount of the catalyst required for maximum degradation efficiency, the concentration of the NCFP catalyst was varied from 0.25 to 1.25 g/L by keeping all the other components constant (H₂O₂ = 1 mL, [dye] = 15 mg/L, 100 mL solution). In the beginning, with the increase in concentration from 0.25 to 1 g/L of the NCFP catalyst, the degradation efficiency increases from 82 to 99% in 30 min. This is because of the increase in the number of active sites of the catalyst. However, further increment in the concentration of the NCFP catalyst slows down the degradation process and degradation efficiency decreases from 99 to 96 and 95% for 1.25 and 1.5 g/L. The reason for this slow degradation is the increase in the turbidity of the reaction solution, which leads to lesser penetration of light and thereby slowdown of the process.⁸⁰ Since the maximum degradation efficiency is recorded with 1 g/L concentration, all the degradation reactions were done with 1 g/L concentration of the NCFP catalyst. The variation of the NCFP catalyst with degradation efficiency is given in Figure 8b.

H₂O₂ dosage: the oxidant dosage also plays an important role in the photo-oxidative degradation of dyes. To investigate the optimum amount of H₂O₂, the reactions were performed with different concentrations of H₂O₂ (0.5, 1 and 1.5 mL), while all other variables were kept constant ([dye] = 15 mg/L, NCFP catalyst = 1 g/L). The increase in the degradation was observed when the amount increases from 0.5 to 1 mL, which might be due to increase in the number of OH^• produced, while above 1 mL scavenging of active OH^• occurred, as shown in eqs 6 and 7, which drops the degradation efficiency to a lower value.^81,82 The variation of different quantities of H₂O₂ with degradation efficiency is displayed in Figure 8c.

6

7

Therefore, the maximum efficiency was achieved with 1 mL of H₂O₂. Hence, this amount was taken as the optimized one and used for other reactions.

Initial dye concentration: to study the effect of initial dye concentration on the degradation efficiency, various initial concentrations (15 and 20 mg/L) of RhB dye were taken. However, all the other variables are kept constant, that is, H₂O₂ = 1 mL, NCFP catalyst = 1 g/L. Higher degradation efficiency was obtained for 15 mg/L within 30 min and the degradation efficiency decreased for the concentrations above 15 mg/L. The photo-degradation of different concentrations of RhB is shown in Figure 8d The decrease in the degradation efficiency for 20 mg/L concentration dye can be explained based on the fact that the production of hydroxyl radicals (OH^•) in the solution was limited and the quantity of dye molecules was increased, which reduces the degradation efficiency for higher concentrations. Another reason for reduced degradation efficiency might be described by the Beer–Lambert law, according to which, with increase in the dye concentration, a decrease in the path length of photons entering solution was observed, which reduces the degradation efficiency.^83,84 Since the maximum efficiency is observed with 15 mg/L therefore, this concentration was taken as the optimized concentration for the remaining reactions.

Furthermore, the same optimized conditions were utilized for MB, MO, and mixture of dyes (RhB, MO, and MB).

3.7.2.3. UV–Visible Spectroscopy

The UV–visible absorption maxima for RhB, MB, and MO dye were observed at 554, 664, and 464 nm, respectively, which gradually decreases down with an increase in time irradiation and almost disappears with NCF nanoparticles as catalysts. In addition to this, diminishing of the peak at absorption maxima is observed without the appearance of a new band in the UV or visible region, indicating the complete degradation of organic dyes. The rapid decrease in the intensity of the peak may be attributed to the breakdown of chromophores which are responsible for color in dyes. The graph of degradation of RhB using the optimized conditions is shown in Figure 9. The degradation efficiency (% degradation) at given time is calculated using the relation⁸⁵

8

where A_o is the initial absorption intensity of the dye solution and A_t is the absorption intensity at time “t”.

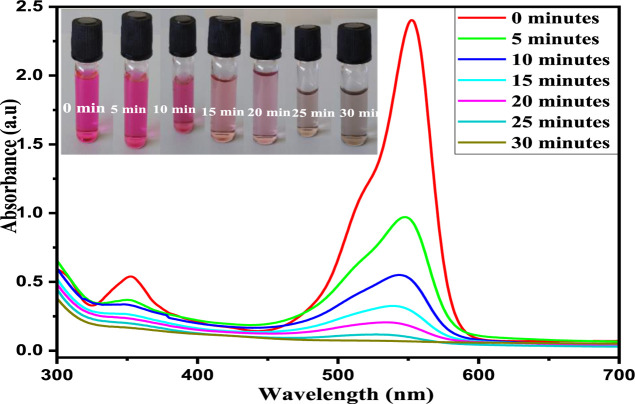

Figure 9.

Typical UV–visible spectra for the photo-oxidative degradation of RhB.

3.7.2.4. Mechanism of Fenton and Photo Fenton-like Degradation of RhB Dye

Fenton-like catalysis: the oxidative degradation of RhB dye occurs by a Fenton-like process by the addition of H₂O₂ and NCFP nanoparticles. As discussed earlier, the degradation efficiency in the dark or Fenton-like process is 92%, which might be due to the presence of active metal ions at octahedral sites and high surface area of the NCFP nanoparticles. It is the metal ions in the NCFP which are responsible for the decomposition of H₂O₂, improving the degradation up to 92% even in the absence of visible light. The Fe³⁺ active sites on the surface of a NCFP catalyst were reduced to form Fe²⁺ active sites, which then reacted with H₂O₂ to produce Fe³⁺ and OH^• radicals.⁸⁶ The conversion of Fe³⁺ to Fe²⁺ is greatly enhanced by the Cr²⁺ ions, which could be produced by the reduction with H₂O₂ or HO₂^• (eqs 9–12).⁸⁷

9

10

11

12

Thus, in the dark conditions, a Fenton-like heterogenous catalysis is observed and hence the degradation of RhB occurs.

Photo-Fenton or photo-oxidative degradation: the pictorial diagram of the mechanism of degradation of dye is shown in Figure 10. In addition to the Fenton-like reaction or in the dark condition, when the reaction is carried out under the visible light, the degradation efficiency increases to 99%. Initially the visible light falls on the NCFP photocatalyst surface, which activates NCFP, and pairs of e_cb^–/h_vb⁺ are generated because of its narrow band gap energy (1.5 eV). When the visible light is absorbed by the NCFP nanocatalyst, electrons from the valence band get excited and migrated to the conduction band, while the holes are left in the valence band.⁸⁸ The photogenerated h_vb⁺ in the valence band combines with the water molecules to form OH^•, which is responsible for degradation of RhB dye or can direct oxidize the dye.⁸⁹ Moreover, the photogenerated electrons in the conduction band of NCFP nanoparticles combines with the adsorbed O₂ molecules to form O₂^–•, which directly reacted with the dye or combined with H₂O₂ to produce OH^•,⁸⁰ which degrade the dye and the reaction solution become colorless, as shown in Figure 9. Thus, the photo-degradation efficiency of the hazardous and toxic dyes is enhanced by photo-Fenton-like process due to generation of more amounts of OH^• radicals. Hence, it can be concluded that overall photodegradation of dyes is due to the combined effect of Fenton-like heterogeneous catalysis and photocatalysis.

Figure 10.

Pictorial representation of the mechanism of degradation of dyes with NCFP as a catalyst and H₂O₂ as an oxidant.

3.7.2.5. PL Properties

Photocatalytic activity has a strong correlation with the PL intensity, that is, the lower the PL intensity, the higher will be the photocatalytic performance and vice versa.⁹⁰ The PL spectra of nanocatalysts were recorded at room temperature with excitation wavelength of 325 nm and displayed in Figure 11. Mostly, the PL spectroscopy is employed to study the transfer, migration, and recombination processes, as these originate from the recombination of free charge carriers, that is, e_cb^–/h_vb⁺.⁹¹ It is observed from the PL spectrum that the all the NCF nanocatalysts show an emission peak at 653 nm in the visible region. It is concluded from the literature that the PL emission intensity is the result of recombination of photogenerated charge carriers.^92,93 NCFG gives the highest intensity peak in the PL spectrum ,which is due to the highest rate of recombination of electron–hole and hence shows the least photocatalytic activity.⁹⁴ Furthermore, a decrease in the intensity of NCFU is observed and photocatalytic activity changes accordingly. A significant decrease is seen in the peak intensity of the sample NCFP nanoparticle, indicating effective suppression of photogenerated charge carriers.

Figure 11.

PL spectra of NCFP, NCFG and NCFU recorded at room temperature.

3.7.2.6. Comparative Effect of NCF Nano-Ferrites on Photocatalytic Degradation of Organic Dyes and Their Mixture

The comparative effect of the nano photocatalysts, that is, NCFP, NCFU, and NCFG was studied on the photocatalytic degradation of RhB, MB, MO, and their mixture using optimized reaction conditions, the results of which are presented in Figure 12. It was observed that the degradation efficiency of individual dye was highest with NCFP (99%) in 30 min for RhB, 50 min for MB, and 115 min for MO dye. For a NCFU catalyst, the 99% of degradation was achieved for RhB in 85 min, 75 min for MB, and 160 min for MO dye. The NCFG catalyst did not degrade RhB dye completely and reached a limiting value of 27% in 220 min, and only 2–3% of degradation was achieved for MO and 2% for MB in 130 min, after which the degradation % remained constant. The difference in degradation efficiency of different photo-catalysts can be explained on the basis of surface area, band gap, and PL spectra. The highest surface area is observed for the NCFP, and the same trend was observed in the photodegradation of the dyes because catalytic activity is largely dependent on the surface area.⁴⁷ Furthermore, it is well known in the literature that the lower the band gap, the higher is the photocatalytic activity due to facile excitation of photogenerated electrons.^95,96 As the band gap value for NCFP is smaller than all the other photocatalysts, this could be the reason for its higher photocatalytic activity. Also, the highest photocatalytic activity of NCFP is supported by the PL studies. The PL emission intensity results from the recombination of photogenerated e_cb^–/h_vb⁺. As discussed earlier, the lower PL intensity in the case of NCFP enhances the photodegradation of dye, suppressing the combination of electrons and holes, and thus provides a large number of charge carriers for the reaction. Hence, from the abovementioned discussion, the best catalyst for photo-oxidative degradation of organic dyes in their unitary solutions is NCFP and shows tremendous activity.

Figure 12.

Comparison of NCF nanocatalysts with different dyes and time: (a) RhB, (b) MB, (c) MO, and (d) time-dependent spectral changes in photodegradation of mixture of dyes (RhB, MO, and MB) with NCFP as a catalyst.

In the case of the mixture of dyes, the NCFP nanocatalyst degrades MB and RhB completely in 50 and 55 min, respectively, whereas the MO dye degraded up to 89% in 55 min and further exposure of light did not cause any change in the absorbance of MO dye (Figure 12d). Here, in the case of NCFU, the same trend is observed for MO in the mixture of dyes, that is, only 84% degradation was achieved and thereafter remained constant, whereas MB and RhB dyes were completely degraded in 70 and 80 min, respectively. The NCFG catalyst did not show much degradation (RhB = 4%, MO = 11%, MB = 2%). It may be noted that compared to other two dyes, MO is not completely degraded by NCFP and NCFU, indicating clearly that the degradations of these dyes would be competitive reactions due to their cationic and anionic nature.⁹⁷ As the NCFP and NCFU catalysts are supposed to be electron-abundant materials, which can easily attract the cationic dye involving RhB and MB, MO dye is not degraded completely and is considered to be anionic in nature. The photocatalytic performance of the catalyst NCFP was found to be superior to the catalysts reported in the literature, and their comparison is shown in Table 10.

Table 10. Comparison of Photocatalytic Activity of the NCFP Catalyst with Some Published Photocatalysts.

s. no	catalyst	reaction condition	degradation time (min)/degradation (%)	references
1	Ni0·4Cu0·6Fe2O4	RhB = 9 mg/L, pH = 2, H2O2	210/99	(31)
2	NiFe2O4@HAp-Sn2+	RhB = 10 mg/L, H2O2	40/99	(32)
3	NiFe2O4@SiO2	RhB = 10 mg/L, pH = 7, H2O2	480/72.8	(33)
4	NiFe2O4	RhB = 10 mg/L, pH = 3 oxalic acid	60/98.7	(34)
5	CoFe2O4-rGO	RhB = 25 mg/L, MB = 30 mg/L and MO = 20 mg/L, H2O2	120/99 (mixture)	(35)
6	NiFeCrO4	RhB, MB, MO = 15 mg/L, H2O2	30/99 (RhB), 55/99 (RhB in the mixture), 50/99 (MB in the mixture), 55/89 (MO in the mixture)	this work

3.8. Recyclability and Stability of the NCFP Catalyst

Recycling of the catalyst is a very important factor for heterogeneous catalytic reactions. Recyclability of the catalyst in both reduction and photo-oxidative degradation reaction was tested. In reduction, nitrobenzene was chosen as the reactant for recyclability reaction. The NCFP catalyst was recovered by simple filtration and washed with water and ethanol several times to remove any absorbed organic compound and then dried in an oven before use for the next cycle. Also, the amount of the reactant taken in the next cycle was adjusted according to the recovered catalyst. For up to three consecutive cycles, a slight decrease in yield from 95% to 91% was observed, which clearly indicates that the catalyst can be used again and again (Figure 13a). In photo-oxidative degradation, RhB dye was chosen as the model dye, and the catalyst was recovered by centrifugation and then washed with water and ethanol to remove any dye molecules. Before using in the next cycle, the catalyst was heated in an oven at 120 °C for 1 h to remove water from the catalyst. The degradation efficiency decreased from 99% to 89% in three cycles, demonstrating the stability of the catalyst. The XRD diffractograms of the recovered samples are shown in Figure 13b. From the XRD graphs, it can be depicted that no deformation in the catalyst phase was observed and possibility for a slight decrease in catalytic activity due to the leaching of metal ions is ruled out. The decrease in catalyst activity might be due to the loss of the sample during the separation process.⁹⁸

Figure 13.

(a) Recyclability of the NCFP catalyst after three runs and (b) XRD diffractograms of an NCFP nanocatalyst before and after recyclability from reduction and photodegradation of RhB.

4. Conclusions

NiCrFeO₄ ferrite nanoparticles have been successfully synthesized by the combustion method using glycine (NCFG), PVA (NCFP), and urea (NCFU) as fuel. In spite of the same composition, a significant variation in the structural, morphology, surface, optical, magnetic, and catalytic properties has been found. Among the prepared nanoparticles, NCFP was found to possess the lowest particle size (5.5 nm) and highest surface area (90.9 m²/g), while the highest M_s and coercivity values were shown by NCFG nanoparticles. Due to its higher surface area and low band gap, NCFP showed excellent catalytic activity for reduction of nitroarenes at room temperature in 10 min with good yield and about 99% photodegradation of RhB in quick time (30 min) [MB (50 min) and MO (115 min)]. Moreover, the NCFP nanocatalyst was found to be degrading the mixture of dyes (RhB, MO, and MB) quite efficiently in less time as compared to NCFU and NCFG. The stability and recyclability with no significant loss in catalytic and photocatalytic performance up to three runs made it a versatile candidate for industrial use and for cleaning of the environment.

Supporting Information Available

The Supporting Information is available free of charge at https://pubs.acs.org/doi/10.1021/acsomega.2c01616.

• Powder XRD diffractograms of NCF nanoparticles, EDX spectrum of all the synthesized nanoparticles, N₂ adsorption–desorption isotherm of all the nanocatalysts, ¹HNMR and ¹³CNMR spectra of aniline and p-aminophenol, and spectral details of all the amino-arenes obtained by the reduction of nitro-arenes catalyzed by NCFP nanoparticles (PDF)

The authors declare no competing financial interest.
