. 2022 Jun 22;12(29):18373–18396. doi: 10.1039/d2ra02469a

A review on the degradation of acetaminophen by advanced oxidation process: pathway, by-products, biotoxicity, and density functional theory calculation†

Mohammad Qutob 1, Mahmoud A Hussein 2,✉, Khalid A Alamry 2, Mohd Rafatullah 1,✉
PMCID: PMC9214717  PMID: 35799916

Abstract

Water scarcity and the accumulation of recalcitrance compounds into the environment are the main reasons behind the attraction of researchers to use advanced oxidation processes (AOPs). Many AOP systems have been used to treat acetaminophen (ACT) from an aqueous medium, which leads to generating different kinetics, mechanisms, and by-products. In this work, state-of-the-art studies on ACT by-products and their biotoxicity, as well as proposed degradation pathways, have been collected, organized, and summarized. In addition, the Fukui function was used for predicting the most reactive sites in the ACT molecule. The most frequently detected by-products in this review were hydroquinone, 1,4-benzoquinone, 4-aminophenol, acetamide, oxalic acid, formic acid, acetic acid, 1,2,4-trihydroxy benzene, and maleic acid. Both the experimental and prediction tests revealed that N-(3,4-dihydroxy phenyl) acetamide was mutagenic. Meanwhile, N-(2,4-dihydroxy phenyl) acetamide and malonic acid were only found to be mutagenic in the prediction test. The findings of the LC50 (96 h) test revealed that benzaldehyde is the most toxic ACT by-products and hydroquinone, N-(3,4-dihydroxyphenyl)formamide, 4-methylbenzene-1,2-diol, benzoquinone, 4-aminophenol, benzoic acid, 1,2,4-trihydroxybenzene, 4-nitrophenol, and 4-aminobenzene-1,2-diol considered harmful. The release of them into the environment without treatment may threaten the ecosystem. The degradation pathway based on the computational method was matched with the majority of ACT proposed pathways and with the most frequent ACT by-products. This study may contribute to enhance the degradation of ACT by AOP systems.

Researchers use advanced oxidation processes because of water scarcity and environmental recalcitrance. State-of-the-art studies on ACT by-products and their biotoxicity, proposed degradation pathways, have been collected, organized, and summarized.graphic file with name d2ra02469a-ga.jpg

1. Introduction

Nowadays, pharmaceutical compounds have piqued the interest of environmentalists due to the rising demand for pharmaceutical compounds, which means a continuous release of them into the environment and little understanding of their effects and their by-products on human health and the environment.1 Pharmaceuticals compounds can flow to the environment from many sources like wastewater treatment plants (WWTPs), cure factories, domestic sewage, medical and research centers (unused, expired, and residual), animal husbandries, and landfills. Pharmaceuticals compounds have been detected in the surface water, groundwater, hospital effluent.2 The low-efficiency of wastewater treatment leads to releases the of pharmaceuticals into the water bodies. It has been observed that around 90% of pharmaceutical compounds that are excreted from the human body ending up in the aquatic ecosystem with passing time, these pharmaceuticals and their by-products accumulate in the fish, which is due to declining in fish fertility and cytotoxicity.3

Acetaminophen (ACT) or paracetamol (C8H9NO2, MW = 151.163, DrugBank Accession Number: DB00316) is one of the most popular pain killers use without a prescription for the relief of headache, backache, and rheumatic pains.4,5 It has been reported that around 6% of adults in the US consume more than 4 g per day, and more than 30 000 patients are hospitalized for ACT toxicity, which reflects the large consumption of ACT in the US.6 The researcher estimated the global production of ACT around 100 tons per year.7 This mass production of ACT increases the leakage opportunity into the environment, which is increases the threats of ACT and its by-products on the ecosystems.

In addition to pollutants accumulation into the environment, water scarcity is one of the main economic, social, and environmental problems in the 21st century. Thus, back to many reasons like increase the population, environmental change, and industrialization.8 To fulfill the rise in water demand and to avoid any further accumulation of contaminants into the environment, the researchers have proposed many water treatment approaches. These approaches are classified into three major classes (i) chemical treatment (ii) biological treatment (iii) physical treatment. Among them, advanced oxidation processes have gained attention to their ability to degrade high recalcitrance compounds.

Advanced oxidation process (AOP) is a chemical process based on activation of some molecules resulted in producing high electrophilic species or superoxide agents capable decomposing complex and highly recalcitrance pollutants. Many AOP techniques have been applied to oxidize ACT from an aqueous medium such as photocatalytic (via visible light or ultraviolet), ultrasound, Fenton, photo Fenton, photo-electro Fenton, AOP-based on nanomaterials, ozonation, thermal activation, and electro activation.9–17 The chemical eqn (1)–(6) are an example of the formation of the radicals when Fenton and iron/PS systems applied:

Created by potrace 1.16, written by Peter Selinger 2001-2019 Fe(ii) + S2O82− → Created by potrace 1.16, written by Peter Selinger 2001-2019 Fe(iii) + SO4˙− 1
Created by potrace 1.16, written by Peter Selinger 2001-2019 Fe(ii) + H2O2 → Created by potrace 1.16, written by Peter Selinger 2001-2019 Fe(iii)+ ˙OH 2
SO4˙−+ HO− → SO42− + ˙OH 3
˙OH + S2O82− → HO− + S2O8˙− 4
1. 5
SO4˙− + S2O82− → SO42− + S2O8˙− 6

In our previous work, we mentioned the influence of different parameters, degradation mechanism, degradation efficiency, and catalyst reusability for AOP systems that used to degrade ACT from an aqueous medium.18 In this review, we are going to collect, organize, and summarize the scattered information related to ACT proposed pathways, by-products, and their biotoxicity. This study also used a computational method to anticipate the ACT degradation pathway.

2. ACT degradation pathways

In AOP systems, many different treatment techniques have been applied to remove persistent organic pollutants from an aqueous medium, which generates several kinetics reactions and by-products. These by-products could be the same or different in types or concentrations. Since most remediation technologies are based on the application of appropriate degradation pathways, so, it is necessary to identify the degradation pathway of the target pollutant. There are many benefits to the determination of the degradation pathway like control the effectiveness of remediation system, the influence of degradation on analytical results can be eliminated, and the knowledge of degradation pathways for particular compounds can facilitate the assessment of environmental pollution based on the presence of degradation products. In addition, the identification of the degradation pathway is useful for the future development of a reaction mechanism and a kinetic model.19 Many studies have proposed degradation pathways of ACT based on the identification of the by-products during and after the chemical reaction. Table 1 represents the most frequent by-product molecules that proposed to build ACT degradation pathways.

List of main proposed by-products to build ACT degradation pathways.

Product number Chemical formula and molecular weight Chemical structure Product number Chemical formula and molecular weight Chemical structure
P1 C6H5Cl2NO, m/z: 180 graphic file with name d2ra02469a-u1.jpg P31 C2H2O4, m/z: 90 graphic file with name d2ra02469a-u2.jpg
P2 C8H11NO3, m/z: 169 graphic file with name d2ra02469a-u3.jpg P32 C4H8O2, m/z: 88 graphic file with name d2ra02469a-u4.jpg
P3 C8H9NO3, m/z: 167 graphic file with name d2ra02469a-u5.jpg P33 C4H4O4, m/z: 116 graphic file with name d2ra02469a-u6.jpg
P4 C6H6O2, m/z: 110 graphic file with name d2ra02469a-u7.jpg P34 C4H6O6, m/z: 148 graphic file with name d2ra02469a-u8.jpg
P5 C2H5NO, m/z: 59 graphic file with name d2ra02469a-u9.jpg P35 C4H6O5, m/z: 134 graphic file with name d2ra02469a-u10.jpg

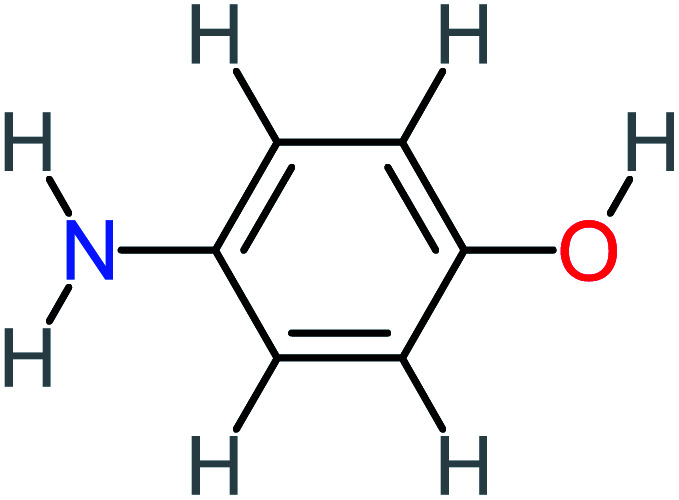

P6 C6H7NO, m/z: 109 graphic file with name d2ra02469a-u11.jpg P36 C2H4O2, m/z: 60 graphic file with name d2ra02469a-u12.jpg

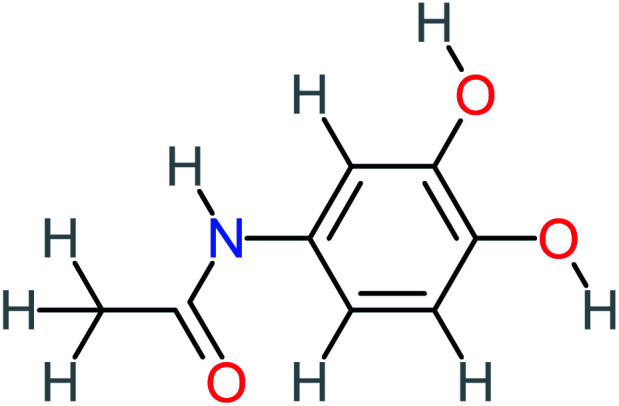

P7 C8H9NO3, m/z: 167 graphic file with name d2ra02469a-u13.jpg P37 NO3−, m/z: 62 graphic file with name d2ra02469a-u14.jpg
P8 C6H4O2(m/z: 108) graphic file with name d2ra02469a-u15.jpg P38 CH2O2, m/z: 46 graphic file with name d2ra02469a-u16.jpg
P9 C8H11NO4, m/z: 185 graphic file with name d2ra02469a-u17.jpg P39 C2H7N, m/z: 45 graphic file with name d2ra02469a-u18.jpg
P10 C6H6ClNO, m/z: 145 graphic file with name d2ra02469a-u19.jpg P40 C8H9NO2, m/z: 151 graphic file with name d2ra02469a-u20.jpg
P11 C6H6O3, m/z: 126 graphic file with name d2ra02469a-u21.jpg P41 C7H8O2, m/z: 124 graphic file with name d2ra02469a-u22.jpg
P12 C6H5NO3, m/z: 139 graphic file with name d2ra02469a-u23.jpg P42 C6H4N2O5, m/z: 184 graphic file with name d2ra02469a-u24.jpg
P13 C16H16N2O4, m/z: 301 graphic file with name d2ra02469a-u25.jpg P43 C5H11NO, m/z: 101 graphic file with name d2ra02469a-u26.jpg
P14 C5H7NO3, m/z: 129 graphic file with name d2ra02469a-u27.jpg P44 C7H5ClO2, m/z: 157 graphic file with name d2ra02469a-u28.jpg
P15 C8H7NO2, m/z: 149 graphic file with name d2ra02469a-u29.jpg P45 C6H6O2, m/z: 110 graphic file with name d2ra02469a-u30.jpg
P16 C6H6O, m/z: 94 graphic file with name d2ra02469a-u31.jpg P46 C7H8O2, m/z: 124 graphic file with name d2ra02469a-u32.jpg
P17 C8H9NO2, m/z: 151 graphic file with name d2ra02469a-u33.jpg P47 C4H9NO2, m/z: 103 graphic file with name d2ra02469a-u34.jpg
P18 C7H7NO3, m/z: 153 graphic file with name d2ra02469a-u35.jpg P48 CH3NO2, m/z: 61 graphic file with name d2ra02469a-u36.jpg
P19 C2H3NO3, m/z: 89 graphic file with name d2ra02469a-u37.jpg P49 C8H9NO3, m/z: 167 graphic file with name d2ra02469a-u38.jpg
P20 C8H8O2, m/z: 136 graphic file with name d2ra02469a-u39.jpg P50 C4H11N, m/z: 73 graphic file with name d2ra02469a-u40.jpg
P21 C7H6O2, m/z: 122 graphic file with name d2ra02469a-u41.jpg P51 C7H9NO, m/z: 123 graphic file with name d2ra02469a-u42.jpg

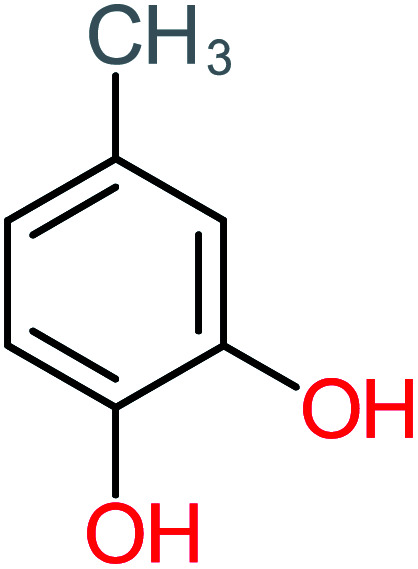

P22 C7H8O2, m/z: 124 graphic file with name d2ra02469a-u43.jpg P52 C6H8NO, m/z: 110 graphic file with name d2ra02469a-u44.jpg
P23 NH4+, m/z: 18 graphic file with name d2ra02469a-u45.jpg P53 C4H6O4, m/z: 118 graphic file with name d2ra02469a-u46.jpg
P24 C8H7Cl2NO2, m/z: 220 graphic file with name d2ra02469a-u47.jpg P54 C8H9NO5, m/z: 200 graphic file with name d2ra02469a-u48.jpg
P25 C4H4O4, m/z: 116 graphic file with name d2ra02469a-u49.jpg P55 C6H6O4, m/z: 142 graphic file with name d2ra02469a-u50.jpg

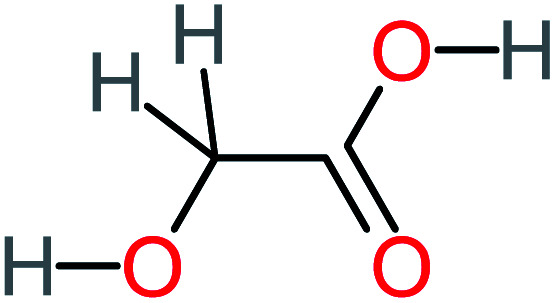

P26 C2H4O3, m/z: 76 graphic file with name d2ra02469a-u51.jpg P56 C6H7NO2, m/z: 111 graphic file with name d2ra02469a-u52.jpg

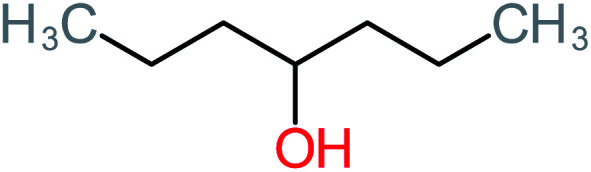

P27 C7H7NO3, m/z: 153 graphic file with name d2ra02469a-u53.jpg P57 C7H16O, m/z: 116 graphic file with name d2ra02469a-u54.jpg
P28 C3H4O4, m/z: 104 graphic file with name d2ra02469a-u55.jpg P58 C6H12O, m/z: 100 graphic file with name d2ra02469a-u56.jpg
P29 C7H6O, m/z: 106 graphic file with name d2ra02469a-u57.jpg P59 C3H6O3, m/z: 90 graphic file with name d2ra02469a-u58.jpg

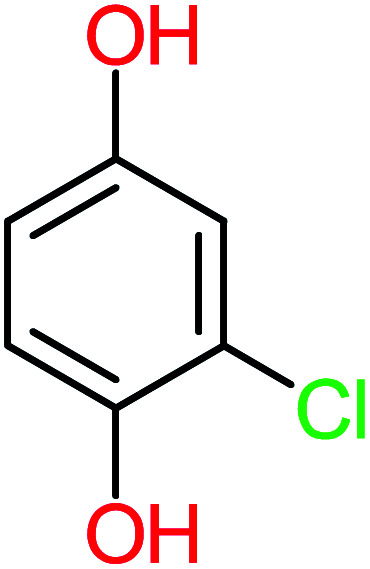

P30 C6H5ClO2, m/z: 145 graphic file with name d2ra02469a-u59.jpg
Open in a new tab

According to the literature, we can classify the majority of the proposed ACT degradation pathways into three (i) coupling, which is the combination of phenoxyl radical and ACT to form ACT dimer P13, further oxidation of ACT dimer produces carboxylic acid.20–23 (ii) Direct cleavages of the ACT ring leading to form P54 then P55 → carboxylic acid → CO2 + H2O.24–26 (iii) Hydroxylation is the most dominant proposed pathway of ACT. The radical may attack para, ortho, or meta positions in the ACT ring leads to form N-(3,4-dihydroxyphenyl) acetamide P7 or N-(2,4-dihydroxyphenyl)acetamide P3. Further oxidation of P7 and P3 thus leads to produce hydroquinone P4, 1,4-benzoquinone 8, and acetamide P5, further oxidation of P4, P8, and P5 leads to forms carboxylic acid. Complete mineralization of carboxylic acid leading to form CO2 + H2O. In addition, if the radical attacks the N atom in the ACT molecule, thus due to form 4-aminophenol P6 then 4-nitrophenol P12, further oxidation of P12 leading to form P4 and P8. If the radical attacks para position in the ACT ring, this leading to produce P4 and P5, further oxidation of P4 produce P8 more oxidation of P8 leading to form carboxylic acid then CO2 and H2O, also further oxidation of p5 may producing acetic acid P36, formic acid P38, ammonium P23. It should be mentioned that hydroxylation pathways were the most abundant proposed degradation of the ACT pathway, especially hydroquinone and 4-aminophenol pathways. Skoumal et al.5 examined O3/Fe2+ + Cu2+/UV system to oxidize ACT. They proposed the degradation pathway based on the detected by-products. The radicals may target C2 in the ACT molecule, resulting in 2-hydroxyl-4-(4-acetyl)aminophenol production. Furthermore, the radicals may target C4, resulting in hydroquinone and acetamide. Further degradation of 2-hydroxyl-4-(4-acetyl)aminophenol generated glyoxylic acid and ketomalonic acid. The oxidation of hydroquinone leads to the formation of 1,4-benzoquinone, then the ring cleavages produced carboxylic acids and that, the acids were converted into CO2 and H2O. Ganiyu et al.27 applied the electrochemical system for ACT decomposition from an aqueous medium. In this study, three degradation pathways were proposed. (i) N-Dealkylation process for the ACT, which generated hydroquinone and acetamide. Further oxidation of hydroquinone giving carboxylic acids and ammonium then CO2 and H2O. (ii) The radicals attacked peptide bond giving 4-aminophenol, the hydroxylation of 4-aminophenol leading to formation hydroquinone then benzene ring cleavage giving carboxylic acids. (iii) Hydroxylation of ACT molecules produced 2-hydroxyl-4-(4-acetyl)aminophenol, further oxidation of 2-hydroxyl-4-(4-acetyl)aminophenol leading to formation hydroquinone. Gao et al.28 proposed three degradation pathways of ACT, pathway (i) was formed when the aromatic ring of ACT was hydroxylated, resulting in the creation of N-(3,4-dihydroxyphenyl) acetamide, then the aromatic ring of N-(3,4-dihydroxyphenyl) acetamide is cleaved, resulting in the creation of a ring opening product. Pathway (ii) began with the attack of the ˙OH on the para position of the phenolic functional group, resulting in the synthesis of hydroquinone, which was then oxidized to generate 1,2,4-trihydroxybenzene. Pathway III initiated the attack of ˙OH on the acetyl-amino group, leading to the formation of 4-aminophenol, which was then oxidized to 4-nitrophenol. Fan et al.29 implemented the Ag/AgCl@ZIF-8/visible light system to degrade ACT. They mentioned that hydroxylation and photolysis were the first steps of ACT oxidation. The radical attacked C1 and C4 parallelly, which led to the formation of 1,4-benzoquinone. Further oxidation of 1,4-benzoquinone leads to producing carboxylic acids then CO2 and H2O. Moreover, De Luna et al.30 studied electrochemical system for ACT degradation. They proposed that ˙OH prefers to attack para position in the aromatic ring in ACT, which leads to produce hydroquinone and acetamide. Further oxidation of hydroquinone giving benzaldehyde then turned into benzoic acid leading to ring cleavages and giving alcohols and small carboxylic acids. Table 2 represents the proposed oxidation pathways of ACT by different AOP systems and their active oxidation agents.

Proposed oxidation pathways of ACT for more than 40 studies for different AOP systems.

Systems Proposed pathways Active radicals References
O3/Fe2+ + Cu2+/UV ACT → P4 → P8 → carboxylic acids → H2O + CO2 ˙OH 5
P5 → P36, P38, or P23
Fe2+/PS (1) ACT → P6 → P4 → carboxylic acids → H2O + CO2 SO4˙− and ˙OH 15
(2) ACT → P7 → P22 + P5
P22 → carboxylic acids → H2O + CO2
P7 → P21 + P5
P21 → carboxylic acids → H2O + CO2
P5 → P36, P38, or P23
MgO/O3 (1) ACT → P7 → P5 + P11 ˙OH 31
P11 → P25 → P28 → P38
P5 → P36, P38, or P23
(2) ACT → P2 → P5 + P4
P4 → P11 → P25 → P28 → P38
P5 → P36, P38, or P23
Photocatalytic degradation (1) ACT → P2 → P5 + P4 ˙OH 32
P4 → carboxylic acid → H2O + CO2
(2) ACT → P49 → P4 → P5 → carboxylic acid → H2O + CO2
Iron–copper/persulfate/PS (1) ACT → P6 → P4 + P5 SO4˙− and ˙OH 33
P4 → carboxylic acid → H2O + CO2
(2) ACT → P7 → P5 + P11
P11 → carboxylic acid → H2O + CO2
TiO2/Fe2O3 core–shell nanostructure (1) ACT → P3 → P11 → carboxylic acid → H2O + CO2 ˙OH 34
(2) ACT → P4 → P11 → carboxylic acid → H2O + CO2
(3) ACT → P7 → P11 → carboxylic acid → H2O + CO2
Electro-Fenton and photoelectro-Fenton ACT → P2 → P4 + P5 ˙OH 30
P4 → P29 → P21 → carboxylic acid → H2O + CO2
P5 → P39 → P23 → P37
Catalytic wet peroxide oxidation (CWPO) (1) ACT → P8 → P21 or P29 → P28, P36, P38, or P3 → H2O + CO2 ˙OH 35
Solar light/Ag-g-C3N4/O3 ACT → P7 → P54 → P55 → carboxylic acids → H2O + CO2 h+ and ˙OH 24
La-doped (1) ACT → P7 → P40 → P21 → H2O + CO2 ˙OH 36
ZnO photocatalyst (2) ACT → P9 → P8 + P5
P8 → P4 → P19 → H2O + CO2
P5 → P23
Ag/AGCl@ZIF8/visible light (1) ACT → P8 → carboxylic acid → H2O + CO2 O2˙− 29
(2) ACT → P16 + P5
P16 → carboxylic acid → H2O + CO2
Peracetic acid/UVC-LED/Fe(ii) (1) ACT → P4 + P5 ˙OH 37
(2) ACT → P56 → P4 → carboxylic acid → H2O + CO2
(3) ACT → P12 or P4 → carboxylic acid → H2O + CO2
(4) ACT → P7 → P56 → carboxylic acid → H2O + CO2
ZVAl/H+/air system ACT → P2 → P4 + P5 ˙OH 38
P4 → carboxylic acids → H2O + CO2
P5 → P36, P38, or P23
CS–Fe/PS (1) ACT → P16 + P5 ˙OH and SO4˙− 39
P16 → P4 → P8 → carboxylic acid → H2O + CO2
P5 → P39 → P23
(2) ACT → P6 + P36
P39 → P43 + P39
P43 → carboxylic acid → H2O + CO2
Cobalt-impregnated biochar/PMS (1) ACT → P7 → P56 → P6 or P11 ˙OH and SO4˙− 40
(2) ACT → P56 → P6 or P11
(3) ACT → P6 → P4 → carboxylic acid → H2O + CO2
P11 → P4 → carboxylic acid → H2O + CO2
P6 → P4 → carboxylic acid → H2O + CO2
Heat/peroxymonosulfate system ACT → P6 → P56 or P12 1O2 and ˙OH 41
P12 → P25 or P28 → P36, P38, or P31 → CO2 + H2O
P56 → P31 → CO2 + H2O
Ferrous ion/copper oxide O2 ACT → P2 → P4 → + P5 ˙OH 42
P4 → P3 → P38 or P36 → H2O + CO2
Fenton process by plasma gliding arc discharge (1) ACT → P4 → P8 → carboxylic acid → H2O + CO2 ˙OH 43
(2) ACT → P42 → P8 → carboxylic acid → H2O + CO2
SnO2/O3 (1) ACT → P7 → carboxylic acid → H2O + CO2 ˙OH 44
(2) ACT → P4 + P5
P4 → carboxylic acid → H2O + CO2
P5 → P36 → P23
OVPTCN/visible light (1) ACT → P4 → P8 or P41 → P35 → H2O + CO2 ˙OH 45
UV/H2O2 ACT → P11, P7, P8, or P4 → carboxylic acid → H2O + CO2 ˙OH and halide radicals 46
UV-LED/NH2Cl and PS (1) ACT → P4 or P6 → P8 or P11 → carboxylic acid → H2O + CO2 ˙OH, Cl˙ and SO4˙− 47
(2) ACT → P7 → P21 → P44 → carboxylic acid → H2O + CO2
Photo Fenton-like oxidation process (1) ACT → P13 O2˙− 21
(2) ACT → P7 → P31 or P28 → P36 or P38 → H2O + CO2
Photocatalytic degradation (1) ACT → P13 O2˙− and ˙OH 22
(2) ACT → P50, P28, or P33 → P36 or P38 → H2O + CO2
Photocatalytic degradation ACT → P4 + P5 h+ and O2˙− 48
P4 → P11 → P38 or P25 → CO2 + H2O
P5 → P37 + CO2 + H2O
Photocatalytic degradation ACT → P51 → P6 → P52 → P8 → P38 → P36 → CO2 + H2O O2˙−, 1O2 and ˙OH 49
Photocatalytic ACT → P6 → P16 → P4 → CO2 + H2O ˙OH 50
Electro-Fenton process (1) ACT → P4 + P5 ˙OH 51
P4 → P8 or P11 → carboxylic acid → H2O + CO2
(2) ACT → P3 → P8 → carboxylic acid → H2O + CO2
Electrochemical degradation (1) ACT → P6 → P4 ˙OH 27
(2) ACT → P4+P5
P4 → P8 → carboxylic acid → H2O + CO2 
P5 → P36, P38, or P23
Electro-Fenton (1) ACT → P8 → P21 or P29 → carboxylic acid → H2O + CO2 ˙OH 52
(2) ACT → P7 → P21 or P29 → carboxylic acid → H2O + CO2
Electrocatalytic degradation (1) ACT → P7 or P3 → P5 + P21 ˙OH 53
P21 → carboxylic acid → H2O + CO2
(2) ACT → P4 + P5
P4 → P11 or P8 → carboxylic acid → H2O + CO2
P5 → P23 → P37 + CO2 + H2O
Electro-catalytic activation ACT → P6 → P4 → P8 → P31 → CO2 + H2O ˙OH 54
Heterogeneous electro-Fenton process ACT → P5 → P16 ˙OH 55
P16 → P57 or P58 → carboxylic acid → H2O + CO2
Photo-Fenton ACT → P4 + P5 ˙OH 19
P4 → P8 → carboxylic acid → H2O + CO2
P5 → P19 → P23 → CO2
High active amorphous Co(OH)2/PMS (1) ACT → P13 ˙OH and SO4˙− 26
(2) ACT → P6 → P4 + P5
P4 → P8 → P28 → CO2 + H2O
P5 → P36 or P38
(3) ACT → P7 → P56 or P54
P56 → P11 → P53 → CO2 + H2O
P54 → P55 → P53 → CO2 + H2O
 BaTiO3/TiO2 composite-assisted photocatalytic ACT → P2 → P4 → P8 → carboxylic acid → H2O + CO2 ˙OH 56
Fuel cell-Fenton system ACT → P6 + P36 ˙OH 57
P6 → P12 → P25 → P35 or P28
Electrochemical oxidation ACT → P3 + P36 ˙OH and SO4˙− 58
P6 → P4 or P12 → P8 → carboxylic acid → H2O + CO2
Photo-electrooxidation ACT → P4 + P5 ˙OH 59
P4 → P8 → carboxylic acid → H2O + CO2
Biotemplated copper oxide catalysts over graphene oxide for ACT removal ACT → P4 → P8 → carboxylic acid → H2O + CO2 ˙OH 60
Gas phase dielectric barrier discharge plasma combined with the titanium dioxide-reduced graphene oxide ACT → P4 → P46 → carboxylic acid → H2O + CO2 ˙OH 61
Photocatalytic degradation of acetaminophen (1) ACT → P13 ˙OH 62
(2) ACT → P4 → P8 → carboxylic acid → H2O + CO2
(3) ACT → P7 → P11 → carboxylic acid → H2O + CO2
(4) ACT → P3 → P11 → carboxylic acid → H2O + CO2
Degradation of acetaminophen by ferrate (vi) ACT → P16 or P52 → P25 → P38 → P31 → H2O + CO2 Direct oxidation 63
Photocatalytic degradation of paracetamol (1) ACT → P2 → P4 + P5 ˙OH 64
P4 → P8 → carboxylic acid → H2O + CO2
(2) ACT → P5 + P6 → P8 → carboxylic acid → H2O + CO2
Open in a new tab

3. ACT degradation pathway based on computational method

In the treatment systems that are based on chemical oxidation, there are two major degradation mechanism pathways (1) non-radical pathway in this pathway, factors such as (irradiation, ultrasonic wave, electron transfer process, etc.) responsible for the degradation of the target pollutant, these factors can oxidize the pollutant spontaneously from any site, which increase the difficulty to predict the degradation pathway through a computational method, (2) radical pathway in this pathway, the radicals such as (˙OH, SO4˙−, and O2˙−) are responsible on the pollutant oxidation. In AOP systems, the radical pathway is mostly dominant and the radicals prefer to attack the highest occupied molecular orbital (HOMO) site on the target pollutant, which can predict the degradation pathway by computational method. Density functional theory (DFT) has been using to calculate the nucleophilic (f+), electrophilic (f−), and radical attack (f°) of each atom within the molecule.65 Fukui function f(r) is the best descriptor method for DFT.66 The following eqn (7)–(10) represents the Fukui functions.

3. 7
f+ = [qi(N + 1) − qi(N)] 8
f− = [qi(N) − qi(N − 1)] 9
3. 10

p(r) is the electron density at point (r) in the space, qi is the atomic charge, and N is the number of electrons. The previous studies which investigated the active sites of ACT by using DFT or frontier orbital theory did not provide enough information to build the degradation pathway of ACT.25,26 In this study, GaussView 6.0 and Gaussian 09 were used to execute the obtained data. Additionally, as a basis set, 6-31 G (d,p) and B3LYP (Becke's three parameters and Lee–Yang–Parr functional) were utilised.67Fig. 1 depicted the f−, f+, and f° values for each ACT, hydroquinone, and 1,4-benzoquinone and their chemical structure.

Fig. 1. (A) Represent ACT molecule and its f−, f+, and f° values. (B) Hydroquinone, and (C) 1,4-benzoquinone.

Fig. 1

Open in a new tab

Based on the values illustrated in Fig. 1, the highest (f°) and (f−) values represent HOMO which is easier to lose an electron and readily attacked by electrophilic or oxidizing agents.61,68 This study revealed the highest value of (f−) was C6 (f− = 1.06716) which means that the first attack of radical is C6 position. The radical attack on C6 results in the hydroxylation of the C6 position, resulting in the release of acetamide and the substitution of a hydroxyl group. Thus, leading to form hydroquinone and acetamide, the same results were obtained by ref. 69. According to Fig. 2, further degradation of acetamide leading to form acetic acid and ammonium, more oxidation of acetic acid and ammonium produce formic acid and nitrate, respectively. The highest (f−) value of hydroquinone were (f− = 0.203958) and (f− = 0.204305) for C3 and C6, respectively. In this case, there are three possible pathways (i) quick hydroxylation of C3 and C6 leading to formation 1,4-benzoquinone, (ii) if the radical attack C3 and C6 leading to the cleavage of the benzene ring, which is due to the form of small carboxylic acid such as glycolic acid, acetic acid, formic acid, pyruvic acid, oxalic acid, (iii) the values of (f−) for C6 was little bet higher than C3 which leading to ring cleavage from C6 position, leading to form carboxylic acids like malic acid, maleic acid, succinic acid, butenedionic acid, and tartaric acid. For pathway (i) further oxidation of 1,4-benzoquinone due to a reversible chemical reaction between hydroquinone and 1,4-benzoquinone. Since the highest values (f−) for 1,4-benzoquinone were (f− = 0.188725) for O11 atom and (f− = 0.188722) for O12 atom, in this case, the radical attack (O Created by potrace 1.16, written by Peter Selinger 2001-2019 C) bond for O11 and O12, resulting to reform of hydroquinone, this agreed with.27,36,59,70 For pathway (ii) further oxidation of the small carboxylic acid leading to completely mineralization and produce CO2 and H2O. Pathway (iii) more decomposition of carboxylic acid due to form small carboxylic acid such as glycolic acid, acetic acid, formic acid, pyruvic acid, oxalic acid, then convert to CO2 and H2O. Fig. 2 illustrate the degradation pathway of ACT based on the computational method. The predicted ACT pathway is matched with the majority of the proposed degradation pathways in the Table 2. In addition, the most frequent by-products of ACT that have been detected as hydroquinone, 1,4-benzoquinone, acetamide, formic acid, acetic acid, oxalic acid, and maleic acid, was predicted in this study by using computational method. Finally, computational chemistry assists the researchers in predicting the degradation pathway, especially for large organic molecules.

Fig. 2. Illustrated the proposed degradation pathway based on computational method.

Fig. 2

Open in a new tab

4. By-products of ACT

The specific objective of the chemical oxidation treatment is to mineralize the pollutant completely and convert them into CO2, NO3−, and H2O or convert them into harmless molecules. On the other hand, some AOP systems have partially mineralized the pollutant, which leads to producing by-products (also known as transformation products and intermediate products). These by-products could be threatened and toxic for the environment and public health more than the parent pollutant itself.71 The researcher illustrated the threaten of by-products that are released from WWTPs into the environment like an iceberg the pollutants themselves are just the tip of the iceberg while the by-products represent the majority of the iceberg that hidden underwater. As mentioned, many AOP systems have been applied to oxidize ACT from a liquid medium. Thus, leading to generate many of by-products. Many reduction-oxidation agents have been observed during the degradation of ACT, such as holes, photon, halide radicals, ozone, methyl radical, singlet oxygen, hydroxyl radical, sulfate radical, superoxide radical. These radicals may attack different sites of ACT, which leading to the formation of different and unique by-products. For example, Mashayekh-Salehi et al.,31 observed that the ozone molecule attacked the ACT molecule leading to the formation of 2-hydroxy-4-(N-acetyl)-aminophenol compounds. On the other hand, ozone molecules could not fully mineralized ACT because ozone does not have sufficient energy to do that. In addition, many studies observed that ACT dimer have been formed during ACT degradation. The mechanism behind the formation of ACT dimer was losing one electron, which changes the ACT molecule to cationic form (phenoxyl radical), then the self-combination of ACT with the neighbor phenoxyl radical leading to form ACT dimer.20,32 Methyl radicals and N-(3,4-dihydroxylphenyl)formamide were produced through the attack of ACT by OH° and methyl radicals attacked N-(3,4-dihydroxylphenyl)formamide and formed 4-methylbenzene-1,2-diol.33 Zhang et al.72 examined S-doped graphene/Pt/TiO2 to degrade ACT from an aqueous medium. They observed that chlorinated by-products such as 2-chlorohydroquinone and 4-chlorobenzene-1,2 diol were formed after attacking the ACT molecule by halides radicals. Abdel-Wahab et al.34 examined magnetic flower-like TiO2/Fe2O3 core–shell nanomaterials activated by irradiation. After the end of ACT degradation, the by-products were ACT, 4-acetamidocatechol, 4-acetamidoresorcinol, hydroquinone, 1,2,4-benzetiol, maleic acid, tartaric acid, malic acid, succinic acid, malonic acid, oxalic acid, oxamic acid, and acetamide. Kohantorabi et al.73 studied the oxidation of ACT by using Ag/ZnO@NiFe3O4 nanorods promoted by UVA/PMS. The by-products were hydroquinone, glycolic acid, 1,4-benzoquinone, and 3-hydroxypropanic acid. Zhang et al.74 were identified acetamide and benzoquinone. Then Benzoquinone was further oxidized to produce acetyl methyl carbinol, 2-pentanone, and methyl vinyl ketone as intermediates. Additionally, De Luna et al.30 applied photoelectro-Fenton using a double cathode electrochemical cell to decompose ACT from an aqueous medium. Acetic acid, formic acid, oxalic acid, malonic acid, hydroquinone, and amide were detected after 120 min of reaction. In addition, oxalic acid, formic acid, and acetic acid were the main transformation products when metal-loaded mesoporous for the catalytic wet peroxide oxidation of ACT.35 Fenton oxidation applied by De Luna et al.75 to degrade ACT. The by-products were hydroquinone, benzoic acid, benzaldehydes and some non-aromatic products like carboxylic acid, alcohols, ketones, and aldehydes. Yunfei Zhang et al.76 applied ferrous ion and copper oxide/O2 system to remove ACT from a liquid medium. The main by-products were hydroquinone, ammonium, formic acid, acetic acid, and oxalic acid. Furthermore, small carboxylic acid like formic acid, oxamic acid, and oxalic acid were detected when TiO2 nanotube activated by UV light was applied. Peng et al.77 used pyrite to activate persulfate and H2O2 for ACT degradation. In this system, the by-products were hydroquinone, acetamide, nitrate, and acetic acid. Platinum doped TiO2/photocatalytic systems were used to degrade ACT. After 60 min the transformation products were oxalic acid, acetic acid, and formic acid.78 Furthermore, Mashayekh-Salehi et al.31 applied MgO nanoparticles activated/O3 system to oxidize ACT from an aqueous medium. Malonic acid, succinic acid, malic acid, formic hydroxy acetic acid, acetamide, and nitrite were the major intermediate products in this system. Ling et al.24 carried out Ag–g-C3N4/O3 catalyzed by vis-UV light to oxidize ACT. Hydroquinone, di-hydroxyphenyl, and tri-hydroxyphenyl were the main by-products generated from this system. Thi & Lee36 implemented photocatalytic of 1%-La doped ZnO system to remove ACT from an aqueous atmosphere. Few by-products were produced in this system like hydroquinone, oxamic acid, acetic acid, butyric acid, and 2-amino-5-methyl benzoic acid. Moreover, G. Fan et al.29 pointed out that salicylaldehyde, acetamide, phenol, lactic acid, succinic acid, malic acid, and maleic acid were generated when Ag/AgCl@ZIF-8/visible light system was applied to oxidize ACT. In addition, hydroquinone, 1,4-benzoquinone, 4-methoxyphenol, 2-hexenic, and malic acid were monitored when oxygen vacancies and phosphorus coded black titania coated carbon nanotube composite activated by visible light was applied. Ghanbari et al.37 studied a synergistic peracetic acid/UVC-LED system to oxidize ACT. 4-Nitrophenol and hydroquinone were the transformation compounds in this system. H. Zhang et al.38 applied a zero valent aluminum-acid system to degrade ACT from a liquid medium. The main by-products were hydroquinone and anionic derivatives like acetate and nitrate. S. Wang et al.15 examined Fe2+/PS system to remove ACT. They detected hydroquinone, 1,4-benzoquinone, N-(3,4-dihydroxyphenyl)formamide, and 4-aminophenol, 4-methylbenzene-1,2-diol after 30 minutes of reaction. Pham et al.79 detected oxaloacetic acid and 4-nitrophenol were the major transformation products when Fe and N co-doped carbon nanotube system was applied. In this review, the by-products of 64 studies related to the oxidation of ACT from an aqueous medium by using different AOP systems were collected and summarized in the Table 3. This study revealed that hydroquinone, 1,4-benzoquinone, acetamide, oxalic acid, formic acid, 1,2,4-trihydroxybenzene, and maleic acid were the most frequent by-products of ACT.

Number of detections of the most frequent by-products for different AOP systems.

Carboxylic acids compounds and small by-products Number of detections Remark Quinone derivatives and aromatic by-products Number of detections Remark References
Acetamide 15 Acetamide one of the most frequent by products in all AOP systems Hydroquinone 43 Is the most frequent by products in all AOP systems 15, 17, 31, 20, 32, 33, 72, 34, 30, 35, 76, 36, 29, 37, 38, 79, 80, 81, 82, 39, 83, 41, 40, 41, 84, 42, 85, 43, 86, 87, 44, 88, 89, 45, 46, 90, 69, 47, 91, 21, 92, 22, 93, 48, 49, 94, 50, 95–99, 27, 51, 52, 58, 53–55 and 100–103
Oxalic acid 14 Detected in all AOP systems except systems that based persulfate and peroxymonosulfate as an oxidant 1,4-Benzoquinone 26 Was detected after treatment of ATC by different AOP systems
Formic acid 10 Detected in all AOP systems except systems that based irradiation as a catalyst 4-Aminophenol 16 Detected in all AOP systems except systems that based persulfate and peroxymonosulfate as an oxidant
Acetic acid 9 Mostly detected after oxidation of ACT by electrooxidation systems 1,2,4-Trihydroxybenzene 5 This by-product was frequently detected after oxidation of ACT by photodegradation systems
Oxamic acid 7 Detected in all AOP systems except systems that based persulfate and peroxymonosulfate as an oxidant 4-Methylbenzene-1,2-diol 2 Only observed after ACT treatment by systems that based persulfate and peroxymonosulfate as an oxidant
Maleic acid 5 Only observed after ACT treatment by systems that photodegradation systems Benzoic acid 2 Benzoic acid frequently detected after electrooxidation of ACT
Malonic acid 2 Mostly detected after oxidation of ACT by electrooxidation systems N-(3,4-Dihydroxyphenyl)formamide 2 Only observed after ACT treatment by systems that based persulfate and peroxymonosulfate as an oxidant
4-Heptanol 2 Mostly detected after oxidation of ACT by electrooxidation systems
Butanoic acid 2
Hydroxyacetone 2
2-(Acetylamino)-2-propenoic acid 2 Only observed after ACT treatment by systems that based persulfate and peroxymonosulfate as an oxidant
Open in a new tab

5. The toxicity assessment of ACT and its by-products

The toxicity evaluation of ACT and its by-products is important to increase the system efficiency. It has been reported that by-products could be threatened and toxic for the environment and public health more than the parent pollutant itself. The toxicity assessment of ACT and its by-products were carried out by using the United States Environmental Protection Agency software called Toxicity Estimation Software Tool (TEST) version 5.1. This software is capable to apply mathematical models to predict pollutant toxicity based on Quantitative Structure Activity Relationship (QSAR) methodology. The data was introduced by inputting the name of each by-product. The Lethal concentration 50% (LC50) (96 h) fathead minnow and Ames mutagenicity were the considered toxicity text. The LC50 of prediction values for ACT was 813.76, and 123.08 mg L−1, respectively, and the mutagenicity test showing negative for both experimental and prediction tests. However, N-(3,4-dihydroxyphenyl) acetamide showed positive mutagenicity for both experimental and prediction tests. Meanwhile N-(2,4-dihydroxyphenyl) acetamide and malonic acid showed positive mutagenicity only for the prediction test. Table 4 represents the results of LC50 (96 h) fathead minnow and the mutagenicity tests for the most frequent by-product out of 64 studies collected in this work.

Prediction values of (LC50) (96 h) fathead minnow and Ames mutagenicity for ACT by-productsa.

Name Chemical structure The percentage of the frequent by-products out of 64 studies Fathead minnow, LC50 (96 h) Ames mutagenicity
Photo catalytic% Sulfate radical-AOP% EO% Other AOP process% −log (mol L−1) Predicted value (mg L−1) Experimental result Predicted result
Toxic compounds
Benzaldehyde graphic file with name d2ra02469a-u60.jpg a a 8% 8% 2.98 6.82 a Mutagenicity negative
 
Harmful compounds
Hydroquinone graphic file with name d2ra02469a-u61.jpg 66% 67% 62% 58% 3.81 17.16 Mutagenicity negative Mutagenicity negative
N-(3,4-Dihydroxyphenyl)formamide graphic file with name d2ra02469a-u62.jpg a 17% a a 3.52 45.86 a Mutagenicity negative
4-Methylbenzene-1,2-diol graphic file with name d2ra02469a-u63.jpg a 17% a a 3.65 27.57 Mutagenicity negative Mutagenicity negative
Benzoquinone graphic file with name d2ra02469a-u64.jpg 37% 33% 62% 33% 3.49 35.11 Mutagenicity negative Mutagenicity negative
4-Aminophenol graphic file with name d2ra02469a-u65.jpg 30% 42% 8% 25% 3.30 54.55 Mutagenicity negative Mutagenicity negative

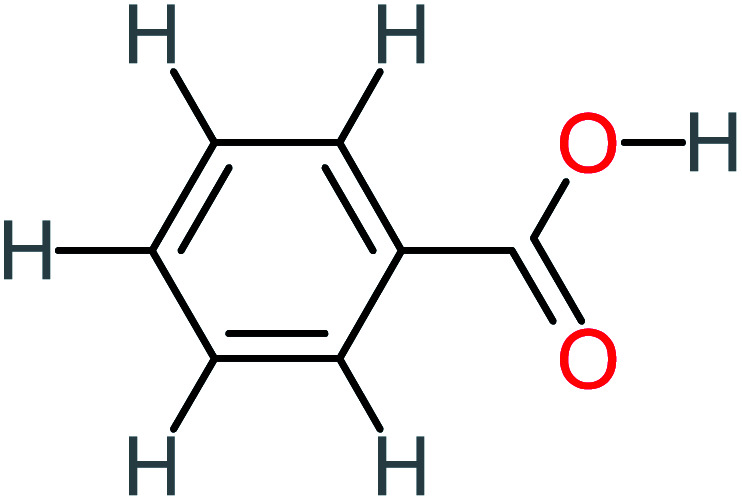

Benzoic acid graphic file with name d2ra02469a-u66.jpg 11% a 15% 8% 3.21 75.43 Mutagenicity negative Mutagenicity negative
1,2,4-Trihydroxybenzene graphic file with name d2ra02469a-u67.jpg 18% 8% 8% a 3.01 24.64 Mutagenicity negative Mutagenicity negative
4-Nitrophenol graphic file with name d2ra02469a-u68.jpg 7% 25% a a 1.93 19.02 Mutagenicity negative Mutagenicity negative
4-Aminobenzene-1,2-diol graphic file with name d2ra02469a-u69.jpg a 16% a a 3.86 43.18 Mutagenicity negative Mutagenicity negative
 
Harmless compounds
Hydroxy-acetic acid graphic file with name d2ra02469a-u70.jpg 7% a 8% 17% 1.60 1904.50 Mutagenicity negative Mutagenicity negative
Malonic acid graphic file with name d2ra02469a-u71.jpg 15% 8% 15% 8% 2.17 704.59 Mutagenicity negative Mutagenicity positive
Succinic acid graphic file with name d2ra02469a-u72.jpg a a a 8% 2.51 367.61 a Mutagenicity negative

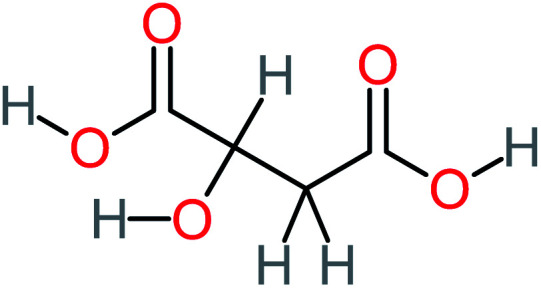

Malic acid graphic file with name d2ra02469a-u73.jpg 11% a 8% 8% 2.40 529.53 a Mutagenicity negative
Acetamide graphic file with name d2ra02469a-u74.jpg 26% 8% 31% 33% 1.97 637.40 Mutagenicity negative Mutagenicity negative
Tartronic acid graphic file with name d2ra02469a-u75.jpg 4% a a 8% 2.27 644.64 a Mutagenicity negative
Maleic acid graphic file with name d2ra02469a-u76.jpg 19% a 8% 17% 2.59 298.69 Mutagenicity negative Mutagenicity negative
Oxalic acid graphic file with name d2ra02469a-u77.jpg 19% a 38% a 2.18 592.91 Mutagenicity negative Mutagenicity negative
Oxamic acid graphic file with name d2ra02469a-u78.jpg 19% a 15% 8% 2.23 520.93 a Mutagenicity negative
Butyric acid graphic file with name d2ra02469a-u79.jpg 7% a a a 2.29 448.12 Mutagenicity negative Mutagenicity negative
Acetic acid graphic file with name d2ra02469a-u80.jpg 15% a 23% 50% 2.66 132.49 Mutagenicity negative Mutagenicity negative
N-(3,4-Dihydroxyphenyl) acetamide graphic file with name d2ra02469a-u81.jpg 14% 8% 8% a 3.71 125.65 Mutagenicity positive Mutagenicity negative
4-Heptanol graphic file with name d2ra02469a-u82.jpg a a 15% a a 122.16 a a

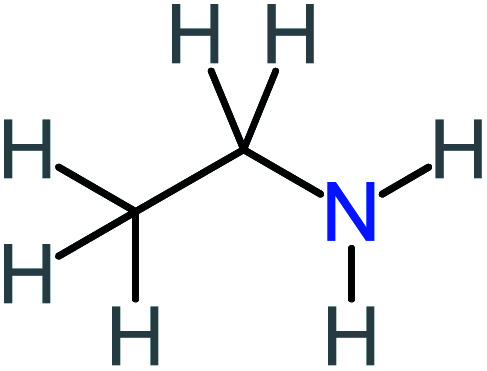

Ethylamine graphic file with name d2ra02469a-u83.jpg a a 8% 8% 4.19 525.21 Mutagenicity negative Mutagenicity negative
Hydroxyacetone graphic file with name d2ra02469a-u84.jpg a a 15% a a 3589.95 a a
N-(2,4-Dihydroxyphenyl) acetamide graphic file with name d2ra02469a-u85.jpg a a 8% 8% 1.31 113.70 a Mutagenicity positive
 
Unknown toxicity values
ACT dimer graphic file with name d2ra02469a-u86.jpg 11% a a 8% 3.46 a a Mutagenicity negative
2-(Acetylamino)-2-propenoic acid graphic file with name d2ra02469a-u87.jpg a 16% a a a a a a
2-Hydroxy-4-(N-acetyl) aminophenol graphic file with name d2ra02469a-u88.jpg 7% a a a a a a a
Formic acid graphic file with name d2ra02469a-u89.jpg 11% 17% 15% 50% a a Mutagenicity negative Mutagenicity negative
Open in a new tab
a

Data not available.

The toxicity of all chemicals in the aquatic environment is classified into four categories according to the globally harmonized system GHS: extremely toxic, toxic, harmful, and harmless chemicals.104 The acute toxicity LC50 (96 h) for fathead minnow exposured to ACT by-products can classify harmless if the concentration of LC50 (96 h) within range from 1000 to 100 mg L−1, harmful level from 100 to 10 mg L−1, toxic level from 10 to 1 mg L−1, and very toxic level at values less than 1 mg L−1.28 The findings revealed that toxic reaction of hydroxy-acetic acid, malonic acid, succinic acid, malic acid, acetamide, tartronic acid, maleic acid, oxalic acid, oxamic acid, butyric acid, acetic acid, N-(3,4-dihydroxyphenyl)acetamide, 4-heptanol, ethylamine, hydroxyacetone, and N-(2,4-dihydroxyphenyl) acetamide to the fathead minnow organism was belonged to the harmless level. Besides, hydroquinone, N-(3,4-dihydroxyphenyl)formamide, 4-methylbenzene-1,2-diol, benzoquinone, 4-aminophenol, benzoic acid, 1,2,4-trihydroxybenzene, 4-nitrophenol, and 4-aminobenzene-1,2-diol belongs to harmful level. Furthermore, benzaldehyde is a toxic by-product for fathead minnow. Extremely toxic level of ACT by-product has not been detected in all AOP system that applied.

The following literature provides some experimental toxicity assessment of ACT and its frequent by-products such as hydroquinone, benzoquinone, benzaldehyde, and benzoic acid. For example, Nunes et al.105 examined the influence of acute exposure of ACT onto two aquatic plants Lemna gibba and Lemna minor. They revealed that ACT had a significant impact on the number of Lemna minor fronds (EC50 = 446.6 mg L−1), but there was no effect on Lemna gibba. Xu et al.106 studied the acute and chronicle effects of ACT onto three different aquatic species (i) fish, (ii) green algae and (iii) daphnia. The acute toxicity values were LC50 = 63.1 mg L−1 for daphnia and LC50 = 323 mg L−1 for fish, and EC50 = 26.3 mg L−1. The chronicle concentrations were 26.3, 5.13, 37.2 mg L−1, for fish, daphnia, and green algae, respectively. The author concluded that there was no adverse effect at chronical value for green algae and fish, but it was harmful to daphnia. Moreover, Sung et al.107 studied the acute toxicity of ACT on shrimp Neocaridina denticulate. The results revealed that the LC50 = 6.6 mg L−1 after 96 hours of exposure. Kataoka et al.108 proposed that the toxicity of ACT on aquatic organisms depends on environmental temperature. They used Oryzias latipes to examine their hypothesis because Oryzias latipes can live at a wide range of temperatures from 0 to 40 °C. The egg yolk of Oryzias latipes exposures to many ACT concentrations at different temperatures 15, 25, and 30 °C for 4 days. The authors revealed that, in any ACT concentrations, the absorption of ACT by egg yolk increased with increasing temperature. Based on the hematological analysis showed at 150 mg L−1 of ACT, the abnormal red cells were increased. In addition, previous researches showed that ACT negatively impacted zebrafish (Danio rerio). For example, Galus et al.109 studied the negative influences of different ACT concentrations from 0.05 μg L−1 to 50 μg L−1 on Danio rerio. The results indicated that at low ACT concentration 0.1 μg L−1, the abnormality was sharply increased, and all test concentrations showed increases in mortality rates. Erhunmwunse et al.110 investigated the acute effects of ACT on developmental, swimming performance, and cardiovascular activities on larvae (Clarias gariepinus). In this study, a fish embryo acute toxicity test was applied. Many ACT concentrations were exposed into Clarias gariepinus embryo 0, 0.5, 1, and 10 μg L−1, and the results concluded that ACT caused teratogenic, neurotoxic, and cardiotoxic effects into Clarias gariepinus.

Hydroquinone is widely used as a water-soluble constituent of foods, an antioxidant in industrial polymers, and as an ingredient in skin lightening preparations.111 The literature agreed that hydroquinone is a haematotoxin and carcinogenic agent, and well known its adverse effects on public health and the environment. A human might exposure to hydroquinone from many sources such as dietary, occupational, and environmental sources. O'Donoghue et al.112 studied the acute effect of hydroquinone on DNA damage in vivo comet assay in F344 rats. The results revealed that hydroquinone caused acute renal necrosis at dosage 420 mg per kg per day. Ji et al.113 examined cytogenetic changes in chromosomes 5, 7, 8, 11, and 21, and global DNA methylation in human TK6 lymphoblastoid cells were exposed for 48 houses with hydroquinone. In compared to melphalan and etoposide, the results revealed a worldwide hypomethylation at an intermediate level. They also discovered a cytogenetic change. Bährs et al.114 investigated the influence of pH and the time of hydroquinone exposure on the growth performance of different eukaryotic and prokaryotic freshwater phototrophs. The authors reported that cyanobacterial species were much more vulnerable to hydroquinone than coccal algal. The Microcystis aeruginosa species was the most sensitive by far. In addition, the impact of pH on hydroquinone toxicity was studied. At pH 11, the hydroquinone stock solution got polymerized, which led to the loss of its toxicity. On the other hand, the i potential was sustained if the polyphenol was kept at pH 7. Furthermore,115 studied the toxicity of hydroquinone on the white rabbit in New Zealand. Three different dosages were applied every day 0, 25, 75, and 150 mg per kg per day. The results revealed that 75 and 150 mg were negatively affected in the body weight and feed consumption during the experiment period. In addition,116 pointed out that hydroquinone was able to increase carcinogenic risk by generating DNA damage and compromising the general immune responses, which may contribute to the impaired triggering of the host immune reaction. They demonstrated that hydroquinone was more toxic for aquatic organisms than bacteria and fungi.117 studied the influence of multiple metabolites compounds such as 1,2,4-benzentriol, hydroquinone, 1,4-benzoquinone, 2,2-biphenol, and 4,4-biphenol on the DNA cleavage activity of human topoisomerase IIα. The results showed that hydroquinone and 1,4-bezoquinone were the most attributes against topoisomerase IIα, including DNA cleavage specificity. Hydroquinone also prevented DNA ligation more effectively than 1,4-benzoquinone.

According to the studies, 1,4-benzoquinone is a highly reactive metabolite that can be caused cells damages through forming DNA adducts and produce superoxide species. In addition, 1,4-benzoquinone can directly attack the macromolecules. Many adverse effects of benzoquinone have been investigated. For example,118 demonstrated that benzoquinone inhibited the cycle progression and induced the contraction and shrinkage of the A549 cells. Thus, leading to the direct effect of the damage of the microtubule cytoskeleton. Pengling Sun et al.119 examined the VNN3 gene code as a biomarker of the 1,4-benzoquinone toxicity. They cultured AHH-1 cells in vitro and incubated them with 0, 10, 20, and 40 mM of 1,4-benzoquinone for 24 hours. The results showed that 1,4-benzoquinone increases the expression of the VNN3 gene, thus leading to inhibit cell proliferation. Summary et al.120 studied the long and short term of exposure of quinone introduced via inhalation into human. They revealed that the acute exposure of quinone with high concentration resulted the following symptoms (i) consisting of discoloration of the conjunctiva and cornea (ii) causes dermatitis from dermal exposure (iii) irritation of the eyes. For long-term exposure appeared the following symptoms, causes skin ulceration and visual disturbances. Furthermore,121 reported that the ACT and 1,4-benzoquinone imine through intraperitoneal injections in the mouse. They mentioned that the LD50 values were 500 and 8.5 mg kg−1, for ACT and 1,4-benzoquinone. That means 1,4-benzoquinone higher 58 times than ACT.122 examined a new approach to determine the toxicity of 1,4-benzoquinone. The results revealed that the IC50 of 1,4-benzoquinone was 0.89 mg L−1, which means highly toxic, and its toxicity should not be ignored. Moreover, Faiola.123 revealed that 1,4-benzoquinone had a direct toxic effect in hematopoietic stem cells (HSCs), which rise to leukemic clones. Kondrová et al.124 studied the mechanisms of the oxidation stress of 1,4-benzoquinone on destroying cytochrome P450. The study observed that 1,4-benzoquinone mainly destroying cytochrome P450 by direct attack of the macromolecules.

Many studies including the chronic and acute effects of benzoic acid, benzaldehyde, and benzene derivatives on different organisms like humans, cats, rats, and other microorganisms. For example, Lee & Chen,125 studied the toxicity of benzoic acid and its derivatives on Pseudokirchneriella subcapitata. The results indicated that the EC50 range of benzoic acid was between 0.55 to 270.7 mg L−1. In addition, they revealed that benzene derivatives (2,4,6-trihydroxylbenzoic acid, 2,3,4-trihydroxylbenzoic acid, 2,6-dihydroxylbenzoic acid, 3-bromobenzoic acid, 4-bromobenzoic acid, and 4-chlorobenzoic acid, were more toxic than benzoic acid. In addition, Paulraj et al.126 examined the pupicidal and larvicidal, which are based on benzaldehyde applied on larvae and pupae stages of Culex quinquefasciatus and Aedes aegypti. They revealed that the LC50 of benzaldehyde on Culex quinquefasciatus and Aedes aegypti were 40.48 and 30.39 ppm after 12.08 and 9.44 min, respectively. The adult mortality of Aedes aegypti was reached 100% after 24 hours of treatment and the mortality of Culex quinquefasciatus was 100% by using in both benzaldehyde and propionic acid. Velegraki et al.71 investigated the influence of benzoic acid on sea bacteria Vibrio fischeri after the treatment process by an electrooxidation system. The results indicated that at initial concentration 50 mg L−1, of benzoic acid in the early stage of treatment was the most toxic with inhabitation around 80% of the bacteria after 6 hours of reaction, the inhibition was kept at 80%. After that, the inhibition started to decrease. Johnson et al.127 mentioned the acute inhalation exposure of benzoic acid for 4 hours introduced to a rat. The results indicated that low acute toxicity was observed on the rate. For oral dose toxicity, if the concentration of benzoic acid below is 800 mg per kg body weight per day, there were no observable adverse effects, while in the concentration of benzoic acid exceed 800 mg kg−1, there were adverse effects have appeared on the liver, kidney of the rat. Furthermore, Kreis et al.128 studied the toxicity of benzoic acid with high dosage and short-term exposure on rats, around 2250 mg kg−1 of benzoic acid was introduced into the rat within 5 days. The results showed around 50% of mortality and many critical adverse effects were observed on rats like histopathological alteration, ataxia, excitation, bleeding into the gut, and convulsion.

6. Future outlook

The development of AOPs as an effective approach to degrade ACT is more demanding of people's attention. The following are the main components of ACT treatment development using advanced oxidation technology:

• The degradation of ACT through radical and non-radical pathways can coexist in chemical oxidation. Since the radicals prefer to attack the more electrophilic sites on the pollutant, which can predict the degradation pathway through DFT method, while the non-radicle pathways attack the pollutant from any site spontaneously, which can generate a wide range of byproducts and increase the difficulty to apply DFT method.

• However, identifying the precise and quantitative contribution of radical and non-radical pathways in the overall oxidative response remains a difficulty, which reduce the preciseness of DFT method to predict the degradation pathways of target pollutant.

• Another important point to keep in mind is that most ACT degrading research has been done with simulated wastewater, with only a few studies concentrating on real wastewater. As a result, the presence of cations, anions, organic, and inorganic chemicals may act as an interference and may change the degradation pathway of ACT and their by-products.

7. Conclusions

This article has attempted to give a critical review for ACT by-products and their toxicity, proposed degradation pathways of ACT. In addition, the computational method was used to build the degradation pathways of ACT. The following point concludes the results of this study:

• This study revealed that the most of the by-products that frequently detected were hydroquinone, 1,4-benzoquinone, 4-aminophenol, acetamide, oxalic acid, formic acid, acetic acid, 1,2,4-trihydroxybenzene, and maleic acid, respectively.

• N-(3,4-Dihydroxyphenyl)acetamide showed positive mutagenicity for both experimental and prediction tests. Meanwhile, N-(2,4-dihydroxyphenyl)acetamide and malonic acid showed positive mutagenicity only for the prediction test. The findings of LC50 (96 h) test revealed that benzaldehyde is the most toxic ACT by-products and hydroquinone, N-(3,4-dihydroxyphenyl)formamide, 4-methylbenzene-1,2-diol, benzoquinone, 4-aminophenol, benzoic acid, 1,2,4-trihydroxybenzene, 4-nitrophenol, and 4-aminobenzene-1,2-diol considered harmful. The release of them into the environment without treatment may threaten the ecosystem.

• The degradation pathway of ACT based on the computational method was matched with the majority of ACT proposed pathways and matched with the most frequent ACT by-products.

Conflicts of interest

There are no conflicts to declare.

Supplementary Material

Acknowledgments

This research work was funded by Institutional Fund Projects under grant no. (IFPRP: 188-130-1442). Therefore, authors gratefully acknowledge technical and financial support from the Ministry of Education and King Abdulaziz University, DSR, Jeddah, Saudi Arabia.

Biographies

Biography

Mohammad Qutob.

Mohammad Qutob

Open in a new tab

Mohammad Qutob is currently a PhD student at Environmental Technology Division in the School of Industrial Technology, Universiti Sains Malaysia, Malaysia. He completed his education; a Master of Science in Environmental Science from Cyprus International University, North Cyprus and Bachelor of Science in Soil and Irrigation from Jordan University of Science and Technology, Irbd, Jordan. His research interests are in the areas of environmental pollutants and their safe removal, bioremediation, preparation of various nanomaterials to protect the environment, water and wastewater treatment and advanced oxidation process.

Biography

Mahmoud A. Hussein.

Mahmoud A. Hussein

Open in a new tab

M. A. Hussein is a professor of Polymer Chemistry, Polymer Chemistry Lab, Chemistry Department, Faculty of Science, Assiut University (AU), Egypt. He obtained his PhD in Organic Polymer Synthesis from Assiut University, Egypt in 2007. He got a position at Chemistry Department, King Abdulaziz University (KAU), Jeddah, Saudi Arabia from 2010 – till now. He got a postdoctoral position in the University of Nice Sophia Antipolis, France and University Sains Malaysia, Malaysia. He visited the school of Industrial technology, University Sains Malaysia and Faculty of Engineering, University of Porto (UP) as visiting researcher. He published +150 ISI papers and numerus number of conference papers (posters and oral). His research interests are in the area of polymer synthesis, characterization and applications in different fields, polymer composites materials, polymer-doped organic and/or inorganic substances for variable industrial as well as biological interests.

Biography

Khalid A. Alamry.

Khalid A. Alamry

Open in a new tab

K. A. Alamry is a professor of Polymer Chemistry, at Chemistry Department, Faculty of Science, King Abdulaziz University (KAU), Jeddah, Saudi Arabia. He obtained his PhD in Polymer Chemistry from The University of Manchester in UK in 2010. He published around 300 ISI papers in the field of polymer. His research interest in focused on the biopolymers from synthesis to applications for variable applications.

Biography

Mohd Rafatullah.

Mohd Rafatullah

Open in a new tab

Mohd Rafatullah is working as an Associate Professor of Environmental Technology in the School of Industrial Technology, Universiti Sains Malaysia (USM), Malaysia. He completed his education; a Ph. D. in Chemistry, Master of Science in Analytical Chemistry and Bachelor of Science in Chemistry from Aligarh Muslim University, Aligarh, India. His research interest is in the areas of environmental water pollutants and their safe removal; preparation of various nanomaterials to protect the environment; water and wastewater treatment; adsorption and ion exchange; microbial fuel cells; advance oxidation process; activated carbons and their electrochemical properties.

†

Electronic supplementary information (ESI) available. See https://doi.org/10.1039/d2ra02469a

References

  1. Mohan H. Rajput S. S. Jadhav E. B. Sankhla M. S. Sonone S. S. Jadhav S. Kumar R. Biointerface Res. Appl. Chem. 2021;11:12530–12546. [Google Scholar]
  2. Majumder A. Gupta B. Gupta A. K. Environ. Res. 2019;176:108542. doi: 10.1016/j.envres.2019.108542. [DOI] [PubMed] [Google Scholar]
  3. Ramírez-Morales D. Masís-Mora M. Beita-Sandí W. Montiel-Mora J. R. Fernández-Fernández E. Méndez-Rivera M. Arias-Mora V. Leiva-Salas A. Brenes-Alfaro L. Rodríguez-Rodríguez C. E. Chemosphere. 2021;272:129574. doi: 10.1016/j.chemosphere.2021.129574. [DOI] [PubMed] [Google Scholar]
  4. Ziylan-Yavaş A. Ince N. H. Ultrason. Sonochem. 2018;40:175–182. doi: 10.1016/j.ultsonch.2017.02.017. [DOI] [PubMed] [Google Scholar]
  5. Skoumal M. Cabot P. L. Centellas F. Arias C. Rodríguez R. M. Garrido J. A. Brillas E. Appl. Catal., B. 2006;66:228–240. [Google Scholar]
  6. Blieden M. Paramore L. C. Shah D. Ben-Joseph R. Expert Rev. Clin. Pharmacol. 2014;7:341–348. doi: 10.1586/17512433.2014.904744. [DOI] [PubMed] [Google Scholar]
  7. Moussavi G. Momeninejad H. Shekoohiyan S. Baratpour P. Sep. Purif. Technol. 2017;181:132–138. [Google Scholar]
  8. Rathi B. S. Kumar P. S. Environ. Pollut. 2021;280:116995. doi: 10.1016/j.envpol.2021.116995. [DOI] [PubMed] [Google Scholar]
  9. Su C. Li R. Li C. Wang W. Appl. Catal., B. 2022;310:121330. [Google Scholar]
  10. Ferraz N. P. Nogueira A. E. Marcos F. C. F. Machado V. A. Rocca R. R. Assaf E. M. Asencios Y. J. O. Rare Met. 2020;39:230–240. [Google Scholar]
  11. Qu S. Wang W. Pan X. Li C. J. Hazard. Mater. 2020;384:121494. doi: 10.1016/j.jhazmat.2019.121494. [DOI] [PubMed] [Google Scholar]
  12. Gómez-Avilés A. Peñas-Garzón M. Bedia J. Rodriguez J. J. Belver C. Chem. Eng. J. 2019;358:1574–1582. [Google Scholar]
  13. Ikhlaq A. Waheed S. Joya K. S. Kazmi M. Catal. Commun. 2018;112:15–20. [Google Scholar]
  14. Im J. K. Heo J. Boateng L. K. Her N. Flora J. R. V. Yoon J. Zoh K. D. Yoon Y. J. Hazard. Mater. 2013;254–255:284–292. doi: 10.1016/j.jhazmat.2013.04.001. [DOI] [PubMed] [Google Scholar]
  15. Wang S. Wu J. Lu X. Xu W. Gong Q. Ding J. Dan B. Xie P. Chem. Eng. J. 2019;358:1091–1100. [Google Scholar]
  16. Mane S. N. Gadalkar S. M. Rathod V. K. Ultrason. Sonochem. 2018;49:106–110. doi: 10.1016/j.ultsonch.2018.07.029. [DOI] [PubMed] [Google Scholar]
  17. Audino F. Santamaria J. M. T. Del Valle Mendoza L. J. Graells M. Pérez-Moya M. Int. J. Environ. Res. Public Health. 2019;16(3):505. doi: 10.3390/ijerph16030505. [DOI] [PMC free article] [PubMed] [Google Scholar]
  18. Qutob M. Rafatullah M. Qamar M. Alorfi H. S. Al Romaizan A. N. Hussein M. A. Nanotechnol. Rev. 2022:497–525. [Google Scholar]
  19. Giménez B. N. Conte L. O. Alfano O. M. Schenone A. V. J. Photochem. Photobiol., A. 2020;397:112584. [Google Scholar]
  20. Tong Y. Wang X. Sun Z. Gao J. Chemosphere. 2021;278:130399. doi: 10.1016/j.chemosphere.2021.130399. [DOI] [PubMed] [Google Scholar]
  21. Wang Y. L. Zhang S. Zhao Y. F. Bedia J. Rodriguez J. J. Belver C. J. Environ. Chem. Eng. 2021;9:106087. [Google Scholar]
  22. Belver C. Rodriguez J. J. Bedia J. Sep. Purif. Technol. 2021;272:118896. [Google Scholar]
  23. Li Y. Pan Y. Lian L. Yan S. Song W. Yang X. Water Res. 2017;109:266–273. doi: 10.1016/j.watres.2016.11.049. [DOI] [PubMed] [Google Scholar]
  24. Ling Y. Liao G. Xu P. Li L. Sep. Purif. Technol. 2019;216:1–8. [Google Scholar]
  25. Ma J. Chen L. Liu Y. Xu T. Ji H. Duan J. Sun F. Liu W. J. Hazard. Mater. 2021;418:126180. doi: 10.1016/j.jhazmat.2021.126180. [DOI] [PubMed] [Google Scholar]
  26. Qi J. Liu J. Sun F. Huang T. Duan J. Liu W. Chin. Chem. Lett. 2021;32:1814–1818. [Google Scholar]
  27. Ganiyu S. O. Oturan N. Raffy S. Cretin M. Causserand C. Oturan M. A. Sep. Purif. Technol. 2019;208:142–152. [Google Scholar]
  28. Gao Y. q. Zhou J. q. Rao Y. y. Ning H. Zhang J. Shi J. Gao N. y. Ultrason. Sonochem. 2022;82:105906. doi: 10.1016/j.ultsonch.2021.105906. [DOI] [PMC free article] [PubMed] [Google Scholar]
  29. Fan G. Zheng X. Luo J. Peng H. Lin H. Bao M. Hong L. Zhou J. Chem. Eng. J. 2018;351:782–790. [Google Scholar]
  30. De Luna M. D. G. Veciana M. L. Su C. C. Lu M. C. J. Hazard. Mater. 2012;217–218:200–207. doi: 10.1016/j.jhazmat.2012.03.018. [DOI] [PubMed] [Google Scholar]
  31. Mashayekh-Salehi A. Moussavi G. Yaghmaeian K. Chem. Eng. J. 2017;310:157–169. [Google Scholar]
  32. Yanyan L. Kurniawan T. A. Ying Z. Albadarin A. B. Walker G. J. Mol. Liq. 2017;243:761–770. [Google Scholar]
  33. Zhang Y. Zhang Q. Hong J. Appl. Surf. Sci. 2017;422:443–451. [Google Scholar]
  34. Abdel-Wahab A. M. Al-Shirbini A. S. Mohamed O. Nasr O. J. Photochem. Photobiol., A. 2017;347:186–198. [Google Scholar]
  35. Hachemaoui M. Molina C. B. Belver C. Bedia J. Mokhtar A. Hamacha R. Boukoussa B. Catalysts. 2021;11:1–17. [Google Scholar]
  36. Thi V. H. T. Lee B. K. Mater. Res. Bull. 2017;96:171–182. [Google Scholar]
  37. Ghanbari F. Giannakis S. Lin K. Y. A. Wu J. Madihi-Bidgoli S. Chemosphere. 2021;263:128119. doi: 10.1016/j.chemosphere.2020.128119. [DOI] [PubMed] [Google Scholar]
  38. Zhang H. Cao B. Liu W. Lin K. Feng J. J. Environ. Sci. 2012;24:314–319. doi: 10.1016/s1001-0742(11)60769-9. [DOI] [PubMed] [Google Scholar]
  39. Dong Z. Zhang Q. Hong J. Chen B. Y. Xu Q. Catal. Lett. 2018;148:2095–2108. [Google Scholar]
  40. Yang M. Du Y. Tong W. Yip A. C. K. Lin K. A. Chemosphere. 2019;226:924–933. doi: 10.1016/j.chemosphere.2019.04.004. [DOI] [PubMed] [Google Scholar]
  41. Cai H. Zou J. Lin J. Li J. Huang Y. Zhang S. Chem. Eng. J. 2022;429:132438. [Google Scholar]
  42. Zhang Y. Fan J. Yang B. Ma L. Chem. Eng. J. 2017;326:612–619. [Google Scholar]
  43. Slamani S. Abdelmalek F. Ghezzar M. R. Addou A. J. Photochem. Photobiol., A. 2018;359:1–10. [Google Scholar]
  44. Rashidashmagh F. Doekhi-Bennani Y. Tizghadam-Ghazani M. van der Hoek J. P. Mashayekh-Salehi A. Heijman B. S. G. J. Yaghmaeian K. J. Hazard. Mater. 2021;404:124154. doi: 10.1016/j.jhazmat.2020.124154. [DOI] [PubMed] [Google Scholar]
  45. Feng X. Wang P. Hou J. Qian J. Wang C. Ao Y. Chem. Eng. J. 2018;352:947–956. [Google Scholar]
  46. Li Y. Song W. Fu W. Tsang D. C. W. Yang X. Chem. Eng. J. 2015;271:214–222. [Google Scholar]
  47. Li B. Ma X. Deng J. Li Q. Chen W. Li G. Chen G. Wang J. Sci. Total Environ. 2020;723:137993. doi: 10.1016/j.scitotenv.2020.137993. [DOI] [PubMed] [Google Scholar]
  48. Mu R. Ao Y. Wu T. Wang C. Wang P. J. Hazard. Mater. 2020;382:121083. doi: 10.1016/j.jhazmat.2019.121083. [DOI] [PubMed] [Google Scholar]
  49. Li K. Chen J. Ao Y. Wang P. Sep. Purif. Technol. 2021;259:118177. [Google Scholar]
  50. Ma Q. Zhang H. Guo R. Cui Y. Deng X. Cheng X. Xie M. Cheng Q. Li B. J. Taiwan Inst. Chem. Eng. 2017;80:176–183. [Google Scholar]
  51. Olvera-Vargas H. Rouch J. C. Coetsier C. Cretin M. Causserand C. Sep. Purif. Technol. 2018;203:143–151. [Google Scholar]
  52. Le T. X. H. Van Nguyen T. Amadou Yacouba Z. Zoungrana L. Avril F. Nguyen D. L. Petit E. Mendret J. Bonniol V. Bechelany M. Lacour S. Lesage G. Cretin M. Chemosphere. 2017;172:1–9. doi: 10.1016/j.chemosphere.2016.12.060. [DOI] [PubMed] [Google Scholar]
  53. Chen S. He P. Zhou P. Wang X. Xiao F. He Q. Li J. Jia L. Zhang H. Jia B. Tang B. Chemosphere. 2021;271:129830. doi: 10.1016/j.chemosphere.2021.129830. [DOI] [PubMed] [Google Scholar]
  54. Zhang Q. Xin B. Bo Y. Chen B. Hong J. Sci. Total Environ. 2020;715:136730. doi: 10.1016/j.scitotenv.2020.136730. [DOI] [PubMed] [Google Scholar]
  55. Ghanbari F. Hassani A. Wang Z. Matyszczak G. Lin K. A. Dolatabadi M. Sep. Purif. Technol. 2021;266:118533. [Google Scholar]
  56. Kurniawan T. A. Yanyan L. Ouyang T. Albadarin A. B. Walker G. Mater. Sci. Semicond. Process. 2018;73:42–50. [Google Scholar]
  57. Zhang L. Yin X. Li S. F. Y. Chem. Eng. J. 2015;276:185–192. [Google Scholar]
  58. Periyasamy S. Muthuchamy M. J. Environ. Chem. Eng. 2018;6:7358–7367. [Google Scholar]
  59. Sierra-Sánchez A. G. Linares-Hernández I. Martínez-Miranda V. Almazán-Sánchez P. T. Teutli-Sequeira E. A. Castañeda-Juárez M. Esparza-Soto M. Environ. Technol. 2020:1–32. doi: 10.1080/09593330.2020.1822921. [DOI] [PubMed] [Google Scholar]
  60. Palas B. Ersöz G. Atalay S. Chem. Eng. Sci. 2021;242:116593. [Google Scholar]
  61. Zhang G. Sun Y. Zhang C. Yu Z. J. Hazard. Mater. 2017;323:719–729. doi: 10.1016/j.jhazmat.2016.10.008. [DOI] [PubMed] [Google Scholar]
  62. Nasr O. Mohamed O. Al-shirbini A. Abdel-wahab A. J. Photochem. Photobiol., A. 2019;374:185–193. [Google Scholar]
  63. Wang H. Liu Y. Jiang J. Chemosphere. 2016;155:583–590. doi: 10.1016/j.chemosphere.2016.04.088. [DOI] [PubMed] [Google Scholar]
  64. Rimoldi L. Meroni D. Falletta E. Maria A. Gervasini A. Cappelletti G. Ardizzone S. Appl. Surf. Sci. 2017;424:198–205. [Google Scholar]
  65. Li Y. Yang Y. Lei J. Liu W. Tong M. Liang J. Sci. Total Environ. 2021;779:146498. doi: 10.1016/j.scitotenv.2021.146498. [DOI] [PubMed] [Google Scholar]
  66. Zamora P. P. Bieger K. Cuchillo A. Tello A. Muena J. P. J. Mol. Struct. 2021;1227:129369. [Google Scholar]
  67. Gupta M. Srivastava A. Srivastava S. Mater. Today: Proc. 2022;50:1173–1180. [Google Scholar]
  68. Chijioke-Okere M. O. Adlan Mohd Hir Z. Ogukwe C. E. Njoku P. C. Abdullah A. H. Oguzie E. E. J. Mol. Liq. 2021;338:116692. [Google Scholar]
  69. Li J. Zhou S. Li M. Du E. Liu X. Environ. Sci. Pollut. Res. 2019;26:25012–25025. doi: 10.1007/s11356-019-05747-1. [DOI] [PubMed] [Google Scholar]
  70. Chen Y. Zhang X. Mao L. Yang Z. Chem. Eng. J. 2017;330:1091–1099. [Google Scholar]
  71. Velegraki T. Balayiannis G. Diamadopoulos E. Katsaounis A. Mantzavinos D. Chem. Eng. J. 2010;160:538–548. [Google Scholar]
  72. Zhang Q. Huang W. Hong J. m. Chen B. Y. Chem. Eng. J. 2018;343:662–675. [Google Scholar]
  73. Kohantorabi M. Moussavi G. Mohammadi S. Oulego P. Giannakis S. Chemosphere. 2021;277:130271. doi: 10.1016/j.chemosphere.2021.130271. [DOI] [PubMed] [Google Scholar]
  74. Zhang Q. Wang B. X. Zhou Y. L. ming Hong J. Yu Y. B. J. Phys. Chem. Solids. 2022;161:110443. [Google Scholar]
  75. de Luna M. D. G. Briones R. M. Su C. C. Lu M. C. Chemosphere. 2013;90:1444–1448. doi: 10.1016/j.chemosphere.2012.09.003. [DOI] [PubMed] [Google Scholar]
  76. Zhang Y. Fan J. Yang B. Huang W. Ma L. Chemosphere. 2017;166:89–95. doi: 10.1016/j.chemosphere.2016.09.066. [DOI] [PubMed] [Google Scholar]
  77. Peng S. Feng Y. Liu Y. Wu D. Chemosphere. 2018;212:438–446. doi: 10.1016/j.chemosphere.2018.08.023. [DOI] [PubMed] [Google Scholar]
  78. Ziylan-Yavaş A. Ince N. H. Chemosphere. 2016;162:324–332. doi: 10.1016/j.chemosphere.2016.07.090. [DOI] [PubMed] [Google Scholar]
  79. Pham V. L. Kim D. G. Ko S. O. Environ. Res. 2021;201:111535. doi: 10.1016/j.envres.2021.111535. [DOI] [PubMed] [Google Scholar]
  80. Zhang Y. Zhang Q. Dong Z. Wu L. Hong J. Water Res. 2018;146:232–243. doi: 10.1016/j.watres.2018.09.028. [DOI] [PubMed] [Google Scholar]
  81. Ding J. Nie H. Wang S. Chen Y. Wan Y. Wang J. Xiao H. Yue S. Ma J. Xie P. Water Res. 2021;189:116605. doi: 10.1016/j.watres.2020.116605. [DOI] [PubMed] [Google Scholar]
  82. Sun P. Liu H. Feng M. Zhang X. Fang Y. Zhai Z. Sharma V. K. Sep. Purif. Technol. 2021;268:118697. [Google Scholar]
  83. Fan J. Qin H. Jiang S. Chem. Eng. J. 2019;359:723–732. [Google Scholar]
  84. Yun W. Lin K. A. Tong W. Lin Y. Du Y. Chem. Eng. J. 2019;373:1329–1337. [Google Scholar]
  85. Castañeda-Juárez M. Antonio Castillo-Suárez L. Martínez-Miranda V. Tatiana Almazán-Sánchez P. Linares-Hernández I. Lugo-Lugo V. Esparza-Soto M. Santoyo-Tepole F. Sol. Energy. 2020;199:731–741. [Google Scholar]
  86. Korichi N. Aubry O. Rabat H. Cagnon B. Hong D. Catalysts. 2020;10:1–16. [Google Scholar]
  87. Hu C. Y. Kuan W. H. Lee I. J. Liu Y. J. J. Environ. Chem. Eng. 2021;9:105129. [Google Scholar]
  88. Humayun S. Hayyan M. Alias Y. Hayyan A. Sep. Purif. Technol. 2021;270:118730. [Google Scholar]
  89. Zhang Y. Lou J. Wu L. Nie M. Yan C. Ding M. Wang P. Zhang H. Ecotoxicol. Environ. Saf. 2021;221:112422. doi: 10.1016/j.ecoenv.2021.112422. [DOI] [PubMed] [Google Scholar]
  90. Aziz F. F. A. Jalil A. A. Triwahyono S. Mohamed M. Appl. Surf. Sci. 2018;455:84–95. [Google Scholar]
  91. Khasawneh O. F. S. Palaniandy P. Palaniandy P. Ahmadipour M. Mohammadi H. Bin Hamdan M. R. J. Environ. Chem. Eng. 2021;9:104921. [Google Scholar]
  92. Pattappan D. Kavya K. V. Vargheese S. Kumar R. T. R. Haldorai Y. Chemosphere. 2022;286:131875. doi: 10.1016/j.chemosphere.2021.131875. [DOI] [PubMed] [Google Scholar]
  93. Bi X. Du G. Kalam A. Sun D. Zhao W. Yu Y. Su Q. J. Colloid Interface Sci. 2021;601:346–354. doi: 10.1016/j.jcis.2021.05.120. [DOI] [PubMed] [Google Scholar]
  94. Katal R. Hossein M. Abadi D. Jiangyong H. Sep. Purif. Technol. 2020;230:115859. [Google Scholar]
  95. Cunha R. Vinícius W. Oliveira H. Santos A. Reis P. Borges K. Martelli P. Furtado C. A. Gurgulho H. J. Photochem. Photobiol., A. 2021;412:113248. [Google Scholar]
  96. Gómez-avilés A. Peñas-garzón M. Bedia J. Dionysiou D. D. Rodríguez J. J. Belver C. Appl. Catal., B. 2019;253:253–262. [Google Scholar]
  97. Al-gharibi M. A. Htet H. Al-sabahi J. N. Tay M. Myint Z. Al-sharji Z. A. Al-abri M. Z. Mater. Sci. Semicond. Process. 2021;134:105994. [Google Scholar]
  98. Abbas H. A. Nasr R. A. Vannier R. Jamil T. S. J. Environ. Sci. 2022;112:331–342. doi: 10.1016/j.jes.2021.05.008. [DOI] [PubMed] [Google Scholar]
  99. Trovó A. G. Pupo Nogueira R. F. Agüera A. Fernandez-Alba A. R. Malato S. Water Res. 2012;46:5374–5380. doi: 10.1016/j.watres.2012.07.015. [DOI] [PubMed] [Google Scholar]
  100. Zhou Y. Zhang Q. Yu Y. Wang B. Hong J. Appl. Surf. Sci. 2021;542:148753. [Google Scholar]
  101. Zhang Q. Zhou Y. Yu Y. Chen B. Hong J. Appl. Surf. Sci. 2020;508:145111. [Google Scholar]
  102. De Luna M. D. G. Veciana M. L. Colades J. I. Su C. C. Lu M. C. J. Taiwan Inst. Chem. Eng. 2014;45:565–570. [Google Scholar]
  103. He Y. Wang X. Huang W. Chen R. Zhang W. Li H. Lin H. Chemosphere. 2018;193:89–99. doi: 10.1016/j.chemosphere.2017.10.144. [DOI] [PubMed] [Google Scholar]
  104. Luo X. You Y. Zhong M. Zhao L. Liu Y. Qiu R. Huang Z. J. Hazard. Mater. 2022;426:127803. doi: 10.1016/j.jhazmat.2021.127803. [DOI] [PubMed] [Google Scholar]
  105. Nunes B. Pinto G. Martins L. Gonçalves F. Antunes S. C. Environ. Sci. Pollut. Res. 2014;21:10815–10822. doi: 10.1007/s11356-014-3059-5. [DOI] [PubMed] [Google Scholar]
  106. Xu M. Yao J. Sun S. Yan S. Sun J. Toxics. 2021;9(10):234. doi: 10.3390/toxics9100234. [DOI] [PMC free article] [PubMed] [Google Scholar]
  107. Sung H. H. Chiu Y. W. Wang S. Y. Chen C. M. Huang D. J. Environ. Toxicol. Pharmacol. 2014;38:8–13. doi: 10.1016/j.etap.2014.04.014. [DOI] [PubMed] [Google Scholar]
  108. Kataoka C. Sugiyama T. Kitagawa H. Takeshima A. Kagami Y. Tatsuta H. Kashiwada S. Environ. Pollut. 2019;254:113092. doi: 10.1016/j.envpol.2019.113092. [DOI] [PubMed] [Google Scholar]
  109. Galus M. Fraz S. Gugilla A. Jönsson M. Wilson J. Y. Environ. Toxicol. Pharmacol. 2020;80:103463. doi: 10.1016/j.etap.2020.103463. [DOI] [PubMed] [Google Scholar]
  110. Erhunmwunse N. O. Tongo I. Ezemonye L. I. Ecotoxicol. Environ. Saf. 2021;208:111482. doi: 10.1016/j.ecoenv.2020.111482. [DOI] [PubMed] [Google Scholar]
  111. Topping D. C. Bernard L. G. O'Donoghue J. L. English J. C. Food Chem. Toxicol. 2007;45:70–78. doi: 10.1016/j.fct.2006.07.019. [DOI] [PubMed] [Google Scholar]
  112. O'Donoghue J. L. Beevers C. Buard A. Toxicol. Rep. 2021;8:206–214. doi: 10.1016/j.toxrep.2021.01.005. [DOI] [PMC free article] [PubMed] [Google Scholar]
  113. Ji Z. Zhang L. Peng V. Ren X. McHale C. M. Smith M. T. Leukemia. 2010;24:986–991. doi: 10.1038/leu.2010.43. [DOI] [PMC free article] [PubMed] [Google Scholar]
  114. Bährs H. Putschew A. Steinberg C. E. W. Environ. Sci. Pollut. Res. 2013;20:146–154. doi: 10.1007/s11356-012-1132-5. [DOI] [PubMed] [Google Scholar]
  115. Murphy S. J. Schroeder R. E. Blacker A. M. Krasavage W. J. English J. C. Toxicol. Sci. 1992;19:214–221. [PubMed] [Google Scholar]
  116. Enguita F. J. Leitão A. L. BioMed Res. Int. 2013:542168. doi: 10.1155/2013/542168. [DOI] [PMC free article] [PubMed] [Google Scholar]
  117. Lindsey R. H. Bender R. P. Osheroff N. Chem. Res. Toxicol. 2005;18:761–770. doi: 10.1021/tx049659z. [DOI] [PubMed] [Google Scholar]
  118. Das A. Chakrabarty S. Choudhury D. Chakrabarti G. Chem. Res. Toxicol. 2010;23:1054–1066. doi: 10.1021/tx1000442. [DOI] [PubMed] [Google Scholar]
  119. Sun P. Guo X. Chen Y. Zhang W. Duan H. Gao A. Environ. Pollut. 2018;233:323–330. doi: 10.1016/j.envpol.2017.10.087. [DOI] [PubMed] [Google Scholar]
  120. EPA, Quinone (p-Benzoquinone), https://www.epa.gov/sites/default/files/2016-09/documents/quinone.pdf, accessed on 2 Jun 2022 [Google Scholar]
  121. Bedner M. MacCrehan W. A. Environ. Sci. Technol. 2006;40:516–522. doi: 10.1021/es0509073. [DOI] [PubMed] [Google Scholar]
  122. Yu D. Li J. Kang Z. Liu L. He J. Fang Y. Yu H. Dong S. Analyst. 2020;145:5266–5272. doi: 10.1039/d0an00991a. [DOI] [PubMed] [Google Scholar]
  123. Faiola B. Stem Cells. 2004;22:750–758. doi: 10.1634/stemcells.22-5-750. [DOI] [PubMed] [Google Scholar]
  124. Kondrová E. Stopka P. Souček P. Toxicol. In Vitro. 2007;21:566–575. doi: 10.1016/j.tiv.2006.11.002. [DOI] [PubMed] [Google Scholar]
  125. Lee P. Y. Chen C. Y. J. Hazard. Mater. 2009;165:156–161. doi: 10.1016/j.jhazmat.2008.09.086. [DOI] [PubMed] [Google Scholar]
  126. Paulraj M. G. Reegan A. D. Ignacimuthu S. J. Entomol. 2011;8:539–547. [Google Scholar]
  127. Johnson W. Bergfeld W. F. Belsito D. V. Hill R. A. Klaassen C. D. Liebler D. C. Marks J. G. Shank R. C. Slaga T. J. Snyder P. W. Andersen F. A. Int. J. Toxicol. 2017;36:5S–30S. doi: 10.1177/1091581817728996. [DOI] [PubMed] [Google Scholar]
  128. Kreis H. Frese K. Wilmes G. Food Cosmet. Toxicol. 1967;5:505–511. doi: 10.1016/s0015-6264(67)83152-3. [DOI] [PubMed] [Google Scholar]

Articles from RSC Advances are provided here courtesy of Royal Society of Chemistry

RESOURCES
