Crystallographic study, biological assessment and POM/Docking studies of pyrazoles-sulfonamide hybrids (PSH): Identification of a combined Antibacterial/Antiviral pharmacophore sites leading to in-silico screening the anti-Covid-19 activity

Abstract

The discovery and development of new potent antimicrobial and antioxidant agents is an essential lever to protect living beings against pathogenic microorganisms and free radicals. In this regard, new functionalized pyrazoles have been synthesized using a simple and accessible approach. The synthesized aminobenzoylpyrazoles 3a-h and pyrazole-sulfonamides 4a-g were obtained in good yields and were evaluated in vitro for their antimicrobial and antioxidant activities. The structures of the synthesized compounds were determined using IR, NMR, and mass spectrometry. The structure of the compound 4b was further confirmed by single crystal X-ray diffraction. The results of the in vitro screening show that the synthesized pyrazoles 3 and 4 exhibit a promising antimicrobial and antioxidant activities. Among the tested compounds, pyrazoles 3a, 3f, 4e, 4f, and 4g have exhibited remarkable antimicrobial activity against some microorganisms. In addition, compounds 3a, 3c, 3e, 4a, 4d, 4f, and 4g have shown a significant antioxidant activity in comparison with the standard butylhydroxytoluene (BHT). Hence, compounds 3a, 4f, and 4g represent interesting dual acting antimicrobial and antioxidant agents. In fact, pyrazole derivatives bearing sulfonamide moiety (4a-g) have displayed an important antimicrobial activity compared to pyrazoles 3a-h, this finding could be attributed to the synergistic effect of the pyrazole and sulfonamide pharmacophores. Furthermore, Molecular docking results revealed a good interaction of the synthesized compounds with the target proteins and provided important information about their interaction modes with the target enzyme. The results of the POM bioinformatics investigations (Petra, Osiris, Molinspiration) show that the studied heterocycles present a very good non toxicity profile, an excellent bioavailability, and pharmacokinetics. Finally, an antiviral pharmacophore (O ^δ−, O ^δ−) was evaluated in the POM investigations and deserves all our attention to be tested against Covid-19 and its Omicron and Delta mutants.

Graphical Abstract

1. Introduction

Pathogenic microbes remain a constant threat for human health [1]. They are responsible for serval serious infectious diseases that lead to death [2]. In addition, these pathogenic agents have the ability to undergo genetic modification through spontaneous mutations and become therefore resistant to existing antimicrobials drugs [3,4]. Furthermore, the production of free radicals in living organisms is a physiological process, regulated by various chemical or enzymatic detoxification processes. However, when the protective system of the human organism shows some failure and loses its efficiency, the number of free radicals increases significantly and leads to oxidative stress [5]. This oxidative effect leads to the damage of certain biomolecules, including lipids, DNA and proteins, …etc. [6]. This damage causes serious threat to human health, such as cancer, Alzheimer's, and Parkinson's [7,8]. Hence, the development of new antimicrobial and antioxidant agents able to overcome these health problems is urgently needed.

In this context, chemists have devoted great efforts to design new compounds with excellent therapeutic effects. In fact, pyrazole pharmacophore have attracted considerable attention since their discovery as a key building blocks of many drugs [9,10]. Moreover, sulfonamides are among of antibiotics widely used as preventive and curative agents against various infectious diseases [11,12]. Recently, different innovative strategies have been proposed in the investigation of molecules with potential antimicrobial and antioxidant activities. The association of two or more pharmacophores in the one molecular skeleton may lead to a synergistic effect [13,14]. The conception of molecular scaffolds containing pyrazole heterocycle and sulfonamide moiety is part of this strategy [11,15,16]. Hence, molecules containing the two pharmacophores sulfonamide and pyrazole exhibit a wide array of biological activities, such as: antioxidant [13], antimicrobial [13,17,18], anti-inflammatory [17,19], anticancer [20], selective inhibitor of carbonic anhydrase [21], …etc. Some of these compounds are commercially available as antibiotics like sulfaphenazole and anti-inflammatory, in particular, celecoxib [15,16].

Chemo-informatics approaches have become an effective and rapid tool in the design of new molecules with significant biological activity [22,23]. Recently, various structure-based virtual screening techniques are used to design new drug candidates against the novel coronavirus [24], [25], [26]. In this context, several studies have been conducted on many organic molecules [25], [26], [27]. In silico simulations have identified new compounds with potential antiviral activity, which need further experimental studies. Pyrazoles and sulfonamides are known for their remarkable antiviral activities [28,29]. In the best of our knowledge, there is no previous study performed on molecules that incorporate these two motifs towards SARS-CoV-2 proteins. This prompted us to carry out an in-silico study on these compounds with the SARS-CoV-2 main protease, in order to identify new active molecules against this pathogenic agent.

Based on literature data, in particular, those related to pharmacological interest of pyrazole and sulfonamide moieties, and in continuation of our ongoing research focused on the synthesis of new heterocyclic systems [30,31]. We describe herein, the synthesis of a new series of hybrid heterocyclic molecules, which the pyrazole and sulfonamide moieties were linked together via a benzoyl group (Fig. 1 ). The synthesized compounds were evaluated in vitro for their antimicrobial and antioxidant properties. The antimicrobial activity was performed using the conventional broth microdilution method against the different bacterial and fungal strains, and the antioxidant activity through the DPPH radical scavenging assay. The results obtained indicate that some studied compounds display interesting antimicrobial and antioxidant activities. Furthermore, a molecular docking study was carried out to predict the possible binding interactions between the studied compounds and the target enzyme. In addition, a docking study was done against SARS-CoV-2 main protease, to identify inhibitors that could the potentially effective anti-COVID-19 drug candidates. as well as to identify the pharmacophores sites in the synthesized compounds for the antibacterial, antifungal, antiviral activities using Petra/Osiris/Molinspiration (POM) analyses were also carried out.

Fig. 1.

Target compounds design concept based on commercially antibiotic drug containing pyrazole and sulfonamide scaffolds.

2. Results and discussion

2.1. Chemistry

The synthesis of the targeted pyrazole derivatives bearing sulfonamide moiety was carried out using the procedure described in scheme 1 . The intermediates 5-(2-aminobenzoyl)-3,4-diaryl-1-phenylpyrazoles 3a-h were prepared in two steps from aza-aurones 1a-d: 1,3-dipolar cycloaddition reaction followed by ring opening of spiropyrazolines 2a-h [30]. Then, the pyrazoles 3a-h were used as a key synthon to synthesize the target pyrazole-sulfonamide hybrid compounds 4a-g. The chemical structure of the synthesized compounds was established using FT-IR, ¹H NMR, ¹³C NMR and HRMS techniques. In addition, the structure of compound 4b was further confirmed by single crystal X-ray diffraction (Fig. 3).

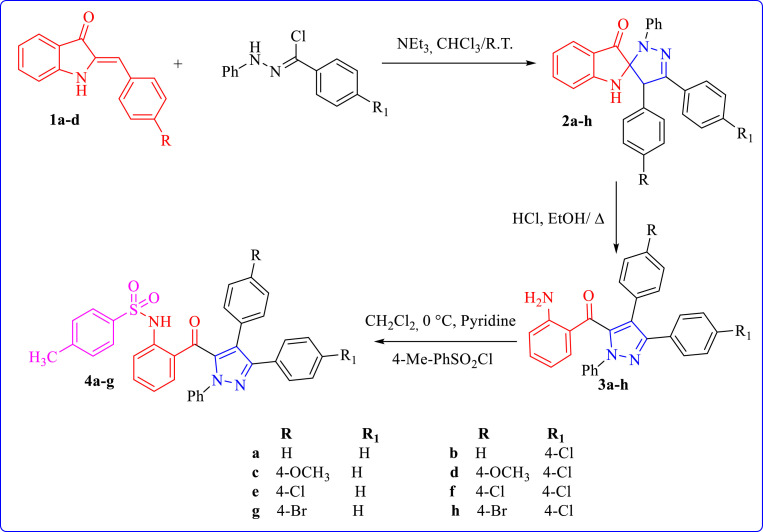

Scheme 1.

Route of synthesis of compounds 4a-g.

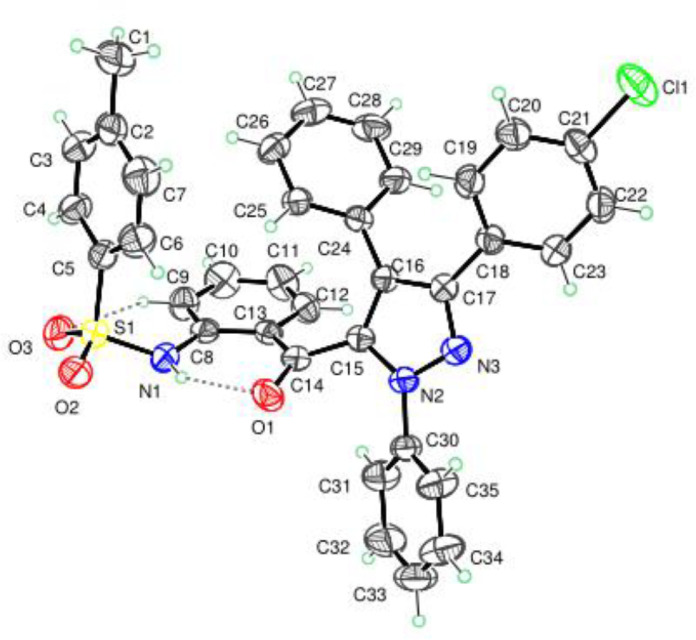

Fig. 3.

Ortep drawing the structure of the title compound (4b) and its numbering scheme. Thermal ellipsoids were drawn at the 50 % probability level at 296 K.

For example, the infrared spectrum of compound 4a shows the presence of two absorption bands at 3303 cm⁻¹ and 1622 cm⁻¹ corresponding to N-H and -C=O stretchings, respectively. In addition, its ¹H NMR spectrum reveals the presence of a signal at 2.45 ppm owing to CH₃ protons of tosyl group. It showed also a signal at 11.07 ppm exchangeable with D₂O attributable to the proton of NH group. Furthermore, ¹³C NMR spectrum displays tow characteristic signals at 21.65 ppm and 192.25 ppm belonging to methyl carbon (CH₃) and ketone carbon (C=O), respectively. The mass spectrum of compound 4a shows a peak for the molecular ion [M+Na]⁺ at m/z = 592.16635. The spectral data are in perfect agreement with the proposed structures.

2.2. Tautomeric analysis and prediction of bioactivity

For PSH and certainly for their analogues, depending on the pH and position of the dissociate amidogen hydrogen atom, thre possible PSH tautomerisation can be described for the neutral forms. These relevant structures are sketched in Fig. 2 .

Fig. 2.

Possible tautomers and their corresponding pharmacophore sites [POM Theory].

In past, attention was mainly devoted to the N-H structure. However, from a chemical point of view, all other structures are possible.

For the development of binding approaches for PSH and their analogues in the environment, the identification of the active sulfonamide structures present is important. Neither experimental nor theoretical data is available for the identification of water-solved PSH species. Theoretically, NMR spectroscopy could be useful for identifying chemical structures. Theoretical ab initio studies could supplement these measurements. Additionally, calculations of energetics, atomic charges, minimum energy structures, geometry, and natural bond orbital (NBO) could indicate the electronic density distribution of each atom. Finally, by taking NBO results showing the presence of S–O single bonds in consideration, realistic Lewis structures can be determined. These systematic data, regarding the variation of molecular properties, are important for the chemical structure and could therefore provide first insights into the still poorly understood chemical bonding of PSH complexes to soil.

In brief, the objective of this study is to investigate the potential pharmacophore sites of PSH species using antibacterial and antifungal screenings dependence on pH and comparison with the calculated molecular properties. To verify these structures, further X-ray analysis becomes necessary to fix the predominant tautomer. Then the Petra/Osiris/Molinspiration (POM) analyses were carried out for example calculation of net atomic charges, bond polarity, atomic valence, electron delocalization and lipophicity. Finally, to investigate the combined antibacterial/antifungal/Antiviral bioactivity of the PSH species, tautomeric structure was performed.

Current thinking in the generation of specific drug leads embodies the concept of achieving high molecular diversity within the boundaries of reasonable drug-like properties. Natural and semi-natural products, examples penicillin and, imipenemhave high chemical diversity, biochemical specificity and other molecular properties that make them favourable as lead and standard references (SD) structures for drug discovery, and which serve to differentiate them from libraries of synthetic and combinatorial compounds. Various investigators have used computational methods to understand differences between natural products and other sources of drug leads. Modern drug discovery is based in large part on high throughput screening of small molecules against macromolecular disease targets requiring that molecular screening libraries contain drug-like or lead-like compounds. We have analyzed known standard references (SD) for drug-like and lead-like properties. With this information in hand, we have established a strategy to design specific drug-like or lead-like PSH (4a-g).

To be sure of the real and dominant tautomeric form, it becomes necessary to get some crystallographic data of someone of tested compounds 3a-h and/or 4a-g.

2.3. X-ray diffraction data and crystal structure of compound 4b

The X-ray measurement conditions, crystal data and structure refinement details are summarized in Table S1. The selected interatomic distances and angles listed in Table S2 are close to those observed in the structures of similar compounds [31], [32], [33]. The plot of the molecular structure of the title compound is shown in Fig. 3 . The central pyrazoline ring (N2–N3–C15–C16–C17) is almost planar with the largest deviation from the mean plan of -0.012(2) at C17 atom. It is connected to three benzene rings and to a sulfonamide conjugates as shown in Fig. 3. The dihedral angles between the pyrazole ring and the different substituents namely: chlorobenzene ring (C18—C23) and the two benzene rings (C24—C29) and (C30—C35) are of 37.35(11)°, 49.98(11)° and 34.75(13)°, respectively. The mean plan through the aminobenzene ring (C8—C13) is nearly orthogonal to that of the chlorobenzene ring as indicated by the dihedral angle between them of 87.95(11)°. On the other hand, the dihedral angle formed by the two benzene rings (C2—C7) and (C8—C13) linked to sulfoamine group is 79.30(12) °, which indicates that these two rings are almost orthogonal to each other.

In the crystal, the molecules are interconnected through C4—H4…Cl1 hydrogen bond building a chain running along the b-axis. The chains are linked by π…π interaction between the pyrazoline and one benzene ring (C30—C35), with inter-centroid distance of 3.92 (2) Å as shown in Fig. 4 and Table S3. The resulting three-dimensional framework is represented in Fig. 4. Moreover, the molecular conformation is stabilized by two stark intra-molecular hydrogen bonds completing two S(6) rings (see Fig. 4 and Table S3).

Fig. 4.

The crystal packing for the title compound, showing molecules linked by hydrogen bonds (dashed cyan lines) and π…π interactions (dashed green lines).

3. Biological activities

3.1. Antimicrobial activity

The new series of synthesized compounds (3a-h and 4a-g) were tested in vitro for their antimicrobial activity against Gram-positive bacteria: Staphylococcus aureus (S. A.), Gram-negative bacteria: Escherichia coli (E. C.), Klebsiella pneumoniae (K. P.) and Pseudomonas aeruginosa (P. A.), and yeasts: Candida albicans (C. A.) and Saccharomyces cerevisiae (S.C.). The antibacterial and antifungal activities of the target compounds were determined as minimum inhibitory concentrations (MICs) by the broth microdilution method. The antibiotics Ampicillin and Streptomycin were used as positive controls against bacterial strains, and Fluconazole as a positive control for fungal strains. The results of the antimicrobial activity are given in Table 1 .

Table 1.

Antimicrobial activity (MIC, µg/mL) of the synthesized compounds (3a-h and 4a-g)

Compd.	R	R1	Bacterial strains				Fungal strains
			E. C.	K. P.	P. A.	S. A.	C. A.	S. C.
3a	H	H	125	250	250	125	62.5	62.5
3b	H	Cl	250	125	250	250	125	125
3c	OCH3	H	250	125	250	250	125	125
3d	OCH3	Cl	250	125	250	250	125	125
3e	Cl	H	250	250	250	125	250	250
3f	Cl	Cl	250	125	250	250	125	62.5
3g	Br	H	250	250	125	125	125	250
3h	Br	Cl	250	125	250	250	125	125
4a	H	H	250	250	250	125	250	125
4b	H	Cl	250	125	250	250	125	125
4c	OCH3	H	250	125	125	250	125	125
4d	OCH3	Cl	250	125	125	250	125	125
4e	Cl	H	125	125	125	250	125	62.5
4f	Cl	Cl	250	125	250	250	62.5	31.25
4g	Br	H	125	125	125	62.5	125	125
Streptomycin	—	—	25	3.12	—	12.5	—	—
Ampicillin	—	—	50	25	1.56	25	—	—
Fluconazole	—	—	—	—	—	—	40	20

Bacteria strains : E. C.(Escherichia coli (ATB:57) B6N),K. P.(Klebsiella pneumoniae),P. A.(Pseudomonas aeruginosa),S. A.(Staphylococcus aureus); Fungal strains: C. A.(Candida albicans ATCC10231) and S. C.(Saccharomyces cerevisiae ATCC9763).

The results of the preliminary studies show that the two series of pyrazoles (3a-h and 4a-g) exhibit antimicrobial activity at concentrations between 31.25 and 250 µg/mL against the pathogenic microorganisms tested. Some compounds of these two series display significant antibacterial and antifungal activity, in particular, those containing the sulfonamide moiety. Compound 4f shows remarkable activity against Candida albicans (62.5µg/mL) and Saccharomyces cerevisiae (31.25 µg/mL) compared to fluconazole. The antifungal activity obtained for compound 4cb can be attributed to the presence of two chlorine atoms (Cl) in para position on the benzene rings [34,35]. Compounds 3a, 3f, and 4e show significant inhibitory activity against Saccharomyces cerevisiae with a MIC value of 62.5 μg/mL, whereas they manifested moderate activity against Candida albicans (MIC values between 62.5 and 125 μg/mL), compared to the same standard reference. The antifungal activity observed for these compounds is comparable to that described in the literature for analogous compounds [17,35,36]. However, for antibacterial activity compound 4g shows remarkable inhibition against the gram-positive strain Staphylococcus aureus with a MIC value of 62.5 μg/mL and moderate activity against other bacteria with MIC values in the range of 125 μg/mL. The activity observed for the 4g product compared to the other compounds can be attributed to the synergistic effect of the bromine atom and the sulfonamide moiety [17,36].

3.2. Antioxidant activity

To evaluate the antioxidant potential of our prepared heterocyclic compounds, the free radical scavenging capacity was determined by the DPPH assay, using butylhydroxytoluene (BHT) as a standard antioxidant. It is a commonly used assay that provides information on the ability of a compound to donate an electron or proton to the DPPH radical, and allows for the measurement of the free radical scavenging capacity in a in a high speed, simple, and economic way. The percentages of inhibition at different concentrations are expressed as an average and summarized in Table 2 .

Table 2.

The antioxidant activity of the synthesized compounds and the BHT reference.

Percentage inhibition of antioxidant activity of tested compounds
Comp	R	R1	R2	3 µg/mL	15 µg/mL	31 µg/mL	62.5 µg/mL	250 µg/mL	1000 µg/mL
3a	H	H	-	41.81±0.67	43.03±0.09	45.63±0.23	46.20±0.19	46.51±0.45	64.84±0.88
3b	H	Cl	-	21.06±0.42	36.51±0.35	37.87±0.79	39.09±0.41	42.87±0.45	58.93±0.34
3c	OCH3	H	-	23.18±0.56	24.84±0.45	28.03±0.27	28.48±0.45	50.15±0.3	65.75±0.66
3d	OCH3	Cl	-	2.7±0.63	18.93±0.34	22.27±0.3	23.78±0.28	42.72±0.43	62.87±0.68
3e	Cl	H	-	38.03±0.76	45±0.6	45.30±0.31	46.06±0.51	46.36±0.44	68.63±0.35
3f	Cl	Cl	-	3.78±0.69	17.12±0.32	20.15±0.96	20.60±0.46	23.33±0.56	64.54±0.65
3g	Br	H	-	15±0.09	18.33±0.97	19.84±0.8	20.30±0.63	22.12±0.32	63.48±0.97
3h	Br	Cl	-	13.18±0.82	28.48±0.72	30.60±0.54	46.51±0.25	49.84±0.43	56.51±0.72
4a	H	H	tosyl	25.30±0.67	25.75±0.85	29.39±0.94	35±0.54	38.63±0.22	62.27±0.37
4b	H	Cl	tosyl	3.63±0.64	5.75±0.24	14.39±0.35	32.27±0.63	43.78±0.82	59.69±0.93
4c	OCH3	H	tosyl	14.84±0.8	24.24±0.86	44.84±0.24	45.60±0.34	47.42±0.76	64.54±0.17
4d	OCH3	Cl	tosyl	9.24±0.42	10.60±0.23	15±0.32	38.33±0.92	51.21±0.35	57.27±0.43
4e	Cl	H	tosyl	14.01±0.93	19.84±0.22	26.66±0.43	30±0.43	33.78±0.06	59.24±0.77
4f	Cl	Cl	tosyl	14.39±0.39	22.87±0.98	36.66±0.7	43.18±0.23	43.93±0.76	66.21±0.76
4g	Br	H	tosyl	17.12±0.12	19.84±0.64	40.45±0.24	46.81±0.65	48.18±0.34	67.87±0.26
BHT	—	—	—	43.93±0.93	59.09±0.09	63.63±0.63	75.75±0.75	80.30±0.30	87.87±0.87

The results of this preliminary study show that some compounds have a remarkable free radical scavenging capacity (DPPH) compared to the BHT standard. The study reveals that compounds 3a (% PI = 41.81) and 3e (% PI = 38.03) show an antioxidant activity comparable to that of the BHT (% PI = 43.93) at a low concentration (3 µg/mL). For compounds 3b, 3c, 4a, 4d, 4f, and 4g we noticed that the antioxidant activity increases with concentration and becomes close to that of the standard at high concentrations. The analysis of the obtained results shows that the substituents OCH₃, Cl, and Br have no significant influence on the antiradical activity of the studied compounds, this suggests that this activity is related to the amino group NH and NH₂ in both types of compounds [37,38].

4. Molecular Docking

The docking results obtained from Auto-Dock showed that the studied compounds can be accommodated in the binding pocket of DHPS with a comparable orientation to the one observed in the STZ-DHPP covalent adduct in the reported crystal structure [39]. The top-ranked docking poses reproduce the key interactions observed in the STZ-DHPP–DHPS complex (Fig. 5 ).

Fig. 5.

Re-docking of the co-crystallized ligand (PDB ID: 3JQ9)

Analysis of molecular docking results of pyrazoles-sulfonamide hybrids derivatives 4a-4g shows that most of these derivatives exhibit the same polar H-interaction and hydrophobic interaction of STZ ligand (referent) with the site of action DHPs, this interaction similarity is due to the sulfonamide moiety (Fig. 6 , Table 3 and figure S1). The good antibacterial activity presented by the good interaction of the oxazaphosphinanes compounds with the DHPs target can be explained by the presence of hydrophobic interactions identical to those of the co-crystallized ligand and the interesting stability inside the DHPs cavity with a binding energy varying between -5.96 and -7.01 (kcal / mol).

Fig. 6.

Molecular docking analysis of PSH derivatives (4c, 4e, 4f and 4g). Pose view of interaction with receptor DHPs.

Table 3.

Ranking of the PSH derivatives 4a-4g derivatives after docking study.

Compds	Binding Energy (kcal/mol)	Vdw Energy	Electrostatic Energy	Nature of interactions	Amino acids on active sites with
4a	-6.01	-8.46	0.06	-Hydrophobic interaction- Polar H interactions	-Phe190- Ser222, Arg255
4b	-6.48	-8.72	-0.14	-Hydrophobic interaction- Polar H interactions	-Lys221, Phe190- Ser222, Arg255
4c	-6.92	-9.46	-0.14	-Hydrophobic interaction- Polar H interactions	-Phe190-Arg255, Thr62
4d	-6.41	-9.01	-0.08	-Hydrophobic interaction- Polar H interactions	-Arg255, Thr62
4e	-6.96	-9.2	-0.14	-Hydrophobic interaction- Polar H interactions	-Arg255, Lys221, Phe190-Arg255, Thr62
4f	-7.01	-9.02	-0.38	-Hydrophobic interaction- Polar H interactions	-Arg255- Lys221, Thr62
4g	-6.89	-9.18	-0.1	-Hydrophobic interaction- Polar H interactions	-Phe190, Lys221-Arg255, Thr62
co-crystallized ligand	-9.41	-10.13	-1.37	-Hydrophobic interaction- Polar H interactions	-Phe190, Lys221-Asn115, Ser222, Asp155, Gly189

Compounds 4f and 4g present the best interaction with the target with binding energy respectively 7.1 and 6.89.

5. POM Analyses

Now, it becomes easier, by using the POM (Petra/Osiris/Molinspiration) Theory, to identify and to optimize most of the antibacterial [40], [41], [42], [43], [44], [45], [46], [47], [48], [49], antifungal [50], [51], [52], antiviral [53], [54], [55], antiparasital [56,57], and antitumor [58], [59], [60] pharmacophore sites, one by one, on the basis of their different physico-chemical parameters and their different electronic charge repartition of corresponding heteroatoms. This young POM Theory was extended to other various and different biotargets [61,62]. Here we treate the series of compounds 3a-h and 4a-g in the goal to identify their pharmacophore sites.

The Osiris analysis of series of tested compounds shows that most of compounds represent no side effects, except compounds 3c, 3d, 4c and 4d (Table S4). The Molinspiration analysis of series of tested compounds shows clearly that there are more substituents than the necessary because the molecular weight depasses 500 g/mol. This constitutes the first violation of Lipinski 5 rules. A second violation will appear when the cLogP depasses 5 (Table S5).

6. Identification of a combined Antibacterial/Antiviral pharmacophore site

Recently, we discovered the Dithymoquinone as potential anti-Covid-19 with MIC in range of nano-Molar [63]. Interestingly, we compare the pharmacophore site of the Dithymoquinone (dO1-O2 = 4.5 A) and the combined antibacterial/antiviral pharmacophore site of compound 4b (dO1-O2 = 4.6 A). This important similarity encourages us to go ahead without hesitation in anti-Covid screening of series 4a-g. Who knows?! Maybe a great surprise is waiting for our group (Figs. 7 and 8 ).

Fig. 7.

Atomic charge of tested compounds 3a-h and 4a-g.

Fig. 8.

Identification of potential Antiviral (O1, O2)-pharmacophore site.

7. In-silico screening the anti-Covid-19 activity of PSH by Molecular Docking

In order to understand the interactions between protein and ligand, molecular docking study was performed to explore the binding mode of the prepared pyrazole-sulfonamide derivatives to the SARS-CoV-2 main protease, Autodock Tools were employed for identifying the torsion angles in the ligand, by adding the solvent model and assigning the Kollman atomic charges to the protein. The Methyl 4-sulfamoylbenzoate was taken as reference ligand to investigate the binding mode of the studied synthesized derivatives 4a-g.

The RMSD value is 0.84 Ǻ, which allowed us to validate our docking methodology and to obtain a good prediction of the ligand-protein confirmation in absence of water molecules. Fig. 9 shows docked Methyl 4-sulfamoylbenzoate RZG and co-crystallized one in almost same position among the receptor.

Fig. 9.

Superimposition of docked pose and crystal structure pose of ligand RZG in wild type of SARS-CoV-2 main protease (PDB ID: 5R80).

The co-crystallized ligand RZG (PDB ID: 5R80) forms a polar hydrogen interaction with the amino acid Glu166 and several hydrophobic alkyl and Pi-alkyl interactions in the receptor tyrosine kinase transmembrane EGFR, the hydrophobic interactions are shown in the Fig. 10 .

Fig. 10.

Binding site structure of SARS-CoV-2 main protease-RZG.

The docking results of the synthesized compounds and Methyl 4-sulfamoylbenzoate were reported in Table 4 . Compounds 4a-g show interesting stability inside the SARS-CoV-2 main protease cavity (Fig. 11 , figures S2-S8 in Supplementary information) with a binding energy varying between -6.10 and -10.10 (kcal/mol) (Table 4).

Table 4.

Ranking of the pyrazole-sulfonamide derivatives after docking study.

N°	protein	Compound	RMSD	Free Energy of Binding	Inhibition Constant, Ki	Amino acids involved in interactions
1	5R80	RZG	0.00	-5.27	137.38 uM	hydrogen bonding	GLU166
						hydrophobic interaction	GLN189, MET165, MET49, HIS41
2	5R80	4a	0.70	-8.72	403.64 nM	hydrogen bonding	GLN189
						hydrophobic interaction	GLN189, MET165, HIS41, PRO168
3	5R80	4b	0.00	-6.85	9.59 uM	hydrogen bonding	ASN142, GLU166(2), CYS145
						hydrophobic interaction	GLN 189, MET165, MET49, HIS41, GLU166
4	5R80	4c	0.00	-10.10	39.32 nM	hydrogen bonding	GLN189
						hydrophobic interaction	GLN 189, HIS41, PRO168, ALA191, GLU166
5	5R80	4d	0.00	-7.64	1.98 uM	hydrogen bonding	GLU166(2), GLN189
						hydrophobic interaction	MET165, MET49, GLU166, GLN 189, PRO168, ALA191
6	5R80	4e	0.00	-9.39	130.62 nM	hydrogen bonding	GLN189
						hydrophobic interaction	GLN 189, HIS41, PRO168, MET165, CYS145, GLU166
7	5R80	4f	0.00	-6.10	33.57 uM	hydrogen bonding	GLU166 (2), ASN142
						hydrophobic interaction	GLN 189, MET165, MET49, CYS145, GLU166, ASN142
8	5R80	4g	1.64	-9.74	435.66 nM	hydrogen bonding	GLN 189
						hydrophobic interaction	GLN 189, PRO168, HIS41, CYS145, GLU166, ARG188, LEU167

Fig. 11.

Binding site structure of SARS-CoV-2 main protease- 4f.

Analysis of the molecular docking results showed that the interactions within the active site of SARS-CoV-2 main protease were attributed to hydrogen bonds, hydrophobic and electrostatic attraction forces. Compounds 4b, 4d and 4f were the most stable compounds, they form a hydrogen bond with the Glu166 residue as the binding of the reference ligand. all compounds form other important hydrogen bonds with the residues Gln192 and Asn142. Compound 4c, which has the least binding energy (-10.10 kcal/mol) is most favorable, with the most interesting interaction inside the pocket. In addition, most of the compounds developed hydrophobic and electrostatic attraction forces and aromatic π–π stacking interactions with GLN 189, MET165 and His 41.

8. Materials and methods

8.1. General Information

All chemicals were purchased from Sigma-Aldrich and were of analytical grade. The used instruments are mentioned in the Supplementary Material file.

8.2. X-ray diffraction data measurement

Single crystals suitable for X-ray diffraction of the compound 4b were grown by slow evaporation of its ethanolic solution at room temperature. Crystal data of compound 4b were deposited in the CCDC Database Centre, with the deposition number 2151661. The crystallographic data and refinement information are mentioned in Supplementary Material Section 2.

8.3. Antimicrobial activity

The in vitro antibacterial and antifungal activities of all synthesized compounds were determined using the microdilution technique, according to procedures described in the literature [64,65], and following the guidelines of the Clinical and Laboratory Standards Institute (CLSI, approved standard M7-A8 and M27-A3) [66,67]. The bacterial and fungal strains used in this study were obtained from the Microbiology Laboratory, Faculty of Medicine and Pharmacy (FMP-Fez, Morocco). The products were tested against Gram-positive bacteria strains; Staphylococcus aureus, Gram-negative bacteria; Escherichia coli (ATB:57) B6N, Pseudomonas aeruginosa, Klebsiella pneumoniae and yeasts; Candida albicans ATCC10231 and Saccharomyces cerevisiae ATCC9763.

8.4. Antioxidant activity

The antioxidant activity of the target compounds was assessed using the DPPH radical scavenging assay following the protocol described in our previous work [31]. The detailed protocol is given in Supplementary Material Section 3.

In silico studies

The X-ray crystal structure of SARS-CoV-2 main protease (PDB ID: 5R80) was obtained from the Protein Data Bank [68]. All the selected molecules were drawn using 2D and 3D option of Chem. Draw Ultra 16.0.and saved in mol2 format. The three-dimensional structures of all compounds were performed using Maestro software, and prepared with Ligprep using Optimized Potentials for Liquid Simulation (OPLS3e) force field with a convergence of heavy atoms of 0.30 Å [69]. molecular docking study was performed to explore the binding mode of the prepared pyrazole-sulfonamide derivatives to the SARS-CoV-2 main protease, we have performed our studies with AUTODOCK 4.2 [70,71] using the improved force field. Docked compounds along with SARS-CoV-2 main protease protein were visualized on Discovery software. The structures of proteins Yersinia pestis Dihydropteroate Synthase DHPs (PDB ID: 3JQ9) was selected as a receptor for docking study that were prepared and energetically minimized using the Protein Preparation wizard protocol of the Schrodinger Suite [39].

9. Conclusion

In conclusion, in the present work, we report the synthesis, crystallographic, biological, and computational studies of the new pyrazolic compounds bearing sulfonamide moiety. The target compounds were obtained via a multi-step reaction sequence with an efficient and reliable strategy from 2-arylidene-indolin-3-ones (aza-aurones). The structures of the newly synthesized compounds were determined based on usual spectroscopic data (IR, ¹H-NMR, ¹³C-NMR) and high-resolution mass spectrometry. In addition, an X-ray diffraction analysis was performed on the single crystals of compound 4b further confirms the structure of the target molecules. The target compounds of the two series 3a-h and 4a-g were evaluated for their antioxidant activity using DPPH assay, and antimicrobial activity in vitro through broth microdilution method. Among the tested products, compounds 3a, 3f, 4e, 4f, and 4g showed promising antimicrobial activity against selected pathogenic bacteria and yeasts. In addition, compounds 3a, 3c, 3e, 4a, 4d, 4f, and 4g exhibited good free radical scavenging ability. In addition, a docking study was performed on targeted compounds to support the experimental results, and showed high docking score and good binding energy with the target enzyme. Analysis of molecular docking results of pyrazole-sulfonamide derivatives 4a-g shows that most of these derivatives exhibit the same hydrophobic interaction of RZG ligand (referent) with the site of action SARS-CoV-2 main protease, this interaction similarity is due to the sulfonamide moiety. The antiviral activity presented by the good interaction of the pyrazole-sulfonamide derivatives with SARS-CoV-2 main protease target can be explained by the presence of hydrophobic interactions identical to those of the co-crystallized ligand and the interesting stability inside the target cavity with a binding energy varying between -6.10 and -10.10 (kcal/mol). Hence, the identified most active compound, by using Docking and POM Theory, may be considered as lead for further study in the search of novel pathogenic viruses’ inhibitory agent. The right formulation will be needed to improve the drug-like properties of these compounds, especially their lipophilicity and solubility.

ORCID identification

• •Mohammed CHALKHA: https://orcid.org/0000-0002-9400-2183.
• •Asmae NAKKABI: https://orcid.org/0000-0002-9845-243X.
• •Taibi BEN HADDA: https://orcid.org/0000-0002-5633-6203.
• •Malika BERREDJEM: https://orcid.org/0000-0002-4312-8771.
• •Abdelfattah EL MOUSSAOUI: https://orcid.org/0000-0001-5261-570X.
• •Mohamed BAKHOUCH: https://orcid.org/0000-0003-0732-6524.
• •Lahcen EL AMMARI: https://orcid.org/0000-0001-7980-974X.
• •Mohamed SAADI: https://orcid.org/0000-0003-2655-0230.
• •Faisal A. ALMALKI: https://orcid.org/0000-0003-4048-1526.
• •Violeta JEVTOVIC: https://orcid.org/ 0000-0002-2180-8303.s
• •Mohamed EL YAZIDI: https://orcid.org/ 0000-0002-2772-6632.

Credit author statement

Mohammed Chalkha and Asmae Nakkabi: Synthesis of molecules

Malika Berredjem, Mohamed El Yazidi and Taibi ben Hadda: Docking, POM, Conceptualization, Methodology, Writing- Reviewing and Editing Software.

Abdelfattah El Moussaoui and Mohamed Bakhouch: characterization of molecules

Hamid Laaroussi and Violeta Jevtovic: Biological Evaluation

Faisal A. Almalki: English language visualization.

Mohamed Saadi and Lahcen El Ammari: Theoretical study.

Declaration of Competing Interest

The authors declare that there is no conflict of interests.
