The relative impact of interventions on sympatric Plasmodium vivax and Plasmodium falciparum malaria: A systematic review

Melanie Loeffel; Amanda Ross

doi:10.1371/journal.pntd.0010541

. 2022 Jun 29;16(6):e0010541. doi: 10.1371/journal.pntd.0010541

The relative impact of interventions on sympatric Plasmodium vivax and Plasmodium falciparum malaria: A systematic review

Melanie Loeffel ^1,², Amanda Ross ^1,^2,^*

Editor: Rhoel Ramos Dinglasan³

PMCID: PMC9242512 PMID: 35767578

Abstract

Background

In areas with both Plasmodium vivax and Plasmodium falciparum malaria, interventions can reduce the burden of both species but the impact may vary due to their different biology. Knowing the expected relative impact on the two species over time for vector- and drug-based interventions, and the factors affecting this, could help plan and evaluate intervention strategies.

Methods

For three interventions (treated bed nets (ITN), mass drug administration (MDA) and indoor residual spraying (IRS)), we identified studies providing information on the proportion of clinical illness and patent infections attributed to P. vivax over time using a literature search. The change in the proportion of malaria attributed to P. vivax up to two years since implementation was estimated using logistic regression accounting for clustering with random effects. Potential factors (intervention type, coverage, relapse pattern, transmission intensity, seasonality, initial proportion of P. vivax and round of intervention) were assessed.

Results

In total there were 55 studies found that led to 72 series of time-points for clinical case data and 69 series for patent infection data. The main reason of study exclusion was insufficient information on interventions. There was considerable variation in the proportion of malaria attributed to P. vivax over time by study and location for all of the interventions. Overall, there was an increase apart from MDA in the short-term. The potential factors could not be ruled in or out. Although not consistently significant, coverage, transmission intensity and relapse pattern are possible factors that explain some of the variation found.

Conclusion

While there are reports of an increase in the proportion of malaria due to P. vivax following interventions in the long-term, there was substantial variation for the shorter time-scales considered in this study (up to 24 months for IRS and ITN, and up to six months for MDA). The large variability points to the need for the monitoring of both species after an intervention. Studies should report intervention timing and characteristics to allow inclusion in systematic reviews.

Author summary

In areas with both P. vivax and P. falciparum malaria, an intervention may impact the species differently due to their different biology. In particular, an inoculation with P. vivax can lead to liver-stage parasites which relapse weeks or months later. The intervention may affect the species equally or one more than the other and this may change over time. Knowledge of the expected relative effect of interventions would be useful for tailoring intervention strategies to address both species, and for interpreting monitoring data. This study aims to assess patterns of the proportion of clinical cases or patent infections that were P. vivax or P. falciparum on a short time scale of up to two years since implementation and to identify potential factors that could explain variation in these observed patterns for two vector-based interventions (insecticide treated nets and indoor residual spraying) and a drug-based intervention (mass drug administration). In all, there were 72 series of time-points for clinical data and 69 for patent infections. Overall there was an increasing proportion of P. vivax over time, but there was substantial variation between studies for all interventions. Coverage, transmission and relapse pattern were identified as possible explanations for some of the variation, however, this remains uncertain due to the high variation and the data available.

Introduction

Of the species of malaria infecting humans, Plasmodium falciparum and Plasmodium vivax occur the most frequently and together accounted for 241 million cases in 2020 [1]. Separately they have different geographical ranges, but they co-exist particularly in the horn of Africa and Madagascar, South and Central America, the South-East Asian region and the Western Pacific region [2,3].

Both vector- and drug-based interventions can affect both species. In areas where both species are prevalent, the impact of the interventions may differ. Different patterns of the ratio of P. vivax to P. falciparum cases over time have been reported. One study in Thailand [4] with treatment of cases reported equal reductions in both species. Another in Papua New Guinea [5], where the usage of nets was increased found that P. vivax became dominant. A recent review by Price [6] found that control often leads to an increase in the ratio of malaria attributed to P. vivax over longer periods and describes studies where initial effects are a decrease in P. falciparum malaria followed by a decrease in P. vivax later [6–8] suggesting different dynamics over time.

Possible explanations for different relative effects can lie in biological differences, particularly the ability of P. vivax to form dormant hypnozoites in the liver which can relapse weeks or months later [9]. The relapses are likely to decrease the time to patent re-infection following clearance of blood-stage parasites by drugs, and to lower the impact of vector control on reducing blood-stage infections until the relapses have been depleted. Other possible factors are characteristics of the setting such as transmission intensity or seasonality, and characteristics of the intervention, such as the mode of action, coverage, and whether it is the first implementation or a continuation of previous implementations since the dynamics for these can differ [10].

Program managers and decision-makers need to know the likely impact of interventions in their settings. Knowledge of the expected relative impact over time and the drivers in different settings may also allow easier interpretation of data for evaluating the impact of an intervention strategy, allow the tailoring of combinations of interventions for the optimal impact on both species and inform epidemiology.

We investigate the relative impact of vector-control and drug-based interventions on P. vivax and P. falciparum on a short-term time scale up to two years after implementation. We carry out a literature search to identify studies in areas with both P. vivax and P. falciparum which have documented distributions of treated bed nets (ITN), indoor residual spraying (IRS) or mass drug administration (MDA). We then estimate the variation in the observed trends of the proportions of clinical cases and patent infections that are attributed to P. vivax after the implementation of the interventions. We also aim to identify factors that affect the change in the proportion of clinical cases or patent infections.

Methods

Literature search

Identifying potential studies

The search terms for the PubMed search were: (("falciparum"[tiab] OR "Malaria, Falciparum"[Mesh] OR “Plasmodium, Falciparum”[Mesh]) AND ("vivax"[tiab] OR "Malaria, Vivax"[Mesh] OR “Plasmodium, Vivax”[Mesh])) AND ("Insecticides/administration and dosage"[Mesh] OR "Mass Drug Administration"[Mesh] OR "Insecticide-Treated Bednets"[Mesh] OR “IRS”[tiab] OR “indoor residual spraying”[tiab] OR "Prevalence"[Mesh] OR "Incidence"[Mesh]). This search in PubMed generated 973 hits (03.08.2020). Published reviews were also screened. Cochrane reviews on mass drug administration (MDA) [11], indoor residual spraying (IRS) [12], insecticide treated nets (ITNs) [13,14] and IRS and ITN [15] were screened for studies that took place in areas with both malaria species. Furthermore, if papers that were found with the other two approaches cited papers that could potentially be useful, then these were included for screening as well.

Papers identified as potentially relevant were imported into Endnote for abstract screening. Studies that were not in English or German were excluded. Studies that based on the abstract did not fulfill the inclusion criteria (Box 1) were not considered potentially relevant. If relevance was unclear, they would be included in the full-text screening. In particular, the interventions implemented were frequently unclear based on the abstract alone.

Box 1

Inclusion criteria

Report both P. vivax and P. falciparum in the same area
Report incidence and/or prevalence on at least two time-points or have a concurrent control group
Intervention in between two surveys or control groups that did not receive the intervention

Full-text screening of papers identified as potentially relevant

The papers considered as potentially relevant based on the abstract underwent full-text screening to see if they fulfilled the inclusion criteria (Box 1). This was carried out by one reviewer (ML) and discussed in detail with a second reviewer (AR).

Some studies would fulfill these criteria, however, needed to be excluded due to various reasons (Box 2).

Box 2

Exclusion criteria

Insufficient information about the intervention
Only one time-point measured
Epidemic malaria
Cases of one species being mainly due to imported cases
Population consisting solely of pregnant women

The information on the timing and coverage of interventions needed to be sufficiently detailed. For all three interventions, in most cases the starting point could be pinpointed to the month. For IRS and MDA the starting point needed to be within a window of not more than two years but the interventions could happen over longer time periods. In case of treated bed nets there needed to be a distribution (not just the availability of treated bed nets) with the time-point of the distribution within a window of two years.

Some studies would report having malaria control programs but did not indicate information on timing or control interventions and therefore were excluded. In other cases, there were different interventions implemented at the same time which would not allow disentangling the impacts and therefore were excluded. Interventions were included no matter if it was the first time they happened or a repeated time, but this was noted in order to be able to distinguish between first or repeated rounds of intervention.

Further interventions such as repellents, prophylaxis and larviciding were beyond the scope of this review and were excluded. However, studies were included if they did such interventions as well as those of interest and a note was taken of the additional intervention. Randomized control studies could be included if either they reported measurements before the intervention was implemented as well or if they provided a control group.

Data extracted from the papers and additional variables from other sources

Extracted information was transferred into a Microsoft Access database. Several manuscripts could be combined if they reported on the same area to give one series of time-points. Similarly, if one study reported different areas or different age groups this would be added into the database separately leading to several series of time-points from one study.

Outcome variables

The number of clinical cases and prevalence of patent infections were extracted from the studies. If the studies did not include incidence or prevalence as a table or in the text but had a figure the web plot digitizer [16] was used to extract the values of the data points.

Rationale for selection of variables

Intervention and round of intervention

Drug- and vector-based interventions have different effects over time. For MDA, the initial impact occurs quickly by clearing blood-stage infections. However, MDA does not protect against new blood-stage infections beyond the prophylactic period of the drugs [17]. Vector-based interventions do not clear existing blood-stage infections but reduce the number of new infections from infected bites. For both vector- and drug-based interventions, new blood-stage infections can come from infected bites for both species and additionally, unless the hypnozoites are cleared or used up, P. vivax relapses. As a consequence, the proportion of cases attributed to P. vivax may increase in the short-term.

A modelling study on P. falciparum found that when nets are implemented for the first time, a drop in transmission is expected, whereas repeated rounds are expected to sustain the previous reduction or led to an increase in transmission via changes in the levels of acquired immunity in the community [10]. Therefore, the dynamics can differ according to round of intervention.

Coverage

If an intervention does affect one species more than the other, we would expect increased coverage to lead to a stronger change in the proportion.

Transmission intensity

Modelling studies have predicted stronger effects of ITN [10,18] and MDA [19] for P. falciparum in low transmission settings. The transmission intensities of P. falciparum and P. vivax are frequently different in the same setting.

Age

The age at the peak clinical incidence can differ between species in a setting, due both to their transmission intensities and the rate at which acquired immunity is gained for the species. As a consequence, interventions may lead to different impacts for the species.

Relapse pattern

The number and timing of the relapses per infected bite are likely to influence the timing of any changes in the proportion of cases that are P. vivax.

Seasonality

The effect of an intervention may vary depending on how seasonal the setting is, and the degree of seasonality can differ by species.

Season when the data was collected

The proportion of P. vivax to P. falciparum differs by the season that the measurement was taken in [20–22] due to the ability of P. vivax to relapse.

Definitions of variables

Intervention and round of intervention

The round of intervention was noted for MDA and ITN. The spraying rounds of IRS were not added individually but the starting point was noted. It was often not possible to distinguish between first and later rounds for IRS, since spraying in the previous year was not reported. Spraying was classed as repeated if spraying the year before was reported. In this case, the studies usually looked at a change in the insecticide used.

For ITN distribution, we assumed that if no previous distribution was mentioned then none had happened. An exception to this was a study by Deressa [23] where 65% of people already owned nets. Therefore, it was assumed there had been a previous distribution although not specifically mentioned. There was no distinction made between insecticide treated nets (ITNs) and long lasting insecticidal nets (LLINs).

Studies were excluded when the previous intervention was likely to still have an effect: interventions were considered to not influence the effect of the new intervention substantially if the previous intervention was started more than six months before the intervention of interest, if the concurrent intervention was an increase in case management, or if the study gave reasons to believe that the previous intervention was not very impactful.

Coverage

Studies were categorized into higher or lower coverage. An arbitrary cut-off of 70% was used for ITNs based on an equal division of the studies.

The studies had various ways of quantifying ITN coverage. The preferred metric of coverage for bed nets was usage followed by the metrics listed in Box 3. In many cases only one of these measures was available.

Box 3

Quantifying the Coverage of ITN

Usage of bed nets
Coverage of bed nets
Calculation using number of nets and population assuming 1 net covers 2 people
If usage in different seasons is given, it was assumed to be high if majority of seasons had usage above 70%
If self-reported usage was given for several years after distribution, first self-reported usage was considered
With several locations but coverage information for one only, it was assumed to be the same for other locations too.

For one study (Deressa [23]) the aim was to cover with one net per two people. It was not clear if this was reached but assumed it was and therefore the coverage would be high. In other cases, there were studies (Luxemburger [24], Rowland [25], Rowland [26]) where only a fraction of the community would receive nets and only those people would be tested. However, as only the people who received nets were tested the coverage was defined on what proportion of these people received a net. We recognize that community effects of the nets would be reduced in this situation.

As MDA and IRS generally had higher coverages, the cut off was set to 90% (of people receiving a dose or of households being sprayed). If there were several rounds of MDA coverage was considered high if 90% or more received at least one round.

The number of months since the intervention was implemented

The studies usually gave a time-span of the implementation of the intervention, which could be the year of implementation but was usually more exact dates. To define when the intervention was implemented (time zero), the mid-point of these time spans was taken. Similarly, the mid-point of time windows given for prevalence surveys and incidence data collection were used. In most series of MDA, there were several rounds over three months. The mid-point of the time span of the first round was used as the time of implementation.

The proportion of P. vivax cases just before the intervention was implemented is needed to allow the change in proportion over time to be estimated. To determine the proportion at this time-point, the closest time-point before the intervention was used unless there were several data points within six months before the intervention, in which case all of these were used in order to to provide a more stable estimate of the proportion.

However, some studies had measured malaria burdens more than six months before the intervention, these were included using the closest measurement before the intervention was used to avoid excluding many studies (for clinical case data: 15 series of time points (21%) (median time point of measurement of these series: 15 months before intervention), for patent infection data: 32 series of time points (46%) (median time point of measurement of these series: 30 months before intervention)). We assumed that if there had been no major interventions, then the proportion would be similar after accounting for season of measurement in the regression analyses. The median time of the pre-implementation points was 0.2 months for clinical cases and 9.7 months for patent infections. The data-points after the intervention was implemented were used up to the time of another implementation. This means that a data-point could be used twice, once as a measurement after an intervention happened and once before a different intervention. In all the analyses, the season of the measurement was accounted for.

Transmission

The transmission intensities of P. falciparum and P. vivax frequently differ in a setting. P. vivax and P. falciparum were categorized separately into high and low transmission intensities which led to four transmission categories. The transmission intensity in the study settings was determined using malaria burden measures from the studies, however, the studies had non-identical measures of the incidence of clinical cases and prevalence. For example, incidence data could be reported in different age groups or collected actively or only passively. However as only a rough distinction between high and low transmission intensity was required, the information in the studies was used. If there were entomological inoculation rates given or prevalence these were used. An arbitrary cut off of 5% prevalence of P. falciparum and P. vivax was used to allow reasonable numbers of studies in the transmission categories.

When prevalence data was not available then incidence data was used. A transmission setting was considered high with more than 100 cases per 1000 people per year. In uncertain cases, other literature from the setting or maps from the Malaria Atlas Project would be consulted [2,3]. However, these maps are recent and only go back to 2000 while some of the studies were carried out in previous decades and therefore these maps could not be used for all studies.

Relapse pattern

To define the relapse pattern of P. vivax occurring in the study areas, the classification by White [27] was used. White distinguishes between long latency relapse patterns (relapses approximately after 8–10 months) and frequent relapse patterns with relapses shortly after the primary infection. The classification is based on the broad geographical regions in Fig 17 in White [27]: regions may have frequent relapse strains only, long latency strains only or both. Latency is also associated with the number of relapses with temperate strains displaying fewer relapses than tropical strains [27].

Seasonality

Seasonality of rainfall was used as a proxy for the seasonality of malaria transmission [28]. Although this is not the only factor that influences seasonality, it was readily available for all areas. The relative entropy quantifies how much the distribution of rainfall differs from a uniform distribution of the rain across all months of the year [29]. To assign seasonality, the model based on the Climate Prediction Center Merged Analysis of Precipitation dataset (CMAP model) of the relative entropy [29] was used. The threshold chosen to distinguish between low and high seasonality was an arbitrary value of 0.6.

Seasonal patterns

The season at the time-point of measurement was often reported in the studies. When it was missing other studies with information on the timing of seasons in the area were used. If the prevalence or incidence was an average over the year, the season of survey was assumed to be in both wet and dry seasons. If the season the data was collected in could not be identified, it was noted as missing.

Sample size of studies

The actual case numbers or number of people infected were extracted.

Proportion of malaria attributed to P. vivax

To calculate the proportion of malaria cases with P. vivax infection, the number of clinical cases (or patent infections) with P. vivax infection was divided by the number of clinical cases (or patent infections) with either P. vivax or P. falciparum. If the studies counted mixed cases separately, they were added to both P. vivax case numbers as well as P. falciparum case numbers, as this was mostly reported to have been done in the studies when the mixed case numbers were not given separately. There were studies where mixed cases counted towards one species only, this was noted in Table A-J in S1 Supporting Information. Only malaria cases with P. vivax and/or P. falciparum were used in the analysis.

Risk of bias

The risk of bias was assessed in general rather than for each individual study. None of the studies aimed to assess the relative impact of an intervention on P. vivax and P. falciparum directly, and so the details which may affect the risk of bias were generally not reported. We considered the seven domains of the ROBINS-I tool (confounding, selection of participants, bias in classification of an intervention, deviation from intended interventions, missing data, bias in measurement, selective reporting depending on findings) [30].

Statistical analysis

The analysis aimed to (i) describe changes in the proportion of cases attributed to P. vivax by time since the implementation of the intervention and (ii) to identify factors that influence the pattern. Separate analyses were carried out for clinical cases and patent infections. R (version 4.0.1) [31] was used.

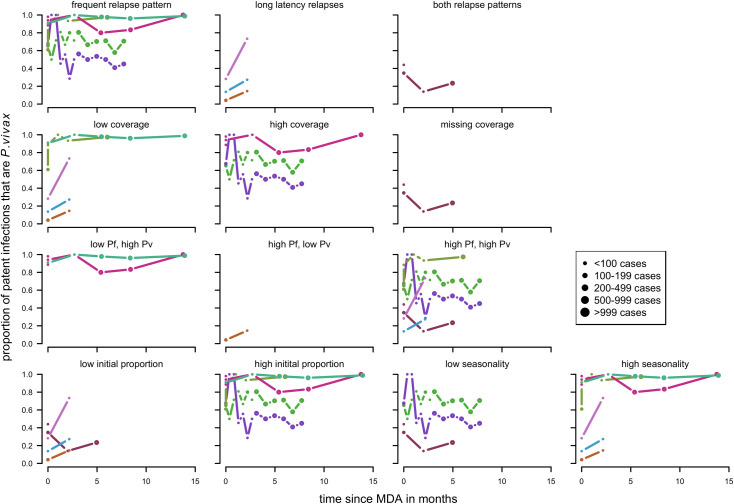

To display the data visually, the proportion attributed to P. vivax was plotted over time for each series individually (number of P. vivax cases divided by number of P. vivax and P. falciparum cases combined). The size of the point increased with higher number of cases found at that time-point. Spaghetti plots by factor gave a visual impression of the potential role of the factor.

Characteristics of the series of time-points, such as age-group, were summarized using proportions. R-packages used for data processing and the visualization of data were diagrammeR [32], maps [33], ggplot2 [34], rnaturalearth [35], plyr [36], reshape2 [37].

Logistic regression was used for the analysis with the proportion of either clinical cases or patent infections that were P. vivax as the outcome. The change in the proportion of P. vivax over time was described as the change in odds per month since implementation. The model includes random effects for both intercept and slope to account for clustering by series. Time was used as a continuous variable. Potential explanatory variables were included both as the variable alone and as an interaction with time, to assess their effect on the change in proportion over time.

Maximum likelihood was used to fit the models. The lme4 package [38] in R was used. In all models, the season of the survey was adjusted for since season is likely to affect the proportion of P. vivax to P. falciparum.

Randomized controlled studies with control groups were included. If no measurements before the intervention were available, it was assumed that before the intervention the proportion of P. vivax to P. falciparum was equal to the proportion in the control group that did not receive the intervention. This is equivalent to assuming the effect observed in the study would also have been observed longitudinally.

Ethics statement

This study did not require any special ethical clearance. No new data were collected: the data included in the review were extracted from published papers.

Results

Literature search

The literature search lead to 1157 hits of which 55 studies were included (Fig 1). The PubMed search yielded 973 hits, and 184 were obtained by screening citations in Cochrane Reviews and the included papers.

The full-text screening included 415 studies. The most common reason for exclusion was the lack of information on interventions (Table 1), either no interventions were reported, or it was not clear at what time-point interventions happened or what the intervention was. In 56 cases there were studies that either only did a survey at one time-point or if there were surveys at several time-points the results would be an average of these surveys rather than reporting them separately. In a further five studies it was not possible to disentangle the effect of the interventions because there were several interventions happened at the same time.

Table 1. Reasons for exclusion.

Reason for exclusion	Number of studies
Lacks information on intervention or no intervention	208
No distinction of different time-points of the surveys	56
No distinction of species across time	52
One species not detected or not reported	13
Imprecise because data is for the whole country	7
Same data as another study that is already used	6
Not outcome of interest	6
Looks at epidemics	4
Issues with disentangling intervention effect	5
Very low prevalence of P. falciparum	1
Excluded relapses of vivax from cases	1
Imported cases	1
Total	360

Open in a new tab

A broad description of the included studies can be found in S1 Supporting Information. The largest number of studies was in Papua New Guinea (nine studies, 20%) followed by India (eight studies, 17%). The remaining studies were located in Nicaragua, Venezuela, Brazil, Ethiopia, Palestine, Iran, Pakistan, Afghanistan, Cambodia, Vietnam, Myanmar, Thailand, Indonesia, Vanuatu and the Solomon Islands (Fig 2).

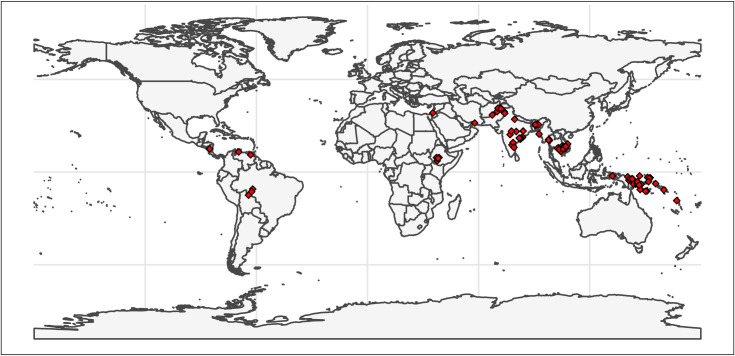

Fig 2 — Made with Natural Earth (https://www.naturalearthdata.com/ and downloaded using the R package rnaturalearth.

Some studies reported several interventions (not at the same time), or several locations, and could therefore provide multiple series of time-points. Others were combined since they reported on the same area. In total, there were 141 series of time-points, 69 of patent infections and 72 of clinical cases. For three ITN distributions [39–41], the round of intervention was unclear or another intervention was phased out as the distribution took place and therefore they were excluded from the analysis.

Summary of the data

Twenty-seven studies met the criteria to be included in the analyses of clinical cases, providing 72 series of time-points for different age-groups and locations and a total of 500 time-points. Overall, 16 (22%) of the series included IRS, 39 (54%) treated nets, and 17 (24%) drug treatment (Table 2). The study dates ranged from 1959 to 2019 with 21 series of time-points from studies before the year 2000 (range ITN: 1996–2019, range MDA: 1983–2019, range IRS: 1959–2019).

Table 2. Characteristics of the 72 series of time-points of clinical cases by intervention.

	ITN (first distribution) (n = 26)	ITN (repeated distribution) (n = 13)	MDA (first round) (n = 13)	MDA (repeated round) (n = 4)	IRS (first spraying) (n = 4)	IRS (repeated spraying) (n = 3)	IRS (undetermined round) (n = 9)	Overall (n = 72)
Age group
0–5 years	1 (4%)	1 (8%)	0 (0%)	0 (0%)	0 (0%)	0 (0%)	0 (0%)	2 (3%)
0–10 years	0 (0%)	0 (0%)	0 (0%)	0 (0%)	1 (25%)	1 (33%)	0 (0%)	2 (3%)
10+ years	0 (0%)	0 (0%)	0 (0%)	0 (0%)	0 (0%)	1 (33%)	0 (0%)	1 (1%)
all ages	25 (96%)	12 (92%)	13 (100%)	4 (100%)	3 (75%)	1 (33%)	9 (100%)	67 (93%)
Coverage ¹
low	9 (35%)	4 (31%)	10 (77%)	4 (100%)	0 (0%)	0 (0%)	0 (0%)	27 (38%)
high	15 (58%)	6 (46%)	2 (15%)	0 (0%)	1 (25%)	3 (100%)	7 (78%)	34 (47%)
missing	2 (8%)	3 (23%)	1 (8%)	0 (0%)	3 (75%)	0 (0%)	2 (22%)	11 (15%)
Seasonality ²
low	18 (69%)	0 (0%)	11 (85%)	4 (100%)	0 (0%)	3 (100%)	4 (44%)	40 (56%)
high	8 (31%)	13 (100%)	2 (15%)	0 (0%)	4 (100%)	0 (0%)	5 (56%)	32 (44%)
Relapse pattern
frequent	13 (50%)	10 (77%)	3 (23%)	0 (0%)	0 (0%)	0 (0%)	1 (11%)	27 (38%)
long	4 (15%)	0 (0%)	9 (69%)	4 (100%)	2 (50%)	3 (100%)	3 (33%)	25 (35%)
both	9 (35%)	3 (23%)	1 (8%)	0 (0%)	2 (50%)	0 (0%)	5 (56%)	20 (28%)
Transmission ³
low Pf low Pv	15 (58%)	9 (69%)	9 (69%)	4 (100%)	3 (75%)	1 (33%)	5 (56%)	46 (64%)
low Pf high Pv	3 (12%)	0 (0%)	2 (15%)	0 (0%)	0 (0%)	0 (0%)	2 (22%)	7 (10%)
high Pf low Pv	6 (23%)	3 (23%)	0 (0%)	0 (0%)	1 (25%)	2 (67%)	0 (0%)	12 (17%)
high Pf high Pv	2 (8%)	1 (8%)	2 (15%)	0 (0%)	0 (0%)	0 (0%)	2 (22%)	7 (10%)
Diagnostic tool
RDT	1 (4%)	0 (0%)	1 (8%)	0 (0%)	1 (25%)	0 (0%)	0 (0%)	3 (4%)
RDT or microscopy	10 (38%)	0 (0%)	2 (15%)	0 (0%)	0 (0%)	0 (0%)	0 (0%)	12 (17%)
RDT then microscopy	0 (0%)	7 (54%)	0 (0%)	0 (0%)	0 (0%)	0 (0%)	0 (0%)	7 (10%)
microscopy	8 (31%)	4 (31%)	10 (77%)	4 (100%)	3 (75%)	3 (100%)	8 (89%)	40 (56%)
not reported	7 (27%)	2 (15%)	0 (0%)	0 (0%)	0 (0%)	0 (0%)	1 (11%)	10 (14%)
Type of study
observational	23 (88%)	13 (100%)	13 (100%)	4 (100%)	3 (75%)	3 (100%)	7 (78%)	66 (92%)
trial	3 (12%)	0 (0%)	0 (0%)	0 (0%)	1 (25%)	0 (0%)	2 (22%)	6 (8%)
Survey taken in different seasons ⁴
yes	6 (23%)	2 (15%)	12 (92%)	4 (100%)	1 (25%)	2 (67%)	7 (78%)	34 (47%)
no	20 (77%)	11 (85%)	1 (8%)	0 (0%)	3 (75%)	1 (33%)	2 (22%)	38 (53%)
Time points per time series
mean	4.3	5.8	14	6.3	6.8	4.7	7.2	6.9
median (min,max)	5 (2,9)	3 (2,24)	12 (5,34)	6 (6,8)	3.5 (2,18)	5 (4,5)	4 (2,15)	5 (2,34)

Open in a new tab

¹High coverage is defined as more than 70% of people with access to intervention for ITN and 90% of people for IRS. For MDA high coverage is defined as more than 90% receiving at least one treatment

²Seasonality is defined using the measure of relative entropy described by Pascale (2015) [29] which quantifies the distribution of rainfall across the year

³Transmission intensity cut off was at 5% prevalence for the respective species or less than 100 cases per 1000 people per year

⁴The data collection may spread across different seasons or all the data points described may be collected throughout the same season (e.g. always during the wet season)

The majority of the series of time-points included all age-groups, with only two series focusing on under 5-year-olds and two series on under 10-year-olds (Table 2 and S1 Supporting Information). Most of the series (92%) were observational and compared the clinical cases before and after the intervention was implemented. For six series (8%) there were control groups as comparison instead of clinical cases before the intervention was implemented. In more than half of the series of time-points microscopy was used as the diagnostic tool. Most series were set in areas with low transmission for both P. vivax and P. falciparum. The total number of clinical cases found per time-point ranged from 1 to 19020 cases.

There were 24 studies included with information on the prevalence of patent infections (Table 3), leading to a total of 69 series of time-points and 198 individual time-points. There were 18 (26%) series of time-points where IRS was conducted, 41 (59%) had treated bed nets and 10 (14%) with MDA. The study dates ranged from 1931 to 2020 with 23 series of time-points from studies before 2000 (range ITN: 1993–2020, range MDA: 1931–2019, range IRS: 1961–2005).

Table 3. Characteristics of the 69 series of time-points of patent infections by intervention.

	ITN (first distribution)	ITN (repeated distribution)	MDA (first round)	IRS (first spraying)	IRS (repeated spraying)	IRS (undetermined round)	Overall
Age group
0–15 years	3 (20%)	2 (8%)	5 (50%)	1 (50%)	5 (100%)	10 (91%)	26 (38%)
2+ years	0 (0%)	1 (4%)	0 (0%)	0 (0%)	0 (0%)	0 (0%)	1 (1%)
5+ years	0 (0%)	0 (0%)	1 (10%)	0 (0%)	0 (0%)	0 (0%)	1 (1%)
15+ years	1 (7%)	0 (0%)	0 (0%)	0 (0%)	0 (0%)	0 (0%)	1 (1%)
all ages	11 (73%)	23 (88%)	4 (40%)	1 (50%)	0 (0%)	1 (9%)	40 (58%)
Coverage ¹
low	7 (47%)	4 (15%)	5 (50%)	0 (0%)	0 (0%)	0 (0%)	16 (23%)
high	7 (47%)	20 (77%)	4 (40%)	1 (50%)	5 (100%)	11 (100%)	48 (70%)
missing	1 (7%)	2 (8%)	1 (10%)	1 (50%)	0 (0%)	0 (0%)	5 (7%)
Seasonality ²
low	11 (73%)	24 (92%)	4 (40%)	2 (100%)	0 (0%)	8 (73%)	49 (71%)
high	4 (27%)	2 (8%)	6 (60%)	0 (0%)	5 (100%)	3 (27%)	20 (29%)
Relapse pattern
frequent	12 (80%)	25 (96%)	6 (60%)	2 (100%)	0 (0%)	0 (0%)	45 (65%)
long	0 (0%)	0 (0%)	1 (10%)	0 (0%)	0 (0%)	0 (0%)	1 (1%)
both	3 (20%)	1 (4%)	3 (30%)	0 (0%)	5 (100%)	11 (100%)	26 (33%)
Transmission ³
low Pf low Pv	3 (20%)	12 (46%)	0 (0%)	0 (0%)	1 (20%)	5 (45%)	21 (30%)
low Pf high Pv	5 (33%)	0 (0%)	2 (20%)	0 (0%)	4 (80%)	6 (55%)	17 (25%)
high Pf low Pv	1 (7%)	12 (46%)	1 (10%)	0 (0%)	0 (0%)	0 (0%)	14 (20%)
high Pf high Pv	6 (40%)	2 (8%)	7 (70%)	2 (100%)	0 (0%)	0 (0%)	17 (25%)
Diagnostic tool
microscopy	10 (67%)	12 (46%)	8 (80%)	2 (100%)	5 (100%)	11 (100%)	48 (70%)
PCR	3 (20%)	12 (46%)	2 (20%)	0 (0%)	0 (0%)	0 (0%)	17 (25%)
microscopy and PCR	2 (13%)	2 (8%)	0 (0%)	0 (0%)	0 (0%)	0 (0%)	4 (6%)
Type of study
observational	12 (80%)	26 (100%)	10 (100%)	1 (50%)	5 (100%)	9 (82%)	63 (91%)
trial	3 (20%)	0 (0%)	0 (0%)	1 (50%)	0 (0%)	2 (18%)	6 (9%)
Survey taken in different seasons ⁴
yes	6 (40%)	3 (12%)	9 (90%)	0 (0%)	0 (0%)	1 (9%)	19 (28%)
no	9 (60%)	2 (8%)	1 (10%)	1 (50%)	5 (100%)	10 (91%)	28 (41%)
unknown	0 (0%)	21 (81%)	0 (0%)	1 (50%)	0 (0%)	0 (0%)	22 (32%)
Time points per time series
mean	2.8	2.3	5.6	3.5	2	2.1	2.9
median (min,max)	2 (2,6)	2 (2,5)	4.5 (2,13)	3.5 (2,5)	2 (2,2)	2 (2,3)	2(2,13)

Open in a new tab

¹High coverage is defined as more than 70% of people with access to intervention for ITN and 90% of people for IRS. For MDA high coverage is defined as more than 90% receiving at least one treatment

²Seasonality is defined using the measure of relative entropy described by Pascale (2015) [29] which quantifies the distribution of rainfall across the year

³Transmission intensity cut off was at 5% prevalence for the respective species or less than 100 cases per 1000 people per year

⁴The data collection may spread across different seasons or all the data points described may be collected throughout the same season (e.g. always during the wet season)

The time-window of intervention implementation for clinical case data was mostly one month (55%), and never longer than a year. For prevalence, the implementation time-span was within a month for 63% of the series of time points, and for 98% within a year. The time-span for clinical case data collection was monthly data in 69% of the series of time points and for 97% of the studies it was less than a year. For patent infection data, the time-span of collection was a month or less for 65% of the series of time points and all but one had collection time windows of a year or less. [42]. The total number of patent infections found per time-point ranged from 1 to 789 cases.

Risk of bias

The majority of studies are before-after studies where the intervention is the same for all participants included at the time of implementation and the same participants are followed-up for both P. vivax and P. falciparum infection. Consequently, within a study we expect little bias arising from the selection of participants, classification of the intervention, or deviation from the intended intervention.

It is possible that the coverage of the intervention was not even throughout the study areas, and that some parts of the study areas may tend to have more P. vivax and some more P. falciparum. However, the same environmental characteristics tend to be conducive to both malaria species since they are transmitted by the same mosquito species, and the intention of the implementations were in most cases to provide the intervention to every resident.

There may be a bias in the proportion of infections that are patent by microscopy for the two species. P. vivax tends to have lower densities in the peripheral blood however the relative dynamics of sub-patent infections following an intervention in the two species are not well known.

There is likely to have been selection in which interventions were used in which settings. For example, MDA studies tended to be set in highly seasonal settings.

Since the primary aim of the studies was not to assess the relative impact, it is unlikely that selective reporting played a substantial role. A major reason for excluding studies was the lack of information on the intervention, particularly the timing, but it is not obvious that this would lead to bias in the relative impact.

Series of time-points with ITN

Clinical Cases

There were eleven studies [7,22,25,26,42–53] providing data on clinical malaria cases when a first-time distribution of ITNs took place, providing 26 series of time-points and 13 series of data points from six studies [7,22,43,45,46,51,54–56] in areas with repeated ITN distributions, where there had been a previous distribution or high coverage of bed nets (Fig 3).

Fig 3 — Blue filled circles: proportion of cases with *P. vivax* infection up to 24 months from the intervention. Open circles: over 24 months after the intervention happened (excluded in the analysis because focus was on the dynamics in the first 2 years after the intervention). Orange diamonds: the proportions in the control groups. Dots at time-point 0 were not necessarily measured at this time but at time-points before the intervention (median 2.2 months before implementation, range 0–24 months before) and it was assumed that this represents the proportion just before the intervention was implemented (Methods, Definitions of variables, Time since implemention). Dot size depends on number of cases found.

For the first-time distributions of ITNs, the proportion of cases that were caused by P. vivax tended to increase for most of the series (at least initially), but there were four (15% e), g), h), l)) that remained stable and five (19% a),d),i),m),y)) that decreased. Overall, there is substantial variability across the different settings. The study by Maude [50] included series in several provinces in Cambodia, where the proportions tended to increase for the first 24 months (Fig 3N–3V). Increases can also be seen in Papua New Guinea (Hetzel [42], and Ome-Kaius [7]). In contrast, a steep downward trend is visible in a series (Fig 3D) from Meghalaya in the North East of India. Some of the studies had other interventions in place (S2 Supporting Information) such as IRS. In some areas there were already nets, however, no previous distribution was mentioned and the coverage was not reported to have been high. Of the 13 series, that received a repeated distribution of ITNs six (46% aa),af),ag),ai),aj),al)) showed little or no change, five (38% ab),ac),ae),ah)am)) increased, whereas two (15%,ad),ak)) showed a downward trend (Fig 3). One series from Vanuatu shows a clear upward trend (Fig 3am)). In this case, the second distribution happened three years after the first one (the first one is shown in Fig 3Y). In the first distribution, the ITN coverage was around 25% whereas the second it was 50% of individuals [45]. Some studies had spraying or vector breeding site reduction in place [55,56,51] (S2 Supporting Information). The time difference between the previous and the repeated distributions could vary (varied from approximately three to six years after previous distribution) which means nets from previous studies could have different remaining levels of protection.

Patent infections

For the first-time ITN distributions, a total of nine studies [5,7,22,25,26,42,43,52,53,57–60] provided information on patent infections. This led to 15 series of which twelve were observational before and after studies. Three series provide information on control groups, of which two also report patent infections before the intervention was implemented. The studies with a first-time distribution of ITNs were located in Papua New Guinea, Cambodia, Myanmar, Solomon Islands, Afghanistan and Pakistan. Eleven (73%) show a clear increase in the proportion of patent infections that were P. vivax (Fig 4) three studies (20%) show a decrease and one (7%) there was little change.

Fig 4 — Blue filled circles: proportion of cases attributed to *P. vivax* up to 24 months from the intervention. Orange diamonds: the proportions in the control groups. Dot size depending on number of infections found. Study p), r) and aa) are excluded from the regression analyses due to having no data collected in the first 24 months following the intervention. Pre-intervention points as described in Methods (definition of variables: time since implementation).

For the repeated distributions, there were 26 series of time-points from seven studies [5,7,22–24,43,61–66] which were mostly located in Papua New Guinea, with single studies in Cambodia, on the Thai-Myanmar border and in Ethiopia. Of the 26 series of time-points, twelve (46%) show an upward trend, eight (31%) a downward trend and six (23%) show no obvious change (Fig 4). Fig 4K) and 4O) suggest that there are only slight differences in the patterns if the proportion of patent infections of the intervention group is compared to the control group instead of a before and after comparison. However, only two studies were available with both before and after data as well as a control group and this could not be investigated further.

Series of time-points with MDA

Clinical cases

There were five studies [52,53,67–70] with MDA providing 17 series of time-points, of which 13 were first-time administrations and four had received MDA three to six months previously. The studies were located in Brazil, Nicaragua, India and Myanmar. All studies were observational. Upward trends are observed in two series (12%, k) and p)) (Fig 5). For the remaining studies, the observed trends are either non-linear or unclear (41%, a), b),c),e), f), g) and l)).

Fig 5 — Blue dots: first round of MDA, red dots: repeated MDA (first round took place 3–6 months before). Open circles: more than 3 months after MDA. Dot size depending on number of cases found Pre-intervention points as described in Methods (definition of variables: time since implementation).

Different drugs were used in the studies. Some used primaquine (S2 Supporting Information), however, the doses were not sufficient to kill hypnozoites and prevent relapses. The recommendation by the WHO to prevent relapses is to treat people for 14 days with a dose of 0.25–0.5mg/kg per day [71]. Therefore with the drug regimens used only blood stage parasites were cleared. The prophylactic period of the drugs varied. Some studies gave drugs on several occasions over three months. Most of the studies had other interventions in place in these areas (S2 Supporting Information).

Patent infections

There were ten series of time-points from six studies [52,53,68,72–76] providing data on MDA and patent infections. All the series report on first time distributions of MDA and were observational. They were located in Brazil, Papua New Guinea, Myanmar, Indonesia and Palestine. There were eight studies with an initial upward and two studies with initial downward observed trends (Fig 6). The only study with sufficient primaquine to prevent relapses was by Hofmann [72] (Fig 6C)) with treatment with primaquine for twenty days with a dose of 0.5mg/kg/day in children aged 5 to 10 years. The study conducted by Kliger [74] treated with plasmochine and quinine sulphate but the dose was lower than that needed to kill the hypnozoites in these settings [77]. The study by Van Dijk [75] did 11 rounds of mass drug administration measuring patent infections before and after 10 rounds.

Fig 6 — Unfilled dots: more than 3 months after mass drug administration. Dot size depending on number of infections found Pre-intervention points as described in Methods (definition of variables: time since implementation).

Series of time-points with IRS

Clinical cases

There was a total of 16 series of time-points with information on any round of IRS from eleven different studies [40,47,56,78–85]. The studies were located in Venezuela, Ethiopia, India, Vietnam, Brazil and Pakistan. All apart from two were observational studies. Five series show at least slight initial downward patterns (31%, a), d), e), j), k)) (Fig 7). Upward patterns can be observed in three studies (19%, i) o),p)). The remaining eight studies (50%) show little change or have a large amount of stochasticity. For four series, there had been no previous IRS. For nine series, there was no spraying mentioned previous to the study however, it was also not clearly indicated that there was none. In the study by Doke et al [81], there was previous spraying with DDT but due to resistance this was changed to lambdacyhalothrin. Various insecticides were used in the studies (S2 Supporting Information).

Fig 7 — Blue: first time spraying (there was no spraying for at least a year before), red: repeated spraying (spraying had occurred previously but there was a change in insecticide used), green: unclear if spraying happened before (no mention of spraying before the study but also no clear mentioning of spraying being the first time). Open circles: more than 24 months after IRS, Orange diamond shaped dots are from the control group. Dot size depending on number of cases. Pre-intervention points as described in Methods (definition of variables: time since implementation).

Patent infections

There were 18 series of time-points from six studies [60,84–88], of which 16 were from observational studies and two had control groups. The studies were located in Indonesia, Pakistan, the Solomon Islands and India. For two series it was the first spraying, for five it was likely that spraying had happened before, and for the remaining studies it was unclear. There were nine series of time-points that showed a clear upward trend in the proportion of cases attributed to P. vivax (Fig 8). Five series of time-points show downward trends and the remaining four studies show little (initial) change.

Fig 8 — Blue: first time spraying (there was no spraying for at least a year before), red: repeated spraying (spraying happened before but there was a change in insecticide used in panel f) and g)), green: unclear if spraying happened before (no mentioning of spraying before the study but also no clear mentioning of spraying being the first time). Open circles: more than 24 months after IRS, Orange diamond shaped dots are from the control group. Dot size depending on number of cases found. Pre-intervention points as described in Methods (definition of variables: time since implementation).

Graphical summaries of the proportion of cases or infections that were P. vivax over time by factor

Overall, there was substantial variability in the patterns over time. We used spaghetti plots to investigate visually if there are general patterns by each factor. Other characteristics of the series are described in S1.

Series with ITN by factor

With first time distribution of ITNs with clinical cases, there were different trends observed over time by relapse patterns with a stronger tendency for upward trends in the frequent relapse category (Fig 9). The same is true for high coverage, however, many of the studies located in frequent relapse pattern areas also received interventions with high coverage. No clear differences were observed for the other factors. Age and transmission intensity could not be investigated since all but one studies looked at all ages apart from Ome-Kaius [7] (Fig 3W) with under 5-year-olds. Most studies were classified as having low transmission intensity for both P. falciparum and P. vivax with prevalence rates lower than 5% (or if prevalence was not available incidence lower than 100 cases per 1000 people per year was considered low).

Fig 9 — Dot size depending on number of infections.

For the repeated distribution of ITN with clinical cases, no clear patterns were observed for any of the factors (Fig 10). Some factors could not be assessed due to the data available.

To consider the hypothesis that the short-term dynamics may differ following first time and repeated ITN distributions, they were presented directly in the same graph. There is substantial variation in both groups (Fig 11), with a potential tendency for a slightly greater overall increase in the proportion that were P. vivax for the first time ITN distributions.

Fig 11 — Excluding series of time points that have no measurement within 24 months after the intervention. Dot size depending on number of infections.

For a first-time distribution of ITN with patent infections, visually the variables with the most distinct patterns between categories were relapse patterns and coverage (Fig 12). When there was a repeated distribution with patent infections, none of the factors had obvious differences between categories of any factors. Relapse pattern, seasonality and transmission intensity could not be investigated due to data availability (Fig 13).

Fig 12 — Dot size depending on number of infections.

Fig 13 — Excluding series of time points that have no measurement within 24 months after the intervention. Dot size depending on number of infections.

When plotted by distribution, there was no clear difference in the patterns over time by round of ITN distribution (Fig 14).

Series with mass drug administration by factor

The first and repeated rounds of MDA were not separated for the analysis because MDA is assumed to act most strongly in the short-term and therefore similar effects were expected for first and repeated rounds of MDA.

Clinical cases: Most of the spaghetti plots (Fig 15) show no clear patterns in the proportion of clinical cases that were P. vivax by time and there was substantial variation in all categories. The studies with three rounds of mass drug administration tended to have longer follow-up times. Coverage was considered high for all studies where 90% or more of people received at least one round of MDA. There appears to be an upward trend in the proportion of cases attributed to P. vivax with high coverage, for studies receiving three rounds of MDA, frequent relapse pattern areas as well as low P. falciparum and high P. vivax transmission. However, it is mostly the same studies for the categories for all of these variables. The time-period of the study may also be a potential factor but there were only three studies later than the year 2000 and these tended to have higher coverage, three rounds instead of one, and longer follow-up periods. Migration from areas with a high malaria transmission intensity was not captured in the data but was given as one possible explanation for the studies in India by Kondrashin et al. [69] for the areas where P. vivax decreases but P. falciparum does not.

Patent infections: Overall there were no clear patterns in the proportion of cases with P.vivax parasitemia (Fig 16) apart from series in long latency relapse pattern areas where there appears to be an increase. Other factors such as rounds of MDA were not considered as all of the studies had three rounds of MDA or more in total every month apart from Hofmann et al [72] with one round over twenty days and McGreevy et al [68] where the number of rounds was not recorded.

Series with indoor residual spraying by factor

For indoor residual spraying, for both clinical cases (Fig 17) and patent infections (Fig 18), no clear visual patterns for any of the variables emerged. There was a substantial amount of variation.

Regression analyses to estimate the observed trends in the proportion of P. vivax cases by time since intervention and identify potential factors

To estimate the changes over time since the intervention and to identify factors that are associated with the change over time, logistic regression was used with random effects for the intercept and slope for series (S3 Supporting Information). When possible, models included several explanatory variables, however, since the number of series for each level of the covariates is limited and an interaction term for the effect of the covariates is needed to estimate the effect over time the full models did not always converge. In those cases, the analysis was carried out for one factor at a time.

The analyses were done separately for the interventions as the effects of the explanatory variables might differ by intervention. Adjustment for the season at the time of the surveys was included in all models.

In summary, for all interventions there is substantial variability in the trends of the proportion of clinical cases or patent infections that were P. vivax in the short-term by time since the implementation (Tables 4 & 5). The time-points used were up to 24 months after the intervention for ITN and IRS and up to three months for MDA. Within these time periods, the patterns were roughly linear.

Table 4. Estimated changes in the proportion of clinical cases that were P. vivax over time for each intervention separately, adjusted for season at time-point of survey.

Intervention	Time-span	Number of series of time points	Change over time: Odds ratio per month	95% CI	Variation between series (min/max estimated odds ratio per month)
ITN (first round)	24 months	26	1.03	1.01–1.06	0.92–1.13
ITN (repeated round)	24 months	12	1.04	1.01–1.07	0.99–1.10
MDA	<3 months	17	0.93	0.63–1.39	0.37–2.39
MDA	3–6 months	13	1.62	1.14–2.30	1.08–2.06
IRS	24 months	16	1.00	0.95–1.06	0.87–1.24

Open in a new tab

Table 5. Estimated changes in the proportion of patent infections that were P. vivax over time for each intervention separately, adjusted for season at time-point of survey.

Intervention	Time-span	Number of series of time points	Change over time: Odds ratio per month	95% CI	Variation between series (min/max)
ITN	24 months	37	1.02	0.98–1.06	0.82–1.15
MDA	<3 months	9	0.97	0.57–1.65	0.37–1.83
IRS	24 months	18	1.27	1.08–1.51	0.93–1.75

Open in a new tab

When the interventions are compared overall, there is a tendency for upward patterns in malaria attributed to P. vivax for ITN and IRS, with MDA estimates uncertain in the first three months, although these associations are not significant. There was no evidence that the round of intervention for ITN differs significantly in a model with time however the effects of the explanatory variables differ by round of distribution. Overall, the analyses were unable to rule in or rule out explanatory factors due to the limited number of series and the coIlinearity of some variables. There was evidence of an effect of coverage for some of the interventions, however not all of them and this could not be investigated for IRS. Transmission intensity had significantly different effects by species for ITN (Fig 19) but no clear pattern was observed for MDA and IRS. The results suggest that relapse pattern may be able to explain some of the variation with long latency patterns tending to lead to a weaker increase in P. vivax for ITN as well as for IRS. There is uncertainty in case of seasonality as it could not be tested for all interventions but possibly had an effect in others. The initial proportion of P. vivax is a possible factor, however, this is uncertain and it was not signficant in most analyses.

Fig 19 — Factors were considered as ‘possible’ if the estimated change in odds over time was more than 1.01 per month or less than 0.99 per month in the logistic regression.

Discussion

To our knowledge, this is the first systematic review of the relative effect of interventions on sympatric P. vivax and P. falciparum. The mean increase in the proportion of cases that were P. vivax either significantly increased or the estimates were in the direction of an increase following ITN, IRS and for MDA after the first three months. However, the most striking finding was the substantial variability found in the relative impact for all of the interventions over the time-scale of this study: up to 24 months for ITN and IRS and up to six months for MDA.

A recent review by Price [6], found that the proportion of P. vivax tends to increase when malaria control interventions are implemented, over much longer time scales.

Due to the number of series, the variability in the observed trends and collinearity between variables, it was not possible to rule in or rule out many of the variables as having an impact on the trend over time. Variables which are likely to have an effect were transmission intensity, coverage and relapse pattern. Transmission intensity was either significantly associated or had large odds ratios in several, but not all, of the analyses. It is likely that transmission intensity plays a role as the effect of interventions can be different for single species for different transmission intensities and different transmission levels can pose different challenges such as more heterogeneity and low level parasitemia in low transmission areas [89].

Even though there was no evidence for an impact of coverage for all interventions, it may have an influence if an intervention does have different relative effects. High coverage may also potentially lead to a stronger reduction in transmission levels which in turn could affect levels of acquired immunity. Relapse pattern may have an effect with differences between long latency and frequent relapse pattern. The long latency relapse pattern, which has fewer relapses [27], might lead to weaker increases in the proportion of cases attributed to P. vivax (as was found with significance for first time ITN distribution patent infections and IRS clinical cases, and in the direction of a weaker increase though not significant for the first three months after MDA clinical cases and first time ITN distribution clinical cases). The effects of seasonality and the initial proportion of P. vivax were uncertain.

Other factors could be important but could not be investigated due to the limited data. There were some variables for which data was collected but there was little variety in values such as age and diagnostic test. For some of the considered factors more detailed information would have been beneficial such as previous coverage of the intervention or inequality in coverage across a community. Although the season at which data points were collected was considered, the exact timing during the season may be informative [90]. There were also some variables for which data was not collected but could have an impact, for example, drug resistance which could vary for the two species. Other factors could be migration, access to treatment, recent changes in transmission or previous interventions. The extent of competition and cross-immunity between the species is uncertain.

The results can provide information for planning and evaluating the impact of interventions. It is important to consider the biological differences between P. vivax and P. falciparum when evaluating an intervention which does not target hypnozoites. The species should be monitored separately. This would allow the adjustment of the strategy if the original intervention is less successful for one species. To aid interpretation of the observed patterns, contextual factors that could influence the malaria situation and changes in the species composition should be monitored. These factors include decreasing coverage of other interventions, human behavior such as migration, or emergence of drug resistance. There can also be changes in detection (more access to health facilities, changes in diagnostic tools) or changes in reporting (changes in case definitions, biases in selection of survey populations) [91].

More clarity could be obtained by including more studies in the analysis if they become available. However, as transmission decreases further, it may be more appropriate to employ targeted or reactive interventions. It would be useful if studies describe interventions in detail, information was often lacking on the timing of the intervention as well as coverage. There were also studies that reported that there was a national control program but did not specify what this entailed and therefore could not be included in the analysis.

Where data is limited, a possible further step to gain clarity is to use modelling. Predictions can be made of the effect of variables for which there was limited data and validated models can be used to disentangle the effects of collinear covariates.

Conclusion

When interventions are implemented in areas with sympatric P. vivax and P. falciparum malaria, there is substantial variation in how the proportions of the two species change on a short-term time scale, with a tendency for the proportion of P. vivax to increase overall. It was not possible to rule in or out many of the potential factors, due to the high variability and the availability of data. Relapse pattern, coverage, transmission and intervention type are possible explanations contributing to this variation but they were not consistently significant. More studies with well-described intervention implementations would reduce the uncertainty.

Supporting information

S1 Supporting Information. Included studies and variables by series of time-points.

(DOCX)

Click here for additional data file.^{(261.5KB, docx)}

S2 Supporting Information. Interventions in place at baseline.

(DOCX)

Click here for additional data file.^{(133.8KB, docx)}

S3 Supporting Information. Results from the regression analyses.

(DOCX)

Click here for additional data file.^{(332.5KB, docx)}

Acknowledgments

We thank Jacqueline Huber for helping with the development of the literature search strategy, and everyone within Swiss TPH who provided insights and feedback especially Manuel Hetzel, Guojing Yang and Christian Lengeler.

Data Availability

The data are in the Supporting Information files and at https://github.com/rossaman4/vivax-falciparum-relative-impact.

Funding Statement

The authors received no specific funding for this work.

References

1.World Health Organization. World malaria report 2021. Geneva: World Health Organization; 2021. [Google Scholar]
2.Battle KE, Lucas TCD, Nguyen M, Howes RE, Nandi AK, Twohig KA et al. Mapping the global endemicity and clinical burden of Plasmodium vivax, 2000–17: a spatial and temporal modelling study. Lancet. 2019;394(10195):332–43. doi: 10.1016/S0140-6736(19)31096-7 [DOI] [PMC free article] [PubMed] [Google Scholar]
3.Weiss DJ, Lucas TCD, Nguyen M, Nandi AK, Bisanzio D, Battle KE et al. Mapping the global prevalence, incidence, and mortality of Plasmodium falciparum, 2000–17: a spatial and temporal modelling study. Lancet. 2019;394(10195):322–31. doi: 10.1016/S0140-6736(19)31097-9 [DOI] [PMC free article] [PubMed] [Google Scholar]
4.Phimpraphi W, Paul RE, Yimsamran S, Puangsa-art S, Thanyavanich N, Maneeboonyang W et al. Longitudinal study of Plasmodium falciparum and Plasmodium vivax in a Karen population in Thailand. Malar J 2008;7:99. doi: 10.1186/1475-2875-7-99 [DOI] [PMC free article] [PubMed] [Google Scholar]
5.Koepfli C, Ome-Kaius M, Jally S, Malau E, Maripal S, Ginny J et al. Sustained malaria control over an 8-Year period in Papua New Guinea: The challenge of low-density asymptomatic Plasmodium Infections. J Inf Dis 2017;216(11):1434–43. doi: 10.1093/infdis/jix507 [DOI] [PMC free article] [PubMed] [Google Scholar]
6.Price RN, Commons RJ, Battle KE, Thriemer K, Mendis K. Plasmodium vivax in the Era of the Shrinking P. falciparum Map. Trends Parasitol 2020;36(6):560–70. doi: 10.1016/j.pt.2020.03.009 [DOI] [PMC free article] [PubMed] [Google Scholar]
7.Ome-Kaius M, Kattenberg JH, Zaloumis S, Siba M, Kiniboro B, Jally S et al. Differential impact of malaria control interventions on P. falciparum and P. vivax infections in young Papua New Guinean children. BMC Med. 2019;17(1):220. doi: 10.1186/s12916-019-1456-9 [DOI] [PMC free article] [PubMed] [Google Scholar]
8.Chu CS, Carrara VI, Parker DM, Proux S, Charunwatthana P, McGready R et al. Declining Burden of Plasmodium vivax in a population in Northwestern Thailand from 1995 to 2016 before comprehensive primaquine prescription for radical cure. Am J Trop Med Hyg. 2020;102(1):147–50. [DOI] [PMC free article] [PubMed] [Google Scholar]
9.Phillips MA, Burrows JN, Manyando C, van Huijsduijnen RH, Van Voorhis WC, Wells TNC. Malaria. Nature Reviews Disease Primers 2017;3:17050. doi: 10.1038/nrdp.2017.50 [DOI] [PubMed] [Google Scholar]
10.Briët OJ, Penny MA. Repeated mass distributions and continuous distribution of long-lasting insecticidal nets: modelling sustainability of health benefits from mosquito nets, depending on case management. Malar J. 2013;12:401. doi: 10.1186/1475-2875-12-401 [DOI] [PMC free article] [PubMed] [Google Scholar]
11.Poirot E, Skarbinski J, Sinclair D, Kachur SP, Slutsker L, Hwang J. Mass drug administration for malaria. Cochrane Database of Systematic Reviews 2013;2013(12):CD008846. doi: 10.1002/14651858.CD008846.pub2 [DOI] [PMC free article] [PubMed] [Google Scholar]
12.Pluess B, Tanser FC, Lengeler C, Sharp BL. Indoor residual spraying for preventing malaria. The Cochrane Database of Systematic Reviews. 2010;2010(4):CD006657. doi: 10.1002/14651858.CD006657.pub2 [DOI] [PMC free article] [PubMed] [Google Scholar]
13.Pryce J, Richardson M, Lengeler C. Insecticide-treated nets for preventing malaria. Cochrane Database of Systematic Reviews. 2018;11(11):CD000363. doi: 10.1002/14651858.CD000363.pub3 [DOI] [PMC free article] [PubMed] [Google Scholar]
14.Lengeler C. Insecticide-treated bed nets and curtains for preventing malaria. Cochrane Database of Systematic Reviews. 2004(2):CD000363. doi: 10.1002/14651858.CD000363.pub2 [DOI] [PubMed] [Google Scholar]
15.Choi L, Pryce J, Garner P. Indoor residual spraying for preventing malaria in communities using insecticide-treated nets. Cochrane Database of Systematic Reviews. 2019;5(5):CD012688. doi: 10.1002/14651858.CD012688.pub2 [DOI] [PMC free article] [PubMed] [Google Scholar]
16.Rohatgi A. WebPlotDigitizer [Internet]. 2021. [Available from: https://automeris.io/WebPlotDigitizer. [Google Scholar]
17.White NJ. The assessment of antimalarial drug efficacy. Trends Parasitol 2002;18(10):458–64. doi: 10.1016/s1471-4922(02)02373-5 [DOI] [PubMed] [Google Scholar]
18.Ghani AC, Sutherland CJ, Riley EM, Drakeley CJ, Griffin JT, Gosling RD et al. Loss of population levels of immunity to malaria as a result of exposure-reducing interventions: consequences for interpretation of disease trends. PLOS ONE 2009;4(2):e4383. doi: 10.1371/journal.pone.0004383 [DOI] [PMC free article] [PubMed] [Google Scholar]
19.Gao B, Saralamba S, Lubell Y, White LJ, Dondorp AM, Aguas R. Determinants of MDA impact and designing MDAs towards malaria elimination. eLife 2020;9. doi: 10.7554/eLife.51773 [DOI] [PMC free article] [PubMed] [Google Scholar]
20.Maitland K, Williams TN, Bennett S, Newbold CI, Peto TE, Viji J et al. The interaction between Plasmodium falciparum and P. vivax in children on Espiritu Santo island, Vanuatu. Trans Roy Soc Trop Med Hyg 1996;90(6):614–20. doi: 10.1016/s0035-9203(96)90406-x [DOI] [PubMed] [Google Scholar]
21.Ross A, Koepfli C, Schoepflin S, Timinao L, Siba P, Smith T et al. The incidence and differential seasonal patterns of Plasmodium vivax primary infections and relapses in a cohort of children in Papua New Guinea. PLOS Negl Trop Dis2016;10(5):e0004582. [DOI] [PMC free article] [PubMed] [Google Scholar]
22.Lin E, Kiniboro B, Gray L, Dobbie S, Robinson L, Laumaea A et al. Differential patterns of infection and disease with P. falciparum and P. vivax in young Papua New Guinean children. PLOS ONE. 2010;5(2):e9047. doi: 10.1371/journal.pone.0009047 [DOI] [PMC free article] [PubMed] [Google Scholar]
23.Deressa W, Yihdego YY, Kebede Z, Batisso E, Tekalegne A, Dagne GA. Effect of combining mosquito repellent and insecticide treated net on malaria prevalence in Southern Ethiopia: a cluster-randomised trial. Parasit Vector 2014;7:132. doi: 10.1186/1756-3305-7-132 [DOI] [PMC free article] [PubMed] [Google Scholar]
24.Luxemburger C, Perea WA, Delmas G, Pruja C, Pecoul B, Moren A. Permethrin-impregnated bed nets for the prevention of malaria in schoolchildren on the Thai-Burmese border. Trans Roy Soc Trop Med Hyg 1994;88(2):155–9. doi: 10.1016/0035-9203(94)90273-9 [DOI] [PubMed] [Google Scholar]
25.Rowland M, Bouma M, Ducornez D, Durrani N, Rozendaal J, Schapira A et al. Pyrethroid-impregnated bed nets for personal protection against malaria for Afghan refugees. Trans Roy Soc Trop Med Hyg. 1996;90(4):357–61. doi: 10.1016/s0035-9203(96)90505-2 [DOI] [PubMed] [Google Scholar]
26.Rowland M, Hewitt S, Durrani N, Saleh P, Bouma M, Sondorp E. Sustainability of pyrethroid-impregnated bednets for malaria control in Afghan communities. Bull WHO. 1997;75(1):23–9. [PMC free article] [PubMed] [Google Scholar]
27.White NJ. Determinants of relapse periodicity in Plasmodium vivax malaria. Malar J. 2011;10:297. doi: 10.1186/1475-2875-10-297 [DOI] [PMC free article] [PubMed] [Google Scholar]
28.Reiner RC Jr., Geary M, Atkinson PM, Smith DL, Gething PW. Seasonality of Plasmodium falciparum transmission: a systematic review. Malar J. 2015;14:343. doi: 10.1186/s12936-015-0849-2 [DOI] [PMC free article] [PubMed] [Google Scholar]
29.Pascale S, Lucarini V, Feng X, Porporato A, ul Hasson S. Analysis of rainfall seasonality from observations and climate models. Climate Dynamics 2015;44(11–12):3281–301. [Google Scholar]
30.Sterne JAC, Hernan MA, McAleenan A, Reeves BC, Higgins JPT. Chapter 25: Assessing risk of bias in a non-randomized study. In: Higgins JPT, Thomas J, Chandler J, Cumpston M, Li T, Page MJ, Welch VA (editors). Cochrane Handbook for Systematic Reviews of Interventions version 6.2 (updated February 2021). [Google Scholar]
31.R Core Team. R: a language and enviornment for statistical computing. Vienna, Austria: R Foundation for Statistical Computing; 2020. [Google Scholar]
32.Iannone R. DiagrammeR: Graph/Network Visualization. 2020. [Google Scholar]
33.Original S code by Richard A. Becker and Allan R. Wilks. R version by Ray Brownrigg. Enhancements by Thomas P Minka and Alex Deckmyn. maps: Draw Geographical Maps. 2018. [Google Scholar]
34.Wickham H. ggplot2: Elegant Graphics for Data Analysis: Springer-Verlag New York; 2016. [Google Scholar]
35.South A. rnaturalearth: World Map Data from Natural Earth. 2017. [Google Scholar]
36.Wickham H. The Split-Apply-Combine Strategy for Data Analysis. Journal of Statistical Software. 2011;40(1):1–29. [Google Scholar]
37.Wickham H. Reshaping Data with the reshape Package. Journal of Statistical Software. 2007;21(12):1–20. [Google Scholar]
38.Bates D, Mächler M, Bolker B, Walker S. Fitting linear mixed-effects models using lme4. J Stat Software. 2015;67(1):1–48. [Google Scholar]
39.Hanafi-Bojd AA, Vatandoost H, Oshaghi MA, Haghdoost AA, Shahi M, Sedaghat MM et al. Entomological and epidemiological attributes for malaria transmission and implementation of vector control in southern Iran. Acta Trop 2012;121(2):85–92. doi: 10.1016/j.actatropica.2011.04.017 [DOI] [PubMed] [Google Scholar]
40.Kattenberg JH, Erhart A, Truong MH, Rovira-Vallbona E, Vu KAD, Nguyen THN et al. Characterization of Plasmodium falciparum and Plasmodium vivax recent exposure in an area of significantly decreased transmission intensity in Central Vietnam. Malar J 2018;17(1):180. doi: 10.1186/s12936-018-2326-1 [DOI] [PMC free article] [PubMed] [Google Scholar]
41.Graves PM, Brabin BJ, Charlwood JD, Burkot TR, Cattani JA, Ginny M et al. Reduction in incidence and prevalence of Plasmodium falciparum in under-5-year-old children by permethrin impregnation of mosquito nets. Bull WHO. 1987;65(6):869–77. [PMC free article] [PubMed] [Google Scholar]
42.Hetzel MW, Reimer LJ, Gideon G, Koimbu G, Barnadas C, Makita L et al. Changes in malaria burden and transmission in sentinel sites after the roll-out of long-lasting insecticidal nets in Papua New Guinea. Parasit Vector 2016;9(1):340. doi: 10.1186/s13071-016-1635-x [DOI] [PMC free article] [PubMed] [Google Scholar]
43.Betuela I, Rosanas-Urgell A, Kiniboro B, Stanisic DI, Samol L, de Lazzari E et al. Relapses contribute significantly to the risk of Plasmodium vivax infection and disease in Papua New Guinean children 1–5 years of age. J Inf Dis 2012;206(11):1771–80. [DOI] [PubMed] [Google Scholar]
44.Kessler A, van Eijk AM, Jamir L, Walton C, Carlton JM, Albert S. Malaria in Meghalaya: a systematic literature review and analysis of data from the National Vector-Borne Disease Control Programme. Malar J 2018;17(1):411. doi: 10.1186/s12936-018-2563-3 [DOI] [PMC free article] [PubMed] [Google Scholar]
45.Chaves LF, Kaneko A, Taleo G, Pascual M, Wilson ML. Malaria transmission pattern resilience to climatic variability is mediated by insecticide-treated nets. Malar J 2008;7:100. doi: 10.1186/1475-2875-7-100 [DOI] [PMC free article] [PubMed] [Google Scholar]
46.Kaneko A, Taleo G, Kalkoa M, Yaviong J, Reeve PA, Ganczakowski M et al. Malaria epidemiology, glucose 6-phosphate dehydrogenase deficiency and human settlement in the Vanuatu Archipelago. Acta Trop 1998;70(3):285–302. doi: 10.1016/s0001-706x(98)00035-7 [DOI] [PubMed] [Google Scholar]
47.Loha E, Deressa W, Gari T, Balkew M, Kenea O, Solomon T et al. Long-lasting insecticidal nets and indoor residual spraying may not be sufficient to eliminate malaria in a low malaria incidence area: results from a cluster randomized controlled trial in Ethiopia. Malar J. 2019;18(1):141. doi: 10.1186/s12936-019-2775-1 [DOI] [PMC free article] [PubMed] [Google Scholar]
48.Shah NK, Tyagi P, Sharma SK. The impact of artemisinin combination therapy and long-lasting insecticidal nets on forest malaria incidence in tribal villages of India, 2006–2011. PLOS ONE 2013;8(2):e56740. doi: 10.1371/journal.pone.0056740 [DOI] [PMC free article] [PubMed] [Google Scholar]
49.Sahu SS, Jambulingam P, Vijayakumar T, Subramanian S, Kalyanasundaram M. Impact of alphacypermethrin treated bed nets on malaria in villages of Malkangiri district, Orissa, India. Acta Tropica 2003;89(1):55–66. doi: 10.1016/j.actatropica.2003.07.002 [DOI] [PubMed] [Google Scholar]
50.Maude RJ, Nguon C, Ly P, Bunkea T, Ngor P, Canavati de la Torre SE et al. Spatial and temporal epidemiology of clinical malaria in Cambodia 2004–2013. Malar J 2014;13:385. doi: 10.1186/1475-2875-13-385 [DOI] [PMC free article] [PubMed] [Google Scholar]
51.Sena LD, Deressa WA, Ali AA. Analysis of trend of malaria prevalence in south-west Ethiopia: a retrospective comparative study. Malar J. 2014;13:188. doi: 10.1186/1475-2875-13-188 [DOI] [PMC free article] [PubMed] [Google Scholar]
52.Chaumeau V, Kajeechiwa L, Fustec B, Landier J, Naw Nyo S, Nay Hsel S et al. Contribution of asymptomatic Plasmodium infections to the transmission of malaria in Kayin State, Myanmar. J Inf Dis. 2019;219(9):1499–509. [DOI] [PMC free article] [PubMed] [Google Scholar]
53.Landier J, Kajeechiwa L, Thwin MM, Parker DM, Chaumeau V, Wiladphaingern J et al. Safety and effectiveness of mass drug administration to accelerate elimination of artemisinin-resistant falciparum malaria: A pilot trial in four villages of Eastern Myanmar. Wellcome Open Res 2017;2:81. doi: 10.12688/wellcomeopenres.12240.1 [DOI] [PMC free article] [PubMed] [Google Scholar]
54.Rodriguez-Rodriguez D, Maraga S, Lorry L, Robinson LJ, Siba PM, Mueller I et al. Repeated mosquito net distributions, improved treatment, and trends in malaria cases in sentinel health facilities in Papua New Guinea. Malar J 2019;18(1):364. doi: 10.1186/s12936-019-2993-6 [DOI] [PMC free article] [PubMed] [Google Scholar]
55.Mitjà O, Paru R, Selve B, Betuela I, Siba P, De Lazzari E et al. Malaria epidemiology in Lihir Island, Papua New Guinea. Malar J. 2013;12:98. doi: 10.1186/1475-2875-12-98 [DOI] [PMC free article] [PubMed] [Google Scholar]
56.Loha E, Lunde TM, Lindtjørn B. Effect of bednets and indoor residual spraying on spatio-temporal clustering of malaria in a village in south Ethiopia: a longitudinal study. PLOS ONE. 2012;7(10):e47354. doi: 10.1371/journal.pone.0047354 [DOI] [PMC free article] [PubMed] [Google Scholar]
57.Thomson R, Sochea P, Sarath M, MacDonald A, Pratt A, Poyer S et al. Rubber plantations and drug resistant malaria: a cross-sectional survey in Cambodia. Malar J. 2019;18(1):379. doi: 10.1186/s12936-019-3000-y [DOI] [PMC free article] [PubMed] [Google Scholar]
58.Rowland M, Webster J, Saleh P, Chandramohan D, Freeman T, Pearcy B et al. Prevention of malaria in Afghanistan through social marketing of insecticide-treated nets: evaluation of coverage and effectiveness by cross-sectional surveys and passive surveillance. Trop Med Int Health 2002;7(10):813–22. doi: 10.1046/j.1365-3156.2002.00940.x [DOI] [PubMed] [Google Scholar]
59.Smithuis FM, Kyaw MK, Phe UO, van der Broek I, Katterman N, Rogers C et al. The effect of insecticide-treated bed nets on the incidence and prevalence of malaria in children in an area of unstable seasonal transmission in western Myanmar. Malar J. 2013;12:363. doi: 10.1186/1475-2875-12-363 [DOI] [PMC free article] [PubMed] [Google Scholar]
60.Hii JL, Kanai L, Foligela A, Kan SK, Burkot TR, Wirtz RA. Impact of permethrin-impregnated mosquito nets compared with DDT house-spraying against malaria transmission by Anopheles farauti and An.punctulatus in the Solomon Islands. Med Vet Entomol. 1993;7(4):333–8. doi: 10.1111/j.1365-2915.1993.tb00701.x [DOI] [PubMed] [Google Scholar]
61.Hetzel MW, Pulford J, Ura Y, Jamea-Maiasa S, Tandrapah A, Tarongka N et al. Insecticide-treated nets and malaria prevalence, Papua New Guinea, 2008–2014. Bull WHO. 2017;95(10):695–705b. doi: 10.2471/BLT.16.189902 [DOI] [PMC free article] [PubMed] [Google Scholar]
62.Hetzel MW, Morris H, Tarongka N, Barnadas C, Pulford J, Makita L et al. Prevalence of malaria across Papua New Guinea after initial roll-out of insecticide-treated mosquito nets. Trop Med Int Health. 2015;20(12):1745–55. doi: 10.1111/tmi.12616 [DOI] [PubMed] [Google Scholar]
63.Hetzel MW, Saweri OP, Kuadima JJ, Smith I, Ura Y, Tandrapah A et al. Papua New Guinea malaria indicator survey 2016–2017: malaria prevention, infection and treatment. Papua New Guinea Institue of Medical Research, Goroka, 2018; 2018. [Google Scholar]
64.Sluydts V, Heng S, Coosemans M, Van Roey K, Gryseels C, Canier L et al. Spatial clustering and risk factors of malaria infections in Ratanakiri Province, Cambodia. Malar J 2014;13:387. doi: 10.1186/1475-2875-13-387 [DOI] [PMC free article] [PubMed] [Google Scholar]
65.Sluydts V, Durnez L, Heng S, Gryseels C, Canier L, Kim S et al. Efficacy of topical mosquito repellent (picaridin) plus long-lasting insecticidal nets versus long-lasting insecticidal nets alone for control of malaria: a cluster randomised controlled trial. Lancet Inf Dis. 2016;16(10):1169–77. doi: 10.1016/S1473-3099(16)30148-7 [DOI] [PubMed] [Google Scholar]
66.Kattenberg JH, Gumal DL, Ome-Kaius M, Kiniboro B, Philip M, Jally S et al. The epidemiology of Plasmodium falciparum and Plasmodium vivax in East Sepik Province, Papua New Guinea, pre- and post-implementation of national malaria control efforts. Malar J. 2020;19(1):198. doi: 10.1186/s12936-020-03265-x [DOI] [PMC free article] [PubMed] [Google Scholar]
67.Garfield RM, Vermund SH. Changes in malaria incidence after mass drug administration in Nicaragua. Lancet. 1983;2(8348):500–3. doi: 10.1016/s0140-6736(83)90523-8 [DOI] [PubMed] [Google Scholar]
68.McGreevy PB, Dietze R, Prata A, Hembree SC. Effects of immigration on the prevalence of malaria in rural areas of the Amazon basin of Brazil. Memorias do Instituto Oswaldo Cruz. 1989;84(4):485–91. doi: 10.1590/s0074-02761989000400005 [DOI] [PubMed] [Google Scholar]
69.Kondrashin AV, Sanyal MC. Mass drug administration in Andhra Pradesh in areas under Plasmodium falciparum containment programme. J Communic Dis. 1985;17(4):293–9. [PubMed] [Google Scholar]
70.Landier J, Parker DM, Thu AM, Lwin KM, Delmas G, Nosten FH. Effect of generalised access to early diagnosis and treatment and targeted mass drug administration on Plasmodium falciparum malaria in Eastern Myanmar: an observational study of a regional elimination programme. Lancet. 2018;391(10133):1916–26. doi: 10.1016/S0140-6736(18)30792-X [DOI] [PMC free article] [PubMed] [Google Scholar]
71.World Health Organization. Guidelines for the treatment of malaria. World Health Organization; 2015. Report No.: 978 92 4 154912 7. [Google Scholar]
72.Hofmann NE, Karl S, Wampfler R, Kiniboro B, Teliki A, Iga J et al. The complex relationship of exposure to new Plasmodium infections and incidence of clinical malaria in Papua New Guinea. eLife 2017;6: e23708 doi: 10.7554/eLife.23708 [DOI] [PMC free article] [PubMed] [Google Scholar]
73.Robinson LJ, Wampfler R, Betuela I, Karl S, White MT, Li Wai Suen CS et al. Strategies for understanding and reducing the Plasmodium vivax and Plasmodium ovale hypnozoite reservoir in Papua New Guinean children: a randomised placebo-controlled trial and mathematical model. PLOS Med 2015;12(10):e1001891. doi: 10.1371/journal.pmed.1001891 [DOI] [PMC free article] [PubMed] [Google Scholar]
74.Kligler I , Mer G Periodic intermittent treatment with chinoplasmine as a measure of malaria control in a hyperendemic area. Revista di Malariologia 1931;10(4). [Google Scholar]
75.van DW. Mass treatment of malaria with chloroquine. Results of a trial in Inanwatan. Trop Geogr Med 1961;13:351–6. [PubMed] [Google Scholar]
76.Lwin KM, Imwong M, Suangkanarat P, Jeeyapant A, Vihokhern B, Wongsaen K et al. Elimination of Plasmodium falciparum in an area of multi-drug resistance. Malar J 2015;14:319. doi: 10.1186/s12936-015-0838-5 [DOI] [PMC free article] [PubMed] [Google Scholar]
77.Baird JK. 8-aminoquinoline therapy for latent malaria. Clin Microbiol Rev 2019;32(4). doi: 10.1128/CMR.00011-19 [DOI] [PMC free article] [PubMed] [Google Scholar]
78.Gabaldon A, Guerrero L. An attempt to eradicate malaria by the weekly administration of pyrimethamine in areas of out-of-doors transmission in Venezuela. Am J Trop Med Hyg 1959;8(4):433–9. [DOI] [PubMed] [Google Scholar]
79.Singh N, Shukla MM, Mishra AK, Singh MP, Paliwal JC, Dash AP. Malaria control using indoor residual spraying and larvivorous fish: a case study in Betul, central India. Trop MedInt Health 2006;11(10):1512–20. [DOI] [PubMed] [Google Scholar]
80.Seyoum D, Kifle YG, Rondeau V, Yewhalaw D, Duchateau L, Rosas-Aguirre A et al. Identification of different malaria patterns due to Plasmodium falciparum and Plasmodium vivax in Ethiopian children: a prospective cohort study. Malar J 2016;15:208. doi: 10.1186/s12936-016-1253-2 [DOI] [PMC free article] [PubMed] [Google Scholar]
81.Doke PP, Sathe RS, Chouhan SP, Bhosale AS. Impact of single round of indoor residual spray with lambda-cyhalotrin 10% WP on Plasmodium falciparum infection in Akola district, Maharashtra State. J Communic Dis 2000;32(3):190–200. [PubMed] [Google Scholar]
82.Charlwood JD, Alecrim WD, Fe N, Mangabeira J, Martins VJ. A field trial with lambda-cyhalothrin (ICON) for the intradomiciliary control of malaria transmitted by Anopheles darlingi root in Rondonia, Brazil. Acta Trop 1995;60(1):3–13. doi: 10.1016/0001-706x(95)00092-s [DOI] [PubMed] [Google Scholar]
83.Mishra AK, Bharti PK, Kareemi TI, Chand SK, Tidgam AS, Sharma RK et al. Field evaluation of zero vector durable lining to assess its efficacy against malaria vectors and malaria transmission in tribal areas of the Balaghat district of central India. Trans Roy Soc Trop Med Hyg 2019;113(10):623–31. doi: 10.1093/trstmh/trz046 [DOI] [PubMed] [Google Scholar]
84.Rowland M, Hewitt S, Durrani N, Bano N, Wirtz R. Transmission and control of vivax malaria in Afghan refugee settlements in Pakistan. Trans Roy SocTrop Med Hyg 1997;91(3):252–5. doi: 10.1016/s0035-9203(97)90065-1 [DOI] [PubMed] [Google Scholar]
85.Rowland M, Mahmood P, Iqbal J, Carneiro I, Chavasse D. Indoor residual spraying with alphacypermethrin controls malaria in Pakistan: a community-randomized trial. Trop Med Int Health. 2000;5(7):472–81. doi: 10.1046/j.1365-3156.2000.00581.x [DOI] [PubMed] [Google Scholar]
86.Metselaar D. Seven years’ malaria research and residual house spraying in Netherlands New Guinea. Am J Trop Med Hyg 1961;10:327–34. doi: 10.4269/ajtmh.1961.10.327 [DOI] [PubMed] [Google Scholar]
87.Rowland M, Hewitt S, Durrani N. Prevalence of malaria in Afghan refugee villages in Pakistan sprayed with lambdacyhalothrin or malathion. Trans Roy Soc Trop Med Hyg 1994;88(4):378–9. [DOI] [PubMed] [Google Scholar]
88.Sharma SN, Shukla RP, Raghavendra K, Subbarao SK. Impact of DDT spraying on malaria transmission in Bareilly District, Uttar Pradesh, India. J Vector Borne Dis. 2005;42(2):54–60. [PubMed] [Google Scholar]
89.Auburn S, Cheng Q, Marfurt J, Price RN. The changing epidemiology of Plasmodium vivax: Insights from conventional and novel surveillance tools. PLOS Med 2021;18(4):e1003560. doi: 10.1371/journal.pmed.1003560 [DOI] [PMC free article] [PubMed] [Google Scholar]
90.World Health Organization. Malaria 2020 [updated 14.1.2020. Available from: https://www.who.int/news-room/fact-sheets/detail/malaria.
91.Ashton RA, Prosnitz D, Andrada A, Herrera S, Yé Y. Evaluating malaria programmes in moderate- and low-transmission settings: practical ways to generate robust evidence. Malar J 2020;19(1):75. doi: 10.1186/s12936-020-03158-z [DOI] [PMC free article] [PubMed] [Google Scholar]

PLoS Negl Trop Dis. doi: 10.1371/journal.pntd.0010541.r001

Decision Letter 0

Marcelo U Ferreira, Rhoel Ramos Dinglasan

9 Mar 2022

Dear Dr. Ross,

Thank you very much for submitting your manuscript "The relative impact of interventions on sympatric Plasmodium vivax and Plasmodium falciparum malaria: a systematic review" for consideration at PLOS Neglected Tropical Diseases. As with all papers reviewed by the journal, your manuscript was reviewed by members of the editorial board and by several independent reviewers. In light of the reviews (below this email), we would like to invite the resubmission of a significantly-revised version that takes into account the reviewers' comments.

We cannot make any decision about publication until we have seen the revised manuscript and your response to the reviewers' comments. Your revised manuscript is also likely to be sent to reviewers for further evaluation.

When you are ready to resubmit, please upload the following:

[1] A letter containing a detailed list of your responses to the review comments and a description of the changes you have made in the manuscript. Please note while forming your response, if your article is accepted, you may have the opportunity to make the peer review history publicly available. The record will include editor decision letters (with reviews) and your responses to reviewer comments. If eligible, we will contact you to opt in or out.

[2] Two versions of the revised manuscript: one with either highlights or tracked changes denoting where the text has been changed; the other a clean version (uploaded as the manuscript file).

Important additional instructions are given below your reviewer comments.

Please prepare and submit your revised manuscript within 60 days. If you anticipate any delay, please let us know the expected resubmission date by replying to this email. Please note that revised manuscripts received after the 60-day due date may require evaluation and peer review similar to newly submitted manuscripts.

Thank you again for your submission. We hope that our editorial process has been constructive so far, and we welcome your feedback at any time. Please don't hesitate to contact us if you have any questions or comments.

Sincerely,

Rhoel Ramos Dinglasan

Associate Editor

PLOS Neglected Tropical Diseases

Marcelo Ferreira

Deputy Editor

PLOS Neglected Tropical Diseases

***********************

Reviewer's Responses to Questions

Key Review Criteria Required for Acceptance?

As you describe the new analyses required for acceptance, please consider the following:

Methods

-Are the objectives of the study clearly articulated with a clear testable hypothesis stated?

-Is the study design appropriate to address the stated objectives?

-Is the population clearly described and appropriate for the hypothesis being tested?

-Is the sample size sufficient to ensure adequate power to address the hypothesis being tested?

-Were correct statistical analysis used to support conclusions?

-Are there concerns about ethical or regulatory requirements being met?

Reviewer #1: Objectives and methods clearly described in detail, but statistical analysis may benefit from an expert biostatistician with experience in the field.

Reviewer #2: The objectives of this study were to conduct an analysis of the published literature reporting on the effect of three malaria control interventions implemented in regions co-endemic for Plasmodium falciparum and P. vivax in order to estimate the proportions of clinical cases and patent infections attributable to P. vivax after the implementation.

The methods used were a literature search of publications describing implementation of the three control methods; the proportion of P. vivax infections, either clinical or patent, was calculated by dividing the number of such P. vivax cases by cases of either P. vivax or P. falciparum. The team also looked at the impact on proportion of P. vivax according to different variables.

The team is to be commended on such an undertaking, and in the reading on the manuscript, it become clear the challenges encountered with variety of data and methodologies used and in which the primary objective was not to determine proportion of P. vivax infections.

The objectives were articulated and study design appropriate. The populations in the manuscript were clearly defined in the Supplemental sections, and appropriate for the hypotheses. The section describing the variables was very clear and well written. There are no ethical or regulatory concerns, and my background does not allow for a critical review of the statistical methods used.

One question: I saw some studies were from 40 years ago (especially in clinical cases after MDA) and/or prior to widespread implementation to ACTs (CQ used in a few of the patent studies after MDA). I would add the range of year of the studies in the main text, perhaps for each intervention as well. Did the authors consider this factor at all in their own analysis or did they notice any trends that are not reported here?

--------------------

Results

-Does the analysis presented match the analysis plan?

-Are the results clearly and completely presented?

-Are the figures (Tables, Images) of sufficient quality for clarity?

Reviewer #1: The presentation of results is a bit tedious and overwhelming, particularly when describing figures 3 - 20. To avoid distractions and sole description of the graphs, the authors may benefit of rearranging the presentation and transferring these figures to supplemental material. It will require a little creativity to still briefly describe those results in the main text, while highlighting the overall “big picture”, which is shown in figure 21. All the other tables and boxes from the main text are important are clearly presented and should be kept as they are.

Reviewer #2: The results were complete, of good quality clearly presented, and quite informative. The Figures accurately reflected the results and the complexity thereof. In Fig 3-9 graphs, I liked the use of differently sized circles in addition to proportion of cases on Y-axis. I was curious about effects on sheer numbers.

A few minor points/edits

Figure 3. In the legend it says “Dots at time-point 0 were not necessarily measured at this time but at any time-point before the intervention…Only one pre-implementation point was available”, but in some of the graphs there are multiple points at Time zero (graph a for example). Is it the scale of the X-axis? It also states Blue filled circles: proportion of cases with P. vivax infection”. Are these numbers raw numbers of P. vivax cases or P. vivax cases divided by Pv/Pf?

Figure 4 and 7-9. There are multiple data points at Time zero. Are there different populations within the study i.e., different villages? Or what do they generally represent?

--------------------

Conclusions

-Are the conclusions supported by the data presented?

-Are the limitations of analysis clearly described?

-Do the authors discuss how these data can be helpful to advance our understanding of the topic under study?

-Is public health relevance addressed?

Reviewer #1: The conclusions should more clearly state that such high variability in outcomes did not identify a significant factor influencing prevalence of vivax post-intervention. "Trends" can be overseen as indicator of prediction, so words should be carefully chosen in the abstract and conclusions. Limitations were clearly described and the study will be useful for epidemiologists in the field and governing agencies responsible control measures.

Reviewer #2: The conclusions reached were that in the short term, 2 years for ITN and IRS, and MDA for >/+ 3 months, an increase in proportion of cases due to P. vivax is seen, albeit with extensive variability among studies.

The data and analysis are helpful in highlighting the complexities of these type of studies on how the variables can effect each intervention differently, in particular the relapsing patterns, which may have more implications for a country such as India or Brazil, which may not have the homogenous fast relapsing patterns of Southeast Asia.

The authors make a nice comparison that this is an analysis different from the long-term analysis of Price et al. The long-term effects of control on proportionality are quite evident in GMS where >75% of cases are now P. vivax in each country (except Vietnam, although there were less than 1,500 case total in 2021). The authors do state “…change in species composition should be monitored”. This point is crucial, and according to the heat map, as are patterns and transmission intensity. The authors go on to advocate for “including more studies in the analysis as they become available… and to describe interventions in detail..” This paper looks back at what has been done, but from here on out, household ITNs and IRS may no longer be the best modalities for all co-endemic countries, and MDA strategies will need to change.

Can the authors expound on what study designs could look like, what objectives those studies should embody, and what interventions can best be used or adapted in the near future for control a shifting epidemiological situation.

--------------------

Editorial and Data Presentation Modifications?

Use this section for editorial suggestions as well as relatively minor modifications of existing data that would enhance clarity. If the only modifications needed are minor and/or editorial, you may wish to recommend “Minor Revision” or “Accept”.

Reviewer #1: See comments about Results and general comments to the authors.

Reviewer #2: In Figure 4 in the legend there is a misspelled word: Open circles are data points more than 24 months after the intervention and where excluded for the analysis.

Meaning of sentence in Line 780 was not clear. There was no evidence of a change in clinical case attributed to P. vivax over time was estimated for IRS.

--------------------

Summary and General Comments

Use this section to provide overall comments, discuss strengths/weaknesses of the study, novelty, significance, general execution and scholarship. You may also include additional comments for the author, including concerns about dual publication, research ethics, or publication ethics. If requesting major revision, please articulate the new experiments that are needed.

Reviewer #1: The manuscript by Melanie Loeffel & Amanda Ross describes a thorough review of the available literature on the impact of three major interventions (treated bednets, ITN; indoor residual spraying, IRS; mass drug administration, MDA) in areas of sympatric vivax and falciparum malaria. The ability to compare dozens of studies side by side as the authors present is of great value to scientists in the field and policy makers when considering future control initiatives.

The approach and methods are clearly described in detail, but the presentation of results is a bit tedious and overwhelming, particularly when describing figures 3 - 20. To avoid distractions and sole description of the graphs, the authors may benefit of rearranging the presentation and transferring these figures to supplemental material. It will require a little creativity to still briefly describe those results in the main text, while highlighting the overall “big picture”, which is shown in figure 21. All the other tables and boxes from the main text are important are clearly presented and should be kept as they are. The interesting finding of the analysis is the great variability observed on vivax malaria prevalence post-intervention. However, such variability highlights caution against over interpretation of the data from figure 21. Finally, the discussion section can be improved to reduce repetition of statements used in the results and to highlight the importance to take into consideration the biological differences between vivax and falciparum when evaluating a general intervention not targeting hypnozoites. Below are some specific points for consideration:

1. Page 4, line 104: please explain the discrepancy between “973 hits” and “1157” hits described in page 14, line 361.

2. Page 5, line 112: did the authors find lots of reports in Chinese or Portuguese that had to be discarded due to language? These are regions where Pv and Pf occur and many studies are published only in magazines available to their countries and their languages.

3. Page 11, lines 281-285: please spell out or quote the definition of relapse patterns described in reference 27. The cited review article has an enormous amount of information and analysis of relapses, so it will be helpful to read the definition the authors decided to use. For example, figure 22 of reference 27 highlights the possibility of confusion caused by similar relapse patterns with long-latency and frequent relapsing parasites.

4. Page 12, line 303: to help the readers the authors should write the minimum sample size of the studies and refer to which supplemental material shows the extracted data.

5. Page 23, Figure 3: the figure font is too small, but if the authors transfer the graphs to supplemental data they can be presented in full size. To facilitate visualization of the different regions, the titles could be shorter to include just country and city/region, and a background color coded by country. That would quickly show the patterns observed in Cambodia (Fig3 n- v), where primaquine is rarely provided due to high prevalence of G6PD deficiency. This could explain the steady prevalence of vivax malaria and is supported by the fact that most vivax cases following chloroquine treatment in Cambodia are associated with hypnozoite reactivation (Popovici J et al, JID 2019).

6. Page 24, Figure 4: graph titles are too long, therefore cut in some cases. Please check if the axis title is correct “time since LLIN distribution in months”

7. Page 25, Figure 5: please clarify if the studies with control groups suggest no difference in the impact of intervention on vivax prevalence.

8. Page 27, MDA: considering the important biological difference between vivax and falciparum regarding development of dormant liver stage in the former, the authors should emphasize that drug interventions focus mostly against blood stages. This is critical as relapses cases will account for greater vivax prevalence post-intervention.

9. Minor text edits should be considered in the lines listed below and a text search and replace should be performed to include a space between “P.” and “vivax”/“P.” and “falciparum”:

• Line 55: spell out Plasmodium vivax instead of P. vivax

• Line 247: missing period after P from P vivax.

• Line 289: space after seasonality and before comma

• Line 529: “…were had received…”

• Line 540: “…to rid of…”

• Line 598: “…there it was likely that…”

• Line 765: “signifiicant”

Reviewer #2: (No Response)

--------------------

PLOS authors have the option to publish the peer review history of their article (what does this mean?). If published, this will include your full peer review and any attached files.

If you choose “no”, your identity will remain anonymous but your review may still be made public.

Do you want your identity to be public for this peer review? For information about this choice, including consent withdrawal, please see our Privacy Policy.

Reviewer #1: No

Reviewer #2: No

Figure Files:

While revising your submission, please upload your figure files to the Preflight Analysis and Conversion Engine (PACE) digital diagnostic tool, https://pacev2.apexcovantage.com. PACE helps ensure that figures meet PLOS requirements. To use PACE, you must first register as a user. Then, login and navigate to the UPLOAD tab, where you will find detailed instructions on how to use the tool. If you encounter any issues or have any questions when using PACE, please email us at figures@plos.org.

Data Requirements:

Please note that, as a condition of publication, PLOS' data policy requires that you make available all data used to draw the conclusions outlined in your manuscript. Data must be deposited in an appropriate repository, included within the body of the manuscript, or uploaded as supporting information. This includes all numerical values that were used to generate graphs, histograms etc.. For an example see here: http://www.plosbiology.org/article/info%3Adoi%2F10.1371%2Fjournal.pbio.1001908#s5.

Reproducibility:

To enhance the reproducibility of your results, we recommend that you deposit your laboratory protocols in protocols.io, where a protocol can be assigned its own identifier (DOI) such that it can be cited independently in the future. Additionally, PLOS ONE offers an option to publish peer-reviewed clinical study protocols. Read more information on sharing protocols at https://plos.org/protocols?utm_medium=editorial-email&utm_source=authorletters&utm_campaign=protocols

PLoS Negl Trop Dis. 2022 Jun 29;16(6):e0010541. doi: 10.1371/journal.pntd.0010541.r002

Author response to Decision Letter 0

10 May 2022

Attachment

Submitted filename: response_to_reviewers.pdf

Click here for additional data file.^{(663KB, pdf)}

PLoS Negl Trop Dis. doi: 10.1371/journal.pntd.0010541.r003

Decision Letter 1

Marcelo U Ferreira, Rhoel Ramos Dinglasan

27 May 2022

Dear Dr. Ross,

We are pleased to inform you that your manuscript 'The relative impact of interventions on sympatric Plasmodium vivax and Plasmodium falciparum malaria: a systematic review' has been provisionally accepted for publication in PLOS Neglected Tropical Diseases.

Before your manuscript can be formally accepted you will need to complete some formatting changes, which you will receive in a follow up email. A member of our team will be in touch with a set of requests.

Please note that your manuscript will not be scheduled for publication until you have made the required changes, so a swift response is appreciated.

IMPORTANT: The editorial review process is now complete. PLOS will only permit corrections to spelling, formatting or significant scientific errors from this point onwards. Requests for major changes, or any which affect the scientific understanding of your work, will cause delays to the publication date of your manuscript.

Should you, your institution's press office or the journal office choose to press release your paper, you will automatically be opted out of early publication. We ask that you notify us now if you or your institution is planning to press release the article. All press must be co-ordinated with PLOS.

Thank you again for supporting Open Access publishing; we are looking forward to publishing your work in PLOS Neglected Tropical Diseases.

Best regards,

Rhoel Ramos Dinglasan

Associate Editor

PLOS Neglected Tropical Diseases

Marcelo Ferreira

Deputy Editor

PLOS Neglected Tropical Diseases

***********************************************************

Reviewer's Responses to Questions

Key Review Criteria Required for Acceptance?

As you describe the new analyses required for acceptance, please consider the following:

Methods

-Are the objectives of the study clearly articulated with a clear testable hypothesis stated?

-Is the study design appropriate to address the stated objectives?

-Is the population clearly described and appropriate for the hypothesis being tested?

-Is the sample size sufficient to ensure adequate power to address the hypothesis being tested?

-Were correct statistical analysis used to support conclusions?

-Are there concerns about ethical or regulatory requirements being met?

Reviewer #2: (No Response)

**********

Results

-Does the analysis presented match the analysis plan?

-Are the results clearly and completely presented?

-Are the figures (Tables, Images) of sufficient quality for clarity?

Reviewer #2: (No Response)

**********

Conclusions

-Are the conclusions supported by the data presented?

-Are the limitations of analysis clearly described?

-Do the authors discuss how these data can be helpful to advance our understanding of the topic under study?

-Is public health relevance addressed?

Reviewer #2: (No Response)

**********

Editorial and Data Presentation Modifications?

Reviewer #2: (No Response)

**********

Summary and General Comments

Reviewer #2: (No Response)

**********

PLOS authors have the option to publish the peer review history of their article (what does this mean?). If published, this will include your full peer review and any attached files.

If you choose “no”, your identity will remain anonymous but your review may still be made public.

Do you want your identity to be public for this peer review? For information about this choice, including consent withdrawal, please see our Privacy Policy.

Reviewer #2: No

PLoS Negl Trop Dis. doi: 10.1371/journal.pntd.0010541.r004

Acceptance letter

Marcelo U Ferreira, Rhoel Ramos Dinglasan

14 Jun 2022

Dear Dr. Ross,

We are delighted to inform you that your manuscript, "The relative impact of interventions on sympatric Plasmodium vivax and Plasmodium falciparum malaria: a systematic review," has been formally accepted for publication in PLOS Neglected Tropical Diseases.

We have now passed your article onto the PLOS Production Department who will complete the rest of the publication process. All authors will receive a confirmation email upon publication.

The corresponding author will soon be receiving a typeset proof for review, to ensure errors have not been introduced during production. Please review the PDF proof of your manuscript carefully, as this is the last chance to correct any scientific or type-setting errors. Please note that major changes, or those which affect the scientific understanding of the work, will likely cause delays to the publication date of your manuscript. Note: Proofs for Front Matter articles (Editorial, Viewpoint, Symposium, Review, etc...) are generated on a different schedule and may not be made available as quickly.

Soon after your final files are uploaded, the early version of your manuscript will be published online unless you opted out of this process. The date of the early version will be your article's publication date. The final article will be published to the same URL, and all versions of the paper will be accessible to readers.

Thank you again for supporting open-access publishing; we are looking forward to publishing your work in PLOS Neglected Tropical Diseases.

Best regards,

Shaden Kamhawi

co-Editor-in-Chief

PLOS Neglected Tropical Diseases

Paul Brindley

co-Editor-in-Chief

PLOS Neglected Tropical Diseases

Associated Data

This section collects any data citations, data availability statements, or supplementary materials included in this article.

Supplementary Materials

S1 Supporting Information. Included studies and variables by series of time-points.

(DOCX)

Click here for additional data file.^{(261.5KB, docx)}

S2 Supporting Information. Interventions in place at baseline.

(DOCX)

Click here for additional data file.^{(133.8KB, docx)}

S3 Supporting Information. Results from the regression analyses.

(DOCX)

Click here for additional data file.^{(332.5KB, docx)}

Attachment

Submitted filename: response_to_reviewers.pdf

Click here for additional data file.^{(663KB, pdf)}

Data Availability Statement

The data are in the Supporting Information files and at https://github.com/rossaman4/vivax-falciparum-relative-impact.

[pntd.0010541.ref001] 1.World Health Organization. World malaria report 2021. Geneva: World Health Organization; 2021. [Google Scholar]

[pntd.0010541.ref002] 2.Battle KE, Lucas TCD, Nguyen M, Howes RE, Nandi AK, Twohig KA et al. Mapping the global endemicity and clinical burden of Plasmodium vivax, 2000–17: a spatial and temporal modelling study. Lancet. 2019;394(10195):332–43. doi: 10.1016/S0140-6736(19)31096-7 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pntd.0010541.ref003] 3.Weiss DJ, Lucas TCD, Nguyen M, Nandi AK, Bisanzio D, Battle KE et al. Mapping the global prevalence, incidence, and mortality of Plasmodium falciparum, 2000–17: a spatial and temporal modelling study. Lancet. 2019;394(10195):322–31. doi: 10.1016/S0140-6736(19)31097-9 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pntd.0010541.ref004] 4.Phimpraphi W, Paul RE, Yimsamran S, Puangsa-art S, Thanyavanich N, Maneeboonyang W et al. Longitudinal study of Plasmodium falciparum and Plasmodium vivax in a Karen population in Thailand. Malar J 2008;7:99. doi: 10.1186/1475-2875-7-99 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pntd.0010541.ref005] 5.Koepfli C, Ome-Kaius M, Jally S, Malau E, Maripal S, Ginny J et al. Sustained malaria control over an 8-Year period in Papua New Guinea: The challenge of low-density asymptomatic Plasmodium Infections. J Inf Dis 2017;216(11):1434–43. doi: 10.1093/infdis/jix507 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pntd.0010541.ref006] 6.Price RN, Commons RJ, Battle KE, Thriemer K, Mendis K. Plasmodium vivax in the Era of the Shrinking P. falciparum Map. Trends Parasitol 2020;36(6):560–70. doi: 10.1016/j.pt.2020.03.009 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pntd.0010541.ref007] 7.Ome-Kaius M, Kattenberg JH, Zaloumis S, Siba M, Kiniboro B, Jally S et al. Differential impact of malaria control interventions on P. falciparum and P. vivax infections in young Papua New Guinean children. BMC Med. 2019;17(1):220. doi: 10.1186/s12916-019-1456-9 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pntd.0010541.ref008] 8.Chu CS, Carrara VI, Parker DM, Proux S, Charunwatthana P, McGready R et al. Declining Burden of Plasmodium vivax in a population in Northwestern Thailand from 1995 to 2016 before comprehensive primaquine prescription for radical cure. Am J Trop Med Hyg. 2020;102(1):147–50. [DOI] [PMC free article] [PubMed] [Google Scholar]

[pntd.0010541.ref009] 9.Phillips MA, Burrows JN, Manyando C, van Huijsduijnen RH, Van Voorhis WC, Wells TNC. Malaria. Nature Reviews Disease Primers 2017;3:17050. doi: 10.1038/nrdp.2017.50 [DOI] [PubMed] [Google Scholar]

[pntd.0010541.ref010] 10.Briët OJ, Penny MA. Repeated mass distributions and continuous distribution of long-lasting insecticidal nets: modelling sustainability of health benefits from mosquito nets, depending on case management. Malar J. 2013;12:401. doi: 10.1186/1475-2875-12-401 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pntd.0010541.ref011] 11.Poirot E, Skarbinski J, Sinclair D, Kachur SP, Slutsker L, Hwang J. Mass drug administration for malaria. Cochrane Database of Systematic Reviews 2013;2013(12):CD008846. doi: 10.1002/14651858.CD008846.pub2 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pntd.0010541.ref012] 12.Pluess B, Tanser FC, Lengeler C, Sharp BL. Indoor residual spraying for preventing malaria. The Cochrane Database of Systematic Reviews. 2010;2010(4):CD006657. doi: 10.1002/14651858.CD006657.pub2 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pntd.0010541.ref013] 13.Pryce J, Richardson M, Lengeler C. Insecticide-treated nets for preventing malaria. Cochrane Database of Systematic Reviews. 2018;11(11):CD000363. doi: 10.1002/14651858.CD000363.pub3 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pntd.0010541.ref014] 14.Lengeler C. Insecticide-treated bed nets and curtains for preventing malaria. Cochrane Database of Systematic Reviews. 2004(2):CD000363. doi: 10.1002/14651858.CD000363.pub2 [DOI] [PubMed] [Google Scholar]

[pntd.0010541.ref015] 15.Choi L, Pryce J, Garner P. Indoor residual spraying for preventing malaria in communities using insecticide-treated nets. Cochrane Database of Systematic Reviews. 2019;5(5):CD012688. doi: 10.1002/14651858.CD012688.pub2 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pntd.0010541.ref016] 16.Rohatgi A. WebPlotDigitizer [Internet]. 2021. [Available from: https://automeris.io/WebPlotDigitizer. [Google Scholar]

[pntd.0010541.ref017] 17.White NJ. The assessment of antimalarial drug efficacy. Trends Parasitol 2002;18(10):458–64. doi: 10.1016/s1471-4922(02)02373-5 [DOI] [PubMed] [Google Scholar]

[pntd.0010541.ref018] 18.Ghani AC, Sutherland CJ, Riley EM, Drakeley CJ, Griffin JT, Gosling RD et al. Loss of population levels of immunity to malaria as a result of exposure-reducing interventions: consequences for interpretation of disease trends. PLOS ONE 2009;4(2):e4383. doi: 10.1371/journal.pone.0004383 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pntd.0010541.ref019] 19.Gao B, Saralamba S, Lubell Y, White LJ, Dondorp AM, Aguas R. Determinants of MDA impact and designing MDAs towards malaria elimination. eLife 2020;9. doi: 10.7554/eLife.51773 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pntd.0010541.ref020] 20.Maitland K, Williams TN, Bennett S, Newbold CI, Peto TE, Viji J et al. The interaction between Plasmodium falciparum and P. vivax in children on Espiritu Santo island, Vanuatu. Trans Roy Soc Trop Med Hyg 1996;90(6):614–20. doi: 10.1016/s0035-9203(96)90406-x [DOI] [PubMed] [Google Scholar]

[pntd.0010541.ref021] 21.Ross A, Koepfli C, Schoepflin S, Timinao L, Siba P, Smith T et al. The incidence and differential seasonal patterns of Plasmodium vivax primary infections and relapses in a cohort of children in Papua New Guinea. PLOS Negl Trop Dis2016;10(5):e0004582. [DOI] [PMC free article] [PubMed] [Google Scholar]

[pntd.0010541.ref022] 22.Lin E, Kiniboro B, Gray L, Dobbie S, Robinson L, Laumaea A et al. Differential patterns of infection and disease with P. falciparum and P. vivax in young Papua New Guinean children. PLOS ONE. 2010;5(2):e9047. doi: 10.1371/journal.pone.0009047 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pntd.0010541.ref023] 23.Deressa W, Yihdego YY, Kebede Z, Batisso E, Tekalegne A, Dagne GA. Effect of combining mosquito repellent and insecticide treated net on malaria prevalence in Southern Ethiopia: a cluster-randomised trial. Parasit Vector 2014;7:132. doi: 10.1186/1756-3305-7-132 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pntd.0010541.ref024] 24.Luxemburger C, Perea WA, Delmas G, Pruja C, Pecoul B, Moren A. Permethrin-impregnated bed nets for the prevention of malaria in schoolchildren on the Thai-Burmese border. Trans Roy Soc Trop Med Hyg 1994;88(2):155–9. doi: 10.1016/0035-9203(94)90273-9 [DOI] [PubMed] [Google Scholar]

[pntd.0010541.ref025] 25.Rowland M, Bouma M, Ducornez D, Durrani N, Rozendaal J, Schapira A et al. Pyrethroid-impregnated bed nets for personal protection against malaria for Afghan refugees. Trans Roy Soc Trop Med Hyg. 1996;90(4):357–61. doi: 10.1016/s0035-9203(96)90505-2 [DOI] [PubMed] [Google Scholar]

[pntd.0010541.ref026] 26.Rowland M, Hewitt S, Durrani N, Saleh P, Bouma M, Sondorp E. Sustainability of pyrethroid-impregnated bednets for malaria control in Afghan communities. Bull WHO. 1997;75(1):23–9. [PMC free article] [PubMed] [Google Scholar]

[pntd.0010541.ref027] 27.White NJ. Determinants of relapse periodicity in Plasmodium vivax malaria. Malar J. 2011;10:297. doi: 10.1186/1475-2875-10-297 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pntd.0010541.ref028] 28.Reiner RC Jr., Geary M, Atkinson PM, Smith DL, Gething PW. Seasonality of Plasmodium falciparum transmission: a systematic review. Malar J. 2015;14:343. doi: 10.1186/s12936-015-0849-2 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pntd.0010541.ref029] 29.Pascale S, Lucarini V, Feng X, Porporato A, ul Hasson S. Analysis of rainfall seasonality from observations and climate models. Climate Dynamics 2015;44(11–12):3281–301. [Google Scholar]

[pntd.0010541.ref030] 30.Sterne JAC, Hernan MA, McAleenan A, Reeves BC, Higgins JPT. Chapter 25: Assessing risk of bias in a non-randomized study. In: Higgins JPT, Thomas J, Chandler J, Cumpston M, Li T, Page MJ, Welch VA (editors). Cochrane Handbook for Systematic Reviews of Interventions version 6.2 (updated February 2021). [Google Scholar]

[pntd.0010541.ref031] 31.R Core Team. R: a language and enviornment for statistical computing. Vienna, Austria: R Foundation for Statistical Computing; 2020. [Google Scholar]

[pntd.0010541.ref032] 32.Iannone R. DiagrammeR: Graph/Network Visualization. 2020. [Google Scholar]

[pntd.0010541.ref033] 33.Original S code by Richard A. Becker and Allan R. Wilks. R version by Ray Brownrigg. Enhancements by Thomas P Minka and Alex Deckmyn. maps: Draw Geographical Maps. 2018. [Google Scholar]

[pntd.0010541.ref034] 34.Wickham H. ggplot2: Elegant Graphics for Data Analysis: Springer-Verlag New York; 2016. [Google Scholar]

[pntd.0010541.ref035] 35.South A. rnaturalearth: World Map Data from Natural Earth. 2017. [Google Scholar]

[pntd.0010541.ref036] 36.Wickham H. The Split-Apply-Combine Strategy for Data Analysis. Journal of Statistical Software. 2011;40(1):1–29. [Google Scholar]

[pntd.0010541.ref037] 37.Wickham H. Reshaping Data with the reshape Package. Journal of Statistical Software. 2007;21(12):1–20. [Google Scholar]

[pntd.0010541.ref038] 38.Bates D, Mächler M, Bolker B, Walker S. Fitting linear mixed-effects models using lme4. J Stat Software. 2015;67(1):1–48. [Google Scholar]

[pntd.0010541.ref039] 39.Hanafi-Bojd AA, Vatandoost H, Oshaghi MA, Haghdoost AA, Shahi M, Sedaghat MM et al. Entomological and epidemiological attributes for malaria transmission and implementation of vector control in southern Iran. Acta Trop 2012;121(2):85–92. doi: 10.1016/j.actatropica.2011.04.017 [DOI] [PubMed] [Google Scholar]

[pntd.0010541.ref040] 40.Kattenberg JH, Erhart A, Truong MH, Rovira-Vallbona E, Vu KAD, Nguyen THN et al. Characterization of Plasmodium falciparum and Plasmodium vivax recent exposure in an area of significantly decreased transmission intensity in Central Vietnam. Malar J 2018;17(1):180. doi: 10.1186/s12936-018-2326-1 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pntd.0010541.ref041] 41.Graves PM, Brabin BJ, Charlwood JD, Burkot TR, Cattani JA, Ginny M et al. Reduction in incidence and prevalence of Plasmodium falciparum in under-5-year-old children by permethrin impregnation of mosquito nets. Bull WHO. 1987;65(6):869–77. [PMC free article] [PubMed] [Google Scholar]

[pntd.0010541.ref042] 42.Hetzel MW, Reimer LJ, Gideon G, Koimbu G, Barnadas C, Makita L et al. Changes in malaria burden and transmission in sentinel sites after the roll-out of long-lasting insecticidal nets in Papua New Guinea. Parasit Vector 2016;9(1):340. doi: 10.1186/s13071-016-1635-x [DOI] [PMC free article] [PubMed] [Google Scholar]

[pntd.0010541.ref043] 43.Betuela I, Rosanas-Urgell A, Kiniboro B, Stanisic DI, Samol L, de Lazzari E et al. Relapses contribute significantly to the risk of Plasmodium vivax infection and disease in Papua New Guinean children 1–5 years of age. J Inf Dis 2012;206(11):1771–80. [DOI] [PubMed] [Google Scholar]

[pntd.0010541.ref044] 44.Kessler A, van Eijk AM, Jamir L, Walton C, Carlton JM, Albert S. Malaria in Meghalaya: a systematic literature review and analysis of data from the National Vector-Borne Disease Control Programme. Malar J 2018;17(1):411. doi: 10.1186/s12936-018-2563-3 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pntd.0010541.ref045] 45.Chaves LF, Kaneko A, Taleo G, Pascual M, Wilson ML. Malaria transmission pattern resilience to climatic variability is mediated by insecticide-treated nets. Malar J 2008;7:100. doi: 10.1186/1475-2875-7-100 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pntd.0010541.ref046] 46.Kaneko A, Taleo G, Kalkoa M, Yaviong J, Reeve PA, Ganczakowski M et al. Malaria epidemiology, glucose 6-phosphate dehydrogenase deficiency and human settlement in the Vanuatu Archipelago. Acta Trop 1998;70(3):285–302. doi: 10.1016/s0001-706x(98)00035-7 [DOI] [PubMed] [Google Scholar]

[pntd.0010541.ref047] 47.Loha E, Deressa W, Gari T, Balkew M, Kenea O, Solomon T et al. Long-lasting insecticidal nets and indoor residual spraying may not be sufficient to eliminate malaria in a low malaria incidence area: results from a cluster randomized controlled trial in Ethiopia. Malar J. 2019;18(1):141. doi: 10.1186/s12936-019-2775-1 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pntd.0010541.ref048] 48.Shah NK, Tyagi P, Sharma SK. The impact of artemisinin combination therapy and long-lasting insecticidal nets on forest malaria incidence in tribal villages of India, 2006–2011. PLOS ONE 2013;8(2):e56740. doi: 10.1371/journal.pone.0056740 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pntd.0010541.ref049] 49.Sahu SS, Jambulingam P, Vijayakumar T, Subramanian S, Kalyanasundaram M. Impact of alphacypermethrin treated bed nets on malaria in villages of Malkangiri district, Orissa, India. Acta Tropica 2003;89(1):55–66. doi: 10.1016/j.actatropica.2003.07.002 [DOI] [PubMed] [Google Scholar]

[pntd.0010541.ref050] 50.Maude RJ, Nguon C, Ly P, Bunkea T, Ngor P, Canavati de la Torre SE et al. Spatial and temporal epidemiology of clinical malaria in Cambodia 2004–2013. Malar J 2014;13:385. doi: 10.1186/1475-2875-13-385 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pntd.0010541.ref051] 51.Sena LD, Deressa WA, Ali AA. Analysis of trend of malaria prevalence in south-west Ethiopia: a retrospective comparative study. Malar J. 2014;13:188. doi: 10.1186/1475-2875-13-188 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pntd.0010541.ref052] 52.Chaumeau V, Kajeechiwa L, Fustec B, Landier J, Naw Nyo S, Nay Hsel S et al. Contribution of asymptomatic Plasmodium infections to the transmission of malaria in Kayin State, Myanmar. J Inf Dis. 2019;219(9):1499–509. [DOI] [PMC free article] [PubMed] [Google Scholar]

[pntd.0010541.ref053] 53.Landier J, Kajeechiwa L, Thwin MM, Parker DM, Chaumeau V, Wiladphaingern J et al. Safety and effectiveness of mass drug administration to accelerate elimination of artemisinin-resistant falciparum malaria: A pilot trial in four villages of Eastern Myanmar. Wellcome Open Res 2017;2:81. doi: 10.12688/wellcomeopenres.12240.1 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pntd.0010541.ref054] 54.Rodriguez-Rodriguez D, Maraga S, Lorry L, Robinson LJ, Siba PM, Mueller I et al. Repeated mosquito net distributions, improved treatment, and trends in malaria cases in sentinel health facilities in Papua New Guinea. Malar J 2019;18(1):364. doi: 10.1186/s12936-019-2993-6 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pntd.0010541.ref055] 55.Mitjà O, Paru R, Selve B, Betuela I, Siba P, De Lazzari E et al. Malaria epidemiology in Lihir Island, Papua New Guinea. Malar J. 2013;12:98. doi: 10.1186/1475-2875-12-98 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pntd.0010541.ref056] 56.Loha E, Lunde TM, Lindtjørn B. Effect of bednets and indoor residual spraying on spatio-temporal clustering of malaria in a village in south Ethiopia: a longitudinal study. PLOS ONE. 2012;7(10):e47354. doi: 10.1371/journal.pone.0047354 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pntd.0010541.ref057] 57.Thomson R, Sochea P, Sarath M, MacDonald A, Pratt A, Poyer S et al. Rubber plantations and drug resistant malaria: a cross-sectional survey in Cambodia. Malar J. 2019;18(1):379. doi: 10.1186/s12936-019-3000-y [DOI] [PMC free article] [PubMed] [Google Scholar]

[pntd.0010541.ref058] 58.Rowland M, Webster J, Saleh P, Chandramohan D, Freeman T, Pearcy B et al. Prevention of malaria in Afghanistan through social marketing of insecticide-treated nets: evaluation of coverage and effectiveness by cross-sectional surveys and passive surveillance. Trop Med Int Health 2002;7(10):813–22. doi: 10.1046/j.1365-3156.2002.00940.x [DOI] [PubMed] [Google Scholar]

[pntd.0010541.ref059] 59.Smithuis FM, Kyaw MK, Phe UO, van der Broek I, Katterman N, Rogers C et al. The effect of insecticide-treated bed nets on the incidence and prevalence of malaria in children in an area of unstable seasonal transmission in western Myanmar. Malar J. 2013;12:363. doi: 10.1186/1475-2875-12-363 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pntd.0010541.ref060] 60.Hii JL, Kanai L, Foligela A, Kan SK, Burkot TR, Wirtz RA. Impact of permethrin-impregnated mosquito nets compared with DDT house-spraying against malaria transmission by Anopheles farauti and An.punctulatus in the Solomon Islands. Med Vet Entomol. 1993;7(4):333–8. doi: 10.1111/j.1365-2915.1993.tb00701.x [DOI] [PubMed] [Google Scholar]

[pntd.0010541.ref061] 61.Hetzel MW, Pulford J, Ura Y, Jamea-Maiasa S, Tandrapah A, Tarongka N et al. Insecticide-treated nets and malaria prevalence, Papua New Guinea, 2008–2014. Bull WHO. 2017;95(10):695–705b. doi: 10.2471/BLT.16.189902 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pntd.0010541.ref062] 62.Hetzel MW, Morris H, Tarongka N, Barnadas C, Pulford J, Makita L et al. Prevalence of malaria across Papua New Guinea after initial roll-out of insecticide-treated mosquito nets. Trop Med Int Health. 2015;20(12):1745–55. doi: 10.1111/tmi.12616 [DOI] [PubMed] [Google Scholar]

[pntd.0010541.ref063] 63.Hetzel MW, Saweri OP, Kuadima JJ, Smith I, Ura Y, Tandrapah A et al. Papua New Guinea malaria indicator survey 2016–2017: malaria prevention, infection and treatment. Papua New Guinea Institue of Medical Research, Goroka, 2018; 2018. [Google Scholar]

[pntd.0010541.ref064] 64.Sluydts V, Heng S, Coosemans M, Van Roey K, Gryseels C, Canier L et al. Spatial clustering and risk factors of malaria infections in Ratanakiri Province, Cambodia. Malar J 2014;13:387. doi: 10.1186/1475-2875-13-387 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pntd.0010541.ref065] 65.Sluydts V, Durnez L, Heng S, Gryseels C, Canier L, Kim S et al. Efficacy of topical mosquito repellent (picaridin) plus long-lasting insecticidal nets versus long-lasting insecticidal nets alone for control of malaria: a cluster randomised controlled trial. Lancet Inf Dis. 2016;16(10):1169–77. doi: 10.1016/S1473-3099(16)30148-7 [DOI] [PubMed] [Google Scholar]

[pntd.0010541.ref066] 66.Kattenberg JH, Gumal DL, Ome-Kaius M, Kiniboro B, Philip M, Jally S et al. The epidemiology of Plasmodium falciparum and Plasmodium vivax in East Sepik Province, Papua New Guinea, pre- and post-implementation of national malaria control efforts. Malar J. 2020;19(1):198. doi: 10.1186/s12936-020-03265-x [DOI] [PMC free article] [PubMed] [Google Scholar]

[pntd.0010541.ref067] 67.Garfield RM, Vermund SH. Changes in malaria incidence after mass drug administration in Nicaragua. Lancet. 1983;2(8348):500–3. doi: 10.1016/s0140-6736(83)90523-8 [DOI] [PubMed] [Google Scholar]

[pntd.0010541.ref068] 68.McGreevy PB, Dietze R, Prata A, Hembree SC. Effects of immigration on the prevalence of malaria in rural areas of the Amazon basin of Brazil. Memorias do Instituto Oswaldo Cruz. 1989;84(4):485–91. doi: 10.1590/s0074-02761989000400005 [DOI] [PubMed] [Google Scholar]

[pntd.0010541.ref069] 69.Kondrashin AV, Sanyal MC. Mass drug administration in Andhra Pradesh in areas under Plasmodium falciparum containment programme. J Communic Dis. 1985;17(4):293–9. [PubMed] [Google Scholar]

[pntd.0010541.ref070] 70.Landier J, Parker DM, Thu AM, Lwin KM, Delmas G, Nosten FH. Effect of generalised access to early diagnosis and treatment and targeted mass drug administration on Plasmodium falciparum malaria in Eastern Myanmar: an observational study of a regional elimination programme. Lancet. 2018;391(10133):1916–26. doi: 10.1016/S0140-6736(18)30792-X [DOI] [PMC free article] [PubMed] [Google Scholar]

[pntd.0010541.ref071] 71.World Health Organization. Guidelines for the treatment of malaria. World Health Organization; 2015. Report No.: 978 92 4 154912 7. [Google Scholar]

[pntd.0010541.ref072] 72.Hofmann NE, Karl S, Wampfler R, Kiniboro B, Teliki A, Iga J et al. The complex relationship of exposure to new Plasmodium infections and incidence of clinical malaria in Papua New Guinea. eLife 2017;6: e23708 doi: 10.7554/eLife.23708 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pntd.0010541.ref073] 73.Robinson LJ, Wampfler R, Betuela I, Karl S, White MT, Li Wai Suen CS et al. Strategies for understanding and reducing the Plasmodium vivax and Plasmodium ovale hypnozoite reservoir in Papua New Guinean children: a randomised placebo-controlled trial and mathematical model. PLOS Med 2015;12(10):e1001891. doi: 10.1371/journal.pmed.1001891 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pntd.0010541.ref074] 74.Kligler I , Mer G Periodic intermittent treatment with chinoplasmine as a measure of malaria control in a hyperendemic area. Revista di Malariologia 1931;10(4). [Google Scholar]

[pntd.0010541.ref075] 75.van DW. Mass treatment of malaria with chloroquine. Results of a trial in Inanwatan. Trop Geogr Med 1961;13:351–6. [PubMed] [Google Scholar]

[pntd.0010541.ref076] 76.Lwin KM, Imwong M, Suangkanarat P, Jeeyapant A, Vihokhern B, Wongsaen K et al. Elimination of Plasmodium falciparum in an area of multi-drug resistance. Malar J 2015;14:319. doi: 10.1186/s12936-015-0838-5 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pntd.0010541.ref077] 77.Baird JK. 8-aminoquinoline therapy for latent malaria. Clin Microbiol Rev 2019;32(4). doi: 10.1128/CMR.00011-19 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pntd.0010541.ref078] 78.Gabaldon A, Guerrero L. An attempt to eradicate malaria by the weekly administration of pyrimethamine in areas of out-of-doors transmission in Venezuela. Am J Trop Med Hyg 1959;8(4):433–9. [DOI] [PubMed] [Google Scholar]

[pntd.0010541.ref079] 79.Singh N, Shukla MM, Mishra AK, Singh MP, Paliwal JC, Dash AP. Malaria control using indoor residual spraying and larvivorous fish: a case study in Betul, central India. Trop MedInt Health 2006;11(10):1512–20. [DOI] [PubMed] [Google Scholar]

[pntd.0010541.ref080] 80.Seyoum D, Kifle YG, Rondeau V, Yewhalaw D, Duchateau L, Rosas-Aguirre A et al. Identification of different malaria patterns due to Plasmodium falciparum and Plasmodium vivax in Ethiopian children: a prospective cohort study. Malar J 2016;15:208. doi: 10.1186/s12936-016-1253-2 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pntd.0010541.ref081] 81.Doke PP, Sathe RS, Chouhan SP, Bhosale AS. Impact of single round of indoor residual spray with lambda-cyhalotrin 10% WP on Plasmodium falciparum infection in Akola district, Maharashtra State. J Communic Dis 2000;32(3):190–200. [PubMed] [Google Scholar]

[pntd.0010541.ref082] 82.Charlwood JD, Alecrim WD, Fe N, Mangabeira J, Martins VJ. A field trial with lambda-cyhalothrin (ICON) for the intradomiciliary control of malaria transmitted by Anopheles darlingi root in Rondonia, Brazil. Acta Trop 1995;60(1):3–13. doi: 10.1016/0001-706x(95)00092-s [DOI] [PubMed] [Google Scholar]

[pntd.0010541.ref083] 83.Mishra AK, Bharti PK, Kareemi TI, Chand SK, Tidgam AS, Sharma RK et al. Field evaluation of zero vector durable lining to assess its efficacy against malaria vectors and malaria transmission in tribal areas of the Balaghat district of central India. Trans Roy Soc Trop Med Hyg 2019;113(10):623–31. doi: 10.1093/trstmh/trz046 [DOI] [PubMed] [Google Scholar]

[pntd.0010541.ref084] 84.Rowland M, Hewitt S, Durrani N, Bano N, Wirtz R. Transmission and control of vivax malaria in Afghan refugee settlements in Pakistan. Trans Roy SocTrop Med Hyg 1997;91(3):252–5. doi: 10.1016/s0035-9203(97)90065-1 [DOI] [PubMed] [Google Scholar]

[pntd.0010541.ref085] 85.Rowland M, Mahmood P, Iqbal J, Carneiro I, Chavasse D. Indoor residual spraying with alphacypermethrin controls malaria in Pakistan: a community-randomized trial. Trop Med Int Health. 2000;5(7):472–81. doi: 10.1046/j.1365-3156.2000.00581.x [DOI] [PubMed] [Google Scholar]

[pntd.0010541.ref086] 86.Metselaar D. Seven years’ malaria research and residual house spraying in Netherlands New Guinea. Am J Trop Med Hyg 1961;10:327–34. doi: 10.4269/ajtmh.1961.10.327 [DOI] [PubMed] [Google Scholar]

[pntd.0010541.ref087] 87.Rowland M, Hewitt S, Durrani N. Prevalence of malaria in Afghan refugee villages in Pakistan sprayed with lambdacyhalothrin or malathion. Trans Roy Soc Trop Med Hyg 1994;88(4):378–9. [DOI] [PubMed] [Google Scholar]

[pntd.0010541.ref088] 88.Sharma SN, Shukla RP, Raghavendra K, Subbarao SK. Impact of DDT spraying on malaria transmission in Bareilly District, Uttar Pradesh, India. J Vector Borne Dis. 2005;42(2):54–60. [PubMed] [Google Scholar]

[pntd.0010541.ref089] 89.Auburn S, Cheng Q, Marfurt J, Price RN. The changing epidemiology of Plasmodium vivax: Insights from conventional and novel surveillance tools. PLOS Med 2021;18(4):e1003560. doi: 10.1371/journal.pmed.1003560 [DOI] [PMC free article] [PubMed] [Google Scholar]

[pntd.0010541.ref090] 90.World Health Organization. Malaria 2020 [updated 14.1.2020. Available from: https://www.who.int/news-room/fact-sheets/detail/malaria.

[pntd.0010541.ref091] 91.Ashton RA, Prosnitz D, Andrada A, Herrera S, Yé Y. Evaluating malaria programmes in moderate- and low-transmission settings: practical ways to generate robust evidence. Malar J 2020;19(1):75. doi: 10.1186/s12936-020-03158-z [DOI] [PMC free article] [PubMed] [Google Scholar]

PERMALINK

The relative impact of interventions on sympatric Plasmodium vivax and Plasmodium falciparum malaria: A systematic review

Melanie Loeffel

Amanda Ross

Roles

Abstract

Background

Methods

Results

Conclusion

Author summary

Introduction

Methods

Literature search

Identifying potential studies

Box 1

Inclusion criteria

Full-text screening of papers identified as potentially relevant

Box 2

Exclusion criteria

Data extracted from the papers and additional variables from other sources

Outcome variables

Rationale for selection of variables

Intervention and round of intervention

Coverage

Transmission intensity

Age

Relapse pattern

Seasonality

Season when the data was collected

Definitions of variables

Intervention and round of intervention

Coverage

Box 3

Quantifying the Coverage of ITN

The number of months since the intervention was implemented

Transmission

Relapse pattern

Seasonality

Seasonal patterns

Sample size of studies

Proportion of malaria attributed to P. vivax

Risk of bias

Statistical analysis

Ethics statement

Results

Literature search

Fig 1. Flow diagram of studies in the review.

Table 1. Reasons for exclusion.

Fig 2. Location of the studies.

Summary of the data

Table 2. Characteristics of the 72 series of time-points of clinical cases by intervention.

Table 3. Characteristics of the 69 series of time-points of patent infections by intervention.

Risk of bias

Series of time-points with ITN

Clinical Cases

Fig 3. Proportion of clinical cases with P. vivax infection by time since first ITN distribution (white background) or repeated ITN distribution (grey background).

Patent infections

Fig 4. Proportion of patent infections that are P. vivax by time since first ITN distribution (white background) or repeated ITN distribution (grey background).

Series of time-points with MDA

Clinical cases

Fig 5. Proportion of clinical cases with P. vivax infection by time since MDA.

Patent infections

Fig 6. Proportion of patent infections that are P. vivax by time since MDA.

Series of time-points with IRS

Clinical cases

Fig 7. Proportion of clinical cases with P. vivax infection by time since IRS.

Patent infections

Fig 8. Proportion of patent infections that are P. vivax by time since IRS.

Graphical summaries of the proportion of cases or infections that were P. vivax over time by factor

Series with ITN by factor

Fig 9. Spaghetti plots splitting the series of time-points of the proportion of cases with P. vivax infection by relapse pattern, coverage, seasonality, initial proportion of P. vivax and transmission intensity after first time ITN distribution.

Fig 10. Spaghetti plots splitting the series of time-points of the proportion of cases with P. vivax infection by relapse pattern, transmission intensity and coverage after repeated ITN distribution.

Fig 11. Spaghetti plots splitting the series of time-points of the proportion of cases with P. vivax infection by round of ITN distribution.

Fig 12. Spaghetti plots splitting the series of time-points of the proportion of patent infections that are P. vivax by relapse pattern, coverage, transmission intensity, seasonality and initial proportion of P. vivax after first time distribution of ITNs.

Fig 13. Spaghetti plots splitting the series of time-points of the proportion of patent infections that are P. vivax by initial proportion of P. vivax, coverage and transmission intensity after repeated distribution of ITNs.

Fig 14. Spaghetti plots splitting the series of time-points of the proportion of patent infections that are P. vivax by round of ITN distribution.

Series with mass drug administration by factor

Fig 15. Spaghetti plots splitting the series of time-points of the proportion of cases with P. vivax infection by rounds of MDA, coverage, relapse pattern and transmission intensity after MDA.

Fig 16. Spaghetti plots splitting the series of time-points of the proportion of patent infections that are P. vivax by relapse pattern, coverage, transmission intensity, initial proportion of P. vivax and seasonality after MDA.
