Charge and redox states modulate granulin—TDP-43 coacervation toward phase separation or aggregation

Abstract

Cytoplasmic inclusions containing aberrant proteolytic fragments of TDP-43 are associated with frontotemporal lobar degeneration (FTLD) and other related pathologies. In FTLD, TDP-43 is translocated into the cytoplasm and proteolytically cleaved to generate a prion-like domain (PrLD) containing C-terminal fragments (C25 and C35) that form toxic inclusions. Under stress, TDP-43 partitions into membraneless organelles called stress granules (SGs) by coacervating with RNA and other proteins. To study the factors that influence the dynamics between these cytoplasmic foci, we investigated the effects of cysteine-rich granulins (GRNs 1–7), which are the proteolytic products of progranulin, a protein implicated in FTLD, on TDP-43. We show that extracellular GRNs, typically generated during inflammation, internalize and colocalize with PrLD as puncta in the cytoplasm of neuroblastoma cells but show less likelihood of their presence in SGs. In addition, we show GRNs and PrLD coacervate to undergo liquid-liquid phase separation (LLPS) or form gel- or solid-like aggregates. Using charge patterning and conserved cysteines among the wild-type GRNs as guides, along with specifically engineered mutants, we discover that the negative charges on GRNs drive LLPS while the positive charges and the redox state of cysteines modulate these phase transitions. Furthermore, RNA and GRNs compete and expel one another from PrLD condensates, providing a basis for GRN’s absence in SGs. Together, the results help uncover potential modulatory mechanisms by which extracellular GRNs, formed during chronic inflammatory conditions, could internalize and modulate cytoplasmic TDP-43 inclusions in proteinopathies.

Significance

TDP-43 has emerged as a key player in the formation of stress granules and amyloids. To gain insights into the factors that influence the dynamics between these cytoplasmic foci, we investigated the effects of cystine-rich granulins (GRNs) on TDP-43, which are proteolytic fragments of progranulin, a protein implicated in frontotemporal lobar degeneration. We discover that GRN s promote solid-like aggregates or liquid-like droplets of TDP-43 depending on the charge distributions and redox state of cysteines on GRNs. Using wild type and specifically engineered mutants, we uncover potential modulatory mechanisms of GRNs on TDP-43 proteinopathies and stress response.

Introduction

Frontotemporal lobar degeneration (FTLD) is a progressive neurodegenerative disease that affects the frontal and temporal lobes of patients predominantly 45–65 years of age (1). The neuronal atrophy observed in these patients is associated with language impairments accompanied by behavioral and personality changes (2,3). Based on histopathological signatures, FTLD is subclassified into FTLD-TDP, FTLD-Tau, and FTLD-FUS (rare) (1,4,5). Nearly half of FTLD patients show the presence of neuronal and glial cytoplasmic inclusions of TAR DNA binding protein-43 (TDP-43) (5), making FTLD-TDP a predominant category of the disease. Furthermore, 95% of sporadic amyotrophic lateral sclerosis (ALS) patients also show TDP-43 inclusions besides sharing common genetic etiologies with FTLD, making FTLD-TDP and ALS part of a clinicopathological continuum (5). Etiology of familial FTLD is associated with mutations in microtubule-associated protein tau (MAPT) for FTLD-Tau, and those in progranulin (GRN), TDP-43 (TARDBP), fused in sarcoma (FUS), and hexanucleotide repeat expansion in C9orf72 (C9orf72), for FTLD-TDP (2,4,6).

TDP-43 is a 43-kDa protein that contains an N-terminal domain, two RNA recognition motifs (RRMs), and a prion-like disordered, C-terminal domain enriched with low-complexity sequences (PrLD) (4,7). Localized in the nucleus, TDP-43 is involved in a wide range of functions, including transcriptional regulation, RNA metabolism, and splicing (8, 9, 10). Under cellular stress such as heat shock, oxidative insults, inflammation (11,12), or nutrient starvation (12), TDP-43 coacervates with mRNA and other proteins to undergo liquid-liquid phase separation (LLPS) and partitions into membraneless organelles called stress granules (SGs) (11,13). SGs are reversible cytoplasmic membraneless organelles formed in response to cellular stress to sequester and prevent mRNA transcripts from degradation or translation (14, 15, 16). In pathological conditions, TDP-43 is translocated to the cytoplasm where it undergoes aberrant proteolytic cleavage to generate several C-terminal fragments (CTFs) of varying sizes including C35 (∼35 kDa), C25 (∼25 kDa), and C17 (∼17 kDa), with the former two being the most abundant of them (17, 18, 19, 20). These fragments are also known to be formed by alternative splicing to varying degrees (21). Importantly, TDP-43 CTFs undergo aggregation to form toxic, insoluble inclusions in the cytoplasm that are the pathological hallmarks of ALS and FTLD patients (19,22). Despite the conspicuity of the TDP-43 CTF aggregates in patients, factors responsible for their biogenesis and subsequent roles in pathology remain poorly understood. Similarly, while the formation and functions of biomolecular condensates is well established for TDP-43 and other members of SGs, such as hnRNP1 (23,24), FUS (23,25), and TIA1 (23,26), the link between SGs and amyloid formation remains ambiguous, but one that could be key in neurodegenerative pathologies.

Another key protein implicated in FTLD is a 68.5-kDa secreted protein called progranulin (PGRN). The protein possesses pleiotropic functions including wound healing, tumorigenesis (27), and immunomodulation (28). In neurons, PGRN is involved in functions such as lysosomal homeostasis, cell survival, and differentiation (29, 30, 31, 32, 33, 34, 35), and has gained significant attention due to its link to neurodegenerative pathologies, especially FTLD. About 30%–50% of FTLD-TDP cases are of a heritable type, with mutations in GRN underlying a majority of them (36,37). The autosomal dominant heterozygous GRN mutations result in haploinsufficiency of the protein, which led to the conclusion that PGRN plays a neuroprotective role (38, 39, 40), while homozygous GRN mutations lead to neuronal ceroid lipofuscinosis (NCL), a lysosomal disease (39,41). Other than the genetic connection and haploinsufficiency, the precise mechanism by which PGRN may influence FTLD remains unknown. In this context, the cysteine-rich, ∼6-kDa modules called GRNs (GRNs 1–7), which are the proteolytic products of PGRN (42), have been of great interest to us for their potential roles in FTLD and other related pathologies. It is now known that extracellular PGRN is endocytosed into the lysosome via a sortilin-mediated pathway to be processed by cathepsins into GRNs (43), which are thus speculated to possess lysosomal functions (44,45). GRNs also function in a plethora of roles in normal cell biology (29,46,47) but possess opposing inflammatory properties to PGRN; while PGRN is anti-inflammatory, GRNs show pro-inflammatory properties (42). During inflammation, PGRN secreted from activated microglia and astrocytes undergoes extracellular proteolysis by neutrophil elastases and other proteases to generate GRNs (48). The fate of the extracellular GRNs on neuronal function and dysfunction remains undetermined and we hypothesize that they are taken up by neurons where they interact with modulate TDP-43 assemblies. Some support for this idea came from a report from Salazar and coworkers, who showed that specific GRNs affected TDP-43 toxicity and behavior functions in a Caenorhabditis elegans model (49). We also demonstrated that GRNs 3 and 5 interact with and modulate the aggregation and phase behavior of TDP-43 PrLD in vitro (50). Furthermore, GRN immunopositivity observed in several regions of the brain in post-mortem Alzheimer’s disease and FTLD-TDP patients potentiates the significance of GRNs in pathology (51). Importantly, acute inflammation such as traumatic brain injury (TBI) has been shown to induce mislocalization, proteolysis, and aggregation of TDP-43 in humans, mice, and cell culture (52,53), increasing the likelihood of its interaction with the pro-inflammatory GRNs.

Here, we delve deep into understanding the molecular factors that govern the interactions between GRNs and TPD-43 PrLD (termed PrLD hereafter). These investigations were motivated by the following three broad questions: 1) do extracellular GRNs generated during inflammation from PGRN internalize in neurons? 2) What are the molecular determinants on GRNs that determine their interactions with PrLD. 3) How do GRNs modulate PrLD phase transitions? Our results show that extracellular GRN-2, -3, and -5 internalize and colocalize with PrLD in the cytosol of neuroblastoma cells but do not partition into the SGs formed under stress with PrLD. In vitro biophysical experiments suggest that GRN-2 undergoes coacervation with PrLD to form liquid droplets in the oxidized state but promotes gelated/insoluble aggregates in the reduced state. With time, the droplets transform into a gelated state that shows amyloid-like characteristics. Based on the empirical results derived from GRNs along with designed mutations and chemical modifications, we determine that the coacervation of GRN and PrLD forming liquid droplets is predominantly driven by the negatively charged residues on GRNs, while the increase in the number of positively charged residues promotes distorted gel-like droplets and aggregation. Furthermore, we determine that the redox state of cysteines in GRNs is a key modulator of phase transitions by fine-tuning LLPS or aggregation of PrLD when electrostatic charges on GRNs are nearly counterbalanced. Additionally, we show that RNA expels GRNs from the PrLD droplets, which provides a possible reason for not observing GRNs within the SGs.

Materials and methods

Recombinant expression and purification of proteins

GRNs

GRNs (GRN-2, GRN-2(+/−), GRN-2(C/A), GRN-2ΔAro, GRN-3, GRN-5, and GRN-7) were recombinantly expressed and purified as previously described, where GRN-3 was expressed in Escherichia coli SHuffle cells (New England Biolabs), while other GRNs were expressed in Origami 2 DE3 cells (Invitrogen) (50). Briefly, GRNs were expressed as fusion constructs containing an N-terminal thioredoxin-A and His₆ tag with an intervening thrombin cleavage site. The fusion constructs were purified using immobilized-nickel affinity chromatography. The purified construct was cleaved using restriction grade bovine thrombin (BioPharm Laboratories) at 3 units/1 mg of protein for 24 h at room temperature to separate the fused tags. For GRN-2ΔAro, purification protocol was modified to minimize thiol oxidation; typically, buffers were degassed prior to use and the purification was carried out at 4°C to reduce oxygen solubility. After nickell affinity, all samples was fractionated using semipreparative Jupiter 5 μm-10 × 250 mm C18 reverse-phase high-performance liquid chromatography (HPLC) column (Phenomenex) using a gradient elution of 60%–80% acetonitrile containing 0.1% TFA. Fractionated protein was lyophilized and stored at −20°C. For the generation of 2-alkylated GRN-2 (i.e., GRN-2 with two free thiols that are alkylated), the protein was incubated with 10 molar excess of iodoacetamide post thrombin cleavage for a period of 24 h at room temperature. Protein was then fractionated using reverse-phase HPLC as mentioned before. For the generation of 12-alkylated GRN-2 (i.e., GRN-2 with all 12 thiols alkylated), the protein was incubated with 12× molar excess of tris(2-carboxyethyl)phosphine (TCEP) post-thrombin cleavage for a period of 12 h at room temperature followed by incubation with 10 molar excess of iodoacetamide for 24 h at room temperature. Protein was then fractionated using reverse-phase HPLC as before. The purity of protein was confirmed using matrix-assisted laser desorption-ionization time-of-flight mass spectroscopy (MALDI-ToF MS).

TDP-43 PrLD

PrLD was expressed and purified as described previously (50). The plasmid for TDP-43 PrLD was a gift from Dr. Nicolas Fawzi at Brown University (Addgene plasmid 98669, RRID: Addgene 98669). Briefly, the protein was expressed as a fusion construct with an N-terminal His₆ tag followed by tobacco etch virus (TEV) protease cleavage site in E. coli BL21 DE3 Star cells (Invitrogen). The fusion construct was purified using immobilized-nickel affinity chromatography with suitable modifications of the protocol described in the report by Conicella et al. (54). Purified protein construct (with the intact N-terminal His₆) was concentrated using Amicon Ultra-Centrifugal units (Millipore) and flash frozen for storage at −80°C or used immediately for experiments.

Preparation of proteins and RNA

GRNs

Lyophilized protein was resuspended in required buffer (20 mM MES, pH 6.0, or 20 mM ammonium formate, pH 4.5) and the concentration was estimated spectrophotometrically at 280 nm with extinction coefficients of 6250 M⁻¹ cm⁻¹ for GRN-2, GRN-2(+/−), and GRN-3; 5500 M⁻¹ cm⁻¹ for GRN-2(C/A); 7740 M⁻¹ cm⁻¹ for GRN-5; or at 215 nm for GRN-2ΔAro with an extinction coefficient of 90,000 M⁻¹ cm⁻¹. The number of free thiols within GRNs was estimated using Ellman’s assay and by alkylation with iodoacetamide, as described previously (55). The reduced forms of GRN were generated by incubating the freshly purified proteins with 12 × molar excess of TCEP at room temperature for 2–4 h or at 4°C for ∼12 h. Fluorescent labeling of GRNs was performed using HiLyte Fluor 405 succinimidyl ester (AnaSpec) or HiLyte Fluor 647 succinimidyl ester for fluorescence recovery after photobleaching (FRAP) studies on GRNs. Proteins were incubated with 3 molar excess of dyes at 4°C for ∼12 h and excess dye was excluded using clarion MINI Spin Columns, Desalt S-25 (Sorbent Technologies).

PrLD

Before the experiments, the protein was buffer exchanged into 20 mM MES, pH 6.0, or 20 mM ammonium formate, pH 4.5, using PD SpinTrap G-25 desalting columns (Cytiva) and the concentration was estimated using an extinction coefficient of 19,480 M⁻¹ cm⁻¹ at 280 nm. Aliquots of the purified protein were either used immediately after purification or flash frozen and stored −80°C for later use. The frozen proteins were used within a week of purification. Fluorescent labeling of PrLD was performed using HiLyte Fluor 647 succinimidyl ester (AnaSpec) using a similar protocol as described above for GRNs.

RNA

Lyophilized poly-A (Sigma Aldrich) was resuspended in deionized, sterilized water at a concentration of 1 mg/mL. The concentration of the stock was estimated by considering a value of 1 absorbance unit to correspond to 40 μg of RNA. The prepared stock was flash frozen and stored at −80°C. Aliquots of prepared stock were thawed and used immediately for experiments.

Cell growth, transfection, and colocalization analysis

SH-SY5Y neuroblastoma cells (ATCC, Manassas, VA) were grown in DMEM:F12 (1:1) medium containing 10% FBS (Gibco, Thermo Scientific) and were maintained in humidified condition at 37°C with 5.5% CO₂. Cells were seeded 24 h before transfection. Cells were transfected with PrLD-SBFP2 or wtTDP43tdTomato plasmid using the TransIT-X2 dynamic delivery system, Mirius (1:3), in Opti-MEM media (Thermo Scientific). Cell confluency was allowed to reach 70%–80% prior to transfection. After 24 h, cells were gently washed twice with fresh medium and 500 nM fluorescently labeled recombinant GRNs were added. Cells were incubated with GRN-containing medium for 24 h. Following this, medium was replaced with GRN-devoid medium and cells were incubated for a further 1 h. For inducing stress, sodium arsenite was added at a final concentration of 0.5 mM and incubated for 30 min. Cells were stained with nuclear (NucSpot Live 650, Biotium) or lysosomal (Lysoview 650, Biotium) markers prior to imaging at 40× magnification using Leica STELLARIS-DMI8 microscope. For colocalization analysis of GRNs and PrLD, the respective channels for PrLD and GRNs were converted to 16-bit grayscale format and region of interest was selected. Images were processed using Coloc2 parameter in Fiji ImageJ software using Costes threshold regression, and Manders’ tM1 values were reported. All the confocal images were processed using Adobe illustrator, and data were processed using OriginPro 8.5 software. FRAP analysis was done on puncta under stress conditions and each datum was normalized against the background fluorescence as minimum and intensity within the puncta as maximum. This ensured that every FRAP datum is comparable without variations in expression levels affecting such analysis.

Immunofluorescence

For the immunofluorescence experiment, cells were plated on to a 12-well plate, 24 h prior to transfection with PrLD-SBFP2 as described above. After incubating with fluorophore-labeled GRNs for 24 h, medium was replaced, and the experiments were carried out in both stress and non-stress conditions. For induction of stress, 0.5 mM sodium arsenite was added to the medium and incubated for 30 min followed by washing with PBS buffer. Cells were fixed in 4% paraformaldehyde for 20 min and washed twice with PBS. These were further permeabilized with 0.2% Triton X-100 in PBS for 20 min. Cells were washed and blocked using 3% BSA for 2 h. Cells were then incubated with anti-TIA1 primary antibodies (Cell Signaling Technology, TIAR XP rabbit monoclonal antibody #8509) and anti-rabbit secondary antibodies (Cell Signaling Technology, Alexa Flour 488 conjugate #4412) and imaged following the addition of anti-fade mounting medium at 40× magnification on a Leica STELLARIS-DMI8 microscope.

DIC microscopy and FRAP analysis

Differential interference contrast (DIC) and fluorescence microscopy images were acquired on a Leica STELLARIS-DMI8 microscope. The assays were performed in an optical-bottom 96-well plate (Thermo) and were covered with an optically clear sealing tape (Nunc, Thermo Scientific) to prevent evaporation. The reactions were initiated at room temperature and were visualized within 10–15 min of mixing. Brightfield and fluorescence images were acquired at a magnification of 40× or 63× with an oil immersion objective. For the ternary interactions between GRN-2, PrLD, and RNA, heterotypic condensates of PrLD with GRN-2 were generated, followed by titration with desired volumes of the RNA stock. Images were acquired after an equilibration time of ∼10–15 min after each titration. The RNA stocks were prepared at a high initial concentration to minimize dilution effects upon titration. For fluorescence imaging and FRAP studies, samples were prepared by mixing the required concentration of proteins in an optical-bottom 96-well plate in the presence of 1% fluorophore-labeled proteins. For FRAP studies, fluorescence intensities were acquired pre- (∼2 s) and post bleach (∼30 s) at an interval of 68 μs. Bleaching period was varied from 10 to 20 s with a laser intensity of 100%, while the laser intensity for imaging was set at 2%–10%. The online white and diode 405 laser was utilized in all imaging studies. The fluorescence recovery data were processed using Leica LasX program and Origin 8.5 graphing software. The recovery curves of at least three independent and individual samples were averaged and normalized with respect to the pre-bleach fluorescence intensities. To discern the rate constants of recovery kinetics post bleach, the initial-rate method was utilized (56,57). Briefly, a period of fluorescence recovery 1 s post bleach was evaluated via a linear fit with the slope of the line providing a rate constant, k (s⁻¹). Rate constants were obtained by evaluating three FRAP recovery curves for each sample. For kinetic experiments, FRAP analysis was performed on samples at initial time (0 h) and after incubation of 24 h at 37°C under quiescent conditions.

Post image analysis

Droplet area distribution

Area of the droplets formed within various samples was ascertained using the ImageJ program. Briefly, the fluorescence images acquired for the respective samples were subjected to color thresholding at default values in the program. Areas of droplets within the threshold images were then extracted using the included particle analyzer tool of the program. A lower limit of either 50 or 200 (pixel²) (depending on image magnification) was placed on area of particles to be analyzed so as to exclude detection of small artifacts. Areas obtained in pixel² were converted into μm² by correlating with the scale bar. The obtained data were then plotted as a histogram overlayed with normal distribution curve using Origin 8.5. A set of 100 droplets were enumerated from at least two different fields for each sample.

Fluorescence intensity profiles

To qualitatively ascertain the displacement of GRN-2 from condensates upon titration with RNA, the fluorescence intensity profiles of the fluorophore-labeled proteins from the images of the respective samples were determined using the ImageJ program. Intensity profiles were obtained by mapping a line segment across the width of a droplet and extracting the intensities of the fluorophores (HiLyte 405 for GRN-2 and HiLyte 647 for PrLD) using the plot-profile tool. The plot-profile tool provides intensity values within an arbitrary window of 0–80 units, with highly fluorescent samples being cut off at the upper limit. The fluorophore intensities obtained across a pixel scale were then converted into μm using the scale bar. The fluorescence intensity profile was extracted from individual droplets for each sample but are representative of the entire field containing at least 20 different such droplets.

Turbidimetric assays

Turbidity measurements were performed on a BioTek Synergy H1 microplate reader. Reactions were initiated and allowed to equilibrate at room temperature for 3–10 min before each measurement. For titration experiments with GRNs, 1,6-hexanediol (HD), NaCl, or RNA, stocks were prepared at high concentrations to minimize dilution of samples.

Establishment of phase boundaries

For establishment of phase diagrams, a boundary value of 0.140 optical density 600 (OD₆₀₀) was set and readings above it were considered to undergo phase transition. A temperature-dependent phase diagram was established by equilibrating samples at respective temperature (4°C, room temperature) for 15 min, while temperatures above 30°C were achieved using the internal temperature control capability of the plate reader. Data processing was performed on Origin 8.5. At least three independent datasets were averaged.

Aggregation assay

To monitor the amyloid formation of PrLD in the presence of GRN-2 or rGRN-2, thioflavin-T (ThT) fluorescence assays were performed on a BioTek Synergy H1 microplate reader. The aggregation of PrLD was monitored in the presence of different molar concentrations of GRN-2 or rGRN-2 in separate reactions in the presence of 15 μM ThT dye. The reactions were monitored for a period of 24 h under quiescent conditions at 37°C and are representative of three independent datasets.

MALDI-ToF MS

For confirming the purity and for characterization of proteins used, MALDI-ToF MS was performed on a Bruker Daltonics Microflex LT/SH TOF MS system. Prepared samples were spotted onto a Bruker MSP 96 MicroScout Target microchip with a 1:1 ratio of sample:sinapinic acid matrix in saturated acetonitrile and water. Instrument calibration was performed using Bruker Protein Calibration Standard I (Bruker Daltonics). Alkylation assays of GRNs using iodoacetamide were performed as described (58).

Atomic force microscopy

Atomic force microscopy (AFM) images were obtained following a previously published method (59,60). Briefly, mica was cleaved using tape then attached to a magnet. The mica was then treated with 150 μL of 3-aminopropyltriethoxysilane (APTES) solution (500 μL of APTES in 50 mL of 1 mM acetic acid) for 30 min. The APTES solution was then decanted off and the mica substrate was rinsed three times with nanopure H₂O, dried with N₂, and stored for an hour. A volume of 70 μL of the sample solution was deposited onto the mica surface and allowed to absorb for 30 min. The sample solution was then decanted from the mica surface and washed with 150 μL of nanopure H₂O three times, dried with N₂, and stored in a desiccator until imaging. AFM analysis was performed using a Dimension Icon atomic force microscope (Bruker) in PeakForce Tapping mode. AFM scanning was performed using NanoScope 8.15 software and the images were analyzed in NanoScope Analysis 3.0 software. Measurements were performed under ambient environmental conditions at a constant scan rate of 1 Hz in tapping mode using a sharp silicon nitride cantilever (RTESPA; nominal tip radius of 8 nm; nominal resonance frequency of 300 kHz; nominal spring constant of 40 N/m) and a standard probe holder with 512 × 512 data point resolution. Multiple areas of the mica surface were analyzed, height and phase images were obtained simultaneously, and representative images are reported.

In silico analysis and figure preparation

Redox-dependent disorder scores for individual proteins were obtained using IUPred2A platform (61). Specifically, the FASTA sequence of each protein was evaluated by coupling the IUPred2 long disorder algorithm with a redox-state tool (62). The hydropathy indices for GRNs were obtained using the CIDER platform (63). The net charge and isoelectric points (pIs) of the individual proteins were determined using the SnapGene program. The obtained figures were processed using the Adobe Illustrator CC suite and Affinity Designer.

Results

Extracellular GRN-2 colocalizes with TDP-43 PrLD in the cytoplasm but not in SGs

Unlike GRNs generated in the lysosomes, the fate of those formed extracellularly, especially during inflammation, remains unclear, although transport to the cytosol has remained a possibility (47,51,64). The ambiguity surrounding the precise localization of GRNs in pathophysiology has also hindered understanding of their cellular functions (45,65). We hypothesize that extracellular GRNs are internalized in the neuronal cytoplasm and potentially interact with proteolytic fragments of TDP-43, modulating the latter in ALS and FTLD pathologies. To recapitulate this scenario, we utilized a simple pulse-chase assay with fluorophore-labeled GRNs (45). In this assay, SH-SY5Y cells transiently expressing a blue fluorescent protein-tagged PrLD construct (PrLD-SBFP2) were pulsed with medium containing 500 nM HiLyte532-labeled GRN-2 after 24 h (post transfection), and then chased using medium for an additional hour (see section “materials and methods”). The cells were then imaged under non-stress and stress (with NaAsO₂) conditions (Fig. 1). Under non-stress conditions, the transfected PrLD was observed in both the nucleus and cytoplasm (top panels, Fig. 1 a). Pulsing with GRN-2 showed internalization and colocalization with PrLD outside the nucleus (arrow, middle panels, Fig. 1 a). To see whether the colocalization was within or outside the lysosomes, as GRNs are known to be transported to lysosomes, the cells were observed using a lysosomal marker, which clearly indicted GRN-PrLD puncta outside the lysosomes (arrow, bottom panels, Fig. 1 a). Not surprisingly, some GRN-2 was also found to be localized within the lysosomes (yellow puncta, bottom panels, Fig. 1 a). FRAP of the cytoplasmic GRN-PrLD puncta showed no recovery of PrLD, suggesting that they are gel-like or solid-like aggregates (green, top panel, Fig. 1 c). In parallel, the samples were also immunodetected in the presence of TIA1 antibody, a key SG marker (66). In the non-stress conditions, TIA1 was located in the nucleus, while PrLD was dispersed throughout the cell (Fig. S1 a). TIA-1 was absent from the colocalized PrLD and GRN-2 puncta as would be expected under non-stress conditions (no stress, Fig. S1 d). Under stress conditions induced by sodium arsenite, the transfected PrLD showed puncta outside the nucleus (arrow, top panels, Fig. 1 b), consistent with SG formation (11,14). Surprisingly, the fluidity of SGs observed by FRAP showed no recovery (orange, top panel, Fig. 1 c), although widely varying photobleaching recovery rates for SGs have been reported in cellular models (67, 68, 69). Nevertheless, PrLD’s presence in SGs was confirmed by the colocalization of PrLD with TIA1 (cyan, Fig. S1 b) with a Meander’s tM1 value of 0.59 (Fig. S1 c). Pulsing GRN-2 onto these cells under stress showed colocalization of both the proteins as puncta in the cytoplasm and outside the lysosomes, similar to those observed under non-stress conditions (arrows, middle and bottom panels, Fig. 1 b). Here again, the colocalized puncta did not show fluorescence recovery (green, bottom panel, Fig. 1 c). Furthermore, in absence of stress, GRN-2 did not show colocalization with TIA1 and PrLD, suggesting that GRN-2 was not partitioned into the SGs (Fig. S1 d). In addition, two other GRNs known to modulate PrLD’s phase transitions (50), GRN-3 and -5, also did not colocalize with TIA1 under stress conditions, but colocalized with PrLD under both non-stress and stress conditions (Fig. S1 d and e). Importantly, under stress, a three-way colocalization involving PrLD, GRN-2, and TIA1 was not observed. The colocalization of GRN-2 and PrLD was statistically significant, with ∼73% of the internalized GRN-2 found to be colocalized with PrLD under stress and ∼68% under homeostatic conditions (Fig. 1 d). Finally, gelated material-like properties of PrLD SGs implied by the lack of fluorescence recovery could be attributed to the absence of other domains in TDP-43. To see if this is the case, SH-SY5Y cells were transfected with the full-length wild-type TDP-43 (wtTDP43tdTomato) as a control (Fig. S2), which showed the FRAP recovery for SGs under stress conditions (Fig. S2 b). This possibly suggests that SG assemblies containing the truncated PrLD construct, and therefore other truncated CTFs of TDP-43 (C25 and C35), may indeed possess solid- or gel-like characteristics. However, caution needs to be exercised as an FRAP recovery alone is not an indicator of SGs, as mentioned above. Taken together, the data establish that extracellular GRN-2 internalizes and colocalizes with PrLD in the cytoplasm but is not present within the SGs.

Figure 1.

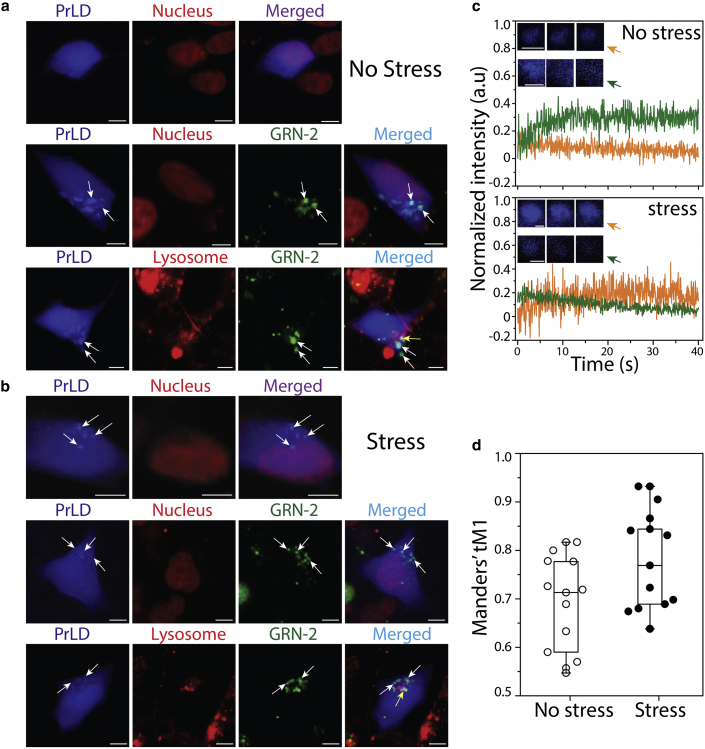

Cytoplasmic colocalization of GRN-2 and PrLD. Confocal microscopy images of live SH-SY5Ycells under homeostatic or stress conditions. (a) Blue fluorescent protein-tagged PrLD (PrLD-SBFP2) transiently expressed in SH-SY5Y cells alone and in the presence of HiLyte-532-labeled GRN-2 under non-stress conditions, and (b) the same reactions under stress induced by sodium arsenite. White arrows indicate colocalized GRN-2 and PrLD puncta in the cytoplasm, while yellow arrows represent colocalization of GRN-2 in lysosomes (scale bar represents 5 μm). Visualization of nucleus and lysosomes was done by staining with NucSpot Live 650 and Lysoview 650 respectively (c) Normalized intensities of fluorescence recovery after photobleaching (FRAP) for puncta of PrLD alone (orange) or colocalized PrLD-GRN-2 (green) in under non-stress (top) or stress (top) conditions. Inset: representative pre-bleach, post-bleach, and recovery intensities of the puncta. At least three different puncta were bleached. (d) Whiskers plot of Manders’ tM1 calculated for the colocalization of GRN-2 with PrLD using Fiji ImageJ software. Each data point represents the colocalization score of an independent cell (n = 14). To see this figure in color, go online.

GRN-2 modulates the phase transitions of PrLD in vitro

The observation of cytoplasmic puncta of colocalized PrLD and GRN-2 decoupled from SGs prompted us to investigate their interactions in greater detail. TDP-43 is known to undergo dynamic phase transitions depending on the cellular conditions to form either liquid condensates or solid aggregates (70, 71, 72). Understanding the molecular grammar of protein LLPS has revealed that weak, multivalent interactions between “stickers” involving electrostatics, π-π interactions (between tyrosines), or cation-π interactions (between aromatic residues and arginines and lysines) and separated by scaffolds called spacers are the main driving forces of condensate formation (24,73, 74, 75). Disordered proteins enriched in one kind of charge will repel one another, preventing self-coacervation but counter interacting charges would minimize repulsion and promote LLPS (76). These interactions are also observed to be the driving forces behind the self-coacervation and complex (with RNA) coacervation of TDP-43 (54,77, 78, 79, 80). However, the molecular determinants of heterotypic phase transitions of TDP-43 involving ligands vary depending on the partners and are still being discerned (78). Despite the lack of a canonical RNA-binding domain, TDP-43 PrLD undergoes coacervation with RNA, which illustrates the prominence of the aforementioned interactions in phase separation (50,54,81). However, the phase transitions are dictated by the balance between weak, multivalent interactions that drive LLPS, and strong, high-affinity interactions that mediate gelation or solid-like phase transition often observed among amyloid proteins (78). Our earlier investigations into the interactions of PrLD with GRN-3 and GRN-5 showed that GRN-3 induces aggregation in both oxidizing and reducing conditions, while GRN-5 undergoes LLPS by complex coacervation with PrLD (50). We conjecture that the disparity in the behavior of GRNs is due to the high net negative charge on GRN-5 (–6; six – and no + charges; Fig. 2 d) as opposed to GRN-3 (–2; seven – and two + charges; Fig. 2 c) that interact with PrLD (Fig. 2 a). It is also likely that the lack of positive charges on GRN-5 plays a role in its ability to phase separate PrLD. Here, we extended these investigations to uncouple the sequence determinants on GRNs to phase separate or co-aggregate with PrLD by investigating GRN-2 and specifically designed mutants. All three GRNs, GRN-2, -3, and -5, possess a similar number of negatively charged acidic residues (seven, six, and six respectively; Fig. 2 b–d) but vary in the number of positively charged basic residues (two, four, and zero, respectively; Fig. 2 b–d), making GRN-2 ideal to investigate. The presence of structural disorder in proteins is also known to be an implicit contributor to LLPS (82, 83, 84, 85, 86); PrLD is largely a disordered region of TDP-43, while GRN-2 is also predicted to be disordered in the fully reduced state by IUPred2A (Fig. S3 a and b) (61,62). This prediction was confirmed by biophysical characterization of GRN-2, which revealed a structure dominated by random coils in both redox forms (Fig. S4 a), similar to GRN-3 and -5 (50) (Figs. S3 c, d, and S4 e).

Figure 2.

Sequences of granulins (GRNs) and TDP-43 under investigation. (a) TDP-43 PrLD construct (residues 267–414) along with a hexa-histidine tag (highlighted) used in the study. (b–d) Sequences of GRN-2 (b), GRN-3 (c), and GRN-5 (d). Sequences of proteins are annotated with acidic (red) and basic (blue) residues, along with the net charges on the respective proteins at neutral pH. To see this figure in color, go online.

To probe the ability of GRN-2 in both redox forms to modulate phase transitions of PrLD, 40 μM GRN-2 (oxidized form) or rGRN-2 (fully reduced form) were mixed with 20 μM PrLD buffered in 20 mM MES, pH 6.0, and the samples were visualized by DIC microscopy (Fig. 3 a–d). Immediately upon co-incubation of GRN-2 and PrLD, the sample phase separated into liquid droplets ranging between 2 and 12 μm diameter (Fig. 3 a). The droplets also showed classic wetting behavior suggestive of their liquid-like characteristics (arrow, Fig. 3 b). The colocalization of proteins within the droplets was confirmed using orthogonal fluorophores, HiLyte405 (blue) and HiLyte647 (red) for GRN-2 and PrLD, respectively, and their liquid-like properties by coalescence and fusion of droplets (Fig. 3 b). In stark contrast, samples containing rGRN-2 and PrLD showed the formation of solid insoluble aggregates (Fig. 3 c), which also involved colocalization of both proteins (Fig. 3 d). These results indicate that GRN-2 in the oxidized form induced LLPS of PrLD, while the reduced form induced gelation/aggregation.

Figure 3.

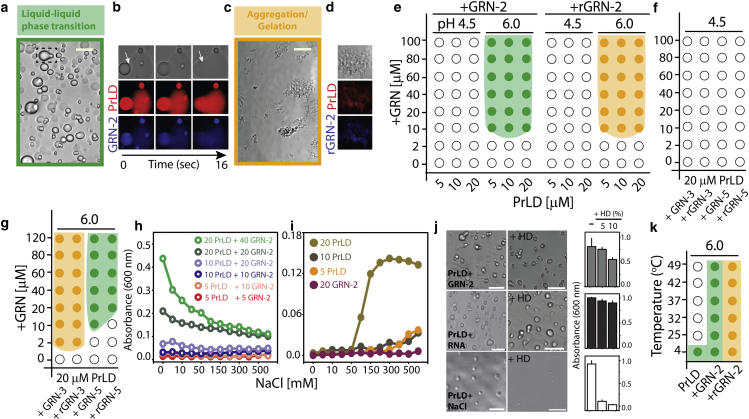

Phase transitions involved in GRN-TDP-43 PrLD interactions. (a–d). DIC microscopy images of a mixture containing 20 mM PrLD with 40 mM fully oxidized GRN-2 (a and b) or reduced rGRN-2 (c and d) in 20 mM MES, pH 6.0. GRN-2 undergoes LLPS with PrLD (highlighted with green box), which shows the coalescence of droplets (a, dashed box), while rGRN-2 undergoes gelation/aggregation (saffron box). GRN-2 or rGRN-2 labeled with HiLyte 405 (blue) and PrLD with HiLyte 647(red) were visualized using confocal fluorescence microscopy, which shows fusion of droplets for GRN-2 (white arrow; b) and deposition of solid aggregates for rGRN-2 (d). (e) Phase diagram for GRN-2 or rGRN-2 with PrLD generated by varying the pH (buffered with 20 mM ammonium formate at pH 4.5 or 20 mM MES at pH 6.0) and concentrations of the respective proteins. (g and h) Phase diagram for varying concentrations of GRN-3 and GRN-5 with 20 mM PrLD at pH 4.5 (f) and pH 6.0 (g). (h) Turbidity measurements monitored at 600 nm for PrLD-GRN-2 reactions with different stoichiometries in increasing NaCl concentrations (1–750 mM). (i) Turbidites of the control reactions for samples in (h). (j) A mixture containing 40 mM GRN-2 with 20 mM PrLD was treated with 5% and 10% 1,6-hexanediol (HD) to monitor its effect on the LLPS of the proteins, which was quantified using OD₆₀₀ values pre- and post HD treatment. Similar treatment was performed for condensates of 20 mM PrLD with either RNA (75 mg/mL) or NaCl (300 mM). The turbidity values were normalized with respect to their values pre-HD treatment (n = 3). The concentrations of components used in this assay (GRN-2, RNA, PrLD, and NaCl) were carefully chosen to be well within the demixing boundary conditions of the individual phase transitions. (k) The turbidity of 20 mM PrLD alone, or in presence of 40 mM GRN-2 or rGRN-2 measured as a function of temperature. The phase boundaries were established by considering an OD₆₀₀ value of 0.14 as a cutoff for phase transitions. Scale bar represents 10 mm. For (e)–(k), three independent data points (n = 3) were averaged. To see this figure in color, go online.

Then LLPS/aggregation phase boundaries were determined for GRN-2 and rGRN-2 with PrLD using turbidimetric assays (Fig. 3 e–g). In all these experiments, LLPS and aggregation were differentiated based on microscopic examination of the samples and phase boundaries established by considering an OD₆₀₀ value of 0.140 a.u. as a cutoff for phase transitions (see section “materials and methods”). To see if the negative charges drive GRN-PrLD LLPS, phase separation was observed at two different pHs: at pH 6.0 where the acidic residues have a net negative charge, and at pH 4.5 where the negative charge of acidic residues attenuated from net charge per residue (NCPR) of −0.07 to −0.01 (Table S1). Although the histidine-tagged PrLD is more positively charged at pH 4.5 (+0.06 NCPR) than at pH 6.0 (+0.02 NCPR), it does not seem to affect phase separation with GRN-2, as the PrLD without His-tag showed no LLPS (Fig. S11 e). At pH 4.5, no phase separation was observed for GRN-2 or rGRN-2 with PrLD (Fig. 3 e, pH 4.5, and Fig. S11 e), but, at pH 6.0, the proteins underwent phase transitions uniformly at a concentration of 10 μM GRN-2 or rGRN-2 in all PrLD concentrations tested (Fig. 3 e, pH 6.0). However, in stark contrast, under fully reducing conditions, co-incubations of rGRN-2 with PrLD showed gelation/aggregation. The phase diagrams of GRN-3 and GRN-5 with PrLD reveal both similarity and disparity in their phase transitions, as previously observed (50) (Fig. 3 f–g). In an acidic environment, neither GRN-3 nor GRN-5 in both redox conditions undergoes phase transition with PrLD (Fig. 3 f), similar to GRN-2. At pH 6.0, both oxidized and reduced forms of GRN-3 show gelation/aggregation exclusively, albeit with a delay (solid precipitates observed after ∼24 h), while incubation with GRN-5 showed LLPS exclusively (Fig. 3 g) (50). Together, these results suggest that the negatively charged residues on GRNs (evident from GRN-5, and data from assays at pH 4.5) are significant contributors of the coacervation with PrLD, while an increasing number of positive charges on the protein modulates the dynamics toward gelation/aggregation (as observed from GRN-2 and GRN-3). Next, we questioned whether GRN-PrLD coacervation was driven by electrostatic interactions, in which case LLPS will be sensitive to salt concentrations. To investigate this, turbidities of different stoichiometric incubations of PrLD and GRN-2 with increasing NaCl concentrations were measured. The data showed progressive decrease in turbidity values with increasing salt concentrations likely due to disruption of electrostatic interactions by NaCl and thus confirming electrostatically driven phase separation between GRN-2 and PrLD (Fig. 3 h). The effect was most prominent in samples containing higher concentrations of the two proteins (Fig. 3 h). Similar titrations were performed on samples of PrLD (varying concentrations) and GRN-2 alone (Fig. 3 i). We observed that samples of PrLD alone (5 μM, 10 μM, 20 μM) initially displayed a lack of turbidity, which increased as titration with NaCl proceeded (Fig. 3 i). In contrast, no rise in turbidity was observed for samples containing 40 μM GRN-2 alone (Fig. 3 i). We also investigated the potential role of hydrophobic residues in mediating LLPS by treating the condensates of GRN-2-PrLD with 1,6-hexanediol (HD), an agent that is known to disrupt weak hydrophobic interactions and dissolve droplets (87,88). Post-treatment analysis showed persistence of the condensates even after treatment with 10% HD (top panels, Fig. 3 j), as shown by turbidity values, albeit with a ∼45% reduction in their levels compared with pre-HD-treated sample. This suggests that hydrophobic interactions contribute to LLPS to some degree. Similar treatments of HD to PrLD-RNA coacervates showed a ∼15% decrease in turbidity, reaffirming that LLPS involving the two was driven mainly by electrostatic interactions (middle panels, Fig. 3 j). In contrast, homotypic coacervation of PrLD induced by salt (300 mM) showed dissolution as much as 90% of droplets upon HD treatment (bottom panels, Fig. 3 j) suggesting that the salt-induced phase separation is predominantly driven by hydrophobic interactions, as proposed earlier (89). Together, the data suggest that GRN-2-PrLD coacervation is an electrostatically driven process. Finally, the temperature dependence of PrLD-GRN-2 phase transitions was examined to establish the upper critical solution temperature (UCST) (54,90). As expected, PrLD underwent self-coacervation in no-salt conditions at 4°C that was attenuated at 25°C, suggesting a UCST between these temperatures (Fig. 3 k). Co-incubation with GRN-2 increased UCST to >49°C, while the sample with rGRN-2 showed gelation/aggregation in all the temperature range recorded (Fig. 3 k).

Negatively charged residues in GRNs drive LLPS, while the positively charged ones enhance gelation or aggregation

The pH dependence on phase transitions (Fig. 3 e and f) and HD treatment (Fig. 3 j) provided important clues regarding the involvement of electrostatic interactions, especially the negatively charged residues. To further investigate these in detail, the phase behavior of the three GRNs, GRN-2, -3, and -5, along with specific mutants of GRN-2, were investigated. As mentioned above, all three GRNs are isoelectronic with respect to the negative charges (−7, −6, and −6, respectively) but contain a varying number of positively charged residues (+2, +4 and 0, respectively) (Fig. 2). As previously shown (50), microscopic investigations of GRN-3 incubated with PrLD in both redox states showed aggregation (saffron box), while GRN-5 showed LLPS (green box) under both redox conditions (Fig. 4 a and b). FRAP confirmed the observations with a rapid recovery for GRN-5 (liquid) and attenuated recovery for GRN-3 (solid) (Fig. 4 a and b). On the other hand, GRN-2 showed LLPS in the oxidized state and aggregation in the reduced state (Fig. 4 c). This suggests that the number of positive charges in GRN-2 is enough to mitigate LLPS in the reduced state but not enough to attenuate LLPS and promote aggregation in the oxidized state. We conjectured that, while negative charges on the GRNs promote LLPS, the positively charged residues tend to shift the equilibrium toward aggregation and solid aggregates. To further substantiate the role of positive charges, a construct was generated in which the two positive charges on GRN-2 were mutated to glutamate (negatively charged) residues to generate a GRN-2 (+/−) mutant that was devoid of any positive charges (net −9 charge), which rendered the mutant similar to GRN-5 electrostatically. If our hypothesis was correct, abrogation of all positively charged residues would promote LLPS in both oxidized and reduced states, identical to GRN-5. Co-incubation of GRN-2 (+/−) and PrLD did show formation of liquid droplets in both fully oxidized and reduced conditions (Fig. 4 d), further cementing our hypothesis that negative charges drive LLPS. To further illustrate this, GRN-7, which has the same number of acidic (−6) residues as the other GRNs but has high number of basic residues (+8), with an overall positive charge (+2), was co-incubated with PrLD (Fig. S5 a). Based on the inferences drawn thus far, enrichment in positively charged residues should drive aggregation/gelation of PrLD, which was confirmed by the presence of solid aggregates on the co-incubated sample monitored for 36 h (Fig. S5 c). Unfortunately, deeper investigations on GRN-7 were precluded by the difficulties in obtaining pure protein, which was susceptible to substantial proteolytic degradation (data not shown). Last, we evaluated the droplets formed by these proteins with PrLD (Fig. S8). The droplet area (μm²) of GRN-2 with PrLD shows a normal distribution centered at ∼25 μm² (Fig. S8, gray), which is similar to that observed for GRN-2(+/−) with PrLD (Fig. S8, red). On the other hand, droplets formed in the reaction with rGRN-2(+/−) and PrLD show noticeable reduction in surface areas with a normal distribution centered at ∼10 μm², suggesting diminished ability of the reduced form to undergo LLPS. Furthermore, to ascertain the contribution of hydrophobic aromatic residues in LLPS, F, Y, and W residues of GRN-2 were mutated to A to generate GRN-2ΔAro mutant. Unfortunately, a significant degree of thiol oxidation to sulfinic acid was observed in this mutant when expressed (Fig. S9 a). Co-incubation of GRN-2ΔAro with PrLD showed amorphous deposits with no recovery in FRAP, suggesting the solid nature of the deposits (Fig. S9 b). However, precise contributions of aromatic residues were undeterminable due to the formation of highly hydrophilic sulfinic acid due to oxidation, which occurs possibly because of solvent-exposed thiols in the absence of a hydrophobic core in GRN-2ΔAro.

Figure 4.

Phase transitions of GRNs and specific mutants. (a–d) Sequence of GRN-3, GRN-5, GRN-2, and GRN-2(+/−) annotated with negative and positive charges present and the net charges on the protein at neutral pH (top of each panel). Individual samples are generated by mixing the respective GRN at 40 mM with 20 mM PrLD, along with 1% (molar) fluorophore-labeled proteins (GRNs are labeled with HiLyte-405 and PrLD with HiLyte 647) buffered in 20 mM MES, pH 6.0. Samples were visualized by fluorescence microscope and their internal dynamics were analyzed by performing FRAP analysis on labeled PrLD (HiLyte-647). Individual micrographs are highlighted with a green border for LLPS and a saffron border for gelation/aggregation. The fluorescence recovery curves were normalized based on pre-bleaching fluorescence intensities. The insets show pre-bleach, post-bleach, and recovery from left to right. Scale bar represents 10 mm. The images are representatives from at least three independent data points (n = 3). To see this figure in color, go online.

The redox state of cysteines in GRNs further tunes phase behavior of PrLD coacervates

It is now clear that the coacervation of GRN and PrLD is driven predominantly by electrostatic interactions, while negative charges on GRNs drive LLPS the increase in the number of positive charges shift the equilibrium toward aggregation. However, the role that the oxidation state of thiols plays in this process remained unclear. Therefore, to understand their effect on PrLD phase transitions, microscopic analysis was performed on the co-incubations of GRN-2 and PrLD as a function of a reducing agent (Fig. 5). To mimic local redox fluxes within the cellular cytoplasm (91), the reactions containing 40 μM GRN-2 and 20 μM PrLD with increasing concentrations (50–600 μM) of the reducing agent TCEP were probed by fluorescence microscopy (Fig. 5 a). The TCEP concentrations used generate partially reduced (50–300 μM) to completely reduced (600 μM) thiols in GRN-2. In the absence of the reducing agent, GRN-2, as expected, underwent LLPS with PrLD forming liquid droplets that undergo fusion and coalescence as observed previously (0 μM TCEP; Fig. 5 a). To ascertain the droplets’ fluid-like properties, their internal dynamics were analyzed by FRAP, which showed a rapid recovery for PrLD, reiterating an archetypal fluidic characteristic of the droplets (red curve, 0 μM TCEP; Fig. 5 a). For reasons unclear at this time, attenuated mobility for the colocalized GRN-2 within the liquid droplets was observed, as seen in its recovery curve (blue curve, 0 μM TCEP; Fig. 5 a). The observed LLPS by oxidized GRN-2 could also arise from the network of intra-molecular disulfide bonds that limit the solvent accessibility of some of the stickers in the sequence. This, in part, is supported by the attenuated FRAP recovery rates for GRN as opposed to PrLD (Fig. 5 a and b) and the solvent exposure of the single tryptophan residue in the middle of the sequence in oxidized and reduced states (Fig. S10).

Figure 5.

Redox state of GRN-2 fine-tunes the phase transitions with PrLD. (a) Reactions containing 20 mM PrLD with 40 mM GRN-2 were initiated separately with increasing TCEP concentrations (50–600 mM) buffered in 20 mM MES, pH 6.0. The hydrophobic and hydrophilic environments around oxidized and reduced cystines, respectively, are schematically presented. (b) Samples were visualized by fluorescence microscopy and probed with FRAP recovery (n = 3). Individual recovery rates of PrLD (red) and GRN-2 (blue) in the reactions of (a) obtained using the initial rate method (n = 3; detailed in section “materials and methods”). (c) Distributions of droplet area (mm²) observed within the micrographs of reactions in (a). The droplet area distributions were extracted using ImageJ where a total of 100 droplets was considered for each sample from at least nine, 20 × 20-mm independent fields from two independent experiments, and normal distribution are plotted (detailed in section “materials and methods”). (d) Schematic depicting the GRN-2(C/A) mutant (cysteines replaced with alanines; purple vertical bars). The micrographs represent reactions of 20 mM PrLD with 40 mM GRN-2(C/A) buffered in 20 mM MES, pH 6.0 along with the FRAP analysis on both labeled PrLD (red; HiLyte-647) and GRN (blue; HiLyte-405). (e and f) Micrographs of mixtures containing 40 mM alkylated GRN-2 (e, 2-free thiols alkylated; f, 12-free thiols alkylated) generated using iodoacetamide, with 20 mM PrLD along with the FRAP analysis. For visualization using fluorescence microscopy, all samples contained 1% fluorophore-labeled proteins (GRN-2, GRN-2(C/A), and alkylated forms were labeled with HiLyte-405, while PrLD was labeled with HiLyte-647. All reactions were initiated and imaged at room temperature. Scale bar represents 20 mm. To see this figure in color, go online.

In the presence of 50 μM TCEP (partially reducing conditions), the magnitude of droplet formation was dampened and structures with an altered morphology were visible alongside spherical droplets (50 μM TCEP; Fig. 5 a). Increasing concentrations of TCEP (150–600 μM) showed numerous smaller droplets and a progressive decrease in fluorescence recovery rates for PrLD (Fig. 5 a and b). The rate constant (k) deduced by an initial-rate method from the FRAP data showed a first-order kinetics for PrLD recovery as a function of reducing agent concentrations, while GRN-2 showed a diminished rate of recovery in fully oxidized and partially reduced (50 μM TCEP) conditions (Fig. 5 b). In fully reducing conditions, the mixture of rGRN-2 and PrLD underwent aggregation, as observed previously (Figs. 3 and 4), generating solid, fibril-like aggregates and was devoid of any droplets, as confirmed via microscopy and FRAP data (600 μM TCEP; Fig. 5 a). The use of other reducing agents, such as dithiothreitol (DTT) and glutathione (GSH), also showed similar results (Fig. S6). Furthermore, analyses of droplet size as a function of the reducing agent provided some interesting insights (Fig. 5 c). The droplet size distributions, in terms of the surface area, were consolidated into two categories of small (area <25 μm²) and large droplets (25 < area <250 μm²). The coacervates in fully oxidized conditions showed a wide distribution of droplet sizes. The surface areas of small droplets were centered at ∼10 μm², with an average droplet size of 8.2 μm² (yellow, Fig. 5 c). In addition, a notable number of droplets larger than 25 μm² were also observed in the sample with an average surface area of ∼60–70 μm² (yellow, Fig. 5 c). Increasing TCEP concentrations (50–600 μM) revealed a discernible shift toward smaller droplet distributions with average surface areas of 4.35, 2.89, and 2.65 μm² for 50, 150, and 300 μM TCEP concentrations, respectively (Fig. 5 c). We attribute this behavior to the reduction in surface tension introduced by way of thiol solvation or hydrogen-bonding interactions.

These results bring out two important points: first, the modulation of phase transitions by potential redox fluctuations does not seem to be abrupt but requires a complete reduction of cysteines to promote gelation or aggregation. Second, cysteine thiols seem to play a role in shifting the equilibrium from the liquid to the gelated/aggregated phase, possibly due to a hydrophilic environment generated and by engaging in hydrogen-bonding interactions with bulk water (solvation) and/or with PrLD (Fig. 5 a). If this is the case, we argued that abrogation of cysteines (and, therefore, thiols) will cause GRN-2 to behave as in fully oxidizing conditions. To test this, all 12 cysteines in GRN-2 were mutated to alanines to generate a GRN-2(C/A) mutant. Indeed, co-incubation of PrLD with GRN-2(C/A) showed the formation of liquid droplets, with rapid fluorescence recovery confirming a fluid-like character (Fig. 5 d). The similarity in the behavior of GRN-2(C/A) and GRN-2 is also apparent from the droplet size observed (Fig. S8). The droplet areas of the mutant form (Fig. S8, green) have a similar distribution to that of the wild type (Fig. S8, gray), with an average value of ∼25 μm². On the contrary, when all the free thiols in the fully reduced form of rGRN-2 were alkylated and capped with acetamide (GRN-12alk), a moiety, which is expected to be both solvated by bulk water and engage in hydrogen-bonding interactions with PrLD perhaps to a greater extent than thiols, the coacervates formed solid-like structures with attenuated internal mobility as revealed by FRAP (Fig. 5 e). Similarly, acetamide alkylation of two free thiols present in the fully oxidized samples (Fig. S4), which mimics partially reducing conditions, also showed no change from those incubated in the presence of 50 μM TECP (Fig. 5 f). The effect of solvent interactions with thiols in the reduced state was further supported by our serendipitous discovery with GRN-2ΔAro mutant. Despite stringent experimental precautions to prevent oxidation of thiols during expression and purification, GRN-2ΔAro mutant showed that up to five cystine thiols were oxidized to sulfinic acids (Fig. S9 a). Since sulfinic acids are strongly hydrophilic, they are likely to be engaged in hydrogen-bonding interactions with the solvent water. In such a case, based on the data obtained so far, one would expect aggregation of PrLD in the presence of GRN-2ΔAro, which is exactly what was observed (Fig. S9 b). Together, the data bring to light the role of cysteine in phase transitions of PrLD and GRNs, which is one of modulatory nature, fine-tuning the transitions only in GRN-2, which happens to fall in category of partially counterbalanced positive and negative charges. As observed before (50), GRN-3 and -5 showed no effect on respective phase transitions due to the extremity of the electrostatics in their respective cases.

GRN-2 delays but induces ThT-positive aggregates of TDP-43 PrLD in oxidized or reduced states

We have previously shown that the concentration-dependent LLPS of PrLD by GRN-5 or aggregation by GRN-3 are accompanied by a delayed emergence of ThT fluorescence (50), which is a reporter of amyloid-like aggregates (92). To see whether GRN-2 in both redox forms induces ThT-positive PrLD aggregates, the co-incubations of increasing concentrations of GRN-2 or rGRN-2 and PrLD were monitored for 24 h in the presence of ThT (Fig. 6 a). All reactions showed slightly elevated ThT levels at the beginning (0 h; Fig. 6 a) but failed to show sigmoidal increase of ThT fluorescence as observed for the control PrLD (Fig. 6 a). This observation was similar to that observed previously with GRN-3 and GRN-5 (50). AFM images obtained after 60 h of incubation for 1:2 molar ratio of PrLD:GRN-2 showed fibrillar structures even though they were attenuated in ThT intensities (Fig. 6 b). However, stark contrast was visible between the morphologies of the PrLD fibrils and these incubated with GRN, suggesting the possibility of different polymorphic structures. Microscopic investigations of the reactions with GRN-2 showed the formation of liquid droplets in all stoichiometric equivalents immediately after incubation (0h; Fig. 6 c). After 24 h, the droplets continue to be present, although a few of them showed morphological changes suggesting possible gelation (24h; Fig. 6 c). To probe this possibility, we performed FRAP on the structures after a 24-h period. Compared with the fluorescence recovery shown by the liquid droplets of 40 μM GRN-2 with 20 μM PrLD (Fig. 6 c, FRAP, 0 h, red), the distorted droplets in all stoichiometric reactions show attenuation in their recovery kinetics (Fig. 6 c, FRAP, 24 h, brown) confirming the progressive gelation of the liquid droplets. In addition, this attenuation positively correlates with GRN-2 concentrations (Fig. 6 c). On the other hand, under fully reducing conditions, incubations of rGRN-2 with PrLD showed an instantaneous formation of insoluble aggregates that persisted after 24 h (Fig. 6 d). However, >60 h of incubations with oxidized and reduced GRN-2 in lower stoichiometric equivalence (up to 1:1 molar ratio) showed increases in ThT intensities toward amyloid-like aggregates (Fig. S7). In contrast, higher molar concentrations of GRN-2 (1:2 molar ratio) led to attenuation of ThT even after ∼60 h (Fig. S7). Similar attenuation of ThT was also observed in the presence of GRN-7 (Fig. S5 b). As noted above, attenuation of ThT alone cannot be considered as inhibition of amyloid formation as the AFM images clearly showed fibrillar aggregates (Fig. 6 b).

Figure 6.

Amyloid formation of PrLD in presence of GRN-2. (a) The amyloid formation of 20 mM TDP-43 PrLD alone (●) or in presence of varying concentrations (2–40 mM) of GRN-2 or rGRN-2, buffered in 20 mM MES, pH 6.0, monitored using 15 mM ThT for a period of 24 h at 37°C under quiescent conditions. (b and c) Micrographs of reactions in (a) visualized using brightfield and fluorescence microscope with 1% fluorophore-labeled PrLD (HiLyte-647) imaged at 0 h and after an incubation of 24 h. (b) AFM images of the 1:2 molar ratio of PrLD:rGRN-2 along with PrLD control. The scale bar represents 200 nm. (c) The droplets observed initially upon mixing GRN-2 with 20 mM PrLD were subjected to FRAP analysis immediately (0 h, red curve) and after 24 h (brown curve). FRAP analysis was performed on labeled PrLD (HiLyte-647). (d) Microscopic visualization of PrLD in the presence of varying concentrations of rGRN-2 (2–40 mM) shows the formation of solid deposits at 0 h and 24 h. Scale bar represents 10 mm. To see this figure in color, go online.

RNA competes and displaces GRN-2 from PrLD coacervates

Under cellular stress conditions, PrLD transfected in SH-SY5Y cells is either found in SGs along with TIA1 or colocalized with GRNs in the cytoplasm, but colocalization of all three was not observed (Fig. S1). We conjectured that it is due to potential competition between GRNs and RNA, in which the latter displaces the former in SGs. To test this, ternary interactions between RNA, GRN-2, and PrLD were investigated in vitro (Fig. 7). PrLD (20 μM) was co-incubated with three GRN-2 concentrations of 10, 20, and 40 μM, and each co-incubated sample was investigated with the addition of increasing RNA (poly-A) concentrations (0–150 μg/mL). The positive control, PrLD, and RNA showed prototypical turbidity increase with increasing RNA concentrations that saturated about 50 μg/mL and showed a slight drop in turbidity at 150 μg/mL (; Fig. 7 a). Increasing RNA concentrations in PrLD-GRN-2 co-incubations also showed similar trends but with higher initial turbidity values (,, and ; Fig. 7 a). Irrespective of the concentration of GRN-2 in the mixture, the eventual turbidity values of all samples converge to that shown by PrLD with 150 μg/mL RNA. This hints at the similar compositional makeup of the final condensates, which is insensitive to GRN-2 concentration in the presence of high RNA concentrations (Fig. 7 a). To probe the internal dynamics of these interactions, we used fluorescence microscopy with fluorophore-labeled proteins and repeated the experimental setup. Co-incubations of varying concentrations of GRN-2 with PrLD, in the absence of RNA, showed droplet formation as expected (0 RNA; Fig. 7 b–e). The addition of increasing amount of RNA to 10 μM GRN-2 incubations showed a steady displacement of GRN-2 (blue) from within the droplet from ∼50 to 75 μg/mL, while PrLD (red) remained largely unaffected (Fig. 7 c). Between 100 and 150 μg/mL of RNA, GRN-2 has been completely displaced from the droplet (Fig. 7 c). Interestingly, the displacement and substitution of GRN-2 did not occur concertedly but involved the formation of coexisting multiphasic condensates with coacervates of PrLD-RNA engulfing those of PrLD-GRN-2, as deduced by the fluorescence intensity plots (Fig. 7 c).

Figure 7.

Ternary interactions between GRN-2, PrLD, and RNA. (a) Turbidity plots obtained by titrating 20 mM PrLD with increasing RNA concentration (25–150 mg/mL) in the presence (pink, 10 mM; orange; 20 mM or gray, 40 mM GRN-2) or the absence of GRN-2 (●) (n = 3). (b–e) Confocal micrographs depicting selective droplets observed in reactions from (a). Displacement of GRN-2 upon titration with RNA was observed by the fluorescence intensity profiles of the respective fluorophore-labeled proteins (GRN-2 with HiLyte-405 and PrLD with HiLyte-647) and was extracted across the width of the droplets using ImageJ (detailed in section “materials and methods”). (f) Microscopic visualization of complex coacervates of 20 mM PrLD with varying RNA concentrations (25–75 mg/mL) generated initially were titrated with 40 mM rGRN-2. (g) Condensates of 20 mM PrLD with varying RNA concentration (25 or 75 mg/mL) were titrated with increasing GRN-2 concentration (10–40 mM) and were visualized microscopically. (h) Schematic depicting the outcome of ternary interactions among GRN-2, RNA, and PrLD. All reactions were initiated and imaged at room temperature. Unless specified, scale bar represents 10 mm. To see this figure in color, go online.

A similar behavior was also observed with samples containing increased GRN-2 concentrations (20 and 40 μM) (Fig. 7 d and e). Such coexisting heterotypic condensates have also been observed in ternary complexes involved in prion-like polypeptide, RNA, and arginine-rich polypeptides (93). Similar to Kaur and colleagues, we observe a ternary system in which RNA-PrLD interactions outcompete and dominate PrLD-GRN-2 interactions by displacing GRN-2. This also suggests that GRN-2 and RNA are mutually exclusive binding partners for PrLD demixing and LLPS, which in turn explains why GRN-2 is not observed in SGs. Furthermore, we also examined the effect of rGRN-2 on the condensates of PrLD-RNA (Fig. 7 f). Here, condensates of 20 μM PrLD with varying RNA concentrations (25–75 μg/mL) were generated, and 40 μM rGRN-2 was added followed by visualization using fluorescence microscopy. We observed that, at a low RNA concentration (25 μg/mL), rGRN-2 is able to interact with unengaged PrLD within the mixture and drive its aggregation (Fig. 7 f, +25 RNA) similar to that observed in the absence of any RNA (Fig. 7 f, 0 RNA). In the condensates of PrLD-RNA generated with higher RNA concentrations (50–75 μg/mL), the external addition of rGRN-2 leads to minimal or no aggregation with the sustenance of RNA-PrLD condensates, as seen in the micrographs (Fig. 7 f, +50 and +75 RNA). We also performed an inverse experiment where GRN-2 was titrated on PrLD-RNA droplets (Fig. 7 g) and observed that high concentrations of GRN-2 coacervates with PrLD presumably displacing RNA. These results provide potential clues to the absence of GRNs in SGs, which is likely the result of high amounts of RNA (and possibly other proteins) in SGs displacing GRNs (Fig. 7 h).

Discussion

The precise role of GRNs in the pathophysiology of neurodegenerative disorders has remained an open question. Under what conditions and cellular cues they are generated from their percussor PGRN, and what role do they play in cellular functions and dysfunction have been points of debate (44,45,94, 95, 96, 97). What we do know is that PGRN secreted from microglia and astrocytes is transported into neuronal lysosomes by a sortilin-mediated pathway (97,98) and its subsequent proteolytic processing generates GRNs within the lysosomes (43,45), but functions of GRNs within lysosomes remain uncertain. PGRN also undergoes proteolytic cleavage extracellularly during chronic inflammation (42) such as in TBI or neurogenerative diseases. The fate of such extracellular GRNs on neuronal functions also remains completely unknown. Here we investigated the possible cellular localization and interaction of extracellular GRNs (GRN-2, -3, and -5) with TDP-43 by treating GRNs onto SHSY5Y neuroblastoma cells that transiently express TDP-43 PrLD. These studies, along with in vitro biophysical investigations on the interactions between the two proteins, have brought out some unexpected properties of GRNs and PrLD that reveal the former’s potential role in FTLD and related TDP-43 proteinopathies.

To understand the fate of extracellular GRNs on neurons, we labeled GRNs with organic fluorophores (HiLyte) to visualize their uptake, but not with protein-based tags that may predispose them for specific cellular localization. The data indicate that the GRNs are taken up by SH-SY5Y cells to be localized not only within the lysosomes (well known) but also in the cytoplasm. More importantly, GRNs colocalize with TDP-43 PrLD in the cytoplasm both under stress and non-stress conditions, indicating their potential involvement in FTLD and ALS pathologies (Fig. 1). Furthermore, under stress conditions, based on the lack of FRAP recovery and absence of colocalization with the SG marker TIA1 (Fig. S1), we could infer that GRNs are not likely to partition within the SGs. In addition, we infer that the cytosolic colocalizations observed are complex cytoplasmic coacervates of PrLD and GRNs. Interestingly, unlike with PrLD, GRNs failed to colocalize with full-length TDP-43 under either non-stress conditions or stress conditions (within SGs) (Fig. S2), illustrating that GRNs may specifically interact with the pathogenic proteolytic PrLD-containing fragments of TDP-43 (99), further implicating their role in pathology.

The dynamics of interactions between GRN-2 and PrLD investigated here have furthered our understanding of the possible mechanisms by which GRNs could modulate intracellular inclusions of TDP-43. Coacervation of TDP-43 with RNA has been known to be electrostatically driven (78,81). In the present study, we have used PrLD containing an N-terminal hexa-histidine tag (Fig. 2 a). We observed that cleavage of the tag prohibitively decreases the yields of the protein for biophysical investigations as also reported by others (100). Furthermore, the hexa-histidine tag was computed to carry only a slight overall positive charge at pH 6.0 (101); the presence of D, E, and K residues alongside the histidine tag in the linker further nullifies positive charges and possesses a net negative charge for this segment, and, therefore, we believe the tag does not contribute to phase separation. This was further confirmed by our results with histidine-tag-removed PrLD, which did not show differences in its phase separation behavior with GRNs (Fig. S11), as observed previously by other groups also (50), dismissing the possibility of tag contributing to phase separation. It has to be borne in mind that negatively charged residues in PrLD are likely to play a role in the phase transitions with GRNs. However, our focus in this work is to uncover how charge patterns on the GRNs influence phase modulations with PrLD. To this effect, wild-type PrLD was held constant as an unchanged parameter so as to analyze only the sequence contributors on GRNs; i.e., no mutations or post-translational modifications were made on PrLD to dissect its sequence contributions, although this is of great interest for our future and ongoing investigations.

Earlier, we showed that coacervation with GRNs is likely driven by the net charges on the protein (50). The charge distributions on GRN-2, -3, and -5 show that they have similar number of negative charges (∼−7) but vary in the number of positive charges; GRN-2 with +2 is in the middle between GRN-3 and -5, which have +4 and 0 positively charged residues, respectively) (Fig. 2). While the net charge on GRN-2, -3- and -5 is negative (−4.21, −2.03, and −6.00, respectively), GRN-7 has net positive charge (+2.78) (Table S1). This trend is also reflected in the NCPR values (Table S1). Hydropathy indices of all these GRNs are similar (∼4.50) except for GRN-7 (3.90) (Table S1). This facilitated the investigations on GRN-2’s interactions with PrLD to draw biophysically meaningful inferences as GRN-3 and -5 have been shown to display a spectrum of phase transitions upon interacting with PrLD (50). The results presented here establish that the negative charges are the main driving forces of LLPS between GRNs and PrLD, while the increase in the number of positive charges shifts the equilibrium toward aggregation (Fig. 8 a). To a lesser degree, hydrophobic interactions may also contribute but certainly do not seem to drive LLPS. Interestingly, by simply modulating the charges on GRNs, one could seemingly control the dynamics of phase transitions and coacervation with PrLD, as summarized in Fig. 8 b–g. When under the control of purely negative charges on GRN, PrLD undergoes LLPS to form droplets that are demixed from the solution (Fig. 8 b and c). This can be explained based on polyphasic linkage and ligand binding effect on phase transitions as recently postulated by Ruff and coworkers (102). Based on their work, preferential binding of a ligand (GRN) to the scaffold (PrLD) in dilute or dense phase can be expressed as

$$C_{dil,L}=C_{dil}\left(\frac{P_{dil}}{P_{den}}\right)$$

where C_dil,L is concentration of the scaffold in the coexisting dilute phase in ligand’s presence, and P_dil and P_den are binding polynomials that define ligand binding to the scaffold in respective phases. If P_dil > P_den, i.e., binding of ligand to the scaffold is greater in the dilute phase, C_dil,L > C_den, LLPS gets suppressed and when P_dil < P_den LLPS is augmented. Therefore, negative charges potentiate multivalent electrostatic charges with PrLD to preferentially partition into the dense phase, thus promoting LLPS. Increasing the number of positive charges to +4 shifts the equilibrium toward the formation of solid aggregates possibly by engaging in additional salt-bridge interactions with acidic residues of PrLD, preferably in the dilute phase (Fig. 8 d and e). These interactions, we speculate, also promote aggregation. Unfortunately, we do not have experimental evidence for this extreme case (high positive charges and no negative charges), because such a mutant posed difficulty in recombinant expression in E. coli and thus could not be purified (data not shown). However, the results obtained from GRN-7 (Fig. S5), which has a high number of positive charges (+8), serves as a good proxy and strengthens the validity of the idea that GRNs have modulatory capabilities, especially when it is known that not all GRN levels are the same in cells (103).

Figure 8.

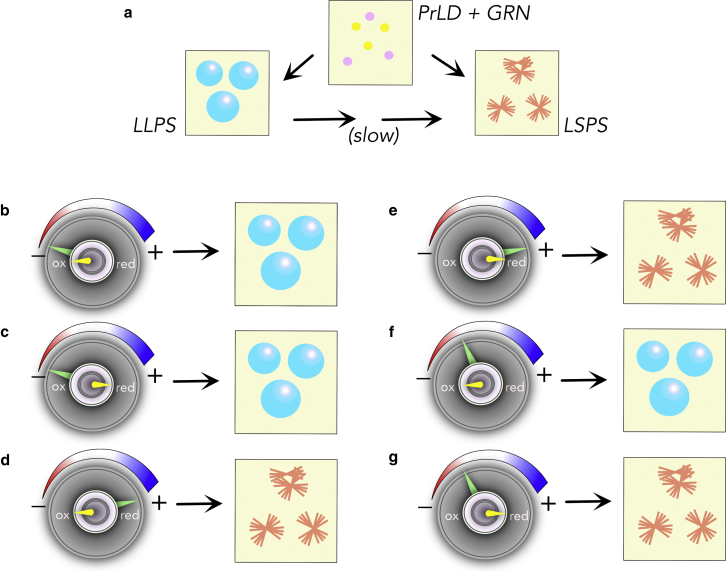

Schematic summary of coacervation between GRNs and PrLD. (a) Phase transitions of PrLD induced by GRNs. (b–g) Phase changes are coarsely controlled by electrostatic interactions (large knob), while they are finely controlled by the redox state (smaller knob) for some select conditions discovered in this report. To see this figure in color, go online.

Perhaps the most interesting aspect of phase transitions between PrLD and GRNs is the role of cysteines and redox control. Our data indicate that, when under compensatory positive and negative charge regimes in GRNs, redox conditions dictate the phase transitions (Fig. 8 f and g). Under fully reducing conditions, thiols in cysteines may participate in a network of hydrogen-bonding interactions with Ser and/or Asn residues that are abundant in PrLD. Both these residues are conducive partners of cysteines as hydrogen-bonding donors and acceptors (104) and are abundant in PrLD (together accounting for ∼25% of the sequence). Empirically, it is evident that these additional valences increase solute-solute interactions that shift the equilibrium out of the liquid-like state toward an aggregated state. The possibility of such a scenario is supported by the behavior of the alkylated forms of GRN-2 (Fig 5), where the polar acetamide adducts can engage in similar interactions. However, under oxidizing conditions, the disulfide-bonded cysteines that preclude such interactions are abrogated, and therefore maintain weak and transient interactions that promote LLPS and a demixed state. From this, we surmise that the positively charged residues and thiols help fine-tune the phase transitions. It is important to note that not an abrupt change but a continuum of phase changes is observed when traversing from one end of the redox spectrum to the other (Fig 5), which indicates that, even under partially reducing conditions, LLPS can occur, albeit to a lesser degree. Therefore, it seems plausible that GRN-PrLD droplets and aggregates could co-exist in the cytoplasm, which largely presents a reducing environment.

The data presented here unambiguously establish coacervation between PrLD and GRNs, but the absence of GRNs in SGs within PrLD or full-length TDP-43 expressing neuroblastoma cells seems counter-intuitive at the outset. However, the ternary interactions between PrLD, GRN-2, and RNA offer clues for the inability of GRNs to partition into SGs. GRN within the condensates of PrLD simply gets displaced by a stronger electrostatic ligand, RNA, which abrogates the possibility of the three coexisting within the SGs. Given that SGs also contain many other phase-separating proteins, such as TIA1 (66), G3BP1 (105), and hnRNPA1 (106), the likelihood of GRNs partitioning into SGs is probably low. Furthermore, it is also interesting to observe that RNA can outcompete GRN-2 in reducing conditions, where it forms insoluble aggregates with PrLD (Fig 7). This, along with the observed colocalization of GRN and PrLD as puncta in both non-stress and stress conditions, suggests that SGs could partly mitigate the potential toxicity posed by GRN-PrLD inclusions, which eventually transition to amyloids, with an intervening gelated phase.

This report also brings out the first evidence for the cellular uptake of extracellular GRNs and their cytoplasmic colocalization with PrLD. The exquisite control and tuning of coacervation of PrLD by GRNs via electrostatics and redox flux present intriguing possibilities by which GRNs can influence pathology. During acute inflammation, when GRNs are known to be generated in abundance by microglia and astrocytes (42,107, 108, 109), these pro-inflammatory molecules are taken up by neurons, where they modulate the dynamics of cytotoxic proteolytic fragments of TDP-43. Even with haploinsufficiency of PGRN, which is a risk factor for FTLD, it can be conjectured that inflammation could lead to augmented production of GRNs that could compensate for the loss in PGRN (42). Perhaps the most interesting aspect when observing the sequence of the seven GRNs is that they seem to have a perfect combination and spectrum of positive and negative charges to eloquently modulate TDP-43 phase transitions. It also seems to be that the extracellular cleavage of PGRN may be asymmetric, leading to a greater abundance of one GRN over another (106), which could play a role in the modulation of TDP-43. Nevertheless, precisely what cellular consequences these inclusions and coacervates possess remains unclear at this time. A few possibilities include induction of mitochondrial, lysosomal, and autophagic dysfunction. Some of these will be unearthed in the coming years with the establishment of complex interactions and phase transitions between GRNs and TDP-43 PrLD, as described in this report.

Author contributions

V.R. conceptualized the project. A.A.B. performed protein expression and biophysical experiments. S.D. performed the cell culture experiments. H.G.A. and S.M. performed AFM experiments. V.R., A.A.B., and S.D. participated in intellectual discussions and manuscript writing and editing.

Editor: Jane Dyson.
