Synthesis and crystal structure of bis­[trans-di­aqua­(1,4,8,11-tetra­aza­cyclo­tetra­decane-κ⁴ N ¹,N ⁴,N ⁸,N ¹¹)nickel(II)] trans-(1,4,8,11-tetra­aza­cyclo­tetra­decane-κ⁴ N ¹,N ⁴,N ⁸,N ¹¹)bis­[4,4′,4′′-(1,3,5-tri­methyl­benzene-2,4,6-tri­yl)tris­(hydrogen phenyl­phospho­nato-κO)]nickel(II) deca­hydrate

The centrosymmetric trans-NiN₄O₂ coordination polyhedra of the Ni²⁺ ions in the complex cations and anions of the title compound are tetra­gonally distorted octa­hedra. In the crystal, O—H⋯O hydrogen bonds between the phospho­nate groups of the anions result in the formation of layers oriented parallel to the bc plane, which are further arranged into a three-dimensional network due to hydrogen-bonding involving the macrocyclic di-aqua cations and water mol­ecules.

Abstract

The components of the title compound, [Ni(C₁₀H₂₄N₄)(H₂O)₂]₂[Ni(C₁₀H₂₄N₄)(C₂₇H₂₄O₉P₃)₂]·10H₂O are two centrosymmetric [Ni(C₁₀H₂₄N₄)(H₂O)₂]²⁺ dications, a centrosymmetric [Ni(C₁₀H₂₄N₄)(C₂₇H₂₄O₉P₃)₂]⁴⁻ tetra-anion and five crystallographically unique water mol­ecules of crystallization. All of the nickel ions are coordinated by the four secondary N atoms of the macrocyclic cyclam ligands, which adopt the most energetically stable trans-III conformation, and the mutually trans O atoms of either water mol­ecules in the cations or the phospho­nate groups in the anion in a tetra­gonally distorted NiN₄O₂ octa­hedral coordination geometry. Strong O—H⋯O hydrogen bonds between the protonated and the non-protonated phospho­nate O atoms of neighboring anions result in the formation of layers oriented parallel to the bc plane, which are linked into a three-dimensional network by virtue of numerous N—H⋯O and O—H⋯O hydrogen bonds arising from the sec-NH groups of the macrocycles, phospho­nate O atoms and coordinated and non-coordinated water mol­ecules.

1. Chemical context

First-row transition-metal complexes of 14-membered cyclam-like tetra­aza macrocyles (cyclam = 1,4,8,11-tetra­aza­cyclo­tetra­decane; C₁₀H₂₄N₄; L) are characterized by high thermodynamic stability and kinetic inertness (Yatsimirskii & Lampeka, 1985 ▸) and are popular metal-containing building units for the construction of MOFs (Lampeka & Tsymbal, 2004 ▸; Suh & Moon, 2007 ▸; Suh et al., 2012 ▸; Stackhouse & Ma, 2018 ▸). These crystalline coordination polymers, in which oligo­carboxyl­ates are the most common bridging ligands (Rao et al., 2004 ▸), possess permanent porosity and demonstrate many promising applications in different areas (MacGillivray & Lukehart, 2014 ▸; Kaskel, 2016 ▸).

The rigid trigonal aromatic linker 1,3,5-benzene­tri­carboxyl­ate, C₉H₃O₆ ^3–, is widely used for the assembly of MOFs based on aza­macrocyclic cations (Lampeka & Tsymbal, 2004 ▸). Its tris-monodentate coordination in the trans-axial coordination positions of the metal ions leads predominantly to the formation of two-dimensional coordination polymers with hexa­gonal nets of 6³ topology (Alexandrov et al., 2017 ▸). Usually, the modification of this bridge through the substitution of the carb­oxy­lic groups by para-carb­oxy­benzyl fragments (the ligand H₃BTB, 4,4′,4′′-benzene-1,3,5-triyltri­benzoic acid) does not affect the coordination properties of the carboxyl­ate groups or the topological characteristics of polymeric nets but results in the enlargement of the hexa­gonal structural unit of the coordination polymers allowing inter­penetration of the subnets (Lampeka et al., 2012 ▸; Gong et al., 2016 ▸). Compared to carboxyl­ates, linkers with other coordinating functions, in particular oligo­phospho­nates, have been studied to a much lesser extent (Gagnon et al., 2012 ▸; Firmino et al., 2018 ▸; Yücesan et al., 2018 ▸), though one can expect that the substitution of a mono-anionic carb­oxy­lic group by a di-anionic phospho­nate group with distinct acidity, number of donor atoms and spatial directivity of coordination bonds will strongly influence the composition and topology of the coordination nets. However, except for a very recent publication (Tsymbal et al., 2022 ▸), no papers dealing with structural characterization of the complexes formed by metal aza­macrocyclic cations and phospho­nate ligands have been published to date.

We report here the synthesis and crystal structure of the product of the reaction of [Ni(L)](ClO₄)₂ with 4,4′,4′′-(1,3,5-tri­methyl­benzene-2,4,6-tri­yl)tri­phospho­nic acid, H₆Me₃BTP) – the structural analogue of H₃BTB, namely, bis­[trans-di­aqua-(1,4,8,11-tetra­aza­cyclo­tetra­decane-κ⁴ N ¹,N ⁴,N ⁸,N ¹¹)-nickel(II)] trans-{bis-[4,4′,4′′-(1,3,5-tri­methyl­benzene-2,4,6-tri­yl)tris­(hydrogen phenyl­phospho­nato-κO)-(1,4,8,11-tetra­aza­cyclo­tetra­decane-κ⁴ N ¹,N ⁴,N ⁸,N ¹¹)-nickel(II)]} deca­hydrate, [Ni(L)(H₂O)₂]₂[Ni(L)(H₃Me₃BTP)₂]·10H₂O, I.

2. Structural commentary

The mol­ecular structure of I is shown in Fig. 1 ▸. It represents a non-polymeric compound in which atom Ni1 is coordinated by two monodentate H₃Me₃BTP^3– ligands via their phospho­nate O atoms, resulting in the formation of an [Ni(L)(H₃Me₃BTP)₂]^4– complex anion, which is charge-balanced by two structurally non-equivalent [Ni(L)(H₂O)₂]²⁺ divalent cations formed by atoms Ni2 and Ni3. The coordination geometries of all the nickel ions in I have much in common: the Ni²⁺ ions (all with site symmetry ) are coordinated by the four secondary N atoms of the macrocyclic ligands L, which adopt the most energetically stable trans-III (R,R,S,S) conformation (Bosnich et al., 1965a ▸; Barefield et al., 1986 ▸) with the five-membered (N—Ni—N bite angles ≃ 85°) and six-membered (N—Ni—N bite angles ≃ 95°) chelate rings in gauche and chair conformations, respectively (Table 1 ▸). The coordination polyhedra of the metal ions can be described as tetra­gonally elongated trans-NiN₄O₂ octa­hedra with the Ni—N bond lengths [average value 2.068 (3) Å] slightly shorter than the Ni—O bonds which, in turn, do not display any dependence on the nature of the donor oxygen atoms. The location of the metal ions on crystallographic inversion centers enforces strict planarity of the Ni(N₄) coordination moieties and the axial Ni—O bonds are nearly orthogonal to the NiN₄ planes (deviations of the angles N—Ni—O from 90° do not exceed 2°).

Figure 1.

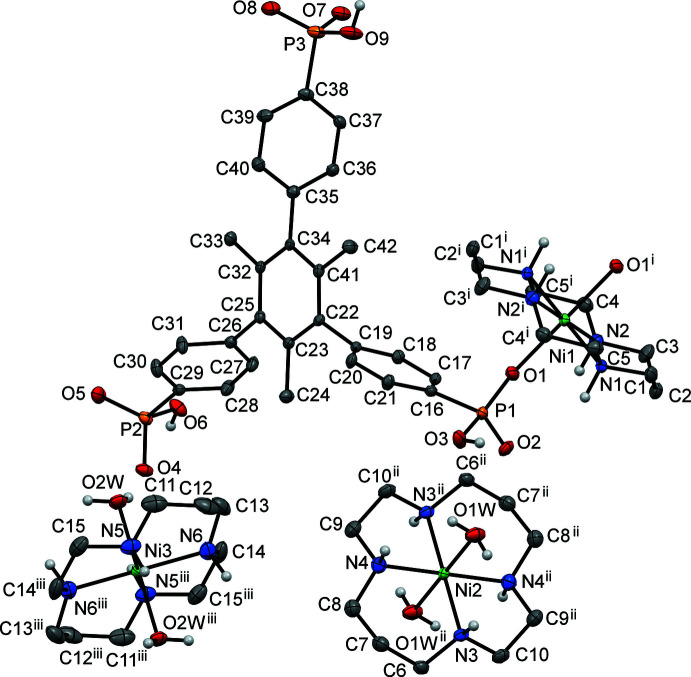

The extended asymmetric unit in I showing the coordination environment of the Ni atoms and the atom-labeling scheme (displacement ellipsoids are drawn at the 30% probability level). C-bound H atoms and uncoordinated water molecules are omitted for clarity. Symmetry codes: (i) −x + 2, −y + 1, −z + 2; (ii) −x + 2, −y + 2, −z + 1; (iii) −x + 1, −y + 3, −z + 1.

Table 1. Selected geometric parameters (Å, °).

Ni1—N1	2.067 (4)	Ni2—O1W	2.105 (4)
Ni1—N2	2.064 (4)	Ni3—N5	2.070 (4)
Ni1—O1	2.134 (3)	Ni3—N6	2.056 (5)
Ni2—N3	2.072 (4)	Ni3—O2W	2.136 (3)
Ni2—N4	2.076 (4)
N1—Ni1—N2i	85.31 (16)	N3—Ni2—N4	95.34 (16)
N1—Ni1—N2	94.69 (16)	N5—Ni3—N6iii	85.2 (2)
N3—Ni2—N4ii	84.66 (16)	N5—Ni3—N6	94.8 (2)

Symmetry codes: (i) ; (ii) ; (iii) .

The pendant benzene rings of the H₃Me₃BTP^3– tri-anion in I are substanti­ally tilted relative to the central aromatic core [average angle between the mean planes = 76 (5)°] and this feature is caused by repulsive inter­actions between the hydrogen atoms of the pendant rings and those of the methyl substituents of the central ring. The P—OH bond lengths [average value 1.57 (3) Å] are larger than the other P—O bonds [average value 1.501 (5) Å], thus indicating the partially delocalized character of the phospho­nate groups.

3. Supra­molecular features

In the crystal of I, the [Ni1(L)(H₃Me₃BTP)₂]^4– anions, [Ni2/Ni3(L)(H₂O)₂]²⁺ cations and water mol­ecules of crystallization are linked by numerous hydrogen bonds with participation of the phospho­nate groups, the secondary amino groups of the macrocycles and both the coordinated and crystalline water mol­ecules (Table 2 ▸). A distinct lamellar structure is inherent for this compound. In particular, strong hydrogen-bonding inter­actions between the protonated fragments of the P1 and P3 phospho­nate groups of one mol­ecule as the donors with the non-protonated O4 and O5 atoms of the P2 group of another mol­ecule as the acceptors [P1—O3—H3C⋯O5(x, y − 1, z), P3—O9—H9C⋯O49(x, y − 1, z + 1)], together with a weak N1—H1⋯O6 (x, y − 1, z) hydrogen bond between the secondary amino group of the macrocyclic cation [Ni1(L)] and protonated P2—O6 phospho­nate fragment result in the formation of anionic layers oriented parallel to the bc plane. The distance between the parallel mean planes of the staggered by 60° tri­methyl­benzene rings of neighboring H₃Me₃BTP^3– anions is 5.248 (3) Å, thus allowing us to exclude the possibility of aromatic π–π stacking inter­actions between them. Additionally, the negative charge of the layers are partially compensated by the incorporation within the layers of the [Ni2(L)(H₂O)₂]²⁺ cations via hydrogen bonding between the coordinated water mol­ecules and the phos­phon­ate O7 atom [O1W—H1WB⋯O7(x, y, z − 1)] (Fig. 2 ▸).

Table 2. Hydrogen-bond geometry (Å, °).

D—H⋯A	D—H	H⋯A	D⋯A	D—H⋯A
N1—H1⋯O6iv	1.00	2.32	3.196 (5)	146
N2—H2⋯O6W	1.00	2.18	3.039 (6)	143
N3—H3⋯O7v	1.00	2.13	3.102 (6)	162
N4—H4⋯O4W	1.00	2.06	3.056 (6)	173
N5—H5⋯O9vi	1.00	2.07	3.003 (6)	155
N6—H6⋯O7W ii	1.00	1.98	2.956 (6)	166
O3—H3C⋯O5iv	0.84	1.84	2.654 (5)	162
O6—H6C⋯O3W vii	0.84	1.75	2.550 (5)	159
O9—H9C⋯O4viii	0.84	1.74	2.517 (5)	154
O1W—H1WB⋯O7v	0.87	1.81	2.679 (5)	173
O1W—H1WA⋯O4W	0.87	2.45	3.256 (6)	155
O2W—H2WB⋯O4	0.86	1.90	2.729 (5)	164
O2W—H2WA⋯O7W ix	0.86	1.81	2.675 (6)	174
O3W—H3WB⋯O2	0.87	1.81	2.676 (4)	177
O3W—H3WA⋯O7v	0.85	1.84	2.689 (5)	174
O4W—H4WB⋯O3	0.87	2.26	3.115 (6)	167
O4W—H4WA⋯O8v	0.87	1.93	2.796 (6)	172
O5W—H5WB⋯O5x	0.87	1.98	2.813 (5)	159
O5W—H5WA⋯O8xi	0.87	1.87	2.725 (5)	168
O6W—H6WB⋯O2	0.87	2.02	2.799 (6)	149
O6W—H6WA⋯O5W	0.87	2.00	2.842 (5)	164
O7W—H7WB⋯O3W	0.85	2.02	2.731 (5)	140
O7W—H7WA⋯O5W	0.86	1.83	2.688 (5)	173

Symmetry codes: (ii) ; (iv) ; (v) ; (vi) ; (vii) ; (viii) ; (ix) ; (x) ; (xi) .

Figure 2.

The hydrogen-bonded (dashed lines) layers in I viewed down the a axis. C-bound H atoms and macrocyclic cations formed by Ni3 have been omitted; C and N atoms of the macrocyclic cations formed by Ni2 are shown in green.

The second macrocyclic aqua cation [Ni3(L)(H₂O)₂]²⁺, due to hydrogen bonding of the coordinated water mol­ecule with the phospho­nate O4 atom (O2W—H2WB⋯O4), serves as the bridge between the layers, arranging them into a three-dimensional network (Fig. 3 ▸), which is further stabilized by numerous O—H⋯O hydrogen bonds involving the water mol­ecules of crystallization, O3W–O7W (Table 2 ▸).

Figure 3.

The structure of I viewed down the b axis. C-bound H atoms have been omitted; C and N atoms of the macrocyclic cation formed by Ni2 and Ni3 are shown in green and violet, respectively. Water mol­ecules of crystallization are not shown; hydrogen bonds are depicted as dashed lines.

4. Database survey

A search of the Cambridge Structural Database (CSD, version 5.43, last update March 2022; Groom et al., 2016 ▸) gave no hits related to H₆Me₃BTP or its complexes with metal ions, so the present work is the first structural characterization of a complex of this ligand. At the same time, several works dealing with the structures of the non-methyl­ated analogue of the phospho­nate under consideration, namely, 4,4′,4′′-benzene-1,3,5-triyl-tri­phospho­nic acid (H₆BTP), have been published. They include a methanol solvate of the free acid (CSD refcode AKEPEO; Vilela et al., 2021 ▸) and its pyridinium salt (YOLGEM; Beckmann et al., 2008 ▸), mol­ecular complexes with solvated Co^II and Ni^II ions (OQIZAR and OQIZEV; Pili et al., 2016 ▸) and coordination polymers formed by Sr^II (SOTZOR; Vaidhyanathan et al., 2009 ▸), Zn^II (ISELAV02; Hermer et al., 2016 ▸), Y^III (AKEPOY; Vilela et al., 2021 ▸), Zr^IV (COCLIR; Taddei et al., 2014 ▸) and V^IV/V (COQNAY; Ouellette et al., 2009 ▸). Inter­estingly, as in I, in all the metal complexes except COCLIR and ISELAV02, the ligand acts as a H₃BTP^3– tri-anion with three monodeprotonated phos­phon­ate groups. On the other hand, because of the absence of methyl substituents, the mol­ecules of the anions H _n BTP^(6–n)– as a whole are flatter than H₃Me₃BTP^3– in I with a maximal tilting angle of pendant versus central benzene rings of ca 49° observed in ISELAV02. In addition, in the majority of complexes formed by H _n BTP^(6–n)– ligands (except AKEPOY and ISELAV02), aromatic π–π stacking inter­actions of different strengths are observed with centroid-to-centroid distances between the central aromatic rings ranging from 3.4 to 3.9 Å.

The Cambridge Structural Database contains also 18 hits describing the structure of the [Ni(L)(H₂O)₂]²⁺ complex cation in salts of different inorganic and organic anions as well as the charge-compensating part in anionic coordination polymers. In general, the structure of this cation in I is similar to other compounds, both from the point of view of the conformation of the macrocycle and the bond distances and angles characterizing the coordination polyhedron of the metal.

5. Synthesis and crystallization

All chemicals and solvents used in this work were purchased from Sigma–Aldrich and used without further purification. The acid H₆Me₃BTP was synthesized according to a procedure described previously for the preparation of H₆BTP (Vaidhyanathan et al., 2009 ▸), starting from 1,3,5-trimethyl-2,4,6-tris­(4′-bromo­phen­yl)benzene instead of 1,3,5-tris­(4′-bromo­phen­yl)benzene. The complex [Ni(L)](ClO₄)₂ was prepared from ethanol solutions as described in the literature (Bosnich et al., 1965b ▸).

The title compound [Ni( L )(H₂O)₂]₂[Ni( L )(H₃Me₃BTP)₂]·10H₂O, I, was prepared as follows. A solution of [Ni(L)](ClO₄)₂ (46 mg, 0.1 mmol) in 5 ml of water was added to 5 ml of an aqueous solution of H₆Me₃BTP (18 mg, 0.03 mmol) containing 2 ml of pyridine. The pink precipitate, which formed in a week, was filtered off, washed with small amounts of water, methanol and diethyl ether, and dried in air. Yield: 7 mg (10% based on acid). Analysis calculated for C₈₄H₁₄₈N₁₂Ni₃O₃₂P₆: C 45.85, H 6.78, N 7.64%. Found: C 45.73, H 6.87, N 7.51%. Single crystals of I suitable for X-ray diffraction analysis were selected from the sample resulting from the synthesis.

Caution! Perchlorate salts of metal complexes are potentially explosive and should be handled with care.

6. Refinement

Crystal data, data collection and structure refinement details are summarized in Table 3 ▸. H atoms in I were placed in geometrically idealized positions and constrained to ride on their parent atoms, with C—H distances of 0.95 Å (ring H atoms), 0.98 Å (methyl H atoms), 0.99 Å (methyl­ene H atoms), N—H distances of 1.00 Å, O—H distances of 0.84 Å (protonated phospho­nate groups) and 0.87 Å (water mol­ecules) with U _iso(H) values of 1.2U _eq or 1.5U _eq times those of the corresponding parent atoms.

Table 3. Experimental details.

Crystal data
Chemical formula	[Ni(C10H24N4)(H2O)2]2[Ni(C10H24N4)(C27H24O9P3)2]·10H2O
M r	2200.09
Crystal system, space group	Triclinic, P
Temperature (K)	160
a, b, c (Å)	9.8779 (5), 17.2467 (11), 17.6707 (11)
α, β, γ (°)	61.409 (6), 77.515 (5), 77.713 (5)
V (Å3)	2559.7 (3)
Z	1
Radiation type	Mo Kα
μ (mm−1)	0.72
Crystal size (mm)	0.40 × 0.10 × 0.10
Data collection
Diffractometer	Rigaku Xcalibur Eos
Absorption correction	Multi-scan (CrysAlis PRO; Rigaku OD, 2020 ▸)
T min, T max	0.701, 1.000
No. of measured, independent and observed [I > 2σ(I)] reflections	23737, 9657, 6598
R int	0.063
(sin θ/λ)max (Å−1)	0.610
Refinement
R[F 2 > 2σ(F 2)], wR(F 2), S	0.067, 0.161, 1.02
No. of reflections	9657
No. of parameters	629
No. of restraints	1
H-atom treatment	H-atom parameters constrained
Δρmax, Δρmin (e Å−3)	0.67, −0.46

Computer programs: CrysAlis PRO (Rigaku OD, 2020 ▸), SHELXT (Sheldrick, 2015a ▸), SHELXL2018/3 (Sheldrick, 2015b ▸), Mercury (Macrae et al., 2020 ▸) and publCIF (Westrip, 2010 ▸).

Supplementary Material

CCDC reference: 2178456

Additional supporting information: crystallographic information; 3D view; checkCIF report

supplementary crystallographic information

Crystal data

[Ni(C10H24N4)(H2O)2]2[Ni(C10H24N4)(C27H24O9P3)2]·10H2O	Z = 1
Mr = 2200.09	F(000) = 1166
Triclinic, P1	Dx = 1.427 Mg m−3
a = 9.8779 (5) Å	Mo Kα radiation, λ = 0.71073 Å
b = 17.2467 (11) Å	Cell parameters from 5403 reflections
c = 17.6707 (11) Å	θ = 2.1–26.3°
α = 61.409 (6)°	µ = 0.72 mm−1
β = 77.515 (5)°	T = 160 K
γ = 77.713 (5)°	Prism, clear light colourless
V = 2559.7 (3) Å3	0.40 × 0.10 × 0.10 mm

Data collection

Rigaku Xcalibur Eos diffractometer	9657 independent reflections
Radiation source: fine-focus sealed X-ray tube, Enhance (Mo) X-ray Source	6598 reflections with I > 2σ(I)
Graphite monochromator	Rint = 0.063
Detector resolution: 16.1593 pixels mm-1	θmax = 25.7°, θmin = 2.1°
ω scans	h = −11→12
Absorption correction: multi-scan (CrysAlisPro; Rigaku OD, 2020)	k = −21→20
Tmin = 0.701, Tmax = 1.000	l = −21→21
23737 measured reflections

Refinement

Refinement on F2	Primary atom site location: structure-invariant direct methods
Least-squares matrix: full	Hydrogen site location: mixed
R[F2 > 2σ(F2)] = 0.067	H-atom parameters constrained
wR(F2) = 0.161	w = 1/[σ2(Fo2) + (0.0527P)2 + 4.2781P] where P = (Fo2 + 2Fc2)/3
S = 1.02	(Δ/σ)max < 0.001
9657 reflections	Δρmax = 0.67 e Å−3
629 parameters	Δρmin = −0.46 e Å−3
1 restraint

Special details

Geometry. All esds (except the esd in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell esds are taken into account individually in the estimation of esds in distances, angles and torsion angles; correlations between esds in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell esds is used for estimating esds involving l.s. planes.
