Co Nanoparticle Catalysts Encapsulated by BaO–La2O3 Nanofractions for Efficient Ammonia Synthesis Under Mild Reaction Conditions

Shin-ichiro Miyahara †, Katsutoshi Sato †,*, Kotoko Tsujimaru ‡, Yuichiro Wada ‡, Yuta Ogura †, Takaaki Toriyama §, Tomokazu Yamamoto ∥, Syo Matsumura §,∥, Koji Inazu ⊥, Katsutoshi Nagaoka †,*
PMCID: PMC9301956  PMID: 35874216

Abstract

graphic file with name ao2c01973_0009.jpg

Ruthenium catalysts may allow for realization of renewable energy-based ammonia synthesis processes using mild reaction conditions (<400 °C, <10 MPa). However, ruthenium is relatively rare and therefore expensive. Here, we report a Co nanoparticle catalyst loaded on a basic Ba/La2O3 support and prereduced at 700 °C (Co/Ba/La2O3_700red) that showed higher ammonia synthesis activity at 350 °C and 1.0–3.0 MPa than two benchmark Ru catalysts, Cs+/Ru/MgO and Ru/CeO2. The synthesis rate of the catalyst at 350 °C and 1.0 MPa (19.3 mmol h–1 g–1) was 8.0 times that of Co/Ba/La2O3_500red and 6.9 times that of Co/La2O3_700red. The catalyst showed ammonia synthesis activity at temperatures down to 200 °C. Reduction at the high temperature induced the formation of BaO–La2O3 nanofractions around the Co nanoparticles by decomposition of BaCO3, which increased turnover frequency, inhibited the sintering of Co nanoparticles, and suppressed ammonia poisoning. These strategies may also be applicable to other non-noble metal catalysts, such as nickel.

1. Introduction

Ammonia (NH3) is an essential chemical feedstock in the modern chemical industry. More than 80% of the ammonia generated today is used as chemical fertilizer, and ammonia has made a huge contribution to solving the food crisis that resulted from the population explosion in the 20th century.1−3 Recently, ammonia has attracted attention as a hydrogen and energy carrier for greater utilization of renewable energy, and as a decarbonized fuel for use in power plants and ships.4−7 Ammonia, therefore, is considered an important material for realizing a sustainable society.

Traditionally, ammonia has been produced via the Haber–Bosch process. The Haber–Bosch process uses very high pressures and temperatures (>450 °C and >20 MPa) and has been highly optimized from a process engineering standpoint. However, the process uses fossil fuels as its source of hydrogen, and therefore, it emits large amounts of CO2 (1.9 ton-NH3–1) into the atmosphere.8 If ammonia could be produced from hydrogen produced by renewable energy, the process could be harnessed to speed up decarbonization, slow down global warming, and increase food production, which are three important current global issues.9 A major milestone in the realization of green ammonia synthesis systems using H2 produced by renewable energy is the development of catalysts that have high ammonia activity under mild conditions (<400 °C, <10 MPa).

The catalysts most commonly used in the Haber–Bosch process are Fe-based; however, these catalysts require a high temperature and pressure to dissociate the N≡N triple bond (945 kJ mol–1), and, therefore, are not suitable for use in conjunction with renewable energy.10−13 In contrast, Ru catalysts show unparalleled ammonia synthesis activity under mild conditions,14−30 but Ru is a rather rare element that is expensive to procure. Co is cheaper and more abundant than Ru, but neat Co is less active than both Ru and Fe because the N2 molecular adsorption energy of Co is lower than that of Ru and Fe.31 As a result, previously reported oxide- or carbon-supported Co catalysts, which have the advantage of being easy to prepare and handle, show low ammonia synthesis activity under mild reaction conditions.32−34

As part of efforts to address this issue, we previously reported that the addition of Ba to Co/MgO and prereduction at high temperatures markedly improved the ammonia synthesis activity of the parent catalyst under mild reaction conditions (<400 °C, 1–3 MPa).35 In fact, the resultant Co@BaO/MgO catalyst, where the Co core is encapsulated by a strongly basic BaO shell, showed an activity that was not only higher than that of other oxide- or carbon-supported Co-based catalysts but also higher than that of active Ru catalysts, such as Ru/La0.5Ce0.5O1.75 and Cs+/Ru/MgO.16,35 Spectroscopic and density functional theory investigation uncovered that the structure allows for exceptional electron donation from BaO via Co atoms to the antibonding π-orbital of N2 molecules, thereby, promoting cleavage of the N≡N bond. Our findings prompted us to examine the use of other basic oxide supports, such as La2O3, which has higher basicity than MgO.36,37

Here, we report that Co/Ba/La2O3 prereduced at 700 °C showed high ammonia synthesis rates at a low reaction temperature of 350 °C: 19.3 mmol h–1 g–1 at 1.0 MPa and 35.7 mmol h–1 g–1 at 3.0 MPa. Investigations revealed that the addition of Ba and increasing the prereduction temperature from 500 to 700 °C increased the ammonia synthesis activity by 6.9 and 8 times, respectively, via the formation of a core (Co) - shell (BaO–La2O3) structure. The presence of BaO retarded sintering of the Co nanoparticles during high-temperature reduction. The ammonia synthesis activity–promoting effects of the addition of Ba and of increasing the reduction temperature was observed also for Ni catalysts, for which the N2 adsorption energy of neat Ni is less than that of Co.35 To further understand how the addition of Ba and the increase of reduction temperature affected the ammonia synthesis rate, X-ray absorption fine structure spectroscopy (XAFS), spherical aberration-corrected scanning transmission electron microscopy (Cs-STEM), and electron energy loss spectroscopy (EELS) analyses were performed on prereduced catalyst without exposure to air. In the present study, both EELS and energy-dispersive X-ray (EDX) spectrometry were used; however, EELS can distinguish between Ba and La elements, whereas EDX spectrometry cannot because, in that technique, the excitation wavelength of Ba and La are so similar that the small peak attributable to Ba overlaps the large peak attributable to La.

2. Experimental Section

2.1. Catalyst Preparation

The Ba/La2O3 support was prepared by a precipitation and impregnation method as follows. First, a suspension of La hydroxides was formed by dropping an aqueous solution of La(NO3)3·6H2O (Wako Pure Chemical, Japan) into a 28 wt % solution of aqueous ammonia (Wako Pure Chemical). The La hydroxides were collected by filtration, washed with distilled water, and added to an aqueous solution containing Ba(OH)2·8H2O (Wako Pure Chemical). The amount of Ba was fixed at Ba/(Ba + La) = 0.05 mol/mol. After stirring the suspension for 1 h, the aqueous solvent was removed by rotary evaporation. The resulting powder was calcined at 700 °C in static air and used as the catalyst support.

Next, Co was loaded onto the support. Bis(2,4-pentanedionate)cobalt(II) dihydrate (Tokyo Chemical Industry, Japan) dissolved in tetrahydrofuran (Wako Pure Chemical) was used as the Co precursor. The support was added to the dissolved precursor, and the suspension was stirred overnight. When the stirring was finished, the tetrahydrofuran was removed by rotary evaporation, leaving behind a powder that was then heated to 500 °C under an Ar flow. The Co loading was fixed at 20 wt % for each catalyst. Two benchmark Ru catalysts (Ru/CeO2 and Cs+/Ru/MgO) were also prepared as reported by us previously.14,37

2.2. Ammonia Synthesis Activity Test

The rate of ammonia synthesis over the catalysts was measured by using 100 mg of catalyst and a conventional flow system with a tubular reactor under either atmospheric pressure or high pressure, as reported previously.38 Research-grade gases (>99.99%) were supplied from high-pressure cylinders and purified with a gas purifier (Micro Torr MC50-904FV, SAES Pure Gas, US). The catalysts were prereduced in situ with pure H2 (60 mL min–1) at 500, 700, or 800 °C for 1 h at 0.1 MPa and then cooled at 300 °C in an Ar stream. The pressure was then adjusted to 0.1, 1.0, or 3.0 MPa. A mixture of N2 (30 mL min–1) and H2 (90 mL min–1) was then passed over the catalyst (space velocity = 72,000 mL h–1 g–1). The produced ammonia gas was trapped in an aqueous solution of H2SO4, and the rate of ammonia synthesis was calculated from the decrease in the electron conductivity of the H2SO4 aqueous solution, which was monitored with an electron conductivity detector (CM-30R, DKK-TOA, Japan).

2.3. Kinetic Analysis

Reaction kinetics were analyzed as previously reported.35,39,40 The reaction orders with respect to N2, H2, and NH3 were calculated by measuring the N2, H2, and NH3 pressure dependence of the NH3 synthesis rate and by assuming that the rate of the reaction (r) could be described by the following expression

2.3.

2.4. Characterization

High-angle annular dark-field scanning transmission electron microscope (HAADF-STEM) images, EDX elemental maps, and EELS spectra were obtained with an aberration-corrected electron microscope (JEM-ARM200CF, JEOL, Japan). The scanning transmission electron microscopy observations were conducted at 120 kV to reduce damage to the sample by the electron beam. Catalyst samples were prereduced at 500 or 700 °C under a H2 flow and then crushed and powdered. Samples of the powdered catalyst were then placed on transmission electron microscopy grids in a glovebox. The grids were then transferred by means of a special holder with a gas cell from the glovebox to the inside of the transmission electron microscopy column without being exposed to air. For the other observations, samples were dispersed in ethanol under ambient conditions, and samples of the dispersion were dropped onto a carbon-coated copper grid and dried under a vacuum at ambient temperature for 24 h.

The specific surface area of the catalysts was measured by using the Brunauer–Emmett–Teller method. Test samples were pretreated at 300 °C in a vacuum, and the amount of N2 adsorbed was measured with a BELSORP-mini gas adsorption instrument (BEL Japan, Inc., Japan).

H2 chemisorption capacity was measured with a BELCAT-B apparatus (MicrotracBEL, Japan) using the same method as in the previous report.35 H2 was fed to a 100 mg sample of catalyst at 60 mL min–1, and the temperature was increased at a rate of 10 °C min–1 from room temperature to 500, 700, or 800 °C. The sample was maintained at the desired temperature for 60 min in the H2 flow; it was then purged with a stream of Ar (60 mL min–1) for 30 min, cooled to 35 °C, and flushed with Ar for 60 min. After pretreatment, the H2 chemisorption measurement was carried out at 35 °C.

XAFS measurements of the Co K-edges were performed on the BL5S1 beamline at Aichi Synchrotron Radiation Center (Aichi, Japan).

X-ray diffraction (XRD) analysis was performed with a SmartLab X-ray diffractometer (Rigaku, Japan) equipped with a Cu Kα radiation source. The XRD patterns were analyzed by using the PDXL2 software (Rigaku) and three databases (International Centre for Diffraction Data database, Crystallography Open Database, and AtomWork database).

Temperature-programed reduction measurements were performed under a flow of 100% H2 using a BEL-CAT-II apparatus (MicrotracBEL). The flow rate of the gas was 60 mL min–1. A 100 mg sample of catalyst was heated from 25 to 1000 °C at a rate of 10 °C min–1. The CH4, H2O, CO, and CO2 profiles were monitored by a quadruple mass spectrometer at m/z = 16, 18, 28, and 44, respectively.

3. Results and Discussion

3.1. Ammonia Synthesis Activity

First, we examined the influence of reduction temperature (500–800 °C) on the NH3 synthesis rate of the Co/Ba/La2O3 catalyst (Figure 1). The catalyst prereduced at 500 °C (designated Co/Ba/La2O3_500red) showed little NH3 synthesis activity at 300 °C, but the activity increased with increasing reaction temperature until a moderate activity was obtained at 450 °C. Compared with Co/Ba/La2O3_500red, Co/Ba/La2O3_600red and Co/Ba/La2O3_700red both showed greater NH3 synthesis activity across the whole reaction temperature range examined, and Co/Ba/La2O3_800red showed an activity between that of Co/Ba/La2O3_600red and Co/Ba/La2O3_700red. Ea is the apparent activation energy calculated from Arrhenius plots of the ammonia synthesis rate in the temperature range of 300–375 °C under 1.0 MPa. The apparent activation energy of the Co/Ba/La2O3 catalyst was found to decrease from 73.1 to 45.7 kJ mol–1 as the reduction temperature was increased from 500 to 700 °C (Figure S1). Furthermore, Co/Ba/La2O3_700red was found to have ammonia synthesis activity at reaction temperatures as low as 200 °C (synthesis rate, 0.3 mmol h–1 g–1; Figure S2). Then, we studied the influence of Co loading and Ba content (Figures S3 and S4). The optimal amount of Co loading was 20 wt % and Ba content was 5 mol %. Furthermore, it must be mentioned that the Co precursor study showed that Bis(2,4-pentanedionate)cobalt(II) dihydrate was better than cobalt (II) nitrate hexahydrate (Figure S5).

Figure 1.

Figure 1

Open in a new tab

Influence of reduction temperature on the NH3 synthesis rate of Co/Ba/La2O3 at 1.0 MPa.

Next, we examined the effect of adding Ba on the NH3 synthesis rate of different Co and Ni catalysts (Figure 2). At a reaction temperature of 350 °C, the NH3 synthesis rate of Co/Ba/La2O3_700red was 19.3 mmol h–1 g–1, which was 8.0 times that of Co/Ba/La2O3_500red and 6.9 times that of Co/La2O3_700red at the same temperature. Despite the activity of Co/Ba/La2O3_700red being slightly lower than that of Co/Ba/MgO_700red, its activity was comparable with those reported for other state-of-the-art Co catalysts, such as Co/BaCeO3_xNyHz,41 BaH2–Co/CNTs,42 and LaCoSi,43 notwithstanding the different Co loadings, reaction pressures, and space velocities used in the previously reported studies (Table S1). For the Ni catalysts, reduction at high temperature and the addition of Ba were also found to have positive effects on NH3 synthesis activity: the fact that the NH3 synthesis rate of Ni/Ba/La2O3_700red was much higher than those of Ni/Ba/La2O3_500red and Ni/La2O3_700red at all temperatures suggested the possibility of activating Ni by using the same strategy used to activate Co.

Figure 2.

Figure 2

Open in a new tab

Temperature dependence of the NH3 synthesis activities of supported Co and Ni catalysts at 1.0 MPa. The catalysts were prereduced at 500 and 700 °C (Co/Ba/La2O3_T red, T represents the prereduced temperature of the catalyst). (a) Supported Co catalysts. (b) Supported Ni catalysts.

We also examined the effect of reaction pressure on the NH3 synthesis rate at 350 °C and compared the rates with Co/Ba/La2O3_700red to those with the two benchmark Ru catalysts, Cs+/Ru/MgO and Ru/CeO2 (Figure 3). Cs+/Ru/MgO is a well-known Ru catalyst with high NH3 synthesis activity.44−47 Ru/CeO2 is a candidate catalyst for use in ammonia synthesis processes that use renewable energy.48 At 0.1 MPa, the NH3 synthesis rate of Co/Ba/La2O3_700red was lower than those of Cs+/Ru/MgO_500red and Ru/CeO2_500red. However, when the reaction pressure was increased, the NH3 synthesis rate of Co/Ba/La2O3_700red increased drastically, whereas those of the two Ru catalysts increased only slightly. As a result, the NH3 synthesis rate of Co/Ba/La2O3_700red at 1.0 and at 3.0 MPa exceeded the rates of the two benchmark catalysts (synthesis rate at 3.0 MPa: Co/Ba/La2O3_700red, 35.7 mmol h–1 g–1; Ru/CeO2_500red, 13.7 mmol h–1 g–1; and Cs+/Ru/MgO_500red, 11.4 mmol h–1 g–1). We also examined the NH3 synthesis rate of Co/La2O3_700red and found that it was much lower than the rates of the other catalysts at all pressures.

Figure 3.

Figure 3

Open in a new tab

Pressure dependence of the NH3 synthesis activities of Co/Ba/La2O3_700red, Co/La2O3_700red, and the two benchmark Ru catalysts at 350 °C.

To investigate the cause of the different pressure dependences, we performed a kinetic analysis at 350 °C and 0.1 MPa using the same four catalysts (Table 1 and Figures S6 and S7). The fact that the reaction order with respect to N2 was almost unity for all of the catalysts indicated that the rate-determining step was the dissociation of molecular N2. However, the fact that the reaction order with respect to H2 was −0.18 and −0.76 for Ru/CeO2_500red and Cs+/Ru/MgO_500red, respectively, indicated that H atoms strongly adsorbed onto the Ru surface and inhibited activation of molecular N2; this is referred to as hydrogen poisoning and is a typical drawback of Ru catalysts. In contrast, the positive reaction orders with respect to H2, +0.43 and +0.32, that were obtained for Co/Ba/La2O3_700red and Co/La2O3_700red, respectively, indicated that these catalysts were free from hydrogen poisoning and that N2 activation was promoted with increasing hydrogen pressure. A large negative reaction order with respect to NH3 (−0.51) was obtained for Co/La2O3_700red, but this value was reduced to −0.17 with the addition of Ba. These findings suggest that it is difficult for the ammonia yield of Co/La2O3_700red to approach the equilibrium value because adsorbed NH, NH2, and NH3 inhibit the reaction. However, the addition of Ba can be expected to promote the desorption of such adsorbates and thus accelerate the reaction, even near equilibrium. Together, these results indicate that Co catalysts may be a viable alternative to Ru catalysts.

Table 1. Results of a Kinetic Analysis Over Cs+/Ru/MgO, Ru/CeO2, Co/Ba/La2O3, or Co/La2O3.

  ordera
catalyst na hb ac
Cs+/Ru/MgO_500red 1.07 –0.76 –0.15
Ru/CeO2_500red 0.85 –0.18 –0.19
Co/Ba/La2O3_700red 0.85 0.43 –0.17
Co/La2O3_700red 0.97 0.32 –0.51
Open in a new tab
a

Reaction order with respect to N2.

b

Reaction order with respect to H2.

c

Reaction order with respect to NH3.

3.2. Effects of Doping with Ba

To understand more about the effects of Ba doping, we compared the physicochemical properties of Co/Ba/La2O3_700red and Co/La2O3_700red (Table 2). The specific surface areas of the two catalysts were comparable, but the mean Co particle size, as measured by STEM, was much smaller for Co/Ba/La2O3_700red than for Co/La2O3_700red (20 nm vs 70 nm). The indication was that the addition of Ba inhibited the sintering of the Co particles during reduction. Assuming the Co particles were cubic, this difference in particle size corresponds to 3.5-times greater Co dispersion for Co/Ba/La2O3_700red compared with Co dispersion for Co/La2O3_700red. On the other hand, the H2 chemisorption value (a measure of the Co dispersion) of Co/Ba/La2O3_700red was found to be only 1.6-times greater than that of Co/La2O3_700red. The indication was that the surface of the Co particles in Co/Ba/La2O3_700red was partly covered by the support material. Also, the turnover frequency (TOF) of Co/Ba/La2O3_700red was about 4.4 times that of Co/La2O3_700red. Together, these results indicate that the drastic increase in NH3 synthesis rate observed as a result of doping with Ba was the combined result of inhibition of Co particle sintering and an increase of TOF.

Table 2. Physicochemical Properties and Catalytic Performances of Supported Co Catalysts.

catalyst SSAa [m2 gcat–1] H2 chemisorptionb [μmol g–1] dc [nm] rated [mmol gcat–1 h–1] TOFe [s–1]
Co/Ba/La2O3_500red 37.5 35.0 10 2.4 0.019
Co/Ba/La2O3_700red 24.9 24.1 20 19.3 0.223
Co/Ba/La2O3_800red 10.1 15.6 34 17.1 0.304
Co/La2O3_700red 25.8 14.9 70 2.8 0.051
Open in a new tab
a

Specific surface area.

b

Measured using H2 chemisorption capacity.

c

Mean particle size of Co nanoparticles, as estimated by Cs-STEM (see Figures S8–S11).

d

At 350 °C and 1.0 MPa.

e

TOF. Calculated from the H2 chemisorption value and the NH3 synthesis rate (see Table 2).

To understand how doping with Ba affected the state of the Co, we subjected Co/Ba/La2O3_700red and Co/La2O3_700red to XANES analysis (Figure 4). The fact that the Co K-edge XANES spectra of the two catalysts were comparable with that of Co foil indicated that the Co atoms in the catalysts were fully reduced to a metallic state after reduction at 700 °C.

Figure 4.

Figure 4

Open in a new tab

Normalized Co K-edge XANES spectra for Co/La2O3 and Co/Ba/La2O3 catalysts prereduced at different temperatures, and for several reference samples.

Next, we investigated the morphology of Co/Ba/La2O3_700red by means of Cs-STEM and EELS. To avoid any unwanted structural or state changes, we used a special holder with a gas cell that allowed the sample to be transferred from the reactor to the STEM apparatus under an inert gas environment.35 HAADF-STEM images revealed that the Co particles were encapsulated by a 2–3 mm-thick nanofraction (Figures 5a and S10). EELS mapping revealed that Ba and La elements were enriched in the nanofraction (Figures 5b,c,e and 4d). Although a low abundance of Ba was included overall in the catalyst (Ba/La molar ratio, 5:95), a high abundance of Ba was observed in the nanofraction. In contrast, the fact that the carbon element was not detected in the nanofraction (Figure 5f–h) indicated that the nanofraction was an oxide or hydroxide of Ba or La. Morphology of the catalyst as well as NH3 synthesis rate was maintained during the 50 h of reaction (Figures S12 and S13).

Figure 5.

Figure 5

Open in a new tab

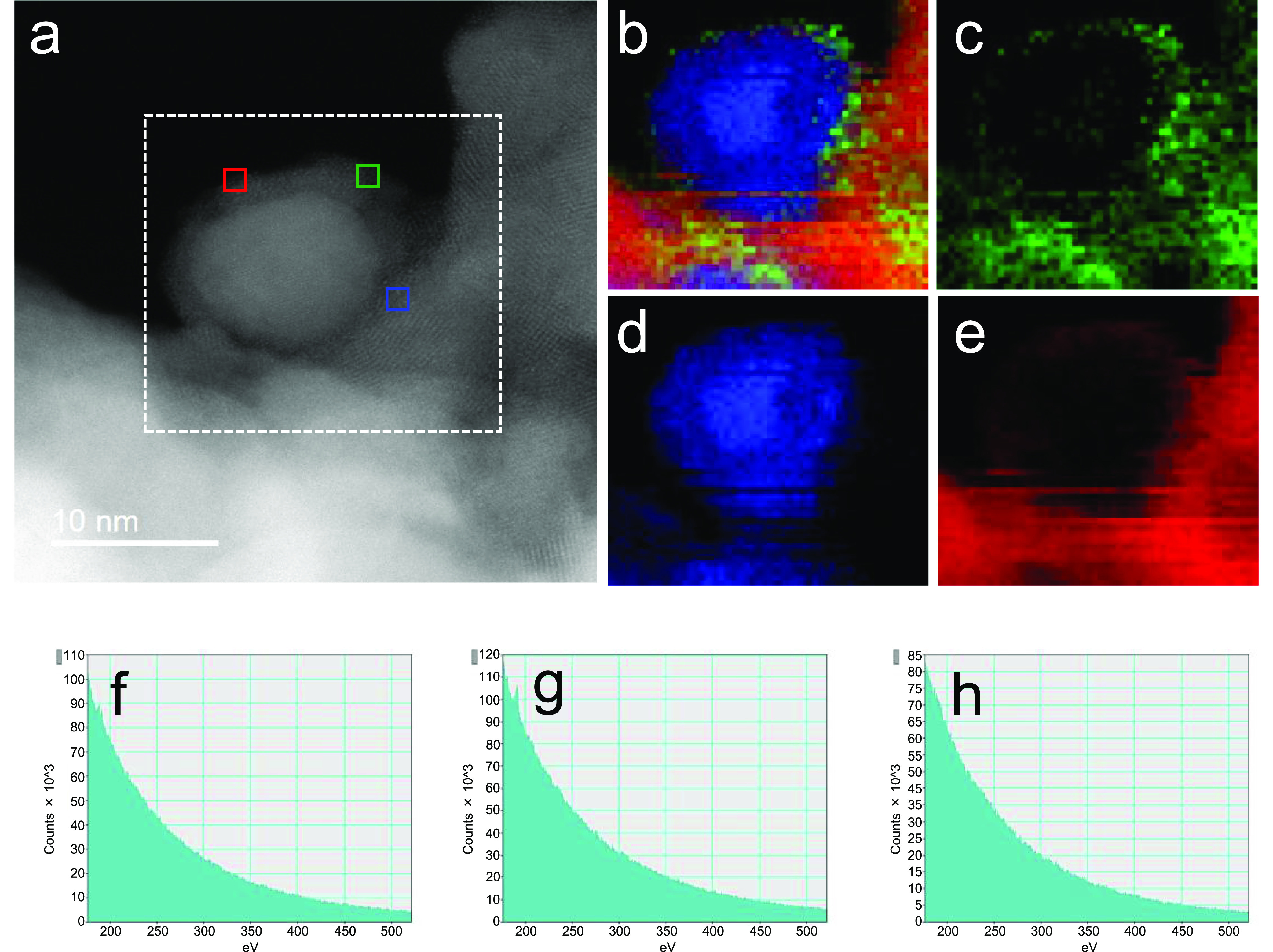

HAADF-STEM image and electron energy loss spectroscopy maps of Co/Ba/La2O3_700red without exposure to air. (a) HAADF-STEM image of the catalyst. (b–e) Electron energy loss spectroscopy maps of (b) overlay, (c) Ba L, (d) Co L, and (e) La L in the area within the white, dotted square in (a). (f–h) C K electron energy loss spectroscopy spectra of the areas indicated by the green (f), blue (g), and red (h) squares in (a).

3.3. Effect of the Reduction Temperature

Finally, to understand the effects of the reduction temperature on Co/Ba/La2O3, we investigated the physicochemical properties of the catalyst after reduction at different temperatures. With the increase in reduction temperature from 500 to 700 to 800 °C, the specific surface area decreased from 37.5 to 24.9 to 10.1 m2 g–1, and the mean diameter of the Co particles increased from 10 to 20 to 34 nm. The indication was that greater sintering occurred at higher reduction temperatures (Table 2). It must be noted that the fact that the mean Co particle size was comparable both before and after exposure of Co/Ba/La2O3_700red to air indicated that exposure to air had no effect on Co particle size (see Figures 5 and S10, S14). Also, the number of exposed Co particles decreased and the TOF drastically increased from 0.019 to 0.223 to 0.304 with the increasing reduction temperature.

To understand why the TOF after reduction at 700 °C was more than 12 times that after reduction at 500 °C, we conducted a detailed characterization of the catalysts. First, to investigate the state of Co, we measured Co K-edge XANES spectra in as-prepared Co/Ba/La2O3 and Co/Ba/La2O3 prereduced at different temperatures (Figure 4). The fact that the spectra for Co/Ba/La2O3_500red and Co/Ba/La2O3_700red were comparable to that for Co foil indicated that inactive oxidic Co was reduced to the metallic state after reduction at ≥500 °C and that difference of the TOF was not ascribed to the difference of the Co reduction degree.

To investigate the surface state of Co/Ba/La2O3_500red, we performed Cs-STEM and EELS observations without exposing the catalyst to the air (Figures 6 and S15). In contrast to the findings for Co/Ba/La2O3_700red (Figures 5 and S14), the Co particles in Co/Ba/La2O3_500red were not well crystallized and were partially surrounded by a cloud-like substance containing Ba, La, and carbon elements. The fact that carbon element was observed in parts of the cloud in Co/Ba/La2O3_500red indicated the presence of noncrystallized carbonate species of Ba and or La because crystallized carbonate species was not observed by XRD analysis (Figure S16). Recall that such elemental carbon was not observed for Co/Ba/La2O3_700red by EELS measurement (Figures 5 and S14). Carbonate species, due to their acidity, decrease the ability of the support material to donate electrons. Therefore, we concluded that one of the causes of the high TOF of Co/Ba/La2O3_700red was the complete removal of La and Ba carbonate species during reduction at high temperatures. It is likely that hydroxide species are also removed from the catalyst because the temperature-programed reduction profile of fresh Co/Ba/La2O3 indicated that the formation of CH4, CO, CO2, and H2O was completed at a temperature below 700 °C (Figure 7). Thus, these data indicated that the low crystalline nanofraction encapsulating the Co nanoparticles in Co/Ba/La2O3_700red was composed of BaO and La2O3. Therefore, another of the causes of the high TOF of Co/Ba/La2O3_700red was ascribed to encapsulation of the Co particles by the low crystalline nanofraction of BaO–La2O3. Previously, based on density functional theory calculations and Fourier-transform infrared spectroscopy measurements after adsorption of molecular N2 on the catalyst, we reported the high activity of Co nanoparticles encapsulated by BaO loaded on MgO (Co@BaO/MgO), which we ascribed to strong electron donation from BaO to N2via Co.35 Although in the present study we were unable to fabricate a self-supporting disk of the Co/Ba/La2O3 catalyst that transmitted infrared light and therefore could not use Fourier-transform infrared spectroscopy, the high TOF of Co/Ba/La2O3_700red may also be due to such electron donation from BaO–La2O3 to the antibonding π-orbital of the N≡N bond of molecular N2. We also found that increasing the reduction temperature up to 800 °C further increased the TOF due to the growth of low crystalline nanofractions on Co nanoparticles; however, the NH3 synthesis rate decreased due to the sintering of the Co particles (Table 2).

Figure 6.

Figure 6

Open in a new tab

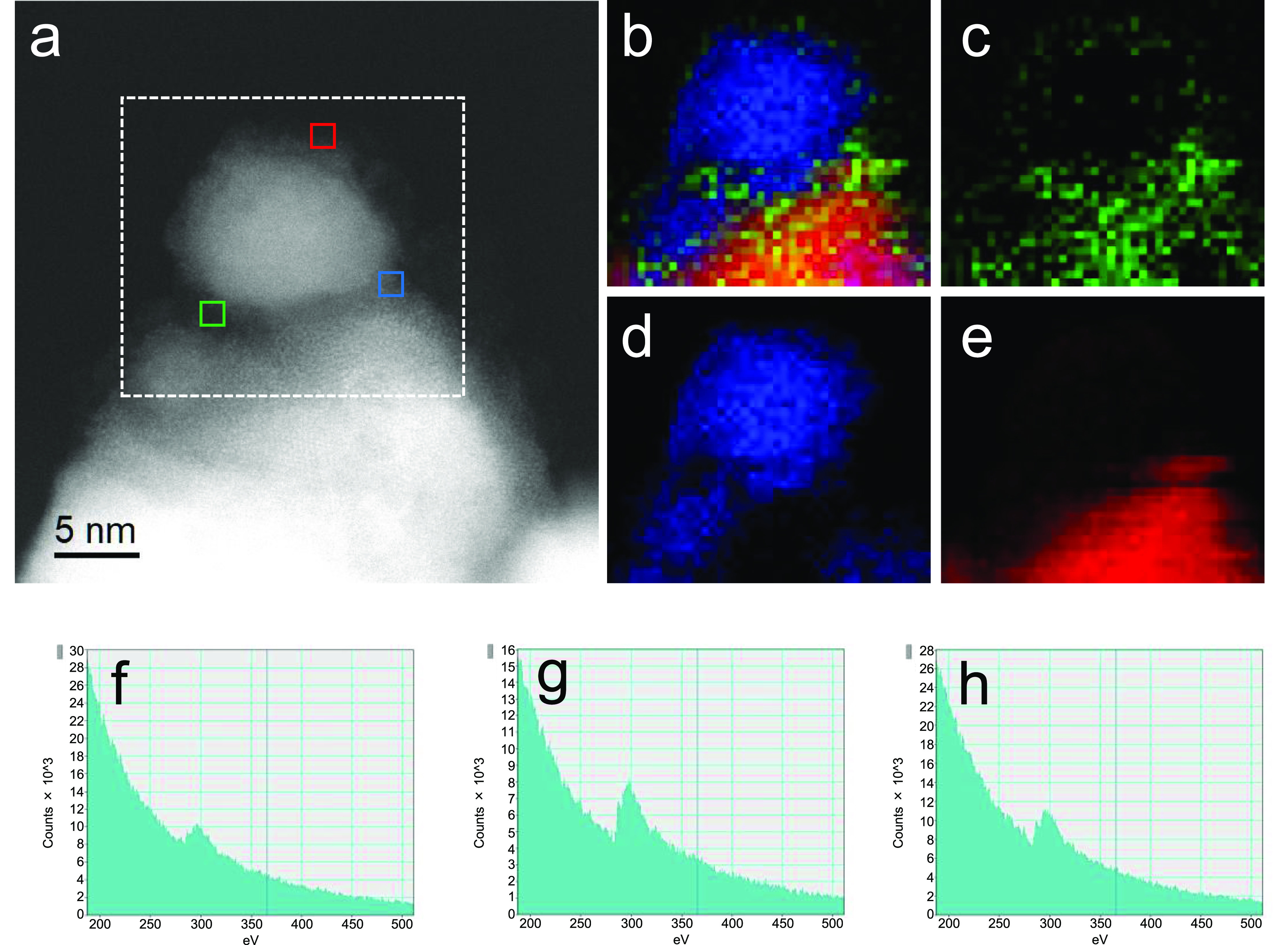

HAADF-STEM image and electron energy loss spectroscopy maps of Co/Ba/La2O3_500red without exposure to air. (a) HAADF-STEM image of the catalyst. (b–e) Electron energy loss spectroscopy maps of (b) overlay, (c) Ba L, (d) Co L, and (e) La L in the area within the white, dotted square in (a). (f–h) C K electron energy loss spectroscopy spectra of the areas indicated by the green (f), blue (g), and red (h) squares in (a).

Figure 7.

Figure 7

Open in a new tab

H2-temperature-programed reduction profiles for the as-prepared Co/Ba/La2O3 catalyst.

Here we address the formation mechanism of the core (Co) - shell (BaO–La2O3) structure which is almost identical to the formation mechanism of the core (Co) - shell (BaO) structure on MgO.35 As already discussed, a majority of Ba in the as-prepared catalyst exists as BaCO3. The decomposition reaction of BaCO3 proceeds as follows to produce BaO.

3.3.

During this decomposition, Ba(OH)2 can form and decompose to BaO. Compared with their Mg counterparts, Ba compounds usually have lower melting points, allowing them to melt and travel across the catalyst surface during reduction at high temperatures. Similarly, Co nanoparticles, which contain metallic Co formed from the reduction of Co oxide, also move across the support surface and become sintered. While mobile, these Co nanoparticles collect the Ba compound, which results in a reduction of the surface energy of the Co nanoparticles. In the present catalyst, Ba(OH)2 melts at low temperature (melting point, 408 °C), migrates with La2O3 to the Co nanoparticle surface, and then decomposes to BaO with a high melting point (1920 °C). This BaO then coagulates between BaO–La2O3 and BaO–La2O3 and between BaO–La2O3 and Co nanoparticles as a nanofraction containing voids through which gases can pass.

Co/Ba/La2O3_700red and Co@Ba/MgO_700red35 showed comparable TOFs, but the NH3 synthesis rate (350 °C, 1 MPa) of Co@Ba/MgO_700red was 1.3 times that of Co/Ba/La2O3_700red. These results indicated that, fundamentally, the core (Co) - shell (BaO–La2O3) structure enhanced the NH3 synthesis ability of surface Co, and that the difference in NH3 synthesis rate between these catalysts was due to the difference in the mean Co particle size (i.e., 10.6 vs 20 nm for Co@Ba/MgO_700red and Co/Ba/La2O3_700red). The higher surface area of Co@Ba/MgO_700red (47.6 m2 g–1) compared with that of Co/Ba/La2O3_700red likely contributed to the formation of fine Co nanoparticles. Thus, the use of a basic support with a higher specific surface area is expected to afford catalysts with enhanced NH3 synthesis rates.

4. Conclusions

Here, by encapsulating Co nanoparticles within BaO–La2O3 on a La2O3 support, we constructed a catalyst that showed high NH3 synthesis activity even under mild reaction conditions. The Co/Ba/La2O3 prereduced at 700 °C showed high NH3 synthesis activity with a synthesis rate of 19.3 mmol h–1 g–1 at 350 °C, which was 6.9 times that of the nondoped parent catalyst. Moreover, the Co/Ba/La2O3 prereduced at 700 °C was active at temperatures down to 200 °C. We also found that the addition of Ba to the catalyst inhibited the sintering of the Co particles during reduction. Increasing the reduction temperature from 500 to 700 °C resulted in a drastic increase in TOF from 0.019 to 0.223. The increase in TOF was ascribed to the encapsulation of Co particles by a BaO–La2O3 nanofraction during high-temperature reduction. It is likely that donation of electrons from the nanofraction to molecular N2via Co markedly promoted NH3 synthesis. Furthermore, the elimination of ammonia poisoning by the addition of Ba is a potential merit for carrying out the reaction near equilibrium. The present findings also indicate that these strategies are also likely applicable to Ni catalysts. Together, the present results provide information that will be useful for the development of highly active NH3 synthesis catalysts for use in processes that use renewable energy. Such catalysts are expected to play a major role in the realization of a carbon-neutral society.
