Abstract
The APETALA2/ETHYLENE RESPONSE FACTOR (AP2/ERF) transcription factors (TFs) are involved in the regulation of specialized terpenoid biosynthesis. However, the AP2/ERF TFs in Litsea cubeba have not been characterized and their role in the biosynthesis of terpenoids is unknown. Here, 174 LcAP2/ERF TFs were identified in L. cubeba and categorized into four subfamilies: 27 AP2, 7 RAV, 1 Soloist, and 139 ERF. Transcriptomic and qRT-PCR assays both showed that the expression levels of LcERF19 were similar to that of terpene synthase LcTPS42 in the pericarp, which is related to the synthesis of geranial and neral in L. cubeba. LcERF19 was further shown to encode a nuclear-localized protein and its expression was strongly induced by jasmonate. Yeast one-hybrid and dual-luciferase assays showed that LcERF19 associated with GCC box elements of the LcTPS42 promoter and promoted its activity. Transient overexpression of LcERF19 in L. cubeba and overexpression of LcERF19 in tomato resulted in a significant increase in geranial and neral. Our findings show that LcERF19 enhances geranial and neral biosynthesis through activation of LcTPS42 expression, which provides a strategy to improve the flavor of tomato and other fruits.
Introduction
L. cubeba (Lour.) Persoon, an aromatic species in the Lauraceae, produces essential oils in the pericarp and is an important raw material for fragrance and medicine biosynthesis. Monoterpenes comprise 94.4-98.4% of L. cubeba essential oils (LCEO) and consist of about 41 different types, which include, geranial and neral (78.7–87.4%), limonene, linalool, pinene, eucalyptus, and others [1]. Common monoterpenoids appear as one or several main compounds in aromatic plants and help plants cope with environmental stress and attract pollinators and seed disseminators. [2]. These aromatic and medicinal terpenoids also benefit humans. Citral, a mixture of geranial and neral, is widely used in fragrance, cosmetics, and pharmaceuticals because of its unique and sensitive aroma, antibiotic properties, and oxidative characteristics [3–5]. To improve the production and quality of essential oils with significant commercial value, a better understanding of monoterpenoid metabolism and control mechanisms is necessary.
The monoterpenoid metabolic process has been studied extensively, and is influenced by pathway flux and enzyme biosynthetic step limitation [6, 7]. Transcriptional regulation of enzymes involved in monoterpenoid biosynthesis is one way in which the cell controls pathway flux [8]. Transcription factors (TFs) often coordinate the transcription of multiple metabolic pathways and affect the transcription of genes in the same metabolic pathway [9–11].
The APETALA2/ETHYLENE RESPONSE FACTOR (AP2/ERF) genes play key roles in regulating terpenoid biosynthesis and significantly improve the yield of target terpenoids in plants such as Catharanthus roseus, Artemisia annua, Zea mays (maize), and Citrus sinensis (sweet orange) [12–16]. AP2/ERFs are classified into 12 phylogenetic groups [17]. In particular, group IX is implicated in the control of secondary metabolism and is stimulated by defense-related hormones such as jasmonate (JA) [17]. For example, CiERF71 activates the CiTPS16 promotor, which impacts E-geraniol biosynthesis in sweet orange [18]. AaERF2 and AaORA induced ADS or CYP71AV1 promoter activities to positively regulate artemisinin biosynthesis [13, 19]. EREB58 induces sesquiterpene biosynthesis and improves maize disease resistance [15]. These ERFs specifically recognize the cis-regulatory GCC box element to directly or indirectly regulate genes of the secondary metabolic biosynthesis pathway and respond to JA, indicating that the functions of AP2/ERF from different clusters are conserved and interchangeable [20, 21]. All of these JA-regulated ERFs reside in subgroup IXa but not subgroup IXb, and the regulation of plant secondary metabolism by subgroup IXb still remains to be investigated.
As described above, AP2/ERF TFs play significant roles in terpenoid biosynthesis, however, the AP2/ERF genes have not been studied in L. cubeba. The candidate AP2/ERF TFs are implicated in the biosynthesis of geranial and neral in L. cubeba and were investigated here. Our previous work reported that the expression of LcTPS42 is favorably connected with the yield of LCEO (geranial and neral) and that LcTPS42 could catalyze geranyl pyrophosphate to produce geraniol. Geraniol was the precursor for the direct biosynthesis of geranial. In the present study, the regulators responsible for the activation of LcTPS42 expression were further studied. A total of 174 LcAP2/ERFs were identified based on the L. cubeba genome database and transcriptome data. LcERF19, a subgroup of IXb AP2/ERF TF, encodes a nuclear-localized protein and directly binds the promoter of LcTPS42. Transient expression of LcERF19 in L. cubeba and transgenic tomato revealed that LcERF19 could promote the biosynthesis of geranial and neral. Yeast one-hybrid and dual-luciferase experiments confirmed that LcERF19 activates the LcTPS42 promoter and potentially regulates LcTPS42 gene expression. Our study provides a basis for genetic improvement of geranial and neral biosynthesis in L. cubeba and genetic engineering of these monoterpenoid products in aromatic plants.
Results
Identification of the LcAP2/ERF TFs in L. cubeba
To confirm the potential regulation of geranial and neral biosynthesis by AP2/ERF TFs in L. cubeba, we first identified the AP2/ERF TFs in L. cubeba. According to HMMER and BLAST, 174 genes encoding proteins with the AP2/ERF domain were identified and named based on chromosome location and their phylogenetic classification (Table S2). Phylogenetic analysis indicated that the L. cubeba AP2/ERFs could be divided into 27 AP2, 7 RAV, 1 Soloist, and 139 ERF (I to Xb-L) based on the priority classification rule of Arabidopsis thaliana AP2/ERF TFs (Fig. 1). Importantly, 16 AP2/ERF members were clustered into the ERF group IX (a + b), which affects the biosynthesis of plant secondary metabolism and is induced by JA [17, 20, 23].
Figure 1.
Classification and phylogenetic analysis of the LcAP2/ERF family in Litsea cubeba. Different colors represent different groups, and all LcAP2/ERF genes in L. cubeba were clustered into subclades based on the priority classification rule of Arabidopsis thaliana AP2/ERF genes [17].
LcERF19 and LcTPS42 have similar expression patterns and were induced by JA in the pericarp
Considering monoterpenoids are mainly produced in the pericarp of L. cubeba, the LcAP2/ERF TFs highly expressed in the pericarp are most likely to be involved in monoterpenoid biosynthesis. Previous studies revealed that LcTPS42 is highly expressed in the pericarp and catalyzes the biosynthesis of geranial and neral (main components of monoterpenoid) in L. cubeba [22]. Hence, we included LcTPS42 in the expression mode analysis. Results from transcriptional sequencing (PRJNA763042) of L. cubeba pericarp at different stages of development were used to identify specific AP2/ERF TFs responsible for regulating LcTPS42 gene expression. Three AP2/ERFs in the IXa subgroup and 5 in the IXb subgroup were coexpressed with LcTPS42 in the pericarp of L. cubeba (Fig. 2a). In particular, LcERF19 was highly positively correlated with LcTPS42 gene expression (Fig. 2a), which suggests that LcERF19 may be involved in the regulation of LcTPS42.

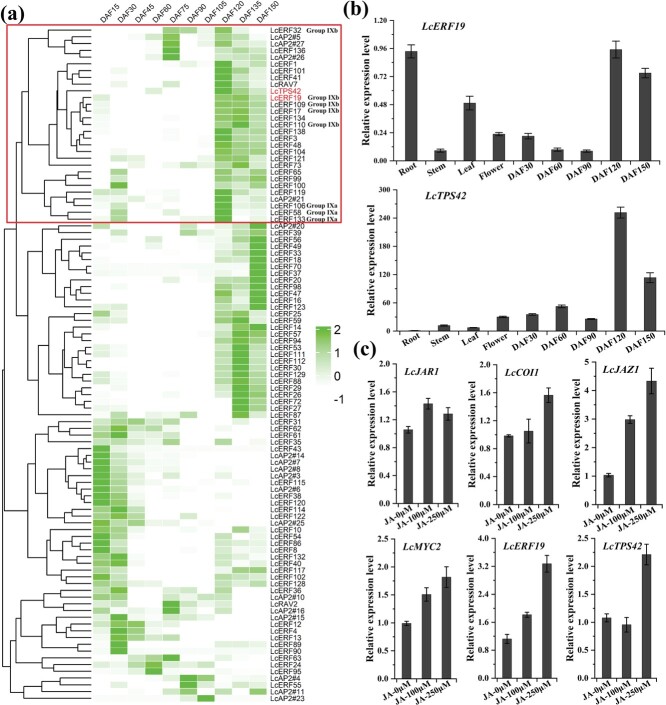

Figure 2.
LcERF19 and LcTPS42 have similar expression patterns and are induced by JA in the pericarp. (a) Heat map showing expression of the AP2/ERF genes and LcTPS42 in the pericarp based on FPKM values. Only genes with an average FPKM > 2 in at least one of three biological replicates were used to generate the heat map. (b) The expression levels of LcERF19 and LcTPS42 in different tissues and pericarp of developmental stages in Litsea cubeba. DAF, days after full bloom. (c) MeJA treatment increases the expression levels of JA responsive genes LcJAR1, LcCOI1, LcJAZ1, LcMYC2, LcERF19, and LcTPS42 in L. cubeba pericarp at 75 DAF. Data are sown as the mean ± standard deviation of three replicates. The L. cubeba Ubiquitin-conjugating (UBC) enzyme gene served as the internal control (Lin et al., 2013).
To further understand the relationship between LcERF19 and LcTPS42 gene expression, the expression trends of LcERF19 and LcTPS42 were investigated using qRT-PCR. As shown in Fig. 2b, LcERF19 exhibited the highest expression in roots and the late development of the pericarp. Both LcERF19 and LcTPS42 were highly expressed in the later period of pericarp development. To determine whether the expression of LcERF19 and LcTPS42 were induced by JA, we selected fruits whose LCEO and JA contents increased rapidly in the pericarp at 75 days after flowering (DAF) [24]. We found that the transcript levels of JA responsive genes LcJAR1, LcCOI1, LcJAZ1, LcMYC2), LcERF19, and LcTPS42 all increased with MeJA treatment (Fig. 2c).
LcERF19 encodes a nuclear-localized protein
Transcription factors usually perform transcriptional regulatory functions in the nucleus. The LcERF19 coding sequence was fused in-frame with GFP and transiently expressed in tobacco leaves using Agrobacterium tumefaciens-mediated transformation. We observed that free GFP was localized to both the cytoplasm and nucleus of tobacco cells (Fig. 3a) whereas the nuclear marker (Fig. 3b) and LcERF19-GFP colocalized in the nucleus. The results showed that LcERF19 is a nuclear-localized protein (Fig. 3c).
Figure 3.
Subcellular localization of LcERF19 in tobacco leaf cells. Agrobacterium tumefaciens strains harboring an empty vector (35S:GFP), (b) a nuclear marker (35S:h26-RFP), or (c) 35S:LcERF19-GFP were infiltrated into four-week-old tobacco leaves. Bar = 50 μm.
LcERF19 bound and activated the LcTPS42 promoter
Our results demonstrated that 3 AP2/ERFs in the IXa subgroup and 5 in the IXb subgroup were coexpressed with LcTPS42 in the pericarp of L. cubeba (Fig. 2a), indicating that these TFs may regulate the expression of LcTPS42. We used a dual-LUC assay to determine if these TFs could regulate luciferase gene expression driven by the LcTPS42 promoter. All 8 AP2/ERF transcription factors were expressed from the pGreenII62-SK vector and the LcTPS42 promoter was placed upstream of luciferase in the pGREENII0800-LUC vector. Our results demonstrated that LcERF32, LcERF19, LcERF109, LcERF17, and LcERF110 could significantly activate the LcTPS42 promotor compared with the control (Fig. 4a). LcERF19, a member of the IXb subgroup, was chosen for additional assays due to its particularly high activation of the LcTPS42 promoter.

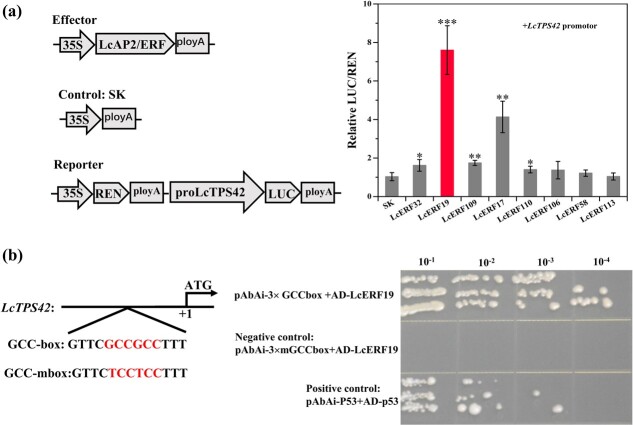

Figure 4.
LcERF19 binds to the promoter of LcTPS42 and activates its expression. (a) Screening of candidate TFs by the dual-LUC assay. The expression levels of AP2/ERFs were significantly increased compared with the control (highlighted in red). Data are shown as the mean ± standard deviation of three replicates (***P < 0.001, **P < 0.01; *P < 0.05). (b) LcERF19 binds to the GCC-box regions in the LcTPS42 promoter. Three repeats of the GCC-box element were used as baits (pAbAi-3 × mGCC-box). Yeast cells coexpressing pGADT7-LcERF19 and the pAbAi-3 × mGCC-box from the LcTPS42 promoter were cultured for 5 days at 30°C in selective medium (SD/−Trp/-Ura containing 600 ng/mL AbAi).
AP2/ERF subgroup IX TFs play a key role in regulating plant secondary metabolism through interacting with a GCC-box region in promoters [14, 15, 18, 21]. We noticed a GCC-box element in the LcTPS42 promoter and subsequently performed a Y1H assay to determine if LcERF19 could physically associate with the LcTPS42 promoter. The Y1H assay revealed that LcERF19 interacted with the three tandem duplicates of the GCC-box element in the LcTPS42 promoter. Yeast expressing LcERF19 and the AUR1 gene driven by the wild-type LcTPS42 promoter were able to grow on media containing AbA whereas mutation of the GCC-box in the LcTPS42 promoter prevented yeast growth.
LcERF19 promotes geranial and neral biosynthesis in L. cubeba
We investigated whether LcERF19 could increase monoterpenoid yield in L. cubeba by activating the LcTPS42 promoter. Because stable transformation of L. cubeba is challenging, an efficient and simple transient expression assay was used to investigate the function of LcERF19. After transient expression of LcERF19, we detected a 12.5-fold increase in LcERF19 expression relative to the control (Fig. 5a). Transient expression of LcERF19 also revealed that the expression levels of monoterpenoid biosynthesis-related genes LcDXS, LcDXR, LcHMGS, LcHMGR, LcCMS, LcMDS, LcHDS, LcGPPS.SSU1, and LcTPS42 were significantly increased compared with the control (Fig. 5a). In addition, the increase in monoterpenoid biosynthesis-related gene expression was positively correlated with monoterpenoid content (Fig. 5b-c), and the contents of primary LCEO components, geranial and neral, increased by 242.02% and 266.72%, respectively (Fig. 5b-c). These findings suggest that LcERF19 enhances geranial and neral biosynthesis.
Figure 5.
Transient overexpression of LcERF19 promotes monoterpene biosynthesis and the expression of related genes in Litsea cubeba. (a) Expression levels of monoterpenoid biosynthesis pathway genes. (b-c) Contents of monoterpenoids in sterile seedlings overexpressing LcERF19 determined by GC–MS and sterile L. cubeba leaves infected with Agrobacterium tumefaciens that contained LcERF19 driven by the 35S promoter. Data are shown as the mean ± standard deviation of three replicates (*P < 0.05).
LcERF19 promotes geranial and neral biosynthesis in tomato [conserved regulation of terpenoids biosynthesis in plants]
To further confirm the conserved role of LcERF19 in monoterpenoid biosynthesis, we overexpressed LcERF19 in tomato—an ideal crop to produce terpenoids. A total of 13 transgenic tomato lines were obtained, and we selected tomato fruit from two independent transgenic lines with the highest expression levels of LcERF19 (LcERF19–1 and LcERF19–2) and two wild-type lines (WT-1 and WT-2) for volatile analysis and qRT-PCR (Fig. S1; Fig. 6a). The results demonstrated that overexpression of LcERF19 resulted in significantly increased limonene, linalool, neral, and geranial content in transgenic lines compared to WT tomato fruit (Fig. 6b-c). Compared to the control, the content of geranial in the fruit of the LcERF19–2 transgenic tomatoes increased from 0.0012 μg·g−1 to 0.0140 μg·g−1 (11.7 fold), and the content of neral increased from 0 μg·g−1 to 0.0046 μg·g−1 (Fig. 6b-c). These findings suggest that LcERF19 promotes geranial and neral biosynthesis in tomato plants.

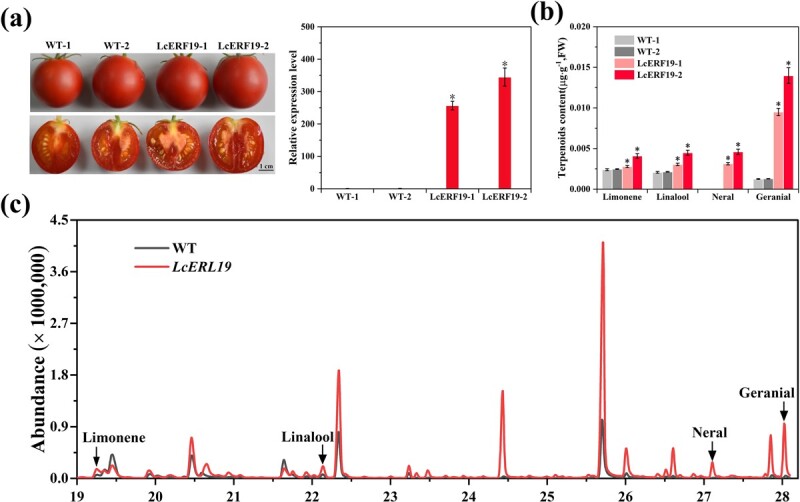

Figure 6.
Overexpression of LcERF19 induces geranial and neral accumulation in tomato fruits. (a) Phenotypes of transgenic tomato fruits and the expression levels of LcERF19. WT-1 and WT-2 represent the two wild-type lines and LcERF19–1 and LcERF19–2 represent two independent LcERF19 overexpression lines. (b-c) Monoterpenoid contents in transgenic tomato fruits 10 d after the breaker stage. Data are shown as the mean ± standard deviation of three replicates (*P < 0.05).
Discussion
LcERF19 belongs to APT/ERF subgroup IXb and directly binds and activates the LcTPS42 promotor
The AP2/ERF family is involved in defense signaling regulated by the plant hormones jasmonate, ethylene, and salicylic acid while also regulating the synthesis of specialized compounds [23, 25–28]. LCEO is mainly composed of specialized aromatic monoterpenoid metabolites, including geranial, neral, limonene, linalool, etc. The yield and content of these terpenoids determine the economic value of LCEO [1]. We identified 174 AP2/ERF TFs in the L. cubeba genome, which included members of the IX subgroup:9 IXa, 7 IXb, and 11 IXc member genes. The expression of 3 IXa and 5 IXbsubgroup members was positively correlated with that of LcTPS42, and these genes were highly expressed in the later phases of fruit peel growth (Fig. 2a). These findings indicated that these TFs may be important to L. cubeba terpenoid biosynthesis control.
The IXa and IXb subgroups contain the same basic AP2/ERF domain, recognize specific cis-regulatory elements (GCC-box element), and also share a CMIX2 motif. The CMIX2 motif is a hypothetical acidic region and may play a role as a transcriptional activation domain [17]. In particular, the IXa subgroup has emerged as a broad-spectrum JA-responsive transcriptional regulator in plant specialized metabolite pathways [20, 21]. Examples include ORCA2-ORCA6 regulation of monoterpenoid indole alkaloids in Catharanthus roseus [20, 23], GAME9 regulation of steroidal glycoalkaloids in tomato and potato [16], ERF189 regulation of nicotine in tobacco [14], and AaERF2 and AaORA regulation of artemisinin in Artemisia annua [13, 19]. However, research on the regulation of plant-specific metabolites by subgroup IXb is lacking. In this study, we observed that 3 IXa and 5 IXb genes were coexpressed with LcTPS42 (Fig. 2a). Interestingly, the activation effect of 5 IXb TFs (LcERF32, LcERF19, LcERF109, LcERF17, LcERF110) on the LcTPS42 promoter was stronger than that of IXa subgroup members. The activation effect of LcERF19 was particularly strong, resulting in a 7.6-fold increase in LcTPS42 promoter activity compared to the control treatment (Fig. 4a). These IXb TFs are similar to the C. roseus ORCA TFs, which activate terpenoid biosynthesis pathway genes in a redundant manner [20, 23]. Our results showed that LcERF19 directly binds and activates the LcTPS42 promotor, and it will be crucial to investigate the control of other ERF family members on specialized metabolite biosynthesis in the future. In addition to the role that IXa subgroup members play in secondary metabolite production, although we have not identified IXa subgroup members that can regulate LcTPS42 gene expression, IXa subgroup members may also be implicated in the control of other L. cubeba terpenoid genes. We also found that LcERF19 recognizes and binds the GCC-box element in the LcTPS42 promoter. The binding elements are typical binding sites of subgroup IX and the ERF TF subfamily, suggesting that other ERF subfamily members may also regulate terpenoid biosynthesis by binding to this site.
LcERF19 induces the expression of terpenoid metabolic genes and functions as a positive regulator for terpenoid biosynthesis engineering
In plants, members of the IX subgroup induce the expression of terpenoid biosynthesis genes and improve terpenoid yield and quality [20, 23]. Overexpression of AaORA induces the expression of multiple terpenoid biosynthesis genes and increases artemisinin content [19, 29]. AaERF1 and AaERF2 bind and activate A. annua ADS and CYP71AV1 promoters to increase their expression and increase artemisinin content [13]. Similarly, in this study, we found that transient overexpression of LcERF19 increased the expression of genes involved in the geranial and neral biosynthesis pathways. Geranial and neral contents were increased in tomato fruit overexpressing LcERF19. Our results demonstrate that LcERF19, a member of subgroup IXb, positively regulates geranial and neral biosynthesis.
Although LcERF19 overexpression increased geranial and neral contents, we noticed an unexpected decrease in pinene and camphene contents. This may be because the metabolic flow of this monoterpene biosynthesis pathway is relatively stable. LcERF19 greatly improves the expression of LcTPS42 and requires more substrates to synthesize geranial and neral, resulting in a reduction in the content of other terpenoids. Similarly, A. annua AaTCP15 increased the conversion efficiency of dihydroartemisinic acid to artemisinin by activating the ALDH1 promoter, resulting in increased artemisinin content and decreased dihydroartemisinic acid content in AaTCP15 transgenic plants [30]. However, this is favorable for the genetic improvement of citral production (geranial and citral) with fewer other terpenoids. In addition, overexpression of LcERF19 in tomato fruit contributed to a significant improvement in citral content, suggesting that LcERF19’s role in promoting citral accumulation is conserved. These findings demonstrate that LcERF19 is an essential key regulator that could be exploited to increase citral production and quality in L. cubeba.
Conclusion
We functionally identified that LcERF19, a member of the IXb subgroup of AP2/ERF TFs, controls geranial and neral biosynthesis. Overexpression of LcERF19 in L. cubeba and tomato significantly increased the contents of geranial and neral. Furthermore, the expression profile of LcERF19 in the pericarp was similar to that of LcTPS42, and both were induced by JA. LcERF19 could also directly bind and activate the LcTPS42 promoter. Our results indicated that LcERF19 promotes geranial and neral biosynthesis, likely through the activation of LcTPS42 expression. In the future, more research will be needed to identify and characterize AP2/ERF TF interaction partners and elucidate their involvement in regulating terpenoid metabolism. In addition, we are developing a stable genetic transformation system for L. cubeba to express these TFs.
Materials and methods
Identification of AP2/ERF gene family members in L. cubeba and phylogenetic analysis
The AP2/ERF domain was acquired from the PFAM database. TBtools was used to extract LcAP2/ERF genes from the L. cubeba genome [31]. The homologs of Arabidopsis AtAP2/ERF transcription factors were downloaded from the PlantTFDB 5.0. The AtAP2/ERF TFs were then used as a query in TBtools to scan the L. cubeba protein dataset, using an E-value limit of 1e-5 and a 45% cutoff. Putative LcAP2/ERF proteins were obtained by analyzing HMMER and BLAST results and manually deleting duplicated sequences. NCBICDD, SMART, and PFAM databases were used to double-check the predicted LcAP2/ERF genes [32]. Finally, 174 LcAP2/ERF TFs were identified in the L. cubeba genome. The LcAP2/ERFs sequences were aligned using MAFFT, and a phylogenetic tree was constructed using PhyML 3.0 with the default parameters [33].
Dual-luciferase (dual-LUC) assay
Dual-LUC assays were used to detect LcERF19-mediated activation of LcTPS42 promoters. TFs were subcloned into a pGreenII62-SK plasmid (effectors) and LcTPS42 promoters were subcloned upstream of the luciferase reporter gene in a pGreenII0800-LUC plasmid (reporters). The empty pGreenII62-SK plasmid was used as a negative control for the effector. Effectors and reporters were individually transformed into Agrobacterium strain GV3101. Cultures of individual Agrobacterium strains were incubated with shaking overnight. The next day, cultures were pelleted and suspended in infection solution (10 mM MES, 10 mM MgCl2, 200 mM acetosyringone, pH 5.7) and adjusted to an OD600 of1.6. Agrobacterium suspensions in infection solution were then incubated for 4 h at 23–26°C. Agrobacterium suspensions containing effectors and reporters were mixed in a 1:1 ratio and infiltrated into the leaves of 30-days-old tobacco plants by needleless syringes. Plants were grown at 26°C for 40–72 h with a 16 h light/8 h dark photoperiod. LUC and REN enzymatic activities were analyzed using a luciferase assay kit (Promega, USA).
Subcellular localization
Agrobacterium strain GV3101 was transformed with a pCAMBIA1300S plasmid containing LcERF19 fused in-frame with GFP. Agrobacterium was prepared for infiltration by pelleting and suspending an overnight culture in infection solution (10 mM MES, 10 mM MgCl2, 200 mM acetosyringone, pH 5.7) and adjusting the concentration to an OD600 of 0.8. The suspension was then incubated for 4 h at 23–26°C and infiltrated into the leaves of 30-day-old tobacco plants. Subcellular protein localization was analyzed at 40–72 h after infiltration using a laser scanning microscope (ZEISS LSM 880, Germany). OsRed was used as a positive control for nuclear localization.
Yeast one-hybrid (Y1H) assay
Y1H assays were performed as described by Wang et al. (2022)24. The LcERF19 gene was subcloned into the pGADT7 plasmid to obtain pGADT7-prey, while three tandem repeats of GCC-box were subcloned into the pAbAi plasmid to obtain pAbAi-bait. The pAbAi-bait cleaved with the reagent BstBI (NEB, USA) and then cotransformed into yeast with the pGADT7-prey. Transformed yeast were plated on SD/-Trp/-Ura agar plates supplemented with 600 ng/mL of AbA.
RNA extraction and quantitative real-time PCR (qRT-PCR)
For qRT-PCR analysis, different tissues and fruits of different development stages of L. cubeba were harvested from farms in Zhengjiang, China (30°27′94′′N, 119°58′ 43′′E). The harvested tissues were immediately snap-frozen in liquid nitrogen and stored at −80°C. RNA extraction and reverse transcription followed methods described by Zhao et al. (2020) [34]. qRT-PCR was conducted using the TB Green® Premix Ex Taq™ II kit and ABI PRISM 7500 instrument. All primers are summarized in Table S1.
Transient overexpression of LcERF19 in L. cubeba
Agrobacterium strain LBA4404 that contained LcERF19 in pCAMBIA1300S or the pCambia1300S empty vector was used for the transient overexpression assays following Wang et al. (2022)24. Sterile leaves of L. cubeba seedlings infected with A. tumefaciens were placed on MS medium and cultured at 25–27°C with a photoperiod of 16 h light/8 h dark for 40–72 h. Leaves were gathered and stored at −80°C for volatile and qRT-PCR analysis. The volatiles were analyzed using GC–MS [34].
Transgenic overexpression of LcERF19 in tomato
The recombinant vector that contained LcERF19 (pCAMBIA1300S-LcERF19) was transformed into Agrobacterium strain LBA4404 for transient expression in tomato according to the protocol reported by Chetty et al. (2013) [35]. Seven-day-old cotyledon explants were infected with Agrobacterium and cultured on KCMS medium for 40–48 h in the dark. The cotyledon explants were then subcultured in callus induction 2Z medium supplemented with 4 mg/L Hygromycin B and 180 mg/L Timentin to induce callus growth. After 30–45 d, the calluses were transferred to 0.2Z media to induce shoot formation, and the shoots were placed in MS medium to induce root formation. Following the formation of roots, the seedlings were planted in soil and cultivated in a greenhouse. Genomic PCR using primers specific for both the Hygromycin gene and the LcERF19 gene was performed to verify positive transformants. Samples were harvested from two independent transgenic tomato lines with high LcERF19 expression and stored at −80°C for volatile and qRT-PCR analysis.
