. 2022 Aug 15;8(8):e10209. doi: 10.1016/j.heliyon.2022.e10209

Soil water erosion assessment in Morocco through modeling and fingerprinting applications: A review

Houda Lamane a,b,∗, Rachid Moussadek b,c, Bouamar Baghdad d, Latifa Mouhir a, Hamza Briak e, Meriem Laghlimi d, Abdelmjid Zouahri b
PMCID: PMC9421189  PMID: 36046543

Abstract

During the last century, a great deal of effort has been directed toward determining soil erosion rates using various methods under a wide range of climatic conditions, soil types, land uses, topography, and among others. Therefore, to better understand soil erosion studies in Morocco, a country with diverse physiography and climatic variations we undertook an analysis of national data of several soil erosion modeling and fingerprinting. The approach used for this research is a review of scientific articles, conference papers and thesis on soil erosion, focusing more on categorization of the different soil erosion models and other methods applied. The results reveal very interesting information as follows: (i) the distribution and frequency level of modeling and fingerprinting applications; the focus was on the north of the country: (Rif 32.89%, High Atlas 32.89%, Occidental Meseta 18.43% and Middle Atlas 10.53%), (ii) The (R) USLE models remain the most widely used models (51,32%) in Morocco, (iii) The support practice factor was severely lacking across the country, (iv) the highest erosion rate is concentrated in the Atlas and Rif mountains; and (v) a positive relationship between erosion rate and geological features, slope, climate, land use and cover, plus other environmental characteristics, as well as measurement and modeling conditions, and a negative relationship with the study areas size and scale. Even though the overall results show a high degree of variability, which cannot be explained by this combination of factors, but is at a minimum partly related to the experimental conditions. This overview research and database are designed to assist in the future assessment of soil erosion and to help define priorities for soil erosion research by providing a state of art for future focused and comprehensive analyses to address this issue of soil erosion in Morocco.

Keywords: Soil water erosion, Models, Fingerprintings, Structural domains, Literature review, Morocco

Soil water erosionModelsFingerprintingsStructural domainsLiterature reviewMorocco

1. Introduction

Soil degradation due to water erosion processes poses a series of threats to terrestrial ecosystems (Han et al., 2016; Borrelli et al., 2020; Li et al., 2022). This phenomenon is one of the most serious problems in the world, which influenced by both natural and human factors (Shougang and Ruishe, 2014). It has become one of the global environmental hazards that affects human survival and restricts global socio-economic sustainable development (Han et al., 2016).

Soil erosion and its impacts are one of the main concerns of watershed managers and policy makers. They are increasingly seeking data on soil erosion and its effects on water quality at the watershed scale (Merritt et al., 2003), addressing the spatial distribution of soil erosion risk and the absolute value of soil erosion losses. The soil erosion model is playing an important role in the design and implementation of soil management and conservation strategies (Panagos et al., 2015). Furthermore, models vary significantly in their application, requirements, expected use, and their outputs (Merritt et al., 2003). Effective modelling can provide information about current erosion, its trends and scenario analysis (Ganasri and Ramesh, 2016). In effect, soil erosion models are important for estimating rates of soil loss and runoff from agricultural land, for planning land use policies, generating relative indices of soil loss, and providing guidance for government policy and strategy on soil and water conservation (Smith, 1999). Although modeling is an effective and valuable tool for decision support (Cerdan et al., 2002), its application is not an easy task. Indeed, the natural complexity of landscape systems, spatial heterogeneity and insufficient of available data are the main difficulties in water erosion modeling (Merritt et al., 2003). A challenge for basin management decision makers is to identify models that accurately simulate the complexity of basin processes using available data (Nguyen et al., 2019).

Due to its position in the northwest of Africa, Morocco presents a good example of a country with great diversity terms of climate, vegetation, morphology, and geology; Classified as a semi-arid Mediterranean country in development (Gourfi et al., 2018), nevertheless that have commonly suffered from land degradation and mismanagement (Jazouli et al., 2019). Over the past decades, Morocco has implemented a strategy of surface water mobilization through the construction of dams; it is one of the most powerful countries in the field of dams in Africa (Gourfi et al., 2021). Nowadays, according to water department of Morocco, 149 dams were built and operational with a total storage capacity up to 22 billion m3 to supply water demand about 11 billion m3. However, it is impacted by the sedimentation problem caused by soil erosion upstream (Gourfi et al., 2021). The reservoir siltation leads to an overall decrease in reservoir capacity of about 70 hm3/year, or 0.4% each year, with a large regional variability, and much higher values in certain areas, such as the north of the country (Ezzaouini et al., 2022). Therefore, developing and applying different models and fingerprintings to evaluate the soil erosion at watershed scales could be valuable to manage and reduce the impacts of this issue.

In this perspective, the main objective of this study is to provide a review of research on soil water erosion modeling and fingerprinting studies in Morocco. From this general objective, stems a set of specific objectives which are (i) analysis of geographical distribution and frequency of modeling applications, (ii) evaluate models and fingerprintings most commonly presented in the Moroccan literature, (iii) percent distribution of soil erosion rate estimates by geologic domain and (iv) highlight the factors controlling soil erosion in the different structural zones. To achieve these objectives, we have constructed a database founded on academic articles, thesis, bulletins, conference papers, textbooks, research reports and publicly available materials relating to soil water erosion models conducted in Morocco, which cover its main structural domains. This review provides an insight into the national status of soil water erosion model applications in Morocco and summarizes information on the processes and regions that have been most evaluated and that require increased attention in the future.

2. Methods

2.1. Study area

The kingdom of Morocco covering about an area of 710 850 km2, has a special location in the northwest corner of the African continent (21N–36N, 1W–17W). It is surrounded by the moving plates of the Mediterranean Sea to the north and the Atlantic Ocean to the west. Indeed, during its long geological history conditioned by this hinge position, between the African, European and American continents. Several orogenic cycles have succeeded each other, each contributing, by its geodynamic context and its magnitude, to shape the major structural areas of Morocco (Piqué and Knidiri, 1994).

Morocco is a country of contrasts, it is a fact that the differences in relief, the diverse nature of forms and its geographical location yields highly variable climatic conditions converge to individualize structural areas and landscapes very different from one end of the country to the other, and is divided geologically into four major structural domains (Piqué and Knidiri, 1994). These structural domains distributed into seven diferent areas as illustrated in Figure 1: Rif, Middle Atlas, High Atlas, Anti Atlas, Occidental Meseta, Oriental Meseta and Sahara. Rifan domain to the north consists of the inner zones, the flyshield zone and the outer zones; that includes friable rocks of various types and ages, the soil is highly developed undergoing a very high loss of soil due to landslides experienced by the region, the climate is humid (P > 500 mm), the vegetation cover is arable land type and contains permanent crops mainly located along the rivers in the coastal plains. Middle and High Atlas mountains (where the Jebel Toubkal is located is the highest point of the High Atlas as well as Morocco and North Africa with 4167m) are formed by a covering of essentially carbonate, Mesozoic and Cenozoic terrains and characterized by high altitudes and steep slopes, a semi-arid climate with precipitation between 100 and 500mm, medium vegetation cover and poorly developed soils. Meseta domains are formed by a Paleozoic basement of Cambrian to Carboniferous age and consist mainly of sedimentary terrain with intense bimodal volcanic activity in the Visean; it is generally characterized by low to moderate relief, well-developed soils and a semi-arid to mediterranean climate. The domain of Anti-Atlas and Sahara (where is the lowest point of the country, at 55 meters below sea level) which is formed by a Proterozoic basement and characterized by a desert climate (P < 100 mm), a vegetation cover dominated essentially by bare areas and sparse desert steppes, and very poor soils (Gourfi et al., 2020; Verner et al., 2018; Michard et al., 2008). Namely, in a semi-arid environment in northwest Morocco that is affected by the formation of severe gullies, where the effects of extreme rainfall are clearly demonstrated (Shrestha and Jetten, 2018). Indeed, precipitation has decreased significantly, and temperature has increased markedly during these years to indicate the possibility of dry periods (Beroho et al., 2020), which can turn into an acceleration of extreme events (Ouraich and Tyner, 2018), e.g. droughts and floods.

Figure 1.

Figure 1

Open in a new tab

Situation and structural domains of Morocco.

2.2. Data collection using meta-analysis

A dataset of erosion rate measurements in Morocco was collected from thesis, scientific articles and conference paper published in international journals between 1970 (Heusch, 1970) when the first studies of soil erosion started till date 2021 (Elmalki et al., 2021; Farah et al., 2021b, 2021a; Labbaci et al., 2021; M'Barek et al., 2021; Tahouri et al., 2021; Tairi et al., 2021; Taleb et al., 2021; Eloudi et al., 2021; Acharki et al., 2022) and were collected, classified and evaluated. This research was performed on "Science direct", “Springer”, “Google”, “Google scholar”, “Researchgate” and academic libraries. To search for articles related to this statistical study, we selected the keywords: soil erosion and model or model name in Morocco, water erosion modeling in Morocco, water erosion assessment methods in Morocco; emphasizing those indexed by Web of science and Scopus. The articles matching the selected keywords were downloaded and examined. The study approach consisted of two main phases. The first of the data collection process consisted of three main steps: test the relevancy of the articles to the purpose of the synthesis study, entry data recording and retrieve all the necessary data listed in Table 1 for each relevant article. The second phase is to assess the accuracy of the documentation. We eliminated approximately 19.15% of the items reviewed and checked for completeness and considered 80.85% of the records that met the criteria; we have specifically selected articles dealing with the quantitative or qualitative assessment of soil erosion by modeling or fingerprinting in a given region of Morocco. This process identified a total of 76 articles. Then, we reviewed the database to identify and correct inconsistencies, misclassifications, and obvious typos.

Table 1.

List of information collected for each entry in the database.

Group Entry Types of data
Bibliography
Study area
Setting
Modelling outcomes 		Title
Author(s)
Year of publication
Journal
Geological domain
Name of the watershed
Latitude (decimal degrees)
Longitude (decimal degrees)
Surface (ha)
Dam
Main factors
Management factor (P)
Model developed/applied
Estimated soil erosion rate (t/ha/year)
Conclusion
Recommendation		 Open (alphanumeric)
Open (alphanumeric)
Open (numeric)
Open (alphanumeric)
Open (alphanumeric)
Open (alphanumeric)
Open (numeric)
Open (numeric)
Open (numeric)
Open (alphanumeric)
Open (alphanumeric)
Open (alphanumeric)
Open (alphanumeric)
Open (numeric)
Open (alphanumeric)
Open (alphanumeric)
Open in a new tab

2.3. Statistical analysis

This research provides an overview of soil water erosion assessment through model and fingerprinting applications in Morocco and led to the creation of a multi-source database of soil erosion model and fingerprinting predictions applied in different regions of Morocco, covering a wide range of publication periods as shown in Table 2. A dataset with extensive inputs including the following information was collected (if available): type of model, estimated soil erosion rates (in units of mass per area and time), geographic coordinates (longitude and latitude), author(s) and year of application, study area size (ha) and the main factors controlling water erosion. These inputs yielded statistical information on soil erosion patterns and predictive trends in space and time.

Table 2.

Main characteristics of the studied watershed.

Zone Watershed/Area Watershed characteristics
 Model Erosion rate (t/ha/year) Paper type Reference
Area (ha) Latitude Longitude Dam/Outlet
Rif Arbaa Ayacha 19900 31°–31°21′N 7°30′-7°60′O ____ RUSLE 25.77 Article (Ouallali et al., 2016a)
Arbaa Ayacha 19900 31°–31°21′N 7°30′-7°60′O ____ PAP/RAC Map Article (Ouallali et al., 2016b)
Asfalou 81023 ____ ____ Asfalou PAP/RAC Map Article (Tahouri et al., 2021)
Boussouab 25220 34°30′-34°35′N 3°35′-3°40′W ____ USLE 55.35 Article (Sadiki et al., 2014)
El Hachef 23000 ____ ____ El Hachef 137Cs and210Pb 20 to 32 Article (Damnati et al., 2013)
Inaouene 370000 34°30′-33°50′N 3°49′-4°33′W Idriss-I RUSLE 37 Article (Brahim et al., 2020)
Khmiss 29300 35°45′-35°32′N 5°26′-5°37′W ____ USLE 36 Article (Issa et al., 2014)
Kalaya 3837 35°39′-35°43′N 5°37′31″-5°45′O Atlantic Ocean USLE 34.74 Article (Issa et al., 2016)
Kalaya 3838 35°39′-35°43′N 5°37′31″-5°45′O Atlantic Ocean SWAT 20 to 120 Article (Briak et al., 2016)
Loukkos ____ ____ ____ ____ RUSLE 10 Article (Acharki et al., 2022)
Nakhla 10900 35°20′-35°28′N 5°20′-5°25′W Nakhla 137Cs Up to 50 Article (Bouhlassa et al., 2000)
Nakhla 10900 35°20′-35°28′N 5°20′-5°25′W Nakhla 137Cs 12 to 29 Article (Hassouni and Bouhlassa, 2005)
Nakhla 10900 35°20′-35°28′N 5°20′-5°25′W Nakhla 137Cs and210Pb 20 to 41 Article (Damnati et al., 2013)
Nakhla 11800 ____ ____ Nakhla SWAT 11.25 Article (Taleb et al., 2021)
Nekor 78000 ____ ____ MBAK RUSLE/USPED 38 Article (Arrebei et al., 2020)
Oued El Makhazine 241400 34˚45′-35˚15′N 5˚14′32″-5˚51′9″W ____ USLE A max of 95 Article (Belasri and Lakhouili, 2016)
Oued El Malleh 3400 ____ ____ ____ RUSLE 13.95 Article (El Aroussi, 2013)
Oued Haricha 22100 ____ ____ April 9, 1947 RUSLE/MUSLE 62.72 Article (Tahiri et al., 2016)
Oued Tlata 12300 ____ ____ ____ RUSLE Up to 50 Article (Garouani et al., 2008)
Oued Tlata 12300 ____ ____ ____ USLE 61 Article (Tribak et al., 2009)
Ouergha 619000 34°25–35°25′N 3°45′-5°24′W El Wahda RUSLE 61.14 to 300 Article (Jaouda et al., 2020)
Ouergha 730000 34°24′-35°07′N 3°05′-5°05′W El Wahda SWAT/MUSLE
RUSLE		 27 Conference (Tairi et al., 2021)
Raouz 4700 ____ ____ Raouz 137Cs and210Pb 12 to 16 Article (Damnati et al., 2013)
Saboun 720 ____ ____ ____ USLE Up to 30 Thesis (Moussadek, 1999)
Saboun 720 ____ ____ ____ Spectral indices Map Article (Chikhaoui and Bonn, 2006)
Tahaddart 114100 35°40′-35°20′N 5°40′-6°W Atlantic Ocean RUSLE/MUSLE 47.79 Article (Tahiri et al., 2017.)
Wadi Tarmast 6900 ____ ____ ____ RUSLE 7 to 32 Article (Tribak et al., 2015)
High Atlas Aoulouz 444600 ____ ____ Aoulouz GIS (Factors) 4.85 Conference (Fox et al., 1997)
Argana Corridor ____ ____ ____ Issen River RUSLE 47.52 Article (Bou-imajjane et al., 2020)
Azilal (site) 10000 31°46′-31°52′N 6°45′-6°52′W Hassan-I Spectral indices Map Article (Bannari et al., 2007)
Azilal 7000 31°45′-31°50′N 6°45′-6°51′W Hassan-I Spectral indices Map Article (Maimouni et al., 2012)
Azilal (South) 5300 31°45′N-31°50′N 6°45′W-6°51′W Hassan-I AHP Map Article (Farah et al., 2021a)
El Ksiba (region) 6000 32°32′-32°37′N 6°–6°06′W ____ Spectral indices Map Article (Bachaoui et al., 2014)
Beni Mellal (region) ____ 32°17′-32°24′N 6°14′-6°23′W ____ Spectral indices Map Article (M. Bachaoui et al., 2014)
Beni Mohand 34,894 ____ ____ ____ RUSLE 40.38 Article (Bou-imajjane and Belfoul, 2020)
Lakhdar 680000 ____ ____ Hassan-I Spectral indices Map Article (Nouaim et al., 2019)
Lakhdar 295000 ____ ____ Hassan-I AHP Map Article (Eloudi et al., 2021)
N'fis 170400 30.5°-31.2°N 7.55°-8.40°W Lalla Takerkoust SWAT 131 Article (Markhi et al., 2019)
N'fis 170400 30.5°-31.2°N 7.55°-8.40°W Lalla Takerkoust RUSLE/SEDD 54 Article (Gourfi, 2019)
Ouarzazate 58.977 ____ ____ El Mansour Eddahbi Sentinel 2 A Map Article (Farah et al., 2021b)
Oued El Abid 311900 ____ ____ Bin El Ouidane IntErO/EPM 402 Conference (El Mouatassime et al., 2019)
Ourika 57600 31°–31°21′N 7°30' -7°60′W ____ RUSLE 380 Article (Modeste et al., 2016)
Ourika 57600 31°–31°20′N 7°30′-7°60′W ____ 137Cs 4.5 to 7.3 Article (Meliho et al., 2019)
Ourika 57300 31°–31°20′N 7°30′-7°60′W ____ SWAT 2 to 59 Conference (Elmalki et al., 2021)
Ourika 50300 31°–31°20′N 7°30′-7°60′W ____ InVEST-SDR 258.48 Article (Ayt Ougougdal et al., 2020)
Rheraya 22500 ____ ____ ____ STREAM 4 Article (Simonneaux et al., 2015)
SBEI of Ain Asmama 23564 30.74°-31°N 9.03°-9.33°E ____ RUSLE 339.03 Article (Labbaci et al., 2021)
Tensift 2045 30°50′-32°10′N 7°12′-9°25′W ____ RUSLE 44.03 Article (Meliho et al., 2019)
Tessaoute upstream 141800 31°33′-31°64′N 6°48′-7°33′W Moulay Youssef USLE 15.44 Article (Elaloui et al., 2017)
Tifnout Askaoun 148800 30°35′-31°05′N 7°37′-8°11′W Mokhtar Soussi and Aoulouz RUSLE 14.44 Article (Tairi et al., 2021)
Upper Draa basin 128400 30°56′-31°23′N 7°00′-7°36′W ____ Spectral indices Map Article (Ourhzif et al., 2021)
Ziz 443500 32°05′-32°64′N 4°11′-5°46′W Hassan Eddakhil RUSLE 489.5 Conference (Fenjiro et al., 2020)
Middle Atlas High Oum Er-Rbia 153100 32°35′-33°N 5°05′-5°50′W El Hansali RUSLE 224 Article (Yjjou et al., 2014)
High Oum Er Rbia 361200 ____ ____ Ahmed El Hansali CA_Marcov/RUSLE 142 Article (Jazouli et al., 2019)
Ikkour 5500 32°32′–32°40′N 5°50′–5°58′W ____ USLE/Spectral indices 0.68 Article (El Jazouli et al., 2017)
M'dez 335000 ____ ____ ____ SWAT/RUSLE 3.95/2.94 Conference (Boufala et al., 2020)
Oued Beht 430.728 ____ ____ El Kansra USLE 19.40 Article (Gaatib and Larabi, 2014)
Oued Srou 144300 32°35′-33°N 5°05′-5°50′W ____ LEAM Map Conference (Elbouqdaoui et al., 2005)
Oued Zgane 54915 33°30′-33°50′N 4°37′-5°06′W ____ PAP/RAC Map Article (Ousmana et al., 2017)
Upper Sebou 549500 33°-34°N 4°03′-5°20′W Allal El Fassi SWAT 6.51 Article (Boufala et al., 2020)
Anti-Atlas Souss 1718600 29.70°-31.11°N 7.47–9.6W Atlantic Ocean EPM 1.81 Article (Ahmed et al., 2019)
Tifnout-Askaoun 157000 ____ ____ Aoulouz/Mokhtar Soussi AHP Map Article (Tairi et al., 2019)
Occidental Meseta Bouregreg 957000 34°00′-33°00′N 6°40′-5°35′W SMBA SWAT ____ Article (Fadil et al., 2011)
Bouregreg River 395600 ____ ____ SMBA RUSLE 13.81 Article (Adilmoussebbih, et al., 2019)
Bouregreg 545 33°06′43″N 7°24′21″W SMBA USLE 1.1 Article (Asserar et al., 2020)
Bouregreg 1013000 34°00′-33°00′N 6°40′-5°35′W SMBA MUSLE 2.7 Article (Ezzaouini et al., 2020)
El Grou 350400 ____ ____ Ras El Fathia SWAT 11.3 Article (M'Barek et al., 2021)
Harchane ____ ____ ____ ____ 137Cs/7Be 8 to 58 Conference (Benmansour et al., 2016)
Korifla 63600 33°00′-33°45′N 6°40′-6°52′W SMBA GIS Map Article (Bouh, 1996)
Korifla 63600 33°00′-33°45′N 6°40′-6°52′W SMBA RUSLE 0.01 to 0.14 Thesis (El Bahi, 2006)
Marchouch 1 33°470 N 6°420W ____ 137Cs/210Pbex 12 to 14 Article (Benmansour et al., 2013)
Marchouch ____ ____ ____ ____ 137Cs/7Be 8 to 58 Conference (Benmansour et al., 2016)
Oued Aricha 13800 ____ ____ ____ USLE 20 Article (Anys et al., 1994)
Oued El Maleh 0.3 33°37W 7°25N Oued El Maleh 137Cs 82 Article (Nouira et al., 2003)
Oued El Maleh 257700 32˚90-33˚76N 6˚60-7˚50E Oued El Maleh USLE 8.21 Article (Lahlaoi et al., 2015)
Oued Mellah ____ ____ ____ ____ 137Cs/7Be 8 to 58 Conference (Benmansour et al., 2016)
Sbou 4000000 33°-35°N 6°35′-4°15′W ____ RUSLE 86 Article (Chadli, 2016)
Settat-Ben Ahmed 99932 ____ ____ ____ SWAT A max of 5.20 Thesis (Bouslihim, 2020)
Oriental Meseta Oued Isly 131200 ____ ____ ____ RUSLE 21.78 Article (Driss and Brahim, 2018)
Ziz upper watershed 443.5 32°64′19″-32°05′48″N 5°46′20″-4°11′72″W Hassan Addakhil WaTEM/SEDEM 4.57 Article (Mohamed et al., 2020)
Sahara ____
Open in a new tab

Diagrams and maps were used to provide the frequency of study in each structural domain, a visual relationship between the soil erosion rate and these areas with environmental factors. Also an analysis of model and fingerprinting used to predict soil erosion in Morocco, from the most used to the least ones.

3. Results and discussion

According to the first step of literature download, we observe a limited number of articles indexed on Scopus which are interested in soil erosion in Morocco despite the interest of this topic. An analysis of the relevant documents (65 articles, 8 conferences and 3 thesis) reveals a great deal of useful information to get an overview of the geographic location of modeling applications, the area most vulnerable to erosion, the models most used to predict soil erosion, how and where these models are used the distribution and frequency level of modeling applications and rate of erosion in each structural area. Thus, this study revealed some contradictions, both in the use of certain models and in the results obtained in certain studies.

3.1. Geography and frequency of modeling applications

The geographic distribution of the modeling applications was clustered with ArcGIS software using a shade of color to optimally visualize the density of observations, as shown in Figure 2. Consider that Morocco has been divided into different structural zones in which there are no study areas that overlap two geographical zones. As the map and statistics clearly indicate, the studies were concentrated in the northern part of the country; the Rif and the High Atlas (area containing the highest peaks of North Africa) were the major themes of the publications representing more than 65% of the total documents published. Numerically (Figure 2), the Rif mountains (n = 25; 32.89%) and the High Atlas mountains (n = 25; 32.89%) with the highest density of modeling applications, followed by Occidental Meseta (n = 14; 18.43%), Middle Atlas mountains (n = 8; 10.53%), Anti-Atlas domain (n = 2; 02.63%), Oriental Meseta (n = 2; 02.63%) and zero application density observed in Sahara domain (n = 0; 0%).

Figure 2.

Figure 2

Open in a new tab

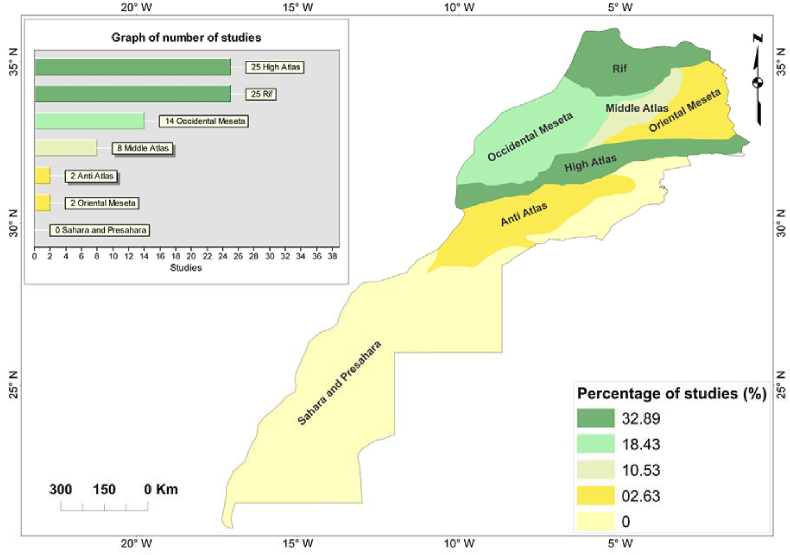

Geography and frequency of modeling applications.

Even though the problem of soil erosion is severe, only a few studies have been carried out to characterize and evaluate soil erosion in Morocco. This gap in studies is mainly due to the absence of recurrent data (Gourfi et al., 2018). Indeed, a primary difficulty for Morocco was the lack of data on parental material (Hessel et al., 2014). In particular, there is a total absence of studies on this phenomenon in the Saharan region which represents a vast part of Moroccan territory; this remark should therefore be taken into consideration.

3.2. Applied soil erosion prediction model and fingerprinting

In recent decades, there has been an increase in the application of soil erosion assessment model and fingerprinting for large areas, including Morocco. This evolution is explained by an increased political need for more information on land degradation. Those models were progressively linked to GIS interfaces during the last decades. The models most applied in Morocco, according to this study (Table 3), are members of the universal soil loss equation family: RUSLE (Revised Universal Soil Loss Equation) (Renard et al., 1997) (n = 27; 35.53%) and USLE (Universal Soil Loss Equation) (n = 12; 15.79%); (Wischmeier and Smith, 1978). In addition, these empirical models are applied to the different structural domains (together cover approximately 51.32% of the total). Follow by SWAT (Soil and Water Assessment Tool) (Arnold et al., 2012) (n = 10; 13.16%). The other model and fingerprinting: 137Cs (Caesium-137), Spectrales indices, MUSLE (Modified Universal Soil Loss Equation) (Williams and Berndt, 1977), PAP/RAC (Priority Action Program of the Regional Activity Center), 137Cs and 210Pb (Caesium-137 and plomb-210), EPM (Erosion Potential Model) (Gavrilovic, 1972), AHP (Analytic Hierarchy Process) (Saaty, 1977), STREAM (Cerdan et al., 2002), WaTEM/SEDEM (Water and Tillage Erosion Model and Sediment Delivery Model) (Van Oost et al., 2000), IntErO (Intensity of Erosion and Outflow) (Spalevic, 2011) and LEAM (Land Erodibility Assessment Model) (Manrique, 1988), have only about 35.52%. Spectral indices, PAP/RAC and AHP models are applied with a qualitative objective to map the erosion areas without giving the soil erosion rate.

Table 3.

Lists of the most applied soil erosion prediction models.

Model Records % References
RUSLE
USLE
SWAT
137Cs
Spectrales indices
MUSLE
PAP/RAC
137Cs and210Pb
EPM
AHP
STREAM
WaTEM/SEDEM
IntErO
LEAM 		27
12
10
5
5
4
3
2
2
2
1
1
1
1		 35.53
15.79
13.16
06.58
06.58
05.27
03.96
02.63
02.63
02.63
01.31
01.31
01.31
01.31		 (Renard et al., 1997)
(Wischmeier and Smith, 1978)
(J. G. Arnold et al., 2012)
_
_
(Williams and Berndt, 1977)
_
_
(Gavrilovic, 1972)
(Saaty, 1977)
(Cerdan et al., 2002)
(Van Oost et al., 2000)
(Spalevic, 2011)
(Manrique, 1988)
Open in a new tab

The used models to assess soil erosion differ widely in terms of their complexity, required input variables, the processes they represent and how those processes are represented, the scale of their intended use, and the types of output information they provide (Merritt et al., 2003). Each model has a specific purpose and therefore is unable to solve the problem in all situations (Hajigholizadeh et al., 2018). For instance, RUSLE model does not consider sediment deposition or erosion from gullies and channels; it only assesses gross sheet and stream erosion (Renard et al., 1997). The northern regions of the country are characterized by a friable lithology causing massive soil erosion, in which case the RUSLE model underestimates the effective yield of suspended sediments. However, in the regions characterized by a hard lithology and steep slopes, the RUSLE model overestimates the effective yield of suspended sediments due to the absence of soil horizon (Gourfi et al., 2018). Nevertheless, by analyzing the records of previous studies, it is possible to observe the use of certain models in different regions in terms of topography, land cover and soil properties, regardless of the conditions under which the models are used. Among the relevant reports, there are two that study the Kalaya basin, the first using the USLE with an average erosion rate of 34.74 t/ha/year (Issa et al., 2016), the second using the SWAT model with an average erosion rate of 55 t/ha/year (Briak et al., 2016), both studies performed in the same year. One explanation for this contradiction could be the experimental settings involved, which emphasizes the importance of taking into account this conditions implied in interpreting the erosion rates (García-Ruiz et al., 2015).

Importantly, the (R) USLE are the commonly used models compared to other ones. However, the calibration and validation processes of these models and fingerprintings using observed datasets is necessary for practical implication in managing soil erosion at watershed scales. Yet, few studies calibrated and validated MUSLE and SWAT models in predicting soil erosion (Briak et al., 2016; EL Bilali et al., 2020; Ezzaouini et al., 2020) due to the data shortage required for the model validations. Especially, the physical parameters are the main uncertainty sources for calibrating and validating soil erosion models. However, in the recent years, machine learning (ML) models have become outstanding approach for predicting soil erosion. For instance (AlDahoul et al., 2021), evaluated ML in predicting soil erosion in Egypt and found that ML models provided high accuracy. Therefore, the ML models could be powerful tools in predicting and evaluating soil erosion in Morocco and are suggested for future works to improve the soil erosion assessment.

3.3. Distribution of the estimated soil-erosion rates

Figure 3 presents the variability of the erosion rates provided by various model and fingerprinting for different regions. From this Figure 3, it can observe that the median values are similar for all regions with some important differences, for example between the High Atlas and the two Meseta regions; this could be 5 to 10 times lower. Meanwhile, the mean value varies from one region to another. Interestingly, the Rif (when considering outlier value), High Atlas, and Middle Atlas regions presented the ranges of the erosion rate are large while the other regions presented narrow ranges. This can be explained by the number of the studies and the methods used. Indeed, using different models or fingerprintings in the same region can provide different results depending on the input variables and the uncertainties of each variable.

Figure 3.

Figure 3

Open in a new tab

Box-plots of the erosion rate provided by reviewed studies in different regions.

The results show that there was extraordinarily high variability in erosion rates. Then, the main challenge is that watersheds in different structural domains naturally have distinct erosion rates, due to geographical differences, watershed characteristics, and the type of model used. Regardless of this difficulty, we estimated the mean soil erosion and median (Figure 3). In addition, some studies on the same watershed give different results on erosion rates, even if it is in the same period; this is due to the application of different measurement methods, another reason could be that many erosion studies ignore validation or some form of evaluation of the model results. It is therefore difficult to compare average erosion rates between domains to understand the impact of the country. Based on the statistics of the articles involved, the results indicate the highest value of soil erosion rate for the areas of the Atlas Mountains and Rif (Figure 4), dominated by friable lithology, landslides, and steep slopes. These areas are the most seriously threatened and the environmental impacts of soil erosion have been observed, such as siltation of reservoir dams, decrease in water quality, and loss of soil fertility. Indeed, the extent of soil erosion is very significant in these areas which cover less than half of the national territory but produce a high quantity of sediments.

Figure 4.

Figure 4

Open in a new tab

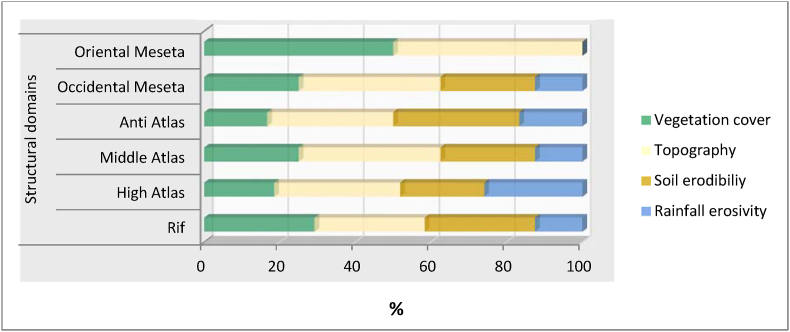

Percentage impact of different factor.

According to AEFCS (Administration of Water and Forests and Soil Conservation) Morocco in 1999, in the mountains and hills of the Rif, the average soil loss reaches 20 t/ha/year, while it is only 5 to 10 t/ha/year in the Middle and High Atlas (MAEF, 2001). Comparing these values to the data (erosion rates) in Table 2 shows that the erosion rate after this date is increasing due to climate change and anthropogenic impacts, especially in some watersheds. Indeed, the recent global assessment of soil erosion reveals values superior to 20 t/ha/year located in the High Atlas and Rif mountains (Gourfi et al., 2018; Borrelli et al., 2017). Thus, even within the same structural area, there are large differences between the erosion rate of each basin or sub-basin, even if they are adjacent and have almost the same environmental factors; this could be linked, at least partially, to experimental conditions, development within the study area, agricultural or socio-economic effects. However, in the case of the same basin, for example the N'fis basin (Gourfi, 2019; Markhi et al., 2019), the difference in the erosion rate is certainly dependent on experimental conditions. Another finding of our results is that there is a negative correlation between the erosion rate and the size of the study area involved (Table 2).

3.4. Factors characterizing the various structural domains

In order to find useful relationships between the erosion rates and environmental factors, a detailed analysis has been realized. The results presented in Figure 4 revealed that the importance of the vegetation cover, topography, soil erodibility, and rainfall erosivity in assessing soil erosion differs from one region to another. These factors are gathered in the arid and semi-arid zones in the country, which remains one of the most vulnerable to the effects of climate change (Mohamed et al., 2020). It is characterized by the spatio-temporal irregularity of rainfall (Sebbar et al., 2011) and has experienced several periods of drought (Kharraz et al., 2012; Mohammed et al., 2002); the number of dry periods is greater than the number of wet periods. In effect, the degree and extent of soil loss is governed by a number of environmental factors, including topography, climate, soil and vegetation (Wischmeier and Smith, 1978; Renard et al., 1997). Based on our analysis of the data in Morocco, we note a weak of management factor, without neglecting the importance of the role of farmer in land. Regarding the other factors; vegetation cover, topography, soil erodability and rainfall erosivity, their impact varies according to the structural domain. For example, in the Atlas and Rifain domains, there is a strong topographical impact combined with rainfall erosion, especially in the High Atlas, and soil erodability. The Occidental Meseta is vulnerable to soil erosion due to its complex topography and high levels of precipitation (Asserar et al., 2020), as also shown in Figure 4. In the Oriental Meseta, erosion is marked by the low vegetation cover in combination with the topography.

4. Conclusions

Statistical analysis of our systematic literature review provided the following conclusions:

  • (a)

    In spite of the seriousness of the threat of soil erosion, only a limited number of indexed studies have been conducted to characterize and evaluate soil erosion in Morocco.

  • (b)

    The distribution of studies on the modeling of water erosion reveals a focus on the north of the country, Rif, High Atlas, Middle Atlas and Occidental Meseta.

  • (c)

    The models of water erosion have been increasingly developed and linked to GIS based interfaces over the last decades.

  • (d)

    Despite geomorphological and geological diversity of Morocco (Rif, Middle and High Atlas, Mesetian and Saharan domain) several authors practice soil erosion assessment models without taking into account the unique characteristics of each study area and not adapting them to local conditions.

  • (e)

    (R) USLE models have been widely used and modified over the last two decades and remain today the most commonly used modeling tool. In fact, most of our current knowledge on the spatial distribution of soil erosion and its temporal trends is derived from (R) USLE approaches.

  • (f)

    The highest percentage of the erosion rate is concentrated in the Atlas and Rif mountains, this is due to the topography and the nature of land. Concerning Oriental Meseta, Soil erosion is aggravated by the low vegetation cover combined with the topography of the area.

  • (g)

    The evidence of a strong relationship between soil erosion rates with environmental factors, and modeling conditions. And the lack of correlation with the size of the study area and the erosion rate. Although the general results show a relatively high variance, which cannot be explained by this combination of factors, it is linked in part to the experimental conditions.

This review is presented in a clear and transparent manner that is useful to have an overview of water erosion assessment in Morocco. Furthermore, this study is more comprehensive and accurate than previous assessments, building a robust dataset for decision makers and regional policy. In addition, information on soil erosion and its effects on water quality at the watershed scale are increasingly essential for stakeholders and watershed managers. In Morocco, the climatic aggressiveness and the demographic expansion of the population, which largely exceeds the potential of the natural resources, now require an intervention that consists in emphasizing the priority of the processes of water erosion and trying to raise the problem before the irreversible occurs, and these through a rational and continuous exploitation of the environment aimed at the conservation of the capital soil-water.

Declarations

Author contribution statement

All authors listed have significantly contributed to the development and the writing of this article.

Funding statement

This research did not receive any specific grant from funding agencies in the public, commercial, or not-for-profit sectors.

Data availability statement

Data will be made available on request.

Competing interest statement

The authors declare no conflict of interest.

Additional information

No additional information is available for this paper.

References

  1. Acharki S., El Qorchi F., Arjdal Y., Amharref M., Bernoussi A.S., Ben Aissa H. Soil erosion assessment in Northwestern Morocco. Remote Sens. Appl. Soc. Environ. 2022;25 [Google Scholar]
  2. Adilmoussebbih et al Modeling and mapping of the water erosion risk using gis/rusle approach in the Bouregreg river watershed. Int. J. Mech. Prod. Eng. Res. Dev. 2019;9:1605–1618. [Google Scholar]
  3. Ahmed A., Adil D., Hasna B., Elbachir A., Lazaar R. Using EPM model and GIS for estimation of soil erosion in Souss basin, Morocco. Turk. J. Agric. - Food Sci. Technol. 2019;7:1228. [Google Scholar]
  4. AlDahoul N., Essam Y., Kumar P., Ahmed A.N., Sherif M., Sefelnasr A., Elshafie A. Suspended sediment load prediction using long short-term memory neural network. Sci. Rep. 2021;11:7826. doi: 10.1038/s41598-021-87415-4. [DOI] [PMC free article] [PubMed] [Google Scholar]
  5. Anys H., Bonn F., Merzouk A. Remote sensing and gis based mapping and modeling of water erosion and sediment yield in a semi-arid watershed of Morocco. Geocarto Int. 1994;9:31–40. [Google Scholar]
  6. Arnold J.G., Moriasi D.N., Gassman P.W., Abbaspour K.C., White M.J., Srinivasan R., Santhi C., Harmel R.D., van Griensven A., Van Liew M.W., Kannan N., Jha M.K. SWAT: model use, calibration, and validation. Trans. ASABE (Am. Soc. Agric. Biol. Eng.) 2012;55:1491–1508. [Google Scholar]
  7. Arrebei N., Sabir M., Naimi M., Chikhaoui M., Raclot D. Assessment of soil erosion with RUSLE 3D and USPED in the Nekor watershed (Northern Morocco) Open J. Soil Sci. 2020;10:631–642. [Google Scholar]
  8. Asserar N., Iaaich H., Moussadek R., zouahri abdelmjid, Douira A. Estimation of soil erosion risk within the Ben Ahmed watershed, using Universal Soil Loss Equation (USLE) and geo-information technology (preprint) Preprints. 2020 [Google Scholar]
  9. Bachaoui B., Bachaoui E.M., Maimouni S., Lhissou R., El Harti A., El Ghmari A. The use of spectral and geomorphometric data for water erosion mapping in El Ksiba region in the central High Atlas Mountains of Morocco. Appl. Geomat. 2014;6:159–169. [Google Scholar]
  10. Ayt Ougougdal H., Yacoubi Khebiza M., Messouli M., Bounoua L., Karmaoui A. Delineation of vulnerable areas to water erosion in a mountain region using SDR-InVEST model: a case study of the Ourika watershed, Morocco. Sci. Afr. 2020;10(e00646) [Google Scholar]
  11. Bachaoui M., Bachaoui B., Lhissou R. Modeling and mapping water erosion risks in the high Atlas of Morocco. The Atlas Of Beni Mellal As A Case In Point. 2014;2:9. [Google Scholar]
  12. Bannari A., El-Harti A., Haboudane D., Bachaoui E.M. 2007. INTÉGRATION DES VARIABLES SPECTRALES ET GÉOMORPHOMÉTRIQUES DANS UN SIG POUR LA CARTOGRAPHIE DES AIRES EXPOSÉES À L’ÉROSION. EL 16. [Google Scholar]
  13. Belasri A., Lakhouili A. Estimation of soil erosion risk using the universal soil loss equation (USLE) and geo-information technology in oued El Makhazine watershed, Morocco. J. Geogr. Inf. Syst. 2016;8:98–107. [Google Scholar]
  14. Benmansour M., Mabit L., Nouira A., Moussadek R., Bouksirate H., Duchemin M., Benkdad A. Assessment of soil erosion and deposition rates in a Moroccan agricultural field using fallout 137Cs and 210Pbex. J. Environ. Radioact. 2013;115:97–106. doi: 10.1016/j.jenvrad.2012.07.013. [DOI] [PubMed] [Google Scholar]
  15. Benmansour M., Mabit L., Moussadek R., Yassin M., Nouira A., Zouagui A., Mrabet R., Iaaich H., Hajib S. 2016. Effectiveness of Soil Conservation Strategies on Erosion in Morocco EPSC2016-2174. [Google Scholar]
  16. Beroho M., Briak H., El Halimi R., Ouallali A., Boulahfa I., Mrabet R., Kebede F., Aboumaria K. Analysis and prediction of climate forecasts in Northern Morocco: application of multilevel linear mixed effects models using R software. Heliyon. 2020;6 doi: 10.1016/j.heliyon.2020.e05094. [DOI] [PMC free article] [PubMed] [Google Scholar]
  17. Borrelli P., Robinson D.A., Fleischer L.R., Lugato E., Ballabio C., Alewell C., Meusburger K., Modugno S., Schütt B., Ferro V., Bagarello V., Oost K.V., Montanarella L., Panagos P. An assessment of the global impact of 21st century land use change on soil erosion. Nat. Commun. 2017;8 doi: 10.1038/s41467-017-02142-7. 2013. [DOI] [PMC free article] [PubMed] [Google Scholar]
  18. Borrelli P., Robinson D.A., Panagos P., Lugato E., Yang J.E., Alewell C., Wuepper D., Montanarella L., Ballabio C. Land use and climate change impacts on global soil erosion by water (2015-2070) Proc. Natl. Acad. Sci. USA. 2020;117:21994–22001. doi: 10.1073/pnas.2001403117. [DOI] [PMC free article] [PubMed] [Google Scholar]
  19. Bou-imajjane L., Belfoul M.A. Soil loss assessment in western high Atlas of Morocco: Beni Mohand watershed study case. Appl. Environ. Soil Sci. 2020;2020:1–15. [Google Scholar]
  20. Bou-imajjane L., Belfoul M.A., Elkadiri R., Stokes M. Soil erosion assessment in a semi-arid environment: a case study from the Argana Corridor, Morocco. Environ. Earth Sci. 2020;79:409. [Google Scholar]
  21. Boufala M., El Hmaidf A., Chadli K., Essahlaoui A., El Ouali A., Lahjouj A. Assessment of the risk of soil erosion using RUSLE method and SWAT model at the M’dez Watershed, Middle Atlas, Morocco. E3S Web Conf. 2020;150 [Google Scholar]
  22. Bouh S. Approche Methodologique de cartographie de L’erosion dans le bassin versant de oued korifla. Ann. Rech. For. Maroc. 1996:18. [Google Scholar]
  23. Bouhlassa S., Moukhchane M., Aiachi A. Estimates of soil erosion and deposition of cultivated soil of Nakhla watershed, Morocco, using 137Cs technique and calibration models. Acta Geol. Hisp. 2000;35(3) [Google Scholar]
  24. Bouslihim Y. 2020. Hydrological and Soil Erosion Modeling Using SWAT Model and Pedotransfert Functions: a Case Study of Settat-Ben Ahmed Watersheds, Morocco. [Google Scholar]
  25. Brahim B., Meshram S.G., Abdallah D., Larbi B., Drisss S., Khalid M., Khedher K.M. Mapping of soil sensitivity to water erosion by RUSLE model: case of the Inaouene watershed (Northeast Morocco) Arabian J. Geosci. 2020;13:1153. [Google Scholar]
  26. Briak H., Moussadek R., Aboumaria K., Mrabet R. Assessing sediment yield in Kalaya gauged watershed (Northern Morocco) using GIS and SWAT model. Int. Soil Water Conserv. Res. 2016;4:177–185. [Google Scholar]
  27. Cerdan O., Souchère V., Lecomte V., Couturier A., Le Bissonnais Y. Incorporating soil surface crusting processes in an expert-based runoff model: sealing and transfer by runoff and erosion related to agricultural management. Catena. 2002;46:189–205. [Google Scholar]
  28. Chadli K. Estimation of soil loss using RUSLE model for Sebou watershed (Morocco) Model. Earth Syst. Environ. 2016;2:51. [Google Scholar]
  29. Chikhaoui M., Bonn F. Comparaison des capteurs ASTER et ETM+ pour la cartographie de la dégradation des sols à l’aide de l’indice LDI. Can. J. Rem. Sens. 2006;11 [Google Scholar]
  30. Damnati B., Ibrahimi S., Radakovitch O. Quantifying erosion using 137Cs and 210Pb in cultivated soils in three mediterranean watershed: synthesis study from El Hachef, Raouz and Nakhla (North West Morocco) J. Afr. Earth Sci. 2013;79:50–57. [Google Scholar]
  31. Driss E.H., Brahim A. Quantification de L’erosion hydrique en utilisant le modèle rusle et déposition intégrée dans un sig. Cas du bassin versant de L’oued isly (Maroc oriental) Eur. Sci. J. ESJ. 2018;14:373. [Google Scholar]
  32. El Aroussi O. Modelling and mapping of soil erosion on the oued EL malleh catchment using remote sensing and GIS. J. Urban Environ. Eng. 2013:302–307. [Google Scholar]
  33. El Bahi . 2006. Thèse quantification et modélisation de l’érosion hydrique dans le bassin versant de KORIFLA Plateau des ZAER-Maroc Central. [Google Scholar]
  34. EL Bilali A., Taleb A., EL Idrissi B., Brouziyne Y., Mazigh N. Comparison of a data-based model and a soil erosion model coupled with multiple linear regression for the prediction of reservoir sedimentation in a semi-arid environment. Euro-Mediterr. J. Environ. Integr. 2020;5:1–13. [Google Scholar]
  35. El Jazouli A., Barakat A., Ghafiri A., El Moutaki S., Ettaqy A., Khellouk R. Soil erosion modeled with USLE, GIS, and remote sensing: a case study of Ikkour watershed in Middle Atlas (Morocco) Geosci. Lett. 2017;4:25. [Google Scholar]
  36. El Mouatassime S., Boukdir A., Karaoui I., Skataric G., Nacka M., Khaledi Darvishan A., Sestras P., Spalevic V. Modelling of soil erosion processes and runoff for sustainable watershed management: case study oued EL abid watershed, Morocco. J. Agric. For. 2019;65 [Google Scholar]
  37. Elaloui A., Marrakchi C., Fekri A., Maimouni S., Aradi M. USLE-based assessment of soil erosion by water in the watershed upstream Tessaoute (Central High Atlas, Morocco) Model. Earth Syst. Environ. 2017;3:873–885. [Google Scholar]
  38. Elbouqdaoui K., Ezzine H., Badrahoui M., Rouchdi M., Zahraoui M., Ozer A. 2005. Approche méthodologique par télédétection et SIG de l’évaluation du risque potentiel d’érosion hydrique dans le bassin versant de l’Oued Srou (Moyen Atlas, Maroc) 12. [Google Scholar]
  39. Elmalki M., Mounir F., Ichen A., Qaini T., Khai T., Aarab M. Measuring land losses caused by water erosion using the SWAT model in the Ourika watershed in the High Atlas of Morocco. E3S Web Conf. 2021;234 [Google Scholar]
  40. Eloudi H., Reddad H., Hssaisoune M., Estrany J., Krimissa S., Elaloui A., Namous M., Ouatiki H., Aboutaib F., Ouayah M., Jadoud M., Edahbi M., Bouchaou L. SSRN Electron; 2021. Impact of Climate Change on Soil Sensitivity Erosion in a Semi-arid Context: Insights from Lakhdar Watershed, Central High-Atlas Morocco. [Google Scholar]
  41. Ezzaouini M., Mahé G., Kacimi I., Zerouali A. Comparison of the MUSLE model and two years of solid transport measurement, in the Bouregreg basin, and impact on the sedimentation in the sidi Mohamed ben Abdellah reservoir, Morocco. Water. 2020;12:1882. [Google Scholar]
  42. Ezzaouini M., Mahe G., Kacimi I., el Bilali A., Zerouali A., Nafii A. Predicting daily suspended sediment load using machine learning and NARX hydro-climatic inputs in semi-arid environment. Water. 2022;14:862. [Google Scholar]
  43. Fadil A., Rhinane H., Kaoukaya A., Kharchaf Y., Bachir O.A. Hydrologic modeling of the Bouregreg watershed (Morocco) using GIS and SWAT model. J. Geogr. Inf. Syst. 2011;3:279–289. [Google Scholar]
  44. Farah A., Algouti Ahmed, Algouti Abdellah, Ifkirne M. Application of the hierarchical multicriteria analysis method to the study of water erosion (south of Azilal, Morocco) J. Environ. Agric. Stud. 2021;2:12–22. [Google Scholar]
  45. Farah A., Algouti Ahmed, Algouti Abdellah, Ifkirne M., Ezziyani A. Mapping of soil degradation in semi-arid environments in the ouarzazate basin in the south of the central High Atlas, Morocco, using sentinel 2A data. Remote Sens. Appl. Soc. Environ. 2021;23 [Google Scholar]
  46. Fenjiro I., Zouagui A., Manaouch M. Assessment of soil erosion by RUSLE model using remote sensing and GIS - a case study of ziz upper basin southeast Morocco. Forum Geogr. 2020;XIX:131–142. [Google Scholar]
  47. Fox H.R., Moore H.M., Price J.P.N. 1997. Soil Erosion and Reservoir Sedimentation in the High Atlas Mountains, Southern Morocco 8. [Google Scholar]
  48. Gaatib R.E., Larabi A. Integrated evaluation of soil erosion hazard and risk management in the oued beht watershed using remote sensing and GIS techniques: impacts on El kansra dam siltation (Morocco) J. Geogr. Inf. Syst. 2014;6:677–689. [Google Scholar]
  49. Ganasri B.P., Ramesh H. Assessment of soil erosion by RUSLE model using remote sensing and GIS - a case study of Nethravathi Basin. Geosci. Front. 2016;7:953–961. [Google Scholar]
  50. García-Ruiz J.M., Beguería S., Nadal-Romero E., González-Hidalgo J.C., Lana-Renault N., Sanjuán Y. A meta-analysis of soil erosion rates across the world. Geomorphology. 2015;239:160–173. [Google Scholar]
  51. Garouani A.E., Chen H., Lewis L., Tribak A., Abahrour M. 2008. Cartographie DE L’Utilisation DU Sol Et DE L’Érosion Nette À Partir D’Images Satellitaires Et DU Sig Idrisi Au Nord-Est DU MAROC 12. [Google Scholar]
  52. Gavrilovic S. Inzenjering o bujic nimtokovima i eroziji. Izgradnja. 1972;(special issue) PPT, Beograd. Serbia. [Google Scholar]
  53. Gourfi A. Effects of land use changes on soil erosion and sedimentation of dams in semi-arid regions: example of N’fis watershed in western high Atlas. Morocco. 2019;10:13. [Google Scholar]
  54. Gourfi A., Daoudi L., Shi Z. The assessment of soil erosion risk, sediment yield and their controlling factors on a large scale: example of Morocco. J. Afr. Earth Sci. 2018;147:281–299. [Google Scholar]
  55. Gourfi A., Daoudi L., de Vente J. A new simple approach to assess sediment yield at a large scale with high landscape diversity: an example of Morocco. J. Afr. Earth Sci. 2020;168 [Google Scholar]
  56. Gourfi A., Daoudi L., El fels A.E.A., Rafik A., Adamou S.N., Lazaar A. The use of Artificial neural network and advanced statistics to model sediment yield on a large scale: example of Morocco. J. Environ. Agric. Stud. 2021;2:103–117. [Google Scholar]
  57. Hajigholizadeh M., Melesse A., Fuentes H. Erosion and sediment transport modelling in shallow waters: a review on approaches, models and applications. Int. J. Environ. Res. Publ. Health. 2018;15:518. doi: 10.3390/ijerph15030518. [DOI] [PMC free article] [PubMed] [Google Scholar]
  58. Han F., Ren L., Zhang X., Li Z. The WEPP model application in a small watershed in the loess plateau. PLoS One. 2016;11 doi: 10.1371/journal.pone.0148445. [DOI] [PMC free article] [PubMed] [Google Scholar]
  59. Hassouni K., Bouhlassa S. 2005. Estimate of soil erosion on cultivated soils using 137Cs measurements and calibration models: a case study from Nakhla watershed, Morocco 12. [Google Scholar]
  60. Hessel R., Daroussin J., Verzandvoort S., Walvoort D. Evaluation of two different soil databases to assess soil erosion sensitivity with MESALES for three areas in Europe and Morocco. Catena. 2014;118:234–247. [Google Scholar]
  61. Heusch B. 1970. L’érosion du pré-rif : une étude quantitative de l’érosion hydraulique dans les collines marneuses du pré-rif Occidental 178. [Google Scholar]
  62. Issa L., Raissouni A., Moussadek R., El Arrim A. Mapping and assessment of water erosion in the khmiss watershed (north western Rif, Morocco) Curr. Adv. Environ. Sci. 2014;2:119–130. [Google Scholar]
  63. Issa L.K., Lech-Hab K.B.H., Raissouni A., Arrim A.E. 2016. Cartographie Quantitative du Risque d’Erosion des Sols par Approche SIG/USLE au Niveau du Bassin Versant Kalaya (Maroc Nord Occidental) 18. [Google Scholar]
  64. Jaouda I., Akhssas A., Ouadif L., Bahi L., Elkasri J., Souidi H., Soussi H. Study of soil erosion risks using remote sensing in Ouergha River watershed (Morocco) E3S Web Conf. 2020;150 [Google Scholar]
  65. Jazouli A.E., Barakat A., Khellouk R., Rais J., Baghdadi M.E. Remote sensing and GIS techniques for prediction of land use land cover change effects on soil erosion in the high basin of the Oum Er Rbia River (Morocco) Remote Sens. Appl. Soc. Environ. 2019;13:361–374. [Google Scholar]
  66. Kharraz J.E., El-Sadek A., Ghaffour N., Mino E. Water scarcity and drought in WANA countries. Procedia Eng., SWEE’11. 2012;33:14–29. [Google Scholar]
  67. Labbaci A., Moukrim S., Lahssini S., Laaribya S., Alaoui H.M., Hallam J. Estimation of land degradation loss by water erosion: case of the site of biological and ecological interest of ain Asmama (western high Atlas, Morocco) Adv. Sci. Technol. Eng. Syst. J. 2021;6:241–247. [Google Scholar]
  68. Lahlaoi H., Rhinane H., Hilali A., Lahssini S., Khalile L. Potential erosion risk calculation using remote sensing and GIS in oued El Maleh watershed, Morocco. J. Geogr. Inf. Syst. 2015;7:128–139. [Google Scholar]
  69. Li H., Guan Q., Sun Y., Wang Q., Liang L., Ma Y., Du Q. Spatiotemporal analysis of the quantitative attribution of soil water erosion in the upper reaches of the Yellow River Basin based on the RUSLE-TLSD model. Catena. 2022;212 [Google Scholar]
  70. MAEF Ministère de l’agriculture, du développement rural et des eaux et forêts) Programme d’action national de lutte contre la désertification. Roy. Maroc Rabat. 2001;93 [Google Scholar]
  71. Maimouni S., El-Harti A., Bannari A., Bachaoui E.-M. Water erosion risk mapping using derived parameters from digital elevation model and remotely sensed data. Geo Spatial Inf. Sci. 2012;15:157–169. [Google Scholar]
  72. Manrique L.A. Editorial and Publication Shop; Honolulu, Hawaii, USA: 1988. Land Erodibility Assessment Methodology (LEAM): Using Soil Survey Data Based on Soil Taxonomy. [Google Scholar]
  73. Markhi A., Laftouhi N., Grusson Y., Soulaimani A. Assessment of potential soil erosion and sediment yield in the semi-arid N′fis basin (High Atlas, Morocco) using the SWAT model. Acta Geophys. 2019;67:263–272. [Google Scholar]
  74. Meliho M., Nouira A., Benmansour M., Boulmane M., Khattabi A., Mhammdi N., Benkdad A. Assessment of soil erosion rates in a Mediterranean cultivated and uncultivated soils using fallout 137Cs. J. Environ. Radioact. 2019;208–209 doi: 10.1016/j.jenvrad.2019.106021. [DOI] [PubMed] [Google Scholar]
  75. Merritt W.S., Letcher R.A., Jakeman A.J. A review of erosion and sediment transport models. Environ. Model. Software. 2003;18:761–799. [Google Scholar]
  76. Michard A., Frizon de Lamotte D., Saddiqi O., Chalouan A. In: Continental Evolution: the Geology of Morocco, Lecture Notes in Earth Sciences. Michard André, Saddiqi Omar, Chalouan Ahmed, Lamotte D.F. de., editors. Springer Berlin Heidelberg; Berlin, Heidelberg: 2008. An outline of the geology of Morocco; pp. 1–31. [DOI] [Google Scholar]
  77. Modeste M., Abdellatif K., Nadia M., Zhang H. Impact of land use and vegetation cover on risks of erosion in the Ourika watershed (Morocco) Am. J. Eng. Res. 2016;8 [Google Scholar]
  78. Mohamed M., Anis Z., Imade F. 2020. Regional-scale modeling of water erosion and sediment yield in a semi-arid context: case study of ziz upper watershed in south-Eastern Morocco, in: Proceedings of the 4th Edition of International Conference on Geo-IT and Water Resources 2020, Geo-IT and Water Resources 2020. Presented at the GEOIT4W-2020: 4th Edition of International Conference on Geo-IT and Water Resources 2020, Geo-IT and Water Resources 2020, ACM, Al-Hoceima Morocco; pp. 1–5. [Google Scholar]
  79. Mohammed B., Mennani A., Jalal M., Fakir Y. Impact de la sécheresse sur les potentialités hydriques de la nappe alimentant en eau potable la ville d’Essaouira (Mogador, Maroc) Secheresse (Montrouge) 2002;13 [Google Scholar]
  80. Moussadek R. Mémoire de 3ème cycle, IAV Hassan II-Rabat; Maroc: 1999. Caractérisation hydrodynamique des sols et modélisation de l’érosion dans un bassin versant Tangérois (Saboun). 99p. [Google Scholar]
  81. M’Barek S.A., Rochdi A., Bouslihim Y., Miftah A. Multi-site calibration and validation of SWAT model for hydrologic modeling and soil erosion estimation: a case study in El Grou watershed, Morocco. Ecol. Eng. 2021;8 [Google Scholar]
  82. Nguyen P., Shearer E.J., Tran H., Ombadi M., Hayatbini N., Palacios T., Huynh P., Braithwaite D., Updegraff G., Hsu K., Kuligowski B., Logan W.S., Sorooshian S. The CHRS Data Portal, an easily accessible public repository for PERSIANN global satellite precipitation data. Sci. Data. 2019;6:1–10. doi: 10.1038/sdata.2018.296. [DOI] [PMC free article] [PubMed] [Google Scholar]
  83. Nouaim W., Chakiri S., Rambourg D., Karaoui I., Ettaqy A., Chao J., Allouza M., Razoki B., Yazidi M., El Hmidi F. Mapping the water erosion risk in the Lakhdar river basin (central High Atlas, Morocco) Geol. Ecol. Landsc. 2019;3:22–28. [Google Scholar]
  84. Nouira A., Sayouty E.H., Benmansour M. Use of 137Cs technique for soil erosion study in the agricultural region of Casablanca in Morocco. J. Environ. Radioact. 2003;68:11–26. doi: 10.1016/S0265-931X(03)00025-0. [DOI] [PubMed] [Google Scholar]
  85. Ouallali A., Moukhchane M., Aassoumi H., Berrad F., Dakir I. 2016. The Mapping of the Soils’ Degradation State by Adaptation the PAP/RAC Guidelines in the Watershed of Wadi Arbaa Ayacha, Western Rif, Morocco 12. [Google Scholar]
  86. Ouallali A., Moukhchane M., Aassoumi H., Berrad F., Dakir I. 2016. Evaluation et cartographie des taux d’érosion hydrique dans le bassin versant de l’Oued Arbaa Ayacha (Rif Occidental, Nord Maroc) 16. [Google Scholar]
  87. Ouraich I., Tyner W.E. Moroccan agriculture, climate change, and the Moroccan Green Plan. A CGE analysis. 2018;13:24. [Google Scholar]
  88. Ourhzif Z., Algouti Ahmed, Algouti Abdellah, Mlouk M.A., Aydda A. 2021. Soil Erosion Susceptibility Mapping Using Support Vector Machine and Remote Sensing Data in Semi-arid Environment: South High Atlas of Marrakech (Morocco) 18. [Google Scholar]
  89. Ousmana H., Hmaidi A.E., Essahlaoui A., Bekri H., Ouali A.E. 2017. Modélisation et cartographie du risque de l’érosion hydrique par l’application des SIG et des directives PAP/CAR. Cas du bassin versant de l’Oued Zgane (Moyen Atlas tabulaire, Maroc) 17. [Google Scholar]
  90. Panagos P., Borrelli P., Poesen J., Ballabio C., Lugato E., Meusburger K., Montanarella L., Alewell C. The new assessment of soil loss by water erosion in Europe. Environ. Sci. Pol. 2015;54:438–447. [Google Scholar]
  91. Piqué A., Knidiri M. PUMAG; Marrakech: 1994. Géologie du Maroc les domaines régionaux et leur évolution structurale. [Google Scholar]
  92. Renard, K.G., USA, USA . 1997. Predicting Soil Erosion by Water: a Guide to Conservation Planning with the Revised Universal Soil Loss Equation (RUSLE), Agriculture Handbook. Washington, D. C. [Google Scholar]
  93. Saaty T.L. A scaling method for priorities in hierarchical structures. J. Math. Psychol. 1977;15:234–281. [Google Scholar]
  94. Sadiki A., Bouhlassa S., Auajjar J., Faleh A., Macaire J.-J. 2014. Utilisation d’un SIG pour l’évaluation et la cartographie des risques d’érosion par l’Equation universelle des pertes en sol dans le Rif oriental (Maroc) : cas du bassin versant de l’oued Boussouab 12. [Google Scholar]
  95. Sebbar A., Badri W., Fougrach H., Hsaine M., Saloui A. E tude de la variabilit e du r egime pluviom etrique au Maroc septentrional (1935-2004) Secheresse. 2011;22:11. [Google Scholar]
  96. Shougang Z., Ruishe The application and study of GIS in soil Erosion model. Adv. Sci. Eng. 2014;62 [Google Scholar]
  97. Shrestha D.P., Jetten V.G. Modelling erosion on a daily basis, an adaptation of the MMF approach. Int. J. Appl. Earth Obs. Geoinformation. 2018;64:117–131. [Google Scholar]
  98. Simonneaux V., Cheggour A., Deschamps C., Mouillot F., Cerdan O., Le Bissonnais Y. Land use and climate change effects on soil erosion in a semi-arid mountainous watershed (High Atlas, Morocco) J. Arid Environ. 2015;122:64–75. [Google Scholar]
  99. Smith H.J. Application of empirical soil loss models in southern Africa: a review. S. Afr. J. Plant Soil. 1999;16:158–163. [Google Scholar]
  100. Spalevic V. 2011. Impact of Land Use on Runoff and Soil Erosion in Polimlje (PhD Thesis) Doctoral thesis, Faculty of Agriculture of the University of Belgrade, Serbia. [Google Scholar]
  101. Tahiri M., Tabyaoui H., Tahiri A., Hadi H.E., Hammichi F.E., Achab M. Modelling soil erosion and sedimentation in the oued haricha sub-basin (Tahaddart watershed, western Rif, Morocco): risk assessment. J. Geosci. Environ. Protect. 2016;4:107–119. [Google Scholar]
  102. Tahiri M., Tabyaoui H., Hammichi F.E., Achab M., Tahiri A., Hadi H.E. 2017. Quantification de l’érosion hydrique et de la sédimentation à partir de modèles empiriques dans le bassin versant de Tahaddart (Rif nord Occidental, Maroc) 16. [Google Scholar]
  103. Tahouri J., Sadiki A., Karrat L. ’houcine, Johnson V.C., Chan N. weng, Fei Z., Kung H.T. Using a modified PAP/RAC model and GIS-for mapping water erosion and causal risk factors: case study of the Asfalou watershed, Morocco. Int. Soil Water Conserv. Res. 2021 [Google Scholar]
  104. Tairi A., Elmouden A., Aboulouafa M. Soil erosion risk mapping using the analytical Hierarchy process (AHP) and geographic information system in the Tifnout-Askaoun watershed, southern Morocco. Eur. Sci. J. ESJ. 2019;15 [Google Scholar]
  105. Tairi A., Elmouden A., Bouchaou L., Aboulouafa M. Mapping soil erosion–prone sites through GIS and remote sensing for the Tifnout Askaoun watershed, southern Morocco. Arabian J. Geosci. 2021;14:811. [Google Scholar]
  106. Taleb R.B., Naimi M., Chikhaoui M., Sabir M. 2021. Utilisation de SWAT pour la modélisation hydrologique et l’évaluation du rendement des sédiments dans le bassin versant de Nakhla, Mar 14. [Google Scholar]
  107. Tribak A., Arar K., Abahrour M., El Garouani A., Amhani Z. Quantitative assessment of the hydric erosion and the deposition in a marly catchment of the eastern Rif (case of wadi Tarmast – Morocco) Ann. Valahia Univ. Targoviste. Geographical Series Tome. 2015:101–111. [Google Scholar]
  108. Tribak A., El Garouani A., Abahrour M. Évaluation quantitative de l’érosion hydrique sur les terrains marneux du PréRif oriental (Maroc) : cas du sous-bassin de l’oued Tlata. Secheresse (Montrouge) 2009;20:333–337. [Google Scholar]
  109. Van Oost K., Govers G., Desmet P. [No title found] Landsc. Ecol. 2000;15:577–589. [Google Scholar]
  110. Verner D., Treguer D., Redwood J., Christensen J., McDonnell R., Elbert C., Konishi Y. World Bank; Washington, DC: 2018. Climate Variability, Drought, and Drought Management in Tunisia’s Agricultural Sector. [Google Scholar]
  111. Williams J.R., Berndt H.D. Sediment yield prediction based on watershed hydrology. Trans. ASAE (Am. Soc. Agric. Eng.) 1977;20:1100–1104. [Google Scholar]
  112. Wischmeier W.H., Smith D.D. Department of Agriculture, Science and Education Administration; 1978. Predicting Rainfall Erosion Losses: A Guide to Conservation Planning. [Google Scholar]
  113. Yjjou M., Bouabid R., Hmaidi A.E., Essahlaoui A., Abassi M.E. 2014. Modélisation de l’érosion hydrique via les SIG et l’équation universelle des pertes en sol au niveau du bassin versant de l’Oum Er-Rbia 9. [Google Scholar]

Associated Data

This section collects any data citations, data availability statements, or supplementary materials included in this article.

Data Availability Statement

Data will be made available on request.

Articles from Heliyon are provided here courtesy of Elsevier

RESOURCES
