Effects of dual-frequency slit ultrasound on the enzymolysis of high-concentration hydrolyzed feather meal: Biological activities and structural characteristics of hydrolysates

Highlights

• •Ultrasound-assisted enzymolysis of high-concentration feather proteins was feasible.
• •Ultrasound increased the protein conversion and recovery rate of hydrolysates.
• •Ultrasound improved the bioactivities of hydrolysates.
• •The changes of protein structure were responsible for the improvements of enzymolysis.

Abstract

Ultrasound-assisted enzymolysis has been applied to improve conventional enzymolysis, while there are rare reports on the application of ultrasound to high-concentration feather protein enzymolysis. Therefore, the feasibility of dual-frequency slit ultrasound (DFSU) for enzymolysis of high-concentration hydrolyzed feather meal (HFM), as well as the biological activities and structural characteristics of hydrolysates were investigated. The single-factor test was used to optimize the ultrasonic processing parameters: substrate concentration, frequency mode, intermittent ratio, power density, and time. The results showed that protein recovery rate and conversion rate increased by 6.08% and 18.63% under the optimal conditions (200 g/L, 28/80 kHz, 5:2 s/s, 600 W/L, and 3 h) compared with conventional enzymolysis, respectively. The macromolecular proteins in hydrolysates were converted into micromolecular peptides (< 500 Da) when treated by DFSU, and antioxidant activity and angiotensin-I-converting enzyme (ACE) inhibitory activity of hydrolysates were increased. Scanning electron microscopy (SEM) and atomic force microscopy (AFM) images illustrated the microstructure changes of feather protein particles in the ultrasound-assisted enzymatic hydrolysates of HFM (UEH), including more porous, smaller, and more uniform. Additionally, the conformation of protein molecules was significantly affected (P < 0.05), including the increase in free sulfhydryl (SH), the decrease in disulfide bond (SS) and surface hydrophobicity (H₀). Fourier transform infrared (FTIR) spectra analysis further showed that the secondary structure of feather proteins was modified with a reduction in α-helix, β-turn, and β-sheet, while an increase in random coil content was observed. These results indicated that DFSU could be a promising method to enhance high-concentration HFM for preparing peptide-rich hydrolysates with high antioxidant activity and ACE inhibitory activity.

1. Introduction

Hydrolyzed feather meal (HFM), which is also known as commercial feather meal, is the main product of feather waste after treated by hydrothermal processes. Due to easy availability and high protein content, it can be used as an alternative protein source in animal feed to lower costs [1], [2]. Hydrothermal processes, as one of the most common methods for feather waste treatment, is to cook feathers at a high temperature and/or high pressure with the addition of acids or alkali. This process aims to destroy the structure of hard-to-degrade keratins in feathers and improve the solubility of feather components. Thus, keratins were converted into soluble proteins that can be digested and absorbed easily [3]. Nonetheless, hydrothermal treatment can cause excessive denaturation of certain amino acid sequences due to high temperature or pressure, resulting in the loss of thermolabile amino acids and the formation of potentially toxic chemicals, such as lysinoalanine. These changes reduce the bioavailability and digestibility of HFM [4], as well as variable nutritional quality [5].

Due to the disadvantages of hydrothermal methods mentioned above, enzymolysis technology has been developed as an alternative technology, and enzymatic feather meal (EFM) is increasingly recognized as a viable source of dietary protein in food and feed supplements [6]. Feather proteins can be cleaved into micromolecular peptides after being hydrolyzed by enzymes, which are easy to digest and absorb for animals, and thus the biological potency is improved [7], [8]. Poolsawat et al. [9] found that the coefficient digestibility of tilapia was increased after being fed with EFM that was hydrolyzed with protease (10 g/kg feather meal). In addition, keratin in feathers is rich in hydrophobic amino acid residues, accounting for 50–60% of the polypeptide chain. Enzymolysis is beneficial to increase the number of ionizable groups and the exposure of hydrophobic groups, which may also contribute to the bioactivity activities of protein hydrolysates and peptides [10]. Ohba et al. [11] reported that the antioxidant activity of enzymatic hydrolysates of chicken feathers was attributed to the large amounts of cysteine in keratin. Moreover, angiotensin-I-converting enzyme (ACE) inhibitory activity was increased with the decreasing molecular weight of hydrolysates. However, the cost of enzymolysis technology is too high, which is a big barrier to industrial adoption [12].

The combination of two or more methods has been proposed to compensate for the shortcomings of the single treatment described above. Thermo-enzymatic hydrolysis has been explored for the hydrolysis of keratin-rich materials. For example, Mokrejs et al. [13] demonstrated that keratin hydrolysates of chicken feathers could be obtained more efficiently under quite mild reaction conditions (8 h hydrolysis for 2% feathers at 70 °C with 5% enzyme dose). Similarly, Cheong et al. [14] also found that higher protein degradation and protein recovery were achieved via thermal-alkaline pretreatment combined with enzymatic treatment. It might be that thermal-alkaline pretreatment weakened the structure of chicken feathers, which enhanced the subsequent Savinase hydrolysis (4 h hydrolysis for 5% feathers). Although the combined technology can improve the enzymolysis of the feather meal, it is only applied to samples with low substrate concentrations at present. This disadvantage leads to a lower efficiency of enzymolysis and a higher cost for subsequent drying, which is opposite to the requirements of energy conservation and emission reduction. Therefore, developing a suitable high-concentration enzymolysis technology for low-solubility raw materials such as feathers has been of great importance for industrial applications.

As a green, efficient, safe, and novel physical processing technology, ultrasound has been widely used in assisting enzymolysis [15], [16]. Acoustic cavitation generated by ultrasound technology causes mechanical effects as well as heat and chemical effects, which leads to the breakage of substrates and protein denaturation. These effects can improve the exposure of hydrophobic groups and the accessibility of the enzymes to the substrates [17]. Thereby, ultrasound can enhance the overall efficiency of the enzymolysis process, and even improve the yield and biological activities of enzymatic hydrolysates [18]. However, there are rare reports on the application of ultrasound to high-concentration enzymolysis. Hence, we investigated the feasibility of ultrasonic-assisted enzymolysis of high-concentration HFM using the peptide yield and protein conversion rate as the indices. The enzymolysis process parameters (substrate concentration, frequency mode, intermittent ratio, power density, and time) were optimized with the single-factor test. Under the optimal conditions, the protein recovery rate, molecular weight (MW) distribution, and bioactivities were evaluated, especially structure characterizations, which were studied by the examination of scanning electron microscopy (SEM), atomic force microscopy (AFM), free sulfhydryl (SH) and disulfide bond (SS) content, Fourier transform infrared (FTIR) spectra, and surface hydrophobicity (H₀).

2. Materials and methods

2.1. Materials

Raw hydrolyzed feather meal (HFM) (86.1% protein-Kjeldahl Method) made from chicken feathers was supplied by Qinhuangdao Yier Biological Technology Co., Ltd. (China). Alcalase (2.801 × 10⁵ U/g) was obtained from Nanjing Chengna Chemical Co., Ltd. (China), which was selected from various proteases (i.e., Flavourzyme, Protamex, Papain, Neutrase, Trypsin, Alcalase, and Keratinase) for the enzymolysis in the preliminary experiments (data not shown). All reagents used in the experiment were of analytical grade.

2.2. Enzymolysis of HFM with dual-frequency slit ultrasound (DFSU) equipment

The ultrasound equipment (developed by Jiangsu University, Fig. 1a) is composed of the programmable logic controller (PLC), ultrasonic generators (20, 28, 40, 50, 68, and 80 kHz), and a slit cavity where ultrasonic transducers work. As shown in Fig. 1b, the HFM suspension (1 L) was pre-heated (50 °C, 20 min) utilizing a thermostatic bath, and circularly transported to the ultrasonic slit cavity using a peristaltic pump. Subsequently, the pH of the suspension was adjusted to 8.5 using 6 mol/L NaOH by an automatic potentiometric titration instrument, and the Alcalase with the amount of 10,000 U/g protein was added to initiate the reaction. The pH was maintained by the continuous addition of NaOH during the DFSU-assisted enzymolysis process. The initial ultrasound conditions were as follows: synchronous working of 20/68 kHz, ultrasonic intermittent ratio of 5:2 s/s, ultrasonic power density of 400 W/L, and ultrasonic time of 3 h. Additionally, ultrasonic parameters were optimized by the single-factor test, and the detailed parameters were shown in Table 1. The reaction was terminated by boiling the mixtures for 10 min. The hydrolysates were neutralized (pH 7.0) using 2 mol/L HCl after cooling to room temperature, and then centrifuged (15 min, 12,000 r/min) to obtain the supernatant for subsequent analysis. Conventional enzymolysis for 3 h without ultrasound treatment served as the control.

Fig. 1.

The self-design DFSU-assisted enzymolysis system; (a): A schematic diagram of DFSU; (b): A photo of the whole enzymolysis system (1. Programmable Logic Controller (PLC) control panel; 2. Ultrasonic generator; 3. Slit cavity; 4. Peristaltic pump; 5. Thermostatic bath; 6. Reactor; 7. Automatic potentiometric titrator).

Table 1.

Design of single-factor test parameters for ultrasound-assisted enzymolysis of HFM.

Factors	Levels
Substrate concentration	5%, 10%, 15%, 20%, and 25%
Ultrasonic frequency mode	single frequency: 20, 28, 40, 50, 68, and 80 kHz dual frequency: 20/28, 20/40, 20/50, 20/68, 20/80, 28/40, 28/40, 28/50, 28/68, 28/80, 40/50, 40/68, 40/80, 50/68, 50/80, and 68/80 kHz
Ultrasonic intermittent ratio	5:0, 5:1, 5:2, 5:3, and 5:4 s/s
Ultrasonic power density	300, 400, 500, 600, 700, and 800 W/L
Ultrasonic time	0.5, 1.0, 1.5, 2.0, 2.5, 3.0, and 3.5 h

2.3. Determination of peptide yield and protein conversion rate

The peptide yield was defined as the mass of chicken feather peptides in enzymatic hydrolysates of HFM in 1 L reaction solution, which was calculated as follows:

$$\mathit{\text{Peptide yield}}\text{(}\mathit{\text{g}}\text{)=}\frac{\mathit{\text{C}}\times \mathit{\text{V}}}{\text{1000}}$$ (1)

where C is the concentration of peptides in hydrolysates (mg/mL), which was determined by the Folin-phenol method [19]; V is the volume of hydrolysates (mL).

The protein conversion rate represented the mass of chicken feather peptides prepared by 100 g of chicken protein, which was calculated via Eq. (2) [20]:

$$\mathit{\text{Protein conversion rate}}\text{(\%}\text{)=}\frac{\mathit{\text{C}}\times \mathit{\text{V}}}{\text{10}\mathit{\text{M}}}$$ (2)

where M is the mass of substrate protein (g).

In addition, the overall effect of HFM enzymolysis (A) was comprehensively evaluated by the peptide yield and protein conversion rate, and the evaluation formula was as follows:

$$\mathit{\text{A}}\text{=0.6}\times \mathit{\text{Protein conversion rate}}\text{+0.4}\times \mathit{\text{Peptide yield}}$$ (3)

2.4. Determination of soluble protein yield and protein recovery rate

Soluble protein yield was defined as the mass of soluble proteins in enzymatic hydrolysates of HFM in 1 L reaction solution, which was computed in accordance with Eq. (4):

$$\mathit{\text{Soluble protein yield}}\text{(g)=}\frac{{\mathit{\text{C}}}_{\mathit{\text{S}}}\times \mathit{\text{V}}}{\text{1000}}$$ (4)

where Cs is the soluble protein content concentration (mg/mL), which was determined by the method of Wang et al. [21]; V is the volume of hydrolysates (mL).

The protein recovery rate represented the mass of soluble proteins obtained from 100 g of HFM, which was calculated according to the following equation [14]:

$$\mathit{\text{Protein recovery rate}}\text{ (\%}\text{)=}\frac{{\mathit{\text{C}}}_{\mathit{\text{S}}}\times \mathit{\text{V}}}{\text{10}{\mathit{\text{M}}}_{\mathit{\text{0}}}}$$ (5)

where M₀ is the initial mass of HFM (g).

2.5. Determination of the antioxidant activity of enzymatic hydrolysates

2.5.1. 1,1-Diphenyl-2-picrylhydrazyl (DPPH) radical-scavenging activity assay

The radical-scavenging activity of enzymatic hydrolysates was measured by the method of Alahyaribeik et al. [22] with some modifications. The supernatant of enzymatic hydrolysates was freeze-dried in a freeze-dryer (Model 77530-30, Labconco Co., USA). Sample solutions with various concentrations were prepared by dissolving the freeze-dried hydrolysates in distilled water. Subsequently, 2 mL of sample solution (1.0, 2.0, 3.0, 4.0, and 5.0 mg/mL) was added to 2 mL of ethanol with 0.1 mmol/L DPPH, and then the mixtures were incubated for 30 min in the dark at room temperature. Absorbance was measured at 517 nm by the spectrophotometer (Unic 7200, Unocal Corporation, Shanghai, China). The DPPH radical scavenging activity was determined using the following equation:

$$\mathit{\text{DPPH radical-scavenging activity}}\text{ (\%}\text{)=(}\text{1-}\frac{{\mathit{\text{Ab}}}_{\mathit{\text{s}}}}{\text{A}{\mathit{\text{b}}}_{\mathit{\text{c}}}}\text{)}\times \text{100}$$ (6)

where Ab_s is the absorbance of the sample; Ab_c is the absorbance of distilled water. Further, the effective concentration (IC₅₀) that scavenged 50% of the free radicals was evaluated by using the radical-scavenging activity as a function of the protein concentration plot.

2.5.2. 2,2′-Azino-bis-(3-ethylbenzothiazoline-6-sulfonic acid) (ABTS) radical-scavenging activity assay

The method of Bezus et al. [23] was modified to determine ABTS radical-scavenging activity. The ABTS radical cation (ABTS⁺) was produced by mixing 10 mL of 7 mmol/L ABTS with 10 mL of 5 mmol/L K₂S₂O₈ and allowing the mixture to rest in the dark for 12 h before use. The ABTS⁺ solution was diluted with 0.1 mol/L phosphate-buffered saline (PBS, pH 7.4) to an absorbance of 0.7 ± 0.02 at 734 nm. Then 50 μL of the sample solution (0.1, 0.2, 0.3, 0.4, 0.5, and 0.6 mg/mL) was mixed with 250 μL of diluted ABTS⁺ solution, and the mixture was measured at 734 nm by the spectrophotometer after 6 min. ABTS radical-scavenging activity was estimated using the following equation:

$$\mathit{\text{ABTS radical-scavenging activity}}\text{ (\%}\text{)=}\frac{{\mathit{\text{Ab}}}_{\mathit{\text{c}}}\text{-}{\mathit{\text{Ab}}}_{\mathit{\text{s}}}}{{\mathit{\text{Ab}}}_{\mathit{\text{c}}}}\times \text{100}$$ (7)

where Ab_c is the absorbance of the control, which is distilled water here; Ab_s is the absorbance of the sample.

2.5.3. Reducing power assay

The reducing power of the sample was assessed using the method described by Bezus et al. [23] with some modifications. An admixture of 1 mL of the sample solution at different concentrations (2.0–10.0 mg/mL), 2.5 mL of PBS (0.2 mmol/L, pH 6.6) and 1 mL of 1% K₃Fe(CN)₆⋅3H₂O was incubated at 50 °C for 20 min. Then 12.5 mL of 10% trichloroacetic acid (TCA) was added, and the admixture was centrifuged at 5000 rpm for 10 min. Subsequently, 2.5 mL of the supernatant was taken and mixed with 0.5 mL of 0.1% FeCl₃ and 2.5 mL of distilled water. After incubation for 10 min, the absorbance of the mixture was measured at 700 nm by the spectrophotometer.

2.6. Determination of angiotensin-I-converting enzyme (ACE) inhibition rate of enzymatic hydrolysates

The ACE inhibitory activity of enzymatic hydrolysates was determined according to the method of Cui et al. [24]. 2-[4-(Hydroxyethyl)-1-piperazinyl]-ethane sulfonic acid (HEPES) buffer solution was prepared by dissolving 1.910 g of HEPES and 1.755 g of NaCl in an appropriate amount of distilled water. Then it was transferred into a 100-mL volumetric flask, and the distilled water was added to the volume. The pH was adjusted to 8.3. After that, 19.97 mg of N-[3-(2-Furyl)acryloyl]-l-phenylalanyl-glycyl-glycine (FAPGG) was dissolved in HEPES buffer solution, and the volume was added to 50 mL. The FAPGG solution was stored at 4 °C in the dark for later use. Besides, the order of sample addition in the determination of the ACE inhibition rate was shown in Table 2, and the formula for calculating the inhibition rate of ACE was as follows:

$$\mathit{\text{ACE inhibition rate}}\text{ (\%}\text{)=}\frac{\text{(}{\mathit{\text{C}}}_{\mathit{\text{1}}}\text{-}{\mathit{\text{C}}}_{\mathit{\text{2}}}\text{)-(}{\mathit{\text{S}}}_{\mathit{\text{1}}}\text{-}{\mathit{\text{S}}}_{\mathit{\text{2}}}\text{)}}{{\mathit{\text{C}}}_{\mathit{\text{1}}}\text{-}{\mathit{\text{C}}}_{\mathit{\text{2}}}}\times \text{100}$$ (8)

where C₁ and S₁ represent the initial absorbance of the blank hole and sample hole measured at 340 nm, respectively; C₂ and S₂ represent the absorbance of the blank hole and sample hole after holding at 37 °C for 30 min. All the data was obtained using the automatic microplate reader (Infinite 200 PRO, Tecan Trading AG, Switzerland). Further, the effective concentration (IC₅₀) that inhibited 50% of ACE activity was evaluated by using the ACE inhibition rate as a function of the protein concentration plot.

Table 2.

Determination of ACE inhibition rate.

Component	The blank hole (μL)	The sample hole (μL)
ACE	50	50
HEPES buffer solution	100	0
Enzymatic hydrolysates	0	100
FAPGG	60	60

Note: ACE: angiotensin-I-converting enzyme; HEPES: 2-[4-(Hydroxyethyl)-1-piperazinyl]-ethane sulfonic acid; FAPGG: N-[3-(2-Furyl)acryloyl]-l-phenylalanyl-glycyl-glycine.

2.7. Molecular weight (MW) distribution of enzymatic hydrolysates

The MW distribution was determined with a high-performance gel filtration chromatography (Ultimate 3000; Thermo Scientific Inc., Waltham, MA, USA) [25]. The injection volume was kept at 10 μL at the flow rate of 0.5 mL/min and monitored at the wavelength of 220 nm. The standard calibration curve was plotted with cytochrome C (12400 Da), bacitracin (1450 Da), glycine-glycine-tyrosine-arginine (451 Da), and glycine-glycine-glycine (189 Da). Finally, Breeze software (Waters, MA, USA) was used to analyze the data.

2.8. Scanning electron microscopy (SEM)

The morphology of enzymatic hydrolysates was observed by SEM. The freeze-dried sample was placed on one surface of a two-sided adhesive tape, and it was coated with a thin gold layer. Then the sample was observed by a scanning electron microscope (Hitachi S-3400 N, Hitachi High Technologies, Tokyo, Japan) at the acceleration voltage of 15 kV.

2.9. Atomic force microscopy (AFM)

The freeze-dried sample was dissolved in 0.01 mol/L PBS (pH 7.8) to prepare a 1 mg/mL solution. Then 20 μL solution was dropped on a polished silicon wafer and dried for observation with MFP-3D AFM (Asylum Res. Inc., USA). The images obtained were analyzed by the Bruker offline software (Nanoscope Analysis 1.5, Bruker Inc., Karlsruhe, Germany).

2.10. Determination of the contents of free sulfhydryl (SH) and disulfide bond (SS)

The SH content was measured by Ellman’s reagent method [26]. 10 mg/mL sample solution was prepared by Tris-Gly buffer (86 mmol/L Tris, 90 mmol/L Gly, and pH 8.0). Then 1 mL of sample solution was mixed with 5 mL of 0.5% sodium dodecyl sulfate (SDS), and 0.05 mL of Ellman’s reagent solution [4 mg/mL 5,5′-dithiobis-(2-nitrobenzoic acid) (DTNB) in standard buffer] was added. After mixture, the solution was incubated for 30 min at 30 °C, and the absorbance at 412 nm was read by the spectrophotometer. The SH content (C_SH) was calculated by using the following formulas:

$$\mathrm{\Delta }Ab{s}_{412}=Ab{s}_{\mathit{with}DNTB}-Ab{s}_{\mathit{without}DNTB}$$ (9)

$$C_{\mathit{SH}}(\mu mol/g)=(73.53\times \mathrm{\Delta }Ab{s}_{412}\times D)/C$$ (10)

where ΔAbs₄₁₂ is the net absorbance measured at 412 nm; D is the dilution factor; C is the protein concentration (mg/mL).

The SS content was determined according to the method of Beveridge et al. [27] with some modifications. The admixture of 0.5 mL of the sample solution, 5 mL of Tris-Gly buffer plus 8 mol/L urea, and 0.1 mL of β-mercaptoethanol were incubated for 1 h at 25 °C, followed by the use of 12% TCA three times. The precipitate was collected and dissolved at 15 mL of 0.5% SDS, and 0.15 mL of Ellman’s reagent was added for color development (30 °C, 30 min). The absorbance was also monitored at 412 nm to calculate the total SH content by Eq. (10). The SS content (C_SS) was assessed as follows:

$$C_{\mathit{SS}}(\mu mol/g)=\frac{C_{\mathit{SH}}^{\prime }-C_{\mathit{SH}}}{2}$$ (11)

where $C_{\mathit{SH}}^{\prime }$ is the total SH content (μmol/g); ${\mathit{\text{C}}}_{\mathit{\text{SH}}}$ is the free SH content (μmol/g).

2.11. Fourier transform infrared (FTIR) spectra measurement

The determination method of FTIR was modified according to Xu et al. [28]. The sample was mixed with KBr (1:11), milled to 2–3 μm, and pressed into a 1–2 mm slice. The slice was measured with an FTIR spectrometer (Nicolet IS50, Thermo Electron Corporation, USA), and the spectra were recorded in the range of 400–4000 cm⁻¹. Omnic 8.0 software (Thermo Fisher Scientific Inc., Waltham, MA) was used to analyze the FTIR spectral data. The data deconvolution, peak-separation, and fitting analysis of the amide I-band (1600–1700 cm⁻¹) were determined by PeakFit Version 4.12 software (SPSS Inc., Chicago, IL, USA).

2.12. Determination of surface hydrophobicity (H₀)

The hydrophobic index H₀ was determined by a fluorescence spectrophotometer using 1-aniline-8-naphthalene sulfonic acid (ANS) as a fluorescence probe [29]. Sample solution (1.0 mg/mL) was prepared by dissolving the freeze-dried hydrolysate in 0.01 mol/L phosphate buffer solution (PBS, pH 8.0), and then diluted with PBS to get a series of gradient protein concentrations (0.1, 0.2, 0.3, 0.4, and 0.5 mg/mL). Diluted solution (4 mL) was labeled with 20 μL of 8.0 mmol/L ANS solution (dissolved in 0.01 mol/L PBS, pH 8.0) in the dark for 10 min at room temperature, and the fluorescence intensity was measured by a fluorescent photometer (Varian Inc., Palo Alto, USA) at the excitation wavelength 380 nm and emission wavelength 400–550 nm (slit 5.0 nm). The scanning speed was 120 nm/min. The hydrophobic index H₀ was defined as the initial slope of the fluorescence intensity versus the protein concentration of the serial dilutions.

2.13. Statistical analysis

Analysis of variance (ANOVA) was performed and means were separated at the significance level of P < 0.05. All analyses including calculations were conducted with the aid of the statistical software Microsoft Excel 2016 and Origin 2018. Each determination was carried out in triplicate.

3. Results and discussion

3.1. Feasibility analysis of DFSU-assisted high-concentration enzymolysis

The effects of different substrate concentrations on the protein conversion rate, peptide yield, and A-value of enzymatic hydrolysates are illustrated in Fig. 2. Results showed that dual-frequency slit ultrasound (DFSU) could improve enzymolysis of hydrolyzed feather meal (HFM) regardless of low or high substance concentration, as well as protein conversion rate and peptide yield. Compared with the control, the overall enzymolysis effect (A-value) of HFM treated by DFSU was improved by 3.85%, 8.55%, 11.39%, 14.91%, and 10.01% with the substrate concentrations of 50, 100, 150, 200, and 250 g/L, respectively. The A-value reached the maximum of 76.68 at 200 g/L, where the protein conversion rate rose to 59.50%, and the yield of the peptides was 102.45 g. Additionally, a higher protein conversion rate was observed at the lower concentration of HFM (50 g/L) than at the high concentration. It might be that enzymes can fully bind to the substrates when the concentration is low. Nevertheless, the low concentration limited the peptide yield. Although more peptides were produced at the excessive concentration (250 g/L), the protein conversion rate was lower than that at 200 g/L, which may be because that excessive concentration increases the viscosity coefficient of the reaction system, causing an increase in the cavitation threshold and ultimately reducing cavitation bubbles [26]. The loss of acoustic waves is increased in the process of mass transfer and diffusion, which has a negative effect on enzymolysis and leads to a low protein conversion rate. In general, the technology of ultrasound-assisted enzymolysis of high-concentration HFM is feasible. The optimized HFM concentration was selected as 200 g/L for the following experiments, which is also more in accordance with industrial production requirements.

Fig. 2.

Effects of different substrate concentrations on the protein conversion rate, peptide yield, and A-value of HFM under the conditions of ultrasound compared with the control. Control: conventional enzymolysis for 3 h; Ultrasound: ultrasound-assisted enzymolysis (frequency mode of 20/68 kHz, intermittent ratio of 5:2 s/s, power density of 400 W/L, and time of 3 h). The results are expressed as mean ± SD (n = 3). Different lowercase letters mean that the effects of different treatments are significantly different (P < 0.05).

3.2. Effects of different ultrasonic working parameters on the enzymolysis of HFM

3.2.1. Effects of ultrasonic frequency mode on the enzymolysis of HFM

The effects of single-frequency treatment and dual-frequency treatment on enzymolysis are displayed in Fig. 3a and 3b, respectively. The results showed that the protein conversion rate, peptide yield, and A-value of ultrasound-assisted enzymatic hydrolysates of HFM (UEH) could be significantly increased under single-frequency treatment or dual-frequency treatment compared with conventional enzymatic hydrolysates of HFM (CEH) (P < 0.05). As shown in Fig. 3a, the protein conversion rate, peptide yield, and A-value improved gradually with the increase of frequency under the single-frequency ultrasound mode. They reached the maximum value at 80 kHz (58.29%, 100.37 g, and 75.12, respectively), where A-value increased by 12.58% compared with the control. Meanwhile, the protein conversion rate and peptide yield of UEH were the highest when the frequency was 28/80 kHz under the synchronous dual-frequency ultrasound mode, reaching 61.12% and 105.25 g, respectively (Fig. 3b). Moreover, the A-value of UEH was 18.05% higher than CEH at 28/80 kHz. Ultrasound is characterized as low frequency and high energy, and many studies have proved that ultrasonic frequency has a remarkably favorable influence on the enzymolysis of proteins [19], [21], [24]. Dual-frequency ultrasound had a better effect on enhancing enzymolysis of HFM than single-frequency ultrasound based on the above results. It might be because dual-flat has uniform energy dissipation over a wider area than single-flat ultrasound [30]. In addition, compared with the single frequency, the interaction between specific frequencies may produce dual-frequency synergies and the formation of new microbubble clusters with different characteristics, which can improve the efficiency of the whole process [31], [32]. Therefore, the synchronous dual-frequency ultrasound 28/80 kHz was picked for subsequent experiments.

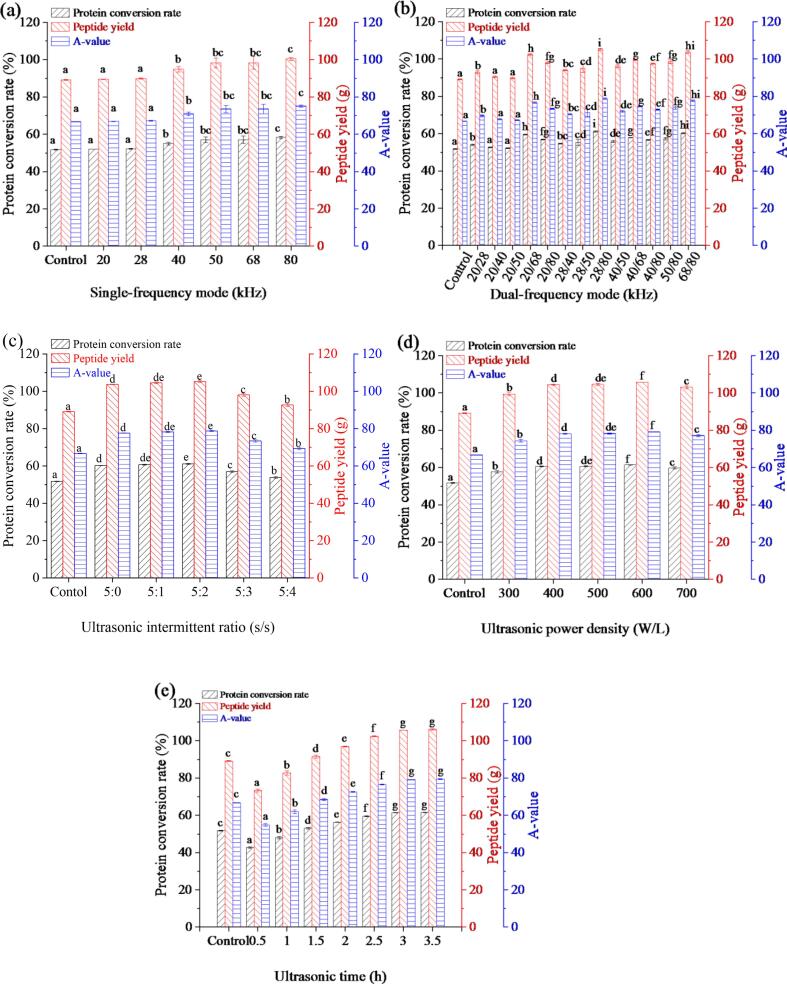

Fig. 3.

Effects of different ultrasonic working parameters on protein conversion rate, peptide yield, and A-value of HFM compared with the control. Control: conventional enzymolysis for 3 h. (a) Single-frequency mode: substrate concentration of 200 g/L, intermittent ratio of 5:2 s/s, power density of 400 W/L, and time of 3 h; (b) Dual-frequency mode: substrate concentration of 200 g/L, intermittent ratio of 5:2 s/s, power density of 400 W/L, and time of 3 h; (c) Ultrasonic intermittent ratio: substrate concentration of 200 g/L, frequency mode of 28/80 kHz, power density of 400 W/L, and time of 3 h; (d) Ultrasonic power density: substrate concentration of 200 g/L, frequency mode of 28/80 kHz, intermittent ratio of 5:2 s/s, and time of 3 h; (e) Ultrasonic time: substrate concentration of 200 g/L, frequency mode of 28/80 kHz, intermittent ratio of 5:2 s/s, and power density of 600 W/L. The results are expressed as mean ± SD (n = 3). Different lowercase letters mean that the effects of different treatments are significantly different (P < 0.05).

3.2.2. Effects of ultrasonic intermittent ratio on the enzymolysis of HFM

The ultrasonic intermittent ratio refers to the ratio of pulse operating time to pulse intermittent time. As can be seen from Fig. 3c, protein conversion rate, peptide yield, and A-value of UEH increased initially and then decreased with the increase in the ultrasonic intermittent ratio. The maximum protein conversion rate (61.12%), peptide yield (105.25 g), and A-value (78.77) were obtained when the ultrasonic intermittent ratio was 5:2 s/s. Similar trends were also reported by Wang et al. [26], where relative enzymolysis efficiency and protein dissolution rate of corn gluten meal also increased initially and then decreased with the increase of ultrasonic intermittent ratio. The initial increase may be related to the production of more cavitation bubbles at this ratio. While an excessive ultrasonic intermittent ratio may cause the collapse of bubbles before they are fully formed, leading to a decrease in cavitation intensity, which has a negative effect on enzymolysis. Therefore, the ultrasonic intermittent ratio of 5:2 s/s was selected.

3.2.3. Effects of ultrasonic power density on the enzymolysis of HFM

The effects of ultrasonic power density on the enzymolysis of HFM are shown in Fig. 3d. The protein conversion rate, peptide yield, and A-value increased firstly and then decreased as the power density increased, and the values reached the maximum of 61.42%, 105.76 g, and 79.16, respectively, when the ultrasonic power density was 600 W/L. Similar results were also found in the study of Wang et al. [26] and Wang et al [33], both of whom reported increased protein yield followed by decreased trend with increasing ultrasonic power. This increase is because ultrasonic cavitation effects increase with the improvement of ultrasonic power density [34]. The fragmentation of protein particles and the change of protein polymer conformation are aroused by improving cavitation effects, increasing the accessibility of enzymes to substrates. Nevertheless, excessive power density that surpasses the optimal value has a negative effect on enzymolysis. On the one hand, high-power density can produce excessive cavitation bubbles, resulting in a sound barrier [26]. On the other hand, high-power treatment leads to more exposure of non-polar groups, which enhances hydrophobicity between protein molecules. The increase of hydrophobicity, in turn, makes the exposed hydrophobic groups re-encased in protein, causing protein aggregation. Hence, it is not conducive to enzymolysis [35], [36]. Therefore, the optimal ultrasonic power density was selected as 600 W/L based on the experimental results.

3.2.4. Effects of ultrasonic time on the enzymolysis of HFM

The effects of ultrasonic time on the enzymolysis of HFM are shown in Fig. 3e. As can be seen from the figure, the protein conversion rate, peptide yield, and A-value of UEH at 1.5 h was higher than that of CEH at 3 h, which indicated that DFSU improved the enzymolysis efficiency of HFM. The protein conversion rate, peptide yield, and A-value also increased as ultrasonic time increased, and the values reached the maximum (61.42%, 105.76 g, and 79.16, respectively) at 3 h. This phenomenon is because appropriate ultrasound time can refine and homogenize protein particles, increasing enzyme-substrate interactions remarkably [34], [37]. However, prolonged ultrasonic treatment can cause excessive exposure of hydrophobic groups of protein, leading to protein aggregation and folding, which is harmful to enzymolysis [37], [38]. Therefore, the optimal ultrasonic time was selected as 3 h.

3.3. Analysis of soluble protein yield and protein recovery rate

Protein is an important indicator for feather powder with a protein content of 80–91% [14]. As presented in Table 3, both the soluble protein yield and protein recovery rate of UEH were increased by 6.08% compared with CEH. The results were in agreement with the findings of Li et al. [39] and Wang et al. [26], in which ultrasonic-assisted enzymolysis can improve the protein dissolution rate.

Table 3.

Determination of soluble protein yield and protein recovery rate of HFM.

Treatment	Soluble protein yield (g)	Protein recovery rate (%)
Control	127.59 ± 0.59a	74.09 ± 0.34a
Ultrasound	135.35 ± 0.12b	78.60 ± 0.07b

Note: Control: conventional enzymolysis for 3 h; Ultrasound: ultrasound-assisted enzymolysis (substrate concentration of 200 g/L, frequency mode of 28/80 kHz, intermittent ratio of 5:2 s/s, power density of 600 W/L, and time of 3 h); Values are means ± SD (three replicates); Different letters were used to show significant differences (P < 0.05) in the same column.

3.4. Determination of the antioxidative and antihypertensive potentials

Keratin has been considered as a source of bioactive peptides, and its hydrolysates have been proved to have the activity of antioxidant, anti-hypertension, and anti-diabetes [10], [40]. In this study, three different supplementary methods were used to evaluate the antioxidant activity of enzymatic hydrolysates. As shown in Fig. 4, a higher 1,1-diphenyl-2-picrylhydrazyl (DPPH) scavenging activity, 2,2′-azino-bis-(3-ethylbenzothiazoline-6-sulfonic acid) (ABTS) scavenging activity, and reducing power of UEH were observed compared with CEH at the same concentration. The IC₅₀ values of DPPH and ABTS scavenging activity of UEH were 3.41 mg/mL and 0.12 mg/mL, which were 17.25% and 21.96% lower than that of CEH, respectively. In general, ultrasound-assisted enzymolysis can improve the antioxidant activity of enzymatic hydrolysates. Many related studies have been reported [41], [42], [43], [44]. For example, Wen et al. [42] showed that the antioxidant activity of arrowhead hydrolysates was improved by slit divergent ultrasound. Habinshuti et al. [44] also found that the antioxidation of sweet potatoes was increased via ultrasonic-assisted enzymolysis. Additionally, the IC₅₀ values of DPPH and ABTS scavenging activity of UEH were also lower than that of feather hydrolysates obtained by feather-degrading Bacillus strains (DPPH IC₅₀: 15.12 mg/mL; ABTS IC₅₀: 5.39 mg/mL) and Antarctic keratinolytic bacterium (ABTS IC₅₀: 0.57 mg/mL) [23], [45]. Moreover, the reducing power of UEH (0.13 Abs700 units in the presence of 2 mg/mL) was similar to that of feather hydrolysates reported by Callegaro et al. [45] (0.14 Abs700 units at 2.05 mg/mL), but lower than that of Bezus et al. [23] reported (2.19 Abs700 units at 2.03 mg/mL). These results showed that the feather hydrolysates obtained by ultrasound-assisted enzymolysis could show higher antioxidative activity than that produced by microbial conversion.

Fig. 4.

Antioxidant and anti-hypertension potentials of ultrasound-assisted enzymatic hydrolysates compared with the control. (a) DPPH scavenging activity; (b) ABTS scavenging activity; (c) Reducing power; (d) ACE inhibition rate. Control: conventional enzymolysis for 3 h; Ultrasound: ultrasound-assisted enzymolysis (substrate concentration of 200 g/L, frequency mode of 28/80 kHz, intermittent ratio of 5:2 s/s, power density of 600 W/L, and time of 3 h). The results are expressed as mean ± SD (n = 3).

The anti-hypertensive activity of enzymatic hydrolysates was evaluated by the capability of hydrolysates to inhibit ACE activity. The ACE inhibition rate of enzymatic hydrolysates is displayed in Fig. 4d. The results showed that the ACE inhibition rate could be increased by ultrasonic-assisted enzymolysis technology. The IC₅₀ value of UEH was 1.49 mg/mL, lower than that of CEH (1.91 mg/mL) and feather hydrolysates obtained by feather-degrading Bacillus strains (1.61 mg/mL) [44]. Similar results were observed by Ding et al. [46] and Ma et al. [30], who found that ultrasound decreased the IC₅₀ value of grape seed hydrolysates and garlic powder hydrolysates. The increase in the antioxidant activity and ACE inhibition rate may be because ultrasound can change the structure of proteins, which leads to more release of active peptides during enzymolysis [40].

3.5. Effects of DFSU on the molecular weight (MW) distribution of enzymatic hydrolysates

The MW distribution of peptides is an important index to evaluate the quality of hydrolysates, and it is highly correlated to the activity of hydrolysates [21]. The MW distributions of UEH and CEH are presented in Table 4. The results showed that the MW distribution of UEH changed markedly compared with the control group. The fractions with MW > 3000 Da decreased, while the ones with MW < 500 Da increased. This phenomenon indicated that ultrasound-assisted enzymolysis could effectively convert macromolecular proteins into smaller molecular peptides and even free amino acids, which was in accordance with the result of Wang et al. [21]. It might be that DFSU can cause the exposure of hydrophobic residues or groups of HFM, which increases the active sites of Alcalase with a preference for sites containing hydrophobic residues [25]. Therefore, the enzymolysis reaction was promoted.

Table 4.

Effects of ultrasound on the molecular weight distribution of enzymatic hydrolysates.

Molecular weight (Da)	Content
	Control	Ultrasound
5000	15.00 ± 0.41b	13.09 ± 0.58a
3000–5000	7.92 ± 0.18b	7.24 ± 0.35a
1000–3000	18.70 ± 0.38a	17.88 ± 0.50a
500–1000	14.94 ± 0.76a	15.31 ± 0.58a
200–500	36.97 ± 0.45a	38.83 ± 0.76b
< 200	6.47 ± 0.44a	7.65 ± 0.28b

Note: Control: conventional enzymolysis for 3 h; Ultrasound: ultrasound-assisted enzymolysis (substrate concentration of 200 g/L, frequency mode of 28/80 kHz, intermittent ratio of 5:2 s/s, power density of 600 W/L, and time of 3 h); Values are means ± SD (three replicates); Different letters were used to show significant differences (P < 0.05) in the same row.

3.6. Scanning electron microscopy (SEM) and atomic force microscopy (AFM) analysis of enzymatic hydrolysates

The SEM images of enzymatic hydrolysates are shown in Fig. 5a and b. Feather protein particles in UEH became porous compared with the ones in CEH. This kind of structure can help the enzymes to enter into the protein molecules smoothly and cause more release of internal hydrophobic groups. More morphology details can be observed from topographic images by AFM analysis (as shown in Fig. 5c and 5d). It can be clearly seen from Fig. 5c that the topography of CEH presented a series of aggregation phenomena, while the diameter and height of the protein aggregates decreased considerably after ultrasound treatment (Fig. 5d), which made protein particles look smaller and evenly distributed in size. These results were in similitude to the findings of Xu et al. [28] and Wang et al. [26]. For example, Xu et al. [28] found that lots of little voids appeared in casein structure subjected to ultrasound treatment. Casein particles became smaller, and the number of protein particles increased sharply. These phenomena were conducive to the increase in the contact areas between enzymes and protein particles, facilitating the enzymolysis reaction.

Fig. 5.

The SEM and AFM analysis of enzymatic hydrolysates. (a) SEM image of CEH; (b) SEM image of UEH; (c) AFM image of CEH; (d) AFM image of UEH. SEM: scanning electron microscopy; AFM: atomic force microscopy; CEH: conventional enzymolysis hydrolysates of HFM; UEH: ultrasound-assisted enzymolysis hydrolysates of HFM.

3.7. Effects of DFSU on the contents of free sulfhydryl (SH) and disulfide bond (SS)

As an essential covalent bond to maintain the stability of protein spatial structure, the SS is closely related to the functional properties of proteins [43]. The changes in the contents of SH and SS represent the stretch and aggregation of proteins. Effects of ultrasound on the contents of SH and SS are displayed in Table 5. As can be seen from the table, ultrasound treatment significantly increased the content of SH and decreased the content of SS in feather proteins compared with the control group (P < 0.05). Results were consistent with the findings of Cui et al. [24]. It might be that the cavitation effects caused by ultrasound such as micro jets, shear forces, shock waves, and turbulence break SS in the proteins, causing the decomposition of SS and the formation of SH [20], [47]. In addition, the protein molecules are stretched with the decomposition of SS, which causes more exposure of internal SH groups [26]. Moreover, the reduction of protein particle size after ultrasound treatment also increases the exposure of buried SH groups [20].

Table 5.

Effects of ultrasound pretreatment on the free sulfhydryl content (SH) content, disulfide bond (SS) content, surface hydrophobicity (H₀), and secondary structure.

Treatment	H0	SS (μmol/g)	SH (μmol/g)	Secondary structure content (%)
				α-helix	β-folding	β-corner	Random coil
Control	235.35 ± 3.08a	1.91 ± 0.05b	5.10 ± 0.10a	14.80 ± 0.03b	43.43 ± 0.23b	27.55 ± 0.11b	14.22 ± 0.05a
Ultrasound	289.30 ± 2.25b	0.19 ± 0.03a	5.72 ± 0.08b	13.47 ± 0.07a	42.01 ± 0.13a	26.30 ± 0.10a	18.22 ± 0.11b

Note: Control: conventional enzymolysis for 3 h; Ultrasound: ultrasound-assisted enzymolysis (substrate concentration of 200 g/L, frequency mode of 28/80 kHz, intermittent ratio of 5:2 s/s, power density of 600 W/L, and time of 3 h); Values are means ± SD (three replicates); Different letters were used to show significant differences (P < 0.05) in the same column.

3.8. Effects of DFSU on the secondary structure

The relative contents of α-helix, β-sheet, β-turn, and random coil in proteins were observed by analyzing the C O stretching vibration of the amide Ⅰ-band (1600–1700 cm⁻¹) obtained from Fourier transform infrared (FTIR) spectra. As shown in Table 5, compared with CEH, the contents of α-helix, β-sheet, and β-turn of UEH decreased by 8.96%, 3.27%, and 4.55%, respectively, and the content of random coil increased by 28.13%. Results showed that ultrasound could transform the structure of α-helix, β-sheet, and β-turn into a random coil. Similar results were observed in the hydrolysates of casein, gluten, and milk protein after ultrasound treatment [24], [28], [48]. It might be that cavitation action weakens the hydrogen bonds that maintain the stability of protein, making the ordered structure converted into a disordered structure. These changes are more beneficial to the exposure of enzyme cleavage sites [21].

3.9. Effects of DFSU on the surface hydrophobicity (H₀) of enzymatic hydrolysates

The effects of DFSU on H₀ are shown in Table 5. The H₀ of UEH increased by 22.92% compared with CEH. These findings were consistent with the previous studies of corn proteins [20], milk proteins [24], rice proteins [29], and wheat germ proteins [49]. The increase in H₀ indicates that the interaction between hydrophobic linkages of the protein molecules is disrupted due to the ultrasound-induced cavitation effects, causing the exposure of hydrophobic groups that are buried in the interior protein. It has been reported that the hydrophobicity of protein is one of the important factors affecting ACE inhibitory activity and antioxidant activity of protein hydrolysates [29], [50]. The increase in H₀ of UEH can improve the bioactivities of enzymatic hydrolysates.

4. Conclusions

As new ultrasound equipment, dual-frequency slit ultrasound (DFSU) provided an effective approach to realizing the high-concentration enzymolysis of low-dissolution materials such as feathers. The optimal DFSU treatment for hydrolyzed feather meal (HFM) enzymolysis (200 g/L, 28/80 kHz, intermittent ratio of 5:2 s/s, 600 W/L, and 3 h) was obtained from the single-factor test, under which the soluble protein yield and peptide yield increased by 6.08% and 18.63%, respectively, compared with the control. The antioxidant activity and angiotensin-I-converting enzyme (ACE) inhibitory activity of ultrasound-assisted enzymatic hydrolysates of HFM (UEH) were remarkably increased. It may be that the macromolecular proteins were converted into micromolecular peptides after DFSU treatment, which can be proved by the results of molecular weight (MW). The morphology of feather protein particles in the enzymatic hydrolysates observed by scanning electron microscopy (SEM) and atomic force microscopy (AFM) illustrated that the contact areas between enzymes and feather proteins were increased due to the formation of protein poriferous structure and the decrease in the protein particle sizes under DFSU-assisted enzymolysis. Moreover, the breakage of disulfide bond (SS), the alteration of secondary structure from ordered to disordered structure, and the increase of hydrophobic groups further indicated the change in the structure of feather protein molecules. These conformational changes could be conducive to the combination of HFM and Alcalase and the improvement of antioxidant activity and ACE inhibitory activity of enzymatic hydrolysates. In conclusion, ultrasound can change the molecular conformation of feather protein particles in the enzymatic hydrolysates and enhance the conventional enzymolysis reaction, which provides the feasibility of high-concentration enzymolysis for feather meal with low solubility.
