HIV-1 infection enhances innate function and TLR7 expression in female plasmacytoid dendritic cells

This study shows that the TLR7-driven innate function of pDCs is increased in HIV/ART women and is associated with enhanced expression of the TLR7 locus from both X chromosomes.

Abstract

Plasmacytoid dendritic cells (pDCs) express TLR7, a ssRNA-sensor encoded on the X chromosome, which escapes X chromosome inactivation (XCI) in females. pDCs are specialized in the production of type 1 interferons (IFN-I) through TLR7 activation which mediates both immune cell activation and also reactivation of latent HIV-1. The effect of HIV-1 infection in women under antiretroviral therapy (ART) on pDC functional responses remains poorly understood. Here, we show that pDCs from HIV/ART women exhibit exacerbated production of IFN-α and TNF-α compared with uninfected controls (UC) upon TLR7 activation. Because TLR7 can escape XCI in female pDCs, we measured the contribution of TLR7 allelic expression using SNP haplotypic markers to rigorously tag the allele of origin of TLR7 gene at single-cell resolution. Herein, we provide evidence that the enhanced functional response of pDCs in HIV/ART women is associated with higher transcriptional activity of the TLR7 locus from both X chromosomes, rather than differences in the frequency of TLR7 biallelic cells. These data reinforce the interest in targeting the HIV-1 reservoir using TLR7 agonists in women.

Introduction

Despite the efficacy of long-term antiretroviral therapy (ART), HIV-1 latent reservoir persists in individual living with HIV-1 and can reactivate and cause active infection upon treatment interruption (Mitchell et al, 2020). HIV persists in a small pool of cells, particularly memory CD4 T cells, harboring integrated and replication-competent viral genomes (Dufour et al, 2020). Latency removal agents have been developed as potential means to reduce the HIV-1 reservoir by inducing reactivation of latent proviruses followed by elimination of the resulting infected cells by the immune system (Dufour et al, 2020). Second generations of latency removal agents have been developed that stimulate the endosomal Toll-like receptors TLR7, TLR8, or TLR9, which are of high interest as potential cure strategies because of their capacity to both reverse HIV-1 latency and enhance HIV-1-specific immune control (Borducchi et al, 2016, 2018; Lim et al, 2018; Macedo et al, 2019; Meas et al, 2020). Transient reactivation of the latent simian immunodeficiency virus reservoir and sustained viral remission have been obtained using the TLR7 agonist ligand GS-9620 in simian immunodeficiency virus–infected rhesus macaques under ART alone (Lim et al, 2018) or in combination with anti-envelope antibodies or therapeutic vaccines (Borducchi et al, 2016, 2018).

Plasmacytoid dendritic cells (pDCs) express TLR7, which senses ssRNA, and induce the secretion of copious amounts of type I IFNs (IFN-I) that promote cell-autonomous antiviral defense through interferon inducible genes and also serves as bridge to potentiate innate and adaptive immunity promoting antibody responses and enhancing cytotoxic T-cell and NK cell potential (Gonzalez-Navajas et al, 2012). TLR7 agonist ligands can mediate both immune cell activation and HIV-1 expression in cells from HIV-1–infected individuals on suppressive ART (HIV/ART) (Tsai et al, 2017; Van der Sluis et al, 2020). In this model, the reactivation of the latent HIV-1 reservoir in PBMCs from ART-suppressed individuals was dependent on pDC-mediated production of IFN-α which was strongly induced in HIV-infected PBMCs (Tsai et al, 2017). Understanding the mechanisms controlling the expression of TLR7 and the production of IFN-I is therefore an important issue in HIV-1 infection, in particular for the development of new strategies for viral eradication (Borducchi et al, 2016, 2018; Lim et al, 2018; Macedo et al, 2019). Although pDC numbers are reduced in the blood compartment of HIV/ART (Kamga et al, 2005; Fontaine et al, 2009; Sabado et al, 2010), limited studies have been performed to assess their functional properties in response to TLR7 agonist ligands, particularly in women.

Herein, we ex vivo assessed the innate function of pDCs upon TLR7 stimulation by controlling for the presence of the rs179008 single-nucleotide polymorphism c.32T allele which inhibits TLR7 protein expression and pDC innate functions, selectively in female, but not in male (Azar et al, 2020; Guéry, 2021). We show here that HIV/ART women exhibited exacerbated production of IFN-α and TNF-α as compared with uninfected controls (UC). Because TLR7 can escape X chromosome inactivation (XCI) in human female pDCs (Souyris et al, 2018), we then assessed the contribution of TLR7 allelic expression on the functional reprogramming of pDCs in HIV/ART women, using SNP haplotypic markers to rigorously tag the allele of origin of TLR7 gene at single-cell resolution.

Results

The TLR7 rs179008 c.32T allele inhibits IFN-α production by pDCs from HIV-1–infected women under ART

We recently established that the TLR7 rs179008 c.32T allele, which the frequency distribution was similar between HIV-1–infected and control women (Azar et al, 2020), is a sex-specific protein expression quantitative trait locus (pQTL) where c.32T allele carriage was associated with both impaired TLR7 protein expression and TLR7-driven production of IFN-α by pDCs in females but not in males (Azar et al, 2020). Our aim was to investigate whether this SNP was also functional in pDCs from HIV-1–infected female under ART with sustained undetectable viral load and to compare the TLR7-driven cytokine production of pDCs between uninfected controls and HIV/ART females homozygous for the rs179008 major c.32A allele. HIV/ART women with a known A/A or A/T genotype from the ANRS EP53 X_LIBRIS cohort were reassessed for the relative frequency of circulating pDCs and the functional response of their blood pDCs following stimulation with TLR7 ligands using the flow cytometry strategy described in Fig S1 as previously described (Azar et al, 2020). We observed a lower frequency of pDCs in the blood of HIV/ART women relative to age-matched uninfected controls (UCs) (Fig 1A), as per previous reports (Kamga et al, 2005; Fontaine et al, 2009; Sabado et al, 2010). Among HIV/ART and UC women, pDC frequencies in the AA and AT subjects were equivalent (Fig 1B). Fresh PBMCs were stimulated with DOTAP vesicles loaded with Gag_RNA1166, a synthetic HIV-1-derived RNA ligand of TLR7 and TLR8. In agreement with our previous work with healthy female donors, the frequency of IFN-α-producing pDCs in Gag_RNA1166-stimulated PBMCs was significantly reduced in AT heterozygous patients compared with AA HIV/ART women (Fig 1C). Thus, the rs179008 c.32A>T pQTL is also a functional polymorphism controlling TLR7-driven production of IFN-I by pDCs in HIV-1/ART women.

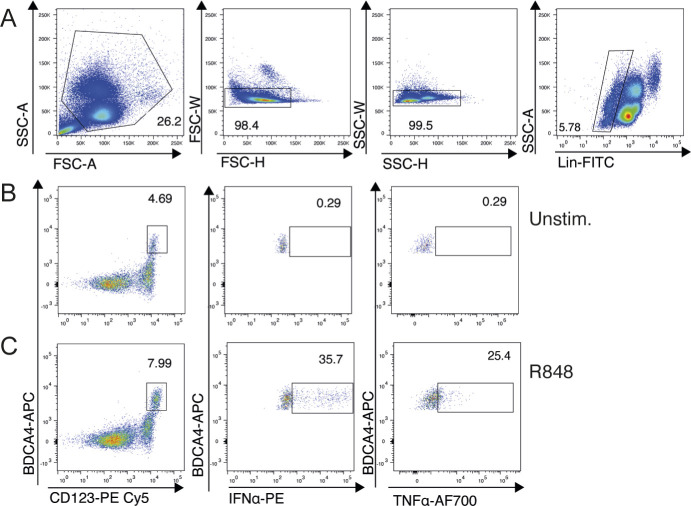

Figure S1. Gating strategy for flow cytometric analysis of cytokine-producing pDCs on freshly drawn PBMCs.

(A) Gating strategy for analysis of human pDCs. pDCs were identified as Singlet, CD14^negCD19^negCD123⁺ BDCA-4⁺ cells. (B, C) Freshly isolated PBMCs were stimulated for 5 h with the TLR7/8 ligand R-848 (1.5 μg/ml) (C) or untreated (B), in the presence of brefeldin A for the final 3 h, then harvested, surface-stained, fixed, permeabilized, and intracellularly stained for IFN-α and TNF-α.

Figure 1. pDCs from HIV/ART women exhibited increased functional responses to TLR7 ligands compared with UCs.

(A) PBMCs from HIV/ART females and age-matched uninfected controls (UCs) were monitored for the percentage of pDCs (lin⁻ CD123⁺BDCA4⁺) as indicated in Fig S1. (B) The frequency of blood pDCs are represented according to the expression of the indicated genotype of the rs179008 SNP (A/A versus A/T) of TLR7. (C) Fresh PBMCs from the HIV/ART women with the indicated rs179008 genotypes were stimulated with HIV-derived Gag_RNA1166 in DOTAP and intracellularly stained for IFN-α expression in CD123⁺BDCA4⁺ pDCs. (D, E) Fresh PBMCs from HIV/ART and UC females homozygous for the TLR7 rs179008 A/A SNP were stimulated with TLR7/8 ligand R-848 (1.5 μg/ml) and intracellularly stained for IFN-α and TNF-α. (D, E) Frequencies of pDCs producing IFN-α (D) or TNF-α (E) are shown. (A, B, C, D, E) Errors bars represent the mean ± SEM. Data from individual subjects are shown. Statistical analysis was performed using the Mann–Whitney test. P-values are shown.

Source data are available for this figure.

Chronic HIV-1 infection is associated with the enhanced functional state of TLR7-stimulated pDCs in HIV/ART women carrying the rs179008 AA SNPs

As TLR7-driven functional response of pDCs has been reported to remain intact under ART (Chang et al, 2012; Tsai et al, 2017), we next compared the frequency of IFN-α– and TNF-α–producing pDCs in response to optimal stimulation with the TLR7/8 ligand Resiquimod (R-848) in HIV/ART women compared with age-matched UCs, both homozygous for the frequent rs179008 A allele. As shown in Fig 1D and E, pDCs from HIV/ART females or UCs were efficiently stimulated to produce IFN-α and TNF-α. Of note, the average frequency of IFN-α⁺ pDCs was significantly higher in HIV/ART females compared with uninfected controls (Fig 1D). The same trend was found for the TNF-α response (Fig 1E), suggesting that the NF-kB pathway leading to pro-inflammatory cytokine production downstream of TLR7 was also substantially increased in pDCs from HIV/ART women.

X chromosome inactivation escape of TLR7 in pDCs is similar between HIV/ART and UC women

TLR7 is encoded on the X chromosome and has been shown to escape XCI in a substantial proportion of immune cells from healthy women (Souyris et al, 2018; Hagen et al, 2020). However, whether the status of XCI escape can be affected by chronic HIV-1 infection has never been examined. Because the escape from XCI of the TLR7 gene was associated with enhanced functional characteristics in female B cells (Souyris et al, 2018) and pDCs (Hagen et al, 2020), we decided to design a single-cell RT–qPCR approach to measure the frequency of TLR7 biallelic cells among pDCs from HIV/ART women. We tested the hypothesis that the enhanced TLR7-driven responsiveness of pDCs in this population could be associated with a higher frequency of cells with escape from XCI of TLR7 gene compared with uninfected subjects. The experimental workflow is depicted in Fig S2. To tag the expression of TLR7 gene, we used heterozygous female donors expressing the rs179008 A/T and the rs3853839 G/C SNPs (Figs 2A and S2) as previously reported (Souyris et al, 2018). Frozen PBMCs were cultured overnight in the presence of IFN-β as we found that this was associated with enhanced pDC recovery compared with the condition without cytokine (Fig S3). Moreover, type 1 IFN signaling has been suggested to promote optimal expression of TLR7 at single-cell resolution (Hagen et al, 2020). pDCs were single-cell sorted into two 96-well plates to have at least between 100-200 pDCs analyzed in this assay using the gating strategy shown in Fig S3. Indeed, we found that the cumulative count of single-cell sorted pDCs required to achieve robust determination of allelic expression of TLR7 was already achieved at cell count ≥ 100 cells (Fig S2C and D). By using the ratio of allele-specific fluorescence signals in the KASP PCR (Fig S2B), we were able to measure the relative abundance of TLR7 transcripts derived from either allele on each chromosome at a single-cell level. Each cell was then classified into mono- or biallelic cell for TLR7 expression when the minor allele frequency was estimated to range below or above 10% of the relative proportion of TLR7 transcripts, respectively (Fig S2B). The allelic expression of TLR7 using the simultaneous determination of both SNPs from each single-cell from two double-heterozygous female donors bearing distinct haplotypes are shown in Fig 2B–D. The allele-of-origin profiles were plotted according to the expression of the rs3853839 3′ UTR SNP into mono-allelic C or G cells and biallelic GC cells (Fig 2C–E). Within each subset, we then reported the results regarding allelic expression of the second rs179008 A/T SNPs to determine the haplotypic association of both SNPs. For the female subject bearing the A-C/T-G haplotype (Fig 2B and C), most of the cells with mono-allelic expression of C or G allele of rs3853839 were also positive for either the A or the T allele of rs179008, respectively, indicating that the A-C and the T-G SNPs were located on the same X chromosome (Fig 2C). However, some single cells (<5%) were also positive for the SNPs belonging to the alternative X chromosome and were reassigned as biallelic cells. Similarly for the second female subject, using the same strategy, we established that this female donor was bearing the T-C/A-G haplotype (Fig 2D and E). Haplotype inference and allelic reassignment resulting in the final determination of haplotype profiling for all donors are shown in Fig 2F and G. Using this approach, we found a significant underestimation of biallelic cell frequency when each single SNP were independently used for allele of origin measurement compared with the joined analysis of the diplotype SNPs (Fig 2G). By contrast, no significant differences in mono-allelic cell frequencies were observed using each SNP individually or as haplotype (Fig 2F). Together, these results demonstrate that the parallel analyses of two SNPs from the same double-heterozygous female donors give an accurate and concordant estimation of the frequency of cells with mono- and biallelic expression of TLR7.

Figure S2. Experimental flowchart for the single-cell RT–qPCR-KASP analysis of TLR7 allelic expression in pDCs from female donors heterozygous for the rs179008 (A/T) and/or rs3853839 (G/C) SNPs.

(A) Workflow of the allele-of-origin analysis using two genetic markers observable in mature TLR7 transcripts. Frozen PBMC were cultivated overnight with 1 ng/ml IFNβ. pDCs were stained and single-cell–sorted by flow cytometry. (B) Standard curve of the KASP assay for both SNPs. (C, D) Absolute number (C) or average frequency (D) of mono-allelic G (green), C (blue), or biallelic (red) pDCs cumulative count among total pDCs from an UC female donor obtained by single-cell RT–qPCR KASP. Cumulative results of single-cell RT–PCR-KASP assays are shown from two experiments with three or two 96-w plates performed with an average of 84 cells/plate analyzed in each experiment. Cumulative results of five single-cell sorted plates are shown.

Figure 2. The frequencies of pDCs with biallelic expression of TLR7 are similar between HIV/ART and UC women.

(A) Map of TLR7 locus with SNPs rs179008 (A/T) and rs3853839 (C/G) and the positioning of the primers used for sequential PCR amplification of TLR7 cDNA at single-cell resolution. (B, C, D, E) pDCs were single-cell sorted from two representative women heterozygous for both SNPs, displaying various proportion of biallelic cells. (B, D) Representative allele-of-origin profile of individual pDCs for the SNPs TLR7 rs3853839 (right panel) and rs179008 (left panel) from two different heterozygous female donors. Each dot represents one cell with mono-allelic or biallelic expression of TLR7. (B, C, D, E) Raw results, haplotype inference, and cell reassignment for the proportion of pDCs mono-allelic A, T, or biallelic AT pDCs within mono-allelic C, G, or biallelic GC for TLR7 from two representative heterozygous women, bearing either the A-C/T-G (B, C) or the T-C/A-G (D, E) haplotypes. (F, G) Frequencies of mono-allelic (F) or biallelic (G) pDCs from healthy (n = 8) and HIV/ART (n = 6) women by using the SNP rs3853839 and SNP rs179008 alone or in combination. Statistical analysis was performed using a one-way ANOVA followed by a Tukey’s multiple comparisons test. ns, not significant. Exact P-values are shown. Errors bars represent the mean ± SEM. (H) Frequencies of TLR7 biallelic pDCs from UCs or HIV/ART determined using the TLR7 SNPs rs3853839 and rs179008 haplotypes or the rs3853839 SNP G/C only. The t test was used for statistical analysis. ns, not significant. Errors bars represent the mean ± SEM.

Source data are available for this figure.

Figure S3. Gating strategy for single-cell sorting of pDCs from frozen PBMCs from HIV/ART or UCs female donors.

(A) Frozen PBMCs were set in culture in complete medium in the presence of IFN-β (1 ng/ml) overnight at 37°C, before labeling and cell sorting in a 96-well plate containing 4 μl of lysis-buffer. (B) Gating strategy used to sort pDCs. pDCs were identified as singlet, live, CD14^negCD19^negCD123⁺ BDCA-4⁺ cells. (C) Frequency of pDCs among PBMCs from various donors at different time points of culture at 37°C in the presence of the indicated concentrations of IFN-β. Error bars represent the mean ± SEM. Statistical analysis was performed using a paired t test. *P < 0.05, **P < 0.01.

We then compared the frequency of cells with biallelic expression of TLR7 in single-cell sorted pDCs from female heterozygous for the rs179008 and rs3853839 SNPs (UC: n = 8; HIV/ART: n = 6). The frequencies of pDCs with biallelic expression of TLR7 were ranging from 8 to 32% in the 14 females tested, and no significant differences were observed between UC and HIV/ART women (Fig 2G and H). We also analyzed the frequency of biallelic cells in females heterozygous for the rs3853839 G/C SNP. Again, using this single SNP to tag allelic expression, we also found similar frequencies of biallelic cells in pDCs from HIV-1–infected women compared with UC women (Fig 2H). Combined, these results represent the largest quantitative assessment of the frequency of TLR7 biallelic cells in human immune cells with 29 subjects examined in total. In agreement with previous works (Souyris et al, 2018; Hagen et al, 2020), this demonstrates that escape from XCI of TLR7 is a common and highly reproducible feature in female pDCs not only in UC but also in HIV/ART women. Differences in the frequency of pDCs with biallelic expression of TLR7 are unlikely to explain the enhanced functional responses observed in HIV/ART women (Fig 1).

Chronic HIV-1 infection is associated with higher expression levels of TLR7 mRNA at single-cell resolution

Because our experimental workflow allows us to quantify the mRNA expression level from each allele of TLR7 (Fig S2A), we compared the expression levels of TLR7 mRNA expressed from each X chromosome in mono- and biallelic cells in single-cell sorted pDCs. In mono-allelic cells, TLR7 mRNA relative expressions were similar between the two X chromosomes in all the donors, regardless of the expression of the rs179008 or rs3853839 SNPs. This was observed not only in UCs but also in HIV/ART women, whatever the haplotype-borne (Fig S4A and B). These results demonstrate, at single-cell resolution, that carriage of one or the other of the minor allele rs179008 A/T or the rs3853839 G/C had no measurable impact on TLR7 mRNA expression in female pDCs (Fig S4C and D). This was expected for rs179008 T allele from our previous work (Azar et al, 2020), but much less for rs3853839 C allele which was previously reported to control the binding of the microRNA-3148 and TLR7 mRNA degradation (Deng et al, 2013). Our results now show that miR-3148 binding to TLR7 3′-UTR segment bearing the C allele is unlikely to control TLR7 mRNA level in female pDCs. Our results also indicate that the expression of TLR7 from the active X chromosome (Xa) is similar in the mosaic population of mono-allelic pDCs whatever the parent of origin of the Xa (Xm or Xp), contrary to what has been suggested in mice (Golden et al, 2019). We therefore decided to pool the data from the mono-allelic populations and compared them to the TLR7 expression level detected in TLR7 biallelic cells. Both in UCs and in HIV/ART women, we found significantly higher TLR7 mRNA transcript levels in pDCs with biallelic than those with mono-allelic TLR7 expression (Fig 3). Although, these differences were low (1.13- to 1.14-fold in UCs; 1.25–1.33-fold in HIV/ART), they were consistent with expression of this gene from both X chromosomes, including the Xi, in agreement with previous works in B cells (Souyris et al, 2018) and pDCs (Hagen et al, 2020).

Figure S4. Mono-allelic expression of TLR7 mRNA is not affected by the parental origin of the X chromosome or by rs179008 or rs3853839 SNPs.

(A, B) TLR7 mRNA expression at single-cell resolution in mono-allelic pDCs from representative uninfected controls (UC) and HIV/ART women heterozygous for both the SNPs rs179008 (A/T) and rs3853839 (C/G) whom carries the indicated haplotypes T-C/A-G (A) or A-C/T-G (B). Statistical differences in TLR7 mRNA levels were assessed using the Mann–Whitney test. ns, not significant P > 0.05. (C, D) To investigate the impact of each SNP on TLR7 mRNA expression, the median values of TLR7 mRNA expression at single-cell resolution for each allele were plotted from all UC donors (n = 7) and HIV/ART women (n = 5) as indicated, without distinction of haplotypes. Statistical differences in TLR7 mRNA levels according to the rs179008 and rs385839 genotypes were analyzed using the Wilcoxon signed rank test. ns, not significant P > 0.05.

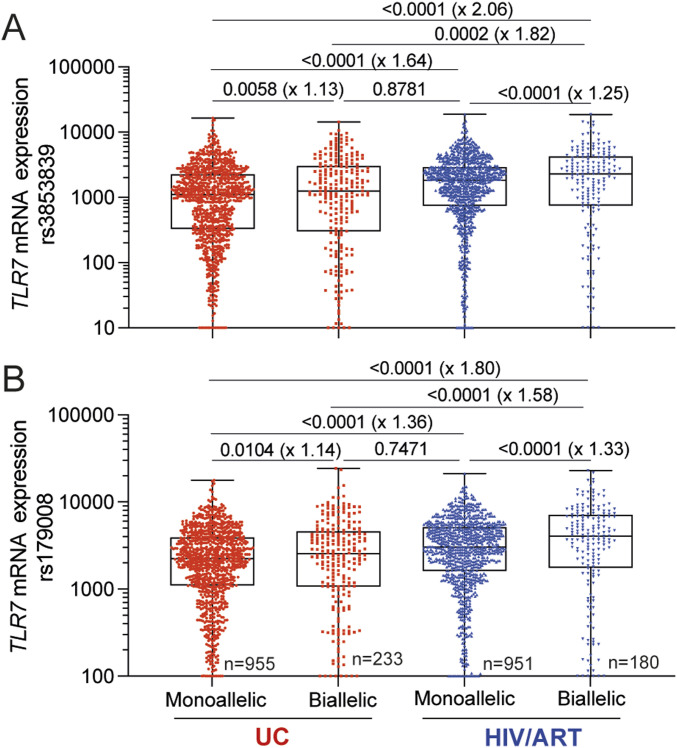

Figure 3. Single-cell analysis reveals enhanced TLR7 mRNA expression in pDCs from HIV-infected women under ART.

(A, B) Relative expression of TLR7 mRNA in pDCs from UCs or HIV/ART women with either mono-allelic or biallelic expression of TLR7 were calculated at single-cell resolution using primers specific for either the rs3853839 (A) or the rs179008 (B) cDNA sequence of TLR7 as shown in Figs S2 and 2. TLR7 mRNA relative expression from pooled mono-allelic or biallelic pDCs from UCs (n = 8, n = 1,188, mean cell number/donor = 146) or HIV/ART (n = 6, n = 1,131; mean cell number/donor = 189) females. Statistical analysis was performed using a One-way ANOVA followed by Tukey’s posttest corrected for multiple comparison. P-values and fold-change in median values in parenthesis are shown.

Source data are available for this figure.

Unexpectedly, we observed that the relative expression of TLR7 at single-cell resolution was substantially higher in pDCs from HIV/ART females compared with UCs regardless of the SNP studied (Fig 3A and B). The average fold-change was calculated, and we estimated that TLR7 gene expression from the Xa (mono-allelic cells) was 1.5-fold higher in average in pDCs from HIV/ART women. A similar trend was also observed in biallelic pDCs with higher expression levels of TLR7 transcripts (1.58- to 1.82-fold higher) in biallelic cells from HIV/ART females compared with UCs (Fig 3A and B). We estimated that 18–20% of this increase was attributable to the additional TLR7 mRNA expression from the Xi. Of note, the relative expression of TLR7 mRNA in mono-allelic pDCs from HIV/ART females was similar to biallelic pDCs from UCs. Together, these results provide evidence for enhanced transcriptional activity of the TLR7 locus from both the Xa and the Xi in HIV/ART women.

Discussion

Together, our results show that although pDC number is lower in HIV/ART women, frequencies of IFN-α or TNF-α producing pDCs after TLR7 stimulation are higher than in healthy women. The analysis of TLR7 XCI escape by single-cell RT–qPCR with SNPs markers demonstrated that the frequency of TLR7 biallelic pDCs were similar between HIV/ART and UC women. TLR7 biallelic pDCs expressed 1.13–1.25-time more TLR7 mRNA than mono-allelic pDCs. This enhanced expression of TLR7 mRNA transcripts in biallelic pDCs compared with mono-allelic ones was more pronounced in HIV/ART females than in UCs. Surprisingly, consistent with the increased innate cytokine responses of pDC from HIV/ART females, we observed a significant up-regulation of TLR7 gene expression in pDCs including mono-allelic ones where TLR7 was expressed almost exclusively from the Xa. These results provide evidence for an increased TLR7-driven pDC responsiveness associated with enhanced transcriptional activity of the TLR7 locus on both X chromosomes, in pDCs from HIV/ART females.

It has been recently reported at single-cell resolution that female pDCs with escape from XCI in TLR7 expressed not only higher levels of TLR7 mRNA but also higher levels of transcripts coding for all IFN-α subtypes and IFN-β at steady state (Hagen et al, 2020). This observation suggested that the expression of the basal level of IFN-I mRNA could be a consequence of a higher TLR7 mRNA expression, thereby discriminating functionally mono-allelic and biallelic pDCs (Hagen et al, 2020). Indeed, constitutive production of low levels of IFN-I in pDCs have been reported to act in an autocrine/paracrine manner to drive high levels production of IFN-I by pDCs (Kim et al, 2014). Thus, pDCs with high level expression of TLR7 mRNA because of the cell-autonomous action of XCI escape of TLR7 (Souyris et al, 2018; Hagen et al, 2020) could belong to a group of early responder pDCs with superior ability to produce IFN-I (Wimmers et al, 2018). This mechanism together with the enhanced transcriptional activity of the TLR7 locus from the Xa observed in the general mono-allelic population in HIV/ART women could contribute to the functional reprogramming of pDCs in these subjects, by increasing the frequencies of pDCs with enhanced propensity to functionally respond to TLR7 agonist ligands. Of note, we found that the expression levels of TLR7 mRNA in mono-allelic pDCs from HIV/ART females were similar to the levels measured in TLR7 biallelic cells from UCs.

Our data corroborate recent observations where increased production of pro-inflammatory cytokines has been reported in monocytes stimulated through TLR4 or TLR7 in a large cohort of HIV-1-infected subjects under ART (van der Heijden et al, 2021). In this study, the authors observed a markedly increased monocyte-derived cytokine response, mainly affecting IL-1β, upon stimulation with LPS, imiquimod, and Mycobacterium tuberculosis (van der Heijden et al, 2021). It was suggested that immune dysfunction and persistent inflammation in HIV/ART subjects because of microbial translocation or continuing HIV replication could promote functional adaptation of innate immune cells by epigenetic or metabolic reprogramming, a process known as “trained immunity” (Netea et al, 2020). Although epigenetic modifications have not been documented in HIV-infected subjects, future studies are warranted to investigate the mechanisms underlying the trained-immunity phenotype reported in monocytes (van der Heijden et al, 2021) and in pDCs (our present work).

The limitation of our study is that TLR7 expression and pDC innate function was investigated in one sex. Whether our conclusion can be extrapolated to males will deserve dedicated studies. Of note, in the study by van der Heijden et al (2021), most of the HIV-1–infected subjects were males, and transcriptomic profiling of monocytes revealed broad up-regulation of inflammatory pathways, including enhanced TLR7 mRNA (van der Heijden et al, 2021). Thus, the trained-immunity phenotype observed in male monocytes in this study could also possibly apply to male pDCs. However, it is important to note that sex differences exist regarding TLR7 protein expression and type I IFN production by pDCs, with reduced expression of both parameters in male cells compared with females (Meier et al, 2009; Seillet et al, 2012; Souyris et al, 2018; Azar et al, 2020). Whether this sex-bias in TLR7-driven pDC responsiveness could alter the trained-immunity–like phenotype we currently observed is still an open question. However, because the enhanced TLR7 mRNA expression in pDCs from HIV/ART females was not affected by the mono-allelic expression of T allele of rs179008 T SNP, we can conclude that the functional expression of TLR7 protein is unlikely to contribute to the enhanced transcriptional activity of the TLR7 locus and the trained-immunity–like phenotype we observed. We believe that epigenetic modifications at the TLR7 locus in pDCs could be induced by pro-inflammatory cytokines, including IFN-I, which could be produced at low levels upon HIV-1 provirus reactivation whatever the sex (Kamada et al, 2018; Mitchell et al, 2020). In our study, analysis of TLR7 expression was performed after incubation with IFN-I; thus, we cannot exclude that changes in IFNAR-signaling between UC and HIV/ART subjects could also contribute to observed differences. Investigating the mechanisms underlying the functional reprogramming of pDCs will be warranted but highly challenging because of the scarcity of pDCs particularly in HIV-infected subjects. Besides myeloid cells, trained immunity have been reported in lymphoid cells, including NK cells, ILC1, ILC2, and DCs reviewed in Netea et al (2020). Our study is the first to report a functional reprogramming-like phenotype in human pDCs and could have important implication for the development of strategies targeting the HIV-1 latent reservoir by using TLR7 agonists in HIV/ART women.

In sum, we propose that in HIV/ART women, the innate function of pDCs is increased and is associated with markedly enhanced expression of the TLR7 locus from both X chromosomes. Based on previous works by others showing strong association between TLR7 mRNA expression and enhanced propensity of female pDCs to transcribe all IFN-I family members (Hagen et al, 2020), we believe that enhanced transcriptional regulation of TLR7 mRNA could contribute to this trained-immunity–like phenotype through mechanisms that will deserve further investigation. Our data strengthen the interest of targeting the HIV-1 latent reservoir by using TLR7 agonists in HIV-1–infected women under ART and suggest that it will be critical to control for the expression of the rs179008 as this SNP could be associated with blunted pDC innate functions that still persist in HIV/ART women.

Materials and Methods

Donors and ethical compliance

Our study is in agreement with applicable French regulations and with the ethical principles of the Declaration of Helsinki. PBMCs of healthy blood from anonymous donors at the Toulouse blood transfusion center (Etablissement Français du Sang) were from a biobank authorized under agreement number 2-15-36 by the competent ethics board Comité de Protection des Personnes Sud-Ouest et Outre-Mer II, Toulouse. The cohort ANRS EP_53 X-LIBRIS (coordinator: Pr. P. Delobel, CHU Purpan) allows the study of HIV-1 donors has been previously described (Azar et al, 2020). The X-LIBRIS cohort was previously registered with ClinicalTrials.gov under identifier NCT01952587.

Cell culture

Frozen PBMCs were defrosted and washed twice in R10 media which is complete RPMI 1640 medium supplemented with 2 mM L-glutamine, 1 mM sodium pyruvate, 100 U/ml penicillin/streptomycin, nonessential amino-acids, 50 μM 2-mercaptoethanol (all from Invitrogen) to which 10% heat-inactivated FBS (Sigma-Aldrich) was added. Cells were cultured overnight 37°C in 5% CO₂ air incubator. For single-cell RT–qPCR-KASP, after thawing, cells were cultured overnight with IFN-β 1 ng/ml in R10 complete medium.

Cell stimulation analysis of cytokines production

Fresh PBMCs (2.5 × 10⁶ cells) were seeded in 24-well plate and stimulated either with 30 μg/ml HIV-1-derived Gag_RNA1166 synthetic oligoribonucletides (Eurogentec) complexed with DOTAP (Roche) or 1.5 μg/ml R-848 (Invivogen) for 5 h. Brefeldin A (eBiosciences) was added for the three last hours of culture. PBMCs were surface-labeled with anti-Lin-FITC (lin1; BD Biosciences), anti-BDCA4-APC (clone REA774; Miltenyi Biotec), and anti-CD123-PECy5 (clone 9R5; BD Biosciences). Cells were fixed in 2% paraformaldehyde and permeabilized in 0.5% saponin. Intracellular staining was performed using anti-IFNα-PE (clone LT27:295; Miltenyi Biotech) and anti-TNFα-AF700 (clone MAb11; BD Biosciences). Flow cytometry analysis was performed on LSRII instrument (BD Biosciences). Data were analyzed using the FlowJo software V10 (Tree Star).

Flow cytometry cell sorting

Cells were incubated with anti-human CD32 (Fc gamma RII) (STEMCELL) for 5 min at 4°C. For cell surface markers, cells were stained in MACS buffer (PBS with 1% FBS, 2 mM EDTA) for 30 min at 4°C with the following antibodies: CD14-VioBlue (clone REA599; Miltenyi Biotec), CD19-PEVio615 (clone LT19; Miltenyi Biotec), BDCA4-APC (clone REA774; Miltenyi Biotec), and CD123-PEVio770 (clone AC145; Miltenyi Biotec). Then cells were stained for viability with DRAQ7 (Abcam) for 5 min at 4°C. pDCs were sorted with a FACSAria II or FACS Aria-Fusion Cell Sorter (BD Biosciences) at one cell by well. Data were analyzed with the FlowJo software V10 (Tree Star).

Genotyping and single-cell analysis of TLR7 allelic expression

The workflow for single-cell cDNA analysis previously described in Souyris et al (2018) has been optimized further and is summarized in Fig S2. Briefly, pDCs from women heterozygous for the TLR7 SNP rs3853839 and rs179008 were single-cell–sorted with a FACS Aria-Fusion Cell Sorter (BD Biosciences) in a 96-well plate preloaded with a medium containing 2% Triton X-100, 1 U/μl RNaseOut recombinant ribonuclease inhibitor (Thermo Fisher Scientific), 940 μM dNTPs, and 12.5 ng/μl random hexamer primers (Thermo Fisher Scientific). After cell sorting, single-cell lysates were subjected to RNA reverse transcription using 6.25 U/well Maxima H Minus reverse transcriptase (Thermo Fisher Scientific). Before KASP genotyping, both target SNPs were PCR-amplified using TLR7 cDNA-specific primer pairs (Table S1), and negative wells screened out by real-time quantitative PCR (RT–qPCR) with nested primers (Table S1) and SsoAdvanced Universal SYBR Green Supermix (Bio-Rad Laboratories). The qPCR and KASP fluorescence-based assays were performed using the automated pipetting system epMotion 5070 (Eppendorf) and a Light Cycler 480 instrument (Roche). Relative allelic expression was calculated from the ratio of the FAM (allele C or A) and HEX (allele G or T) fluorescence signals from the respective KASP probes; a four-parameter standard curve was generated regularly for each Light Cycler 480 unit, using an R script based on package drc as described (Souyris et al, 2018). Standard curves were generated by mixing DNA samples from men of rs3853839 G/0 and C/0 genotypes or rs179008 A/0 and T/0 genotypes. Biallelic TLR7 expression in a cell was inferred when the relative expression values of TLR7 transcripts bearing the rs3853839 G allele or rs179008 T allele was comprised between 10% and 90%. A limit of detection (LOD) was defined as a Ct value of 23, and then all Ct values higher than the LOD were removed from the analysis. mRNA expression levels were defined as 2^(LOD-Ct) as described (Hagen et al, 2020).

Table S1 PCR primer pairs used for PCR1 and PCR2 in Figs S2A and 2A. ^{(25.1KB, docx)}

Statistical analysis

Statistical analyses and data presentation were performed using GraphPad Prism 9 software (La Jolla). Statistically significant differences between two groups were determined using two-tailed.

Mann–Whitney or unpaired t test was performed when indicated. Multiple comparisons were performed using the one-way ANOVA test followed by Tukey’s posttest corrected for multiple comparisons as indicated. Values are reported as individual values and plotted as mean ± SEM or as median and IQ range. All statistical tests were two-tailed, and P-values <0.05 were considered to be statistically significant.
