6-(3,4-Difluorophenyl)-7,8,13,14-tetrahydrodibenzo[c,k]phenanthridine

Yiwen Fang ^a,^b,^*, Bingbing Liu ^a,^b, Zhixiang Jia ^a,^b

Editor: W T A Harrison^c

PMCID: PMC9462275 PMID: 36338910

In the title compound, the dihedral angle between the pyridine and difluorobenzene rings is 45.12 (12)°.

Keywords: crystal structure, 2-phenylpyridine, pyridine ring

Abstract

In the title compound, C₂₇H₁₉F₂N, the five-fused-ring system is highly puckered and the dihedral angle between the central pyridine ring and pendant difluorobenzene ring is 45.12 (12)°. In the crystal, inversion dimers linked by pairwise weak C—H⋯N hydrogen bonds generate R ² ₂(12) loops and the dimers are further linked by weak C—H⋯F interactions to form [ Inline graphic 01] chains.

Structure description

In recent years, nitrogen-containing heterocyclic molecular materials have found use as optoelectronic materials (Gu et al. 2017 ▸; Zhang et al., 2019 ▸) because of their conjugated structures and photophysical properties. In this work, we describe the synthesis and structure of the title compound (Fig. 1 ▸) in which the F atoms should increase solubility and provide strong electron-withdrawing groups.

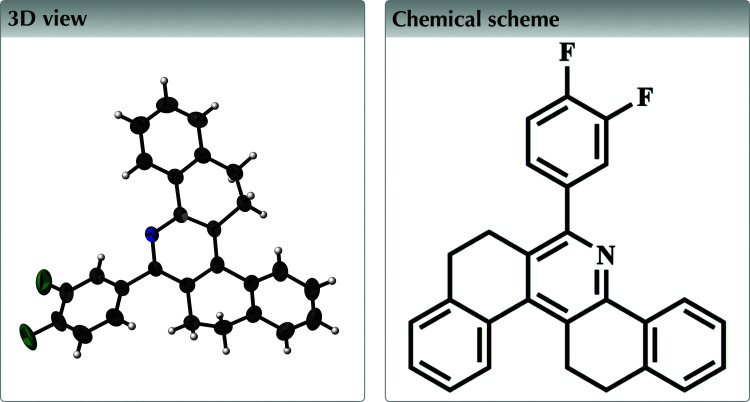

The molecular structure of the title compound showing 50% displacement ellipsoids.

The crystal structure shows that the dihedral angle between the C1–C6 difluorobenzene ring and the adjacent C7/C8/C17/C18/C27/N1 pyridine ring is 45.12 (12)°. In the crystal, pairwise weak C10—H10B⋯N1 hydrogen bonds (Table 1 ▸) link the molecules into inversion dimers, which are further linked by weak C—H⋯F interactions (Fig. 2 ▸) to form [ Inline graphic 01] double chains.

Table 1. Hydrogen-bond geometry (Å, °).

D—H⋯A	D—H	H⋯A	D⋯A	D—H⋯A
C10—H10B⋯N1ⁱ	0.97	2.61	3.552 (4)	165
C19—H19A⋯F2ⁱⁱ	0.97	2.56	3.111 (4)	116

Open in a new tab

Symmetry codes: (i) Inline graphic ; (ii) .

Partial packing diagram showing hydrogen bonds as dashed lines.

Synthesis and crystallization

Ammonium acetate (7.60 g, 0.100 mol) was dissolved in 15 ml glacial acetic acid. Then, 3,4-difluorobenzaldehyde (2.00 g, 0.014 mol) and 1-tetrahydronaphthalone (4.12 g, 0.028 mol) were added and the reaction was heated to reflux at 383 K for 5 h. Upon cooling and recrystallization from ethanol solution, 1.64 g (yield 30%) of the title compound was recovered. Crystals for X-ray analysis were obtained from the slow evaporation of an acetonitrile solution.

Refinement

Crystal data, data collection and structure refinement details are summarized in Table 2 ▸.

Table 2. Experimental details.

Crystal data
Chemical formula	C₂₇H₁₉F₂N
M _r	395.43
Crystal system, space group	Triclinic, P
Temperature (K)	296
a, b, c (Å)	9.394 (5), 9.802 (5), 11.914 (6)
α, β, γ (°)	88.983 (5), 73.144 (5), 69.488 (5)
V (Å³)	979.0 (8)
Z	2
Radiation type	Mo Kα
μ (mm⁻¹)	0.09
Crystal size (mm)	0.03 × 0.02 × 0.01

Data collection
Diffractometer	Bruker APEXII CCD area detector
Absorption correction	Multi-scan (SADABS; Bruker, 2013 ▸)
T _min, T _max	0.633, 0.746
No. of measured, independent and observed [I > 2σ(I)] reflections	7892, 4051, 3053
R _int	0.027
(sin θ/λ)_max (Å⁻¹)	0.651

Refinement
R[F ² > 2σ(F ²)], wR(F ²), S	0.063, 0.190, 1.06
No. of reflections	4051
No. of parameters	271
H-atom treatment	H-atom parameters constrained
Δρ_max, Δρ_min (e Å⁻³)	0.43, −0.25

Open in a new tab

Computer programs: APEX2 and SAINT (Bruker, 2013 ▸), SHELXT (Sheldrick, 2015a ▸), SHELXL (Sheldrick, 2015b ▸) and OLEX2 (Dolomanov et al., 2009 ▸).

Supplementary Material

Crystal structure: contains datablock(s) I. DOI: 10.1107/S2414314620012419/hb4358sup1.cif

x-05-x201241-sup1.cif^{(249.9KB, cif)}

Structure factors: contains datablock(s) I. DOI: 10.1107/S2414314620012419/hb4358Isup2.hkl

x-05-x201241-Isup2.hkl^{(322.8KB, hkl)}

Click here for additional data file.^{(7.7KB, cml)}

Supporting information file. DOI: 10.1107/S2414314620012419/hb4358Isup3.cml

CCDC reference: 2012681

Additional supporting information: crystallographic information; 3D view; checkCIF report

full crystallographic data

Crystal data

C₂₇H₁₉F₂N	Z = 2
M_r = 395.43	F(000) = 412
Triclinic, P1	D_x = 1.341 Mg m⁻³
a = 9.394 (5) Å	Mo Kα radiation, λ = 0.71073 Å
b = 9.802 (5) Å	Cell parameters from 2895 reflections
c = 11.914 (6) Å	θ = 2.4–27.5°
α = 88.983 (5)°	µ = 0.09 mm⁻¹
β = 73.144 (5)°	T = 296 K
γ = 69.488 (5)°	Block-shaped, white
V = 979.0 (8) Å³	0.03 × 0.02 × 0.01 mm

Open in a new tab

Data collection

Bruker APEXII CCD area detector diffractometer	3053 reflections with I > 2σ(I)
phi and ω scans	R_int = 0.027
Absorption correction: multi-scan (SADABS; Bruker, 2013)	θ_max = 27.6°, θ_min = 1.8°
T_min = 0.633, T_max = 0.746	h = −12→12
7892 measured reflections	k = −12→10
4051 independent reflections	l = −15→15

Open in a new tab

Refinement

Refinement on F²	Primary atom site location: dual
Least-squares matrix: full	Hydrogen site location: inferred from neighbouring sites
R[F² > 2σ(F²)] = 0.063	H-atom parameters constrained
wR(F²) = 0.190	w = 1/[σ²(F_o²) + (0.0837P)² + 0.5466P] where P = (F_o² + 2F_c²)/3
S = 1.06	(Δ/σ)_max < 0.001
4051 reflections	Δρ_max = 0.43 e Å⁻³
271 parameters	Δρ_min = −0.25 e Å⁻³
0 restraints

Open in a new tab

Special details

Geometry. All esds (except the esd in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell esds are taken into account individually in the estimation of esds in distances, angles and torsion angles; correlations between esds in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell esds is used for estimating esds involving l.s. planes.

Open in a new tab

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å²)

	x	y	z	U_iso*/U_eq
N1	0.7467 (2)	0.3707 (2)	0.54946 (15)	0.0391 (4)
F1	1.0054 (3)	0.3247 (2)	0.10698 (15)	0.0904 (6)
F2	1.1593 (2)	0.5132 (3)	0.08204 (17)	0.1047 (8)
C18	0.5333 (2)	0.4724 (2)	0.73116 (18)	0.0380 (5)
C17	0.5140 (2)	0.6141 (2)	0.69776 (18)	0.0381 (5)
C8	0.6055 (3)	0.6315 (2)	0.58465 (19)	0.0391 (5)
C7	0.7235 (2)	0.5064 (2)	0.51581 (18)	0.0363 (5)
C5	0.8364 (2)	0.5126 (2)	0.39951 (18)	0.0386 (5)
C27	0.6517 (2)	0.3545 (2)	0.65376 (18)	0.0374 (5)
C16	0.3991 (3)	0.7498 (2)	0.7746 (2)	0.0417 (5)
C26	0.6825 (3)	0.2019 (2)	0.68702 (19)	0.0410 (5)
C21	0.5609 (3)	0.1703 (3)	0.7718 (2)	0.0439 (5)
C6	0.8684 (3)	0.4139 (3)	0.30477 (19)	0.0443 (5)
H6	0.817554	0.346510	0.313138	0.053*
C11	0.3292 (3)	0.8721 (3)	0.7200 (2)	0.0456 (6)
C22	0.5900 (3)	0.0269 (3)	0.8019 (2)	0.0534 (6)
H22	0.510292	0.005181	0.857526	0.064*
C4	0.9152 (3)	0.6117 (3)	0.3848 (2)	0.0510 (6)
H4	0.894687	0.678252	0.447433	0.061*
C19	0.4315 (3)	0.4353 (3)	0.84374 (19)	0.0462 (6)
H19A	0.328771	0.514474	0.870742	0.055*
H19B	0.483188	0.426509	0.904573	0.055*
C20	0.4060 (3)	0.2928 (3)	0.8250 (2)	0.0508 (6)
H20A	0.350530	0.267914	0.899957	0.061*
H20B	0.339713	0.306392	0.773529	0.061*
C15	0.3651 (3)	0.7608 (3)	0.8972 (2)	0.0517 (6)
H15	0.416490	0.682039	0.933526	0.062*
C1	0.9756 (3)	0.4166 (3)	0.1989 (2)	0.0549 (7)
C25	0.8280 (3)	0.0895 (3)	0.6371 (2)	0.0508 (6)
H25	0.908948	0.109709	0.581439	0.061*
C9	0.5619 (3)	0.7816 (3)	0.5415 (2)	0.0480 (6)
H9A	0.595581	0.772922	0.456085	0.058*
H9B	0.616434	0.836198	0.568047	0.058*
C10	0.3802 (3)	0.8638 (3)	0.5889 (2)	0.0510 (6)
H10A	0.352889	0.961687	0.563338	0.061*
H10B	0.325601	0.812838	0.558290	0.061*
C2	1.0529 (3)	0.5146 (3)	0.1853 (2)	0.0615 (8)
C12	0.2169 (3)	0.9997 (3)	0.7903 (3)	0.0588 (7)
H12	0.166393	1.080199	0.755108	0.071*
C3	1.0245 (3)	0.6118 (3)	0.2769 (3)	0.0617 (7)
H3	1.077498	0.677447	0.267400	0.074*
C24	0.8549 (3)	−0.0521 (3)	0.6687 (3)	0.0618 (7)
H24	0.953022	−0.126144	0.634986	0.074*
C23	0.7334 (4)	−0.0818 (3)	0.7512 (3)	0.0617 (7)
H23	0.749976	−0.176760	0.772106	0.074*
C13	0.1814 (3)	1.0058 (3)	0.9111 (3)	0.0670 (8)
H13	0.106587	1.090484	0.956823	0.080*
C14	0.2552 (3)	0.8882 (3)	0.9651 (2)	0.0616 (8)
H14	0.231630	0.894100	1.046662	0.074*

Open in a new tab
