Synthesis and stability of switchable CO₂-responsive foaming coupled with nanoparticles

Summary

CO₂-responsive foaming has been drawing huge attention due to its unique switching characteristics in academic research and industrial practices, whereas its stability remains questionable for further applications. In this paper, a new CO₂-switchable foam was synthesized by adding the preferably selected hydrophilic nanoparticle N20 into the foaming agent C₁₂A, through a series of analytical experiments. Overall, the synergy between cationic surfactants and nanoparticles with a contact angle of 37.83° is the best. More specifically, after adding 1.5 wt% N20, the half-life of foam is 14 times longer than that of pure C₁₂A foam. What’s more, the C₁₂A-N20 solution is validated to own distinctive CO₂-N₂ switching features because very slight foaming degradations are observed in terms of the foaming volume and half-life time even after three cycles of CO₂-N₂ injections. This study is of paramount importance pertaining to future CO₂ foam research and applications in energy and environmental practices.

Graphical abstract

Highlights

• •Cationic surfactants have the best synergy with NPs with a contact angle of 37.83°
• •The foam stability increased with the increase of NPs concentration
• •CO₂/N₂ can control the foaming properties of C₁₂A-N20 solution and are reversible

Chemistry; Materials science; Materials chemistry; Materials synthesis

Introduction

Foam, a thermodynamically unstable system, consists of a gas dispersed in the liquid phase in the form of small bubbles, where the gas is the dispersed phase and the liquid is the continuous phase (Kruglyakov et al., 2011; Li et al., 2021, 2022a). However, surfactant-stabilized foam is rapidly drained by gravity, resulting in a thinning of the foam lamellar structure and fast foam rupture (Babamahmoudi and Riahi, 2018), which significantly constrains the foam applications in various fields such as detergent (Wolfe et al., 2017), flotation (Bu et al., 2020), energy, and environment (Bai et al., 2018; Sun et al., 2014; Z. Xu et al., 2020a, 2020b).

A more stable foam is usually obtained by increasing the viscosity of the foaming agent solution or adding solid particles. In recent years, nanotechnology has been rapidly developed, and SiO₂ nanoparticles have been synthesized with specific surfaces, which can be well dispersed, adsorbed, etc. Nanoparticles are widely used in materials (Lanasa et al., 2021), medicine (Yadid et al., 2019), oil development fields (Xu et al., 2020a, 2020b), and other fields and have become an important material in some applications with good development prospects. Experimental studies have illustrated that nanoparticles can be adsorbed on the gas–liquid interface to improve the strength of the liquid film, reduce the drainage rate, and inhibit the aggregation of multiphase bubbles (Lv et al., 2020). Moreover, the nanoparticles gathered on the plateau border to form a mesh structure can also increase the stability of the foam. Therefore, it is of great significance to study foams with long-term stability.

However, in addition to the need for a stable foam, it is also necessary to crush the foam rapidly after application. For example, in some oil recovery applications, the foam returns to the surface during CO₂ foam fracturing, and foam sand flushing is difficult to eliminate, which is usually treated by adding defoamers. This method not only increases the cost but also pollutes the environment and makes the foaming fluid unusable (Miller, 2008).

Therefore, it is important to both form a stable foam and deform the foam on demand without changing the composition of the liquid solution. The switchability of foams generated by responsive foaming agents can be controlled by external triggers, including temperature (Chu and Feng, 2011; Davies et al., 2006; Zhang et al., 2013), light (Anwar et al., 2013; Z. Chen et al., 2014b), pH value (Fujii et al., 2005; Huang and Yang, 2015; Sarker et al., 2017; Tu and Lee, 2014; Yang et al., 2013), magnetic field (Y. Chen et al., 2014a; Lam et al., 2011), redox chemistry (Quesada et al., 2013), or CO₂ (Chai et al., 2014; Chen et al., 2020; Guo and Zhang, 2019; Sun et al., 2019; Yuan et al., 2021).

CO₂ is a nontoxic, inexpensive, and widely available trigger mechanism. Among the many available trigger mechanisms, the CO₂/N₂ trigger is the most environmentally friendly (Chai et al., 2014). The feasible use of CO₂ is an important measure to reduce the impact of greenhouse gases on the environment and can also offset the cost of CO₂ capture. Therefore, CO₂-responsive surfactants have great application potential (Li et al., 2022b). CO₂-responsive surfactants refer to surfactants solute properties that can undergo reversible changes due to introduction and emission of CO₂. Most CO₂-responsive surfactants mainly include amidine, guanidine, imidazole, and tertiary amines (Cunningham and Jessop, 2019). For example, tertiary amine functional groups can undergo protonation reaction with CO₂ to produce cationic bicarbonate, which is unstable. It can be removed from the solution by heating or contacting with inert gases such as N₂ and Ar, so that the cationic bicarbonate can undergo its deprotonation reaction and be reduced to neutral amino group. Jessop et al. (Liu et al., 2006) reported that when CO₂ is injected into aqueous solution, long-chain alkyl amines can undergo protonation reaction to become charged surfactants. When CO₂ was removed with the inert gas Ar at 65°C, charged surfactants were deprotonated and reverted to neutral surfactants. Hao et al. (Xu et al., 2015) used a mixture of organic amine and stearic acid, which controlled foam generation and eliminated foam by alternating CO₂/N₂ injection. Wang et al., 2018 synthesized UC₂₂AMPM, which can be protonated in a weakly acidic environment, so CO₂ can be used as a trigger agent. When CO₂ is injected, it can protonate to a cationic surfactant (UC₂₂AMPM/H⁺); when NH₃/H₂O is injected, it deprotonates back to a neutral tertiary amine. Zhang et al. (Sun et al., 2019) prepared a new CO₂-N₂ switchable surfactant by combining CO₂-responsive surfactant C₁₂A with conventional surfactant SDS. The foam produced by the SDS/C₁₂A surfactant with CO₂ or N₂ as the trigger can be quickly switched between foaming and defoaming. The performance of the SDS/C₁₂A foam was more stable than that of a pure C₁₂A foam.

Currently, the foam produced by commercially available CO₂-responsive surfactants is poorly stabilized, and the stabilizing effect of nanoparticles on foam has been extensively studied. However, there are few studies on whether nanoparticles can cooperate with CO₂-responsive surfactants to stabilize foam. The mechanism of synergistic foam stabilization is not clear. In this study, the optimum ratio of hydrophilic nanoparticles N20 and CO₂-responsive surfactant N, N-dimethyldodecylamine (C₁₂A) was experimentally determined. The contact angle of the nanoparticles was optimized. The stability and switchability of C₁₂A-N20 foam were investigated, and the synergistic stabilization mechanism of C₁₂A-N20 on CO₂ foam was analyzed. The results of this study have broad application prospects for hydrophilic nanoparticles and CO₂-responsive surfactant-stabilized foam.

Results and discussion

Preferential selection of SiO₂ nanoparticles

(Figure 1A) depicts the results of foam generation with pure C₁₂A. The graph shows that the volume and half-life of the foam first increase and then stabilize with increasing C₁₂A concentration. One of the key factors in the formation of large amounts of foam is surface mobility (Petkova et al., 2020). The low surface mobility ensures that the surfactant can adsorb at the gas–liquid interface for a long enough time and stabilize the liquid film by repulsion when its thickness approaches the critical film thickness h_CR. When the concentration of C₁₂A is less than CMC (CMC is defined as the lowest concentration of micelles formed by molecular solution association. The CMC of C₁₂A is 5.01516 × 10⁻³ mol/L), stable foam cannot be produced under low surfactant coverage (under high surface mobility). In this paper, we measured the CMC of C₁₂A under a CO₂ environment, so it is different from the CMC of C₁₂A in other literature reports (Guo and Zhang, 2019). When the concentration of C₁₂A is greater than CMC, more surfactant molecules are adsorbed on the gas–liquid interface (Lv et al., 2018). The mobility of surfactant molecules at the gas–liquid interface is reduced, and the gas–liquid interfacial tension is also reduced. The adsorption of C₁₂A at the gas–liquid interface also improves the strength and viscoelasticity of the foam film and enhances the stability of the foam. When the C₁₂A concentration reached 0.6 wt %, the volume and half-life of the foam remained essentially unchanged when the C₁₂A concentration was further increased.

Figure 1.

Performance of C₁₂A foam and C₁₂A-N20 foam

(A) C₁₂A; (B) C₁₂A+0.5 wt%N20; (C) C₁₂A+1.0 wt%N20; (D) C₁₂A+1.5 wt%N20

To improve the stability of pure C₁₂A foam, eight kinds of hydrophilic SiO₂ nanoparticles were selected as foam stabilizers. The concentrations of SiO₂ nanoparticles were limited to 1.0 wt %. The experimental results are shown in (Figure S1). It can be seen that for the CO₂ foam formed by C₁₂A and eight kinds of SiO₂ nanoparticles, the foam volume and half-life follow the same trends. With increasing C₁₂A concentration, the foam volume first increases and then stabilizes. The half-life of the foam increases first and then decreases, and there is a peak. It can be seen from the (Figure S1) that the nanoparticle aqueous solutions (SG07, WT, PT, and VK-S01A) and C₁₂A have a weak synergistic effect, which may be attributed to the fact that the suspension agent in the nanoparticle aqueous solutions has an adverse effect on foam stability. From our previous study, we know that the contact angle of V15 particles is 51.13°, N20 particles 37.83°, T30 particles 25.12°, and T40 particles 20.12° (Li et al., 2019). Nanoparticles with extreme hydrophilicity would be retained in the liquid phase, and thus were unable to adsorb onto the film and effectively stabilize foam. Similarly, nanoparticles with extreme hydrophobicity would lead to the destruction of the film of foam and were unable to stabilize the foam. This experiment showed that nanoparticles with contact angle of 37.83° have the best synergistic effect with cationic surfactant. At the same time, surfactant adsorption on the surface of nanoparticles can change the contact angle and hydrophobicity of the particles. The optimal surfactant concentration can make the particles have the optimal hydrophobicity and produce the most stable foam.

(Figures 1B–1D) present the foaming volume and half-life of C₁₂A-N20 foam when the concentrations of nanoparticles are 0.5, 1.0, and 1.5 wt %. It can be seen from the figure that when the N20 concentration is 0.5 wt %, the synergistic effect is poor, and when the N20 concentration is 1.5 wt %, the synergistic effect is obvious. When 1.5 wt % N20 is added, its half-life is approximately 14 times that of pure C₁₂A foam under the same conditions.

(Figure 1D) can be divided into four regions. In range I, when the concentration of C₁₂A is 0.0025 wt %, the volume of foam is 160 mL, and the C₁₂A-N20 solution is not completely foamed. In range II, the half-life of the foam reaches its peak, and the volume of the foam reaches 270 mL. The lower concentration of C₁₂A forms a single adsorption layer on the surface of the SiO₂ nanoparticles. The foam has the largest liquid film mechanical strength and the best foam stability. Because C₁₂A reacts with CO₂ to become a cationic surfactant, it adsorbs on the surface of negatively charged SiO₂ nanoparticles through electrostatic interactions. The C₁₂A head group faces the particle surface, and the particle surface changes from strongly hydrophilic to partially hydrophobic. The hydrophobic tail extends in the opposite direction, which also increases hydrophobicity and makes the particles better adsorbed on the gas–liquid interface, hindering the outward diffusion of gas from the foam and increasing the stability of the foam. In range III, the half-life of the foam decreases with increasing C₁₂A concentration due to the hydrophobic association on the carbon chain. The surfactant molecules can be adsorbed on the surface of SiO₂ nanoparticles as a double layer, which changes the wettability of the particles. As the SiO₂ nanoparticles on the gas–liquid interface changes from partly hydrophobic to strongly hydrophilic, the stability of the foams is reduced. In range IV, the volume of the foam is higher, and the half-life is shorter. This is because when the surfactant concentration is high, most of the SiO₂ nanoparticles have a dense double adsorption layer on their surface, which restores strong hydrophilicity so that the particles cannot be stably adsorbed on the gas–liquid interface. At this time, the stability of the C₁₂A-N20 foam is almost the same as that of the C₁₂A foam (Briceño-Ahumada et al., 2021).

Unlike other literature reports where surfactant concentrations much larger than the CMC are required to stabilize the foam, the optimal surfactant concentration of the liquid solution in this paper is only 1/5 of the CMC, which is far lower than the optimal surfactant concentration of the liquid solution in other publications (Kostakis et al., 2006). Trace surfactants may make the surface of nanoparticles active through in situ hydrophobicity. When the surfactant concentration approaches or exceeds the CMC, it may create an electric double layer on the surface of the particles, causing the particles to become strongly hydrophilic again and return to the aqueous phase. Considering the foaming volume and the half-life of the CO₂ foam, when the concentration of C₁₂A is in range II and III, the comprehensive performance of the foam at this time is most suitable for the practical application of oilfields.

Stable foams were prepared in which CO₂ was both the initiator phase and the dispersion phase. To provide the generated foam with a switchable function, N₂ is used to close the foam. After injecting CO₂-N₂ into the C₁₂A solution and C₁₂A-N20 solution, the foam volume and half-life changes are shown in (Figure 2). After three cycles, the foaming volume and half-life of the foam only decreased slightly, mainly due to the decrease in surfactant concentration. When CO₂ is injected into the solution, the weakly basic tertiary amino functional group of the amphoteric surfactant molecule C₁₂A in the solution is protonated with the H⁺ ionized by carbonic acid so that C₁₂A becomes a cationic surfactant. It adsorbs on the surface of negatively charged SiO₂ nanoparticles by electrostatic interactions, making them hydrophobic in situ (Zhang et al., 2016), surface active, and able to generate foam. When N₂ is continuously injected into the solution, CO₂ is expelled from the solution, and the protonated tertiary amine loses its H⁺. C₁₂A becomes a nonionic surfactant and separates from the surface of SiO₂ nanoparticles, which eliminates foaming. Therefore, CO₂ plays the dual role of the dispersed phase and the protonated C₁₂A trigger.

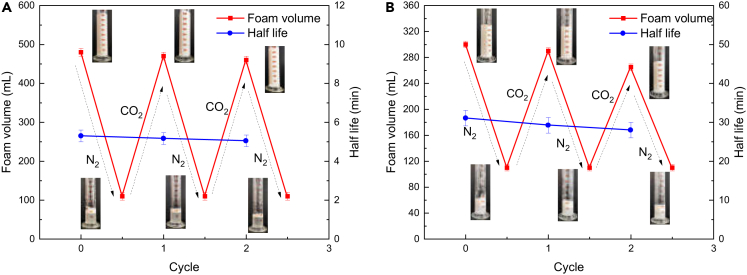

Figure 2.

Changes in foam volume and half-life of C₁₂A-N20 solution when CO₂ and N₂ are injected alternately

(A) 0.6 wt% C₁₂A; (B) 0.02 wt% C₁₂A+1.5 wt% N20

After repeated cycles, the foaming ability can still be maintained at a good level, which indicates that the compounded liquid solution has a better effect than the surfactant alone and can be reused. It also indicates that it is “sensitive” to CO₂-N₂. CO₂ is essentially a pH controller, but it has particular advantages as a trigger. It successfully avoids contamination and accumulation of solvents and does not produce any byproducts in the liquid solution. The foam developed in this paper can be defoamed by adding N₂ without adding defoamer, which protects the environment and reduces costs. Therefore, it has great application potential in many fields, such as green textiles, soil restoration (Li et al., 2020), enhanced oil recovery (Yekeen et al., 2018), wastewater treatment (Houtz et al., 2018), and mineral flotation (Huang et al., 2018).

Macroscopic characteristics of foams

When SiO₂ nanoparticles are not added, the pure surfactant is adsorbed on the gas–liquid interface. When SiO₂ nanoparticles are added, the surfactant is adsorbed on the surface of the SiO₂ nanoparticles. The adsorption of SiO₂ nanoparticles on the gas–liquid interface improves the viscoelasticity of the foam-liquid film interface, and the mechanical strength of the foam-liquid film framework is increased.

(Figure S2) shows that the excess SiO₂ nanoparticles in the solution flocculate on the plateau boundary of the bubble and form a three-dimensional network (Kostakis et al., 2006), which increases the apparent viscosity of the bubble. At the same time, the particle network can maintain good separation of bubbles, prevent the coalescence of bubbles, hinder the drainage of the liquid film, and make the bubbles more stable. SiO₂ nanoparticles adsorbed on the gas–liquid interface make the liquid film of the foam rough, which increases the flow resistance of the foam and the viscosity of the foam to a certain extent. (Figure S2) shows that the foam viscosity without SiO₂ nanoparticles does not change significantly with increasing surfactant concentration. However, the viscosity of the foam with SiO₂ nanoparticles decreases with increasing surfactant concentration. Excessive surfactant forms a double adsorption layer on the surface of SiO₂ nanoparticles, making the particles strongly hydrophilic again. Only a small number of particles can be adsorbed on the gas–liquid interface, and most of the particles remain in the solution. Therefore, they cannot stabilize the foam, and the viscosity of the foam is reduced.

The structure of the foam and the microscopic changes of the foam over time were recorded using Keene’s microscope, as shown in (Figures 3 and 4). From (Figures 3A, 3B, and 3C), it can be seen that the foam formed by C₁₂A has a regular shape, the edges of the foam are smoother, the liquid film of the foam is thinner, and the stability of the foam is relatively poor. When 1.5 wt % N20 was added, the shape of the foam became irregular, and the liquid film of the foam was thicker, as seen in (Figures 3D, 3E, and 3F). SiO₂ nanoparticles are adsorbed on the gas–liquid interface where they produce an uneven enrichment effect, leading to a coarser liquid film in the foam. The adsorption of SiO₂ nanoparticles can increase the mechanical strength of the interface. When enough SiO₂ nanoparticles are adsorbed on the interface, the interface strength is enough to overcome the uniform stretching effect produced by the interfacial tension, so the liquid film cannot be stretched to a smooth state by the interfacial tension. This dense adsorption layer of SiO₂ nanoparticles slows down the agglomeration and disproportionation reactions between bubbles. This reduces the liquid flow between the bubbles and the influence of the outside world on the bubbles.

Figure 3.

Schematic diagram of the three-dimensional (3D) micrograph structure of the foam under an ultradeep three-dimensional microscope

(A-C) C₁₂A; (D-F) C₁₂A+1.5 wt%N20.

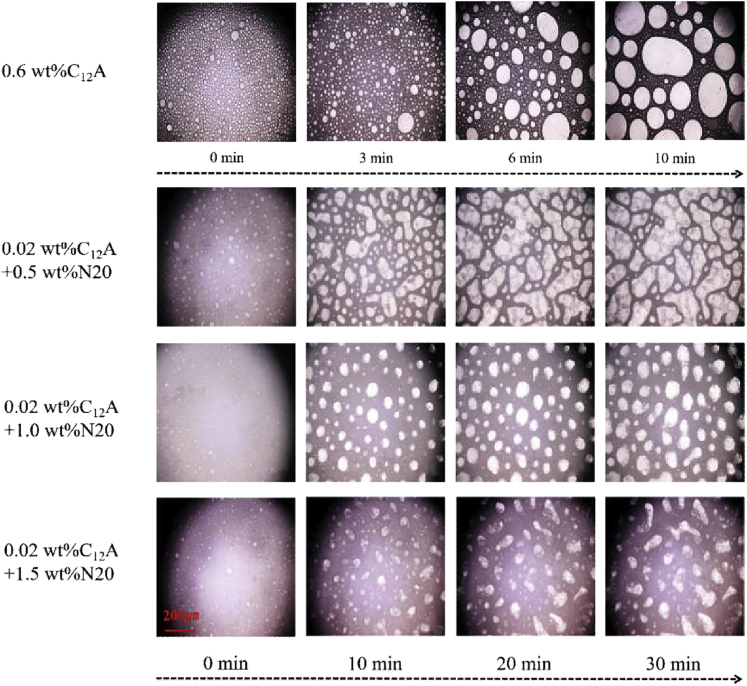

Figure 4.

Evolution of the foam structures of C₁₂A and C₁₂A-N20 over time under an ultradeep three-dimensional (3D) microscope

(Figure 4) depicts the microscopic evolution of CO₂ foam over time. It can be seen from the figure that the shape of the foam formed by C₁₂A is close to a circle, and the stability of the foam is poor. The C₁₂A-N20 foam is more irregular and has better foam stability. After adding different concentrations of SiO₂ nanoparticles, the foam morphology can be seen to be very different in approximately 30 min. The size, quantity, and stability of the 1.5 wt % SiO₂ nanoparticles in the field of view is less than that of other foams with stable particle concentrations, which is similar to (Figure 1).

According to the Young-Laplace equation, foams with smaller diameters have a higher pressure, which causes a larger amount of CO₂ to dissolve in the small bubbles. According to Fick’s law of diffusion, CO₂ gradually diffuses from bubbles with a smaller diameter through the film to bubbles with a larger diameter. Small bubbles gradually disappear, and large bubbles become increasingly larger. This process is called Ostwald ripening, which is one of the factors affecting foam stability (Wu et al., 2018). The solubility of CO₂ in water is much greater than that in air or N₂, which increases the Ostwald ripening rate and makes Ostwald ripening very important for CO₂ foams. The images of foam changes with time were recorded using FoamScan, and the images of foams at different times were analyzed by using FoamScan’s CSA software. (Figure 5A) depicts optical micrographs of foam evolution. The initial radius of the foam is the same, which is generally approximately 23 μm, and the radius increases significantly with time. After 20 min, the radius of the four foams starts to change, and it can be seen that the radius of the foam decreases with increasing particle concentration at the same time. The foam radius of C₁₂A reached 48.4 μm in 30 min, and the three C₁₂A-N20 foams remained very stable, with an average radius of 28.3–37.1 μm. The foam of C₁₂A disappeared at 70 min, but the C₁₂A-N20 foam was still very stable, with an average radius of 38.6–49.2 μm. A solid interface is formed on the gas–liquid interface due to the adsorption of SiO₂ nanoparticles. The adsorption of SiO₂ nanoparticles on the gas–liquid interface can greatly reduce the contact area of CO₂ and the liquid film, effectively reducing the diffusion of CO₂, and the Ostwald ripening process is also inhibited. It can be seen that with the increase in nanoparticle concentration, the inhibitory effect becomes more obvious, so SiO₂ nanoparticles can improve foam stability.

Figure 5.

Changes of microstructure of foam with time under different nanoparticle concentrations

(A) average radius of CO2 foam; (B) liquid holdup rate of CO2 foam.

(Figure 5B) depicts the variation of the liquid holdup rate of CO₂ foams with time for C₁₂A and C₁₂A-N20. The liquid holdup rate was calculated by measuring the total liquid volume, the volume of liquid separated from the foam at different times, and the residual liquid volume by FoamScan. The calculation formula for the liquid holdup rate is presented in Equation 1:

$$f=\frac{V_{\text{tl}}-V_{\text{rl}}}{V_{\text{f}}}$$ (Equation 1)

where f is the liquid holdup rate, %; V_tl is the total volume of the dispersion liquid that generates the foam, mL; V_rl is the remaining liquid volume separated from the foam, mL; and V_f is the foam volume, mL.

It can be seen from the figure that the degree of inclination of the straight line indicates the foam drainage speed. For pure C₁₂A foam, the straight-line slope is 59.74°, and the foam drainage speed is fast. The straight-line slope of the C₁₂A-N20 foam is 5.688°–30.26°, and the drainage speed slows down considerably. The solid properties of SiO₂ nanoparticles can increase the strength of the liquid film, especially after the liquid film becomes thinner, and its solid skeleton can effectively reduce the possibility of foam rupture and increase the mechanical strength of the foam. At the same time, the presence of SiO₂ nanoparticles in the liquid film in the middle of the gas–liquid interface can also increase the viscosity of the liquid to a certain extent. Thus, this increases the resistance of the liquid from the liquid film to the platform boundary and reduces the thinning rate of the liquid film. This result is consistent with those shown in (Figures 4 and 5).

(Figure 6) is a photograph of the CO₂ foam drainage at different C₁₂A concentrations. It can be seen that (1) is pure C₁₂A, and the drainage liquid is clarified. (2)–(8) is a CO₂ foam drainage fluid of C₁₂A-N20. As the concentration of C₁₂A increases, it becomes turbid and then clarified. When the concentration of C₁₂A further increases, the solution becomes turbid again. While SiO₂ nanoparticles have strong hydrophilicity, when the concentration of C₁₂A is relatively low, C₁₂A adsorbs on the SiO₂ nanoparticles, which can make them slightly hydrophobic. Only a small amount of SiO₂ nanoparticles can be adsorbed on the gas–liquid interface, and a large number of particles are retained in the solution, so the drainage liquid is turbid. As the concentration of C₁₂A increases, the surfactant forms a single adsorption layer on the surface of the particle, which can make it more hydrophobic, maximize the contact angle, and stably adsorb on the gas–liquid interface. Therefore, the liquid drainage is clarified, as shown in range II in (Figure 1D). When the concentration of C₁₂A is further increased, additional surfactant adsorption occurs. Through hydrophobic chain-chain interactions, a double adsorption layer is formed, exposing the polar head to the aqueous medium, and the nanoparticles become strongly hydrophilic again. The air or water interface of the foam film is mainly covered by C₁₂A, and the nanoparticles are desorbed from the film and returned to the liquid phase, so the drainage liquid is turbid, which is shown in range IV in (Figure 1D). Experiments demonstrate that when the concentration of C₁₂A is low, C₁₂A can form a single adsorption layer on the surface of SiO₂ nanoparticles, which has a strong synergistic effect (Li et al., 2017).

Figure 6.

Drainage of foam at different C₁₂A concentrations

(Figure 7) demonstrates the adsorption state of SiO₂ nanoparticles at the gas–liquid interface with increasing concentrations of C₁₂A, which is completely consistent with (Figure 6). When CO₂-N₂ is alternately injected into the solution, C₁₂A can switch between cationic and nonionic states. When CO₂ is injected, C₁₂A becomes a cationic surfactant that can be stably adsorbed on the gas–liquid interface, generating foam related to (1) in (Figure 6). When the solution contains SiO₂ nanoparticles, C₁₂A, which becomes a cationic surfactant, is adsorbed on the SiO₂ nanoparticles through electrostatic action, which changes the hydrophilicity and hydrophobicity of the particles. Most of the nanoparticles can be stably adsorbed on the gas–liquid interface. Therefore, the drainage liquid is clarified at this time, which is related to (4–5) in (Figure 6). When the concentration of C₁₂A is further increased, a double adsorption layer forms on the surface of the nanoparticles, which causes the particles to become strongly hydrophilic and return to the solution from the gas–liquid interface. Thus, the drainage solution starts to become turbid in relation to (6–8) in (Figure 6). When CO₂-N₂ is alternately injected into the solution, C₁₂A can adsorb and dissociate from SiO₂ nanoparticles, changing the hydrophobicity of the particles, thus achieving an externally controlled foaming and defoaming process.

Figure 7.

Adsorption state of SiO₂ nanoparticles at the CO₂-water interface as the concentration of C₁₂A increases

(A) low concentration (without CO2); (B) low concentration (with CO2); (C) medium concentration; (D) high concentration.

Stabilization mechanism of foams

FT-IR spectroscopy is based on the study of radiation absorption and vibration mutation of molecules and polyatomic ions. In addition, the method can examine the molecules attached to the particle surface. To confirm that C₁₂A was adsorbed on SiO₂ nanoparticles, C₁₂A-N20 particles were compared with pure N20 particles by FT-IR characterization. It can be seen from (Figure S3) that the absorption band at 2926 cm⁻¹ corresponds to the telescopic vibration of -CH₃, and the absorption band at 2855 cm⁻¹ corresponds to the telescopic vibration of -CH₂. The detection of N20 particles and C₁₂A-N20 particles showed that C₁₂A was successfully adsorbed on the N20 surface.

(Figure S4) demonstrates the interfacial tension between C₁₂A-N20 and C₁₂A. The interfacial tension of the solution without CO₂ is unchanged with increasing C₁₂A concentration, which proves that pure C₁₂A is not phenotypically active and cannot reduce interfacial tension. In the presence of CO₂, the interfacial tension decreases rapidly with the increase of C₁₂A concentration. When the concentration of C₁₂A is relatively low, the interfacial tension of C₁₂A-N20 dispersion is higher than that of C₁₂A solution. C₁₂A-N20 dispersion is similar to lotion, in which most nanoparticles remain in the bulk phase rather than at the interface. The surface tension between the dispersion and CO₂ is mainly determined by the surfactant concentration. When the concentration of C₁₂A is greater than that of CMC, the interfacial tension gradually stabilizes. The stable interfacial tensions of C₁₂A and C₁₂A-N20 were 24.4 and 23.1 mN/m, respectively. The stable interfacial tension of C₁₂A-N20 is lower than that of pure C₁₂A. Because more surfactant molecules are adsorbed on the surface of SiO₂ nanoparticles, which can be better adsorbed at the gas–liquid interface than pure surfactant molecules, it allows a denser accumulation of more surfactant molecules at the interface, resulting in a lower interfacial tension (Degen et al., 2011). This effect reduces the gravitation difference between the gas phase and the liquid phase at the interface, thereby reducing the surface tension between the liquid and CO₂ and enhancing the foaming ability and foam stability.

The viscoelastic modulus of the interface is a characterization of the ability of the interface to resist and recover from deformation. A good interfacial viscoelastic modulus helps to improve the resistance of the liquid film to disturbance and to improve the stability of the foam. As shown in (Figure S5), the viscoelastic modulus first increases and then decreases with increasing C₁₂A concentration, reaching a peak at 0.02 wt %. The change in surfactant concentration affects the viscoelastic modulus of the interface from two aspects. On the one hand, it increases the interfacial concentration of surfactant; on the other hand, it increases the ability of surfactant molecules to diffuse from the bulk phase through to the interface. When the surfactant concentration is less than the CMC, the density of the surfactant on the interface changes with the deformation of the interface, which leads to an increase in the interfacial tension gradient. The change in interfacial tension may play a leading role in the increase in the viscoelastic modulus. When the surfactant concentration is higher than the CMC, the surfactant molecules in the bulk phase are replenished to the interface when the interface deforms, reducing the interfacial tension gradient and the expansion pressure gradient of the interface. Interface deformation may play a leading role in the reduction of the viscoelastic modulus. When SiO₂ nanoparticles are added, the viscoelastic modulus of the solution is significantly higher than that of the C₁₂A solution with the same concentration. The adsorption of SiO₂ nanoparticles at the interface causes a curing tendency at the interface, forming a composite film that enhances the mechanical strength of the interfacial layer, which in turn increases the interfacial viscoelastic modulus. At higher surfactant concentrations, the effect of SiO₂ nanoparticles on the viscoelastic modulus disappears. At this point, the particles are covered by a double layer of surfactant molecules and become hydrophilic again. Therefore, when the concentration of C₁₂A is higher, the interface again displays the characteristic properties of a pure surfactant, which corresponds to the previous results in (Figure 1D).

After injecting CO₂-N₂ into the C₁₂A-N20 solution, the zeta potential of the solution changes is shown in (Figure 8A). It was found that the changes of zeta potential of the solution after the passage of CO₂-N₂ were basically consistent with (Figure 2), indicating that the C₁₂A-N20 solution has good reproducibility.

Figure 8.

Change of zeta potential of C₁₂A-N20 solution

(A) Changes in the zeta potentials of C₁₂A-N20 solution when alternately injected with CO₂ and N₂;

(B) Effects of C₁₂A concentration on the zeta potential.

As the concentration of C₁₂A increases, ζ also displays an increasing trend, as shown in (Figure 8B). When C₁₂A is not added, the zeta potential of the SiO₂ nanoparticles in the initial solution is −20.77 mV. As the concentration of C₁₂A increases, the zeta potential of the solution also increases, and when the C₁₂A content is 0.02 wt %, the solution reaches the zero potential point. At this time, the charge on the surface of SiO₂ nanoparticles is completely neutralized by the adsorbed C₁₂A, which forms a single adsorption layer on the surface of the particles, and the hydrophobic interactions between the alkyl chains become obvious. The hydrophobicity of the particles is the strongest, and more particles can be stably adsorbed on the gas–liquid interface, making the foam more stable, which corresponds to range II in (Figure 1D). When the C₁₂A content exceeds 0.1 wt %, the solution begins to stratify, and more flocculation and precipitation appear. The volume or mass of the flocs seems to be proportional to the C₁₂A concentration (Guo and Zhang, 2019). The volume of the flocs plays a vital role in the stability of the foam. The volume of the flocs affects the foaming properties of the solution. Because larger particles are more difficult to adsorb at the gas–liquid interface, the stability of the bubbles is reduced, corresponding to range III in (Figure 1D). When the C₁₂A concentration is greater than 2 wt %, the potential change on the particle surface is small. At this time, the surfactant forms a double adsorption layer on the surface of SiO₂ nanoparticles through the hydrophobic force of carbon chains. This increases the electrostatic repulsion between the particles and makes the aggregated particles redispersed, and the solution becomes stable, corresponding to range IV in (Figure 1D).

Conclusion

It was demonstrated that the CO₂-responsive surfactant C₁₂A and eight types of SiO₂ nanoparticles have a synergistic effect of stabilizing foam, and C₁₂A has the best synergistic effect with SiO₂ nanoparticles N20. Overall, cationic surfactants have the best synergy with nanoparticles with a contact angle of 37.83°. In the solution of 0.02 wt % C₁₂A and 1.5 wt % N20, C₁₂A adsorbs on the nanoparticles by electrostatic interactions, which increases the hydrophobicity of the nanoparticles and enables the particles to adsorb better at the gas–liquid interface. C₁₂A formed a dense single adsorption layer on the nanoparticle surface when the zeta potential was zero. The stability of the foam was best under this condition. The foaming volume of the foam was 270 mL, and the half-life was 90 min, which was 14 times longer than that of the foam produced with C₁₂A alone.

The surface tension of the C₁₂A-N20 solution decreases significantly when CO₂ is injected. When the concentration of C₁₂A was increased to 0.2 wt %, the interfacial tension of the C₁₂A-N20 solution was 70.55 mN/m in the N₂ environment and decreased to 23.6 mN/m in the CO₂ environment. The foaming performance of the C₁₂A solution and C₁₂A-N20 solution can be controlled by using CO₂ and N₂ as switches, and the foaming volume and half-life of the foam only decreased slightly after 3 cycles. This indicates that the solution has good reversibility. The CO₂-responsive surfactant C₁₂A synergistically stabilizes the foam with SiO₂ nanoparticles N20. Nanoparticles adsorbed on the gas–liquid interface can delay Ostwald ripening. Moreover, they can also flocculate on the plateau boundary of the bubble and form a three-dimensional network to slow down the discharge rate.

At 0.02 wt % C₁₂A, the nanoparticles increased the interfacial viscoelastic modulus of the foam film from 15.44 mN/m to 30.6 mN/m, which greatly improved the anti-disturbance ability of the liquid film and enhanced the stability of the foam.

Limitations of the study

This work obtained C₁₂A-N20 foam, which provided a new strategy for the development and application of nanoparticles stabilized CO₂-responsive foam. However, this study also has limitations. We only discuss that the nanoparticles with a contact angle of 37.83° have the best synergistic effect with cationic surfactant C₁₂A, but whether the nanoparticles with a contact angle of 37.83° have such a significant synergistic effect with other cationic surfactants remains to be confirmed. That is, the universality of this strategy is not confirmed. Further relevant research is needed on these aspects.

STAR★Methods

Key resources table

REAGENT or RESOURCE	SOURCE	IDENTIFIER
Chemicals, peptides, and recombinant proteins
N,N-dimethyldodecylamine (C12A)	Macklin Biochemical Co., Ltd.,	CAS: 112-18-5
SiO2 nanoparticles (V15, N20, T30, T40)	Wacker Chemical Co., Ltd.,	CAS: 112945-52-5
An aqueous solution of SiO2 nanoparticles (SG07)	Shanghai Zecheng Co., Ltd.,	CAS: 14808-60-7
An aqueous solution of SiO2 nanoparticles (WT)	Hangzhou Hege Nanotechnology Co., Ltd.,	CAS: 14808-60-7
An aqueous solution of SiO2 nanoparticles (PT)	Shanghai Zecheng Co., Ltd.,	CAS: 14808-60-7
An aqueous solution of SiO2 nanoparticles (VK-S01A)	Xuancheng Jingrui new material Co., Ltd.,	CAS: 14808-60-7

Resource availability

Lead contact

Further information and requests for resources should be directed to and will be fulfilled by the lead contacts, Songyan Li (lsyupc@163.com) and Kaiqiang Zhang (kaiqiang.zhang@pku.edu.cn).

Materials availability

This study did not generate nor use any new or unique reagents.

Method details

Materials

For the preparation of CO₂ foam, the surfactant N, N-dimethyldodecylamine (C₁₂A) with a purity greater than 98% was purchased from Maclean Industrial Corporation. C₁₂A is the intermediate of the quaternary ammonium salt cationic surfactant, which can be turned into a cationic surfactant after reacting with CO₂. Its relative molecular mass is 213.4 g/mol, and its relative density is 0.787. It appears as a colorless liquid that is soluble in alcohol and insoluble in water. The structure of C₁₂A is presented in Figure S6. CO₂ and N₂ were purchased from Qingdao Tianyuan Gas Company with a purity greater than 99.8%. The distilled water for experiments was produced in the laboratory.

Experimental equipment

In the experiment, a balance (Mettler-Toledo, Switzerland, full scale 120 g, and accuracy 0.001 g) was used to weigh SiO₂ nanoparticles and surfactants. An ultrasonic processor (YP-S17, Hangzhou Success Ultrasonic Equipment Co., Ltd., China) was used to uniformly disperse SiO₂ nanoparticles in water. A high-speed stirrer (Model GJ-3S, Qingdao Senxin, China, stirring speed of 0-15000 r/min) was used to stir the solution to generate foam. An interfacial tension meter (Tracker-H, Teclis, France, full scale 0–200°C and 0.1–20.0 MPa) was used to measure the interfacial tension and viscoelastic modulus of the solutions by the suspension drop method. The viscoelastic modulus of the solution was obtained by changing the volume or area of droplets through sine waves or pulse changes generated by the equipment. An Anton Paar rheometer (Model MCR 302, Anton Paar, Austria, temperature 0–300°C, pressure 0.1–15.0 MPa) was used to measure the viscosity of the foam. A microscope (VHX-5000, Keyence, Japan, 50–5000 times magnification) was used to observe the microstructure of the foam. Fourier transform infrared spectrometer (FT-IR) (Nicolet 6700, Thermo Fisher, USA) was used to measure the FT-IR spectra of SiO₂ before and after the absorption of C₁₂A. A Malvern particle size potentiometer (Nano ZS90, Malvern, U.K.) was used to measure the potential of the solution. FoamScan (Teclis, France, full scale, 20–120°C and 0–8 bar) was used to observe the changes in the shape of the foam at different temperatures over time and to record the changes in the bubble radius and area over time. The foam stability, foam drainage and bubble state evolution at different times and temperatures were observed by the CCD camera of FoamScan. The camera acquired an image every 2 s and could record the image of the foam at the height of one of the four glass prisms throughout the experiment. Through the CSA software of FoamScan, the distribution of the bubble radius and the change in the bubble area over time were obtained. The second CCD camera recorded images of the entire glass column, which determined the total foam volume and foam decay. There were five pairs of electrodes on the rectangular glass column. The first electrode (Helec1 = 20 mm) was used to detect the conductivity of the liquid, and the other four were used to measure the conductivity of the foam. The volume fraction of the liquid in the foam was determined from the conductivity.

Experimental procedures

Preparation and characterization of foams

A certain mass of SiO₂ nanoparticles was added to distilled water to form dispersions with different proportions. All the liquids were dispersed at 30 kHz for 8 min with an ultrasonic processor, left for 3 min, and dispersed again for 8 min, while the temperature of the dispersions was controlled at 25°C with a water bath. Surfactant C₁₂A was added to the dispersion, and then CO₂ was injected into the solution using a stainless-steel needle at a flow rate of 1 L/min at a room temperature of 25°C until the solution reached saturation. The dispersion was left to stand for 12 h at room temperature in a CO₂ environment to stabilize the adsorption of C₁₂A on the surface of SiO₂ nanoparticles. Using the Waring Blender method (Li et al., 2016) with a stirring time of 3 min s at a speed of 8000 r/min, CO₂ was injected into the stirring cup for 1 min to replace the air in it with CO₂, and the mouth of the stirring cup was sealed with cling film to make it froth in the CO₂ environment. The generated foam was quickly transferred to the measuring cylinder. The initial foam volume and the time to drain 50 mL of liquid were recorded as the half-life.

NaCl, CaCl₂ and MgCl₂ were dissolved in water at a ratio of 8:1:1 to study the effect of salinity on the repeatability of foaming and defoaming. Stable C₁₂A and C₁₂A-N20 series solutions with a total salinity value of 1.0 × 10⁵ mg/L were prepared in formation water. The N₂ was sprayed into the bottom of the foam with a stainless-steel needle at a fixed flow rate of 2 L/min, and the defoaming process was recorded. CO₂ was then injected into the defoamed solution at a flow rate of 1 L/min, and the solution was allowed to react thoroughly with CO₂ and then foamed with a high-speed mixer. Foam volume and half-life were recorded for three alternating cycles. All experiments were performed at room temperature (25°C).

Interfacial tension and interfacial viscoelastic modulus

The viscoelastic modulus and interfacial tension of the C₁₂A solution and C₁₂A-N20 solution were measured by an interfacial rheometer (Tracker-H). The viscoelastic modulus is a measure of the foam film’s ability to resist elastic deformation. For the determination of interfacial tension, a drop of the pendant pear-shaped aqueous solution was prepared using a high-pressure chamber and syringe in a normal temperature and atmospheric pressure CO₂ environment. The droplet profile was recorded using a CCD camera. The interfacial tension of the solution was calculated by the Gauss Laplace equation, and the droplet profile was calculated by Windrop software. The critical micelle concentration (CMC) is an important parameter for each surfactant and affects the surface properties of the surfactant solution, and it can be determined from the interfacial tension. For the determination of the viscoelastic modulus, the oscillation period was 10 s, the oscillation frequency was 0.1 Hz, and the amplitude was 10% of the droplet area. To determine the stable value of the viscoelastic modulus of the solution, a small amplitude of sinusoidal oscillation was applied after no change was observed in the interfacial tension. The average calculated value of the four sinusoidal oscillations was used to calculate the variation in the viscoelastic modulus of the solution at different surfactant concentrations. The calculation formula of the viscoelastic modulus is presented in Equation 2:

$$E=\frac{d\gamma }{d\ln A}$$ (Equation 2)

where E is the interfacial viscoelastic modulus, mN/m; γ is the interfacial tension, mN/m; and A is the area, m².

Apparent viscosity of the foams

Apparent viscosity was measured using an Anton Paar rheometer (Model MCR 302). The C₁₂A solution or C₁₂A-N20 solution was foamed with a high-speed stirrer according to step 2.3.1, and a small amount of foam was quickly transferred to a measuring cup with the shear rate set at 170 s⁻¹. The temperature was kept at 25°C, and the apparent viscosity and surface shear viscosity of the foam were measured.

Foam microstructure

The microstructure and aggregation of foams were observed at 25°C using an ultradeep field 3D microscope (VHX-5000). Foaming of C₁₂A or C₁₂A-N20 solution was conducted with a high-speed stirrer according to step 2.3.1. A small amount of foam was transferred to a clean slide with a glass rod, and the foam was placed as flat as possible on the slide. The focal length and loading stage were adjusted until the image was clear, and the foam liquid film was analyzed by the 3D scanner. Foam performance was measured using the FoamScan. The foam generated by the high-speed stirrer was rapidly transferred into the rectangular foam tube of the FoamScan. The evolution of bubble drainage and bubble state was observed by the CCD camera at different times and temperatures. During the entire experiment, a photo was taken every 2 s to record images of the bubbles. The distribution of the bubble radius and the variation in the bubble area with time were obtained by the CSA software of FoamScan.

Zeta potential

The ζ potential of SiO₂ nanoparticles in C₁₂A-N20 solution was determined using a Malvern particle size potentiometer (Zetasizer). A solution of SiO₂ nanoparticles with a concentration of 1.5 wt % was configured and dispersed by an ultrasonic processor for 8 min, and different concentrations of C₁₂A were added. CO₂ was injected to saturation, and the dispersion was left at 25°C with CO₂ for 12 h to reach adsorption equilibrium. The ζ potential was measured three times, and the average value was obtained.

Fourier transform infrared spectroscopy (FT-IR)

The nanoparticles before and after the adsorption of C₁₂A were scanned and analyzed from 4000 cm⁻¹ to 400 cm⁻¹ using FT-IR spectroscopy. The 1.5 wt % N20 was mixed with 0.02 wt % C₁₂A solution by injecting a sufficient amount of CO₂ and left for 12 h. The solution was then placed in a centrifuge at 6000 r/min and centrifuged for 30 min. The pellet from the centrifugation was dried to constant weight in a CO₂ environment at room temperature. The other part of the experiment used pure N20 as a control.

Quantification and statistical analysis

Analyses based on the interfacial tension and viscoelastic modulus of the solution were performed to determine the relationship between interfacial tension and viscoelastic modulus and foam stability. FT-IR and ζ potential analyses of nanoparticles were performed to quantify the effect of C₁₂A on the structure of the nanoparticles.
