Porphyromonas gingivalis Activation of Tumor-Associated Macrophages via DOK3 Promotes Recurrence of Oral Squamous Cell Carcinoma

Abstract

Background

Oral squamous cell carcinoma (OSCC) is the most common head and neck malignancy, characterized by high recurrence rate resulting in poor prognosis. Porphyromonas gingivalis, most closely correlated with chronic periodontitis, is increasingly thought to play a significant role in OSCC development via influencing tumor-associated macrophages. However, its specific function remains unclear. In this study, we attempted to explore the mechanism of action of P. gingivalis in the recurrence of OSCC by bioinformatics analysis, to lay a foundation for subsequent basic experiments.

Material/Methods

The P. gingivalis-infected macrophage microarray dataset (GSE24897) and the OSCC advanced relapse patient microarray dataset (GSE87593) were retrieved from the Gene Expression Omnibus (GEO) database. Differentially-expressed genes (DEGs) were screened using R system, and the intersected DEGs were analyzed for functional enrichment, and protein–protein interaction (PPI) networks were constructed. The expression of significant DEG in GSE24897 microarray was assessed to determine its effect on macrophage immune infiltration in pan-cancer by applying the TIMER 2.0 repository. To detect the expression of DOK3 in OSCC specimens, immunohistochemical (ICH) assay was used.

Results

A total of 106 co-expressed DEGs were upregulated and 131 were downregulation. The biological processes were mainly enriched in DNA-templated transcription terms, the cellular component enrichment was mainly enriched in the nucleus terms, and the molecular function enrichment was mainly enriched in protein-binding function terms. Kyoto Encyclopedia of Genes and Genomes (KEGG) analysis found that the DEGs were mainly enriched in the MAPK signaling pathway. Overall analysis of the PPI network showed a significant aggregation, with the top 10 hub co-expressed genes (CASP3, FYN, HNRNPA2B1, NR3C1, RELA, REL, POLR2F, RAN, RHOA, and STAT5B). DOK3 is significantly upregulated in P. gingivalis-infected macrophages, which is associated with macrophage infiltration and differentiation. There was more positive DOK3 staining in the group with P. gingivalis infection.

Conclusions

P. gingivalis can affect the recurrence of OSCC by increasing the expression of DOK3 in TAMs, which may be involved in activation of signaling pathways such as TNF and MAPK.

Background

Cancer of the oral cavity has a high recurrence and high staging at diagnosis, which often does not allow surgical treatment because the interventions are too destructive and have secondary complications; therefore, the treatment of choice is chemoradiotherapy [1]. Oral squamous cell carcinoma (OSCC) is the most common subgroup of head and neck malignancies, which can develop in all parts of the oral cavity, resulting directly from apparently normal mucosa or progressively from potentially malign disorders [2]. Annually, there are around 400 000 new cases diagnosed all across the globe, accounting for 2% of all cancers [3]. Patients with advanced OSCC have poor prognosis due to strong invasive ability, high recurrence rate, and lymph node metastasis [4]. Locoregional recurrence is frequent (approximately 32.7~44.9%) [5–7] and remains a critical issue in clinical management of advanced-stage OSCC [8].

Increased attention has focused on the interaction between oral microbiome and OSCC in the past few decades [9]. The accumulated evidence indicates that chronic periodontitis is one of the pathogenic factors resulting in OSCC [10–13], which was found to increase the incidence of OSCC by 5.23-fold [14]. Microbiota homeostasis plays important roles in health and disease. Dysbiosis of oral florae can disrupt the host immune defense, thus deeply affecting tumorigenesis [15,16]. Porphyromonas gingivalis is a gram-negative absolute anaerobic bacterium that is a crucial bacterial pathogen of OSCC characterized by invading the cellular circle and normal physiological metabolism of epithelial cells, interfering with the host immune system, and producing a toxic effect of inhibiting programmed cell death [17,18]. Many anatomical structures (eg, gingiva, buccal mucosa, dorsum of the tongue, lingual margin, hard and soft palate) are easily colonized by various types of microflora [19,20]; therefore, P. gingivalis can prolong the time of contact with tumor cells to promote OSCC progression [9]. Tuominen et al [21] has reported that P. gingivalis can inhibit apoptosis, activate cell proliferation, promote cell invasion, induce chronic inflammation, and directly produce carcinogens. P. gingivalis has been detected in abundance in the oral cavity of patients with OSCC [22], suggesting it is an independent bacterial factor that raises the risk of death in OSCC patients [23]. Abnormal aggregation of P. gingivalis can cause local microecological imbalance of the oral cavity and is a dominant species in periodontitis, and further impact is the formation of a tumor microenvironment (TME) that is closely associated with oro-digestive carcinogenesis [24]. TME refers to a restricted internal environment constituted by locally tumor-associated infiltrating mesenchymal cells (eg, macrophages, fibroblasts, neutrophils, epithelial/endothelial cells) and their secretory extracellular matrix (ECM) together with inner cancer cells [25,26].

Tumor-associated macrophages indeed are among the most plentiful and important tumor-infiltrating immune cell types in TME. They have great plasticity in function, which can present diverse phenotypes to act within distinct microenvironments based on their biogenesis and biological properties [27]. According to different regulatory signals and states, macrophages can be categorized into 2 polarizations: classical activation type (M1 type) and alternative activation type (M2 type) [28]. More importantly, the pro-tumor effects of TAMs have strong links with their M2 polarized phenotype [29,30]. The downstream of kinase (DOK) is a new type of family of tyrosine residue phosphorylated proteins that participates in the regulation of tumor cell growth [31]. To date, there are 7 known human DOK genes (DOK1 to DOK7) that participate in regulation of various signaling pathways, such as cell growth, proliferation, migration, and apoptosis [32,33]. As one of these subtypes, the DOK3 gene, located at 5q35.3, exon 8 [34], is an immune-specific possessing specific pattern of expression in immune cells [36,36]. Macrophages studies showed it can downregulate the macrophage response stimulated by granulocyte macrophage colony-stimulating factor (GM-CSF) [37], and can be strongly positively associated with marker genes in M2 TAMs [35].

Herein, we hypothesized that P. gingivalis might affect the macrophages infiltrated in TME to give rise to OSCC recurrence through modulation of DOK3, so the possible molecular mechanism was explored by performing bioinformatics analysis to provide research directions for future experimental studies.

Material and Methods

Ethics

Our study was reviewed and approved by the Ethics Committee at the First Affiliated Hospital of Xinjiang Medical University, Urumqi, PR China (approval number: K202107-06). Procedures in this research were completed in keeping with the standards of the Helsinki Declaration and laboratory guidelines of research in China. Written informed consent was not applicable.

Data Preparation

To screen the datasets related to P. gingivalis infection of macrophages, as well as late recurrence of OSCCs, we downloaded 2 expression profile sequencing datasets (GSE24897 and GSE87593, respectively) from the Gene Expression Omnibus (GEO) (http://www.ncbi.nlm.nih.gov/geo) database using GSE24897 by GPL570 Platform (Affymetrix Human Genome U133 Plus 2.0 Array) and GSE87593 by GPL14550 Platform (Agilent-028004 SurePrint G3 Human GE 8x60K Microarray). Their probes were converted to the corresponding gene symbols based on annotation information on the platform. GSE24897 dataset contains 3 sets of uninfected macrophages and 3 sets of P. gingivalis-infected macrophage samples, and the GSE87593 dataset contains 8 sets of OSCC late non-recurrent tissue samples and 8 sets of OSCC late recurrent tissue samples.

Differentially-Expressed Gene Analysis

The 2 datasets were separately analyzed using the Limma package in R software version 4.0.2 (R Foundation for Statistical Computing, Vienna, Austria). The probes without corresponding gene symbols or with multiple gene symbols were removed or taken as intersection. The differentially-expressed genes (DEGs) were screened and heat-mapped using the R heatmap package. Accordingly, differences were considered statistically significant with logFC (fold change) >1 and adj. P value <0.01.

Functional Annotations Analysis

We employed DAVID (Database for Annotation, Visualization and Integrated Discovery) (https://david.ncifcrf.gov/) resources to obtain information for gene ontology (GO), including biological processes, cellular component, and molecular function. The Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway analysis was used to annotate the potential functions. A significance level of P<0.05 was set as the cutoff criteria and the plots were constructed by the gplots package in R software.

Protein–Protein Interaction Analysis

The DEGs were enrolled in a protein–protein interaction (PPI) network through the STRING database (https://string-db.org/). The filtering condition was medium confidence (0.400), and isolated nodes were excluded to generate the PPI network. The hub genes were calculated using Hubba plug-in of Cytoscape software version 3.8.0 (Free Software, Boston, MA, USA).

Macrophage Infiltration

We used the TIMER 2.0 online tool (http://timer.comp-genomics.org/ or http://timer.cistrome.org/) to explore macrophage infiltrates across diverse cancers using the immune module.

Collection of Clinical Samples

Fifty patients with recurrent OSCC admitted to our center from January 2020 to June 2022 were selected for the study, of whom 27 were males and 23 were females, aged 55~75 years. All patients were tested for P. gingivalis before enrollment (the detection method for P. gingivalis is shown in Supplementary Figure 1), of which 25 were P. gingivalis-positive and 25 were P. gingivalis-negative. All patients in this study voluntarily participated and signed the informed consent form. There was no significant difference between the 2 groups in terms of general information such as sex and age (P>0.05). The use of human samples in this study was approved by our center’s Ethics Committee and was performed according to the STROBE (Strengthening the Reporting of Observational Studies in Epidemiology) statement.

Histopathological Evaluation

Fresh OSCC tissues excised during clinical procedures were placed in 4% formaldehyde solution for fixation, and then were dehydrated, paraffin-embedded, and serially sectioned to 4-μm thickness. The sections were dewaxed in xylene; hydrated in ethanol with gradients of 100%, 95%, 90%, and 85% for 5 min each. Antigen repair was performed with 10 mmol/L sodium citrate buffer for 15 min, washed 3 times with PBS after natural cooling, and reacted with peroxidase blocker for 15 min to block endogenous peroxidase, then washed 3 times with PBS and incubated with goat serum. Sections were incubated with DOK3 monoclonal antibody (Abcam, ab236609, 1: 500) and incubated overnight at 4°C in a refrigerator. After rewarming for 2~5 min, goat anti-rabbit IgG was added after washing with PBS and incubated at room temperature for 25 min, then washed 3 times with PBS, and horseradish peroxidase-labeled streptavidin working solution was added for 15 min. After washing 3 times with PBS, the DAB kit (Beyotime, Shanghai, China) was used for 3~5 min; hematoxylin was used for restaining, 1% hydrochloric acid alcohol fractionation for 1~2 s, and water was used to return the blue. After natural drying, 10% neutral gum was used to seal the film. Double-blind scoring was performed by 2 professional pathologists. Eight fields of view per section were randomly selected for observation at 200× and 400×.

Statistical Analysis

All data-mining work was performed using the packages Limma (Version 3.46.0) [38], MethylMix (Version 2.20.0) [39], clusterProfiler (Version 4.3.1) [40], survminer (Version 0.4.9), survival (Version 3.2.13), glmnet (Version 4.1.2) [41], pheatmap (Version 1.0.12), corrplot (Version 0.90), timeROC (Version 0.4) [42], WGCNA (Version 1.70.3) [43], maftools (Version 2.6.5) [44], and pRRophetic (Version 0.5) implemented in R software, version 4.0.2 (R Foundation for Statistical Computing, Vienna, Austria). When measurement data were normally distributed, data were expressed by mean±standard deviation (SD), and an independent samples t test was used for comparison of 2 groups, while the chi-square test was used for comparison of count data. For all analyses, two-tailed P<0.05 was set as the threshold for determining statistical significance. Differences were considered significant if * P<0.05; ** P<0.01; *** P<0.001, **** P<0.0001.

Results

Identification of DEGs

After normalizing the expression profile of sequencing data, the distributions of differential gene expression between 2 samples were visualized using volcano plots (Figure 1A, 1B). A total of 747 differentially-expressed genes were identified in the GSE24897 dataset, including 496 upregulated genes and 251 downregulated genes (Figure 1C), while 747 differentially-expressed genes were identified in the GSE87593 dataset, including 226 upregulated genes and 521 downregulated genes (Figure 1D). Posterior to taking the intersection of the 2 collections, there were 106 genes in common among all upregulated genes (Figure 2A) and 131 genes in common among all downregulated genes (Figure 2B).

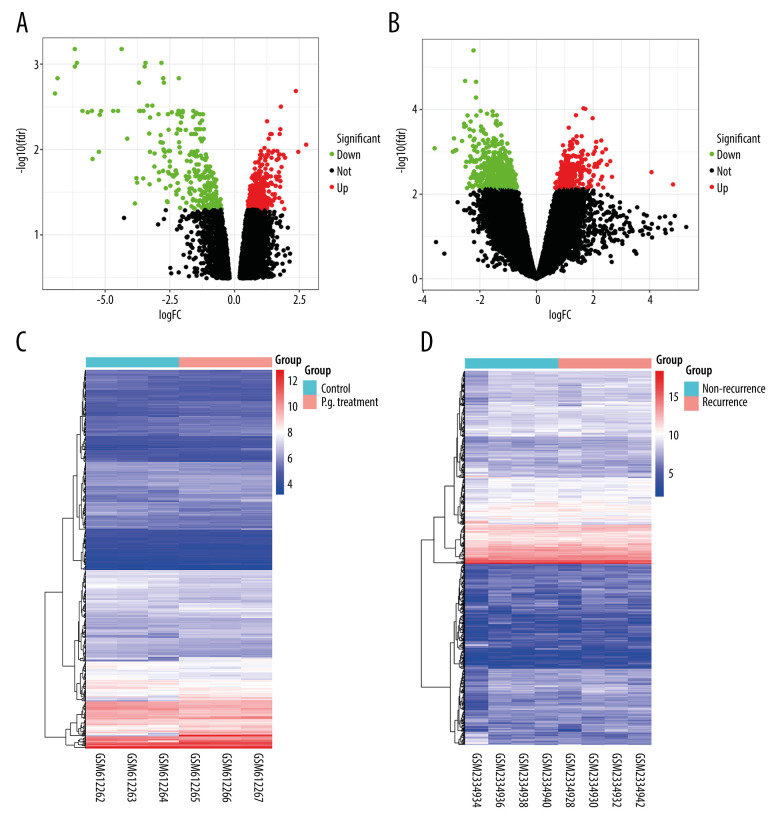

Figure 1.

Distributions of differentially-expressed genes.

(A, B) The volcano plot of GSE24897 and GSE85793. Green dots represent significantly downregulated genes, red dots represent significantly upregulated genes, and black dots represent insignificantly changed genes. (C, D) The heatmaps of DEGs. Blue color represents low expression genes, red color represents high expression genes, and different color brightness represents gene expression. R software 4.1.3 version was used for visualization.

Figure 2.

Venn plots of differentially-expressed genes (DEGs).

Venn plots of DEGs showing upregulated (A) and downregulated genes (B). R software 4.1.3 version was used for visualization.

Functional Analysis of DEGs

To understand the biological meaning behind lists of DEGs, enrichment analysis of signaling pathways and functions was performed using DAVID (Table 1). Biological processes (BP) were mainly enriched in DNA-templated transcription terms (Figure 3A), the cellular component (CC) enrichment was mainly enriched in the nucleus terms (Figure 3B), and molecular function (MF) enrichment was mainly enriched in protein-binding function terms (Figure 3C). KEGG enrichment analysis found that the genes were predominantly enriched in the MAPK signaling pathway (Figure 3D).

Table 1.

The GO and KEGG enrich terms.

Term	Fold enrichment	p-Value	Count
BP enrichment
Transcription, DNA-templated	1.68	0.00	40
Negative regulation of granulocyte differentiation	30.72	0.00	3
Protein targeting to vacuole	30.72	0.00	3
Golgi to plasma membrane protein transport	12.14	0.00	4
Positive regulation of neuron projection development	5.52	0.00	6
Somatic stem cell population maintenance	6.30	0.01	5
Blood vessel development	8.62	0.01	4
Positive regulation of I-kappaB kinase/NF-kappaB signaling	3.56	0.01	7
Lymph node development	14.46	0.02	3
activation of MAPKK activity	7.12	0.02	4
Positive regulation of type I interferon production	6.42	0.02	4
Development of secondary female sexual characteristics	81.91	0.02	2
Viral process	2.47	0.03	9
Positive regulation of erythrocyte differentiation	10.24	0.03	3
Response to tumor necrosis factor	9.83	0.04	3
Peptidyl-tyrosine phosphorylation	3.21	0.04	6
Endodermal cell differentiation	9.10	0.04	3
Glutamate secretion	8.78	0.05	3
Hematopoietic progenitor cell differentiation	4.96	0.05	4
Creatinine metabolic process	40.96	0.05	2
Positive regulation of viral transcription	8.47	0.05	3
Transcription from RNA polymerase II promoter	1.92	0.05	12
CC enrichment
Nucleus	1.45	0.00	92
Cytoplasm	1.38	0.00	84
Cytosol	1.52	0.00	59
Nucleoplasm	1.57	0.00	51
Microtubule organizing center	3.91	0.01	7
Neuron projection terminus	19.74	0.01	3
Apical part of cell	5.70	0.01	5
Centrosome	2.41	0.01	12
Spindle	4.24	0.01	6
Trans-Golgi network membrane	5.15	0.02	5
Midbody	3.98	0.02	6
Trans-Golgi network	3.77	0.02	6
Microtubule	2.48	0.03	9
Membrane raft	2.91	0.03	7
TAP complex	57.04	0.03	2
Recycling endosome	3.89	0.04	5
Lysosomal membrane	2.50	0.04	8
MF enrichment
Protein binding	1.24	0.00	127
Receptor signaling protein serine/threonine kinase activity	9.70	0.00	6
Transcriptional activator activity, RNA polymerase II distal enhancer sequence-specific binding	13.71	0.00	4
RNA polymerase II distal enhancer sequence-specific DNA binding	6.59	0.01	5
Metal ion binding	1.53	0.01	37
Poly(A) RNA binding	1.67	0.02	22
Activin-activated receptor activity	85.69	0.02	2
Transferase activity	4.46	0.03	5
Peptide antigen-transporting ATPase activity	57.13	0.03	2
TAP1 binding	42.85	0.05	2
KEGG enrichment
Tuberculosis	3.49	0.01	8
TNF signaling pathway	4.33	0.01	6
Focal adhesion	3.00	0.02	8
Neurotrophin signaling pathway	3.86	0.02	6
Viral myocarditis	5.42	0.04	4
MAPK signaling pathway	2.44	0.04	8
Apoptosis	4.99	0.04	4
Viral carcinogenesis	2.64	0.05	7

Figure 3.

The GO and KEGG analysis.

The significant enrichment terms in (A) BP, (B) CC, and (C) MF were shown using a scatter plot. The significant pathways involved in (D) KEGG enrichment was shown using a scatter plot. Colors represent the P values and sizes of the spots represent the counts of genes. R software 4.1.3 version was used for visualization.

The PPI Network of the Co-Expression of DEGs

The co-expression of DEGs was imported into the online STRING Data Resources to derive the PPI network, which showed a total of 225 nodes and 232 edges. After hiding the isolated nodes in the network, 198 expected nodes remained, with a PPI enrichment P value of 0.0108. The overall analysis of the network showed a significant aggregation (Figure 4). Using cyto-Hubba software package, all the proteins in PPI network were calculated by applying maximum correntropy criterion (MCC) algorithm, which displaying that the top 10 ranked genes were CASP3, FYN, HNRNPA2B1, NR3C1, RELA, REL, POLR2F, RAN, RHOA, and STAT5B (Figure 5).

Figure 4.

The PPI network.

A network of protein–protein interactions (PPI) was built using STRING. Different nodes represent different proteins and the edges represent the degree of connection between proteins. String version 11.5 was used for visualization.

Figure 5.

Hub genes computed by MCC algorithm.

The top 10 hub genes were obtained by the MCC algorithm. Cytoscape version 3.9.0 was used for visualization.

The Relationship Between DOK3 Expression and Macrophage Infiltration

To investigate the effect of DOK3 expression on macrophage infiltration, we first analyzed the expression of DOK3 in P. gingivalis infection of macrophages microarray. The analysis revealed that the expression of DOK3 significantly increased after macrophages were treated with P. gingivalis (Figure 6A, P<0.0001). The effect of DOK3 on macrophage infiltration was further analyzed, showing that expression of DOK3 affected the infiltration of M1 and M2 TAMs in oral cancer (Figure 6B, P<0.05).

Figure 6.

The relationship between DOK3 expression and macrophage infiltration.

(A) The DOK3 expression in P. gingivalis infection of macrophages microarray; (B) macrophages infiltration affected by DOK3. GraphPad Prism 8 was used for visualization in Figure 5A, and the TIMER 2.0 online tool was used for visualization in Figure 5B.

Expression of DOK3 in Patients with Recurrent OSCC with Different P. gingivalis Infections

To confirm the expression of DOK3 in patients with different P. gingivalis infections, we collected oral cancerous tissues from patients with recurrent OSCC through clinical biopsy and divided the patients into P. gingivalis-infected and non-infected groups by P. gingivalis detection. The expression of DOK3 in 2 groups was detected by immunohistochemistry (ICH), and the results showed that the DOK3 staining was stronger in the group with P. gingivalis infection than in the group without P. gingivalis infection (Figure 7).

Figure 7.

The expression of DOK3 in recurrent OSCC patients with different P. gingivalis infections (B and D, 200×) compared with non-immune IgG staining as a control (A and C, 200×).

The yellow-stained granules represent DOK3 staining-positive cells, and the larger yellow staining area represents higher DOK3 expression.

Discussion

Progress in surgical skills of radical reconstruction, radiotherapeutics, chemotherapy approaches, anti-cancer-immune-drug development, and molecular characterization of OSCC in this new millennium were expected to lead to better prognoses for OSCC patients. However, clinical outcomes have barely improved in recent years, particularly for OSCC, and the short-term and long-term treatment-associated relapse rates are still high. Tobacco and alcohol consumption, as well as the microbiological agents mentioned in the Introduction section above, have important roles in the occurrence and progression of OSCC [45,46]. One of the reasons why high morbidities of recurrence and metastasis are observed among OSCC cases is the rich blood supply and lymphatic reflux of this anatomical site [47]. Another reason may be the easy bacterial colonization under suitable conditions, supported by the connection between the respiratory and digestive tracts [48].

Different severity of factors, including microbial dysbiosis and immune dysfunction, likely contribute to oral tumorigenesis. Many studies have confirmed that microorganisms directly affect the activities of primary epithelial and OSCC cells, which mediates assorted biological behaviors in a process that starts from benign lesions, progresses to intermediate proliferative stages, and eventually deteriorates into oral cancer in situ or generating sharp invasion, proving its synergism in cancerous growth [23,49]. This suggests that the elements and/or transformation of microbial communities can have a great impact on oral carcinogenesis [50]. Foremost among these is P. gingivalis, which promotes OSCC progression via generating a cancer-promoting microenvironment composed of bacterial production, tumor cells, and infiltrating immune cells [51]. In the field of high-throughput gene sequencing, P. gingivalis outer membrane vesicles containing different packaged small RNAs is a novel insight into the host-pathogen interaction, whereby P. gingivalis boosts the invasion and migration of OSCC in vitro [52]. P. gingivalis-induced inflammatory efficacy is the causative keystone sustaining and stimulating a pre-cancerous niche [53] to continuously generate reactive oxygen species, reactive nitrogen intermediates, inflammatory chemokines, and pyroptosis-related cytokines that exacerbate the accumulation of mutations by triggering DNA damage, reducing genetic stability, and causing epigenetic alterations, which subsequently promote cellular carcinogenesis [54–56].

Oral epithelial cells infected by P. gingivalis enhance the proliferation of pre-cancerous cells, as well as the angiogenesis, local invasion, and distal metastasis of cancer cells, and, critically, the formation of chronic inflammation into the TME [47,57,58]. Entry of microbial metabolites into the TME promotes tumor progression by eliciting tumor-potentiating immune cell responses [51]. Part of our preceding work found that CXCL2 and neutrophils were markedly increased in OSCC tissues and the TME infected by P. gingivalis, indicating that P. gingivalis and CXCL2 are involved in the recruitment of neutrophils, which contributes to the progression of OSCC [59]. A recent study also reported that P. gingivalis can accelerate inflammation-and-tumor formation by interfering with the migration of macrophages and inhibiting their phagocytosis of apoptotic neutrophils [60]. TAMs represent yet another considerable cell subpopulation that accounts for more than half of the immune microenvironment of OSCC [61]. In this present study, we obtained 2 sequencing datasets: (1) microarray of macrophages treated with P. gingivalis, and (2) microarray of OSCC advanced relapse. According to bioinformatics analysis, a total of 237 co-expressed DEGs were identified between the 2 datasets, including 106 upregulated genes and 131 downregulated genes. We performed functional de novo analysis using GO and KEGG to determine which enriched points of entry are associated with the TME. In BP enrichment, we found positive regulation of I-κB kinase/NF-κB signaling, activation of MAPK activity, response to tumor necrosis factor, the endodermal cell differentiation, glutamate secretion viral process, and positive regulation of viral transcription. In KEGG analysis, we also observed significant enrichment of co-expressed genes in the TNF signaling pathway, MAPK signaling pathway, apoptosis, and viral carcinogenesis. A definite correlation between the presence of P. gingivalis and Epstein-Barr virus (EBV) infection has been established, as well as the mechanisms by which EBV and P. gingivalis independently or synergistically can collaborate, indicating the oral cavity is the principal site where both of them are harbored due to their oncogenic potential [62]. Collectively, the results of our enrichment analysis showed that the changes in cell-biology-related functions and pathways caused by P. gingivalis may be consistent with those caused by viral infections. The enrichment of the aforementioned points of entry analyzed in our study suggests that the occurrence of P. gingivalis infection in macrophages can give rise to alterations in cellular biological functions and pathways, which in turn lead to alterations in the TME and promote tumorigenesis. To further screen the hub genes of co-expressed DEGs, we established a PPI network and further calculated the network by MCC algorithm to find the 10 most expressed genes: CASP3, FYN, HNRNPA2B1, NR3C1, RELA, REL, POLR2F, RAN, RHOA, and STAT5B. Previous studies have found that CASP3 and STAT5B are involved in formation of the TME and are associated with tumorigenesis in some solid neoplasms; genetic defects including mutations in RHOA and FYN have been examined to reveal inactivate immunosurveillance in angioimmunoblastic T cell lymphoma [63–65].

Significantly higher expression level of DOK3 was associated with the TME of OSCC infected via P. gingivalis. We found that the DOK3 staining was stronger in the group with P. gingivalis infection. In another tumor study, DOK3 was reported to affect colorectal cancer tumorigenesis [66]. DOK3 can function as an adapter molecule in the negative regulation of immunoreceptor signaling in macrophages, and influences immune microenvironment to result in an aggressive growth pattern of cancer cells manipulated by a high degree of local macrophage infiltrations. For the analyses of macrophage infiltration of distinct cancers, we ascertained that DOK3 is obviously highly expressed in macrophages of P. gingivalis, affirming that DOK3 is a vital regulator of innate immune responses in macrophages [67]. DOK3 was also found to be strongly positively correlated with marker genes of TAMs and M2 macrophages, but not M1 [35], and the ability M2 macrophages relies heavily on the elevation of DOK3 expression in a glioma study repertoire, which led to poor prognosis [68]. Our analysis of the TIMER2.0 database also showed that DOK3 expression is associated with M2 polarization differentiated from TAMs.

Limitations

The present study is a bioinformatics analysis based on data provided by a public database (GEO), and although we found high expression of DOK3 in tumor tissues of patients with recurrent OSCC and P. gingivalis infection by ICH detection using clinical specimens, the generalizability of our final conclusions remains limited. In the future, we will confirm through experimental in vitro cellular studies and in vivo animal studies that P. gingivalis affects TAMs infiltration and promotes tumor malignant progression in recurrent OSCC TME by DOK3 regulation.

Conclusions

Our study shows the participation of Porphyromonas gingivalis in the TME, as well as how P. gingivalis possibly modulates TAMs in OSCC. Via the role of DOK3 in TAMs, high expression of DOK3 is regulated in TNF/MAPK signaling pathways. The contribution of the TME has been important in identifying the role of components other than tumor cells that cause the development of oral cancer, thus changing the outlook. As the key molecule, DOK3 might be the keystone modulator of M2 macrophage polarized from infiltrated TAMs, in order to further mediate immune surveillance/escape to promote cancerous progression.

Supplementary Data

Supplementary Figure 1

Detection method for P. gingivalis
