. 2022 Oct 3;94(41):14118–14125. doi: 10.1021/acs.analchem.2c01191

Development of a Near-Infrared Photoacoustic System for Selective, Fast, and Fully Automatized Detection of Isotopically Labeled Ammonia

Emily Awuor Ouma †, Helga Huszár †, László Horváth †, Gábor Szabó †, Csaba Janáky ‡,*, Zoltán Bozóki †,*
PMCID: PMC9583071  PMID: 36190777

Abstract

graphic file with name ac2c01191_0006.jpg

Different environmental and industrial technologies seek for fast and automatic ammonia detection systems, capable of the selective measurement of the concentration of its isotopes at sub-ppm levels, without any interference with the common contaminants. In this work, we report the quasi-simultaneous measurement of 14NH3 and 15NH3 concentrations based on a near-infrared diode laser-based photoacoustic system. Using a widely tunable external cavity diode laser, four nearby wavelengths within the range of 1531.3–1531.8 nm were optimal circumstances for sensitive detection, while avoiding interference with water vapor. Subsequently, a more robust distributed feedback diode laser was employed to tune the laser wavelength on the sub-second timescale by varying its driving current rather than using much slower temperature tuning. The detection limit of our system is 0.15 and 0.73 ppm for 14NH3 and 15NH3 (with an accuracy below 0.1%), respectively, and the response time is 3.5 s.

1. Introduction

Industrial ammonia (NH3) production through the Haber–Bosch process is a significant contributor to climate change, accounting for 1.2% of the global CO2 emissions. It has therefore become imperative in the scientific community to develop alternative methods for NH3 synthesis. Electrochemical nitrogen (N2) conversion to NH3 has become a popular research field during the past decade,1 as it holds the promise of substituting the energy-consuming and polluting Haber–Bosch process. Because of the infancy of this field, the NH3 generation rates are generally very small (often resulting in concentrations well below 1 ppm) to an extent that the detected amounts can easily originate from different contamination sources (air, human breath, N2 gas source, unstable N-containing compounds, etc.). In a recent article, rigorous isotopic labeling measurements were integrated in N2–to–NH3 conversion studies.2 Rather shockingly, it was found that the metallic catalysts, which are the most active in aqueous solutions, did not generate any NH3. This observation highlights that sensitive detection of NH3 is not enough, and one also needs to be able to detect 15NH3, in the presence of 14NH3 and N2 gases. Such a protocol can prevent false-positive results, while also providing information on the presence of contaminants. Furthermore, to perform mechanistic studies with appropriate time resolution, we need analytical methods, which can be connected in-line and can provide (quasi)-real-time information on the product formation (i.e., separation or derivative formation-based methods are excluded). In addition, isotopologues of NH3 (14NH3 and 15NH3) are commonly applied in physiology, for metabolic tracing studies where they help the identification of biosynthetic pathways used by cells.3 Another major application is in environmental monitoring (e.g., water and air quality and exhaust gas analysis) and in industrial process control (e.g., chemical, pharmaceutical, and propulsion).

Although there is a wealth of analytical techniques and methods for NH3 detection, their selectivity, sensitivity, and response time with an appropriate detection limit have been an important analytical problem for decades. Starting from wet chemical methods, through physical and chemical interaction-based ones, a wide sort of spectroscopic methods (spanning through the whole electromagnetic spectrum) have been employed (Table 1). As shown in Table 1, many of the physical and chemical methods are applicable for the bulk (nonselective) detection of 14NH3 and 15NH3 isotopologues.

Table 1. Most Commonly Used Methods for Detection of Ammoniaa.

methods principle of measurement determination adetection limit, brange of linearity, csensitivity disadvantages, interference
physical methods for separated simultaneous measurement of 14NH3 and 15NH3
photoacoustic (PA) spectroscopy4 PA effect detection of sound waves following light absorption in a sample a10 ppb long path length
      c10 ppb·m with 10 s averaging
isotope ratio mass spectrometry5−9g,10g,11f,12f,13f,14e,15,16f,17f,18 partition of the mass-to-charge ratio of ions by ionization measurement of the mass-to-charge ratio of ions a0.1 ppb in the gas phase applicable mostly in the liquid phase with extensive sample preparation
      b4 orders of magnitude
nuclear magnetic resonance (NMR) method2h,19 interaction between nuclei and external magnetic field detection of NMR signals of target nuclei excited in magnetic field a10 ppb expensive
        sensitive to contamination
        needs a large sensing volume
Fourier transform infrared spectrometry20h,21h,22h,23 multispectral absorption of materials measurement of absorbance a20–100 ppb
      c<10–15 W·Hz–1/2


physical methods
PA spectroscopy4,24−28 PA effect detection of sound waves following light absorption in a sample ≥a0.1 ppbd
fluorometry29,30 generation of fluorescence by reagents detection of fluorescence signal a0.02 ppb in liquid phase complex instrument for automation
differential optical absorption spectroscopy31 specific absorption of light by gas molecules detection of extinction of light at a specific wavelength <a1ppb
chemical ionization mass spectrometry32−35 partition of ions according to the mass/charge ratio after ionization measurement of the mass spectrum a0.01–0.3 ppb in gas phase adsorption in tubing. Problem controlling background signal
      0.04 cHz/ppt with O2+
cavity ring-down spectrometry36−39 absolute extinction of laser light in a detection cavity by scattering and absorption in a specific wavelength measurement of the decay rate a10 ppb expensive limited availability of tunable laser light at the appropriate wavelength


chemical methodsb
Nessler method40 transformation into colored derivatives extinction of the light beam in ≈400 nm a0.02 ppm in the liquid phase bias by amines, chloride, and alkaline earth metals
      b0.02–2 ppm
indophenol blue method41,42 transformation into colored derivatives extinction of the light beam in ≈670 nm a0.04 ppm in the liquid phase Fe(III) ion
      b0.04–2 ppm
ion chromatography42,43 separation of ammonium ions in a column conductivity measurement a0.01 ppm in the liquid phase influence of the sample matrix
      b0.05–40 ppm amines
        metal cations
annular denuderc,42,44,45 absorption by acids in rotating annular denuder conductivity measurement a0.01 ppb in gas phase high cost, continuous inspection during field measurements
ammonia selective electrode46−48 pH change by ammonia diffusion through membrane potentiometry a0.01 ppb ionic strength
      b0.01–17,000 ppm in the liquid phase precision decreases with low NH3 concentration
        possible escape of gaseous ammonia
Open in a new tab
a

Note: Some of the methods based on transformation of ammonia into ammonium ions for determination in the liquid phase. Most of the concentration measurements involve special sampling procedures.

b

All of the methods involving chemical transformation (even NH3 ↔ NH4+) called chemical methods.

c

It can also be used for separation of ammonia in air sample by tubular or annular denuder for subsequent ion chromatographic or spectrophotometric determination.

d

Strongly depends on the light source, resonator, microphone used, and integration time.

e

Equipped with a GC–MS.

f

Equipped with an elemental analyzer.

g

Combined with an ion chromatograph.

h

Without isotope measurement.

The pool narrows drastically when an isotopic analysis is also required. Such methods are mostly based on mass spectrometry (MS), such as isotope ratio mass spectrometry for simultaneous detections of 14NH3 and 15NH3 isotopes. This method has a number of disadvantages; first of all, it involves complicated sample preparations (aqueous phase samples are analyzed), which is in many cases a source of artifact or other possible bias and error during measurements. Moreover, it is frequently combined by headspace, elemental analyzer, or ion chromatograph. The use of MS-based methods is challenging in general, because the mass difference between H2O and 15NH3 is very small (0.008 AMU); therefore, the suppression of the water signal becomes necessary to quantify the 15NH3 signal. This often yields to uncertainties in the detection – especially at low ammonia concentrations.49 Fourier transform infrared detection is based on the change in the vibrational frequencies because of the different molar masses. While this method is cheaper, easier to operate, and faster, compared to MS-based methods, it has disadvantages of requiring a considerably high amount of gas sample, low selectivity, and limited system stability.20−23 NMR spectroscopy is also an option, as both the 15NH3 signal and the splitting of the 1H resonance (because of the 1H and 15NH3/14NH3 interactions) can be traced. Unfortunately, both options are hindered at low concentrations and require relatively long measurement times. Overall, according to the best of our knowledge, there is no method that fulfills all the requirements listed in the first paragraph. Interestingly, most of the precedent literature specializes in the measurement of nitrogen isotope from either NH4+ ion or NH3 gas using various adaptations of the ammonia diffusion method.50 The reasons for this could be the low concentration of NH3 (in the sub-μg/L range), which presents a detection challenge because of the poor sensitivity of the currently used methods, mostly based on compound-specific isotope analysis (CSIA).51,52

Another possible measurement technique is the PA detection that in principle allows the in situ and nondestructive measurement of isotopes. PA spectroscopy is a powerful technique to measure concentrations at the low levels (from ppm to ppt ranges, depending on the available light source).4,24−28 In a PA detector, acoustic pressure waves recorded by a microphone are generated because of molecular absorption of modulated optical radiation in gases, liquids, and solids. In case of gases, the amplitude of the generated sound is directly proportional to the concentration of the absorbed gas component.

This work aims to develop a relatively simple, yet reliable, fully automatic, and robust system for the selective, rapid, and sensitive measurement of ammonia isotopes by using a near-infrared photoacoustic (NIR-PA) system. The PA method is efficient in determining NH3 concentration in general, and to the best of our knowledge, there is only one report on measuring 14NH3 and 15NH3 selectively.4 In this study, a procedure is used where the optical path length is of the order of 10 m through a generated plume making its application in laboratory impossible. Here, we describe a newly developed PA method for the simultaneous detection of 14NH3 and 15NH3 isotopologues, with a small and easy-to-use device.

2. Experimental Section

Spectral measurements, calibrations, cross-sensitivity determinations, and response time measurements were executed using the gas generation system shown in Figure S1. It has two main parts: the ammonia gas generation unit that generates various mixtures of 14NH3 and 15NH3 and the NIR-PA system, operated either by an external cavity diode laser (ECDL) or by a distributed feedback (DFB) diode laser. The gas generator unit was operated either in a mass-flow controller mixing mode or in a chemical reaction-based mode. In the first operation mode, the chemical reaction part of the system (marked by a dashed rectangle in Figure S1) is bypassed, and the calibrated mass-flow controllers are used to mix the gases from two cylinders. For the chemical reaction-based generation mode (for labeled NH3), a nitrogen cylinder was used to purge the gas mixture generated in the chemical reaction part of the system through the PA cell.

A longitudinal differential PA system was employed, similarly to our previous studies27,53−56 (see technical details in the SI). The PA spectra of the 14NH3 and 15NH3 isotopologues were recorded with gas samples either from the gas cylinders or from the chemical reaction (using pure 15NH4Cl), respectively. Measurement wavelength optimization started by recording the PA spectra of the two isotopologues and water vapor by an external cavity diode laser (ECDL, Sacher TEC 520), having an output light power of about 50 mW and its wavelength tunable between 1470 and 1590 nm. Two wavelength ranges were selected for further tests (see Discussion), from which the wavelength range of 1530.5–1533.5 nm has been chosen for further system optimization, using a telecommunication-type fiber-coupled DFB diode laser (type: FOL15DCWD-A82-19560-A, Furukawa Inc.) operating with an emitted light power of about 45 mW. This laser has been operated in a wavelength modulated mode with an unmodulated current set to be close to 300 mA, with a small amplitude sinusoidal modulation superimposed on it. Several PA spectra of the ammonia isotopes and water vapor were recorded with laser temperature tuning. For each temperature scan, the amplitude of the laser current modulation was kept fixed but changed from scan to scan. Based on the recorded spectra, an optimum laser modulation amplitude and a set of measurement wavelengths, that are least influenced by spectral interference, have been selected. Next, the measurements were accelerated by switching from temperature to current tuning. This latter operational mode was optimized in two steps: first, laser temperatures with which all the selected wavelengths are available with current tuning were screened, and then the laser temperature that provides highest possible PA signals yielding maximum sensitivity of the isotopologue concentration measurements was selected.

The concentration measurement subroutine of the operational software of the NIR-PA system was programmed in a way that after measuring at all the selected wavelengths, it converts the measured PA signals into two quantities: PA14 and PA15 (see below) characterized by high sensitivity for 14NH3 and 15NH3, respectively, while a minimal cross sensitivity against the other isotope as well as water vapor. The measurement sequence summarized in Table 2 was followed (see also a detailed description in the SI).

Table 2. Sequence of Procedures Applied during the Determination of the Sensitivity and Cross-Sensitivity Parameters.

  measured parameter applied gas generator supplementary data required the procedure for generating the required supplementary data
step 1 14NH3 sensitivity mass-flow controller none none
step 2 15NH3 sensitivity chemical reaction actual value of c(15NH3) c(15NH3) is determined in two steps:
        (1) determination of c(14NH3) from the measured value of PA14 with the help of the 14NH3 sensitivity parameter determined in Step 1
        (2) calculation of c(15NH3) from c(14NH3) by using the mixing ratio of the isotope labeled salts
step 3 15NH3 cross sensitivity mass-flow controller actual value of c(14NH3) c(14NH3) is calculated from the measured value of PA14 with the help of the 14NH3 sensitivity parameter determined in Step 1
step 4 14NH3 cross sensitivity chemical reaction actual value of c(15NH3) c(15NH3) is calculated from the measured value of PA15 with the help of the 15NH3 sensitivity parameter determined in Step 2
Open in a new tab

3. Results and Discussion

The PA spectra recorded using an ECDL are shown in Figure 1. To select the appropriate measurement wavelengths, the analysis of the amplitude modulation generated ECDL spectra was executed by searching for less than 1 nm wide wavelength ranges, in which strong absorption lines of both isotopes can be found, while the absorption lines of water vapor are as weak as possible. On the other hand, perfect spectral separation among the absorption lines was not a selection criterion in this phase of system optimization yet, because wavelength modulation modifies the spectra considerably. Wavelengths below 1500 nm had to be excluded because of the presence of strong water vapor absorption lines. On the other hand, both the 1520–1523 nm and the 1530.5–1533.5 nm wavelength ranges met the primary selection criteria; therefore, spectral measurements with wavelength modulated DFB lasers were executed in these wavelength ranges, by attempting the minimization of spectral cross sensitivities via the optimization of the laser operational parameters. No suitable cross interference-free wavelengths in the former range were found, that is why the latter one had been selected for further optimization.

Figure 1.

Figure 1

Open in a new tab

PA spectra of 15NH3 (blue line), 14NH3 (red line), and water vapor (black line) recorded by an ECDL. The two wavelength ranges marked with green rectangles were investigated in detail, by searching for optimal measurement lines.

From the series of PA spectra of the isotopologues and water vapor, recorded by temperature tuning, the one using laser modulation amplitude of 12 mA was the least affected by spectral interferences. Indeed, these spectra contain well-separated absorption lines of both isotopically labeled compounds, while interference from water vapor absorption lines is negligible (Figure 2). The lower x-axis of Figure 2 corresponds to the temperature of one of the lasers, while the upper x-axis (i.e., laser emission wavelength) is approximated by comparing the PA spectrum of 14NH3 with data from the spectral database of PNNL.57,58 Based on this laser temperature to wavelength conversion, the selected measurement wavelengths are estimated to be the following: 1531.66, 1531.73, 1531.37, and 1531.45 nm, marked as λ1, λ2, λ3, and λ4, in Figure 2, respectively.

Figure 2.

Figure 2

Open in a new tab

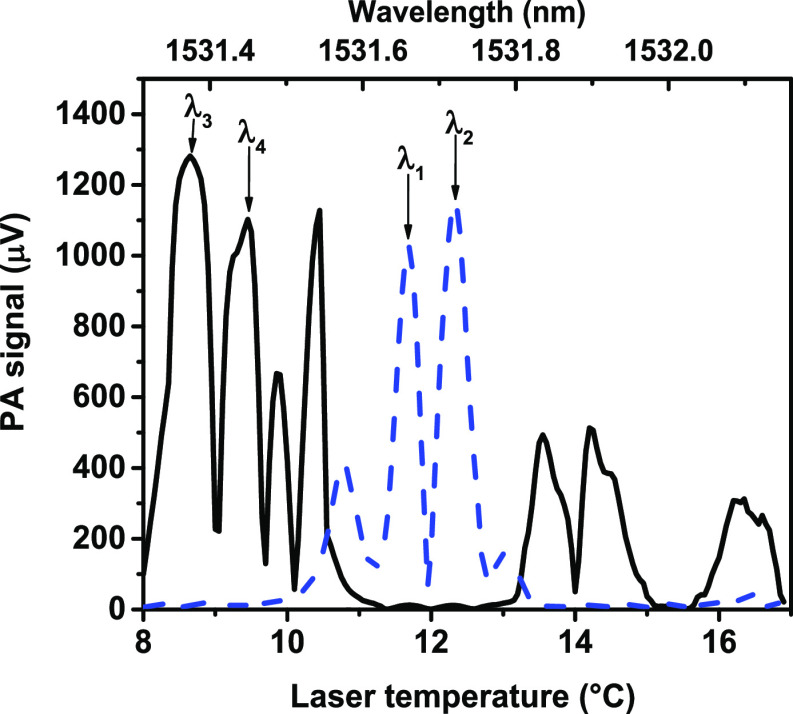

PA spectra of the ammonia isotopologues as recorded by DFB diode laser temperature tuning. Solid-black and dashed-blue lines are the recorded spectrum of 15NH3 and 14NH3, respectively. The two wavelength pairs used for selective determination of the 14NH3 and 15NH3 isotopologue concentrations are indicated as λ1, λ2 and λ3, λ4 respectively.

We note that at the beginning of the system development the possibility of using the long-wavelength end of the near infrared (e.g., the wavelength range around 2000 nm), rather than the telecommunication window, was also considered. Because of the considerably stronger absorption lines in this long-wavelength region, this is indeed very attempting, but actually there are several counterarguments as well. First, one can compare the few mW light power of a typical diode laser operating in the longer wavelength range with the ≈50 mW light power of a telecommunication diode laser. Because the generated PA signal depends on the product of the optical absorption coefficient and the light power, this product is approximately equal for the two types of lasers; that is, the disadvantage of weaker absorption lines is compensated by the much higher light power of the telecommunication diode lasers. A considerable advantage of the telecommunication-type diode lasers is their availability in a fiber-coupled construction making them very robust and facilitating their fiber coupling for increased light power. Furthermore, they have long operational lifetime (exceeding 10 years), and they are much cheaper than their long-wavelength counterparts.

Because of the narrow width (≈0.5 nm) of the wavelength range that contains all the selected measurement wavelengths, the effort to switch from temperature to current tuning was successful. The laser temperature was optimized to achieve maximum system’s sensitivity. In this optimized operation mode, the software repeatedly sets the unmodulated part of the laser to 176.3, 185, 137.2, and 147.4 mA varying the measurement wavelengths among λ1, λ2, λ3, and λ4, respectively. PA signals measured at these four wavelengths by using a modulated current of 12 mA are marked in the following as PA(λ1), PA(λ2), PA(λ3), and PA(λ4), respectively. After the completion of a measurement cycle (having all four PA signals measured), the operational software of the PA system calculates the following quantities for the quantification of c(14NH3) and c(15NH3), respectively:

3.
3.

Increasing the sensitivity while simultaneously decreasing the cross sensitivity is always a primary goal of multiwavelength measurement system development. From this point of view, the definition of PA14 and PA15 as a measure of the concentration of 14NH3 and 15NH3 might be surprising at first, because Figure 2 suggests that for each isotope the subtracted signals are nearly equal, apparently resulting in reduced sensitivities. Actually this is not the case, as there is an approximately 180° degree phase difference between the subtracted PA signals; that is, PA(λ1) and PA(λ2) have opposite phases (as well as PA(λ3) and PA(λ4)), and consequently, the subtractions in the definition equations of PA14 and PA15 actually increase (almost double) these signals. This phase difference is the consequence of the applied wavelength modulation, and while it actually increases the sensitivity of the system, it is also an efficient tool for decreasing cross sensitivities. Indeed, whenever an interfering component generates roughly equal PA signals at the measurement wavelengths with the same phase, this subtraction diminishes its influence. Examples for efficiently suppressed spectral interferences include tails of absorption lines of small molecules, slowly varying absorption features generated by large molecules (or aerosol particles), and background PA signal generated by light absorption on the windows or walls of the PA cell.59

The result of the calibrations performed by mass-flow controllers and chemical reaction-based gas generation method is seen in Figure 3a,b. Rectangles in Figure 3a,b represent data points of PA14 vs c(14NH3) and PA15 vs c(15NH3), respectively, with the corresponding fitted calibration lines represented by solid lines. The slopes of the calibration lines give the sensitivity of 6.3 and 1.3 μV/ppm for c(14NH3) and c(15NH3) measurements, respectively. The noise of the measurements was 0.3 μV yielding 0.15 and 0.73 ppm as minimum detectable values of c(14NH3) and c(15NH3) respectively. Circles in Figure 3a,b represent the results of 14NH3 and 15NH3 cross-sensitivity determination, with the corresponding fitted calibration lines represented by dashed lines. The slopes of the fitted lines give the cross sensitivities of −1.3 × 10–4 and 7.4 × 10–3 ppm/ppm, for the measurements of c(14NH3) and c(15NH3), respectively.

Figure 3.

Figure 3

Open in a new tab

Results of the calibration and cross-sensitivity measurements of the NIR-PA system performed by the gas generation system operated either in the mass-flow controller mixing mode (a) or in the chemical reaction-based mode (b). PA14 and PA15 are the modified photoacoustic signals used to determine the concentration of 14NH3 and 15NH3, respectively. The error bars represent the standard deviation of three parallel measurements.

Finally, as shown in Figure 4, the developed NIR-PA system is capable of following sudden concentration variations with a response time of 3.5 s. Two unique properties of the system make its response time such remarkably low. First, as it is already discussed above, because of the close proximity of the selected measurement wavelengths, current tuning can be applied, and so one measurement cycle with measuring on the four selected wavelengths can be executed within less than a second. Second, the small volume (≈10 cm3) of the PA cell can be flushed through completely and rapidly, even at moderate gas flow rates. Roughly speaking, there is an inverse relationship between the gas flow rate and the response time, so whenever the gas production rate in the investigated process is slow, the flow rate can be reduced at the expense of the response time. At this point, it is worth comparing photoacoustics with one of their rivaling techniques: multipath optical absorption spectroscopy. It is true that the two methods have very similar analytical parameters and also that the same measurement wavelengths and current tuning method developed here can be applied with the latter technique, too. To achieve a similar response time, however, the large volume (≈1000 cm3) of the multipath cell has to be purged at much higher rates resulting in a considerable gas consumption. In the first approximation, the response time depends on the ratio of sample volume and the flow rate, respectively.60 At a high flow rate, the response time values of multipath (direct absorption) and PA methods will be comparable.61

Figure 4.

Figure 4

Open in a new tab

Response of the system to suddenly from 0 to 100 ppm 14NH3 concentration variation. Circles are measurement points; a line is drawn to guide the eye. The 10 and 90% of the concentration variation are indicated by horizontal dashed lines.

4. Conclusions

In this work, we have developed a DFB diode laser-based PA system for the sensitive, selective, and rapid detection of isotopically labeled NH3. Measurement wavelengths of the isotopologues, that are among the strongest in the targeted wavelength range and lay sufficiently close to each other to facilitate the application of current tuning of the diode lasers, were selected to program the operational software of the system in a way to complete a concentration measurement cycle in less than a second. This allows fully exploiting inherently fast response of the PA detection method even in such a demanding application. Altogether, because of its robustness, high sensitivity, low cross sensitivity, and short response time the presented system is expected to find numerous practical applications ranging from electrocatalytic N2 conversion to biological studies.

Acknowledgments

Emily Awuor wishes to acknowledge the Tempus Public Foundation for the award of the Stipendium Hungaricum Scholarship, which enabled and provided the platform to be able to carry out this research. This work was supported by the Hungarian Research and Technology Innovation Fund (OTKA), project no. K-138176. The authors also acknowledge the financial support of the 2018-2.1.3-EUREKA-2018-00026 project. Project no. TKP2021-NVA-19 has been implemented with the support provided by the Ministry of Innovation and Technology of Hungary from the National Research, Development and Innovation Fund, financed under the TKP2021-NVA funding scheme. The authors thank Dr. Balázs Endrődi (Univ. Szeged) for his support with the gas generation experiments.

Supporting Information Available

The Supporting Information is available free of charge at https://pubs.acs.org/doi/10.1021/acs.analchem.2c01191.

  • Additional experimental details of the gas generation, wavelength selection, and the operation of the system (PDF)

The authors declare no competing financial interest.
