Dynamics of base pairs with low stability in RNA by solid-state nuclear magnetic resonance exchange spectroscopy

Summary

Base pairs are fundamental building blocks of RNA. The base pairs of low stability are often critical in RNA functions. Here, we develop a solid-state NMR-based water-RNA exchange spectroscopy (WaterREXSY) to characterize RNA in solid. The approach uses different chemical exchange rates between iminos and water to evaluate base pair stability; the less stable ones would exchange more frequently, leading to stronger cross-peaks on WaterREXSY. Applied to the riboA71-adenine complex (the 71nt-aptamer domain of add adenine riboswitch from Vibrio vulnificus), the U47⋅U51 base pair, which is critical in ligand binding, was found to be less stable than other base pairs. The imino-water exchange rates of U47 at different temperatures are about 500–800 s⁻¹, indeed indicative of low stability. This implies a highly complex and plastic triad involving U47⋅U51 and that the opening of the U47⋅U51 base pair may be the early stage of ligand release.

Graphical abstract

Highlights

• •A solid-state nuclear magnetic resonance (NMR) exchange spectroscopy to study RNA base pair stability
• •Low stable base pair exhibits strong cross-peaks on WaterREXSY spectra
• •The U47-U51 base pair of riboA71-adenine is less stable than other base pairs

Biological sciences; Biochemistry; Structural biology.

Introduction

Base pairs formed via inter-nucleotide hydrogen bonds are the fundamental building blocks of RNA. Each base pair involves a complex hierarchy of internal motions on various time scales (Al-Hashimi and Walter, 2008; Marusic et al., 2019; Nguyen and Qin, 2012; Rinnenthal et al., 2011a). The relative stability of an individual base pair determines the thermodynamics and kinetics of its open-close equilibrium, which depends on the nature of base pairs and the sequence context (Huang et al., 2009; Kierzek et al., 1999). Stable base pairs constituting the scaffold of RNA show slow opening kinetics. In contrast, base pairs of relatively low stability experience faster open-close dynamics that have seminal effects on RNA structures and functions, i.e., RNA folding (Manosas et al., 2008), local structural stability (Okada et al., 2006; Sheng et al., 2013), and site-specific catalysis in ribozymes (Juneja et al., 2014; Roy et al., 2008).

Site-specific characterization of the dynamics of the RNA base pairs with low stability is still challenging. Solution nuclear magnetic resonance (NMR) spectroscopy uses water-RNA magnetization transfer to indicate the thermodynamics and kinetics of base pair opening equilibria by measuring the apparent longitudinal relaxation rate constants of the imino protons with and without selectively inverting the water signal at the beginning of experiments (Huang et al., 2011; Kim et al., 2017; Lee et al., 2008; Lee and Pardi, 2007; Rinnenthal et al., 2010; Russu, 2004; Snoussi and Leroy, 2001; Wagner et al., 2015) or by phase-modulated CLEANEX approaches (Lee et al., 2009). However, solution NMR is often limited by molecular size and solubility of large RNA or RNA-protein complex (RNP), often not applicable in solid RNA (Bothe et al., 2011). It is also difficult to study RNA dynamics on the ns-μs timescale (Marusic et al., 2019). Other biophysical techniques can also be used to study RNA dynamics and thermodynamics, but they cannot provide site-specific information nor be applied in the solid state (Kortmann et al., 2011; Rinnenthal et al., 2011b). Recently, solid-state NMR (SSNMR) emerges as an important tool in studying large RNAs (Leppert et al., 2004; Riedel et al., 2006, 2005a, 2005b) and RNPs (Ahmed et al., 2020; Asami et al., 2013; Carlomagno, 2014; Marchanka and Carlomagno, 2019; Marchanka et al., 2015), and in the characterization of RNA dynamics over a wider range of timescales (Schanda and Ernst, 2016). To date, SSNMR-based deuterium line shape analysis has been used to obtain the ns-ms timescale overall dynamics of RNA (Emani et al., 2010; Huang et al., 2017; Olsen et al., 2008, 2009, 2010). However, SSNMR methods for the site-specific characterization of base pair dynamics in RNA have not been established. In relatively rigid biomolecules where strong proton-proton spin diffusion dominates the proton spin relaxation, the solution NMR-based strategies that measure proton relaxation rates for characterizing become invalid. Similarly, the solution NMR-based CLEANEX approaches (Hwang et al., 1997, 1998; Modig et al., 2004; Yuwen et al., 2018) cannot suppress the proton-proton dipolar couplings, thus not applicable in solid-state NMR. Thus, for RNA involved in the condensed phase, i.e., those involved in pathological-related RNA foci (Jain and Vale, 2017), a site-specific SSNMR-based method is urgently needed.

In this study, we developed an SSNMR-based two-dimensional (2D) ¹H-¹⁵N water-RNA exchange spectroscopy (WaterREXSY) to detect the RNA base pairs dynamics, based on the one-dimensional (1D) SSNMR methodology for studying pure chemical exchange taking placed in membrane-bound proteins with the suppression of proton-proton spin diffusion (Fu et al., 2016). Our approach uses the chemical exchange between the imino protons involved in hydrogen bonds within base pairs and the water molecules to excite the imino proton signals, while the proton-proton spin diffusion is suppressed by a ¹H Lee-Goldburg spin lock (LGSL) block (Zhang et al., 2021). The method can be used to characterize the imino-water chemical exchange with timescales of sub-millisecond. Because of their faster opening dynamics, the base pairs with low stability would experience more frequent exchanges between iminos and water, leading to a rapid build-up and strong cross-peaks on WaterREXSY spectra. In contrast, very stable base pairs are weakly or simply not detectable because of their slow exchange rates. Therefore, this approach detects selectively base pairs with low stability in RNA.

This strategy was used to characterize the adenine-bound form of a 71-nt aptamer domain of the add adenine riboswitch (riboA71). This purine riboswitch regulates add gene expression upon adenine binding (Reining et al., 2013; Serganov et al., 2004). The structure of the riboA71 complex with adenine has been determined (Zhang and Ferre-D'Amare, 2014) (Figure 1). Solution NMR indicated multiple conformational states exchanging with each other in solution (Ding et al., 2019; Reining et al., 2013). However, the relative stabilities of the base pairs in riboA71, particularly those around the ligand binding site, were still unclear. Using the WaterREXSY approach, we demonstrated that the imino proton of U47 within the U47·U51 base pair involved in ligand binding represents a less stable base pair with an imino-water exchange rate constant of about 500–800 s⁻¹ at 15–35°C. The U47⋅U51 base pair in the minor groove of the riboA71 ligand binding pocket encompasses the complex hydrogen bond network with the U47⋅U51⋅(adenine-U74) base tetrad. The molecular dynamics simulation showed that U47⋅U51, but not other base pairs within this tetrad, experiences an equilibrium between the formation and breakage of the base pair. This result suggests that the opening of the U47·U51 base pair may be involved in the early stage of complex dissociation upon ligand release.

Figure 1.

Secondary and crystal structure of riboA71 in the adenine-bound form (PDB: 4TZX)

Stems P1, P2(L2), and P3(L3) are shown in green, orange, and blue. Junction-connecting segments J1-2, J2-3, and J3-1 are colored in cyan, hot pink, and violet. The symbol “A” presents the adenine ligand. The U47 and the U49 are colored in light blue. The dash lines represent the non-canonical base pairs around the ligand binding pocket.

Results

2D WaterREXSY experiments to identify base pairs with low stability in RNA

Differences in base pair stability within RNA can be determined by the chemical exchange between the imino protons involved in hydrogen bonds within base pairs and the water molecules (Figure 2A). According to the “open-close model”, base pairs in RNA experience equilibrium between the open state, wherein hydrogen bonds are broken, and the closed state, wherein hydrogen bonds are formed (Figure S2) (Snoussi and Leroy, 2001; Szulik et al., 2014). In the open state, imino protons are exchangeable with bulk water, while in the closed state, the water-imino exchange does not occur. Because the open kinetics (∼1–100 s⁻¹) (Huang and Russu, 2017; Russu, 2004) is much slower than the imino-water exchange in the open state without catalyst (∼10⁶ s⁻¹) (Lee and Pardi, 2007), the base pair opening is the rate-limiting step of the water-imino exchange. Therefore, this process can be used as a “probe” to characterize the base pair stability in RNA. A stable base pair has strong hydrogen bonds, which lead to a relatively low population of the open state and a slow exchange between water and iminos. In contrast, the imino protons in less stable base pairs have much faster exchange rates because of the less stable hydrogen bonds. Empirically, the G-C and A-U canonical Watson-Crick RNA base pairs in double-stranded RNAs, are generally stable and have water-RNA exchange rates of 1–10 s⁻¹ and 20–100 s⁻¹, respectively (Lee et al., 2008; Maltseva et al., 1995; Mirau and Kearns, 1984; Snoussi and Leroy, 2001). The less stable base pairs have faster exchange rates (Lee et al., 2008; Varnai et al., 2004); earlier work has reported the exchange rate as fast as 200 s⁻¹ between nucleic acids and water (Maltseva et al., 1995). Solution-state NMR can detect the RNA base pair opening with an exchange rate up to 400 s⁻¹, beyond that it becomes not observable owing to exchange broadening (Lee et al., 2008). According to earlier works by Wagner, D. et al., imino protons of base pairs with k_ex rates of 100 s⁻¹ or above are significantly less stable. In terms of the Gibbs energies to break up a base pair (ΔG_diss), the A-U and G-C base pairs were found to have a range from 10.1 to 26.5 kJ/mol and from 26.2 to 48.8 kJ/mol, respectively (Wagner et al., 2015). The base pairs with low stability would have ΔG_diss smaller than 10 kJ/mol.

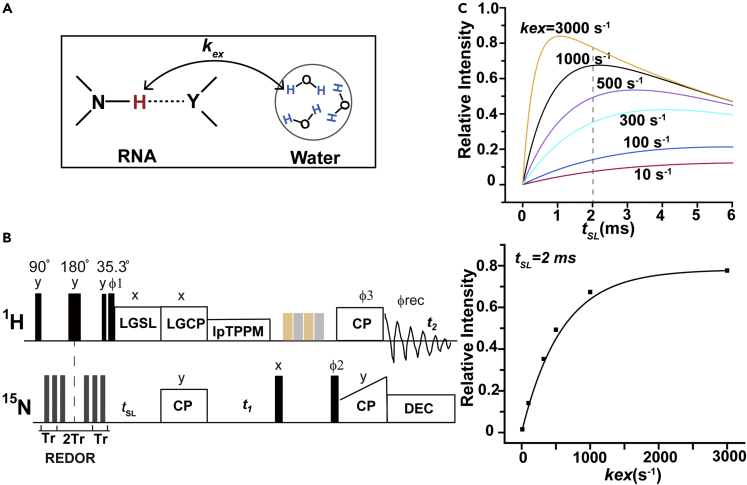

Figure 2.

Theoretical considerations of the waterREXSY scheme

(A) Simplified water-RNA exchange model, where Y represents nitrogen or oxygen atom. The k_ex is the exchange rate constant for imino proton transfer with water.

(B) Pulse sequence of the 2D WaterREXSY.

(C) Numerical simulations of the time-dependent build-up in the 2D ¹H-¹⁵N WaterREXSY experiments with T_1ρ = 8 ms.

SSNMR spectroscopy edited by the water-RNA exchange rates could be used to characterize base pairs with relatively low stability. Here, we designed an SSNMR-based 2D ¹H-¹⁵N WaterREXSY experiment to achieve this target. Figures 2B and S1 show the 2D WaterREXSY scheme. It includes two key steps: (i) a ¹H-¹⁵N rotational echo double resonance (REDOR) period that dephases the initial imino proton magnetization but not the water, and (ii) a ¹H LGSL, during which the water-RNA chemical exchange occurs and repolarizes the imino proton magnetization that is dephased during the REDOR period, while the proton-proton spin diffusion is effectively suppressed. Subsequently, the imino nitrogen resonances from the water-RNA exchange are recorded in the proton-detected 2D ¹H-¹⁵N correlation spectra. Because the LGSL suppresses proton-proton spin-diffusion, the scheme avoids interference from their dipolar interactions and allows for the detection of pure chemical exchange (Zhang et al., 2021). In principle, this is the 2D version of the water-protein chemical exchange scheme developed from the previously described 1D version (Fu et al., 2016). Besides, the current work used the proton-detected experiments under a fast MAS rate (40 kHz), while the earlier work used the ¹⁵N-detected under a moderate MAS rate (10 kHz) (Fu et al., 2016). The proton detected 2D approach makes better sensitivity and chemical shift dispersion, with respect to the ¹⁵N-based 1D approach. Importantly, the ¹H-¹⁵N 2D spectra combined with specific isotope labeling approaches could provide the site-specific information needed for RNA studies, which are not obtainable with the 1D ¹⁵N spectra.

The analytical solution of the Solomon equations (Fu et al., 2016) (Equation 1) shows that the build-up rate of the cross-peaks on 2D WaterREXSY is determined by the exchange rate constant (k_ex), and the proton relaxation time at the rotating frame (T₁ρ) (Equation 1 in STAR methods). Figures 2C and S3 show the simulations of the time-dependent build-up in the 2D WaterREXSY experiments against t_SL. The results indicate that as k_ex increases, a shorter t_SL is needed to achieve equilibrium. For example, at a t_SL of 2 ms, the intensity of an imino proton with k_ex of 500 s⁻¹ (i.e. the base pairs with low stability) would be approximately 30-fold and 3-fold stronger than those of protons with k_ex of 10 s⁻¹ and 100 s⁻¹ (i.e., the stable G-C and A-U base pairs in double-stranded RNAs), respectively. It is also worth noting that the detection of very stable base pairs under this scheme would not be applicable even at a long t_SL, because the relaxation loss would dramatically reduce efficiency. Therefore, the WaterREXSY scheme would obtain strong cross-peaks of iminos having k_ex with a time scale of sub-millisecond. Furthermore, fitting a build-up curve generated by a series of experiments with different t_SL values would yield a quantitative k_ex for the observed hydrogen bonded imino proton in a less stable base pair.

The U47 is involved in less stable base pair within the riboA71-adenine complex in solid state

The 2D WaterREXSY scheme was applied to the riboA71-adenine complex in order to characterize the base pairs with low stability. In this work, the riboA71-adenine sample was prepared by ethanol-precipitation approach, according to earlier work (Zhao et al., 2019). A comparison of the spectral patterns of the precipitated riboA71-adenie complex in solid-state NMR and that in solution indicated the preservation of certain local structures as reported previously. However, This condition is different from the solution condition, thus possibly leading to different base pair dynamics.

The 2D hNH spectrum and several 2D WaterREXSY spectra at different t_SL were collected to investigate the base pair dynamics in solid state. Figures 3A and S4 show the 2D hNH spectrum of the riboA71-adenine complex. The imino protons involved in the hydrogen bonds of base pairs are visible with characteristic chemical shifts, including imino groups in the uridines in both A-U Watson-Crick base pairs (¹⁵N and ¹H chemical shifts of 162.7 ppm and 13–15 ppm, respectively) and non-canonical base pairs (G·U, A·U and U·U, with¹⁵N and ¹H chemical shifts of 158.6 ppm and 10–12 ppm) and the guanines in G-C Watson-Crick base pairs (¹⁵N and ¹H chemical shifts of 146.5 ppm and 11–14 ppm, respectively). The proton signals of imino of uridines in non-canonical base pairs, A-U base pairs and G-C base pairs were plotted against t_SL. The 2D WaterREXSY spectra at t_SL values of 0.5–1.2 ms include only the imino signals of uridines involved in non-canonical base pairs and reach the maximum at a t_SL of 4 ms (Figures 3B–3G). In contrast, the imino peaks within the A-U and G-C Watson-Crick base pairs began to appear at a t_SL of 2 and 3 ms (Figures 3C, 3D, 3I, and 3J), respectively. These iminos within the A-U and G-C regions of the 2D WaterREXSY spectra may represent less stable canonical base pairs in riboA71, i.e., those at the edges of stems.

Figure 3.

The WaterREXSY spectra of riboA71-adenine complex

(A) 2D hNH spectrum of the riboA71-adenine complex.

(B–E) 2D WaterREXSY spectra of riboA71-adenine complex at t_SL of 2 ms (B), 3 ms (C), 4 ms (D) and 5 ms (E). The imino group regions are shown. The gray dash lines indicate the ¹⁵N chemical shifts of the 1D-¹H extracted slices.

(F) The ¹H signals against t_SL of uridine imino protons depict non-canonical base pairs (blue), A-U base pairs (red), and guanines in G-C base pairs (gray).

(G, I, and J) 1D ¹H slices with ¹⁵N chemical shifts of 158.6 ppm (G), 162.7 ppm (I), and 146.5 ppm (J). Non-canonical base pairs, A-U base pairs, and guanines in G-C base pairs were marked in blue, red, and gray, respectively.

(H) Structures of A-U, G-C Watson-Crick base pair, and U·U non-canonical base pair. The iminos are highlighted in red.

The above data suggest the presence of non-canonical base pairs with low stabilities involving uridines. Solution NMR revealed that the riboA71-adenine complex has five cross-peaks in this region, including U28, U31, and U39 in the P2 stem and U47 and U49 in J2-3 (Figure S6) (Ding et al., 2019; Noeske et al., 2007). To assign the less stable base pairs observed on WaterREXSY, we prepared two additional ¹⁵N,¹³C-uridine-labeled RNA samples, including a ligand-free wild-type riboA71 (Figure 4A) and a U31A/G42A mutant riboA71-adenine complex (Figure 4B). The NMR chemical shifts of the imino groups of the uridines in both solution and solid-state NMR were summarized in Table S2.

Figure 4.

SSNMR and solution NMR spectra of ligand-free wild-type riboA71 and U31A/G42A mutant riboA71-adenine complex

(A and B) Secondary structures of ligand-free wild-type riboA71 (A) and the U31A/G42A mutant riboA71-adenine complex (B).

(C) The intensity (I) of an imino proton of U47 at different t_SL; the red line represents the fitting curve. The error bars in Figure 4C represent the noise level of the signals.

(D) 2D ¹H-¹⁵N HSQC spectrum of ligand-free wild-type riboA71 in solution.

(E and F) 2D hNH (E) and WaterREXSY spectra (F) of ligand-free wild-type riboA71 in the solid state.

(G) 2D ¹H-¹⁵N HSQC spectrum of the U31A/G42A mutant riboA71-adenine complex in solution.

(H and I) 2D hNH (H) and WaterREXSY spectra (I) of the U31A/G42A mutant riboA71-adenine complex in the solid state. t_SL was set at 2 ms in both 2D WaterREXSY experiments. Only the regions of uridine imino groups in non-canonical base pairs are shown.

When we analyzed the ligand-free wild-type riboA71, we could not observe U47 and U49 resonances in the ¹H-¹⁵N heteronuclear single-quantum coherence (HSQC) in solution, possibly owing to prominent dynamics around the binding site (Batey, 2012; Gilbert et al., 2006). Only three imino groups corresponding to U28, U31, and U39 in the stems were observed in the region representative of uridines within non-canonical base pairs (Figures 4D and S6). The cross-peaks of U28 were observed in the 2D hNH SSNMR spectrum of ligand-free wild-type riboA71 (Figure 4E), but no signals were detected in the 2D WaterREXSY spectrum at t_SL of 2 ms (Figures 4F and S5). Increasing t_SL to 5 ms, a weak peak of U28 started to appear, with only about 8% intensity with respect to that of hNH spectrum (Figure S5). This implies that the imino proton of U28 experiences a much slower water-imino exchange, not the base pair with low stability mentioned above. The U31 and U39 that are located at the edge of the P2 stem were not observed on the 2D hNH spectrum of ligand-free wild-type riboA71, possibly experiencing multiple local conformations in solid condition. Thus, we cannot conclude their characters.

In the U31A/G42A mutant riboA71-adenine complex, G42 and U31 were mutated to adenine. Consequently, the U31·U39 and U28·G42 non-canonical base pairs were changed to the A31-U39 and U28-A42 Watson-Crick base pairs, respectively, which led to a shift in the corresponding cross-peaks of the uridine imino groups to the characteristic region corresponding to the A-U Watson-Crick base pairs. In this scenario, only two iminos, U47 and U49, remained in the region of uridines within non-canonical base pairs, and these had identical chemical shifts with respect to those observed in the wild-type riboA71-adenine complex (Figures 4G and S6). In SSNMR, two cross-peaks were detected in the region corresponding to non-canonical uridines (Figure 4H). One of the two peaks (with ¹H and ¹⁵N chemical shifts of 10.6 and 159.5 ppm, respectively) was assigned to U49, owing to nearly identical ¹H and ¹⁵N chemical shifts with respect to the U49 in solution NMR (Figures 4H and S6; Table S2). The other peak with ¹H and ¹⁵N chemical shifts of 10.7 and 158.1 ppm was assigned to U47, according to the U47 cross peak in solution NMR (¹H and ¹⁵N chemical shifts of 10.9 and 158.3 ppm, respectively).

The U47 signal, but not the U49, started to appear on the 2D WaterREXSY spectra at a t_SL of 1 ms (about 18% signal strength compared with hNH spectrum). A comparison of the ¹⁵N chemical shift of this cross-peak with that in the 2D hNH SSNMR spectra allowed us to assign that peak as U47 (Figure 4I), thus demonstrating that U47 is involved in a less stable base pair. Figure 4C shows the cross-peak intensity of the imino group of U47 as a function of t_SL at 15°C. The fitting of these peak intensities against t_SL in accordance with Equation 1 yields a k_ex value of 546 ± 131 s⁻¹ for U47, which is consistent with the expected exchange rate constants of base pairs with low stability. The U49 did not appear even with a t_SL of 5 ms, showing that the imino-water exchange of U49 is too slow to be detected by WaterREXSY.

Furthermore, we measured the temperature-dependent k_ex values for the imino of U47, collected on the U31A/G42A riboA71-adenine complex sample at 15°C, 20°C, 25°C, 30°C, and 35°C. Fitting of these peak intensities against t_SL in accordance with Equation 1 yields the k_ex values at different temperatures. At 15°C, 20°C, 25°C, 30 and 35°C, the k_ex values are 546 ± 131 s⁻¹, 689 ± 126 s⁻¹, 772 ± 132 s⁻¹, 672 ± 137 s⁻¹and 630 ± 126 s⁻¹ respectively (Figure S7). All these values are higher than 100 s⁻¹, indicative of low stability of this base pair.

The temperature-dependent stability of the base pairs of the U47 and the U79 in the solution

The solution NMR data were further collected to compare the stabilities of those non-canonical base pairs of riboA71-adenine complex in solution (Figure S8). The known solution NMR methods, e.g., those based on ¹H-T₁ relaxation rates, can only measure the imino-water exchange rates slower than 400 s⁻¹ (Lee et al., 2008), incapable of studying k_ex in sub-millisecond timescale. Here, alternatively, the imino-water exchanges were determined by water pre-saturation coupled with HSQC, in which the imino signal intensities would be reduced owing to water-imino exchange. This method cannot derive quantitative results, but is capable of evaluating the relative stabilities of those non-canonical base pairs. At 5–15°C, the changing trend of signal intensities over saturation periods indicates that both U47 and U49 experience faster chemical exchange with water than other uridines, e.g., U28, U31, and U39 involved in non-canonical base pairs (Figures S8 and S9). It suggests that both U47 and U49 are involved in less stable base pairs in the temperature range of 5–15°C. Differently, at 20°C, the decay curves suggested that U47 has a similar exchange rate with U28, U31, and U39, but slower than U49 (Figure S8), demonstrating that U47 becomes more stable than U49 at 20°C. These results also showed that the stability of the U47 increased with an increase in the temperature range used in this work.

The imino-water exchanges in the solution were also measured on the U31A/G42A riboA71-adenine complex sample. Figure S10 compared the exchange of the U47 and the U49 to demonstrate the relative stability of the base pairs involving those nucleotides. Similar trends of relative stabilities were observed for the base pairs involving the U47 and the U49. At 5–15°C, the relative stability of these two base pairs is similar, while the base pair involving the U47 becomes more stable than that of the U49 at 20°C (Figure S10), showing that the mutations didn’t alter the relative stability of the base pairs involving the U47 and the U49.

The above solution and SSNMR data showed different dynamic behavior of the U47 and the U49. The solid sample of riboA71-adenine was prepared by ethanol-precipitation approach, the environment of which is different from the solution. It thus suggested that the base pair stability is dependent on sample conditions. The SSNMR method in providing complimentary dynamic messages of solid-state RNA is important.

U47 is involved in a base pair with low stability within the base tetrad of the ligand-binding pocket

The crystal structure of the riboA71-adenine complex has been determined (PDB: 4TZX) (Zhang and Ferre-D'Amare, 2014). U47 is positioned in the minor groove, where it is involved in base pairing with U51. Adenine recognition occurs through the formation of a U47·U51·(adenine-U74) base tetrad, which is centered within a five-tiered triplex structure and surrounded by other nucleotides (Figure 5A). Two base triples, A23·(G46-C53) and A73·(A52-U22), are located above the adenine-binding site, while two other base triples, C50·(U75-A21) and U49·(A76-U20), are located below the adenine-binding site (Serganov et al., 2004). As the chemical shifts of the imino group of U47 on SSNMR spectra are almost identical to those in solution, the local structure is expected to remain solid.

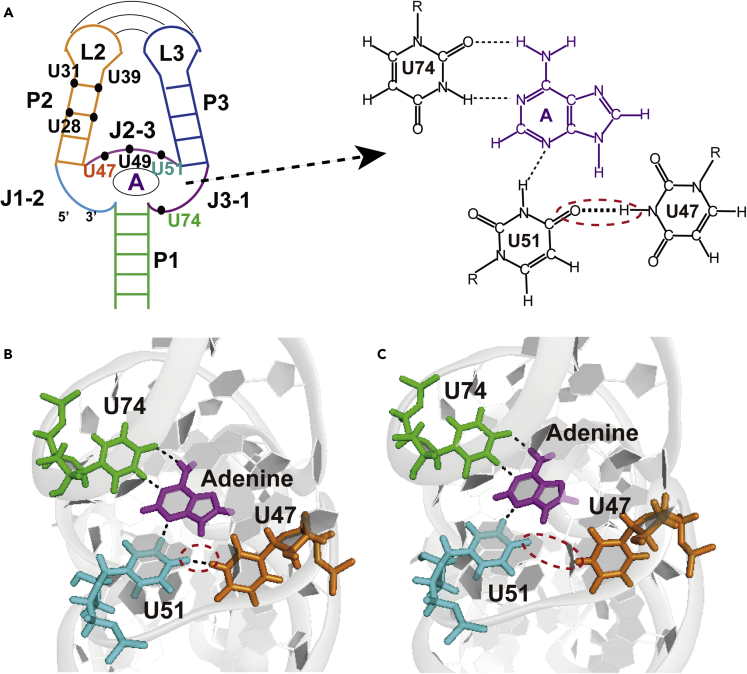

Figure 5.

The topological view of riboA71-adenine complex

(A) The locations of the non-canonical base-pairs involving uridines are highlighted in the structure, e.g., U31, U39, U28 on stem P2 and U47, U49, U51 on J2-3. The structure of U47·U51·(adenine-U74) base tetrad is shown on the right.

(B and C) Closed (B) and open(C) state of U47·U51 base pair in U47·U51·(adenine-U74) base tetrad.

To visualize the dynamics of the U47·U51 base pair within the U47·U51·(adenine-U74) base tetrad, we further performed a 1 μs all-atom molecular dynamics (MD) simulation, using the crystal structure (PDB: 4TZX) as the starting point (Video S1). The hydrogen bonds in the U51·(adenine-U74) base triple, which is essential for the base tetrad stability, were retained throughout the simulation, indicating a very stable triple. In contrast, the open-close dynamics of the U47·U51 base pair were observed; here, the open state, wherein the hydrogen bond between U47 and U51 was broken (Figures 5B and 5C), had a population of approximately 4%. The hydrogen bond of U47·U51 is shown to be weaker than the other hydrogen bonds in the U51·(adenine-U74) base triple. The distances between the N3 of U47 and O4 of U51 range from 2.6 to 3.9 Å in the closed state and from 3.7 to 5.5 Å in the open state. Furthermore, the imino group of U47 in the open state flips to the outside of the binding pocket, away from the U51·(adenine-U74) base triple and more solvent-exposed (Figures 5C and S11C), whereas, in the closed state, the imino proton of U47 involves a hydrogen bond with the O4 of U51 and is more solvent-protected (Figures 5B and S11B; Videos S1 and S2). The probability of water molecules within 3 Å of imino proton of U47 in the open and closed state was also calculated using the MD simulation. The statistical results show that the probability of the existence of water molecules around U47 in the open and closed states is 95 and 12.5%, respectively, showing that the solvent accessibility of U47 imino proton in the open state is ∼8-fold higher than in closed state (Figure S11A).

The U49, the A76, and the U20 form a base triple. The open-close dynamics of the U49·A76 were also observed by the MD simulations, while the hydrogen bonds of A76-U20 were retained during the simulations, showing the lower stability of U49·U76. The population of the open state of U49·A76 was 16%, higher than that of the U47·U51 base pair. The distance between the H1 of U49 and N3 of A76 range from 2.8 to 4.0 Å in the closed state and from 3.5 to 6.9 Å in the open state (Figure S11, Videos S1 and S2). Furthermore, the probability of the existence of water molecules was analyzed for both the open and closed states, showing 82.1 and 37%, respectively. Thus, our MD data showed that the U49 ·U76 is less stable than U47 ·U51 and prone to more frequently opening dynamics, which is consistent with solution NMR results.

Discussion

Here, we report an SSNMR approach to characterize the RNA base pairs with low stability. Although solution NMR methods have been established to characterize the individual base pair opening dynamics in solution (Huang et al., 2011; Lee et al., 2008; Lee and Pardi, 2007; Rinnenthal et al., 2010; Russu, 2004; Snoussi and Leroy, 2001; Wagner et al., 2015), the corresponding strategies for studying RNA in the solid state are under development. More importantly, the known solution NMR methods in studying the base pair opening cannot be transferred to SSNMR. This work established a novel SSNMR experimental design in applying the imino-water chemical exchange process to evaluate the base pair stability. It has unique advantages in evaluating the relative stability of an individual RNA base pair in the solid state. This SSNMR-based approach could measure the k_ex values of ∼1000 s⁻¹. In contrast, the timescales of the k_ex that can be measured by corresponding solution NMR methods i.e., CLEANEX or water magnetization transfer experiments are in the range of 1–100 s⁻¹ (Skinner et al., 2012) or up to 400 s⁻¹ (Lee et al., 2008; Maltseva et al., 1995). Thus this method allows the detection of faster chemical exchange process in solids than in solution.

Through this approach, we identified a base pair with low stability in the riboA71-adenine complex, the base pair of U47·U51 within the U47·U51·(adenine-U74) base tetrad, which is involved in ligand binding pocket. The k_ex were measured for the imino of U47 at five different temperatures, all of which were 5–8 fold larger than 100 s⁻¹. Compared with the other RNAs with known base pair opening kinetics, the obtained k_ex values for U47 supported the relatively low stable base pairs.

The MD simulation showed the stability of the other base pairs within the U47·U51·(adenine-U74) base tetrad. U47 and U51 are the key components in the ligand binding pocket of riboA71, and the relatively low stability of this base pair with respect to the others in the base tetrad implies that it might have a fundamental role in the ligand recognition and dissociation process. Interestingly, in solution the relative stabilities among the non-canonical base pairs are temperature dependent and have different trends with respect to them in solids. In solid, U47 is involved in less stable base pair in the investigated temperatures, and U49 is more stable than U47. Conversely, in the solution state, the relative stability of U47·U51 and U49·A76 base pairs are similar at 5–10°C, but U49·A76 is less stable than the U47·U51 base pair at 15–20°C. The data implied that the dynamics and the relative stability of base pairs could be dependent on condition and sample forms. Interestingly, both solution and SSNMR data showed increased stability of the U47·U51 base pair at higher temperatures. The U47 is involved in the tetrad of U47·U51·(adenine-U74). An increase in temperature may lead to subtle structure changes within the tetrad, i.e., bond lengths or angle of the H-bond of U47-U51, which elevates its stability. These also suggested the importance of new methods in providing complimentary dynamics pictures of RNA on different sample forms and conditions. Particularly, many RNAs are involved in forming pathological-related insoluble RNA foci (Jain and Vale, 2017). Comparison of the dynamics of RNA in the dilute state by solution NMR and in the condensed state by solid-state NMR would provide valuable clues in molecular mechanisms.

Previous structural studies suggested the complicated folding mechanism of the add adenine riboswitch upon ligand binding involving many distinct folding states (Neupane et al., 2011). Without the adenine ligand, two conformations are co-existed in solution, but with different secondary structures. One of the apo states is similar to ligand binding conformation, except for the structure of the ligand binding pocket and its proximity (Reining et al., 2013). In the presence of Mg²⁺, the ligand-free state has empty, but locally structured, binding pocket, and the nucleotides involving adenine binding form Watson-Crick base pairs (i.e., U47-A52) and wobble base pairs (i.e., U48 with U75 or U74). After ligand binding, these hydrogen bonds will break, and form different base pairs, including the base tetrad in adenine ligand recognition, i.e., (C53-G46) ·A23, (U22-A52) ·A73, (U74-adenine) ·U51·U47, (A21-U75) ·C50 and (U20-A76) ·U49, which lock P1 and J2-3 together (Stagno et al., 2017). During this process, some residues undergo large conformation changes. For example, the residue U51 can swing out from the binding pocket, which allows adenine to enter the binding pocket and forms stable interaction with adenine (Bao et al., 2019). These research provided conformation exchange information upon ligand binding. Our work provides new insight into the base pair stability of riboA71 folding upon ligand binding and ligand release. As the U47·U51 base pair is relatively less stable with respect to other base pairs of the tetrad, we suggest that upon ligand dissociation, breakage of the less stable base pair U47·U51 might be the early stage of ligand release, and U47 and U51 can subsequently switch their interaction patterns to shift the equilibrium toward a ligand-free state. In 2007, Janina Buck and her colleagues investigated the hypoxanthine-induced folding of the guanine-sensing riboswitch aptamer domain of the Bacillus subtilis xpt-pbuX operon (GSR^apt) by measuring site-specific half-lives (t_1/2) (Buck et al., 2007). They found that the residues close to hypoxanthine, such as U22, U47, U49, and U51, showed faster folding kinetics. Besides, U47 showed faster folding kinetics than U49 from the t_1/2 data of U47 (21.2 ± 1.9 s) and U49 (23.5 ± 1.9 s). Compared to Buck’s work, we all found that the residues showed faster dynamic near the ligand-binding pocket. The difference is that the WaterREXSY experiment could provide a base pair open-close dynamic, and Buck’s work showed the overall folding dynamic in RNA. This mechanism may be general in the purine family riboswitches, in which such base tetrads have been proposed around ligand-binding pockets.

The example here proved the applicability of the WaterREXSY in studying RNA base pair stabilities. Moreover, high-resolution SSNMR spectra of RNA complex have been obtained under ultra-fast MAS spinning (with a rate >100 kHz) (Marchanka et al., 2018). The WaterREXSY is also applicable under ultra-fast MAS conditions. Especially, the ¹H-T₁ρ relaxation times under ultra-fast MAS spinning would be longer than that under fast or moderate MAS spinning (e.g. 40 kHz). Thus, the WaterREXSY under ultra-fast MAS spinning could observe base pairs with slower imino-proton exchange rates, possibly obtaining dynamics parameters of stable base pairs, e.g. A-U base pairs (Figure S3). Similarly, high-level deuteration on RNA would increase the T₂ of imino protons, making it possible to observe more stable base pairs. Combining the sparse isotopic-labeling techniques and ultra-fast MAS spinning, it is anticipated that WaterREXSY can provide more site-specific information and be used in more challenging systems, i.e., the insoluble RNA aggregates relative to neurological diseases (Jain and Vale, 2017) and large RNAs and RNA-protein complexes that cannot be accessed by solution NMR.(Juen et al., 2016; LeBlanc et al., 2017; Liu et al., 2015, 2016a, 2016b; Longhini et al., 2016; Strebitzer et al., 2018).

Limitation of the study

The base pair dynamics of an RNA are crucial in understanding the RNA functions. Current studies provided an approach to measuring the base pair opening rates in solid-state. However, this study has some limitations. First, although the non-canonical uridine assignments were obtained through comparison between solution and solid-state NMR, the spectral resolution of an RNA under a MAS rate of 40 kHz is not good enough to achieve more site specific for the GC and the AU base pairs. The bottleneck of the resolution is expected to overcome by ultra-fast MAS spinning, which could be possible to obtain high resolution similar to solution NMR. Secondly, the current work is not applicable in obtaining the water-imino exchange rates in the presence of the catalyst, because the concentration of catalyst is difficult to quantify in solid state. Finally, the solid-state NMR sequential assignments of RNA as large as 71-nt have not been established, which requires further development of solid-state NMR methods on RNA in solid.

STAR★Methods

Key resources table

REAGENT or RESOURCE	SOURCE	IDENTIFIER
Oligonucleotides
5ʹ-TTAATACGACTCACTATAGGGAAGATA TAATCCTAATGATATGGTTTGGGAGTTTC TACCAAGAGCCTTAAACTCTTGATTATC TTCCC-3ʹ and its complementary sequence	GENEWIZ company	NA
5ʹ-TTAATACGACTCACTATAGGGAAGATA TAATCCTAAAGATATGGTTTAGGAGTTTC TACCAAGAGCCTTAAACTCTTGATTATC TTCCC-3ʹ and its complementary sequence	GENEWIZ company	NA
Software and algorithms
TOPSPIN	Bruker	Version 4.2
Other
15N,13C-labeled rNTP	Cambridge Isotope Laboratories	CNLM-7871-SL-4X10

Resource availability

Lead contact

Further information and requests for resources and reagents should be directed to and will be fulfilled by the lead contact, Shenlin Wang at wangshenlin@pku.edu.cn.

Materials availability

This study did not generate new unique reagents.

Method Details

Sample preparation

The uniform ¹⁵N,¹³C-labeled riboA71 was produced by an in vitro transcription reaction as previously described. (Milligan et al., 1987; Yang et al., 2017) Specifically, three ¹⁵N,¹³C isotope-labeled riboA71 samples were prepared, including a uniformly ¹⁵N,¹³C-labeled riboA71 complex with adenine, a ¹⁵N,¹³C-uridine-labeled riboA71 without adenine and a ¹⁵N,¹³C-uridine-labeled U31A/G42A mutant riboA71-adenine complex. The sequences of the wild-type and U31A/G42A mutant riboA71 are as follows.

Wild-type riboA71:

5ʹ-GGGAAGAUAUAAUCCUAAUGAUAUGGUUUGGGAGUUUCUACCAAGAGCCUUAAACUCUUG AUUAUCUUCCC-3ʹ.

U31A/G42A mutant riboA71:

5ʹ-GGGAAGAUAUAAUCCUAAAGAUAUGGUUUAGGAGUUUCUACCAAGAGCCUUAAACUCUUGA UUAUCUUCCC-3ʹ.

Wild-type riboA71 was prepared by in vitro transcription reactions according to a previously reported protocol. (Zhao et al., 2019) The double-stranded DNA templates were prepared by annealing single-stranded DNA with the sequence.

5ʹ-TTAATACGACTCACTATAGGGAAGATATAATCCTAATGATATGGTTTGGGAGTTTCTACCAAGA GCCTTAAACTCTTGATTATCTTCCC-3ʹ.

and its complementary sequence at 95°C for 10 min. The in vitro transcription reactions contained 5 mM ¹⁵N,¹³C-labeled rNTPs, 40 mM Tris-HCl (pH 7.0), 0.01% Triton X-100, 1 mM spermidine, 10 mM DTT, 45 mM MgCl₂, 0.85 μM DNA template and 0.12 mg/mL T7 RNA polymerase and were incubated at 37°C for 24 h. To produce ¹⁵N,¹³C-uridine-labeled riboA71, the reactions were supplemented with ¹⁵N,¹³C-labeled rUTP and abundant natural rCTP, rGTP and rATP. The synthesized RNA was purified using 12% PAGE under denaturing conditions and eluted from the gel with buffer containing 20 mM Tris-HCl, 300 mM sodium acetate and 1 mM EDTA, pH 7.4. The final yield of the purified RNA sample was approximately 5 mg per 10 mL of reaction system. Purified riboA71 was buffer-exchanged into a buffer containing 10 mM KH₂PO₄, 30 mM KCl and 2 mM MgCl₂, pH 6.8, and concentrated to a final concentration of 700 μM. To prepare the riboA71–adenine complex, an adenine stock solution was added to the riboA71 solution to a final concentration of 5 mM; the mixture was annealed at 95°C for 5 min and incubated at 0°C for 30 min.

U31A/G42A mutant riboA71-adenine complex was prepared using a similar in vitro transcription protocol. The ¹⁵N,¹³C-uridine-labeled U31A/G42A mutant riboA71 was obtained using ¹⁵N,¹³C-rUTP and natural abundant rATP, rGTP and rCTP. Purified riboA71 was buffer-exchanged into a deuterated buffer (75% D₂O/25% H₂O, pH 6.8) containing 10 mM KH₂PO₄, 30 mM KCl and 2 mM MgCl₂, and concentrated to a final concentration of 700 μM. To prepare the riboA71–adenine complex, a stock adenine solution was added to the riboA71 solution to a final concentration of 5 mM; the mixture was annealed at 95°C for 5 min and incubated at 0°C for 30 min. Because of the high affinity between the riboA71 and the adenine (Reining et al., 2013; Serganov et al., 2004), the excess amount of adenine saturated the ligand binding sites of riboA71. The RNA solid-state samples were prepared using the ethanol-precipitated approach, following a previously described procedure. (Zhao et al., 2019) Details of the sample preparation are presented in the supplemental information.

Preparation of RNA samples with partial deuteration

The RNA solid-state samples were prepared using the ethanol-precipitated approach, following a previously described procedure. (Zhao et al., 2019). To produce the partially deuterated RNA samples, ¹⁵N,¹³C-labeled RNAs were annealed in a 75% D₂O/25% H₂O (v/v)-based buffer to achieve the desired level of H/D exchange of the imino and the amino protons. To obtain ethanol-precipitated, partially deuterated samples for SSNMR, the partially deuterated RNAs were mixed with a pre-chilled ethanol stock consisting of 75% C₂D₅OD/25% C₂H₅OH (v/v). The final concentration of ethanol in solution was 75%. The RNA pellets were collected by centrifugation at 9600 g for 3 min, followed by central packing into a 1.9 mm rotor for SSNMR studies.

Solid-state NMR spectroscopy

The solid-state NMR experiments were carried out on a 600 MHz Bruker Avance III spectrometer equipped with a 1.9 mm ¹H-X-Y magic-angle spinning (MAS) probe. Approximately 4 mg of RNA were center-packed into a 1.9-mm SSNMR rotor. The experiments were performed under an effective temperature of 15–35°C and a MAS frequency of 40 kHz. The temperatures were calibrated using the T₁ relaxation time of ⁷⁹Br in KBr powder. The typical π/2 pulse lengths were 2.5 μs for ¹H, 4.0 μs for ¹³C and 5.0 μs for ¹⁵N.

The 2D hNH experiments were performed using a previously reported pulse sequence. (Zhou and Rienstra, 2008) The diagram of the pulse sequence (Figure S1A) is described in the supplemental information. Both the ¹H-¹⁵N and ¹⁵N-¹H cross-polarization (CP) transfer were set at a constant field lock of ¹⁵N at 60 kHz and an experimentally optimized proton power around n = 1 Hartmann–Hahn (HH) conditions (10% linear ramp). The contact times for ¹H-¹⁵N and ¹⁵N-¹H CP were 4 ms and 300 μs, respectively. The long contact time of 4 ms of the forward ¹H-¹⁵N CP transfer was set to use both the covalently bonded proton and the remote protons to polarize the ¹⁵N signals, while the short contact time of 300 μs was set to transfer the ¹⁵N magnetization back to the covalently bonded proton only, not the remote protons. The carrier frequencies were set to 10 ppm for ¹H and 145 ppm for ¹⁵N. The total acquisition times for the ¹H and ¹⁵N dimensions were 20 ms and 15 ms, respectively. The spectral width of the ¹⁵N dimension was set at 50 ppm. States–TPPI phase-sensitive detection was obtained in the indirect dimension (¹⁵N) by incrementing the first π/2 pulse of the ¹H channel. MISSISSIPPI pulse trains were used to suppress the solvent signals.(Zhou and Rienstra, 2008) Low-power TPPM proton decoupling (nutation frequency ∼10 kHz) and WALTZ-16 ¹⁵N decoupling (nutation frequency ∼10 kHz) were applied during the evolution of the chemical shifts of ¹⁵N and ¹H, respectively. The recycle delay in the 2D hNH experiments was 2 s. The hNH experiments were recorded with 32 scans.

The 2D WaterREXSY experiments were performed using the pulse sequence described in Figure S2B. The source code of the pulse sequence was listed in Data S1. Compared to the 2D hNH experiments, the 2D WaterREXSY experiments included two additional blocks: a ¹H-¹⁵N REDOR block and a ¹H LGSL. ¹H-¹⁵N REDOR dephasing was achieved by applying 16 rotor-synchronized π pulses to the ¹⁵N channel to dephase the ¹H signals covalently attached to the ¹⁵N atoms. The total REDOR dephasing time was 0.4 ms. A π pulse in the middle of the REDOR dephasing block was applied to the ¹H channel to refocus the ¹H chemical shift evolution. During the LG spin-lock period, a ¹H B₁ field of 53.2 kHz was applied at an offset of +37.6 kHz, resulting in an effective spin-locking field of 65.2 kHz along the magic angle. After the LG spin-lock period, the ¹H-¹⁵N LG-CP transfer was set with the LG spin-lock on ¹H at the same parameters as those applied during the LG spin lock period, and on ¹⁵N with the power experimentally optimized to achieve an efficient transfer. The contact time of ¹H-¹⁵N CP was 300 μs.

A series of 2D WaterREXSY experiments with different LG spin-lock times (t_SL) were collected, and the 1D ¹H slices with a ¹⁵N chemical shift of 158.6 ppm were used to create the plot of ¹H signals versus t_SL. The t_SL were set to 0.2 ms, 0.5 ms, 0.8 ms, 1.2 ms, 2.0 ms, 3.0 ms, and 4.0 ms. According to Equation 1, the exchange rate constant could be obtained after fitting the curves of the ¹H signal intensities as a function of t_SL. The ¹H-T_1ρ times were measured under the ¹H LGSL. The fitted ¹H-T_1ρ times of the imino protons of uridines were summarized in Table S1.

$$I\left(t_{SL}\right)=\left\{I\left(0\right)+A\left[1-\text{exp}\left(-k_{ex}{t}_{SL}\right)\right]\right\}exp\left(-t_{SL}/T_{1\text{ρ}}\right)$$ (Equation 1)

All NMR data were processed using the TOPSPIN 3.2 program. The spectra were analyzed using CARA. Chemical shifts were referenced to 2,2-dimethyl-2-silapentane-5-sulfonic acid (DSS), using adamantane as a secondary standard.(Morcombe and Zilm, 2003) The ¹H and ¹⁵N chemical shifts were referenced indirectly using γ_13C/γ_1H = 0.25145020 and γ_15N/γ_13C = 0.40297994, respectively.

Solution NMR spectroscopy

2D HSQC experiments modified with water saturation during the relaxation delay were performed on riboA71-adenine complex at 5°C, 10°C, 15°C and 20°C on a Bruker Avance 600 MHz spectrometer equipped with a 5 mm triple-resonance TCI cryogenic probe. A series of spectra was collected under a weak B1 field of 50 Hz with different saturation times for the water presaturation. All spectra were processed and analyzed using NMRPipe (Delaglio et al., 1995) and autofit script to extract intensities.

Molecular dynamics (MD) simulations

The initial structure used in the 1 μs all-atom MD simulation was obtained from the crystal structure of riboA71-adenine complex (PDB ID: 4TZX) (Zhang and Ferre-D'Amare, 2014). Fifty-two negative changes were present in the crystal structure of riboA71-adenine complex (PDB ID: 4TZX) (Zhang and Ferre-D'Amare, 2014). Fifty-two potassium ions were added to neutralize the system. The effective ion concentration is zero. The riboA71-adenine complex was solvated in a truncated octahedral box using the SPCE water model and a margin distance of 10 Å. Hydrogen atoms were added to the adenine ligand by using Discovery Studio 3.5 (Biovia, 2012).The partial charges were calculated using the antechamber module of the Amber 18 package (Case. et al., 2018) and the AM1-BCC method. The force field used for RiboA71 was ff99bsc0XOL3. (Zgarbova et al., 2011) The general AMBER force-field (GAFF) parameter was used for the adenine ligand, and the other parameters required for the ligand were generated by parmchk. (Wang et al., 2004).

The energy minimization and MD simulation were carried out using the GPU accelerated version of pmemd in AMBER. According to the AMBER 18 manual (Case et al., 2018), the set of 8 Å of the non-bonded cut-off is commonly reasonable to simulation of bio-molecules. The solvated system was minimized for 1000 steps with harmonic restraints (force constant = 500 kcal mol−1·Å−2), followed by 1000 steps without restraints. The system was then heated for 20 ps from 0 to 288 K, and equilibrated for 1 ns at 288 K. The production stage of the MD simulation was conducted at 288 K using the NPT ensemble and a 2 fs integration step. During the simulations, all bonds involving hydrogen atoms were constrained using the SHAKE algorithm. Here, the non-bonded cut-off was set at 9 Å, in order to improve the accuracy of the simulations. DSSR was used to analyze the formation of hydrogen bonds in the MD trajectory at an interval of 1 ps (Lu et al., 2015).

Theoretical considerations

The formalism of proton exchange has been extensively described using the “open–close” model.(Choi et al., 2019; Kim et al., 2017; Snoussi and Leroy, 2001; Szulik et al., 2014) Equilibrium exists between the open state, in which the hydrogen-bond (H-bond) breaks, and the closed state, in which the H-bond forms. The exchangeable protons can exchange with water only in the open state. In this model (Figure S2), kex is the overall rate constant of the water–RNA chemical exchange, which can be described using Equation 1:

$${\mathit{k}}_{\mathit{ex}}=\frac{\mathit{kopen}\ast \mathit{kex},\mathit{open}}{\mathit{kclose}+\mathit{kex},\mathit{open}}$$ (Equation 2)

where k_open and k_close are the rate constants for the opening and closing of the base pair, respectively, and k_ex,open is the rate constant for proton exchange in the opening state.

Two kinetic regimes can characterize k_ex, depending on the relative magnitudes of the rate constants. In the regime where k_ex,open >> k_close, the exchange rate is limited by the formation of the exchange-accessible state (opening-limited exchange); thus, k_ex = k_open. This condition often occurs at high concentrations of a proton acceptor in the presence of a catalyst, such as NH₃. Another regime occurs at low concentrations of a proton acceptor, wherein the base pairs open and close many times before the exchange (pre-equilibrium exchange); thus, the exchange rate k_ex can be described as follows:

$$kex=\frac{kopen\text{∗}kex,open}{kclose}=K\text{diss}\text{∗}kex,open$$ (Equation 3)

where Kdiss (= kopen/kclose) is the equilibrium constant for base pair opening, which reflects the H-bond stability of base pairs. According to the earlier publication (Lee et al., 2008), the kex,open is fast in the range of 10⁶ s⁻¹. The base pairs having a k_ex of 10 s⁻¹ and 500 s⁻¹ can be estimated to have Kdiss of 10⁻⁵ and 5 × 10⁻⁴, respectively, which corresponds the ratios of the open state to be 0.0001 and 0.002%, respectively.

In the riboA71–adenine complex, the solution buffer pH was 6.8, and no other catalyst was added. Therefore, the RNA exchange regime is also referred to as the pre-equilibrium exchange regime (Equation 3). Here, the exchange rate between the hydrogen-bonded protons of the base pair and water is determined by Kdiss and the exchange rate constant between the protons in the open state and water. The latter rate is fast in the range of 10⁶ s⁻¹, whereas the former is slow and is the rate-limiting step, which is determined by the stability of the H-bond within the base pairs.

In the “open–close” model of the chemical exchange process between RNA and water (Figure S2.), the intermediate N-H bond state cannot stably exist. In our experimental design, exchangeable protons, namely those in hydrogen bonds (N-H…N or N-H…O=C), are initially suppressed by the ¹H-¹⁵N REDOR cycles and then repolarized by water through a chemical exchange. Thus, we can use a simplified exchange model (Figure 2A in the manuscript) to describe our experiment: the proton in the H-bond is in exchange with a pool of n_w water molecules at the exchange rate constant of k_IM. Analogously (Fu et al., 2016), the chemical exchange between water (M) and the hydrogen-bonded proton (I), i.e., the proton in N-H…N and the proton in N-H…O=C, can be described by

$$\{\begin{array}{l}\frac{dM\left(t_{SL}\right)}{d{t}_{SL}}=-\left(\frac{1}{T_{1\text{ρ}}^M}+k_{\text{IM}}/n_w\right)M\left(t_{SL}\right)+k_{IM}I\left({\text{t}}_{SL}\right)\hfill \\ \frac{dI\left(t_{SL}\right)}{d{t}_{SL}}=k_{\text{IM}}/n_{w}M\left(t_{SL}\right)-\left(\frac{1}{T_{1\text{ρ}}^I}+k_{\text{IM}}\right)I\left(t_{SL}\right)\hfill \end{array}$$ (Equation 4)

where M(t_SL) and I(t_SL) are the M and I magnetizations at a given LG spin-lock time (t_SL), respectively, and ${\mathit{T}}_{1\text{ρ}}$ represents their relaxation times under the t_SL. k_IM represents the exchange rate constant between the hydrogen-bonded proton and the pool of n_w water molecules. In these differential equations, the factor of 1/n_w is taken into account to reflect that only one water molecule is in exchange with the I proton. Similarly, as detailed in the literature (Fu et al., 2016), the analytical solution can be obtained:

$$I\left(t_{SL}\right)=pM\left(0\right)\left\{1-exp\left[-\left(1+\frac{1}{n_w}\right)k_{\text{IM}}{t}_{SL}\right]\right\}exp\left(-t_{SL}/T_{1\text{ρ}}\right)/\left(\frac{1}{n_w}+1\right)$$ (Equation 5)

Therefore, the build-up of the ¹H magnetization in the N-H…N or N-H…O=C H-bond in the experiments is depicted in the pulse sequence. Figure 2A represents the exchange process between the pool of water molecules and the N-H…Y H-bond at an exchange rate constant of $\left(1+\frac{1}{n_w}\right)k_{\text{IM}}$, which should be equivalent to k_ex in the open–close model for the chemical exchange process between RNA and water. Thus, we obtain equation 1.

Here, I(0) is the initial magnetization before the exchange-induced signal build-up, such as the contribution from incomplete REDOR dephasing and the CP transfer from ¹H to ¹⁵N along the magic angle, whereas $\mathit{A}=\mathit{M}\left(0\right)/\left({\mathit{n}}_{\mathit{w}}+1\right)$ is considered a constant coefficient that does not contribute to signal build-up. For the riboA71–adenine complex system, $\frac{1}{{\mathit{n}}_{\mathit{w}}}$ is 10^−6.8 in a pH 6.8 solution. The T_1ρ of the imino proton is 8.5 ms, as measured in separate experiments with variable t_SL periods before ¹H-¹⁵N CP. The k_ex was obtained by fitting the I(t_SL) against the t_SL.

Quantification and statistical analysis

Not applicable.
