Bis[3,5-di­fluoro-2-(pyridin-2-yl)phen­yl](4,4′-di­meth­oxy-2,2′-bi­pyridine)­iridium(III) hexa­fluorido­phosphate

Madelyn R Shevlin; Emily E Stumbo; Colin D McMillen; Jared A Pienkos

doi:10.1107/S2414314622008306

. 2022 Aug 26;7(Pt 8):x220830. doi: 10.1107/S2414314622008306

Bis[3,5-difluoro-2-(pyridin-2-yl)phenyl](4,4′-dimethoxy-2,2′-bipyridine)iridium(III) hexafluoridophosphate

Madelyn R Shevlin ^a, Emily E Stumbo ^a, Colin D McMillen ^b, Jared A Pienkos ^a,^*

Editor: M Zeller^c

PMCID: PMC9635420 PMID: 36340976

The title compound, bis[3,5-difluoro-2-(pyridin-2-yl)phenyl](4,4′-dimethoxy-2,2′-bipyridine)iridium(III) hexafluoridophosphate, is a distorted octahedral cyclometalated complex that exhibits a trans effect.

Keywords: crystal structure; 4–4′-dimethoxy-2,2′-bipyridine; iridium(III); cyclometalated complex

Abstract

The title cyclometalated distorted octahedral iridium complex, [Ir(C₁₁H₆F₂N)₂(C₁₂H₁₂N₂O₂)]PF₆, exhibits elongated Ir—N bonds to the dimethoxy bipyridine ligand [2.128 (3) and 2.136 (3) Å] where these nitrogen atoms are trans to the Ir—C bonds of the two cyclometalating difluorophenylpyridine ligands. The angles between the mean planes of the phenyl and pyridyl fragments within the individual ligands range from 3.5 (2) to 11.4 (2)° to deviate slightly from coplanarity.

Structure description

The title compound, [Ir(dfppy)₂(bipyOMe)](PF₆), is a distorted octahedral complex composed of bidentate cyclometallated ligands. The photophysical properties of cyclometalated iridium(III) complexes have been studied extensively in diverse applications such as cell imaging and OLEDs (Lee et al., 2009 ▸; Thorp-Greenwood, 2012 ▸; You et al., 2014 ▸). In [Ir(dfppy)₂(bipyOMe)](PF₆), the nitrogen atoms of the bipyOMe ligand are oriented trans to the carbon atoms of the dfppy ligands (Fig. 1 ▸). The Ir—N bond lengths to the bipyOMe ligand are 2.128 (3) and 2.136 (3) Å, longer than the Ir—N [2.035 (3) and 2.042 (3) Å] or Ir—C [2.014 (3) and 2.017 (3) Å] bonds to the dfppy ligands. This is consistent with a substantial trans effect directed by the carbon atoms of dfppy. This feature is also present in related structures in the literature, including for example Ir—N bonds to the trans-effected nitrogen atoms of the hydrogen pyridin-2-yl-phosophonato ligand of bis[3,5-difluoro-2-(pyridin-2-yl)phenyl](hydrogen pyridin-2-yl-phosphonato)iridium(III) [Ir—N = 2.153 (4) Å; Zeng et al., 2019 ▸], and of the bipyridine ligands in the structures of (2,2′-bipyridine)bis[3,5-difluoro-2-(pyridin-2-yl)phenyl]iridium(III) complexes [ranging from 2.120 (4) to 2.141 (4) Å; Li et al., 2017 ▸; Moriuchi et al., 2012 ▸]. This arrangement maximizes the number of C—Ir—N interligand trans-interactions compared to other potential isomers that would orient only one of the bipyOMe nitrogen atoms across from a strong trans-donor carbon atom, or that would have both strong trans-donor carbon atoms opposing one another (i.e. all nitrogen atoms are trans to one another).

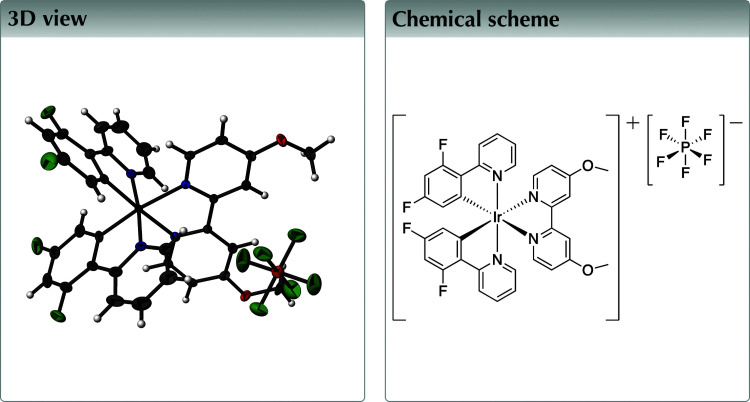

The structures of the molecular components of the title compound shown as 50% probability ellipsoids. Hydrogen atoms have been omitted for clarity.

In addition to the octahedral distortion arising from the trans-effect, an angular distortion occurs from the chelating ligands, with cis-angles about iridium ranging from 76.39 (10) to 101.08 (12)°, and trans-angles about iridium ranging from 172.49 (12) to 177.11 (12)°. The ligands themselves deviate slightly from coplanarity, with mean plane to mean plane angles between the phenyl and pyridyl fragments within the individual ligands ranging from 3.5 (2) to 11.4 (2)°. The methyl groups of the bipyOMe ligands both fold inward. Neighboring complexes form dimers (Fig. 2 ▸) through interactions between their dfppy ligands, including offset π stacking [centroid–centroid = 3.616 (3) Å; plane-to-plane distance = 3.202 (3) Å] and C—H⋯π (H⋯centroid = 2.52 Å) interactions. Several C—H⋯F interactions between the complexes and the (PF₆)⁻ anions (Table 1 ▸, Fig. 3 ▸), as well as a C—H⋯O interaction between methoxy groups of neighboring complexes further support the long-range packing.

Dimers of the title complex formed *via* offset π stacking and C—H⋯π interactions. The projection is viewed along [010].

Table 1. Hydrogen-bond geometry (Å, °).

D—H⋯A	D—H	H⋯A	D⋯A	D—H⋯A
C11—H11A⋯F7ⁱ	0.98	2.51	3.240 (6)	131
C11—H11B⋯O2ⁱⁱ	0.98	2.52	3.294 (5)	136
C20—H20⋯F2	0.95	2.25	2.866 (6)	122
C31—H31⋯F4	0.95	2.25	2.869 (6)	122
C34—H34⋯F8ⁱⁱⁱ	0.95	2.55	3.412 (5)	150

Open in a new tab

Symmetry codes: (i) Inline graphic ; (ii) ; (iii) .

Packing diagram of the title compound viewed along [010].

Synthesis and crystallization

[Ir(dfppy)₂Cl]₂ was prepared according to the literature (Skórka et al., 2016 ▸). [Ir (dfppy)₂Cl]₂ (0.0508 g, 0.0418 mmol) and 4,4′-dimethoxy-2,2′-bipyridine (0.0208 g, 0.0962 mmol) were combined in ethylene glycol (5 ml). The resulting yellow–green heterogenous mixture was heated under N₂ to 150°C while stirring_. After 20 h, the resulting yellow homogenous solution was allowed to cool to room temperature and 10 ml of NH₄PF₆ (sat. aq.) were added. The yellow precipitate that formed was collected by vacuum filtration, washed with H₂O (3 × 10 ml), Et₂O (3 ×10 ml), and dried in vacuo to give a yellow powder (0.0517 g, 78.3%). Yellow needle-like crystals suitable for X-ray diffraction were obtained by vapor–vapor diffusion from a solution of hexanes and dichloromethane. ¹H NMR (400 MHz, DMSO-d ₆) δ 8.48 (d, J = 2.7 Hz, 2H), 8.28 (d, J = 8.5 Hz, 2H), 8.03 (t, J = 7.9 Hz, 2H), 7.75 (dd, 2H), 7.65 (d, J = 6.4 Hz, 2H), 7.28 (td, 4H), 6.97 (d, J = 11.8 Hz, 2H), 5.61 (dd, 2H), 4.00 (s, 6H).

Refinement

Crystal data, data collection, and structure refinement details are summzarized in Table 2 ▸.

Table 2. Experimental details.

Crystal data
Chemical formula	[Ir(C₁₁H₆F₂N)₂(C₁₂H₁₂N₂O₂)]PF₆
M _r	933.74
Crystal system, space group	Orthorhombic, P b c n
Temperature (K)	100
a, b, c (Å)	41.574 (3), 8.6065 (7), 18.2384 (14)
V (Å³)	6525.9 (9)
Z	8
Radiation type	Cu Kα
μ (mm⁻¹)	9.27
Crystal size (mm)	0.20 × 0.07 × 0.06

Data collection
Diffractometer	Bruker D8 Venture Photon 2
Absorption correction	Multi-scan (SADABS; Krause et al., 2015 ▸)
T _min, T _max	0.667, 1.000
No. of measured, independent and observed [I > 2σ(I)] reflections	51121, 6215, 5595
R _int	0.043
(sin θ/λ)_max (Å⁻¹)	0.610

Refinement
R[F ² > 2σ(F ²)], wR(F ²), S	0.028, 0.068, 1.16
No. of reflections	6215
No. of parameters	471
H-atom treatment	H-atom parameters constrained
Δρ_max, Δρ_min (e Å⁻³)	0.91, −0.61

Open in a new tab

Computer programs: APEX3 (Bruker, 2017 ▸), SAINT (Bruker, 2016 ▸), SHELXT2014/5 (Sheldrick, 2015a ▸), SHELXL2016/6 (Sheldrick, 2015b ▸), and Mercury (Macrae et al., 2020 ▸), publCIF (Westrip, 2010 ▸).

Supplementary Material

Crystal structure: contains datablock(s) I. DOI: 10.1107/S2414314622008306/zl4051sup1.cif

x-07-x220830-sup1.cif^{(1.6MB, cif)}

Structure factors: contains datablock(s) I. DOI: 10.1107/S2414314622008306/zl4051Isup2.hkl

x-07-x220830-Isup2.hkl^{(494.5KB, hkl)}

Click here for additional data file.^{(8.4KB, cdx)}

Supporting information file. DOI: 10.1107/S2414314622008306/zl4051Isup3.cdx

CCDC reference: 2202472

Additional supporting information: crystallographic information; 3D view; checkCIF report

Acknowledgments

The authors thank Bailey Newell and Dr John Lee for assistance and helpful discussions.

full crystallographic data

Crystal data

[Ir(C₁₁H₆F₂N)₂(C₁₂H₁₂N₂O₂)]PF₆	D_x = 1.901 Mg m⁻³
M_r = 933.74	Cu Kα radiation, λ = 1.54178 Å
Orthorhombic, Pbcn	Cell parameters from 9410 reflections
a = 41.574 (3) Å	θ = 4.0–70.2°
b = 8.6065 (7) Å	µ = 9.27 mm⁻¹
c = 18.2384 (14) Å	T = 100 K
V = 6525.9 (9) Å³	Column, yellow
Z = 8	0.20 × 0.07 × 0.06 mm
F(000) = 3632

Open in a new tab

Data collection

Bruker D8 Venture Photon 2 diffractometer	5595 reflections with I > 2σ(I)
Radiation source: Incoatec IµS	R_int = 0.043
φ and ω scans	θ_max = 70.3°, θ_min = 5.0°
Absorption correction: multi-scan (SADABS; Krause et al., 2015)	h = −50→50
T_min = 0.667, T_max = 1.000	k = −9→10
51121 measured reflections	l = −20→22
6215 independent reflections

Open in a new tab

Refinement

Refinement on F²	Primary atom site location: dual
Least-squares matrix: full	Secondary atom site location: difference Fourier map
R[F² > 2σ(F²)] = 0.028	Hydrogen site location: inferred from neighbouring sites
wR(F²) = 0.068	H-atom parameters constrained
S = 1.16	w = 1/[σ²(F_o²) + (0.0194P)² + 21.8494P] where P = (F_o² + 2F_c²)/3
6215 reflections	(Δ/σ)_max = 0.008
471 parameters	Δρ_max = 0.91 e Å⁻³
0 restraints	Δρ_min = −0.61 e Å⁻³

Open in a new tab

Special details

Geometry. All esds (except the esd in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell esds are taken into account individually in the estimation of esds in distances, angles and torsion angles; correlations between esds in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell esds is used for estimating esds involving l.s. planes.

Refinement. H atoms were placed in calculated positions with C—H bond distances of 0.95 Å for aromatic 0.98 Å for CH₃ moieties, respectively. Methyl H atoms were allowed to rotate but not to tip to best fit the experimental electron density. U_iso(H) values were set to a 1.5 (for CH₃) or 1.2 (for C—H) times U_eq(C).

Open in a new tab

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å²)

	x	y	z	U_iso*/U_eq
Ir1	0.60823 (2)	0.58537 (2)	0.48740 (2)	0.01420 (6)
P1	0.69527 (2)	1.06167 (12)	0.66335 (5)	0.0244 (2)
F1	0.51080 (6)	0.1773 (4)	0.52914 (15)	0.0471 (7)
F2	0.50104 (6)	0.6651 (4)	0.63715 (13)	0.0475 (7)
F3	0.53664 (7)	0.9251 (3)	0.29752 (15)	0.0457 (7)
F4	0.56046 (7)	0.4119 (3)	0.23471 (13)	0.0439 (7)
F5	0.67444 (7)	0.9209 (3)	0.6335 (2)	0.0588 (9)
F6	0.71604 (7)	1.2005 (3)	0.69438 (17)	0.0487 (7)
F7	0.70871 (7)	0.9525 (3)	0.72743 (16)	0.0484 (7)
F8	0.68154 (6)	1.1714 (4)	0.60026 (14)	0.0473 (7)
F9	0.72483 (6)	1.0121 (4)	0.61233 (14)	0.0477 (7)
F10	0.66573 (6)	1.1117 (3)	0.71486 (14)	0.0392 (6)
O1	0.68565 (6)	0.4864 (3)	0.77561 (13)	0.0252 (6)
O2	0.74782 (6)	0.8299 (3)	0.43096 (14)	0.0276 (6)
N1	0.63528 (7)	0.5248 (3)	0.58221 (15)	0.0172 (6)
N2	0.65522 (6)	0.6726 (3)	0.46407 (15)	0.0153 (5)
N3	0.59314 (7)	0.7760 (4)	0.54453 (15)	0.0211 (6)
N4	0.61822 (7)	0.3919 (4)	0.42744 (16)	0.0207 (6)
C1	0.62284 (8)	0.4565 (4)	0.64235 (19)	0.0204 (7)
H1	0.601441	0.418006	0.640197	0.024*
C2	0.63967 (8)	0.4401 (4)	0.70643 (19)	0.0215 (7)
H2	0.630255	0.389275	0.747379	0.026*
C3	0.67100 (8)	0.4995 (4)	0.71064 (18)	0.0184 (7)
C4	0.68430 (8)	0.5666 (4)	0.64852 (19)	0.0186 (7)
H4	0.705778	0.604258	0.649117	0.022*
C5	0.66579 (8)	0.5780 (4)	0.58555 (18)	0.0152 (6)
C6	0.67759 (8)	0.6531 (4)	0.51767 (17)	0.0159 (6)
C7	0.70924 (8)	0.7019 (4)	0.50924 (18)	0.0189 (7)
H7	0.724542	0.684919	0.547080	0.023*
C8	0.71818 (8)	0.7759 (4)	0.44450 (19)	0.0205 (7)
C9	0.69516 (9)	0.7961 (4)	0.38958 (18)	0.0210 (7)
H9	0.700598	0.846105	0.344825	0.025*
C10	0.66460 (8)	0.7424 (4)	0.40150 (17)	0.0177 (7)
H10	0.649158	0.754997	0.363565	0.021*
C11	0.71886 (10)	0.5355 (6)	0.7799 (2)	0.0352 (10)
H11A	0.731560	0.479276	0.743261	0.053*
H11B	0.727276	0.512989	0.828998	0.053*
H11C	0.720241	0.647362	0.770505	0.053*
C12	0.77258 (9)	0.7963 (5)	0.4834 (2)	0.0307 (9)
H12A	0.767154	0.844654	0.530472	0.046*
H12B	0.793125	0.837818	0.465787	0.046*
H12C	0.774373	0.683614	0.489807	0.046*
C13	0.56560 (8)	0.5034 (5)	0.52336 (18)	0.0237 (8)
C14	0.55276 (10)	0.3574 (5)	0.5117 (2)	0.0300 (9)
H14	0.564116	0.283327	0.483050	0.036*
C15	0.52304 (9)	0.3197 (6)	0.5421 (2)	0.0332 (9)
C16	0.50576 (10)	0.4217 (6)	0.5846 (2)	0.0381 (11)
H16	0.485645	0.393021	0.605269	0.046*
C17	0.51855 (10)	0.5655 (6)	0.5960 (2)	0.0360 (11)
C18	0.54814 (9)	0.6118 (5)	0.5669 (2)	0.0279 (9)
C19	0.56351 (9)	0.7625 (5)	0.5786 (2)	0.0290 (9)
C20	0.55180 (11)	0.8876 (6)	0.6201 (2)	0.0403 (11)
H20	0.531358	0.880956	0.643223	0.048*
C21	0.57016 (12)	1.0204 (6)	0.6272 (2)	0.0426 (11)
H21	0.562063	1.106271	0.654293	0.051*
C22	0.60004 (11)	1.0293 (6)	0.5955 (2)	0.0374 (10)
H22	0.613287	1.118091	0.602228	0.045*
C23	0.61029 (9)	0.9055 (5)	0.5534 (2)	0.0273 (8)
H23	0.630572	0.912941	0.529681	0.033*
C24	0.58468 (8)	0.6421 (5)	0.39470 (18)	0.0222 (7)
C25	0.56931 (9)	0.7793 (5)	0.3780 (2)	0.0285 (8)
H25	0.570615	0.865422	0.410381	0.034*
C26	0.55177 (9)	0.7906 (6)	0.3128 (2)	0.0336 (9)
C27	0.54847 (9)	0.6700 (6)	0.2651 (2)	0.0340 (10)
H27	0.535858	0.679906	0.221947	0.041*
C28	0.56399 (10)	0.5335 (6)	0.2816 (2)	0.0328 (9)
C29	0.58303 (9)	0.5150 (5)	0.34384 (19)	0.0273 (8)
C30	0.60312 (10)	0.3802 (5)	0.3612 (2)	0.0269 (8)
C31	0.60924 (11)	0.2514 (6)	0.3162 (2)	0.0384 (10)
H31	0.598464	0.241717	0.270467	0.046*
C32	0.63070 (13)	0.1393 (5)	0.3378 (3)	0.0428 (11)
H32	0.634963	0.052331	0.307227	0.051*
C33	0.64615 (12)	0.1545 (5)	0.4052 (3)	0.0405 (10)
H33	0.661350	0.079018	0.420865	0.049*
C34	0.63901 (9)	0.2812 (5)	0.4489 (2)	0.0294 (8)
H34	0.649092	0.290304	0.495433	0.035*
