Defect Passivation on Lead-Free CsSnI₃ Perovskite Nanowires Enables High-Performance Photodetectors with Ultra-High Stability

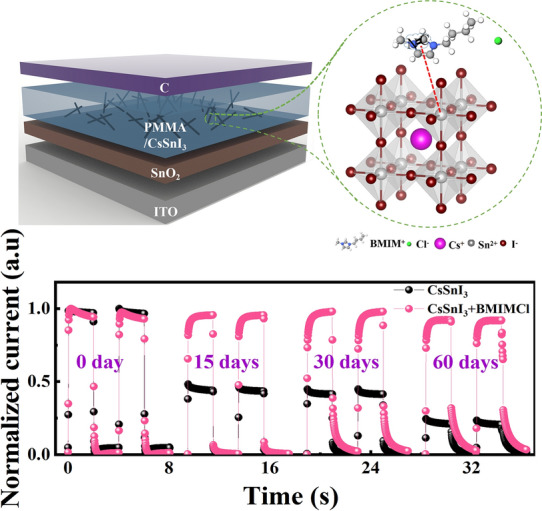

Highlights

• Through materials analysis and theoretical calculations, the defects of CsSnI₃ nanowires (NWs) were effectively passivated via incorporating 1-butyl-2,3-dimethylimidazolium chloride into perovskites.

• The high-performance CsSnI₃ NW photodetectors (PDs) were achieved with a responsivity of up to 0.237 A W⁻¹, a high detectivity of 1.18 × 10¹² Jones and a linear dynamic range of 180 dB. These values are comparable to the reported high-performance Pb-based perovskite PDs and higher than those of the Pb-free perovskite PDs.

• Our unpackaged devices exhibit ultra-high stability with no degradation after 60 days of storage in air (25 °C, 50% humidity).

Supplementary Information

The online version contains supplementary material available at 10.1007/s40820-022-00964-9.

Abstract

In recent years, Pb-free CsSnI₃ perovskite materials with excellent photoelectric properties as well as low toxicity are attracting much attention in photoelectric devices. However, deep level defects in CsSnI₃, such as high density of tin vacancies, structural deformation of SnI₆⁻ octahedra and oxidation of Sn²⁺ states, are the major challenge to achieve high-performance CsSnI₃-based photoelectric devices with good stability. In this work, defect passivation method is adopted to solve the above issues, and the ultra-stable and high-performance CsSnI₃ nanowires (NWs) photodetectors (PDs) are fabricated via incorporating 1-butyl-2,3-dimethylimidazolium chloride salt (BMIMCl) into perovskites. Through materials analysis and theoretical calculations, BMIM⁺ ions can effectively passivate the Sn-related defects and reduce the dark current of CsSnI₃ NW PDs. To further reduce the dark current of the devices, the polymethyl methacrylate is introduced, and finally, the dual passivated CsSnI₃ NWPDs show ultra-high performance with an ultra-low dark current of 2 × 10^–11 A, a responsivity of up to 0.237 A W⁻¹, a high detectivity of 1.18 × 10¹² Jones and a linear dynamic range of 180 dB. Furthermore, the unpackaged devices exhibit ultra-high stability in device performance after 60 days of storage in air (25 °C, 50% humidity), with the device performance remaining above 90%.

Supplementary Information

The online version contains supplementary material available at 10.1007/s40820-022-00964-9.

Introduction

Because of excellent photoelectronic properties and low fabrication cost, organic–inorganic hybrid perovskites have become a hot topic in recent years and are widely used in solar cells [1–4], photodetectors (PDs) [5–7], light-emitting diodes (LEDs) [8, 9], etc. Until now, the highest certified power conversion efficiency of perovskite solar cells has exceeded 25% [10, 12], and the LEDs based on lead-containing perovskite materials also show high performance; for example, the highest external quantum efficiency of green LEDs has exceeded 20% [13–15]. However, the presence of heavy metal lead severely limits the commercialization of lead halide materials, which will face security risks of heavy metal lead leakage during mass production, transportation, installation and operation.

In this context, lead-free perovskite materials based on tin (Sn) [14], bismuth [15], germanium [16], antimony [17] or copper [18] have attracted much attention. Among these lead-free perovskite materials, CsSnI₃ is more popular in photovoltaic applications due to its similar crystal and electronic structure to its Pb-based counterpart. Besides, inorganic perovskite CsSnI₃ has a narrow optical band gap close to the Shockley–Queisser limit, with long lifetime and high charge carrier mobility [19, 20]. Moreover, the melting point of the CsSnI₃ is up to 451 °C, which means that it has excellent inherent thermal stability. Therefore, the development of the inorganic perovskite CsSnI₃ shows great prospect, and many scientists have achieved meaningful results [21–23]. Jin et al. [24] reported the growth of CsSnX₃ (X = Br, I) perovskite semiconductors with controlled orientation and size by high-temperature vapor-phase epitaxy on mica sheets. Yang et al. [25] reported the preparation of CsSnX₃ (X = Cl, Br, and I) perovskite nanowire (NW) arrays by chemical vapor deposition with a responsivity of 54 mA W⁻¹, a detectivity of 3.85 × 10^–5 Jones, and fast rise and decay time constants of 83.8 and 243.4 ms, respectively. However, the efficiency of the solution-processed CsSnI₃ devices was much lower than that of the Pb-based analogs, mainly due to the weak Sn-I bond of inorganic CsSnI₃, which causes lower tin vacancy formation energy and the easy oxidation of Sn²⁺ to Sn⁴⁺, leading to a high level of self-P doping in inorganic CsSnI₃ perovskites, and the reduction in the device performance and the decrease in the output stability [26]. Therefore, strategies to passivate the Sn defects in inorganic CsSnI₃ perovskites while maintaining their environmental stability are urgently needed.

In this work, 1-butyl-2,3-dimethylimidazolium chloride (BMIMCl) salt is introduced to passivate the defects of perovskite CsSnI₃ NWs. Through materials analysis and theoretical calculations, the BMIMCl has a strong passivating effect on Sn-related defects via large π-bonds in N–C = N, and the lone pair of electrons in large π-bonds enhances the electron density around Sn²⁺ in CsSnI₃ and protects it from oxidation to Sn⁴⁺; thus, the fabricated CsSnI₃ NWs with BMIMCl show high light absorption, low defect density and air stability. To further reduce the dark current of the devices, the polymethyl methacrylate (PMMA) was applied, and finally, the dual passivated CsSnI₃ NW PDs show ultra-high performance with an ultra-low dark current of 2 × 10^–11 A, a high responsivity of 0.237 A W⁻¹, a high detectivity of 1.18 × 10¹² Jones and a linear dynamic range (LDR) of 180 dB. Besides, our unpackaged devices exhibit good stability with less than 10% degradation in device performance after 60 days of storage in air (25 °C, 50% humidity), demonstrating good application potential.

Experimental and Calculation

Device Fabrication

A pre-etched indium-tin oxide (ITO) glass substrate was ultrasonically cleaned with detergent, deionized water, ethanol and iso-propyl alcohol for 15 min, respectively. To prepare the SnO₂ precursor solution, the SnO₂ stock solution (1 mL) was diluted in deionized water (4 mL). The as-cleaned ITO substrate was treated with UV ozone at 100 °C for 10 min. A compact layer of SnO₂ was spin-coated on top of the ITO at 4000 rpm for 30 s. Then, it was heated at 150 °C for 30 min in air. After that, the samples were treated with UV ozone for 10 min. Subsequently, the samples were transferred into a N₂ filled glovebox with H₂O and O₂ concentrations of < 0.1 ppm. A layer of PbI₂ film was fabricated by spin-coating PbI₂/BMIMCl (1 mol mL⁻¹/0, 5, 8, 10 and 15 mg mL⁻¹) in DMF at 3000 rpm for 30 s, followed by annealing at 70 °C for 10 min. Then, the substrate was soaked in the prepared CsI/SnI₂/SnF₂ (5 /4 /0.4 mg mL⁻¹) solution in anhydrous methanol for 2 h. After that, the substrates were placed in an isopropyl alcohol solution for 20 s and then annealed at 180 °C for 10 min. Finally, a layer of PMMA was coated on the samples by spin-coating PMMA in CB (20 mg mL⁻¹) at 2000/3000/4000/5000/6000/7000 rpm for 30 s, followed by annealing at 100 °C for 10 min. Then, a layer of carbon electrode was scraped on the samples and annealed at 120 °C for 15 min in air.

Calculations

All the calculations are performed in the framework of the density functional theory (DFT) with the projector augmented plane-wave method, as implemented in the Vienna ab initio simulation package. The generalized gradient approximation proposed by Perdew, Burke and Ernzerhof is selected for the exchange–correlation potential. The long-range van der Waals interaction is described by the DFT-D3 approach. The cutoff energy for plane wave is set to 400 eV. The energy criterion is set to 10^–5 eV in iterative solution of the Kohn–Sham equation. The Brillouin zone integration is performed at the Gamma point for structural optimization, and a 3 × 3 × 1 k-mesh grid is used for electronic structure calculations. All the structures are relaxed until the residual forces on the atoms have declined to less than 0.05 eV Å⁻¹.

Results and Discussion

A schematic diagram of the preparation of CsSnI₃ NWs by a two-step solution method is shown in Fig. 1a. The aqueous SnO₂ solution was first spin-coated onto a clean ITO substrate and then annealed on a hot table at 150 °C for 30 min to obtain the SnO₂ films. The PbI₂/BMIMCl (1 mol mL⁻¹/0, 5, 8, 10 and 15 mg mL⁻¹) DMF solution was spin-coated on the SnO₂/ITO substrate and then annealed at 70 °C for 10 min to obtain the PbI₂-BMIMCl films. The PbI₂-BMIMCl film-covered substrates were immersed in a methanol solution of CsI/SnI₂/SnF₂ (5/4/0.4 mg mL⁻¹) for 2 h. The yellow phase CsSnI₃ (γ-CsSnI₃) was obtained by the B-position exchange reaction. During the reaction, the perovskite also grows in a specific direction because of the strong anisotropy of γ-CsSnI₃ and eventually forms one-dimensional γ-CsSnI₃ NWs [27, 28]. After that, the CsSnI₃ NWs-covered substrates were placed in an isopropyl alcohol solution for 20 s to wash away the impurities on it and then annealed at 180 °C for 10 min to obtain the black phase CsSnI₃ NWs (B-CsSnI₃ NWs). The top-view scanning electron microscopy (SEM) images of CsSnI₃ NW films with different soaking times (2, 4, 8, 16, 24, and 48 h) are shown in Figs. 1b and S1, which show little changes in surface morphology. Besides, the energy-dispersive spectroscopy (EDS) results (Table S1) show that when the soaking time is above 2 h, the perovskite NWs indicate very little Pb content (~ 0.21%) and we think our perovskite nanowires are basically all converted to CsSnI₃ NWs and 2 h of soaking time are enough.

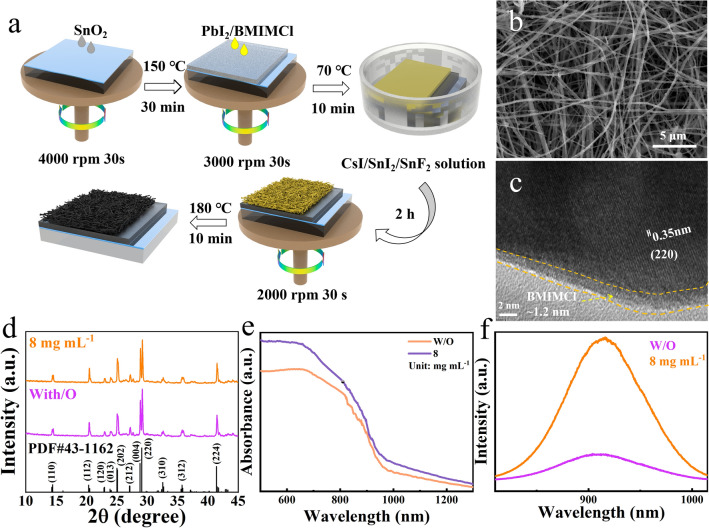

Fig. 1.

a Flow chart for the preparation of CsSnI₃ NWs. b Surface SEM and c HRTEM of CsSnI₃ NWs with BMIMCl. d XRD, e optical absorption and f steady-state PL curves of CsSnI₃ NWs with or without 8 mg mL⁻¹ BMIMCl

When different BMIMCl concentrations (5, 8, 10 and 15 mg mL⁻¹) are incorporated (Fig. S2), the surface coverage of the nanowires is more obvious with the increase in the concentration. In order to further study the effect of the incorporation of BMIMCl, the high-resolution transmission electron microscopy (HRTEM) is performed, and the results are shown in Figs. 1c and S4. From these figures, all perovskite NW samples show high crystallinity. The d-spacing value of the CsSnI₃ without BMIMCl is estimated to be 0.31 nm, corresponding to the (202) plane of CsSnI₃. For the BMIMCl + CsSnI₃ sample, the spacing between the lattice fringe is 0.35 nm, which corresponds to the (220) plane of CsSnI₃, and shows clearer lattice fringes of the perovskite grains, indicating higher crystallinity of the perovskite grains [29, 30]. Besides, the NW is covered by an amorphous BMIMCl molecular layer with a thickness of about 1.2 nm. This thin layer of BMIMCl will protects the underlying CsSnI₃ from degradation when exposed to ambient air.

Figures 1d and S3a show the X-ray diffraction (XRD) patterns of CsSnI₃ NW films with different concentrations of BMIMCl, which match well with the orthorhombic perovskite crystal structure. After the addition of BMIMCl, the peak intensity of the (220) plane of the CsSnI₃ NW film is slightly enhanced compared with that of the unincorporated CsSnI₃ NW film, the better crystal quality of the perovskite may improve the carrier transmission of the CsSnI₃ [31]. Figures 1e and S3b show the optical properties of the perovskite with different concentrations of BMIMCl, which show the CsSnI₃ NWs have capacity of absorbing from visible to infrared light. Steady-state photoluminescence (PL) spectroscopy is then performed to examine the emission characteristics of the CsSnI₃ NW thin films (Figs. 1f and S3c). Compared with the CsSnI₃ NW film without BMIMCl, the peak intensity of the CsSnI₃ NW film gradually increases with increasing the concentration of BMIMCl and reaches a maximum at the concentration of 8 mg mL⁻¹. Then, the peak intensity gradually decreases after further increasing the concentration of BMIMCl. This can be explained that the moderate BMIMCl concentration can effectively passivate the defects of the CsSnI₃ NWs and suppress the non-radiative recombination of the perovskites [23, 32]. Besides, the time-resolved PL indicates that the CsSnI₃ NW film with 8 mg mL⁻¹ BMIMCl shows longest carrier lifetime (Fig. S4d), which further confirms moderate BMIMCl concentration is beneficial for passivating the defects of the CsSnI₃ NWs.

Figure 2a shows the CsSnI₃ NWPD with an ITO/SnO₂/perovskite NWs/carbon structure, in which SnO₂ is used as the electron transport layer, perovskite NWs are the photo-active layer, and carbon is as the top electrode also protects perovskites from corrosion by water and oxygen in air. As a high-performance PD, low dark current is essential, which has a positive impact on the linear dynamic range, signal-to-noise ratio and detectivity of the device. The relationship between the light and dark current of the PDs is shown in Fig. 2b, and 8 devices are used for the light/dark current statistic. The dark current gradually decreases as the BMIMCl concentration increases, and the dark current reaches a minimum until the concentration is at 8 mg mL⁻¹. The drop in dark current is attributed to the passivation of the surface defects of perovskite, especially the Sn vacancies, which are the main culprit for the material to appear metallic [21]. However, too much ionic liquid will cause additional impurities, which will increase the dark current of the device. For the photocurrent, it shows a slightly downward trend. Considering the light and dark currents comprehensively, we believe that the NWPDs prepared at 8 mg mL⁻¹ are best.

Fig. 2.

a Schematic structure of a PD based on the CsSnI₃ with BMIMCl. b Device light/dark current statistic data under the addition of different levels of BMIMCl

To investigate the passivation interaction of the BMIMCl on Sn-related defects and verify our conjecture, Fourier transform infrared spectroscopy (FTIR) measurements are performed on BMIMCl and BMIMCl + CsSnI₃. The peak of the pure BMIMCl sample is located at 1589 cm⁻¹ (Fig. 3a), which corresponds to the N–C = N stretching vibration of the imidazole ring. For the BMIMCl + CsSnI₃ sample, this peak is red-shifted to 1584 cm⁻¹, indicating a strong interaction between N–C = N and CsSnI₃. It is inferred that the N–C = N of BMIM⁺ has a strong passivating interaction with Sn-related defects such as Sn vacancies. The trap density of the Sn-based perovskites is strongly associated with the Sn⁴⁺ content, which is considered as the Sn vacancies and can be distinguished by X-ray photoelectron spectroscopy (XPS) measurement. As shown in Fig. 3b, compared with ordinary CsSnI₃ samples, the proportion of Sn⁴⁺ in the BMIMCl + CsSnI₃ sample is greatly reduced, and the proportion of Sn²⁺ rises, which indicates that the oxidation of Sn²⁺ to Sn⁴⁺ in the BMIMCl + CsSnI₃ sample is significantly suppressed. In order to further verify our conjecture, the DFT calculations are used to study the effect of the introduction of BMIMCl on CsSnI₃. Since the BMIMCl is coated on the surface of CsSnI₃ perovskite, a model of BMIMCl on CsSnI₃ is established, and the calculated differential charge density of BMIMCl + CsSnI₃ (220) indicates the effective charge extraction of BMIMCl, as shown in Fig. 3c. Besides, the density of state (DOS) of CsSnI₃ perovskites with or without BMIMCl is calculated, as shown in Fig. 3d. It can be clearly observed that compared with CsSnI₃, the DOS of CsSnI₃ after BMIMCl passivation is significantly reduced in electron defects near the Fermi level, indicating the reduction in charge carrier recombination in CsSnI₃ after BMIMCl passivation and the promotion of electron transport in the perovskite.

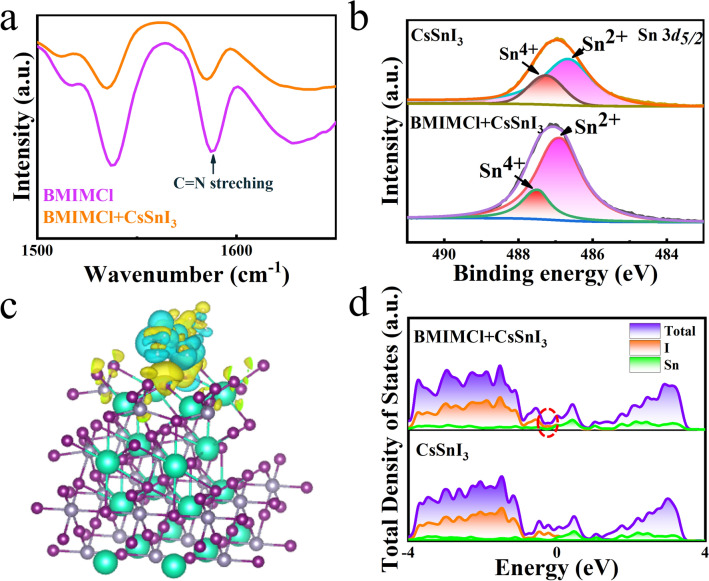

Fig. 3.

a FTIR spectra of the BMIMCl and CsSnI₃ with BMIMCl at the wavenumber of 1500–1650 cm⁻¹. b XPS spectra of Sn 3d of the CsSnI₃ without and with BMIMCl. c Differential charge density of the BMIMCl on CsSnI₃. d Total density of state of the perovskite and the BMIMCl passivated perovskite

Previous reports showed that the PMMA can fill the voids of the nanowires, passivate the surface defects of the perovskites [33] and can also generate Fowler–Nordheim tunneling to enhance device performance [34]. Based on these, we further adopt the PMMA to reduce the dark current and enhance the device performance. Through optimize the rotational speed, the appropriate thickness of the PMMA is obtained at 5000 rpm (Fig. S5a), and at this rotational speed, the device filled by the PMMA shows the lowest dark current and the biggest light current.

The detailed device performances are shown in Fig. 4. As shown in Fig. 4a, under the irradiation of 405 nm laser with different illumination intensities, our device exhibits good photoresponse characteristics to both strong and weak light. From this figure, there is a three-order-of-magnitude difference in dark current under different light intensities. We think the main reason of the three-order-of-magnitude increase in dark current is attributed to the perovskite CsSnI₃, in which a few Sn vacancies still exist. When the device is illuminated by light, a large number of photo-generated carriers will be generated, and some of them may be trapped by these vacancies and remain. After the light is removed, these remaining photo-generated carriers will be slowly released and cause the rise of the dark current. When stronger light is applied, more photo-generated carriers are generated and more left, resulting in a three-order of magnitude difference in dark current under different light intensities.

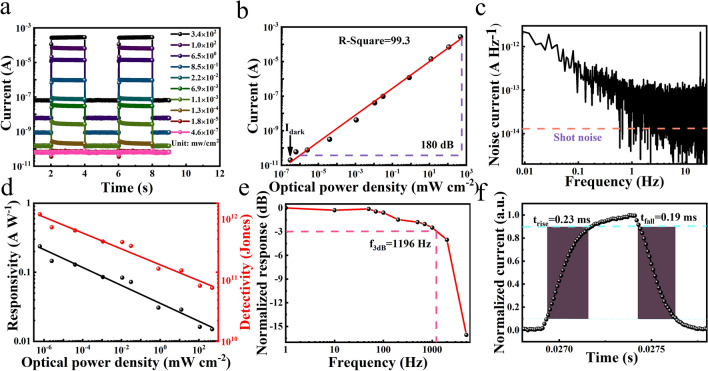

Fig. 4.

Device performances of the dual passivated PDs: a current–time curves at different light intensities; b LDR; c noise current curve; d responsivity and detectability versus light intensity curves; e f_-3 dB bandwidth; f response/recovery time. All curves are measured at 0 V

The LDR of the PD is an important parameter for evaluating the performance of the PD, which can be calculated by the formula:

$$\text{LDR}=20\text{log}\frac{P_{\text{sat}}}{P_{\text{low}}}$$ 1

where P_sat and P_low are the strongest and weakest light intensities, respectively, when the incident light begins to deviate from the linear photocurrent. The calculated LDR is as high as 180 dB, indicating that our device can work stably in a wide range of the light intensity (Fig. 4b), and the ultra-low dark current of 2 × 10^–11 A of the device is obtained. Besides, the noise of the device affects the sensitivity of the PD to light, and shot noise is an important noise source which affects the dark current. The device noise power spectrum (Fig. 4c) shows that the noise (i_n) of the CsSnI₃ NW PD is very low with the value of about 4 × 10^–13 A Hz⁻¹. Through the dark current, the shot noise of the device is further calculated, and it is close to the total noise, indicating that the main device noise is the shot noise. To further study the performance of the device, the responsivity R and the detectivity D* are measured to evaluate the sensitivity of the photoelectric response of the device to incident light, which are calculated by the formulas:

$$R=\frac{I_{\mathit{ph}}}{{\text{AP}}_{\text{opt}}}$$ 2

$$D^{\ast }=\frac{R\sqrt{\text{AB}}}{i_n}$$ 3

where I_ph is the photocurrent, A is the effective light irradiation area of the PD, P_opt is the light intensity, and B is the detection line width. As shown in Fig. 4d, both the R and the D* show a linear drop with increasing the light intensity. Under weak light, our PD shows high device performance with a R of 0.237 A W⁻¹, and a D* of up to 1.18 × 10¹² Jones, which are comparable to the reported high-performance Pb-based perovskite PDs and higher than those of the Pb-free perovskite PDs [35–44]; the detailed comparison is shown in Table S2. The achievement of the high performance is due to the dual passivation of perovskite defects through the BMIMCl and the PMMA, which greatly reduce the dark current, thereby reduce the device noise level and improve the detection capability of the device. Moreover, the broad light absorption range of the CsSnI₃ enables the wide work region of our PD ranging from ultraviolet to infrared radiation, as shown in Fig. S5b. Furthermore, our device shows the f_-3 dB bandwidth of 1196 Hz (Fig. 4e) and the rise/fall time (τ_rise/τ_fall) of 0.23/0.19 ms (Fig. 4f).

Device stability is a key parameter of the PD, which is an important reference for commercialization. To confirm the improvement in device stability by the dual passivation strategies, we perform the stability of the unpackaged PDs under different conditions in air (25 °C, 50% humidity), as shown in Fig. 5. We find the performance of the passivated device shows no degradation when it is exposed to continuous light in air for more than 1200 s, but the light current of the original device indicates a significantly decline (Fig. 5a). We further place the devices in air for more than 60 days, and the performance of the original CsSnI₃ PDs decreases to about 30% of the initial value. However, the device performance of the passivated devices remains 90% of the initial value after the same storage time. These results demonstrate that the introduction of the BMIMCl and PMMA not only enhances the optoelectronic performance of the device, but also improves the stability of the device.

Fig. 5.

Stability of the PD under different conditions in air (25 °C, 50% humidity): a stability for long-time testing; b stability in long-term storage

Conclusions

In conclusion, the BMIMCl was introduced in CsSnI₃ NWs to passivate the Sn vacancies and reduce the dark current of the CsSnI₃ NWPDs. Experimental analysis and theoretical calculation demonstrate that BMIM⁺ ions can effectively suppress the oxidation of Sn²⁺ to Sn⁴⁺ in the BMIMCl + CsSnI₃ sample. For further reduce the dark current of the devices, the PMMA was applied, and finally, the dual passivated CsSnI₃ NW PDs show ultra-high performance with an ultra-low dark current of 2 × 10^–11 A, a responsivity of up to 0.237 A W⁻¹, a high detectivity of 1.18 × 10¹² Jones and a linear dynamic range of 180 dB. Furthermore, our unpackaged devices exhibit ultra-high stability in device performance after 60 days of storage in air (25 °C, 50% humidity), with the device performance remaining above 90%. This work provides a simple and effective method for the preparation of high-performance, highly stable Pb-free perovskite photoelectric devices.
