. 2022 Nov 23;60(1):2300–2307. doi: 10.1080/13880209.2022.2136205

Solid lipid nanoparticle as an effective drug delivery system of a novel curcumin derivative: formulation, release in vitro and pharmacokinetics in vivo

Wenmei Zhao a,b,c,*, Mingtang Zeng a,b,c,*, Ke Li a,b,c,*, Chao Pi a,b,c, Zerong Liu d,e, Chenglin Zhan f, Jiyuan Yuan b,g, Zhilian Su a,b,c, Yuxun Wei a,b,c, Jie Wen a,b,c, Fengjuan Pi h, Xinjie Song i,j, Robert J Lee k, Yumeng Wei a,c,, Ling Zhao b,c,
PMCID: PMC9704087  PMID: 36606719

Abstract

Context

Curcumin (Cur) has a short duration of action which limits its therapeutic efficacy. Carbonic acid 17-(1,5-dimethyl-hexyl)-10,13-dimethyl-2,3,4,7,8,9,10,11,12,13,14,15,16,17-tetradecahydro-1H-cyclopenta[a]phenanthren-3-yl ester 4-[7-(4-hydroxy-3-methoxy-phenyl)-3,5-dioxo-hepta-1,6-dienyl]-2-methoxy-phenyl ester (CUD), as a small molecule derivative of Cur with superior stability, has been developed in our laboratory.

Objective

CUD-loaded solid lipid nanoparticles (CUD-SLN) were prepared to prolong the duration of the drug action of Cur.

Materials and methods

CUD-SLN were prepared with Poloxamer 188 (F68) and hydrogenated soybean phospholipids (HSPC) as carriers, and the prescription was optimized. The in vitro release of CUD and CUD-SLN was investigated. CUD-SLN (5 mg/kg) was injected into Sprague Dawley (SD) rats to investigate its pharmacokinetic behaviour.

Results

CUD-SLN features high entrapment efficiency (96.8 ± 0.4%), uniform particle size (113.0 ± 0.8 nm), polydispersity index (PDI) (0.177 ± 0.007) and an appropriate drug loading capacity (6.2 ± 0.1%). Optimized CUD-SLN exhibited sustained release of CUD for about 48 h. Moreover, the results of the pharmacokinetic studies showed that, compared to Cur, CUD-SLN had a considerably prolonged half-life of 14.7 h, slowed its metabolism in vivo by 35.6-fold, and had an improved area under the curve (AUC0–t) of 37.0-fold.

Conclusions

CUD-SLN is a promising preparation for the development of a small molecule derivative of Cur.

Keywords: Small molecule derivative of curcumin, Poloxamer 188, nanotechnology

Introduction

Curcumin (Cur), a natural polyphenolic compound, can be found in the tuber or rhizome of Curcuma longa L. (Zingiberaceae), has been widely used in traditional Chinese medicine. It has been reported that Cur has several valuable pharmacological properties, including antibacterial, anti-inflammatory, antitumor and neuroprotection activities (Feng T et al. 2017; Momtazi-Borojeni et al. 2018; Bagheri et al. 2020; Lyu et al. 2020; Cai et al. 2021), thereby showing great potential for the development of therapeutics. However, the short duration of drug action has seriously hindered the efficacy of Cur. In vivo, Cur will rapidly incur reduction and bind with glucuronic acid; the metabolites are mainly dihydrocurcumin, tetrahydrocurcumin, hexahydrocurcumin, octahydrocurcumin and tetrahydrocurcumin-glucuronide (Shi et al. 2019). The major reason contributing to the rapid metabolism is the poor stability of all Cur metabolites (Ma et al. 2019; Slika and Patra 2020). Therefore, Cur usually requires frequent dosing.

To prolong the duration of drug action, the current study has mainly focussed on the modification of the structure of Cur and the development of new Cur-based preparations. Cur contains two phenolic hydroxyl groups (PhOH), which are key sites for metabolism and potential sites for binding with biological macromolecules. Therefore, the PhOH groups of Cur could be modified to improve the in vivo stability and ameliorate the pharmacokinetic behaviour of Cur (Pawar et al. 2016; Chen S et al. 2018; Zhao et al. 2018; Chainoglou and Hadjipavlou-Litina 2019). For instance, a succinate prodrug of Cur was synthesized by ester-forming modification of the 4′-hydroxyl group of Cur, which remarkably improved the chemical stability and increased the half-life (t1/2) to 7.66 h (Wichitnithad et al. 2011). Cur was reacted with demethylated piperonyl chloride in pyridine to obtain Cur-piperine derivatives of diesters, and piperine which, when generated during metabolism increased the area under the curve (AUC0–t) of Cur in rats by nearly 20-fold (Mishra et al. 2005; Dubey et al. 2008). To prolong the duration of the drug action of Cur, several possible drug delivery systems have been investigated, including polymer-drug micelles, microspheres and supersaturated self-nano-emulsion (Tian et al. 2019; Ban et al. 2020). Compared with free Cur, redox sensitive hyaluronic acid (HA)-ss-Cur micelles had about a 4.70-fold higher AUC0–t after intravenous injection (Tian et al. 2019). Moreover, Cur Microspheres containing ascorbic acid (AA) had about a seven-fold increase in plasma concentration (Karade and Jadhav 2018). Cur supersaturated self-nano-emulsion prepared with 2% HPMC55-60 as a precipitation inhibitor increased the AUC0–12h by 3.50-fold (Chen XL et al. 2021).

Solid lipid nanoparticle (SLN) is a class of drug delivery system which was developed in the early 1990s (Yingchoncharoen et al. 2016). SLN is mainly composed of lipids which are solid at room temperature and body temperature, and surfactants can help SLN become more stable. Compared with polymer nanoparticles, SLN is mainly made of physiologically tolerated lipid components, thereby reducing the possibility of acute or chronic poisoning (Iqra et al. 2021; Mohammed et al. 2022). Compared with liposomes, SLN has a better stability and fewer drug leakage problems (Alam et al. 2020).

To further prolong the duration of drug action of Cur, carbonic acid 17-(1,5-dimethyl-hexyl)-10,13-dimethyl-2,3,4,7,8,9,10,11,12,13,14,15,16,17-tetradecahydro-1H-cyclopenta[a]phenanthren-3-yl ester 4-[7-(4-hydroxy-3-methoxy-phenyl)-3,5-dioxo-hepta-1,6-dienyl]-2-methoxy-phenyl ester, named CUD (Figure 1) (98% purity), was synthesized in our laboratory (Wei et al. 2022). CUD, a small molecule derivative of Cur with superior stability, was chosen to develop solid lipid nanoparticles (CUD-SLN) composed of hydrogenated soybean phospholipids (HSPC), Poloxamer 188 (F68) and sucrose. CUD-SLN was prepared using a thin-film ultrasonic dispersion technology, and the physicochemical properties, drug release behaviour in vitro, and pharmacokinetics in vivo of CUD-SLN were evaluated.

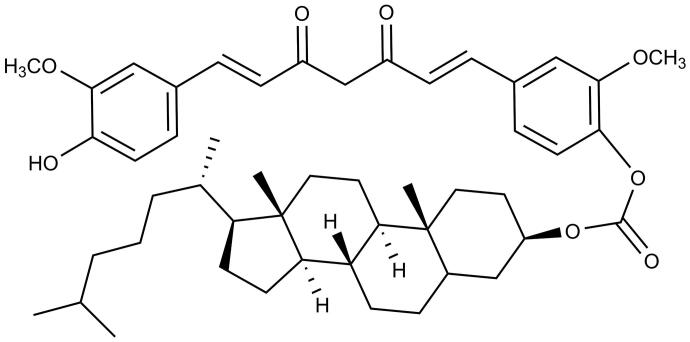

Figure 1.

Figure 1.

The chemical structure of CUD.

Materials and methods

Materials

Cur (purity > 98%), cholesteryl chloroformate (RoCL), triethylamine (TEA), isopropanol, dichloromethane (anhydrous), HSPC, Poloxamer 188 (F68) and sucrose were purchased from Luzhou Renkang Biotechnology Co., Ltd. (Luzhou, China). CUD was obtained from our laboratory.

Animals

Sprague Dawley (SD) male rats aged 8 weeks weighing 250–300 g were provided by the Laboratory Animal Center of Southwest Medical University and were placed in a pathogen-free environment, and had free access to food and water. Studies involving animals were approved (approval number: SCXK (Chuan) 2013-17) by the Ethics Committee of Southwest Medical University.

Ultraviolet–visible (UV–vis) absorption spectrum

UV wavelength scans of Cur and CUD from 700 to 200 nm were recorded at 25 °C using a UV spectrophotometer (A390, Aoyi Instruments Shanghai Co., Ltd., Shanghai, China).

Preparation of CUD-SLN

CUD-SLN was prepared by using film ultrasonic dispersion technology (Li W et al. 2014). In brief, CUD, HSPC and F68 were dissolved in 2 mL organic solvent by the method of ultrasound. Then, the solution was transferred to a beaker (50 mL) and was stirred to become a film at 30 °C. Deionized water (30 mL) containing 1.25% sucrose was added to the beaker, and sonicated until dissolved. Then, the solution was homogenized by a high-pressure homogenizer (AH-100D; ATS Automation Tooling Systems Inc., Cambridge, Canada). The final solution was lyophilized by freeze-dryer (LGJ-18C; Fourth-Ring Science Instrument Plant Beijing Co., Ltd., Beijing, China) at −50 °C 0.9 Pa for 24 h to obtain CUD-SLN.

Optimization of CUD-SLN

The effect of temperature (films were prepared), the input ratio of HSPC:F68 (w/w), and CUD:(HSPC + F68) (w/w) on particle size, polydispersity index (PDI) and encapsulation efficiency (EE%) of CUD-SLN were investigated by the single factor method. The specific formulations are listed in Table 1. In addition, the protective abilities of sucrose with different concentrations as lyoprotectants of CUD-SLN were evaluated (Table 2).

Table 1.

Single-factor investigation results (n = 3).

No. Temperature (°C) HSPC:F68 CUD:(HSPC + F68) Particle size (nm) PDI EE (%)
Optimization of temperature
F1 30 5:7 1:4 107.8 ± 2.3 0.186 ± 0.027 97.3 ± 2.1
F2 40 5:7 1:4 102.0 ± 1.7 0.176 ± 0.015 95.6 ± 3.2
F3 50 5:7 1:4 101.9 ± 2.5 0.183 ± 0.012 93.0 ± 2.7
F4 60 5:7 1:4 107.7 ± 1.4 0.182 ± 0.022 92.8 ± 2.1
Optimization of HSPC:F68
F5 30 3:7 1:4 100.7 ± 1.3 0.186 ± 0.021 98.3 ± 2.4
F6 30 7:7 1:4 95.8 ± 2.7 0.197 ± 0.015 93.0 ± 1.7
F7 30 11:7 1:4 90.4 ± 2.3 0.192 ± 0.011 90.4 ± 2.5
Optimization of CUD:(HSPC + F68)
F8 30 3:7 1:1 124.7 ± 5.2 0.156 ± 0.042 58.6 ± 4.9
F9 30 3:7 1:3 124.4 ± 1.9 0.143 ± 0.025 97.3 ± 2.1
F10 30 3:7 1:5 124.8 ± 3.8 0.137 ± 0.031 96.5 ± 1.3
F11 30 3:7 1:7 127.8 ± 2.3 0.122 ± 0.024 97.4 ± 1.1

EE: entrapment efficiency; PDI: polydispersity index.

Table 2.

The effects of lyoprotectant ratio on particle size and PDI after freeze drying (n = 3).

Sucrose content (w/v) Particle size (nm)
PDI
Before After Before After
0.5% 110.1 ± 2.9 188.3 ± 3.7 0.136 ± 0.024 0.379 ± 0.070
1.25% 109.4 ± 3.1 115.6 ± 2.3 0.146 ± 0.033 0.161 ± 0.014
2.5% 110.3 ± 2.5 115.9 ± 4.2 0.149 ± 0.014 0.142 ± 0.016
5.0% 110.2 ± 1.7 166.8 ± 2.8 0.158 ± 0.028 0.293 ± 0.022

PDI: polydispersity index.

Based on the results of the single-factor study, a comprehensively designed experiment was performed to optimize the formulation of CUD-SLN. Two factors of CUD-SLN including the input ratio of CUD:(HSPC + F68) (A) and HSPC:F68 (B) (each factor had three levels) were arranged according to an L9 (32) comprehensively designed experiment (Table 3). The EE% and drug loading (DL%), which are important indicators of SLN quality, were selected as the evaluation index. Intuitive and variance analyses were used to identify the best formulation.

Table 3.

The formulations and the results of EE% and DL% (n = 3).

No. CUD:(HSPC + F68) HSPC:F68 EE (%) DL (%)
1 1:2 4:7 90.4 ± 1.6 5.9 ± 0.1
2 1:2 6:7 86.4 ± 2.3 5.3 ± 0.2
3 1:2 8:7 86.9 ± 1.4 5.0 ± 0.1
4 1:3 4:7 96.8 ± 0.4 6.3 ± 0.1
5 1:3 6:7 89.7 ± 3.9 5.5 ± 0.2
6 1:3 8:7 92.8 ± 2.6 5.3 ± 0.2
7 1:4 4:7 95.6 ± 1.9 6.2 ± 0.1
8 1:4 6:7 84.2 ± 6.2 5.2 ± 0.4
9 1:4 8:7 87.7 ± 1.6 5.0 ± 0.1
EE (%) K1 263.7 282.8
K2 279.3 260.3
K3 267.5 267.4
R 15.6 22.5
DL (%) K1 16.2 18.4
K2 17.1 16.0
K3 16.4 15.3
R 0.9 3.1

DL: drug loading; EE: entrapment efficiency.

Confirmatory test

To verify whether the optimized formulation process was stable and feasible, three batches of CUD-SLN samples were prepared, and the EE%, DL%, particle size, PDI and zeta potential of the three batches tested.

Characterization of CUD-SLN

Particle size, PDI and zeta potential

CUD-SLN (nanoparticles with a concentration of 10 mg/mL) were characterized for particle size, PDI and zeta potential by a Malvern’s Zetasizer Nano ZS instrument (ZS; Malvern Instruments, Malvern, UK). CUD-SLN was measured three times in a sample cell (1 mL), and the light scattering angle was set to 90°.

Encapsulation efficiency and drug loading

CUD is a hydrophobic molecule. Hence, CUD-SLN with smaller particle sizes cannot form a precipitate under low-speed and medium-speed centrifugation, while the drug in the free state will be precipitated in crystal form. Therefore, to evaluate the EE%, low-speed centrifugation (8000 rpm, 8 min) was selected to separate free CUD. The same volume of SLN suspension before and after low-speed centrifugation was measured, demulsified and diluted with solvent (methanol–ethyl acetate 10:90, v/v). Lyophilized powder of SLN was accurately weighed, dissolved in methanol, and demulsified by ultrasound (200 W, 40 kHz, 4 min) to ensure the complete release of all drugs. After the sample was filtered and diluted with solvent (methanol–ethyl acetate 10:90, v/v), the concentration of CUD was determined by UV–vis spectrophotometer at 409 nm, using a standard curve (A = 0.0495C – 0.0061, R2=0.9998). The formulas used for the calculation of the EE% and DL% were as follows:

Encapsulation (EE%)=WeWt×100%  (1)
Drug loading (DL%)=WtW0×100%  (2)

where We is the amount of drug loaded in CUD-SLN, Wt is the total amount of drug in CUD-SLN and W0 is the total weight of SLN.

Differential scanning calorimetry

The purpose of differential scanning calorimetry (DSC) was to study the physical integrity of the drug in the SLN. The DSC thermograms of the CUD, blank-SLN and CUD-SLN were obtained by microcalorimeter (NETZSCH TG-DSC STA-449 F3, Bavaria, Germany). Samples were heated in the temperature range of 30–400 °C on an aluminium pan at a rate of 10 °C/min, under nitrogen atmosphere.

X-ray diffraction

X-ray diffraction (XRD) analysis was performed to monitor changes in crystallization characteristics of the drug when CUD was loaded into SLN. The XRD patterns of CUD, blank-SLN and CUD-SLN were measured using an X' D/MAX-2500/PC diffract metre (Rigaku Corporation, Tokyo, Japan).

Transmission electron microscopy

Solid freeze-dried nanoparticles were dissolved in ultrapure water, dripped on a slide, and a negative stain was performed with 2% phosphotungstic acid. Sample was placed on a copper grid until dried. The morphology of CUD-SLN was observed by transmission electron microscope (TEM) (microscopyH-7500; Hitachi Ltd., Tokyo, Japan).

In vitro drug release profile

The release of CUD-SLN and free CUD in vitro was studied using a dialysis membrane diffusion technique (MWCO 8000–14,000) (He et al. 2020). Due to the low solubility of CUD in the buffer, Tween 80 was added to satisfy the leaking conditions. A total of 500 mL of PBS buffer with 10% w/v Tween 80 (pH 7.35) was used as a release medium. Next, 2 mL of freshly prepared CUD-SLN (1 mg/mL) was transferred to the dialysis bags, and 2 mg free CUD (suspended in 2 mL 0.5% w/v CMC-Na) was transferred to dialysis bags as a control. The test bags were immersed in a release medium at 37 ± 0.5 °C and stirred at 100 rpm using a dissolution apparatus (ZRS-8G, Intelligent dissolution tester, ZRS-8G, Tianjin, China). An aliquot of the sample (1 mL) was removed from the release medium at 15 and 30 min and 1, 2, 4, 6, 8, 12, 24 and 48 h. After each sampling, the blank dissolution medium was replenished with the same temperature and volume. Removed samples were filtered through a 0.22 μm filter, the CUD content was analysed by a UV–vis spectrophotometer, and the analytical method described before. The in vitro release data of the drug were fitted with the zero-order release equation, the first-order release equation and the Higuchi equation (Ma et al. 2019).

Pharmacokinetic studies

Rats that were used for the pharmacokinetic study were fasted for more than 12 h before use and had free access to water. Rats were randomly divided into two groups (n = 5), namely, the Cur group and CUD-SLN group, Rats in both groups were injected intravenously with 5 mg/kg of corresponding drugs. Approximately, 200 µL of blood was collected using a heparin-coated syringe at 2, 5, 15 and 30 min and at 1, 2, 4, 6, 8, 12, 24, 30, 36, 48, 54, 60, 72 and 84 h after injection. Blood was centrifuged for 10 min at 3000 rpm, and plasma was obtained. Furthermore, 50 µL of acetate buffer (pH 3.5) was added to 100 μL of plasma. After vortexing for 1 min, 0.5 mL of extract solvent (methanol–ethyl acetate 10:90, v/v) was added to the mixture, the mixture was vortexed again for 3 min, followed by centrifugation for 3 min at 8000 rpm. Then, 0.5 mL of supernatant was removed and evaporated with nitrogen flow. Next, 200 μL of reconstituted solvent (acetonitrile contains 0.1% phosphoric acid) was added to the dry residue, vortexed for 4 min, sonicated for 4 min, and centrifuged for 10 min at 10,000 rpm, A total of 50 μL of the supernatant was removed for the high-performance liquid chromatography (HPLC) (1260 Infinity II, Agilent Technologies, Santa Clara, CA) and calculated with the standard curve (Cur: A = 157.21 C + 0.148, R2=0.9991, range: (0.02, 12) μg/mL; CUD: A = 18.159 C + 0.4884, R2=0.9998, range: (0.02, 5) μg/mL; A = 46.552 C – 179.81, R2=0.9997, range: (5, 160) μg/mL). Separation was performed on a reverse-phase C18 column (5 μm, 4.6 × 150 mm) at 25 °C and a mobile phase flow rate of 1.0 mL/min. The detection wavelength was 409 nm (Guo et al. 2020).

Statistical analysis

Evaluation of the comprehensive design experiment was performed by SPSS 17.0 software (SPSS Inc., Chicago, IL). Fitting of the release curve was performed by Origin 8.0 software. Pharmacokinetic data were processed by DAS 2.1.1 software to obtain relevant pharmacokinetic parameters. Student’s t-test for two groups and one-way ANOVA for multiple groups were employed for the data analysed. p < 0.05 was considered statistically significant.

Results and discussion

The UV–vis absorption spectrum of CUD

The metabolic processes of Cur in vivo included oxidation, reduction, glycosylation and sulphation. PhOH is the key site of glycosylation and sulphation, and significantly influences the metabolism processes and the stability of Cur in vivo. Therefore, the modification of PhOH can improve the stability of Cur in vivo. In vivo, drugs need to penetrate cell membranes to work. Cholesterol is regarded as an important component of the cell membrane. Thus, taking the active 4-OH group of Cur as the site, through covalent bonding with cholesterol, new derivatives are formed, which can improve the permeability of Cur to the cell membrane, enhance the stability of Cur in vivo, and improve the efficacy (Dubey et al. 2008).

As shown in Figure 2(A), CUD has a maximum absorption at a wavelength of 409 nm, while Cur has a maximum absorption at 425 nm. This phenomenon originates from the electron-withdrawing groups replacing the phenolic hydroxyl group in Cur, result in a significant blue-shift in the UV–vis absorption spectrum.

Figure 2.

Figure 2.

UV–vis absorption spectrum of Cur and CUD (A). DSC thermograms of CUD, blank SLN and CUD-SLN (B). XRD behaviour of CUD, blank SLN and CUD-SLN (C).

Preparation and optimization of CUD-SLN

In this study, various factors that may affect the quality of CUD-SLN were investigated. CUD-SLN was composed of HSPC (solid lipid material), F68 (non-ionic surfactant) and sucrose (lyoprotectant). As shown in Table 1, when the temperature was 30 °C (F1), the EE% was the highest, and no significant differences were observed between the particle size and PDI. The EE% was significantly influenced by changes in the volatilization temperature, and with an increase in temperature, the EE% showed a downward trend. This may be due to the accelerated evaporation of the solvent with the increase of temperature, resulting in precipitation of the drug, leading to a decrease in EE%. Therefore, 30 °C was chosen as the volatilization temperature for subsequent experiments.

Formulations F5–F7 showed that with the increase in the ratio HSPC:F68, the particle size decreased, but this change was not significant. The EE% increased with a decrease in the ratio HSPC:F68. When the HSPC:F68 ratio was 3:7 (F5), the EE% was the highest at 98.3 ± 2.4%. The amount of surfactant F68 may play a crucial role in stabilizing CUD-SLN; however, excessive F68 may not be induced to film formation of the lipid material, thereby reducing the EE% of the drug. Therefore, the HSPC:F68 ratio was temporarily set to 3:7 for subsequent experiments. The EE% of CUD-SLN was significantly influenced by the content of the excipients in the formula, and the particle size and PDI hardly changed with a change in the drug excipients ratio. When the drug excipients ratio was reduced from 1:7 to 1:3, no significant changes were observed in EE%. However, when the adjuvant ratio was decreased to 1:1, the EE% decreased sharply to 58.6 ± 4.9%. To obtain a higher DL% with lower excipients, a drug excipients ratio of 1:3 was used for subsequent experiments.

Based on a preliminary experiment, it was found that the amount and type of lyophilized protectants had the greatest effect on particle size and PDI of CUD-SLN. In this study, sucrose was chosen as a lyophilized protectants and the results are presented in Table 2. When the content of sucrose was 1.25% and 2.5% in the formulations of the lyophilized product, small changes of particle size and PDI of CUD-SLN before and after freeze-drying were observed. To increase the DL%, 1.25% of sucrose was selected for further development.

Based on the single-factor test, two main factors affecting the quality of CUD-SLN were identified, namely HSPC:F68 (A) and CUD:(HSPC + F68) (B), and each factor has three levels. L (32) comprehensive design experiments were performed to determine a stable and feasible technological formula. The results of DL% and EE% are presented in Table 3. Furthermore, range analysis was employed to compare the effects of two factors on the EE% and DL%. The data showed that factor A had a great effect on EE% and DL%, and the best prescription was A2B1. The analysis of variance showed that factor A had a significant effect on EE% and DL% with p values of 0.021 and 0.001, respectively. Moreover, factor B had no significant effect on EE% and DL% (p values were 0.063 and 0.053, respectively), which was consistent with the results of the intuitive analysis. Taken together, the optimal proportion of CUD, HSPC and F68 in the formulation was 11:12:21.

Validation of optimal prescription

To investigate whether the optimal prescription process is stable and feasible, three batches of CUD-SLN were prepared by the optimized formulation, and the EE%, DL%, PDI, particle size and zeta potential were measured and are presented in Table 4. The results indicated that the mean particle size of the three batches was 113.0 ± 0.8 nm and the PDI was 0.177 ± 0.007 (Figure 3(A)), the particle size distribution of CUD-SLN was relatively uniform, thereby indicating that CUD-SLN has good homogeneity without aggregation or fusion. The average zeta potential was −13.82 ± 0.27 mV (Figure 3(B)), which makes the formula more stable (Maritim et al. 2021). The EE% of the three batches was higher than 95%, and the DL% was higher than 6%. No significant differences were observed in the indicators of the three batches (p > 0.05), thus indicating that the optimized formulation method was stable and feasible.

Table 4.

DL%, EE%, particle size, zeta potential and PDI of three batches of CUD-SLN (n = 3).

Parameters Batches
1 2 3 Mean
DL (%) 6.3 ± 0.2 6.2 ± 0.1 6.2 ± 0.2 6.2 ± 0.1
EE (%) 96.4 ± 0.6 97.2 ± 0.9 96.7 ± 0.2 96.8 ± 0.4
Particle size (nm) 112.4 ± 2.5 113.9 ± 1.3 112.7 ± 2.7 113.0 ± 0.8
PDI 0.182 ± 0.016 0.179 ± 0.007 0.169 ± 0.011 0.177 ± 0.007
Zeta potential –13.60 ± 0.33 –13.65 ± 0.42 –14.20 ± 0.68 –13.81 ± 0.27

DL: drug loading; EE: entrapment efficiency; PDI: polydispersity index.

Figure 3.

Figure 3.

Particle size distribution of CUD-SLN (A), zeta potential distribution of CUD-SLN (B) and transmission electron microscopy of CUD-SLN (C).

Characterization of CUD-SLN

The TEM image of CUD-SLN is shown in Figure 3(C). The SLN had a regular spherical shape, which may be because the SLN was composed of phospholipids that contain saturated fatty acids (such as HSPC and DSPC) (Tan et al. 2014). DSC thermograms of CUD, blank SLN and CUD-SLN are presented in Figure 2(B). The CUD thermogram displayed a sharp endothermic peak at 201.52 °C that corresponded to the melting point of the crystalline form. This peak disappeared in the DSC thermogram of CUD-SLN, which indicated that CUD was present as an amorphous form in CUD-SLN. XRD was used to study the changes in crystallinity characteristics of the drug when the drug was loaded into SLN. The XRD patterns of CUD, blank SLN and CUD-SLN are shown in Figure 2(C). The XRD patterns of blank SLN, and CUD-SLN were similar, and the multiple sharp peaks presented in the figure were consistent with the standard XRD pattern for sucrose (PDF 24-1977). CUD displayed three strong diffraction peaks at 13.640°, 15.921° and 20.581°, which disappeared in the diffraction patterns of CUD-SLN. The results showed that CUD was present as an amorphous form in CUD-SLN, which was consistent with the results of DSC. Taken together, these results confirmed that F68 and HSPC were good inclusion materials, thereby suggesting that SLN was the suitable carrier for CUD.

In vitro drug release profile of CUD-SLN

To simulate the release of CUD-SLN and CUD suspensions, the release of CUD from SLN in vitro was studied by the dialysis membrane diffusion technique, and compared with CUD suspensions. The results are shown in Figure 4. The release rate of CUD-SLN was slightly faster than that released from the suspension, and at 48 h, CUD in the SLN was almost completely released (89.22 ± 3.39%), compared to the CUD in the suspension (60.24 ± 5.08%). To explore the release mechanism of the drug, the zero-order release equation, the first-order release equation and the Higuchi equation were employed to analyse the release data in vitro, and the kinetic parameters of the release rate are shown in Table 5. The release data of CUD were fit into the first-order release equation (r2=0.9458), while the release data of CUD-SLN were fit into Higuchi’s equation (r2=0.9624), as has been reported for drug-loaded SLN systems (Patlolla et al. 2010; Kakkar et al. 2018). From the curve fitting data, it was indicated that the release profile of CUD from CUD-SLN systems was diffusion-controlled.

Figure 4.

Figure 4.

In vitro release curves of CUD suspension and CUD-SLN (n = 6).

Table 5.

Dissolution kinetic parameters of CUD and CUD-SLN.

  Zero order equation
First-order equation
Higuchi’s equation
r 2 k 0 r 2 k 1 r 2 k h
CUD 0.6275 1.0410 0.9458 0.2258 0.8361 8.6574
CUD-SLN 0.8222 1.5861 0.8935 0.1335 0.9624 12.5234

The release rate of CUD was increased in CUD-SLN compared to free CUD. When F68 was exposed in the dissolution medium, the uniform dispersion of released drug particles in the medium was promoted as a non-ionic surfactant, and increase the solubility of the drug particles, thereby achieving improvement of the cumulative release of CUD-SLN (Arafat et al. 2021). Amorphous forms in the formulation can also ameliorate the release behaviour of the drug (Chono et al. 2008). According to the data obtained from XRD and DSC analysis, the existing form of CUD in CUD-SLN changes from crystalline to amorphous. Amorphous forms have large surface energy, which can improve the solubility of CUD-SLN. CUD-SLN showed satisfactory solubility in an aqueous environment (solubility >5 mg/mL at 25 °C), which laid the foundation for increasing the cumulative release.

Pharmacokinetic studies

To study the pharmacokinetic behaviours of CUD-SLN, rats were injected with Cur and CUD-SLN at a dose of 5 mg/kg. As Cur is a water-insoluble drug, the preparation method of paclitaxel injection was used to prepare Cur injection as a control, namely, Cur was dissolved in a mixture of hydrogenated castor oil and ethanol (Rachmawati et al. 2018; Shi et al. 2019). CUD-SLN made from CUD was directly dissolved in normal saline before injecting because its solubility was significantly improved. Since CUD is difficult to dissolve in the above-mentioned solvents, free CUD cannot be effectively applied to injection methods. The purpose of this study was to prolong the duration of the drug action of Cur, and Cur was adopted as a control.

The plasma concentration–time curves are shown in Figure 5. The pharmacokinetic parameters are summarized in Table 6. When Cur was injected into the rat tail vein, the drug concentration did not peak immediately. The maximum concentration of Cur appeared later than expected, which could be related to the slow release of castor oil (Rachmawati et al. 2018). A significant difference was observed between Cur and CUD-SLN in a pharmacokinetic behaviour. The AUC0–t of CUD-SLN was 170.475 mg/L × h, which was 37.01-fold higher than that of Cur (4.605 mg/L × h), and was significantly increased. The clearance value of CUD-SLN in rats was 0.287 L/h/kg, which was nearly 35.67-fold lower than that of Cur (10.237 L/h/kg) (p < 0.05). In addition, the half-life (t1/2) of CUD-SLN was 14.774 h, which was about 2.64-fold that of Cur (5.6 h), and was significantly increased. Combined, these results indicated that the drug content in plasma was increased and that the existence of drugs in the systemic circulation was prolonged. This might be due to the physical and chemical properties of SLN, such as proper particle size and zeta potential, which reduced the uptake of macrophages by the mononuclear phagocytic system and increased delivery to target tissues (Li HJ et al. 2016; Kang et al. 2017). Cur-SLN with the use of HSPC as a membrane material has been reported. Compared with Cur, the AUC0–t only increased 9.02-fold after injection, while the AUC0–t of CUD-SLN increased 37.01-fold (Feng X et al. 2020). We speculate that the great stability of CUD also plays an important role in prolonging the duration of drug action.

Figure 5.

Figure 5.

The plasma concentration–time curves of Cur and CUD-SLN (n = 5).

Table 6.

The pharmacokinetic parameters of Cur and CUD-SLN.

Parameters Cur CUD-SLN
AUC0–t (mg/L*h) 4.605 170.475
AUC0–∞ (mg/L*h) 4.884 174.245
MRT0–t (h) 9.529 7.736
MRT0–∞ (h) 10.817 9.328
t1/2z (h) 5.600 14.774
tmax (h) 6.00 0.033
CLz (L/h/kg) 10.237 0.287
Cmax (mg/L) 0.332 90.729

AUC0–t: area under the curve for 0 h to last time point; AUC0–∞: area under the whole curve; MRT0–t: mean retention time for 0 h to last time point; MRT0–∞: mean retention time for the whole curve; t1/2z: half-life time; tmax: time to reach Cmax; CLz: clearance; Cmax: maximum drug concentration in plasma.

Conclusions

The purpose of this study was to prolong the duration of drug action of Cur. In this study, CUD was used as the model drug, and F68 and HSPC were chosen as carriers to develop CUD-SLN. The results indicated that CUD-SLN has satisfactory solubility, release behaviour and pharmacokinetic behaviour. Therefore, CUD-SLN is a promising preparation for Cur in improving the stability in vivo and prolonging the duration of drug action. The study offers a methodology for the pharmaceutics research of Cur or flavonoid drugs. The efficacy of CUD-SLN warrants further investigation.

Funding Statement

This study was supported by the central government guides the local science and technology development special fund (No. 22ZYZYTS0175), the Major R&D Plan Joint Innovation Project (Nos. 22ZDYF3793 and 22ZDYF3798), the Youth Science and Technology Innovation Research Team (No. 2021JDTD0008) and the Basic Research fund (No. 2020YJ0336) of the Science and Technology Department of Sichuan province of China, the Science and Technology Innovation Team from Jiucheng Science and Technology Talent Cultivation Plan in Luzhou (No. 2019-1), Key Research and Development Projectors of Luzhou (No. 2021-SYF-26), the cooperation Project (Nos. 210027-01SZ and 200017-01SZ) of Central Nervous System Drug Key Laboratory of Sichuan Province

Author contributions

Yumeng Wei and Ling Zhao contributed to the conception of the study; Chenglin Zhan, Jiyuan Yuan and Mingtang Zeng performed the experiment; Ke Li and Xinjie Song contributed to analysis and manuscript preparation; Wenmei Zhao, Jie Wen and Yuxun Wei performed the data analyses and wrote the manuscript; Zhilian Su, Chao Pi, Fengjuan Pi and Zerong Liu helped perform the analysis with constructive discussions. Robert J. Lee mainly contributed to the revision of this paper.

Disclosure statement

The authors declare that they have no conflicts of interest in this work.
