. 2022 Nov 30;12(53):34282–34292. doi: 10.1039/d2ra05655k

A convenient catalytic method for preparation of new tetrahydropyrido[2,3-d]pyrimidines via a cooperative vinylogous anomeric based oxidation†

Hassan Sepehrmansourie 1, Sima Kalhor 1, Mahmoud Zarei 2,✉, Mohammad Ali Zolfigol 1,✉, Mojtaba Hosseinifard 3
PMCID: PMC9709663  PMID: 36545580

Abstract

In this study, a novel functionalized metal–organic frameworks MIL-125(Ti)-N(CH2PO3H2)2 was designed and synthesized via post-modification methodology. Then, MIL-125(Ti)-N(CH2PO3H2)2 as a mesoporous catalyst was applied for the synthesis of a wide range of novel tetrahydropyrido[2,3-d]pyrimidines as bioactive candidate compounds by one-pot condensation reaction of 3-(1-methyl-1H-pyrrol-2-yl)-3-oxopropanenitrile, 6-amino-1,3-dimethylpyrimidine-2,4(1H,3H)-dione and aromatic aldehydes at 100 °C under solvent-free condition. Interestingly, the preparation of tetrahydropyrido[2,3-d]pyrimidine was achieved via vinylogous anomeric based oxidation mechanism with a high yield and short reaction time.

In this study, a novel functionalized metal–organic frameworks MIL-125(Ti)-N(CH2PO3H2)2 was designed and synthesized via post-modification methodology and applicated this catalyst for preparation of new tetrahydropyrido[2,3-d]pyrimidines.graphic file with name d2ra05655k-ga.jpg

1. Introduction

Nowadays, metal–organic frameworks (MOFs) have been known as a unique type of porous solid materials, because they have been utilized in different fields such as drug delivery, catalyst, photocatalyst, battery, super capacitor, sensor, gas storage, separation and adsorption of molecules.1–3 These materials consist of multifunctional organic materials bound to metal or metal clusters through coordinated components such as carboxylates to form crystalline materials with high surface area and high thermal stability.4–8 Among them, the post-modification of metal–organic frameworks can be carried out with metal, acid and basic groups for preparation of biological molecules, which make motivational enzymes attractive for catalytic processes.9–11 Thus, post-modification improves the performance of the structure of metal–organic frameworks (MOFs) by applying changes in surface, pore size, thermal and chemical stability.12–14 The structure of titanium (Ti) based metal–organic frameworks is shown in Fig. 1.15 The research team developed post-modification of metal–organic frameworks based on Cr, Al and Zr,16–20 glycoluril,21 mesoporous materials (SBA-15),22 melamine,23 and carbon quantum dots (CQDs)24 with phosphorus acid tags as a porous catalyst for the preparation of biological compounds.

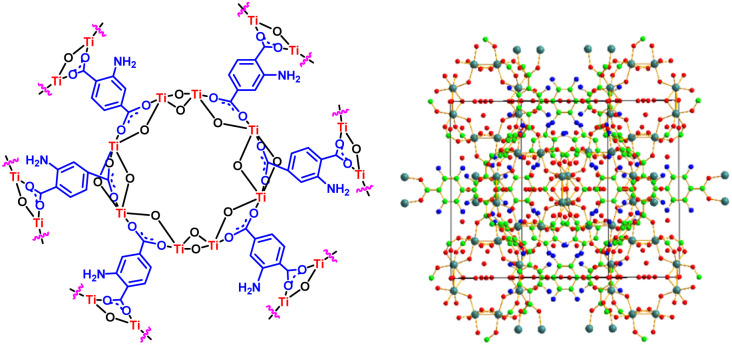

Fig. 1. Structure of titanium-based metal–organic frameworks MIL-125(Ti)-NH2.

Fig. 1

Open in a new tab

Heterocyclic compounds containing N and/or O heteroatoms show biological properties.25,26 Therefore, the attention of many scientists has been attracted to the synthesis of these compounds. Amongst them, pyrido[2,3-d]pyrimidines are a well-known group of these compounds that show great importance of biological properties like adenosine kinase inhibitors, anti-tumor, antifungal, antibacterial, anti-proliferative CDK2 inhibitor, antipyretic, anticonvulsant agents, and analgesic while being used in CNS depressant activity (Fig. 2).27–31 The “anomeric effect” (AE) explains stereo-electronic interactions in the synthesis of molecules containing at least one heteroatom.32 The term cooperative anomeric effect has been introduced for electron sharing from two and/or more heteroatoms lone pairs to one acceptor antibonding orbital another atom. When anomeric effect developed via double bonds has been named “vinylogous anomeric effect”. The “geminal anomeric effect” is compared with vinylogous anomeric effect (Fig. 3). In fact, the cooperative vinylogous anomeric effect is introduced for electron sharing via double bonds. Conversely, the geminal anomeric effect is introduced for electron donating and accepting from vicinal atoms.33 Recently, we have introduced a new concept entitled “cooperative vinylogous anomeric based oxidation” for the synthesis of heterocycle compounds via a susceptible intermediate in the course of reaction.34 In addition, this key phenomenon is observed in the oxidation/reduction mechanism and hydride transfer from NADPH/NADP+ and/or NADH/NAD+ systems.35–37

Fig. 2. Structure of pyrido[2,3-d]pyrimidines as a pharmacological candidate.

Fig. 2

Open in a new tab

Fig. 3. Comparison of geminal and vinylogues anomeric effect.

Fig. 3

Open in a new tab

Herein, based on the approach of post-modification, we have designed and synthesized novel MIL-125(Ti)-N(CH2PO3H2)2 as an efficient functionalized catalyst. This catalyst was tested for the preparation of novel tetrahydropyrido[2,3-d]pyrimidines by one-pot condensation reaction of aldehydes, 6-amino-1,3-dimethylpyrimidine-2,4(1H,3H)-dione and 3-(1-methyl-1H-pyrrol-2-yl)-3-oxopropanenitrile via a cooperative vinylogous anomeric based oxidation mechanism (Scheme 1).

Scheme 1. Synthesis of novel tetrahydropyrido[2,3-d]pyrimidines using MIL-125(Ti)-N(CH2PO3H2)2 as a porous catalyst.

Scheme 1

Open in a new tab

2. Experimental

2.1. Materials and methods

All materials and solvents such as 2-amino terephthalic acid (NH2-H2BDC) (Merck, 95%), DMF (Merck, 99%), titanium tetraisopropanolate (TTIP) (Aldrich, 99.8%), methanol (Merck, 96%), ethanol (Merck, 99%), paraformaldehyde, phosphorous acid, p-toluene sulfonic acid (p-TSA), 6-amino-1,3-dimethylpyrimidine-2,4(1H,3H)-dione1-methyl-1H-pyrrole (Merck, 96%), 2-cyanoacetic acid were purchased and used without further purification.

2.2. Instrumental techniques

The (FT-IR) technique model device, (PerkinElmer Spectrum Version 10.02.00) was used to identify the functional groups. The morphology and microstructure of the different stages of synthesized catalyst were characterized using a SEM technique (TESCAN MIRA-II (Czechia)). EDS was carried out by the model (TESCAN MIRA-II (Czechia)). The thermal stability of the prepared porous catalyst was determined by a thermogravimetric analyzer/derivative thermogravimetry (TGA/DTG, TGA2, Mettler Toledo) at a heating rate of 10 °C min−1 under N2 atmosphere. BET technique with model device (BELSORP-mini-II) was used to determine the surface area and pore size of different stages of the synthesized catalyst and XRD patterns of the different stages synthesized catalyst were detected by X-ray diffractometer (PHILIPS PW1730 (Netherlands)).

2.3. General procedure for the preparation of MIL-125(Ti)-N(CH2PO3H2)2

Firstly, MIL-125(Ti)-NH2 was synthesized according to the literature survey.38 In the following, a mixture of MIL-125(Ti)-NH2, (0.5 g), paraformaldehyde (3 mmol, 0.09 g), phosphorous acid (2 mmol, 0.164 g) and p-TSA (0.02 g) was refluxed in EtOH (50 mL) as a solvent for 12 h. After this time, the obtained solid was filtered by centrifugation (1000 rpm, 10 min), and washed with EtOH (2 × 10 mL) at room temperature. The precipitate was dried under vacuum oven at 80 °C for 12 h to give MIL-125(Ti)-N(CH2PO3H2)2 (Scheme 2).

Scheme 2. Synthesis of MIL-125(Ti)-NH2 and MIL-125(Ti)-N(CH2PO3H2)2.

Scheme 2

Open in a new tab

2.4. General procedure for the synthesis of novel tetrahydropyrido[2,3-d]pyrimidines using MIL-125(Ti)-N(CH2PO3H2)2 as a porous catalyst

Initially, 3-(1-methyl-1H-pyrrol-2-yl)-3-oxopropanenitrile was prepared according to the literature survey (Scheme 3).39 Then, in a 25 mL round-bottomed flask a mixture of aryl aldehydes (1 mmol), 6-amino-1,3-dimethylpyrimidine-2,4(1H,3H)-dione (1 mmol, 0.155 g), 3-(1-methyl-1H-pyrrol-2-yl)-3-oxopropanenitrile (1 mmol, 0.148 g) and MIL-125(Ti)-N(CH2PO3H2)2 (10 mg) as a porous catalyst was stirred at 100 °C under solvent-free condition. After the completion of the reactions which were monitored by the TLC technique (n-hexane : ethyl acetate; 7 : 3). Then, the described catalyst was separated from the reaction mixture by centrifugation (1000 rpm) after adding hot EtOH (20 mL) as a solvent. Finally, after the evaporation of the solvent at room temperature, the pure product was obtained by washing with hot ethanol and water (Scheme 3).

Scheme 3. Preparation of 3-(1-methyl-1H-pyrrol-2-yl)-3-oxopropanenitrile.

Scheme 3

Open in a new tab

2.5. Spectral data

2.5.1. 5-(4-Chlorophenyl)-1,3-dimethyl-7-(1-methyl-1H-pyrrol-2-yl)-2,4-dioxo-1,2,3,4 tetrahydropyrido[2,3-d]pyrimidine-6-carbonitrile (A1)

Yellow solid; mp: 248–250 °C; FT-IR (KBr, cm−1): 3113, 2998, 2949, 2219, 1709, 1663. 1H NMR (400 MHz, DMSO-d6) δppm 7.56 (d, J = 8.5 Hz, 2H), 7.37 (d, J = 8.5 Hz, 2H), 7.25 (t, J = 1.6 Hz, 1H), 7.20 (dd, J = 4.1, 1.6 Hz, 1H), 6.26 (dd, J = 4.1, 2.5 Hz, 1H), 4.01 (s, 3H), 3.65 (s, 3H), 3.16 (s, 3H).

2.5.2. 1,3-Dimethyl-7-(1-methyl-1H-pyrrol-2-yl)-2,4-dioxo-5-(p-tolyl)-1,2,3,4-tetrahydropyrido[2,3-d]pyrimidine-6-carbonitrile (A2)

Yellow solid; mp: 228–230 °C; FT-IR (KBr, cm−1): 3123, 2960, 2873, 2220, 1717, 1674. 1H NMR (400 MHz, DMSO-d6) δppm 7.39 (d, J = 7.9 Hz, 2H), 7.34 (t, J = 1.6 Hz, 1H), 7.32 (s, 1H), 7.31–7.28 (m, 2H), 6.36 (dd, J = 4.0, 2.6 Hz, 1H), 4.11 (s, 3H), 3.75 (s, 3H), 3.26 (s, 3H), 2.52 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δppm 158.8, 158.54, 154.4, 151.8, 150.6, 137.7, 133.7, 130.7, 128.4, 127.4, 127.2, 117.2, 117.0, 108.2, 104.9, 101.6, 37.30, 30.32, 28.11, 20.95.

2.5.3. 5-(4-Methoxyphenyl)-1,3-dimethyl-7-(1-methyl-1H-pyrrol-2-yl)-2,4-dioxo-1,2,3,4-tetrahydropyrido[2,3-d]pyrimidine-6-carbonitrile (A3)

Yellow solid; mp: 230–233 °C; FT-IR (KBr, cm−1): 3369, 3142, 2981, 2219, 1709, 1662. 1H NMR (400 MHz, DMSO-d6) δppm 7.27 (d, J = 8.7 Hz, 2H), 7.24 (t, J = 1.6 Hz, 1H), 7.19 (dd, J = 4.0, 1.6 Hz, 1H), 7.03 (d, J = 8.7 Hz, 2H), 6.25 (dd, J = 4.0, 2.6 Hz, 1H), 4.01 (s, 3H), 3.85 (s, 3H), 3.65 (s, 3H), 3.17 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δppm 159.4, 158.6, 158.6, 154.4, 151.9, 150.6, 130.7, 129.2, 128.5, 127.2, 117.2, 117.2, 113.2, 108.2, 104.9, 101.8, 55.0, 37.3, 30.3, 28.1.

2.5.4. 1,3-Dimethyl-7-(1-methyl-1H-pyrrol-2-yl)-2,4-dioxo-5-phenyl-1,2,3,4-tetrahydropyrido[2,3-d]pyrimidine-6-carbonitrile (A4)

Yellow solid; mp: 228–230 °C; FT-IR (KBr, cm−1): 3116, 2951, 2213, 1714, 1670. 1H NMR (400 MHz, DMSO-d6) δppm 7.50–7.46 (m, 3H), 7.32 (dd, J = 6.6, 2.9 Hz, 2H), 7.24 (t, J = 1.6 Hz, 1H), 7.19 (dd, J = 4.1, 1.6 Hz, 1H), 6.26 (dd, J = 4.0, 2.6 Hz, 1H), 4.02 (s, 3H), 3.66 (s, 3H), 3.16 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δppm 158.6, 158.5, 154.4, 151.8, 150.7, 136.7, 130.8, 128.4, 127.8, 127.4, 127.2, 117.2, 116.9, 108.3, 104.8, 101.5, 37.3, 30.3, 28.1.

2.5.5. 1,3-Dimethyl-7-(1-methyl-1H-pyrrol-2-yl)-2,4-dioxo-5-(m-tolyl)-1,2,3,4-tetrahydropyrido[2,3-d]pyrimidine-6-carbonitrile (A5)

Yellow solid; mp: 180–182 °C; FT-IR (KBr, cm−1): 3118, 2920, 2219, 1714, 1668. 1H NMR (400 MHz, DMSO-d6) δppm 7.37 (t, J = 7.6 Hz, 1H), 7.28 (d, J = 7.7 Hz, 1H), 7.24 (t, J = 1.9 Hz, 1H), 7.19 (dd, J = 4.1, 1.7 Hz, 1H), 7.13–7.08 (m, 2H), 6.25 (dd, J = 4.1, 2.5 Hz, 1H), 4.01 (s, 3H), 3.65 (s, 3H), 3.16 (s, 3H), 2.37 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δppm 158.8, 158.4, 154.3, 151.8, 150.7, 136.8, 136.7, 130.7, 129.0, 127.8, 127.6, 127.2, 124.5, 117.2, 116.9, 108.3, 104.8, 101.5, 37.3, 30.3, 28.1, 21.0.

2.5.6. 5-(4-Fluorophenyl)-1,3-dimethyl-7-(1-methyl-1H-pyrrol-2-yl)-2,4-dioxo-1,2,3,4-tetrahydropyrido[2,3-d]pyrimidine-6-carbonitrile (A6)

Yellow solid; mp: 289–290 °C; FT-IR (KBr, cm−1): 3119, 2955, 2213, 1716, 1662. 1H NMR (400 MHz, DMSO-d6) δppm 7.41–7.37 (m, 2H), 7.35–7.30 (m, 2H), 7.25 (t, J = 1.7 Hz, 1H), 7.20 (dd, J = 4.1, 1.7 Hz, 1H), 6.26 (dd, J = 4.1, 2.5 Hz, 1H), 4.01 (s, 3H), 3.66 (s, 3H), 3.17 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δppm 163.4, 161.0, 158.6, 157.7, 154.3, 151.8, 150.6, 133.0, 130.9, 129.9, 127.2, 117.3, 117.0, 115.0, 114.8, 108.3, 105.0, 101.6, 37.3, 30.3, 28.1.

2.5.7. 5-(4-Hydroxyphenyl)-1,3-dimethyl-7-(1-methyl-1H-pyrrol-2-yl)-2,4-dioxo-1,2,3,4-tetrahydropyrido[2,3-d]pyrimidine-6-carbonitrile (A7)

Yellow solid; mp: >300 °C; FT-IR (KBr, cm−1): 3306, 3080, 2942, 2223, 1727, 1653. 1H NMR (400 MHz, DMSO-d6) δppm 9.72 (s, 1H), 7.23 (t, J = 1.6 Hz, 1H), 7.18 (dd, J = 4.1, 1.7 Hz, 1H), 7.14 (d, J = 8.6 Hz, 2H), 6.84 (d, J = 8.6 Hz, 2H), 6.25 (dd, J = 4.0, 2.6 Hz, 1H), 4.00 (s, 3H), 3.64 (s, 3H), 3.17 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δppm 159.1, 158.5, 157.8, 154.4, 151.9, 150.7, 130.6, 129.2, 127.3, 126.8, 117.3, 117.2, 114.6, 108.2, 104.9, 101.9, 37.2, 30.3, 28.

2.5.8. 5-(2-Methoxyphenyl)-1,3-dimethyl-7-(1-methyl-1H-pyrrol-2-yl)-2,4-dioxo-1,2,3,4-tetrahydropyrido[2,3-d]pyrimidine-6-carbonitrile (A8)

Yellow solid; mp: 205–208 °C; FT-IR (KBr, cm−1): 3447, 2219, 1718, 1665. 1H NMR (400 MHz, DMSO-d6) δppm 7.24–7.14 (t, J = 7.1 Hz, 1H), 7.18 (m, 4H), 7.10–7.03 (m, 1H), 6.25 (s, 1H), 4.02 (s, 3H), 3.73 (s, 3H), 3.65 (s, 3H), 3.17 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δppm 158.3, 156.3, 155.5, 154.4, 151.8, 150.6, 130.8, 130.2, 128.5, 127.2, 125.5, 120.3, 117.1, 116.9, 111.1, 108.3, 105.3, 101.7, 55.5, 37.4, 30.3, 28.0.

2.5.9. 5-(4-Bromophenyl)-1,3-dimethyl-7-(1-methyl-1H-pyrrol-2-yl)-2,4-dioxo-1,2,3,4-tetrahydropyrido[2,3-d]pyrimidine-6-carbonitrile (A9)

Yellow solid; mp: 266–268 °C; FT-IR (KBr, cm−1): 3116, 2952, 2221, 1715, 1669. 1H NMR (400 MHz, DMSO-d6) δppm 7.70 (d, J = 8.4 Hz, 2H), 7.30 (d, J = 8.5 Hz, 2H), 7.25 (t, J = 1.7 Hz, 1H), 7.20 (dd, J = 4.1, 1.7 Hz, 1H), 6.26 (dd, J = 4.1, 2.5 Hz, 1H), 4.01 (s, 3H), 3.65 (s, 3H), 3.16 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δppm 158.6, 157.3, 154.4, 151.8, 150.6, 136.0, 130.9, 130.9, 129.7, 127.2, 122.0, 117.3, 116.9, 108.4, 104.7, 101.2, 37.3, 30.3, 28.1.

2.5.10. 1,3-Dimethyl-7-(1-methyl-1H-pyrrol-2-yl)-5-(4-nitrophenyl)-2,4-dioxo-1,2,3,4-tetrahydropyrido[2,3-d]pyrimidine-6-carbonitrile (A10)

Yellow solid; mp: 233–235 °C; FT-IR (KBr, cm−1): 3427, 2948, 2219, 1712, 1664. 1H NMR (400 MHz, DMSO-d6) δppm 8.37 (d, J = 8.8 Hz, 2H), 7.66 (d, J = 8.8 Hz, 2H), 7.27 (t, J = 1.6 Hz, 1H), 7.22 (dd, J = 4.1, 1.6 Hz, 1H), 6.27 (dd, J = 4.1, 2.5 Hz, 1H), 4.03 (s, 3H), 3.67 (s, 3H), 3.16 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δppm 158.7, 156.3, 154.4, 151.8, 150.6, 147.4, 143.9, 131.2, 129.1, 127.1, 123.2, 117.5, 116.7, 108.5, 104.6, 100.6, 37.4, 30.3, 28.1.

2.5.11. 5-(2,4-Dichlorophenyl)-1,3-dimethyl-7-(1-methyl-1H-pyrrol-2-yl)-2,4-dioxo-1,2,3,4-tetrahydropyrido[2,3-d]pyrimidine-6-carbonitrile (A11)

Yellow solid; mp: 210–213 °C; FT-IR (KBr, cm−1): 3109, 2942, 2219, 1722, 1659. 1H NMR (400 MHz, DMSO-d6) δppm 7.83 (d, J = 2.0 Hz, 1H), 7.60 (dd, J = 8.3, 2.0 Hz, 1H), 7.40 (d, J = 8.3 Hz, 1H), 7.28 (t, J = 1.7 Hz, 1H), 7.24 (dd, J = 4.1, 1.7 Hz, 1H), 6.28 (dd, J = 4.1, 2.5 Hz, 1H), 4.04 (s, 3H), 3.66 (s, 3H), 3.18 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δppm 158.4, 154.5, 154.5, 151.9, 150.5, 134.9, 134.1, 131.7, 131.4, 130.4, 128.6, 127.5, 127.0, 117.5, 116.4, 108.6, 104.8, 100.6, 37.5, 30.3, 28.1.

2.5.12. 5-(3-Hydroxyphenyl)-1,3-dimethyl-7-(1-methyl-1H-pyrrol-2-yl)-2,4-dioxo-1,2,3,4-tetrahydropyrido[2,3-d]pyrimidine-6-carbonitrile (A12)

Yellow solid; mp: 156–158 °C; FT-IR (KBr, cm−1): 3116, 2945, 2216, 1714, 1667. 1H NMR (400 MHz, DMSO-d6) δppm 9.58 (s, 1H), 7.26 (dd, J = 13.4, 5.2 Hz, 2H), 7.18 (dd, J = 4.1, 1.6 Hz, 1H), 6.85 (dd, J = 8.1, 1.7 Hz, 1H), 6.71–6.66 (m, 2H), 6.25 (dd, J = 4.0, 2.5 Hz, 1H), 4.01 (s, 3H), 3.65 (s, 3H), 3.17 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δppm 158.6, 158.3, 156.8, 154.3, 151.8, 150.7, 137.9, 130.7, 129.1, 127.2, 117.9, 117.2, 116.9, 115.3, 114.2, 108.3, 104.8, 101.4, 37.3, 30.3, 28.1.

2.5.13. 5-(2-Chlorophenyl)-1,3-dimethyl-7-(1-methyl-1H-pyrrol-2-yl)-2,4-dioxo-1,2,3,4-tetrahydropyrido[2,3-d]pyrimidine-6-carbonitrile (A13)

Yellow solid; mp: >300 °C; FT-IR (KBr, cm−1): 3113, 2949, 2998, 2219, 1709, 1663. 1H NMR (400 MHz, DMSO-d6) δppm 7.63–7.60 (m, 1H), 7.54–7.45 (m, 2H), 7.34 (dd, J = 7.4, 1.8 Hz, 1H), 7.28 (t, J = 1.6 Hz, 1H), 7.22 (dd, J = 4.1, 1.6 Hz, 1H), 6.28 (dd, J = 4.1, 2.5 Hz, 1H), 4.04 (s, 3H), 3.67 (s, 3H), 3.17 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δppm 158.3, 155.6, 154.5, 151.9, 150.5, 135.8, 131.2, 130.4, 130.2, 129.0, 128.9, 127.2, 127.0, 117.4, 116.4, 108.54, 37.5, 30.3, 28.1.

2.5.14. 5-(4-Isopropylphenyl)-1,3-dimethyl-7-(1-methyl-1H-pyrrol-2-yl)-2,4-dioxo-1,2,3,4-tetrahydropyrido[2,3-d]pyrimidine-6-carbonitrile (A14)

Yellow solid; mp: 190–192 °C; FT-IR (KBr, cm−1): 3110, 2955, 2853, 2219, 1712, 1663. 1H NMR (400 MHz, DMSO-d6) δppm 7.35 (d, J = 8.1 Hz, 2H), 7.27–7.23 (m, J = 8.0 Hz, 3H), 7.18 (dd, J = 4.1, 1.6 Hz, 1H), 6.25 (dd, J = 4.0, 2.6 Hz, 1H), 4.01 (s, 3H), 3.65 (s, 3H), 3.16 (s, 3H), 2.99 (hep, J = 6.9 Hz, 1H), 1.29 (d, J = 6.9 Hz, 6H). 13C NMR (101 MHz, DMSO-d6) δppm 158.8, 158.5, 154.4, 151.9, 150.7, 148.4, 134.0, 130.7, 127.5, 127.2, 125.7, 117.2, 117.0, 108.3, 104.9, 101.6, 37.2, 33.1, 30.3, 28.1, 23.7.

2.5.15. 5-(3-Ethoxy-4-hydroxyphenyl)-1,3-dimethyl-7-(1-methyl-1H-pyrrol-2-yl)-2,4-dioxo-1,2,3,4-tetrahydropyrido[2,3-d]pyrimidine-6-carbonitrile (A15)

Yellow solid; mp: 246–248 °C; FT-IR (KBr, cm−1): 3106, 3060, 2942, 2218, 1715, 1670. 1H NMR (400 MHz, DMSO-d6) δppm 9.21 (s, 1H), 7.23 (t, J = 1.9 Hz, 1H), 7.18 (dd, J = 4.0, 1.6 Hz, 1H), 6.93–6.85 (m, 2H), 6.74 (dd, J = 8.1, 1.9 Hz, 1H), 6.25 (dd, J = 4.0, 2.6 Hz, 1H), 4.04–3.98 (m, 5H), 3.64 (s, 3H), 3.17 (s, 3H), 1.33 (t, J = 6.9 Hz, 3H). 13C NMR (101 MHz, DMSO-d6) δppm 158.9, 158.5, 154.3, 151.8, 150.7, 147.3, 145.9, 130.6, 127.3, 127.2, 120.7, 117.3, 117.2, 115.0, 113.7, 108.2, 105.0, 101.9, 63.8, 37.2, 30.3, 28.1, 14.5.

2.5.16. 1,3-Dimethyl-7-(1-methyl-1H-pyrrol-2-yl)-5-(naphthalen-1-yl)-2,4-dioxo-1,2,3,4-tetrahydropyrido[2,3-d]pyrimidine-6-carbonitrile (A16)

Yellow solid; mp: 212–214 °C; FT-IR (KBr, cm−1): 3113, 2945, 2219, 1709, 1663. 1H NMR (400 MHz, DMSO-d6) δppm 8.04 (d, J = 8.3 Hz, 2H), 7.65–7.60 (m, 1H), 7.57–7.53 (m, 1H), 7.43 (d, J = 3.8 Hz, 2H), 7.39 (dd, J = 7.0, 0.7 Hz, 1H), 7.26 (t, J = 1.6 Hz, 1H), 7.18 (dd, J = 4.1, 1.6 Hz, 1H), 6.25 (dd, J = 4.1, 2.5 Hz, 1H), 4.07 (s, 3H), 3.71 (s, 3H), 3.07 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δppm 158.4, 150.7, 136.8, 134.2, 130.7, 128.6, 127.7, 127.2, 126.2, 118.6, 117.2, 108.9, 108.3, 104.9, 37.2, 30.3, 28.1.

2.5.17. 5,5′-(1,4-Phenylene)bis(1,3-dimethyl-7-(1-methyl-1H-pyrrol-2-yl)-2,4-dioxo-1,2,3,4-tetrahydropyrido[2,3-d]pyrimidine-6-carbonitrile) (A17)

Yellow solid; mp: >300 °C; FT-IR (KBr, cm−1): 2951, 2928, 2216, 1716, 1667. 1H NMR (400 MHz, DMSO-d6) δppm 7.46 (s, 4H), 7.26–7.23 (m, J = 3.7 Hz, 4H), 6.28–6.25 (m, 2H), 4.03 (s, 6H), 3.68 (s, 6H), 3.23 (s, 3H), 3.18 (s, 3H). 13C NMR (101 MHz, DMSO-d6) δppm 155.1, 154.9, 153.1, 152.2, 151.4, 150.9, 143.5, 131.8, 131.7, 131.3, 131.0, 128.2, 127.2, 117.9, 117.6, 116.9, 115.9, 108.7, 108.4, 107.8, 106.5, 104.3, 99.7, 98.6, 37.8, 37.4, 30.4, 29.7, 28.1.

3. Results and discussion

Development of “anomeric based oxidation” concept, from synthesis of heterocycle compounds via a susceptible intermediate in the course of reaction is our main research demand because this key phenomenon is observed in the oxidation/reduction mechanism and hydride transfer from NADPH/NADP+ and/or NADH/NAD+ biological systems.35–37 With this aim, the described porous metal–organic framework containing phosphorous acid groups MIL-125(Ti)-N(CH2PO3H2)2 as a porous catalyst was synthesized and applied for the preparation of tetrahydropyrido[2,3-d]pyrimidines via a cooperative vinylogous anomeric based oxidation mechanism. To shed light on more details, the structure of MIL-125(Ti)-N(CH2PO3H2)2 as a porous material catalyst was thoroughly approved by various analyses; FT-IR, X-ray diffraction analysis (XRD), energy-dispersive X-ray spectroscopy (EDX), scanning electron microscope (SEM), N2 absorption and desorption, thermal gravimetric (TGA) and derivative thermogravimetry (DTG).

FT-IR analysis of MIL-125(Ti)-NH2 and MIL-125(Ti)-N(CH2PO3H2)2 were compered in Fig. 4. The bands at 3384 and 3462 cm−1 indicates the symmetric and asymmetric vibrations of the NH2 groups in MIL-125(Ti)-NH2. The broad peak at 2800–3600 cm−1 is related to the OH of PO3H2 functional groups in MIL-125(Ti)-N(CH2PO3H2)2. The absorption bands at 1659 cm−1 in MIL-125(Ti)-NH2 are assigned to C Created by potrace 1.16, written by Peter Selinger 2001-2019 O bond stretching of carboxylic acid group. Also, the absorption bands at 1031 and 1086 cm−1 are assigned to P–O bond stretching. Furthermore, the absorption band at 775 cm−1 is related to Ti metal. The changes between the FT-IR spectrums of MIL-125(Ti)-NH2 and MIL-125(Ti)-N(CH2PO3H2)2 verified the successful post-modification.

Fig. 4. FT-IR spectra of MIL-125(Ti)-NH2 and MIL-125(Ti)-N(CH2PO3H2)2 as a porous catalyst.

Fig. 4

Open in a new tab

The XRD patterns of MIL-125(Ti)-NH2 and MIL-125(Ti)-N(CH2PO3H2)2 were described in Fig. 5. As shown in Fig. 5, the pattern of peak of MIL-125(Ti)-NH2 is similar to the literature references.40–42 Also, the XRD results of post-modification with phosphorous acid groups is almost unchanged with MIL-125(Ti)-NH2. According to the XRD profile, the morphology and structure of the catalyst remained constant at different stages of synthesis.

Fig. 5. XRD patterns of MIL-125(Ti)-NH2 and MIL-125(Ti)-N(CH2PO3H2)2 as a porous catalyst.

Fig. 5

Open in a new tab

The crystal scaffolds of MIL-125(Ti)-NH2 and MIL-125(Ti)-N(CH2PO3H2)2 were checked out by energy dispersive X-ray analysis (EDX) (Fig. 6). According to the EDX analysis approved the existence elements structure of C, N, and Ti in MIL-125(Ti)-NH2 and P, O, N, and Ti in MIL-125(Ti)-N(CH2PO3H2)2 respectively.

Fig. 6. EDX analysis of MIL-125(Ti)-NH2 and MIL-125(Ti)-N(CH2PO3H2)2 as a porous catalyst.

Fig. 6

Open in a new tab

In another study, the morphology of MIL-125(Ti)-NH2 and its post-modification were investigated by scanning electron microscope (SEM) (Fig. 7). As shown in Fig. 7a–c, the uniform tablet-like form and smooth surface shape of MIL-125(Ti)-NH2 exhibit, which is similar to the literature reference.40 Also, the morphology of MIL-125(Ti)-NH2 after post-modification with phosphorus acid tags is unchanged and stable (Fig. 7d–f). As shown, the obtained XRD pattern confirmed the resulting image from SEM analysis.

Fig. 7. SEM images of MIL-125(Ti)-NH2 (a–c) and MIL-125(Ti)-N(CH2PO3H2)2 (d–f) as a porous catalyst.

Fig. 7

Open in a new tab

The textural properties of MIL-125(Ti)-NH2 and MIL-125(Ti)-N(CH2PO3H2)2 were studied by N2 adsorption–desorption isotherms (Fig. 8a). The absence of the hysteresis loop indicates the absence of mesoporous in the samples. The calculated surface areas based on the BET equation are 1328 and 554 m2 g−1 for MIL-125(Ti)-NH2 and MIL-125(Ti)-N(CH2PO3H2)2 respectively. Furthermore, the total pore volumes for these samples are 0.5663 cm3 g−1 and 0.3856 cm3 g−1, respectively. The pore size distribution of both MIL-125(Ti)-NH2 and MIL-125(Ti)-N(CH2PO3H2)2 based on the BJH method are shown in (Fig. 8b). As shown in this figure the pore size of both samples are less than 2 nm revealing the presence of micropores in the samples.

Fig. 8. N2 absorption–desorption isotherm and pore size distribution based on BJH method for MIL-125(Ti)-NH2 (▲) and MIL-125(Ti)-N(CH2PO3H2)2 (■) as a porous catalyst.

Fig. 8

Open in a new tab

In another investigation, thermal gravimetric (TG) and derivative thermogravimetry (DTG) were applied for thermal and behavioral stability of MIL-125(Ti)-N(CH2PO3H2)2 (Fig. 9). According to Fig. 9, the weight loss around 25–100 °C is related to the evaporation and removal solvents (organic and H2O) in the synthesis of the catalyst. Also, the weight loss around 450 °C is suggested to the decomposition and breaking of organic section (bond of N–C–PO3H2) of metal–organic frameworks (MOFs). Therefore, obtained data show thermal stability excellent of MIL-125(Ti)-N(CH2PO3H2)2, which can be used as a porous catalyst for organic reaction.

Fig. 9. TG and DTG analysis of MIL-125(Ti)-N(CH2PO3H2)2 as a porous catalyst.

Fig. 9

Open in a new tab

After the design, preparation, and characterization of MIL-125(Ti)-N(CH2PO3H2)2 as an acidic catalyst, the catalytic behavior of novel porous metal–organic framework was examined in the synthesis of tetrahydropyrido[2,3-d]pyrimidine derivatives via a cooperative vinylogous anomeric based oxidation. The above-mentioned catalyst was achieved one pat reaction of 4-choloro benzaldehyde (1 mmol, 0.140 g), 6-amino-1,3-dimethylpyrimidine-2,4(1H,3H)-dione (1 mmol, 0.155 g) and 3-(1-methyl-1H-pyrrol-2-yl)-3-oxopropanenitrile (1 mmol, 0.148 g) as a model reaction. The optimized reaction data is listed in Table 1. In this table, the model reaction was studied by using several solvents such as H2O, EtOH, CH2Cl2, CHCl3, EtOAc, DMF, MeOH and CH3CN (10 mL) in the presence of 10 mg of MIL-125(Ti)-N(CH2PO3H2)2 under reflux condition (Table 1, entries 10–17). Also, the model reaction was studied by using different amounts of catalysts (Table 1, entry 6–9) and temperatures (Table 1, entry 1–5). Considering the data reaction obtained (yield and time), the best results for the preparation of tetrahydropyrido[2,3-d]pyrimidines were achieved under solvent-free conditions at 100 °C and in the presence of MIL-125(Ti)-N(CH2PO3H2)2 (10 mg) as a porous catalyst (Table 1, entry 2).

Effect of different amounts of catalysts, temperature and solvent (5 mL) in the synthesis of novel tetrahydropyrido[2,3-d]pyrimidines.

graphic file with name d2ra05655k-u1.jpg
Entry Solvent Catalyst (mg) Temp. (°C) Time (min) Yield (%)
1 — 10 110 40 83
2 — 10 100 35 90
3 — 10 90 50 82
4 — 10 50 100 30
5 — 10 25 120 —
6 — 20 100 35 85
7 — 15 100 40 70
8 — 5 100 100 55
9 — — 100 180 —
10 H2O 10 Reflux 180 —
11 EtOH 10 Reflux 100 70
12 CH2Cl2 10 Reflux 180 —
13 CHCl3 10 Reflux 100 —
14 EtOAc 10 Reflux 120 10
15 DMF 10 100 150 72
16 MeOH 10 Reflux 120 45
17 CH3CN 10 Reflux 120 55
Open in a new tab

After optimizing the reaction conditions for the preparation of novel tetrahydropyrido[2,3-d]pyrimidines, the performance and application of MIL-125(Ti)-N(CH2PO3H2)2 as a porous metal–organic framework catalyst was further evaluated. The obtained results are summarized in Table 2. According to this table, the synthesis of tetrahydropyrido[2,3-d]pyrimidines were carried out under optimal conditions by using various aromatic aldehydes, including electron-bearing groups, electron-accepting groups, and halogen groups. The obtained results show that the yield of the products is high and the time of conducting the experiments is short. These results show the suitable catalytic performance of MIL-125(Ti)-N(CH2PO3H2)2, which can be extended to synthesis other organic compounds.

Synthesis of tetrahydropyrido[2,3-d]pyrimidine derivatives using MIL-125(Ti)-N(CH2PO3H2)2 as a porous catalysta.

graphic file with name d2ra05655k-u2.jpg
Open in a new tab
a

Reaction conditions: a mixture of aryl aldehydes (1 mmol), 6-amino-1,3-climethylpyrimidine-2,4(1H,3H)-dione (1 mmol, 0.155 g), 3-(1-methyl-1H-pyrrol-2-y1)-3-oxopropanenitrile (1 mmol, 0.148 g) and MIL-125(Ti)-N(CH2PO3H2)2 (10 mg) under solvent-free condition at 100 °C.

In the suggested mechanism, the aldehyde is activated by the catalyst and reacts with 3-(1-methyl-1H-pyrrol-2-yl)-3-oxopropanenitrile, which has been converted to its tautomeric form by the catalyst, and intermediate (I) is created. Intermediate (I) as a Michael acceptor is activated by the catalyst and is attacked by the uracil nucleophile. The intermediate (II) produced in this step is converted to intermediate (III) by proton transfer and tautomerization. Intermediate (III) is converted into intermediate (IV) by performing an intramolecular cyclization reaction and losing another H2O molecule. In the next step, intermediate (III) is converted into intermediate (IV) by performing an intramolecular cyclization reaction and losing another H2O molecule. In the next step, intermediate (IV) via “a cooperative geminal-vinylogous anomeric affect” through simultaneously electron sharing from phenyl group and lone pair electrons of N atoms through C Created by potrace 1.16, written by Peter Selinger 2001-2019 C bonds into the antibonding of C–H bond causes the releasing of hydride which has been named “cooperative geminal-vinylogous anomeric based oxidation” mechanism in the presence and absence of oxygen pathways A and B in Scheme 4 (in the main manuscript text) respectively. During this mechanism, hydrogen molecule (–H2) or hydrogen peroxide molecule (–H2O2) whose oxygen is supplied from the air is released. The above-mentioned concept has been reviewed comprehensively.34,43 To investigate the activation of aldehyde by catalyst, p-chloro benzaldehyde was activated with MIL-125(Ti) and MIL-125(Ti)-N(CH2PO3H2)2 at room temperature. Then the FT-IR spectra of the reaction mixtures were studied. The absorption band of C Created by potrace 1.16, written by Peter Selinger 2001-2019 O of the p-chloro benzaldehyde at 1692 cm−1 was changed to 1694 and 1702 cm−1 in the presence of MIL-125(Ti) and MIL-125(Ti)-N(CH2PO3H2)2 respectively (Fig. S1, see in ESI†).

Scheme 4. Plausible mechanism in the synthesis of tetrahydropyrido[2,3-d]pyrimidine derivatives.

Scheme 4

Open in a new tab

To evaluate reactivity of catalyst, the reaction of 4-choloro benzaldehyde (1 mmol, 0.140 g), 6-amino-1,3-dimethylpyrimidine-2,4(1H,3H)-dione (1 mmol, 0.155 g) and 3-(1-methyl-1H-pyrrol-2-yl)-3-oxopropanenitrile (1 mmol, 0.148 g) as a model reaction was evaluated by MIL-125(Ti)-N(CH2PO3H2)2 and other catalyst such as organic, inorganic and solid acids (Table 3). As shown in Table 3, the MIL-125(Ti)-N(CH2PO3H2)2 is the best performance for the synthesis of tetrahydropyrido[2,3-d]pyrimidines. Also, the recyclability of MIL-125(Ti)-N(CH2PO3H2)2 was checked out in the model reaction. The results show that the MIL-125(Ti)-N(CH2PO3H2)2 has the potential to be recycled and reused up to 4 times without significant decreasing its catalytic activity (Fig. 10).

Evaluation of various catalyst for the synthesis of novel tetrahydropyrido[2,3-d]pyrimidines in comparison with MIL-125(Ti)-N(CH2PO3H2)2.

Entry Catalysta Amount of catalyst Time (min) Yield (%)
1 p-TSA 10 mol% 100 20
2 NaOH 10 mol% 120 30
3 Et3N 10 mol% 120 25
4 GTMPA21 10 mol% 100 43
5 MIL-53(Al)-N(CH2PO3H2)2 (ref. 18 and 19) 10 mg 60 75
6 CQDs-N(CH2PO3H2)2 (ref. 24) 10 mg 80 60
7 APVPB44 10 mg 120 35
8 GTBSA45 10 mol% 180 65
9 Fe3O4@Co(BDC)-NH2 (ref. 46) 10 mg 110 53
10 [PVI-SO3H]FeCl4 (ref. 47) 10 mg 100 40
11 SSA48,49 10 mg 80 35
12 MIL-125(Ti)-NH2 10 mg 120 52
13 PO3H3 10 mol% 90 40
14 MIL-125(Ti)-N(CH 2 PO 3 H 2 ) 2 this work 10 mg 35 90
Open in a new tab
a

The reaction of 4-choloro benzaldehyde (1 mmol, 0.140 g), 6-amino-1,3-dimethylpyrimidine-2,4(1H,3H)-dione (1 mmol, 0.155 g) and 3-(1-methyl-1H-pyrrol-2-yl)-3-oxopropanenitrile (1 mmol, 0.148 g) at 100 °C under solvent-free condition.

Fig. 10. Reusability of MIL-53(Al)-N(CH2PO3H2)2 for the synthesis of novel tetrahydropyrido[2,3-d]pyrimidines.

Fig. 10

Open in a new tab

4. Conclusions

In this paper, we reported new metal–organic frameworks (MOFs) containing phosphorous acid tags namely MIL-125(Ti)-N(CH2PO3H2)2 as a porous catalyst. This mesoporous catalyst was characterized by several techniques such as FT-IR, EDX, XRD, SEM, N2 adsorption–desorption isotherms, BJH/BJH and TG/DTG analysis. Then, its catalytic application in the synthesis of new series of tetrahydropyrido[2,3-d]pyrimidines via a cooperative vinylogous anomeric-based oxidation mechanism. Easy separation of catalyst from mixture reaction, clean profile of reaction and widespread new synthesis of biologically active with good to excellent yields are most important of described work.

Conflicts of interest

The authors declare no competing financial interests.

Supplementary Material

RA-012-D2RA05655K-s001

Acknowledgments

We thank the Bu-Ali Sina University and Iran National Science Foundation (INSF) (Grant Number: 4012835) for financial support.

†

Electronic supplementary information (ESI) available. See DOI: https://doi.org/10.1039/d2ra05655k
